Product Type	Battery Charger
Brand	EnerGenie
Model	EG-BC-005
Input Voltage	100-240V AC, 50/60Hz
Output Voltage	1.2V DC per slot
Number of Charging Slots	4
Compatible Battery Types	NiMH, NiCd (AA/AAA)
Charging Current	200-500mA per slot (depending on battery)
Charge Control	Automatic with -ΔV detection
LED Indicators	Red charging, green full
Safety Features	Overcharge, short circuit, reverse polarity protection
Dimensions (approx.)	100 x 65 x 30 mm
Weight (approx.)	150 g
Power Cord Length	1.5 m
Operating Temperature	0°C to 40°C
Maintenance	Wipe with dry cloth; do not use liquids
Spare Parts Availability	Not user-serviceable; contact support
Certifications	CE, RoHS

Frequently Asked Questions - EG-BC-005 EnerGenie

What types of batteries can I charge with the EG-BC-005?

The EG-BC-005 is designed for NiMH and NiCd rechargeable batteries in AA and AAA sizes.

How many batteries can I charge at once?

The charger has 4 independent slots, allowing you to charge up to 4 batteries simultaneously.

Does the charger stop automatically when batteries are full?

Yes, it features automatic charge termination using -ΔV detection to prevent overcharging.

Can I charge batteries of different capacities together?

It is recommended to charge batteries of the same type and capacity for optimal performance, but the charger handles mixed sizes.

What do the LED lights indicate?

A red LED indicates charging, while a green LED indicates the battery is fully charged.

Is the charger safe to leave unattended?

Yes, the charger has built-in overcharge, short circuit, and reverse polarity protection, making it safe for unattended use.

What is the charging time for typical AA batteries?

For a standard 2000mAh AA NiMH battery, charging time is approximately 4-6 hours.

Can I charge non-rechargeable batteries?

No, only rechargeable NiMH or NiCd batteries should be used. Charging alkaline batteries can cause leakage or explosion.

How do I clean the charger?

Unplug the charger and wipe it with a soft, dry cloth. Do not use water or cleaning solvents.

The charger is not working. What should I check?

Ensure the power cord is plugged in, the batteries are inserted correctly, and the contacts are clean. If issues persist, contact EnerGenie support.

USER MANUAL EG-BC-005 EnerGenie

EG-BC-005 QUICK BATTERY CHARGER

USER MANUAL

HANDBUCH

HANDLEIDING

MANUEL DESCRIPTIF

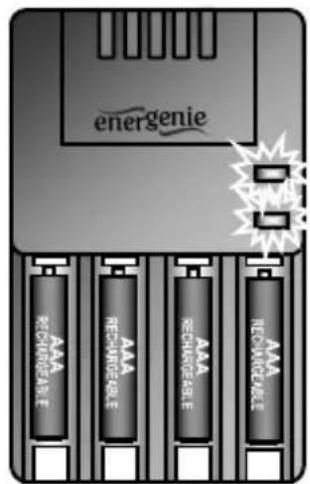

Quick battery charger

Features

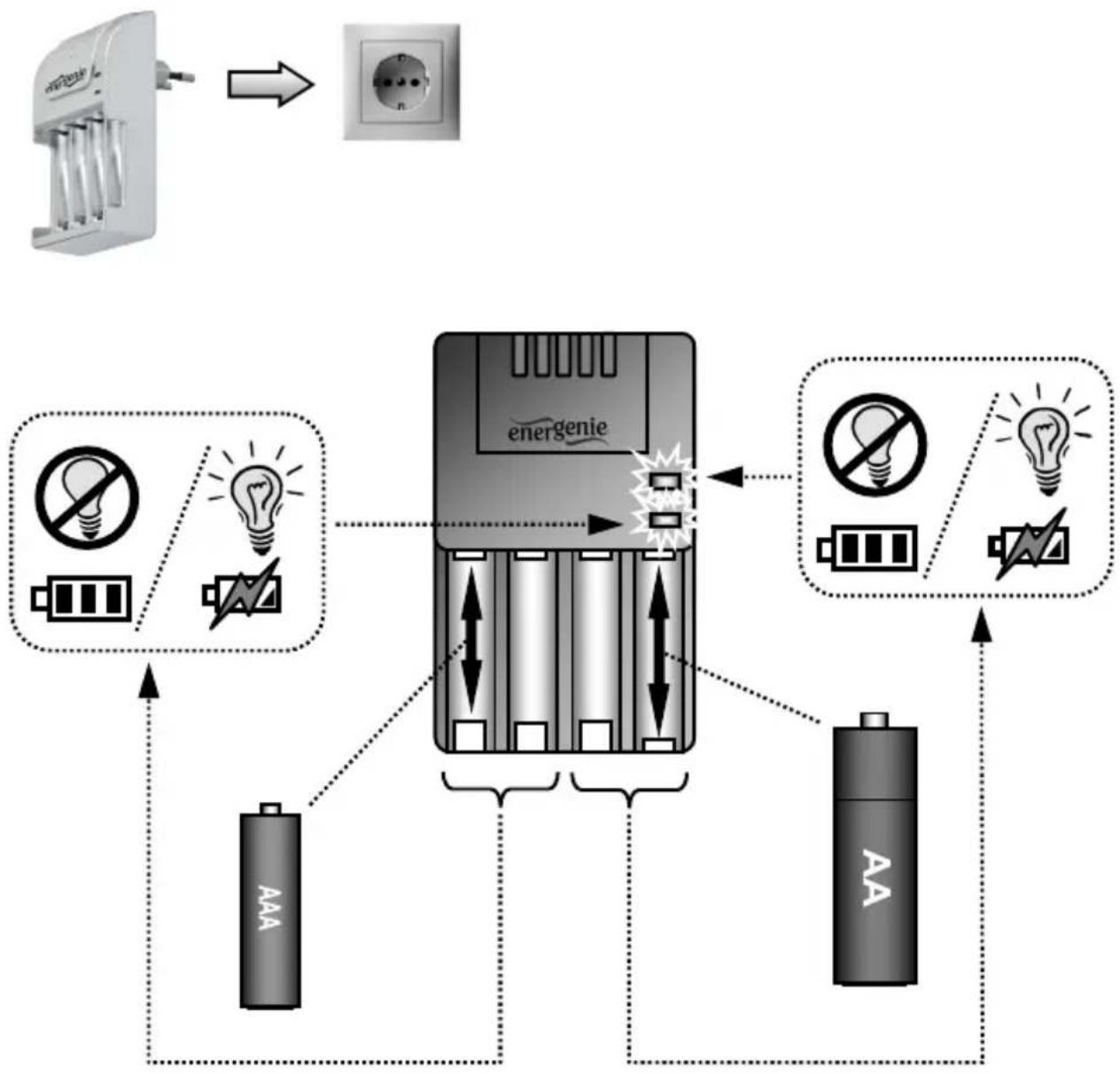

• Quick charger for AA or AAA batteries
• Charges two or four batteries at the same time
  • NOTE: charges only one type (AA or AAA) at the time
  • Smart charging prolongs battery life
• Timer control avoids over-charging and over-heating of batteries
  • LED charging status indicators

Specifications

• Power input: 110/240 V AC, 50/60 Hz
• Batteries: Ni-MH / Ni-Cd AA/AAA
- Charging time:
• AA Ni-MH 2500 mAh: 9 h
• AA Ni-MH 1800 mAh: 7.2 h
• AAA Ni-MH 600 mAh: 3.5 h
• AA Ni-Cd 1000 mAh: 4.6 h
• AA Ni-Cd 800 mAh: 3.7 h
• AA A Ni-Cd 300 mAh: 2 h
• Dimensions: 107 x 64 x 68 mm
- Net weight: 86 g

energenie

EG-BC-005 QUICK BATTERY CHARGER

All brands and logos are registered trademarks of their respective owners

energenie

EG-BC-005 QUICK BATTERY CHARGER

All brands and logos are registered trademarks of their respective owners

energenie

EG-BC-005 QUICK BATTERY CHARGER

All brands and logos are registered trademarks of their respective owners

energenie

EG-BC-005 QUICK BATTERY CHARGER

All brands and logos are registered trademarks of their respective owners

EC Declaration of Conformity

We hereby certify that the following product complies with all the relevant

Safety Requirements of § 4 EMVG and of the Directives 2006/95/EC; 93/68/EEC and 2004/108/EC.

Applicant :

Gembird Europe BV

Wittevrouwen 56,

1358CD, Almere, The Netherlands

Equipment :

Computer parts

Model Nos. :

EG-BC-005

Product description :

EG-BC-005 Quick battery charger

European standards:

EN60335-1:2002+A1:2004+A11:2004; EN60335-2-29:2004;

EN60366:2003; EN61000-3-2:2000+A2:2005; EN61000-3-3:1995+

A1:2001; EN55014-1:2000+A1:2001+A2:2002; EN55014-2:1997+

A1:2001

The following manufacturer/WITHIN Europe is responsible for this declaration:

Gembird Europe BV

Wittevrouwen 56, 1358CD, Almere, The Netherlands

Tel: [phone]. Fax: [phone]

Director

Authorized signature

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.
