USER MANUAL S2111 MIELE

natural_image Illustration of a vacuum cleaner sweeping grass with a tiled floor below (no text or symbols)

en Vacuum cleaner operating instructions

natural_image Pure electrical circuit lines without any symbols
text_image Exploded diagram of a vacuum cleaner with numbered parts for identification
text_image Miele www.miele-shop.com

Warning and Safety instructions 20

Caring for our environment 25

Description of the appliance....26

Optional accessories....27

Preparing for use 28

Using the accessories supplied 29

Use 29

Unwinding the cable 29

Switching on and off 29

During vacuuming 30

Regulating the suction....30

Opening the air inlet valve....30

Parking and storing the cleaner 30

Maintenance and care 31

Purchasing new dustbags and filters 31

When to change the dustbag 31

How the dustbag change indicator works....32

Replacing the dustbag 32

When to change the dust compartment filter (for motor protection) ..... 32

How to change the dust compartment filter 32

When to change the Air Clean exhaust filter 32

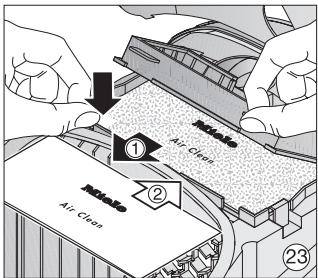

How to replace the Air Clean filter....33

Replacing one type of exhaust filter with another 33

When to replace an Active Air Clean filter or an Active HEPA filter. . . . . . . . . . 33

How to replace an Active Air Clean filter or an Active HEPA filter. . . . . . . . . . . 33

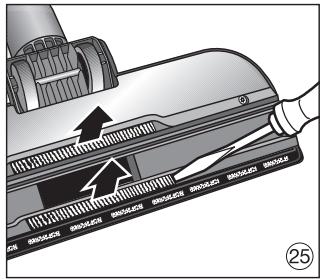

When to change the thread lifters 33

How to replace the thread lifters 33

Problem solving guide 33

After sales service 34

Guarantee 34

Electrical connection for the UK 34

Electrical connection AU, NZ 34

This vacuum cleaner meets statutory safety requirements. Improper use can, however, lead to personal injury and damage to property.

To avoid the risk of accidents and damage to the vacuum cleaner, please read these instructions carefully before using it for the first time. They contain important information on its safety, operation and maintenance.

Keep these instructions in a safe place and ensure new users are familiar with the content. Pass them on to any future owner.

Always disconnect the vacuum cleaner from the mains supply when you have finished using it, before changing over accessories, as well as for maintenance work and cleaning. Switch it off at the wall socket and unplug it.

Correct application

This vacuum cleaner is not designed for commercial use. It is intended for use in domestic households and similar working and residential environments.
The vacuum cleaner is not intended for outdoor use.
The vacuum cleaner must only be used for domestic household purposes to vacuum dry floor surfaces. Do not use on people or animals. Any other usage, modification or alteration is not supported by the manufacturer and could be dangerous.

This appliance can only be used by people with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, if they are supervised whilst using it, or have been shown how to use it in a safe way and understand the hazards involved.

Safety with children

This vacuum cleaner is not a toy! To prevent the risk of injury, do not let children play with the appliance or its controls.

Children under 8 years of age must be kept away from the appliance unless they are constantly supervised.

Children 8 years and older may only use the vacuum cleaner without supervision if they have been shown how to do so in a safe way and understand the hazards involved.

Children must not be allowed to clean or maintain the appliance unsupervised.

Technical safety

Before using the vacuum cleaner, check for any visible signs of damage. Do not use a damaged appliance.

▶ Ensure that the connection data on the data plate (voltage and frequency) match the mains electricity supply exactly.

The plug must be fitted with a 13 A fuse (UK).

While the vacuum cleaner is under guarantee, repairs should only be undertaken by a service technician authorised by Miele. Otherwise the guarantee will be invalidated.

Do not pull or carry the appliance by the cable, and be careful not to damage the cable when withdrawing the plug from the socket.

Keep the cable away from sharp edges and do not let it be squashed, for example, under a door.

Avoid running the vacuum cleaner over the cable.

This could damage the cable, plug or socket. The appliance must not be used if any of these have suffered damage.

Do not use the vacuum cleaner if the cable is damaged. If the cable is damaged it must be replaced together with a complete cable rewind. For safety reasons this work must be done by the Miele Service Department or a Miele authorised service technician.

When vacuuming especially fine dust, e.g. sawdust, sand, plaster, flour, talcum powder etc., electrostatic charges build up naturally. Under certain conditions these charges will be released. To avoid the unpleasant effects of these discharges, a metal inlay has been incorporated into the underside of the handle. Please make sure that you keep your hand in constant contact with this metal strip during vacuuming.

Do not let the vacuum cleaner get wet. Clean only with a dry cloth or slightly damp cloth when disconnected from the mains supply.

▶ Repairs should only be carried out by a Miele authorised service technician. Repairs and other work by unqualified persons could be dangerous. The manufacturer cannot be held liable for unauthorised work.

Correct use

▶ To avoid the risk of damage, do not use the vacuum cleaner without the dustbag, dust compartment filter and exhaust filter in place.

▶ If the dustbag is not fitted correctly, the dust compartment cover does not normally close. Do not force it.

Do not vacuum up anything which has been burning or is still glowing e.g. cigarettes, ashes or coal, whether glowing or apparently extinguished.

Do not vacuum up any water, liquid or damp dirt. Wait until any freshly cleaned or shampooed carpets or floor coverings are completely dry before attempting to vacuum.

Do not vacuum toner dust. Toner, such as that used in printers and photocopiers, can conduct electricity.

▶ Do not vacuum up any inflammable or combustible matter or gases and do not vacuum in areas where such substances are stored.

▶ Floor attachments, accessories and tubes must not be used at head level to avoid the risk of injury, e.g. to eyes and ears.

Accessories

To avoid the risk of injury when vacuuming with a Miele Turbobrush, do not touch the rotating roller brush.
It is not advisable to vacuum directly with the handle, i.e. without an accessory attached, as the rim could get damaged and you could hurt yourself on sharp edges.
Only use genuine dustbags, filters, accessories and optional accessories with the "Original Miele" logo on them. This will ensure optimum performance of the appliance throughout its life.

Miele cannot be held liable for damage caused by incorrect use or operation or by non-compliance with these Warning and Safety instructions.

Disposal of packing material

The packaging is designed to protect the vacuum cleaner from damage during transportation. The packaging materials used are selected from materials which are environmentally friendly for disposal and should be recycled.

Ensure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of babies and young children. Danger of suffocation.

Disposing of the dustbag and filters

These are made from environmentally friendly materials. The filters can be disposed of with the normal household waste. The dustbag can also be disposed of in this way if it has been used exclusively for general household dust.

Disposing of your old appliance

Before disposing of your old appliance remove the dustbag and all the filters and dispose of them with your normal household waste.

Electrical and electronic appliances often contain materials which, if handled or disposed of incorrectly, could be potentially hazardous to human health and to the environment. They are, however, essential for the correct functioning of your appliance. Please do not therefore dispose of it with your household waste.

MIELE S2111 - Disposing of your old appliance - 1

natural_image Pure electrical circuit lines without any symbols

Please dispose of it at your local community waste collection/recycling centre, or contact your dealer for advice.

Ensure that it presents no danger to children while being stored for disposal.

MIELE S2111 - Disposing of your old appliance - 2

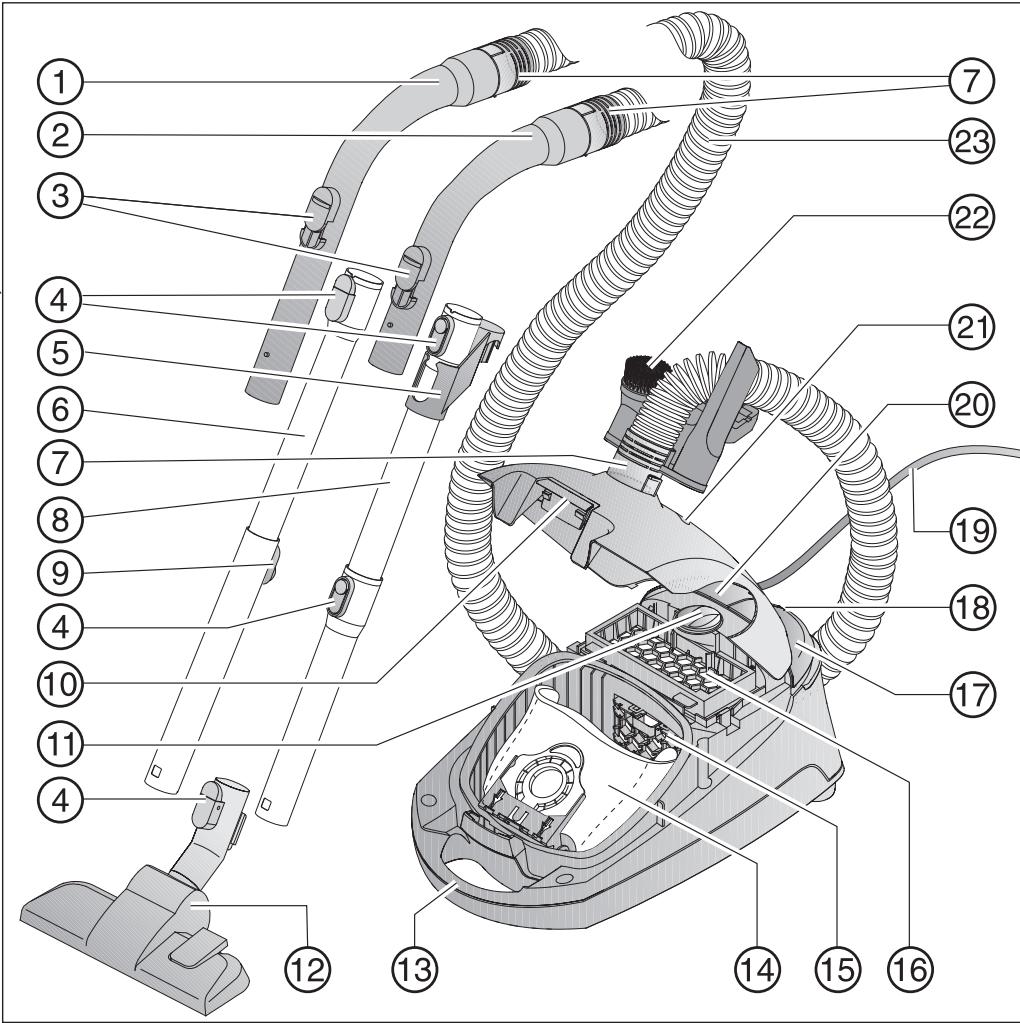

text_image Exploded diagram of a vacuum cleaner with numbered parts for identification

① XXL handle *
② Handle *
③ Air inlet valve
④ Release button
⑤ Connection piece for use when storing the vacuum cleaner *
⑥ Telescopic tube *
⑦ Hose connection socket
⑧ EasyLock suction tube *
⑨ Telescopic tube release button *
⑩ Dust compartment release button
⑪ Suction power selector
⑫ Floorhead *
⑬ Carrying handle
⑭ Dustbag
⑮ Dust compartment filter (for motor protection)
⑯ Active Air Clean filter
⑰ On/Off foot control ①
⑱ Parking system
⑲ Mains cable
⑳ Foot control for automatic cable rewind
②1 Dustbag change indicator
②2 Accessories holder with three accessories
②3 Suction hose

Underneath - suction tube holder (not illustrated)

Those features marked * depend on model, and may vary or not be available on your model.

Optional accessories

Miele accessories including floorheads, filters and dustbags are available to order from your Miele retailer, the Miele Spare Parts Department or via the internet at www.miele-shop.com.

The illustrations referred to in the text are shown on the fold-out pages at the end of these operating instructions.

Preparing for use

Attaching the suction hose (dia. 1)

① Insert the hose connector into the socket on the vacuum cleaner until it clicks into position.

Removing the suction hose from the cleaner

② Press the release buttons at the side of the hose connector and lift the hose from the socket.

Connecting the handle to the suction hose (dia. 2)

■ Fit the hose connector securely into the handle, making sure it clicks into position.

Your vacuum cleaner is fitted with one of the following suction tubes, depending on model (see "Description of the appliance").

- EasyLock suction tube

- Telescopic suction tube

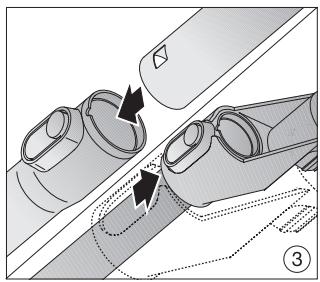

Connecting the EasyLock suction tube sections (dia. 3)

■ Take the section with the connecting piece, insert it into the other section and turn it clockwise or anti-clockwise until it clicks into position.

■ Push the connecting piece upwards until it clicks into position.

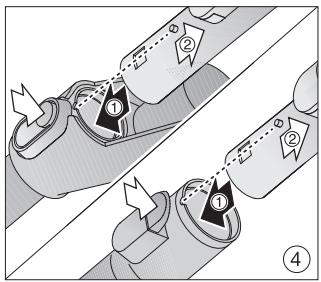

Connecting the handle to the suction hose (dia. 4)

① Insert the handle into the suction tube until it clicks into position. To do this, line up the guides on the two pieces.

Removing the handle

② To release the handle from the suction tube, press the release button and pull the handle away from the suction tube.

Adjusting the telescopic suction tube (dia. 5)

One part of the telescopic tube is packed inside the other and can be adjusted to suit your height for comfortable vacuum cleaning.

■ Press the telescopic tube release button to release the tubes and adjust to the required height.

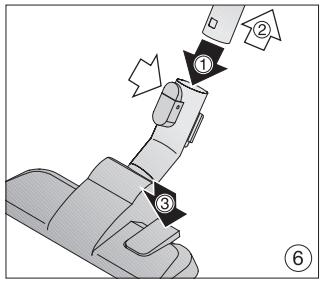

Fitting the floorhead (dia. 6)

① Push the suction tube into the floorhead and turn it clockwise or anti-clockwise until it clicks into position.

Removing the floorhead

② To release the floorhead from the suction tube, press the release button and pull the suction tube away from the floorhead.

Adjusting the floorhead

The floorhead can be used for all normal cleaning of carpets and rugs. It can also be used with the brush protruding to vacuum hard flooring.

Please observe the flooring manufacturer's cleaning and care instructions.

③ Vacuum carpets and rugs with the brush retracted (press foot control ☑). Clean hard flooring which is not susceptible to scratching with the brush protruding (press foot control ☐).

Clean flooring which has deep crevices or grooves with the brush protruding.

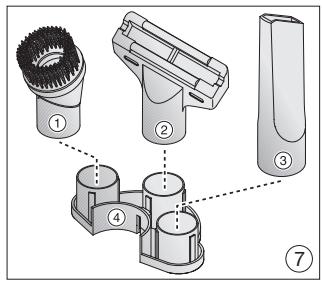

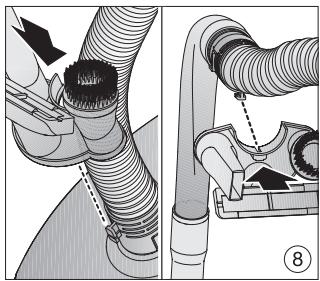

Using the accessories supplied (dia. 7 + 8)

The following accessories are supplied:

① Dusting brush
② Upholstery nozzle
③ Crevice nozzle
④ Accessories holder for the three accessories supplied

There are symbols on the accessories holder to show you where to position the accessories.

■ Attach the accessories holder pointing upwards to the hose connector socket or pointing downwards to the suction hose where it joins the handle. Make sure it clicks into position.

Depending on model, your vacuum cleaner may be supplied with an Active Air Clean filter or an Active HEPA filter which can be fitted instead of the standard Air Clean filter (see "Maintenance and care - Replacing one type of exhaust filter with another").

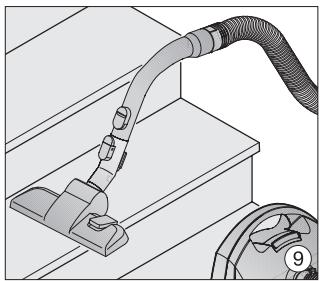

Floorhead (dia. 9)

For general use and also for vacuuming stairs.

Warning: For safety reasons when vacuuming stairs it is best to start at the bottom of the stairs and move upwards.

Use

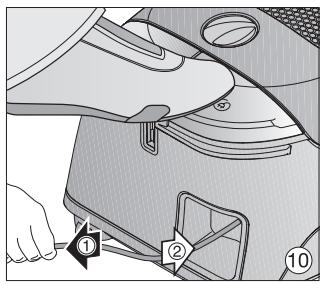

Unwinding the cable (dia. 10)

① Pull the mains cable out to the required length (max. approx. 5.5 m).

Warning: If vacuuming for longer than 30 minutes, the mains cable must be pulled out to its fullest extent. Otherwise there is a danger of overheating and damage.

Rewinding the cable

■ Switch the vacuum cleaner off at the wall socket and unplug it.
② Press the rewind foot control briefly. The cable will rewind automatically.

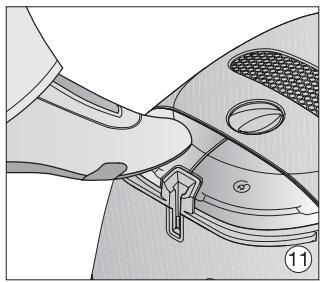

Switching on and off (dia. 11)

■ Press the On/Off foot control ①.

During vacuuming (dia. 12)

When vacuuming especially fine dust, e.g. sawdust, sand, plaster, flour, talcum powder etc., electrostatic charges build up naturally. Under certain conditions these charges will be released. To avoid the unpleasant effects of these discharges, a metal inlay has been incorporated into the underside of the handle. Please make sure that you keep your hand in constant contact with this metal strip during vacuuming.

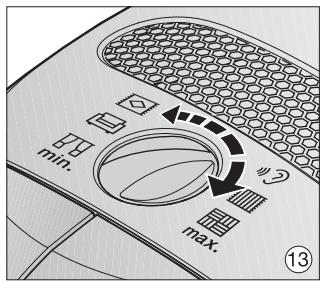

Regulating the suction (dia. 13)

The suction power can be regulated to suit the type of flooring being cleaned. Reducing the suction power will make the floorhead easier to manoeuvre.

Some models also have symbols on the controls which indicate the type of use the settings are suitable for:

- curtains, lightweight fabrics

- upholstery, cushions

◇ - thick pile carpets, rugs and runners

»? - for daily energy-saving vacuuming (this setting is also very quiet)

- loop-pile carpets

- hard flooring and for intensive cleaning of carpets

■ Turn the suction power selector manually to the suction power setting you require.

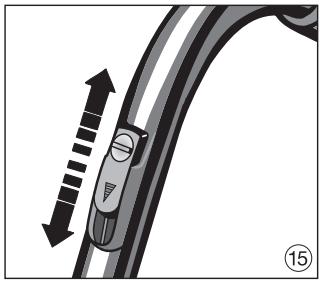

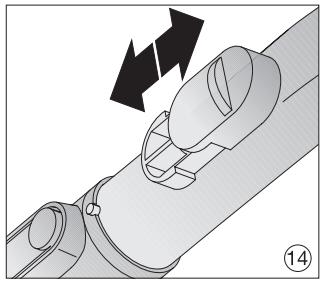

Opening the air inlet valve (dia. 14 + 15)

It is easy to reduce the suction power for a short time, e.g. to prevent rugs or other objects being sucked into the vacuum cleaner.

■ Open the air inlet valve far enough to reduce the suction power.

The floorhead will be easier to manoeuvre. Close the valve when you are ready to use full power again.

Parking and storing the cleaner

Parking system (dia. 16)

The parking system allows you to conveniently park the vacuum cleaner during pauses.

■ Slot the floorhead into the parking attachment at the back of the vacuum cleaner.

If the vacuum cleaner is on a sloping surface, e.g. a ramp - retract the telescopic suction tube fully - do not use the parking system with an EasyLock suction tube.

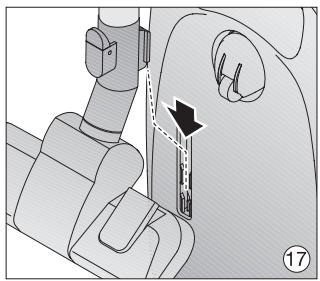

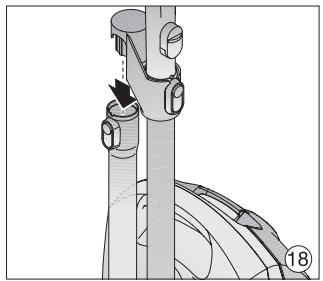

Storage (dia. 17 + 18)

■ Stand the vacuum cleaner upright when it is not being used and when it is being stored.

■ Slot the floorhead downwards into the parking attachment on the side of the vacuum cleaner.

If your vacuum cleaner has a telescopic tube, retract it fully so that it takes up less room for storage.

If your vacuum cleaner has an Easy-Lock suction tube, you can separate the suction tube sections for storage.

■ Press the release button on the bottom section of the suction tube out.
■ Push the connection piece of the top section onto the bottom section.

Maintenance and care

Warning: Always disconnect the vacuum cleaner from the electrical supply for maintenance work and for cleaning. Switch off at the wall socket and unplug it.

The Miele filtration system consists of three filters which must be replaced from time to time to ensure that your vacuum cleaner performs efficiently.

  • Dustbag
  • Dust compartment filter (for motor protection)
  • Exhaust filter

Only use genuine dustbags, filters, accessories and optional accessories with the "Original Miele" logo on them. Only this will ensure that the suction power of the vacuum cleaner is maintained, giving the best possible cleaning results.

Warning: The use of dustbags made from paper or paper-based materials, or dustbags with a cardboard collar, or dustbags that do not carry the "Original Miele" logo, can seriously damage the vacuum cleaner and invalidate the warranty.

Purchasing new dustbags and filters

Original Miele dustbags and filters can be ordered from your Miele retailer, from Miele or online at:

MIELE S2111 - Purchasing new dustbags and filters - 1

text_image Miele www.miele-shop.com

Only use original Miele G/N dustbags with a blue collar. Using any other dustbags will damage the vacuum cleaner. Original Miele dustbags are identified by the "Original Miele" logo on the packaging or directly on the dustbag.

MIELE S2111 - Purchasing new dustbags and filters - 2

MIELE S2111 - Purchasing new dustbags and filters - 3

An Air Clean filter and a dust compartment filter are supplied with every packet of Miele dustbags. These can also be purchased separately.

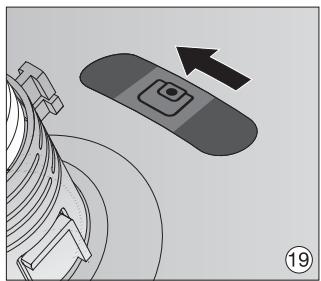

When to change the dustbag (dia. 19)

Change the dustbag when the colour marker in the dustbag change indicator fills the display, or sooner if it is no longer effective (see possible reasons for this below).

Miele dustbags are disposable and designed to be used only once. Dispose of the dustbag when it is full. Do not attempt to reuse as suction would be reduced.

Checking the dustbag change indicator

■ Attach the standard floorhead to the suction tube.
■ Switch the vacuum cleaner on and select the highest power setting.
■ Lift the floorhead off the floor a little.

How the dustbag change indicator works

The indicator is designed to measure the air permeability of a dustbag containing a mixture of household dust made up of: dust, hair, threads, carpet fluff, grit etc.

However, if the cleaner has been used to vacuum up fine dust, such as plaster, brick dust, cement or flour, the pores of the dustbag will become blocked very quickly. This affects the air permeability of the bag, and the marker will indicate that the bag is "full" even when it is not. If this happens the bag will need to be changed. If, on the other hand, a large amount of hair and carpet fluff which typically contains a lot of air is vacuumed up, the indicator may fail to react even though the bag is full. You should still change it. Both these extremes can occur.

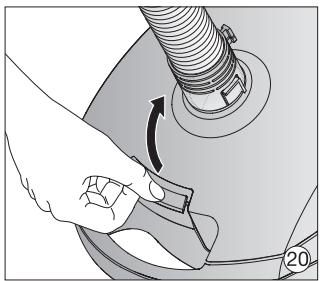

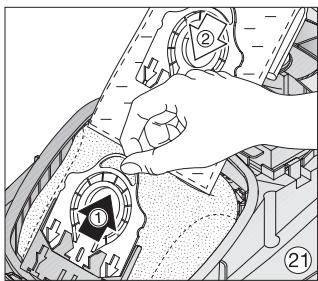

Replacing the dustbag (dia. 20 + 21)

■ Press the release button for the dust compartment lid and raise the lid as far as it will go.

The dustbag has a closing flap which closes automatically when the dust compartment lid is raised to prevent any dust escaping.

① Pull the dustbag out by the grip next to the self-closing flap on the collar.
② Fit the new dustbag into the holder as far as it will go. Leave it folded up when you take it out of the box.
■ It should be unfolded in the dust compartment.
■ Close the dust compartment lid securely, making sure it clicks into position. Take care not to trap the dustbag when doing so.

Warning: The lid will not close without a dustbag in place. Do not use force.

When to change the dust compartment filter (for motor protection)

Replace this filter every time you start a new packet of dustbags. A dust compartment filter is supplied with every packet of Miele dustbags.

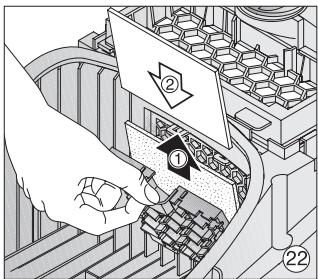

How to change the dust compartment filter (dia. 22)

■ Open the dust compartment lid.
■ Unclip the filter panel, remove the old filter and replace with a new one.
■ Close the filter panel.
■ Close the dust compartment lid.

When to change the Air Clean exhaust filter

Replace this filter every time you start a new packet of Miele dustbags. An Air Clean exhaust filter and a dust compartment filter are supplied with every packet of Miele dustbags.

How to replace the Air Clean filter (dia. 23)

Do not use more than one exhaust filter at a time.

■ Open the dust compartment lid.
① Unclip the filter grille and raise it upwards as far as it will go. Grasp the used Air Clean filter by the clean, unsoiled section (see arrow) and take it out.
② Replace it with a new filter.
■ Close the filter grille.
■ Close the dust compartment lid.

Replacing one type of exhaust filter with another

Depending on model, your vacuum cleaner can be fitted with an Active Air Clean filter or an Active HEPA filter instead of the standard Air Clean filter. To change the type of filter, the Air Clean filter and the filter grille must first be removed and the new type of filter then fitted instead.

When to replace an Active Air Clean filter or an Active HEPA filter

These types of filter need to be changed approx. once a year. Make a note of the date on the filter.

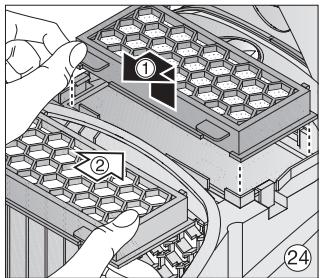

How to replace an Active Air Clean filter or an Active HEPA filter (dia. 24)

■ Open the dust compartment lid.

① Lift out the old exhaust filter.
② Replace it with a new filter.
■ Close the dust compartment lid.

When to change the thread lifters

The thread lifters on the suction inlet of the floorhead can be replaced. Check them from time to time and replace them if the pile has worn down.

How to replace the thread lifters (dia. 25)

■ Use a suitable screwdriver to remove the thread lifters from the slots.
■ Fit new thread lifters.

Replacement parts are available from your Miele retailer or from Miele (see back cover for contact details).

Problem solving guide

The vacuum cleaner switches off automatically

A temperature limiter will switch the cleaner off automatically if, for instance, large articles have blocked the suction tube or when the filter bag is full or contains too much fine dust. A heavily soiled dust compartment or exhaust filter can also be the cause of overheating. Switch the vacuum cleaner off immediately using the On/Off foot control ①. Disconnect from the electricity supply. Switch it off at the wall socket and unplug it.

After removing the cause, wait for approx. 20 - 30 minutes to allow the vacuum cleaner to cool down. It can then be switched on again.

After sales service

In the event of a fault that you cannot easily remedy, please contact

- your Miele retailer

or

- Miele (see back cover for contact details).

Guarantee

For information on the appliance guarantee specific to your country please contact Miele. See back cover for contact details.

In the U.K. your appliance is guaranteed for 2 years from the date of purchase.

However, you must activate your cover by calling 0845 365 6640 or registering online at www.miele.co.uk.

Electrical connection for the UK

All electrical work should be carried out by a suitably qualified and competent person in strict accordance with current national and local safety regulations (BS 7671 in the UK).

The voltage and frequency are given on the data plate located underneath the vacuum cleaner. Please ensure that these match the household mains supply. The fuse rating is quoted on the plug.

The appliance is supplied with a cable and moulded plug ready for connection to a 230-240 V/50 Hz a.c. single phase supply.

Non-rewireable plugs BS 1363

The fuse cover must be re-fitted when changing the fuse, and if the fuse cover is lost the plug must not be used until a suitable replacement is obtained. The colour of the correct replacement cover is that of the coloured insert in the base of the plug, or the colour that is embossed in words on the base of the plug, (as applicable to the design of plug fitted).

Replacement fuses should be ASTA approved to BS1362 and have the correct rating. Replacement fuses and fuse covers may be purchased from your local electrical supplier.

Electrical connection AU, NZ

All work should be carried out by a suitably qualified and competent person in strict accordance with national and local safety regulations.

The voltage and rated load are given on the data plate located underneath the vacuum cleaner. Please ensure that these match the household mains supply. The fuse rating is quoted on the plug.

The appliance is supplied with a cable and moulded plug ready for connection to a 230V/50Hz AC single phase supply.

Test Marks

Electrical safety

C-Tick Mark

Electrically suppressed

according to

AS/NZS 1044

text_image Exploded diagram of a vacuum cleaner with numbered parts for identification
natural_image Pure electrical circuit lines without any symbols

Brosse Bimatic (croquis 9)

text_image Exploded diagram of a vacuum cleaner with numbered parts for identification
natural_image Pure diagram of a trash bin with no text, numbers, or symbols
text_image Miele www.miele-shop.com

Controle of de stofcassette vol is

text_image Exploded diagram of a vacuum cleaner with numbered parts for identification
natural_image Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)
text_image Miele www.miele-shop.com
text_image Technical diagram showing a mechanical component with numbered parts and directional arrows indicating motion or assembly.

MIELE S2111 - Controle of de stofcassette vol is - 1

natural_image Illustration of a pipe fitting with a connector inserted, showing fluid flow direction (no text or symbols)

MIELE S2111 - Controle of de stofcassette vol is - 2

natural_image Mechanical assembly diagram showing two connected components with arrows indicating motion (no text or symbols)

MIELE S2111 - Controle of de stofcassette vol is - 3

text_image Diagram illustrating a mechanical or electrical process with labeled components and directional arrows indicating movement or flow.

MIELE S2111 - Controle of de stofcassette vol is - 4

natural_image Mechanical component diagram showing a bolt and shaft with directional arrows indicating movement (no text or symbols)

MIELE S2111 - Controle of de stofcassette vol is - 5

text_image Diagram showing a hand holding a device with numbered steps and directional arrows indicating process flow.

MIELE S2111 - Controle of de stofcassette vol is - 6

text_image Technical diagram showing exploded view of a mechanical assembly with numbered components

MIELE S2111 - Controle of de stofcassette vol is - 7

natural_image Technical diagram showing pipe installation and component assembly (no text or labels)

MIELE S2111 - Controle of de stofcassette vol is - 8

natural_image Technical illustration of a mechanical assembly with a coiled cable and housing (no text or symbols)

MIELE S2111 - Controle of de stofcassette vol is - 9

text_image Technical diagram showing a mechanical component with numbered parts, likely for assembly or repair instructions.

MIELE S2111 - Controle of de stofcassette vol is - 10

natural_image Illustration of a hand adjusting a car's seatbelt with a clip (no text or symbols)

MIELE S2111 - Controle of de stofcassette vol is - 11

natural_image Close-up of a mechanical component with a black arrow pointing to a feature, labeled with number 12 (no text or symbols on the object itself)

MIELE S2111 - Controle of de stofcassette vol is - 12

text_image min. max.

MIELE S2111 - Controle of de stofcassette vol is - 13

natural_image Technical illustration of a mechanical component with directional arrows indicating motion (no text or symbols)

MIELE S2111 - Controle of de stofcassette vol is - 14

natural_image Diagram of a curved mechanical component with directional arrows indicating motion or force (no text or symbols)

MIELE S2111 - Controle of de stofcassette vol is - 15

natural_image Mechanical assembly diagram showing a valve inserted into a component, with no visible text or symbols

MIELE S2111 - Controle of de stofcassette vol is - 16

natural_image Mechanical assembly diagram showing a belt drive mechanism with no visible text or symbols

MIELE S2111 - Controle of de stofcassette vol is - 17

natural_image Mechanical assembly diagram showing a lever mechanism with adjustment arrows (no text or symbols)

MIELE S2111 - Controle of de stofcassette vol is - 18

natural_image Diagram showing a mechanical component with an arrow indicating direction, no text or symbols present

MIELE S2111 - Controle of de stofcassette vol is - 19

natural_image Hand holding a tool interacting with a mechanical component, no visible text or symbols

MIELE S2111 - Controle of de stofcassette vol is - 20

text_image Technical diagram showing mechanical assembly with numbered components and labeled parts

MIELE S2111 - Controle of de stofcassette vol is - 21

text_image Diagram showing a hand inserting a component into a device with labeled parts ① and ②

MIELE S2111 - Controle of de stofcassette vol is - 22

text_image Air Clean ① ② ③

MIELE S2111 - Controle of de stofcassette vol is - 23

text_image Technical diagram showing a mechanical assembly with numbered components and labeled parts

MIELE S2111 - Controle of de stofcassette vol is - 24

text_image Diagram showing a device with labeled components and directional arrows indicating movement or flow, possibly illustrating a mechanical or electrical process.

United Kingdom

Miele Co. Ltd.

Fairacres, Marcham Road

Abingdon, Oxon, OX14 1TW

Tel: 0845 365 0555, Fax: 0845 365 0777

Customer Contact Centre Tel: 0845 365 6600

E-mail: info@miele.co.uk

Internet: www.miele.co.uk

Australia

Miele Australia Pty. Ltd.

ABN 96 005 635 398

1 Gilbert Park Drive, Knoxfield, VIC 3180

Tel: 1300 464 353, Fax: (03) 9764 7149

Internet: www.miele.com.au

China

Miele (Shanghai) Trading Ltd.

1-3 Floor, No. 82 Shi Men Yi Road

Jing' an District

200040 Shanghai, PRC

Tel: +86 21 6157 3500, Fax: +86 21 6157 3511

E-mail: mieleshanghai@cn.miele.com

Miele (Hong Kong) Limited

41/F - 4101, Manhattan Place

23 Wang Tai Road

Kowloon Bay

Hong Kong

Tel:(852)2610 1331,Fax:(852)2610 1013

Email: mielehk@miele.com.hk

India

Miele India Pvt. Ltd.

Ground Floor, Copia Corporate Suites

Plot No. 9, Jasola

New Delhi – 110025

Tel: 011-46 900 000, Fax: 011-46 900 001

E-mail: customercare@miele.in, Internet: www.miele.in

Ireland

Miele Ireland Ltd.

2024 Bianconi Avenue

Citywest Business Campus, Dublin 24

Tel: (01) 461 07 10, Fax: (01) 461 07 97

E-Mail: info@miele.ie, Internet: www.miele.ie

Manufacturer: Miele & Cie. KG

Miele New Zealand Limited

Unit L, 10-20 Sylvia Park Road

Mt. Wellington, 1060, Auckland, NZ

Tel: 0800 264 353, Fax: 0800 463 453

Internet: www.miele.co.nz

Singapore

Miele Southeast Asia

Miele Pte. Ltd.

163 Penang Road

# 04 - 02/03 Winsland House II

Singapore 238463

Tel: +65 6735 1191, Fax: +65 6735 1161

E-Mail: infosea@miele.com.sg

Internet: www.miele.sg

South Africa

Miele (Pty) Ltd

63 Peter Place, Bryanston 2194

P.O. Box 69434, Bryanston 2021

Tel: (011) 875 9000, Fax: (011) 875 9035

E-mail: info@miele.co.za

Internet: www.miele.co.za

United Arab Emirates

Miele Appliances Ltd.

P.O. Box 11 47 82

Gold & Diamond Park

Sheikh Zayed Road

Building 6 / Offices Nos. 6-214 to 6-220

Dubai

Tel: +971-4-341 84 44

Fax: +971-4-341 88 52

text_image Miele www.miele-shop.com
Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : MIELE

Model : S2111

Category : Vacuum without a bag
