Product type	Heated blanket
Brand	Daga
Model	CMN2
Dimensions (L x W)	180 x 140 cm
Weight	1.5 kg
Power supply	220-240 V ~ 50/60 Hz
Maximum power	120 W
Number of heat levels	6
Main features	Rapid preheating, automatic shut-off, 12-hour timer, digital control
Main material	Soft fleece (polyester microfiber)
Color	Anthracite grey
Power cord length	2 m
Control type	Detachable controller with LED display
Safety	Overheat protection, automatic shut-off after 2 hours, temperature detection
Machine washable	Yes, at 30°C (remove the controller)
Care	Delicate wash, air drying, do not iron
Spare parts	Control controller available from the manufacturer
Repairability	Repairability index 7.5/10 (interchangeable controller)
Standby power consumption	< 0.5 W
Warranty	2 years

Frequently Asked Questions - CMN2 Daga

What is the power consumption of the Daga CMN2 heated blanket?

The maximum power is 120 W, which corresponds to a consumption of about 0.12 kWh per hour at the highest level.

Can I leave the blanket on all night?

Yes, thanks to the automatic shut-off after 2 hours and the programmable timer up to 12 hours, you can use it safely while sleeping.

How to clean the Daga CMN2 heated blanket?

Detach the controller and machine wash the blanket at a maximum of 30°C, delicate cycle. Do not use bleach or fabric softener. Air dry, do not iron.

Is the blanket suitable for water beds or mattress toppers?

Yes, it can be used on a water bed or mattress topper, but ensure there is no humidity and that the blanket is flat.

What are the available heat levels?

The blanket has 6 heat levels adjustable via the digital controller, from level 1 (light warmth) to level 6 (intense heat).

What to do if the controller no longer works?

First check the connection to the blanket and the power outlet. If the problem persists, the controller is a detachable part that can be repaired or replaced. Contact Daga customer service.

Is the heated blanket machine washable?

Yes, but only after removing the controller. Wash at 30°C, delicate cycle. Do not spin dry, do not tumble dry.

Is there a risk of fire or overheating?

No, the blanket is equipped with overheat protection and automatic shut-off. Do not fold the blanket during use and do not cover the controller.

Can I use the blanket with a pet?

It is not recommended to leave a pet on the blanket while in use as claws or urine could damage the heating elements.

Where to find the complete user manual?

The manual is available for free in PDF format on the website notice-facile.com. You can also request a translation in your language.

USER MANUAL CMN2 Daga

Matrimonio - CME, CMN, CMN2, CMNX, CMNX2.

MANDO DE CONTROL

Pantalla de control en los modelos: CIN, CIE, CMN, CMN2, CMNX, CMNX2, CME

Simple line drawing of a medical or laboratory device connected to wires (no text or symbols)

Fig.3

Simple line drawing of a medical or anatomical device with wires and connectors (no text or symbols)

Fig. 4

Carefully read the instructions for use. Keep them in to safe place for future reference.

Carefully read the instructions for use. Keep them in to safe place for future reference.

Before turning on your heated mattress pad, check that the voltage of your electric supply is the same as that indicated on the label. Do not connect the heated mattress pad to a DC voltage network.

For correct use of the heated mattress pad, do not fold it and avoid the molding and creases. Do not stick it with pins, needles or other sharp metal objects. The heated mattress pad should not be placed under the mattress. Do not use if moist or wet. For cleaning, read the maintenance section of this manual.

It is not recommended to use the heated mattress pad on fold-out beds or cots. If you do use it on these types of beds, take special care that the power cord does not get caught or bent. Make sure to unplug the heated mattress pad from the power supply before folding the bed.

Also, it is not advisable to use the heated mattress pad on inflatable beds, due to the risk of damage from the heat. Do not use this product on water beds.

Invalid, handicapped and people insensitive to heat as well as children should not use the heated mattress pad without direct supervision. It should also not be used under the effects of alcohol, sleeping pills, sedatives or drugs. Do not use the heated mattress pad to warm animals. If you have a pacemaker or other cardiovascular devices, even though the electromagnetic field generated by this heating pad is very low, we recommend that you check with your doctor before using the product.

This device was not conceived for medical use in hospitals.

It is important that the power cord is not wound up or touching the heated mattress pad during use. To unplug the pad, do not pull on the cord or use it as to strap. Only use the controller that comes with the heated mattress pad; do not exchange with other devices.

Examine the heated mattress pad frequently, including the controller and the flexible cord, to detect possible signs of wear or damage. If

ENGLISH

there is damage, do not use the product and contact an authorized technical service center.

Incorrect use or manipulation of the heated mattress pad will not be covered by the warranty. For repair, only use a technical service center authorized by the manufacturer.

Especialidades Eléctricas Daga, S.A. declines all responsibility for damage that could occur to people, animals or objects, for not abiding these warnings.

TRADITIONAL HEATED MATTRESS PAD LINE

The reference model of heated mattress pad that you have acquired is located on the original packaging and the product label.

Single- CIE, CIN.

Double - CME, CMN, CMN2, CMNX, CMNX2.

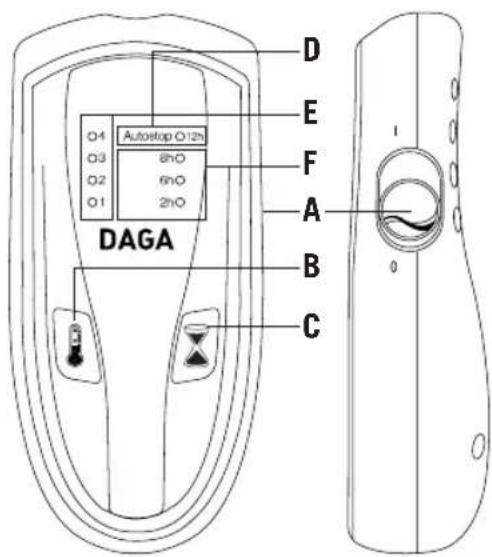

CONTROLLER

Control panel on the models: CIN, CIE, CMN, CMN2, CMNX, CMNX2, CME

A. On/Off switch of the heated mattress pad.

Control key

B. TKey to select heat setting.

C. Key to select operation time.

Control panel

D. Amber light: indicates the activation of the safety autostop.

E. Red lights: indicate the selected heat setting.

F. Green lights: indicate the selected operation time.

Fig. 1

ENGLISH

BASIC CHARACTERISTICS

The heated mattress pad that you have acquired incorporates the new generation of controllers exclusive to the new and innovative DAGA line with the additional functions:

• Selection of 4 heat settings.
• Selection of 3 operating times (2h, 6h and 8h).
• Automatic safety autostop: To avoid possible risks due to accidentally leaving the heated mattress pad on for a prolonged amount of time and without the autostop activated, an automatic safety Autostop feature has been incorporated that activates after 12h of non-stop operation, without the user having to touch the controller. After activating this safety Autostop, the heated mattress pad will disconnect from the power supply and the controller will indicate this circumstance by lighting up the yellow Autostop indicator light (D). To leave the Autostop mode, just press any of the two controller keys on. The regulator will move to the default mode (heat setting 1).

USAGE MODE

Before connecting the heated mattress pad to the power supply, check its voltage. This should correspond with that on the product label.

If your heated mattress pad comes with a detachable connection, make sure that the controller corresponds to reference 23011. Look on the back to find this number.

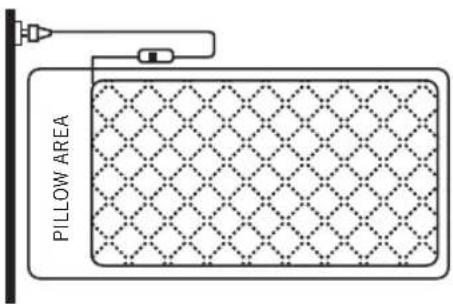

Fig. 2

Spread out the heated mattress pad on top of the mattress, leaving space for the pillow and then, put on the fitted sheet. Avoid wrinkles, folds or creases and make sure the plug is on the upper side of the bed. See figure 2.

ENGLISH

Next, make the bed as usual. While the heated mattress pad is connected, avoid putting suitcases or other heavy objects on the bed and also avoid simultaneous use of other sources of heat such as hot water bottles, electric heating pads or other similar objects.

In order to take care of your product, make sure the controller switch is in the "O" position before turning it on or unplugging it.

To turn it on, use the controller and turn the side On/Off switch to the "I" position.

Immediately, the electronic controller will do to quick check to detect possible anomalies indicated on the panel through to light scan. Then, the default work mode will be configured: Light 1 on (lowest heat setting) and Free mode (12h, no pre-set time light is on). The heated mattress pad is now on.

Proceed to the adjustment of the desired heat setting, choosing between the 4 possible settings, pressing the key 🔒 as many times as you like.

On the controller, during the Autostop mode, only the red light indicating the chosen heat setting is on while all the others remain off.

To start using your heated mattress pad, we recommend that you put the regulator at the maximum position for 20 min. before lying down so you can enjoy the pleasurable feeling of comfort. For prolonged use of the product, it is advisable to use the lowest heat setting (position 1). Also, it is not advisable to use the maximum heat setting (position 4) for more than 1h non-stop.

Select an operating time by pressing the key you like.

as many times as

Once the operating time or autostop has completed, whether it be preset (2h, 6h, 8h) or by default (Autostop 12h), the heated mattress pad will disconnect and all the temperature lights on the control panel will turn off and only the green preset operation time indicator light or yellow 12h autostop light will turn back on.

Press any key to immediately return to the Free mode.

To turn off the heated mattress pad, turn the side On/Off switch to the "O" position.

When putting the heated mattress pad away, let it cool off and do not stack things on top of it.

The CMN, CMN2, CMNX, CMNX2 models come with a double controller, allowing individual temperature control on both sides of the bed. For the rest of models, a single controller controls the overall surface temperature of the heated mattress pad.

ENGLISH

TROUBLESHOOTING GUIDE

The heated mattress pad is equipped with a safety system that prevents overheating by automatic disconnection.

PROBLEM SOLUTION
After the turning the pad on, the controller correctly configures heat setting 1, but the heated mattress pad does not heat up or does not get hot enough.	If you do not feel the heat of the heated mattress pad, cover it with a blanket, quilt or du-vet, put the controller at the maximum position and wait 45 minutes. If this does not work, contact our authorized technical service center. Tests done with the heated mattress pad uncovered or outdoors are not reliable because they can give erroneous heat evaluations.
The controller does not turn on when I move the side On/Off switch.	Make sure the power supply is working and that the heated mattress pad is correctly plugged in.Check that the side On/Off switch is in the “I” position. If the anomaly persists, please contact our authorized technical service center.
After turning it on, the control panel does not configure heat setting 1 correctly and the heated mattress pad does not heat up.	The controller could have found an anomaly in the start-up and blocked the heated mattress pad’s operation for safety purposes.Turn the controller off and on again. If the anomaly persists, please contact our authorized technical service center.

The heated mattress pad can reach temperatures between 40^ and 60^ C on its highest setting. This data should serve as to guideline. Monitoring is carried out in laboratories, according to the procedure in the UNE-EN 60335-2-17 directive.

ENGLISH

BENEFITS OF FLEXIBLE HEAT

Heated mattress pads are warm, soft and flexible elements that adapt to the mattress. They are especially designed to be laid on and offer increasing soft heat with little energy consumption.

The Daga heated mattress pad is especially made to offer warmth and comfort in cold and humid rooms, as well as for temporary use in second homes, where the perception of humidity is usually high and which the heated mattress pad fights off quickly.

The cloth heat of the Daga heated mattress pad is a dry heat that creates a calming effect, stimulates the circulation and reduces muscles tension. For these reasons, it is recommended in pain treatments such as arthrosis, arthritis, rheumatism and blows on the soft parts of the body as well as other spinal cord pain, flu or cold symptoms that worsen with brisk changes in temperature.

All models have a resistant, breathable, soft cotton-polyester upper layer. The lower one is made with non-slip cloth that allows perfect adaptation to the mattress and keeps the heated mattress pad in place.

Values of Daga Quality

The Daga Flexy Heat technology guarantees that the product you have acquired has been designed, manufactured and verified using the latest technology and in compliance with the highest quality standards.

The heating pads are manufactured using only carefully chosen and tested material and components to offer the ideal direct-application, long-life and defect-free product.

The precision of the electronic control circuit ensures intelligent heat regulation while it supervises correct product operation, preventing any risk of failure or wrongful use.

Thanks to the special design, all the products made with Daga Flexy Heat technology generate a very low electromagnetic field (low EMF). This way, the user is not exposed to radiation while using the product and there is no interference with other electronic equipment.

ENGLISH

MAINTENANCE AND DISPOSAL

To increase the life of your heated mattress pad, unplug it when not in use. Keep it in its original packaging in a dry place, with the least number of folds possible and do not smooth out the creases.

If there are signs of dampness, dry before plugging it in.

Always unplug the heated mattress pad before cleaning. If it has a detachable connection, remove the power cord from the heated mattress pad.

To clean the heated mattress pads with a fixed controller (attached connection, see figure 3), spread dry foam evenly over it and then brush length-wise. Next, lay it flat and let it dry or hang it vertically without folding. To guarantee the correct use of the heated mattress pad, avoid hand or machine-washing and dry cleaning.

Simple line drawing of a medical or laboratory device connected to multiple curved cables (no text or symbols)

Fig. 3

The heated mattress pads with a separate controller (detachable connection, see figure 4) can be hand or machine-washed using a short delicate wash cycle. To dry, use the dryer's delicate garment program. Make sure that your washer/dryer has the capacity to support the weight of the wet heated mattress pad. NEVER wash with the controller connected to the heated mattress pad.

Line drawing of a medical or anatomical procedure with no visible text or symbols

Fig. 4

To dry your heated mattress pad, never plug it in or iron it. The heated mattress pad should never be ironed.

When throwing away your heated mattress pad, please bring it to your nearest recycling center in accordance with the European directive for Waste Electrical and Electronic Equipment 2002/96/EC, to help preserve the environment.

We hope that you like and are satisfied with this product.

AVISO IMPORTANTE

Duplos - CME, CMN, CMN2, CMNX, CMNX2.

COMANDO DE CONTROLO

Ecrã de controlo nos modelos: CIN, CIE, CMN, CMN2, CMNX, CMNX2, CME

A. Interruptor de ligar/desligar o aquece-camas.

Teclado de controlo

Simple line drawing of a medical or laboratory device with wires, no text or symbols present

Fig. 3

Line drawing of a medical or anatomical device with wires and connectors (no text or symbols)

Fig. 4

Grand lit - CME, CMN, CMN2, CMNX, CMNX2.

TÉLÉCOMMANDE

Simple line drawing of a medical or laboratory setup with a rectangular device connected to multiple curved lines (no text or symbols)

III. 3

Line drawing of a medical or anatomical device with wires and a connector (no text or symbols)

III. 4

Ehebett - CME, CMN, CMN2, CMNX, CMNX2.

DEUTSCH

BEDIENTEIL

Kontrolldisplay der Modelle: CIN,CIE, CMN,CMN2, CMNX, CMNX2, CME

Simple line drawing of a medical or laboratory setup with a central device and multiple curved cables (no text or symbols)

Abb. 3

Simple line drawing of a cable or wire connector with no text or symbols

Abb. 4

Matrimoniali- CME, CMN, CMN2, CMNX, CMNX2.

COMANDO DI CONTROLLO

Schermo di controllo nei modelli: CIN, CIE, CMN, CMN2, CMNX, CMNX2, CME

Simple line drawing of a cable with a rectangular component attached to it, no text or symbols present.

Fig. 3

Simple line drawing of a cable being inserted into a plug (no text or symbols)

Fig. 4

Simple line drawing of a medical or laboratory device with wires and a rectangular component (no text or symbols)

Рис. 3

Simple line drawing of a medical or anatomical device with wires and connectors (no text or symbols)

Рис. 4

Please read the instructions of use carefully.

Do not use folded or creased.

Do not insert pins, needles or any other pointed metallic object.

Never dispose of this product in the bin. Take it to the

green collection point nearest to your home.

Symbols exclusively for heated mattress pad with fixed connection

Do not wet the product.

Symbols exclusively for heated mattress pad with detachable connection

tumble dry with a soft-

sensitive program.

Utilizar secador, no programa tecidos delicados. Utiliser le sèche-linge uniquement en cycle doux / délicat.

Hang without folding

or wringing

Estemder sem dobrar

e sem escorrer.

Étendre sans plier ni essorer.

Ohne Falten oder

Auswringen zum

Trocknen aufhängen.

ESPECIALIDADES ELECTRICAS DAGA, S.A. guarantees the conformity of this product for its intended use, for a period of 3 years and in all the Spanish territory. During the validity period and during the breakdown, the user has the right to the repair or replacement of the product, free of charge, except in the case that one of these options is not possible or disproportionate, then he may opt to a reduction in the price or cancellation of the sale, having to address in this case the vendor establishment; it also covers the replacement of spare parts whenever, in both cases, the product was used in accordance to the recommendations specified in this handbook, and it was not handled improperly by third parties not authorised by DAGA S.A.

This warranty does not affect the consumer rights in accordance to that provided in Law 23/2003, of 10th of July 2003 on guarantees in the sale of consumption goods in Spain.

USE OF THE WARRANTY

For the repair of the product, the consumer must address the Technical Service authorised by DAGA, S.A. as any inappropriate handling of such by personnel non-authorised by Daga, or any bad or inappropriate use, will oblige us to cancel this warranty. For the efficient exercise of the rights of this warranty it must be duly filled-in and with the invoice, purchase bill or delivery note.

In order to claim the compliance of the provisions in the warranty will prescribe after 3 years from the delivery of the product; the consumer having to inform the vendor of the non-conformity, whenever this claim is carried out within the legal period of the warranty. This warranty must remain in the power of the user, as well as the invoice, the purchase bill or delivery note to facilitate the exercise of these rights. For Technical Service and After sales attention outside the Spanish territory, please refer to the dealer where you purchased the product or contact directly with DAGA S.A.
