VE-5955 - Fan TRISTAR - Free user manual and instructions

Product type	Pedestal fan
Brand	TriStar
Model	VE-5955
Color	White / Grey
Dimensions (H x W x D)	120 x 45 x 45 cm
Grille diameter	40 cm
Net weight	3.5 kg
Power supply	220-240 V ~ 50 Hz
Rated power	45 W
Number of speeds	3
Oscillation	Yes, 90°
Adjustable tilt	Yes, manual
Protective grille	Yes, removable
Maximum noise level	55 dB(A)
Cable length	1.5 m
Blade material	ABS plastic
Maintenance and cleaning	Unplug, clean grille and blades with a damp cloth
Safety	Automatic shutdown in case of tipping
Spare parts available	Yes, via TriStar customer service
Usage	Indoor only

Frequently Asked Questions - VE-5955 TRISTAR

How to assemble the TriStar VE-5955 fan?

First assemble the base by screwing the two parts together. Attach the tube to the base, then clip the motor onto the tube. Finally, attach the rear grille, blades, and front grille using the tightening ring. Refer to the manual for detailed diagrams.

How to clean the fan?

Unplug the appliance. Remove the front grille by unscrewing the ring. Clean the blades and grilles with a damp cloth and a little mild detergent. Dry thoroughly before reassembling. Never immerse the motor in water.

How to adjust the fan speed?

Use the rotary knob located on the motor. Turn it to the desired position: 0 (off), 1 (low), 2 (medium), 3 (high).

How to activate oscillation?

Press the oscillation button located on the motor. The fan will oscillate automatically from left to right. To stop, press again.

The fan is noisy, is this normal?

A slight motor and airflow noise is normal. If the noise is loud or irregular, check that the grille is securely attached and the blades are not rubbing. Use the manual for troubleshooting.

What is the power consumption of the TriStar VE-5955?

The rated power is 45 W, which corresponds to a consumption of about 0.045 kWh per hour at maximum speed. Use the lowest speed to save energy.

What are the dimensions of the fan?

The assembled fan measures approximately 120 cm in height, 45 cm in width, and 45 cm in depth. The blade diameter is 40 cm.

How to replace a fuse or defective part?

Contact TriStar customer service for original spare parts. The fuse replacement is done by opening the compartment on the plug (if present). For any other part, consult a professional.

Can I use the fan outdoors?

No, the TriStar VE-5955 fan is designed for indoor use only. Do not expose it to rain, humidity, or extreme temperatures.

What to do if the fan does not turn on?

Check that the socket works and the cable is not damaged. Make sure the speed knob is in a position other than 0. If the problem persists, contact after-sales service.

USER MANUAL VE-5955 TRISTAR

VE-5955

NL

1

3

2

4

图1

图3

图2

图4

A. bouton

B. corps

C. vis

D base arrière

E. base avant

图1

图3

图2

图4

1. Retirez les 3 vis de la plaque tournante.

General:safety:instructions:

Check if the tension of your supply corresponds with the voltage indicated on the rating plate of your appliance.

• Before commissioning this device please read the instruction manual carefully and keep this so that you can check them later.
• Please keep these instructions, the guarantee certificate, the sales receipt and, if possible, the carton with the inner packaging!
• The device is intended exclusively for private and not for commercial use! Keep it away from direct heat, sun and moist and protect it against sharp impacts.
• Always remove the plug from the socket whenever the device is not in use, when attaching accessory parts, cleaning the device or whenever a disturbance occurs. Switch off the device before. Pull on the plug, not on the cable.
• This appliance is not intended for use by persons with reduced physical, sensory or mental capacities, or lack of experience and knowledge (including children), unless they have been supervised or instructed concerning use of the appliance by a person responsible for their safety.
• In order to protect children from the dangers of electrical appliances, never leave them unsupervised with the device. Consequently, when selecting the location for your device, do so in such a way that children do not have access to the device. Take care to ensure that the cable does not hang down.
• Test the device, plug and the cable regularly for damage. If there is damage of any kind, the device should not be used but the appliance must be repaired by a qualified technician in order to avoid a hazard. Only original spare parts must be used.
• A damaged cord or plug must be replaced by an authorized technician to avoid a hazard. Do not repair the device yourself,.
• Keep the device and the cable away from heat, direct sunlight, moisture, sharp edges and such like.
• Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a moment.
• Do not use the device outdoors.
  • Under no circumstances must the device be placed in water or other liquid, or come into contact with such. Do not use the device with wet or moist hands.
• Should the device become moist or wet, remove the mains plug from the socket immediately. Do not reach into the water.
• Use the device only for the intended purpose.

Parts:list:

A. knob
B. body
C. screw
D back base
E. front base
F. power cord

Assemblage:

1

3

2

14

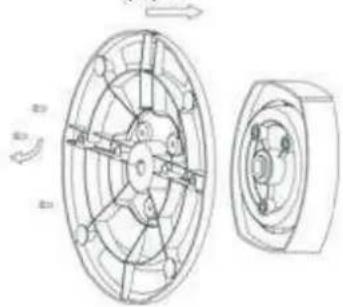

1. Spin 3 screws out from the turn plate.
2. Fasten the back base and front base each other.
3. Align with the base and turn plate screw, then spin into 3 screws.
4. Press the power cord into the line deduction.

Usage:

OFF Stop

1: Low

2: Medium

3: High

1 ← Oscillating Low

2 ← Oscillating Medium

3 Oscillating High

Cleaning:

Clean the body with soft cloth or soft thin paper. If the dust is uneasy to wipe away, rub it with soap water. Don't use gasoline, diluents and other solvents.

:

Attention:

1. Never insert fingers, pencils or any other object through the holes of the plastic sell.
2. To prevent risk of fire and electric shock. Do not use the unit near windows.
3. Power plug must be removed from power socket before cleaning, serving, maintenance and move from one location to another.
4. The fan should be placed on a flat and stable surface when operating to avoid overturning.
5. Do not put the product in wet place. For example, bathroom etc.
6. Don't use it in the kitchen in order that keeping the plastic part away from greasy dirt.
7. If the power cord is damaged, it must be replaced by the manufacturer or its service agent or similar qualified person in order to avoid a hazard.

Guidelines:for:protection:of:the:environment:

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection.

IT:

:

图1

图3

图2

图4

3

4

Uso:

APAGADO Detener

1: Bajo

2: Medio

3: Alto

1 ← Oscilación baja

A. manípulo

B. estrutura

C. parafuso

D base posterior

E. base anterior

1

3

2

4
