37538N - Rice cooker HAMILTON BEACH - Free user manual and instructions

Product type	Rice cooker
Brand	Hamilton Beach
Model	37538N
Cooking capacity (cooked rice)	8 to 10 cups (approximately 1.5 to 1.8 L)
Power	700 W
Dimensions (L x W x H)	26 x 26 x 27 cm
Weight	2.4 kg
Bowl material	Stainless steel with non-stick coating
Main functions	Rice cooking, keep warm, steam cooking (with included basket)
Keep warm temperature	Approximately 65 °C
Included accessories	Non-stick bowl, steam basket, measuring cup, spatula
Power supply	120 V / 60 Hz (standard plug)
Power cord length	1 m
Safety	Automatic shut-off, cool-touch handles, overheat protection
Care and cleaning	Removable bowl dishwasher safe, exterior wipe with damp cloth
Replacement parts and repairability	Bowl, steam basket, lid, and other parts available on the manufacturer's website
Warranty	1 year (depending on country)

Frequently Asked Questions - 37538N HAMILTON BEACH

How to start cooking rice?

Place the rice and water in the bowl (follow approximately 1:1.5 ratio), close the lid, plug in the appliance and press the cooking button. Cooking stops automatically and the indicator changes from Cook to Keep Warm.

What is the maximum amount of rice I can cook?

This appliance can cook up to 8 cups of dry rice, yielding about 16 cups of cooked rice. Do not exceed the maximum capacity line in the bowl.

How to clean the rice cooker?

Unplug the appliance and let it cool. The non-stick bowl and steam basket are dishwasher safe. Wipe the exterior with a damp cloth. Never immerse the appliance body in water.

Why does my rice stick to the bottom?

This can happen if the water amount is insufficient or if you keep the rice warm for too long. Make sure to follow the indicated proportions and stir the rice after cooking. The non-stick bowl reduces this issue.

Can I cook other foods besides rice?

Yes, you can cook steamed vegetables in the included steam basket, or prepare quinoa, grains, soups, and stews. Adjust the cooking times.

How to use the steam function?

Add water to the bowl (according to instructions), place the food in the steam basket, close the lid, and press the cooking button. The cooker automatically switches to keep warm mode once the time is up.

What to do if the cooking button does not stay down?

Check that the bowl is properly in place and that the bottom is clean. If the problem persists, the thermostat may be faulty. Contact Hamilton Beach customer service.

How to adjust cooking time for brown rice?

The cooker operates automatically, but for brown rice, add a little more water (about 1 part rice to 2 parts water) and let it cook until the appliance switches to keep warm. The cooking time is longer.

Does the appliance shut off automatically?

Yes, once cooking is complete, the cooker automatically switches to keep warm mode. Do not leave rice on keep warm for more than 12 hours to prevent drying or burning.

Where to find replacement parts?

Parts such as the bowl, steam basket, lid, and spatula are available on the official Hamilton Beach website or from authorized dealers. Use model number 37538N.

USER MANUAL 37538N HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Questions? Please call us – our friendly associates are ready to help. USA: 1.800.851.8900

Hamilton Beach rice cooker with visible cooking ingredients and control panel (no text or symbols on body)

20-Cup Rice Cooker

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. Close supervision is necessary when any appliance is used by or near children. Children should be supervised to ensure that they do not play with the appliance.
4. Do not touch hot surfaces. Use handles or knobs. Use pot holders when removing hot containers.
5. To protect against a risk of electrical shock, do not immerse cord, plug, or base in water or other liquid.
6. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning.

7. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, has been dropped or damaged in any manner. Call our toll-free customer service number for information on examination, repair, or adjustment.

8. The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.

9. Do not use outdoors.
10. Do not let cord hang over edge of table or counter or touch hot surfaces, including the stove.
11. Do not place on or near a hot gas or an electric burner, or in a heated oven.
12. Extreme caution must be used when moving an appliance containing hot food, water, or other hot liquids.
13. To disconnect, push up the switch and then remove plug from wall outlet.
14. Do not use appliance for other than intended use.
15. Lift and open cover carefully to avoid scalding, and allow water to drip into the cooking pot.
16. CAUTION: Risk of electric shock. Cook only in removable cooking pot.
17. Do not place the unit directly under cabinets when operating as this product produces large amounts of steam. Avoid reaching over the product when operating.

SAVE THESE INSTRUCTIONS!

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The length of the cord used on this appliance was selected to reduce the hazards of becoming tangled in or tripping over a longer cord. If a longer cord is necessary, an approved extension cord may be used. The electrical rating of the extension cord must be equal to or greater than the rating of the appliance. Care must be taken to arrange the extension cord so that it will not drape over the countertop or tabletop where it can be pulled on by children or accidentally tripped over.

Parts and Features

*To order parts:

US: 1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 01 800 71 16 100

How to Make Rice

WARNING Electrical Shock Hazard. Cook only in removable cooking pot.

Never place water or food directly into the base.

BEFORE FIRST USE: Wash cooking pot and lid. See Cleaning for details.

Line drawing of a hand pouring liquid into a bowl filled with granular material (no text or symbols)

Simple line drawing of a cooking pot with two arrows indicating downward motion (no text or symbols)

Line drawing of a rice cooker with a lid and arrow indicating cooling (no text or symbols)

Diagram showing a plug inserted into an electrical outlet with two outlets, connected to a cable (no text or symbols present)

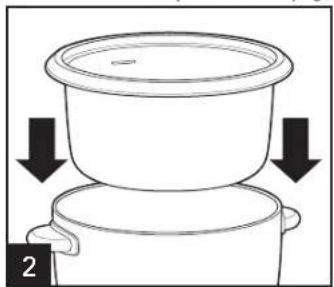

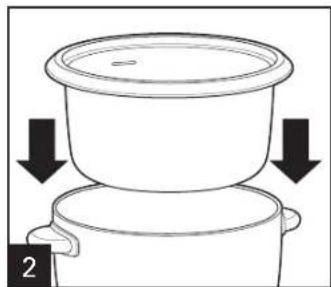

Carefully place cooking pot straight down on base. Make sure cooking pot is seated securely by rotating the pot left and right. NOTE: Make sure bottom of cooking pot is not bent or warped, or it will not conduct heat correctly.

Cooker is in WARM mode when plugged in.

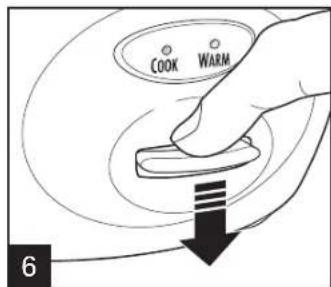

Press cook switch down to begin cooking.

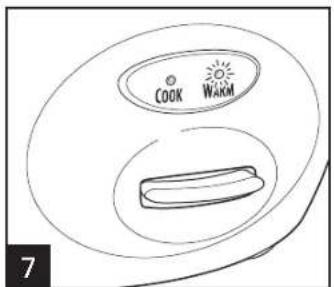

When finished cooking, cooker will automatically switch to WARM and light will glow.

How to Make Rice (cont.)

Line drawing of a hand stirring a small bowl of food into a rice pot (no text or symbols)

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the direction (no text or symbols present)

How to Steam Food

⚠ WARNING Electrical Shock Hazard. Cook only in removable cooking pot. Never place water or food directly into the base.

BEFORE FIRST USE: Wash cooking pot and lid. See Cleaning for details.

Line drawing of a hand pouring liquid into a bowl on a surface (no text or symbols)

Fill cooking pot half full with water.

Simple line drawing of a cooking pot with two arrows indicating downward pressure or flow (no text or symbols)

Hand using a tool to stir corn in a bowl (no text or symbols visible)

Simple line drawing of a cooking step showing a pan with corn kernels being added to a pot (no text or symbols)

Carefully place cooking pot straight down on base. Make sure cooking pot is securely seated by rotating the pot left and right. NOTE: Make sure bottom of cooking pot is not bent or warped, or it will not conduct heat correctly.

How to Steam Food (cont.)

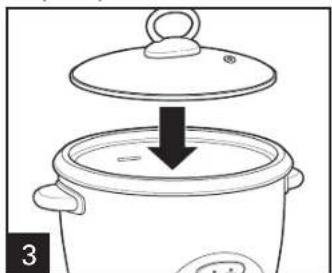

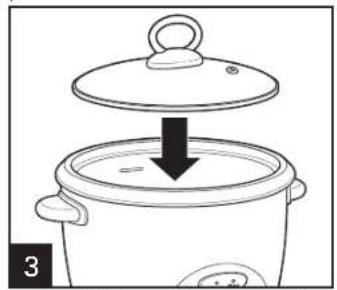

Illustration of a cooking process showing a lid being placed into a steaming pot (no text or symbols)

Diagram showing a plug inserted into an electrical outlet with two outlets, connected to a cable (no text or symbols present)

Cooker is in WARM mode when plugged in.

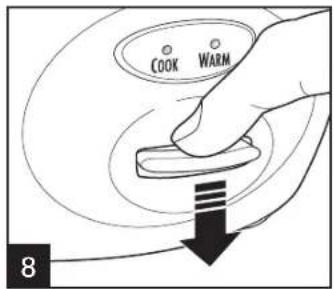

Press cook switch down to begin cooking.

Illustration of a hand using a grater to stir contents in a pot (no text or symbols)

Diagram showing a plug inserted into an electrical outlet with two socket plugs, indicating power or connection (no text or symbols present)

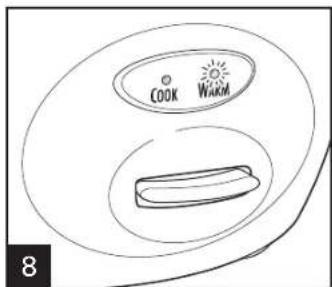

Cook until food has reached desired doneness. Push cook switch up to warm. NOTE: Unit will not automatically shift to WARM mode when steaming food.

Cleaning

WARNING Electrical Shock Hazard. Do not immerse base in water or other liquid.

Diagram showing a plug inserted into an electrical outlet with a magnified inset (no text or symbols)

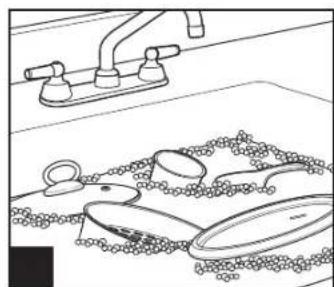

Line drawing of a kitchen sink with plates and utensils (no text or symbols)

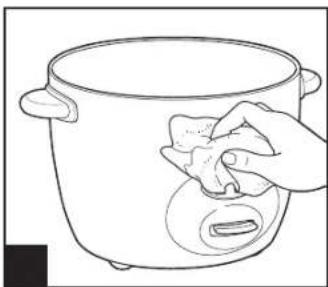

Line drawing of a hand cleaning a rice cooker with a cloth (no text or symbols)

Diagram of a cooking appliance with three tiers of food, one in foreground and one in the middle, mounted on a cabinet (no text or symbols)

Cooking pot and lid are dishwasher-safe. Steamer basket, rice measuring cup, and paddle are dishwasher-safe for top rack only.

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides – as well as delicious recipes, tips, and to register your product online!

Rice Cooking Chart

*Rice Cooker Cooking Time (approximate). Rice cooker will switch to WARM after cooking time, indicating rice is cooked.

**Measured with 1-cup U.S. measure.

Chart is based on measuring rice and water with the rice measuring cup provided. If you lose the rice measuring cup, one rice measuring cup equals 6 oz. (177 ml) or approximately 3/4 cup U.S. measure, or follow the recommended two parts water to one part rice.

TYPE OF RICE

MAXIMUM AMOUNT OF RICE

MAXIMUM AMOUNT OF WATER COOKING TIME* MAKES**

Brown, Long Grain 10 cups 12 cups 50–55 minutes 20+ cups

White, Long Grain 10 cups 12 cups 30–35 minutes 20+ cups

White, Basmati 10 cups 12 cups 30–35 minutes 20+ cups

White, Jasmine 8 cups 12 cups 33–38 minutes 20+ cups

Arborio 8 cups 14 cups 34–39 minutes 20+ cups

Sushi 9 cups 12 cups 30–35 minutes 20+ cups

There are many different types of rice. Cook time may vary based on actual amounts of rice to water. Rice packaging directions may call for different amounts of rice and water from the above chart; following package directions may vary results. Adjusting the ratio of rice to water may be necessary to get the texture of rice that you like.

Troubleshooting

PROBLEM PROBABLE|CAUSE/SOLUTION

Cooker doesn’t turn on.	• Cooker is not plugged in. Make sure rice cooker is plugged into a properly operating electrical outlet.
Rice is not cooked.	• Not enough water/cooking liquid. Follow package directions or see Rice Cooking Chart for more information.• Carefully place cooking pot straight down in base. Make sure cooking pot is seated securely by rotating the pot left and right. NOTE: If cooking pot is bent or warped, it will not seat properly in base and, therefore, will not conduct heat correctly. To replace cooking pot, call the toll-free Customer Assistance number listed on the cover of this guide.
Rice is mushy or water overflows in cooking.	• Too much liquid added to cooking pot. Reduce liquid.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V \~ 60 Hz).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.

PRÉCAUTIONS IMPORTANTES

CONSERVEZ CES INSTRUCTIONS!

Line drawing of a hand pouring granular material into a bowl (no text or symbols)

Simple line drawing of a cooking pot with two arrows indicating downward motion (no text or symbols)

Line drawing of a rice cooker with a lid and arrow indicating cooling (no text or symbols)

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating the direction (no text or symbols present)

Line drawing of a hand stirring a small bowl of food into a rice pot (no text or symbols)

Diagram showing a plug inserted into an electrical socket with a magnified view of the socket (no text or symbols)

Line drawing of a hand pouring liquid into a bucket on a surface (no text or symbols)

Simple line drawing of a cooking pot with two downward arrows indicating pressure or movement (no text or symbols)

Line drawing of a hand pouring corn into a bowl (no text or symbols)

Simple line drawing of a cooking step showing a steamer being placed into a pot (no text or symbols)

Illustration of a cooking process showing a lid being placed into a pot with food inside (no text or symbols)

Electrical outlet with two socket and plug, showing a black arrow pointing to the socket (no text or symbols)

Illustration of a hand using a pipette to stir contents into a pot (no text or symbols)

Diagram showing a plug inserted into an electrical outlet with two socket plugs, connected to a cable (no text or symbols present)

Diagram showing a plug inserted into an electrical outlet with two socket slots, connected to a cable (no text or symbols present)

Line drawing of a kitchen sink with plates and a faucet (no text or symbols)

Line drawing of a hand cleaning a rice cooker with a cloth (no text or symbols)

Line drawing of a cooking appliance with three tiers of food, one being filled with a lid (no text or symbols)

Blanc, basmati 10 tasses 12 tasses 30 à 35 minutes 20+ tasses

Blanc, Jasmine 8 tasses 12 tasses 33 à 38 minutes 20+ tasses

Arborio 8 tasses 14 tasses 34 à 39 minutes 20+ tasses

Pour sushi 9 tasses 12 tasses 30 à 35 minutes 20+ tasses

PROBLÈME CAUSE POSSIBLE/SOLUTION

Line drawing of a hand pouring liquid into a bowl containing granular material (no text or symbols)

Simple line drawing of a cooking pot with two arrows indicating downward motion (no text or symbols)

Line drawing of a rice cooker with a lid and arrow indicating cooling (no text or symbols)

Diagram showing a power outlet connected to an AC plug, with no text or symbols present.

Line drawing of a hand stirring a small bowl of food into a rice pot (no text or symbols)

Diagram showing a plug inserted into an electrical socket with a black arrow indicating the direction (no text or symbols present)

Line drawing of a hand pouring liquid into a bowl on a surface (no text or symbols)

Simple line drawing of a cooking pot with two arrows indicating downward motion (no text or symbols)

Line drawing of a hand pouring corn into a bowl (no text or symbols)

Simple line drawing of a cooking step showing a steamer being placed on a pot (no text or symbols)

Illustration of a cooking process showing a lid being placed into a pot with a stove (no text or symbols)

Electrical outlet with two socket and plug, showing a black arrow pointing to the socket (no text or symbols)

Illustration of a hand using a pipette to stir contents into a pot (no text or symbols)

Diagram showing a plug inserted into an electrical outlet with a black arrow indicating the direction (no text or symbols present)

Diagram showing a plug inserted into an electrical outlet with two socket plugs, connected to a cable (no text or symbols present)

Line drawing of a kitchen sink with plates and utensils (no text or symbols)

Line drawing of a hand cleaning a rice cooker with a cloth (no text or symbols)

Line drawing of a cooking appliance with three tiers of food, one in foreground and one in the base, mounted on a cabinet (no text or symbols)
