USER MANUAL Mopho Dave Smith
Dave Smith Instruments
1590 Sylvaner Avenue
Saint Helena, CA 94574-2340
USA
©2008-2009 Dave Smith Instruments
www.DaveSmithInstruments.com

Tested To Comply With FCC Standards FOR OFFICE USE

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Getting Connected .... 3
Front Panel Controls ....5
Basic Operation....9
Global Parameters ...... 13
Program Parameters....15
Oscillator Parameters....15
Miscellaneous Oscillator Parameters....16
Mixer Parameters ....17
Low-pass Filter Parameters....17
VCA Parameters....18
LFO Parameters....19
Envelope 3 Parameters....20
Modulation Parameters ......21
Push It Switch Parameters 22
Clock Parameters....23
Arpeggiator Parameters ....23
Sequence Parameters....24
Name Parameter 25
Modulation Destinations....26
Modulation Sources ....28
Parameter List....29
MIDI Implementation....30
MIDI Messages....30
NRPN Messages....33
Global Parameter Data....34
Program Parameter Data 35
Sysex Messages ....41
Packed Data Format....44
Hidden Functions 44
Quick Start
Thanks for purchasing your Mopho synthesizer! Listen to the sounds, twiddle some knobs, have some fun!
Please Register!
Please go to www.davesmithinstruments.com and register your synth. If you purchased directly from us, there is no need to register—we already have your contact information.
Powering Up
So, plug in the power supply, connect (in stereo!!) to your mixer/sound system, and start playing!
You can use the PUSH IT switch to trigger sounds without a keyboard. If you're using a MIDI keyboard, try applying keyboard pressure (aftertouch) and the mod wheel. Many sounds are fairly simple at first, then come alive when you use the controllers. With other sounds, you may need to hold the notes a while to let the sound unfold. Playing in different ways has a big effect on the programs.
Selecting and Editing Programs and Global Settings
You can use the increment and decrement (+ and -) switches to step through the programs. Hold them down briefly to increment or decrement the bank. There are 3 banks of 128 programs.
If you want to edit a program, just turn any knob. The new value will be displayed in the bottom line of the LCD (the top line displays the programmed value for handy reference).
After turning knobs, just hit PROGRAM MODE so the LCD goes back to the program/bank screen, allowing you to change programs again.
Press and hold the PROGRAM MODE switch briefly to display the Global menu and change higher level parameters such as MIDI channel number, Transpose/Detune, and so on. The PROGRAM knob changes the displayed page and increment and decrement change the values. These settings are remembered when the synth is turned off.
Summary
You should be up and running now; for more operation information, read on. Or, just look up specific parameters for detailed notes. Pages 26 through 28 contain a handy reference for mod destinations and sources. At some point you should
read through the manual to discover all the little features that you might not notice at first.
Don't forget you get a free editor for Mac OS or Windows with your purchase. Download it from www.soundtower.com/mopho.
I should mention that this manual does not include explanations of basic analog synthesizer functions. It assumes you already know what an oscillator is, how a low-pass filter affects the sound, what an ADSR envelope looks like, and so on.
Fortunately, these days it is quite easy to find such resources on the Internet. If you want to learn the lingo and the basics, just try a search in Google (or the search engine of your choice), something like “analog synthesizer tutorial.” You’ll find plenty of good reading material.
Have fun!
Dave Smith
Special thanks to:
Jeff Koepper, Andrew McGowan, Dave Polich, and Stefan Trippler. Thanks also to the authors of the Prophet '08 programs, many of which are used in Mopho.
Getting Connected
Mopho has several inputs and outputs on its back panel.
Power Input — Connect the power supply included with your Mopho. The power supply comes with different AC adaptor prongs that enable it to work almost anywhere in the world. If for whatever reason you need to use a different supply, it must match the specifications printed on the front panel.
Note: The power supply label says “Evolver” on it; we use the same supply for the mono Evolvers, the Prophets, and Tetra.
MIDI In — To receive MIDI data from another device, connect this to the other device's MIDI Out.
MIDI Out — To send MIDI data to another device, connect this to the other device's MIDI In. This output can also be configured as a MIDI Thru using the MIDI Out Select parameter in the Global menu.
Audio In — Mopho can be used as a signal processor. Audio is routed through the filter and envelopes and, when the signal level is high enough, a gate is generated. Audio can also be used to advance the sequencer when Seq Trigger is set to Audio In.
Note: Though Mopho can process external audio, it does not have a pitch detector, so the oscillators do not track the pitch of the source audio.
Audio Out — Mopho's unbalanced, stereo outputs.
Phones — A 1/4 inch stereo headphone jack.
Front Panel Controls

Input Gain — Used to adjust the gain of AUDIO IN. For more about using Mopho to process external audio, see page 11. For low-level sources (like guitars), INPUT GAIN should be turned up. For line-level sources, it will usually be turned down. Turning it down does not turn it off, it just decreases the gain. External Input Volume (see Mixer Parameters on page 17) controls the amount of signal that gets mixed into the filter and must be turned up for any audio—external or feedback—to be heard.
Note: The factory programs use a naming convention where “FB” indicates a program is designed to take advantage of the feedback capability. When nothing is plugged into the Audio In jack, the left Audio Output is normalled to the input. This provides a feedback path that will create some unique, wild sounds. INPUT GAIN is not a programmable control, so its position will have an effect on those programs. For most FB sounds, the INPUT GAIN should be set to minimum, and will get out of control (often nicely!) when turned up.
Program — Use PROGRAM to change and scroll through the programs. Also used to select parameters in Global mode.
Program Mode — Mopho has three modes of operation: program, edit, and global. When in program mode, the display shows the name, number, and bank of the current program. Editing any of the parameters puts Mopho into edit
mode and displays the last parameter edited and its stored and edited values. See Program Parameters starting on page 15 for more information.
Global mode is accessed by briefly holding down the PROGRAM MODE button. The Global menu is displayed. Use PROGRAM to change global parameters and the increment and decrement (+ and -) buttons to change the settings. See Global Parameters on page 13 for more information.
To return to program mode from edit or global mode, simply press PROGRAM MODE.
Write — Use WRITE to save an edited program to any of Mopho's 384 memory locations. To execute the write operation, press the increment (+) button. To cancel a write, press WRITE, decrement (-), or PROGRAM MODE. WRITE is also used to execute certain operations in the Global menu.
Note: You can store a program in a different location. After hitting the WRITE button, you can change the destination using the PROGRAM knob, and you can change banks by holding the increment (+) and decrement (-) buttons. Be careful changing the banks! If you hit the increment button quickly, it saves the program wherever you are at that point. If you want to change banks, just be sure to hold the button for a couple seconds.
Volume — Controls the volume of the left and right audio outputs and the headphone output.
Increment/Decrement — The increment and decrement (+ and -) controls are used to step through programs in program mode, to change values in the Global menu, and to confirm or cancel various operations. In edit mode they increase/decrease the parameter value. They are also used to select Mopho's three program banks. Hold increment briefly to switch to the next highest bank; hold decrement to switch to the next lowest bank.
Assignable Parameters 1-4 — Any of Mopho’s program parameters can be edited from the front panel using the ASSIGNABLE PARAMETERS controls and the assignments for the controls are saved per program, to best suit that program. In other words, the assignments for the controls can be completely different from one program to another.
Assign Parameters — When the ASSIGN PARAMETERS LED is lit, turn any of the ASSIGNABLE PARAMETERS controls to select from the list of program parameters. Press ASSIGN PARAMETERS again (turn the LED off) to use the ASSIGNABLE PARAMETERS controls to edit the selected parameters. For a description of the parameters, see Program Parameters beginning on page 15. For a list of the parameters, see page 29.
Pitch — Controls the base frequency of the two oscillators. The relative interval between the two oscillators is maintained, even when the extremes are reached.
Cutoff — Controls the filter cutoff.
Resonance — Controls filter resonance.
Note: The filter will only self oscillate when in 4-pole mode. See Low-pass Filter Parameters on page 17 for more information.
Attack — Simultaneously adjusts the attack portion of all envelope generators: filter, amplifier, and Envelope 3.
Decay/Release — Simultaneously adjusts the decay and release portions of all envelope generators: filter, amplifier, and Envelope 3.
Push It! — The PUSH IT button is a manual trigger to play Mopho. It can trigger a specific note (at a specific velocity) or a gated sequence, latch notes or sequences on and off, and manually step through a sequence. For more information, see Program Parameters, beginning on page 15.
Basic Operation
In designing Mopho, the goal was to make a great sounding analog mono synth that was also affordable. Toward that end, we wanted to give players enough control over parameters to make it useful for performance, so we came up with a combination of “hard-wired” commonly used controls and user-assignable controls. Any of Mopho’s parameters can be edited in real time from the front panel controls. But we also recognize that may not be the quickest or easiest way to program sounds from scratch. A free editor is available for Mac OS and Windows that gives you access to all of Mopho’s program parameters simultaneously. Download it here: www.soundtower.com/mopho. Also, an advanced version of the editor with more features can be purchased from our Web site.
Note: Most of the Prophet '08's controls map directly to Mopho's controls, so if you have a Prophet '08, you can use it as a MIDI control surface for Mopho.
When Mopho first powers up, it is in Program mode. The top line of the LCD shows the Program (1...128) and Bank (1...3) number of the currently selected program, and the bottom line shows the 16-character name of the program. The PROGRAM knob changes the program. The program can also be changed by pressing the increment (+) or decrement (-) switches, respectively. To increment to the next bank, hold the increment switch briefly; to decrement to the previous bank, hold the decrement switch.
To edit a program, simply turn any knob. The ASSIGNABLE PARAMETERS knobs have been preset to useful parameters for the factory programs. To change a knob's assignment, press ASSIGN PARAMETERS to light the LED. Turning any of the ASSIGNABLE PARAMETERS knobs now will scroll through the list of available parameters. Choose one or more parameters to edit and then press ASSIGN PARAMETERS again to exit the assignment mode (ASSIGN PARAMETERS LED should now be off). See Program Parameters on page 15 for a detailed list of all parameters and their functions. After editing parameters, press the PROGRAM MODE switch to exit edit mode and return to program mode.
Feedback

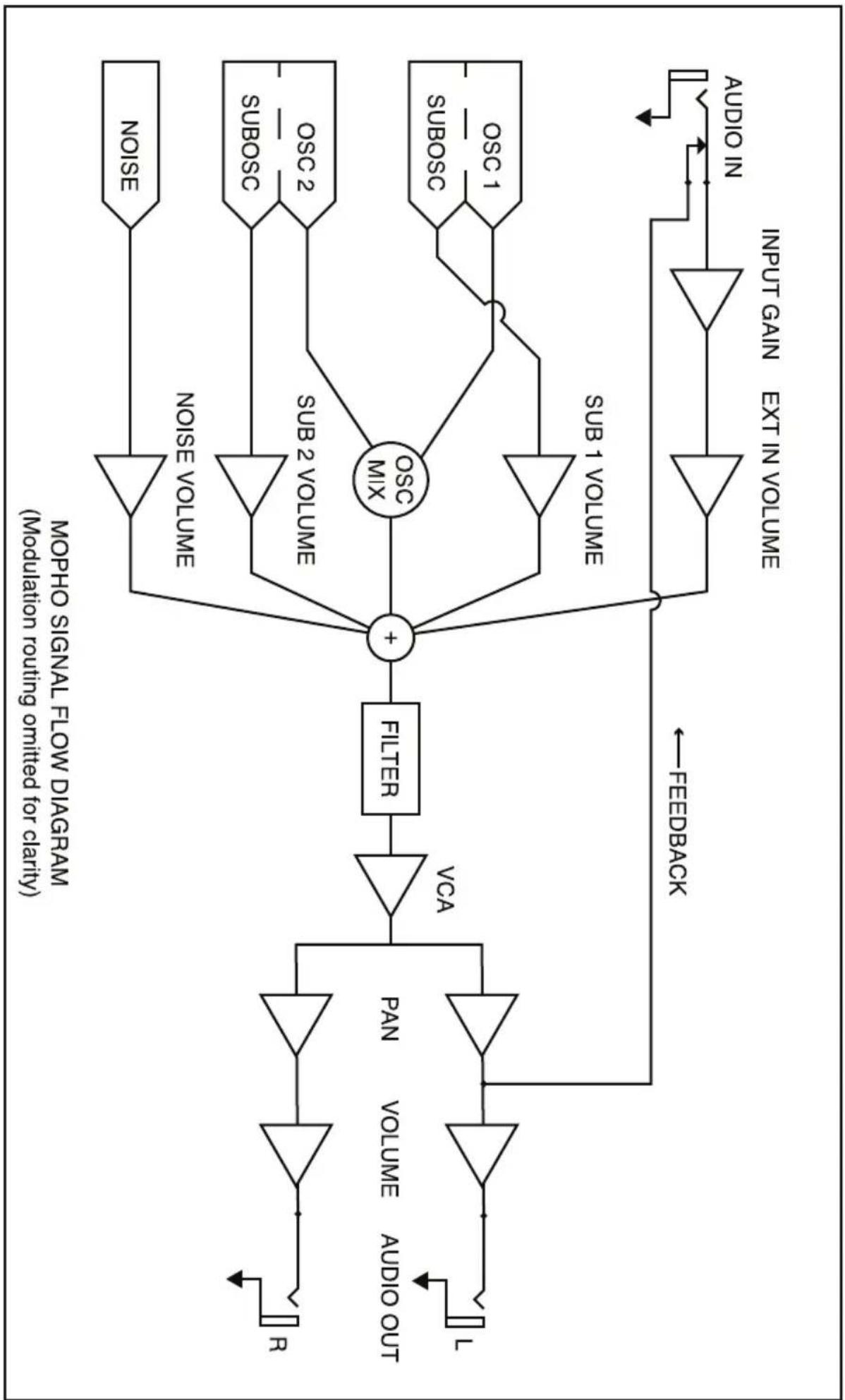

As you can see from the illustration on the following page, the left Audio Output is normalled to the Audio In. (This connection is broken when a plug is inserted in the Audio In.) Turning up the external input volume (ExtIn Vol parameter) will cause varying amounts of the audio output to be mixed back in pre-filter. For most purposes, small amounts of feedback are most useful and the resulting effect is similar to an overdrive distortion. Higher levels of feedback can get very squirrelly and rude (which may be exactly the effect you're looking for).
INPUT GAIN also affects the level of the feedback signal, so you'll typically want to start with INPUT GAIN turned down.
Several of the factory programs already have some level of feedback programmed in, as indicated by the letters “FB” following the name. To hear the effect of ExtIn Vol and INPUT GAIN, call up one of those programs and vary those parameters.
Audio In
Audio In can also be used to process an external audio source, to get access to the analog filter as a sound processor. In general, when using a line-level input, you will want the INPUT GAIN control set to minimum. When using a low-level source, such as an electric guitar, you'll need to turn up the INPUT GAIN to get sufficient signal level.
When processing external audio, you will first need to turn up the ExtIn Vol level in the Mixer. Otherwise no signal gets to the filter. Also note that the VCA needs to be open to hear the input. This can be done a number of ways:
- Just turn up the VCA Level if you want the signal to go through continuously
- Manually trigger the VCA envelope with the P USH IT button or a MIDI keyboard
- Select AudioIn as the mode in the PushItSw parameter, which automatically gates the VCA envelope with an input signal greater than a fixed threshold
There are also numerous other ways of opening the VCA using modulation.
Saving a Program
To save a Program, press the WRITE switch and the following screen appears:
Write? P: xxx B: x
Hit: Inc if Yes
Press the increment (+) switch to save the current program, or decrement (-) to cancel (or press the WRITE switch again). To store in a different location, use PROGRAM to select a new destination, and hold the increment or decrement switch to choose a different bank.
Global Parameters
Mopho's Global parameters affect all programs globally. Examples include MIDI channel and fine tune. To edit the Global parameters, hold down the PROGRAM MODE switch until Global Parameter is displayed. The PROGRAM knob changes the global parameter and the increment and decrement buttons change the value.
Transpose: -12...+12 — Master Transpose control, 0 is centered. Steps in semitones.
Fine Tune: -50...+50 — Master Fine Tune control; 0 centered. Steps in cents (50 cents = 1/2 semitone).
MIDI Channel: ALL, 1...16 — Selects which MIDI channel to send and receive data, 1 to 16. All receives on all 16 channels.
Clock: see table — Selects the MIDI clock status.
| Display MIDI Clock Setting | |
| Internal | MIDI clock is neither sent nor received |
| MIDI Out | MIDI clock is sent |
| MIDI In | MIDI clock is received |
| Midi In/Out | MIDI clock is received and transmitted |
MIDI Parameter Send: NRPN, CC, Off — Changes to the values of Mopho's front panel controls are transmitted via MIDI as Non-registered Parameter Number (NRPN) controllers or as Continuous Controllers (CC). Transmission of parameters can also be turned off. See MIDI Implementation on page 30 for details.
Note: NRPNs are the preferred method of parameter transmission, since they cover the complete range of all parameters, while CCs only handle the main parameters.
MIDI Parameter Receive: All, NRPN, CC, Off — Sets the method by which Mopho receives parameter changes via MIDI. As with transmission, NRPNs are the preferred method, though some controllers may only be able to send CCs.
MIDI Control: Off, On — When On, the synth will respond to MIDI controllers, including Pitch Wheel, Mod Wheel, Pedal, Breath, Volume, and Expression.
MIDI SysEx: Off, On — When On, the synth will respond to received MIDI SysEx messages, and will transmit them, when prompted, to the MIDI Out. See Sysex Messages on page 41 for details.
Audio Out: Stereo, Mono — Mopho defaults to stereo operation. When set to Mono, this parameter defeats all pan settings and modulation, effectively making each of the outputs a mono output.
MIDI Out Select: Out, Thru — MIDI Out can be switched to MIDI Thru to daisychain multiple MIDI devices.
Basic Patch — Press the WRITE button to load a basic patch into the edit buffer. (The patch will not actually be written to the current program location unless intentionally written to memory in program mode using the WRITE button.)
Reset Globals — Mopho does not have a full hardware reset, but select this parameter and press WRITE to reset the global parameters to their factory defaults.
MIDI SysEx Dump: see table — Allows dumping of Programs in SysEx format via MIDI.
| Display MIDI Transmit Operation | |
| Current Program | Dump current program |
| Current Bank | Dump all 128 programs in current bank |
| All Banks | Dump all programs in all 3 banks |
Press the WRITE switch to start transmission. This feature is handy for saving Programs on a computer in SysEx format, or for sending them to another Mopho via a direct MIDI connection. The dumps include Program and Bank numbers, so when received, the programs will be stored in the same location.
Program Parameters
All Program parameters can be edited using any of the ASSIGNABLE PARAMETERS controls. To assign a parameter to a control, press the ASSIGN PARAMETERS button to light the LED, and then turn any of the knobs (1 through 4) to select a parameter. A full list of the parameters can be found on page 29. The selected parameter and value appear in the LCD display. The top line of the LCD displays the programmed value for reference; the bottom line displays the edited value.
To then change the value of the parameter you selected, hit the ASSIGN PARAMETERS button again, and the same knob will now change the value. You can also use the increment and decrement switches to adjust parameter values. Press both switches at the same time to set the parameter to zero.
Note: Once you are done editing a program, before you save it, you should consider what parameters you want to access when playing the new program. Generally, when making a program, we try to assign each of the 4 knobs to a different parameter that makes sense for that particular program, providing extra live control.
Though it is certainly possible to perform detailed program generation and editing using these controls, it is usually much faster to use the free editor available for Mac OS or Windows. The minimal front panel of the Mopho is designed for fast, real-time changes in live performance.
Following are descriptions of each Mopho Program parameter.
Oscillator Parameters
Mopho has two analog oscillators. The basic controls for each oscillator are the same.
Note: There are additional modulation controls that can affect the pitch of Oscillators 1 and 2. These are covered in other sections of the Parameter definitions.
Osc Freq: C 0...C 10 — Sets the base oscillator frequency over a 10 octave range, from 8 Hz to 8KHz, stepping in semitones. C3 is middle C, the first octave is 0 (C0, C#0, etc.), the second octave is 1 (C1, C#1, etc.), and so on.
Fine Freq: -50...+50 — Fine Tune control; 0 centered. Steps in cents (50 cents = 1/2 semitone).
Shape: see table — Selects the oscillator waveshape as follows:
| Display Waveshape | |
| Osc Off | No output |
| Sawtooth | Sawtooth |
| Triangle | Triangle |
| Saw-Tri | Sawtooth — Triangle mix |
| Pulse xx | Pulse Wave, with pulse width ranging from minimum (0) to maximum (99). The pulse width will turn off at the two extremes — this allows some interesting modulation possibilities. A square wave will be at Pulse 50. |
Glide: 0...127 — Sets the oscillator glide (portamento) rate. Glide can be set independently for each oscillator. Low values are faster. See “Glide Mode” below in Miscellaneous Oscillator Parameters for additional Glide settings.
Keyboard: On, Off — Turns keyboard tracking for the oscillator on and off.
Sub Osc 1: 1...127 — Sub-oscillator 1 generates a square wave pitched one octave below oscillator 1. This parameter controls the level.
Sub Osc 2: 1...127 — Sub-oscillator 2 generates a square wave pitched two octaves below oscillator 2. This parameter controls the level.
Miscellaneous Oscillator Parameters
Sync 2->1: Off, On — Turns oscillator hard sync on. With sync on, whenever oscillator 2 resets, it will force oscillator 1 to reset for the classic hard sync sound.
Glide Mode: see table — Sets the way the oscillators respond to Glide settings.
| Display Glide mode | |
| FixRate | The Glide rate is fixed. The time to transition from one note to another varies depending upon the interval between the notes. |
| FixRate A | The same, but Glide is only applied when played legato; that is, when a new note is hit while another note is held. |
| FixTime | The Glide time is fixed. The time to transition from one note to another is the same, regardless of the interval. |
| FixTime A | The same, but Glide only is applied when played legato; that is, when a new note is hit while another note is held. |
Osc Slop: 0...5 — The amount of random oscillator frequency slop. The analog oscillators in Mopho are very accurate, and will not drift. This works great for accurate sounds, and allows precise de-tuning. The Oscillator Slop parameter
allows subtle amounts of frequency drift. For larger amounts, use a random LFO or white noise mod.
Pitch Wheel Range: 0...12 — Sets the bend range, in semitones, of the pitch wheel. The setting is the range in the positive or negative direction. For example, a setting of 7 lets you bend a note up or down by a fifth.
Key Assign: see table — Determines how Mopho responds to keyed notes.
| Display Key mode | |
| Low Note | Low note priority |
| LowRetrig | Low note priority, re-trigger envelopes |
| HighNote | High note priority |
| HighRetrog | High note priority, re-trigger envelopes |
| LastNote | Last note hit priority |
| LastRetrog | Last note hit priority, re-trigger envelopes |
Mixer Parameters
Osc Mix: 0...127 — Enables the outputs of Oscillators 1 and 2 to be mixed in varying amounts. A setting of 0 is equivalent to 100% Oscillator 1 and 0% Oscillator 2. A setting of 127 is just the opposite. A setting of 64 is essentially a 50-50 mix of both oscillators.
Noise Level: 0...127 — Controls the volume of white noise mixed into the filter.
Ext In Volume: 0...127 — Controls the level of external audio input mixed into the filter. This is used for processing other audio sources (guitars, recordings, etc.) through Mopho's analog electronics. This works in conjunction with the front panel's INPUT GAIN control.
Also, since the left channel of AUDIO OUT is normalled to AUDIO IN, this control sets the amount of Mopho's audio output returned to the audio input. Use this for crazy feedback sounds.
Low-pass Filter Parameters
Mopho utilizes a switchable, 2- or 4-pole analog low-pass filter coupled with a 4-stage (plus delay) ADSR envelope generator.
Frequency: 0...164 — Sets the base filter cutoff frequency over more than 13 octaves. This control steps in semitones.
Resonance: 0...127 — Sets the Resonance level of the filter. At high settings the filter will self-oscillate in 4-pole mode. If the filter does not oscillate, switch to 4-pole mode.
Keyboard Amount: 0...127 — Sets the amount of keyboard (MIDI note) to the filter cutoff. A setting of 64 will step the filter one semitone for each note, 32 would be half-semitones, and so on.
Audio Mod: 0...127 — Controls the amount of audio from Oscillator 1 used to modulate the filter cutoff frequency. For filter-only audio, set OSCILLATOR MIX to 127, OSCILLATOR 2 SHAPE to Off, and OSCILLATOR 1 SHAPE to the desired waveshape. This is useful for bell-like FM sounds. A wide range of sounds can also be made using AUDIO MOD with the oscillators routed normally through the filter.
Config: 2 Pole, 4 Pole — Selects either 2- or 4-pole operation for the filter.
Envelope Amount: -127...+127 — Sets the amount of filter envelope routed to the cutoff frequency. This can be positive or negative, allowing inverted envelope control of the filter.
Envelope Velocity: 0...127 — Amount of key velocity controlling the level of the filter envelope.
Delay: 0...127 — Sets a delay between the time the filter envelope is triggered and when the Attack portion actually begins.
Attack: 0...127 — Sets the Attack time of the filter ADSR envelope generator.
Decay: 0...127 — Sets the Decay time.
Sustain: 0...127 — Sets the Sustain level.
Release: 0...127 — Sets the Release time.
VCA Parameters
VCA Level: 0...127 — Sets a base level for the VCA (Voltage Controlled Amplifier). This allows the VCA to be essentially bypassed, which is necessary for Programs that drone.
Note: If VCA LEVEL is on full, Envelope Amount has no effect. You normally want VCA LEVEL set to zero. For droning sounds, or using the Mopho to process external audio, you will probably turn the VCA Level up.
Env Amount: 0...127 — Sets the amount of VCA envelope to the VCA level.
Env Velocity: 0...127 — Sets the amount of keyboard velocity controlling the level of the VCA envelope.
Delay: 0...127 — Sets a delay between the time the amplifier envelope is triggered and when the Attack portion actually begins.
Attack: 0...127 — Sets the Attack time of the VCA ADSR envelope generator.
Decay: 0...127 — Sets the Decay time.
Sustain: 0...127 — Sets the Sustain level.
Release: 0...127 — Sets the Release time.
Program Volume: 0...127 — Sets the volume of the current program to match volumes between programs.
Note: There is enough gain in the synth voice that with some settings, some mild clipping distortion may be heard. If this happens, try lowering the VOICE VOLUME, and/or the VCA ENVELOPE AMOUNT (or VCA VELOCITY AMOUNT).
LFO Parameters
Mopho has four Low Frequency Oscillators (LFOs). The same parameters are available for each.
Frequency: 0...150, sync — Sets the LFO frequency. Range 0-150 for un-synced LFO; speed ranges from slow (30 seconds) to very fast — at 90 (8 Hz, C-2) and above the speed steps in semitones, up to 150 (261 Hz, middle C).
Note: Some of the analog functions may not respond well to the fastest LFO speeds, due to speed limitations of the control voltages; but they will certainly generate some interesting sounds.
Above 150, the sync speeds are as follows:
| Display Timing Sync | |
| 32 Steps | Sequence speed divided by 32; i.e. one LFO cycle takes 32 steps |
| 16 Steps | Sequence speed divided by 16 |
| 8 Steps | Sequence speed divided by 8 |
| 6 Steps | Sequence speed divided by 6 |
| 4 Steps | Sequence speed divided by 4 |
| 3 Steps | Sequence speed divided by 3 |
| 2 Steps | Sequence speed divided by 2 |
| 1.5 Step | Sequence speed divided by 1.5 |
| 1 Step | One cycle per step |
| 2/3 Step | Two cycles every three steps |
| 1/2 Step | Two cycles per step |
| 1/3 Step | Three cycles per step |
| 1/4 Step | Four cycles per step |
| 1/6 Step | Six cycles per step |
| 1/8 Step | Eight cycles per step |
| 1/16Step | Sixteen cycles per step |
Shape: see table — Selects the LFO waveshape:
| Display LFO Shape | |
| Triangle | Triangle |
| Rev Saw | Reverse Sawtooth |
| Sawtooth | Sawtooth |
| Square | Square Wave |
| Random | Random — changes once per cycle for sample-and-hold effects |
Amount: 0...100 — Sets the amount of LFO routed to the destination.
Key Sync: Off, On — When on, the LFO is re-started each time a new note is played. Key Sync is set independently on each LFO.
Destination — See Modulation Destinations on page 26 for a list of possible destinations.
Envelope 3 Parameters
Envelope 3 is an auxiliary envelope for modulating various destinations. It can even be used as a sort of LFO using the Repeat parameter, which is unique to Envelope 3.
Destination — Sets the Envelope 3 destination. See Modulation Destinations on page 26 for a list of possible destinations.
Amount: -127...+127 — Sets the amount of Envelope 3.
Env Velocity: 0...127 — Sets the amount of key velocity controlling the level of envelope 3.
Env Delay: 0...127 — Sets a delay between the time Envelope 3 is triggered and when the Attack portion actually begins.
Env Attack: 0...127 — Sets the Attack time of Envelope 3.
Env Decay: 0...127 — Sets the Decay time.
Env Sustain: 0...127 — Sets the Sustain level.
Env Release: 0...127 — Sets the Release time.
Repeat: Off, On — When on, causes the delay, attack, decay, and sustain portions of Envelope 3 to loop for as long as the envelope is gated on.
Modulation Parameters
The Modulation Parameters let you configure the modulation routing and amount for Mopho's four general-purpose modulation slots as well as for MIDI controllers (Mod Wheel, Key Pressure, Breath Control, Velocity, and Foot Controller).
Since each Mopho mod source has a single destination, the four general purpose Mods provide a way to send a mod source (such as a sequence or LFO) to additional destinations, with a different amount. There are also additional mod sources available here, such as Noise, allowing a wide variety of possibilities.
To configure a general-purpose modulation slot, select the appropriate modulator (Mod 1, Mod 2, Mod 3, or Mod 4), and use the Source, Destination, and Amount parameters to route the modulation as desired.
To configure modulation for a standard MIDI controller, select the desired controller and amount, and then set the destination.
Source — Selects a modulation source. See Modulation Sources on page 28 for possible sources.
Amount: -127...+127 — Sets the amount of modulation.
Destination — Selects a modulation destination. See Modulation Destinations on page 26 for a list of possible destinations.
Mod Wheel Amount: -127...+127 — Sets the maximum amount of modulation that can be applied from MIDI Continuous Controller 1 (mod wheel).
Mod Wheel Destination — Selects the destination to which the mod wheel is routed. See Modulation Destinations on page 26 for a list of possible destinations.
Press Amount: -127...+127 — Sets the maximum amount of modulation that can be applied from MIDI Channel Pressure (aftertouch).
Press Destination — Selects the destination to which the Channel Pressure is routed. See Modulation Destinations on page 26 for a list of possible destinations.
Breath Amount: -127...+127 — Sets the maximum amount of modulation that can be applied from MIDI Continuous Controller 2 (breath controller).
Breath Destination — Selects the destination to which the breath control is routed. See Modulation Destinations on page 26 for a list of possible destinations.
Veloc Amount: -127...+127 — Sets the maximum amount of modulation that can be applied from MIDI note-on velocity.
Veloc Destination — Selects the destination to which the note-on velocity is routed. See Modulation Destinations on page 26 for a list of possible destinations.
Foot Amount: -127...+127 — Sets the maximum amount of modulation that can be applied from MIDI Continuous Controller 4 (foot controller).
Foot Destination — Selects the destination to which the foot control is routed. See Modulation Destinations on page 26 for a list of possible destinations.
Push It Switch Parameters
These parameters determine the behavior of the PUSH IT switch, Mopho's manual trigger.
Note: C0...C10 — Sets the note that plays when PUSH IT is pressed.
Velocity: 0...127 — Sets the MIDI note-on velocity.
Mode: Normal, Toggle, Audio In — When set to Normal, PUSH IT responds like a key: press it and a note plays, release it and the note ends. But when set to Toggle, PUSH IT turns the note on with one press and off with a second press. This is handy for making a note drone or for latching a gated sequence on.
Somewhat related, the Audio In setting will generate a gate from the Audio Input. When the signal gets above a certain level, the gate will go on. When it drops below that level, the gate will go off.
Clock Parameters
The sequencer and arpeggiator share the BPM and CLOCK DIVIDE settings.
BPM: 30...250 — Sets the programmed tempo for the sequencer in BPM (beats per minute).
Clock Divide: see table — Sets the note value for each sequence step relative to the BPM.
| Display Tempo Timing Division | ||
| Half | BPM/2 | Half note |
| Quartr | BPM | Quarter note |
| Eighth | BPM x 2 | Eighth note |
| 8 half | BPM x 2 | Eighth note, half swing timing |
| 8swing | BPM x 2 | Eighth note, full swing timing |
| 8 trip | BPM x 3 | Eighth note triplets |
| 16th | BPM x 4 | Sixteenth note |
| 16half | BPM x 4 | Sixteenth note, half swing timing |
| 16swing | BPM x 4 | Sixteenth note, full swing timing |
| 16trip | BPM x 6 | Sixteenth note triplets |
| 32nd | BPM x 8 | Thirty-second note |
| 32trip | BPM x 12 | Thirty-second note triplets |
| 64trip | BPM x 24 | Sixty-fourth note triplets |
Arpeggiator Parameters
Mopho's arpeggiator has four different operating modes and can be synced to a MIDI clock source.
Note: If the arpeggiator does not seem to be working, check the GLOBAL parameters to make sure Clock is set to Internal. If Clock is set to use an external clock source, Mopho must be receiving MIDI clock messages in order for the arpeggiator to run.
The tempo and note value are determined by the Clock Parameters.
Mode: see table — Sets the order in which the arpeggiator plays notes.
| Display Arpeggiator mode | |
| Up | Arpeggiated notes play in ascending order. |
| Down | Arpeggiated notes play in descending order. |
| Up Down | Arpeggiated notes play in alternately ascending and descending order. |
| Assign | Arpeggiated notes play in the order in which they were struck. |
On/Off: Off, On — Turns the arpeggiator on and off. Turning it on will turn off the Sequencer if it is on.
Sequence Parameters
Mopho features a 4 x 16 “analog-style” step sequencer that can generate four separate sequence tracks of up to 16 steps each. Individual sequencer tracks can be routed to any standard modulation destination (see the table on page 26). Using VCA Envelope as a destination, for example, varies the volume of each step; a destination of Filter or Filter Envelope Amount will produce different filter settings per step. Typically, however, at least one sequence is routed to an oscillator to control pitch.
The sequencer is a “gated” sequencer. That is, a note must be played, either from the PUSH IT switch or via MIDI, in order for the sequence to be heard and it will continue to play as long as the note is held (gated).
Note: The PUSH IT switch's Toggle parameter enables notes (and, therefore, sequences) to be latched on for sustained playback.
The Clock Parameters determine the note value/tempo of the sequencer. The actual gate duration for each step is fixed at half the step time. Use the envelopes to generate notes of longer or shorter duration.
One very useful way to modulate a parameter in sync with a sequence is using LFOs with sync; LFO frequency runs from 0 to 150, after which you can select the sync settings. A setting of 16 Steps for LFO Frequency with a Triangle wave selected and routed to the filter will provide a clean filter sweep over a 16 step sequence, perfectly in sync! This is much easier (and smoother) than programming a filter sweep using sequence steps.
Note: If the sequencer does not seem to be working, check the GLOBAL settings to make sure Clock is set to Internal. If Clock is set to use an external clock source, Mopho must be receiving MIDI clock messages in order for the sequencer to run.
Seq Trigger: see table — Sets the triggering mode for the Gated Sequencer.
| Display Trigger mode | |
| Normal | Sequence plays from the first step when a key is held, and resets to step 1 each time a new note is played. Each sequence step retriggers the envelopes. |
| No Reset | The same, but does not reset to step 1 on every note. |
| No Gate | The keyboard triggers the envelopes; the sequence steps do not. |
| NoGateNR | Same, but does not reset with subsequent notes. |
| Key Step | Striking a key advances the sequencer one step. |
| Audio In | Steps the sequencer whenever the external audio input gets over a certain level. |
On/Off: Off, On — Turns the sequencer on and off.
Seq 1, 2, 3, or 4 Destinations — Sets the destination for each of the four sequence tracks. For a complete list, see Modulation Destinations on page 26.
Seq 1, 2, 3, or 4 Steps: C0...D5+ or 0...125, Reset, Rest — Sets each step value for each of the four sequence tracks. The values are displayed as both relative note values and as simple numerical values. Note values are displayed in quarter tones with a plus sign (+) indicating that the pitch is a quarter tone higher than the displayed note number. The two highest values are Reset and Rest. Reset causes the sequence to reset to the first step, enabling sequences of fewer than 16 steps or even sequences in which the tracks are different lengths. Rest inserts a rest on the selected step.
Name Parameter
Edit Name — The lower LCD line displays the name of the Program with the active character blinking. When ASSIGN PARAMETERS is lit, the parameter control changes the position of the active character. When ASSIGN PARAMETERS is not lit, the parameter control steps through all the available characters for the active character. The increment and decrement buttons also change the character.
Modulation Destinations
Display Destination
| Off | No destination selected |
| Osc 1 Freq | Oscillator 1 Frequency |
| Osc 2 Freq | Oscillator 2 Frequency |
| OscAllFreq | Oscillator 1 and 2 Frequency |
| Osc Mix | Oscillator Mix |
| NoiseLevel | Noise Level |
| Osc1 PulsW | Oscillator 1 Pulse Width |
| Osc2 PulsW | Oscillator 2 Pulse Width |
| Osc All PW | All Oscillators Pulse Width |
| Low Pass | Lowpass Filter Frequency |
| Resonance | Resonance |
| Audio Mod | Audio Mod Amount |
| VCA Level | VCA Amount |
| Output Pan | Stereo Pan Position |
| LFO 1 Freq | LFO 1 Frequency |
| LFO 2 Freq | LFO 2 Frequency |
| LFO 3 Freq | LFO 3 Frequency |
| LFO 4 Freq | LFO 4 Frequency |
| LFOA11Freq | All LFO Frequencies |
| LFO 1 Amt | LFO 1 Amount |
| LFO 2 Amt | LFO 2 Amount |
| LFO 3 Amt | LFO 3 Amount |
| LFO 4 Amt | LFO 4 Amount |
| LFOA11 Amt | All LFO Amounts |
| Env 1 Amt | Envelope 1 Amount (Level) |
| Env 2 Amt | Envelope 2 Amount (Level) |
| Env 3 Amt | Envelope 3 Amount (Level) |
| EnvA11 Amt | All Envelope Amounts (Levels) |
| Env1Attack | Envelope 1 Attack Rate |
| Env2Attack | Envelope 2 Attack Rate |
| Env3Attack | Envelope 3 Attack Rate |
| EnvA11 Att | All Envelope Attack Rates |
| Env1 Decay | Envelope 1 Decay Rate |
| Env2 Decay | Envelope 2 Decay Rate |
| Env3 Decay | Envelope 3 Decay Rate |
| EnvA11 Dec | All Envelope Decay Rates |
| Env1Releas | Envelope 1 Release Rate |
| Env2Releas | Envelope 2 Release Rate |
| Env3Releas | Envelope 3 Release Rate |
| EnvAll Rel | All Envelope Release Rates |
| Mod 1 Amt | Modulator 1 Amount |
| Mod 2 Amt | Modulator 2 Amount |
| Mod 3 Amt | Modulator 3 Amount |
| Mod 4 Amt | Modulator 4 Amount |
| AudioInVol | Mixer Audio In Volume |
| Sub Osc 1 | Sub Oscillator 1 Level |
| Sub Osc 2 | Sub Oscillator 2 Level |
Modulation Sources
Display Source
| Off | No source selected |
| Sequence1 | Sequence 1 |
| Sequence2 | Sequence 2 |
| Sequence3 | Sequence 3 |
| Sequence4 | Sequence 4 |
| LFO 1 | LFO 1 |
| LFO 2 | LFO 2 |
| LFO 3 | LFO 3 |
| LFO 4 | LFO 4 |
| Filt Env1 | Filter Envelope |
| VCA Env 2 | Amp (VCA) Envelope |
| Envelope3 | Envelope 3 |
| PitchBend | Pitch Bend |
| Mod Wheel | Mod Wheel |
| Pressure | Pressure (Aftertouch) |
| MidBreath | MIDI — Breath Controller |
| Midi Foot | MIDI — Foot Controller |
| Midi Exp | MIDI — Expression |
| Velocity | Keyboard Note Velocity |
| KeyNumber | Keyboard Note Number |
| Noise | Noise |
| EnvFollow | Audio In Envelope Follower |
| Peak Hold | Audio In Peak Hold |
Parameter List
Osc 1 Frequency
Osc 1 Fine Freq
Oscillator 1 Shape
Oscillator 1 Glide
Osc 1 Key Track
Sub Osc 1 Level
Osc 2 Frequency
Osc 2 Fine Freq
Oscillator 2 Shape
Oscillator 2 Glide
Osc 2 Key Track
Sub Osc 2 Level
Osc Hard Sync
Glide Mode
Oscillator Slop
Pitch Wheel Range
Key Assign
Oscillator Mix
Noise Level
Ext In Volume
Filter Cutoff Freq
Filter Resonance
Filter Keyboard Amt
Filter Audio Mod
Filter Config/Mode
Filter Env Amount
Filter Env Velocity
Filter Env Delay
Filter Env Attack
Filter Env Decay
Filter Env Sustain
Filter Env Release
VCA Level
VCA Env Amount
VCA Env Velocity
VCA Env Delay
VCA Env Attack
VCA Env Decay
VCA Env Sustain
VCA Env Release
Program Volume
LFO 1 Frequency
LFO 1 Shape
LFO 1 Amount
LFO 1 Destination
LFO 1 Key Sync
LFO 2 Frequency
LFO 2 Shape
LFO 2 Amount
LFO 2 Destination
LFO 2 Key Sync
LFO 3 Frequency
LFO 3 Shape
LFO 3 Amount
LFO 3 Destination
LFO 3 Key Sync
LFO 4 Frequency
LFO 4 Shape
LFO 4 Amount
LFO 4 Destination
LFO 4 Key Sync
Env 3 Desination
Envelope 3 Amount
Envelope 3 Velocity
Envelope 3 Delay
Envelope 3 Attack
Envelope 3 Decay
Envelope 3 Sustain
Envelope 3 Release
Envelope 3 Repeat
Mod 1 Source
Mod 1 Amount
Mod 1 Destination
Mod 2 Source
Mod 2 Amount
Mod 2 Destination
Mod 3 Source
Mod 3 Amount
Mod 3 Destination
Mod 4 Source
Mod 4 Amount
Mod 4 Destination
Mod Wheel Amount
Mod Wheel Dest
Pressure Amount
Pressure Destination
Breath Amount
Breath Destination
Velocity Amount
Velocity Destination
Foot Control Amt
Foot Control Dest
Push It Note
Push It Velocity
Push It Mode
Clock BPM
Clock Divide
Arpeggiator Mode
Arpeggiator On/Off
Sequence Trigger
Sequencer On/Off
Seq 1 Destination
Seq 2 Destination
Seq 3 Destination
Seq 4 Destination
Seq 1 Steps 1 - 16
Seq 2 Steps 1 - 16
Seq 3 Steps 1 - 16
Seq 4 Steps 1 - 16
Edit Name
MIDI Implementation
Mopho receives MIDI data according to the mode controls under GLOBAL. In addition, there is interaction between some of the Program parameters that determine the overall response of Mopho to MIDI data.
Following are the Global parameters that affect response to MIDI:
MIDI Channel: ALL, 1...16 — Selects the MIDI channel to send and receive data, 1 to 16. All receives on any channel.
Clock: see table — Selects the MIDI clock status as follows:
| Display MIDI Clock Setting | |
| Internal | MIDI clock is neither sent nor received |
| MIDI Out | MIDI clock is sent |
| MIDI In | MIDI clock is received |
| MIDIn/Out | MIDI clock is received and transmitted |
MIDI Parameter Send: NRPN, CC, Off — Changes to the values of Mopho's front panel controls are transmitted via MIDI as Non-registered Parameter Number (NRPN) controllers or as Continuous Controllers (CC). Transmission of parameters can also be turned off.
MIDI Parameter Receive: All, NRPN, CC, Off — Sets the method by which Mopho receives parameter changes via MIDI. As with transmission, NRPNs are the preferred method, though some controllers may only be able to send CCs.
MIDI Control: Off, On — When On, the synth will respond to MIDI controllers, including Pitch Wheel, Mod Wheel, Pedal, Breath, Volume, and Expression.
MIDI SysEx: Off, On — When On, the synth will respond to received MIDI SysEx messages, and will transmit them, when prompted, to the MIDI Out.
MIDI Messages
System Real-time Messages
Status Description
1111 1000 MIDI Timing Clock
Received Channel Messages
Status Second Third Description
| 1000 nnnn | 0kkkkkkk 0vvvvvv | Note Off. Velocity is ignored | |
| 1001 nnnn | 0kkkkkkk | 0vvvvvvv | Note On. Note off if vvvvvvv = 0 |
| 1010 nnnn | 0kkkkkkk 0vvvvvvv Polyphonic Key Pressure | ||
| 1011 nnnn | 0vvvvvvv | 0vvvvvvv | Control Change; see “Received Controller Messages” table following |
| 1100 nnnn | 0ppppppp | Program change, 0-127 for Programs 1-128 within current Bank | |
| 1101 nnnn | 0vvvvvvv | Channel Pressure | |
| 1110 nnnn | 0vvvvvvv | 0vvvvvvv | Pitch Bend LS Byte then MS Byte |
Notes: 0kkkkkkk Note number 0 — 127
nnnn Channel number 0 to 15 (MIDI channel 1-16). Ignored if MIDI
channel set to ALL
0vvvvvvv
Value
Received Controller Messages
| Status | Second | Third | Description | |
| 1011 | nnnn | 1 | 0vvvvvvv | Mod Wheel — directly assignable controller |
| 1011 | nnnn | 2 | 0vvvvvvv | Breath Controller — directly assignable controller |
| 1011 | nnnn | 4 | 0vvvvvvv | Foot Controller — directly assignable controller |
| 1011 | nnnn | 7 | 0vvvvvvv | Volume — Combined with Master Volume and Voice Volume |
| 1011 | nnnn | 74 | 0vvvvvvv | Brightness — Added to low-pass filter cutoff frequency |
| 1011 | nnnn | 11 | 0vvvvvvv | Expression Controller — directly assignable controller |
| 1011 | nnnn | 32 | 0vvvvvvv | Bank Select — 0 - 2 select banks 1 - 3; others ignored |
| 1011 | nnnn | 64 | 0vvvvvvv | Damper pedal — holds envelopes in Sustain if 0100 0000 or higher |
| 1011 | nnnn | 123 | 0vvvvvvv | All Notes Off — clear all MIDI notes |
| 1011 | nnnn | 121 | 0vvvvvvv | Reset All Controllers — clears all MIDI controllers to 0, MIDI volume to maximum |
See sections below for additional Continuous Controller (CC) and Non-registered Parameter Number (NRPN) messages received.
Transmitted Channel Messages
| Status | Second | Third | Description |
| 1100 | nnnn | 0ppppppp |
Transmitted Controller Messages
Status Second Third Description
1011 nnnn 0000 0111 0vvvvvv Volume knob
1011 nnnn 0010 0000 0vvvvvvv Bank Select — 0 to 2
See sections below for additional Continuous Controller (CC) and Non-registered Parameter Number (NRPN) messages transmitted.
Additional Continuous Controllers (CCs) Transmitted/Received
The following table details how CCs are mapped onto Mopho's controls. They are transmitted when MIDI Parameter Send is set to CC in Global, and recognized when received when MIDI Parameter Receive is set to either CC or All in Global.
Parameter CC#
| Osc 1 Frequency 20 |
| Osc 1 Freq Fine 21 |
| Osc 1 Shape 22 |
| Glide 1 | 23 |
| Osc 2 Frequency 24 |
| Osc 2 Freq Fine 25 |
| Osc 2 Shape 26 |
| Glide 2 | 27 |
| Osc Mix | 28 |
| Noise Level 29 |
| Sub Oscillator 1 | 30 |
| Sub Oscillator 2 | 31 |
| Filter Frequency | 102 |
| Resonance | 103 |
| Filter Key Amt | 104 |
| Filter Audio Mod | 105 |
| Filter Env Amt | 106 |
| Filter Env Vel Amt 107 |
| Filter Delay | 108 |
| Filter Attack | 109 |
| Filter Decay | 110 |
| Filter Sustain | 111 |
Parameter CC#
| Filter Release | 112 |
| VCA Level | 113 |
| Amp Env Amt | 115 |
| Amp Velocity Amt | 116 |
| Amp Delay 117 |
| Amp Attack | 118 |
| Amp Decay | 119 |
| Amp Sustain | 75 |
| Amp Release | 76 |
| Env 3 Destination | 85 |
| Env 3 Amt | 86 |
| Env 3 Velocity Amt | 87 |
| Env 3 Delay | 88 |
| Env 3 Attack | 89 |
| Env 3 Decay | 90 |
| Env 3 Sustain | 77 |
| Env 3 Release | 78 |
| BPM | 14 |
| Clock Divide | 15 |
NRPN Messages
The Non-Registered Parameter Number (NRPN) MIDI messages are used to transmit and receive both global and program parameters. They are transmitted when MIDI Parameter Send is set to NRPN in Global, and received when MIDI Parameter Receive is set to either NRPN or All in Global.
The messages are handled in standard MIDI format using the NRPN CC commands in running status byte format. Below is the format used for transmitting a NRPN parameter:
Transmitted NRPN Messages
Status Description
| 1011 nnnn Control Change |
| 0110 0011 NRPN parameter number MSB CC |
| 0vvv vvvv Parameter Number MSB |
| 0110 0010 NRPN parameter number LSB CC |
| 0vvv vvvv Parameter Number LSB |
| 0000 0110 NRPN parameter value MSB CC |
| 0vvv vvvv Parameter value MSB |
| 0010 0110 NRPN parameter value LSB CC |
| 0vvv vvvv Parameter value LSB |
The parameter number can be found in the two tables below, one for Global parameters, and the other for Program parameters. The parameter numbers and the parameter values are broken into two 7-bit bytes for MIDI transmission; the LSB has the seven least-significant bits, and the MSB has the seven most-significant bits, though in most cases the MSB will be zero or one, and never more than two.
When receiving an NRPN, all messages do not necessarily need to be transmitted, since the synth will track the most recent NRPN number, though it is usually good practice to send the entire message above.
Once an NRPN is selected, the synth will also respond to NRPN Data Increment and Decrement commands, which some controllers utilize. Finally, it responds to one RPN (Registered Parameter Number) command, the RPN/NRPN Reset command, which can be handy for resetting the currently selected parameter to a known state.
Received NRPN Messages
| Status | Second | Third | Description | |
| 1011 | nnnn | 0110 | 0011 0vvvvvvv NRPN parameter number MSB CC | |
| 1011 | nnnn | 0110 | 0010 0vvvvvvv NRPN parameter number LSB CC | |
| 1011 | nnnn | 0000 | 0110 0vvvvvvv NRPN parameter value MSB CC | |
| 1011 | nnnn | 0010 | 0110 0vvvvvvv NRPN parameter value LSB CC | |
| 1011 | nnnn | 0110 | 0000 0xxxxxxx | NRPN parameter value Increment |
| 1011 | nnnn | 0110 | 0001 0xxxxxxx | NRPN parameter value Decrement |
| 1011 | nnnn | 0010 | 0101 0111111 RPN parameter number MSB CC — Reset NRPN parameter number (when both MSB and LSB received) | |
| 1011 | nnnn | 0010 | 0100 0111111 | RPN parameter number LSB CC — Reset NRPN parameter number (when both MSB and LSB received) |
Global Parameter Data
The following table shows the Global data that is sent and received on global parameter dumps, and the corresponding NRPN number when sent/received individually.
| Param | NRPN | Range | Description |
| 0 | 384 | 0 - 24 | Master Transpose; 0 = -12 semitones (1 octave), 12 = 0 (no transpose), and 24 = +12 semitones. |
| 1 | 385 | 0 - 100 | Master Fine Tune; 0 = -50 cents, 50 = 0 (centered), 100 = +50 cents |
| 2 | 386 | 0 - 16 | MIDI Channel; if = 0, data received on all MIDI channels. Otherwise = channel number 1 - 16. |
| 3 388 0 - 3 MIDI clock select | 0 Use Internal clock, don't send MIDI clock1 Use Internal clock, send MIDI clock2 Use MIDI clock In3 Use MIDI clock In, and retransmit MIDI clock out | ||
| 4 390 0 - 2 Parameter Send: | 0 NRPN1 CC2 Off | ||
| 5 391 0 - 3 Parameter Receive: | 0 All1 NRPN only2 CC only3 Off | ||
| 6 394 0 - 1 MIDI Controller Send/Receive Off/On | |||
| 7 395 0 - 1 MIDI Sysex Send/Receive Off/On | |||
| 8 405 0 - 1 Audio Out: | |
| 0 Stereo | |
| 1 Mono | |
| 9 | 406 | 0 - 1 | MIDI Out Select: |
| 0 MIDI Out | |||
| 1 MIDI Thru |
Program Parameter Data
The following table lists Mopho's voice parameters. The parameter number in the program and edit buffer dumps are different than the NRPN numbers as seen; this was to maintain NRPN compatibility with the Prophet '08 as much as possible.
| Param | NRPN | Range | Description |
| 0 | 0 | 0 - 120 Oscillator 1 Frequency, 0 - 120 in semitones (10 octave range) | |
| 1 | 1 | 0 - 100 Oscillator 1 Fine Tune; 0 = -50 cents, 50 = 0(centered), 100 = + 50 cents | |
| 2 | 2 | 0-103 Oscillator 1 Shape | 0 Oscillator Off1 Sawtooth2 Triangle3 Sawtooth/triangle mix4 - 103 Pulse Wave, Pulse width 0 - 99 |
| 3 | 3 | 0 - 127 Oscillator 1 Glide | |
| 4 | 4 | 0 - 1 Oscillator 1 Keyboard Off/On | |
| 5 | 114 | 0 - 127 Sub Oscillator 1 Level | |
| 6 | 5 | 0 - 120 Oscillator 2 Frequency, 0 - 120 in semitones (10 octave range) | |
| 7 | 6 | 0 - 100 Oscillator 2 Fine Tune; 0 = -50 cents, 50 = 0(centered), 100 = + 50 cents | |
| 8 | 7 | 0 - 103 Oscillator 2 Shape | 0Oscillator Off1 Sawtooth2 Triangle3 Sawtooth/triangle mix4 - 103 Pulse Wave, Pulse width 0 - 99 |
| 9 | 8 | 0 - 127 Oscillator 2 Glide | |
| 10 | 9 | 0 - 1 Oscillator 2 Keyboard Off/On | |
| 11 | 115 | 0 - 127 Sub Oscillator 2 Level | |
| 12 | 10 | 0 - 1 Sync off/on | |
| 13 | 11 | 0 - 3 Glide Mode: | 0 fixed rate1 fixed rate auto2 fixed time3 fixed time auto |
| 14 | 12 | 0 - 5 Oscillator Slop | |
| 15 | 93 | 0 - 12 Pitch Bend Range | |
16 96 0 - 5 Key Assign Mode:
Low note priority
Low note priority with re-trigger
High note priority
High note priority with re-trigger
Last note hit priority
Last note hit priority with re-trigger
17 13 0 - 127 Oscillator 1 - 2 Mix
18 14 0 - 127 Noise Level
19 116 0 - 127 External Audio Input Level
20 15 0 - 164 Filter Frequency, steps in semitones
21 16 0 - 127 Resonance
22 17 0 - 127 Filter Keyboard Amount
23 18 0 - 127 Filter Audio Modulation
24 19 0 - 1 Filter Poles 0: 2-pole; 1: 4-pole
25 20 0 - 254 Filter Envelope Amount; -127 to +127
26 21 0 - 127 Filter Envelope Velocity Amount
27 22 0 - 127 Filter Envelope Delay
28 23 0 - 127 Filter Envelope Attack
29 24 0 - 127 Filter Envelope Decay
30 25 0 - 127 Filter Envelope Sustain
31 26 0 - 127 Filter Envelope Release
32 27 0 - 127 VCA Initial Level
33 30 0 - 127 VCA Envelope Amount
34 31 0 - 127 VCA Envelope Velocity Amount
35 32 0 - 127 VCA Envelope Delay
36 33 0 - 127 VCA Envelope Attack
37 34 0 - 127 VCA Envelope Decay
38 35 0 - 127 VCA Envelope Sustain
39 36 0 - 127 VCA Envelope Release
40 29 0 - 127 Voice Volume
41 37 0 - 166 LFO 1 Frequency; 0 - 150 un-synced frequencies
151 Sequence speed divided by 32
152 Sequence speed divided by 16
153 Sequence speed divided by 8
154 Sequence speed divided by 6
155 Sequence speed divided by 4
156 Sequence speed divided by 3
157 Sequence speed divided by 2
158 Sequence speed divided by 1.5
159 One cycle per step
160 Two cycles per three steps
161 Two cycles per step
162 Three cycles per step
163 Four cycles per step
164 Six cycles per step
| 165 Eight cycles per step166 Sixteen cycles per step | |||
| 42 38 | 0 - 4 LFO 1 Shape | 0 Triangle1 Reverse Sawtooth2 Sawtooth3 Pulse (square)4 Random | |
| 43 39 | 0 - 127 LFO 1 Amount | ||
| 44 | 40 | 0 - 46 | LFO 1 Mod Destination; See Modulation Destination list below |
| 45 41 | 0 - 1 LFO 1 Key Sync Off/On | ||
| 46 42 | 0 - 166 LFO 2 Frequency; same as LFO 1 | ||
| 47 43 | 0 - 4 LFO 2 Shape; same as LFO 1 | ||
| 48 44 | 0 - 127 LFO 2 Amount | ||
| 49 | 45 | 0 - 46 | LFO 2 Mod Destination; See Modulation Destination list below |
| 50 46 | 0 - 1 LFO 2 Key Sync Off/On | ||
| 51 47 | 0 - 166 LFO 3 Frequency; same as LFO 1 | ||
| 52 48 | 0 - 4 LFO 3 Shape; same as LFO 1 | ||
| 53 49 | 0 - 127 LFO 3 Amount | ||
| 54 | 50 | 0 - 46 | LFO 3 Mod Destination; See Modulation Destination list below |
| 55 51 | 0 - 1 LFO 3 Key Sync Off/On | ||
| 56 52 | 0 - 166 LFO 4 Frequency; same as LFO 1 | ||
| 57 53 | 0 - 4 LFO 4 Shape; same as LFO 1 | ||
| 58 54 | 0 - 127 LFO 4 Amount | ||
| 59 | 55 | 0 - 46 | LFO 4 Mod Destination; See Modulation Destination list below |
| 60 56 | 0 - 1 LFO 4 Key Sync Off/On | ||
| 61 | 57 | 0 - 46 | Envelope 3 Mod Destination; See Mod Destination list below |
| 62 58 | 0 - 254 Envelope 3 Amount; -127 to +127 | ||
| 63 59 | 0 - 127 Envelope 3 Velocity Amount | ||
| 64 60 | 0 - 127 Envelope 3 Delay | ||
| 65 61 | 0 - 127 Envelope 3 Attack | ||
| 66 62 | 0 - 127 Envelope 3 Decay | ||
| 67 63 | 0 - 127 Envelope 3 Sustain | ||
| 68 64 | 0 - 127 Envelope 3 Release | ||
| 69 98 | 0 - 1 Envelope 3 Repeat Off/On | ||
| 70 | 65 | 0 - 22 | Mod 1 Source; See Modulation Source list below |
| 71 66 | 0 - 254 Mod 1 Amount; -127 to +127 | ||
| 72 | 67 | 0 - 46 | Mod 1 Destination; See Modulation Destination list below |
| 73 | 68 | 0 - 22 | Mod 2 Source; See Modulation Source list below |
| 74 69 | 0 - 254 Mod 2 Amount; -127 to +127 | ||
| 75 | 70 | 0 - 46 | Mod 2 Destination; See Modulation Destination list below |
| 76 | 71 | 0 - 22 | Mod 3 Source; See Modulation Source list below |
| 77 72 | 0 - 254 | Mod3 Amount; -127 to +127 | |
| 78 | 73 | 0 - 46 | Mod 3 Destination; See Modulation Destination list below |
| 79 | 74 | 0 - 22 | Mod 4 Source; See Modulation Source list below |
| 80 75 | 0 - 254 | Mod 4 Amount; -127 to +127 | |
| 81 | 76 | 0 - 46 | Mod 4 Destination; See Modulation Destination list below |
| 82 81 | 0 - 254 | Mod Wheel Amount; -127 to +127 | |
| 83 | 82 | 0 - 46 | Mod Wheel Destination; See ModDestination list below |
| 84 83 | 0 - 254 | Pressure Amount; -127 to +127 | |
| 85 | 84 | 0 - 46 | Pressure Destination; See ModDestination list below |
| 86 85 | 0 - 254 | Breath Amount; -127 to +127 | |
| 87 | 86 | 0 - 46 | Breath Destination; See ModDestination list below |
| 88 87 | 0 - 254 | Velocity Amount; -127 to +127 | |
| 89 | 88 | 0 - 46 | Velocity Destination; See ModDestination list below |
| 90 89 | 0 - 254 | Foot Control Amount; -127 to +127 | |
| 91 | 90 | 0 - 46 | Foot Control Destination; See ModDestination list below |
| 92 111 | 0 - 120 | Push It Switch Note Number | |
| 93 112 | 0 - 127 | Push It Switch Velocity | |
| 94 113 | 0 - 2 Push It Switch Mode: | ||
| 95 91 | 30 - 250 BPM tempo | ||
| 96 92 | 0 - 12 | Clock Divide: | |
| 0 Half Note | |||
| 1 Quarter Note | |||
| 2 Eighth Note | |||
| 3 Eighth Note half swing | |||
| 4 Eighth Note full swing | |||
| 5 Eighth Note triplets | |||
| 6 Sixteenth Note | |||
| 7 Sixteenth Note half swing | |||
| 8 Sixteenth Note full swing | |||
| 9 Sixteenth Note triplets | |||
| 10 Thirty-second Notes | |||
| 11 Thirty-second Notes triplets | |||
| 12 Sixty-Fourth note triplets | |||
| 97 97 | 0 - 3 Arpeggiator Mode: | ||
| 0 Up | |||
| 1 Down | |||
| 2 Up/Down | |||
| 3 Assign | |||
| 98 100 | 0 - 1 Arpeggiator; Off/On | ||
| 99 94 | 0 - 5 Sequencer Trigger: | ||
| 0 Normal | |||
| 1 Normal, no reset | |||
| 2 No gate | |||
| 3 No gate/no reset | |||
| 4 Key Step | |||
| 5 Audio In | |||
| 100 101 | 0 - 1 Gated Sequencer; Off/On | ||
| 101 | 77 | 0 - 46 | Sequence 1 Destination; See ModDestination list below |
| 102 | 78 | 0 - 46 | Sequence 2 Destination; See ModDestination list below |
| 103 | 79 | 0 - 46 | Sequence 3 Destination; See ModDestination list below |
| 104 80 | 0 - 46 | Sequence 4 Destination; See ModDestination list below | |
| 105 105 | 0 - 183 Assignable Parameter 1 | ||
| 106 106 | 0 - 183 Assignable Parameter 2 | ||
| 107 107 | 0 - 183 Assignable Parameter 3 | ||
| 108 108 | 0 - 183 Assignable Parameter 4 | ||
| 109 - 119 | Unused | ||
| 120 - 135 | 120 - 135 0 - 127 Sequence Track1, steps 1-16 | ||
| 136 - 151 | 136 - 151 0 - 126 Sequence Track 2, steps 1-16 | ||
| 152 - 167 | 152 - 167 0 - 126 Sequence Track 3, steps 1-16 | ||
The following tables list the values used with the program parameters to specify modulation destinations and sources.
| Mod Destinations Value | |
| Off 0 | |
| Osc 1 Freq 1 | |
| Osc 2 Freq 2 | |
| Osc 1 and 2 Freq 3 | |
| Osc Mix 4 | |
| Noise Level 5 | |
| Osc 1 Pulse Width 6 | |
| Osc 2 Pulse Width 7 | |
| Osc 1 and 2 Pulse Width 8 | |
| Filter Frequency 9 | |
| Resonance 10 | |
| Filter Audio Mod Amt 11 | |
| VCA Level 12 | |
| Pan Spread 13 | |
| LFO 1 Freq 14 | |
| LFO 2 Freq 15 | |
| LFO 3 Freq 16 | |
| LFO 4 Freq 17 | |
| All LFO Freq 18 | |
| LFO 1 Amt | 19 |
| LFO 2 Amt | 20 |
| LFO 3 Amt | 21 |
| LFO 3 Amt | 22 |
| All LFO Amt | 23 |
| Filter Env Amt | 24 |
| Amp Env Amt | 25 |
| Env 3 Amt | 26 |
| All Env Amounts | 27 |
| Env 1 Attack | 28 |
| Env 2 Attack | 29 |
| Env 3 Attack | 30 |
| All Env Attacks | 31 |
| Env 1 Decay 32 | |
| Env 2 Decay 33 | |
| Env 3 Decay 34 | |
| All Env Decays | 35 |
| Env 1 Release | 36 |
| Env 2 Release | 37 |
| Env 3 Release | 38 |
| All Env Releases | 39 |
Mod 1 Amt 40
Mod 2 Amt 41
Mod 3 Amt 42
Mod 4 Amt 43
External Audio In Level 44
Sub Osc 1 Level 45
Sub Osc 2 Level 46
Mod Sources Value
| Off 0 |
| Sequence Track 1 1 |
| Sequence Track 2 2 |
| Sequence Track 3 3 |
| Sequence Track 4 4 |
| LFO 1 5 |
| LFO 2 6 |
| LFO 3 7 |
| LFO 4 8 |
| Filter Envelope 9 |
| Amp Envelope 10 |
| Envelope 3 11 |
| Pitch Bend 12 |
| Mod Wheel 13 |
| Pressure 14 |
| MIDI Breath 15 |
| MIDI Foot 16 |
| MIDI Expression 17 |
| Velocity |
| Note Number |
| Noise |
| Audio In Envelope Fo |
| Audio In Peak Hold |
Sysex Messages
Universal System Exclusive Message (Device Inquiry)
| Status | Description |
| 1111 0000 | System Exclusive (SysEx) |
| 0111 1110 | Non-realtime message |
| 0vvv vvvv | If MIDI channel is set to 1 - 16, 0vvvvvv must match (unless MIDI Channel = ALL); always responds if 0vvvvvv = 0111 1111. |
| 0000 0110 | Inquiry Message |
| 0000 0001 | Inquiry Request |
| 1111 0111 | End of Exclusive (EOX) |
Mopho responds with:
| Status | Description |
| 1111 0000 | System Exclusive (SysEx) |
| 0111 1110 | Non-realtime message |
| 0vvv vvvv | If MIDI Channel = ALL, 0vvvvvvv = 0111 1111. Otherwise 0vvvvvvv = Channel Number 0 - 15. |
| 0000 0110 | Inquiry Message |
| 0000 0010 | Inquiry Reply |
| 0000 0001 | DSI ID |
| 0010 0101 | Mopho ID (Family LS) |
| 0000 0001 | Family MS |
| 0000 0000 | Family Member LS |
| 0000 0000 | Family Member MS |
| 0jjj nnnn | Main Software version: jjj - Minor rev; nnnn - Major rev |
| 0000 0000 | Zero Byte |
| 0000 0000 | Zero Byte |
| 1111 0111 | End of Exclusive (EOX) |
Request Program Dump
Status Description
| 1111 0000 | System Exclusive (SysEx) |
| 0000 0001 | DSI ID |
| 0010 0101 | Mopho ID |
| 0000 0101 | Request Program Transmit |
| 0000 00vv | Bank Number, 0 - 2 |
| 0vvv vvvv | Program Number, 0 - 127 |
| 1111 0111 | End of Exclusive (EOX) |
Mopho will respond by sending out the Program Data in the format described below in Program Data Dump.
Request Program Edit Buffer Dump
Status Description
| 1111 0000 | System Exclusive (SysEx) |
| 0000 0001 | DSI ID |
| 0010 0101 | Mopho ID |
| 0000 0110 | Request Program Edit Buffer Transmit |
| 1111 0111 | End of Exclusive (EOX) |
Mopho will respond by sending out the current Program edit buffer in the format described below in Program Edit Buffer Data Dump.
Request Global Parameter Dump
Status Description
| 1111 0000 | System Exclusive (SysEx) |
| 0000 0001 | DSI ID |
| 0010 0101 | Mopho ID |
| 0000 1110 | Request Global Parameter Transmit |
| 1111 0111 | End of Exclusive (EOX) |
Mopho will respond by sending out the current values of Global Parameters in the format described below in Global Parameters Data Dump.
Program Data Dump
Status Description
| 1111 0000 | System Exclusive (SysEx) |
| 0000 0001 | DSI ID |
| 0010 0101 | Mopho ID |
| 0000 0010 | Program Data |
| 0000 00vv | Bank Number, 0 - 2 |
| 0vvv vvvv | Program Number, 0 - 127 |
| 0vvv vvvv | 256 bytes expanded to 293 MIDI bytes in “packed MS bit” format (see page 44.) |
| 1111 0111 | End of Exclusive (EOX) |
Program Edit Buffer Data Dump
Status Description
| 1111 0000 | System Exclusive (SysEx) |
| 0000 0001 | DSI ID |
| 0010 0101 | Mopho ID |
| 0000 0011 | Edit Buffer Data |
| 0vvv vvvv | 256 bytes expanded to 293 MIDI bytes in “packed MS bit” format (see page 44.) |
| 1111 0111 | End of Exclusive (EOX) |
Global Parameters Data Dump
Status Description
| 1111 0000 | System Exclusive (SysEx) |
| 0000 0001 | DSI ID |
| 0010 0101 | Mopho ID |
| 0000 1111 | Main Parameter Data |
| 0vvv vvvv | 20 nibbles (LS then MS) for 10 Global parameters. Global Parameters are listed starting on page 34. |
| 1111 0111 | End of Exclusive (EOX) |
Note: The Global Parameters Data Dump is not recognized when received; it is only transmitted when requested. NRPN messages are used to change Globals.
Packed Data Format
Data is packed in 8 byte “packets”, with the MS bit stripped from 7 parameter bytes, and packed into an eighth byte, which is sent at the start of the 8 byte packet.
Example:
| Input Data | Packed MIDI data | |||||||||||||||||
| 1 | A7 | A6 | A5 | A4 | A3 | A2 | A1 | A0 | 1 | 00 | G7 | F7 | E7 | D7 | C7 | B7 | A7 | |
| 2 | B7 | B6 | B5 | B4 | B3 | B2 | B1 | B0 | 2 | 00 | A6 | A5 | A4 | A3 | A2 | A1 | A0 | |
| 3 | C7 | C6 | C5 | C4 | C3 | C2 | C1 | C0 | 3 | 00 | B6 | B5 | B4 | B3 | B2 | B1 | B0 | |
| 4 | D7 | D6 | D5 | D4 | D3 | D2 | D1 | D0 | 4 | 00 | C6 | C5 | C4 | C3 | C2 | C1 | C0 | |
| 5 | E7 | E6 | E5 | E4 | E3 | E2 | E1 | E0 | 5 | 00 | D6 | D5 | D4 | D3 | D2 | D1 | D0 | |
| 6 | F7 | F6 | F5 | F4 | F3 | F2 | F1 | F0 | 6 | 00 | E6 | E5 | E4 | E3 | E2 | E1 | E0 | |
| 7 | G7 | G6 | G5 | G4 | G3 | G2 | G1 | G0 | 7 | 00 | F6 | F5 | F4 | F3 | F2 | F1 | F0 | |
| 8 | 00 | G6 | G5 | G4 | G3 | G2 | G1 | G0 | ||||||||||
This explains why it takes 293 MIDI bytes to transmit 256 Program data bytes.
Hidden Functions
Hold the ASSIGN PARAMETER switch and hit the + / increment switch to calibrate the low-pass filter and analog oscillator waveshapes. This should not be necessary for normal operation.
Another (literally) hidden function: Carefully insert a small, standard screwdriver into the hole in the bottom panel to adjust the LCD contrast.
Dave Smith Instruments
1210 Cabrillo Hwy N
Half Moon Bay, CA 94019-1449
USA
www.DaveSmithInstruments.com
