Product type	Heat pump dryer
Brand	Asko
Model	T857HPW
Drying capacity	8 kg
Dimensions (H x W x D)	850 x 595 x 595 mm
Net weight	50 kg
Power supply	230 V ~ 50 Hz
Power consumption	1050 W
Energy class	A++
Noise level	65 dB(A)
Drying system	Heat pump with condenser
Moisture sensor	Yes, with automatic stop
Drying programs	15 programs (cotton, synthetic, delicate, etc.)
Delayed start	Yes, up to 24 hours
Anti-crease function	Yes
Filter cleaning	After each cycle, indicator light
Condenser cleaning	Periodic, easy access
Child lock	Yes, panel lock
Automatic stop at end of cycle	Yes
Repairability index	8.2 / 10
Spare parts available	Yes, via after-sales service

Frequently Asked Questions - T857HPW ASKO

What is the drying capacity of the Asko T857HPW?

The Asko T857HPW dryer has a capacity of 8 kg for cotton and synthetic textiles.

How to clean the fluff filter?

Open the door, remove the filter located at the bottom of the opening, remove the fluff by hand or with a vacuum cleaner, and replace it. An indicator light reminds you to do this after each cycle.

How to use the delayed start?

Select your program, press the Delayed start button and choose the number of hours (up to 24 h). Press Start to launch the timer.

The dryer is noisy, is this normal?

A noise level up to 65 dB(A) is normal. If the noise is excessive, check that the appliance is level and that there are no objects in the drum. Consult the manual if the noise persists.

What to do if the laundry is not dry at the end of the program?

Check that the program matches the fabric type, that the load is not too large, and that the filters are clean. The moisture sensor may be clogged; clean it with a damp cloth.

How to activate the child lock?

Hold down the Child lock button (often a padlock icon) for 3 seconds. An indicator confirms activation. To deactivate, repeat the operation.

Where can I find spare parts for this model?

Spare parts are available from the Asko after-sales service or authorized retailers. Use the model number T857HPW for ordering.

How to clean the condenser?

Remove the lower filter, then the condenser by pulling it towards you. Rinse it with clean water, let it dry, and put it back. Perform this operation approximately every 3 months.

Can I install the dryer under a worktop?

Yes, the dimensions (85 cm height) allow under-counter installation. Ensure sufficient ventilation and at least 5 cm clearance at the back.

What does error code E01 mean?

The code E01 generally indicates a problem with the moisture or temperature sensor. Turn off the appliance, wait 5 minutes, and restart. If the code persists, contact technical support.

USER MANUAL T857HPW ASKO

Black-and-white collage showing a washing machine, towel rack, and folded towels (no text or symbols)

GB Installation Instructions for the Tumble Dryer with heat pump

Line drawing of a front-loading washing machine with front panel and side door (no text or symbols)

Line drawing of a wooden table with a flat top and a circular arrow pointing to the edge (no text or symbols)

Pure technical line drawing of a mechanical component with no text or symbols

Line drawing of a washing machine with wheels and a circular component, shown with a separate 2X schematic view (no text or symbols)

Line drawing of a simple industrial machine with control panel and wheels (no text or symbols)

Diagram showing two views of a mechanical device with arrows indicating direction (no text or symbols)

Justér födderne

Line drawing of a simple industrial machine with a circular component on the door (no text or symbols)

Technical diagram of a mechanical spring assembly with no visible text or symbols

Kondensvandet

Two identical electronic device sliders with circular buttons and a display (no text or symbols visible)

Startinstruktion

Front view of a horizontal control bar with buttons and a small icon (no text or symbols visible)

Line drawing of a front-loading washing machine with front panel and side panels (no text or symbols)

Montage:

Line drawing of a mechanical component with a magnified inset showing a circular detail (no text or symbols)

1. Secure the anti-tilt device using the screws as shown in the picture.

Line drawing of a mechanical assembly with a base plate and a handle, no text or symbols present

Pure technical line drawing of a mechanical part with no text, numbers, or symbols

Technical line drawing of a washing machine with a circular component and a separate view showing a circular component (no text or symbols)

Line drawing of a mechanical device with a circular component and wheels (no text or symbols)

Diagram showing two views of a mechanical device with arrows indicating direction (no text or symbols)

Justieren der Füße

Line drawing of a simple industrial oven or chamber with a circular vent and side-mounted door (no text or symbols)

Technical diagram of a mechanical spring assembly with no visible text or symbols

Kondenswasser

Two identical electronic devices with control buttons and indicator lights, no visible text or symbols.

Startanleitung

Front view of a metallic control panel with buttons and a scroll (no visible text or symbols)

Positioning the tumble dryer

The tumble dryer can be free-standing or in a stack. Remember that the tumble dryer produces heat and should therefore not be located in a room that is too small. If the room is very small, drying will take longer due to the limited quantity of air.

Caution!

• Any electrical installation must be carried out by qualified professionals.
• The machine must not be installed behind a lockable door, a sliding door or a door with hinges on the opposite side to those of the tumble dryer.
• The tumble dryer's plinth ventilation must not be blocked by a rug or the like.

Tip!

• To improve ventilation, leave the door to the room where the tumble dryer is located open.

A. Freestanding

The tumble dryer can be positioned beside the washing machine. An air gap of at least 5 mm must be left between the washing machine and the tumble dryer.

If the customer has a problem with the machine sliding when on a low-friction floor, the plastic cups can be used under the feet of the tumble dryer (between foot and floor).

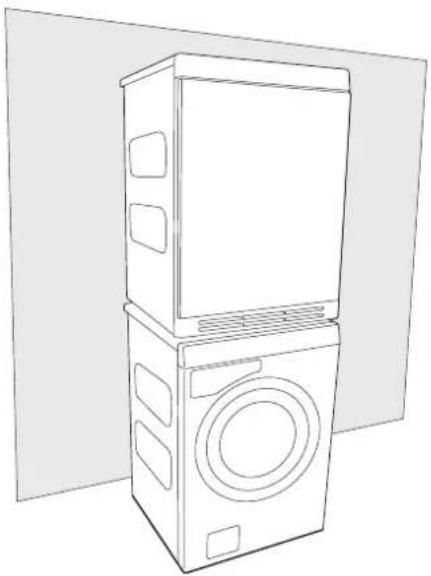

B. Stacking

The tumble dryer can be placed on top of a ASKO washing machine. In this case you use the stacking attachments (foot cups and anti-tilt devices) that come with the machine. Two rubber feet and two anti-tipping brackets are supplied in the bag found in the drum of the dryer.

Line drawing of a front-loading washing machine with front panel and side door (no text or symbols)

How to assemble the stack:

I. Undo the screw on the back of the ASKO washing machine as shown in the figure.

Line drawing of a table with a magnified inset showing a small object (no text or symbols)

1. Secure the anti-tilt device using the screws as shown in the picture.

Line drawing of a mechanical component with a labeled section (no text or symbols)

1. Take the other anti-tipping bracket from the bag and attach it on the dryer with two screws as shown in the figure.

Pure technical line drawing of a mechanical part with no text, numbers, or symbols

1. Place the two rubber feet on the front feet of the dryer.

Line drawing of a washing machine with a circular component and a separate button labeled (2X), no text or symbols present.

1. Fasten or undo the rear feet of the appliance until it is fully level, either on the floor or on the washing machine.

Line drawing of a simple industrial machine with a circular vent and wheels (no text or symbols)

1. Slide the dryer backward until it reaches the anti-tipping bracket. Make sure the front of the appliance is raised by 50 to 150 mm as you slide it back.

Diagram showing two views of a refrigerator with arrows indicating direction (no text or symbols)

Adjusting the feet

Screw the feet in or out so that the tumble dryer is steady and balanced on the floor or on the washing machine.

Line drawing of a simple kitchen oven with a circular vent and handle (no text or symbols)

Technical diagram of a mechanical spring assembly with directional arrows indicating rotation (no text or labels)

Condensed water

The machine is supplied as shown in Option I (inset). This means that the condensed water is pumped into the condensed water container. This must then be removed and emptied by hand.

Option 2 allows you to remove the small short hose from the nipple. Attach the rubber hose supplied to the same nipple. The water can then be pumped out into a sink or a floor drain (2a).

Transport/Winter storage

The machine must be transported upright! Leave the machine to stand for 24 hours after transporting. If you need to move your machine or store it over the winter in unheated premises, make sure that you drain the condensed water container beforehand.

Electrical installation

• The electrical wall socket must be placed outside of the installation area to be easily accessible.
• The machine must only be connected to an earthed wall socket.
• Any residual current devices must be type A.

Connection on delivery

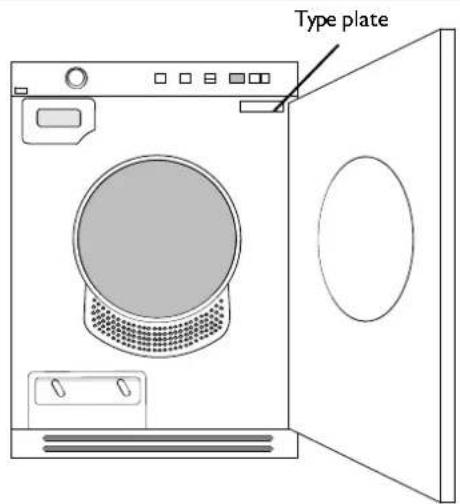

Information about the electrical connection can be found on the type plate. Compare the data with the mains supply data.

Start instructions

Start instructions

You will be prompted to select the display language when you have connected your machine and start it for the first time.

1. Turn the programme selector and choose the required language.
2. Press Start/Stop to save the selection and return to the programme menu.

Two identical electronic devices with scroll handles and indicator lights, no visible text or symbols.

Start instructions

The first time the machine is connected to a power supply, you need to select the language for the machine's menus and set the clock. If the power is cut before this is completed, the process must be restarted.

Note:

All selections must be made.

Select language

If you want to use the default language, press the Start button to confirm. Otherwise, use the up and down arrow buttons to select:

AU English, US English, svenska, dansk, norsk, suomea,

Francais, Deutsch, Italiano, espanol,

Русский, nederlands.

Press the Start button to confirm.

Set the clock to 12h, 24h, or remaining program time display

The clock is displayed in the middle of the display.

Use the up and down arrow buttons to choose 12h, 24h, or remaining program time display. Press the Start button to confirm.

If you select 12h or 24h, the clock setting menu automatically opens.

Set the clock

Press the up arrow button until the correct hour is displayed. Press the program selector (the big arrow) to save. Press the down arrow button until the correct minutes are displayed. Press the Start button to confirm.

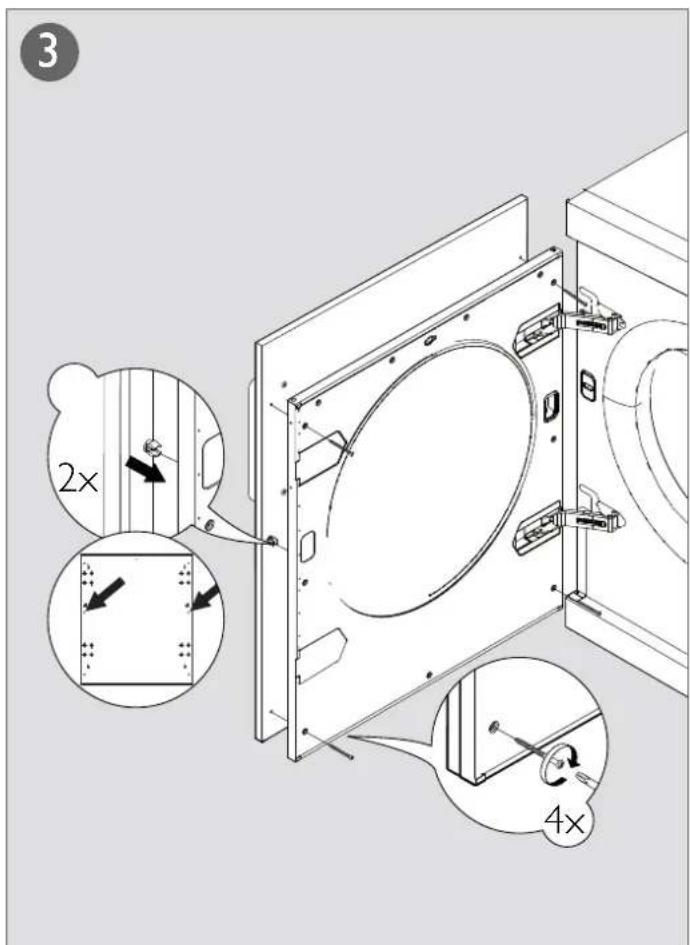

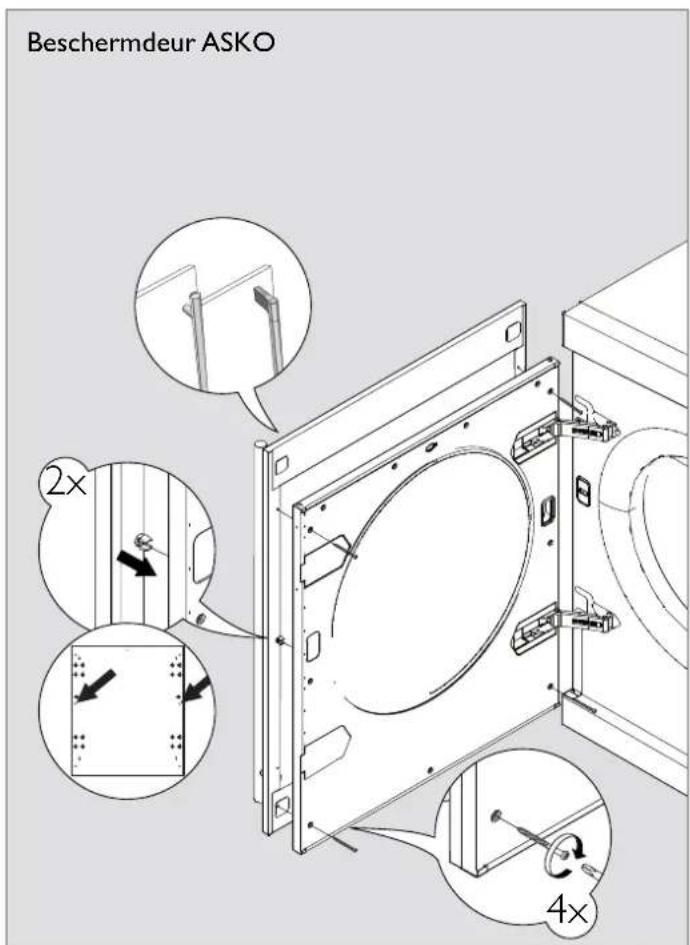

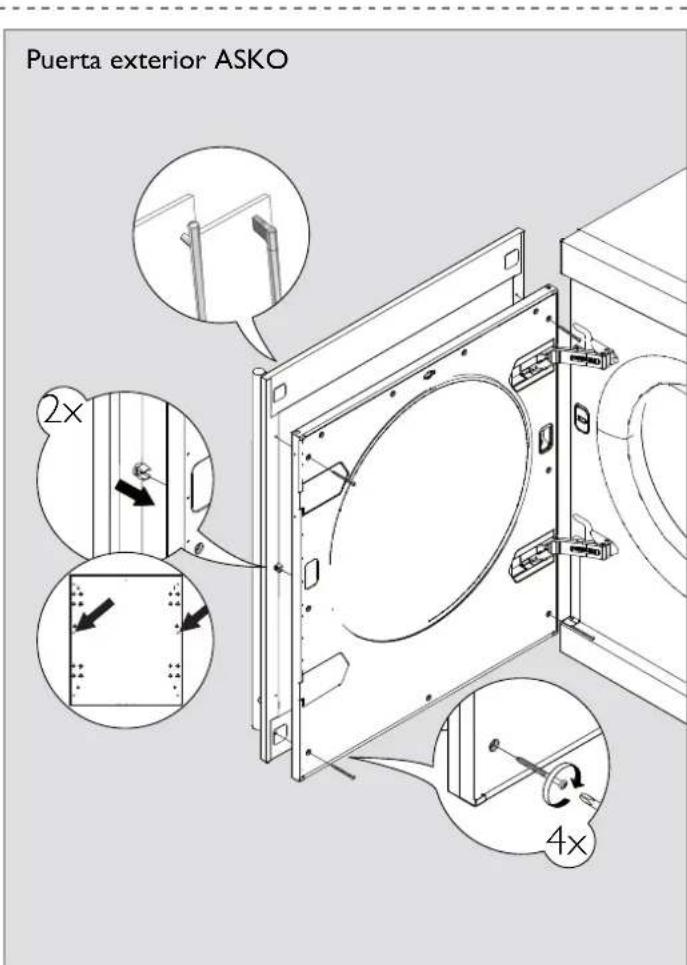

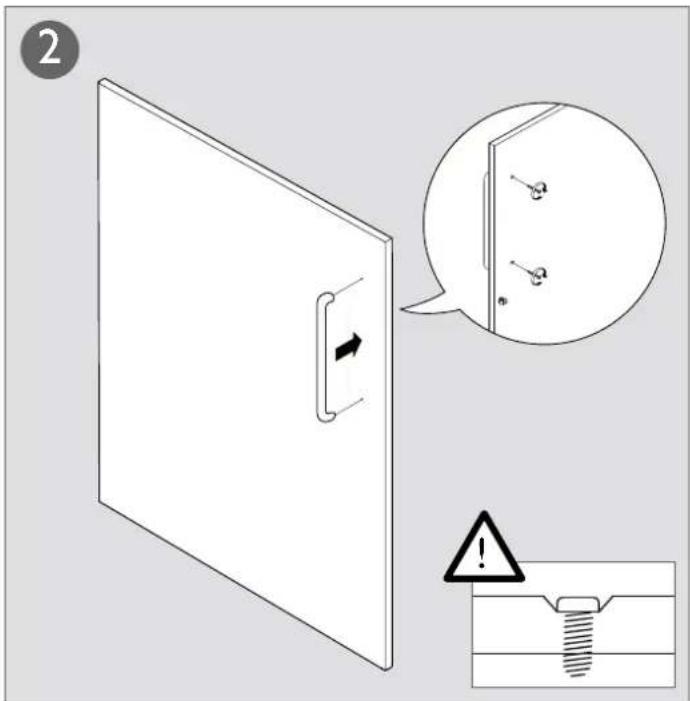

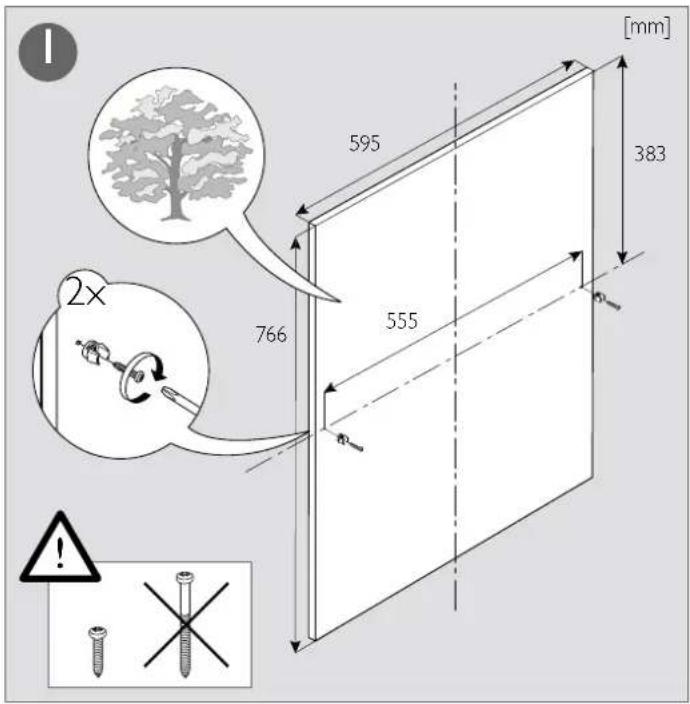

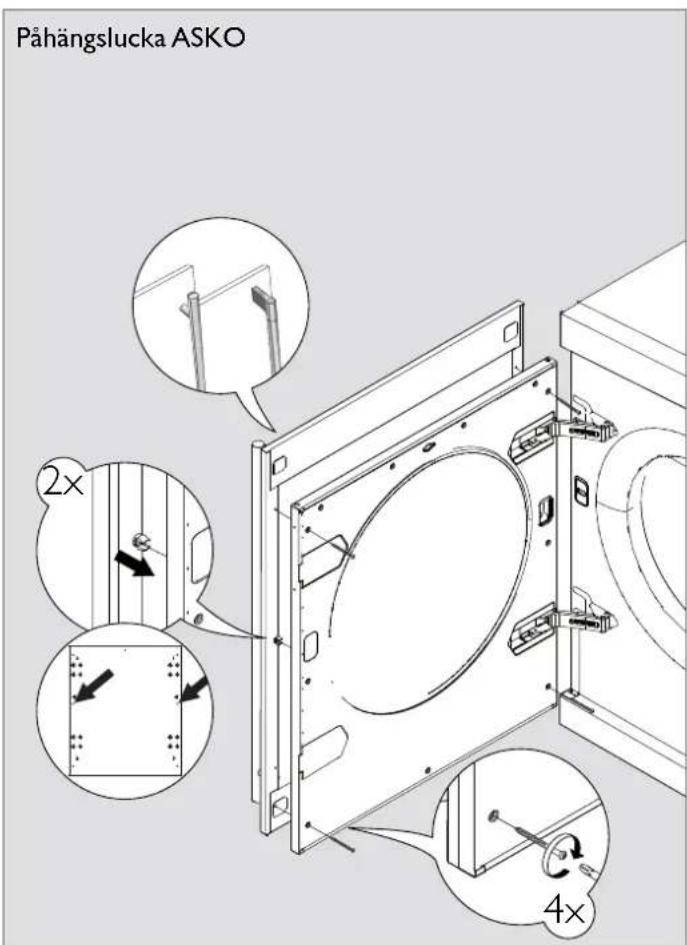

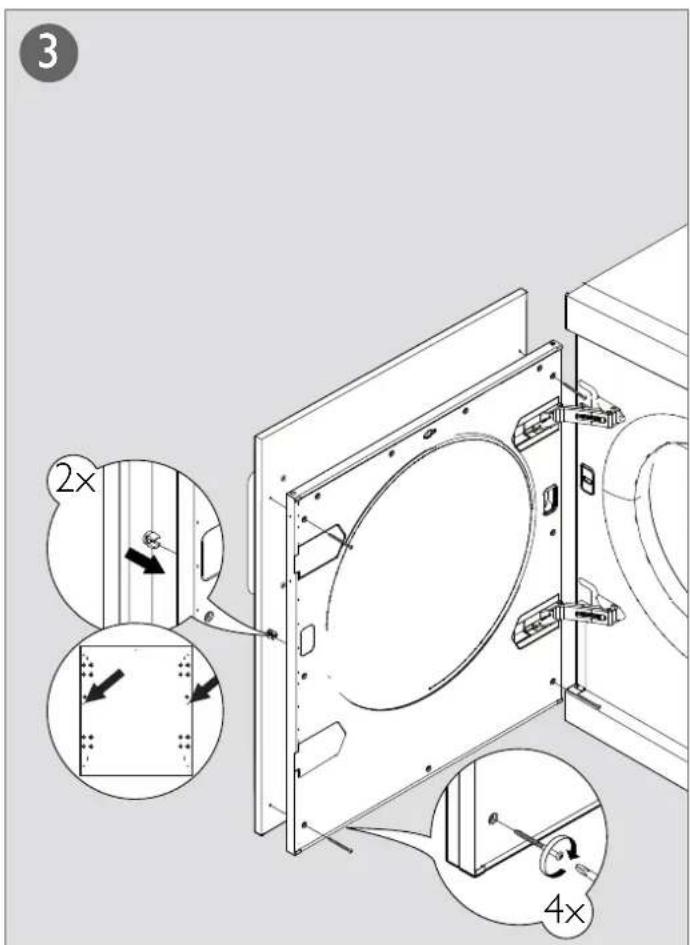

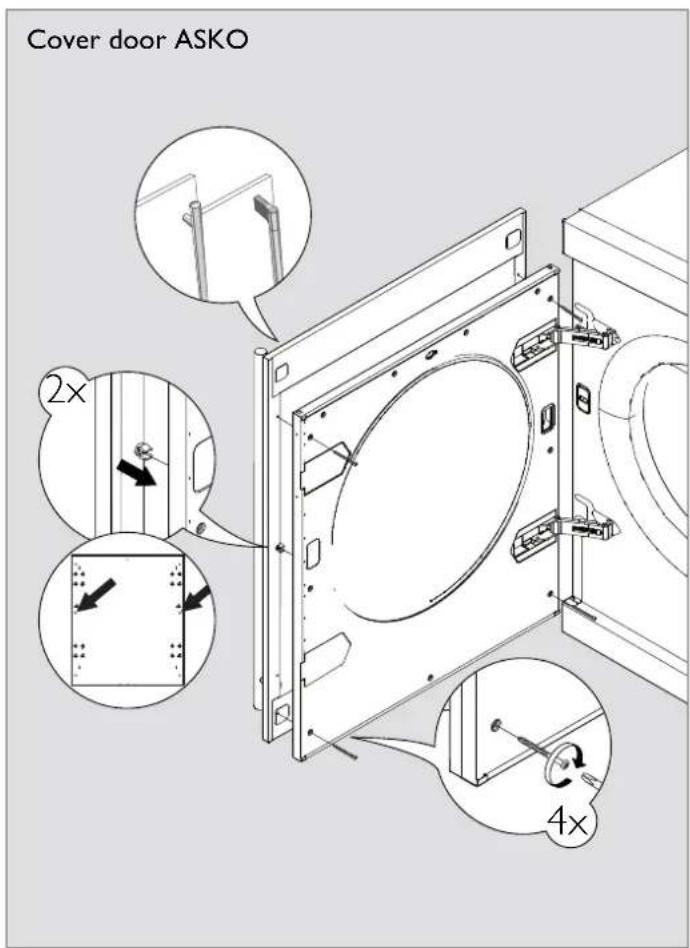

Fitting the cover door

Close-up of a metallic control panel with buttons and a central knob (no visible text or symbols)

Note!
The instructions for fitting the cover door only apply to the illustrated model.

Line drawing of a front-loading washing machine with front panel and side door (no text or symbols)

Montage:

Line drawing of a mechanical device with a cylindrical component inserted into a base (no text or symbols)

1. Secure the anti-tilt device using the screws as shown in the picture.

Pure technical line drawing of a mechanical part with no text, numbers, or symbols

Line drawing of a washing machine with a circular component and a separate close-up view (no text or symbols)

Line drawing of a simple industrial machine with a circular component and wheels (no text or symbols)

Diagram showing two views of a chair or seat with arrows indicating direction (no text or symbols)

Ajuste de las patas

Line drawing of a simple kitchen oven with a circular vent and side-mounted door (no text or symbols)

Technical diagram of a mechanical spring assembly with directional arrows indicating rotation (no text or labels)

Line drawing of a front view of a washing machine with lid, vent, and door (no text or symbols)

Close-up of a black horizontal bar with circular ends and a small button, no visible text or symbols.

Front view of a silver audio recording device with a horizontal bar and control buttons (no visible text or symbols)

Front view of a black rectangular electronic device with control buttons and indicator lights (no visible text or symbols)

Line drawing of a multi-tiered refrigerator with front panel and side door (no text or symbols)

Montage:

Line drawing of a mechanical device with a magnified inset showing a small circular component (no text or symbols)

Pure technical line drawing of a mechanical component or bracket with no text, numbers, or symbols

Line drawing of a washing machine with a circular component and a separate close-up of the lid (no text or symbols)

Line drawing of a laboratory apparatus with a circular component and control knobs (no text or symbols)

Diagram showing two views of a mechanical device with arrows indicating direction (no text or symbols)

Réglage des pieds

Line drawing of a simple kitchen oven with a circular vent and side-mounted door (no text or symbols)

Technical diagram of a mechanical spring assembly with directional arrows indicating rotation (no text or symbols)

Eau de condensation

Two identical electronic device sliders with control buttons, no visible text or symbols

Front view of a gray electronic device control panel with buttons and indicator lights (no readable text or symbols)

N.B.!

Line drawing of a front-loading washing machine with a top panel and side panels (no text or symbols)

Slaganje aparata:

1. Odvijte vijak na stražnjoj strani penlice kao što je prikazano na slici.

Line drawing of a mechanical device with a circular component and a pointer (no text or symbols)

Line drawing of a mechanical assembly with a base plate and a handle, no text or symbols present

1. Iz kutije izvadite drugi dio kompleta protiv nagibanja uređaja (drugi držač) i dva vijka. Drugi držač protiv nagibanja uređaja pričvrstite pomoću dva vijka na stroj za sušenje rublja.

Pure technical diagram showing a curved surface with a circular feature and two labeled points (2A and 2B) without any readable text or symbols.

Line drawing of a washing machine with a circular vent and attached fan (no text or symbols)

1. Nožice privijte ili odvijte toliko da stroj za sušenje rublja izravnate u potpuno vodoravan položaj, bilo na tlu ili na perilici rublja.

Line drawing of a laboratory apparatus with a circular component and wheels (no text or symbols)

Line drawing of two chair setups with arrows indicating movement (no text or symbols)

Podešavanje nožica

Pritežite i otpuštajte nožice tako da sušilica bude stabilna i uravnotežena na podu ili na perilici rublja.

Line drawing of a simple kitchen oven with a circular vent and side-mounted door (no text or symbols)

Technical diagram of a mechanical spring assembly with no visible text or symbols

Kondenzat

Aparat se isporučuje kako je prikazano u Opciji I (dodatak). To znači da se kondenzirana voda prepumpava u spremnik za kondenzat. On se mora zatim ukloniti i ručno isprazniti.

Opcija 2 omogućuje uklanjanje male kratke cijevi iz spojnice. Pričvrstite isporučenu gumenu cijev na istu spojnicu. Voda se zatim može ispumpati u umivaonik ili podni odvod (2a).

Two identical electronic device sliders with circular buttons, no visible text or symbols

Upute za pokretanje

Kada se aparat prvi put priključuje na napajanje, morate odabrati jezik izbornika i postaviti sat. Ako se napajanje prekine prije dovršetka tog postupka, morate krenuti od početka.

Napomena:

Morate odabrati sve postavke.

Odabir jezika

Ako želite koristiti zadani jezik, za potvrdu pritisnite tipku za pokretanje. U suprotnom, pomoću tipki sa strelicama odaberite sljedeće: AU English (australski engleski), US English (američki engleski), svenska (švedski), dansk (danski), norsk (norveški), suomea (fi nski), Francais (francuski), Deutsch (njemački), Italiano (talijanski), espanol (španjolski), Русский (ruski), nederlands (nizozemski). Pritisnite tipku za pokretanje da biste potvrdili odabir.

Podesite sat na 12 h, 24 h ili na prikaz preostalog vremena programa.

Sat se prikazuje na sredini zaslona.

Pomoću strelica za gore ili dolje podesite sat na 12 h, 24 h ili na prikaz preostalog vremena programa.

Pritisnite tipku za pokretanje da biste potvrdili odabir.

Ako odaberete 12 h ili 24 h, automatski se otvara izbornik s postavkama sata.

Postavljanje sata

Pritiščite tipku sa strelicom prema gore dok se ne prikaže točan sat. Pritiščite programator (velika strelica) da biste spremili postavku.

Pritiščite tipku sa strelicom prema dolje dok se ne prikažu točne minute.

Pritisnite tipku za pokretanje da biste potvrdili odabir.

Close-up of a metallic audio workstation (no visible text or labels)

Napomena!

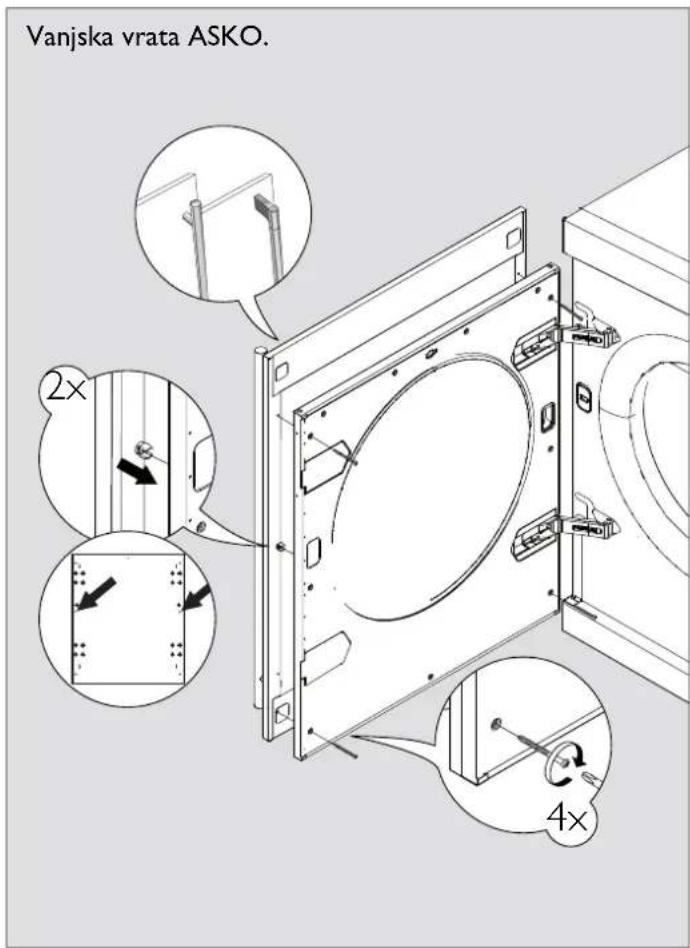

Upute za montažu vanjskih vrata odnose se samo prikazani model.

Line drawing of a multi-tiered refrigerator with front panel and side door (no text or symbols)

Line drawing of a mechanical device with a circular component inserted into the top panel (no text or symbols)

Pure technical diagram showing a curved surface with a circular feature and two labeled points (21 and 22) without any readable text or symbols.

Line drawing of a washing machine with a circular vent and attached component, shown with mounting base (no text or symbols)

Line drawing of a simple industrial machine with a circular component and control panel (no text or symbols)

Diagram showing two views of a mechanical device with arrows indicating direction (no text or symbols)

Justere føttene

Line drawing of a simple industrial oven or incubator with a circular vent and side-mounted lid (no text or symbols)

Technical diagram of a mechanical spring assembly with no visible text or symbols

Kondensvannet

Startanleitungen

Startanleitungen

Two identical electronic device sliders with control buttons, no visible text or symbols

Startanleitungen

Front view of a gray electronic device control panel with buttons and indicator lights (no readable text or symbols)

Obs!

Montering av påhengsdør gjelder kun for den modelltypen som er vist på bildet.

Line drawing of a front-loading washing machine with front panel and side panels (no text or symbols)

Line drawing of a mechanical component with a circular arrow and dimension label (no text or symbols)

Line drawing of a mechanical assembly with a base plate and a handle, no text or symbols present

Pure technical line drawing of a curved mechanical part with no text or symbols

Line drawing of a washing machine with a circular component and a separate close-up view (no text or symbols)

Line drawing of a mechanical device with a circular component and wheels (no text or symbols)

Diagram showing two views of a refrigerator with arrows indicating direction (no text or symbols)

Line drawing of a simple kitchen oven with a circular vent and side-mounted door (no text or symbols)

Technical diagram of a mechanical spring assembly with directional arrows indicating rotation (no text or labels)

Condenswater

Two identical electronic device sliders with control buttons, no visible text or symbols

Startinstructies

Front view of a gray electronic device control panel with buttons and indicator lights (no readable text or symbols)

Line drawing of a multi-tiered refrigerator with front panel and side door (no text or symbols)

Line drawing of a table with a magnified inset showing a small circular object (no text or symbols)

1. Aperte o esquadro anti-queda da máquina de lavar roupa como indicado na fi gura.

Pure technical line drawing of a mechanical part with no text or symbols

Technical line drawing of a washing machine with a circular component and a separate view showing a flange (no text or symbols)

Line drawing of a simple industrial machine with a circular component and wheels (no text or symbols)

1. Empurre a máquina de secar roupa contra o esquadro da máquina de lavar roupa; para isso, mantenha a máquina de secar roupa inclinada levantando-a para a frente de 50 a 150 mm.

Diagram showing two views of a refrigerator with arrows indicating direction (no text or symbols)

Ajustar os pés

Line drawing of a simple kitchen oven with a circular vent and side-mounted door (no text or symbols)

Technical diagram of a mechanical spring assembly with directional arrows indicating rotation (no text or labels)

Água condensada

Two identical electronic device sliders with control buttons, no visible text or symbols

Close-up of a metallic control panel with buttons and a central knob (no visible text or symbols)

Line drawing of a multi-tiered refrigerator with front panel and side door (no text or symbols)

Line drawing of a mechanical component with a circular arrow and dimension label (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure technical line drawing of a curved mechanical part with no text or symbols

Line drawing of a washing machine with a circular component and a separate plastic housing (no text or symbols)

Line drawing of a simple industrial machine with a circular component and control panel (no text or symbols)

Line drawing of two chair seats with arrows indicating movement (no text or symbols)

Регулировка ножек

Line drawing of a simple industrial machine with a circular component on the side panel (no text or symbols)

Technical diagram of a mechanical spring assembly with rotational arrows indicating motion (no text or labels)

Конденсат

Two identical electronic device sliders with control buttons, no visible text or symbols

Front view of a gray electronic device control panel with buttons and indicator lights (no readable text or symbols)

Внимание!

Line drawing of a front-loading washing machine with front panel and side door (no text or symbols)

Line drawing of a table with a circular arrow pointing to the top surface (no text or symbols)

Pure technical diagram showing a curved surface with a circular feature and two labeled points (21 and 22) without any text or symbols.

Technical line drawing of a washing machine with a circular component and a separate close-up view (no text or symbols)

Line drawing of a mechanical device with a circular component and wheels (no text or symbols)

Diagram showing two views of a mechanical device with arrows indicating direction (no text or symbols)

Säädä jalat

Line drawing of a simple kitchen oven with a circular vent and side-mounted door (no text or symbols)

Mechanical component diagram showing a threaded bolt with internal springs and a base (no text or symbols)

Kondenssivesi

Käynnistysohje

Two identical electronic device sliders with control buttons, no visible text or symbols

Käynnistysohje

Front view of a gray electronic device control panel with buttons and indicator lights (no readable text or symbols)

Torktumlarens placering

Line drawing of a front-loading washing machine with front panel and side door (no text or symbols)

Line drawing of a table with a magnified inset showing a small object (no text or symbols)

Line drawing of a mechanical assembly with a base plate and clamping mechanism (no text or symbols)

Pure technical line drawing of a mechanical part with no text, numbers, or symbols

Line drawing of a washing machine with a circular component and a separate close-up of the lid (no text or symbols)

Line drawing of a simple industrial machine with a circular vent and side-mounted buttons (no text or symbols)

Diagram showing two views of a mechanical device with arrows indicating direction (no text or symbols)

Justera fötterna

Line drawing of a simple industrial machine with a circular component on the door (no text or symbols)

Technical illustration of a mechanical spring assembly with no visible text or symbols

Kondensvattnet

Two identical electronic device sliders with control buttons, no visible text or symbols

Startinstruktion

Close-up of a metallic control panel with buttons and a scroll (no visible text or symbols)

Line drawing of a front-loading washing machine with front panel and side door (no text or symbols)

Line drawing of a table with a magnified inset showing a small object (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure technical line drawing of a mechanical part with no text, numbers, or symbols

Line drawing of a washing machine with a circular component and a separate view showing a speaker (no text or symbols)

Line drawing of a simple industrial machine with a circular component and control panel (no text or symbols)

Diagram showing two views of a mechanical device with arrows indicating direction (no text or symbols)

Регулювання ніжок

Line drawing of a simple kitchen oven with a circular vent and side-mounted door (no text or symbols)

Technical illustration of a mechanical spring assembly with no visible text or symbols

Конденсат

Line drawing of a front view of a washing machine with lid, vent, and door (no text or symbols)

Digital audio workstation scroll with a black tab and control buttons (no text or symbols visible)

Front view of a silver audio player interface with no visible text or symbols

User interface control bar with slider and control buttons (no text or symbols)
