IXO Cutter - Screwdriver BOSCH - Free user manual and instructions

Product Type	Cordless Electric Screwdriver
Brand	Bosch
Model	IXO Cutter
Nominal Voltage	3.6 V
Battery Type	Integrated Lithium-Ion
Battery Capacity	1.5 Ah
Charging Time	3 to 5 hours
No Load Speed	200 rpm
Max Torque	5 Nm
Chuck	1/4 inch Hex (6.35 mm)
Weight (without charger)	0.3 kg
Dimensions (L x W x H)	200 x 40 x 40 mm
Housing Material	ABS Plastic
Main Functions	Screwing, light drilling, cutting (with accessory)
Safety	Spindle lock, overload protection
Maintenance and Cleaning	Clean with a dry cloth; do not immerse
Supplied Accessories	USB charging cable, screwdriver bits, cutter blade
Repairability	Battery non-replaceable by user; spare parts available from Bosch

Frequently Asked Questions - IXO Cutter BOSCH

How do I charge the battery of the Bosch IXO Cutter?

Connect the supplied USB cable to the tool and to a standard USB charger (5 V, min. 1 A). Full charging time is approximately 3 to 5 hours. During charging, the LED light flashes and becomes steady once the battery is full.

Can I use the IXO Cutter for drilling?

Yes, the IXO Cutter can drill into soft materials (wood, plastic, plaster) at shallow depths. For more demanding drilling, use a suitable tool.

How do I replace the cutter blade?

Ensure the tool is turned off. Remove the screwdriver bit, then insert the cutter blade into the hex chuck. Tighten the locking ring manually. Follow safety instructions to avoid injury.

Is the battery interchangeable?

No, the lithium-ion battery is integrated and non-removable. If it no longer holds a charge, contact an authorized Bosch service center for replacement.

What should I do if the tool does not turn on?

Check that the battery is charged (plug in the charger). If the LED does not light up, clean the charging contacts. If the problem persists, contact customer service.

How do I clean the IXO Cutter?

Unplug the tool and wipe it with a slightly damp soft cloth. Do not use abrasive products or solvents. Never immerse the tool in water.

What is the maximum torque of the tool?

The maximum torque is approximately 5 Nm, sufficient for common screwing and small repairs. For tighter assemblies, use a more powerful screwdriver.

Can I use the tool continuously?

The IXO Cutter is designed for intermittent use. After 10 to 15 minutes of work, let it cool down to avoid battery overheating.

Where can I find compatible accessories?

Screwdriver bits and cutter blades are available from Bosch retailers or on the official website. Use only 1/4 inch (6.35 mm) accessories.

How should I store the tool long-term?

Store the tool in a dry, temperate place (between 10 and 30 °C). If you do not use it for several months, charge the battery to approximately 50%.

USER MANUAL IXO Cutter BOSCH

OHD DOK1.-14181-008.fm Page 1 Wednesday, August 6, 2014 10:18 AM

WEUWEU

IXO

Robert Bosch GmbH

Power Tools Division

OBJ_BUCH-826-008.book Page 2 Monday, June 30, 2014 11:47 AM

2

OBJ_BUCH-826-008.book Page 3 Monday, June 30, 2014 11:47 AM

|3

Bosch Power Tools 1 609 92A 0P3 | (30.6.14)

OBJ_BUCH-826-008.book Page 4 Monday, June 30, 2014 11:47 AM

4

B

C

1 609 92A 0P3 | (30.6.14) Bosch Power Tools

OBJ_BUCH-826-008.book Page 6 Monday, June 30, 2014 11:47 AM

6

1 609 92A 0P3 | (30.6.14) Bosch Power Tools

OBJ_DOKU-28030-004.fm Page 7 Wednesday, August 6, 2014 10:12 AM

Deutsch | 7

Deutsch

Sicherheitshinweise

OBJ_DOKU-28030-004.fm Page 8 Wednesday, August 6, 2014 10:12 AM

8 | Deutsch

OBJ_DOKU-28030-004.fm Page 9 Wednesday, August 6, 2014 10:12 AM

Deutsch|9

OBJ_DOKU-28030-004.fm Page 10 Wednesday, August 6, 2014 10:12 AM

10 | Deutsch

OBJ_DOKU-28030-004.fm Page 11 Wednesday, August 6, 2014 10:12 AM

Deutsch | 11

OBJ_DOKU-28030-004.fm Page 12 Wednesday, August 6, 2014 10:12 AM

12 | Deutsch

OBJ_DOKU-28030-004.fm Page 13 Wednesday, August 6, 2014

Deutsch | 13

OBJ_DOKU-28030-004.fm Page 14 Wednesday, August 6, 2014 10:12 AM

14 | Deutsch

12 Ladegerät

13 Exzenteraufsatz*

14 Winkelaufsatz*

OBJ_DOKU-28030-004.fm Page 15 Wednesday, August 6, 2014 10:12 AM

Deutsch | 15

OBJ_DOKU-28030-004.fm Page 16 Wednesday, August 6, 2014 10:12 AM

16 | Deutsch

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Lwr Joo

i.v. h·w—

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.07.2014

Montage

OBJ_DOKU-28030-004.fm Page 17 Wednesday, August 6, 2014 10:12 AM

Deutsch|17

OBJ_DOKU-28030-004.fm Page 18 Wednesday, August 6, 2014 10:12 AM

18 | Deutsch

OBJ_DOKU-28030-004.fm Page 19 Wednesday, August 6, 2014 10:12 AM

Deutsch | 19

Ein-/Ausschalten

OBJ_DOKU-28030-004.fm Page 20 Wednesday, August 6, 2014 10:12 AM

20 | Deutsch

OBJ_DOKU-28030-004.fm Page 21 Wednesday, August 6, 2014 10:12 AM

Deutsch | 21

Österreich

OBJ_DOKU-28030-004.fm Page 22 Wednesday, August 6, 2014 10:12 AM

22 | Deutsch

OBJ_DOKU-28030-004.fm Page 23 Wednesday, August 6, 2014 10:12 AM

English | 23

English

Safety Notes

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
- Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.

Bosch Power Tools 1 609 92A 0P3 | (6.8.14)

OBJ_DOKU-28030-004.fm Page 24 Wednesday, August 6, 2014 10:12 AM

24 | English

▶ When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

1 609 92A 0P3 | (6.8.14) Bosch Power Tools

OBJ_DOKU-28030-004.fm Page 25 Wednesday, August 6, 2014 10:12 AM

English | 25

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
- Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

Bosch Power Tools 1 609 92A 0P3 | (6.8.14)

OBJ_DOKU-28030-004.fm Page 26 Wednesday, August 6, 2014 10:12 AM

26 | English

▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Warnings for Screwdrivers

▶ Hold power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
▶ Hold the machine with a firm grip. High reaction torque can briefly occur while driving in and loosening screws.
- Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.
▶ Before any work on the machine (e.g., maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries.

Protect the power tool against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

In case of damage and improper use of the battery, vapours may be emitted. Ventilate the area and seek medical help in case of complaints. The vapours can irritate the respiratory system.

1 609 92A 0P3 | (6.8.14) Bosch Power Tools

OBJ_DOKU-28030-004.fm Page 27 Wednesday, August 6, 2014 10:12 AM

English | 27

Safety Warnings for Battery Chargers

This charger is not intended for use by children and persons with physical, sensory or mental limitations or a lack of experience or knowledge. This charger can be used by children aged 8 and by persons who have physical, sensory or mental limitations or a lack of experience or knowledge if a person responsible for their safety supervises them or has instructed them in the safe operation of the charger and they understand the associated dangers. Otherwise, there is a danger of operating errors and injuries.

▶ Supervise children. This will ensure that children do not play with the charger.
- Cleaning and user maintenance of the battery charger shall not be made by children without supervision.

Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock.

▶ Charge only Li-Ion batteries built into Bosch products. The battery voltage must match the battery charging voltage of the charger. Otherwise there is a danger of fire and explosion.
- Keep the battery charger clean. Contamination can lead to danger of an electric shock.

Bosch Power Tools 1 609 92A 0P3 | (6.8.14)

OBJ_DOKU-28030-004.fm Page 28 Wednesday, August 6, 2014 10:12 AM

28 | English

▶ Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualified technician and only using original spare parts. Damaged battery chargers, cables and plugs increase the risk of an electric shock.
▶ Do not operate the battery charger on easily inflammable surfaces (e.g., paper, textiles, etc.) or surroundings. The heating of the battery charger during the charging process can pose a fire hazard.

Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).

If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Product Description and Specifications

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Intended Use

The machine is intended for driving in and loosening screws.

The light of this power tool is intended to illuminate the power tool's direct area of working operation and is not suitable for household room illumination.

Product Features

The numbering of the product features refers to the illustration of the machine on the graphics page.

1 Screwdriver bit*
2 Tool holder

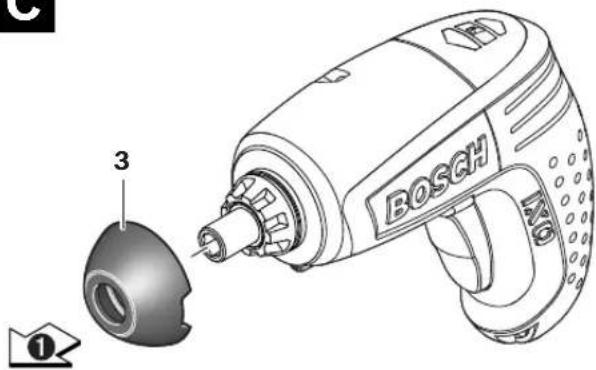

3 Rubber cap
4 Indicator for right rotation

1 609 92A 0P3 | (6.8.14) Bosch Power Tools

OBJ_DOKU-28030-004.fm Page 29 Wednesday, August 6, 2014

10:12 AM

English | 29

5 Battery charge-control indicator
6 Indicator for left rotation
7 Suspension hook
8 On/Off switch
9 Rotational direction switch

10 "PowerLight"

11 Handle (insulated gripping surface)
12 Battery charger
13 Eccentric driver head*
14 Angle driver head*
15 Torque attachment*
16 Torque presetting ring*
17 Torque-setting mark*
18 Release ring*

*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

Technical Data

Cordless Screwdriver IXO
Article number		3 603 J81 0..
Rated voltage	V= 3.6
No-load speed	min -1	215
Max. torque for hard/soft screwdriving application according to ISO 5393	Nm 4.5/3
Max. screw dia.	mm	5
Weight according to EPTA-Procedure 01/2003	kg 0.3
Battery		Li-Ion
Capacity	Ah 1.5
Number of battery cells		1

Bosch Power Tools 1 609 92A 0P3 | (6.8.14)

OBJ_DOKU-28030-004.fm Page 30 Wednesday, August 6, 2014 10:12 AM

30 | English

Cordless Screwdriver IXO

Battery Charger
Article number 2 607 225 809 (EU)
	2 607 225 811 (UK/SMA)
	2 607 225 813 (AU)
Charging time	min 380
Protection class	☐/II

Noise/Vibration Information

Sound emission values determined according to EN 60745-2-2.

Typically the A-weighted sound pressure level of the product is less than 70 dB(A). Uncertainty K = 3 dB.

The noise level when working can exceed 80 dB(A).

Wear hearing protection!

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60745:

Screwdriving without impact: a_h<2,5m/s² , K=1,5 m/s ² .

The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

1 609 92A 0P3 | (6.8.14) Bosch Power Tools

OBJ_DOKU-28030-004.fm Page 31 Wednesday, August 6, 2014 10:12 AM

English | 31

Declaration of Conformity

CE

We declare under our sole responsibility that the product described under

"Technical data" is in conformity with all relevant provisions of the directives

2009/125/EC (Regulation 1194/2012), 2011/65/EU, 2014/35/EU,

2014/30/EU, 2006/42/EC. including their amendments and complies with

the following standards:

EN 60745-1, EN 60745-2-2 (battery powered product),

EN 60335-1, EN 60335-2-29 (battery charger).

Technical file (2006/42/EC) at:

Robert Bosch GmbH, PT/ETM9,

70764 Leinfelden-Echterdingen, GERMANY

CE 14

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.07.2014

Assembly

▶ Before any work on the machine (e.g., maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries.

Battery Charging (see figure A)

▶ Do not use other battery chargers. The supplied battery charger is designed for the Lithium-Ion battery in your machine.

▶ Observe the mains voltage! The voltage of the power supply must correspond with the data given on the nameplate of the battery charger. Battery chargers marked with 230 V can also be operated with 220 V.

Bosch Power Tools 1 609 92A 0P3 | (6.8.14)

OBJ_DOKU-28030-004.fm Page 32 Wednesday, August 6, 2014 10:12 AM

32 | English

Note: The battery supplied is partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.

The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.

The Lithium-Ion battery is protected against deep discharging. When the battery is discharged, the machine is automatically switched off by a protective circuit: The inserted tool no longer moves and a slight whistling noise can be heard.

▶ Do not continue to press the On/Off switch after the machine has been automatically switched off. The battery can be damaged.

When the battery charge-control indicator 5 lights up red while the On/Off switch 8 is depressed half way, then the battery has less than 30% of its capacity and should be charged.

The charging procedure starts as soon as the main plug of the battery charger is inserted into the socket and the cordless screwdriver is afterwards placed on the battery charger 12.

The battery charge-control indicator 5 indicates the charging progress. The indicator lights up green during the charging process. When the battery charge-control indicator 5 is no longer lit, the battery is fully charged.

During the charging procedure, the handle of the machine warms up. This is normal.

Disconnect the battery charger from the mains supply when not using it for longer periods.

The power tool cannot be used during the charge procedure; it is not defective when inoperative during the charging procedure.

▶ Protect the battery charger against moisture!

Observe the notes for disposal.

Changing the Tool (see figure B)

▶ Do not use double-sided screwdriver bits that are longer than 25 mm.

Insert the screwdriver bit 1 directly into the tool holder 2.

1 609 92A 0P3 | (6.8.14) Bosch Power Tools

OBJ_DOKU-28030-004.fm Page 33 Wednesday, August 6, 2014

English | 33

Eccentric Driver Head/Angle Driver Head/Torque Attachment (see figures C–F)

The eccentric driver head 13 enables screwdriving close to edges.

The angle driver head 14 enables screwdriving at hard to reach locations.

With the torque presetting ring 16 on the torque attachment 15, the requested torque can be preset in 10 steps. With the correct setting, the tool bit is stopped as soon as the screw is driven flush into the material or when the set torque is reached.

Assembly (see figures C-D)

For assembly of the attachments, pull the rubber cap 3 off toward the front. Afterwards the attachments can be mounted. The attachments can be mounted offset by 45°.

Dismounting (see figures E-F)

To dismount the attachments, turn the release ring 18 in rotation direction ① and pull the attachment off toward the front. Afterwards, mount the rubber cap 3 again.

Operation

Starting Operation

▶ Observe the mains voltage! The voltage of the power supply must correspond with the data given on the nameplate of the battery charger. Battery chargers marked with 230 V can also be operated with 220 V.

Reversing the rotational direction

The rotational direction switch 9 is used to reverse the rotational direction of the machine. However, this is not possible with the On/Off switch 8 actuated.

Right rotation: For driving in screws, push the rotational direction switch 9 left to the stop.

The indicator for right rotation 4 lights up when the On/Off switch 8 is actuated and the motor is running.

Left Rotation: For loosening or unscrewing screws, push the rotational direction switch 9 right to the stop.

Bosch Power Tools 1 609 92A 0P3 | (6.8.14)

OBJ_DOKU-28030-004.fm Page 34 Wednesday, August 6, 2014 10:12 AM

34 | English

The indicator for left rotation 6 lights up when the On/Off switch 8 is actuated and the motor is running.

Switching On and Off

To start the machine, press the On/Off switch 8 and keep it pressed.

The power light 10 lights up when the On/Off switch 8 is slightly or completely pressed, and allows the work area to be illuminated when lighting conditions are insufficient.

To switch off the machine, release the On/Off switch 8.

Fully automatic spindle locking (Auto-lock)

The spindle is locked when the On/Off switch 8 is not pressed.

This enables screws to be screwed in, even when the battery is empty and allows for the machine to be used as a screwdriver.

▶ When the spindle is locked, do not press the On/Off switch 8 for more than 15 seconds. Otherwise the power tool can be damaged.

Working Advice

▶ Apply the power tool to the screw only when it is switched off. Rotating tool inserts can slip off.

Up to 13 screwdriver bits can be stored on the side of the battery charger 12. The fixture that holds the screwdriver bits can be removed.

Maintenance and Service

Maintenance and Cleaning

▶ Before any work on the machine (e.g., maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries.
▶ For safe and proper working, always keep the machine and ventilation slots clean.

When the battery is no longer operative, please refer to an authorised after-sales service agent for Bosch power tools.

1 609 92A 0P3 | (6.8.14) Bosch Power Tools

OBJ_DOKU-28030-004.fm Page 35 Wednesday, August 6, 2014 10:12 AM

English | 35

If the replacement of the supply cord is necessary, this has to be done by Bosch or an authorized Bosch service agent in order to avoid a safety hazard. If the machine should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for Bosch power tools.

In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection

of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Bosch Power Tools 1 609 92A 0P3 | (6.8.14)

OBJ_DOKU-28030-004.fm Page 36 Wednesday, August 6, 2014 10:12 AM

36 | English

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

1 609 92A 0P3 | (6.8.14) Bosch Power Tools

OBJ_DOKU-28030-004.fm Page 37 Wednesday, August 6, 2014

English | 37

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax:[phone]

E-Mail: [e-mail]

Transport

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements.

When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Disposal

The machine, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EC countries:

According to the European Guideline 2012/19/EU, power tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Bosch Power Tools 1 609 92A 0P3 | (6.8.14)

OBJ_DOKU-28030-004.fm Page 38 Wednesday, August 6, 2014 10:12 AM

38 | English

Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection

of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Battery packs/batteries:

Li-ion:

Please observe the instructions in section

"Transport", page 37.

▶ Integrated batteries may only be removed for disposal by qualified personnel. Opening the housing shell can destroy the power tool.

To remove the battery from the power tool, press the On/Off switch 8 until the battery is fully discharged. Unscrew the screws on the housing and remove the housing shell in order to remove the battery. To prevent a short circuit, disconnect the connectors on the battery one at a time and then isolate the poles. Even when fully discharged, the battery still contains a residual capacity, which can be released in case of a short circuit.

Subject to change without notice.

1 609 92A 0P3 | (6.8.14) Bosch Power Tools

OBJ_DOKU-28030-004.fm Page 39 Wednesday, August 6, 2014

10:12 AM

Français | 39

Français

OBJ_DOKU-28030-004.fm Page 40 Wednesday, August 6, 2014 10:12 AM

40 | Français

OBJ_DOKU-28030-004.fm Page 41 Wednesday, August 6, 2014 10:12 AM

Français | 41

OBJ_DOKU-28030-004.fm Page 42 Wednesday, August 6, 2014 10:12 AM

42 | Français

OBJ_DOKU-28030-004.fm Page 43 Wednesday, August 6, 2014 10:12 AM

Français | 43

OBJ_DOKU-28030-004.fm Page 44 Wednesday, August 6, 2014 10:12 AM

44 | Français

OBJ_DOKU-28030-004.fm Page 45 Wednesday, August 6, 2014 10:12

Français | 45

OBJ_DOKU-28030-004.fm Page 46 Wednesday, August 6, 2014 10:12 AM

46 | Français

OBJ_DOKU-28030-004.fm Page 47 Wednesday, August 6, 2014

10:12 AM

Français | 47

OBJ_DOKU-28030-004.fm Page 48 Wednesday, August 6, 2014 10:12 AM

48 | Français

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Lwr Joo

i.v. h·w—

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.07.2014

Montage

OBJ_DOKU-28030-004.fm Page 49 Wednesday, August 6, 2014 10:12 AM

Français | 49

OBJ_DOKU-28030-004.fm Page 50 Wednesday, August 6, 2014 10:12 AM

50 | Français

OBJ_DOKU-28030-004.fm Page 51 Wednesday, August 6, 2014 10:12 AM

Français | 51

OBJ_DOKU-28030-004.fm Page 52 Wednesday, August 6, 2014 10:12 AM

52 | Français

OBJ_DOKU-28030-004.fm Page 53 Wednesday, August 6, 2014

Français | 53

Robert Bosch (France) S.A.S.

OBJ_DOKU-28030-004.fm Page 54 Wednesday, August 6, 2014 10:12 AM

54 | Français

OBJ_DOKU-28030-004.fm Page 55 Wednesday, August 6, 2014

10:12 AM

Español | 55

Español

OBJ_DOKU-28030-004.fm Page 56 Wednesday, August 6, 2014 10:12 AM

56 | Español

OBJ_DOKU-28030-004.fm Page 57 Wednesday, August 6, 2014 10:12 AM

Español | 57

OBJ_DOKU-28030-004.fm Page 58 Wednesday, August 6, 2014 10:12 AM

58 | Español

OBJ_DOKU-28030-004.fm Page 59 Wednesday, August 6, 2014 10:12 AM

Español | 59

OBJ_DOKU-28030-004.fm Page 60 Wednesday, August 6, 2014 10:12 AM

60 | Español

OBJ_DOKU-28030-004.fm Page 61 Wednesday, August 6, 2014 10:12 AM

Español | 61

OBJ_DOKU-28030-004.fm Page 62 Wednesday, August 6, 2014 10:12 AM

62 | Español

10 Bombilla "Power Light"

OBJ_DOKU-28030-004.fm Page 63 Wednesday, August 6, 2014

10:12 AM

Español | 63

OBJ_DOKU-28030-004.fm Page 64 Wednesday, August 6, 2014 10:12 AM

64 | Español

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.07.2014

Montaje

OBJ_DOKU-28030-004.fm Page 65 Wednesday, August 6, 2014

10:12 AM

Español | 65

OBJ_DOKU-28030-004.fm Page 66 Wednesday, August 6, 2014 10:12 AM

66 | Español

OBJ_DOKU-28030-004.fm Page 67 Wednesday, August 6, 2014

10:12 AM

Español | 67

OBJ_DOKU-28030-004.fm Page 68 Wednesday, August 6, 2014 10:12 AM

68 | Español

OBJ_DOKU-28030-004.fm Page 69 Wednesday, August 6, 2014

10:12 AM

Español | 69

España

Robert Bosch Espana S.L.U.

OBJ_DOKU-28030-004.fm Page 70 Wednesday, August 6, 2014 10:12 AM

70 | Español

Chile

Robert Bosch S.A.

Calle El Cacique

OBJ_DOKU-28030-004.fm Page 71 Wednesday, August 6, 2014 10:12 AM

Español | 71

OBJ_DOKU-28030-004.fm Page 72 Wednesday, August 6, 2014 10:12 AM

72 | Português

Português

OBJ_DOKU-28030-004.fm Page 73 Wednesday, August 6, 2014 10:12 AM

Português | 73

OBJ_DOKU-28030-004.fm Page 74 Wednesday, August 6, 2014 10:12 AM

74 | Português

OBJ_DOKU-28030-004.fm Page 75 Wednesday, August 6, 2014

10:12 AM

Português | 75

OBJ_DOKU-28030-004.fm Page 76 Wednesday, August 6, 2014 10:12 AM

76 | Português

OBJ_DOKU-28030-004.fm Page 77 Wednesday, August 6, 2014 10:12 AM

Português | 77

OBJ_DOKU-28030-004.fm Page 78 Wednesday, August 6, 2014 10:12 AM

78 | Português

OBJ_DOKU-28030-004.fm Page 79 Wednesday, August 6, 2014

Português | 79

12 Carregador

OBJ_DOKU-28030-004.fm Page 80 Wednesday, August 6, 2014 10:12 AM

80 | Português

OBJ_DOKU-28030-004.fm Page 81 Wednesday, August 6, 2014

10:12 AM

Português | 81

Processo técnico (2006/42/CE) em:

Robert Bosch GmbH, PT/ETM9,

70764 Leinfelden-Echterdingen, GERMANY

CE 14

Henk Becker

Helmut Heinzelmann

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Lwr Joo

i.v. h·w—

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.07.2014

Montagem

OBJ_DOKU-28030-004.fm Page 82 Wednesday, August 6, 2014 10:12 AM

82 | Português

OBJ_DOKU-28030-004.fm Page 83 Wednesday, August 6, 2014 10:12 AM

Português | 83

OBJ_DOKU-28030-004.fm Page 84 Wednesday, August 6, 2014 10:12 AM

84 | Português

Ligar e desligar

OBJ_DOKU-28030-004.fm Page 85 Wednesday, August 6, 2014 10:12 AM

Português | 85

OBJ_DOKU-28030-004.fm Page 86 Wednesday, August 6, 2014 10:12 AM

86 | Português

Transporte

OBJ_DOKU-28030-004.fm Page 87 Wednesday, August 6, 2014 10:12 AM

Italiano | 87

OBJ_DOKU-28030-004.fm Page 88 Wednesday, August 6, 2014 10:12 AM

88 | Italiano

Sicurezza elettrica

OBJ_DOKU-28030-004.fm Page 89 Wednesday, August 6, 2014 10:12 AM

Italiano | 89

OBJ_DOKU-28030-004.fm Page 90 Wednesday, August 6, 2014 10:12 AM

90 | Italiano

OBJ_DOKU-28030-004.fm Page 91 Wednesday, August 6, 2014

10:12 AM

Italiano | 91

OBJ_DOKU-28030-004.fm Page 92 Wednesday, August 6, 2014 10:12 AM

92 | Italiano

OBJ_DOKU-28030-004.fm Page 93 Wednesday, August 6, 2014 10:12 AM

Italiano | 93

OBJ_DOKU-28030-004.fm Page 94 Wednesday, August 6, 2014 10:12 AM

94 | Italiano

Componenti illustrati

OBJ_DOKU-28030-004.fm Page 95 Wednesday, August 6, 2014 10:12 AM

Italiano | 95

OBJ_DOKU-28030-004.fm Page 96 Wednesday, August 6, 2014 10:12 AM

96 | Italiano

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.07.2014

1 609 92A 0P3 | (6.8.14) Bosch Power Tools

OBJ_DOKU-28030-004.fm Page 97 Wednesday, August 6, 2014 10:12 AM

Italiano | 97

Montaggio

OBJ_DOKU-28030-004.fm Page 98 Wednesday, August 6, 2014 10:12 AM

98 | Italiano

OBJ_DOKU-28030-004.fm Page 99 Wednesday, August 6, 2014

Italiano | 99

OBJ_DOKU-28030-004.fm Page 100 Wednesday, August 6, 2014

10:12

100 | Italiano

OBJ_DOKU-28030-004.fm Page 101 Wednesday, August 6, 2014

10:12

Italiano | 101

OBJ_DOKU-28030-004.fm Page 102 Wednesday, August 6, 2014

10:12

102 | Italiano

Smaltimento

OBJ_DOKU-28030-004.fm Page 103 Wednesday, August 6, 2014

10:12

Nederlands

103

OBJ_DOKU-28030-004.fm Page 104 Wednesday, August 6, 2014

10:12

104 | Nederlands

Elektrische veiligheid

OBJ_DOKU-28030-004.fm Page 105 Wednesday, August 6, 2014

10:12

Nederlands

105

OBJ_DOKU-28030-004.fm Page 106 Wednesday, August 6, 2014

10:12

106 | Nederlands

OBJ_DOKU-28030-004.fm Page 107 Wednesday, August 6, 2014

10:12

Nederlands

107

OBJ_DOKU-28030-004.fm Page 108 Wednesday, August 6, 2014

10:12

108 | Nederlands

OBJ_DOKU-28030-004.fm Page 109 Wednesday, August 6, 2014

10:12

Nederlands | 109

OBJ_DOKU-28030-004.fm Page 110 Wednesday, August 6, 2014

10:12

110 | Nederlands

OBJ_DOKU-28030-004.fm Page 111 Wednesday, August 6, 2014

10:12

Nederlands | 111

OBJ_DOKU-28030-004.fm Page 112 Wednesday, August 6, 2014

10:12

112 | Nederlands

Executive Vice President Head of Product Certification

Engineering PT/ETM9

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.07.2014

1 609 92A 0P3 | (6.8.14) Bosch Power Tools

OBJ_DOKU-28030-004.fm Page 113 Wednesday, August 6, 2014

10:12

Nederlands

113

Montage

OBJ_DOKU-28030-004.fm Page 114 Wednesday, August 6, 2014

10:12

114 | Nederlands

OBJ_DOKU-28030-004.fm Page 115 Wednesday, August 6, 2014

10:12

Nederlands

115

OBJ_DOKU-28030-004.fm Page 116 Wednesday, August 6, 2014

10:12

116 | Nederlands

OBJ_DOKU-28030-004.fm Page 117 Wednesday, August 6, 2014

10:12

Nederlands

117

OBJ_DOKU-28030-004.fm Page 118 Wednesday, August 6, 2014

10:12

118 | Nederlands

OBJ_DOKU-28030-004.fm Page 119 Wednesday, August 6, 2014

10:12

Dansk | 119

Dansk

OBJ_DOKU-28030-004.fm Page 120 Wednesday, August 6, 2014

10:12

120 | Dansk

OBJ_DOKU-28030-004.fm Page 121 Wednesday, August 6, 2014

10:12

Dansk | 121

OBJ_DOKU-28030-004.fm Page 122 Wednesday, August 6, 2014

10:12

122 | Dansk

OBJ_DOKU-28030-004.fm Page 123 Wednesday, August 6, 2014

10:12

Dansk | 123

OBJ_DOKU-28030-004.fm Page 124 Wednesday, August 6, 2014

10:12

124 | Dansk

OBJ_DOKU-28030-004.fm Page 125 Wednesday, August 6, 2014

10:12

Dansk | 125

OBJ_DOKU-28030-004.fm Page 126 Wednesday, August 6, 2014

10:12

126 | Dansk

OBJ_DOKU-28030-004.fm Page 127 Wednesday, August 6, 2014

10:12

Dansk | 127

Executive Vice President Engineering

Head of Product Certification PT/ETM9

i.v. h=m

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 15.07.2014

Montering

OBJ_DOKU-28030-004.fm Page 128 Wednesday, August 6, 2014

10:12

128 | Dansk

OBJ_DOKU-28030-004.fm Page 129 Wednesday, August 6, 2014

10:12

Dansk | 129

OBJ_DOKU-28030-004.fm Page 130 Wednesday, August 6, 2014

10:12

130 | Dansk

OBJ_DOKU-28030-004.fm Page 131 Wednesday, August 6, 2014

10:12

Dansk | 131

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Transport

OBJ_DOKU-28030-004.fm Page 132 Wednesday, August 6, 2014

10:12

132 | Dansk

OBJ_DOKU-28030-004.fm Page 133 Wednesday, August 6, 2014

10:12

Svenska|133

Svenska

OBJ_DOKU-28030-004.fm Page 134 Wednesday, August 6, 2014

10:12

134 | Svenska

OBJ_DOKU-28030-004.fm Page 135 Wednesday, August 6, 2014

10:12

Svenska|135

OBJ_DOKU-28030-004.fm Page 136 Wednesday, August 6, 2014

10:12

136 | Svenska

OBJ_DOKU-28030-004.fm Page 137 Wednesday, August 6, 2014

10:12

Svenska | 137

OBJ_DOKU-28030-004.fm Page 138 Wednesday, August 6, 2014

10:12

138 | Svenska

OBJ_DOKU-28030-004.fm Page 139 Wednesday, August 6, 2014

10:12

Svenska|139

OBJ_DOKU-28030-004.fm Page 140 Wednesday, August 6, 2014

10:12

140 | Svenska

Buller-/vibrationsdata

OBJ_DOKU-28030-004.fm Page 141 Wednesday, August 6, 2014

10:12

Svenska|141

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h=mc

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.07.2014

Montage

OBJ_DOKU-28030-004.fm Page 142 Wednesday, August 6, 2014

10:12

142 | Svenska

OBJ_DOKU-28030-004.fm Page 143 Wednesday, August 6, 2014

10:12

Svenska|143

Demontering (se bilder E-F)

OBJ_DOKU-28030-004.fm Page 144 Wednesday, August 6, 2014

10:12

144 | Svenska

Arbetsanvisningar

OBJ_DOKU-28030-004.fm Page 145 Wednesday, August 6, 2014

10:12

Svenska|145

Svenska

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Transport

OBJ_DOKU-28030-004.fm Page 146 Wednesday, August 6, 2014

10:12

146 | Norsk

OBJ_DOKU-28030-004.fm Page 147 Wednesday, August 6, 2014

10:12

Norsk|147

Elektrisk sikkerhet

OBJ_DOKU-28030-004.fm Page 148 Wednesday, August 6, 2014

10:12

148 | Norsk

OBJ_DOKU-28030-004.fm Page 149 Wednesday, August 6, 2014

10:12

Norsk|149

OBJ_DOKU-28030-004.fm Page 150 Wednesday, August 6, 2014

10:12

150 | Norsk

OBJ_DOKU-28030-004.fm Page 151 Wednesday, August 6, 2014

10:12

Norsk|151

OBJ_DOKU-28030-004.fm Page 152 Wednesday, August 6, 2014

10:12

152 | Norsk

Illustrerte komponenter

OBJ_DOKU-28030-004.fm Page 153 Wednesday, August 6, 2014

10:12

Norsk|153

Akku-skrutrekker IXO

Vekt tilsvarendeEPTA-Procedure 01/2003	kg 0,3
Batteri		Li-ioner
Kapasitet	Ah 1,5
Antall battericeller		1
Ladeapparat
Produktnummer 2 607 225 809 (EU)
		2 607 225 811 (UK/SMA)
		2 607 225 813 (AU)
Oppladingstid	min 380
Beskyttelsesklasse		☐/II

OBJ_DOKU-28030-004.fm Page 154 Wednesday, August 6, 2014

10:12

154 | Norsk

Henk Becker Executive Vice President Engineering Helmut Heinzelmann Head of Product Certification PT/ETM9

i.v. h·w—

Robert Bosch GmbH, Power Tools Division 70764 Leinfelden-Echterdingen, GERMANY 15.07.2014

Montering

OBJ_DOKU-28030-004.fm Page 155 Wednesday, August 6, 2014

10:12

Norsk|155

OBJ_DOKU-28030-004.fm Page 156 Wednesday, August 6, 2014

10:12

156 | Norsk

OBJ_DOKU-28030-004.fm Page 157 Wednesday, August 6, 2014

10:12

Norsk|157

Inn-/utkobling

OBJ_DOKU-28030-004.fm Page 158 Wednesday, August 6, 2014

10:12

158 | Norsk

OBJ_DOKU-28030-004.fm Page 159 Wednesday, August 6, 2014

10:12

Norsk|159

Kun for EU-land:

OBJ_DOKU-28030-004.fm Page 160 Wednesday, August 6, 2014

10:12

160|Suomi

Suomi

Turvallisuusohjeita

OBJ_DOKU-28030-004.fm Page 161 Wednesday, August 6, 2014

10:12

Suomi | 161

OBJ_DOKU-28030-004.fm Page 162 Wednesday, August 6, 2014

10:12

162|Suomi

OBJ_DOKU-28030-004.fm Page 163 Wednesday, August 6, 2014

10:12

Suomi | 163

OBJ_DOKU-28030-004.fm Page 164 Wednesday, August 6, 2014

10:12

164|Suomi

OBJ_DOKU-28030-004.fm Page 165 Wednesday, August 6, 2014

10:12

Suomi | 165

OBJ_DOKU-28030-004.fm Page 166 Wednesday, August 6, 2014

10:12

166|Suomi

OBJ_DOKU-28030-004.fm Page 167 Wednesday, August 6, 2014

10:12

Suomi | 167

OBJ_DOKU-28030-004.fm Page 168 Wednesday, August 6, 2014

10:12

168 | Suomi

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h=m

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.07.2014

Asennus

OBJ_DOKU-28030-004.fm Page 169 Wednesday, August 6, 2014

10:12

Suomi | 169

OBJ_DOKU-28030-004.fm Page 170 Wednesday, August 6, 2014

10:12

170|Suomi

OBJ_DOKU-28030-004.fm Page 171 Wednesday, August 6, 2014

10:12

Suomi | 171

OBJ_DOKU-28030-004.fm Page 172 Wednesday, August 6, 2014

10:12

172|Suomi

OBJ_DOKU-28030-004.fm Page 173 Wednesday, August 6, 2014

10:12

Suomi | 173

Vain EU-maita varten:

OBJ_DOKU-28030-004.fm Page 174 Wednesday, August 6, 2014

10:12

174 | Ελληνικά

Ελληνικά

OBJ_DOKU-28030-004.fm Page 175 Wednesday, August 6, 2014

10:12

Ελληνικά | 175

OBJ_DOKU-28030-004.fm Page 176 Wednesday, August 6, 2014

10:12

176 | Ελληνικά

OBJ_DOKU-28030-004.fm Page 177 Wednesday, August 6, 2014

10:12

Ελληνικά | 177

OBJ_DOKU-28030-004.fm Page 178 Wednesday, August 6, 2014

10:12

178 | Ελληνικά

Service

OBJ_DOKU-28030-004.fm Page 179 Wednesday, August 6, 2014

10:12

Ελληνικά | 179

OBJ_DOKU-28030-004.fm Page 180 Wednesday, August 6, 2014

10:12

180 | Ελληνικά

OBJ_DOKU-28030-004.fm Page 181 Wednesday, August 6, 2014

10:12

Ελληνικά | 181

OBJ_DOKU-28030-004.fm Page 182 Wednesday, August 6, 2014

10:12

182 | Ελληνικά

OBJ_DOKU-28030-004.fm Page 183 Wednesday, August 6, 2014

10:12

Ελληνικά | 183

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h=mc

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.07.2014

Συναρμολόγηση

OBJ_DOKU-28030-004.fm Page 184 Wednesday, August 6, 2014

10:12

184 | Ελληνικά

OBJ_DOKU-28030-004.fm Page 185 Wednesday, August 6, 2014

10:12

Ελληνικά | 185

OBJ_DOKU-28030-004.fm Page 186 Wednesday, August 6, 2014

10:12

186 | Ελληνικά

OBJ_DOKU-28030-004.fm Page 187 Wednesday, August 6, 2014

10:12

Ελληνικά | 187

Υποδείξεις εργασίας

OBJ_DOKU-28030-004.fm Page 188 Wednesday, August 6, 2014

10:12

188 | Ελληνικά

Ελλάδα

Robert Bosch A.E.

Ερχείας 37

19400 Koprwpi - Aθήνα

Tel.: [phone]

Fax: [phone]

www.bosch.com

www.bosch-pt.gr

ABZ Service A.E.

Tel.: [phone]

Fax: [phone]

Μεταφορά

OBJ_DOKU-28030-004.fm Page 189 Wednesday, August 6, 2014

10:12

Ελληνικά | 189

OBJ_DOKU-28030-004.fm Page 190 Wednesday, August 6, 2014

10:12

190 | Türkçe

Türkçe

Güvenlik Talimatı

OBJ_DOKU-28030-004.fm Page 191 Wednesday, August 6, 2014

10:12

Türkçe | 191

OBJ_DOKU-28030-004.fm Page 192 Wednesday, August 6, 2014

10:12

192 | Türkçe

OBJ_DOKU-28030-004.fm Page 193 Wednesday, August 6, 2014

10:12

Türkçe | 193

OBJ_DOKU-28030-004.fm Page 194 Wednesday, August 6, 2014

10:12

194 | Türkçe

OBJ_DOKU-28030-004.fm Page 195 Wednesday, August 6, 2014

10:12

Türkçe | 195

OBJ_DOKU-28030-004.fm Page 196 Wednesday, August 6, 2014

10:12

196 | Türkçe

OBJ_DOKU-28030-004.fm Page 197 Wednesday, August 6, 2014

10:12

Türkçe | 197

OBJ_DOKU-28030-004.fm Page 198 Wednesday, August 6, 2014

10:12

198 | Türkçe

Uygunluk beyani

CE

Executive Vice President

Head of Product Certification

Engineering

PT/ETM9

i.v. h=m

Robert Bosch GmbH, Power Tools Division

70764 Leinfelden-Echterdingen, GERMANY

15.07.2014

Montaj

OBJ_DOKU-28030-004.fm Page 199 Wednesday, August 6, 2014

10:12

Türkçe | 199

OBJ_DOKU-28030-004.fm Page 200 Wednesday, August 6, 2014

10:12

200 | Türkçe

OBJ_DOKU-28030-004.fm Page 201 Wednesday, August 6, 2014

10:12

Türkçe | 201

Tam otomatik mil kilitleme (Auto-Lock)

OBJ_DOKU-28030-004.fm Page 202 Wednesday, August 6, 2014

10:12

202 | Türkçe

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Bosch Uzman Ekibi [phone]

Işıklar LTD.ŞTİ.

Kızılay Cad. No: 16/C Seyhan

Adana

Tel.: [phone]

Tel.: [phone]

OBJ_DOKU-28030-004.fm Page 203 Wednesday, August 6, 2014

10:12

Türkçe | 203

Örsel Bobinaj

1. San. Sit. 161. Sok. No: 21

Denizli

Tel.: [phone]

Bulut Elektrik

OBJ_DOKU-28030-004.fm Page 204 Wednesday, August 6, 2014

10:12

204 | Türkçe

Aygem

10021 Sok. No: 11 AOSB Çiğli

İzmir

Tel.: [phone]

Sezmen Bobinaj

OBJ_DOKU-28030-004.fm Page 205 Wednesday, August 6, 2014

10:12

Türkçe | 205

OBJ_BUCH-826-008.book Page 206 Monday, June 30, 2014 11:47 AM

206

2 609 255 723

2 609 256 968

2 609 256 969

1 609 92A 0P3 | (30.6.14) Bosch Power Tools
