USER MANUAL Enter 40 Dyon

1 Important Safety Instructions.... 3
1. Conformity....7
2 Mounting – dismantling 8

2.1 Stand mounting 8
2.2 Stand dismantling....8
2.3 Wall mounting....9

3 Front and Rear Panel Illustration 10

3.1 Switch on:....10
3.2 Front panel and Keyborad....11
3.3 Rear connection board 12
3.4 Cl/Cl+ Slot....13
3.5 Remote Key Function 15

4 System Connections 17

VIDEO EQUIPMENT with YPbPr....17

4.1 Connecting to TV-Signal Input....18
4.2 Connecting to Satellite-Signal Input....19

5 TV operation and System Setup 20

5.1 Installation Guide (DVB-T)....20
5.2 OSD Settings (Main Operations) 21

5.2.1 CHANNEL MENU 21

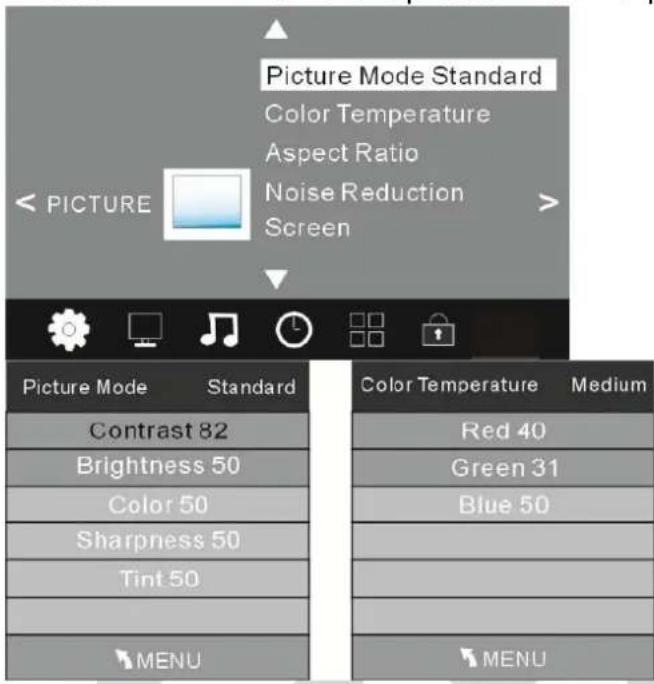

5.2.2 PICTURE MENU....25
5.2.3 SOUND MENU 25
5.2.4 TIME MENU....26
5.2.5 OPTION MENU....27
5.2.6 LOCK MENU....27

5.3 Hotel Mode....28

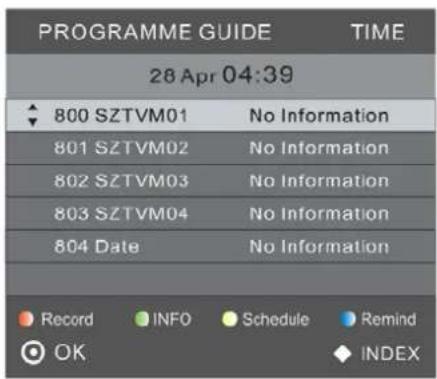

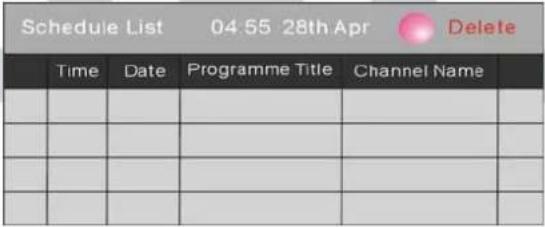

5.4 EPG Menu (Electronic Program Guide)....29
5.5 Trouble shooting....30

6 DVB-S Operation 31

6.1 First Time Installation 31
6.2 Satelliten Management....31

6.2.1 Satellite settings....32
6.2.2 Transponder....32
6.2.3 Channel search....32

6.3 Program Edit .... 33
6.4 Signal information....33
6.5 CI information....34
6.6 EPG (Electronic program guide) 35

7 TELETEXT Function Keys 36

8 Selection of Source Input 37

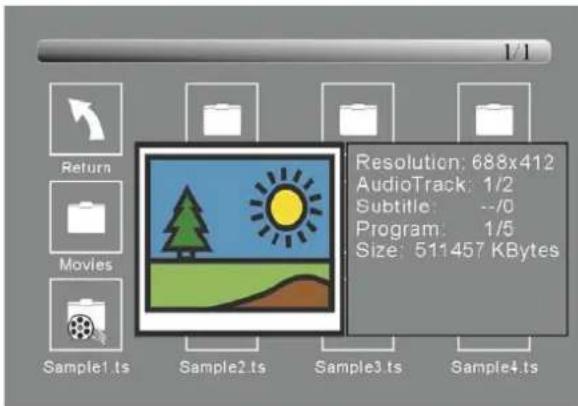

8.1 Connecting a USB Devices for playing media files 38

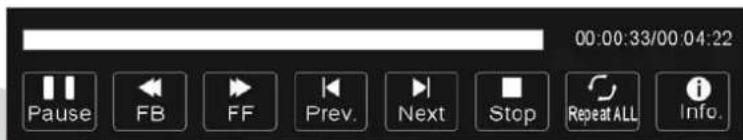

8.2 Movie Playback 39

ENTER 40

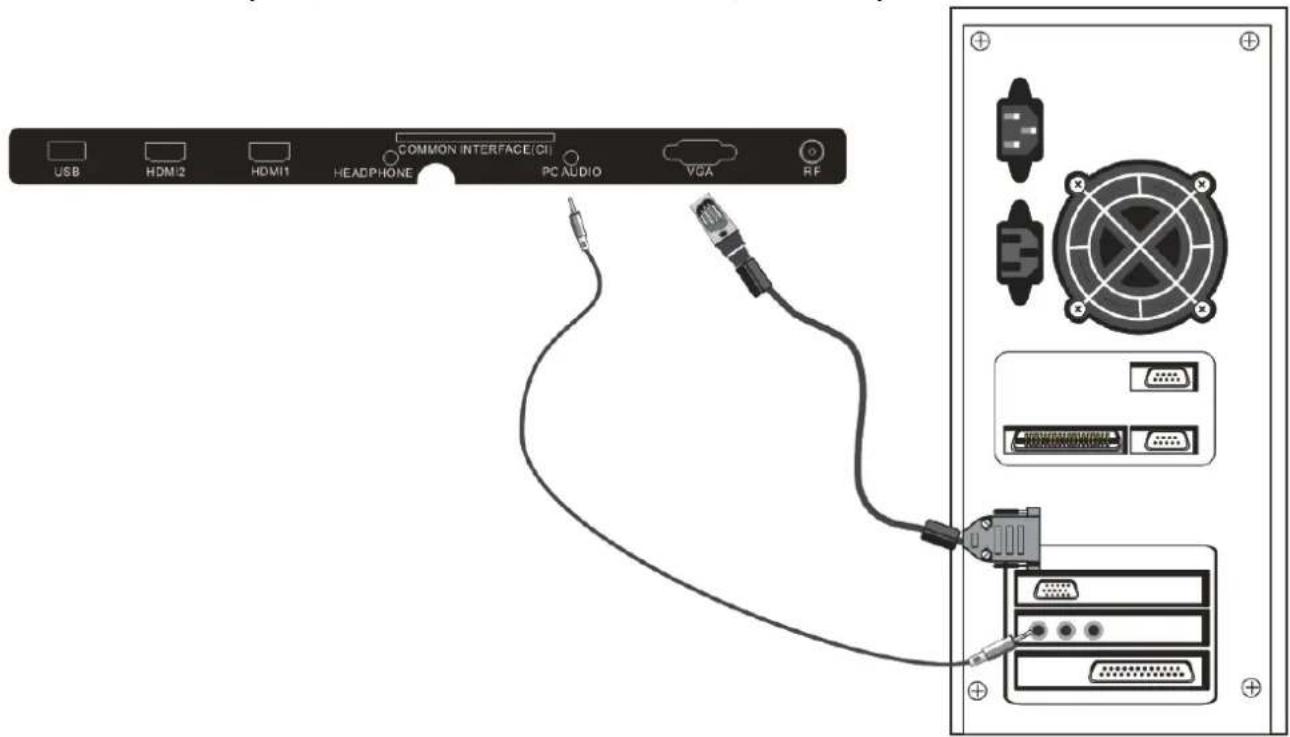

9 Connecting to PC 40
10 Troubleshooting 41
11 Specifications 42
12 Warranty condition 444

DYON

1 Important Safety Instructions

1) 1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
18) The use of apparatus in moderate climate.

7) Do not block any ventilation openings, install in accordance with the instructions.

8) Do not install near any heat sources such as radiations, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized plug. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protected the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Unplug this apparatus during lighting storms or when unused for long periods of time.

13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

14) Mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

15) The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloth, curtains, etc.

16) No naked flame sources, such as lighted candles, should be placed on the apparatus.

17) Attention should be drawn to the environmental aspects of battery disposal.

WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

WARNING: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

E

The symbol indicates that dangerous voltages constituting a risk of electric shock are present within this unit.

The symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit.

The symbol indicates that this product incorporates double insulation between hazardous mains voltage and user accessible parts. When servicing use only identical replacement parts.

Warning

High voltages are used in the operation of this television receiver. Do not remove the cabinet back from your set. Refer servicing to qualified service personnel.

To prevent fire or electrical shock hazard, do not expose the television receiver to rain or moisture

Do not drop or push objects into the television cabinet slots or openings. Never spill any kind of liquid on the television receiver.

Do not block the ventilation holes in the back cover. Adequate ventilation is essential to prevent failure of electrical components.

Caution

Illustration of a person standing at two computer monitors with a crossed-out monitor above (no text or symbols)

Do not trap the power supply cord under the television receiver.

Never stand on, lean on, or suddenly push the television or its stand. You should pay special attention to children. Serious injury may result if it should fall.

Do not place your television on an unstable cart, stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it should fall.

When the television receiver is not

used for an extended period of time, it is advisable to disconnect the AC power cord from the AC outlet.

If the television is to be built into a compartment or similar enclosure, the minimum distances must be maintained. Heat build-up can reduce the service life of your television, and can also be dangerous.

Tips regarding environmental protection

At the end of its operating life, this product may not be disposed of by way of your normal household waste. Instead it must be delivered to a collection point for recycling electrical and electronic equipment. The icon on the product, in the operating instructions or on the packaging, indicates this.

The materials used in manufacturing this product are recyclable, depending on their identifying markings. By recycling this equipment, by recycling its components, or through other procedures of re-using outdated equipment, you are making an important contribution to protection our environment. Please ask you local municipal administration for the location of the corresponding recycling point.

Battery Recycling

In order to ensure the environmentally friendly disposal of batteries, please do NOT dispose of used batteries through normal household waste. Please take the batteries to your local retail or community collection point for recycling.

The following may be an indication of a discharged battery: The device cannot be switched on. The device switches off automatically and "Battery Empty" is shown in the display. The device and or battery do not function properly.

Support

URL: http://www.dyon.eu

See our website for the latest information on this engine, on other products by our company and on our company itself. If you have questions or problems, please read the FAQs on our website or contact our customer support service [e-mail].

Manufacturer

Axdia International GmbHFormerweg 9D-47877 Willich (Germany)

Tel: [phone] / 8826-0Fax: [phone]Support-Hotline: [phone]Web:www.dyon.euE-Mail:[e-mail]

Appropriate use

The device is designed for receiving and watching encrypted and unencrypted DVB-S, DVB-T and DVB-C Cable TV channels for private use. It is exclusively meant for this purpose and must only be used for the same. This also includes paying attention to all information contained in this operating manual, especially in the safety instructions. Any other usage is considered to be improper and may lead to material damages and even personal injuries. Moreover, it will result in the immediate loss of guarantee. The manufacturer does not bear any liability for damages caused due to improper use.

1. Conformity

We, Axdia International GmbH, hereby declare that this device corresponds to the basic requirements and relevant regulations outlined in guidelines 2004/108/EC, 2006/95/EC and 2009/125/EC.

The CE declaration of conformity for this product may be found on the following link:

www.dyon.eu – Service – Downloads

2 Mounting – dismantling

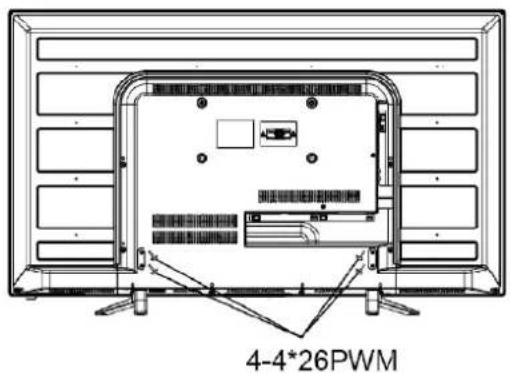

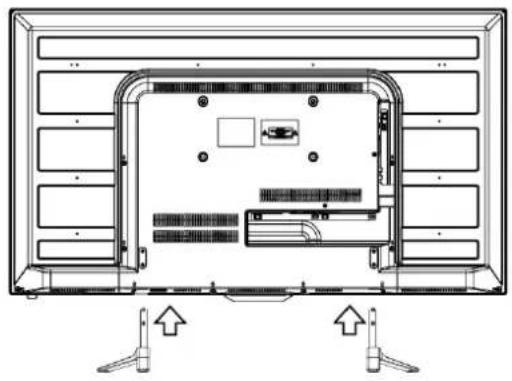

2.1 Stand mounting

Top-down schematic of a flat-screen TV unit showing internal layout and mounting points (no text or labels)

1. Mount the engine on the provided stand.
2. Use the extended screw to fix the stand

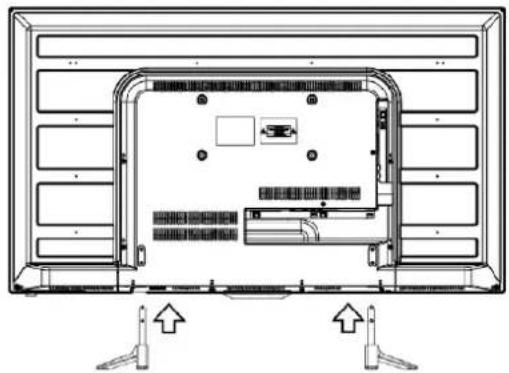

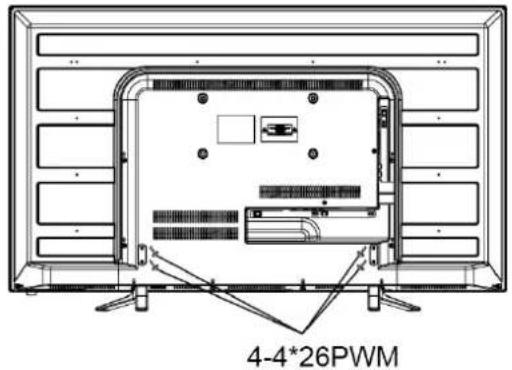

2.2 Stand dismantling

Diagram of a flat-screen TV rear panel showing internal components and ventilation slots (no text or labels)

Unmount the 4 screws they are fix the stand with the engine. Now you can take it off.

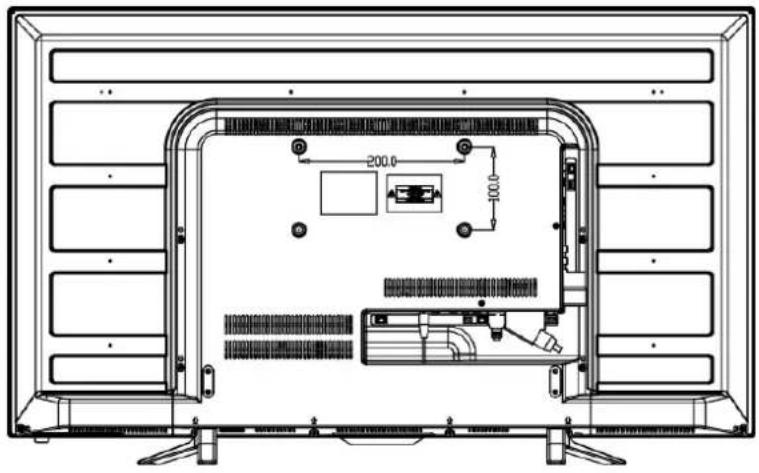

2.3 Wall mounting

Use the four thread on the back to connect the tv with your wall retainer.

200x100 mm

DYON

3 Front and Rear Panel Illustration

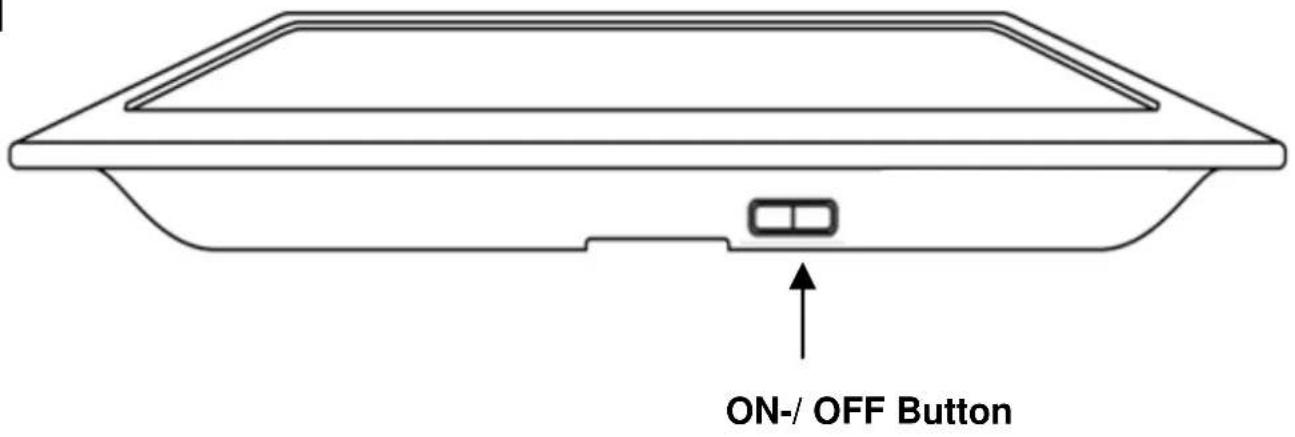

3.1 Switch on:

To switch ON or OFF the TV, please use the ON-/OFF Button which you will find at the bottom of the TV (as illustrated).

Note

The ON-/ OFF button you will next to the middle of stand at the lower side.

ENTER 40

and

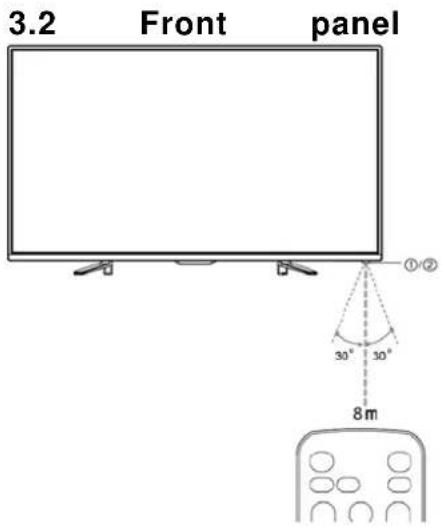

1: Remote control sensor.
2: Indicator LED:

$$ \text { No lights } = \text { POWER ON } $$

$$ \text { RED } = \text { STAND - BY. } $$

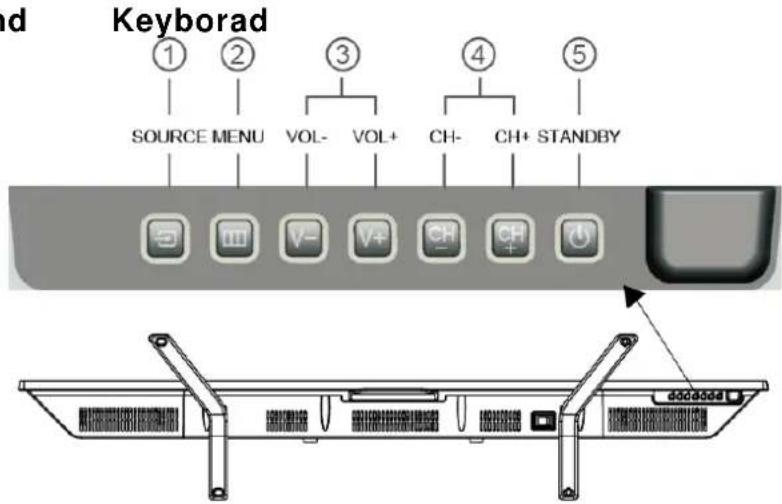

1 SOURCE
Display the input source menu.
2 MENU
Display main MENU.
3 VOL+/VOL-
Adjust sound level.
In MENU, adjust the item that you selected.
4 CH+/CH-
In TV mode press CH+ or CH- to change the channel up and down.
In MENU, press CH+ or CH- to select items .In standby mode, it can Turn on the TV.
5 STANDBY

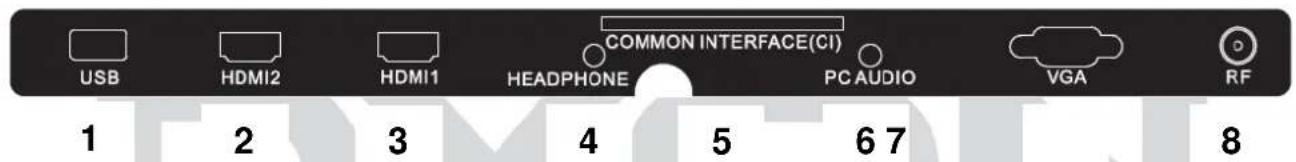

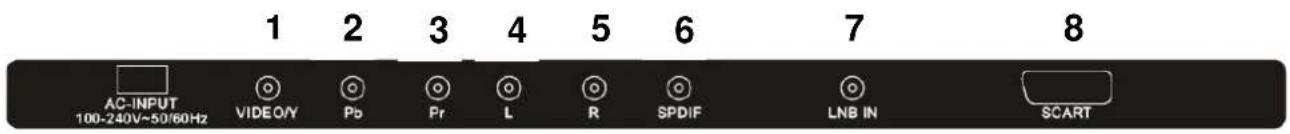

3.3 Rear connection board

1. Video/ Y Connection 5. Audio In right
2. pb
3. SPDIF
4. Pr
5. LNB In
6. Audio In Left 8. Scart

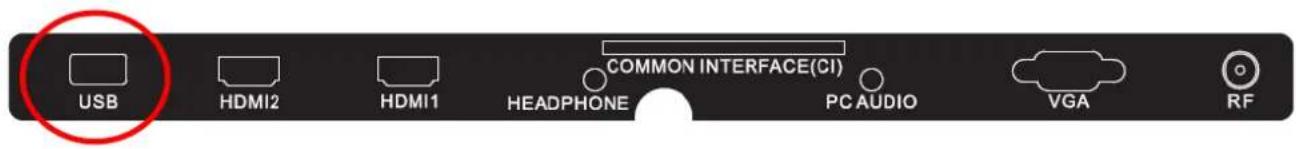

1. USB
2. Common Interface (CI)
3. HDMI 2
4. PC Audio IN
5. HDMI 1
6. VGA
7. Headphone In 8. Antenna (75 Ohm)

3.4 Cl/Cl+ Slot

This device is equipped with a CI+ slot for use with cam modules and smart cards which allow for the viewing of encrypted Pay-TV channels.

The corresponding modules may be purchased from the Pay-TV provider or specialized dealer.

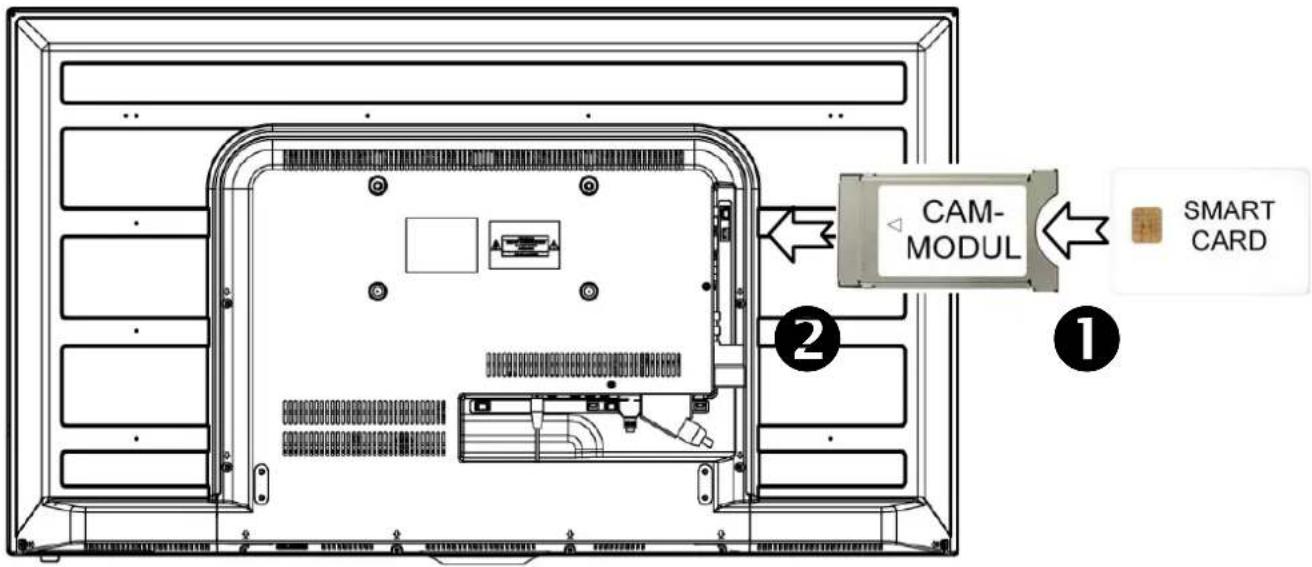

Installation

1. Disconnect the TV set from power.

2. Before inserting the module into the device, insure that the smart card has been properly installed into the module (①). Pay close attention to the direction when inserting.

The printing on the module and the chip of the smart card must be on top.

1. Insert the Module with inserted smart card with the printing of the module facing backwards (②).

Insert the module carefully into the slot of the device until a little resistance is felt.

Using a little pressure, carefully press the module into the slot until it sits firmly.

1. Reconnect the power source.

Remove the module

1. Disconnect the TV set from power.
2. To take the module out carefully.

Notice

Module and smart card are not including in the packaging.

Install the Cl+ module after the channel scan has been accomplished and all other settings have been set.

The activation of the card may take several minutes for the first time it is used. When necessary, the device will check the module every time the device is switched on.

Pay close attention to the manual of the CI+ module and smart card.

Notice to Cl+

Please note that the recording and time shift function may be limited on some channels.

Recorded files of channels, which are encrypted by the CI+ card are only workable on this device.

These limitations are determined by the broadcaster. The manufacturer takes no responsibility.

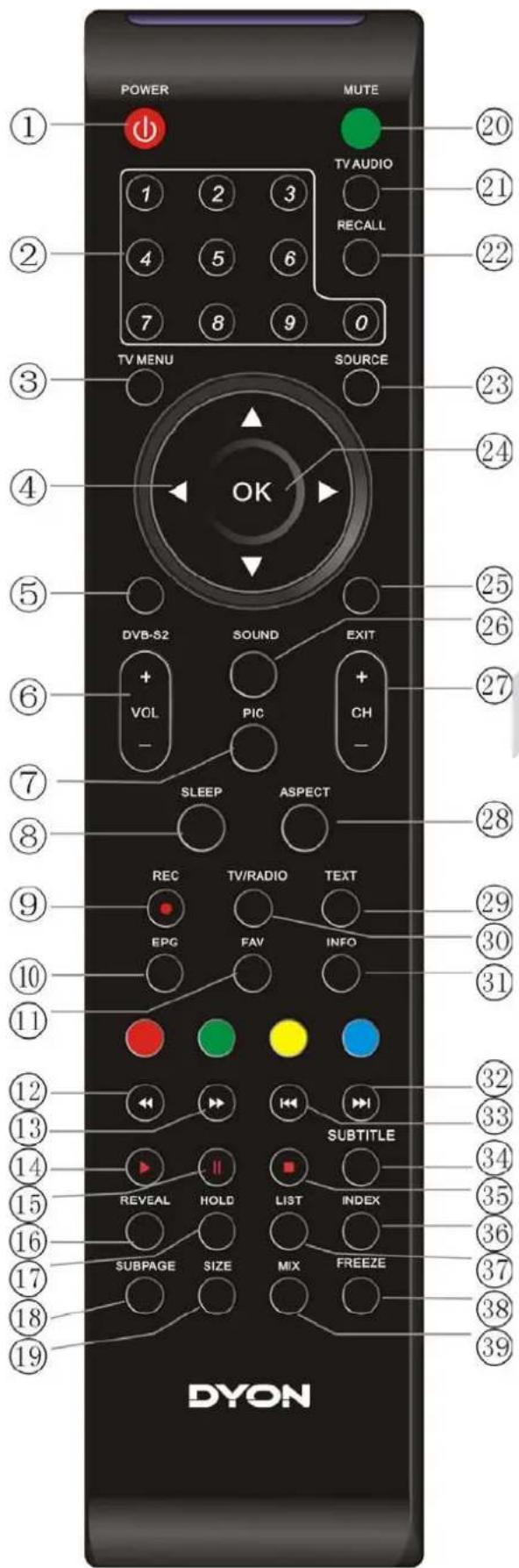

3.5
Remote
Key
Function

1.

1. NUMBER KEYS: used to select channel numbers or input numbers in menus.

2. TV MENU: open the menu of the current title.

3. ARROW KEYS: Move within the menus.

4. DVB-S2: Switch to DVB-S Mode

5. VOL+/-: Adjust the volume level.

6. PIC: To switch picture mode.

7. SLEEP: Set timer to turn off the TV.

8. REC: Start Record in DTV / DVB-S mode.

9. EPG: To display information about the program being viewed and what's on next in DTV and DVB-S mode.

10. FAV: Used to access your favorite channels.

11. ←: Fast rewind for USB file playback

12. → forward for USB file playback

13. PLAY: Play the media player in USB mode.

14. PAUSE: Pause the media player in USB mode.

16.-19. REVEAL HOLD SUBPAG SIZE

1. MUTE: To disable or enable the sound output.

2. TV/AUDIO: to switch the soundtrack

3. RECALL: to show the last view channel

4. SOURCE: select input source.

5. OK: Used to confirm a selection within a menu.

6. EXIT: Used to return to the previous screen or menu.

7. SOUND: To switch sound mode.

8. CH+/-: Used to changing the channels in normal play.

9. ASPECT: to switch the apsect ration

10. TEXT: to open teletext OSD display if teletext available in the broadcasted stream.

11. TV/RADIO: It is used to switch between digital TV channels and radio stations.

12. INFO: Used to display information about the channel being viewed or further information about the program when in DTV / DVB-S mode.

13. ▶: go to the next file in USB mode

14. ◀: got to the last file in USB mode

15. SUBTITLE: Used to switch among different subtitles that are broadcasted in DTV and DVB-S mode.

16. STOP: Stop the media player in USB mode.

37./38. Open the programm list / freeze the picture.

36./39. INDEX MIX, and open PVR list of DTV / DVB-S mode.

Colour keys (RED/GREEN/YELLOW/BLUE): Teletext functions

POWER: to sw

mZ

Insert Batteries Into the Remote Control

1. Remove the battery cover.
2. Inserting the 2 AAA 1.5V batteries making sure the polarity (+ or -) of the batteries matches the polarity marks inside the unit.
3. Mount the battery cover. Replace with new batteries when the TV set begins to show the following symptoms: Operation is unsteady or erratic. Sometimes the TV set does not function with Remote Control Unit.

Remark:

1) Alkaline Battery Recommended.
2) Remove batteries when they are exhausted or if the remote control is not to be used for Long time.

Notes on batteries

If the remote control is not used for a long period of time, please remove the battery from the compartment.

Do not heat batteries or dispose of them in fires.

Do not dismantle, deform or modify batteries.

ENTER 40

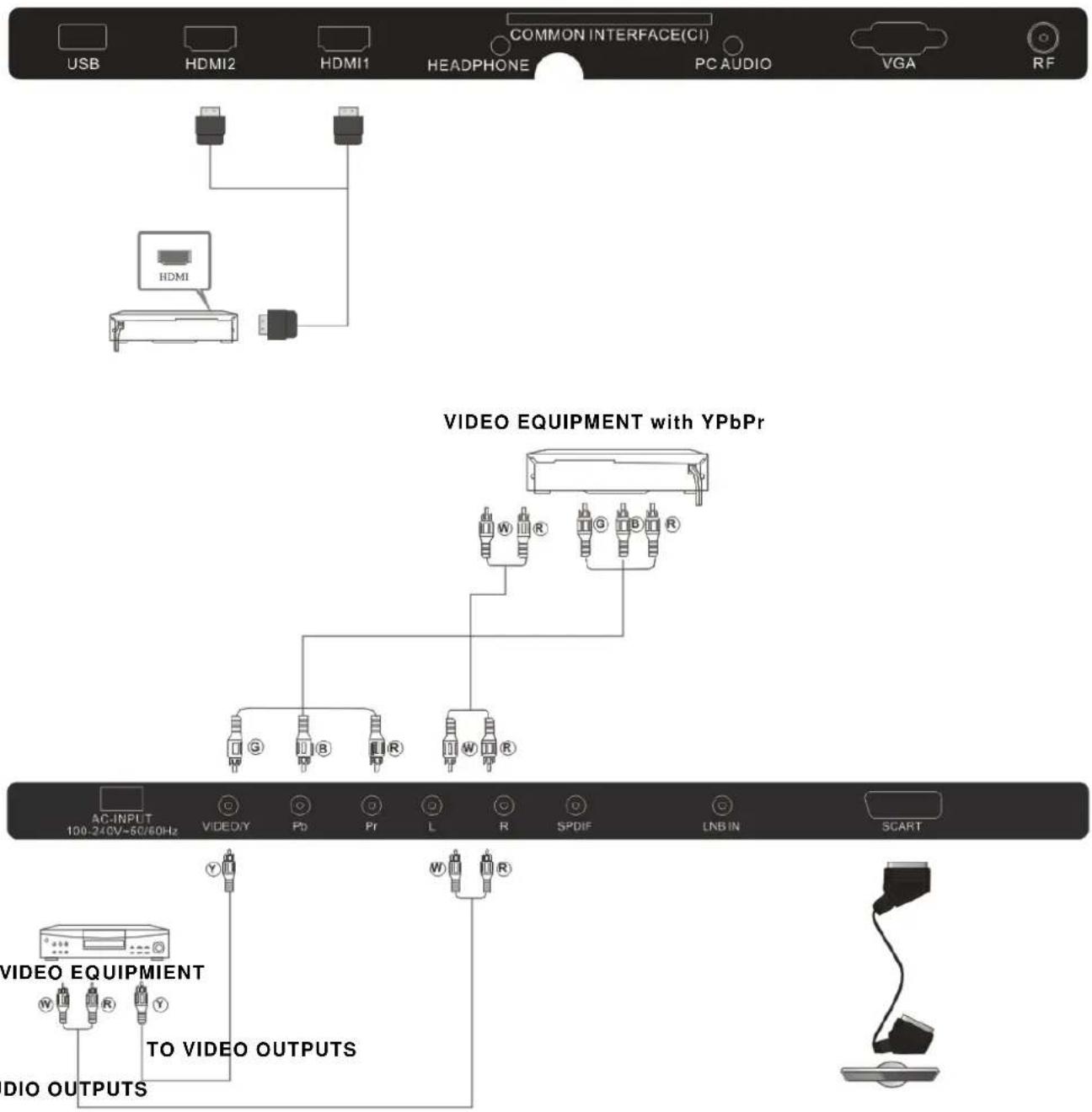

4 System Connections

Do not connect the power cord until all other connections have been made.

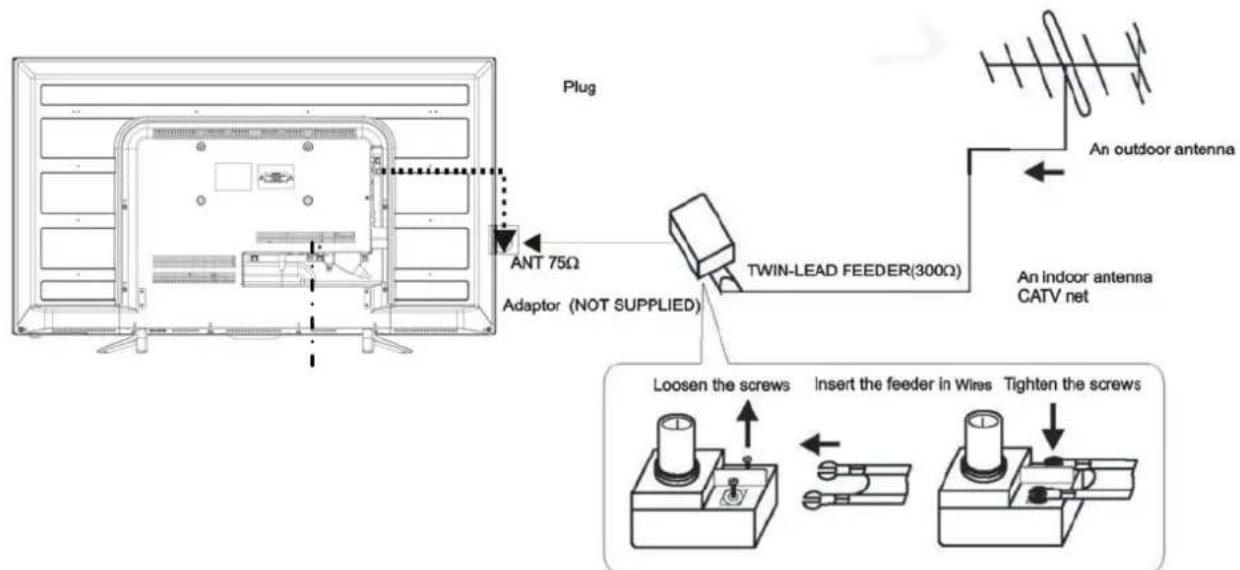

4.1 Connecting to TV-Signal Input

Connect the TV signal cable (the antenna cable, for example) to the Antenna Input Jack on the back of the unit so that you can receive television programmes.

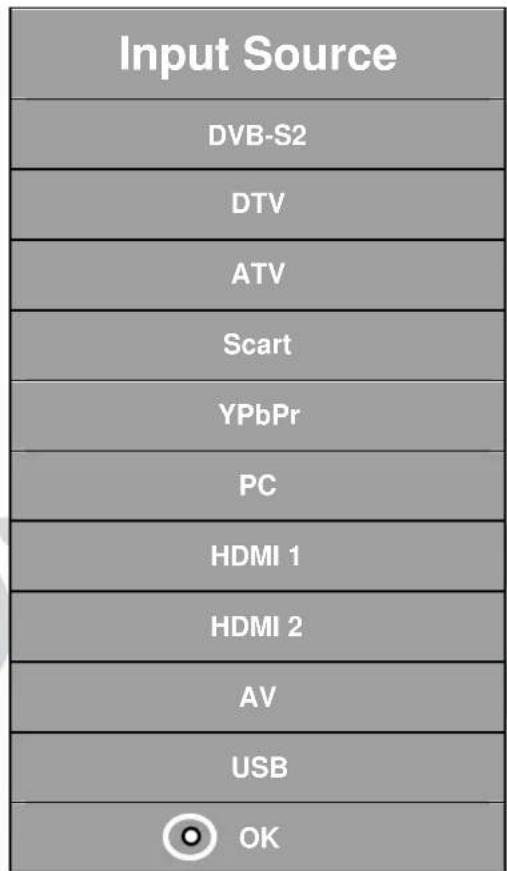

After connection, turn on the power of the unit. Then press the SOURCE button to select TV or DTV mode and conduct program selection.

Note

Whether and how many DVB-T channels can be received by this device, is strongly depending on the operational place, and the DVB-T signal strength in this Area.

DVB-T radio in particular is very limited and not available in most locations

Please note that for using of DVB-T after each larger local changes, a new channel search should be accomplished. Since the frequency of the Channels may Vary from region to region.

ENTER 40

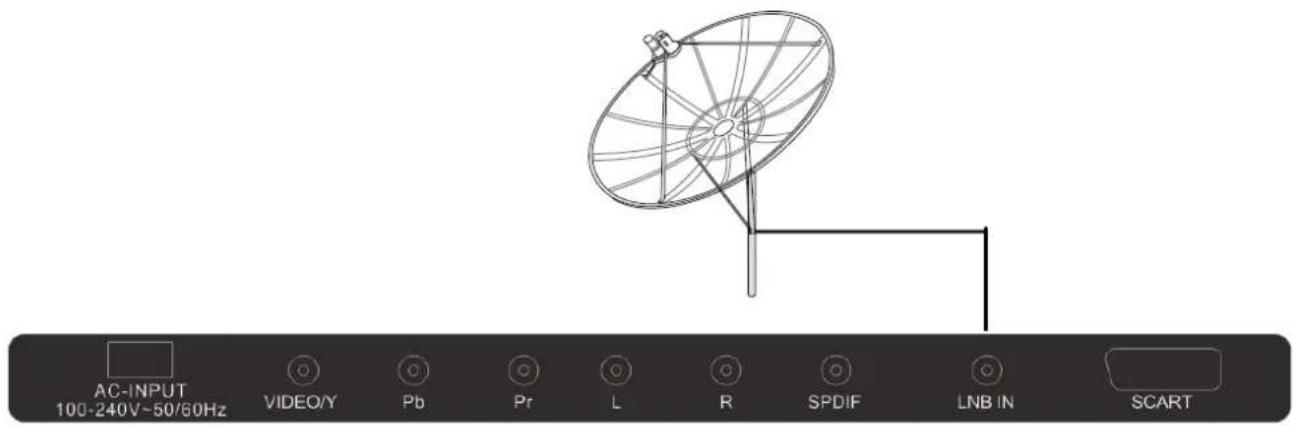

4.2 Connecting to Satellite-Signal Input

Connect the satellite cable with the LNB In Port on the back.

After that, you can turn on the engine. Press „Source“ to switch into the DVB-S2 mode and start the channel search.

mZ

DYON

5 TV operation and System Setup

5.1 Installation Guide (DVB-T)

This screen only appears when the TV first time turns on or reset to factory etc. You can select language and country, auto turning programs. And after turning the screen will skip to the first DTV program.

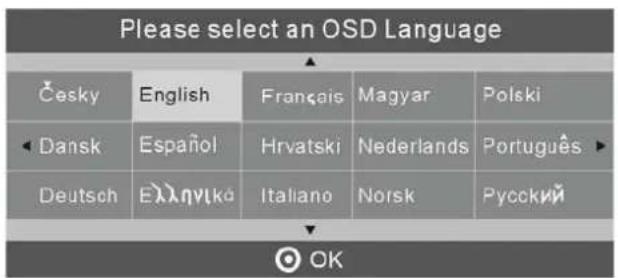

(1): Select the OSD menu language and press OK to confirm.

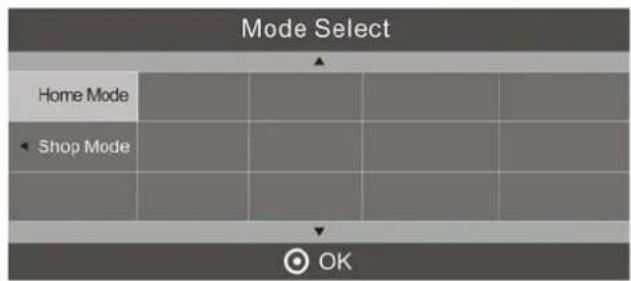

(2): Select your desire mode, press ◀▶ ▲▼ and OK button.

(3): Press ▲ ▼ to select an antenna source.
(4a): Select the country for DVB-C / DVB-T reception and press OK to confirm. The channel search starts now with DTV. Press "Exit" or "Menu" to exit the channel search. Press ◀ -key to exit or ▶ -key to proceed searching.
(4b): Press EXIT to use the preinstalled ASTRA 19.2E channel list or use the blue key to set up your desired satellite settings.

5.2 OSD Settings (Main Operations)

Press ◀ / ▶ to select the page. Press ▲ / ▼ to select the setting.

5.2.1 CHANNEL MENU

The first item of the MENU is channel menu (for DTV source only).

CHANNEL

Auto Tuning

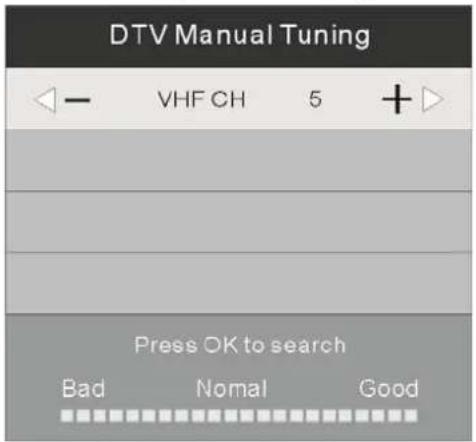

DTV Manual Tuning

Programme Edit

Signal Information

CI Informationen

LCN Switch off

Software Update (USB)

Dish Setup

You can search channels and edit programs here.

Auto tuning:

1).DVB-T

Search all the channels automatically (you can select DTV)

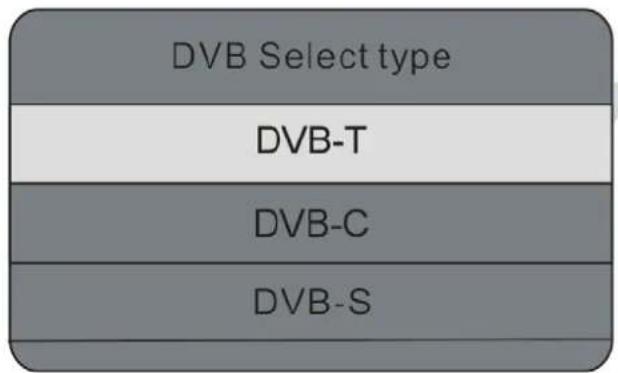

DVB SELECT TYPE

DVB-T

DVB-C

DVB-S

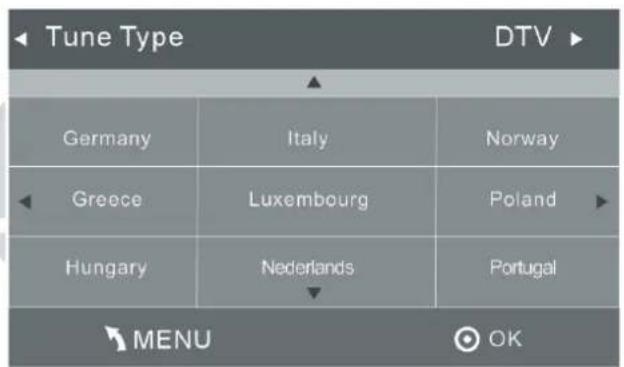

Tune Type		DTV
Germany	Italy	Norway
Greece	Luxembourg	Poland
Hungary	Nederlands	Portugal
MENU		OK

ENTER 40

Please press ◀▶ ▲▼ to select country at first, then press OK button to start auto tuning.

NOTE:

All the channels including, DTV and DTV Radio can be tuned by one time. All the stored channels will be deleted and overwritten after auto tuning. After auto tuning, the channel will skip to the first DTV channel.

ENTER 40

DTV Manual tuning:

You can select a DTV channel then find the programs in this channel.

Please press ◀▶ to select the channel, and then press OK to search the programs.

NOTE: Bad - Normal - Good means signal intensity.

mZ

Program edit:

You can delete, move, skip or FAV any programs.

Delete	Press teletext red button, the program in cursor will be deleted.
Move	Move the cursor to the program, press yellow button then use ▲▼ to move the program. Press the yellow key again to save.
Skip	Press ▲▼ to choose the program, press teletext blue button to skip this program. The 📋 will be shown on the right side of the program.Choose the skipped program, press blue button again, you can cancel the skip,The ⚙ will disappear .
FAV Favourite	Press ▲▼ to choose the program, press FAV button, it will show ♥ on the right side of the program. Choose the FAV program, press FAV button again, you can cancel the FAV ♥ will disappear.

4) Signal Information

Select item signal information in the menu with the “◀▶” keys. To obtain signal information confirm with OK button. With the menu button you can go back to the previous menu. With EXIT button you can leave the menu.

5) CI Information

E Z

Select with the item CI information in the menu with the “◀▶” keys. To obtain signal information confirm with OK button. With the menu button you can go back to the previous menu. With EXIT button you can leave the menu.

You can just see CI Information if CI Module is inserted.

6) Software Update (USB)

Press ▼ or ▲ to select the item „Software Update“, confirm with OK. Press OK button to update the software (with the help of an USB Medium). Follow the upgrade instructions of the delivered software.

5.2.2 PICTURE MENU

The second item of the MENU is PICTURE MENU. You can adjust picture effect here, such as contrast, brightness, etc.

Press ▲▼ to select the setting, press OK to adjust, press ◀▶ to change the setting.

Press TV MENU to step back to the previous menu.

NOTE:

1). Tint is available in NTSC system only.
2). There are four colours temperature modes can be selected medium, warm, cool, user
3). Screen is available in PC mode only which, can adjust Horizontal position, vertical position, size and phase.

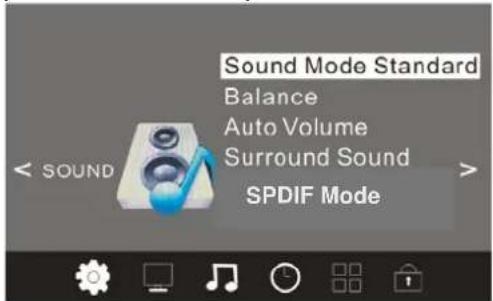

5.2.3 SOUND MENU

The third item of the MENU is the SOUND MENU.

You can adjust the sound effect here such as treble, bass, balance etc.

Press ▲▼ to select the setting, press OK to adjust, press ◀▶ to change the setting.

Press TV MENU to step back to the previous menu.

ENTER 40

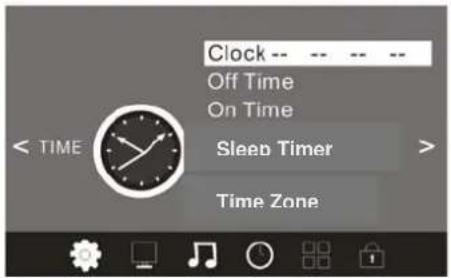

5.2.4 TIME MENU

The forth item of the menu is the TIME MENU You can adjust the clock, power on/off time, sleep time etc Press ▲▼ to select the setting, press OK to adjust, press ▲▼ to select the value to change, press ◀▶ to change the setting. Press TV MENU to step back to the previous menu.

NOTE: Within 15 minutes there is no signal, the TV will auto sleep.

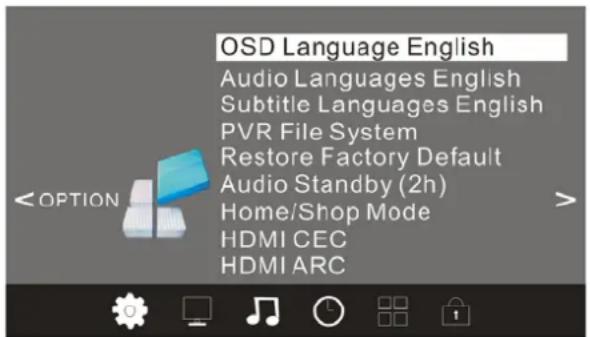

5.2.5 OPTION MENU

The fifth item of the MENU is the OPTION MENU. You can adjust the Menu language, Audio language, Subtitle language etc.

Press ▲▼ to select the setting, press OK to adjust, press ▲▼ to select the value to change, press ◀▶ to change the setting.

Press TV MENU to step back to the previous menu.

NOTE: Restore factory default will clear all the programs and password.

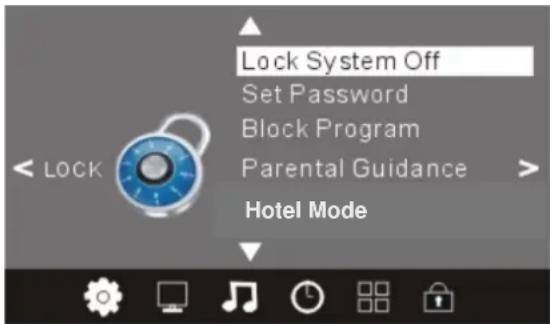

5.2.6 LOCK MENU

The sixth item of the menu is the LOCK MENU You can lock system, set password, block program

and set parental guidance Once you set the lock system on you can not search the channels or change any programs.

Press ▲▼ to select the setting, press OK to adjust, press ▲▼ to select the value to change, press ◀▶ to change the setting.

Press TV MENU to step back to the previous menu.

NOTE: The default pass word is 0000.Block program: Press ▲▼ to choose the program, press teletext green button to block the program. If you want unblock the program, please enter the main menu, input the password, and then press green button again. Parental guidance: Press ◀▶ to choose level.

This Option is available in DVB-T, and DVB-S Mode.

5.3 Hotel Mode

Note operating in hotel mode:

For using the hotel mode, please select menu „Lock“ and select „Lock System“. Then confirm with OK and put in default pass word (0000). Now this option is activated and you can select the “Hotel Mode”, confirm with OK. The list mentioned below will be displayed. For selecting the single options, please choose with the arrow keys (up /down) the desired option and confirm with the arrow key (right). To return to the hotel menu, press the TV Menu button on the remote control. To leave this menu, press the Exit button.

Key Function Hotel Mode

Arrow keys (up / down) Selection of Menu Options

Arrow key (right) Confirmation of Menu Options

TV Menu button Return to Menu Options

Exit button Exit Menu

Hotel Menu

Hotel Lock OFF		Activate or deactivate Hotel Mode
Channel Lock OFF		Lock for Setting Menu in Channel Mode
Picture Lock OFF		Lock for Setting Menu in Picture Mode für Menüpunkt Bild
Option Lock OFF		Lock for Setting Menu in Option Mode
Time Lock OFF		Lock for Setting Menu in Time Mode
Key Lock OFF		Keyboard Lock (at TV)
Set Source OFF Set	Source ((DTV, Scart, HDMI, etc.)
Channel Num --	Set of channel boot when TV source is set.
Max Volume 100		Maximal Volume which can be set
Default Volume	40	Volume Setting while booting
Source Lock		Lock single sources (DTV, Sart, HDMI, etc.)
Clear Lock		Reset Hotel Mode to default settings.

ENTER 40

5.4 EPG Menu (Electronic Program Guide).

The EPG menu is used to look at what is being broadcasted on DTV or Radio channel in the day. To access the EPG menu, press the EPG button, the following menu will be displayed:

INFO	Use to choose the programs, Press INFO key, you can display the highlight program's information.
Schedule	Press the teletext yellow key, It can list all the reminder schedule, press ▲▼ to choose the list, press red key ● to delete the schedule list, Press yellow key to return to EPG menu.

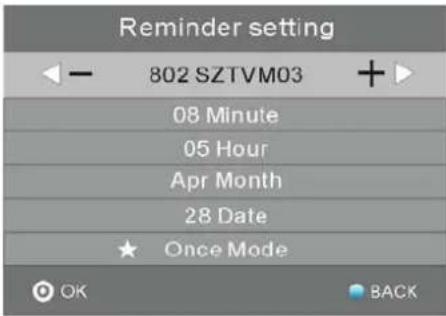

Remind	Press the blue key to select one program and set up one reminder time, the TV screen will skip to the selected program in the reminder time automatically.
	Use RED button to open the record setting. Press “Ok” to acknowledge the edit settings.The made settings will be stored in your schedule list.

5.5 Trouble shooting

Trouble phenomenon Symptom Inspection Check
Picture			Audio
	Snow		Noise	antenna position, direction or connection
	Ghost		Normal audio	antenna position, direction or connection
	Interference		Noise	electronic equipment, car/ motorcycle, fluorescent light
	Normal Picture		Mute	Volume(check if mute is activated or if the audio system connections are not correct)
No picture			Mute	Power cord is not inserted Power switch is not opened Contrast and brightness/volume setup
	No colour		Normal audio	Colour control

6 DVB-S Operation

6.1 First Time Installation

Press "Source Key" on your remote control to open source menu. With ▲/▼ keys select DVB-S2 Mode and confirm with OK. A program list of Astra 19.2 is preinstalled.

6.2 Satelliten Management

Configure the settings of satellites and confirm with OK.

Satellites' list: Press ▲/▼ to select a satellite, whose settings will be shown at right side.

LNB Type		Press ◀ / ▶ /OK to show the list of LNB Types which is shown as frequencies of local oscillator. You also can enter frequency by User Single, User Dual at bottom of the list.
LNB Power		Press ◀ / ▶ to set the LNB power
22K		Press ◀ / ▶ to switch on or off the 22K, which is set with auto when LNB Type is dual local oscillator.
Toneburst:		Enable or Disable the toneburst switcher.
DiSEqC1.0:		Select the right port up to 4 for the right LNB.
DiSEqC1.1:		Select the right port up to 16 for the right LNB.
Motor:		Press LEFT/RIGHT to select DiSEqC1.2 or DiSEqC1.3. Then Press OK to show the menu to set position.
DiSEqC1.2:		Move the motor to a right position to lock the signal.
DiSEqC1.3:		Move the motor according to the local and satellite positions.
Motor Settings:		(Select DiSEqC and press OK to open)
	Move Auto:	Press LEFT/RIGHT to start to move West/East. It will be stopped automatically when the signal is locked.
	Move Continue:	Press LEFT/RIGHT to start to move West/East. It will keep moving until you stop it.
	Move Step[1]:	Press LEFT/RIGHT to move just a step.
	Store Position:	Store current position of motor.
	Goto Position:	Press LEFT/RIGHT to goto the position stored.
	Goto Reference:	Rest all the positions.
	Goto X:	goto the position calculated from the local and satellite positions.

6.2.1 Satellite settings

Add satellites:

Press RED to add a new satellite, in which you must input an unique longitude, and edit the satellite's name with soft keyboard.

Edit satellites:

Press GREEN to edit the focused satellite.

Delete satellite:

Press YELLOW to delete the focused satellite. Press OK to confirm.

6.2.2 Transponder

Press EPG to switch the list to show transponders of the focused satellite. Also you can press EPG to switch back to satellites' list.

Add transponder:

Press RED to add a new transponder. It can't save an existing TP under the same satellite.

Edit transponder:

Press GREEN to edit the focused transponder. It can't save an existing TP under the same satellite.

Delete transponder:

Press YELLOW to delete the focused transponder. Press OK to confirm.

Single Transponder Scan:

Press BLUE to pop the menu of scanning setting. After configuring the settings, Press OK to start scanning.

Multi-Transponder Scan:

Press OK to select transponders with the mark"√", then press BLUE to pop the menu of scanning setting. After Configuring the settings, press OK to start multi-transponder scanning.

6.2.3 Channel search

Single Satellite Scan:

Press BLUE to pop the menu of scanning settings.

Scan Mode:

Press ◀ / ▶ to select default, which scans the default transponders built in and NetWork, which scan with NIT on.

Crytped:

Press ◀ / ▶ to select All Channels or FTA Channels;

Service Type:

Press ◀ / ↗ to select ALL, DTV or Radio.

Press OK to start scanning with the above settings.

Multi-Satellites Scan:

Press OK to select satellites with the mark " √ ", then press BLUE to pop the 32

menu of scanning setting. After Configuring like single satellite scan, press OK to start multi-satellites scan.

6.3 Program Edit

To edit your program preferences (rename, skip, favourite, move or delete), you will need to enter the Program Edit Menu.

Delete a TV or Radio Program

Select the program and then press the RED button to delete the channel.

Rename a TV or Radio Program

Select the program and press GREEN button to rename the channel. You can type it on screen keyboard.

Move a TV or Radio Program

Select the preferred program then press the YELLOW button. Press ▼/▲ to move the program. Press YELLOW again to confirm.

Skip TV or Radio Program

Select the program you would like to skip and press the BLUE button. A skip symbol is displayed. The program is marked as a skip.

Set Favourite Program

Select the preferred program, then press the FAV button. A list with possible favoritelist will be open.

Select one and press "Ok". A heart-shaped symbol will appear and the program is marked as a favourite.

6.4 Signal information

It shows the signal quality and signal strange by selectet channel.

6.5 CI information

The TV set contains a Common Interface CI+ Slot.

Different CAM cards with smart card reader can be found at local dealers for different Pay-TV provider.

• Set in: Turn off the TV. Now insert the module.
• Remove: Turn off the TV. Now just unplug the module.

If a Module is set in some more options are available at the CI Information page of the OSD.

1. Press the menu key to open the system settings.
2. Us the arrow keys to select CI Information and press OK to open the settings.
   Wait until the sub menu is leaded..
3. Use the arrow keys to select an option and press OK to change or open the selected function.
4. Press EXIT to store the changes and exit the menu.

Certain menu options and settings are depend upon the corresponding CA module.

The CA module (not included) is necessary when using a smart card (not included) to receive encrypted stations. Please insure that the CA module and smart card are compatible with each other. This device may use Cl+ compatible modules. Which free to air stations and contents are available depends on the used CA Module and Smart Card. Please note that not all service contractors offer the essential CAM module required or may offer various other modules which may not be compatible. Please refer to you local dealer or contact the Hotline for more information concerning compatibility.

6.6 EPG (Electronic program guide)

The EPG is an on-screen TV guide that shows scheduled programs seven days in advance for every tuned channel. Press the EPG button on the Remote Control to access guide. It will show a list with the current run programs.

Select "Program Guide" and press ◀ / ▶ to switch between Time / Channel. You can use the ▼ / ▲ key to select the preferred program.

Time: An overview will be shown about the broadcast to the select date to current time from the programmes.

- Select the "Date / Timer" display and press ◀ / ▶ to edit the date.

Channel: An overview will be shown about the broadcast course of the selectet channel on day you edit before.

- Select the programm display and press ◀ / ▶ to switch the channel

Remind: Use BLUE button to open the reminder setting. Press "Ok" to acknowledge the edit settings.

The made settings will be stored in your schedule list.

Record: Use RED button to open the record setting. Press "Ok" to acknowledge the edit settings.

The made settings will be stored in your schedule list.

Info: Use Green button to open the information about the selected broadcast.

Schedule: Use YELLOW button to open the schedule list from your records and remind settings.

Selected items can be delete with "RED" button.

7 TELETEXT Function Keys

Teletext is an information system broadcast by certain channels which can be consulted like a newspaper. It also offers access to subtitles for viewers with hearing problems or who are not familiar with the transmission language(cable networks, satellite channels, etc.)

Press:	You will obtain:
TTX	This is used to call or exit teletext modes. The summary appears with a list of items that can be accessed. Each item has a corresponding3 digit page number. If the channel selected does not broadcast teletext, theindication 100 will be displayed and the screen will remain blank (in this case, exit teletext and select another channel).
SELECTING A	Enter the number of the page required using the 0 to 9 up/down.Example: page 120, enter 120. The number is displayed top left, the counter turns and then the page is displayed. Repeat this operation to view another page. If the counter continues to search, this means that the page is not transmitted. Select another number.
DIRECT ACCESS TO THE ITEMS	Coloured are as are displayed at the bottom of the screen. The 4 coloured keys are used to access the items or corresponding pages. The coloured areas flash when the item or the page is not yet available.
INDEX This returns to the contents page (usually page 100).
SUB PAGE Certain	pages contain sub-pages which are automatically displayed successively. This key is used to stop or resume sub- page acquisition. The indication appears top left.
HOLD To freeze the page.
REVEAL To display or hide the concealed information (games solutions).
LIST The user can	set four favorite pages to be directly linked to the four color keys. While list mode is activated, it is not possibility to use TOP or FLOF navigation with the colorkeys. The favorite page numbers should be stored and restored to/from nonvolatile memory for each channel by the system software.

8 Selection of Source Input

This device contains different Video modes which can be selected on the TV itself or with the help of the remote control.

Press SOURCE you will get the following:

Use the ▲▼ direction buttons and OK button

On the input menu, press the ▲▼ direction button to select the desired video mode,

press the OK button to enter the selected mode.

Use the SOURCE button and OK button

On the input menu, press the SOURCE button to select the desired video mode, and press the OK button to enter the selected mode.

8.1 Connecting a USB Devices for playing media files

The Dyon Action 40B has an USB Port to upgrade the software and playing media files.

If possible, please connect USB devices directly to the Devices USB interface.

If this is not possible, use only USB extension cables not exceeding 25 cm.

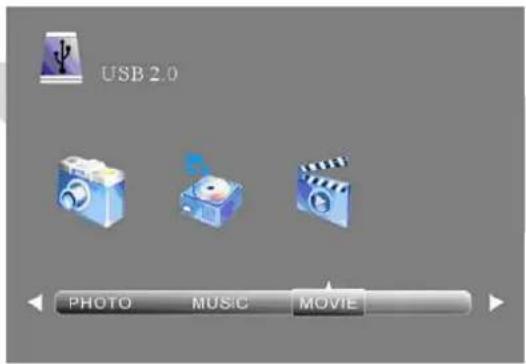

Press SOURCE then direction buttons to select Media Player mode, then press the OK button to confirm.

Please make sure that the USB device has plugged into the slot. There are three type media item can be selected, such as photo, music and Movie. Select the type media item by pressing ◀▶, press OK button to enter the disk selection menu.

Press the ◀▶ to select the right disk and press OK to display media files and folder list or choose Return to back to the media type selection menu.

8.2 Movie Playback

mZ

Select the media file by pressing ◀▶ or ▲▼, and then the preview frame will pop up. Press the button ▶(play) to play the media file in full screen. When the media file (photo, music, Movie) is playing, press the OK or Info button can display the control bar.

Press ◀▶ to select the function icon, press OK button to confirm the function. Press ▼ or EXIT button to exit the control bar.

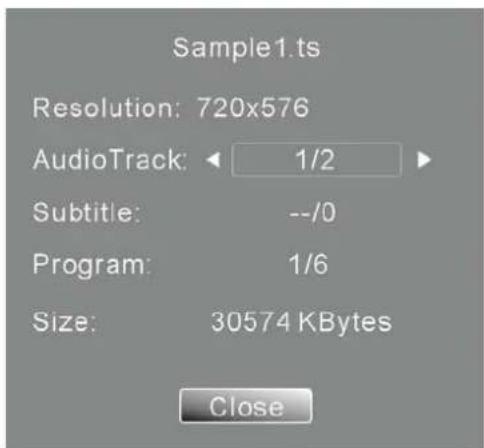

NOTE: You can adjust the audio track, or program in the Info menu while playing the video file. Choose the Info icon and press OK can display the Info MENU.

9 Connecting to PC

The unit can be connected to PC (personal computer) via the VGA cable.

Follow the figure below to connect:

1. Connect one end of the VGA cable to the VGA input jack on the rear panel of the unit and connect the other end to the PC.
2. Connect one end of the audio cable to the PC audio input jack on the rear panel of the unit and connect the other end to the PC audio output jack.
3. Power on the TV set and switch to PC mode (VGA) using the SOURCE key.
4. Power on the PC.
5. Set the PC video resolution to match that of the television.

NOTE: It is very important to follow these steps exactly!

	RESOLUCION	V.Frec.(Hz)	H.Frec.(KHz)
1	800*600 60 37.88
2	640*480 60 31.47
3	1024*768 60 48.36
4	1280*1024 60 63.98
5	1366*768	60	67.5
6	1920*1080	60	66.64

10 Troubleshooting

Problem	Potential Reasons	What to do
No picture	Power isn't connected	Connect the power
	The power switch is not on	Switch on the power
Screen showsNo Signal	Not connect DVB-S2 cable	Plug in the DVB-S2 cable
	Incorrect setting	Set up correct parameter
No sound fromSpeaker	No or incorrect connectionwith audio cable	Connect the audio cablecorrectly
	Mute the sound	Switch on the correct volume control
	Incorrect sound track	Try another sound track
Only sound,no image on the screen	No or incorrect connectionwith AV cable	Connect the audio cablecorrectly
	The program is a radioprogram	Presskey to shift into TV mode
Remote controlunit is not workable	The battery is exhausted	Change new battery
	Remote control unit is notin the right opposite of thefront panel or too far from it	Adjust the way of holdingremote control unit andnear from the panel
The image stop suddenly or mosaic	The signal is too weak	Strengthen the signal

11 Specifications

Item	Specification
/DTV Tune Frequency Range	VHF: 174MHz to	230 MHz UHF: 470MHz to 862 MHz
DVB-T Demodulation	Demodulator COFDM
	OFDM Modulation 2K	, 8K FFT, SFN and MFN
	Packet Carries 2K/8K
	Guard Interval 1/4	, 1/8, 1/16, 1/32
DVB-S2 Tuner	Frequency Range	950MHz to 2150MHz
	Input Impedance	75 Ohms unbalanced
	Signal Input Level	-65 ~ -25DBM
	Symbol Rate	2-45Mbps
DVB-S2 Demodulation	Demodulation	QPSK / 8PSK
	FEC 1/2,2/3,3/4,5/6	6,7/8, 8/9, 9/10
Connections	RF IN IEC 169-2 female	connector
	RF Loopthough	IEC 165-2 male connector
	TV SCART	Composite Video, Audio L/R
Power	Input	100-240V ~ 50/60Hz
	Consumption	78 W.
Display	Decoder Module	PAL, NTSC
	Aspect Rate	4:3 (Letterbox, Pan & Scan),16:9
Decoding	Video	MPEG2 Transport MP@ML
	Audio	MPEG2 Audio Layer
Others	Compliance	ETSIEN 300 744 DVB-T ComplianceETSIEN 300 421 DVB-S2 Compliance
	Sound Mode	Right, Left, Stereo

* Specifications are subject to change without further notice.

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of life separately from your household waste. There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product.

DiSEqC	Digital Satellite Equipment Control Digital system, with the receiver can control different components of the external unit. It is especially used for selecting from multiple satellite positions (for example Astra and Eutelsat).
EPG	Electronic Programme Guide
RF connector	Coaxial connector for LNB antenna cable.
FTA Free to	air services Free of charge services that can be received without a special decoder.
LNB Low Noise	Block Amplifier / Converter A device at the centre of the antenna, which converts high frequency incoming signals from satellites into a low frequency range and amplifies them simultaneously.
Mute Key of	the remote control for turning off sound
OSD	On screen display Menu control displayed on the screen.
PID Identification number of a received data stream. The PIDs ensure that a channel is received completely.
Receiver	Receiver unit, which converts signals from the antenna into video and audio signals.
SCART A21	pole connector for connecting the TV set to the receiver.
Transponder	Satellite frequency. Several digital channels can be broadcasted simultaneously on a transponder.
HDMI High	Definition Multimedia Interface. A connector for connecting the TV set to the receiver and transmit picture and sound in HD quality.
Y/PB/PR A	connector for connecting the TV set to the receiver and transmit picture in high quality
RGB	Separated colour information transmission (Red-Green)
DVB-S Digital Video Broadcasting by Satellite
DVB-S2 Digital Video Broadcasting by Satellite with the ability to provide HD quality
HD	High Definition TV

Manufacturer

Axdia International GmbH

Formerweg 9

D-47877 Willich (Germany)

Tel: [phone] / 8826-0

Fax: [phone]

Web: www.dyon.eu

Support hotline: [phone]

12 Warranty condition

The following conditions comprise the requirements and scope of our warranty conditions and do not affect our legal and contractual warranty obligations.

We offer a warranty on our products in accordance with the following conditions:

1. DYON products are covered by a 24 month warranty. We will resolve damages or defects on DYON products free of charge within 12 months of the purchase date under the following warranty conditions. For any damage or defect determined later than 12 months after the purchase date, proof of a manufacturing fault must be submitted for repair under warranty.

The warranty does not cover batteries and other parts, which are considered consumables, parts that break easily such as glass or plastic or defects based on normal wear and tear. There is no warranty obligation in the event of marginal differences compared to the target appearance and workmanship provided these have a negligible effect on the product's fitness for use, in the event of damage caused by chemical or electrochemical effects, by water or generally from abnormal conditions.

1. The warranty will be performed in such a way that we shall decide whether to repair the defective parts or to replace them with working parts free of charge. AXDIA reserves the right to exchange the product for a replacement product of equal value if the product that is sent in cannot be repaired within a reasonable time or at reasonable cost. The product can also be exchanged for a different model of the same value. Requests cannot be made for repairs to be carried out on site. Parts that have been replaced or exchanged become our property.
2. The warranty claim does not apply if repairs or other work is carried out by unauthorized persons or if our products are equipped with additional parts or accessories that are not approved for our products.
3. Warranties that have been activated do not cause the warranty period to be extended, nor do they trigger a new warranty period. The warranty period for any replacement parts installed ends with the warranty period for the entire product.
4. Any other or further claims are excluded, especially those for replacement due to damage caused outside of the product, provided there is no obligatory legal liability. We therefore accept no liability for accidental, indirect or other consequential damage of any kind, which leads to usage restrictions, data loss, loss of earnings or interruption to business.

Asserting a warranty claim

1. To make use of the warranty service, you must contact the AXDIA Service Center by e-mail, fax or phone (see below for contact details). You can also use the service form on our website or on the back of the warranty conditions.
2. AXDIA Service Center will try to diagnose and solve your problem. If it is determined that a warranty claim exists, you will be given an RMA number (Return Material Authorization) and you will be asked to send the product to AXDIA.

IMPORTANT: AXDIA will only accept parcels that have an RMA number.

E Z

Please observe the following when sending the product:

1. Send the product suitably packaged with carriage and insurance paid. Do not enclose any accessories with the products (no cables, CD's, memory cards, manuals, etc.), unless the AXDIA Service Centre specifies otherwise.
2. Mark the RMA number on the outside of the package in such a way that it is visible and clearly legible.
3. You must enclose a copy of the sales slip as proof of purchase.
4. Once AXDIA has received the product, it will meet its warranty obligations in accordance with the warranty conditions and will return the product to the sender with carriage and insurance paid.

Service outside of warranty

AXDIA can refuse any service claim made that is not covered by the warranty. If AXDIA agrees to provide a service outside the warranty, the customer will be invoiced for all repair and transport costs.

AXDIA will not accept any packages that have not first been approved by AXDIA by means of an RMA (Return Material Authorization).
