GSV33VW30N - Freezer BOSCH - Free user manual and instructions

Product type	Freezer
Brand	Bosch
Model	GSV33VW30N
Energy class	A++
Total net capacity	250 L
Dimensions (H x W x D)	185 x 60 x 65 cm
Weight	70 kg
Voltage	220-240 V
Frequency	50 Hz
Power	150 W
Cooling system	Ventilated (No Frost)
Noise level	42 dB
Power failure autonomy	15 h
Freezing capacity	10 kg/24h
Defrosting	Automatic
Climate class	SN-ST
Lighting	LED
Refrigerant	R600a
Spare parts	Available (manufacturer reference)
Repairability index	7.5/10

Frequently Asked Questions - GSV33VW30N BOSCH

What is the ideal temperature for my Bosch GSV33VW30N freezer?

The recommended temperature is -18 °C for optimal food preservation.

How to install the freezer correctly?

Place the appliance in a dry, well-ventilated area away from direct sunlight and heat sources. Leave at least 10 cm of space at the back for ventilation.

How to clean the interior of the freezer?

Unplug the appliance, remove food and shelves. Clean with a soft cloth and warm soapy water. Rinse and dry thoroughly.

What to do in case of unusual noise?

Check that the appliance is level and that internal parts are properly in place. A gurgling or clicking noise is normal. If the noise persists, contact customer service.

How to defrost the freezer?

This model is equipped with the No Frost system, manual defrosting is not necessary. Defrosting is automatic.

What is the warranty of this Bosch freezer?

The manufacturer's warranty is generally 2 years. Check specific conditions in the manual or on the Bosch website.

How to save energy with this freezer?

Place the appliance in a cool location, do not overload the shelves, and avoid opening the door too often. Set the temperature to -18 °C.

What to do in case of a power outage?

Keep the door closed. The autonomy is about 15 hours. After power returns, check the condition of the food.

How to replace the light bulb?

The lighting is LED and cannot be replaced by the user. Contact customer service if it fails.

Where to find spare parts for this model?

Spare parts are available from authorized Bosch dealers or on the official website. Use the model reference GSV33VW30N for your search.

USER MANUAL GSV33VW30N BOSCH

Free-standing appliance

Using the installation instructions ..... 8

Installation location 8

Installing appliances next to each other 9

Changing over the door hinges ...... 9

Changing the door handle 10

Fitting the wall spacer 10

Aligning the appliance 10

Using the installation instructions

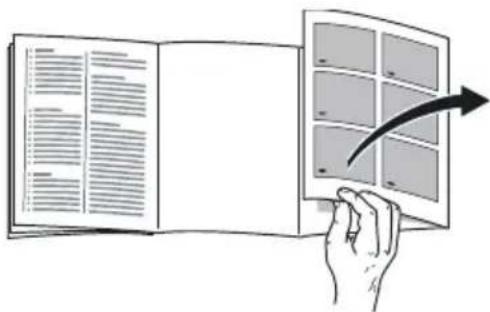

Please fold out the illustrated last page. These installation instructions refer to several models.

The diagrams may differ.

Installation location

A dry, well ventilated room is suitable as an installation location. The installation location should not be exposed to direct sunlight and not placed near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances from the heat source:

■ 3 cm to electric or gas cookers.
■ 30 cm to an oil or coal-fired cooker.

The floor of the installation location must not give way; if required, reinforce floor. If the floor is uneven, compensate with supports.

Distance from wall

When installing the appliance, ensure that the door can be opened by 90°.

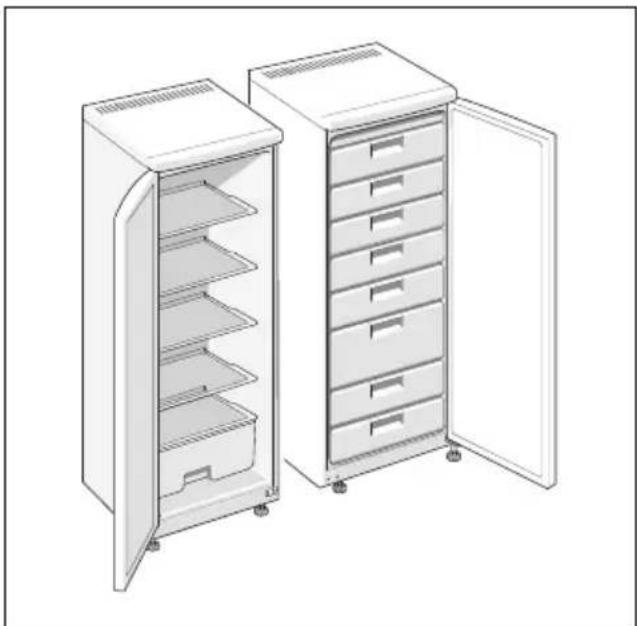

Installing appliances next to each other

Fig. 3

When installing two appliances, ensure that the refrigerator is on the left and the freezer is on the right.

The right side panel of the refrigerator is heated slightly. This prevents condensation from forming between the appliances.

Attaching spacers

Fig. 4

1. On the right side of the refrigerator degrease the adhesive areas with petroleum ether or spirit.
2. Stick spacers in all four corners at a distance of 5 cm from the side edges to ensure a minimum gap between the appliances.

Note

You can purchase a connection set from your dealer.

Changing over the door hinges

(if required)

We recommend that you have the door hinges changed over by our customer service. You can find out the costs for changing over the door hinges from your appropriate customer service.

Warning

While changing over the door hinges, ensure that the appliance is not connected to the power supply. Pull out the mains plug beforehand. To prevent damaging the back of the appliance, place adequate padding underneath. Carefully place the appliance on its back.

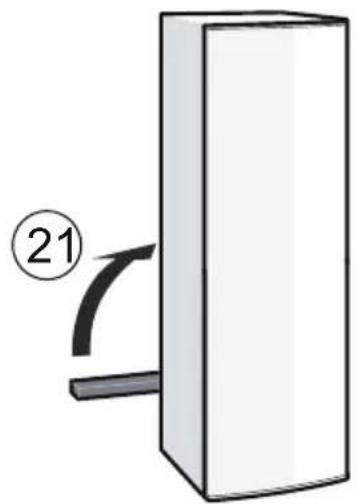

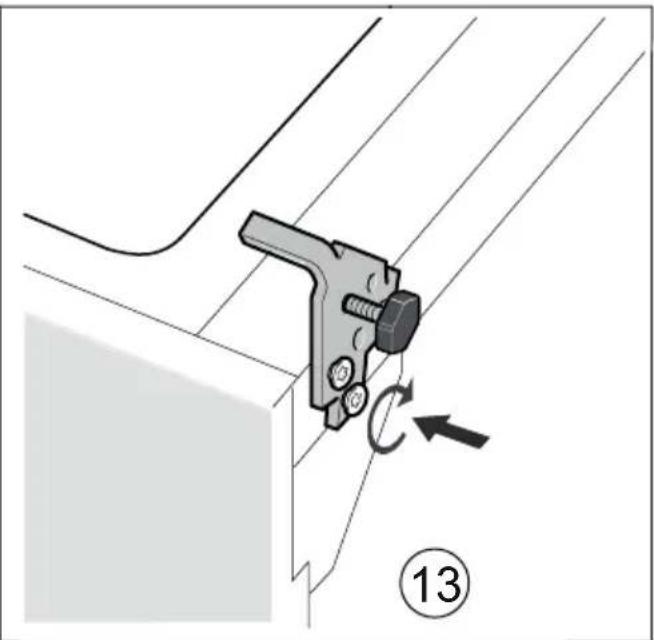

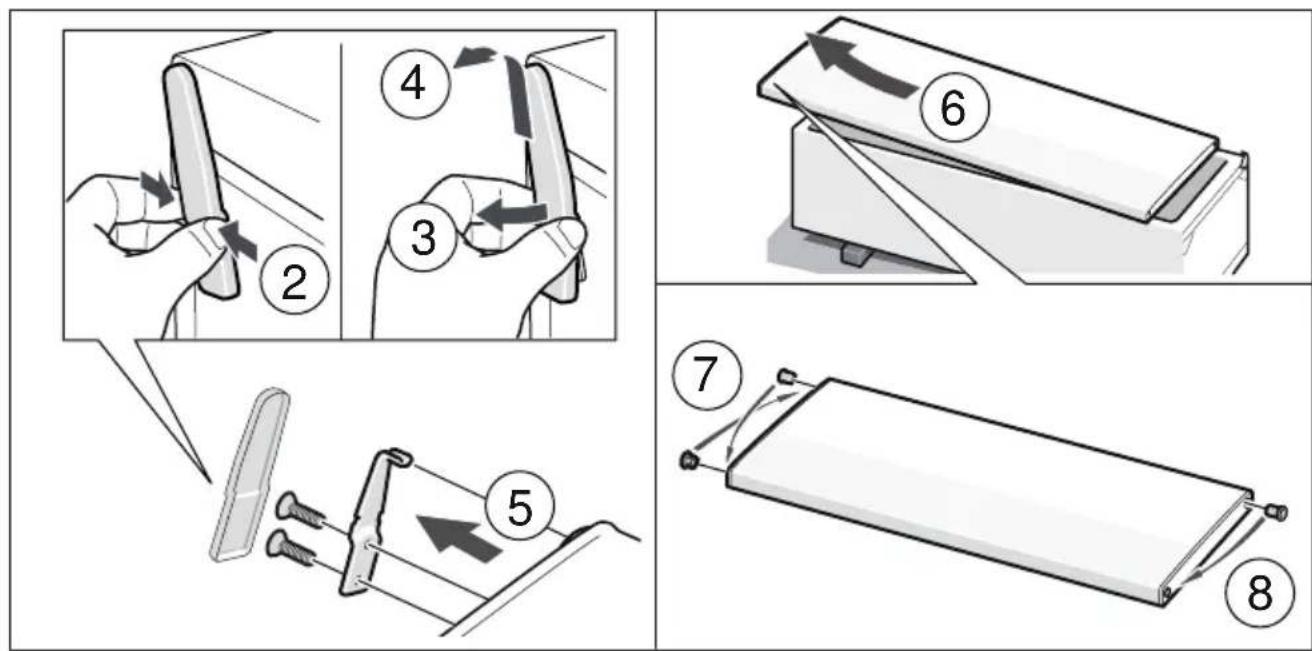

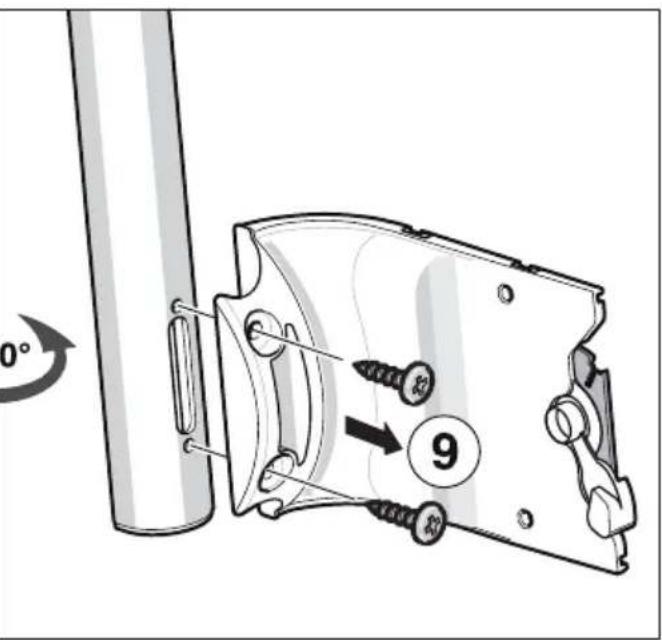

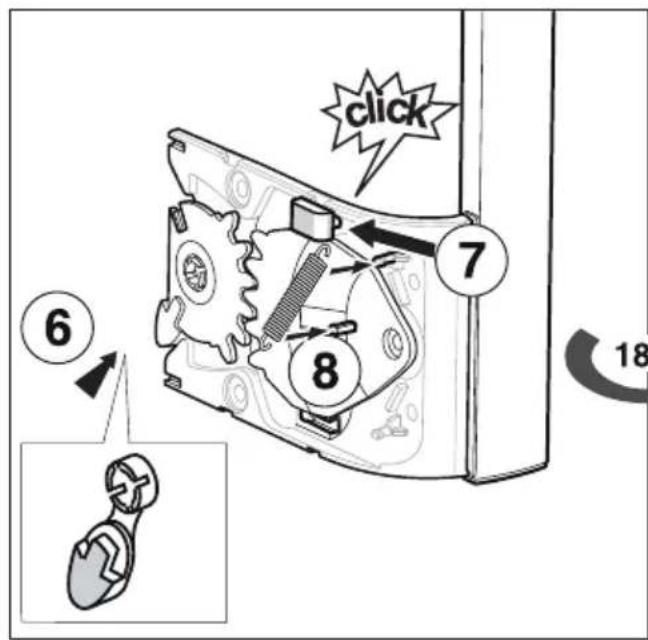

Change over the door hinges in numerical sequence. Fig. 1

Note

If the appliance is placed on its back, ensure that the wall spacer is not fitted.

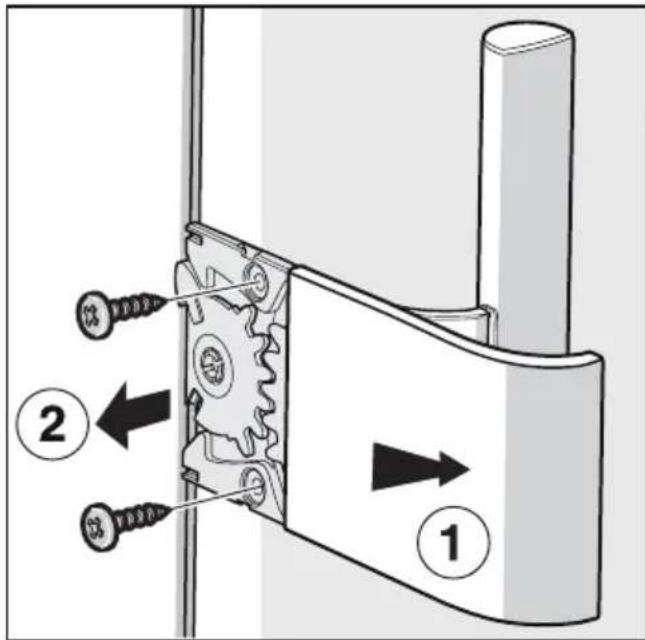

Changing the door handle

(if required)

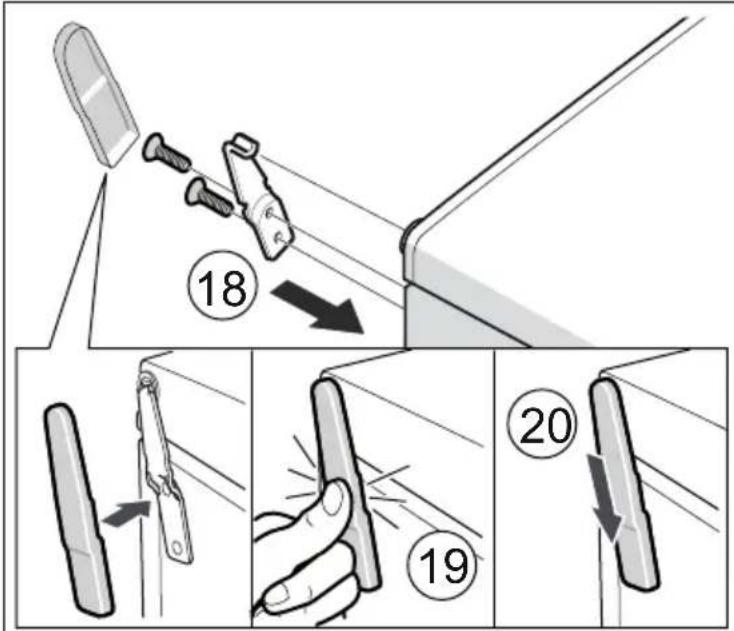

Fig. 2 A/B

Change the door handle in numerical sequence.

Fitting the wall spacer

Fig. 5

If available:

Fit wall spacers to obtain the indicated energy absorption of the appliance.

A reduced wall gap will not restrict the function of the appliance. The energy absorption may then change slightly.

Aligning the appliance

Place the appliance in the designated location and align. The appliance must be level. If the floor is uneven, use the front height-adjustable feet. Adjust the height-adjustable feet with a wrench.

Note

The appliance must be upright. Please align it with a spirit level.

Mechanical assembly diagram showing a bracket with a hinge and rotating component, labeled with number 13 (no text or symbols beyond label)

Simple diagram of a rectangular block with an arrow and number 21, no text or symbols present

2/B

Illustration of two open refrigerator units with different internal compartments (no text or symbols)

3

4

Technical diagram showing a mechanical assembly with a bag and a clamp, no visible text or symbols

5
