USER MANUAL SRN-3250 SAMSUNG
©2011 Samsung Techwin Co., Ltd. All rights reserved.
Trademark

SAMSUNG TECHWIN is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user's own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.
Warranty
If the product does not operate properly in normal conditions, please let us know. Samsung Techwin will resolve the problem for free of charge. The warranty period is 3 years. However, the followings are excluded:
• Data loss due to a damaged hard disk
- If the system behaves abnormally because you run a program irrelevant to the system operation.
• Data loss due to virus infection
• Deteriorated performance or natural worn-out in process of time
- Sensory phenomenon that does not affect the performance or quality of the product (ex: working noise).
◆Design and specifications are subject to change without prior notice.
The default password can be exposed to a hacking thread so it is recommended to change the password after installing the product.
Note that the security and other related issues caused by the unchanged password shall be responsible for the user.
Preface
Thank you for choosing a Samsung Network Video Recorder (Disk Player) product.
This instruction manual provides detailed information and instructions for the NVR network DVR products. Please read this manual and any supplementary document(s) thoroughly before attempting to install and/or operate the product.
The contents of this manual, and the software and hardware explained herein, are protected by copyright law. All copy, reprint and translation to other languages of a part of or all of the contents of this instruction manual without permission of Samsung Techwin Co., Ltd. are expressly prohibited except for fair use within the scope of copyright law.
The specifications of the product may change without prior notice for product improvement.
Product Warranty and Limited Liability
The manufacturer of this product is not responsible for the sale of the product, nor does the manufacturer delegate such responsibility to a third party. The product warranty does not extend to any accident, neglect, alteration, or misuse of the product. Furthermore, this warranty does not cover any components or parts that are not supplied by the manufacturer of this product.
The product warranty period is for three years from the purchase date. However, the warranty does not cover any of the following problems, and a nominal service fee will be charged if:
● Product has been improperly used or handled by user.
● Product has been disassembled and/or altered by user.
● Product has been damaged by connecting a power supply with improper specifications.
- Product has been damaged due to an "Act of God" (fire, flood, tsunami, natural disaster, etc.)
● To replace expendable components: HDD, Fan, etc.
(The warranty for the HDD and Fan is valid for one year from the purchase date.)
This warranty covers only the product supplied with the warranty.
After the warranty period (three years) has expired, a service fee will be charged for any inspection and/or repair for the product. During the warranty period, a service fee will be charged for repair and/or inspection for the product for any problems that are not covered by the warranty.
This product is not an anti-theft or fire-prevention device; the manufacturer is not responsible for any damage to property or personnel that may occur during its use.
This product must be installed by skilled and experienced personnel; self-installation by the user is prohibited. Self-installation by the user may result in fire, electrocution, and/or product malfunctions. Please contact your local dealer for assistance with the installation of the product.
The contents of this manual may change in order to accommodate upgrades in firmware and/or software. Also, the specifications and/or design of this product may change without prior notice for product improvement.
Table of Contents
Preface....1
Product Warranty and Limited Liability ...... 1
Table of Contents....3
Chapter 1. Overview ...... 6
1.1. Safety Precautions ...... 6
1.2. Product Contents....9
Chapter 2. Part Names ...... 10
2.1. Front Panel.... 10
2.2. Back Panel....12
2.3. Default Settings ...... 13
2.3.1. Monitoring Page.... 13
2.3.2. Playback Page 13
2.3.3.Config Page 14
2.3.4. System Page....17
Chapter 3. Installation ...... 18
3.1. Installing and Connecting Product ...... 18
3.1.1. Supplying Power and Operating the Product 18

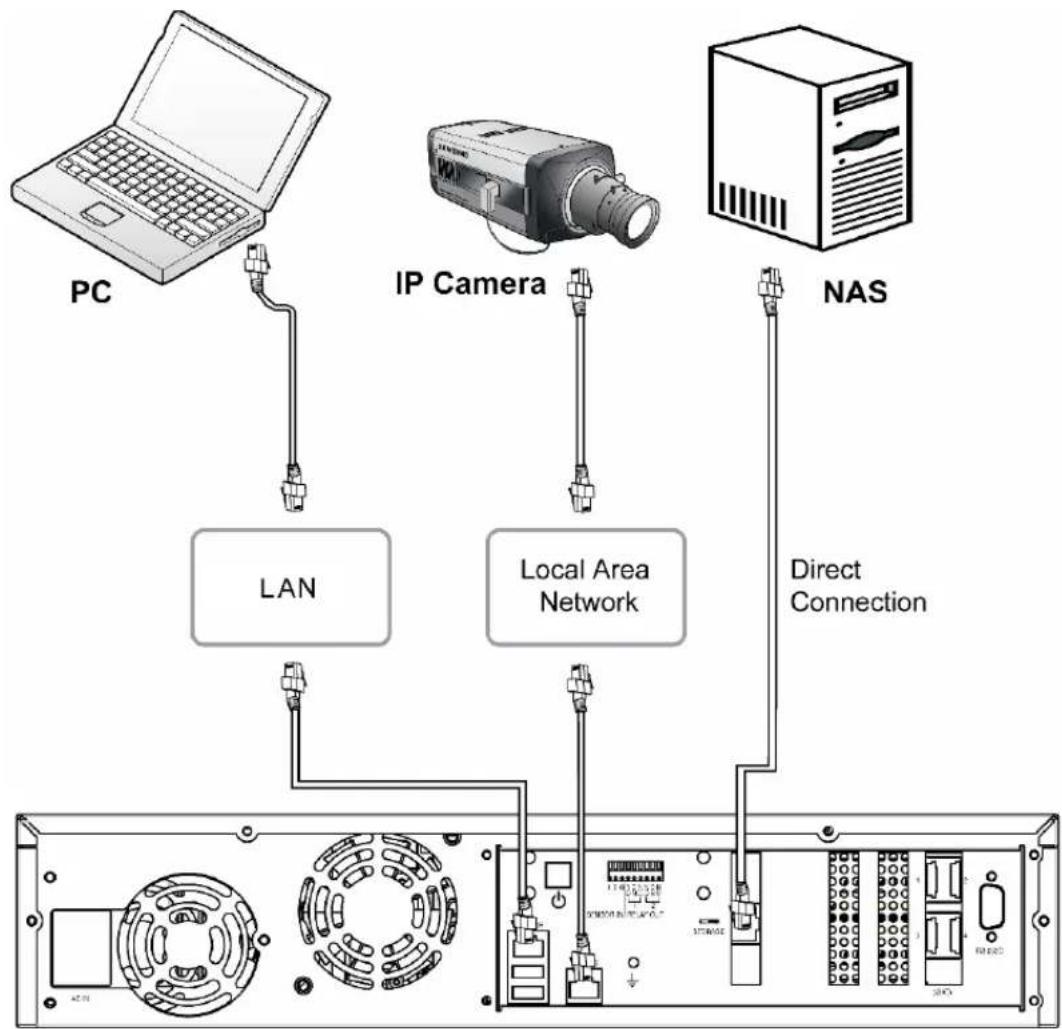

3.1.2. Configuring the Network ...... 18

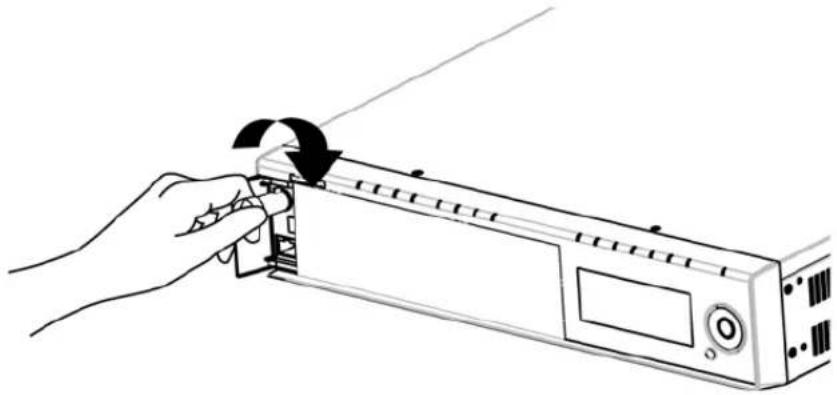

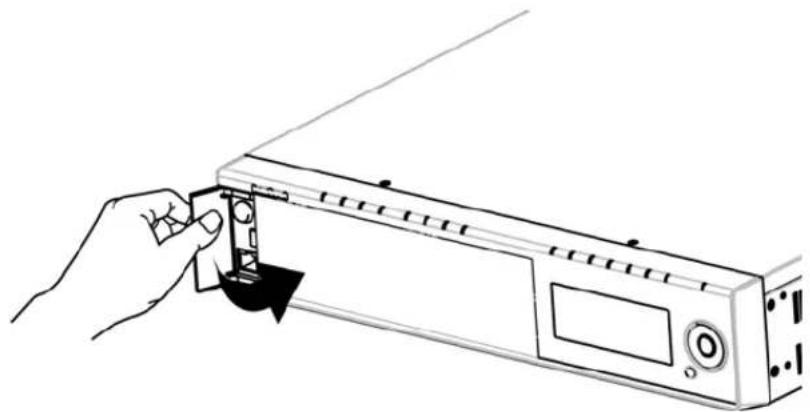

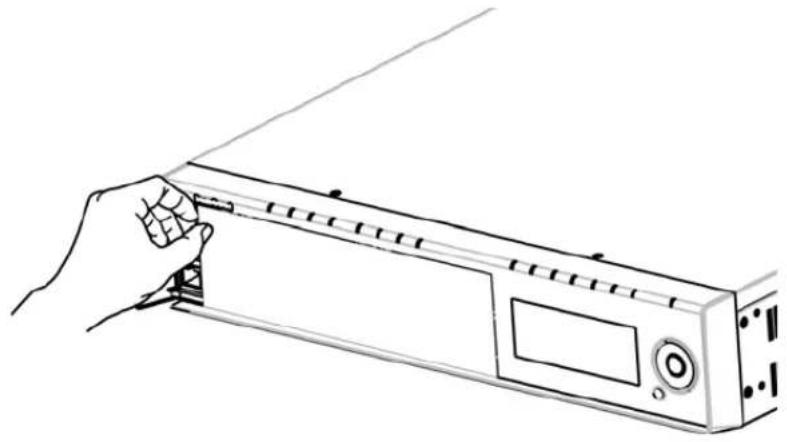

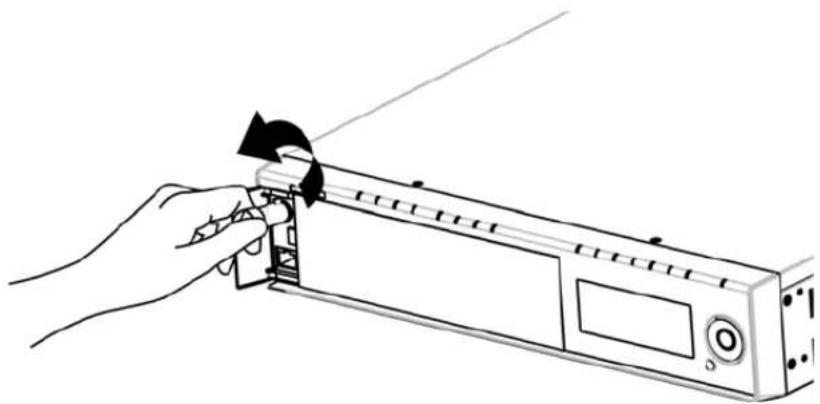

3.1.3. Internal HDD 19

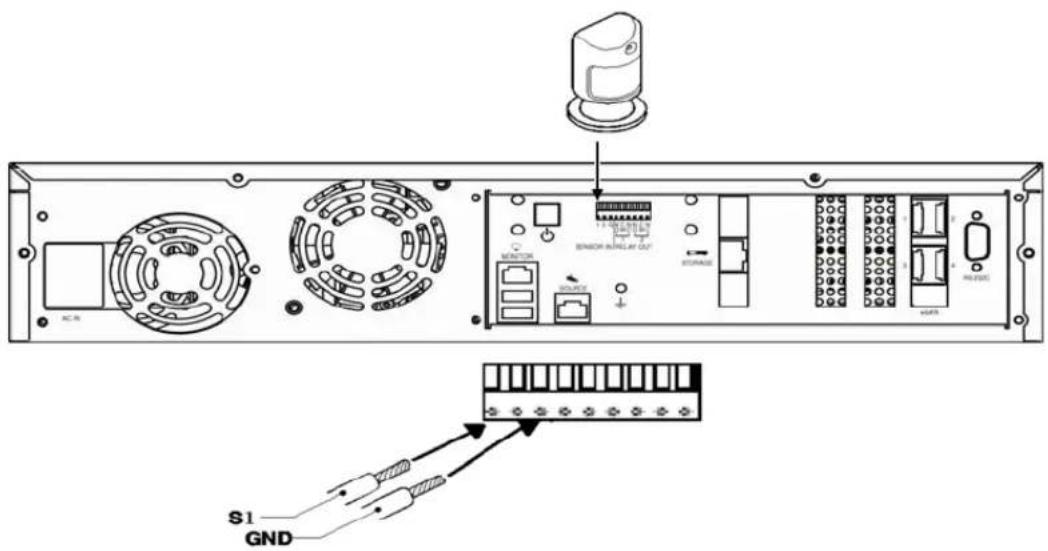

3.1.4. External HDD 22
3.1.5. Sensor....23

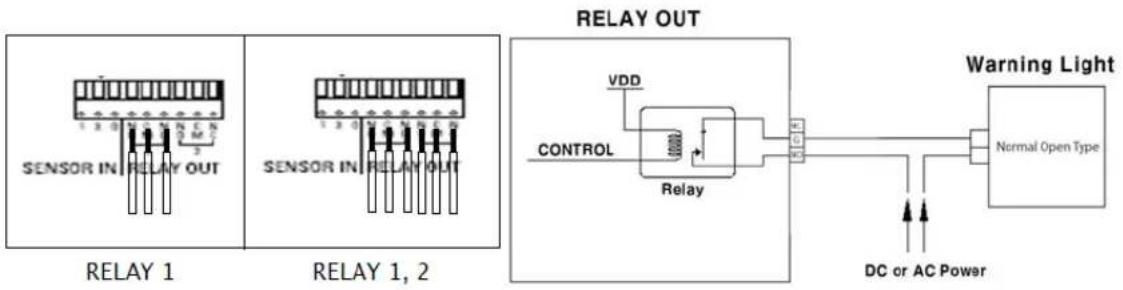

3.1.6. Relays 24
3.1.7. USB 25
3.2. Connecting to the Website....26

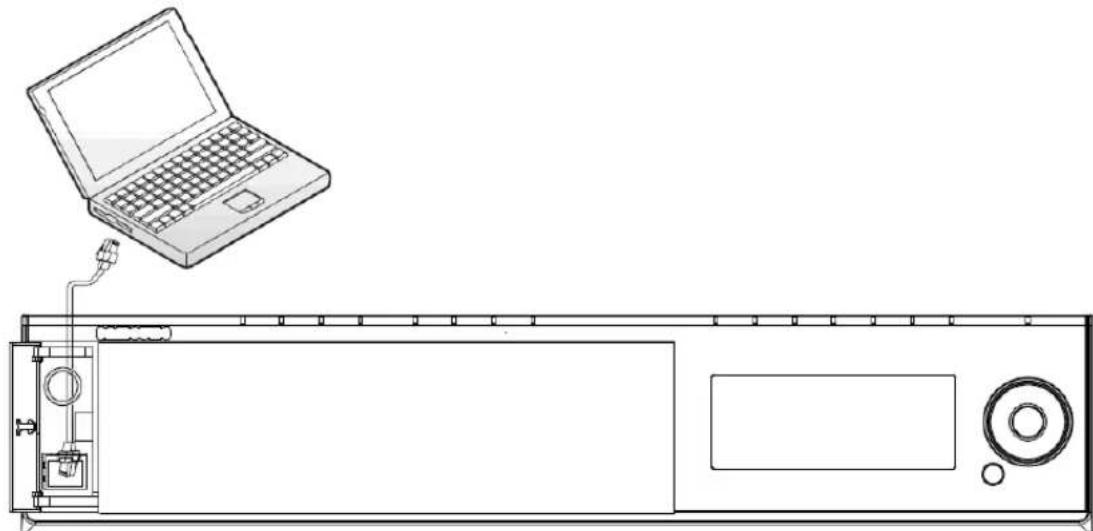

3.2.1. Connecting Cable 26

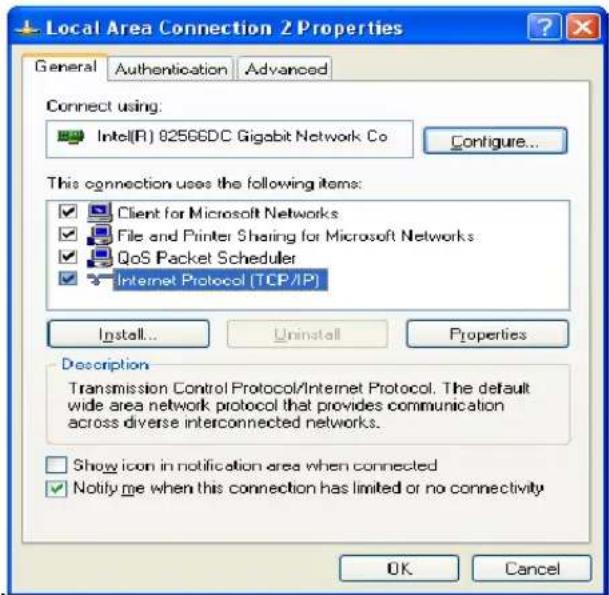

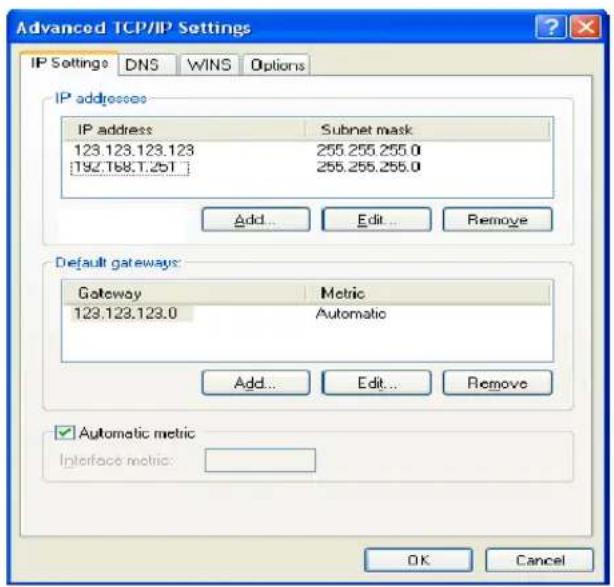

3.2.2. Adding an IP Address.... 26
3.2.3. Connecting and Changing Settings 28
Chapter 4. Operation ...... 31
4.1. System Requirements ...... 31
4.2. Compatible Web Browsers 31

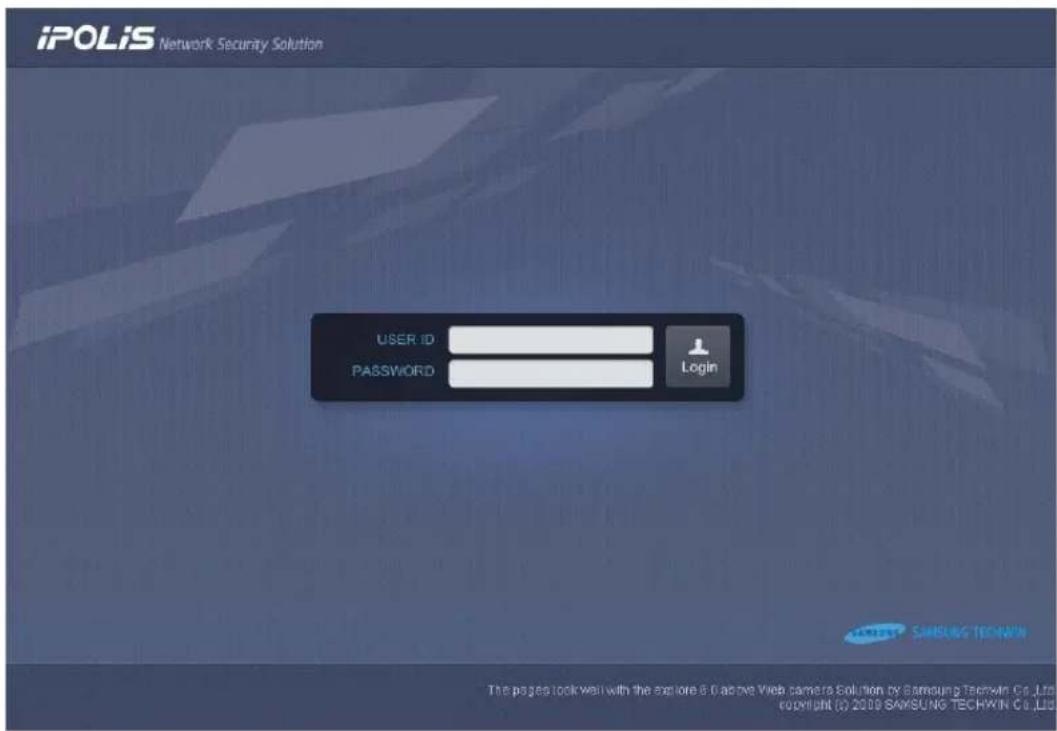

4.3. Login 32

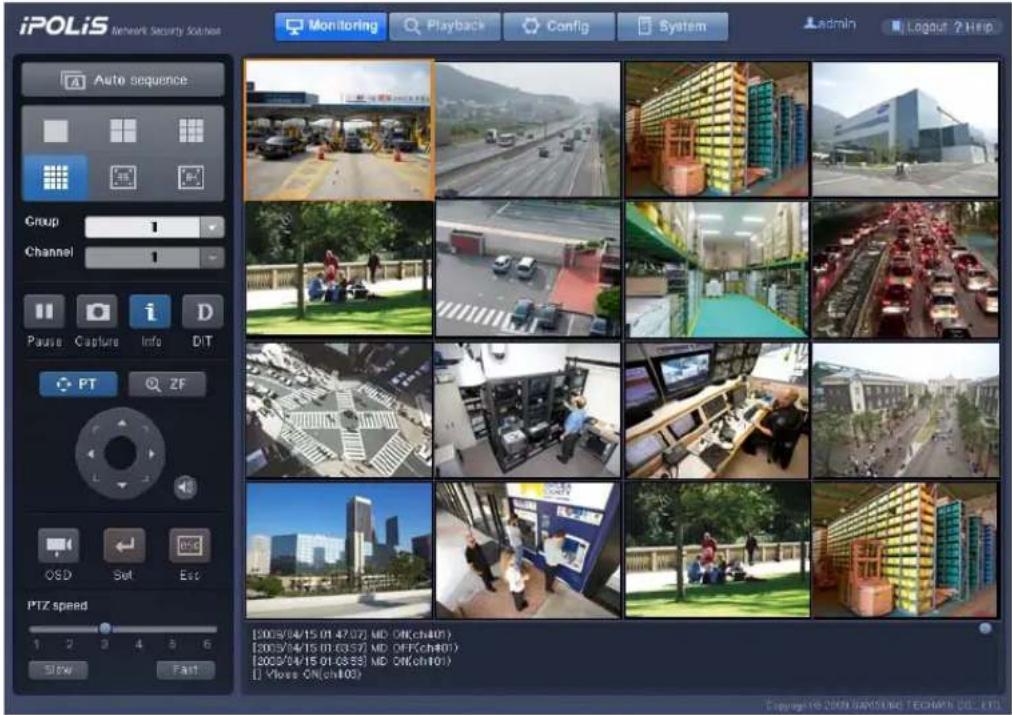

4.4. Monitoring 33
4.4.1. Splitting Screen and Changing Channels 33
4.4.2. Video Control 34
4.4.3. PTZ Control.... 34
4.4.4. OSD Control....35
4.5. Playback 37
4.5.1. Time Search....37
4.5.2. Event Search 39
4.6.Config 42
4.6.1. Status 43
4.6.2. Record Setup 44
4.6.3. Event Setup 45
4.6.4. Camera Setup....49
4.6.5.HDD Setup 53
4.6.6. Network Setup ....59
4.6.7.Time Setup 64
4.7. System 66

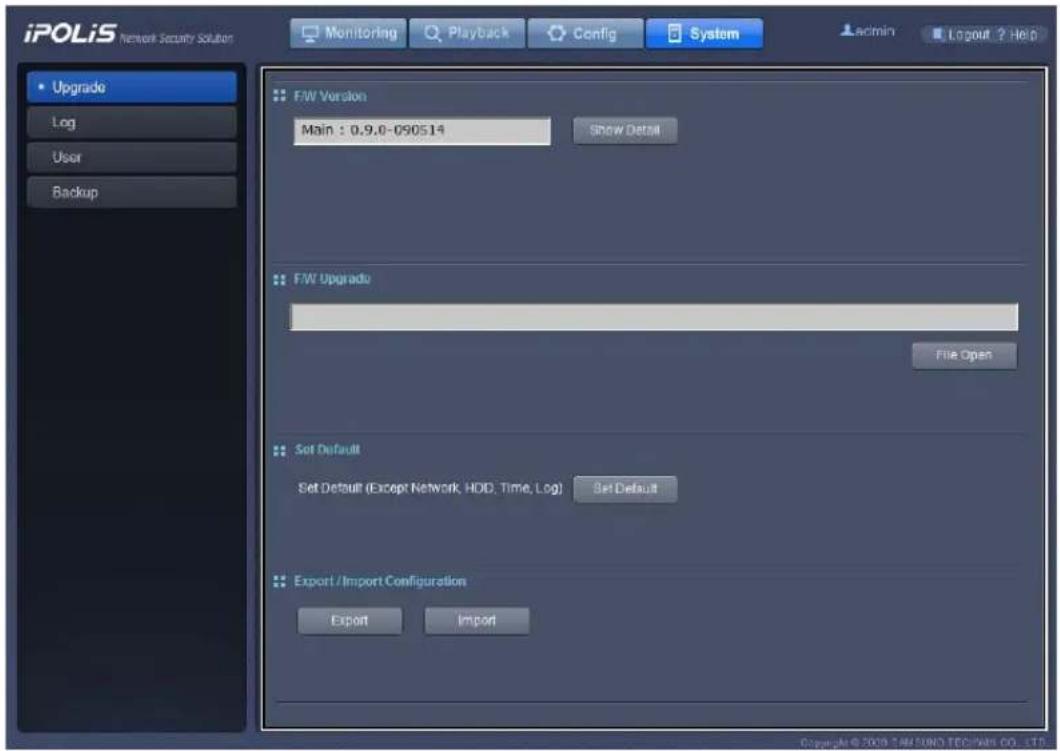

4.7.1. Upgrade 67
4.7.2. System Log 69
4.7.3.User Setup 72
4.7.4.Backup 73
Chapter 5. LCD Setup....77
5.1. System....78
5.1.1. Checking Firmware Version....78
5.1.2. Turning On/Off Beep 78
5.1.3. Relay Off 79
5.1.4. System Update 79
5.1.5. Initializing Settings 80
5.1.6.HDD Check 81
5.1.7.Shutting the System Down 82
5.2. Network Setup....83
5.2.1. Monitor Ethernet Port Setup 83
5.2.2. Source Ethernet Port Setup 86
5.2.3. Storage Ethernet Port Setup 87
5.3.HDD Mode Setup 88
5.4. Removing HDDs....91
5.5. Formatting HDDs 92
5.5.1. Formatting a Single Internal HDD 92
5.5.2. Formatting All Internal HDDs 93
5.5.3. Formatting a Single External HDD....93
5.5.4. Formatting All External HDDs 95
5.5.5. Formatting All HDDs 96
Troubleshooting....97
Product Specifications....99
Product Dimensions....101
Chapter 1. Overview
This digital video recorder plus disk player features HDD storage and playback capabilities for 64/32-channel digital video.
Setting up this recorder is easy; you may use the buttons on the front of the product, or connect to the product remotely via a network.
With proven performance and reliability, the NVR is a self-sufficient video recorder as well as ideal for digital video feed storage for monitoring systems of banks, apartment buildings, and public offices that require a high security level. Since video is stored on hard disk, there is no loss in picture quality due to repeated playback from the storage media. Further, since all video data is stored as digital files, it is easily and quickly searchable.
This high-resolution video recorder features a large storage capacity and also comes with a wide variety of user-friendly features such as: Simultaneous recording and playback capabilities, motion detection, PTZ (pan, tilt, zoom) control, password, real-time voice data recording, convenient access permissions setup using Key Lock, and maintenance of up to 10,000 event lists and log files.
1.1. Safety Precautions

Warning
The following information or instruction is vital for user safety; please read it thoroughly to avoid serious injury or death.
◆ Installing the Product
√ Please check the power outlet voltage (AC 100V\~240V) before you connect the power to the outlet.
√ Make sure that the product is switched off before you install it.
√ To avoid the risk of electric shock and/or fire, do not install the product in a damp area.
√ The product must be grounded to reduce the risk of electric shock.
◆ Using the Product
√ Opening or removing the product case will expose you to the risk of electric shock; do not open or remove the case unless you are a qualified technician.
√ To prevent electrical fire, do not connect multiple power cords to a single outlet.
√ Do not place heavy objects or vessels containing water on the unit since it can cause serious malfunctions.
√ Do not use this item in a location containing propane gas, gasoline, or other flammable substances to avoid risk of explosion or fire.
√ To avoid the risk of electric shock, do not touch the power plug with moisture on your hands.
√ Make sure that no electrically conductive material enters the cooling vent.
√ Do not pull on the power plug with any force; a damaged plug may cause electric shock or fire.
- Disassembling and Cleaning the Product
√ There is a risk of malfunction, shock, or other dangers. Do not disassemble or attempt to fix or alter the product yourself.
√ Do not clean the product with water, paint thinner, or other organic solvent as doing so may cause product malfunctions and/or electric shock. When cleaning the product, use a dry cloth to wipe the exterior of the device.

Caution
Misuse or wrongful operation of the item may result in injury or damage to the item. It indicates caution should be observed when operating.
◆ Installing the Product
√ When installing the product, please leave at least 15 cm of space between the cooling vent and the wall for proper heat dissipation.
√ To prevent user injury and product damage, please install the product on a level surface with no risk of the product falling.
√ Avoid installation in an environment where the product will be exposed to heat or direct sunlight; product deformation and/or damage may result.
√ When installing the closure, take into consideration the operating temperature and humidity of the installation environment according to the product specifications (see Appendix).
Using the Product
√ Avoid shock and vibration while operating or moving the item.
√ Do not move the product while it is in operation; do not expose the product to strong impact or throw the product.
√ If you wish to add a hard disk to the product, please contact your vendor; adding a non-recommended hard disk may cause the product to function abnormally.
√ Arbitrarily adding a hard disk to the product will void your product warranty.
√ This product is not an anti-theft or fire-prevention device; the manufacturer is not responsible for any damage to property or personnel that may occur.

Caution
Samsung Techwin recommends the installation of a UPS (Uninterrupted Power Supply) with all its recording products.

Samsung Techwin cares for the environment at all product manufacturing stages to preserve the environment, and is taking a number of steps to provide customers with more environmentally friendly products.
The Eco mark represents Samsung Techwin's will to create environmentally friendly products, and indicates that the product satisfies the EU RoHS Directive.
1.2. Product Contents
The contents of this product are as shown below.
Power Cord | Key | Rack Mount and Fixture Screws |
HDD Fixture Screws | User's Manual | Quick Reference Guide |
NET-I Viewer/User's Manual CD | Cross Cable | HDD Tray (4EA) |
Chapter 2. Part Names

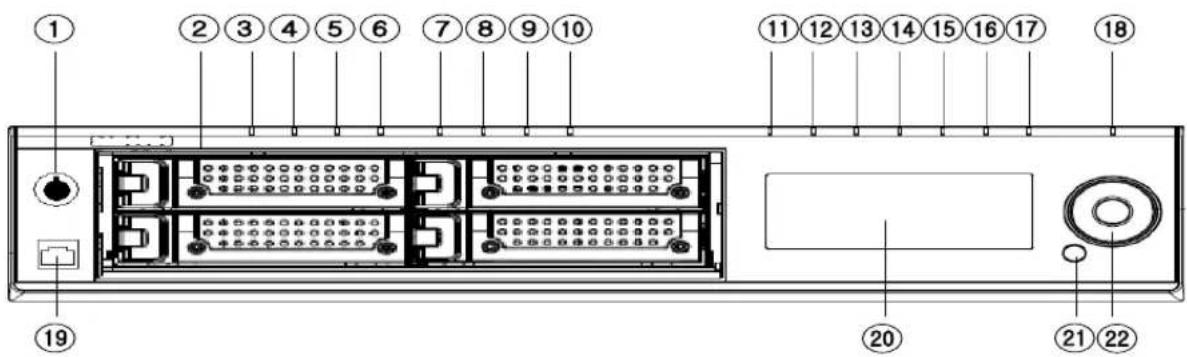

2.1. Front Panel

| No. | Name Function | |
| 1 | Key Lock Turning the | key completely engages the lock, so the buttons on the front panel cannot be accessed and the HDD bay door cannot be opened. |
| 2 | SATA-Bracket Mounts | hard disks for storing recorded video. Up to four hard disks can be mounted. Mounted HDDs are referred to as Internal HDD1 (upper left), Internal HDD2 (upper right), Internal HDD3 (lower left), and Internal HDD4 (lower right.) |
| 3 | Internal HDD1 A | blue indicator means that Internal HDD1 is installed and functioning normally. A red indicator means that Internal HDD1 is not functioning properly. |
| 4 | Internal HDD2 A | blue indicator means that Internal HDD2 is installed and functioning normally. A red indicator means that Internal HDD2 is not functioning properly. |
| 5 | Internal HDD3 A | blue indicator means that Internal HDD3 is installed and functioning normally. A red indicator means that Internal HDD3 is not functioning properly. |
| 6 | Internal HDD4 A | blue indicator means that Internal HDD4 is installed and functioning normally. A red indicator means that Internal HDD4 is not functioning properly. |
| 7 | EXTERNAL HDD1 | A blue indicator means that an external HDD is connected to the rear eSATA Port1 and functioning normally. A red indicator means that External HDD1 is not functioning properly. |
| 8 | EXTERNAL HDD2 | A blue indicator means that an external HDD is connected to the rear eSATA Port2 and functioning normally. A red indicator means that External HDD2 is not functioning properly. |
| 9 | EXTERNAL HDD3 | A blue indicator means that an external HDD is connected to the rear eSATA Port3 and functioning normally. A red indicator means that External HDD3 is not functioning properly. |
| 10 | EXTERNAL HDD4 | A blue indicator means that an external HDD is connected to the rear eSATA Port4 and functioning normally. A red indicator means that External HDD4 is not functioning properly. |
| 11 | REC A red indicator means that the product is in recording mode. | |
| 12 | ALARM A blue indicator means that an event in Input Group has occurred. | |
| 13 | ERROR A red indicator means that the product is not functioning properly. | |
| 14 | RAID A blue indicator means that the product is running in RAID mode. | |
| 15 | LINK/ACT1 A blinking blue indicator means that a network cable is properly connected to the Monitor Ethernet Port, and data communication is taking place properly. | |
| 16 | LINK/ACT2 A blinking blue indicator means that a network cable is properly connected to the Source Ethernet Port, and data communication is taking place properly. | |
| 17 | LINK/ACT3 A blinking blue indicator means that a network cable is properly connected to the Storage Ethernet Port, and data communication is taking place properly. | |
| 18 | POWER A red indicator means that the product is powered on. | |
| 19 | Config Ethernet Port | Used to connect the product to a computer for the system configuration. |
| 20 | LCD Panel | The panel displays the current status of the product; it can also be used to change the system configuration with the adjacent buttons. |
| 21 | ESC Button This button is used to change the system configuration. 'Chapter 5 LCD Setup' covers its use in detail. | |
| 22 | Direction Button Enter Button | This button is used to change the system configuration. 'Chapter 5 LCD Setup' covers its use in detail. |

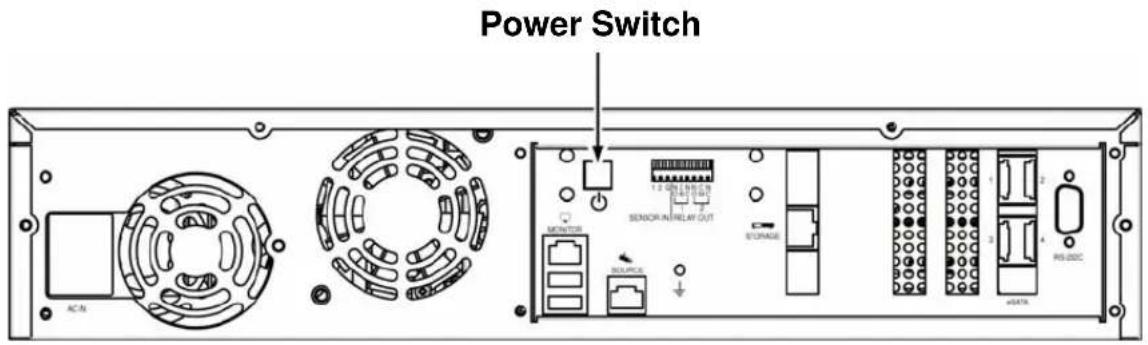

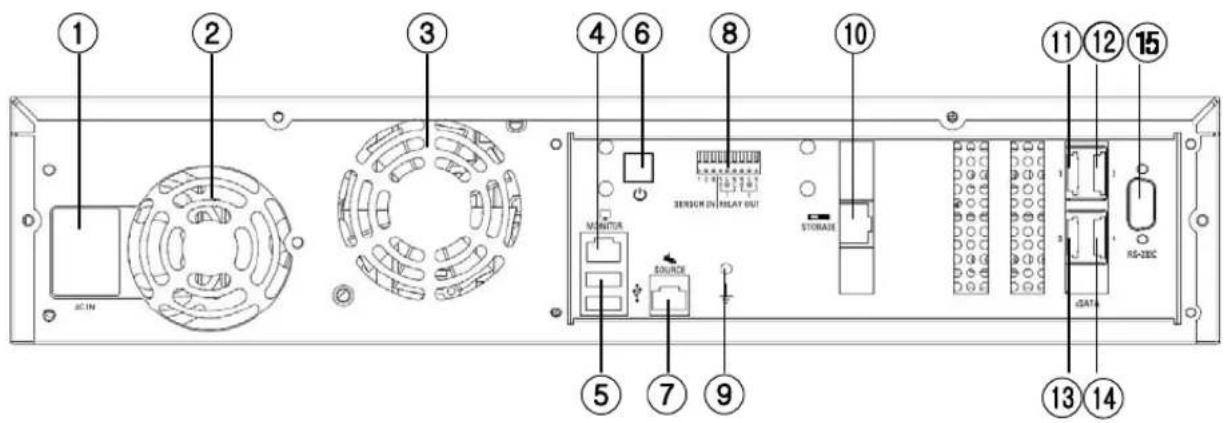

2.2. Back Panel

| No. | Name Function | |
| 1 | AC IN Used to connect the product power cable. | |
| 2 | SMPS FAN This fan cools the power supply. | |
| 3 | DC FAN This fan cools the inside of the product. | |
| 4 | Monitor Ethernet Port A network port that allows the product to connect to a PC to run Web Viewer. | |
| 5 | USB Port Used to upgrade the firmware version of the product. | |
| 6 | Power Button Turns on or off the product. | |
| 7 | Source Ethernet Port A network port that connects the product to the video camera. | |
| 8 | SENSOR IN / RELAY OUT | Used to connect a sensor or alarm. |
| 9 | GROUND | A terminal that is used to ground the frame to an external device. |
| 10 | Storage Ethernet Port | Used to connect NAS (Network Attached Storage) within the same network. |

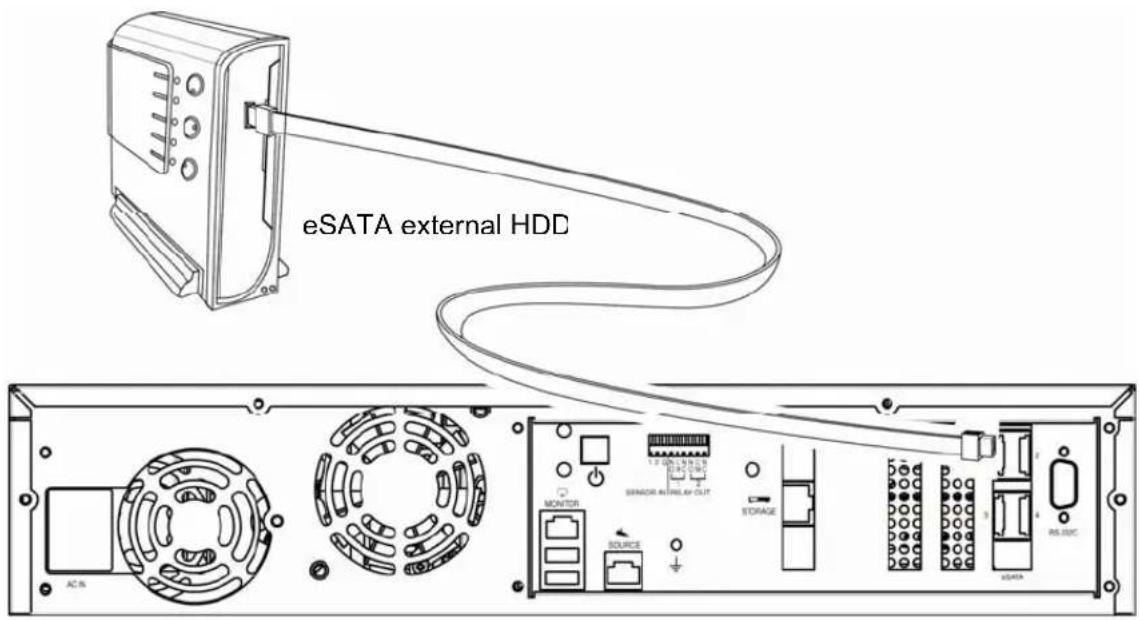

| 11 | eSATA Port1 | Used to connect an external HDD. |
| 12 | eSATA Port2 | Used to connect an external HDD. |
| 13 | eSATA Port3 | Used to connect an external HDD. |
| 14 | eSATA Port4 | Used to connect an external HDD. |
| 15 | RS232C Port | Unused terminal. |
2.3. Default Settings
The following are the factory default settings for the product.

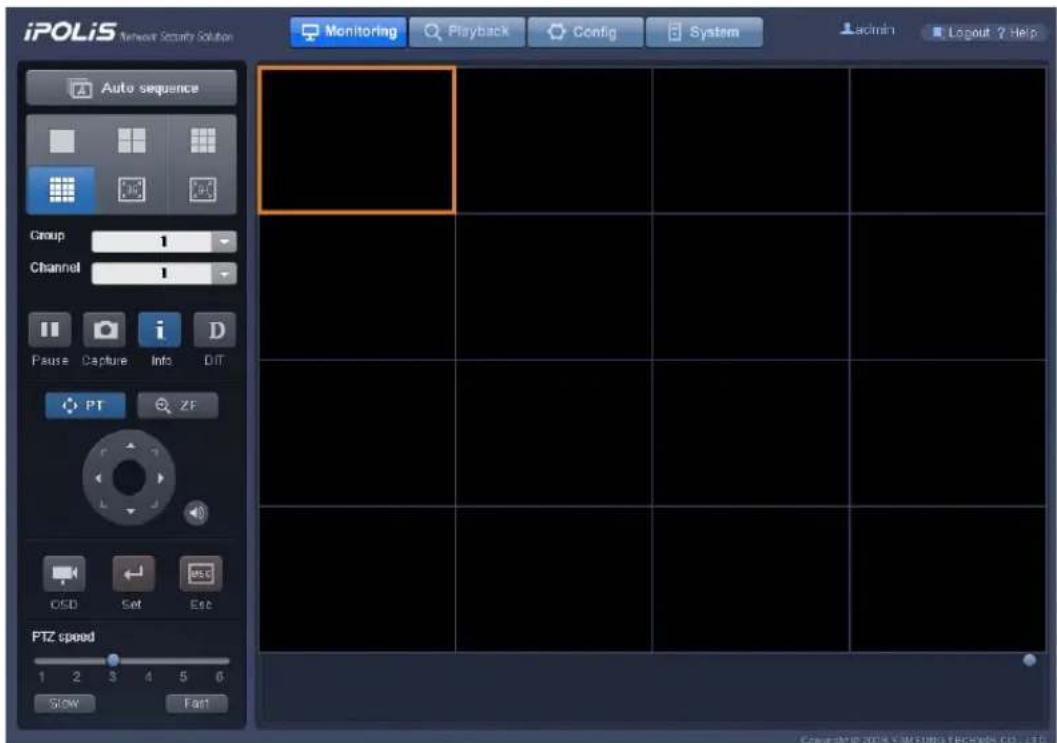

2.3.1. Monitoring Page
| Main Menu Sub Menu Default Setting | ||
| Auto Sequence Off | ||
| Display Mode 16Ch display | ||
| Group | 1 | |
| Channel | 1 | |
| Info | On | |
| DIT | Off | |
| PT, ZF PT Activated | ||
| OSD | Off | |
| PTZ speed 3 | ||
2.3.2. Playback Page
| Main Menu Sub Menu Default Setting | ||
| Time | Channel | - |
| Calendar | - | |
| Time | - | |
| Event | Event Type | - |
| Channel | - | |
| Date / Time | - | |
2.3.3.Config Page
Record Setup
| Main Menu Sub Menu Default Setting | ||
| Normal Record Config All frames | ||
| Event Record Config | Input GroupActiveInactivePre Recording TimePost Recording Time | own eventAll framesI frames5 Sec5 Sec |
| Record | ButtonTime Table | Normal Record selectedAlways Normal Record |
Event Setup
| Main Menu Sub Menu Default Setting | ||
| Local Sensor Type | Sensor1 | Normal Open |
| Sensor2 | Normal Open | |
| Event Group | Input Group | - |
| Output Group | - | |
| Action Group | - | |
◆ Camera Setup
| Main Menu Sub Menu Default Setting | ||
| Channel List | Open Channel ListSelect Channel | Ch1 ~ Ch16Ch01 |
| Channel Setup | Disable/EnableChannel NameModelConnection TypeIPConnection PortIDPasswordPicture TypeATC ModeVideo QualityVideo ResolutionVideo Framerate | DisableCh01, Ch02, Ch03, ...-Static IP0.0.0.04000--MPEGOffHighD110 |
HDD Setup
| Main Menu Sub Menu Default Setting | ||
| HDD | Repeat | Recording On |
| AutoDeletion | Mode | Off |
| Duration | 180 | |
| RAID Mode Normal | ||
| NAS Configuration | Nas Port | Nas1 |
| Use | Disable | |
| Name | - | |
| Default Folder | - | |
| IP | 0.0.0.0 | |
| ID | - | |
| Password | - | |
Network Setup
| Main Menu Sub Menu Default Setting | ||
| Monitor Ethernet Port | Connection TypeIP AddressSubnet MaskGatewayConnection PortHttp PortATC Mode | Static IP0.0.0.00.0.0.00.0.0.0400080Disable |
| DDNS | UseServer DomainIDPassword | Disablewww.samsungipolis.com-- |
| Source Ethernet Port | Connection TypeIP AddressSubnet MaskGateway | Static IP0.0.0.00.0.0.00.0.0.0 |
| Source DHCP Server | UseIP Range | Disable0.0.0.0 ~ 0.0.0.0 |
| Storage Ethernet Port | Connection TypeIP AddressSubnet MaskGateway | Static IP0.0.0.00.0.0.00.0.0.0 |
| DNS | DNS1DNS2 | 168.126.63.1168.126.63.2 |
| RTP/RTSP | Use RTSPRTSP PortRTP PortUse MulticastMulticast Address | Disable5544000Disable224.0.1.1 |
| SMTP Server NameUse AuthenticationIDPasswordE-Mail To | -Yes-- | |
Time Setup
| Main Menu Sub Menu Default Setting | ||
| Time Configuration | Date Format | mm.dd.yy |
| Time Format | 24h | |
| Time Zone | (GMT 00:00) Greenwich Mean Time | |
| Use DST | Disable | |
| NTP | Use Client | Disable |
| Use Server | Disable | |
| Public Server1 Address | pool.ntp.org | |
| Public Server2 Address | asia.pool.ntp.org | |
| Public Server3 Address | europe.pool.ntp.org | |
| Public Server4 Address | north-america.pool.ntp.org | |
| Public Server5 Address | time.nist.gov | |
2.3.4. System Page
User
| Main Menu Sub Menu Default Setting | ||
| Admin | Password | 11111111 |
| User | ID | user |
| Password | 22222222 | |
| Authority | Only Monitoring is Allowed. | |
Chapter 3. Installation
3.1. Installing and Connecting Product
3.1.1. Supplying Power and Operating the Product

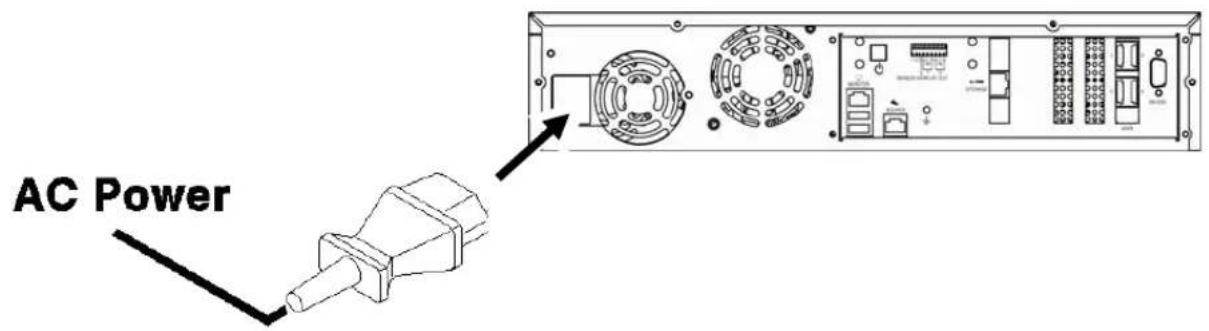

Connect the power cord to the product as shown in the picture below.

- Once the power cord is securely connected, press the power switch in the rear panel to boot the system.
- When the product is turned on, you can press the power switch briefly to turn off the product.
- When the system has encountered an error and you can't turn it off normally, you can press and hold down the power switch for five seconds to force the system to shut down.

3.1.2. Configuring the Network
The following picture is an example of a network diagram using the NVR. The 3 network ports on the product back panel are for a computer, camera, and NAS (Network attached Storage.) Please Refer to "2.2. Back Panel"
The rear panel network ports can be used for devices within the same network, or in different networks as shown in the example diagram.
3.1.3. Internal HDD

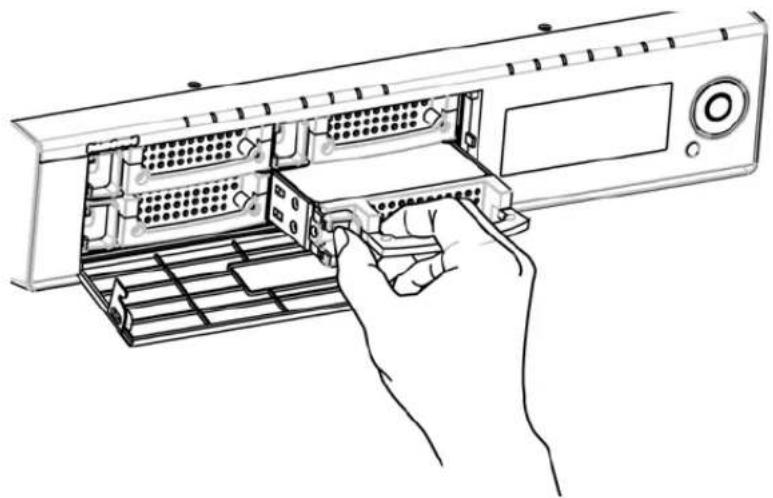

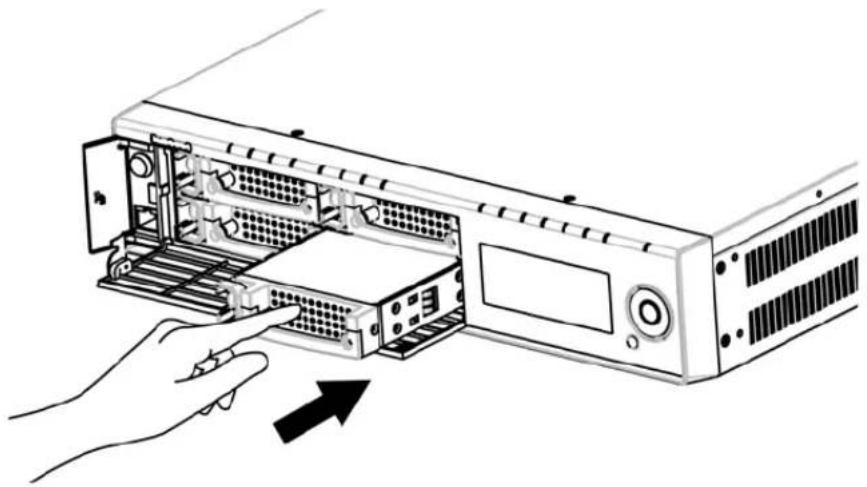

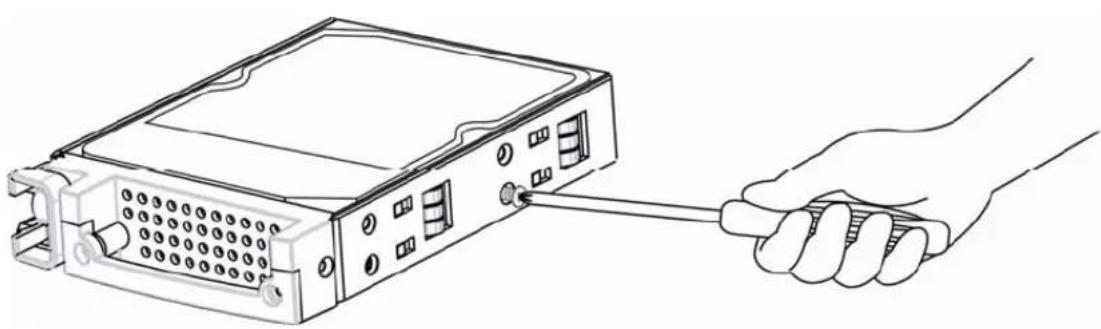

Open the HDD Bay as shown below to add, remove, or replace an internal HDD.
① Press PUSH: to open the Locking Door.
② Turn Key Lock counterclockwise to unlock.
Formatting HDD
is in Progress...
displaying the formatting process in the front LCD.
Internal HDD [2]
Added successfully!
Upon completing the formatting process, the message above is displayed in the LCD along with a blue indicator in the HDD LED, indicating that the new HDD is ready to use.

Do Not remove an HDD while the product is in operation. To safely remove HDDs, please refer to "5.4. Removing HDDs".

To lock the HDD door, please make sure to turn Key Lock clockwise completely.
3.1.4. External HDD
The NVR supports an eSATA interface for connecting external storage devices; four eSATA ports are located on the rear panel. The product can have up to 20 TB of storage capacity by utilizing the internal HDDs and eSATA ports. (Based on 1TB data capacity per HDD.)
An external eSATA HDD can be connected to the eSATA port on the rear panel as shown on the next page. Note that an eSATA port does not supply power to the device connected to it; the external device must supply its own power.


Note
- You may connect an external HDD while the product is in operation. However, this may result in certain models of external HDDs not being detected. As such, it is recommended that you connect any external HDD by following the steps outlined below.
- Turn the product off.
- Connect the external HDD (also turned off) to the product with an eSATA interface cable.
- Turn on the external HDD.
- Turn on the product.
- The eSATA cable is not included with the product.
The following are specifications and operating conditions for sensor input.
| Spec | Number of Input Circuits 2 | |
| Input Types N.C, N.O | ||
| Supported Sensor Types Dry Contact sensors. | ||
| Connection Type Attach stripped wire connections to the terminal block. | ||
| Power | DC | 150V |
| Output Current Typical DC 1 | 2mA | |
Please refer to the diagram on the next page to connect sensor inputs. It illustrates an example of a dry contact sensor being connected to the product.

For detailed instructions on connecting sensors, please refer to "4.6.3. Event Setup"
3.1.6. Relays
The following are specifications and operating conditions for alarm output.
| Spec. | Number of Input Circuits 2 Relays | |
| Output Types Dry Contact. | ||
| Connection Type Attach stripped wire connections to the terminal block. | ||
| Power | DC | 30V 1A |
| AC | 125V 0.5A | |
When connecting the relay outputs, first determine the attributes of the device to be connected (Normal Open, or Normal Close), then connect the device by referring to the diagram below.

| RELAY OUT 1 NC CM NO | |||
| Normal Close O | O | - | |
| Common | - | O | - |
| Normal Open - | O | O | |
| RELAY OUT 2 NC CM NO | ||
| Normal Close O | O | - |
| Common | - | O |
| Normal Open - | O | O |
For detailed instructions on connecting the relay output, please refer to "4.6.3. Event Setup"
3.1.7. USB
The USB ports on the rear panel are used to upgrade the product's firmware with the buttons on the front panel. Please refer to "5.1.4. System Update"
3.2. Connecting to the Website
3.2.1. Connecting Cable
Press PUSH: on the front panel to open the Locking Door, then connect a PC to the Front Panel Network Port with the supplied crossover cable as shown in the illustration below. (When using a hub to connect the product to a computer, you may use a normal LAN cable instead of a cross-over cable.)
In your computer, click Start > Control Panel > Network Connections > Local Area Connection > Properties.

Select Internet Protocol (TCP/IP.) Click the Properties button then in the Internet Protocol (TCP/IP) Settings dialog, click the Advanced button to open the Advanced TCP/IP Settings
dialog. (If the "Obtain an IP address automatically" option is checked under the Internet Protocol (TCP/IP) Properties window, please click the "Use the following IP address" radio button option before proceeding.)
![Advanced TCP/IP Settings IP Settings DNS WINS Options IP addresses IP address Subnet mask 123.123.123.123 255.255.255.0 [192.T68.T.251] 255.255.255.0 Add... Edit... Remove Default gateways: Gateway Metric 123.123.123.0 Automatic Add... Edit... Remove ✓ Automatic metric Interface metric: OK Cancel](/content/2026/06/1260238/images/85737aee99718d7994128ac7c889fd3ea310641d0141889fe4e0f941b1bb36ba.jpg)
Click Add under IP addresses then enter 192.168.1.xxx. The NVR uses 192.168.1.100 as the IP address; you cannot use the address for your computer's internal IP address.
3.2.3. Connecting and Changing Settings
Type 192.168.1.100 in your Internet browser address bar then press Enter.

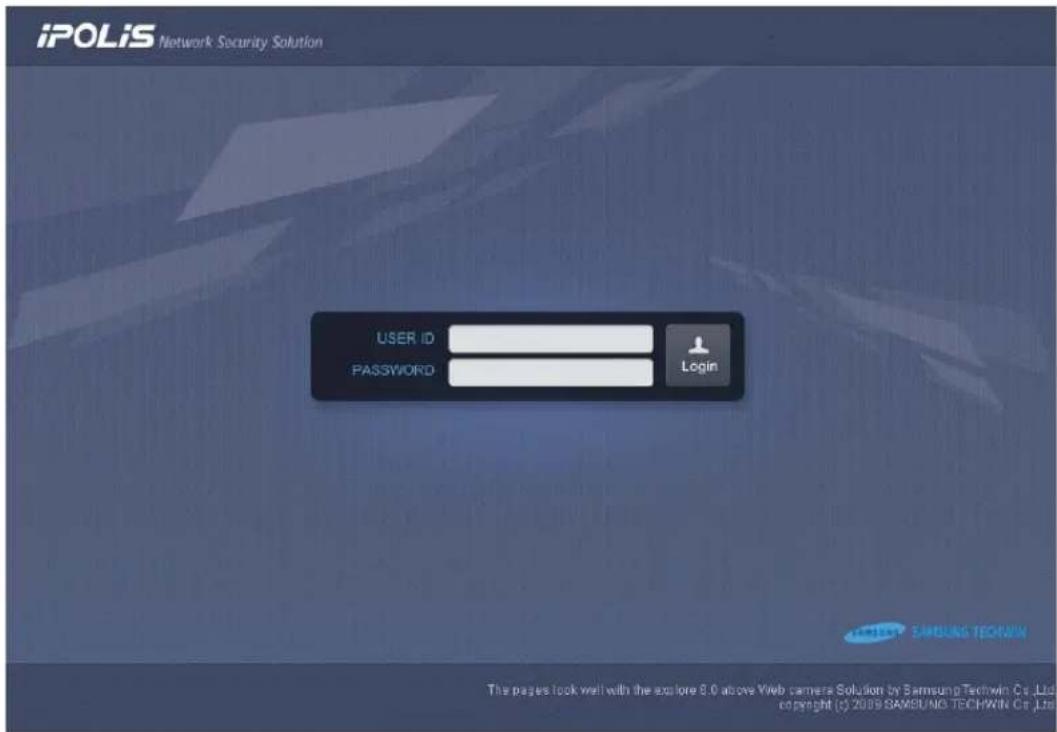

In the login window, enter admin as the User ID and 11111111 for the Password. Click Login to connect to the product.

When connecting to the product for the first time, no video displays as no network or camera is set up.

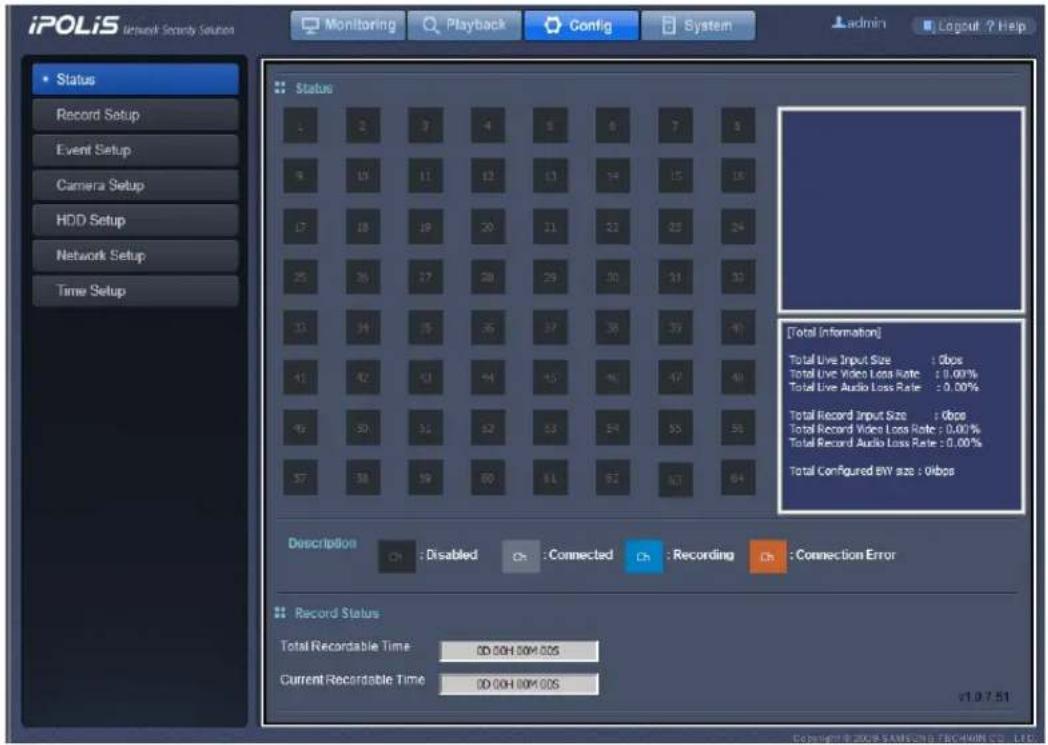

Clicking Config at the top of the screen directs you to a new page, as shown in the screenshot below.
![iPOLiS network Security Solution Monitoring Playback Config System admin Layout ? Help Status Record Setup Event Setup Camera Setup HDD Setup Network Setup Time Setup Status 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 [Total Information] Total Live Input Size : Obps Total Live Video Loss Rate : 0.00% Total Live Audio Loss Rate : 0.00% Total Record Input Size : Obps Total Record Video Loss Rate : 0.00% Total Record Audio Loss Rate : 0.00% Total Configured BW size : Obps Description C: Disabled C: Connected D: Recording C: Connection Error Record Status Total Recordable Time : 0D 0CH 00M 00S Current Recordable Time : 0D 0CH 00M 00S v1.0.7.51](/content/2026/06/1260238/images/53dd94badaf3a70af999164b8193e0a64a6f9ed3e3fa6d44927f89daf205d189.jpg)
Clicking System directs you to a new page, as shown in the screenshot below.

Use the left menu to set up the product. For detailed instructions on each menu item, please refer to "4.6. Config" and "4.7. System" Once a network is set up,
You can use the Monitor Ethernet Port on the product back panel to connect to the product.

Note
- The IP address for the front port is fixed as 192.168.1.100; this value cannot be changed.
- It is strongly recommended that you change the default administrator password (Admin PW) as soon as possible. For instructions on changing the password, please refer to "4.7.3. User Setup"
Chapter 4. Operation
4.1. System Requirements
| Category Minimum Recommended | ||
| CPU Intel Core 2 Quad2.5GHz or higher | Intel i7 or higher | |
| Main Memory 3GB | 4GB or higher | |
| Video Memory 512 | MB 1GB or higher | |
| Display Resolution 1,280 x 1,024 | ||
| Hard Disk 1GB or higher | ||
| Operating System | Windows XP Professional / Windows Vista Business / Windows 7 | |
| Network Gigabit | Ethernet | |
| Miscellaneous DirectX 9.0 or higher | ||
4.2. Compatible Web Browsers
Web Viewer is optimized for use with Microsoft Internet Explorer 6.0 or higher. You must have Microsoft Internet Explorer 6.0 or higher installed on your PC to ensure trouble-free operation of Web Viewer.
4.3. Login
Open a web browser, and then enter the IP address of the product. You are directed to the login page. Enter your ID and password, then click the Login button to connect to the system. You are directed to the Monitoring Page. If you have not set up your own ID and password yet, the default ID is "admin", and the default password is "11111111" (without the quotation marks.) For instructions on changing the ID and password, please refer to "4.7.3. User Setup".


Note
- To connect to the product using the front network port, please make sure to enter 192.168.1.100. To connect to the product using the rear Monitor Ethernet Port, make sure to enter the IP address assigned to the port.
- The connecting port and computer must be within the same network.
- For an HTTP port number with any value other than 80, then the access address is http://
: .
For example if the IP address is 192.168.1.110, and the HTTP port number is 8080, then the address for Web Viewer is http://192.168.1.110:8080. - For instructions on changing the Monitor Ethernet Port IP address, please refer to "4.6.6. Network Setup"
4.4. Monitoring
If you are logging in to your Network Video Recorder for the first time, or if you click the Monitoring button at the top of Web Viewer, you will be directed to the Monitoring Page where you can view the video feeds from the cameras connected to your product.
![iPOLiS Network Security Solution Monitoring Playback Config System admin Logout 2 Help Auto sequence Group 1 Channel 1 Pause Capture Info DIT PT ZF OSD Set Esc PTZ speed 1 2 3 4 5 6 Slow Fast [2008/04/15 01:47:07] MD (CN(ch40)) [2008/04/15 01:03:57] MD (DIF(chRT)) [2008/04/15 01:08:58] MD (CN(ch10)) []](/content/2026/06/1260238/images/64c27f43b8a048a9f784cfc2572aeaa53ffe830c207cdadc46b7b15d7043c41a.jpg)
4.4.4. OSD Control
When clicking on a channel video, the video screen is outlined in orange to indicate that it is selected. To display the camera OSD of the selected channel, click 📷 on the left side of the screen.  To control the OSD menu, click the ← → SET ESC buttons at the bottom of the video screen. To move between OSD menus and change the settings, use the arrow buttons. To move to a sub menu or apply new settings, click the SET button. To move back to the previous menu, click the ESC button. Instead of the SET and ESC buttons on the video screen, you may also use the ← and 📋 buttons next to the 📋 button. For detailed instructions on setting up an OSD, please refer to the user manual for the respective camera.  Note Control of PTZ operations, Preset and OSD is not available in AXIS camera.4.5. Playback
Click Playback at the top of the screen to display the Playback screen. This screen lets you watch saved videos. There are two ways to use the Playback option; Time enables you to search and watch videos by the recorded time and date, while Event lets you view videos according to events that have occurred. When connecting to the Playback screen for the first time, the Time Search menu appears as the default.4.5.1. Time Search
 - Channel: Enables selecting a channel. - To watch a video conveniently, select a date on the calendar under the Channel button. Dates available with videos are displayed in blue, e.g. 4 5 - Time Area: While the video screen is paused, selecting a time and clicking the Play button plays a video at that time. While a video is being played, the Time area displays the recorded time of the video. ■ Sound Button: Turns audio on or off for the current video. - Capture Button: Captures a screenshot of the current screen in JPG format. ■ Info Button: Displays the channel name and recorded time of the current video. DIT Button: Activates or disables the Deinterlace option for the current video. \- REW and FFW Buttons: Rewind, fast forward, and adjust the current video play speed. While a video is playing, the buttons change to 8x, 4x, 2x, 1x, 1C, 2X, 4X, 6X, indicating the play direction and speed. The adjusted play speeds are 1x, 2x, 4x, and 8x backward and forward. Each time the REW or FFW button is pressed, the play speed changes by one level. (Playback or movement by the frame is not supported.) \- PLAY Button: Plays a video. While a video is playing, it changes to the “(PAUSE) button. Clicking the PAUSE button pauses the current video. \- Stop Button: Stops a video. \- Move the ☐ knob on the slider below the playback screen to seek to a specific video time. A time with available video is highlighted in blue on the time slider while a time with event video is in red. 4.5.2. Event Search
 displays the Event Search screen, as shown in the picture below. For detailed about events, please refer to "4.6.3. Event Setup"  - Input Group own Area: Enables selecting an Event Input Group. - Channel 5 Area: Enables selecting a channel that contains the record of the selected Event Input Group. Area: Enables selecting the beginning and ending times to search events. - Button: Displays a calendar, as shown on the next page, enabling you to select the beginning and ending dates and times for searching events. Select a date and time, and then click Apply.   \- Search Searches videos with conditions that match a selected event type, channel, date and time, and then displays the first 10 results at the bottom of the screen, as shown in the screenshot below. To play a video, click on a result. To check all the 10 results, move the in the right of the screen upward and downward.| Start Date/Time | End Date/Time |
| 2009/04/12 17:22:51 | 2009/04/12 17:23:26 |
| 2009/04/12 17:25:21 | 2009/04/12 17:25:44 |
4.6. Config
The following screen appears when Config at the top of the screen is clicked. Clicking on a button on the left menu directs you to the corresponding page. 4.6.1. Status
Displays the current status of each channel along with the free storage space of the product at the bottom.  The Status Page lets you check the status of all channels in one screen. Dark gray indicates an unused channel. Light gray indicates a channel that is connected to a camera, but is not in recording mode. Blue indicates a channel that is in recording mode. Orange indicates a channel that is experiencing a connection problem with its camera. Details will be provided in the right. The commonly displayed items include: the current bit rate for each of Live and Record, Video Loss, and Audio Loss. On the bottom, the specified bandwidth will be added for your reference. In the meantime, the channel information will be displayed in the upper area while the statistics for the entire channels will be listed in the bottom. When selecting a channel that is Connected or Recording, the bitrate as well as video and audio losses for the channel are displayed. For a channel in Connection Error state, it displays the error information.  Note - "Live" indicates a live video feed. "Record" indicates a live video feed that is being recorded and saved in the product's HDD. - "Record" uses data from the last 8 seconds to calculate statistics; there may be a slight discrepancy between the bitrates of "Live" and "Record," even when all the frames coming from the camera are being stored normally. Record Status displays remaining recordable hours under the current recording settings. Total Recordable Time displays a total recordable time of all connected data storage units. Current Recordable Time displays remaining recordable hours based on the current free storage space of the product. If the HDD becomes full during the Repeat Recording mode, the Current Recordable Time menu displays Repeat Recording. Please Refer to "  Caution \- If you see a message of "Setup fail : bitrate exceeds" or "Setup fail : framerate exceeds" (see the figure below), you cannot add a camera any more.  4.6.5. HDD Setup"
4.6.2. Record Setup
Select a channel on the left of the screen to choose its video recording method.  Select a channel on the left side of the screen to choose its video recording method. To choose time and a method of saving a video on each day, select one of Normal Record, Event Record, or , and then drag the cursor in the bottom timetable to make a selection. Different colored blocks of hours and days indicate different record modes. Upon selecting, the name of the record mode buttons are Bolded and Italicized to Normal Record, and No Record Normal Record mode records video always at a set frame rate while Event Record changes its frame rate for events. You can select an Event Input Group or Own Event to activate Event Record mode. When selecting an Input Group, Event Record is activated for events corresponding to the Input Group. When selecting Own Event, Event Record is activated for all events occurring in the selected channel. For Event Record, "Pre Recording Time" defines the amount of time before the Event, and "Post Recording Time" defines the amount of time that elapses after the Event, to employ a special frame rate for storing video. You can have up to 5 seconds of Pre Recording Time, and up to 60 seconds of Post Recording Time. You can search videos recorded by Event Record in the Playback screen. For instructions on setting up events and Input Group, please refer to "4.6.3. Event Setup" You can select different frame rates for each recording mode: Normal Record, Event Record – Active (when an event occurs), Event Record – Inactive (while no event is detected.) For Normal Record and Event Record – Active, All frames, I frames, and 2 I frames are available. For Event Record – Inactive, All frames, I frames, 2 I frames, and No Record are available. Choose "All frames" to store all video feeds from the camera while "I frame" stores only the 1 frame of the video feed per 1second. Choosing "2 I frames" stores only the I frame of the video feed per 2 seconds. No Record does not record any video.  Note New settings are applied only if you click 4.6.3. Event Setup
From this screen, you can configure Event-related settings. ◆ Local Sensor Type
Local Sensor Type let you select the operation type for Sensor 1 and 2 between Normal Open and Normal Close. Normal Open activates a sensor input when the contact type is short or the dynamic type is at the Low level. Normal Close activates a sensor input when the contact type is open or the active type is high impedance (open collector). For more information about sensors, please refer to the user's manual of each sensor.Event Input/Output Group
Event Input Group defines a group of events that may occur in cameras and the Network Video Recorder; Event Output Group defines a group of responses that cameras and the Recorder may take for a particular event. Click Add under either Event Input Group or Event Output Group to see the following screen. This screen also appears when selecting a group and then clicking Modify, or simply double clicking on a group.  Enter a new group name in the Input Group or Output Group pane. The list below the panes displays the channel camera names along with the product. To display available Input Event or Output Event sources, double click on a camera or the product. For Input Group, available options include Sensor and MD (Motion Detector), and Relay, E-mail, and Beep for Output Group. (For more information about input and output signals for cameras, please refer to the user manual of each camera.) Check on all options to include them in the new group, and then click Apply to create the group via the Add button, or apply new settings via the Modify button. Close closes the Group Settings window without creating a group or saving new settings.  For Output Group, Output Source Duration is available to add and modify. Beep and Relay actions duration can be set from '1second' to 'always' (to make actions keep operating once an event occurs). To delete a group, select a group in a group list, and then click Remove.Event Action Group
Event Action Group links Event Input Group and Event Output Group into one functional unit, so that when an Event included in the Event Input Group occurs, all the responses included in the Event Output Group are included. Click Add under Event Action Group list, and you'll be directed to the screen shown below. This screen also appears when selecting a group and then clicking Modify, or simply double clicking on a group.  First, enter a new group name in Group Name. Then select Event Input and Output Groups in the Input Group and Output Group list. Events registered for the selected Input and Output Groups are at the bottom of the screen. Click Apply to create the group. Close closes the Group Settings window without creating the group. To delete a group, select a group in the Group list, and then click Remove. Deleting an Input or Output Group deletes an Action Group corresponding to the Input or Output Group.4.6.4. Camera Setup
 Select a channel in the left list; you can view or modify its camera settings. Active channels are displayed with ☐ while inactive ones are with ☐ ■ Disable Enable: Selecting Enable activates a channel. - Channel Name: Name a channel. Channel Name is displayed on the top of the Monitoring and Playback screens. - Model: Select the model number for a camera. In addition to network cameras, you can choose network video servers such as the SNS-100, SNS-400, etc. - Connection Type: Select the connection type for a camera between Static IP and DDNS. \- To use Static IP, enter the IP address and connection port for a camera. \- To use DDNS, enter the DDNS server address and user ID. - ID, Password: Enter the login ID and password for a camera. - Picture Type: Select an image save method between MPEG and JPEG formats. \- Video Quality, Video Resolution, Video Framerate: Select a video quality, resolution, and video frame rate. Selecting higher settings for these will give you higher quality video, at the expense of network bandwidth and disk storage capacity.  Note - The product's maximum frame rate is limited and varies depending on the resolution and RAID settings. (Refer to the product specifications page.) - The frame rate of a channel with its Picture Type set to JPEG is double that of a channel with its Picture Type is set to MPEG when calculating total frame rate. - The system is a single-stream based device that proceeds with recording and live playback in the camera mode specified in the Camera Setup page.  Note - Video Mode shows the selected camera's color encoding system, NTSC or PAL, and cannot be modified. - The available resolutions differ depending on the network camera. For a resolution of higher than 720p, no separation between NTSC and PAL exists, and the maximum frame rate will be changed accordingly.| NTSC PAL | ||
| QCIF | 176 x120 176 x144 | |
| CIF | 352 x240 352 x288 | |
| 2CIF | 704 x240 704 x288 | |
| 4CIF | 704 x480 704 x576 | |
| D1 | 720x480 | 720 |
| 720p | 1280x720 | |
| 960p | 1280x960 | |
| FullHD | 1920x1080 | |
| QVGA | 320x240 | |
| VGA | 640x480 | |
| SVGA | 800x600 | |
| XGA | 1024 x768 | |
| SXGA | 1280 x1024 | |
| UXGA | 1600 x1200 | |
| QXGA | 2048 x1536 | |
| NTSC PAL | |
| D1 704x480, 4CIF, 640x480 704x576 | |
| Half D1 704x240, 2CIF 704x288 | |
| CIF | 352x240, 320x240 352x288 |
4.6.5. HDD Setup
From this page, you can configure the storage devices connected to the system.  HDD On top of the screen the types and statuses of internal HDDs, external HDDs, and/or NAS devices currently connected to the system are listed. Internal and external HDDs give their model, record times, "total size" (total capacity) and "free size" (remaining capacity); NAS devices give their user-assigned names and current connection statuses. RAID-configured internal HDDs are displayed as "RAID" instead of "Internal" and their model names are replaced by the raid mode: "RAID1 MODE" or "RAID5 MODE." While an HDD is being formatted, an HDD is in the disk checking process, and a new RAID mode is being configured; "Formatting," "Testing," and "Building" are displayed instead of the device model names. Set Repeat Recording to On, and the system will automatically erase the oldest recorded video to make room for new video when no free space remains on the HDD. To renew the list of connected HDDs, click Refresh. When you select an HDD, HDD Format appears; click it to format the selected HDD. While formatting is in progress, the front LCD displays the following message. Formatting HDD is in Progress... HDD Format [DONE] While an HDD is being formatted, an HDD is in the disk checking process, or a new RAID mode is being configured, the product cannot be used to format another new HDD; the HDD Format button is not displayed even if you select an HDD in the list. Selecting a NAS and then clicking HDD Format does not format the entire NAS; it only deletes the entire video data of a selected NAS.  Note New Repeated Recording setting is applied only if you click at the top of the screen.Auto Deletion
In In Auto Deletion, you can select and specify necessary items of Auto Deletion as well as the storage period. Set the Mode item to On and specify the storage period in the Duration item. Then, press Apply in the right side. This will automatically delete older data in the HDD than the specified period. The storage period can be specified by the day, ranging from at least one day to a max of 365 days.  Note If you activate Auto Deletion for the first time, HDD data older than specified will be deleted automatically and it may take a while until the Auto Deletion mode gets started.RAID Mode
In the RAID Mode menu, you can change the system RAID settings. To change the settings, select Normal, RAID1, or RAID5, and then click Apply on the right. Normal is the non-RAID mode. Upon applying new RAID settings, the system automatically reboots itself; you will be disconnected from Web Viewer. The system requires approximately 2 minutes to reboot and establish a network connection. While the new RAID settings are being applied, the front LCD displays the following messages according to the progress. Preparing RAID1 is in Progress... Rebooting system is in Progress... Build RAID1: 48.8% Finish: 37.6min RAID1 Setup [DONE] Unbuilding RAID is in Progress... Rebooting system is in Progress... Unbuilding RAID [DONE] When the system is in a RAID mode, RAID Status appears on the right.  RAID Status Displays the current RAID status of the system along with the information of RAID-configured HDDs.  While building a RAID mode, Build Stop appears in the RAID Status screen. Clicking the button aborts the RAID building process. Note
- RAID (Redundant Array of Independent Disks) helps you keep data safe in case the system HDD is damaged. - Selecting RAID1 mode configures HDD1 and HDD2 as one array, and HDD3 and HDD4 as the other array. RAID1 uses 2 physical HDDs as 1 functional HDD. For instance, configuring HDD1 and HDD2—while each is equipped with a 500GB HDD—to RAID1 displays the system's functional HDD as one 500GB RAID. In RAID1 mode, no data is lost even if one of the two HDDs of a RAID array is damaged. - Selecting RAID5 configures 4 HDDs to 1 RAID array. RAID5 uses 4 physical HDDS as 3 functional HDDs. For instance, configuring HDD1, 2, 3, and 4—while each one of them is equipped with a 500GB HDD—to RAID5 displays the system's functional HDD as one 1.5TB RAID. In RAID5 mode, no data is lost even if one of the four HDD is damaged. - RAID1 requires at least 2 HDDs to be equipped next to each other—HDD1 and HDD2, or HDD3 and HDD4—while RAID5 requires all 4 HDDs to be equipped. - To configure a RAID mode, HDDs must be the same size. It is highly recommended that you use the same brand and model HDDs to configure RAID. - RAID settings are available only for internal HDDs. Building RAID using 4 x 500GB HDDs takes approximately 3 hours for RAID1, and 4 hours for RAID5. - (An abnormal system shutdown due to such as disconnected power during RAID configuration will cost you a lot of time to complete the RAID configuration. So it is recommended to use UPS for power supply.) - Changing the RAID settings to a new mode automatically deletes all data in the HDDs of the product, and new video files are not saved until the new RAID mode is completely configured. - When the product is turned off abnormally, i.e. by pulling the AC power adapter out, and then turned on, the product may reconfigure its RAID settings automatically to ensure the integrity of saved data. While a new RAID mode is being configured, existing data is not lost, but new data will not be saved either. - If more than two RAID configured HDDs are broken or removed from the product, the RAID configuration will malfunction, causing data loss. - During use of the RAID, you should never perform “Remove HDD” from the LCD menu whatsoever. - If any one HDD of the pair fails during RAID operation, it is necessary to replace the defective HDD as soon as possible in order to restore the system stability.  CautionNAS
Up to four NAS devices can be connected; each NAS is referred to by its NAS Port. Choose a NAS Port to view or change its configuration. Use lets you determine whether to use the selected NAS Port or not. Name lets you assign a name to the NAS device. NAS Name displays under the Model category in the HDD list at the top of the screen. Default Folder lets you specify a folder on NAS to save recorded video. Enter the IP address, login ID, and password for the NAS in IP, ID, and Password respectively. Note
- Only the CIFS (Samba) file system is supported for NAS ports. - NAS name and default folder name can contain a maximum of 32 bytes, i.e. 32 alphanumeric characters.(English) - A NAS HDD may not appear in the HDD list if it is turned off at the time when the product is turned on for the first time, or the product fails to connect to the HDD for other reasons. In these cases, the product is unable to connect to the NAS HDD automatically even if the problem is resolved. To connect to the NAS HDD, you must change settings to Disable, and then change back to Enable. - If a connected NAS HDD becomes disconnected from the product, its status in the HDD list changes from "Connected" to "Not Connected." In this case, the product automatically connects to the NAS HDD if the problem is resolved. The status of the HDD then reverts to "Connected". - The NAS data-saving speed is slower than internal and external HDDs; this may cause video files to be saved improperly. Note
New NAS settings are applied only if you click at the bottom of the screen. Caution
HDDs MUST not be removed from the system while the system is in operation. To remove HDDs safely, please refer to "5.4. Removing HDDs"4.6.6. Network Setup
You can configure network settings on this screen.  You can use either PPPoE, Static IP, or DHCP as a connection method for the network ports on the rear panel. If you are not sure which method to use, please ask your network administrator for assistance. If the product is connected to a PPPoE-type xDSL line, choose PPPoE as the connection method, and enter the access ID and password. Choose the Static IP connection method if you wish to use a static IP, and enter the IP address, subnet mask, and gateway to use. Choose DHCP if a DHCP server is connected to the network you want to connect to; the DHCP server will automatically assign an IP address for you.  Note - If you are using PPPoE or DHCP, you will find the IP address currently assigned to your product in Assigned IP; you cannot set Assigned IP yourself. - Changing the network connection method from PPPoE to DHCP or Static IP automatically reboots the system. The 3 rear network ports (Refer to "2.2. Back Panel" and "3.1.2. Configuring the Network") are the Monitor Ethernet Port, Source Ethernet Port, and Storage Ethernet Port. The Monitor Ethernet Port connects the monitoring computer to the NVR via the web or the setup program. The Source Ethernet Port connects to the cameras. The Storage Ethernet Port connects to NAS devices. In relation to Monitor Ethernet Port, you can set the connection port number and http port. The http port is used to connect to the product via Web Viewer. If you changed the default value (80) for HTTP Port, then you must append "(your port number)" to the product's address when connecting to your product with Web Viewer. For example, if your IP address is 192.168.1.110 and HTTP Port is 8080 then http://192.168.1.110:8080 is the product access address for Web Viewer. The connection port is used to connect your computer to the product after the http connection is established. You can activate or disable ATC in the ATC Mode menu. ATC automatically adjusts the video quality depending on the network's connection status. Monitor Ethernet Port supports DDNS. By registering your product with a DDNS server, you can connect to the Monitor Ethernet Port from outside by using the DDNS server ID, instead of the product's IP address. If you are using either PPPoE or DHCP to connect to the Monitor Ethernet Port, you'll be assigned a n\`ew IP address each time you connect the product to the network. DDNS is especially useful in these circumstances. Note
Using DDNS
1. Register as a member on iPOLiS home page (www.samsungipolis.com). 2. Log in, and register your NVR with the product registration menu in MY IPOLIS. (Be sure to check for duplicate domains when you register your domain.) You can check if your product has been registered normally on the Product List. 3. Next set DDNS Use to "Enable," enter "www.samsungipolis.com" in Server Domain (without the quotation marks), and finally type in the ID and password you registered with at the iPOLiS home page. 4. You can view the connection status for your registered product(s) on iPOLiS Product List. ("ON" means that the product is connected to DDNS.) 5. Click Connect to Product on the Product List to connect to your product. 6. You also can enter http://www.samsungipolis.com/ID in your Internet browser's address bar to connect to your product. ("ID" is the domain you chose when you registered your product.) Source Ethernet Port can act as a DHCP server to assign an IP address to a connected camera. Enter two IP addresses—the first and last addresses of an IP range—to limit the range of dynamic IPs. This DHCP Server option is especially useful when you want to open only the NVR to an external network and keep the connected cameras within the internal network.  Note To use the DHCP Server, the connection method for Source Ethernet Port must be set to Static IP.  Note - The front network port (Config Ethernet Port) is fixed as IP 192.168.1.100, HTTP Port 80, Connection Port 4000; you cannot change this setting. - When connecting to the system via the Monitor Ethernet Port instead of the Config Ethernet Port, changing the settings of the Monitor Ethernet Port may terminate the connection. If this happens, you must use the new address to connect to the product.  Caution If you change the information of DHCP server, it may take a max of 5 minutes to apply the changes to the system. All ports use the same DNS server; you can have up to two DNS servers. DNS1 is used as the default, and DNS2 is used when DNS1 is unavailable. Using RTP/RTSP lets you watch the video of the SRN-6450 in the monitoring system without using Web Viewer. To use RTP/RTSP, select "Enable" in the Use RTSP menu, and then change the RTSP and RTP port numbers in the Settings menu. (RTSP is used to control video, and RTP is used to transfer video data.) The Multicast option is useful when sending video to multiple users simultaneously without consuming too much bandwidth. Multicast is available only within a local network that is configured with a multicast-enabled router; it cannot be used via the Internet.  Note - The RTSP port number cannot be identical to the number of the connection port for the Monitor Ethernet Port. - Please be advised that you should not change the address unless you are familiar with the RTP multicast protocol. The default Multicast address is 224.0.1.1. - RTSP monitoring is applied only to a MPEG-compliant camera. (H.264 and JPEG-compliant cameras are not supported) Note
To connect your computer to the product and watch video via RTP/RTSP, please follow the instructions below. For a video player, we recommend using VLC Media Player(Some players such as Quicktime may not function correctly, as they do not support interlacing.) VLC Media Player's menu configuration may vary depending on its version. (Version 0.9.8a or higher.) 1. In the Network Setup page, select "Enable" in the Use RTSP menu. To use Multicast, select "Enable" in the Use Multicast menu. 2. Install and run VLC Media Player in your computer. Under the Media menu, select Open Network or simply use the shortcut key (Ctrl+N) Select RTSP under Protocol.   4. Depending on the type of a video, enter an address as from the examples in the following chart, and then click Play. When using the default RTSP port number, 554, you may skip entering the port number.)| Video Type Address | ||
| Live | Unicast rtsp://:/ch_mpeg4.stw | |
| Multicast rtsp://:/mch_mpeg4.stw | ||
| Recorded | Unicast | rtsp://:/ch_mpeg4__.stw |
| Multicast | rtsp://:/ch_mpeg4__.stw | |
4.6.7. Time Setup
This page deals with the system's time settings.  You set the current time for the product under Current Time. Current date is located above; current time is below. Select an item by clicking on it, and use either the up/down arrow keys or the number keys on your keyboard to change its value. The + up/down button can be used instead of the keyboard to change the current time. To display a calendar, click ↓ in the date window. The current date of the product is highlighted in blue. The current date of the product is highlighted in blue. The current date of your computer is circled in red on the calendar, as well as written on the bottom of the calendar. To move to the previous or next month, click ↓ or ↑ at the top of the calendar. To change the current date, click on a date on the calendar.  Date Format lets you choose either yy.mm.dd, mm.dd.yy, or dd.mm.yy for displaying the current date. yy is year, mm is month, and dd is day. You can choose between 24-hour and 12-hour time formats for displaying the current time in Time Format. Click Time Zone to select your time zone and city. If your city observes Daylight Saving Time, it will be applied automatically. You can also manually decide whether to use DST or not with DST Use. You can choose to use an NTP client and NTP server in the NTP menu. NTP (Network Time Protocol) synchronizes the time among the various devices and systems connected to a network; NTP client automatically communicates with registered NTP servers to adjust its time setting. To use an NTP server other than the default one, change Public Server Address.  - Changing the GMT settings automatically changes Current Time. - Synchronizing the time settings of the NTP server and the product may take a while if you change NTP client settings from Disable to Enable. Updating the time settings of the product does not take effect immediately; you must refresh the screen by opening the Time Setup page. - To use the NTP client option, the NTP public servers and the Monitor Ethernet Port must be within the same network. - When the NTP Server option is activated, the Source Ethernet Port acts as the NTP server.  New Current Time settings are applied only if you click . New Time Configuration and NTP settings are applied only if you click Apply.4.7. System
The following page appears when selecting at the top of the screen. By clicking on one of the buttons on the left of the screen, you can go to the page that corresponds to the function described on that button. 4.7.1. Upgrade
Displays the current firmware version of the system, and enables resetting the settings. F/W Version
At top of the screen is the current firmware version. Click Show Detail for more details as shown in the screenshot below. F/W Upgrade
To upgrade the firmware of the product, click under the F/W Upgrade menu, and then select a firmware file to upgrade. Selecting a firmware file activates File Send under . Click it to begin upgrading the file.   Note To download the latest firmware files, please visit Support > Download Center at www.samsungcctv.com. Upon completing the upgrade progress, the system automatically reboots itself; you will be disconnected from Web Viewer. The system requires approximately 2 minutes to reboot and establish a network connection.Set Default
Get Default resets the settings of the Record, Event, Camera, and User menu. For more information about the default settings value, please refer to "2.3. Default Settings"❖ Import / Export Configuration
You can save the product's current settings as a file, and then use the file to restore the settings in the future. To save the current settings of the product as a file, click the Export button, and then set the filename and path. To reboot and restore old settings from a file, click the Import button, and then select a settings file.  Caution When importing old settings, if the old RAID settings are different than the current, all the internal HDD data will be deleted.4.7.2. System Log
You can view the System Log on this page.  Log Kind lets you choose which log to view: Event Log, or System Log. System Log displays the product operation logs while Event Log displays the logs of Event inputs sent from connected cameras. Selecting a log type in the Type option displays only that type of logs. To see the history of the system settings changes or event group changes, double-click on a log file of the Configuration Changed or Event Group Created type. The details appear as shown in the screenshot below.  Prev and Next moves to the previous or next page. To move directly to a page, enter the page number in the text box, and then click Move. To save a system log file to your computer, click Export Up to 10,000 logs each for System Logs and Event Logs can be saved. If the number of either log exceeds 10,000, the system automatically deletes the oldest logs. The following chart displays the various log types.| Log Type Description | |
| Power On Power was turned on. | |
| Power Off Power was turned off. | |
| System Rebooting System re-booted. | |
| Record On Started to record video. | |
| Record Off Finished recording video. | |
| HDD Format An HDD was formatted. | |
| Camera Connection A camera was connected. | |
| Config Changed Product configuration was changed. | |
| HDD Full Capacity limit for HDD was reached/exceeded. | |
| HDD Added An HDD was added. | |
| HDD Removed Removing HDD. | |
| RAID Build Start Started building a RAID array. | |
| RAID Build Finish Completed building a RAID array. | |
| RAID Unbuild | A RAID array has been removed. |
| RAID Rebuild Start | RAID was rebuilt. |
| Event Group Created | An Event Group was created. |
| Event Group Deleted | An Event Group was deleted. |
| Key Lock On | Key Lock was locked. |
| Key Lock Off | Key Lock was unlocked. |
| HDD Test | HDD disk-checking was performed. |
| Log File Export A log was exported. | |
| Firmware Update | Firmware was updated. |
| Set Default | Set Default was executed via Web Viewer. |
| Factory Reset | Factory Reset was performed using the front panel button. |
| RAID Error | A RAID error occurred. |
| HDD Check Error | An HDD checking error occurred. |
| HDD I/O Error | An HDD encountered an I/O error. |
| Upgrade Error | A firmware update error occurred. |
| Network Status Connection to network was either lost or re-established. | |
| Camera Connection Error | An error occurred while connecting to a camera. |
| Export Config Product settings were exported to the monitoring computer. | |
| Import Config Old product settings were imported and restored. | |
| Backup Back up stored data | |
| Log-in | User login |
| Log-in Failed Attempted to login but failed | |
| Log-out | Use logout |
| DDNS Reg Failed Failed to register DDNS | |
| Log Type Description | |
| Motion Detection Movement Detected. | |
| Sensor | Sensor Setup. |
| Relay | Relay Output. |
| V Loss Video was lost from a camera. | |
| Monitoring Connection The Live screen was connected. | |
| Input Group An Event included in Input Group occurred. | |
| Output Group An Event included in Output Group occurred. | |
| Intelligence An Event specified in the Intelligence feature occurred. | |
| Alarm Manually cleared | Use NVR-front button to set off the beep. |
| Playback Started | Access the Playback page to check the video. |
4.7.3. User Setup
On this page, you can set the Admin password, and set the ID, password, and privileges for the User account.  In Admin, you can set a new Admin password. Enter the current password in "Old Password", enter a new password in "New Password", confirm the new password in "Re-type New Password", then click the Apply button. The Admin password is used for logging in to the Admin account, which is the system administrator account with the highest permissions level. In addition to the Admin account, you can set up one user account with limited permissions. The User account is granted permissions by the Admin under the Authority menu. Monitoring and Playback refer to the menus used when accessing the product via Web Viewer; PTZ/OSD Control refers to the connected cameras' PTZ and OSD functions. (Refer to "4.4.3. PTZ Control" and "4.4.4. OSD Control" If you wish to change the User account's ID, password, or privileges, you can do so by entering the new ID in User ID, entering the new password in Password, and checking the permissions to grant to the User account. Click Apply to enable the changes.4.7.4. Backup
Backup video files from the product to a computer.  To select a recorded period for backup video files, click the Time button. Selecting a channel in the Channel dropdown menu displays the channel's recorded period in the From and To panes under the Date/Time menu. Select the beginning and ending time of the backup video files in the From and To panes, and then click the Backup button to start backing up the video files.  To back up specific event video files, use the Event button and search events. Selecting an Event Input Group in the Input Group pane displays a list of channels that contain the selected event video files. Select a channel, select desired times in the From and To panes, and then click the Search button to display a list of the selected event video files that are saved within the selected period. Select backup video files in the list, and then click the Backup button to start backing up the files. To select multiple files, use Ctrl + click or Shift + click. Clicking the Select All button selects all search results.  Note \- The maximum searchable period is 7 days. \- If more than 500 event video files are recorded within a selected search period, data saved after a day for which 500 or more accumulated video files are recorded is not searched. (For example, if video files are searched from 10^th to 15^th and 800 accumulated video files are saved by 11^th , the program will not search data saved after 11^th , and will display search results only up to the 800^th file.) \- Events that occurred during Normal Record mode cannot be searched. \- Do not click a mouse button or press any key during the backup process. If the cursor position on the window is changed by your selecting other item or moving to other tab, backup will not be performed properly. Backup will be stopped if you enter a different item during the process.| Index | CH | Start Time | End Time | Download Status |
| 0 | 1 | 2009-05-13 21:14:35 | 2009-05-13 21:14:50 | Downloading... 2009-05-13 21:14:49 |
| 1 | 1 | 2009-05-13 21:15:33 | 2009-05-13 21:15:39 | waiting... |
| 2 | 1 | 2009-05-13 21:16:30 | 2009-05-13 21:16:37 | waiting... |
| 3 | 1 | 2009-05-13 21:18:47 | 2009-05-13 21:18:54 | waiting... |
| Button Name Function | ||
| 1 | Select Folder | Use this button to open a folder that contains backup video files. Available video files are listed in the order of time or channels. |
| 2 | Select/Deselect | Select or deselect all files. |
| 3 | Select File | Select one or more files. |
| 4 | Deselect File | Deselect one or more files. |
| 5 Play Play selected files one by one. | ||
| 6 Stop Stop playing, and deselect files on the play list. | ||
| 7 Channel Info Display information of saved channels. | ||
| 8 | Time Info | Display the running time of a video file that is being played. |
| 9 | Play Speed | Adjust the play speed of the player: 1x, 2x, 4x, and 8x. |
| 10 | Play Options | Play options:Skip back a framePlay backwardPausePlay forwardSkip forward a frame |
| 11 | ScreenSize | Adjust the screen size of the player.- 1x/2x/Full Screen- 704x240 and 704x288 videos can be enlarged by 2x without degrading image quality. |
| 12 | Screenshot | Save the current screen as a JPEG file. |
| 13 | Rotate 180° | Rotate the current screen by 180°. |
| 14 | Audio | Turns audio on or off. |
| 15 | Play List | ◇ : Pending▶ : Play forward◀ : Play backward■ : Pause■ : Stop |
| 16 | Watermark Check | Activate or disable the Watermark Check option. |
Chapter 5. LCD Setup
The front panel LCD displays the current time and recording status by default (shown below.) 2009 Mar 06 08:07 14CH/15CH NORMAL  The first line in the LCD indicates Year, Month, Day, Hour, and Minute. The second line indicates the number of active channels/total channels and RAID mode. By using the LCD and the < , , , > , ENTER, and ESC buttons located to the right, you can check the system's status and change some of its settings. - Up and Down Buttons: Used to move between menus, and select letters and numbers in text mode. - Left and Right Buttons: Used to move the cursor in text input mode. - ENTER Button: Moves to the next phase. - ESC Button: When pushed, it moves back to the previous phase. When holding it down for 2 seconds or longer, it moves to the main screen displaying the current time and recording status.  Note The buttons are locked when the front panel key Lock is locked.5.1. System
On the default LCD screen, press ∧, ∨ to move to the screen shown below and press ENTER.1. System
[SET]
Sub-menus will appear where you can use the ∧, ∨ buttons to navigate.
1. Firmware Version
2. Key Beep On/Off
3. Relay off
4. System Update
5. Factory Reset
6. Test HDD
7. System Power Off
5.1.1. Checking Firmware Version
Under System, select 1. Firmware Version, and then press Enter. The current firmware version of the system displays as shown in the illustration below. Below is a sample picture provided for your reference; the firmware version differs depending on the model.Firmware Version
0.1.4-090309
5.1.2. Turning On/Off Beep
You can turn the beep of the front panel buttons on or off using this menu item. Under System, select 2. Key Beep On/Off, and then press ENTER.1. On
2. Off
Selecting "1. On" and pressing Enter turns on the beep. Selecting "2. Off" and pressing Enter turns off the beep in each case, the following messages appear.
Key Beep is On!
Key Beep is Off!

Note
The beep sound automatically turns on after rebooting the system, even if it is turned off.
5.1.3. Relay Off
Under System, select 3. Relay Off, and then press ENTER button. The following message appears while Relay 1, 2 outputs on the rear panel are removed. Relays are off!  Note \- For detailed instructions on the relay output setup, please refer to "4.6.3. Event Setup" \- The beep sound followed by events occurred is turned off if you press any button on the panel.5.1.4. System Update
 Note \- To update the system, a USB flash drive containing the update file must be connected to the USB port on the rear panel. \- The firmware update file must have a file name that starts with "srn", and a filename extension ".bin". \- The firmware update file must be located in the root directory of the flash drive. If more than one update file exists on the flash drive, the firmware update might not install properly. \- To download the latest firmware files, please visit Support > Download Center at www.samsungcctv.com. Under System, Select 4. System Update, and then press Enter. If a USB flash drive containing a firmware update file is detected, the system displays a message prompting to see if you want to continue or stop updating, as shown in the illustration below. Warning! All actions will be stopped Update Firmware? Yes: Enter No: Esc When pressing Enter, the following messages appear while the firmware is being updated. Once the update process is complete, the system automatically reboots itself. To move back to a previous phase, press ESC. To cancel the update and move back to the main screen, hold down ESC for 2 seconds or longer.System Update
is in Progress...
System will reboot after 5 seconds
Rebooting system is in Progress...
If a USB flash drive is not inserted into the product back panel USB terminal, the following error message appears.
There's no usb stick
Check usb please...
If a USB flash drive is inserted, but does not contain a firmware update file, the following error message appears.
No f/w file in usb
Check usb please...
5.1.5. Initializing Settings
Under System, select 5. Factory Reset, and then press ENTER. A message appears on the display prompting you to confirm that you wish to reset all configurations to their defaults.Warning! All actions
Will be stopped
Are you sure?
Yes: Enter No: Esc
Upon pressing Enter, the following messages appear while settings are being initialized. When initialized, the system reverts to the factory default settings. To move back to a previous phase, press ESC. To cancel the initialization and move back to the main screen, hold down ESC for 2 seconds or longer.
Factory reset
is in Progress...
System will reboot after 5 seconds
Rebooting system
is in Progress...
For more information about the default settings value, please refer to "2.3. Default Settings"

Note
The Factory Reset does not reset the RAID settings of the system or delete data saved in the HDDs.
5.1.6. HDD Check
Under System, select 6. Test HDD, then press Enter. The following messages appear asking you to select an HDD to check.HDD to examine
Internal HDD? [1]
HDD to examine
RAID PARTITION? [1]
Selecting an HDD displays a message asking if you really want to perform disk-checking for the selected HDD.
Record on this HDD will be stopped
Are you sure?
Yes: Enter No: Esc
When pressing ENTER, the following message appears as the disk-checking process is initiated. Once the process is complete, the screen displays the check results.
Executing...
Please Wait!!!
Examining Int HDD[1] is in Progress...
Examining Int HDD[1] [DONE]
HDD test result:
0 bad block
The check results stay on the screen until you click a button.
When selecting an HDD that is not available or connected, the following message appears.
Internal HDD [1] is empty!!
RAID PARTITION [1]
Does not exist!
Check HDD to Examine
Please Try Again

Note
- While an HDD is being checked, new data is not saved in the HDD or its RAID array. However, if another HDD or another HDD array is available then new data is saved in the HDD or array.
- The HDD disk-checking option is available only for internal HDDs.
5.1.7. Shutting the System Down
Under System, select 7. System Power Off, and then press Enter. The following message appears prompting you for if you really want to shut down the system. Are you sure? Yes: Enter No: Esc Upon pressing Enter, the following messages appear while the system shuts down. To move back to the previous phase, press ESC. To cancel shutting down and move back to the main screen, hold down ESC for 2 seconds or longer. Preparing Poweroff is in Progress... System will be down in seconds These messages also appear when the power switch on the product back panel is flicked, until the system is completely shut down.5.2. Network Setup
On the default LCD screen, press ∧, ∨ to move to the screen shown below and press ENTER. 2. Network Setup [SET] Sub-menus will appear where you can use the ∧, ∨ buttons to navigate. 1. Monitoring Port 2. Source Port 3. Storage Port  Note For information on each network setting and its operation, please refer to "4.6.6. Network Setup"5.2.1. Monitor Ethernet Port Setup
The Monitor Ethernet Port is a port used to connect your computer to the product. Under Network Setup, select 1. Monitor Ethernet Port, and press ENTER. 1. Use Static IP 2. Use DHCP (Client) 3. Use PPPoE 4. Use DDNS Use one of the first 3 options to set an IP address for the Monitor Ethernet Port. Selecting menu item 4 lets you to use DDNS instead of an IP address.Static IP Setting
Press ∧ and ∨ to select 1. Use Static IP, and then press Enter.IP Address
0.0.0.0
Press the ∧, ∨ buttons to select numbers (0\~9), space, and period (.); press the <, > buttons to move between digits. Once you have finished entering the IP address, press Enter.
Subnet Mask
0.0.0.0
Gateway
0.0.0.0
DNS1 Server IP
192.168.1.1
Enter the Subnet Mask, Gateway, and DNS Server 1 address the same way.
Confirm IP Setup?
Yes: Enter No: Esc
Pressing Enter moves to the next screen, as the IP address for Monitor Ethernet Port is being saved. To move back to the previous phase, press ESC. To cancel the new settings and move back to the main screen, hold down ESC for 2 seconds or longer.
IP Setup
[DONE]

Note
- The DNS1 address can be set under Monitor Ethernet Port Port > Static IP. The DNS 2 address is under Source Port > Static IP. Once set, these DNS servers are used by all ports.
- DNS1 is used as the default, and DNS2 is the backup.
DHCP Client Setup
Press ∧ and ∨ to select 2. Use DHCP (Client), and then press Enter.Use DHCP Client?
Yes: Enter No: Esc
Pressing Enter moves to the next screen, as Monitor Ethernet Port is updated to use DHCP. To move back to the previous phase, press ESC. To cancel the new settings and move back to the main screen, hold down ESC for 2 seconds or longer.
Client Mode Setup
[DONE]
◆ PPPoE Setup
Press ∧ and ∨ to select 3. Use PPPoE, and then press Enter.ID
a
Press the ∧, ∨ buttons to select characters (a\~z) and spaces; press the <, > buttons to move to the next character. Once you have finished entering the ID to use, press Enter.
Password
a
Repeat the steps to enter a password, and then press Enter.
Confirm PPPoE Setup?
Yes: Enter No: Esc
Pressing ENTER moves to the next screen, as the new PPPoE settings of Monitor Ethernet Port are being saved. To move back to the previous phase, press ESC. To cancel the new settings and move back to the main screen, hold down ESC for 2 seconds or longer.
PPPoE Setup
[DONE]

Note
\- Changing the network connection method from PPPoE to DHCP or Static IP automatically reboots the system.
DDNS Setup
Press ∧ and ∨ to select 4. Use DDNS, and then press Enter.Server Domain
www.samsungipolis.co
The default DDNS server is www.samsungipolis.com. To use a DDNS server other than iPOLiS, use ^ and ∨ to select from alphanumeric characters (a-z and 0-9), space, and period (.); use < and > to move between characters and edit the default DDNS address.
Press Enter when you've finished entering the DDNS server address.
ID
a
Password
a
Repeat the steps to enter the login ID and password of the new DDNS server.
Confirm DDNS Setup?
Enter: Yes Esc: No
Pressing Enter moves to the next screen, as the new DDNS settings are being saved. To move back to the previous phase, press ESC. To cancel the new settings and move back to the main screen, hold down ESC for 2 seconds or longer.
DDNS Server Setup
[DONE]
5.2.2. Source Ethernet Port Setup
The Source Ethernet Port is used for communication between the product and cameras. Under Network Setup, select 2. Source Ethernet Port, and then press ENTER.1. Use Static IP
2. Use DHCP (Client)
3. Use PPPoE
4. Use DHCP (Server)
Use one of the first 3 options to set an IP address for the Source Ethernet Port. For detailed instructions on the port setup, please refer to Static IP, DHCP Client, and PPPoE setups under
"5.2.1. Monitor Ethernet Port Setup"
Selecting menu item 4 lets you use the DHCP Server option.DHCP Server Setup
Press ∧ and ∨ to select 4. Use DHCP (Server), and then press Enter.IP Range: from
0
Press the ∧, ∨ buttons to select numbers (0\~9), space, and period (.); use < and > to move between characters.
IP Range: to
0
Repeat the steps to enter the ending IP address for the range.
Use DHCP Server?
Yes: Enter No: Esc
Pressing Enter moves to the next screen, as the new DHCP Server settings are being saved. To move back to the previous phase, press ESC. To cancel the new settings and move back to the main screen, hold down ESC for 2 seconds or longer.
Server Mode Setup
[DONE]
5.2.3. Storage Ethernet Port Setup
The Storage Ethernet Port is used for communication between the product and NAS. Under Network Setup, select 3. Use Storage Ethernet Port, and then press ENTER. 1. Use Static IP 2. Use DHCP (Client) 3. Use PPPoE Use one of the 3 options to set an IP address for Source Ethernet Port. For detailed instructions on the port setup, please refer to Static IP, DHCP Client, and PPPoE setups under "5.2.1. Monitor Ethernet Port Setup"5.3. HDD Mode Setup
On the main screen, press ∧ and ∨ to move to the following screen, and then press Enter. 3. HDD Mode Setup [SET] Sub-menus will appear where you can use ∧ and ∨ to navigate. 1. Normal 2. RAID1 2. RAID1 3. RAID5 Select an HDD operation mode, and then press Enter. The following warning message will appear. Normal is the non-RAID mode. Warning! All Record data will be removed After displaying this warning message for 3 seconds, the screen moves to the next screen corresponding to the selected mode. Unbuild RAID? Yes: Enter No: Esc Use RAID1? Yes: Enter No: Esc Use RAID5? Yes: Enter No: Esc Press Enter to change the HDD mode to the selected mode. To move back to the previous phase, press ESC. To cancel the new settings and move back to the main screen, hold down ESC for 2 seconds or longer. While the new RAID mode is being configured, the following messages appear in order, informing of the progress and remaining time. Preparing RAID1 is in Progress... Rebooting system is in Progress... Build RAID1: 48.8% Finish: 37.6min RAID1 Setup [DONE] (When RAID1 or RAID5 is selected.) Unbuilding RAID is in Progress... Rebooting system is in Progress... Unbuilding RAID [DONE] (When Normal is selected.) If the HDD is already set to the new RAID mode, the following message appears. Current HDD mode is RAID1 mode Current HDD mode is Normal mode Check HDD mode and Please Try Again! If the number of equipped HDDs is not enough, the following message appears. RAID1 requires at least 2 HDDs to be equipped next to each other, HDD1 and HDD2, or HDD3 and HDD4, and RAID5 requires all 4 HDDs to be equipped. There are not enough HDD to build RAID5 Check HDD mode and Please Try Again!  Note - RAID (Redundant Array of Independent Disks) helps you keep data safe in case the system HDD is damaged. - Selecting RAID1 configures HDD1 and HDD2 as one array, and HDD3 and HDD4 as the other array. RAID1 uses 2 physical HDDs as 1 functional HDD. For instance, configuring HDD1 and HDD2—while each is equipped with a 500GB HDD—to RAID1 displays the system's functional HDD as one 500GB RAID. In the RAID1 mode, no data is lost even if one of the two HDDs of a RAID array is damaged. - Selecting RAID5 configures 4 HDDs to 1 RAID array. RAID5 uses 4 physical HDDs as 3 functional HDDs. For instance, configuring HDD1, 2, 3, and 4—while each one of them is equipped with a 500GB HDD—to RAID5 displays the system's functional HDD as one 1.5TB RAID. In RAID5 mode, no data is lost even if one of the four HDDs is damaged. - To configure a RAID mode, HDDs must be the same size. It is highly recommended that you use the same brand and model HDDs to configure RAID. - RAID settings are available only for internal HDDs. ■ Building a RAID mode using 4 x 500GB HDDs takes approximately 3 hours for RAID1, and 4 hours for RAID5. (It is recommended to use UPS while configuring RAID because reconfiguring RAID due to a power failure during the first try may take a while.) - Changing the RAID settings to a new mode automatically deletes all data in the HDDs of the product, and new video files are not saved until the new RAID mode is completely configured. - When the product is abnormally turned off, i.e. by pulling the AC power adapter out, and then turned on, the product may reconfigure its RAID settings automatically to ensure the integrity of saved data. While a new RAID mode is being configured, existing data is not lost, but new data will not be saved either. - If more than two RAID configured HDDs are broken or removed from the product, the RAID configuration will malfunction, causing data loss. - During use of the RAID, you should never perform “Remove HDD” from the LCD menu whatsoever. - If any one HDD of the pair fails during RAID operation, it is necessary to replace the defective HDD as soon as possible in order to restore the system stability. 5.4. Removing HDDs
On the main screen, press ∧ and ∨ to move to the following screen, and then press Enter.4. Remove HDD
[SET]
The screen shown below appears where you can use ∧ and ∨ to select the HDD to remove.
HDD Number to remove
Internal HDD? [1]
HDD Number to remove External Bay? [1]
Select the number for an internal HDD or an external HDD bay, and then press Enter. Upon pressing Enter, the following messages appear while the selected HDD is being removed.
Executing...
Please Wait!!!
Remove Int HDD[1] [DONE]
Remove Ext Bay[1] [DONE]
Once the [Done] message appears, you may physically remove the HDD from the product.
When selecting an HDD that is not available or connected, the following message appears.
Internal HDD[1] is empty!!
External Bay[1] is not connected!!
Check HDD to Remove
Please Try Again

Note
The number for an internal HDD or external HDD bay is determined depending on which product port that you connect to. Available numbers are 1, 2, 3, and 4 from the upper left and right to the bottom left and right. Please Refer to "Chapter 2. Part Names"
5.5. Formatting HDDs
On the main screen, press ∧ and ∨ to move to the screen shown below, and then press Enter.5. HDD Format
[SET]
The screen shown below appears where you can use ∧ and ∨ to select the HDD to format.
1. Internal HDD
2. External HDD
2. External HDD
3. All HDD

Caution
Do never format the HDD in the middle of building/rebuilding RAID configuration.
5.5.1. Formatting a Single Internal HDD
Under HDD Format, select 1. Internal HDD, and then press Enter.1. Individual HDD
2. All Internal HDD
1. Select 1. Individual HDD, and then press Enter.
HDD Number to format
Internal HDD? [1]
Use the ^, v buttons to select the number for the HDD to format, then press ENTER.
Format HDD [1]?
Yes: Enter No: Esc
Upon pressing Enter, the following messages appear while the selected HDD is being formatted. To move back to the previous phase, press ESC. To cancel formatting and move back to the main screen, hold down ESC for 2 seconds or longer.
Formatting HDD
is in Progress...
HDD Format [DONE]
When selecting an HDD that is not available or connected, the following message appears.
Internal HDD[1] is empty!!
Check HDD to format
Please Try Again!
5.5.2. Formatting All Internal HDDs
Under HDD Format, select 1. Internal HDD, and then press Enter.1. Individual HDD
2. All Internal HDD
2. Select All HDD, and then press Enter.
Format All HDD?
Yes: Enter No: Esc
Upon pressing Enter, the following messages appear while all internal HDDs are being formatted. To move back to the previous phase, press ESC. To cancel formatting and move back to the main screen, hold down ESC for 2 seconds or longer.
Formatting HDD
is in Progress...
HDD Format
[DONE]
5.5.3. Formatting a Single External HDD
Under HDD Format, select 2. External HDD, and then press Enter.Bay Number to format
External Bay? [1]
Use ∧ and ∨ to select the number for the external HDD bay containing the HDD to format, then press Enter.
1. Individual HDD
2. All HDD in Bay[1]
1. Select 1. Individual HDD, and then press Enter.
HDD Number to format
Internal HDD? [1]
Use and to select the number for the external HDD bay containing the HDD to format, and then press Enter.
Format HDD [1]?
Yes: Enter No: Esc
Upon pressing Enter, the following messages appear while the selected HDD is being formatted. To move back to the previous phase, press ESC. To cancel formatting and move back to the main screen, hold down ESC for 2 seconds or longer.
Formatting HDD
is in Progress...
HDD Format
[DONE]
When selecting an HDD that is not available or connected, the following message appears.
External Bay[1] is not connected!!
External Bay[1] is not connected!!
5.5.4. Formatting All External HDDs
Under HDD Format, select 2. External HDD, and then press Enter.Bay Number to format
External Bay [1]
Use ∧ and ∨ to select the number for the external HDD bay containing the HDD to format, and then press Enter.
1. Individual HDD
2. All HDD in Bay[1]
2. Select All HDD in Bay[#], and then press Enter.
Format Bay[1]?
Yes: Enter No: Esc
Upon pressing Enter, the following messages appear while the entire HDDs of the selected external bay are being formatted. To move back to the previous phase, press ESC. To cancel formatting and move back to the main screen, hold down ESC for 2 seconds or longer.
Formatting HDD
is in Progress...
HDD Format
[DONE]
5.5.5. Formatting All HDDs
Under HDD Format, select 3. All HDD and then press Enter.Format All HDD?
Yes: Enter No: Esc
Upon pressing Enter, the following messages appear while all HDDs—both internal and external—are being formatted. To move back to the previous phase, press ESC. To cancel formatting and move back to the main screen, hold down ESC for 2 seconds or longer.
Formatting HDD
is in Progress...
HDD Format
[DONE]
Troubleshooting
1. Cannot boot.
- Check power. - Check power cord.2. Some channels fail to display video.
- Check camera power. - Check camera video output. - Check Recorder's input port.3. Video is not stored.
- Check the connection of HDDs on the HDD Setup page. - Check the free space of HDDs. - Check video recording setup.4. Stored video does not play.
\- Check video recording setup.5. Video is too bright or too dark.
\- Check camera setup.6. Front panel buttons do not work.
- Check power. - Check Key Lock status.7. Network does not function.
- Check network cable connection. - Check Recorder's IP setup. - Check PC's IP setup. - Run Ping Test. - If Web Viewer fails to show video on a PC, check the PC's technical specifications.8. You must contact your vendor when...
If you are experiencing any of the following issues, you must stop using the product and turn the power off immediately, then contact your vendor for assistance. - If you need to add or replace a HDD - Product is behaving strangely (example: unusual noises, smells, or smoke is coming from the product.) ● The power cable connector has been damaged. ● Rain or other liquid has entered the product. - You have spilled liquid into the product, or foreign material has entered the product. ● The product does not work as specified in this instruction manual. ● The product has been dropped and severely damaged. - There is a noticeable degradation in the performance of the product.  Nota Before installing an additional HDD or connecting an external storage device (USB memory or USB HDD) to this DVR, check the compatibility. For the compatibility list, contact your retailer. Product Specifications| SRN-6450/SNR-6400 SRN-3250/SNR-3200 | |||
| DISPLAY | |||
| Video IP Camera | Inputs 64 channels 32 | channels | |
| Web Support | Live | 1, 4, 9, 16, 36, 64 channelssimultaneously | 1, 4, 9, 16, 32 channelssimultaneously |
| Search | 1 channel | ||
| Control Pan / Tilt / Zoom | / Focus for available camera | ||
| Configuration IP, Port | ID, Password, Picture type, Video Quality, Resolution, Framerate | ||
| PERFORMANCE | |||
| Recording | Compression (IP) H.264,MPEG-4,M-JPEG, supported by the connected camera | ||
| Bandwidth | Up to 48Mbps (Up to 8Mbps eachcamera) | Up to 36Mbps (Up to 8Mbps eachcamera) | |
| Record Rate / MEGA | Up to 160fps@2048x1536 Up to 60fps@2048x1536 | ||
| Up to 320fps@1280x1024 Up to 120fps@1280x1024 | |||
| Record Rate / NTSC | Up to 1,280fps@704 x 480 Up to 480fps@704 x 480 | ||
| Up to 1,920fps@704 x 240 Up to 960fps@704 x 240 | |||
| Up to 1,920fps@352 x 240 Up to 960fps@352 x 240 | |||
| Record Rate / PAL | Up to 1,152fps@704 x 576 Up to 480fps@704 x 576 | ||
| Up to 1,600fps@704 x 288 Up to 800fps@704 x 288 | |||
| Up to 1,600fps@352 x 288 Up to 800fps@352 x 288 | |||
| * Mode Manual, Schedule (Normal / Event) | |||
| Overwrite Modes Continuous | |||
| Pre-alarm Up to 5sec | |||
| Post-alarm Up to 60sec | |||
| Search &Playback | Search Mode Time, Event, Calendar | ||
| Playback Function | REW, FWD (Depends on CMS) | ||
| Network | Bandwidth Control | Automatic (Automatic Transmission Control) | |
| Remote UsersMaximum | 5 Users simultaneously | ||
| Protocol Support | TCP/IP, DHCP, DNS, DDNS, HTTP, ARP, ICMP, NTP, RTP/RTCP, RTSP | ||
| Monitoring | CMS Software Net-I Viewer, Built-in web server | ||
| Storage | Maximum Capacity | Up to 20TB using external storage option | |
| RAID Normal, RAID1, | RAID5 Normal, RAID1 | ||
| Internal HDD Up to 4 | SATA HDDs | ||
| External HDD Up to 4 | expansion bays (up to 4 HDD each) | ||
| NAS Up to 4 NAS connections (CIFS/Samba) | |||
| Security Password Protection 2 User Level | |||
| Monitor DOT Matrix LCD | 20 x 2 status display | |
| Alarm | Inputs | Screw terminal 2 inputs, NO/NC |
| Outputs | Screw terminal 2 relay outputs, NO/NC | |
| Remote Notification | Notification via e-mail | |
| Connections | Ethernet | 3 (RJ-45 100/1000 Base-T), 1 (RJ-45 100Base-T) |
| Serial Interface | RS-232C | |
| USB | 2 USB 2.0 ports (firmware upgrade) | |
| eSATA | 4 External SATA ports | |
| Supported IP Cameras | Samsung Techwin network products, AXIS network cameras (VAPIX,MPEG4 Modes, limited some functions) | |
| Electrical | Input Voltage | 100 ~ 240 V AC ±10%, 50/60 Hz, Auto ranging |
| Power Consumption | Max. 110W (with 1xHDD) | |
| Max.130W (with 4xHDD) | ||
| Environmental | Operating Temperature | +5°C ~ +40°C (+41°F ~ +104°F) |
| Humidity | 0%RH ~ 60%RH | |
| Mechanical | Dimensions (WxHxD) | 430 x 88 x 501 mm (16.92" x 3.46" x 19.73") |
| Weight (4 HDDs) | Approx. 11kg (24.25 lb) | |
| Rack Mount Kit | For mounting one unit in an EIA 19 inch rack | |
| Language (LCD) | English | |
| Certification | FCC (Class A), cUL/UL listed, CE (Class A) | |
Power Cord
Key
Rack Mount and Fixture Screws
HDD Fixture Screws
User's Manual
Quick Reference Guide
NET-I Viewer/User's Manual CD
Cross Cable
HDD Tray (4EA)
