Product Type	Steam Cleaner
Brand	King
Model	K-198
Water Tank Capacity	1.2 L
Heating Time	Approx. 3-4 minutes
Steam Pressure	3.5 bar
Continuous Steam Time	Up to 30 minutes
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	1500 W
Weight	3.5 kg
Dimensions (L x W x H)	30 x 25 x 30 cm
Cable Length	4 m
Accessories Included	Floor nozzle, detail brush, extension tubes, measuring cup, funnel
Main Functions	Steam cleaning for floors, windows, kitchen surfaces, upholstery
Safety Features	Overheat protection, safety lock on handle
Cleaning and Maintenance	Descaling required every 3 months; clean tank with vinegar solution
Spare Parts Available	Replacement nozzles, seals, and heating element
Repairability	User-replaceable parts: fuse, power cord; professional service for heating element
Warranty	2 years from date of purchase
Usage Instructions	Refer to user manual for detailed operation

Frequently Asked Questions - K-198 KING

How do I fill the water tank?

Unplug the unit, open the safety cap, and use the included measuring cup to pour water into the tank. Do not exceed the max line.

Can I use tap water?

Yes, but for best results and to reduce scale, we recommend using distilled or demineralized water.

How long does it take to heat up?

Approximately 3-4 minutes. The indicator light will turn on when ready.

What surfaces can I clean?

Sealed ceramic tiles, glass, stainless steel, and washable fabrics. Avoid unsealed wood or delicate surfaces.

How do I descale the steam cleaner?

Mix a solution of 1 part white vinegar to 3 parts water, fill the tank, run the steamer until half empty, then rinse with clean water.

Why is there no steam?

Check if the unit is plugged in, the water tank is filled, and the safety lock is released. If still no steam, allow more heating time.

Can I use cleaning chemicals?

No, only use water. Adding chemicals may damage the unit and void the warranty.

How do I store the steam cleaner?

Empty the water tank completely, let it cool, and store in a dry place. Wrap the cable neatly around the unit.

Is it safe to use on carpets?

Yes, with the included carpet glider attachment. Avoid saturating the carpet; use quick, even passes.

What accessories are included?

The K-198 comes with a floor nozzle, detail brush, two extension tubes, measuring cup, and funnel.

USER MANUAL K-198 KING

K 289

Steam Fresh

Buharlı Temizleyici

Steam Mop

Red background with a white crown and ring design (no text or symbols)

king

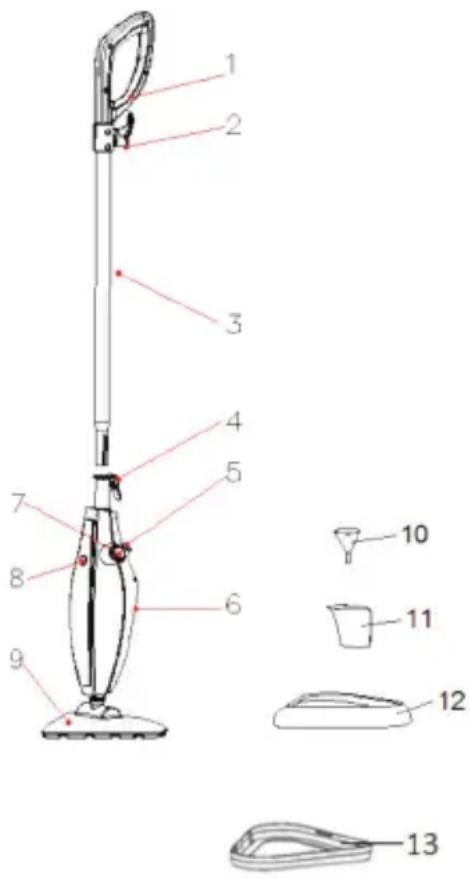

MAIN PARTS

1. Ergonomic hand grip
2. Quick release card wrap
3. Extension tube
4. Lower cord wrap
5. Cap
6. Water tank
7. Pump switch
8. Power on light (Red)
9. Mop head
10. Funnel
11. Filling Flask
12. Micro-fiber cleaning pad(x2)
13. Carpet padding

Red background with a white crown and circular swirl design (no text or symbols)

king

IMPORTANT SAFETY INSTRUCTIONS

When using your steam mop, basic safety precautions should always be observed, including the following.

Warning: To reduce the risk of fire electrical shock, or injury:

1. Read all instructions before using your steam mop
2. Use the system only for its intended use
3. Do not use outdoors.
4. Do not leave the appliance unattended when plugged in. Always unplug the power cord from the electrical outlet when not in use and before servicing.
5. Do not allow the appliance to be used as a toy. Close attention is necessary when used by or near children. Pets or plants. Do not leave appliance.
6. Use only as described in this manual.
7. Use only manufacturer's recommended accessories.
8. Do not operate the appliance with a damaged plug or damaged. To avoid the risk of electric shock, Do not disassemble or attempt to repair the appliance on your own. Return the appliance to our operating LLC (see warranty) for examination and repair. Incorrect re-assembly or repair can cause a risk of electrical shock or injury to persons when the appliance is used.
9. To protect against a risk of electric shock, do not immerse the steam mop into water or any other liquids.
10. Do not pull or carry by power cord, use power cord as handle, close a door on the power cord, or pull the power cord around sharp edges or corners. Keep power cord away from heated surfaces.
11. Do not unplug by pulling on power cord, do not use extension cords or outlets with inadequate current carrying capacity.
12. Do not handle plug or steam mop with wet hands or operate appliance without shoes.
13. Do not put any objects into openings. Do not use with any opening blocked.
14. Do not put hands or feel under the steam mop. Unit gets very hot.
15. Use only on flat, horizontal surfaces. Do not use on walls, counters or windows.
16. Do not use on leather, wax polished furniture or floors, synthetic fabrics, velvet or other delicate, steam sensitive materials.
17. Do not add cleaning solutions, scented perfumes, oils or any other chemicals to the water used in this appliance as this may damage the unit or make in unsafe for use. If you live in a hard water area, we recommend using distilled water in your steam mop.

king

1. When in use, never turn the appliance over or on its side. Never direct steam towards people, animals or plants.
2. Never leave the steam mop in one spot on any surface for any period of time when micro-fiber pad is attached.
3. Carefully remove the micro-fiber pad immediately after you have finished using the steam mop.
4. When cleaning the steam mop, unplug the power cord from the electrical outlier and clean with a dry or damp cloth. do not pour water or use alcohol, benzene or paint thinner on the unit.
5. Extreme caution should be exercised when using this appliance to clean stairs.
6. Never use steam mop without micro-fiber pad attached.
7. Keep your work area well lit.
8. Store steam mop indoors in a cool, dry place.
9. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
10. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
11. Children should be supervised to ensure that they do not play with the appliance.
12. The liquid or steam must not be directed towards equipment containing electrical components.

SAVE THESE INSTRUCTIONS ADDITIONAL IMPORTANT SAFEGUARDS

1. To avoid circuit overload. Do not operate another appliance on the same socket (circuit) as the steam cleaner.

2. If an extension cord is absolutely necessary, an extension cord rated a minimum of 15 ampere, 14 gage cord should be used. Cords rated for less amperage may overheat. Care should be taken to arrange cord so that cannot be pulled or tripped over.

3. Do not leave unattended when the system is connected to a power supply/electrical outlet.

WARNING: To reduce the rise of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet. Reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not modify the plug in any way.

king

WARNING: Your steam mop is designed to clean hard floor surfaces that will withstand high heat. Do not use on unsealed wood or unglazed ceramic floors. May be removed by the heat and steam action. It is always recommended to test an isolated area of the surface to be cleaned before proceeding. We also recommend that you check the use and care instructions from the floor manufacturer.

IMPORTANT: Do not store unit with damp/wet micro-fiber cleaning pad attached. Never leave the steam mop in one spot on any surface for any period of time with a damp or wet micro-fiber cleaning pad attached as this will damage your floors.

IMPORTANT: Do not add cleaning solutions, scented perfumes. Oils or any other chemicals to the water used in this appliance. If you live in a hard water area, we recommend using distilled water in your steam mop.

WARNING: Danger of scalding. Please use caution when using the steam mop, the steam emitted from the openings is very hot.

FEATURES

Your steam mop utilizes steam to remove tough grease, dirt and grime. Steam is nature's purest and most powerful cleaner for safely cleaning all hard floor surfaces in your home without harsh chemicals, thus being perfectly ecological. Cleans your tile, hardwood, linoleum and vinyl floors.

1. Quick &easy

Eliminates rinsing, wringing, carrying buckets of water and redistributing the dirt on the door.

2. Powerful

Powerful steam dries quickly unlike traditional mopping. Uses powerful steam for superior cleaning and sanitizing.

3. No harsh chemicals

Use plain tap water or distilled water .leaves no chemical residue behind.

4. Lightweight

No heavy buckets to carry .the shark steam mop weights only 3 lbs .only one third the weight of carrying a bucket of water and a mop.

Red background with a white crown and circular swirl design (no text or symbols)

king

5. Ergonomic soft grip handle

Comfortable design makes it easy to maneuver without physical strain.

6. Quick start-Up

Steam is ready in just 30 seconds.

7. Power 'on' light

The power 'on' light will red when the unit is plugged in.

8. Reusable cleaning pad

Durable triple layer micro-fiber cleaning pad loosens, lifts and looks in dirt, just toss in the washing machine when done. How to assemble your steam mop.

OPERATING INSTRUCTIONS

1. Remove all the parts from the packaging.

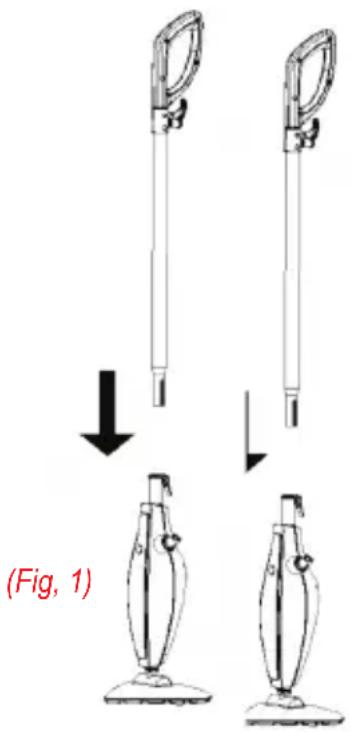

2. Insert the extensin tube in connective pole. Make sure that the locking tab snaps into place. (Fig, 1)
3. Place the micro-fiber cleaning pad underneath the mop head. Frap the rope with tight button. (Fig, 2)

Technical line drawing of a mechanical component with two views (no text or symbols)

White crown icon on red background, no text or symbols present

king

TIP: The micro-fiber cleaning pads have a colored tab so that a different pad can be assigned to different tasks or rooms in the house. Filling the water tank

IMPORTANT: Always insure that the unit is 'UNPLUGGED' from the wall receptacle prior to initial filling and before the bottom of the mop head. Never use the steam mop without the micro-fiber cleaning pad attached to the mop head.

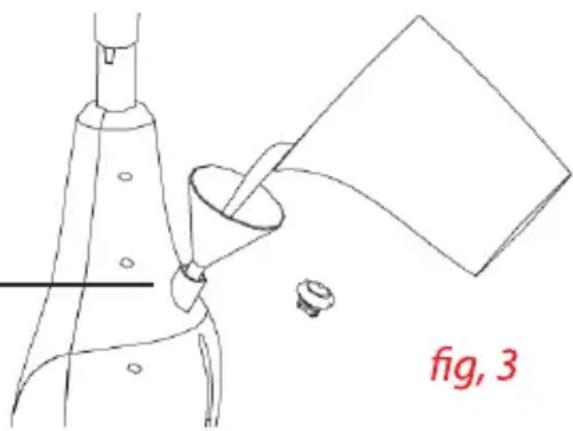

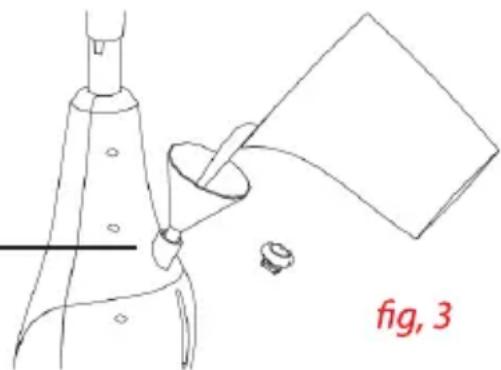

1. Turn the cap counter clockwise and then lift up to remove from the water tank (fig, 3) Using the filling flask and funnel. Pour one flask of water into the
2. Water tank. Do not overfill the unit passed the 'MAX' fill line on the water tank. (fig, 3)
3. Replace the cap onto the water tank.

Max

USING THE STEAM MOB IMPORTANT

Warning: When water tank empty, the pump will little pumping noise and shake, pump switch must turn off immediately.

1. Sweep or vacuum floors before using the steam mop.
2. Twist the quick release cord holder to unwrap the power cord completely.
3. Plug into a 230-voit electrical outlet.
4. Power indicator (red) turn on.
5. It takes approximately 30 seconds for the unit to heat up and the steam to be ready.
6. Turn on the pump switch (0-off, 1-on), steam will wet micro-fiber. Its normal that pump will little noise and shake when beginning.

king

1. When the water tank is empty, the pump will be little pumping noise and shake, pump switch must be turn off immediately. Unplug the power cord from the electrical outlet and refill the water tank following the instructions above.
2. When you have finished using the steam mop, unplug the unit from the electrical outlet and carefully remove.
3. Never leave the micro-fiber cleaning pad on the steam mop head when you have finished using the steam mop.

OPERATING INSTRUCTIONS

Always remove the micro-fiber cleaning pad and wash in warm water with a mild detergent. Never use bleach or fabric softener when washing the reusable micro-fiber cleaning pad. The micro-fiber cleaning pad may be dried in a washing machine and dried in a clothes drier on low heat. We recommend that you air dry.

IMPORTANT: Be careful when machine washing or drying with mixed fabrics as micro-fiber pads will pick up lint from other stick to other garments. We recommend washing the micro-fiber cleaning pads separately or placing them in a garment bag first.

CAUTION: Never store the steam mop with a wet or damp micro-fiber cleaning pad still attached as this will damage your floors.

Care & maintenance of the micro-fiber cleaning pad.

■ Due to the unique cleaning ability of this pad, proper care of your micro-fiber cleaning pad is required to ensure long life and continued cleaning ability.
The first thing you should do when you get a new micro-fiber cleaning pad is to wash and dry it. During the manufacturing process the fabric has a tendency to become flat as it picks up contaminants from the air and machinery. There will also be a number of loose threads that, while they cause no harm, can be annoying the first time you use the pad.
■ To wash the micro-fiber cleaning pad, simply put it in your washing machine using the warm water setting.
We recommend washing your micro-fiber cleaning pads separately from other fabrics or placing them in a garment bag first, they have a tendency to pick up lint and other particles from other particles from other fabrics and the next time you use your micro-fiber cleaning pad, this lint will transfer to the surface being cleaned.
■ Only use liquid detergents, never use dry detergents as many times the granules do not fully dissolve and become trapped in the cleaning pad. This can scratch the surface that you are cleaning.

king

■ Never use bleach or fabric softeners !bleach will damage the micro-fiber fabric and fabric softeners deposit a coating on the micro-fiber what will not allow the pad to clean efficiently.
■ We recommend that you air dry the micro-fiber cleaning pad. If using a clothes dryer, do not put on a high heat setting as high heat will cause the micro-fiber pad to shrink and the micro-fiber to break down.
- Wash the micro-fiber cleaning pads regularly and don't allow them get too dirty so that they will last much longer. As with any fabric, dirt particles can cause the fibers to break down, therefore regular cleaning will help preserve your micro-fiber cleaning pads.
As you use the micro-fiber cleaning pad, you will notice that sometimes a thread will loosen or pull out. This is normal and you should never pull at the loose thread! pulling the thread can cause the weave to come undone. Instead, simply trim the thread with a pair of sharp scissors.

Helpful hints

1. Always vacuum or sweep before using the steam mop.
2. The easiest way to use the steam mop is to tilt the ergonomic handle to a 45 angle and clean slowly.
3. Hand wash or machine wash the micro-fiber cleaning pad in a delicate cycle with a mild liquid detergent.
4. We recommend air drying the micro-fiber cleaning pads for 24 hours, but they could be dried in a dryer on a low heat setting.
5. A good amount of steam passes through the micro-fiber cleaning pad .we recommend that the cleaning pad be changed when it gets too wet. These need to be replaced as necessary.
6. To remove stubborn stains from vinyl or linoleum floors, pre-treat with a mild detergent and some water before using the steam mop.
7. IMPORTANT: never leave the steam mop in one spot on any surface for any period of time with a damp or wet micro-fiber cleaning pad attached as this will damage your floors.

Care and maintenance

If you consistently use distilled water, cleaning the water tank is unnecessary

Caution: this appliance must be unplugged from the electrical outlet before performing any cleaning or maintenance tasks on the unit.

Red background with a white crown and circular swirl design (no text or symbols)

king

Rinsing out the steam mop

1. Let the appliance cool down completely before cleaning or storing.
2. Empty all water from the water tank after each use.

Water

■ Use tap water for all your cleaning needs.
■ However, if you live in an area with hard water, it is recommended that you use distilled water.

Important: Do not add cleaning solutions, scented perfumes, oils or any other chemicals to the water used in this appliance, as this may damage it or make it unsafe for use. Use distilled water if the tap water in your area is very hard.

Red background with a white crown and circular swirl design (no text or symbols)

king

PARÇALAR

Red background with a white crown and circular swirl design (no text or symbols)

king

Red background with a white crown and circular swirl design (no text or symbols)

king

White crown icon on red background, no text or symbols present

king

ÇALIŞTIRMA TALİMATLARI

Line drawing of a vacuum cleaner's base and top view, labeled (Fig. 2), with no text or symbols on the diagram itself.

Red background with a white crown and ring design (no text or symbols)

king

Red background with a white crown and circular swirl design (no text or symbols)

king

13

أgzاء الرئيسيية

.1. مربع ق표ضة اليد

Red background with a white crown and circular swirl design (no text or symbols)

king

Red background with a white crown and circular swirl design (no text or symbols)

king

Red background with a white crown and circular swirl design (no text or symbols)

king

Max

Red background with a white crown and circular swirl design (no text or symbols)

king

Simple line drawing of a cleaning or surface repair device with a handle and base, labeled (Fig. 2) (no text or symbols on the diagram itself)

king

SATİŞ SONRASI SERVİS

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

White crown icon on red background, no text or symbols present

king

Üretici Firma:

KING PAZARLAMA VE DIŞ TİCARET A.Ş.

İbrahimağa Cad.2. Emintaş Sanayi Sitesi. No: 20 Daire/2

Bayrampaşa / İSTANBUL

Tel: [phone] Faks: 0212 544 30 32

king

Model No: K 289 Steam Fresh

Buharlı Temizleyici

220-240V 50/60 Hz 1500 Watt

Made in P.R.C.

White crown icon on red background, no text or symbols present

king

GARANTI BELGESİ ŞARTLARI
