WindPad 110W - Tablet MSI - Free user manual and instructions

Product Type	Tablet
Brand	MSI
Model	WindPad 110W
Operating System	Windows 10
Display Size	10.1 inches
Display Resolution	1280 x 800 pixels
Processor	Intel Atom Z3740
RAM	2 GB
Internal Storage	32 GB
Battery Capacity	7000 mAh
Battery Life	Up to 8 hours
Dimensions	257 x 174 x 9.9 mm
Weight	580 g
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Ports	Micro-USB, Micro-HDMI, 3.5mm headphone jack
Camera	Front 1.2 MP, Rear 5 MP
Power Supply	AC adapter 5V, 2A
Care and Cleaning	Wipe with a soft dry cloth; avoid liquids
Safety	Do not expose to water or extreme temperatures
Spare Parts and Repairability	Contact MSI service center for replacements
General Information	Includes user manual and warranty card

Frequently Asked Questions - WindPad 110W MSI

How do I perform a factory reset on the WindPad 110W?

Go to Settings > Update & Security > Recovery, then click Reset this PC and choose Remove everything.

What should I do if the tablet won't turn on?

Press and hold the Power button for 10 seconds. If still off, connect the charger and wait 30 minutes before trying again.

How can I extend battery life?

Reduce screen brightness, disable Wi-Fi and Bluetooth when not in use, and close unused apps.

Does the WindPad 110W support a stylus?

No, the WindPad 110W does not have built-in stylus support. Capacitive styluses may work but are not officially supported.

How do I connect to a TV or monitor?

Use a Micro-HDMI cable to connect to an external display. Go to Display Settings to configure the mode.

What is the maximum supported SD card capacity?

The tablet supports microSD cards up to 64 GB.

How do I take a screenshot?

Press and hold the Windows button and the Volume Down button simultaneously. Screenshots are saved in the Pictures folder.

My tablet is running slow; what can I do?

Clear temporary files, uninstall unused apps, and disable startup programs via Task Manager. Consider a reset if needed.

How do I update the system software?

Go to Settings > Update & Security > Windows Update and click Check for updates.

Can I replace the battery myself?

The battery is not user-replaceable. Contact MSI support or a certified technician for replacement.

USER MANUAL WindPad 110W MSI

Table of Content 1-2

Regulations Information....1-4

FCC-B Radio Frequency Interference Statement 1-4

FCC Conditions....1-5

CE Conformity 1-5

Safety Instructions....1-6

Safety Guideline for Using Lithium Battery 1-10

WEEE Statement 1-14

Trademarks.... 1-21

Reversion History 1-21

Introductions

Manual Map 2-2

Unpacking....2-3

Specification....2-4

Product Overview 2-8

Getting Started

Power Management 3-2

Battery Power 3-2

AC Power 3-3

Connecting AC power to optional docking station....3-5

Power On the Tablet PC 3-6

Power Management in Windows OS 3-7

Energy Saving Tips....3-9

Basic Operations 3-10

Safety and Comfort Tips 3-10

Having a Good Work Habit.... 3-10

Amusing Features ....3-11

Rotating the Display 3-14

Using the Quick Launch Touch Sensors 3-16

Using 3G Function (Optionally supported).... 3-18

Connecting the External Devices 3-19

Connecting the Communication Devices 3-19

Connecting the Peripheral Devices.... 3-21

Regulations Information

FCC-B Radio Frequency Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and radiates radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.
■ Increase the separation between the equipment and receiver.
■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
■ Consult the dealer or an experienced radio TV technician for help.

NOTE

- The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

- Shield interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

■ This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.

CE Conformity

This device is in compliance with the essential safety requirements and other relevant provisions set out in the European Directive.

Safety Instructions

• Read the safety instructions carefully and thoroughly.
• All cautions and warnings on the equipment or user's manual should be noted.

Keep the User's Guide that comes with the package for future reference.

Keep this equipment away from humidity and high temperature.

Lay this equipment on a stable surface before setting it up.

The openings on the enclosure are used for air convection and to prevent the equipment from overheating. Do not cover the openings.

- Do not leave the equipment in an unconditioned environment with a storage temperature above 60°C (140°F) or below 0°C (32°F), which may damage the equipment.

- The unit should be operated under maximum ambient temperature of 40°C (120°F).

Make sure the power voltage is within safety range and has been adjusted properly to the value of 100\~240V before connecting the equipment to the power outlet.

- Always unplug the AC power cord before installing any add-on card or module to the equipment.

- Always disconnect the AC power cord or uninstall the battery pack or switch off the wall socket if the equipment would be left unused for a certain time to achieve zero energy consumption.

Never pour liquid into the opening that could damage the equipment or cause an electrical shock.

Place the power cord in a way that people are unlikely to step on it. Do not place anything on top of the power cord.

Always keep the strong magnetic or electrical objects away from the equipment.

- When installing the coaxial cable to the TV Tuner, it is necessary to ensure that the metal shield is reliable connected to protective earthing system of the building.

- Cable distribution system should be grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable.

• To prevent explosion caused by improper battery replacement, use the same or equivalent type of battery recommended by the manufacturer only.
• Always keep the battery in a safe place.

If any of the following situations arises, get the equipment checked by a service personnel:

• The power cord or plug is damaged.
• Liquid has penetrated into the equipment.
• The equipment has been exposed to moisture.
• The equipment has not worked well or you can not get it work according to User's Manual.
• The equipment was dropped and damaged.
• The equipment has obvious signs of breakage.

Green Product Features

• Reduced energy consumption during use and stand-by
• Limited use of substances harmful to the environment and health
• Easily dismantled and recycled
• Reduced use of natural resources by encouraging recycling
• Extended product lifetime through easy upgrades
• Reduced solid waste production through take-back policy

Environmental Policy

• The product has been designed to enable proper reuse of parts and recycling and should not be thrown away
• Users should contact the local authorized point of collection for recycling and disposing of their end-of-life products.

廢電池請回收

For better environmental protection, waste batteries should be collected separately for recycling or special disposal.

Safety Guideline for Using Lithium Battery

(English) CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the equipment manufacturer. Discard used batteries according to manufacturer's instructions.

(English) Under the European Union ("EU") Directive on Waste Electrical and Electronic Equipment, Directive 2002/96/EC, which takes effect on August 13, 2005, products of "electrical and electronic equipment" cannot be discarded as municipal waste anymore and manufacturers of covered electronic equipment will be obligated to take back such products at the end of their useful life.

• All trademarks are the properties of their respective owners.
• SRS Premium Sound, SRS and the symbol are trademarks of SRS Labs, Inc.

Revision History

Version	Revision	History	Date
1.1	First	Released	12,	2011

CHAPTER 2

Introductions

Congratulations on becoming an user of this product, the finely designed tablet PC. This brand-new exquisite tablet PC will give you a delightful and professional experience in using it. We are proud to tell our users that this product is thoroughly tested and certified by our reputation for unsurpassed dependability and customer satisfaction.

Manual Map

This User's Manual provides instructions and illustrations on how to operate this tablet PC. It is recommended to read this manual carefully before using this tablet PC.

Chapter 1, Preface, gives users the basic safety information and caution that is interrelated to using this tablet PC. It is recommended to read these information or caution when using this tablet PC for the first time.

Chapter 2, Introductions, includes the descriptions of all the accessories of this tablet PC. It is recommended to check out that if you have all the accessories included when you open the packing box. If any of these accessories is damaged or missing, please contact the vendor where you purchased this product. Also, this chapter provides the specification of this tablet PC, and introduces the function buttons, quick launch buttons, connectors, LEDs and externals of this product.

Chapter 3. Getting Started gives the basic operation instructions on using this tablet PC. Beside, the steps of connecting the AC power; and the procedures of connecting the various external devices, communication devices, and so on, are also provided to help users getting familiar with this product.

Unpacking

First, unpack the shipping carton and check all items carefully. If any item contained is damaged or missing, please contact your local dealer immediately. Also, keep the box and packing materials in case you need to ship the unit in the future. The package should contain the following items:

Tablet PC

Quick Start Manual

AC/DC adapter and AC power cord

Protection bag (optional)

All-in-one application disk, containing the full version of user's manual, drivers, utilities, and optional recovery function, etc.

Specification

Physical Characteristic

Dimension 271 (W) x 183 (D) x 15.5 (H) mm

Weight

830g

with

battery

CPU

Processor Type AMD	^® Desna Z -01 series
Process	40nm
Special Notification	The actual processor preinstalled in this product depends on the model you purchased. Please contact the local dealer for detailed information.

Memory

Memory DDR3 1066 MHz SO-DIMM x 1

Maximum Up to 4GB (optional)

Storage (Items listed here may vary depending on the model users purchased)

SSD (Solid-State Disk) 32GB/ 64GB (optional)
Special Notification	The actual SSD preinstalled in this product depends on the model you purchased, and may very without notice.

Power

AC/DC Adapter 18W, 12V

Input:

100-240V\~50-60Hz

Output:

12V

Battery Type 2 cells

RTC Battery Yes

I/O Port

USB x 1 (USB version 2.0)

Headphone out x 1

Mini HDMI x 1

Expansion Docking Port x 1

Internal Microphone x 1

Card Reader x 1 (SD/ SDHC)

The supported memory cards may vary without notice.

Communication Port (Items listed here may vary without notice)

Wireless LAN	Supported
Bluetooth	Supported
3G	Optionally Supported

Audio

Sound Controller Realtek ^® ALC269

Internal Speaker 2 speakers with housing

Sound Volume Adjust by volume button & O-Key application

Video

Graphics UMA

Dual View Function External display devices will be auto detected when connected.

External Display Output Supported

Display

LCD Type 10.1" wide view panel

LCD Resolution 1280 x 800

Multi Touch Supported

Brightness Controlled by O-Key application

WebCam

CMOS (optional) Supported

Software & BIOS

USB Flash Boot Yes, USB floppy boot up DOS only

BIOS Fast Boot Support --- Yes

TPM

TPM	Supported
Special Notification	Microsoft TPM Bitlocker feature is only available in Windows 7Ultimate, Enterprise and above editions

Others

G-sensor	Supported
Compliance	WHQL

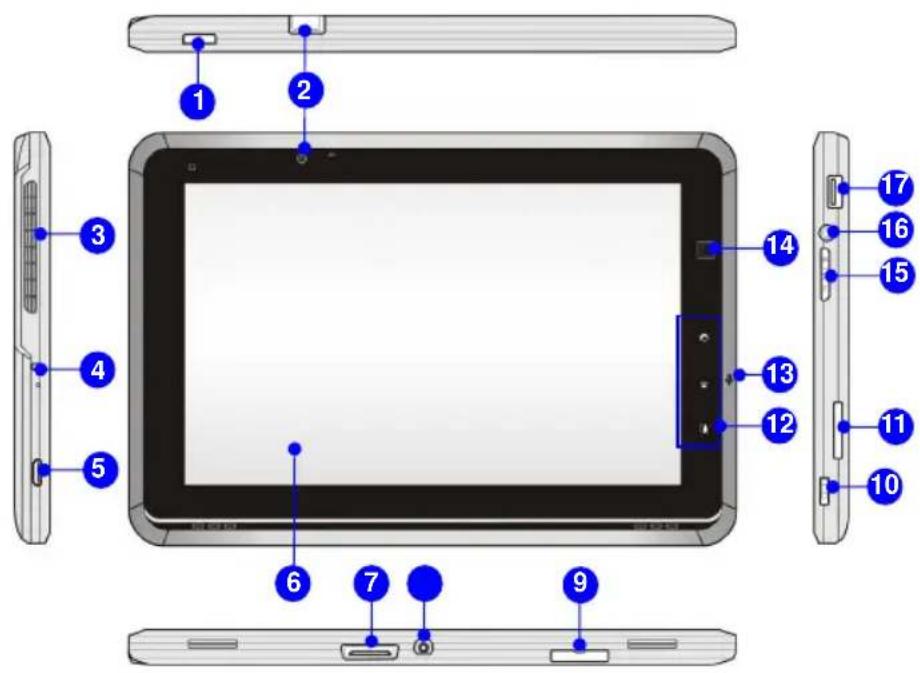

Product Overview

This section provides the description of basic aspects of this tablet PC. It will help you to know more about the appearance of this device before using it. Please be aware that the device shown in this section may vary from the actual one that users purchased.

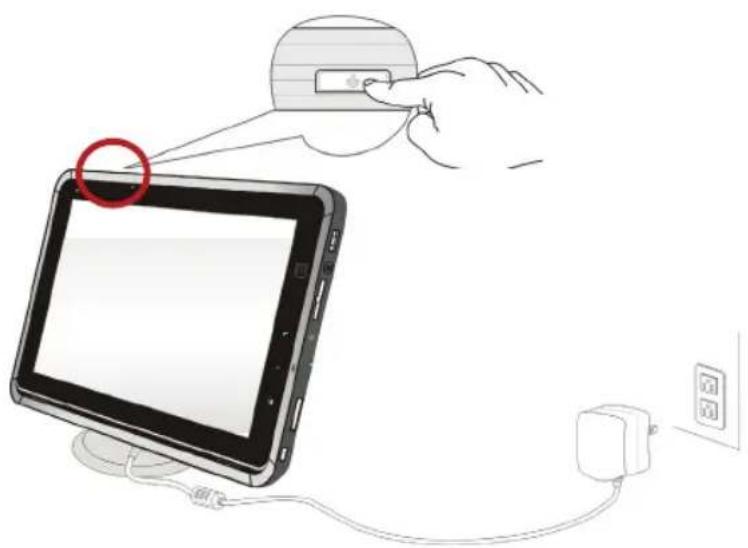

1. Power Button

Refer to following table for detailed power state.

Power State From Method To
Working Sleep Hibernation	Hold power button for 6 seconds	Shut Down
Working	Hold power button for 2 seconds	Sleep, Hibernation or Power off (According to user preset in Power Options)
Sleep Hibernation	Hold power button for 2 seconds till you get the vibration and then let go	Working
Power off

Note: Display Off to Display On can be activated by a tap on the display or a short press on power button.

2. Front Webcam/ Rear Webcam

This built-in Front/ Rear Webcam can be used for picture taking, video recoding or conferencing, and any other interactive applications.

3. Ventilator

The ventilator is designed to cool the system. DO NOT block the ventilator for air circulation.

4. Status LED

Power LED

♦ Glowing white when this device is powered on.
- Blinking white if the battery fails and it is recommended to replace a new battery. Consult the local dealer for purchasing an equivalent type of battery recommended by the manufacturer.
- LED goes off when this device is powered off.

Battery Status

♦ Glowing green when the battery is being charged.
- Blinking green when the battery is in low battery status.
- Battery LED goes out when it is fully charged or when the AC/DC adapter is disconnected.

5. Mini HDMI Connector HDMI

HDMI (High Definition Multimedia Interface) is a new interface standard for PCs, displays and consumer electronics devices that supports standard, enhanced and high-definition video, plus multi-channel digital audio on a single cable.

6. Multi Touch Display

This tablet PC is equipped with a user-friendly multi touch display which lets users use hands or finger gestures to interact with multi-media content, play games, read e-books, access documents, create special effects, manipulate art and photographs, and even surf on the internet, in a truly unique and compelling way.

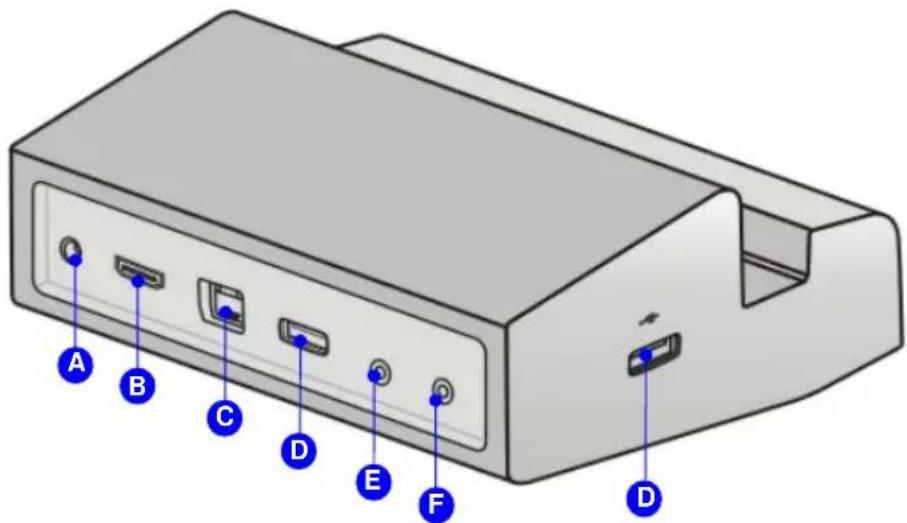

7. Docking Station Connecting Port

This port is provided to connect a Docking Station, which gives an additional flexibility and expandability to this tablet PC. Users are allowed to connect a compliant Docking Station to this port to obtain extra connecting interfaces. For detailed instructions of connecting and using the Docking Station, please refer to the chapter 3 of this manual.

8. Power Connector

Provided to connect the AC/DC adapter and supply AC power for this tablet PC.

9. SIM Card Slot (optional)

Insert the SIM card properly with correct orientation into the SIM card slot provided by this tablet PC for internet services. Contact your internet service provider for any internet connecting issue.

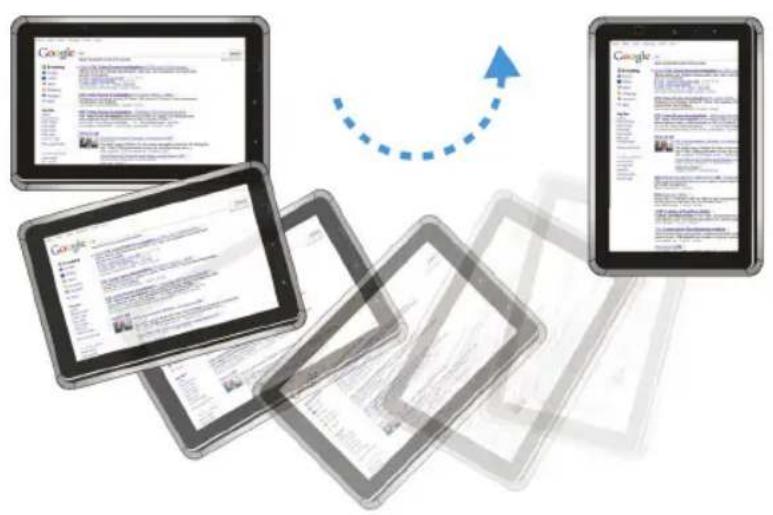

10. G-sensor Lock

This key will enable/ disable G-sensor display rotation function.

11. Card Reader

The built-in card reader may support two types of memory card, which are SD (Secure Digital) and SDHC (SD High Capacity). Contact the local dealer for further and correct information and be noted that the supported memory cards may vary without notice.

12. Quick Launch Touch Sensors

Use the quick launch touch sensors to activate the specific applications or tools. Refer to chapter 3 of this manual for the further information.

O-Key

- This key will launch O-Easy application.

Home

- This key will switch windows to desktop.

SAS

- This key will work as the Ctrl + Alt + Del.

13. Internal Microphone

This is the built-in microphone and its function is the same with microphone.

14. Optical Finger Navigation

This is a mouse-like functionality in graphic user interface, allowing more precise selections.

15. Volume Up / Volume Down

Volume Up

Volume Down

• Press the Volume Up or Volume Down button to decrease or increase the sound volume.
• Read the icon on behalf of the Sound Level Status appearing on the display to learn the function status.

16. Headphone Connector

Used for connecting the speakers or headphones.

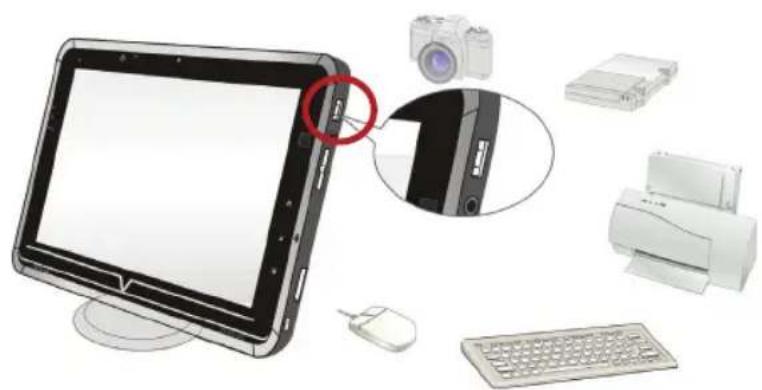

17. USB Port

The USB 2.0 port allows you to connect USB-interface peripheral devices, such as mouse, keyboard, modem, portable hard disk module, printer and more.

Note: Make sure that an external power adapter is connected to your external optical storage device.

Docking Station (optional)

Overview

A	Power Connector	D	USB Port
B	HDMI Connector	E	Microphone Connector
C	RJ-45 Connector	F	Headphone Connector

CHAPTER 3

Getting Started

Power Management

Battery Power

This tablet PC is equipped with a high-capacity Li-ion battery pack. The rechargeable Li-ion battery pack is an internal power source of this device.

However, the battery equipped is not replaceable by users, and may be damaged if users try to disassemble the product and the battery pack installed inside on their own.

Also, note that the limited warranty to the product may also lose its efficacy when this product is disassembled not by an authorized machinist.

Please follow your local laws and regulations to recycle the product.

Conserving Battery Power

Efficient battery power is critical to maintain a normal operation. If the battery power is not managed well, the saved data and customized settings may be lost.

To optimize battery life and avoid a sudden power loss, read the tips below:

• Suspend system operation if the system will be idle for a while or shorten the suspend timer's time period.
• Turn off the system if you won't be using it for a period of time.
  ◆ Disable unnecessary settings or remove idle peripherals.
• Connect an AC/DC adapter to the system whenever possible.

Charging the Battery Pack

The battery pack equipped is rechargeable, however please pay attention to the following tips before recharging the battery:

♦ Plug in an external AC/DC adapter.
- You can use the system, suspend system operation or shut down and turn off the system without interrupting the charging process.
- The battery pack installed inside the device uses Lithium-ion battery cells that have no "memory effect." It is unnecessary to discharge the battery before recharging. However, to optimize the life of battery, we suggest that consuming the battery power completely once every three months.
- The actual charging time will be determined by the applications in use.

AC power

It is strongly recommended to connect the AC/DC adapter to the tablet PC and use the AC power while using this tablet PC for the first time. When the AC power is connected, recharging the battery will start immediately.

Note that the AC/DC adapter included in the package is approved for your tablet PC; using other adapter model may damage either the tablet PC or other devices attached to it.

Do not cover the AC/DC adapter since it may produce a certain heat while in use. Always be aware of heat coming from the AC/DC adapter in use.

Connecting the AC Power

1. Unpack the package to find the AC/DC adapter and power cord.
2. Attach the power cord to the connector of the AC/DC adapter.
3. Plug the DC end of the adapter to the tablet PC, and the male end of the power cord to the electrical outlet.

Disconnecting the AC Power

When disconnecting the AC/DC adapter, you should:

1. Unplug the power cord from the electrical outlet first.
2. Unplug the connector from the tablet PC.
3. Disconnect the power cord and the connector of AC/DC adapter.
4. When unplugging the power cord, always hold the connector part of the cord. Never pull the cord directly!

Illustration of a tablet connected to a power outlet cable (no text or symbols visible)

Connecting AC power to optional docking station

Note: When work with the optional docking station, always connect USB devices (such as ODD & HDD) with external power adapters.

Power On the Tablet PC

To power on the tablet PC, follow the steps below:

1. Connect the AC power to the device first,
2. Find the location of the Power Button as shown in the figure,
3. Press the Power Button to power on the tablet PC.

Power Management in Windows OS

Power management of tablet PC has the potential to save significant amounts of electricity as well as deliver environmental benefits. To be energy efficient, turn off your display or set your tablet PC to standby/hibernate mode after a period of user inactivity.

Follow the instructions below to adjust the power management settings in Windows OS:

1. Power Options in Windows OS allow you to control the power management features of your display, hard drive, and battery. Go to the Start menu and click on the Control Panel. Click on the "System and Security".
2. Then click on the "Power Options".
3. Then select a power plan that meets your personal needs
4. The Shut Down Computer menu will present the options to Sleep (S3/S4), Shut Down (S5), or Restart your computer.
5. You can wake up your computer from power saving mode by pressing the power button.

1

System and Security

Review your computer's status

Back up your computer

Find and fix problems

2

Power Options

Require a password when the computer wakes

Change when the computer sleeps

Change what the power buttons do

Select a power plan

Power plans can help you maximize your computer's performance or conserve energy. Make a plan active by selecting it, or choose a plan and customize it by changing its power settings. Tell me more about power plans

3

Preferred plans

Balanced (recommended)

Change plan settings

Automatically balances performance with energy consumption on capable hardware.

Power saver

Change plan settings

Saves energy by reducing your computer's performance where possible.

Show additional plans

4

Shut down

Switch User

Log Off

Lock

Restart

Sleep

Hibernate

Energy Saving Tips

• Turn off the tablet PC after a period of user inactivity.
• Tune the settings in Power Options under Windows OS to optimize the computer's power management.
• Always disconnect the AC power cord or switch off the wall socket if the computer would be left unused for a certain time to achieve zero energy consumption.

Basic Operations

If you are a beginner to this tablet PC, please read the following instructions to assure your own safety, and make yourself comfortable during the operations.

Safety and Comfort Tips

This tablet PC is a portable platform that allows you to work anywhere. However, choosing a good workspace is important if you are going to use your tablet PC for a long period of time.

• Your work area should have enough illumination.
• Choose the proper desk and chair and adjust their height to fit your posture when operating.
• Avoid using this tablet PC in the space where may cause you discomfort.
• Since this is an electrical device, please treat it with great care to avoid personal injury.
• The tablet PC should be operate under maximum ambient temperature of 40°C (120°F)

Having a Good Work Habit

Have a good work habit is important if you are going to use this tablet PC for long periods of time; otherwise, it may cause discomfort or injury to you. Please keep the following tips in mind when operating.

• Change your posture frequently.
  ♦ Stretch and exercise you body regularly.
  ◆ Remember to take a break after working for a period of time.

Amusing Features

Writing Notes

Listening Music

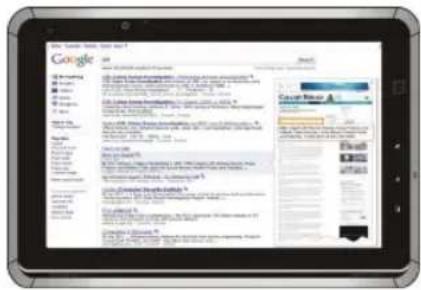

Surfing on the Web

Viewing Pictures

Two tablet devices displaying a photo of a koala on screen, with no visible text or symbols on the images themselves.

Watching Video

Two tablet devices displaying a large outdoor scene with birds in a field under a cloudy sky (no visible text or symbols)

Rotating the Display

This tablet PC is equipped with G-sensor module which gives users an enjoyable experience in viewing web pages, documents, pictures, videos, etc. Whenever the display is rotated, the screen will be rotated and expanded to fit the display automatically.

This function can be enabled/ disabled by G-sensor Lock.

Illustration of a tablet device with a red circle highlighting the front portion (no text or symbols visible)

Abstract geometric shape with a white rectangular cutout and black/white striped pattern inside a rounded circle (no text or symbols)

Using the Quick Launch Touch Sensors

This tablet PC provides several quick launch touch sensors. Use these sensors to activate the specific applications or tools.

O-Key

• This key will launch O-Easy application.
• Icons are adjustable on "Device On/ Off", "Application Shortcut", and "Thumbnail Touch" screens with a simple touch.

Home

- This key will switch current windows to desktop.

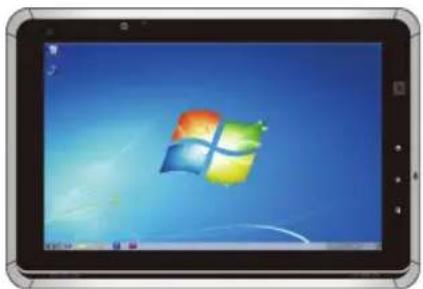

Tablet displaying a Windows logo on a blue background (no text or symbols visible)

SAS

- This key will work as Ctrl + Alt + Del.

Using 3G Function (Optionally Supported)

To use the optional 3G function, follow the steps below:

1. Make sure the tablet PC is powered off, and the AC power is disconnected.
2. Locate the SIM card slot and insert the 3G SIM card carefully.

3. Power on the tablet PC and turn on the 3G function by press the 📄 button.

4. Please read the icon on behalf of the 3G function whether this function is turned on or off.

appearing on the display to make sure

Connecting the External Devices

The I/O (input/output) ports on the tablet PC allow users to connect peripheral devices. All devices listed here are for reference only.

Connecting the Communication Devices

Using Wireless LAN Connection

This tablet PC is equipped with wireless LAN module which allows users to perform fast data transmission with the standard IEEE 802.11 for wireless LAN. This gives users the mobility to move around within a broad coverage area and still be connected to the network.

By using the 64-bit/128-bit Wired Equivalent Privacy (WEP) encryption technology and Wi-Fi Protected Access feature, the optional built-in wireless LAN is capable to achieve a more efficient and a more secure solution to the wireless communication.

Using Bluetooth Connection

This tablet PC is equipped with Bluetooth module which allows users to connect various Bluetooth-enabled devices to the device. Bluetooth provides a way to connect and exchange information between devices such as mobile phones, personal computers, printers, GPS receivers, PDAs, digital cameras, and video game consoles through a secure, globally unlicensed Industrial, Scientific and Medical (ISM) 2.4 GHz short-range radio frequency bandwidth.

For more instructions or detailed steps on using the Wireless LAN and Bluetooth functions, please ask your MIS staff or network manager for help.

Connecting the Peripheral Devices

Connecting the USB devices

This tablet PC provides USB ports for connecting various USB devices, such as mouse, keyboard, digital camera, webcam, printer, and external optical storage device, etc. To connect these devices, install the drivers for each device first if necessary, and then connect the device to the tablet PC. This tablet PC is capable to auto detect the USB devices installed, and if there is no detection of the devices, please manually enable the USB devices by going to Start Menu / Control Panel / Add Hardware to add the new device.

Note: Make sure that you have an external power adapter connected to your external optical storage device in addition to the USB cable.

Illustration of a desktop computer with a monitor, mouse, keyboard, printer, and a camera (no text or symbols present)

Connecting the External Display Devices to HDMI port

HDMI (High Definition Multimedia Interface) is a new interface standard for PCs, displays and consumer electronics devices that supports standard, enhanced and high-definition video, plus multi-channel digital audio on a single cable.

Illustration of a desktop computer monitor and its keyboard with a mouse, showing no text or symbols.

Once the display is connected to the tablet PC, power on the tablet PC and the external display should respond by default. Alternately, you can change the display mode by configuring the settings in Display Properties of Windows operating system.
