Product Type	Beard Trimmer
Brand	Philips
Model	QC5132
Dimensions (L x W x H)	Approximately 18 x 5 x 5 cm
Weight	Approximately 200 g
Power Source	Rechargeable lithium-ion battery
Charging Time	Approximately 8 hours
Runtime	Approximately 60 minutes
Blade Material	Self-sharpening stainless steel
Cutting Levels	20 precision settings (1-20 mm)
Cordless Use	Yes
Washable	Yes, waterproof up to 0.5 m
LED Display	Battery level indicator
Included Accessories	Precision comb, blade guard, cleaning brush
Maintenance	Rinse under running water, oiling recommended
Safety	Self-sharpening maintenance-free blades, automatic shut-off after 15 min
Spare Parts	Replacement blades and combs available
Warranty	2 years

Frequently Asked Questions - QC5132 PHILIPS

How to clean the Philips QC5132?

Remove the cutting head and rinse it under running water. Use the included brush to remove hairs. Dry thoroughly before reassembling. For optimal maintenance, oil the blades once a month.

How to charge the device?

Plug the supplied charger into a power outlet and connect it to the trimmer. The LED indicator flashes during charging and stays solid when fully charged. A full charge takes approximately 8 hours.

What is the battery runtime?

The runtime is approximately 60 minutes of cordless use after a full charge.

Can I use the trimmer in the shower?

Yes, the Philips QC5132 is waterproof up to 0.5 meters. You can use it in the shower and rinse it under running water.

How to adjust the cutting length?

Turn the adjustment wheel on the trimmer. It offers 20 locking positions corresponding to lengths from 1 to 20 mm.

What to do if the trimmer does not turn on?

Check that the battery is charged. If it still does not turn on, try charging it for at least 30 minutes. If the problem persists, contact Philips customer service.

Where can I buy replacement blades?

Replacement blades are available on the official Philips website or in appliance stores. Look for the reference suitable for the QC5132 model.

How to replace the cutting head?

Remove the old head by gently pulling it off. Align the new head with the notches and snap it into place until it locks securely. Ensure it is properly attached.

Can the device be used while plugged in?

No, the Philips QC5132 operates only on battery. It cannot be used while charging.

How to know if the battery is low?

An LED indicator flashes orange when the battery is low. Recharge the device as soon as possible.

USER MANUAL QC5132 PHILIPS

Always here to help you

Register your product and get support at www.philips.com/welcome

QC5132

QC5130

White hairbrush with multiple teeth and a black handle, no visible text or symbols on the device itself.

White Philips 3D hair curler with spiked teeth and a charging button (no text or symbols visible on the device body)

User manual

PHILIPS

Simple line drawing of an open book with a grid on the left and a closed page on the right (no text or symbols)

ENGLISH 6

ESPAÑOL 15

FRANÇAIS 24

INDONESIA 34

한국어 43

BAHASA MELAYU 52

PORTUGUÊS 61

ภาษาไทย 70

TIÊNG VIÊT 78

繁體中文 87

简体中文 95

111 فارسی

119 العربية

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at

www.philips.com/welcome.

General description (Fig. 1)

1 Pouch (QC5132 only)
2 Hair clipping comb (REGULAR)
3 Length setting selector
4 Cutting element
5 On/off slide
6 CHARGE light
7 Socket for appliance plug
8 Appliance plug
9 Adapter
10 Cleaning brush
11 Hair thinning comb (THINNING) (QC5132 only)

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Keep the appliance and the adapter dry.

Warning

• Check if the voltage indicated on the adapter and on the appliance corresponds to the local mains voltage before you connect the appliance.
• The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury.

Caution

• Only use the adapter supplied to charge the appliance.
• Use, charge and store the appliance at a temperature between 15°C and 35°C.
• If the adapter is damaged, always have it replaced with one of the original type in order to avoid a hazard.
• If the appliance is subjected to a major change in temperature, pressure or humidity, let the appliance acclimatise for 30 minutes before you use it.
• Do not use the appliance if the cutting element, hair clipping comb (REGULAR) or hair thinning comb (THINNING) is damaged or broken, as this may cause injury.
• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Charging

Illustration of a plug inserted into a device with an arrow pointing to the plug and a magnified inset showing a socket (no text or symbols)

Do not charge the appliance for more than 24 hours.

Charging takes approx. 8 hours.

When the appliance is fully charged, it has an operating time of 60 minutes.

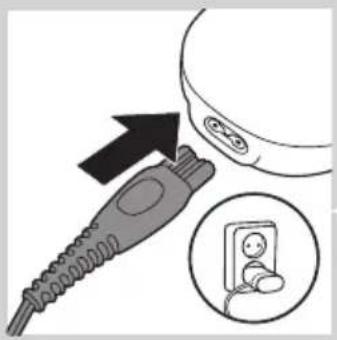

1 Make sure the appliance is switched off.
2 Insert the appliance plug into the appliance.
3 Put the adapter in the wall socket.

The green CHARGE light starts to flash to indicate that the appliance is charging.

When the batteries are fully charged, the green CHARGE light burns continuously. After 30 minutes the CHARGE light goes out to save energy.

Optimising the lifetime of the rechargeable batteries

Discharge the rechargeable batteries completely twice a year by letting the motor run until it stops. Then fully recharge the batteries.

Corded clipping

If the batteries are low, you can also use the appliance from the mains.

Only use the appliance from the mains when the rechargeable batteries are almost empty.

1 Switch off the appliance.
2 Connect the appliance to the mains and wait a few seconds before you switch it on.

If the rechargeable batteries are completely empty, wait a few minutes before you switch on the appliance.

Using the appliance

Note: Make sure your hair is clean and dry. Do not use the appliance on freshly washed hair.

Clipping with hair clipping comb (REGULAR)

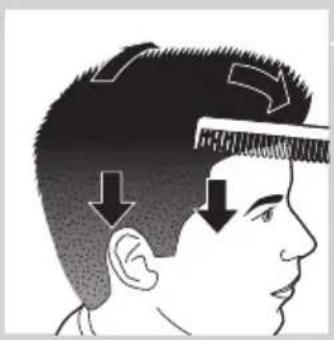

Side profile illustration of a person's head with arrows indicating direction of hair or hairpin movement (no text or symbols)

1 Comb your hair with a styling comb in the direction of hair growth.

2 Slide the hair clipping comb (REGULAR) into the guiding grooves of the appliance ('click').

Make sure that you slide the arms of the comb properly into the grooves on both sides.

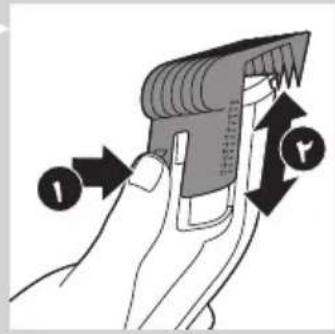

3 Press the length setting selector (1) and then move the hair clipping comb up or down (2) to set the desired length setting.

The corresponding hair length is visible on the side of the comb.

Length settings

With the hair clipping comb attached, the appliance can cut hair to 10 different lengths:

Hair lengths in mm Hair lengths in inches

3 1/8

5 1/5

7 2/7

9 1/3

11 3/7

13 1/2

15 3/5

17 2/3

19 3/4

21 5/6

Diagram of a high-speed train track with an arrow indicating speed and a power button (no text or symbols)

Illustration showing a person's head with a hairpin and two views of the head (no text or symbols present)

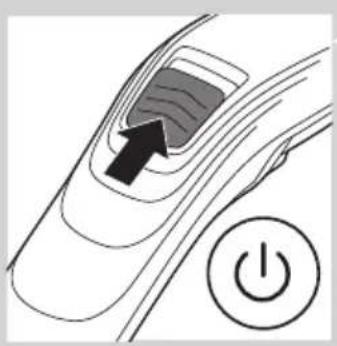

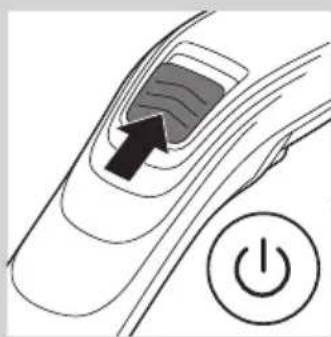

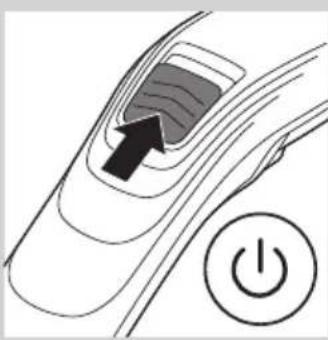

4 Slide the on/off slide upwards to switch on the appliance.

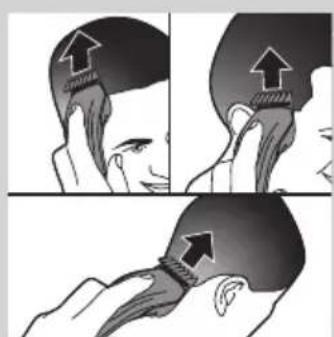

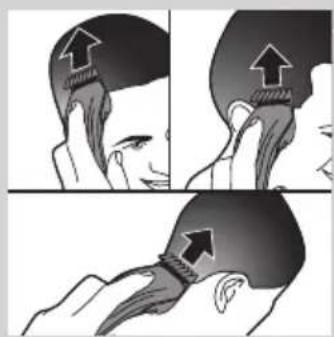

5 Place the hair clipping comb on the scalp and move the appliance through the hair slowly.

Tips

- Start clipping at the highest length setting of the hair clipping comb and reduce the length setting gradually.

- Write down the length settings you have used to create a certain hairstyle as a reminder for future clipping sessions.

- To clip in the most effective way, move the appliance against the direction of hair growth.

- Since hair grows in different directions, you need to move the appliance in different directions as well (upward, downward or across).

- Make overlapping passes over the head to ensure that the appliance catches all the hairs that need to be cut.

- Make sure that the flat part of the hair clipping comb is fully in contact with the scalp to obtain an even clipping result.

- To achieve a good result with curly, sparse or long hair, you can use a styling comb to guide the hair towards the appliance.

- Regularly remove cut hair from the hair clipping comb. If a lot of hair has accumulated in the comb, remove it from the appliance and blow and/or shake the hair out of it.

Clipping without hair clipping comb

Diagram of a high-speed train track with an arrow indicating speed direction and a power button (no text or symbols)

You can use the appliance without hair clipping comb to clip your hair very close to the skin (0.5mm) or to contour the neckline and the area around the ears.

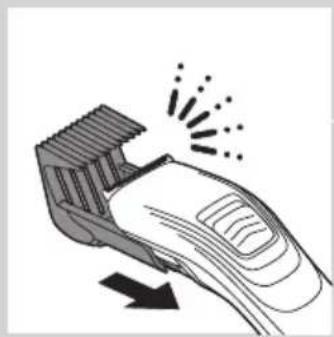

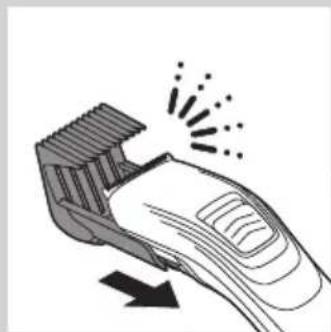

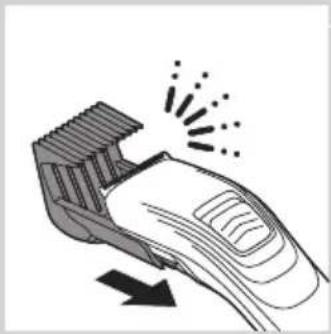

1 To remove the hair clipping comb, press the length setting selector (1), move the comb upwards and then pull it off the appliance (2).

2 Comb the hair ends over the ears before you start to contour the hairline.

3 Slide the on/off slide upwards to switch on the appliance.

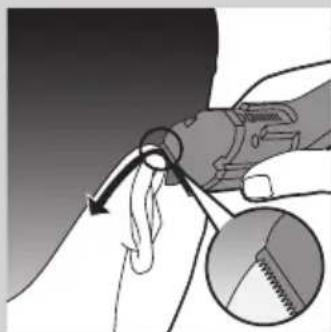

Illustration of a hand holding a tool with a magnified inset showing a close-up of the tool (no text or symbols)

Illustration of a person wearing a medical device with earphones, viewed from the side (no text or symbols present)

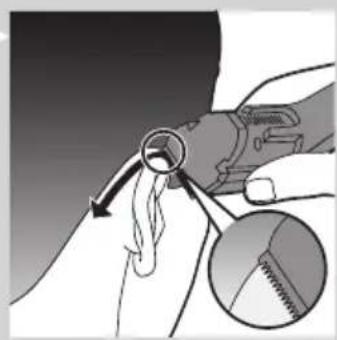

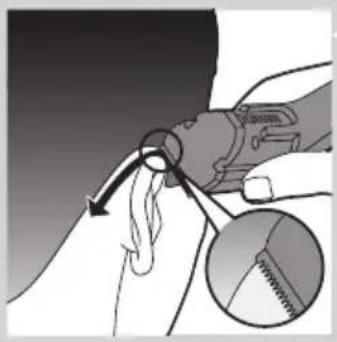

4 Tilt the appliance in such a way that only one edge of the cutting element touches the hair ends.

5 Only cut the hair ends. The hairline has to be close to the ear.

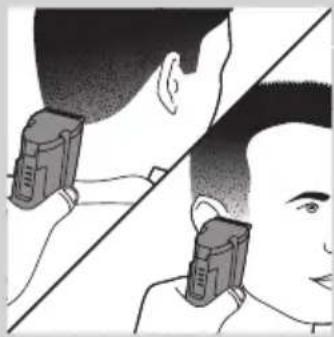

6 To contour the neckline and the sideburns, turn the appliance and make downward strokes.

7 Move the appliance slowly and smoothly. Follow the natural hairline.

Clipping with the thinning comb (THINNING)

Illustration of a hairbrush with motion arrows indicating compression or compression (no text or symbols)

Make sure you use the right comb. If you use the hair clipping comb (REGULAR) instead of the hair thinning comb (THINNING), the appliance will clip all hair to the same length.

- With the thinning comb, you can give your haircut a natural look. It also allows you to create a smooth transition between two different hair lengths.

- The thinning comb cuts only half of the hair that enters the comb, which results in a natural look.

Thinning an entire haircut

We advise you not to use the thinning comb for very short haircuts.

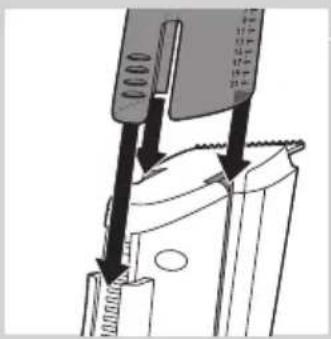

1 Slide the hair-thinning comb into the guiding grooves of the appliance ('click').

Make sure that you slide the arms of the comb properly into the grooves on both sides.

2 Set the thinning comb to a lower setting than the one you just used for the regular hair clipping comb to create the haircut.

Note: How much lower the setting for the thinning comb should be depends on your hairstyle and hair length. Never use the thinning comb at a setting that is lower than half the setting you used to create the haircut. For example, if you used the large clipping comb at 30mm to create the haircut, do not use the thinning comb at a setting lower than 15mm.

Diagram of a high-speed train track with a power button and an arrow indicating motion (no text or symbols)

3 Slide the on/off slide upwards to switch on the appliance.
4 Move the hair thinning comb through the hair.

Make sure that the thinning comb only touches each spot once, otherwise it cuts all the hair to the set hair length.

Creating a smooth transition between two hair lengths

If you have cut your hair to two different lengths, you can use the thinning comb to create a smooth transition between these two lengths.

Illustration of a hairbrush cutting into a clip with motion arrows indicating compression (no text or symbols)

1 Slide the hair-thinning comb into the guiding grooves of the appliance ('click').
Make sure that you slide the arms of the comb properly into the grooves on both sides.
2 Set the thinning comb to a hair length setting that is halfway between the two hair length settings you used to create the haircut.

For instance, set the thinning comb to 15mm if you have cut the top part of the haircut to a length of 20mm and the bottom part of the haircut to a length of 10mm.

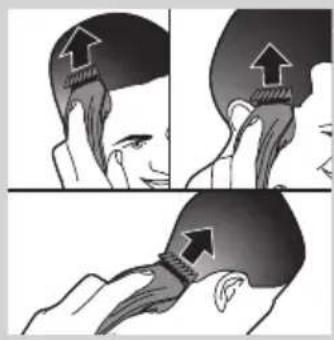

Side profile illustration of a human head with a magnified inset showing the head and ear (no text or symbols)

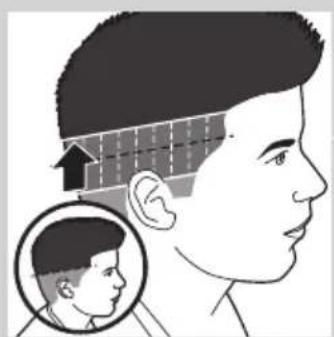

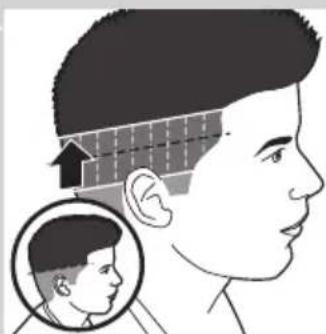

3 Move the thinning comb upwards through the transition between the two lengths.

Make sure that the thinning comb only touches each spot once, otherwise it cuts all the hair to the set hair length.

Cleaning

Prohibition sign of a faucet with no text or symbols (black and white graphic)

Keep the appliance and the adapter dry. Only clean the appliance and the adapter with the cleaning brush supplied.

Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as alcohol, petrol or acetone to clean the appliance.

Do not use any sharp objects to clean the appliance.

Clean the appliance after every use.

Illustration of three hand tools: a brush, a pen, and a tool holder (no text or symbols present)

1 Make sure the appliance is switched off and disconnected from the mains.

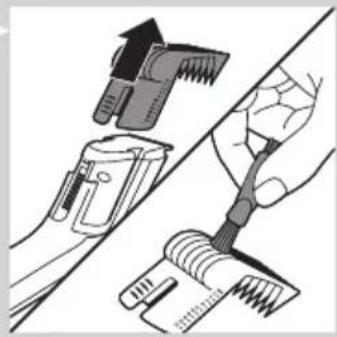

2 To remove the comb, press the length setting selector, move the comb upwards and then pull it off the appliance. Clean the comb with the cleaning brush supplied.

ENGLISH ^12

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

3 Push the edge of the cutting unit upwards with your thumb until the cutting unit opens.

Hand inserting a cable into an electrical connector (no text or symbols visible)

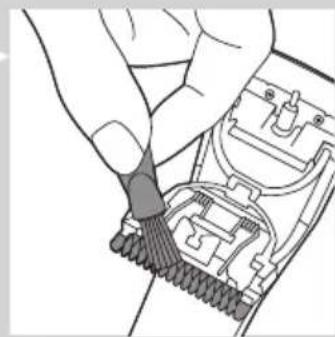

4 Clean the cutting unit with the cleaning brush supplied.

Hand inserting a cable into a connector socket (no text or symbols visible)

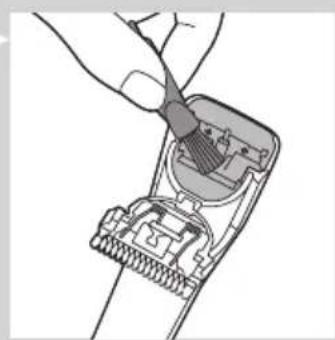

5 Clean the inside of the appliance with the cleaning brush supplied.

Note: The appliance does not need any lubrication.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips ConsumerCare Centre in your country (see the worldwide guarantee leaflet for contact details).

The cutting unit, the adapter and the hair clipping comb are replaceable.

Replacing the cutting unit

Replace the cutting unit if it is damaged or worn. Only replace the cutting unit with an original Philips cutting unit.

1 Push the middle part of the cutting unit upwards with your thumb until it opens (1). Then pull it off the appliance (2).

2 Place the lug of the new cutting unit in the slot (1) and push the cutting unit onto the appliance ('click') (2).

Environment

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

- The built-in rechargeable batteries contain substances that may pollute the environment. Always remove the batteries before you discard and hand in the appliance at an official collection point. Dispose of the batteries at an official collection point for batteries. If you have trouble removing the batteries, you can also take the appliance to a Philips service centre. The staff of this centre will remove the batteries for you and will dispose of them in an environmentally safe way.

Removing the rechargeable batteries

Illustration of a hand using a tool to adjust or install a mechanical component, with a plus button and circular symbol (no text or labels)

Only remove the rechargeable batteries when you discard the appliance. Make sure the appliance is disconnected from the mains and the batteries are completely empty when you remove them.

Do not connect the appliance to the mains again after you have removed the rechargeable batteries.

1 Disconnect the appliance from the mains and let the appliance run until the motor stops.
2 Remove the comb and the cutting unit.
3 Remove the 2 screws at the back of the appliance with a screwdriver.

Illustration of hands holding a small mechanical device with an arrow indicating force or movement (no text or symbols present)

4 Pull the back panel off the appliance.

Illustration of a hand holding a handheld device with a plus button, no text or symbols present

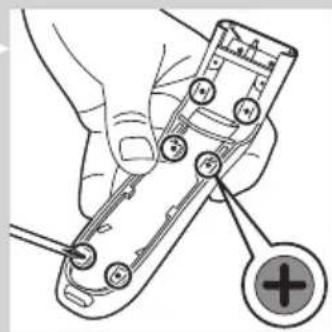

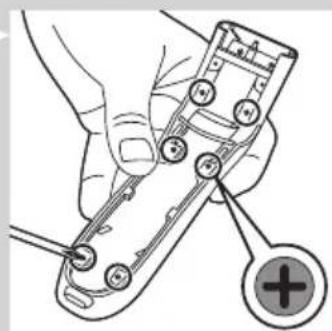

5 Remove the 6 screws on the inside of the appliance with a screwdriver.

Illustration of hands holding a device with a black arrow pointing to a component (no text or symbols visible)

6 Separate the power unit from the front panel.

Illustration of hands using a tool to adjust or install electronic components on a device (no text or symbols visible)

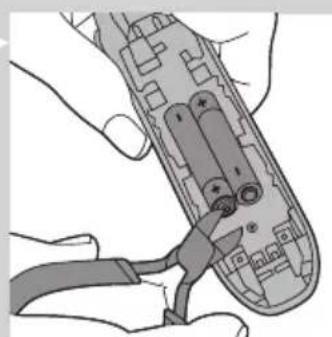

7 Cut the wires close to the batteries and then remove the batteries.

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Introducción

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no leakage or disinfection (no text present)

Campos electromagnéticos (CEM)

Diagram showing a plug inserted into a device with an arrow pointing to it, and an inset view of a socket (no text or symbols present)

Side profile illustration of a person's head with arrows indicating direction of movement or pressure (no text or symbols)

Diagram of a high-speed train track with an arrow indicating speed and a power button (no text or symbols)

Illustration showing a person's head with a finger pressing down, and another hand holding a neck with an arrow indicating the point of pressure (no text or symbols present)

Diagram of a hand holding a button with an arrow pointing to a shaded area, next to a power symbol (no text or labels)

Illustration of a hand holding a tool with a magnified inset showing a close-up of the tool (no text or symbols present)

Illustration of a person wearing a medical device with earphones, viewed from the side (no text or symbols present)

Illustration of a hairbrush cutting through a slot with motion arrows indicating compression (no text or symbols)

Diagram of a high-speed train track with a power button and an arrow indicating motion (no text or symbols)

Illustration of a hairbrush cutting into a clip with motion arrows indicating compression (no text or symbols)

Illustration of a human head profile with an arrow indicating compression or compression process, and a magnified inset showing the side profile (no text or symbols)

No smoking sign with faucet symbol (no text or numbers)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of a hand inserting a cable into an electrical connector (no text or symbols visible)

Hand inserting a cable into a connector socket (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

Illustration of a hand using a screwdriver to adjust a mechanical component (no text or symbols visible)

Illustration of hands holding a small electronic device with a black arrow indicating the cable or switch (no text or symbols present)

Illustration of hands holding a device with a black arrow pointing to a component (no text or symbols visible)

Illustration of a hand holding a handheld device with internal components, no text or symbols visible

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no leakage or anti-poaching (no text present)

Line drawing of a medical or laboratory device with a star-shaped label on the tip (no text or symbols present)

Side profile illustration of a person's head with arrows indicating direction of hair or hairpin movement (no text or symbols)

Diagram of a high-speed train wheel with an arrow indicating the blade and power button (no text or symbols)

Illustration showing a person's head with a hairpin, illustrating the technique of using a tool to adjust the scalp (no text or symbols present)

Diagram of a high-speed train interior with an arrow pointing to the track and a power button symbol (no text or labels)

Illustration of a hand holding a tool with a magnified inset showing a close-up of the tool (no text or symbols)

Illustration of a person wearing a medical device with earphones, viewed from the side (no text or symbols present)

Illustration of a hairbrush cutting into a flat blade with motion arrows indicating compression (no text or symbols)

Diagram of a high-speed train wheel with an arrow indicating the blade and power button (no text or symbols)

Illustration of a hairbrush cutting into a clip with motion arrows indicating compression (no text or symbols)

Side profile illustration of a human head with an arrow indicating head compression or compression, and a magnified inset showing the lower side view of the head (no text or symbols)

Prohibition sign of a faucet with diagonal line and diagonal lines, no text or symbols present

Illustration of a hand holding a tool interacting with a device and a brush (no text or symbols present)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

Hand inserting a cable into an electrical connector (no text or symbols visible)

Hand inserting a cable into a connector socket (no text or symbols visible)

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or symbols)

Illustration of a hand holding a mechanical device with a plus button (no text or symbols)

Illustration of hands holding a small mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of a hand holding a handheld device with a plus button and circular symbol (no text or labels)

Illustration of hands holding a device with a black arrow pointing to a component (no text or symbols visible)

Illustration of hands using a tool to adjust or install electronic components (no text or symbols visible)

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no leakage or disinfection (no text present)

Line drawing of a handheld device with a star-shaped label on its tip (no text or symbols present)

Side profile illustration of a person's head with arrows indicating direction of movement or pressure (no text or symbols)

Technical diagram showing mechanical assembly with arrows indicating force or movement (no text or symbols)

Diagram of a high-speed train interior with an arrow pointing to the center and a power button symbol (no text or labels)

Illustration showing a person's head with a hairpin, illustrating the technique of using a tool to adjust the scalp (no text or symbols present)

Diagram of a car interior with a highlighted section and a power button (no text or symbols)

Illustration of a hand holding a tool with a magnified inset showing a close-up of the tool (no text or symbols)

Illustration of a person wearing earbuds, viewed from side (no text or symbols)

Illustration of a hairbrush with motion arrows indicating compression or compression (no text or symbols)

Diagram of a high-speed train track with a power button and an arrow indicating motion (no text or symbols)

Illustration of a hairbrush cutting through a clip with motion arrows indicating compression (no text or symbols)

Side profile illustration of a person's head with a magnified inset showing the head and ear area (no text or symbols)

Prohibition sign of a faucet crossed out, no text or symbols present

Illustration of three hand tools: a brush, a pen, and a tool holder (no text or symbols present)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

Hand inserting a cable into an electrical connector (no text or symbols visible)

Hand inserting a cable into a connector socket (no text or symbols visible)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Illustration of a hand holding a mechanical device with a plus button, no text or symbols present

Illustration of hands holding a small mechanical device with an arrow indicating force or movement (no text or symbols present)

Illustration of a hand holding a handheld device with a plus button, no text or symbols present

Illustration of hands holding a device with a black arrow pointing to a component (no text or symbols visible)

Illustration of hands using a tool to adjust or install electronic components on a device (no text or symbols visible)

7 Potong kabel di dekat baterai lalu lepaskan baterai.

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

EMF(전자기장)

Illustration of a plug inserted into a device with an arrow pointing to it, and a close-up of the plug inside a socket (no text or symbols)

Side profile illustration of a person's head with arrows indicating direction of movement or pressure (no text or symbols)

Diagram of a high-speed train wheel with an arrow indicating the blade and a power button (no text or symbols)

Illustration showing a person's head with a curved object, possibly a tool or device, in three sequential stages (no text or symbols present)

Diagram of a high-speed train wheel with an arrow pointing to the wheel area and a power button symbol (no text or labels)

Illustration of a hand holding a tool with a magnified inset showing a close-up of the tool (no text or symbols present)

Illustration of a person wearing a medical device with earphones, viewed from the side (no text or symbols present)

Illustration of a hairbrush cutting into a flat surface with motion arrows indicating compression (no text or symbols)

Diagram of a high-speed train track with a power button and an arrow indicating motion (no text or symbols)

Illustration of a hairbrush cutting into a clip with motion arrows indicating compression (no text or symbols)

Side profile illustration of a person's head with a magnified inset showing the ear and neck area (no text or symbols)

Prohibition sign of a faucet with no text or symbols (black and white graphic)

Illustration of hands using a tool to adjust or install a component, with no visible text or symbols.

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of a hand inserting a cable into an electrical connector (no text or symbols visible)

Hand inserting a cable into a connector socket (no text or symbols visible)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Illustration of a hand holding a mechanical device with a plus button (no text or symbols)

Illustration of hands holding a mechanical device with a black arrow indicating a component (no text or symbols present)

Illustration of hands using pliers to adjust internal components of a device (no text or symbols visible)

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no leakage or disinfection (no text present)

Diagram showing a plug inserted into a device with an arrow pointing to it, and an inset view of a socket (no text or symbols present)

Line drawing of a medical device with a star-shaped label on the tip (no text or symbols present)

Side profile illustration of a person's head with arrows indicating direction of movement or pressure (no text or symbols)

Diagram of a high-speed train track with an arrow indicating speed and a power button (no text or symbols)

Illustration showing a person's head with a folded top, illustrating the technique of using a bandage tool (no text or symbols present)

Diagram of a high-speed train interior with an arrow pointing to the center and a power button symbol (no text or labels)

Illustration of a hand holding a tool with a magnified inset showing a close-up of the tool (no text or symbols present)

Illustration of a person wearing earphones with a device, viewed from the side (no text or symbols present)

Illustration of a hairbrush emitting sound waves (no text or symbols)

Diagram of a high-speed train track with a power button and an arrow indicating motion (no text or symbols)

Illustration of a hairbrush cutting into a clip with motion arrows indicating compression (no text or symbols)

Side profile illustration of a human head with a magnified inset showing the ear and neck area (no text or symbols)

No smoking sign with a faucet symbol crossed out by a diagonal line (no text)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of a hand inserting a cable into an electrical connector (no text or symbols visible)

Hand inserting a cable into a connector socket (no text or symbols visible)

Ganti unit pemotong jika ia rosak atau haus. Ganti unit pemotong hanya dengan unit pemotong Philips yang asli sahaja.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Illustration of a hand holding a mechanical device with a plus button (no text or symbols)

Illustration of hands holding a small mechanical device with an arrow indicating force or movement (no text or symbols present)

Illustration of hands holding a device with a black arrow pointing to a component (no text or symbols visible)

Illustration of hands using a tool to adjust or install electronic components on a device (no text or symbols visible)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Diagram showing a plug inserted into a device with an arrow pointing to it, and an inset view of a socket (no text or symbols present)

Side profile illustration of a person's head with arrows indicating direction of hair or hairpin movement (no text or symbols)

Diagram of a high-speed train interior with an arrow pointing to the center and a power button symbol (no text or labels)

Illustration showing a person's head with a hairpin, illustrating the technique of using a specific point (no text or symbols present)

Diagram of a car interior with a highlighted section and a power button (no text or symbols)

Illustration of a hand holding a tool with a magnified inset showing a close-up of the tool (no text or symbols present)

Illustration of a person wearing a medical device with earphones, viewed from the side (no text or symbols present)

Illustration of a hairbrush cutting into a button with motion arrows indicating compression (no text or symbols)

Diagram of a high-speed motor handle with an arrow indicating the blade and a power button (no text or symbols)

Illustration of a hairbrush cutting into a flat blade with motion arrows indicating compression (no text or symbols)

Side profile illustration of a human head with a magnified inset showing the ear and neck area (no text or symbols)

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no pollution or barrier (no text present)

Illustration of three hand tools: a brush, a pen, and a spiral notebook, arranged on a diagonal line (no text or symbols)

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

Illustration of a hand inserting a cable into an electrical connector (no text or symbols visible)

Hand inserting a cable into a connector socket (no text or symbols visible)

Encomendar acessórios

Substitua o componente de corte caso este esteja danificado ou gasto.

Symbol of a trash bin crossed with no text or symbols, representing waste sorting or disposal (no text present)

Illustration of a hand holding a mechanical device with a plus button (no text or symbols)

Illustration of hands holding a small mechanical device with an arrow indicating force or movement (no text or symbols present)

Illustration of a hand holding a handheld device with a plus button, no text or symbols present

Illustration of hands holding a device with a black arrow pointing to a component (no text or symbols visible)

Illustration of hands using a tool to adjust or install electronic components on a device (no text or symbols visible)

No smoking sign with faucet symbol (no text)

การซาร์จแบตเตอรี่

Diagram showing a plug inserted into a socket with an arrow pointing to the socket (no text or symbols present)

Simple line drawing of a medical device with a star-shaped label (no text or symbols on the device itself)

Side profile illustration of a person's head with arrows indicating movement or pressure points (no text or symbols)

Diagram of a high-speed train wheel with an arrow indicating the blade and power button (no text or symbols)

Illustration showing a person's head with two different angles of the head, illustrating the application of a specific technique (no text or symbols present)

Diagram of a car interior with a highlighted section and a power button (no text or symbols)

Illustration of a hand holding a tool with a magnified inset showing a close-up of the tool (no text or symbols present)

Illustration of a person wearing earphones, viewed from side (no text or symbols)

Illustration of a hairbrush cutting into a small fan with motion arrows indicating compression (no text or symbols)

Diagram of a high-speed train wheel with an arrow indicating the blade and power button (no text or symbols)

Illustration of a hairbrush with motion arrows indicating compression or compression (no text or symbols)

Illustration of a person's head in profile showing head compression and head insertion (no text or symbols)

No sign depicting a faucet with a diagonal line and a diagonal line, indicating no restrictions or absence of any other symbols.

Illustration of a hand holding a tool with three different tools (no text or symbols present)

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of a hand inserting a connector into an electrical socket (no text or symbols visible)

Illustration of a hand inserting a cable into a connector housing (no text or symbols visible)

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Symbol of a trash bin crossed with no text or numbers, representing waste restriction (no text present)

Illustration of a hand holding a mechanical device with a plus button, no text or symbols present

Illustration of hands holding a small mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of a hand holding a handheld device with a plus button, no text or symbols present

Illustration of hands holding a device with a black arrow pointing to a component (no text or symbols visible)

Illustration of hands using a power tool to cut the internal circuit board (no text or symbols visible)

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no leakage or disinfection (no text present)

Illustration of a plug inserted into a socket with an arrow indicating direction (no text or symbols)

Side profile illustration of a person's head with arrows indicating hair cutting direction (no text or symbols)

Diagram of a high-speed train interior with an arrow pointing to the speed limit, and a power button symbol (no text or labels)

Illustration showing a person's head with arrows indicating direction of movement or force (no text or symbols present)

1 public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, public law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private law, private legal and administrative laws.
2 Dùng lược chải dâu tóc chòm qua tai trước khi bắt dâu tỉa chân tóc.

Diagram of a high-speed train interior with an arrow pointing to the center and a power button symbol (no text or labels)

Illustration of a hand holding a tool with a magnified inset showing a close-up of the tool (no text or symbols)

Illustration of a person receiving medical or diagnostic equipment from another person (no text or symbols visible)

6 public health insurance coverage for the public health insurance coverage of the U.S. public health insurance coverage of the U.S. public health insurance coverage of the U.S. public health insurance coverage of the U.S. public health insurance coverage of the U.S. public health insurance coverage of the U.S. public health insurance coverage of the U.S. public health insurance coverage of the U.S. public health insurance coverage of the U.S. public health insurance coverage of the U.S. public health insurance coverage of the U.S. public health insurance coverage of the U.S. private sector (U.S.) public sector (U.S.) private sector (U.S.) private sector (U.S.) private sector (U.S.) private sector (U.S.) private sector (U.S.) private sector (U.S.) private sector (U.S.) private sector (U.S.) private sector (U.S.) private sector (U.S.) private sector (U.S.) private sector (U.S.) private sector (U.S.) private sector (U.S.) private sector (U.S.) private sector (U.S.) private sector (U.s.) private sector (U.s.) private sector (U.s.) private sector (U.s.) private sector (U.s.) private sector (U.s.) private sector (U.s.) private sector (U.s.) private sector (U.s.) private sector (U.s.) private sector (U.s.) private sector (U.s.) private sector (U.s.) private sector (U.s.) private sector (U.s.) private sector (U.s.) private sector (U.s.) private sector(
7 Di chuyển thiết bị từ từ và nhẹ nhàng. Di chuyển thiết bị theo chân tóc tự nhiên.

Illustration of a hairbrush cutting into a flat blade with motion arrows indicating compression (no text or symbols)

Diagram of a high-speed train wheel with an arrow pointing to the side panel and a power button symbol (no text or labels)

Illustration of a hairbrush cutting into a flat blade with motion arrows indicating compression (no text or symbols)

Illustration of a human head profile with an arrow indicating upward motion, and a magnified inset showing the head profile (no text or symbols)

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no pollution or barrier (no text present)

Illustration of three different cleaning tools: a brush, a tool holder, and a brush tip, arranged diagonally (no text or symbols present)

2 public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public sector public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Private Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Public Sector Primary Market Share and Other Market Share in China

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

Hand inserting a cable into an electrical connector (no text or symbols visible)

Hand inserting a cable into a connector socket (no text or symbols visible)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Illustration of a hand using a tool to adjust or install a mechanical component, with a plus button and circular symbol (no text or labels)

Illustration of hands holding a small mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of hands holding a handheld device with a black arrow pointing to a component (no text or symbols visible)

Illustration of hands using a tool to adjust internal components of a device (no text or symbols visible)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

充電

Illustration of a plug inserted into a device with an arrow pointing to it, and a magnified inset showing a close-up of a device (no text or symbols present)

請勿讓本產品充電超過 24 小時。

充電時間約需 8 個小時。

Side profile illustration of a person's head with arrows indicating direction of hair cutting (no text or symbols)

1 使用造型梳在順著頭髮生長方向梳髮。

Diagram of a high-speed train interior with an arrow pointing to the track and a power button (no text or symbols)

Diagram of a high-speed train interior with an arrow pointing to the center and a power button symbol (no text or labels)

Illustration of a hand holding a tool with a magnified inset showing a close-up of the tool (no text or symbols present)

Illustration of a person receiving medical or surgical equipment from another person (no text or symbols visible)

Illustration of a hairbrush cutting through a slot with motion arrows indicating compression (no text or symbols)

Diagram of a high-speed train handle with an arrow indicating the blade and a power button (no text or symbols)

Illustration of a hairbrush cutting through a nozzle with motion arrows indicating compression (no text or symbols)

Side profile illustration of a person's head with a magnified inset showing the ear and neck area (no text or symbols)

3 讓打薄梳通過兩種髮長，往上移動。

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no pollution or water discharge (no text present)

Illustration of a hand holding a tool with three different tools (no text or symbols present)

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

Hand inserting a cable into an electrical connector (no text or symbols visible)

4 使用隨附的清潔刷清潔修剪組件。

Hand inserting a cable into a connector socket (no text or symbols visible)

5 使用隨附的清潔刷清潔產品內部。

注意：本產品不需要任何潤滑。

訂購配件

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Illustration of a hand holding a mechanical device with a plus button, no text or symbols present

Illustration of hands holding a small mechanical component with an arrow indicating direction (no text or symbols present)

Illustration of a hand holding a handheld device with a plus button, no text or symbols present

Illustration of hands holding a device with a black arrow pointing to a component (no text or symbols visible)

Illustration of hands using a power tool to cut the internal circuit board (no text or symbols visible)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

充电

Illustration of a plug inserted into a device with an arrow pointing to it, and a magnified inset showing a close-up of a device (no text or symbols present)

请勿连续为本产品充电超过 24 小时。

充电约需 8 小时。

产品充满电后，可持续工作60分钟。

Side profile illustration of a person's head with arrows indicating direction of hair cutting (no text or symbols)

Diagram of a high-speed train interior with an arrow indicating the ramp and a power button (no text or symbols)

Illustration showing a person's head with two different angles of the head, illustrating the application of a specific angle (no text or symbols present)

Diagram of a high-speed train handle with an arrow pointing to the blade and a power button (no text or symbols)

3 向上滑动开/关滑钮启动产品。

Illustration of a hand holding a tool with a magnified inset showing the tip and screw (no text or symbols)

Illustration of a person wearing earbuds, showing head and neck views (no text or symbols)

Illustration of a hairbrush cutting through a clip with motion arrows indicating compression (no text or symbols)

Diagram of a high-speed train wheel with an arrow indicating the blade and a power button symbol (no text or labels)

3 向上滑动开/关滑钮启动产品。

4 将打薄修剪梳在头发上移动。

Illustration of a hairbrush emitting sound waves (no text or symbols)

Illustration of a human head profile with an arrow indicating upward motion, and a magnified inset showing the head profile (no text or symbols)

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no pollution or water discharge (no text present)

Illustration of three different cleaning tools: a brush, a tool holder, and a brush tip (no text or symbols present)

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

Hand inserting a cable into an electrical connector (no text or symbols visible)

4 用随附的清洁刷清洁修剪部件。

Hand inserting a cable into a connector socket (no text or symbols visible)

5 用随附的清洁刷清洁产品内侧。

注意：产品不需要任何润滑。

订购附件

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Illustration of a hand holding a mechanical device with a plus button, no text or symbols present

Illustration of hands holding a small electronic device with a black arrow indicating the cable or switch (no text or symbols present)

4 拉开本产品的后面板。

Illustration of a hand holding a handheld device with a plus button and screwdriver (no text or symbols)

Illustration of hands holding a device with a black arrow pointing to a component (no text or symbols visible)

6 从正面拆开电源部件。

Illustration of hands using a tool to adjust or install a device component (no text or symbols visible)

Illustration of a hand holding a mechanical device with a plus button (no text or symbols)

Illustration of hands holding a small electronic device with an arrow indicating compression (no text or symbols present)

Illustration of a hand using a tool to adjust or install a small electronic device (no text or symbols visible)

Illustration of hands holding a mechanical device with a black arrow indicating a component (no text or symbols present)

Illustration of hands using pliers to adjust internal components of a device (no text or symbols visible)

سفارش دادن لوازم

محيط زیست

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Illustration of a hand holding a tool with a brush, alongside a device and notebook (no text or symbols present)

Illustration of a hand holding a small vehicle with a curved arrow indicating rotation (no text or symbols)

Hand inserting a cable into an electronic device component (no text or symbols visible)

Hand inserting a cable into a connector socket (no text or symbols visible)

Illustration of a hairbrush with motion arrows indicating compression or compression (no text or symbols)

Diagram of a high-speed train track with an arrow indicating speed direction and a power button (no text or symbols)

Illustration of a hairbrush with motion arrows indicating compression or cutting process (no text or symbols)

Side profile illustration of a person's head with a magnified inset showing the head profile (no text or symbols)

Illustration showing a person's head with a finger pointing to the crown, and two steps of hair application (no text or symbols present)

Diagram of a high-speed train track with an arrow indicating speed direction and a power button (no text or symbols)

Illustration of a hand holding a tool with a magnified inset showing a close-up of the tool (no text or symbols present)

Illustration of a person wearing a medical device with earphones, viewed from the side (no text or symbols present)

Diagram of a high-speed train wheel with an arrow indicating the wheel's center and a power button symbol (no text or labels)

(EMF) ميدانهای الكترومغناطيسى

Diagram showing a plug inserted into a device with an arrow pointing to it, and an inset view of a socket (no text or symbols present)

Side profile illustration of a person's head with arrows indicating motion or pressure direction (no text or symbols)

مقدمه

The image is too blurry to recognize any text content.

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no restrictions or leakage (no text present)

Illustration of a hand holding a mechanical device with a plus button (no text or symbols)

Line drawing of hands holding a small electronic device with an arrow indicating the change (no text or symbols present)

Illustration of a hand holding a medical or electronic device with a plus button, no text or symbols present

Illustration of hands assembling a mechanical component with a black arrow indicating a specific part (no text or symbols present)

Illustration of hands using a tool to adjust internal components of a device (no text or symbols visible)

طلب الملحقات

الhfاظ على البيئة

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Illustration of a hand holding a tool with a brush, alongside a mechanical device and notebook (no text or symbols present)

Hand holding a small object with an arrow indicating rotation (no text or symbols)

Illustration of a hand inserting a cable into an electrical connector (no text or symbols visible)

Hand inserting a cable into an electronic component (no text or symbols visible)

Two circular diagrams showing wave interference patterns: one with a straight arrow and another with curved lines (no text or symbols)

Illustration of a hairbrush cutting through a brush with motion arrows indicating compression (no text or symbols)

Diagram of a train track with an arrow indicating speed and a power button (no text or symbols)

Illustration of a hairbrush with motion arrows indicating compression or cutting (no text or symbols)

Illustration of a person's head in profile showing head compression and facial profile (no text or symbols)

Diagram of a high-speed train interior with an arrow pointing to the center and a power button symbol (no text or labels)

Illustration of a hand holding a tool with a magnified inset showing a close-up of the tool (no text or symbols present)

Illustration of a person wearing a device with ear tags, viewed from the side (no text or symbols)

Technical diagram showing mechanical assembly with arrows indicating force or movement (no text or symbols)

Diagram of a high-speed train wheel with an arrow indicating the wheel's center and a power button symbol (no text or labels)

الشحن

Illustration of a medical device with an arrow pointing to a device and a close-up inset showing a patient inside a home (no text or symbols)

استخدام الجهاز

Side profile illustration of a person's head with arrows indicating motion or pressure points (no text or symbols)

مقدمة

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)
