Viva Collection HR1619 - Blender PHILIPS - Free user manual and instructions

Product type	Blender
Brand	Philips
Model	Viva Collection HR1619
Power	600 W
Bowl capacity	1.5 L
Number of speeds	2 speeds + pulse
Blade material	Stainless steel
Bowl material	BPA-free plastic
Functions	Blending, ice crushing, pulse
Dimensions (L x W x H)	30 x 25 x 40 cm
Weight	2.5 kg
Power supply	220-240 V, 50/60 Hz
Cable length	1 m
Noise level	85 dB
Safety	Safety lock of the bowl
Maintenance and cleaning	Bowl and lid dishwasher safe
Spare parts	Bowl, lid, seal, blades
Repairability	Repairability score 7.8/10
Warranty	2 years

Frequently Asked Questions - Viva Collection HR1619 PHILIPS

How to clean the Philips HR1619 blender?

The bowl, lid, and cap are dishwasher safe. For a quick clean, add warm water and a drop of dish soap, then run on pulse for 30 seconds. Wipe the motor base with a damp cloth.

Can I blend ice cubes with the HR1619?

Yes, the blender is equipped with stainless steel blades and a pulse function that can crush ice cubes. Use the pulse function in short bursts to avoid overloading the motor.

What is the maximum capacity of the bowl?

The bowl has a capacity of 1.5 liters. Do not exceed the indicated maximum level mark to avoid overflow.

Is the blender noisy?

The noise level is approximately 85 dB, which is standard for a blender of this power. Use it on a stable surface to reduce vibrations.

How to use the pulse function?

The pulse function is activated by pressing the designated button. It provides short, powerful bursts, ideal for chopping or crushing without over-blending. Hold down for successive pulses.

Can I blend hot foods?

It is not recommended to blend hot liquids (above 60°C) as the pressure may cause the lid to pop off. Let cool before blending.

How to replace the bowl seal?

The seal is a wear part. To replace it, remove the old seal from the lid and insert the new one, making sure it is properly seated in the groove. You can order replacement seals from Philips.

Does the blender have a warranty?

Yes, Philips offers a 2-year warranty from the date of purchase. Keep your receipt for any claims.

What to do if the blender does not start?

Check that the bowl is properly locked on the base and that the plug is inserted. Make sure the speed button is in the desired position. If the problem persists, contact Philips customer service.

Can I blend fruits with pits?

It is best to remove hard pits (like those in peaches or apricots) as they can damage the blades. Small seeds (apples, grapes) are fine.

USER MANUAL Viva Collection HR1619 PHILIPS

Register your product and get support at / 请登录以下网址并得到相应的帮助

www.philips.com/welcome

HR1619

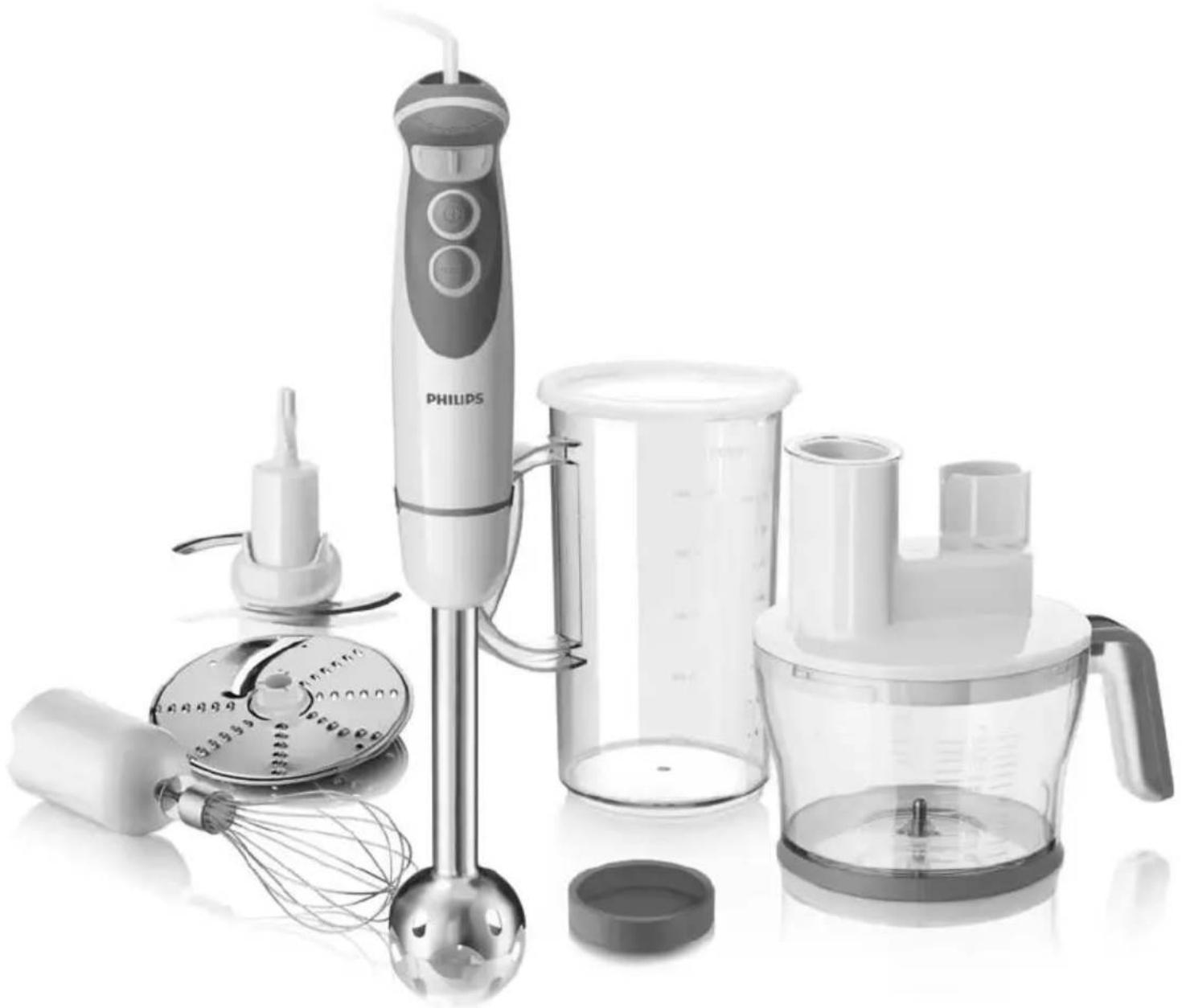

Product photo of a Philips brand blender with hand mixer, cleaning cup, and kitchen utensil (no visible text or symbols)

Diagram of three open panels with grid patterns and curved arrows indicating rotation or movement (no text or symbols)

ENGLISH 6

ESPAÑOL 13

FRANÇAIS 20

INDONESIA 27

한국어 34

BAHASA MELAYU 41

PORTUGUÊS 48

ภาษาไทย 55

TIÊNG VIÊT 61

繁體中文 68

简体中文 74

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

General description (Fig. 1)

A Speed selector
B On/off button
C Turbo speed button
D Motor unit
E Release buttons
F Blender bar with integrated blade unit
G Protective cover of blender bar
H Beaker
I Beaker lid
J Whisk
K Whisk coupling unit
L Protective cover of blade unit
M Pusher
N Lid of bowl
○ Combination disc (slicing/shredding)
P Tool holder
Q Blade unit
R Lid release button
S Bowl

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

- Never immerse the motor unit in water or any other liquid, nor rinse it under the tap. Only use a moist cloth to clean the motor unit.

Warning

• Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
• Do not use the appliance if the plug, the mains cord or other parts are damaged.

- If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- Never use your fingers or an object (e.g. a spatula) to push ingredients down the feeding tube while the appliance is operating. Only use the pusher for this purpose.

- Do not touch the cutting edges of the blade units and the combination disc, especially when the appliance is plugged in. Their cutting edges are very sharp.

- If the blade unit gets stuck, unplug the appliance before you remove the ingredients that block the blade unit.

- Be very careful when you handle or clean the blade units and the combination disc. Their cutting edges are very sharp. Be especially careful when you clean them and when you empty the bowl.

Caution

• Always unplug the appliance after use, before you change accessories or before you approach parts that move during use.
• This appliance is intended for household use only.
• Do not exceed the quantities and processing times indicated in the tables.
• Do not exceed the maximum level indication on the bowl.
• Do not process more than one batch without interruption. Let the appliance cool down for five minutes before you continue processing.
• Never use any accessories or parts from other manufacturers or that Philips does not specifically recommend. If you use such accessories or parts, your guarantee becomes invalid.
• The bowl is not suitable for use in microwave ovens.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Overheat protection

This appliance is equipped with overheat protection. If the appliance overheats, it switches off automatically. Unplug the appliance and let it cool down for 5 minutes. Then put the mains plug back into the wall socket and switch on the appliance again. Please contact your Philips dealer or an authorised Philips service centre if the overheat protection is activated too often.

Before first use

Thoroughly clean the parts that come into contact with food before you use the appliance for the first time (see chapter 'Cleaning').

Preparing for use

1 Let hot ingredients cool down before you put them in the bowl or beaker (max. temperature 80^ C).
2 Cut large ingredients into pieces of approximately 2cm before you process them.
3 Assemble the appliance properly before you put the plug in the wall socket.

Using the appliance

Hand blender

The hand blender is intended for:

• blending fluids, e.g. dairy products, sauces, fruit juices, soups, mixed drinks and shakes.
• mixing soft ingredients, e.g. pancake batter or mayonnaise.
• pureeing cooked ingredients, e.g. for making baby food.

1 Put the ingredients in the beaker.

See the table below for the recommended quantities and processing times.

Blending quantities and preparation times

Ingredients Blending quantity Time Speed

Fruits & vegetables 100-200g 30sec. Turbo

Baby food, soups & sauces 100-400ml 60sec. 12-16

Battters 100-500ml 60sec. 12-16

Shakes & mixed drinks 100-1000ml 60sec. 12-16

2 Attach the blender bar to the motor unit ('click') (Fig. 2).
3 Put the plug in the wall socket.
4 Immerse the blade guard completely in the ingredients to avoid splashing (Fig. 3).
5 Press the on/off button or the turbo speed button to switch on the appliance.

- When you use the on/off button, you can adjust the speed with the speed selector. The higher the speed, the shorter the processing time required.

- When you use the turbo speed button, the appliance operates at maximum speed. In this case, you cannot adjust the speed with the speed selector.

Note: The higher the speed, the shorter the processing time required.

6 Move the appliance slowly up and down and in circles to blend the ingredients (Fig. 4).
7 After processing, release the on/off button or the turbo speed button to switch off the appliance. Then wait until the blade unit has stopped rotating.

Food processor

Blade unit

The blade unit is intended for chopping ingredients such as nuts, meat, onions, hard cheese, boiled eggs, garlic, herbs, dry bread etc.

The cutting edges of the blade unit are very sharp! Be very careful when you handle the blade unit, especially when you remove it from the bowl, when you empty the bowl and during cleaning.

1 Place the tool holder in the bowl (Fig. 5).
2 Remove the protective cover from the blade unit.
3 Put the blade unit on the tool holder (Fig. 6).
4 Put the ingredients in the bowl.

See the table below for the recommended quantities and processing times.

Chopping quantities and processing times

Ingredients Quantity Time Speed
Parsley 100g 30sec. 12-16
Onions & egg 500g 7 × 1sec.(pulse) 1

Meat	300g 30sec. Turbo

Parmesan

300g ~ 60sec.

Turbo

Nuts 500g ~ 30sec.

Turbo

Dark chocolate

200g ~ 45-60sec Turbo

5 Put the lid on the bowl (1). Turn the lid anticlockwise (2) to fix it ('click') (Fig. 7).
6 Fasten the motor unit onto the lid of the bowl ('click') (Fig. 8).
7 Put the pusher in the feeding tube.

Note: The pusher prevents spillage.

8 Press the on/off button or the turbo speed button to switch on the appliance.

- When you use the on/off button, you can adjust the speed with the speed selector. The higher the speed, the shorter the processing time required.

- When you use the turbo speed button, the appliance operates at maximum speed. In this case, you cannot adjust the speed with the speed selector.

Note: If the ingredients stick to the wall of the bowl, release the button to switch off the appliance and loosen the ingredients with a spatula or add some liquid.

Note: Always let the appliance cool down after chopping meat with the blade unit.

9 After processing, release the on/off button or the turbo speed button to switch off the appliance. Then wait until the blade unit has stopped rotating.
10 Press the lid release button on the bowl (1) and turn the lid clockwise to remove it (2). (Fig. 9)

Tips

- The appliance chops very quickly. If you use the turbo speed button, use it briefly to prevent the food from becoming too finely chopped.

• Do not let the appliance operate too long when you chop (hard) cheese or chocolate. Otherwise these ingredients become too hot, start to melt and turn lumpy.
• Do not use the blade unit to chop very hard ingredients like coffee beans, turmeric, nutmeg and ice cubes, as this may cause the blade unit to get blunt.

Combination disc

The combination disc is intended for slicing and shredding vegetables like cucumber, carrots, potatoes, leek and onions and certain kinds of cheese. One side is intended for slicing and the other side for shredding. You can switch from slicing to shredding and the other way round by simply turning the disc.

Never process hard ingredients like ice cubes with the combination disc.

The cutting edges of the combination disc are very sharp. Do not touch them.

1 Place the tool holder in the bowl (Fig. 5).
2 Place the combination disc on the tool holder with the slicing or shredding side facing up, depending on the result you want (Fig. 10).
3 Put the lid on the bowl (1). Turn the lid anticlockwise (2) to fix it ('click') (Fig. 7).

4 Put the ingredients in the feeding tube.

• Pre-cut large ingredients into chunks that fit in the feeding tube.
• Fill the feeding tube evenly for the best results.
• When you have to process a large amount of ingredients, process small batches and empty the bowl between batches.
• To shred cheese, e.g. Parmesan, Gouda or Emmentaler, the cheese should be at refrigerator temperature.

5 Fasten the motor unit onto the lid of the bowl ('click') (Fig. 8).
6 Press the on/off button or the turbo speed button to switch on the appliance.

- When you use the on/off button, you can adjust the speed with the speed selector. The higher the speed, the shorter the processing time required.

- When you use the turbo speed button, the appliance operates at maximum speed. In this case, you cannot adjust the speed with the speed selector.

7 Press the pusher lightly onto the ingredients in the feeding tube.
8 After processing, release the on/off button or the turbo speed button to switch off the appliance. Then wait until the combination disc has stopped rotating.

Whisk

The whisk is intended for whipping cream, whisking egg whites, desserts etc.

1 Connect the whisk to the coupling unit ('click') (Fig. 11).
2 Connect the coupling unit to the motor unit ('click') (Fig. 12).
3 Put the ingredients in a bowl.
See the table for the recommended quantities and processing times.

Whisking quantities and processing times

Ingredients Whisking quantity Time

Cream 250ml 70-90sec.

Egg whites 4 eggs 120sec.

Tip: When you beat egg whites, use a large bowl for the best result.

Tip: When you whip cream, use the beaker to avoid splashing.

4 Put the plug in the wall socket and press the on/off button.

Tip: To prevent splashing, start at a low speed setting and continue with a higher speed after approx. 1 minute.

5 After approx. 1 minute, you can press the turbo button to continue at turbo speed.

Cleaning (Fig. 13)

Do not immerse the motor unit, the lid of the bowl and the wisk coupling unit in water. Clean these parts with a moist cloth.

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Clean the blade units and the combination disc very carefully. Their cutting edges are very sharp.

1 Unplug the appliance.
2 Press the release buttons on the motor unit to remove the accessory you have used.
3 Remove the detachable parts, if any.

Tip: For quick cleaning of the blender bar, pour warm water with some washing-up liquid in the beaker, insert the blender bar and let the appliance operate for approx. 10 seconds.

4 See the separate cleaning table for further instructions.

Storage

1 Put the protective covers on the blender bar and the blade unit.
2 Put the blade unit and the combination disc on the tool holder and store them in the bowl.
3 Place the lid on the bowl.

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this you help to preserve the environment (Fig. 14).

Ordering accessories

To purchase accessories for this appliance, please visit our online shop at www.shop.philips.com/service. If the online shop is not available in your country, go to your Philips dealer or a Philips service centre. If you have any difficulties obtaining accessories for your appliance, please contact the Philips Consumer Care Centre in your country. You find its contact details in the worldwide guarantee leaflet.

You can order a direct-driven mini chopper (under service code number 4203 035 83450) from your Philips dealer or a Philips service centre as an extra accessory.

The mini chopper is intended for chopping small amounts of ingredients such as nuts, meat (max. 120g for 5 seconds at maximum speed), onions, hard cheese (50 - 100g for 15 seconds at maximum speed), boiled eggs, garlic, herbs, dry bread, etc.

Guarantee and service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com/support or contact the Philips Consumer Care Centre in your country. You find its phone number in the worldwide guarantee leaflet. If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Troubleshooting

This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Centre in your country.

Problem Solution

The appliance does not work.	This appliance is equipped with overheat protection. If the appliance overheats, it switches off automatically. Unplug the appliance and let it cool down for 5 minutes. Then put the mains plug back into the wall socket and switch on the appliance again. Please contact your Philips dealer or an authorised Philips service centre if the overheat protection is activated too often
The motor unit gives off an unpleasant smell the first few times the appliance is used.	This is not unusual. If the appliance continues to give off this smell after a few times, check the quantities you are processing and the processing time.
The appliance makes a lot of noise, gives off an unpleasant smell, is too hot to touch, gives off smoke etc.	Stop using the appliance and unplug it. Go to the nearest Philips service centre or your dealer for assistance.

Recipes

Fruit bread recipe

• 150g dates
• 225g prunes
• 50g almonds
• 50g walnuts
• 100g raisins
• 200g whole rye flour
• 100g wheat flour
• 100g brown sugar
• 1 dash salt
• 1 sachet baking powder
• 300ml buttermilk

1 Put the ingredients, except the buttermilk, in the bowl in the following order: dates, prunes, almonds, walnuts, raisins, whole rye flour, wheat flour, brown sugar, salt and baking powder.
2 Carefully flatten the mass with your hands.
3 Add the buttermilk.
4 Mix the ingredients at the turbo setting for max. 5 seconds.
5 Put the mixed dough into a rectangular baking tin and bake it for 40 minutes at 170^ C.
