K33458US - Phone charger KENSINGTON - Free user manual and instructions

Product Type	Phone Charger
Brand	Kensington
Model	K33458US
Input Voltage	100-240 V AC
Output Voltage	5 V DC
Output Current	2 A
Dimensions (L x W x H)	100 x 50 x 20 mm
Weight	100 g
Charging Technology	Fast Charge (5V/2A)
Protection Features	Overcharge, Overcurrent, Short Circuit
Compatibility	Most USB-charged devices including iPhones and Android
Cable Included	No
Safety Certifications	CE, RoHS
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Cleaning Instructions	Wipe with a soft dry cloth
Repairability	Non-serviceable; do not open
Warranty	1 year limited warranty

Frequently Asked Questions - K33458US KENSINGTON

What devices are compatible with the Kensington K33458US charger?

The charger is compatible with most smartphones, tablets, and other USB-charged devices that support 5V input. It provides up to 2A output for optimal charging speed.

Can I use this charger for fast charging?

Yes, the charger supports 5V/2A output, which is considered standard fast charging for many devices. However, it does not support Qualcomm Quick Charge or USB-PD.

Does the charger come with a cable?

No, the K33458US is a charger adapter only. You need to use your own USB charging cable.

What safety features does this charger have?

The charger is equipped with overcharge, overcurrent, and short circuit protection to ensure safe charging.

What is the input voltage range?

The charger accepts an input voltage of 100-240 V AC, making it suitable for worldwide use with the appropriate plug adapter.

How do I clean the charger?

Unplug the charger and wipe the exterior with a soft dry cloth. Do not use liquids or abrasive cleaners.

Is the charger repairable?

The charger is a non-serviceable device. Do not attempt to open it; if damaged, replace it.

What is the warranty period?

Kensington offers a 1-year limited warranty for this charger. Contact their support for details.

Can I charge multiple devices at once?

No, this charger has a single USB port and can only charge one device at a time.

What are the dimensions of the charger?

The dimensions are approximately 100 x 50 x 20 mm (L x W x H).

USER MANUAL K33458US KENSINGTON

France 01 70 20 00 41

Hungary 20 9430 612

Ireland 016011163

Italia 02 4827 1154

México 55 15 00 57 00

United States 18005354242

International Toll [phone]

For technical support visit

A Division of ACCO Brands

333 Twin Dolphin Drive,

Sixth floor

Redwood Shores, CA 24065

94065

Designed in California, U.S.A. Made in China www.kensington.com by Kensington

901-2327-00

KL

Kensington®

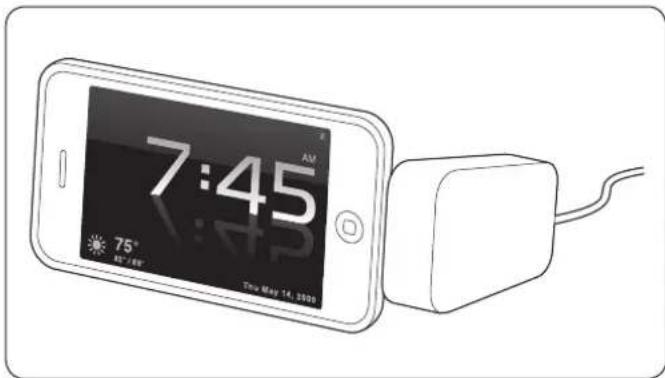

Nightstand Charging Dock for iPhone™

QUICK START GUIDE

GUIDE DE DEMARRAGE RAPIDE

KURZANLEITUNG

SNELSTARTGIDS

GUIDA RAPIDA

GUÍA RÁPIDA

GYORSKALAUZ

PŘÍRUČKA ZAČÍNÁME

SZYBKI START

КРАТКОЕ РУКОВОДСТВО

ПОЛЬЗОВАТЕЛЯ

MANUAL DE INÍCIO RÁPIDO

English

Registering Your Kensington Product

Register your Kensington product online at www.kensington.com.

Technical Support

Technical support is available to all registered users of Kensington products. Technical Support contact information can be found on the back page of this manual.

Web Support

You may find the answer to your problem in the Frequently Asked Questions (FAQ) section of the Support area on the Kensington Website: www.support.kensington.com.

Telephone Support

There is no charge for technical support except long-distance charges where applicable. Please visit www.kensington.com for telephone support hours. In Europe, technical support is available by telephone Monday to Friday 09:00 to 21:00 (Central European time).

Please note the following when calling support:

• Call from a phone where you have access to your device.
• Be prepared to provide the following information:
– Name, address, and telephone number
– Name of the Kensington product
- Make and model of your computer
– System software and version
– Symptoms of the problem and what led to them

WARNING!

Failure to read and follow the safety instructions in this Instruction Guide before using and installing your Charger could result in serious and/or fatal injury and/or property damage.

• Your Charger may become warm during operation. To prevent serious or fatal injury and/or property damage provide ventilation and refrain from placing items on or around your Charger during operation.
• When operating your Charger, regularly check that the input power cable is firmly connected. Loose power cables can generate harmful heat which can damage your Charger.
• Do not operate your Charger near a heat source, heat vent, or in direct sunlight. Your Charger should be used in temperatures between 50–80° Fahrenheit (10–27° Celsius).

• Keep your Charger dry. Do not expose your Charger to moisture. Direct contact to moisture may lead to electrical shock causing serious or fatal injury and/or property damage. Consult a qualified technician for a complete safety evaluation before resuming use of your Charger when they have come into direct contact with moisture.

• Your Charger is not user serviceable. Do not attempt to modify, repair, or tamper with the external or internal components of your Charger. Doing so will void the warranty and may lead to serious or fatal injury and/or property damage.

• Do not short circuit your Charger by inserting conductive objects into the USB Power Ports.

2-YEAR LIMITED WARRANTY

KENSINGTON COMPUTER PRODUCTS GROUP ("KENSINGTON") warrants only to the original purchaser of this product from a Kensington-authorized reseller or distributor that this product will be free from defects in material and workmanship under normal use and service for two years after date of purchase. Kensington reserves the right, before having any obligation under this limited warranty, to inspect the damaged Kensington product, and all costs of shipping the Kensington product to Kensington for inspection shall be borne solely by the purchaser. In order to recover under this limited warranty, Purchaser must make claim to Kensington within 60 days of occurrence, and must present acceptable proof of original ownership (such as original receipt, warranty card registration, on-line registration, or other documentation Kensington deems acceptable) for the product. KENSINGTON, at its option, shall repair or replace the defective unit covered by this warranty. Please retain the dated sales receipt as evidence of the original purchaser's date of purchase. You will need it for any warranty service. In order to keep this limited warranty in effect, the product must have been handled and used as prescribed in the instructions accompanying this warranty. This limited warranty does not cover any damage due to accident, misuse, abuse or negligence. This limited warranty is valid only if the product is used with the equipment specified on the product box. Please check product box for details or call KENSINGTON technical support. This limited warranty is non-transferable and does not apply to any purchaser who bought the product from a reseller or distributor not authorized by Kensington, including but not limited to purchases from internet auction sites. This warranty does not affect any other legal rights you may have by operation of law. Contact KENSINGTON at www.support.kensington.com or at one of the technical support numbers listed below for warranty service procedures.

DISCLAIMER OF WARRANTY

EXCEPT FOR THE LIMITED WARRANTY PROVIDED HEREIN, TO THE EXTENT PERMITTED BY LAW, KENSINGTON DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ALL WARRANTIES OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT THAT ANY IMPLIED WARRANTIES MAY NONETHELESS EXIST BY OPERATION OF LAW, ANY SUCH WARRANTIES ARE LIMITED TO THE DURATION OF THIS WARRANTY. SOME STATES/PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS MAYNOT APPLY TO YOU.

LIMITATION OF LIABILITY

REPAIR OR REPLACEMENT OF THIS PRODUCT, AS PROVIDED HEREIN, IS YOUR EXCLUSIVE REMEDY. KENSINGTON SHALL NOT BE LIABLE FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING, BUT NOT LIMITED TO, LOST REVENUES, LOST PROFITS, LOSS OF USE OF SOFTWARE, LOSS OR RECOVERY OF DATA, RENTAL OF REPLACEMENT EQUIPMENT, DOWNTIME,

DAMAGE TO PROPERTY, AND THIRD-PARTY CLAIMS, ARISING OUT OF ANY THEORY OF RECOVERY, INCLUDING WARRANTY, CONTRACT, STATUTORY OR TORT. NOTWITHSTANDING THE TERM OF ANY LIMITED WARRANTY OR ANY WARRANTY IMPLIED BY LAW, OR IN THE EVENT THAT ANY LIMITED WARRANTY FAILS OF ITS ESSENTIAL PURPOSE, IN NO EVENT WILL KENSINGTON'S ENTIRE LIABILITY EXCEED THE PURCHASE PRICE OF THIS PRODUCT. SOME STATES/PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE AND PROVINCE TO PROVINCE.

FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment causes harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

MODIFICATIONS: Modifications not expressly approved by Kensington may void the user's authority to operate the device under FCC regulations and must not be made.

INDUSTRY CANADA CONFORMITY

This Class [B] digital apparatus complies with Canadian ICES-003.

CE DECLARATION OF CONFORMITY

Kensington declares that this product is in compliance with the essential requirements and other relevant provisions of applicable EC directives.

For Europe, a copy of the Declaration of Conformity for this product may be obtained by clicking on the Compliance Documentation link at www.support.kensington.com.

INFORMATION FOR EU MEMBER-STATES ONLY

The use of the symbol indicates that this product may not be treated as household waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your

household waste disposal service, or the shop where you purchased the product.

Kensington and ACCO are registered trademarks of ACCO Brands. iPhone is a trademarks of Apple, Inc., registered in the U.S. and other countries. The Kensington Promise is a service mark of ACCO Brands. All other trademarks are the property of their respective owners. Patents pending.

© 2009 Kensington Computer Products Group, a division of ACCO Brands USA LLC. Any unauthorized copying, duplicating, or other reproduction of the contents hereof is prohibited without written consent from Kensington Computer Products Group. All rights reserved. 4/09
