Brand	Electrolux
Model	ENB 44691 X
Product Type	Built-in Refrigerator with Freezer
Energy Class	A++
Annual Energy Consumption	260 kWh
Total Net Capacity	295 L
Refrigerator Net Capacity	210 L
Freezer Net Capacity	85 L
Height	177 cm
Width	54 cm
Depth	55 cm
Weight	62 kg
Climate Class	SN-ST
No Frost System	Yes (Freezer)
Fast Freeze Function	Yes
Interior Light	LED
Door Hinge	Right (reversible)
Noise Level	38 dB
Power Supply	220-240 V, 50 Hz
Cleaning Instructions	Clean with mild detergent, avoid abrasive cleaners
Safety Features	Child lock, automatic defrost
Spare Parts Availability	7 years after last production
Warranty	2 years manufacturer

Frequently Asked Questions - ENB 44691 X ELECTROLUX

How do I install the built-in refrigerator?

Ensure the niche dimensions are at least 178x56x56 cm (HxWxD). Leave a 10 cm gap at the top for ventilation. Use the provided fixing brackets to secure the appliance. Level the feet to ensure stability.

What is the recommended temperature setting?

Set the refrigerator temperature to 4-5 °C and the freezer to -18 °C. Use the electronic control panel to adjust. Allow 24 hours for the temperature to stabilize.

How do I activate the Fast Freeze function?

Press the Fast Freeze button on the control panel. The indicator light will turn on. This function runs automatically for 24 hours to quickly freeze fresh items. After that, it returns to normal operation.

Why is there water pooling inside the fridge?

The most common cause is a blocked defrost drain. Clean the drain hole at the back of the fridge using a pipe cleaner or cotton swab. Also ensure the fridge is level so water flows to the drain.

Can I reverse the door opening direction?

Yes, the door hinge is reversible. Refer to the manual for step-by-step instructions. You will need a screwdriver and possibly a second person. The process involves moving hinges and door handles to the opposite side.

How often should I clean the condenser?

Clean the condenser coils (located at the back or bottom) every 6 months using a vacuum cleaner with a brush attachment. Dust buildup reduces efficiency and increases energy consumption.

What should I do if the freezer is not freezing properly?

Check that the temperature setting is correct. Ensure the door is closing properly and the seal is clean. Verify that the vents inside are not blocked by food. If the problem persists, the thermostat or compressor may need service.

Is there a child lock feature?

Yes, press and hold the Child Lock button for 3 seconds to activate. The indicator will show. This prevents children from changing the temperature settings accidentally.

How do I replace the interior LED light?

The LED light is not user-replaceable. If it fails, contact authorized service for replacement. Do not attempt to open the light cover yourself.

Where can I purchase spare parts?

Visit the Electrolux official website or contact authorized service centers. Provide the model number ENB 44691 X. Spare parts are guaranteed for 7 years after the last production date.

USER MANUAL ENB 44691 X ELECTROLUX

Thinking of you Electrolux

návod k použití gebruiksaanwijzing user manual Οδηγίες Χρήσης

Chladnička s mrazničkou

Electrolux. Thinking of you.

Více o nás naleznete na adrese www.electrolux.com

OBSAH

Line drawing of a hand holding a shelf with a small object on top (no text or symbols)

POLICE NA LÁHVE

Diagram of a mechanical or electrical component with coiled wires and a cylindrical component, no text or symbols present.

Diagram of a bottle partially submerged in a wavy line between two parallel plates, with an arrow indicating flow direction (no text or symbols)

ZÁSUVKA NA ZELENINU S REGULACÍ VLHKOSTI

Technical line drawing of a rectangular mechanical housing or enclosure with internal components (no text or symbols)

Diagram of a mechanical or electrical component with two arrows indicating direction, no text or symbols present

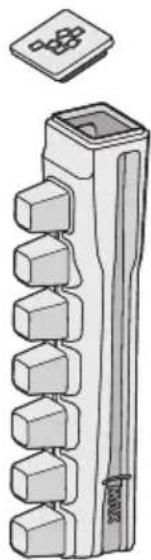

CHLAZENÍ VZDUCHEM

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a vertical shelf with numbered compartments and a small top component (no text or symbols)

ZMRAZOVÁNÍ ČERSTVÝCH POTRAVIN

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

ROZMRAZOVÁNÍ MRAZNIČKY

Technical line drawing of a mechanical assembly or assembly (no text or symbols visible)

Diagram showing a hand holding a tool interacting with a panel, viewed through a circular inset (no text or symbols present)

INSTALACE FILTRU POHLCOVAČE PACHŮ

Electrolux. Thinking of you.

Line drawing of a hand holding a shelf with a wooden plank (no text or symbols)

FLESSENREK

Diagram of a mechanical or electrical component with coiled wires and a cylindrical component, no text or symbols present.

Diagram of a bottle partially submerged in a wavy channel with directional arrows indicating flow or movement (no text or symbols)

GROENTELADE MET VOCHTIGHEIDSREGELING

Technical line drawing of a rectangular mechanical housing or enclosure with internal components (no text or symbols)

Diagram showing a mechanical device with an arrow indicating direction, no text or symbols present

Diagram of a mechanical device with two arrows indicating movement or force, no text or symbols present

LUCHTKOELING

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a vertical stack of 3D blocks with a small device on top (no text or symbols)

VERS VOEDSEL INVRIEZEN

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

HET ONTDOOIEN VAN DE VRIEZER

Technical line drawing of a mechanical assembly or assembly (no text or symbols visible)

Diagram showing a hand using a tool to adjust or install a panel, with no visible text or symbols.

INSTALLATIE VAN HET TASTE GUARD FILTER

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

CONTENTS

Safety information 31

Control panel 33

First use 36

Daily use 36

Helpful hints and tips 38

Care and cleaning 39

What to do if... 41

Technical data 43

Installation

Environmental concerns 44

Subject to change without notice

SAFETY INFORMATION

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

CHILDREN AND VULNERABLE PEOPLE SAFETY

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

- Keep all packaging well away from children. There is risk of suffocation.

- If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.

- If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

GENERAL SAFETY

Warning!

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

• The appliance is intended for keeping foodstuff and/or beverages in a normal household as explained in this instruction booklet.
• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.

• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
  During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.
  If the refrigerant circuit should become damaged:

• avoid open flames and sources of ignition
  – thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

Warning! Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel to avoid hazard.

1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
3. Make sure that you can come to the mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance without the lamp cover (if foreseen) of interior lighting.

7. This appliance is heavy. Care should be taken when moving it.

8. Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
9. Avoid prolonged exposure of the appliance to direct sunlight.
10. Bulb lamps (if foreseen) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination.

DAILY USE

• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.
• Do not place food products directly against the air outlet on the rear wall. (If the appliance is Frost Free)

• Frozen food must not be re-frozen once it has been thawed out.

• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.

• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.
• Ice lollies can cause frost burns if consumed straight from the appliance.

CARE AND CLEANING

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect in the bottom of the appliance.

INSTALLATION

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

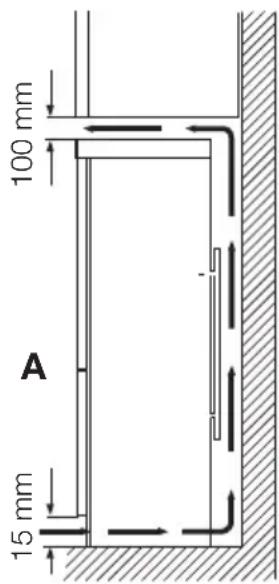

• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.

• The appliance must not be located close to radiators or cookers.

• Make sure that the mains plug is accessible after the installation of the appliance.

• Connect to potable water supply only (If a water connection is foreseen).

SERVICE

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol 🌐 are recyclable.

ENVIRONMENT PROTECTION

This appliance does not contain gasses which could damage the ozone layer,

CONTROL PANEL

1 Fridge temperature regulator Minus button
2 Fridge temperature regulator Plus button
3 ON/OFF button OK button
4 Freezer temperature regulator Plus button Timer regulator

5 Display

6 Freezer temperature regulator Minus button Timer regulator

7 Mode button It is possible to change predefined sound of buttons to a loudly one by pressing together Mode button 7 and Minus button 6 for some seconds. Change is reversible.

DISPLAY

1 Fridge temperature indicator
2 Child Lock function
3 Fridge Off function
4 Drinks Chill function
5 Timer
6 Freezer temperature indicator
7 Alarm indicator
8 Shopping function
9 Action Freeze function
10 Eco Mode function
11 Holiday function

SWITCHING ON

To switch on the appliance do these steps:

1. Connect the mains plug to the power socket.

2. Press the ON/OFF button if the display is off.

3. The alarm buzzer could operate after few seconds.

To reset the alarm refer to "High temperature alarm".

1. The temperature indicators show the set default temperature.

To select a different set temperature refer to "Temperature regulation".

SWITCHING OFF

To switch off the appliance do these steps:

1. Press the ON/OFF button for 5 seconds.
2. The display switches off.
3. To disconnect the appliance from the power disconnect the mains plug from the power socket.

SWITCHING OFF THE FRIDGE

To switch off the fridge:

1. Press the Mode button until the corresponding icon appears.

The Fridge Off indicator flashes.

The fridge indicator shows dashes.

1. Press the OK button to confirm.
2. The fridge Off indicator is shown.

SWITCHING ON THE FRIDGE

To switch on the fridge:

1. Press the fridge temperature regulator. Or:

2. Press the Mode button until the corresponding icon appears.

The Fridge Off indicator flashes.

1. Press the OK button to confirm.
2. The fridge Off indicator goes off.

To select a different set temperature refer to "Temperature regulation".

TEMPERATURE REGULATION

The set temperature of the fridge and of the freezer may be adjusted by pressing the temperature regulator button.

Set default temperature:

• + 5 °C for the fridge
- -18°C for the freezer

The temperature indicators show the set temperature.

Important! To restore the set default temperature switch off the appliance.

The set temperature will be reached within 24 hours.

Fluctuations of some degrees around set temperature are normal and does not mean any fault in the appliance.

Important! After a power failure the set temperature remains stored.

For optimal food storage select the Eco Mode function. Refer to "Eco Mode function".

ECO MODE FUNCTION

For optimal food storage select the Eco Mode function.

To switch on the function:

1. Press the Mode button until the corresponding icon appears. The Eco Mode indicator flashes. The temperature indicator shows the set temperature for a few seconds:

2. for the fridge: +5°C

3. for the freezer: -18^ircC

4. Press the OK button to confirm. The Eco Mode indicator is shown.

To switch off the function:

1. Press the Mode button until the Eco Mode indicator flashes.
2. Press the OK button to confirm.
3. The Eco Mode indicator goes off.

Important! The function switches off by selecting a different set temperature.

CHILD LOCK FUNCTION

To lock any possible operation through the buttons select the Child Lock function.

To switch on the function:

1. Press the Mode button until the corresponding icon appears.
2. The Child Lock indicator flashes.
3. Press the OK button to confirm. The Child Lock indicator is shown.

To switch off the function:

1. Press the Mode button until the Child Lock indicator flashes.
2. Press the OK button to confirm.
3. The Child Lock indicator goes off.

HOLIDAY FUNCTION

This function allows you to keep the refrigerator closed and empty during a long holi-

day period without the formation of a bad smell.

Important! The fridge compartment must be empty with holiday function on.

To switch on the function:

1. Press the Mode button until the corresponding icon appears. The Holiday indicator flashes. The fridge temperature indicator shows the set temperature for a few seconds.

2. Press the OK button to confirm. The Holiday indicator is shown.

To switch off the function:

1. Press the Mode button until the Holiday indicator flashes.
2. Press the OK button to confirm.
3. The Holiday indicator goes off.
4. The Eco Mode function is restored if it has been previously selected.

Important! The function switches off by selecting a different fridge set temperature.

DRINKS CHILL FUNCTION

The Drinks Chill function is to be used as a safety warning when placing bottles in the freezer compartment.

To switch on the function:

1. Press the Mode button until the corresponding icon appears. The Drinks Chill indicator flashes. The Timer shows the set value (30 minutes) for a few seconds.
2. Press the Timer regulator button to change the Timer set value from 1 to 90 minutes.
3. Press the OK button to confirm. The Drinks Chill indicator is shown. The Timer start to flash.

At the end of the countdown the Drinks Chill indicator flashes and an audible alarm sounds:

1. Remove the drinks contained in the freezer compartment.

2. Switch off the function.

To switch off the function:

1. Press the Mode button until the Drinks Chill indicator flashes.
2. Press the OK button to confirm.
3. The Drinks Chill indicator goes off. It is possible to deactivate the function at any time.

SHOPPING FUNCTION

If you need to insert a large amount of warm food, for example after doing the grocery shopping, we suggest activating the Shopping function to chill the products more rapidly and to avoid warming the other food which is already in the refrigerator. To switch on the function:

1. Press the Mode button until the corresponding icon appears. The Shopping indicator flashes. The fridge temperature indicator shows the set temperature for a few seconds.

2. Press the OK button to confirm. The Shopping indicator is shown.

The Shopping function shuts off automatically after approximately 6 hours. To switch off the function before its automatic end:

1. Press the Mode button until the Shopping indicator flashes.

2. Press the OK button to confirm.

3. The Shopping indicator goes off.

4. The Eco Mode function is restored if it has been previously selected.

Important! The function switches off by selecting a different fridge set temperature.

ACTION FREEZE FUNCTION

To switch on the function:

1. Press the Mode button until the corresponding icon appears. The Action Freeze indicator flashes. The freezer temperature indicator shows ☐ symbol for a few seconds.

2. Press the OK button to confirm. The Action Freeze indicator is shown. An animation starts.

This function stops automatically after 52 hours.

To switch off the function before its automatic end:

1. Press the Mode button until the Action Freeze indicator flashes.

2. Press the OK button to confirm.

3. The Action Freeze indicator goes off.

4. The Eco Mode function is restored if it has been previously selected.

Important! The function switches off by selecting a different freezer set temperature.

HIGH TEMPERATURE ALARM

An increase in the temperature in the freezer compartment (for example due to a power failure) is indicated by:

• sounding of buzzer.

- flashing the alarm and freezer temperature indicators

To reset the alarm:

1. Press any button.

2. The buzzer switches off.

3. The freezer temperature indicator shows the highest temperature reached for a few seconds. Then show again the set temperature.
4. The alarm indicator continue to flash until the normal conditions are restored. When the alarm has returned the alarm indicator goes off.

FIRST USE

CLEANING THE INTERIOR

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

DAILY USE

MOVABLE SHELVES

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Line drawing of a hand holding a shelf with a small object, no text or symbols present

BOTTLE RACK

Place the bottles (with the opening facing front) in the pre-positioned shelf.

Important! If the shelf is positioned horizontally, place only closed bottles.

Diagram of a mechanical or electrical component with coiled wires and a cylindrical housing (no text or symbols)

This bottle holder shelf can be tilted in order to store previously opened bottles. To obtain this result, pull the shelf up so it can rotate upwards and be placed on the next higher level.

Diagram of a bottle partially submerged in a wavy channel with an arrow indicating flow direction (no text or symbols)

VEGETABLE DRAWER WITH HUMIDITY CONTROL

The drawer is suitable for storing fruit and vegetables.

There is a separator inside the drawer that can be placed in different positions to allow for the subdivision best suited to personal needs.

There is a grille (if foreseen) on the bot- tom of the drawer to separate the fruit and vegetables from any humidity that may form on the bottom surface.

All parts inside the drawer can be removed for cleaning purposes

To regulate the humidity in the vegetable drawer there is a device with slits (adjustable by means of a sliding lever).

When the ventilation slots are closed: the natural moisture content of the food

in the fruit and vegetable compartments is preserved for longer.

When the ventilation slots are opened: more air circulation results in a lower air moisture content in the fruit and vegetable compartments.

Technical line drawing of a rectangular mechanical housing or enclosure with internal components (no text or symbols)

Diagram showing a mechanical component with an arrow indicating direction, enclosed in a circle (no text or symbols present)

POSITIONING THE DOOR SHELVES

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

To make these adjustments proceed as follow: gradually pull the shelf in the direction of the arrows until it comes free, then reposition as required.

Diagram of a mechanical device with two directional arrows indicating movement or force (no text or symbols)

AIR COOLING

The Dynamic Air Cooling (DAC) fan let food cool quickly and a more uniform temperature in the compartment.

Press the switch shown in the picture to switch on the fan. The green light comes on.

Important! Switch on the fan when the ambient temperature exceeds 25^irc C.

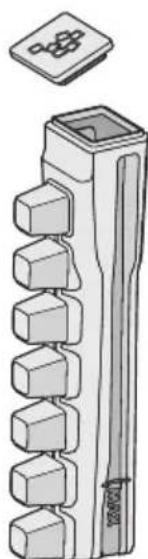

ICE-CUBE PRODUCTION

This appliance is equipped with one or more trays for the production of ice-cubes. These are insert on the sides of the upper freezer drawer.

Pull out the upper freezer drawer. Extract the ice-tray. Pull out the tap. Fill with water to the limit indicated "MAX".

Refit the tap and insert the tray in the appropriate place.

To remove the ice cubes rotate the tray with the ice needles towards the top and hit on a rigid surface.

To simplify the release of the ice needles it is recommended to keep the closed tray under if possible luke warm water for a few seconds.

Warning! Do not use metallic instruments to remove the trays from the freezer.

Technical illustration of a refrigerator internal structure and its exploded view (no text or symbols)

FREEZING FRESH FOOD

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

HELPFUL HINTS AND TIPS

HINTS FOR ENERGY SAVING

• Do not open the door frequently or leave it open longer than absolutely necessary.
• If the ambient temperature is high and the Temperature Regulator is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice on the evaporator. If this happens, set the Tempera-

To freeze fresh food activate the Action Freeze function at least 24 hours before placing the food to be frozen in the freezer compartment.

Place the fresh food to be frozen in the bottom compartment.

The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the appliance.

The freezing process lasts 24 hours: during this period do not add other food to be frozen.

STORAGE OF FROZEN FOOD

When first starting-up or after a period out of use, before putting the products in the compartment let the appliance run at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).

THAWING

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

ture Regulator toward warmer settings to allow automatic defrosting and so a saving in electricity consumption.

HINTS FOR FRESH FOOD REFRIGERATION

To obtain the best performance:

• do not store warm food or evaporating liquids in the refrigerator

• do cover or wrap the food, particularly if it has a strong flavour
• position foods so that air can freely around it

HINTS FOR REFRIGERATION

Useful hints:

Meat (all types) : wrap in polythene bags and place on the glass shelf above the vegetable drawer.

For safety, store in this way only one or two days at the most.

Cooked foods, cold dishes, etc.: these should be covered and may be placed on any shelf.

Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.

Butter and cheese: these should be placed in special airtight containers or wrapped in aluminium foil or polythene bags to exclude as much air as possible.

Milk bottles: these should have a cap and should be stored in the bottle rack on the door.

Bananas, potatoes, onions and garlic, if not packed, must not be kept in the refrigerator.

HINTS FOR FREEZING

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;

CARE AND CLEANING

Caution! Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and re-charging must therefore only be carried out by authorized technicians.

PERIODIC CLEANING

The equipment has to be cleaned regularly:

- prepare food in small portions to enable it to be rapidly and completely frozen and can make it possible subsequently to thaw only the quantity required;

- wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;

- do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

- lean foods store better and longer than fatty ones; salt reduces the storage life of food;

- water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

- it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

HINTS FOR STORAGE OF FROZEN FOOD

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary.
• Once defrosted, food deteriorates rapidly and cannot be refrozen.

• Do not exceed the storage period indicated by the food manufacturer.

• clean the inside and accessories with lukewarm water and some neutral soap.

• regularly check the door seals and wipe clean to ensure they are clean and free from debris.
• rinse and dry thoroughly.

Important! Do not pull, move or damage any pipes and/or cables inside the cabinet. Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save electricity consumption.

Important! Take care of not to damage the cooling system.

Many proprietary kitchen surface cleaners contain chemicals that can attack/damage the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added.

After cleaning, reconnect the equipment to the mains supply.

DEFROSTING OF THE REFRIGERATOR

Frost is automatically eliminated from the evaporator of the refrigerator compartment every time the motor compressor stops, during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates. It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping on-to the food inside. Use the special cleaner provided, which you will find already inserted into the drain hole.

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

DEFROSTING OF THE FREEZER

The freezer compartment of this model, on the other hand, is a "no frost" type. This means that there is no buildup of frost when it is in operation, neither on the internal walls nor on the foods.

The absence of frost is due to the continuous circulation of cold air inside the compartment, driven by an automatically controlled fan.

PERIODS OF NON-OPERATION

When the appliance is not in use for long periods, take the following precautions:

• disconnect the appliance from electricity supply
• remove all food
• defrost (if foreseen) and clean the appliance and all accessories
• leave the door/doors ajar to prevent unpleasant smells.

If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

REPLACING THE TASTE GUARD FILTER

The Taste Guard filter helps to reduce the odours inside the fridge limiting the risk of unwanted aroma in sensitive food To get the best performance the Taste Guard filter should be changed once every year.

New active air filters can be purchased from your local dealer.

• The air filter is placed behind the flap and can be reached by pulling the flap outward (1)
• pull out of the slot the exhausted air filter.

Technical line drawing of a mechanical assembly or assembly (no text or symbols visible)

• insert the new air filter in the slot (2)
• close the flap.

The air filter is a consumable accessory and as such is not covered by the guarantee.

Important! During the operation, always keep the air ventilation flap closed.

The air filter should be handled carefully to prevent its surface from being scratched.

WHAT TO DO IF...

Warning! Before troubleshooting, disconnect the mains plug from the mains socket.

Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible cause Solution
The appliance does not operate. The lamp does not operate.	The appliance is switched off. Switch on the appliance.
The mains plug is not connected to the mains socket correctly.		Connect the mains plug to the mains socket correctly.
The appliance has no power.	There is no voltage in the mains socket.	Connect a different electrical appliance to the mains socket.Contact a qualified electrician.
The lamp does not work.	The lamp is in stand-by.	Close and open the door.
	The lamp is defective.	Refer to "Replacing the lamp".
The compressor operates continually.	The temperature is not set correctly.	Set a higher temperature.
	The door is not closed correctly.	Refer to "Closing the door".
The door has been opened too frequently.		Do not keep the door open longer than necessary.
The product temperature is too high.		Let the product temperature decrease to room temperature before storage.
Problem Possible cause Solution
The room temperature is too high.		Decrease the room temperature.
Water flows on the rear plate of the refrigerator.	During the automatic defrosting process, frost defrosts on the rear plate.	This is correct.
Water flows into the refrigerator.	The water outlet is clogged. Clean flows into the water collector.	the water outlet. Make sure that products do not touch the rear plate.
Products prevent that water flows into the water collector.
Water flows on the ground.	The melting water outlet does not flow in the evaporative tray above the compressor.	Attach the melting water outlet to the evaporative tray.
The temperature in the appliance is too low.	The temperature regulator is not set correctly.	Set a higher temperature.
The temperature in the appliance is too high.	The temperature regulator is not set correctly.	Set a lower temperature.
	The door is not closed correctly.	Refer to "Closing the door".
The product temperature is too high.		Let the product temperature decrease to room temperature before storage.
Many products are stored at the same time.		Store less products at the same time.
The temperature in the refrigerator is too high.	There is no cold air circulation in the appliance.	Make sure that there is cold air circulation in the appliance.
The temperature in the freezer is too high.	Products are too near to each other.	Store products so that there is cold air circulation.
There is too much frost.	Food is not wrapped correctly. Wrap the food correctly.
	The door is not closed correctly.	Refer to "Closing the door".
The temperature regulator is not set correctly.		Set a higher temperature.

REPLACING THE LAMP

1. Disconnect the plug from the mains socket.

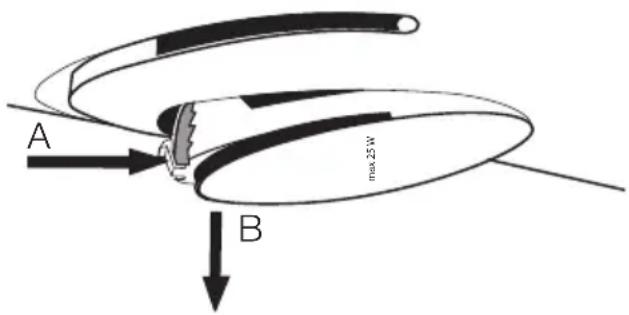

2. Press on the rear hook of the lamp cover by a screwdriver and at the same time pull and rotate the cover in the direction of the arrow.
3. Replace the lamp with one of the same power and specifically designed for household appliances. (the maximum power is shown on the lamp cover).
4. Install the lamp cover by fixing it into its original position.
5. Connect the plug to the mains socket.
6. Open the door. Make sure that the light comes on.

CLOSING THE DOOR

1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to "Installation".
3. If necessary, replace the defective door gaskets. Contact the Service Center.

TECHNICAL DATA

Dimension of the recess
Height 1950 mm
Width 695 mm
Depth 669 mm
Rising Time 20 h
Voltage 230-240 V
Frequency 50 Hz

The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

INSTALLATION

Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance.

POSITIONING

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

LOCATION

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate levelling is ensured by one or more adjustable feet at the base of the cabinet.

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

ELECTRICAL CONNECTION

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

REAR SPACERS

Inside the appliance you find two spacers which must be fitted as shown in the figure.

Slacken the screws and insert the spacer under the screw head, then retighten the screws.

Diagram showing a hand operating a lock mechanism with a magnified inset (no text or symbols)

INSTALLATION OF THE TASTE GUARD FILTER

The Taste Guard Filter is an active carbon filter which absorbs bad odours and per-

ENVIRONMENTAL CONCERNS

The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative mits to maintain the best flavour and aroma for all foodstuffs without risk of odour cross contamination.

On delivery the carbon filter is in a plastic bag to maintain it's duration and characteristics. Place the filter behind the flap before the appliance is turned on.

1. Pull the flap outwards (1)
2. Remove the filter from the plastic bag

3. Insert the filter in the slot found in the back of the flap cover (2)

4. Close the flap cover

Important! During operation, always keep the air ventilation flap closed.

Handle the filter carefully so fragments do not loosen from the surface.

DOOR REVERSIBILITY

The door reversibility is not possible.

consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Electrolux. Thinking of you.

Line drawing of a hand holding a shelf with a rectangular object on top (no text or symbols)

ΣΧΑΡΑ ΜΠΟΥΚΑΛΙΩΝ

Diagram of a mechanical assembly with a cylindrical component and coiled wires, no text or symbols present

Diagram of a bottle partially submerged in a coiled structure with an arrow indicating flow direction (no text or symbols)

Technical line drawing of a rectangular enclosure or housing frame (no text or symbols)

Diagram showing a mechanical component with an arrow indicating direction, enclosed in a circular inset (no text or symbols)

Diagram of a mechanical or electrical component with two arrows indicating direction, no text or symbols present

Ψ'YEH A'EPA

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a vertical stack of 3D blocks with a top bracket and a small inset icon (no text or symbols)

Illustration of a hand holding a tool inside a circular arrow, with no text or symbols present.

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

Diagram showing a hand using a tool to adjust or install a component, with no visible text or symbols.
