SC5630 - Vacuum Cleaner SAMSUNG - Free user manual and instructions

Product type	Canister vacuum cleaner
Brand	Samsung
Model	SC5630
Dimensions (W x D x H)	260 x 220 x 310 mm
Weight	4.5 kg
Power consumption	2000 W
Filtration system	Cyclonic with washable HEPA filter
Dust capacity	2.0 L
Cord length	6.0 m
Operating radius	8.0 m
Noise level	78 dB(A)
Vacuum cleaner type	Bagless
Power control	Variable on handle
Attachments included	Crevice tool, brush tool, upholstery tool
Pipe material	Stainless steel telescopic
Filtration stages	4 stages
Washable filter	Yes, pre-filter and HEPA
Bag indicator	Not applicable (bagless)
Overheat protection	Automatic shut-off
Color	Black/Red
Certifications	CE, WEEE
Repairability	Spare parts available (dustbin, filters, hose, etc.)
Maintenance frequency	Empty dustbin after each use; clean filters monthly
Warranty	2 years

Frequently Asked Questions - SC5630 SAMSUNG

How do I empty the dustbin?

Press the release button on the dustbin and pull it out. Open the lid over a trash can and empty the contents. Do not wash the dustbin; wipe it with a dry cloth.

How often should I clean the filters?

Clean the pre-filter and HEPA filter every month. If the vacuum loses suction, clean more frequently. Wash with water and let dry completely for 24 hours before reinstalling.

The vacuum cleaner is not picking up well. What should I do?

Check if the dustbin is full. Clean or replace the filters. Also inspect the hose for blockages. Unplug the vacuum before removing blockages.

Can I use the vacuum without a bag?

Yes, this model is bagless. The dustbin collects dirt and can be emptied. Always ensure the filters are in place to prevent motor damage.

What attachments are included?

The SC5630 comes with a crevice tool, a brush tool, and an upholstery tool. These can be attached to the hose or tube for different surfaces.

How do I replace the HEPA filter?

Turn off and unplug the vacuum. Remove the dustbin, then the filter cover. Take out the old HEPA filter and insert the new one. Dispose of used filters responsibly.

The vacuum overheats and shuts off. Why?

This is a safety feature. Check for blockages in the hose or filters. Let the vacuum cool for at least 30 minutes. Do not operate with a full dustbin.

Can I use the vacuum on hardwood floors?

Yes, the vacuum has a brush tool that is safe for hard floors. Turn off the rotating brush if available to prevent scratching.

How do I clean the telescopic tube?

Disconnect the tube from the hose and dustbin. Use a long brush to remove dust inside. Do not wash the tube; wipe with a damp cloth.

Where can I buy spare parts?

Spare parts such as filters, dustbin, and hose are available on the Samsung website or authorized retailers. Use only genuine Samsung parts for best performance.

USER MANUAL SC5630 SAMSUNG

Vacuum Cleaner user manual

* Before operating this unit, please read the instructions carefully.

* For indoor use only.

English

imagine the possibilities

Thank you for purchasing a Samsung product.

To receive a more complete service, please register your product at

www.samsung.com/register

SAMSUNG

safety information

SAFETY INFORMATION

- Before operating the appliance, please read this manual thoroughly and retain it for your reference.

- Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

CAUTION/WARNING SYMBOLS USED

	Indicates that a danger of death or serious injury exists.
	Indicates that a risk of personal injury or material damage exists.

OTHER SYMBOLS USED

	Represents something you must NOT do.
	Represents something you must NOT disassemble.
	Represents something you must NOT touch.
	Represents something you must follow.
	Indicates that you must disconnect the power plug from the socket.
	Represents a ground is needed to prevent electric shock.
	It is recommended that this symbol be handled by service man.

safety information

IMPORTANT SAFEGUARDS

• Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.
• WARNING : Do not use the vacuum cleaner when rug or floor is wet. Do not use to suck up water.
• Close supervision is necessary when any appliance is used by or near children. Do not allow the vacuum cleaner to be used as a toy. Do not allow the vacuum cleaner to run unattended at any time. Use the vacuum cleaner only for its intended use as described in these instructions.
• Do not use the vacuum cleaner without a dust bag. Change the dust bag before it is full in order to maintain the best efficiency.
• Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.
• Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts. Do not stand on the hose assembly. Do not put weight on the hose. Do not block the suction or the exhaust port.
• Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet. Disconnect the plug from the electrical outlet before changing the dust bag or dust container. To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
• The use of an extension cord is not recommended.
• If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized service agent.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• Don't carry the vacuum cleaner by holding the hose. Use the handle on the vacuum cleaner set.
• Unplug the cleaner when not in use. Turn off the power switch before unplugging.

ASSEMBLING The CLEANER

05 Assembling the Cleaner

09 Maintain floor tools

09 Check filter indicator

10 Changing the dust bag

10 Cleaning inlet filter

10 Cleaning outlet filter

TROUblE ShOOTING

assembling the cleaner

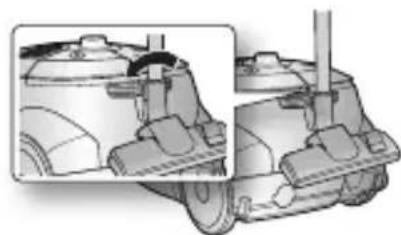

01 ASSEMBLING THE CLEANER

- Features may vary according to model. Refer to 5,6 page.

- For storage, park the floor nozzle.

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a vacuum cleaner with a close-up view showing the mechanism (no text or symbols present)

assembling the cleaner _5

operating the cleaner

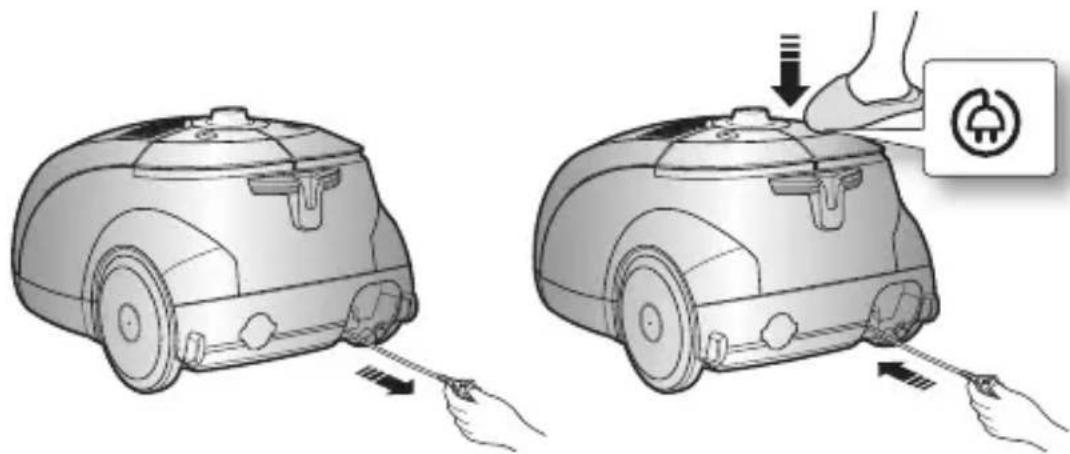

POWER CORD

- When removing the plug from the electrical outlet, grasp the plug, not the cord.

ON/OFF SWITCH

POWER CONTROI

- HOSE

To reduce suction for cleaning draperies, small rugs, and other light fabrics, pull the tap air until the hole is open.

Diagram of a flexible hose with a curved tube and a pull arrow indicating direction (no text or symbols)

6_ operating the cleaner

operating the cleaner

- bODY(VOIUME TYPE ONIY)

To control power level, just slide the power control bottom right and left.

MIN = For delicate fabrics, e.g. net curtains.

MAX = For hard floors and heavily soiled carpets.

- USING The bLOWER

Located on the left rear side of the cleaner.

1) Disconnect the hose from the body of the cleaner.
2) Connect the hose clamper to the blow hole.

Diagram of a robotic vacuum cleaner with two circular insets showing mechanical components (no text or labels)

maintain tools and filter

USING ACCESSORY

Accessory

- Dusting brush for furniture. shelves, books, etc.

Pure diagram of a mechanical component without any text, numbers, or symbols

- Crevice tool for radiators, crevices, corners, between cushions.

Pure mechanical linkage diagram without any text, numbers, or symbols

- For efficiency. clean Floor Nozzle with Crevice Tool.

Illustration of a mechanical tool interacting with a component (no text or symbols visible)

Pipe

- Adjust the length of the telescopic pipe by sliding the length control button located in the center of the telescopic pipe back and forth.

Simple line drawing of a cylindrical object with a handle and a small protrusion, no text or symbols present.

- To check for blockages, separate the telescopic pipe and adjust to shorten. This allows for easier removal of waste clogging the tube.

Illustration of a soldering iron with a handle and tip, emitting steam (no text or symbols)

maintain tools and filter

MAINTAIN FLOOR TOOLS

2-Step Brush

- Adjust the inlet lever according to the floor surface.

Diagram showing a mechanical component with an arrow indicating rotation, no text or symbols present

3D mechanical component diagram with a lever and base, shown with an arrow indicating rotation (no text or symbols)

Carpet Cleaning Floor Cleaning

- Remove waste matter completely if the inlet is blocked.

Illustration of a mechanical tool interacting with a component (no text or symbols visible)

Pet Brush(Option)

For improved pick-up of pet hair and fibre on carpets.

Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters tangled around the drum. In this case, clean the drum with care.

CHECK FILTER INDICATOR

When the indicator color has changed Please replace the dust bag.

Diagram of a vacuum cleaner with a close-up view of its internal components (no text or symbols)

maintain tools and filter

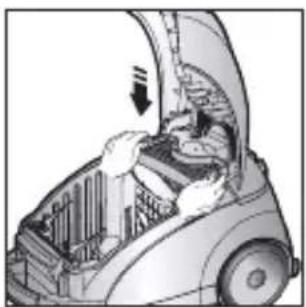

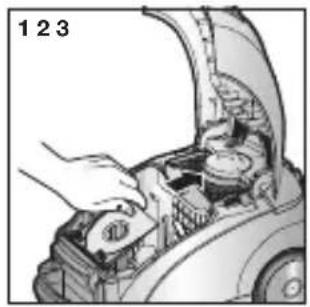

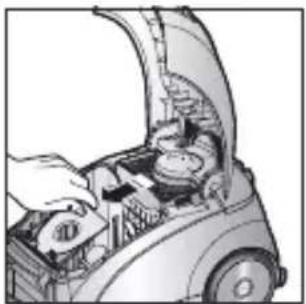

ChANGING ThE DUST bAG

Illustration of a car's open hood with hand inserting components (no text or symbols)

Illustration of a hand pouring liquid into a trash bin (no text or symbols)

Illustration of a hand opening the hood of an open car with visible internal components (no text or symbols)

OPTIONAL

- For Cloth Bag

After using, if the cloth bag is full of dust, clean the cloth bag and use it again.

You can purchase dust bags in the shops where you bought this vacuum cleaner.

paper bag can be used as you prefer(Paper-bag:VP-77)

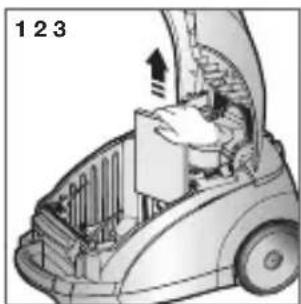

CIEANING INIET FILTER

Interior view of a car showing a driver inside the hood with an upward arrow indicating motion (no text or symbols)

Illustration of a hand placing a ballot into a trash bin (no text or symbols)

Illustration of a car interior with an open hood and a person inside, showing structural components (no text or symbols)

Don't throw away the filter.

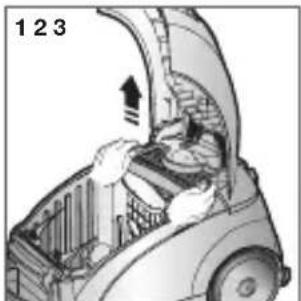

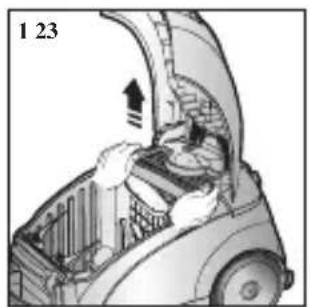

CIEANING OUTIET FIITER

Interior view of a car showing a person working on the hood with tools and components (no visible text or symbols)

Simple line drawing of a trash bin with smoke rising from it (no text or symbols)

Illustration of a person inside a car with an arrow indicating direction (no text or symbols)

10_ maintain tools and filter

trouble shooting

PROBLEM SOLUTION
Motor dows not start.	Check cable, pulg and socket.Leave to cool.
Suction force is gradually decreasing.	Check for blockage and remove.
Cord does not rewind fully.	Pull the cord out 2-3m and push down the cord rewind button.
Vacuum cleaner dows not pick up dirt.	Check hose and replace if required.
Low or decreasing suction	Please check filter and, if required, clean as illustrated in the instructions. if filters are out of condition change them to new ones.
Body overheating	Please check filters, If required clean as illustrated in the instruction.
Static electricity discharge	Please decrease power suction.

This Vacuum cleaner is approved the following.

Electromagnetic Compatibility Directive : 2004/108/EEC

Low Voltage Directive : 2006/95/EC

memo

memo

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Country	Customer Care Center 📞	Web Site
LITHUANIA 8-800-77777 www.samsung.com/lt
LATVIA 8000-7267	www.samsung.com/lv
ESTONIA 800-7267	www.samsung.com/ee

Пылесос

Technical illustration of a vehicle chassis with mechanical components, showing front and side views (no text or symbols)

Diagram of a vacuum cleaner with a close-up inset showing the side view of the mechanism (no text or symbols present)

НАСТРОЙКА МОЩНОСТИ

- ШЛАНГ

Diagram of a flexible hose with a curved tube and a pull arrow, no text or symbols present

Illustration of a robotic vacuum cleaner with two circular insets showing mechanical components (no text or symbols)

Pure diagram of a door handle with a clip, no text or symbols present

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Illustration of a mechanical tool interacting with a component (no text or symbols visible)

Трубка

Simple line drawing of a cylindrical object with a blue arrow indicating direction (no text or symbols)

Illustration of a soldering iron with a handle and tip, emitting steam (no text or symbols)

Diagram showing a mechanical component with an arrow indicating rotation, no text or symbols present

3D diagram of a mechanical component with an arrow indicating rotation, no text or symbols present

Illustration of a handheld tool interacting with a mechanical component (no text or symbols visible)

Sequence of five-step diagram showing a hairdryer tool being adjusted, with no text or symbols present.

Diagram of a vacuum cleaner with a close-up view of the internal component (no text or symbols)

Illustration of a hand opening a car's hood with internal components (no text or symbols visible)

Illustration of a hand opening the hood of an open car with internal components (no text or symbols visible)

ОПЦИЯ

Illustration of a person operating a car with an upward arrow indicating motion (no text or symbols)

Illustration of a hand placing a paper into a trash can (no text or symbols)

Illustration of a person opening a car with a box, showing mechanical components and airflow direction (no text or symbols)

Cutaway illustration of a car showing engine compartment with open hood and internal compartments (no text or symbols)

Simple line drawing of a trash bin with smoke rising from it (no text or symbols)

Interior view of a car showing a person working on the hood with an arrow indicating direction (no text or symbols visible)

Technical illustration of a vehicle's front and side views, showing engine components and structural details (no text or symbols)

Illustration of a vacuum cleaner with a close-up view showing the mechanism (no text or symbols present)

Siurblio naudojimas

ELEKTROS LAIDAS

ENERGIJOS KONTROLÈ

- ŽARNA.

Diagram of a flexible hose with a curved tube and a pull arrow (no text or symbols)

Diagram of a robotic device with two circular insets showing mechanical components (no text or labels)

Simple line drawing of a door with a handle and scroll (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Illustration of a mechanical tool interacting with a component (no text or symbols visible)

Vamzdis

Simple line drawing of a cylindrical object with a small protrusion and blue motion lines, no text or symbols present.

Illustration of a soldering iron with a handle and tip, emitting steam (no text or symbols)

Illustration of a mechanical component with a magnified inset showing rotational motion (no text or symbols)

3D diagram of a mechanical component with an arrow indicating rotation, no text or symbols present

Technical illustration of a mechanical assembly with a tool inserted into a component (no text or symbols visible)

Parketo šepetys (Pasirinktinai)

Sequence of industrial vacuum cleaner tool steps showing assembly and disassembly (no text or symbols)

FILTRO INDIKATORIAUS PATIKRINIMAS

Diagram of a vacuum cleaner with a circular component and a magnified view of the lid (no text or symbols)

Illustration of a hand opening the engine compartment of a car, showing internal components and a numbered label (123) in the corner.

Illustration of a hand pouring liquid into a trash bin (no text or symbols)

Illustration of a hand opening the hood of an open car with visible engine and battery components (no text or symbols)

PAPILDOMAI

Diagram of a car interior showing a person operating the hood with an arrow indicating motion (no text or symbols)

Illustration of a hand placing a paper into a trash can (no text or symbols)

Illustration of a person operating a car with a box open, showing mechanical components and a downward arrow (no text or symbols)

Mechanical diagram showing a person opening a car hood with tools and a directional arrow (no text or symbols)

Simple line drawing of a trash bin with smoke and flames, no text or symbols present

Illustration of a car interior with hands installing or adjusting the engine compartment (no text or symbols visible)

Technical illustration of a vehicle's front and side views, showing engine components and structural details (no text or symbols)

Illustration of a vacuum cleaner with a close-up inset showing the mechanism (no text or symbols)

Tolmuimeja kokkupanemine _5

vooLuLÜLItl

- VOOLIK

Diagram of a flexible hose with a curved tube and a pull arrow, no text or symbols present

6\_ Tolmuimeja kasutamine

Diagram of a robotic vacuum cleaner with close-up views of the component (no text or symbols)

Tarvikute ja filtri hooldamine

LlsaseaDMe KasutaMINe

Lisaseadmed

Simple line drawing of a door with a handle and scroll (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Illustration of a mechanical tool interacting with a component (no text or symbols visible)

Toru

Simple line drawing of a cylindrical object with a handle and a small protrusion, no text or symbols present.

Illustration of a hand holding a pen or stylus with a flame, no text or symbols present

Tarvikute ja filtri hooldamine

PÕRANDATARVIKUTE HOOLDAMINE

2-astmeline hari

Diagram showing a mechanical component with a circular arrow indicating rotation or change, no text or symbols present.

3D diagram of a mechanical component with an arrow indicating rotation, no text or symbols present

Vaiba puhastamine Pôranda puhastamine

Illustration of a handheld tool interacting with a mechanical component (no text or symbols visible)

Karvaeemaldushari (valikuline)

Sequence of industrial vacuum cleaner tool steps showing assembly and disassembly (no text or symbols)

KONTROLLIGE FILTRINÄIDIKUT

Diagram of a vacuum cleaner with a close-up view of its internal components (no text or symbols)

Tarvikute ja filtri hooldamine

toLMuKotl vahetaMINe

Illustration of a hand opening the hood of an open car, showing engine compartment and battery (no text or symbols)

Illustration of a hand pouring liquid into a trash bin (no text or symbols)

Illustration of a hand opening the hood of an open car with visible engine and battery (no text or symbols)

VALIKULINE

Diagram of a car interior showing a driver inside the hood with an upward arrow indicating motion (no text or symbols)

Hand placing a paper into a trash can (no text or symbols visible)

Illustration of a person loading a box into a car (no text or symbols visible)

Interior view of a car showing a driver opening the hood with tools and components (no visible text or symbols)

Simple line drawing of a trash bin with smoke and flames, no text or symbols present

Interior view of a car showing a person opening the hood with tools and a downward arrow indicating action (no text or symbols visible)

törkeotsing

Technical illustration of a vacuum cleaner with mechanical components and a close-up view of the mechanism (no text or symbols present)

JAUDAS REGULATORS

- ŠLŪTENE,

Diagram of a flexible hose with a curved tube and a pull arrow, no text or symbols present

Illustration of a robotic vacuum cleaner with two circular insets showing mechanical components (no text or symbols)

Piederumu un filtru apkope

APRĪKOJUMA IZMANTOŠANA

Uzgali

Simple line drawing of a door with a handle and scroll (no text or symbols)

Pure technical line drawing of a mechanical component without any text or symbols

Mechanical assembly diagram showing a tool interacting with a component (no text or symbols visible)

Caurule

Simple line drawing of a cylindrical object with a blue arrow indicating direction (no text or symbols)

Illustration of a hand holding a pen or stylus with a flame, no text or symbols present

Piederumu un filtru apkope

GRĪDAS TĪRĪŠANAS RĪKU APKOPE

Divpakāpju suka

Two technical diagrams showing a mechanical component being converted to a box, with no visible text or symbols.

Technical illustration of a mechanical assembly with a tool inserted into a component (no text or symbols visible)

Sequence of five-step diagram showing a hairdryer tool being adjusted, with no text or symbols present.

FILTRA INDIKATORA PĀRBAUDE

Diagram of a vacuum cleaner with a magnified view of the internal component (no text or symbols)

Piederumu un filtru apkope

PUTEKŁU MAISIŃA NOMAIŃA

Illustration of a hand opening the engine compartment of a car (no text or symbols visible)

Illustration of a hand pouring liquid into a trash can (no text or symbols)

Illustration of a hand opening the hood of an open car with internal components (no text or symbols visible)

PAPILDAPRĪKOJUMS

• Auduma puteklu maisiņš

Diagram of a car interior showing a person operating the hood with an arrow indicating direction (no text or symbols)

Illustration of a hand placing a paper into a trash bin (no text or symbols)

Illustration of a person loading a package into a car (no text or symbols visible)

Neaizmetiet filtru

IZPLÜDES FILTRA TİRİŞANA

Interior view of a car showing the hood and engine compartment with tools (no visible text or symbols)

Simple line drawing of a trash bin with smoke and flames, no text or symbols present

Diagram of a car interior showing hands working on the engine compartment with an arrow indicating motion (no text or symbols present)

10_ Piederumu un filtru apkope

Bojājumu novēršana
