Diana - Scale KORONA - Free user manual and instructions

Product type	Kitchen scale
Brand	Korona
Model	Diana
Dimensions (approx.)	20 x 15 x 2 cm
Weight	300 g
Power source	2 AAA batteries (not included)
Maximum capacity	5 kg
Accuracy	1 g
Main functions	Weighing, tare, unit conversion (g, oz, ml)
Display	LCD screen
Platform material	Tempered glass
Automatic shut-off	Yes, after 2 minutes
Low battery indicator	Yes
Non-slip surface	Rubber feet
Care and cleaning	Clean with a damp cloth, do not immerse
Safety	Use on a flat, stable surface
Spare parts and repairability	Not available, device not repairable
General information	2-year warranty, manual available at notice-facile.com

Frequently Asked Questions - Diana KORONA

How to turn on the scale?

Press the ON/OFF button to turn the scale on or off.

What to do if the screen shows '0.00'?

Check that the batteries are properly installed and not discharged.

How to use the tare function?

Place an empty container on the scale, then press the TARE button to reset the display to zero.

Can I weigh liquids?

Yes, use a suitable container and the tare function to avoid weighing the container.

Is the scale waterproof?

No, avoid any contact with water. Clean with a slightly damp cloth.

How to change the batteries?

Open the battery compartment on the back of the scale. Insert two AAA batteries, observing polarity.

What is the maximum capacity?

The maximum capacity is 5 kg. Do not exceed this limit.

Why does the scale turn off by itself?

The scale has an automatic shut-off after 2 minutes of inactivity to save batteries.

Can I weigh in ounces or milliliters?

Yes, press the MODE button to switch between units (g, oz, ml).

Where to find the full manual?

The manual is available for free download at notice-facile.com.

USER MANUAL Diana KORONA

Black electronic device with digital display and control buttons (no visible text or symbols)

Close-up of a metallic digital kitchen scale with measurement markings (no readable text or symbols)

D DIAGNOSE-WAAGE Gebrauchsanweisung
GB DIAGNOSTIC SCALE Instructions for use
F PÈSE-PERSONNE IMPÉDANCEMÉTRE Mode d'emploi
E BÁSCULA PARA DIAGNÓSTICO Instrucciones para el uso
BILANCIA DIAGNOSTICA Istruzioni per l'uso
GR ΔΙΑΓΝΩΣΤΙΚΗ ΖΥΓΑΡΙΑ Οδηγίες χρήσης
RUS ДИАГНОСТИЧЕСКИЕ ВЕСЫ Инструкция по применению
PL WAGA DIAGNOSTYCZNA Instrukcja obsługi
NL DIAGNOSEWEEGSCHAAL Gebruiksaanwijzing

Deutsch

Inhalt

1 Getting to know your instrument ..... 15
2 Signs and symbols.... 16
3 Safety notes 16
4 Unit description.... 17
5 Initial use 17
6 Information 18
7 Switch on the scales 19

8 Settings 19
9 Operation.... 21
10 Evaluation of results 23
11 Replacing batteries.... 24
12 Storage and maintenance 25
13 Disposal.... 25
14 What if there are problems? 26

Included in delivery

Diagnostic scale•

2 × 3 V CR2032•

These instructions for use•

Dear Customer

You have chosen a quality product from Korona. Please read these instructions for use carefully and keep them for later use, be sure to make them accessible to other users and observe the information they contain.

This diagnostic scale is designed to make a significant contribution to your health.

With kind regards

Your Korona team

Getting to know your instrument1

Function of the unit

This digital diagnostic scale is used to weigh you and to provide diagnostic data about your personal fitness.

The scale is intended for individual, household use.

The scale has the following diagnostic functions that can be used by up to 12 persons:

Body weight measurement•

Measurement of body fat percentage•

Body water percentage•

Body muscle ratio.

The memory function lets up to 12 people access their last measured weight and the body values that are simultaneously determined.

This scale also has the following functions:

Switch between kilograms [kg], pounds [lb] and stones [st:lb]

Automatic shutoff function •

Battery change indicator for weak batteries•

Signs and symbols2

The following symbols appear in these instructions.

Warning Warning instruction indicating a risk of injury or damage to health.

Important Safety note indicating possible damage to the unit/accessory.

Note Note on important information.

Safety notes3

Safety notes

Warning:

- The scales must not be used by persons with medical implants (e.g. heart pace-makers). Otherwise their function could be impaired. Do not use during pregnancy.

Do not stand on the outer edge to one side of the scale otherwise it may tip!

Keep children away from packaging materials (risk of suffocation). The surface of the scales is slippery when damp or wet.

Notes on handling batteries

Warning:

Swallowing batteries can be extremely dangerous. Keep the batteries and scale out of the reach of small children. Should a child swallow a battery, seek medical assistance immediately.

Batteries must not be recharged, taken apart, thrown into an open fire or short circuited.

Batteries can contain toxins that are harmful to health and the environment.

Always dispose of batteries in accordance with applicable legal regulations.

Do not dispose of batteries with the normal household waste.

Warning:

• Replace weak batteries before they discharge completely.
  • Always replace all batteries at the same time and use batteries of the same type.
• Leaking batteries may damage the device. If you do not intend to use the device for longer periods, remove the batteries from the battery compartment.

- If a battery has leaked, put on protective gloves and clean the battery compartment with a dry cloth.

General notes

The unit is for personal use only and is not intended for medical or commercial applications.

Please note that technically related measuring tolerances are possible, as the scale is not calibrated for professional medical applications.

The scales' maximum load is 150 kg (330 lb/24 st)•

Before submitting any complaint, first check the batteries and replace them if necessary.

Repairs may only be performed by the authorised customer services team.

Should you have any questions concerning the use of our devices, please contact your dealer or customer service.

All scales comply with EC Directive 2004/108/EC.

Unit description4

Overview

Electrodes1
2 Set button
3 Down button
4 Up button

Display, split into the 5 areas of:

Personal information6

Weight7

Body values8

5 Initial use

Inserting the batteries

Please remove the battery insulating strips and/or position the batteries correctly with regards to the polarity displayed in the battery compartment (as symbol ⭕). If the scale fails to operate, remove the batteries completely and reinsert them.

Changing the weight unit

The scale shows the values in kg. You can adjust the device between kilograms, pounds - "lb" - and stones - "st:lb" - using the button located on the rear.

Setting up the scale

Set up the scale on a level and solid surface. A solid surface is a prerequisite for a correct measurement.

Information6

The measuring principle

This scale operates according to the B.I.A. principle (bioelectric impedance analysis). This enables the measurement of physical relationships within seconds by means of an undetectable, completely harmless electric current. The body fat percentage and other physical relationships in the body can be determined by measuring the electrical resistance (impedance) and calculating constants and individual parameters such as age, height, gender and degree of activity.

Muscle tissue and water have good electrical conductivity, and therefore lower resistance. Bones and fatty tissue, on the other hand, have low conductivity as fat cells and bones conduct hardly any current as a result of their very high resistance.

Please be aware that values obtained from the diagnostic scale represent only an approximation of actual analytical medical data. Only a specialist physician can accurately determine body fat, body water, muscle percentage and bone structure using medical procedures (e.g. computed tomography).

General tips

• If possible, always weigh yourself at the same time of day (preferably in the morning), after using the toilet, on an empty stomach and unclothed, in order to achieve comparable results.
  Important for the measurement: only measure body fat when barefoot and with the soles of the feet slightly moist. Completely dry soles can result in unsatisfactory measurements due to inadequate conductivity.
  Stand still and upright during the measurement.
  Wait a few hours after unaccustomed physical activity.
  Wait approx. 15 minutes after getting up in the morning to allow the water in the body to • distribute.
  Remember that only long-term trends are important. Short-term changes in weight within a few days are usually caused by a loss of fluid. Body water plays an important role towards our general wellbeing.

Limitations

When measuring body fat and other values, deviating and implausible results may occur in:

children under approx. 10 years,•

competitive athletes and body builders,•

pregnant women (due to the amniotic fluid),•

persons with fever, undergoing dialysis treatment or with symptoms of edema or osteoporosis,

persons taking cardiovascular medication (affecting the heart and vascular system),

persons taking vascular dilating or vascular constricting medication,

- persons with considerable anatomic deviations of the legs in relation to total body size (length of the legs considerably shortened or lengthened).

Switch on the scales7

Diagram of a baby bottle with a foot and measurement indicators (no text or symbols)

The scales have been fitted with pressure-sensitive switches in the front casing feet. To switch on the scales:

Press down lightly on the front area of the scales using your foot (or your hand).

The display will show "0.0 kg".

Settings8

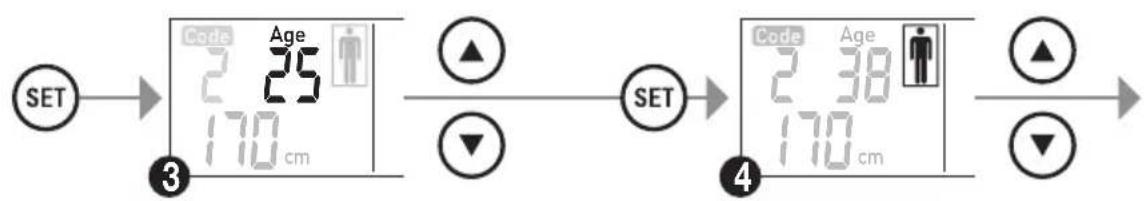

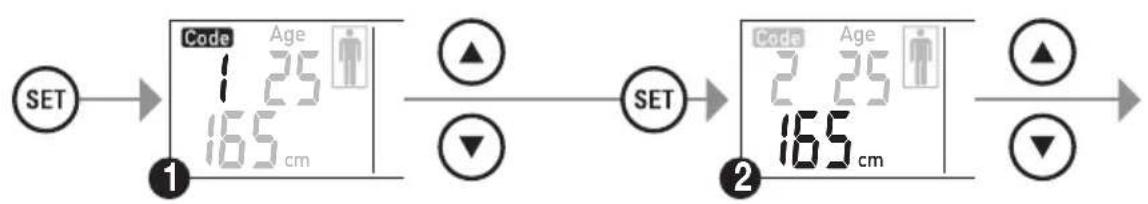

Setting user data

You must enter personal user parameters in order to measure your body fat percentage and other physical data.

The scale has 12 user memory locations which allows, for example, you and your family members to save personal settings and retrieve them later:

Sequence User data Parameters
1	Memory position 1 to 12
2	Body height 0 to 255 cm	(0' to 8'-4")
3	Age 10 to 100 years
4	Sex	male female

Always adjust the settings in all areas as follows:

Press the buttons ⬤ and ⬣ to change a display or a value.

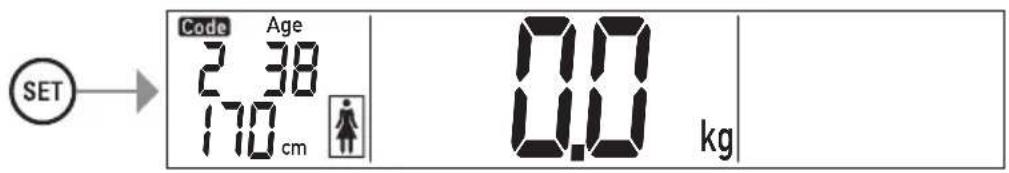

Press the button Ⓞ, to save the setting and go to the next range of settings, or to close the settings menu.

Operation9

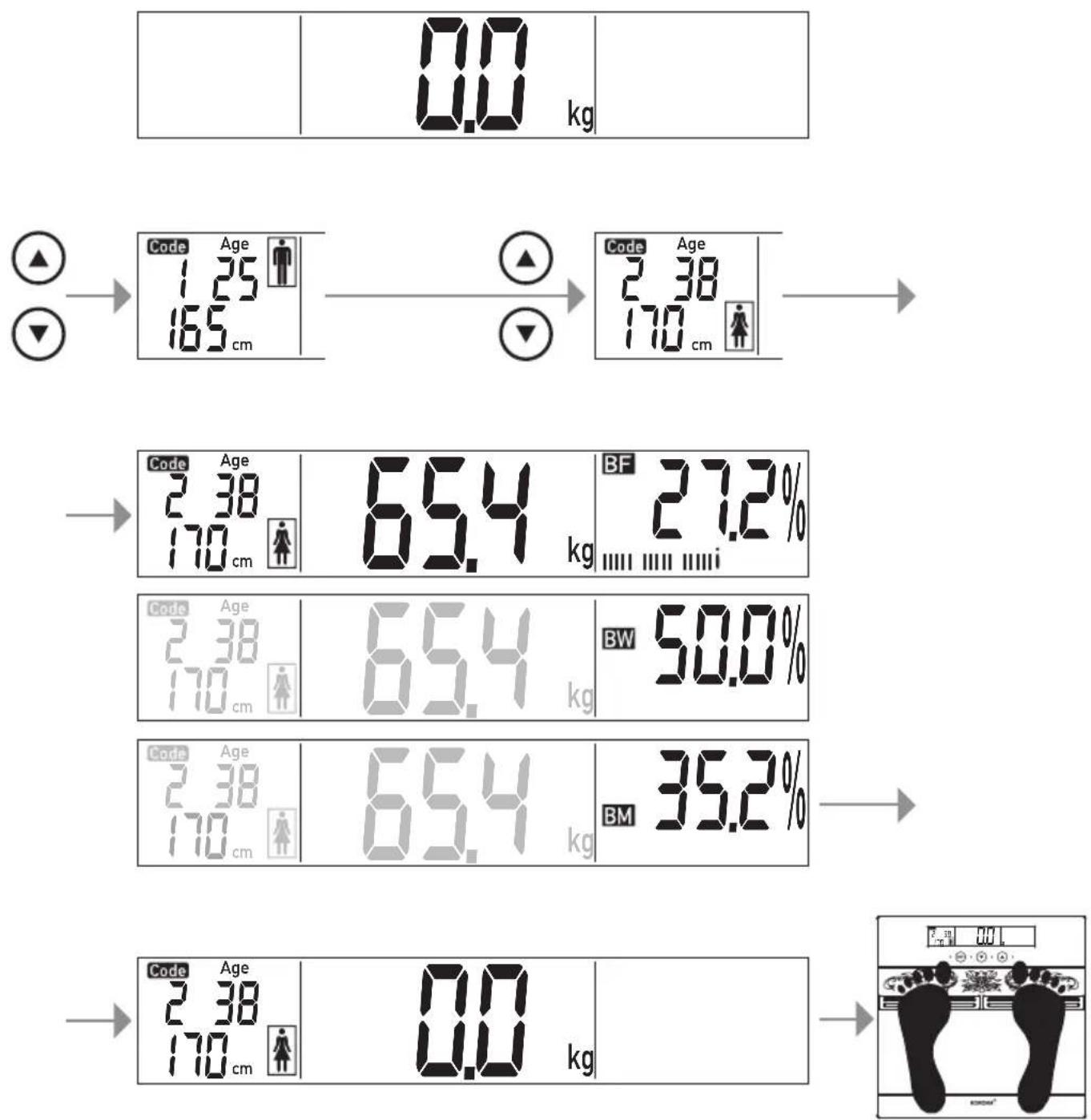

Weighing and measuring other body values

To simultaneously weigh yourself and determine other body values:

Switch on the scales and wait until the display shows "0.0kg".

Press the buttons 🔊 or ▼ to select the desired storage space with your saved settings.

Wait until the Code display stops blinking.

Your settings and saved values are displayed in an automatic display sequence. As soon as the display sequence has finished and "0.0 kg" is displayed again, you can step onto the scales to be weighed.

Display of results

The results are automatically displayed in the following sequence:

		kg	000	kg
Current weight1. Calculation procedure2.				Body fat value (BF%) with interpretation

Body water percentage 4. (BW %)

Body muscle ratio (BM %)

After displaying all values, the scales automatically switch off. You will find information on analysis on page 23.

Weighing only

If you only want to calculate your bodyweight, you simply need to switch on the scales. Wait until "0.0 kg" is displayed.

After displaying the weight, the scales automatically switch off.

Body fat percentage

The body fat values are shown in the display. The following body fat percentages are guide values (contact your physician for further information). The body fat BF chart also shown on the display (at the bottom) serves only to simplify orientation.

Man BF Woman %

Age	Very low low	normal high	high very		high
≤ 30	4.0-11.0	11.1-15.5	15.6-20.0	20.1-24.5	24.6-60.0
> 30	4.0-15.0	15.1-19.5	19.6-24.0	24.1-28.5	28.6-60.0

BF

Age	Very low low	normal	high very		high
≤ 30 4.0	-16.0	16.1-20.5	20.6-25.0	25.1-30.5	30.6-60.0
> 30 4.0	-20.0	20.1-25.0	25.1-30.0	30.1-35.0	35.1-60.0

A lower value is often found in athletes. Depending on the type of sports, training intensity and physical constitution, values may result which are below the recommended values stated. It should, however, be noted that there could be a danger to health in the case of extremely low values.

Body water percentage

The body water percentage is normally within the following ranges:

Man B% Woman %

Age poor	good very good	Good	Age p
10-100	<50	50-65	>65

BW

ery good
10-100	<45	45-60	>60

Body fat contains relatively little water. Therefore persons with a high body fat percentage have body water percentages below the recommended values. With endurance athletes, however, the recommended values could be exceeded due to low fat percentages and high muscle percentage.

This scale is unsuitable for measuring body water in order to draw medical conclusions concerning age-related water retention, for example. If necessary ask your physician. Basically, a high body water percentage should be the aim.

Remember that only long-term trends are important. Short-term fluctuations in weight over a few days are usually the result of a loss of fluid.

The interpretation of the results reflects changes in total body weight, percentage of body fat and body water as well as muscle density, and takes into account the length of time over which these changes take place. Sudden changes within days must be distinguished from medium term changes (over weeks) and long term changes (months).

A basic rule is that short term changes in weight almost exclusively represent changes in water content, whereas medium and long term changes may also involve the fat and muscle percentages.

If your weight reduces over the short term, but your body fat percentage increases or re-• mains the same, you have merely lost water – e.g. after a training session, sauna session or a diet restricted only to rapid weight loss.

If your weight increases over the medium term and the body fat percentage falls or stays the same, then you could have built up valuable muscle mass.

• If your weight and body fat percentage fall simultaneously then your diet is working – you are losing fat mass.
• Ideally you should support your diet with physical activity, fitness or power training. This way you can increase your muscle percentage over the medium term.

Body fat, body water or muscle percentages should not be added (certain elements of muscle tissue also contain body water).

Replacing batteries11

The batteries in the scales must be replaced if the message “LO” appears in the display. If the batteries are too flat, then the scales will switch off automatically.

Note:

When changing batteries, always use batteries of the same type, brand and capacity.

Always replace all batteries simultaneously.

Do not use rechargeable batteries.

Use batteries that are free of heavy metals.

Storage and maintenance12

The precision of the measurements and service life of the device depends on its careful handling:

Important:

The unit should be cleaned occasionally. Do not use abrasive detergents and never • immerse the unit in water.

Make sure that no liquids come into contact with the scales. Never submerge the • scales in water. Never rinse them in running water.

Do not stand any objects on the scales when not in use.

Protect the scales from knocks, damp, dust, chemicals, drastic changes in temperature, electromagnetic fields and nearby sources of heat (ovens, heaters). Do not press the buttons violently or with pointed objects.

Do not wash the unit in a dishwasher!

Disposal13

Standard and rechargeable batteries should not be disposed of separately from the household waste. As a consumer, you are legally obliged to return used batteries for proper disposal. You can hand in your used batteries at public collection points in your district or sales outlets where batteries of this type are sold.

Note:

The codes below are printed on batteries containing harmful substances:

Pb = Battery contains lead,

Cd = Battery contains cadmium,

Hg = Battery contains mercury.

For environmental reasons, do not dispose of the scale with the batteries in the household waste at the end of its useful life. Dispose of the unit at a suitable local collection or recycling point.

Observe the local regulations for material disposal.

Dispose of the unit in accordance with EC Directive 2002/96/EC – WEEE (Waste Electrical and Electronic Equipment).

If you have any questions, please contact the local authorities responsible for waste disposal.

What if there are problems?14

If the scale detects and error when measuring, the following is displayed.

Display Cause Remedy
Err The maximum	load capacity of 150 kg was exceeded.	Do not load the unit with over 150 kg.
LO The batteries are almost empty. Replace the batteries
- - - - The electrical resistance between the electrodes and the sole of your foot is too high (e.g. if you have tough calluses).		Repeat the measurement barefoot. If necessary, moisten the soles of your feet slightly. If necessary, remove the calluses from the soles of your feet.
		The fat percentage is outside the measurable range (less than 4% or greater than 70%).
		The personal values entered are outside normal ranges (e.g. height is too small).

No measurement possible

Possible errors Remedy
The User mode has been incorrectly activated. If you stand on the scales to measure all body values before the display shows “0.0 kg”, the scales will not function correctly.	Correctly activate User mode (wait for “0.0 kg” to be shown) and repeat the measurement.
The batteries in the scale are empty. Replace the batteries.

Incorrect weight measurement

Possible errors Remedy
Scale is on carpeting. Place the scale on a level	and solid surface.
Incorrect zero point of scale. Activate the scale,	wait approximately 4 seconds, repeat measurement.

F Français

Sommaire

Completely blank white image with no visible content, text, or symbols.

Completely blank white image with no visible content, text, or symbols.

Illustration of a baby foot placed on a baby table with a dashed outline indicating measurement or calibration (no text or symbols)

Illustration of a baby foot placed on a wall-mounted device with control buttons (no text or symbols)

Obstuga9
