Product Type	Cordless Blower
Brand	Makita
Model	BUB142Z
Power Source	18 V lithium-ion battery (sold separately)
Maximum Air Flow	3.4 m³/min
Maximum Air Speed	200 km/h
Sound Level	72 dB(A)
Vibration Level	2.5 m/s²
Weight (without battery)	1.4 kg
Dimensions (L x W x H)	800 x 150 x 200 mm
Color	Makita Blue
Variable Speed	Yes, by dial
Main Functions	Powerful blowing, ergonomic design
Maintenance	Clean the air vents with a soft cloth
Safety	Wearing goggles and hearing protection recommended
Spare Parts	Available at authorized Makita dealers
Repairability	Repairable by Makita authorized center

Frequently Asked Questions - BUB142Z MAKITA

How to change the air speed?

Use the speed adjustment dial on the handle to adjust the air flow.

Which battery to use?

Use a Makita 18 V lithium-ion battery, such as models BL1815, BL1820, BL1830, etc.

Is the BUB142Z delivered with battery and charger?

No, the BUB142Z model is sold as a bare tool (without battery or charger). You must purchase them separately.

How to clean the blower?

Disconnect the battery and clean the air vents with a soft cloth or brush. Do not use water.

What accessories are compatible?

Blow tubes, concentration nozzles, and garden waste adapters.

What to do if the blower does not start?

Check that the battery is charged and properly inserted. If the problem persists, contact customer service.

Is the noise level annoying?

The noise level is approximately 72 dB(A). Wear hearing protection during extended use.

Can I use the blower in rainy weather?

No, do not use the tool in rain or humid conditions to avoid electrical hazards.

How to store the blower?

Store it in a dry, clean place out of reach of children. Remove the battery for storage.

Where to find spare parts?

At authorized Makita dealers or on the official website. Mention model BUB142Z.

USER MANUAL BUB142Z MAKITA

INSTRUCTION MANUAL MANUEL D'INSTRUCTION MANUAL DE INSTRUCCIONES

Line drawing of a mechanical device resembling a megohenter or fan, with no visible text or symbols.

008308

WARNING:

For your personal safety, READ and UNDERSTAND before using. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

AVERTISSEMENT:

Model		BUB142	BUB182
Capacities	Air pressure (water column) 0	-550 mm (21-5/8")
	Air volume 0 - 2.6 m	3 /min.
No load speed (RPM) 0 - 18,000 /min.
Overall length 509 mm (20")
Net weight 1.7 kg (3.7 lbs) 1.8 kg (4.0 lbs)
Rated voltage D.C. 14.4 V D.C. 18 V
Standard battery cartridges BL1430/BL1415 BL1830/BL1815

• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Note: Specifications may differ from country to country.

USA008-1

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

READ ALL INSTRUCTIONS.

BEFORE USING THIS APPLIANCE

WARNING - To reduce the risk of fire or injury:

1. Do not leave appliance when battery fitted. Remove battery from appliance when not in use and before servicing.
2. Do not expose to rain. Store indoors.
3. Do not allow to be used as a toy. Close attention is necessary when used by or near children.
4. Use only as described in this manual. Use only manufacturer's recommended attachments.
5. Do not use with damaged battery. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
6. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
7. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
8. Use extra care when cleaning on stairs.
9. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
10. Use only the charger supplied by the

manufacturer to recharge.

1. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
2. Do not use without dust bag in place when collecting dust.

SAVE THESE INSTRUCTIONS.

This appliance is intended for household use.

USB032-2

SPECIFIC SAFETY RULES

DO NOT let comfort or familiarity with product (gained from repeated use) replace strict adherence to cordless blower safety rules. If you use this tool unsafely or incorrectly, you can suffer serious personal injury.

1. Be aware that this tool is always in an operating condition, because it does not have to be plugged into an electrical outlet.
2. Always use protective goggles, a cap and mask when using the blower. Ordinary eye or sun glasses are NOT safety glasses.
3. Never point the nozzle at anyone in the vicinity when using the blower.
4. Always use the dust bag when collecting dust, chips and the like.
5. Do not collect still smoldering cigarette ashes, freshly cut metals shavings, screws, nails and the like.
6. Never block suction inlet and/or blower outlet. Increased motor revolution may cause dangerous fan breakage.
7. AVOID UNINTENTIONAL STARTING. Do not carry battery fitted tool with finger on switch. Be sure switch is OFF when insert the battery.
8. Some material contains chemicals which may be toxic. Take caution to prevent dust inhalation and skin contact. Follow material supplier safety data.

SAVE THESE INSTRUCTIONS.

⚠ WARNING:

MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.

ENC007-2

IMPORTANT SAFETY INSTRUCTIONS

FOR BATTERY CARTRIDGE

1. Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out with clear water and seek medical attention right away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:

(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in a container with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water or rain.

A battery short can cause a large current flow, overheating, possible burns and even a breakdown.

1. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50^irc C ( 122^irc F).
2. Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.
3. Be careful not to drop or strike battery.

SAVE THESE INSTRUCTIONS.

Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge.

Overcharging shortens the battery service life.

1. Charge the battery cartridge with room temperature at 10^irc C - 40^irc C ( 50^irc F - 104^irc F). Let a hot battery cartridge cool down before charging it.

USD301-1

Symbols

The followings show the symbols used for tool.

FUNCTIONAL DESCRIPTION

CAUTION:

- Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool.

Installing or removing battery cartridge

008309

1. Red part
2. Button

3. Battery cartridge

4. Always switch off the tool before insertion or removal of the battery cartridge.

5. To remove the battery cartridge, withdraw it from the tool while pressing the buttons on both sides of the cartridge.
6. To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place. Always insert it all the way until it locks in place with a little click. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.
7. Do not use force when inserting the battery cartridge. If the cartridge does not slide in easily, it is not being inserted correctly.

Switch action

CAUTION:

- Before inserting the battery cartridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

1. Pointer
2. Air volume adjusting dial
3. Switch trigger

008313

To start the tool, simply pull the switch trigger. Tool speed is increased by increasing pressure on the switch trigger. Release the switch trigger to stop.

Air volume adjusting dial

Air volume can be adjusted to any of three settings by turning the adjusting dial with the switch trigger fully depressed. Refer to the table below for the relationship between the number on the dial and the air volume.

Number on the dial	Air volume
3	High
2	Medium
1	Low

008312

CAUTION:

• Use the adjusting dial only after the switch trigger returns to the "OFF" position. Turning the dial before the trigger returns may damage the tool.
• If the tool is operated continuously until the battery cartridge has discharged, rest the tool for at least 15 minutes before proceeding with a fresh battery.

ASSEMBLY

Blowing

For dust blowing, attach nozzle to blower outlet, turning clockwise to lock it in place.

1. Nozzle
2. Blower outlet

008310

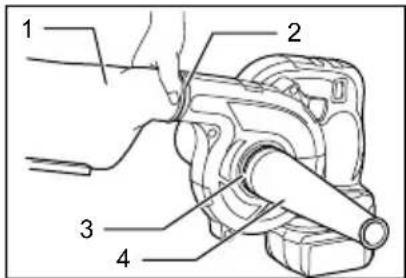

Dust suction

008311

1. Dust bag
2. Blower outlet
3. Suction inlet
4. Nozzle

For dust suction, fit nozzle onto suction inlet and dust bag onto blower outlet.

After the bag fills with dust, empty the contents of the dust bag into a dust bin by releasing the fastener.

Simple line drawing of a rectangular object with two hands holding it, labeled '1' at the base (no text or symbols on the object itself)

007170

1. Fastener

CAUTION:

- Empty the dust bag before it becomes too full, or the suction force weakens.

MAINTENANCE

CAUTION:

• Always be sure that the tool is switched off and the battery cartridge is removed before attempting to perform inspection or maintenance.

Cleaning

From time to time, wipe off the outside of the tool using a cloth dampened in soapy water. Never use gasoline, thinner or the like, or discoloration and/or cracks can take place.

Line drawing of a hand holding a cylindrical mechanical component (no text or symbols)

008314

To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts.

ACCESSORIES

CAUTION:

• These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose.

If you need any assistance for more details regarding these accessories, ask your local Makita Service Center.

• Nozzle
• Dust bag
• Corner nozzle
• Straight pipe
• Flexible hose
• Joint
• Various type of Makita genuine batteries and chargers

MAKITA LIMITED ONE YEAR WARRANTY

Warranty Policy

Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to be free of defects from workmanship and materials for the period of ONE YEAR from the date of original purchase. Should any trouble develop during this one year period, return the COMPLETE tool, freight prepaid, to one of Makita's Factory or Authorized Service Centers. If inspection shows the trouble is caused by defective workmanship or material, Makita will repair (or at our option, replace) without charge.

This Warranty does not apply where:

• repairs have been made or attempted by others:
• repairs are required because of normal wear and tear:
• the tool has been abused, misused or improperly maintained:
• alterations have been made to the tool.

IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM THE SALE OR USE OF THE PRODUCT. THIS DISCLAIMER APPLIES BOTH DURING AND AFTER THE TERM OF THIS WARRANTY.

MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED WARRANTIES OF "MERCHANTABILITY" AND "FITNESS FOR A SPECIFIC PURPOSE," AFTER THE ONE YEAR TERM OF THIS WARRANTY.

This Warranty gives you specific legal rights, and you may also have other rights which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you.

EN0006-1

FRANÇAIS SPÉCIFICATIONS

008309

008313

Simple line drawing of two hands holding a rectangular object with a labeled point '1' (no text or symbols beyond the label)

Line drawing of a hand operating a cylindrical tool with a flanged handle (no text or symbols)

008314

008313

008310

008311

Simple line drawing of two hands holding a rectangular object with a labeled point '1' (no text or symbols on the object itself)

007170

1. Sujetador

PRECAUCIÓN:

Line drawing of a hand holding a cylindrical mechanical component (no text or symbols)

008314

Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
  • crystalline silica from bricks and cement and other masonry products, and
  • arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

< USA solamente >

ADVERTENCIA
