KDT10022FK - Dishwasher ZANKER - Free user manual and instructions

Product type	Built-in dishwasher
Brand	Zanker
Model	KDT10022FK
Width	60 cm
Height	81.5 - 86.5 cm (adjustable)
Depth	55 cm
Net weight	46 kg
Power supply	220-240 V, 50 Hz, 10 A
Energy class	A++
Energy consumption per eco cycle	0.92 kWh
Water consumption per eco cycle	9.5 L
Capacity	12 place settings
Number of programs	6
Noise level	44 dB(A) re 1 pW
Main functions	Delayed start (1-24 h), Half load, Intensive drying, Active part
Cutlery drawer type	Cutlery drawer (3rd basket)
Maintenance and cleaning	Filters, wash arms, door seal, salt drum
Safety	Child safety, leak protection, anti-overflow system
Spare parts available	Control panel, cutlery drawer, filters, wash arms
Repairability	Repairability index: 7.4/10

Frequently Asked Questions - KDT10022FK ZANKER

How to install the Zanker KDT10022FK dishwasher under a worktop?

The appliance is designed for built-in installation under a worktop. Make sure the niche has the following dimensions: height 815-865 mm, width 600 mm, depth 550 mm. Provide a suitable water supply (3/4" thread) and drainage. Connect the appliance to an earthed electrical outlet.

What to do if the dishwasher does not start?

Check that the appliance is properly plugged in and the door is securely closed (the lock must click). Make sure the water supply tap is open. If error code E1 or E2 appears, refer to the manual for more details.

How to clean the dishwasher filters?

The filter is located at the bottom of the tub. Turn the cylindrical filter anticlockwise and lift it. Rinse it under running water and remove any residues. Reassemble in reverse order. This should be done every month.

What detergent to use?

Use a special dishwasher detergent in powder, gel or tablet form. Regenerating salt is necessary to soften the water. Rinse aid improves drying. Follow the recommended dosages according to your water hardness.

Why is there residual water in the tub after a cycle?

A small amount of residual water is normal in the strainer and drain pump. If the water exceeds 5 mm, check that the drain hose is not kinked or blocked. Clean the filter and make sure the siphon is not obstructed.

How to set the delayed start?

Press the Delayed start button (clock) until the display shows the desired number of hours (1 to 24 h). Then select the program and close the door. The start will occur automatically after the delay.

What does error code E3 on the display mean?

Code E3 indicates a drainage problem. Check that the drain hose is not blocked or kinked. Clean the drain pump filter. If the problem persists, contact customer service.

Can I use the half-load option?

Yes, for reduced loads. Place the dishes only in the upper or lower basket, then activate the Half-load option before starting the program. This saves water and energy.

How to maintain the wash arms?

Remove the wash arms by unscrewing the central nut (clockwise to loosen). Rinse the nozzles under running water. Use a toothpick to unclog blocked holes. Reassemble and tighten by hand.

Where to find spare parts for this model?

Spare parts such as filters, the cutlery drawer or the basket are available from authorized dealers or specialized websites. The model code KDT10022FK will help you identify compatible parts.

USER MANUAL KDT10022FK ZANKER

Technical line drawing of a mechanical assembly with a circular inset showing a component (no text or symbols)

1

Diagram showing a mechanical component being lifted by a rotating arrow, with no visible text or symbols.

2

3

4

Illustration of a hand cleaning a wall with a jar and cloth (no text or symbols)

5

Diagram showing a mechanical component being lifted by a rotating arrow, with no visible text or symbols.

6

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

1

Illustration of a hand pressing down on a smartphone with a scroll wheel (no text or symbols)

2

Dagelijks gebruik

Illustration of a hand using a tool to clean or store items on a device (no text or symbols visible)

4

Line drawing of a device inside a transparent enclosure, showing internal components and casing (no text or symbols)

1

Illustration of a hand pressing down on a smartphone screen with arrows indicating action (no text or symbols)

2

Illustration of a hand using a tool to apply material to a device with a tray (no text or symbols visible)

3

Illustration of a hand inserting a device into an open tray (no text or symbols visible)

Simple line drawing of a handheld device with an arrow indicating direction (no text or symbols)

4

Line drawing of a hand using a tool to press or install a tray with a small object (no text or symbols)

5

Line drawing of a refrigerator with an inset showing a close-up of the interior (no text or symbols)

1

2

4

Diagram showing a hand operating a mechanical component with arrows indicating motion, and an inset magnified view of a device (no text or symbols present)

6

Daily use	21
Hints and tips	23
Care and cleaning	24
Troubleshooting	24
Technical information	26
Environment concerns	26

Subject to change without notice.

Safety instructions

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

Warning! Risk of suffocation, injury or permanent disability.

• Do not let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowledge use the appliance. They must have supervision or instruction for the operation of the appliance by a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is open.

Installation

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the temperature is less than 0^ .
• Obey the installation instruction supplied with the appliance.
• Make sure that the appliance is installed below and adjacent to safe structures.

Electrical connection

Warning! Risk of fire and electrical shock.

• The appliance must be earthed.

• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the appliance power supply cable need to be replaced, this must be carried out by our Service Centre.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Do not touch the mains cable or the mains plug with wet hands.
• This appliance complies with the E.E.C. Directives.

Water connection

• Make sure not to cause damage to the water hoses.
• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.
• The first time you use the appliance, make sure that there is no leakage.
• The water inlet hose has a safety valve and a sheath with an inner mains cable.

Warning! Dangerous voltage.

- If the water inlet hose is damaged, immediately disconnect the mains plug from the mains socket. Contact Service to replace the water inlet hose.

Use

- This appliance is intended to be used in household and similar applications such as:

- Staff kitchen areas in shops, offices and other working environments

- Farm houses

- By clients in hotels, motels and other residential type environments

- Bed and breakfast type environments.

Warning! Risk of injury, burns, electrical shock or fire.

- Do not change the specification of this appliance.

- Put knives and cutlery with sharp points in the cutlery basket with the points down or in a horizontal position.

- Do not keep the appliance door open without supervision to prevent to fall on it.

• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous. Obey the safety instructions on the detergent packaging.
• Do not drink and play with the water in the appliance.
• Do not remove the dishes from the appliance until the programme is completed. There can be detergent on the dishes.
  • The appliance can release hot steam if you open the door while a programme operates.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not use water spray and steam to clean the appliance.

Disposal

Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.

Service

• Contact the Service to repair the appliance. We recommend only the use of original spare parts.
• When you contact the Service, ensure that you have the following information that is available on the rating plate.

Model :

PNC :

Serial Number :

Product description

1 Lower spray arm
2 Filters
3 Rating plate
4 Rinse aid dispenser
5 Detergent dispenser
6 Salt container
7 Air vent
8 Upper spray arm
9 Upper basket

Control panel

1 On/off button
2 Programme buttons

3 Delay start button
4 Indicators

Indicators Description
3h 3 hours indicator.
6h 6 hours indicator.
	Multitab indicator.
	Salt indicator. It is always off while the programme operates.
	Rinse aid indicator. It is always off while the programme operates.
→I	End indicator.

Programmes

Programme Degree of soilType of load		Programme phases	Options
ECO 50°1)	Normal soilCrockery and cutlery	PrewashWash 50 °CRinsesDry	Multitab
65°	Normal soilCrockery and cutlery	PrewashWash 65 °CRinsesDry	Multitab
70°2)	Heavy soilCrockery, cutlery, pots and pans	PrewashWash 70 °CRinsesDry	Multitab
60°3)	Fresh soilCrockery and cutlery	Wash 60 °CRinse	Multitab
4)	All Prewash

1) With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil. (This is the standard programme for test institutes).
2) This programme has a high temperature rinsing phase for better hygiene results. During the rinsing phase, the temperature stays at 70 °C for at least 10 minutes.
3) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.
4) Use this programme to quickly rinse the dishes. This prevents the remaining food to bond on the dishes and bad odours to come out from the appliance.

Do not use detergent with this programme.

Consumption values

Programme1)	Duration(min)	Energy(kWh)	Water(l)
ECO 50°	195 0.92 10.2
65°	90 - 110 1.4 - 1.5 17 - 19
70°	150 - 160 1.4 - 1.6 13 - 14
60°	30 0.9 9
	14 0.1 4

1) The pressure and the temperature of the water, the variations of the mains supply, the options and the quantity of dishes can change the values.

Information for test institutes

For all the necessary information for test performance. send an email to:

[e-mail]

Write down the product number (PNC) that is on the rating plate.

Options

i Activate the Multitab option before you set a programme. You cannot activate the option while a programme operates.

Multitab

Activate this option only when you use the combi detergent tablets.

This option deactivates the flow of rinse aid and salt.

The related indicators stay off.

The programme duration can increase.

How to activate the Multitab option

1. Press and hold, at the same time, button and button until the Multitab indicator comes on.

If you stop to use the combi detergent tablets, before you start to use separately detergent, rinse aid and dishwasher salt, do these steps:

1. Set the water softener to the highest level.
2. Make sure that the salt container and the rinse aid dispenser are full.
3. Start the shortest programme with a rinsing phase, without detergent and without dishes.
4. Adjust the water softener to the water hardness in your area.
5. Adjust the released quantity of rinse aid.

Acoustic signals

The acoustic signals operate when the appliance has a malfunction, when the adjustment of the level of the water softener occurs and when the programme is completed.

By default, the acoustic signals are on, but it is possible to deactivate them.

Before first use

1. Make sure that the set level of the water softener agrees with the water hardness in your area. If not, adjust the water softener. Contact your local water authority to know the water hardness in your area.
2. Fill the salt container.
3. Fill the rinse aid dispenser.

How to deactivate the acoustic signals

1. Press the on/off button to activate the appliance. Make sure that the appliance is in setting mode, refer to "Setting and starting a programme".

2. Press and hold, at the same time, button 📋 and button 📋 until the indicators of buttons ECO 📋 and start to flash.

3. Press button

• The indicators of buttons ECO and go off.
• The indicator of button 📋 continues to flash.
• The indicator →|comes on.

1. Press button ☐. The indicator goes off, the acoustic signals are deactivated.

2. Deactivate the appliance to confirm the setting.

How to activate the acoustic signals

1. Refer to 'How to deactivate the acoustic signals', step (1) through (3).

2. Press button

3. The indicators of buttons ECO and go off.
   • The indicator of button 📋 continues to flash.
   • The indicator →|is off.

4. Press button ☐. The indicator comes on, the acoustic signals are active.

5. Deactivate the appliance to confirm the setting.

6. Open the water tap.

7. Processing residues can stay in the appliance. Start a programme to remove them. Do not use detergent and do not load the baskets.

Adjusting the water softener

Water hardness				Water softener adjustment Level
German degrees (°dH)	French degrees (°fH)	mmol/l Clarke	degrees
47 - 50	84 - 90	8.4. - 9.0	58 - 63	10
43 - 46	76 - 83	7.6 - 8.3	53 - 57	9
37 - 42	65 - 75	6.5 - 7.5	46 - 52	8
29 - 36	51 - 64	5.1 - 6.4	36 - 45	7
23 - 28	40 - 50	4.0 - 5.0	28 - 35	6
19 - 22 33 - 39	3.3 - 3.9 23 - 27			5^1)
15 - 18	26 - 32	2.6 - 3.2	18 - 22	4
11 - 14	19 - 25	1.9 - 2.5	13 - 17	3
4 - 10	7 - 18	0.7 - 1.8	5 - 12	2
< 4 < 7 < 0.7 < 5				1^2)

1) Factory position.
2) Do not use salt at this level.

How to adjust the level of the water softener

1. Press the on/off button to activate the appliance. Make sure that the appliance is in setting mode, refer to "Setting and starting a programme".
2. Press and hold, at the same time, button 📋 and button 📋 until the indicators of buttons ECO, 📋 and 📋 start to flash.
3. Press button ECO.

• The indicators of buttons 📁 and 🏠 go off.

• The indicator of button ECO continues to flash.
• The current setting of the water softener is indicated by intermittent acoustic signals and the number of flashes of the indicator →1.

- E.g. 5 acoustic signals and 5 flashes + pause + 5 acoustic signals and 5 flashes = level 5.

1. Press button ECO again and again to change the setting. Each time you press the button you select the next level.
2. Deactivate the appliance to confirm the setting.

Filling the salt container

Caution! Water and salt can come out from the salt container when you fill it. Risk of corrosion.

To prevent it, after you fill the salt container, start a programme.

Technical line drawing of a mechanical assembly with a circular inset showing a component (no text or symbols)

1

Diagram showing a mechanical component being lifted by a rotating arrow, with no visible text or symbols.

2

3

4

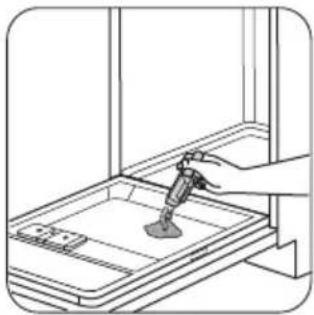

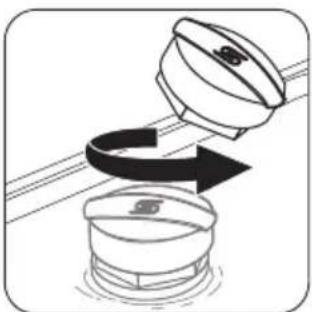

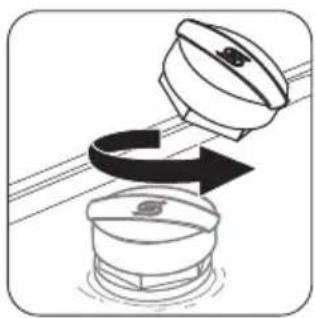

Put 1 litre of water in the salt container (only for the first time).

Illustration of a hand cleaning a wall with a jar and surface (no text or symbols)

5

Diagram showing a mechanical component being lifted by a rotating arrow, with no visible text or symbols.

6

Filling the rinse aid dispenser

Technical line drawing of a mechanical assembly with a magnified inset showing a component (no text or symbols)

1

Illustration of a hand pressing down on a smartphone with a finger, showing the screen and app interface (no text or symbols)

2

Daily use

1. Open the water tap.
2. Press the on/off button to activate the appliance. Make sure that the appliance is in setting mode, refer to 'Setting and starting a programme'.
3. If the salt indicator is on, fill the salt container.

4. If the rinse aid indicator is on, fill the rinse aid dispenser.

5. Load the baskets.

6. Add the detergent.

3

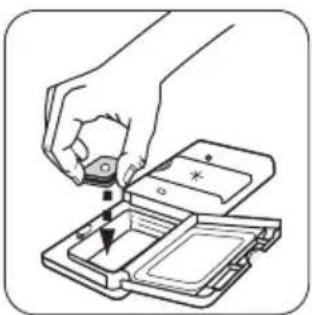

Illustration of a hand using a tool to clean or store items on a smartphone (no text or symbols visible)

4

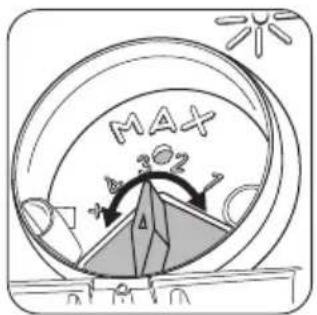

To adjust the released quantity of rinse aid, turn the selector between position 1 (lowest quantity) and position 4 (highest quantity).

- If you use the combi detergent tablets, activate the Multitab option.

1. Set and start the correct programme for the type of load and the degree of soil.

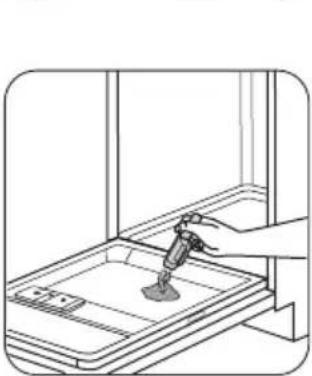

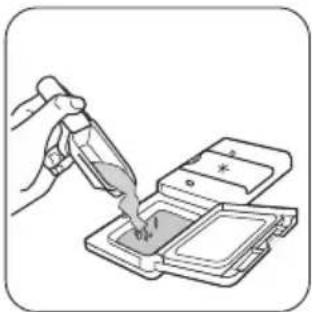

Using the detergent

Line drawing of a 3D printer or scanner with an open lid and base tray (no text or symbols)

1

Illustration of a hand pressing down on a device with arrows indicating motion (no text or symbols)

2

Illustration of a hand using a tool to apply material to a device with a tray (no text or symbols visible)

3

Illustration of a hand inserting a device into a device housing (no text or symbols visible)

Line drawing of a hand using a tool to press or install a tray (no text or symbols)

Simple line drawing of a mobile phone with an arrow indicating speed (no text or symbols)

4

If the programme has a prewash phase, put a small quantity of detergent on the inner part of the appliance door.

Setting and starting a programme

Setting mode

For some settings it is necessary that the appliance is in setting mode.

The appliance is in setting mode when, after the activation, all the programme indicators come on.

If the control panel does not show this condition, press and hold, at the same time, button ⊕ and button

until the appliance is in setting mode.

Starting a programme without delay start

1. Open the water tap.

2. Press the on/off button to activate the appliance. Make sure that the appliance is in setting mode.

3. Press the button of the programme you want to set. The related programme indicator stays on while all the other programme indicators go off.

4. Close the appliance door, the programme starts.

Starting a programme with delay start

1. Set the programme.

2. Press the delay start button again and again until the indicator of the number of hours you want to set comes on. You can set 3 or 6 hours.

• The delay start indicator comes on.

1. Close the appliance door, the countdown starts.

- When the countdown is completed, the programme starts.

Opening the door while the appliance operates

If you open the door, the appliance stops. When you close the door, the appliance continues from the point of interruption.

Cancelling the delay start while the countdown operates

When you cancel the delay start, also the programme is cancelled.

1. Press and hold, at the same time, button 📋 and button 🏠 until all the programme indicators come on.

2. Set the programme again.

Cancelling the programme

1. Press and hold, at the same time, button 📋 and button 📋 until all the programme indicators come on.

Make sure that there is detergent in the detergent dispenser before you start a new programme.

At the end of the programme

The indicator → I comes on.

1. Press the on/off button to deactivate the appliance.

2. Close the water tap.

If you do not press the on/off button, the AUTO OFF function automatically deactivates the appliance a few minutes after the end of the programme. This helps to decrease the energy consumption,

Important

- Let the dishes become cold before you remove them from the appliance. Hot dishes can be easily damaged.

Hints and tips

The water softener

Hard water contains a high quantity of minerals that can cause damage to the appliance and bad washing results. The water softener neutralises these minerals. The dishwasher salt keeps the water softener clean and in good conditions. It is important to set the right level of the water softener. This makes sure that the water softener uses the correct quantity of dishwasher salt and water.

Using salt, rinse aid and detergent

• Only use salt, rinse aid and detergent for dishwasher. Other products can cause damage to the appliance.
• The rinse aid helps, during the last rinsing phase, to dry the dishes without streaks and stains.
• Combi detergent tablets contain detergent, rinse aid and other added agents. Be sure that these tablets are applicable to the water hardness in your area. Refer to the instructions on the packaging of the products.
• Detergent tablets do not fully dissolve with short programmes. To prevent detergent residues on the tableware, we recommend that you use the tablets with long programmes.

Do not use more than the correct quantity of detergent. Refer to the instructions on the detergent aging.

Loading the baskets

Refer to the supplied leaflet with examples of the load of the baskets.

- Only use the appliance to wash items that are dishwasher-safe.

• First remove the items from the lower basket, then from the upper basket.

• There can be water on the sides and on the door of the appliance. Stainless steel becomes cool more quickly than the dishes.

• Do not put in the appliance items made of wood, horn, aluminium, pewter and copper.

• Do not put in the appliance items that can absorb water (sponges, household cloths).
• Remove remaining food from the items.
• To remove easily remaining burned food, soak pots and pans in water before you put them in the appliance.
• Put hollow items (cups, glasses and pans) with the opening down.
• Make sure that cutlery and dishes do not bond together. Mix spoons with other cutlery.
• Make sure that glasses do not touch other glasses.
• Put the small items in the cutlery basket.
• Put the light items in the upper basket. Make sure that they do not move.
• Make sure that the spray arms can move freely before you start a programme.

Before starting a programme

Make sure that:

• The filters are clean and correctly installed.
  • The spray arms are not clogged.
• The position of the items in the baskets is correct.
• The programme is applicable for the type of load and for the degree of soil.
• The correct quantity of detergent is used.
• There is dishwasher salt and rinse aid (unless you use combi detergent tablets).
• The cap of the salt container is tight.

Care and cleaning

Warning! Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.
i Dirty filters and clogged spray arms decrease the washing results.

Make a check regularly and, if necessary, clean them.

Cleaning the filters

Line drawing of a refrigerator interior with an inset showing a close-up of the lid (no text or symbols)

1

2

3

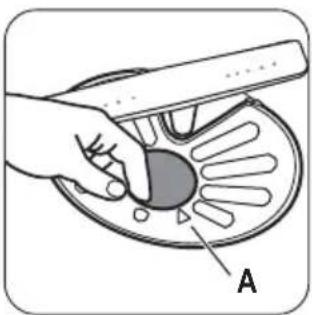

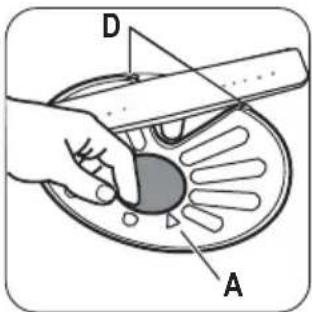

Illustration of a hand holding a tool interacting with a circular object, labeled 'A' (no text or symbols on the object itself)

4

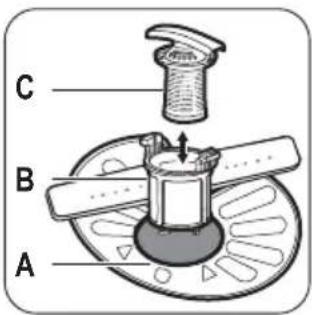

To remove filters (B) and (C), turn the handle counterclockwise and remove. Pull apart filter (B) and (C). Wash the filters with water.

Remove filter (A). Wash the filter with water.

Troubleshooting

The appliance does not start or it stops during operation.

Before you contact the Service, refer to the information that follows for a solution to the problem.

5

Before you put the filter (A) back, make sure that there are no residues of food or soil in or around the edge of the sump. Make sure that filter (A) is correctly positioned under the 2 guides (D).

Diagram showing a hand using a tool to press down a mechanical component, with an inset close-up of the process (no text or symbols present)

6

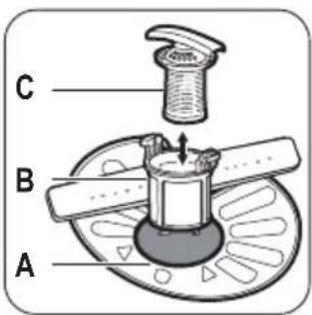

Assemble filters (B) and (C). Put them back in filter (A). Turn the handle clockwise until it locks.

An incorrect position of the filters can cause bad washing results and damage to the appliance.

Cleaning the spray arms

Do not remove the spray arms.

If the holes in the spray arms are clogged, remove remaining parts of soil with a thin pointed object.

External cleaning

Clean the appliance with a moist soft cloth.

Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads or solvents.

Internal cleaning

If you regularly use short duration programmes, these can leave deposits of grease and limescale inside the appliance.

To prevent this, we recommend to run long duration programmes at least 2 times per month.

With some problems, different indicators flash continuously or intermittently at the same time to show an alarm code.

Alarm code Problem
The indicator of the set programme flashes continuously.The indicator →|flashes 1 time intermittently.	The appliance does not fill with water.
The indicator of the set programme flashes continuously.The indicator →|flashes 2 times intermittently.	The appliance does not drain the water.
The indicator of the set programme flashes continuously.The indicator →|flashes 3 times intermittently.	The anti-flood device is on.

Warning! Deactivate the appliance before you do the checks.

Problem Possible solution
You cannot activate the appliance.	Make sure that the mains plug is connected to the mains socket.
Make sure that there is not a damaged fuse in the fuse box.
The programme does not start. Make sure that the appliance door is closed.
If the delay start is set, cancel the setting or wait for the end of the countdown.
The appliance does not fill with water. Make sure that the water tap is open.
Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority.
Make sure that the water tap is not clogged.
Make sure that the filter in the inlet hose is not clogged.
Make sure that the inlet hose has no kinks or bends.
The appliance does not drain the water. Make sure that the sink spigot is not clogged.
Make sure that the drain hose has no kinks or bends.
The anti-flood device is on. Close the water tap and contact the Service.

After the checks are completed, activate the appliance.

The programme continues from the point of interruption.

If the problem occurs again, contact the Service.

If other alarm codes appear, contact the Service.

If the washing and drying results are not satisfactory

Whitish streaks or bluish layers on glasses and dishes

- The released quantity of rinse aid is too much. Adjust the rinse aid selector to a lower position.

• The quantity of detergent is too much.

Stains and dry water drops on glasses and dishes

• The released quantity of rinse aid is not sufficient. Adjust the rinse aid selector to a higher position.
• The quality of the detergent can be the cause.

Dishes are wet

• The programme is without a drying phase or with a low temperature drying phase.
• The rinse aid dispenser is empty.
• The quality of the rinse aid can be the cause.
• The quality of the combi detergent tablets can be the cause. Try a different brand or activate the rinse aid dispenser and use rinse aid together with the combi detergent tablets.

Refer to 'HINTS AND TIPS' for other possible causes.

How to activate the rinse aid dispenser

1. Press the on/off button to activate the appliance. Make sure that the appliance is in setting mode, refer to "Setting and starting a programme".

2. Press and hold, at the same time, button 📋 and button 📋 until the indicators of buttons ECO 📋 and start to flash.

3. Press button 📋.

• The indicators of buttons ECO and go off.
• The indicator of button 📋 continues to flash.
• The indicator →|is off.

1. Press button ☐. The indicator comes on. The rinse aid dispenser is activated.

2. Press the on/off button to deactivate the appliance and to confirm the setting.

3. Adjust the released quantity of rinse aid.

4. Fill the rinse aid dispenser.

Technical information

Dimensions Width / Height / Depth (mm) 596 / 818 - 898 / 550
Electrical connection Refer to the rating plate.
Voltage 220-240 V
Frequency 50 Hz
Water supply pressure	Min. / max. (bar / MPa)	(0.5 / 0.05 ) / (8 / 0.8 )
Water supply 1)	Cold water or hot water2)	max. 60 °C
Capacity Place settings 12
Power consumption	Left-on mode	0.10 W
	Off-mode 0.10 W

1) Connect the water inlet hose to a water tap with a 3/4" thread.

2) If the hot water comes from alternative sources of energy, (e.g. solar panels, aeolian energy), use the hot water supply to decrease energy consumption.

Environment concerns

Recycle the materials with the symbol ⚙. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol ✗

with the household waste. Return the product to your local recycling facility or contact your municipal office.

- Discard correctly the packaging material. Recycle the materials with the symbol 📋.

Sommaire

Technical line drawing of a mechanical assembly with a circular inset showing a component (no text or symbols)

1

Diagram showing a mechanical component being processed into a container with a curved arrow indicating motion (no text or symbols present)

2

3

4

Illustration of a hand cleaning a wall with a jar and pipe (no text or symbols)

5

Diagram showing a mechanical component being lifted by a rotating arrow, with no visible text or symbols.

6

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

1

Illustration of a hand pressing down on a smartphone with a curved arrow indicating motion (no text or symbols)

2

3

Illustration of a hand using a tool to clean or store items on a rectangular board (no text or symbols visible)

4

Line drawing of a mechanical device with an open lid and internal components (no text or symbols)

1

Illustration of a hand pressing down on a device with arrows indicating motion (no text or symbols)

2

Illustration of a hand using a tool to press or install a device with a tray labeled 0 and 1 (no text or symbols on the device itself)

3

Illustration of a hand inserting a device into an open device (no text or symbols visible)

[Non-Text]

Isometric illustration of a mobile phone with an arrow indicating speed (no text or symbols)

4

Line drawing of a hand using a tool to press or install a tray (no text or symbols visible)

5

Line drawing of a refrigerator interior with an inset showing a close-up of the lid (no text or symbols)

1

2

3

Illustration of a hand holding a tool interacting with a circular device labeled 'A' (no text or symbols on the device itself)

4

Diagram showing a hand using a tool to adjust or install a mechanical component, with an inset close-up of the component (no text or symbols present)

6

Technical line drawing of a mechanical assembly with a circular inset showing a small component (no text or symbols)

1

Diagram showing a mechanical component being lifted by a rotating arrow, with no visible text or symbols.

2

3

4

Illustration of a hand cleaning a wall with a jar and cloth (no text or symbols)

5

Diagram showing a mechanical device with a rotating arrow and base component (no text or symbols)

6

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

1

Illustration of a hand pressing down on a smartphone with a scroll wheel (no text or symbols)

2

Täglicher Gebrauch

Illustration of a hand using a tool to clean or store items on a device (no text or symbols visible)

4

Line drawing of a device with an open lid and internal compartments (no text or symbols)

1

Illustration of a hand pressing down on a smartphone with a finger, showing a button and star symbol (no text or labels)

2

Illustration of a hand using a tool to lift a component into a device (no text or symbols visible)

3

Illustration of a hand inserting a device into a device casing (no text or symbols visible)

Simple line drawing of a handheld device with an arrow indicating direction (no text or symbols)

4

Line drawing of a hand using a tool to press or install a tray (no text or symbols visible)

5

Line drawing of a kitchen appliance with a magnified inset showing a tray and lid (no text or symbols)

1

2

Illustration of a hand using a tool to adjust or install a circular component, with no visible text or symbols.

3

Illustration of a hand holding a tool interacting with a circular device labeled 'A' (no text or symbols on the device itself)

4

Diagram showing a hand turning a wheel with arrows indicating motion, and an inset magnifying the wheel (no text or symbols)

6
