USER MANUAL Boulder M514402RENT Baldwin

Baldwin Hardware Corporation

Baldwin 2-1/2 and 2-3/4 backset Mortise locks are designed for residential use in UL-listed fire-rated openings rated for 3-hour maximum. Meets U.S. UL10C (positive pressure) and CANS-104M80. In the event of fire, lock will be permanently disabled when mechanism reaches temperatures above 400°F. Use in accordance with local fire code regulations.

Mortise Lock Installation Instructions

TOOLS REQUIRED

1 Pencil
2 No. 2 and No. 3 Phillips Head Screwdrivers
3 No. 1 and No. 2 Slotted Screwdrivers
4 1/8" Allen Head Wrench
5 3/4" Wood Chisel or Corner Chisel
6 Measuring Device
7 Lock Mortising Tool (Recommended)
8 Router and Lock Face Template

9 Combination Square
10 Awl
11 Hacksaw
12 File (Wood Rasp and Metal)
13 Baldwin Aligning Tool
14 Drill and assorted Drill Bits (1/16", 1/8", 5/16", 3/8", 3/4", 1", 1-1/4")
15 Screw Wax or Soap
16 Powder Chalk, Graphite or Lipstick

Note: In order to successfully install a mortise lock and trim, a minimum of average skill level is required with use of the above listed tools.

Read and understand the provided instructions BEFORE attempting to mark or cut the door and/or frame. If there are any questions before you begin the installation, phone or visit your nearest Baldwin Distributor or contact the Technical Service Department at Baldwin at 610.777.7811.

Diagram A
ENTRANCE HANDLESET

Diagram B
ENTRANCE LEVER/KNOB SET

DOOR CONDITIONS

HAND OF DOOR IS ALWAYS DETERMINED FROM THE OUTSIDE

Here are some rules to follow:

• The outside of an exterior door is the street or entrance side.
• The outside of a room is the hall side.

• The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
• The outside of a closet door is the room or hall side.

GENERAL NOTES

Paper template is designed for 1-3/4" thick doors. For extra thick doors, measure backset from center of door edge. Tape supplied template to the door to locate fastener pattern for lock and trim.

When installing hardware on metal or fiberglass doors, ensure the door was designed to accommodate mortise locks. If in doubt, check with your local door distributor or door manufacturer.

Removal of hardware from doors is recommended before painting and finishing of the door. Allow paint/stain to fully cure before reinstalling hardware, usually ten days to two weeks. Check paint manufacturer instructions.

Retain these instructions in a safe place should you need to disassemble the lock trim or require Baldwin's assistance.

Mortise Lock Handleset Installation Instructions

Mark the Door Double Check Compatibility

1

Close-up of hands installing a wall-mounted door lock with a yellow measuring tape on the right (no visible text or symbols)

Mark the door at 37-1/2" - 40" above finished floor, or if retrofit, at appropriate location to coordinate with existing strike preparations. This will be center line of the lock and will put the knob/lever at 36" - 39" above the floor.

2

of Door Stile & Trim

Close-up of hands installing a door lock on a wooden surface, showing internal components and a close-up view (no text or symbols visible)

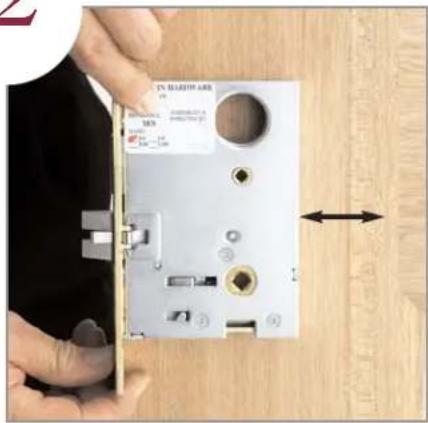

Make sure that the door stile will accommodate the intended lock.

3

Determine Hole Pattern Required for Trim on Blue Sheet

Determine hole pattern required for trim using Installation Template Guide Chart (blue sheet shown). Mark the listed holes on the yellow lock template (figure 7) enclosed with the lock. Ensure trim will not interfere with door stop or extend over door panel or glass.

4

Mortise Lock Pocket For Lock Body

Mechanical device mounted on a wooden door, showing mechanical arms and a yellow handle (no text or symbols visible)

Mortise the pocket in the door 1/8" deeper than the lock being installed. Refer to the Installation Template Guide Chart (blue sheet) for exact size of mortise pocket.

5

A Prepare for Lock Front

Person using a tool to adjust or install a wall-mounted component, no visible text or symbols

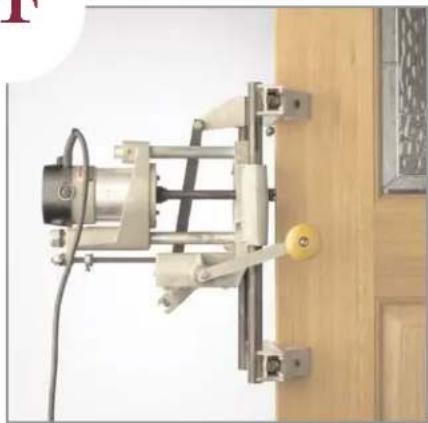

Rout for the lock front.

5^B

Prepare for Lock Front

Exterior view of a wooden door with a pull-up mechanism and corner arrows indicating movement (no text or symbols)

Square the Corners.

6
Cut Relief Pockets

Close-up of a wooden door handle with two black arrows pointing to a small component, against a plain wall background (no text or symbols)

Cut the relief pockets 3/8" deep on both sides for the Latch Hinge, 2-1/2" and 2-3/4" backset only. (Does not apply for 1" front.)

Mark Door

For 1-3/4" doors, fold the yellow lock template and attach to door using Installation Template Guide. Mark door at appropriate locations for lock and trim. MARK APPROPRIATE BACKSET. (Extra thick door conditions, see General Notes.) Metal template 8498.000 is available for purchase.

8
Drill Holes

Wooden door panel with two circular cutouts and a double button, no text or symbols visible

Drill appropriate holes as indicated on yellow lock template. DO NOT OVERSIZE HOLES. Only top two holes are drilled for knob to knob and lever to lever sets.

9
Install Cylinder Plug

Close-up of a hand holding a white phone receiver with a circular dial and multiple switches, alongside an inset showing the close-up of its internal components (no text or symbols visible)

Thread the cylinder plug into interior side of lock. Place a strip of tape over plug to keep it from turning. Notch must be located as shown. (Double cylinder functions: OMIT THIS STEP.)

Install Lock
10

Close-up of a wooden door with multiple lock components and a close-up inset showing the 'Shim' detail (no text or symbols on the main components)

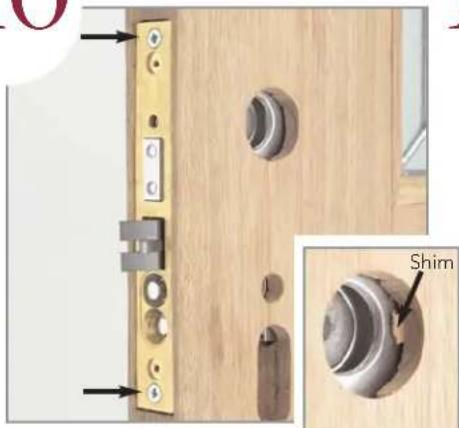

Drill two pilot holes for the lock face, adjust the bevel and install the lock. Shim between the lock and door on cylinder side as shown to prohibit the cylinder from pulling the lock case off center. (Failure to shim the lock may cause the cylinder to sit unevenly on the surface of the trim.)

Insert Spindle
11

Close-up of a hand using a tool to adjust or install a wooden door lock, with close-ups of the lock structure (no text or symbols visible)

For handleset trim install the spindle from the inside with V groove facing bottom door hinge and thread the screw and lock washer into the spindle from the outside. Tighten securely. For knob to knob and lever to lever sets, install spindle from outside - go to step 13.

12
Size Thumbpiece

Cut the thumbpiece so that it will fully engage the lift lever on the bottom of the lock.

Install Cylinder
13

Close-up of a door lock mechanism with hand adjusting a metal clip, shown in three views (no text or symbols visible)

Place the cylinder through the trim. Partially insert key into cylinder. Thread the cylinder into the lock until it is against the trim and Baldwin name is horizontal. For knob to knob and lever to lever sets - Install aligning bushing and fasten trim with supplied screws. Remove bushing - go to step 16.

Install Thru-Bolts
14

Close-up of a wooden door handle with two gold buttons and black handles, no visible text or symbols

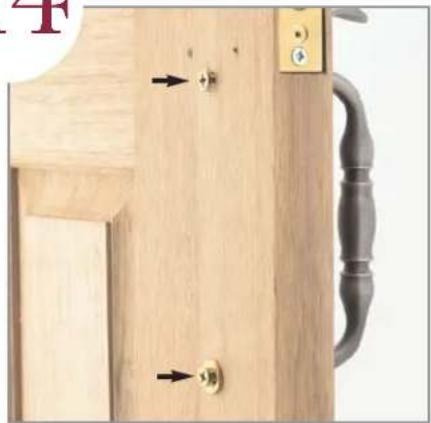

Start the thru-bolts which will hold the exterior trim. (Use screw cover washer under the bottom thru-bolt.) Tighten both securely.

15
Size & Cut Thumbturn

Close-up of a hand using a tool to cut or wire a curved object, no visible text or symbols

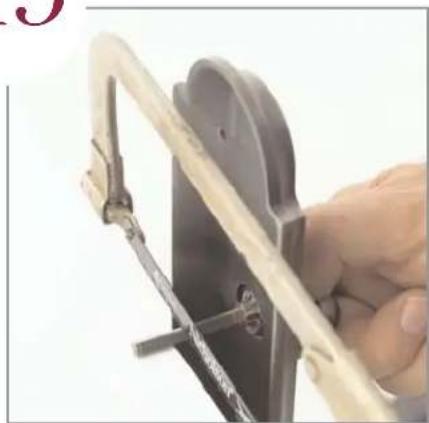

Cut the thumbturn tailpiece so that it goes halfway through the lock (as in step 12).

16
Install Interior Trim

Close-up of a hand inserting a small plastic component into a door lock, with an inset close-up showing the same mechanism (no text or symbols visible)

Place the interior trim on the door. Slide the aligning bushing onto the spindle so it fits into the knob hole. Drill pilot holes and fasten interior trim with supplied fasteners. Remove bushing and discard.

17
Complete Trim Installation

Close-up of hands using a tool to adjust or install a mechanical component, showing a curved handle and shaft (no text or symbols visible)

Start the set screw before sliding the knob or lever onto the spindle. Slide knob or lever onto the spindle and tighten securely. For knob to knob and lever to lever sets - install both sides - go to step 19.

18 19 Install
Install Screw Cover

Close-up of a hand adjusting a small metallic object on a wooden door (no text or symbols visible)

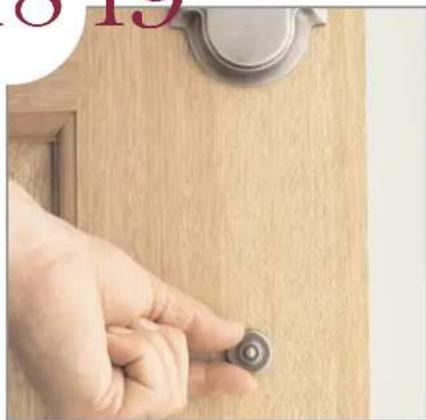

Thread decorative screw cover onto threaded washer.

Tighten Cylinder Set Screw

Close-up of a hand using a tool to adjust or install a wooden door lock (no text or symbols visible)

Tighten the cylinder set screw by turning clockwise. Do not over tighten. Do not use a power screw driver.

Install Armor Front
20

Close-up of a hand using a tool to adjust or install a door lock (no visible text or symbols)

Install the armor front with the small phillips head screws supplied.

21
*Mark and Mortise Jamb for Strike Location

Close-up of hands installing or adjusting a wooden door handle with a yellow tool (no text or symbols visible)

Mark the Jamb for the proper strike location. Coat extended latch bolt with graphite, powdered chalk or lipstick. Retract the bolt, close the door and actuate the knob or lever several times to mark the jamb. Add approximately 1/32" clearance from that mark.

Install Dust Box & Security Strike
22

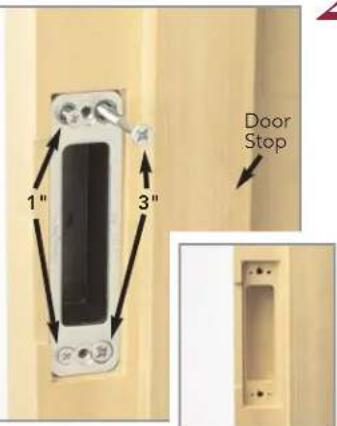

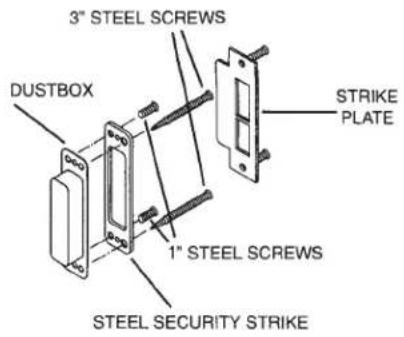

Drill pilot holes for security strike and relief holes for finished strike. Install dust box and security strike with 1" and 3" screws on the stop side of the plate. Note: Security Strikes are supplied only with locks which utilize cylinders.

Install Strike Plate
23

Close-up of a wooden door lock with two black rectangular buttons and mounting holes (no text or symbols visible)

Install strike plate with supplied machine screws.
