Cody M504402RFD - Lock Baldwin - Free user manual and instructions

Product Type	Deadbolt Lock
Brand	Baldwin
Model	Cody M504402RFD
Finish	Oil Rubbed Bronze
Material	Solid Brass Construction
Backset	Adjustable 2-3/8" or 2-3/4"
Latch	Adjustable, Full 1" Throw
Strike	Included, Full Lip with Dust Box
Keyway	Schlage C Keyway
Cylinder	Standard Keyed Cylinder
Security Grade	ANSI/BHMA Grade 1 (Highest Residential)
Weight	Approximately 2.5 lbs (1.1 kg)
Exterior Trim Dimensions	2.5" x 4.5" (6.4 cm x 11.4 cm)
Interior Trim	Turn Piece with Push-Button Locking
Installation	Standard Door Prep (2-1/8" bore, 1" edge bore)
Warranty	Limited Lifetime Mechanical and Finish
Included Hardware	Mounting Screws, Strike Plate, Dust Box, Installation Guide
Handing	Reversible for Left or Right Hand Doors
Fire Rating	Not Rated (Intended for Residential Use)
Front & Back Plate Thickness	3/16" (4.8 mm) Solid Brass

Frequently Asked Questions - Cody M504402RFD Baldwin

How do I install the Baldwin Cody M504402RFD deadbolt?

Follow the included installation guide. Ensure your door has a 2-1/8" bore hole and 1" edge bore. Insert the latch, mount the exterior trim over the cylinder, attach the interior trim, and secure with screws. Test the alignment before tightening fully.

What tools are required for installation?

You will need a Phillips screwdriver, a tape measure, and possibly a chisel for adjusting the strike plate mortise. A power drill is optional but can speed up the process.

Can I re-key this lock to match my existing keys?

Yes, the Baldwin Cody uses a Schlage C keyway. Take the lock to a locksmith or use a re-keying kit designed for Schlage C cylinders. You will need the original key and a re-keying tool.

How do I change the handing of the lock for left or right doors?

The lock is reversible. Remove the interior trim, flip the latch bolt 180 degrees, and reposition the turn piece indicator. Refer to the manual for specific steps for your model.

What is the warranty on the Baldwin Cody lock?

Baldwin offers a Limited Lifetime Mechanical and Finish Warranty. It covers defects in materials and workmanship for the original homeowner. Finish fading or tarnishing due to environmental conditions is also covered for 25 years.

How should I clean and maintain the finish?

Clean with a soft, damp cloth and mild soap. Avoid abrasive cleaners or scouring pads. For oil-rubbed bronze finishes, occasional application of mineral oil can help maintain the patina. Dry thoroughly after cleaning.

Will this deadbolt fit a standard residential door?

Yes, it is designed for standard doors with a thickness of 1-3/8" to 1-3/4". The backset adjusts to 2-3/8" or 2-3/4". Ensure your door has standard 2-1/8" diameter bore hole.

What is the backset and how do I adjust it?

Backset is the distance from the door edge to the center of the bore hole. This lock supports 2-3/8" and 2-3/4". To adjust, rotate the latch's backset indicator to the desired setting.

How do I remove the old lock before installing this one?

Unscrew the interior and exterior trim pieces. Remove the latch and deadbolt mechanism. If the old strike plate is larger, pad the space with wood filler. Ensure the bore hole is clean before installing the new Baldwin lock.

Is this lock compatible with smart home systems?

The Baldwin Cody M504402RFD is a traditional keyed deadbolt without electronic features. For smart home integration, consider Baldwin's SmartKey or Z-Wave models. This particular model does not support connectivity.

USER MANUAL Cody M504402RFD Baldwin

Baldwin Hardware Corporation

Baldwin 2-1/2 and 2-3/4 backset Mortise locks are designed for residential use in UL-listed fire-rated openings rated for 3-hour maximum. Meets U.S. UL10C (positive pressure) and CANS-104M80. In the event of fire, lock will be permanently disabled when mechanism reaches temperatures above 400° F. Use in accordance with local fire code regulations.

Mortise Lock Installation Instructions

TOOLS REQUIRED

1 Pencil
2 No. 2 and No. 3 Phillips Head Screwdrivers
3 No. 1 and No. 2 Slotted Screwdrivers
4 1/8" Allen Head Wrench
5 3/4" Wood Chisel or Corner Chisel
6 Measuring Device
7 Lock Mortising Tool (Recommended)
8 Router and Lock Face Template

9 Combination Square

10 Awl
11 Hacksaw
12 File (Wood Rasp and Metal)
13 Baldwin Aligning Tool
14 Drill and assorted Drill Bits (1/16", 1/8", 5/16", 3/8", 3/4", 1", 1-1/4")
15 Screw Wax or Soap
16 Powder Chalk, Graphite or Lipstick

Note: In order to successfully install a mortise lock and trim, a minimum of average skill level is required with use of the above listed tools.

Read and understand the provided instructions BEFORE attempting to mark or cut the door and/or frame. If there are any questions before you begin the installation, phone or visit your nearest Baldwin Distributor or contact the Technical Service Department at Baldwin at 610.777.7811.

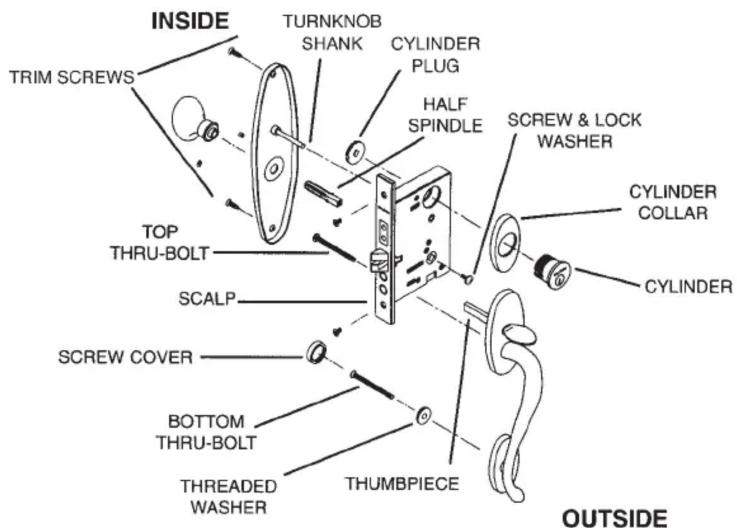

Diagram A
ENTRANCE HANDLESET

Diagram B
ENTRANCE LEVER/KNOB SET

DOOR CONDITIONS

HAND OF DOOR IS ALWAYS DETERMINED FROM THE OUTSIDE

Here are some rules to follow:

• The outside of an exterior door is the street or entrance side.

• The outside of a room is the hall side.

• The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.

• The outside of a closet door is the room or hall side.

GENERAL NOTES

Paper template is designed for 1-3/4" thick doors. For extra thick doors, measure backset from center of door edge. Tape supplied template to the door to locate fastener pattern for lock and trim.

When installing hardware on metal or fiberglass doors, ensure the door was designed to accommodate mortise locks. If in doubt, check with your local door distributor or door manufacturer.

Removal of hardware from doors is recommended before painting and finishing of the door. Allow paint/stain to fully cure before reinstalling hardware, usually ten days to two weeks. Check paint manufacturer instructions.

Retain these instructions in a safe place should you need to disassemble the lock trim or require Baldwin's assistance.

Mortise Lock Handleset Installation Instructions

Mark the Door Double Check Compatibility
1

Mark the door at 37-1/2" - 40" above finished floor, or if retrofit, at appropriate location to coordinate with existing strike preparations. This will be center line of the lock and will put the knob/lever at 36" - 39" above the floor.

2
of Door Stile & Trim

Make sure that the door stile will accommodate the intended lock.

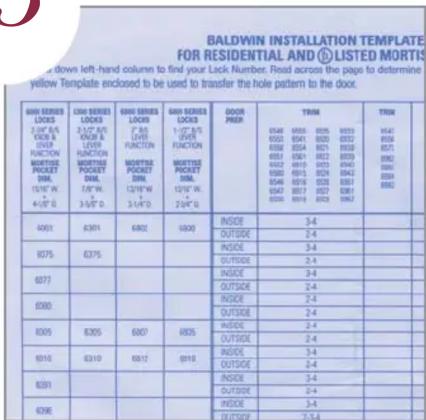

3
Determine Hole Pattern Required for Trim on Blue Sheet

Determine hole pattern required for trim using Installation Template Guide Chart (blue sheet shown). Mark the listed holes on the yellow lock template (figure 7) enclosed with the lock. Ensure trim will not interfere with door stop or extend over door panel or glass.

4
Mortise Lock Pocket For Lock Body

Mortise the pocket in the door 1/8" deeper than the lock being installed. Refer to the Installation Template Guide Chart (blue sheet) for exact size of mortise pocket.

5
A Prepare for Lock Front

Rout for the lock front.

5^B
Prepare for Lock Front

Square the Corners.

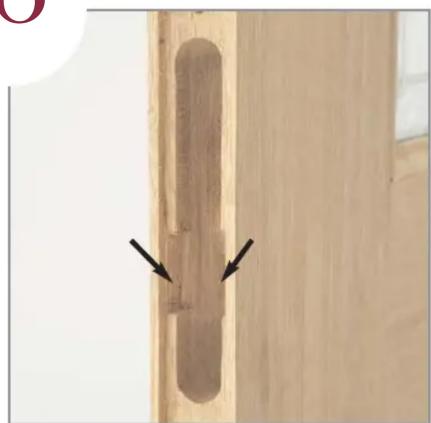

6
Cut Relief Pockets

Cut the relief pockets 3/8" deep on both sides for the Latch Hinge, 2-1/2" and 2-3/4" backset only. (Does not apply for 1" front.)

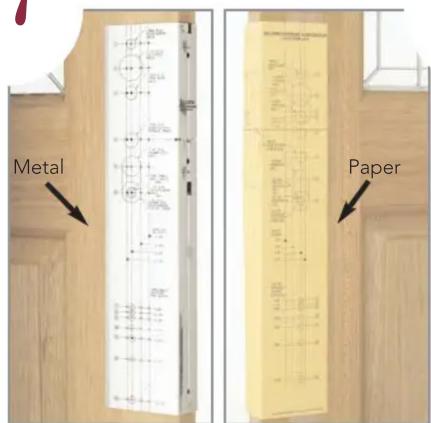

Mark Door
7

For 1-3/4" doors, fold the yellow lock template and attach to door using Installation Template Guide. Mark door at appropriate locations for lock and trim. MARK APPROPRIATE BACKSET. (Extra thick door conditions, see General Notes.) Metal template 8498.000 is available for purchase.

Drill Holes
8

Drill appropriate holes as indicated on yellow lock template. DO NOT OVERSIZE HOLES. Only top two holes are drilled for knob to knob and lever to lever sets.

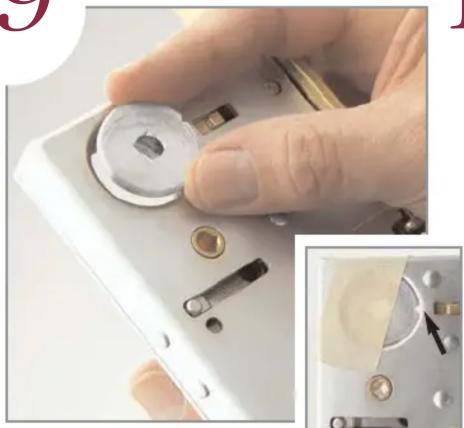

9
Install Cylinder Plug

Thread the cylinder plug into interior side of lock. Place a strip of tape over plug to keep it from turning. Notch must be located as shown. (Double cylinder functions: OMIT THIS STEP.)

Install Lock
10

Drill two pilot holes for the lock face, adjust the bevel and install the lock. Shim between the lock and door on cylinder side as shown to prohibit the cylinder from pulling the lock case off center. (Failure to shim the lock may cause the cylinder to sit unevenly on the surface of the trim.)

Insert Spindle
11

For handleset trim install the spindle from the inside with V groove facing bottom door hinge and thread the screw and lock washer into the spindle from the outside. Tighten securely. For knob to knob and lever to lever sets, install spindle from outside - go to step 13.

12
Size Thumbpiece

Cut the thumbpiece so that it will fully engage the lift lever on the bottom of the lock.

Install Cylinder
13

Place the cylinder through the trim. Partially insert key into cylinder. Thread the cylinder into the lock until it is against the trim and Baldwin name is horizontal. For knob to knob and lever to lever sets - Install aligning bushing and fasten trim with supplied screws. Remove bushing - go to step 16.

Install Thru-Bolts
14

Start the thru-bolts which will hold the exterior trim. (Use screw cover washer under the bottom thru-bolt.) Tighten both securely.

15
Size & Cut Thumbturn

Cut the thumbturn tailpiece so that it goes halfway through the lock (as in step 12).

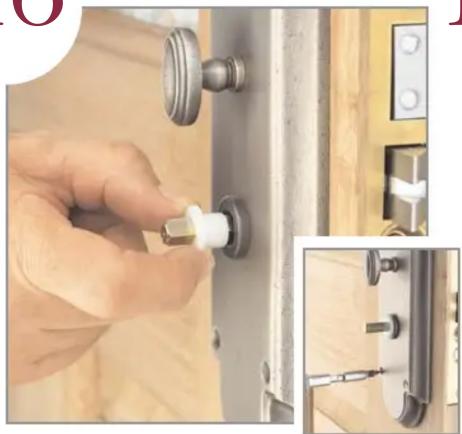

Install Interior Trim
16

Place the interior trim on the door. Slide the aligning bushing onto the spindle so it fits into the knob hole. Drill pilot holes and fasten interior trim with supplied fasteners. Remove bushing and discard.

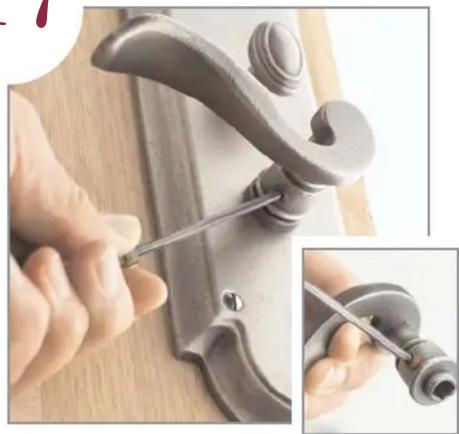

Complete Trim Installation
17

Start the set screw before sliding the knob or lever onto the spindle. Slide knob or lever onto the spindle and tighten securely. For knob to knob and lever to lever sets - install both sides - go to step 19.

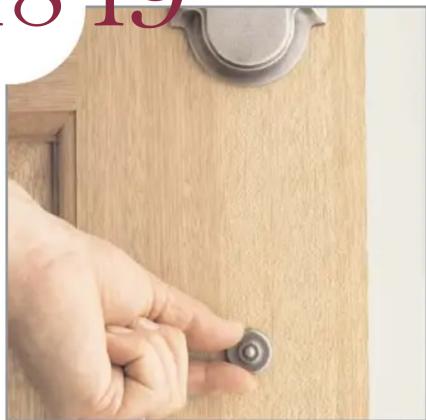

18 19 Install
Install Screw Cover

Thread decorative screw cover onto threaded washer.

Tighten Cylinder Set Screw

Tighten the cylinder set screw by turning clockwise. Do not over tighten. Do not use a power screw driver.

Install Armor Front
20

Install the armor front with the small phillips head screws supplied.

21
*Mark and Mortise Jamb for Strike Location

Mark the Jamb for the proper strike location. Coat extended latch bolt with graphite, powdered chalk or lipstick. Retract the bolt, close the door and actuate the knob or lever several times to mark the jamb. Add approximately 1/32" clearance from that mark.

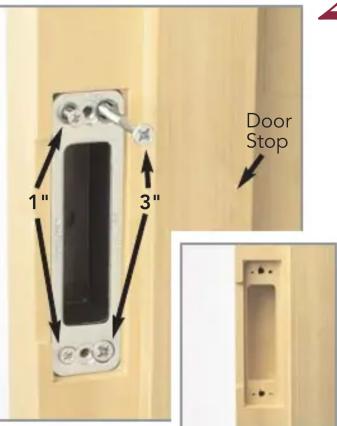

Install Dust Box & Security Strike
22

Drill pilot holes for security strike and relief holes for finished strike. Install dust box and security strike with 1" and 3" screws on the stop side of the plate. Note: Security Strikes are supplied only with locks which utilize cylinders.

Install Strike Plate
23

Install strike plate with supplied machine screws.
