Product Type	Portable Bluetooth Speaker
Brand	GamesterGear
Model	Cruiser XB200
Color Options	Black, Blue, Red
Dimensions (W x H x D)	200 x 80 x 80 mm
Weight	500 g
Power Source	Built-in rechargeable lithium-ion battery
Battery Life	Up to 12 hours at moderate volume
Charging Time	Approx. 3 hours via USB-C
Bluetooth Version	5.0
Wireless Range	Up to 10 meters (30 feet)
Speaker Output	20 W (dual drivers)
Frequency Response	60 Hz – 20 kHz
Impedance	4 ohms
Waterproof Rating	IPX5 (splash resistant)
Controls	Power, Volume +/-, Play/Pause, Bluetooth pairing, EQ preset
Built-in Microphone	Yes, for hands-free calls
Supported Audio Codecs	SBC, AAC
Included Accessories	USB-C charging cable, audio cable, user manual
Care Instructions	Clean with a soft, dry cloth; avoid abrasive cleaners
Safety Warnings	Do not expose to extreme temperatures; keep away from water beyond IPX5
Spare Parts Availability	Battery and charging port can be replaced by authorized service

Frequently Asked Questions - Cruiser XB200 GamesterGear

How do I pair the Cruiser XB200 with my phone?

Turn on the speaker and press the Bluetooth button. On your phone, enable Bluetooth and select 'GamesterGear Cruiser XB200' from the list. The speaker will confirm pairing with a tone.

How long does the battery last?

The battery lasts up to 12 hours at moderate volume. Battery life may vary depending on volume level and audio content.

How do I charge the speaker?

Connect the included USB-C cable to the speaker's charging port and a USB power adapter. The LED indicator turns red during charging and blue when fully charged.

Is the Cruiser XB200 waterproof?

It has an IPX5 rating, meaning it is splash-proof and can withstand light rain or sweat, but should not be submerged in water.

How do I reset the speaker?

To reset, press and hold the Bluetooth and Volume Up buttons simultaneously for 5 seconds. The speaker will power off and reset to factory settings.

Can I adjust the volume using the speaker?

Yes, use the Volume + and Volume - buttons on the speaker to adjust the volume. Volume can also be controlled from your connected device.

Does the speaker have a microphone for calls?

Yes, the built-in microphone allows you to answer and make hands-free calls. Press the Play/Pause button to answer or end a call.

How do I clean the speaker?

Wipe the exterior with a soft, dry cloth. Do not use abrasive cleaners or liquids. Ensure the charging port is dry before charging.

Can I use the speaker while charging?

Yes, the Cruiser XB200 can be used while plugged in, but continuous charging may reduce battery lifespan. It's recommended to charge when not in use.

What is the warranty period?

GamesterGear offers a 1-year limited warranty against manufacturing defects. Keep your receipt for warranty service.

USER MANUAL Cruiser XB200 GamesterGear

GAMESTERGEAR

Cruiser XB200

Gaming Headset Manual

TECHNICAL SPECIFICATIONS

Acoustic design:

Frequency response:

Driver:

Sensitivity:

Mic type:

Mic frequency response:

Cable length:

Connector type:

Closed Back

20hz - 20khz

57 mm @ 32 ohms

112dB SPL, 1mW @ 1khz

Detachable Boom Mic

70hz - 15khz

15.7 ft (4.8 m)

Dual RCA for Game Audio

USB for Power

2.5mm for Voice Chat Input

Package Contents

Cruiser XB200 Headset

2.5mm Voice Chat Cable

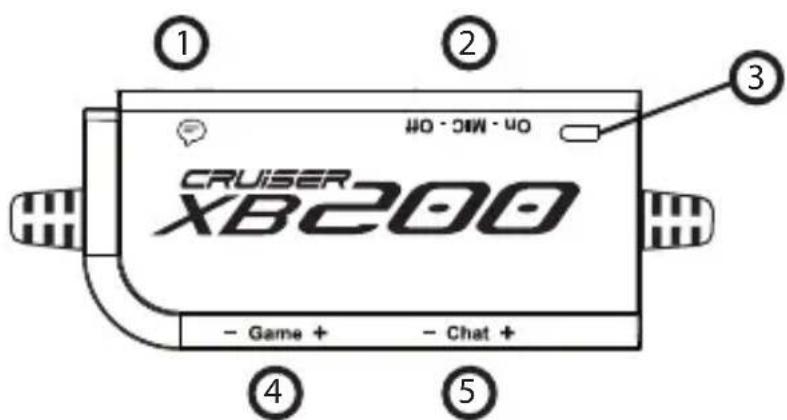

Control Dongle

1. Chat input
2. Mic Mute Switch

3. Mic Mute LED

4. Game Volume

5. Chat Volume

Chat Setup

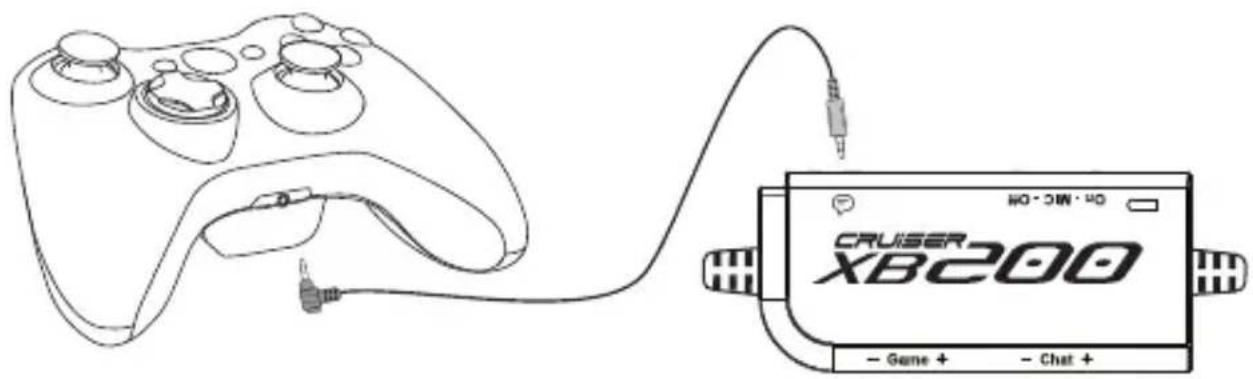

1. Connect your voice chat cable to the 360 controller then connect it to the XB200 dongle

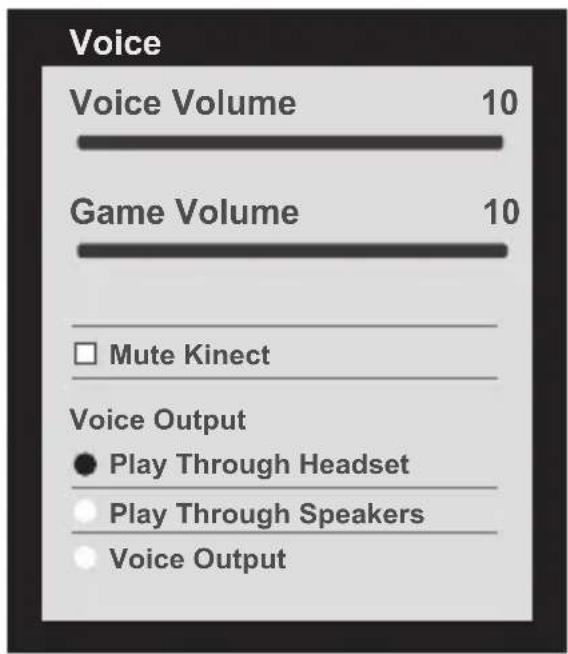

1. In the XBOX 360 ^* System Settings, select [Preferences] - [Voice] - [Play Through Headset]

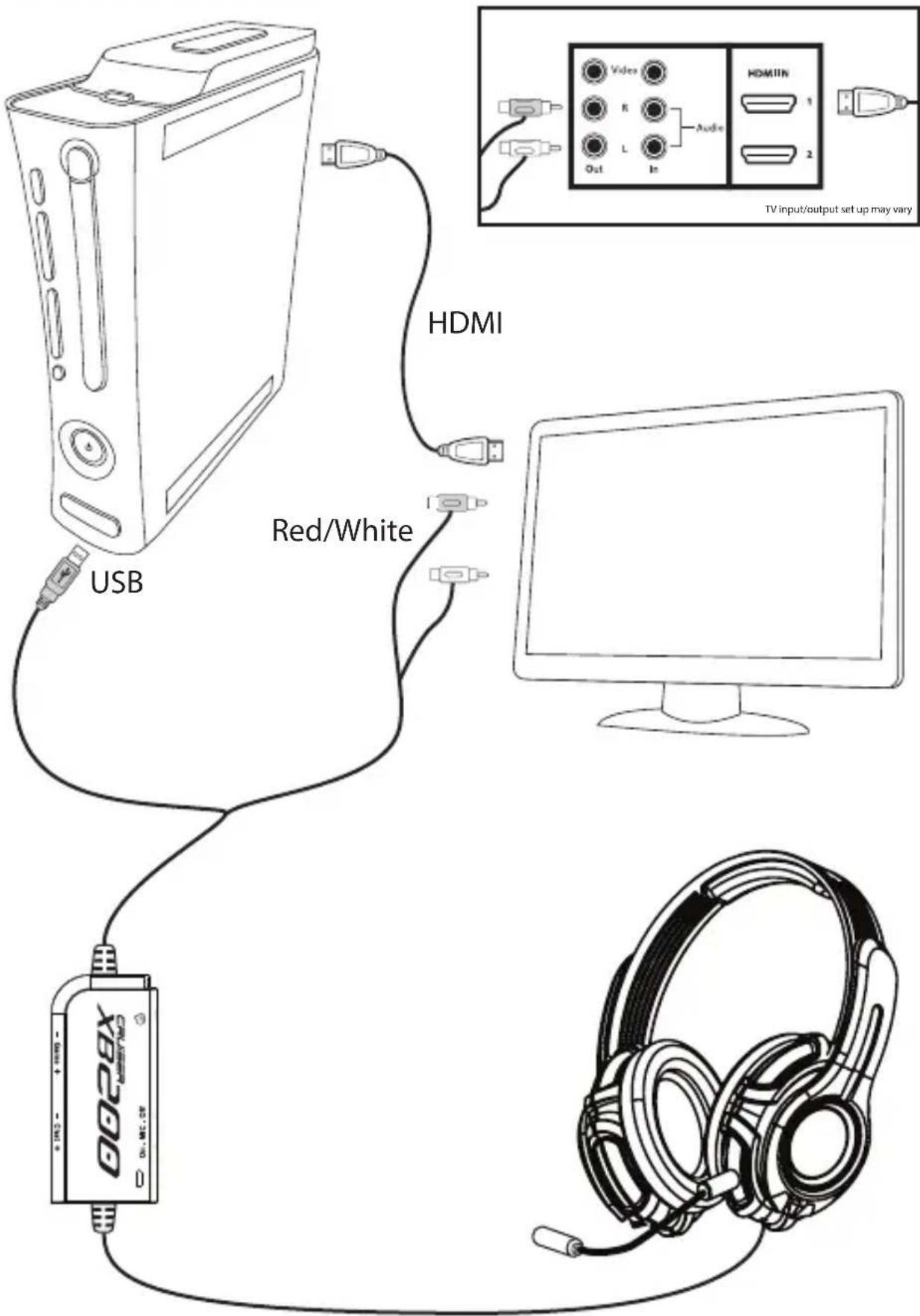

TV HDMI Setup

Monitor HDMI Setup

*XBOX 360® AV adapter cable required (sold separately) (Refer to page 7)

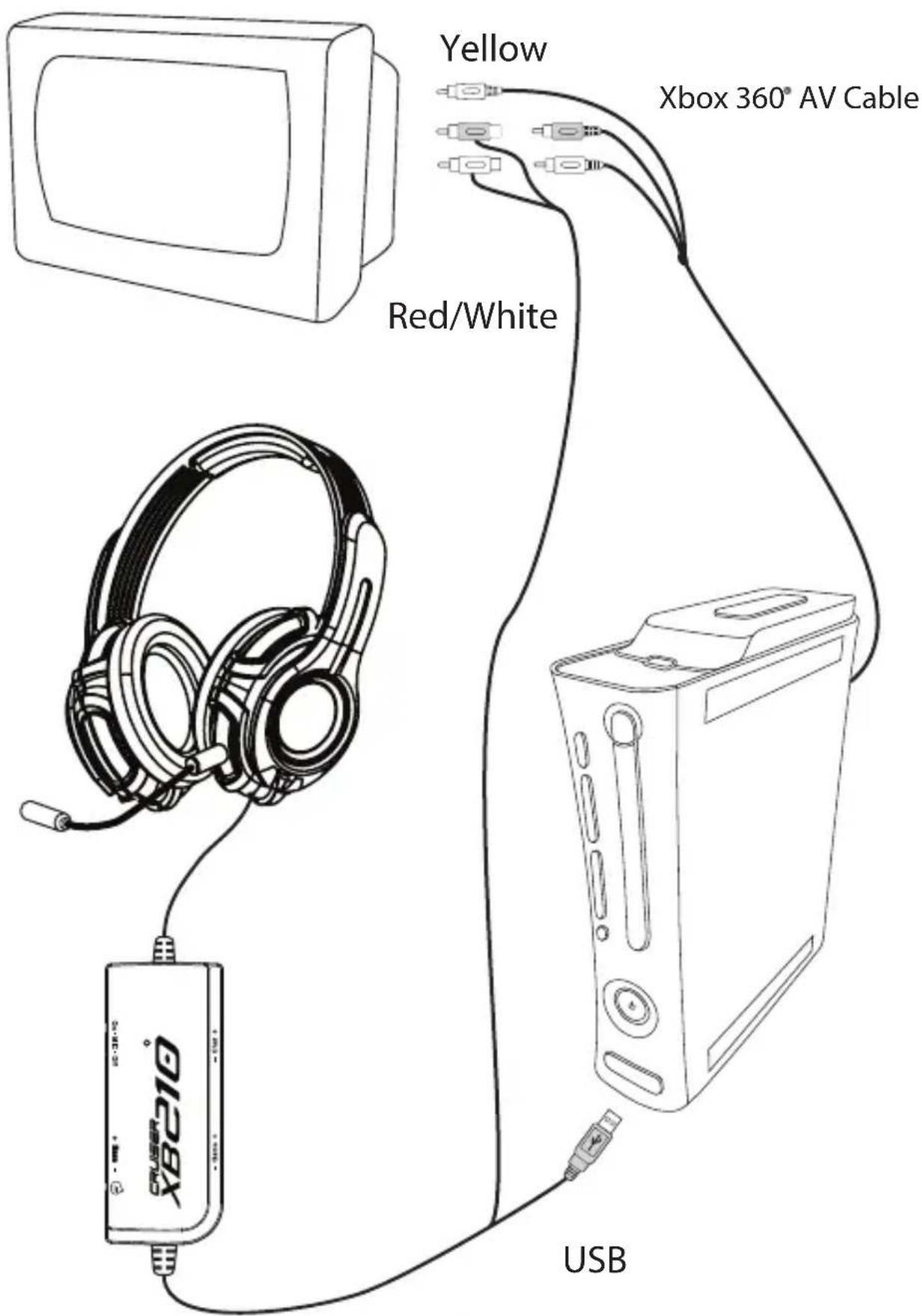

RCA Setup

AV Adapter Cable

The AV Xbox ^® adapter cable allows you to use the RCA jacks to connect your new Cruiser headset while still providing an HDMI video output to your TV/monitor. Some TV/Monitors are not equipped with RCA audio outputs. Should your TV/monitor not have RCA audio output, and you are using an HDMI cable to connect your Xbox ^® to your TV/monitor you will need to use an Xbox AV adapter cable. The Xbox ^® AV adapter cable can be purchased at any online retailer, as it may have not been included with your Xbox system.

FAQ

Q: Why do I have no sound coming out of my new Cruiser Headset?

A: Be sure to plug in both the USB and the RCA plugs into the correct slot of your system.

Q: Why is the mic not picking up my voice?

A: Make sure that the microphone has been properly locked into place, as it will not work if it has not been.

Q: I followed the steps required to mic set up, but I still don't have my mic working.

A: Be sure that you don't accidentally have the mic set to Mute on the dongle.

Q: I have misplaced/damaged my detachable microphone how can I request a replacement?

A: Simply visit the GamesterGear website and send us an email request for a new detachable microphone. Please do note that there will be a fee for a replacement microphone.

Maintenance

Do not expose headphones to extreme temperatures. Wipe the headphones and head-band with mild antiseptic to avoid infections. Do not use alcohol-based disinfectants.

Safety Notice

To avoid potential damage to the device, always disconnect all cables before transporting it.

WARNING: Permanent hearing damage can occur if a headset is used at high volumes for extended periods of time, so it is important to keep the volume at a safe level. Over time, your ears adapt to loud volume levels, so a level that may not cause initial discomfort can still damage your hearing. If you experience ringing in your ears after listening with the headset, it means the volume is set too loud. The louder the volume is set the less time it takes to affect your hearing. Sure to listen at moderate levels.

Tips:

• Before placing a headset on your ears, turn the volume down completely, then slowly increase it to a comfortable level.
• Turn down the volume if you can't hear people speaking near you.
• Avoid turning up the volume to block out noisy surroundings.

Cautions

Do not make any modification to the system or accessories. Unauthorized alterations may compromise safety, regulatory compliance, system performance, and may void the warranty

Operate this product within the temperature range of -4°F to 113°F ( -20°C to 45°C ) only. Damage caused by use outside of that range may not be covered by the warranty

Check and follow local laws regarding use of a mobile phone and headset/headphones while operating any vehicle or using equipment that requires your full attention. If you use the headset/headphones while engaging in any such activity, be sure to focus on safety.

Limited 1 Year Warranty

GamesterGear hereby warrants that this product will be free from defects in materials and workmanship for a period of one year from the date of purchase. At its option GamesterGear will repair or replace the defective product and promptly return it to you. You should retain proof of purchase to validate the purchase date and return it with any warranty claim.

If you believe this product is defective within the warranty period, carefully repack the unit, insure it, and return it postage prepaid.

For return RMA and address, please visit www.gamestergear.com.

Certification

This device complies with FCC and industry Canada RF radiation exposure limits set forth for general population. It must not be co-located or be operating in conjunction with any other antenna or transmitter.

Eligible to bear CE marking.

Conforms to European EMC. Tested with standards: EN55022, EN55022,

For additional help in solving problems, please visit www.gamestergear.com for online support.
