Product Type	Bluetooth Audio Dongle
Model	PAS20BD
Brand	Pyle
Bluetooth Version	5.0
Wireless Range	Up to 33 feet (10 meters)
Audio Profiles	A2DP, AVRCP
Supported Codecs	aptX, SBC, AAC
Input Connections	3.5mm AUX, USB-A
Output Connections	3.5mm AUX, Bluetooth
Power Supply	5V DC via USB
Power Consumption	0.5W (max)
Dimensions	2.0 x 1.0 x 0.5 inches
Weight	0.3 oz (8.5 g)
Operating Temperature	32°F to 104°F (0°C to 40°C)
Compatibility	Bluetooth-enabled devices (smartphones, tablets, computers)
Functions	Bluetooth receiver and transmitter (switchable)
Maintenance	Keep dry; clean with a soft, dry cloth
Safety	Do not expose to excessive heat or moisture
Spare Parts & Repairability	Not user-serviceable; contact Pyle support
Additional Information	Includes USB power cable and 3.5mm audio cable

Frequently Asked Questions - PAS20BD Pyle

How do I pair the PAS20BD with my phone?

Turn on the dongle and put it in pairing mode (LED blinks). On your phone, enable Bluetooth, search for 'Pyle PAS20BD', and select it. Follow any on-screen prompts.

Can I use this dongle as a transmitter and receiver?

Yes, the PAS20BD has a switch to toggle between transmitter (TX) and receiver (RX) modes. Use TX to send audio from a non-Bluetooth device to Bluetooth headphones, and RX to receive audio from a phone to a stereo.

What is the maximum range?

The effective range is up to 33 feet (10 meters) in open air. Obstacles like walls may reduce range.

Does it support aptX and AAC codecs?

Yes, it supports aptX, AAC, and SBC for high-quality audio streaming.

Can I use it while charging?

Yes, the USB connection provides power for continuous use. You can plug it into a USB port on your computer or a wall charger.

What audio devices can I connect?

It works with any device that has a 3.5mm audio jack, such as car stereos, home theater systems, speakers, and headphones.

How do I know if it's in pairing mode?

The LED indicator will flash rapidly in blue and red when in pairing mode. A steady blue light indicates a successful connection.

Can I connect multiple devices simultaneously?

No, the PAS20BD supports a single connection at a time. To switch devices, disconnect the current one and pair a new one.

Is there a built-in battery?

No, the device is USB-powered and does not have a battery. It must be plugged in to operate.

What should I do if my device doesn't find the dongle?

Ensure the dongle is in pairing mode (LED flashing). Check that Bluetooth is enabled on your device and try moving closer. Reset the dongle by unplugging and plugging it back in.

USER MANUAL PAS20BD Pyle

Close-up of a dark, textured surface with repeating pattern and a central circular logo (no readable text or symbols)

Abstract black and white logo resembling a stylized letter 'P' (no text or symbols)

PAS20BD

Wireless Carplay & Android System iA Box

4GB RAM 64GB ROM, 2.4GHz/5GHz Dual-Band WiFi BT Quad-Core 64Bits D/4K Full HD/H.265/USB3.0 Android Box, Screen Mirroring, Install Android Apps (Black Pattern Finish)

USER GUIDE

User Interface

Assistive Touch Bar

1. Clock
2. SIM card status
3. WiFi & BT status
4. Recent apps
5. All apps
6. 1. Back to factory head unit system

7. Home

8. Back
9. Recents
10. Voice assistant
11. Split screen
12. Clear

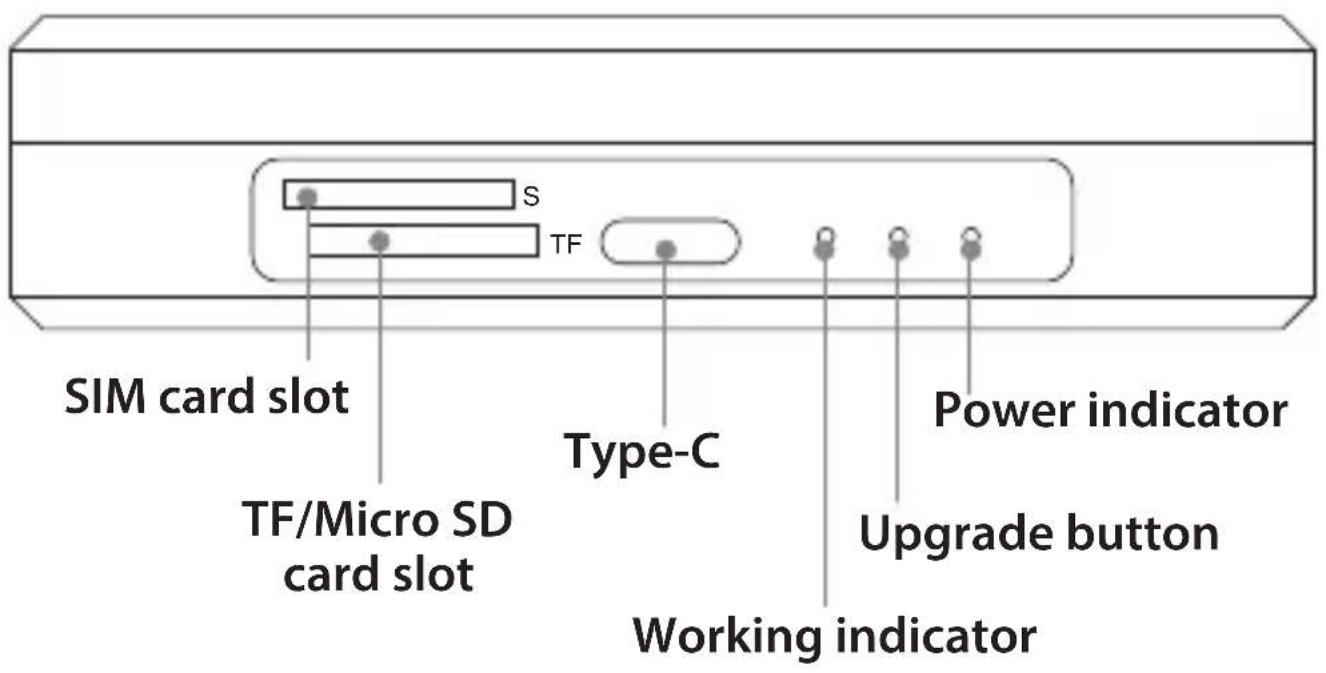

Interface

NOTE!

Follow the instruction below if your car is equipped with a Type-C port for CarPlay.

What's in the Box:

• iA Box
• USB Cable
• USB Adaptor

How to Use Wireless Apple CarPlay/Android Auto

Wireless Apple Carplay:

After connecting your iPhone to the BT, open the "SpeedPlay" app in the iA box interface. Next, tap "Use CarPlay" on your iPhone notification. It will connect to wireless CarPlay after a few seconds.

Wireless Android Auto:

Before using Android Auto, please make sure the latest Android Auto app is installed on your smartphone. First, make sure you have enabled wireless projection on Android Auto app settings.

Open "SpeedPlay" app on iA box interface after your Android phone has connected to the BT, next confirm the notifications on your phone to use wireless Android Auto.

Wireless BT Streaming

Dual BT Module:

- Primary BT4.2 (for external BT mouse, remote controller, HID, OBD devices)

- Secondary BT 5.0 (for iPhone/Android smartphone hands-free calling & audio streaming)

BT app allows BT pairing with compatible devices for making calls and music playback. To pair your phone, ensure BT is enabled in your phone's system settings and that you are disconnected from all other devices.

Open your phone BT, search and find the device named "PYLEUSA", then pair and connect.

Note: Once your phone is paired, you can use the other functions within the radio's BT app.

• Select the icon to connect or disconnect BT.
• Select the icon to dial out using the radio's number pad
• Select the 📁 icon to display your phone's contact list. You will need to import your contact list using the "download" icon.
• Select the 📞 icon to see a log of incoming and outgoing calls
• Select the 📂 icon for music playback controls

Tips:

1. In order to adapt to the factory display, the iA box Android system will automatically restart once at the first time connecting to the car.

2. Software Update: It is not recommended to upgrade software when the iA box works well.

3. Prepare a TF/MicroSD card and format it into FAT32.

4. Copy firmware named update. zip to the root directory of TF/MicroSD card.

5. Insert the TF/MicroSD card into the iA box and power on.

6. Wait for 2 minutes, when the red indicator starts to flash, take out the TF/MicroSD card.

7. Now the box will start to upgrade automatically and the whole process takes about 7 minutes.
   • After the upgrade complete, the red light will be always on, and the blue light will flash.

3. How to save log file:

After inserting the TF/MicroSD card into the iA box, it will automatically copy the log file to the card, and display "Log copy complete".

If "Log copy complete" does not display after inserting the TF/MicroSD card, go to Settings of iA box, tap "Copy log file to SD Card" to copy the log file manually. Any issue while using this iA box, you can save the log file and email to us.

Features:

• +iAndroid Smart Link iA box
- Designed for the Cars Equipped with Original Carplay
- Dual Wireless BT module
- Navigation System Supports GPS/GLONASS/Beidou System
• 8-core, 2.0Ghz, 14nm, FinFET

• GPS/WiFi: Built-in GPS Antenna, Built-in WiFi Antenna, Built-in 5G, Completely Hidden
- Wireless Carplay: Built-in Wireless Carplay
- Wireless Android Auto: Built-in Wireless Android Auto
- Screen Mirroring: AOA Protocol Screen Mirror
- Low Power Consumption, High Performance
- External Storage, Micro SD Card Supports up to 128GB
- SIM card (standard version and customized version)
- Comes with 2G/3G/4G Network Support, Insert Local Operator SIM Card, Support Local Phone, and 4G Mobile Network
- Flash Built-in Storage
- Android System, Compatible with GMS Service Framework
• High-specification Configuration with Large Memory and Large Storage Space
- Provides Google Play Store, Download and Install Software for Free
- Provides Wired CarPlay to Wireless CarPlay
• Automatic Wireless CarPlay to Android Functions

Technical Specs:

• CPU: Qualcomm Snapdragon SDM450
• RAM/ROM: 4GB DDR; 64G eMMC
- WiFi: 2.4G/5G
- SIM Card: 4G/3G/2G
• Band of Cellular Data:
• 4G: LTE-FDD B1/B3/B5/B7/B8/B20/B28; LTE-TDD B38/B40/B41
• 3G: UMTS B1/B2/B5/B8
• 2G: GSM/EDGE 850/900/1800/1900MHz
- Sockets: Type-C Female
• TF/Micro SD Card Slot: Max 128GB
• Language: More than 100 Kinds
- Operating Voltage: DC 5V
- Working Temperature: -20 +75^ (-4°F \~ 167°F)
- Memory (Default): 4GB LPDDR3 RAM +64GB eMMC
- Product Dimensions (L x W x H): 3.54" x 3.35" x 0.71" -inches

PYLE

PyleUSA.com

Questions? Comments?

We are here to help!

Phone: [phone]

Email: [e-mail]
