JCL013255 - Aaaa Jocel - Free user manual and instructions

Product Type	Home Appliance
Brand	Jocel
Model	JCL013255
Dimensions (approx.)	30 x 20 x 15 cm
Weight	2.5 kg
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	800 W
Main Functions	Automatic operation, adjustable settings, safety shut-off
Material	Plastic body, stainless steel components
Cleaning	Wipe with a damp cloth; do not immerse in water
Safety Features	Overheat protection, child lock
Spare Parts Availability	Available from manufacturer
Warranty	2 years
Included Accessories	User manual, power cord

Frequently Asked Questions - JCL013255 Jocel

How should I clean the device?

Clean with a soft, damp cloth. Avoid abrasive cleaners and never immerse the device in water.

Can I use the device continuously for long periods?

It is designed for intermittent use. Refer to the manual for recommended operating cycles to prevent overheating.

What should I do if the device does not turn on?

Check the power connection and ensure the outlet is working. If the problem persists, contact customer support.

Is it safe to leave the device unattended while in use?

No, do not leave the device unattended when operating. Always supervise its use, especially around children.

How can I obtain replacement parts?

Replacement parts are available from the manufacturer. Visit the official Jocel website or contact authorized service centers.

What is the warranty period for this product?

The product comes with a 2-year warranty covering manufacturing defects. Keep your proof of purchase.

Can I use this appliance outdoors?

This appliance is intended for indoor use only. Using it outdoors may expose it to moisture and damage.

How should I store the device when not in use?

Store in a cool, dry place away from direct sunlight. Ensure it is clean and dry before storage.

Are there any additional accessories available?

Check the product page or contact support for optional accessories like extra attachments or carrying cases.

How can I reset the device to factory settings?

Refer to the manual for reset instructions. Typically, you can press and hold the power button for 10 seconds until all indicators flash.

USER MANUAL JCL013255 Jocel

Clear glass coffee maker with black handle and metal mesh filter, labeled JOCEL (no text or symbols on the device itself)

JCL013255

Read the Instruction Manual carefully.

INSTRUÇÕES DE SEGURANÇA GERAIS

Product photo of a glass coffee maker with labeled parts (A, B, C, D) and red arrows indicating assembly or inspection points.

ESQUEMA DO PRODUTO

A- FILTRO DE CHÁ
B- TAMPA
C- BASE
D- CHALEIRA

Close-up of a car's front grille with mesh pattern (no text or symbols visible)

Close-up of hands holding a metallic cylindrical device with a black base (no text or symbols visible)

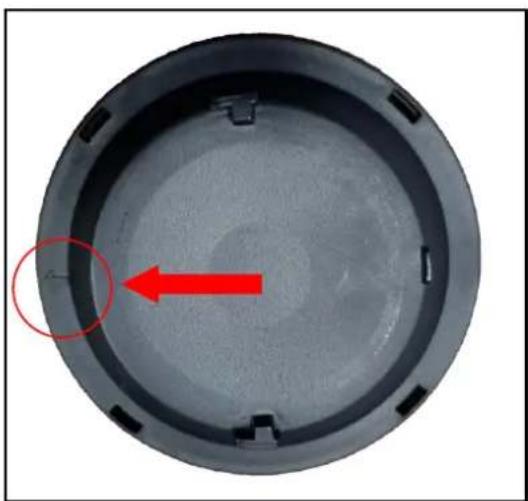

Circular mechanical component with a red arrow pointing to a small circular feature, no visible text or symbols.

Product photo of a glass coffee maker with labeled parts (A, B, C, D) and red arrows indicating assembly or inspection points.

VISTA DEL PRODUCTO

A- FILTRO DE TÉ
B- TAPA
C- BASE
D- HERVIDOR

Close-up of a car's grille and vent, showing metallic rim and mesh pattern (no text or symbols)

Close-up of hands holding a transparent cylindrical device with black casing (no visible text or symbols)

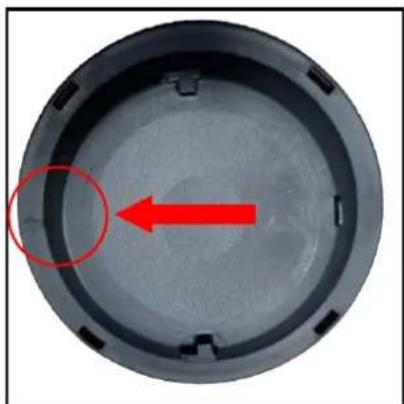

Circular mechanical component with a red arrow pointing left, no visible text or symbols

Telef. 00 34 914 879 573

http://www.jocel.es

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

GENERAL SAFETY INSTRUCTIONS

• Before operating this kettle, please read the instruction manual carefully.
• Please keep the instruction manual, the sales receipt and if possible, the packaging.
• This kettle is intended exclusively for private and not for commercial use
• Switch off the kettle and remove the plug from the socket when the kettle is not in use. When you disconnect the power cord of the kettle, grasp and pull the plug, not the cord/cable.
• Switch off the kettle before cleaning the kettle.
• Keep the kettle out of the reach of children. Do not leave children unsupervised with the kettle.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Test the kettle and the cord/cable regularly for damage. Check that the kettle and is operating properly. If there is damage of any kind or if the kettle is not operating properly, stop using the kettle and unplug it immediately.
• Do not attempt to repair the kettle yourself, only authorized and qualified personnel may repair this kettle.
• Keep the kettle and cord/cable away from heat, direct sunlight, water, moisture, sharp edges and the like.
• Use only original accessories, do not connect incompatible products.
• Do not use the kettle outdoors.
• The base and exterior of the kettle are not water-resistant, keep it dry at all times.
• Under no circumstances must the kettle be placed in water or any liquid or come in contact with liquid. Do not handle the kettle with wet or moist hands. Should the kettle become wet or moist, remove the main plug from the socket immediately.
• DO NOT touch the contents of the kettle.
• Use the kettle only for its intended purpose.
• The kettle is only to be used with the stand provided.
• If the supply cord is damaged, it must be replaced by Technical Assistance in order to avoid a hazard.
• The kettle has the tea filter as a spare part.

SPECIAL SAFETY INSTRUCTIONS FOR THE KETTLE

• Use only cold water when filling the device.
  • The water level must be between the MAX. and MIN. marks.
• Switch the kettle off before removing it from the base.
  • Always ensure that the lid is tightly closed.

• The base and exterior of the kettle must not become wet.

- Kettle body used must match with the kettle base.

• The tea filter only can put tea inside it. You can use the kettle without the filter.

Product photo of a glass coffee maker with labeled parts (A, B, C, D) and red arrows indicating assembly or inspection points.

PRODUCT DIAGRAM

A- TEA FILTER

B-LID

C- BASE

D- KETTLE

First Use of the Kettle

Before using the kettle for the first time, fill the kettle with cold water and boiled it twice without any additives.

1. Fill the kettle with water. Do not overfill. Use the water level indicator.

2. Place the kettle on the base.

3. Electrical connection:

4. Check whether the electrical voltage which you intend to use is the same as that of the kettle. Details can be found on the label on the base of the kettle.

5. Only connect the kettle to a properly installed 220-240V\~ 50-60Hz socket.

6. Press the button on the handle to position "I" to switch on. The LED light on the base will light up indicating that the water is being boiled.

7. After boiling the water, the kettle and the light switches off automatically.

8. Disconnect the kettle from the mains electricity supply.

9. Do not open the lid when pouring.

10. This appliance is intended to be used in household and similar applications such as:

11. staff kitchen areas in shops, offices and other working environments;

12. farm houses;

13. by clients in hotels, motels and other residential type environments;
    • bed and breakfast type environments.

14. Avoid water spillage on connector during use.

15. Warning: If the kettle is overfilled, boiling water may be ejected.

16. Warning: Potential injury from misuse. The heating element surface is subject to residual heat after use.

CLEANING

• Always remove the plug from the mains supply before cleaning the kettle.
- The exterior of the kettle should be cleaned, if necessary, with a slightly damp cloth without additives.
• The calcium filter can be removed for cleaning
- The tea filter can be disassembled and removable for cleaning.
• Power Supply: 220-240V\~ 50-60Hz 1850-2200W

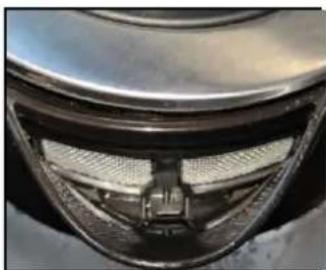

Close-up of a car's front grille and grille (no text or symbols visible)

Calcium Filter, raise the tab to remove.

Close-up of hands holding a cylindrical device with a meshed glass cap, no visible text or symbols

Circular mechanical component with a red arrow pointing left, no visible text or symbols

* Remove the filter in the direction of the arrow.

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc...
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. If the appliance has not been installed by an Accredited Technician.

2. Exceeded the current legal period, for home appliances and for industrial appliances, warranty expires and assistance will be made by charging the costs of labor hand, according to current fees

3. With the modification or disappearance of the nameplate of the appliance.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910 351

E-mail: [e-mail]

http://www.jocel.pt

HEADQUARTERS:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

We declare on our own responsibility that the machine indicated below

Product ELECTRIC KETTLE

Brand JOCEL

Model JCL013255

Complies with the following European directives and standards implementation

Low Voltage

2014/35/EU

EN 60335-1:2012+A11+A13+A1+A14+A2

EN 60335-2-15:2016+A11

EN 62233:2008

Electromagnetic Compatibility

2014/30/EU

EN 55014-1:2017

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1
