Product Type	Canister Vacuum Cleaner
Model	VP0116WNAN
Brand	LG
Color	White
Dimensions (L x W x H)	Approx. 40 x 25 x 30 cm
Weight	5.2 kg
Power Consumption	1600 W
Dust Capacity	1.5 L
Filtration System	HEPA 13 Filter
Cord Length	6 m
Operating Radius	8 m
Noise Level	75 dB(A)
Main Functions	Hard floor, Carpet, Crevice tool, Dusting brush
Accessories Included	Floor nozzle, Crevice tool, Dusting brush, Upholstery tool
Maintenance	Washable HEPA filter, empty dust container
Safety Features	Thermal cut-off, cord rewind pedal
Repairability Index	8.0 / 10
Spare Parts Availability	Filter, nozzle, brush roll available
General Information	Made in Korea, 2-year warranty

Frequently Asked Questions - VP0116WNAN LG

How do I clean the HEPA filter?

Turn off and unplug the vacuum. Remove the filter cap, take out the HEPA filter. Tap it gently to remove dust or rinse under cold water. Let it dry completely for 24 hours before reinstalling. Do not use soap or heat.

What is the dust capacity?

The dust container capacity is 1.5 liters. Empty it when the red indicator shows full or after each use for best performance.

How to change the cord?

The cord cannot be replaced by the user. If damaged, contact LG service center. Use the cord rewind pedal carefully to avoid tangles.

Can I use it on hardwood floors?

Yes, it comes with a floor nozzle suitable for hard floors. For delicate surfaces, use the dusting brush optional attachment.

Why is the suction weak?

Check if the dust container is full, filter is clogged, or there is a blockage in the hose or nozzle. Empty, clean, and remove obstructions. Refer to manual for detailed troubleshooting.

How often should I replace the filter?

The HEPA filter should be replaced every 6-12 months depending on usage. Wash it every 3 months to maintain performance.

What is the noise level?

The noise level is approximately 75 dB(A), which is typical for a canister vacuum. Use ear protection if sensitive.

Does it have a thermal cut-off?

Yes, the vacuum automatically shuts off if it overheats. Unplug it and let it cool for 30 minutes before restarting.

How to rewind the cord?

Press the cord rewind pedal on the side of the vacuum. Hold the plug to avoid whiplash. Do not rewind if cord is tangled.

Where can I buy spare parts?

Spare parts like filters, nozzles, and brush rolls are available on LG's official website or authorized dealers. Use model number VP0116WNAN.

USER MANUAL VP0116WNAN LG

吸尘器

干湿两用吹风功能

VP0116WNAU

VP0116WNAN

警告

警告

注意

非专业维修人员请勿开机修理。

吸尘器的组装及吸力调节

部分名称与连接方法

使用方法

使用方法

用来清洁平面，如沙发、电视柜、书柜等。

地板地毯刷头的使用

组合

吸尘器吸尘的使用方法

将HEPA过滤网装入上盖。

将纸袋或者编织袋装入集尘桶内。

合上上盖。

锁死上盖两端的卡扣。

将软管和吸尘器组装到一起。

将软管、伸缩管、刷头组装到一起。

打开电源开关。

1 将HEPA过滤网装入上盖。

2 将纸袋或者编织袋集从集尘桶内取出。

3 合上上盖，并锁死上盖两侧的卡扣。

4 将软管和吸尘器组装到一起。

7 清洁地板上的水渍。

8 关闭电源开关。

9 打开上盖。

10 将桶内的液体倒出。

吸尘器吹风功能的使用方法

1 将软管从机体前端取下。

2 将吸尘器后端的排气盖取下。

5 吹风清洁

皮撬子的使用方法

1 将上盖从机体上分离。

② 清洗集尘桶。

3 将集尘桶内的水倒掉。

HEPA过滤器及排气过滤海绵的清洁方法

HEPA过滤器的清洁方法

将HEPA过滤器从上盖取下。

2 将HEPA过滤器上的污物清除。

3 用水清洗HEPA过滤器。

排气过滤海绵的清洁方法

1 从后端取下排气海绵盖。

② 从排气海绵盖中取下海绵。

机体出现异味。

机体或排出的气体过热。

检查

Product specifications 15

Attention before using the appliance 16\~17

Assembling and adjusting the Cleaner 18

Parts description and assembly

Accessories

Adjusting the cleaner

Using nozzle 19

How to vacuum dust 20

How to vacuum water 21

How to using the blower function 22

How to use the drain nozzle and How to cleanthe dust tank 23

How to clean the HEPA filter and exhaust filter 24

How to keep the cleaner after using 25

If you have a problem 26

Packing List 27

Product specifications

Model: VP0116WNAU / VP0116WNAN

220V\~50Hz

IEC: 1400W

MAX: 1600W

Net Weight: 4.6kg

Dust Capacity: 1.2L

Max Dust Capacity : Dry : 11L (Dust Tank)

Wet: 4.3L

IPX4

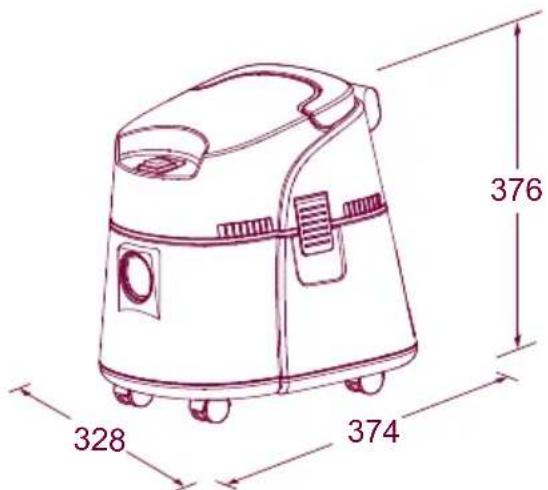

Dimension: 328mm x 374mm x 376mm

This appliance complies with the

following GB Directives:

GB4706.1-2005

GB4706.7-2004

GB17625.1-2003

GB4343.1-2009

※ You will not be informed otherwise of any changes in appearance and standard deriving for improvement of product quality.

Attention before using the appliance

Please read all the following information, which contains important instructions for the safety, the use of the appliance.

DANGER

May immediately cause serious injury or death.

WARNING

May possibly cause serious injury or death.

ATTENTION

May possibly cause losses of property or light injury.

DANGER

Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

Please turn off the power before pulling out the plug to prevent fire or electric shock. Never handle plug or appliance with wet hands. (Do not use the appliance on the power above 220V.)

WARNING

Avoid picking up hard, sharp objects with the cleaner. They may damage the cleaner and the tank.

Do not vacuum the objects like hair ball or big paper ball, otherwise the hose is possibly blocked up. Please clear the hose in time when it is blocked.

Independently use a socket when the current is ≥15A. It may cause fire when many electric appliances share one socket. In order to avoid the needless danger, you had better not use the prolonged thread of power cord. The current at most 6A is allowed

To avoid the danger of fire or electric shock, do not vacuum blade, flammable substances, or small particles like cement and gesso in cleaning.

Unplug cleaner when not in use. Turn off all controls before unplugging.

Attention before using the appliance

WARNING

Do not let the power cord near the electric heater or other heat source, lest that the cleaner should be deformed or it should cause fire. Do not use the appliance when the power cord or plug is damaged. The damaged power cord or plug must be replaced in the approved service station.

Close supervision is necessary when any appliance is used by or near children. Do not allow vacuum cleaner to be used as a toy or to run unattended at any time.

Do not operate the appliance for long when the nozzle inlet or nozzle outlet is blocked, which may have it deformed or damaged.

In using the appliance, pay attention to the electrostatic effect generated on the telescopic tube and cleaner body.

ATTENTION

Do not allow the non-professional maintenance people to repair.

Do not pull or carry by cord, use cord as a handle, close door on cord or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.

Do not bend, stamp on, or drag the hose. Do not continue to use the hose if it is damaged.

Do not use any heavy or sharp object to press the power cord.

Do not use it without HEPA. Dust tank should be cleaned frequently.

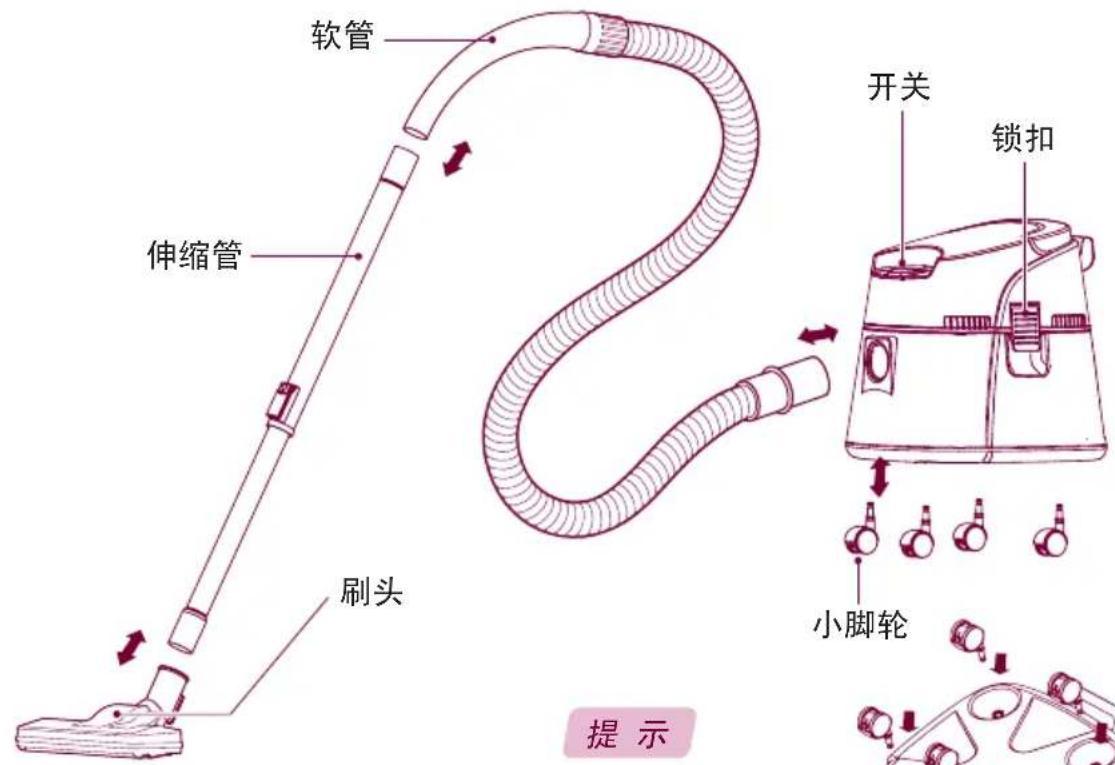

Parts description and assembly

Accessories

Wet nozzle

- Crevice nozzle Upholstery nozzle Drain nozzle H-bag Paper bag Blower cover

Adjusting theCleaner

Use it as shown in the diagram

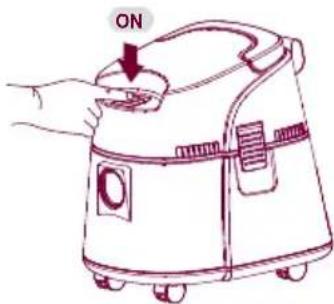

Press power switch to start the vacuum cleaner, press once again to turn off it.

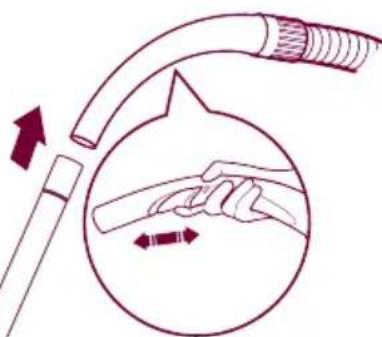

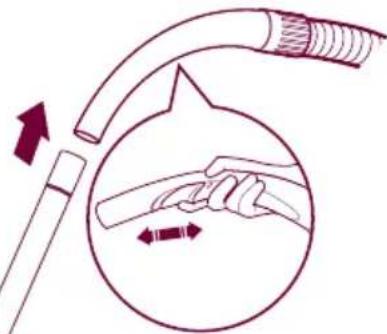

The flexible hose handle has a manual air flow regulator which allows you to briefly reduce the suction level.

Using nozzle

Using crevice tool

Use it as shown in the diagram

Using method

Crevice nozzle can be used for cleaning the place hard to reach.

Using Upholstery nozzle

Use it as shown in the diagram

Using method

Upholstery nozzle can be used for sofa, book cabinet, and so on.

Using carpet and floor nozzle

gnilbmessA

Carpet and floor nozzle can be used to clean common floor, also can be used to clean carpet.

gnisU

By operation of the release button, change the function of Carpet and Floor.

Using wet nozzle

gnisU

Wet nozzle can be used to clean water on the floor.

Warning: • Empty dust tank or filter bag when they are full.
- Dust tank or filter bag should be cleaned at least once per 3 months.

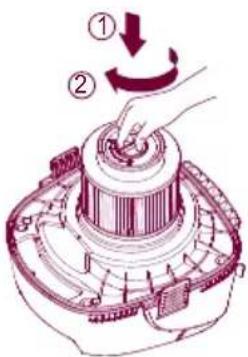

1 Connecting the Air Filter

2 Taking in the filter bag assembly

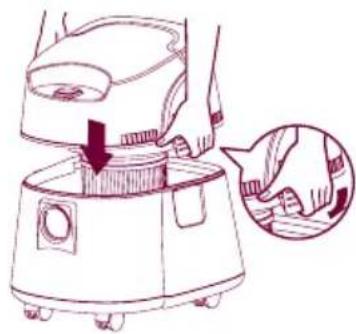

3 Closing the Top Cover Assy

4 Closing the Top Cover Assy

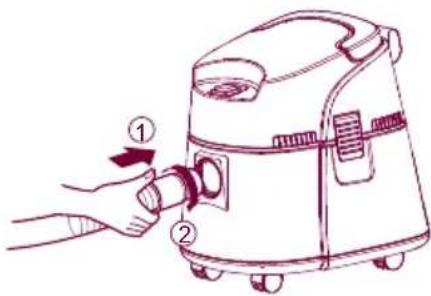

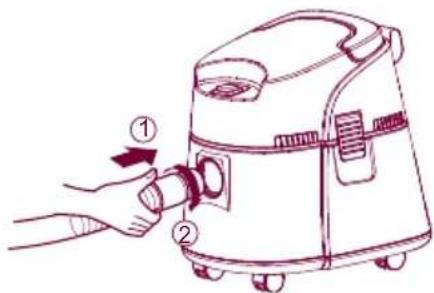

5 Connecting the Hose

6 Assembling Hose and Pipes

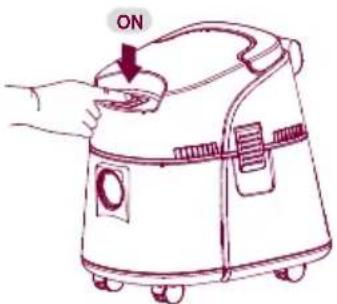

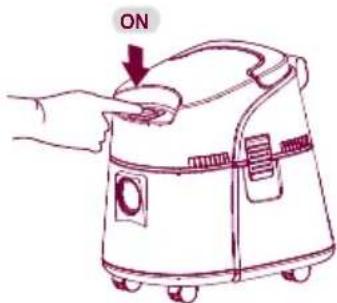

7 Turning on the Power Switch

How to vacuum water

Warning: • When you hear the big noise from the main body during the operation, empty the dust tank. Because it indicates that the safety float automatically closes the suction inlet and you will notice that no more liquid is sucked up.

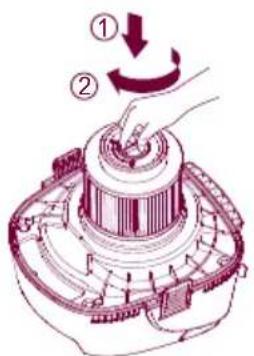

1 Connecting the Air Filter

2 Taking out Paper filter assembly

3 Closing the Tank Cap and the Top Cover Assy

4 Connecting the Hose

5 Assembling Hose & Pipes

6 Turning on the power switch

7 Wet Cleaning

8 Turning off the power switch

9 Opening the Top Cover Assy

10 Pouring the Cleaning Liquid

How to using the blower function

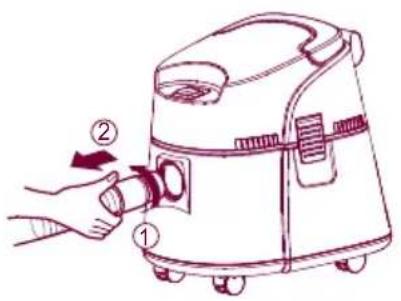

1 Separating the Hose

2 Separating the Exhaust Cover

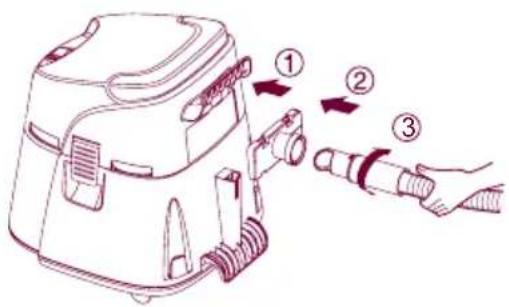

3 Connecting the Blower Cover and Hose

4 Turning on the Power Switch

5 Blow Cleaning

How to use the drain nozzle and How to clean the dust tank

Drain nozzle

How to clean the dust tank

Separating Cover

2 Cleaning the Dust Tank

3 Pour out the water

Cleaning the HEPA filter

1 Separating the HEPA filter Cleaning the HEPA filter

2

3 Cleaning the HEPA filter with water

Cleaning the exhaust filter

1 Separating the exhaust filter cover

② Separating the exhaust filter from exhaust filter cover

Warning: • Dry in the well-ventilated shade for a day before using.

3 Washing and drying the exhaust filter

4 Connecting the exhaust filter

How to keep the cleaner after using

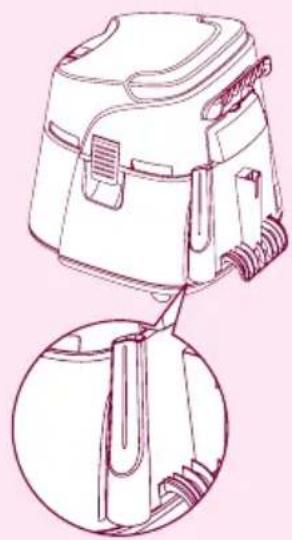

• Insert the nozzle into the groove in the back of the body
  • Install the accessories into the body

Please check before notifying malfunction

If you doubt the product meets with malfunction, please check the cause of such malfunction before contacting with the after-sales service center or agent, so as to ensure efficiency of repair.

Malfunction

The vacuum does not work?

The vacuum does not work?

Peculiar smell exists inside the vacuum cleaner

The vacuum cleaner or the discharged air is too heat.

Check

• Is the plug inserted?
• Is the socket powered on?
• If the hose inserted?

Troubleshooting

• Insert the plug tight (This product is applicable for 220V)
• Verify the power of socket is on

• Insert the hose tight

• When the vacuum cleaner's suction is too large or the motor is under high speed running, they do not belong to the abnormal conditions. So, please use the vacuum cleaner properly.

• If it is the noise rather than the normal motor sound, please phone the repair center.

• The duster collector is filled up.

• The filter is clogged.

• Suction inlet is jammed.

- Drawtube is clogged.

- Hose is clogged.

• Clean out the dust collector.
- Purge the sponge filter with water and air-dry in the shady and cool place for one day.
• Take out the sucked objects before use.
• Take out the objects inside the drawtube before use.
• Take out the objects inside the hose before use.

• When the motor is running, the rubber band used for fixing the motor will produce a little smell due to the heat, but it will not affect the operation or damage the machine.
• When the dust collector is not cleaned for a long period of time, the peculiar smell will be produced. So, clean up the dust collector timely.

• Is the suction normal?

- The heat air discharged from the machine is arising from the heat produced by motor. So, the temperature is normal, please use the machine continuously.

Packing List

Packing List

Vacuum Cleaner 1
Hose 1
Telescopic pipe 1
Carpet and floor nozzle 1
Wet nozzle 1
Crevice nozzle 1
Upholstery nozzle 1
Blower cover 1
Drain nozzle 1
H-bag 1
Paper bag 2
Caster 4
Owner's manual 1
Service card 1
