Product Type	Subwoofer
Model	PAS18WD
Brand	Pyle
Speaker Size	18 inches
Peak Power Handling	2400 Watts
RMS Power Handling	1200 Watts
Frequency Response	20 Hz - 200 Hz
Impedance	4 Ohms
Sensitivity	95 dB
Driver Material	Non-pressed paper cone
Surround Material	Foam
Enclosure Type	Sealed or ported (user dependent)
Recommended Enclosure Volume	3.0 - 5.0 cubic feet
Dimensions (W x H x D)	22.8 x 18.1 x 22.8 inches
Weight	55 lbs
Mounting Depth	10.2 inches
Mounting Hole Diameter	16.7 inches
Voice Coil Size	4 inches
Recommended Amplifier Power	600 - 1200 Watts RMS
Woofer Cone Material	Polypropylene
Woofer Surround	Rubber
Magnet Type	Ferrite
Cleaning	Wipe with dry cloth; avoid liquids
Safety	Do not exceed rated power; ensure proper enclosure

Frequently Asked Questions - PAS18WD Pyle

What is the recommended enclosure volume for the Pyle PAS18WD?

The recommended enclosure volume is between 3.0 and 5.0 cubic feet for ported or sealed designs.

What is the power handling of the PAS18WD?

It handles 1200 Watts RMS and 2400 Watts peak power.

What is the impedance of this subwoofer?

The impedance is 4 Ohms.

What size amplifier do I need for the PAS18WD?

Recommended amplifier power is 600 to 1200 Watts RMS at 4 Ohms.

Can I use this subwoofer in a car audio system?

Yes, it is designed for both car audio and home theater applications.

What is the frequency response of the PAS18WD?

The frequency response is 20 Hz to 200 Hz.

What are the mounting dimensions?

Mounting depth is 10.2 inches, mounting hole diameter is 16.7 inches.

How do I clean the subwoofer?

Wipe with a dry cloth; avoid using liquids or cleaners.

What type of speaker wire should I use?

Use 12-16 gauge speaker wire for optimal performance.

Is the PAS18WD compatible with ported enclosures?

Yes, it works well in both sealed and ported enclosures. For ported, tune around 30-35 Hz.

USER MANUAL PAS18WD Pyle

Close-up of a brown square electronic device with a black 'P' logo on its surface, no visible text or symbols beyond the logo.

Abstract black and white logo resembling a stylized letter 'P' or letter 'D' (no text or symbols)

PAS18WD

Wireless Carplay & Android System iA Box

4GB RAM 64GB ROM, 2.4GHz/5GHz Dual-Band WiFi BT Quad-Core 64Bits D/4K Full HD/H.265/USB3.0 Android Box, Screen Mirroring, Install Android Apps (Wood Finish)

USER GUIDE

User Interface

Assistive Touch Bar

1. Clock
2. SIM card status
3. WiFi & BT status
4. Recent apps
5. All apps
6. 1. Back to factory head unit system

7. Home

8. Back
9. Recents
10. Voice assistant
11. Split screen
12. Clear

Interface

NOTE!

Follow the instruction below if your car is equipped with a Type-C port for CarPlay.

What's in the Box:

• iA Box
• USB Cable
• USB Adaptor

How to Use Wireless Apple CarPlay/Android Auto

Wireless Apple Carplay:

After connecting your iPhone to the BT, open the "SpeedPlay" app in the iA box interface. Next, tap "Use CarPlay" on your iPhone notification. It will connect to wireless CarPlay after a few seconds.

Wireless Android Auto:

Before using Android Auto, please make sure the latest Android Auto app is installed on your smartphone. First, make sure you have enabled wireless projection on Android Auto app settings.

Open "SpeedPlay" app on iA box interface after your Android phone has connected to the BT, next confirm the notifications on your phone to use wireless Android Auto.

Wireless BT Streaming

Dual BT Module:

- Primary BT4.2 (for external BT mouse, remote controller, HID, OBD devices)

- Secondary BT 5.0 (for iPhone/Android smartphone hands-free calling & audio streaming)

BT app allows BT pairing with compatible devices for making calls and music playback. To pair your phone, ensure BT is enabled in your phone's system settings and that you are disconnected from all other devices.

Open your phone BT, search and find the device named "PYLEUSA", then pair and connect.

Note: Once your phone is paired, you can use the other functions within the radio's BT app.

• Select the icon to connect or disconnect BT.
• Select the icon to dial out using the radio's number pad
• Select the 📁 icon to display your phone's contact list. You will need to import your contact list using the "download" icon.
• Select the 📞 icon to see a log of incoming and outgoing calls
• Select the 📂 icon for music playback controls

Tips:

1. In order to adapt to the factory display, the iA box Android system will automatically restart once at the first time connecting to the car.

2. Software Update: It is not recommended to upgrade software when the iA box works well.

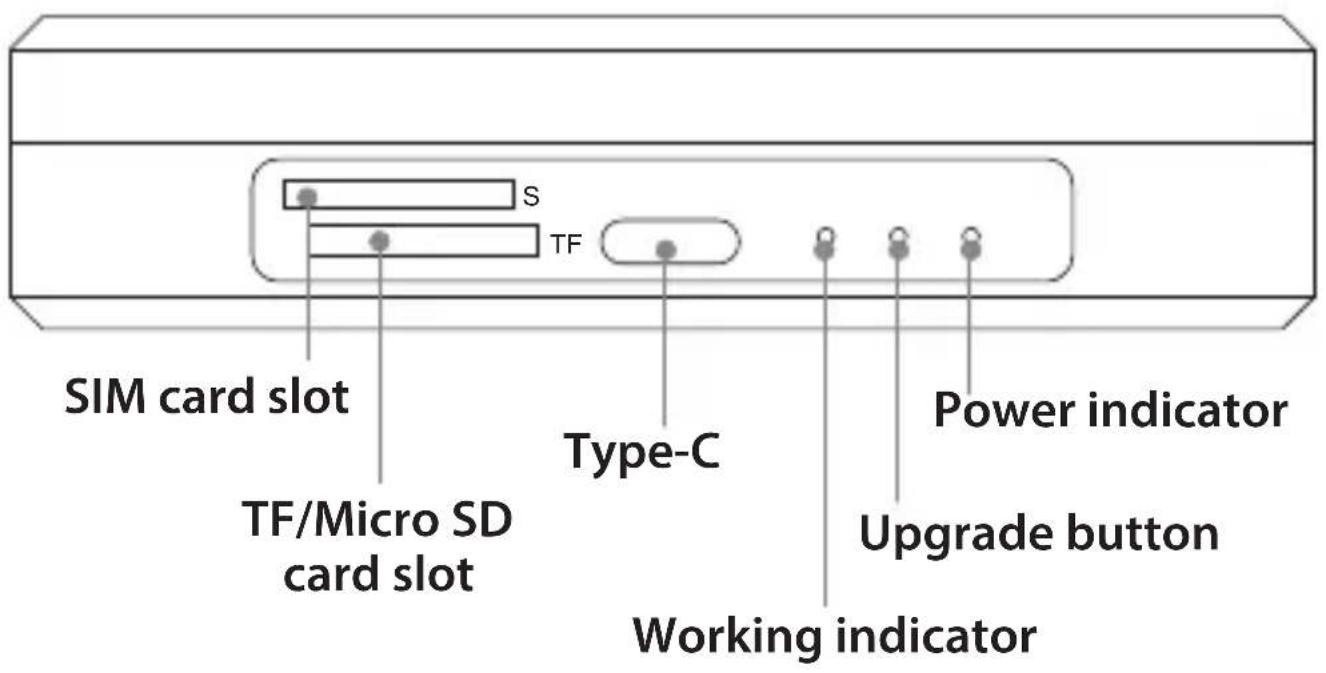

3. Prepare a TF/MicroSD card and format it into FAT32.

4. Copy firmware named update. zip to the root directory of TF/MicroSD card.

5. Insert the TF/MicroSD card into the iA box and power on.

6. Wait for 2 minutes, when the red indicator starts to flash, take out the TF/MicroSD card.

7. Now the box will start to upgrade automatically and the whole process takes about 7 minutes.
   • After the upgrade complete, the red light will be always on, and the blue light will flash.

3. How to save log file:

After inserting the TF/MicroSD card into the iA box, it will automatically copy the log file to the card, and display "Log copy complete".

If "Log copy complete" does not display after inserting the TF/MicroSD card, go to Settings of iA box, tap "Copy log file to SD Card" to copy the log file manually. Any issue while using this iA box, you can save the log file and email to us.

Features:

• +iAndroid Smart Link iA box
- Designed for the Cars Equipped with Original Carplay
- Dual Wireless BT module
- Navigation System Supports GPS/GLONASS/Beidou System
• 8-core, 2.0Ghz, 14nm, FinFET

• GPS/WiFi: Built-in GPS Antenna, Built-in WiFi Antenna, Built-in 5G, Completely Hidden
- Wireless Carplay: Built-in Wireless Carplay
- Wireless Android Auto: Built-in Wireless Android Auto
- Screen Mirroring: AOA Protocol Screen Mirror
- Low Power Consumption, High Performance
- External Storage, Micro SD Card Supports up to 128GB
• SIM card (standard version and customized version)
- Comes with 2G/3G/4G Network Support, Insert Local Operator SIM Card, Support Local Phone, and 4G Mobile Network
- Flash Built-in Storage
- Android System, Compatible with GMS Service Framework
• High-specification Configuration with Large Memory and Large Storage Space
- Provides Google Play Store, Download and Install Software for Free
- Provides Wired CarPlay to Wireless CarPlay
• Automatic Wireless CarPlay to Android Functions

Technical Specs:

• CPU: Qualcomm Snapdragon SDM450
• RAM/ROM: 4GB DDR; 64G eMMC
- WiFi: 2.4G/5G
- SIM Card: 4G/3G/2G
• Band of Cellular Data:
• 4G: LTE-FDD B1/B3/B5/B7/B8/B20/B28; LTE-TDD B38/B40/B41
• 3G: UMTS B1/B2/B5/B8
• 2G: GSM/EDGE 850/900/1800/1900MHz
- Sockets: Type-C Female
• TF/Micro SD Card Slot: Max 128GB
• Language: More than 100 Kinds
- Operating Voltage: DC 5V
- Working Temperature: -20 +75^ (-4°F \~ 167°F)
- Memory (Default): 4GB LPDDR3 RAM +64GB eMMC
- Product Dimensions (L x W x H): 3.54" x 3.35" x 0.71" -inches
