SS05S - Loudspeaker Fluance - Free user manual and instructions

Product Type	Bookshelf Speaker
Brand	Fluance
Model	SS05S
Dimensions (H x W x D)	12.5 x 7.5 x 8.7 inches (each)
Weight	10.5 lbs (each)
Impedance	8 ohms
Sensitivity	87 dB (2.83V/1m)
Frequency Response	50 Hz - 20 kHz
Power Handling (RMS)	60 Watts
Peak Power Handling	120 Watts
Recommended Amplifier Power	20 - 100 Watts per channel
Driver Configuration	2-way: 5.25" woofer, 1" tweeter
Crossover Type	Linkwitz-Riley 2nd order
Enclosure Type	Bass reflex (rear ported)
Connectivity	Binding posts
Recommended Placement	Bookshelf or speaker stands, 6-12 inches from wall
Cleaning Instructions	Wipe with dry cloth; do not use liquids or solvents
Safety Precautions	Place on stable surface; avoid moisture and extreme temperatures
Spare Parts Availability	Contact Fluance support for drivers or grilles
Warranty	Lifetime warranty (subject to terms)

Frequently Asked Questions - SS05S Fluance

What is the recommended placement for the Fluance SS05S speakers?

Place the speakers on a sturdy surface, ideally at ear level. Use speaker stands for optimal soundstage. Keep them 6-12 inches away from walls to avoid bass boom.

Can I use the SS05S as rear surround speakers?

Yes, the SS05S is suitable for surround sound. Pair with a compatible receiver and place them behind or to the sides of the listening position.

What type of amplifier or receiver do I need?

Any stereo receiver or AV receiver with 8-ohm output and 20-100 watts per channel will work well. Use quality speaker wire (16-14 AWG).

How do I connect the speakers?

Connect bare wire or banana plugs to the binding posts on the back. Ensure polarity (+ to +, - to -) for correct phase.

Do these speakers require a break-in period?

Yes, allow 20-30 hours of playback at moderate volume for the drivers to loosen up. Sound will improve with time.

How do I clean the speakers?

Use a soft, dry cloth to wipe the cabinet. Avoid liquids, aerosols, or abrasive cleaners that may damage the finish.

What is the warranty coverage?

Fluance offers a lifetime warranty against defects in materials and workmanship. Register your product on the Fluance website for coverage details.

Can I use these speakers with a subwoofer?

Absolutely. For a full-range system, pair with a powered subwoofer. Set your receiver to ‘small’ speakers with a crossover around 80 Hz.

Why is one speaker quieter than the other?

Check wiring connections and ensure the receiver is in stereo mode. Also verify that balance controls are centered. If issue persists, swap speakers to isolate the problem.

Are replacement grilles or drivers available?

Yes, contact Fluance customer support for spare parts. The grilles are removable for cleaning.

USER MANUAL SS05S Fluance

SS05S - Bookshelf Speaker Stands

User Manual v1.0

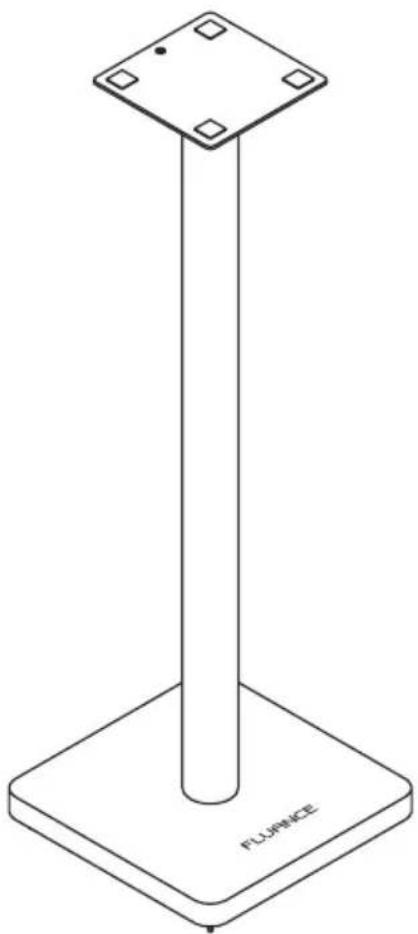

Isometric line drawing of a vertical support structure with mounting holes and a base labeled 'FLUFPACE' (no other text or symbols)

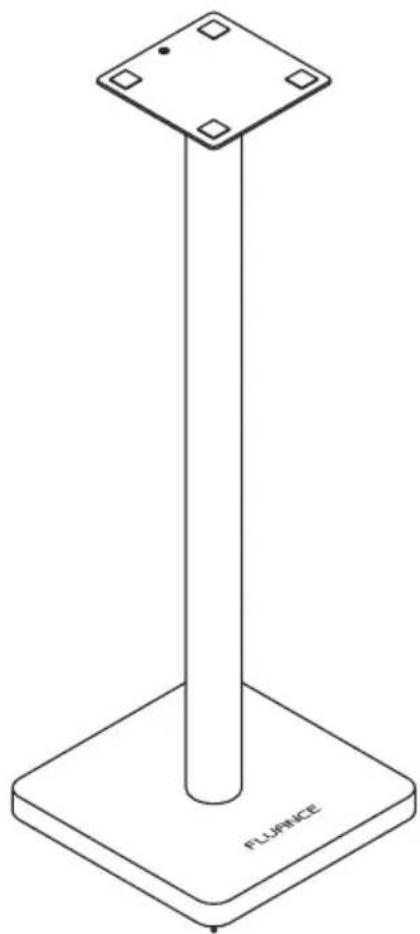

Isometric line drawing of a vertical support structure with a square base and labeled 'FLUFPWCE' at the base (no other text or symbols)

What's Included

Isometric view of a square electronic device with a circular button labeled 'b' (no text or symbols on the body)

A ×2 B ×2 C ×2

Simple line drawing of a cylindrical rod with a circular end (no text or symbols)

Simple black diagonal line with evenly spaced tick marks (no text or symbols)

D ×2

(Packaged inside Part C)
E ×2 G ×8F ×1

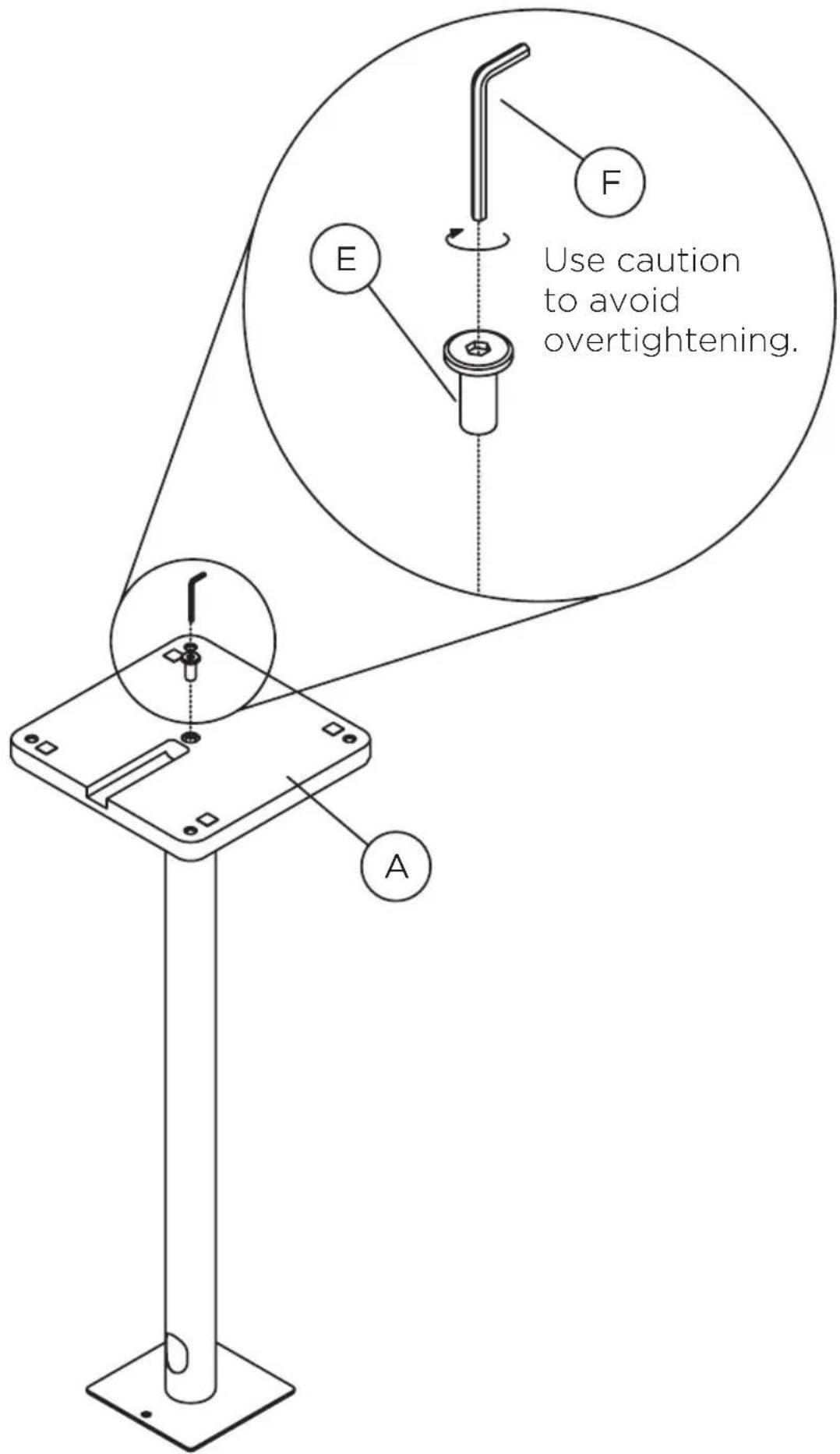

Use caution to avoid overtightening.

Isolation Spikes (Optional)

Recommended for carpets

Note: Isolation pads are preinstalled and are recommended for hard surfaces.

6 Viring Diagram

Optional: For mounting the speaker stand to the wall to enhance stability

Specifications

Material MDF and Metal
Height 2.6ft (79cm)
Supported Weight 25lb (11.34 kg) Maximum

Questions?

Give us a chance to help, we're just a click away.

Simple line drawing of a speech bubble with three dots inside, no text or symbols present.

Fluance.com/support Fluance.com/contact
