Product Type	Range hood (Cooker hood)
Brand	Baumatic
Model	TEL06SS
Dimensions (H x W x D)	175 mm x 600 mm x 306 mm (encased), 450 mm (extended)
Aperture Dimensions (W x D)	600 mm x 194 mm (min)
Control Type	Slider control
Fan Speeds	3 (Low, Mid, High)
Extraction Capacity	440 m³/hr
Grease Filters	2 x metallic grease filters (washable, not dishwasher safe)
Lighting	2 x lights (max 40W, E14 olive-shaped bulbs)
Optional Carbon Filters	1 pair ST1 carbon filters for recirculation mode
Power Supply	230V ~ 50Hz, double insulated (not earthed)
Installation	Wall or under cabinet; minimum 700 mm above electric/gas hob, 800 mm above coal/oil hob
Ducting Diameter	150 mm (reducer to 125 mm included)
Maximum Ducting Length	3 metres with one 90° bend
Weight	Not specified in manual
Noise Level	Not specified; normal vibration expected
Maintenance	Clean grease filters every 2 months; replace carbon filters every 4 months
Safety Features	Double insulation; automatic shut-off? (not specified); safety distances

Frequently Asked Questions - TEL06SS BAUMATIC

What is the recommended distance between the hob and the cooker hood?

For electric and gas cookers, the minimum distance is 700 mm. For coal or oil cookers, it is 800 mm. Do not install less than 700 mm above the hob.

Can I wash the grease filters in a dishwasher?

No, the manual states DO NOT WASH THE GREASE FILTER IN A DISHWASHER. Instead, soak them in hot water and washing-up liquid for about an hour, rinse thoroughly, and let dry before refitting.

How often should I replace the carbon filters?

If using recirculation mode, replace the carbon filters at least every four months, depending on usage. The manual recommends using ST1 carbon filters from Baumatic.

What type of light bulb does the hood use?

The hood uses olive-shaped bulbs with an E14 coupling, maximum 40W. Always disconnect the power before replacing bulbs.

How do I switch between extraction and recirculation mode?

You must decide before installation. Extraction mode requires external ducting. Recirculation mode needs carbon filters fitted. See the manual for detailed instructions.

My hood is not working; what should I check?

First, ensure the hood is connected to power and a fan speed is selected. Check if the grease filters are clean and, if in recirculation mode, that the carbon filter is not clogged. Also verify that ducting (if used) is not blocked.

Is the cooker hood noisy?

Some noise and vibration are normal due to the extraction capacity. If excessive, check that installation is secure and that the ducting has no sharp bends. The manual advises that noise can be expected.

Can I use the hood without grease filters?

No, never attempt to use the cooker hood without the grease filters in place. They are essential to absorb grease and prevent fire hazards.

Do I need to earth the appliance?

No, this appliance is double insulated and must not be earthed. The power cable has only two wires (brown live and blue neutral). Connect via a double pole switched fused spur or a 13A plug with a 3A fuse.

What do I do if the lights don't work after replacing bulbs?

Ensure the bulbs are fitted properly into their housings. If they still don't work, the manual suggests checking the power supply before calling technical support. Defective bulbs should be replaced immediately.

USER MANUAL TEL06SS BAUMATIC

TEL06SS / TEL07SS Cooker hood

INSTRUCTION MANUAL

Simple line drawing of a fish with fins and tail, no text or symbols present

User Manual for your Baumatic

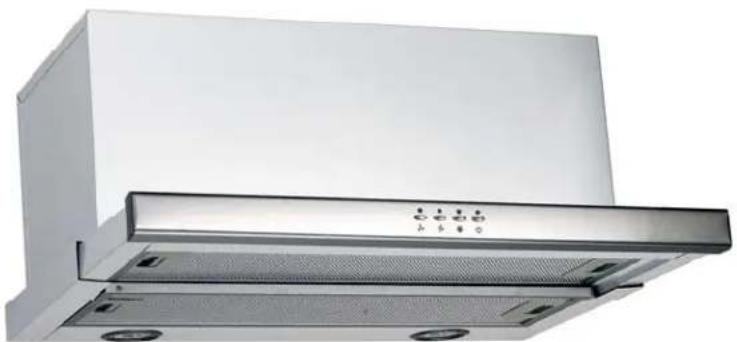

TEL06SS / TEL07SS Cooker Hood

Modern kitchen air conditioner cover with blue background (no text or symbols visible)

Exterior view of a stainless steel kitchen air conditioner unit (no visible text or symbols)

NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.

GS 09/06/10

Contents Page

E

n

v

i

r

o

n

m

e

n

t

a

l

IMPORTANT SAFETY INFORMATION

5-7

Specifications of your cooker hood

8-9

T

E

L

0

6

S

S

T

E

L

0

7

S

S

Using your Baumatic cooker hood

10-11

B

e

f

o

r

e

f

i

r

s

t

u

To

use

your

cooker

hood

10

Cleaning your Baumatic cooker hood

12-13

The grease filter

12

-

M

a

i

n

t

e

n

a

n

c

e

Removing and cleaning the grease filters

13

C

h

a

n

g

i

n

g

a

l

i

g

Fitting

the

carbon

filters

14

-

I

n

s

t

a

l

l

a

t

i

o

n

E

l

e

c

t

r

i

c

a

l

c

o

n

Before beginning installation

16

-

1

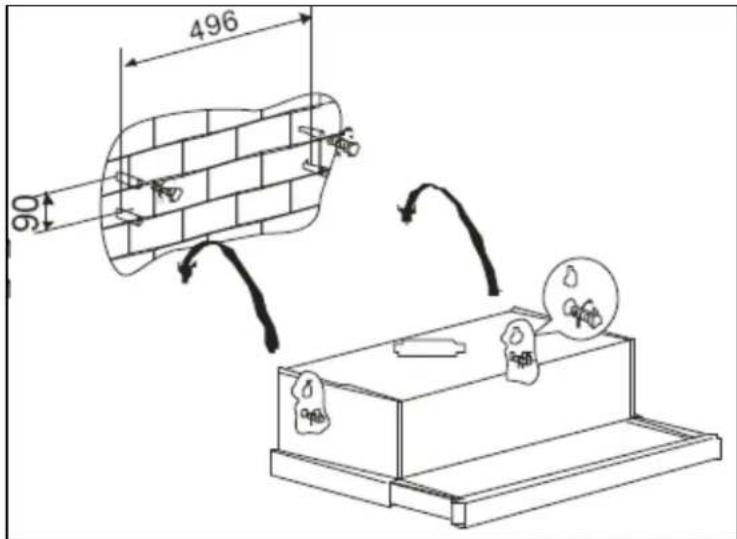

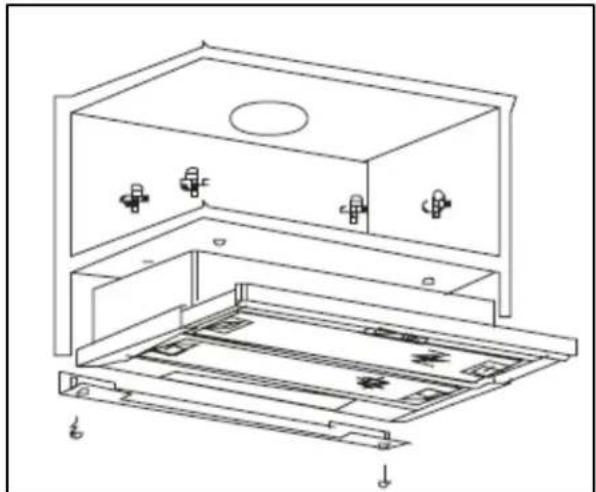

Installing your cooker hood

17

-

Connecting to external ducting

20

Completing the installation

20

-

2

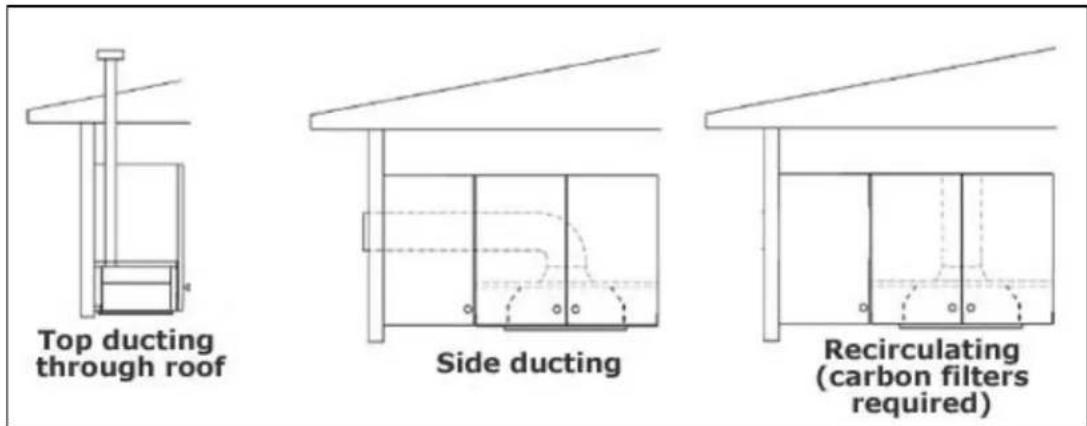

Extraction mode or recirculation mode?

21

T

r

o

u

b

l

e

s

h

o

o

t

i

n

C

o

n

t

a

c

t

d

e

t

a

i

l

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person.

This appliance is marked according to the European directive 2002/96/EC on Waste electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol

on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

• The packaging materials that Baumatic uses are environmentally friendly and can be recycled.
• Please discard all packaging material with due regard for the environment.

Illustration of an owl reading a book (no text or symbols present)

Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Advice Line.

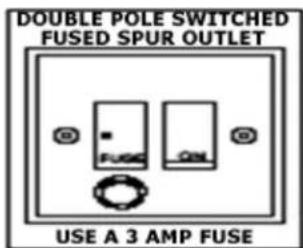

IMPORTANT: Any installation work must be carried out by a qualified electrician or competent person.

• The hood must be installed in accordance with the installation instructions and all measurements followed.
  If the cooker hood is installed for use above a gas appliance then the provision for ventilation must be in accordance with the Gas Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation & Use) Regulations, the Building Regulations issued by the Department of the Environment, the Building Standards (Scotland) (Consolidated) Regulations issued by the Scottish Development Department.
• It is dangerous to alter the specifications or to modify this product. Do not tamper with it or attempt to modify the appliance in any way.
• When installing the hood, ensure that the following recommended distances are observed between the highest point on the hob top (including the burners) and the bottom of the cooker hood:

▶ Electric cookers: 700 mm
Gas cookers: 700 mm
Coal/ oil cookers: 800 mm

IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS THAN 700mm ABOVE YOUR COOKER.

- When installed between adjoining wall cabinets, the cabinets must not overhang the hob.

- The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!

- If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.

- If other types of flue or appliances are fitted, ensure that there is an adequate supply of air in the room.

- When the hood is being used in its extractor function, ensure that the ducting is fire retardant and that there are no bends sharper than 90 degrees as this will reduce the efficiency of the hood.

- Ensure the ducting for the extractor function has the same diameter as the outlet hole all the way through.

- Keep young children from using, playing with or tampering with the cooker hood. Older children and infirm persons should be supervised if they are using the cooker hood.

- Your cooker hood is for domestic use only.

- Please dispose of the packing material carefully – children are especially vulnerable to it.

- Dirty oil is an even greater fire risk.

Illustration of a cartoon character in full gear holding a long tool (no text or symbols)

○ Always put lids on pots and pans when on a gas cooker.

Illustration of a cooking pot with a lid and handle (no text or symbols)

- The manufacturer refuses to accept any responsibility for damages arising to the hood or it catching on fire, from a failure to observe the fire safety advice contained in this instruction booklet.

o Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed.

- Note that it removes odours from your room, not steam.

- Warning - Always ensure that the cooker hood has been disconnected from the power supply before carrying out any work on the hood, including replacing light bulbs.

Abstract line drawing of a stylized figure with geometric shapes and a circular element, no text or symbols present.

- Do not connect the ducting system of this appliance to any existing ventilation system which is being used for any other purpose.

- Do not install above a cooker with a high level grill.

- Never leave frying pans unattended during use as overheated fats and oils might catch fire.

Illustration of a person cooking with a pan (no text or symbols)

- The cooker hood should not be exposed to a direct heat source from the cooking device underneath it, i.e. naked flame from a gas burner or heat from electric hob zones without a pan on them.

- Do not attempt to use the cooker hood if it is damaged in any way. Never attempt to use it without the grease filters fitted or if the filters are excessively greasy!

- Never flambé cook under this cooker hood.

- The lights on this appliance should only be used during operation of the cooker hood. They should not be left on permanently and used as a lighting source.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY IN THE EVENT OF FAILURE TO OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR INSTALLATION, MAINTENANCE AND SUITABLE USE OF THE HOOD.

Specifications of your cooker hood

TEL06SS

PRODUCT DIMENSIONS

Height: 175 mm

Width: 600 mm

Depth: 306 mm (encased)

450 mm (extended)

APERTURE DIMENSIONS

Width: 600 mm

Depth: 194 mm (min)

Your cooker hood is fitted with:

• Slider control operation
  ○ 3 x speeds
• 2 x metallic grease filters
  ○ 2 x light

Extraction capacity: 440 m³/hr

Optional extras:

1 x Pair of ST1 Carbon filters for air recirculation

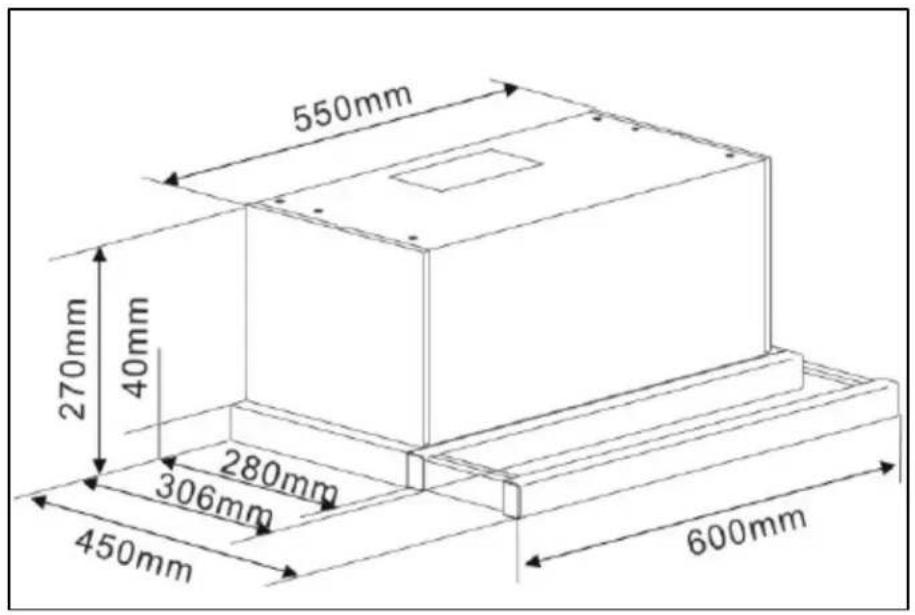

TEL07SS

PRODUCT DIMENSIONS

Height: 270 mm

Width: 600 mm

Depth: 306 mm (encased)

450 mm (extended)

APERTURE DIMENSIONS

Width: 600 mm

Depth: 280 mm MIN

Your cooker hood is fitted with:

• Electronic control operation
  ○ 3 x speeds
• 2 x washable aluminium grease filters
  ○ 2 x light

Extraction capacity: 750 m³/hr

Optional extras:

1 x Pair of ST1 Carbon filters for air recirculation

All of the optional extras are available from the Baumatic Spares Department.

Using your Baumatic cooker hood

Before first use

IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE THE COOKER HOOD IS USED FOR THE FIRST TIME.

• You should use a good quality stainless steel cleaner on ALL of the stainless steel areas of your cooker hood, before it is used for the first time.
• This will help to leave a silicone water-resistant film to protect the stainless steel surfaces.
  ○ Make sure that it has been installed by a suitably qualified person, as per the information contained in Baumatic's installation instructions.

To use your cooker hood

TEL06SS

- The control panel contains switches, as shown in the picture below, which perform separate functions.

Motor speed switch. This switch controls the speed of the motor as well as turning the hood on and off. You can change the fan speed at any time during operation.

$$ \begin{array}{l} 0 = \text { OFF } \ I = \text { Low speed } \ I I = \text { Mid - speed } \ I I I = H i g h s p e e d \ \end{array} $$

Light ON / OFF switch. This switch turns your cooker hood's light on and off. Slide the switch to position 1 to turn the light on and position 0 to turn it back off.

IMPORTANT: IDEALLY YOU SHOULD SWITCH ON YOUR HOOD TEN MINUTES BEFORE YOU START TO COOK, OR AT THE VERY LEAST WHEN YOU BEGIN COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR TEN MINUTES AFTER YOU HAVE FINISHED COOKING.

TEL07SS

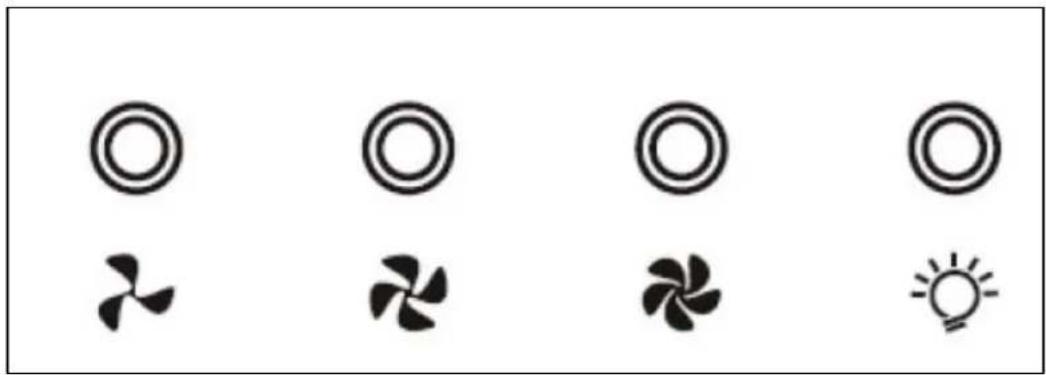

- The control panel contains buttons as shown in the image below, which perform separate functions.

Four circular icons with different propeller and fan symbols, arranged horizontally (no text or labels)

Motor speed control buttons. Use these buttons to set the motor speed of the cooker hood. You can adjust the speed of the fan at any time during operation. To turn the cooker hood off just press the selected speed button again.

Low speed

Mid-speed

High speed

Light ON / OFF button. This button turns the hood light on and off.

Cleaning your cooker hood

IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR COOKER HOOD OFF AT THE OMNI-POLAR SWITCH, SET AT THE WALL FROM THE CABLE.

Cleaning

• Clean the external parts of your cooker hood with mild liquid detergent and a new damp cloth.
• Never use abrasive powder, corrosive solvents or brushes.
• Never insert pointed objects into the motor's protective grid.
• If you are using the appliance in recirculation mode, then be sure to replace the carbon filters at the recommended interval (see section on "Fitting the carbon filter"). A build up of grease could cause a fire hazard.
• Never attempt to clean the area above the grease filter.
• IMPORTANT: You should regularly use a good quality stainless steel cleaner to maintain the shine and finish on the stainless steel areas of your cooker hood. This will help to leave a silicone water-resistant film to protect the stainless steel surfaces and keep them in good condition for the life of the product.

The grease filter

• Your cooker hood includes grease filters which help to absorb grease particles to protect your kitchen and furniture from greasy residues.
• Your cooker hood includes two metal filters which can be periodically washed depending on usage.
  These filters may become flammable if they become saturated with greasy residue.
  To prevent this fire hazard, the metal filters should be cleaned regularly. Depending on use, this should be done every two months, using hot water and normal washing-up detergent.

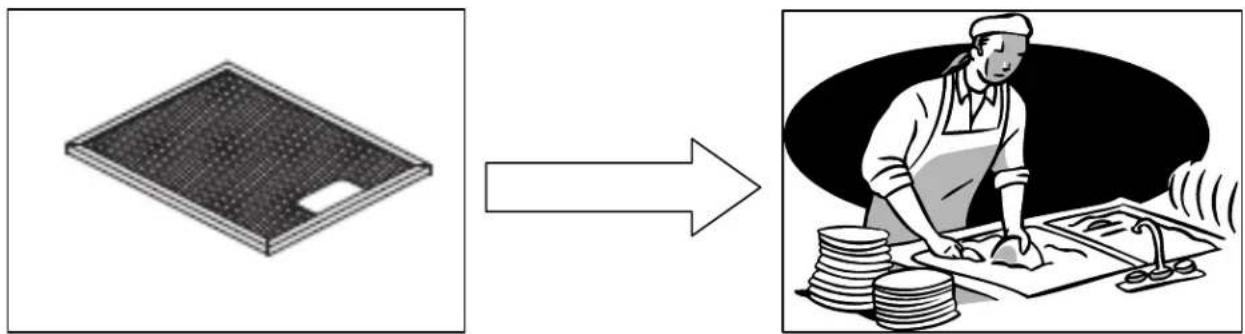

• DO NOT WASH THE GREASE FILTER IN A DISHWASHER.

Maintenance

Removing and cleaning the metal filter

- First remove the grease filter by pulling down on the handle and pulling it away from the cooker hood.

• Soak the metal filters in hot water and washing up liquid for about an hour.
• Rinse them off thoroughly with hot water.
• Repeat the process if required.
• Refit the metal filters to the cooker hood once they have dried.
• IMPORTANT: Let the grease filters dry thoroughly before refitting in the cooker hood.
• Never attempt to use your cooker hood without the grease filters in place.

Changing a light bulb

IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

• Remove the metal filters by pulling down on the handle and pulling them away from the cooker hood. This will allow you access to the lamp area.
  o Prior to touching the light bulb ensure that it has cooled down.
• Replace the bulb using only olive-shaped spares with an E14 coupling, max. 40W. Replace the grease filter support grilles.
• IMPORTANT: Defective bulbs should be replaced immediately.
• If the lights still do not work, make sure that the bulbs are fitted properly into their housings before you call for technical assistance.

Fitting the carbon filter

If the appliance is going to be used in recirculation mode then it is necessary to a fit a carbon filter. This will help to absorb unpleasant odours caused by cooking.

IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CARBON FILTERS, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

- You will find that one filter will attach over the front of the fan motor. The active carbon filter must be replaced at least every four months depending on usage to allow normal operation when in recirculation mode.

1) Remove the metal filters by pulling down the handle and pulling them away from the cooker hood. This will allow you access to the motor.

Close-up of mechanical components with dashed circles highlighting a specific part (no visible text or symbols)

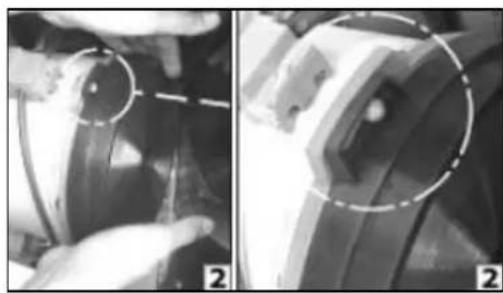

2) Hook the carbon filter over the pins that are located at the end of the motor.

Close-up of hands adjusting a mechanical component with an arrow indicating rotation (no visible text or symbols)

3) Turn the carbon filter clockwise until you feel it latch onto the motor's sides.

4) Replace the grease filters.

- When replacing the carbon filter, follow the steps outlined above and turn the carbon filter anti-clockwise to unlatch it from the motor.

Installation

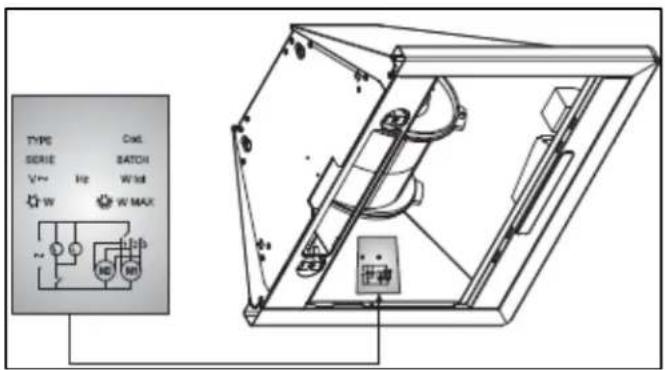

IMPORTANT: Before installation read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the grease filters.

The manufacturer declines all responsibility in the event of the installer failing to observe all the accident prevention regulations in force, which are necessary for normal use and the regular operation of the electric system.

Electrical connection

YOUR COOKER HOOD IS INTENDED FOR FITTED AND PERMANENT INSTALLATION.

- If not supplied the power cable must be connected to the terminals marked L (live) and N (neutral) in the hood and fixed with a cable clamp.

- The cooker hood's power cable must be fitted upstream from the electrical connection, using an omni-polar switch with a contact distance of at least 3 mm.

WARNING: THIS APPLIANCE MUST NOT BE EARTHED. It should only be connected by a competent person, using fixed wiring via a double pole switched fused spur outlet OR connected using a 13 AMP plug with a 3 AMP fuse fitted.

We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations. The wires in the mains lead are coloured in accordance with the following UK code:

Blue = Neutral Brown = Live

You will only find two wires in the main's lead (blue and brown) which means neither must be connected to the earth terminal.

As the colours of the wires in the appliance's mains lead may not correspond with the coloured markings identifying the terminals in your spur box, please proceed as follows:

- The blue wire must be connected to the terminal marked "N" (neutral), or coloured black.

- The brown wire must be connected to the terminal marked "L" (live), or coloured red.

Before beginning installation

- Check that the product purchased is of a suitable size for the chosen installation area. In addition check whether there is an electrical socket available that will be accessible once the hood is mounted. If the product is going to be used in extraction mode,

then there should also be space to connect a ducting hose to the outside.

○ Carry out all necessary masonry work prior to the fitting of the cooker hood.
- Ensure that all electrical connections are carried out by a suitably qualified person.
- Before commencing installation of the cooker hood the grease filters should be removed.
- Check inside the product and ensure that there is no transit packaging or any other materials, such as packets of screws, guarantees etc. These should be removed and kept for future use.
- If possible, disconnect and move freestanding or slot-in cookers from their position, to provide easier access to the rear wall and ceiling. If this is not possible, then a thick, protective covering should be placed over the worktop, hob top or cooker. This will help to protect these surfaces from damage and debris.
- Select a flat surface for assembling the cooker hood. Cover that surface with a protective covering and place all cooker hood parts and fittings on it.
- Do not tile, grout or silicone this appliance to the wall or cabinetry.

Installing your cooker hood

IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR COOKER HOOD WHETHER TO USE IT IN EXTRACTION MODE OR RECIRCULATION MODE. PLEASE TURN TO PAGE 21 NOW TO UNDERSTAND THE DIFFERENCES BETWEEN THESE TWO MODES.

- We recommend that at two people install this hood.

- The cooker hood can be fitted to the wall or to the underside of a kitchen cabinet.

- It must be positioned at least 700 mm above the hob underneath it. You cannot fit this product by securing it between two cupboards.

IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED TO YOUR MAINS SUPPLY AFTER THE REST OF THE INSTALLATION PROCESS HAS BEEN COMPLETED.

Wall installation

NOTE: All the screws mentioned in this section come with your cooker hood.

1) Position the hood against the wall and mark the positions of 4 holes of 8 ~mm diameter on a suitable place and according to the centre distance of the hole on the back of the cooker hood.

2) Drill these holes into the wall. If you intend to use your cooker hood as an extraction fan, you will need to fit a ducting kit through this that will connect to your appliance.

3) Insert the rawlplugs into the holes and then insert the screws part way, so that the screws stick out by 10 mm.

4) Hang the hood up on the screws.

5) Tighten the screws the rest of the way in.

6) For the extraction function, connect the exhaust outlet pipe to the collar strip. Find the screw holes on the top of the cooker hood. Tighten the bolts from inside the hood.

Installation into the underside of a kitchen cabinet

1) Drill holes of 4 ~mm diameter on the bottom of the cupboard you wish to hang the hood from in accordance with the below:

2) Put the one way valve on the cooker hood and then install the hood on the bottom of the cupboard. Fasten the hood securely in place by tightening the screws.

Technical line drawing of an open refrigerator with internal compartments and mounting fixtures (no text or labels)

3) Install the adjusted board on the bottom of the hood in order to keep out the gap between the hood back and the cupboard.

Connecting to external ducting

• Connect the coupling to the top of the cooker hood, using two of the smaller screws provided.
• Connect a 150 mm ducting hose to a discharge outlet that is suitable for cooking vapours. If you need to fit a 125 mm ducting hose, then a reducer is supplied with the appliance to allow you to do this.
• The discharge outlet should have a cross section of at least 150 cm ^2 (please note that the ducting hose is not supplied with the appliance but one can be obtained from the Baumatic Spares Department).
• The maximum distance between the coupling and your discharge outlet should be 3 metres, with one 90 degree bend. For each additional 90 degree bend, the maximum distance is reduced by a further metre.
  Before fixing the cooker hood into the kitchen unit, you should connect the other end of the ducting hose to the coupling in the top of the cooker hood.

Completing the installation

If you are setting the appliance to recirculation mode, then you should now fit the two carbon filters. See the "Fitting the carbon filter" section.

The electrical connection must correspond to the electrical requirement noted on the rating plate, which is placed inside the cooker hood. The appliance should now be connected to the electrical supply.

Refit the metal filter and then switch on the mains supply to the appliance. Check that the appliance is operating

correctly by selecting each speed and switching the light bulb on and off.

Extraction mode or recirculation mode?

IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR COOKER HOOD WHETHER TO USE IT IN EXTRACTION MODE OR RECIRCULATION MODE.

What is the difference between extraction and recirculation modes?

In extraction mode, the stale air will be taken via the grease filter and out of the room via external ducting.

In recirculation mode stale air is taken via the grease filter, and passed through a charcoal filter for purification. The air then re-enters the kitchen via an opening in the hood.

For optimum performance, we recommend that the cooker hood is used in extraction mode and connected to external ducting.

Unfortunately if you live in a flat or the hood is too far from an outside wall, this may not be possible. The only alternative is to recirculate the air.

Do I need a charcoal filter?

All cooker hoods have a grease filter but if you are using your cooker hood in recirculation mode, then a charcoal filter must be fitted in addition to the grease filters.

Troubleshooting

IMPORTANT: If your cooker hood appears not to be operating properly, before contacting the Customer Care Department, please refer to the checklist below.

My cooker hood will not start.

- Check that the hood is connected to the power supply and whether you have selected any of the fan speeds.

My cooker hood is not working effectively.

• Check that fan speed is set to an appropriate setting.
• Check that the grease filters are not dirty and if they require cleaning.
• If the hood is set up for recirculation mode, check that the carbon filter does not need to be replaced.
• If the hood is set up for extraction mode, check that the ducting hose and discharge outlet are not blocked.

My cooker hood is noisy and/or vibrating.

• Check whether the installation has been completed as per the instruction booklet.
• It is normal to get a certain amount of noise and vibration, due to the extraction capacity of the cooker hood.

DO NOT MAKE ANY ATTEMPT TO REPAIR THE APPLIANCE YOURSELF. IF THE APPLIANCE IS STILL NOT OPERATING CORRECTLY, PLEASE CONTACT THE CUSTOMER CARE DEPARTMENT ON TELEPHONE NUMBER [phone].

My appliance isn't working correctly

IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact Baumatic Customer Care on telephone number [phone].

DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.

Please note that if an engineer is asked to attend whilst the product is under guarantee and finds that the problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.

The appliance must be accessible for the engineer to perform any necessary repair. If your appliance is installed in such a way that an engineer is concerned that damage will be caused to the appliance or your kitchen, then he will not complete a repair.

This includes situations where appliances have been tiled in, sealed in with sealant, have wooden obstructions placed in front of the appliance, like plinths. Or any installation other than the one specified by Baumatic Ltd. has been completed.

Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.

IMPORTANT: Baumatic Ltd. operates a policy of continuous improvement and reserves the right to adjust and modify its products without prior notification.

Baumatic®

United Kingdom

Baumatic Ltd.,

Baumatic Buildings,

6 Bennet Road,

Reading, Berkshire

RG2 0QX

United Kingdom

Sales Telephone

[phone]

Sales Fax

[phone]

Customer Care Telephone

[phone]

Customer Care Fax

[phone]

Spares Telephone

[phone]

Advice Line Telephone

[phone]

E-mail:

[e-mail]

[e-mail]

[e-mail]

[e-mail]

Website:

www.baumatic.co.uk

Republic of Ireland

Service Telephone

1-890 812 724

Spares Telephone

091 756 771

Czech Republic

Baumatic CR spol s.r.o.
