USER MANUAL A1050 GE

Black digital camera with 5x aperture and 10.1 microphone lens (no visible text or symbols beyond branding)

A Series A950 / A955Z / A1050 / A1150 / A1250 / A1035 / A1235 / WM1050

E Series E1255W

J Series J1050 / J1250

GETTING READY

BASIC OPERATION

USING THE MODES

PLAYBACK

USING THE MENUS

CONNECTIONS

APPENDICES

WARNING

To prevent fire or shock hazard, do not expose the unit to rain or moisture.

For customers in the U.S.A.

Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

FCC Statement

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.

For customers in Europe

"CE" mark indicates that this product complies with the European requirements for safety,

health, environment and customer protection. "CE" mark cameras are intended for sales in Europe.

This symbol [crossed-out wheeled bin WEEE Annex IV] indicates separate collection of waste electrical and electronic equipment in the EU countries. Please do not throw the equipment into the domestic refuse. Please use the return and collection systems available in your country for the disposal of this product.

Declaration of Conformity

Model Name : A950/A955Z/A1050/WM1050/A1150/A1250/A1035/A1235/E1255W/J1050/J1250

Trade Name : GE

Responsible Party : General Imaging Co.

Address : 2158 W.190th Street, Torrance, CA 90504, USA

Telephone Number : 1-800-730-6597

Conforms to the following Standards:

EMC : EN 55022:1998/A1:2000/A2:2003 Class B

EN 55024:1998/A1:2001/A2:2003

EN 61000-3-2:2000/A1:2001

EN 61000-3-3:1995/A1:2001

following the provision of the EMC Directive (89/336/EEC,2004/108/EEC)

SAFETY PRECAUTIONS

Camera notes:

Do not store or use the camera in the following types of locations:

• In the rain, very humid and dusty places.
- In a place where the camera can be exposed directly to the sunlight or subject to high temperature, e.g. Inside a closed car in summer.
- In a place where the camera is subject to a high magnetic field, e.g. near motors, transformers or magnets.

Do not place the camera on a wet surface or places where dripping water or sand may come in contact with the camera, which may cause irrepairable faults.
If the camera will not be used for a long period of time, we suggest you remove the battery and the memory card.
If you carry the camera suddenly from a cold location to a warm place, moisture may condense inside the camera. We suggest you wait for a while before turing on the camera.
No compensation for loss of recordings. Loss of recordings cannot be compensated for if a malfunction of your camera or recording media, etc, makes the playback of recordings not possible.

Battery notes:

! Incorrect use of the batteries may cause them to leak, become hot, ignite or burst. Always observe the precautions given below.

• Do not expose the batteries to water, and take particular care to keep the terminals dry.
• Do not heat the batteries or throw them into a fire.
• Do not attempt to deform, disassemble or modify the batteries.
• Use GE charger in the package to charge the lithium battery only (for E and J series).

Keep the batteries out of reach of babies and small children.
In cold locations, battery performance deteriorates and the time for which they can be used shortens markedly.

Memory card notes:

When using a new memory card, or a memory card has been initialized by a PC, be sure to format the card with your digital camera before using it.
To edit image data, copy the image data to the PC's hard disk and then format memory card if upgrade the firmware.
Do not change or delete the directory names, or file names in the memory card from your PC, as this may make it impossible to use the card in your camera.

BEFORE YOU START

Preface

Thank you for purchasing GE digital cameras. Please read this manual carefully and keep it in a safe place for future reference.

Copyright

© Copyright 2009 General Imaging Company All rights reserved.

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form, by any means, without the prior written permission of General Imaging Company.

Trademarks

All trademarks mentioned in this manual are used for identification purposes only and may be properties of their respective owners.

Safety information

Please read the following important information carefully before using the product.

• Do not take apart or attempt to service the camera yourself.
• Do not drop or knock the camera. Improper handling may damage the product.
• Turn off the camera before inserting or removing the battery and memory card.
• Use only the type of battery and charger that came with your camera. Using other types of batteries or chargers may damage the camera and invalidate the warranty.
• When using Li-ion batteries in this product, ensure that they are inserted correctly. Inserting the batteries upside down can cause damage to the camera and possibly start a fire.

• Do not touch the camera lens.

• Do not expose the camera to moisture, or extreme temperatures. Extreme environments may shorten the life of your camera or damage the batteries.

• Do not use or store the camera in dusty, dirty, or sandy areas, as its components may be damaged.
• Do not expose the lens to direct sunlight for extended periods.
• Download all pictures and remove the batteries from the camera if you are going to store the camera for long periods.
• Do not use abrasive cleansers, alcohol-based, or solvent-based cleaners to clean the camera. Wipe the camera with a slightly damp soft cloth.

About this manual

This manual provides you with instructions on how to use your GE digital camera. Every effort has been made to ensure that the contents of this manual are accurate, but General Imaging Company reserves the right to make changes without notice.

Symbols used in this manual

Throughout this manual, the following symbols are used to help you locate information quickly and easily.

Indicates the useful information to know.

Indicates the precautions to be taken while operating the camera.

CONTENTS

WARNING

SAFETY PRECAUTIONS

BEFORE YOU START ....1

Preface ....1

Copyright 1

Trademarks ....1

Safety information ....1

About this manual 2

Symbols used in this manual 2

CONTENTS 3

GETTING READY ....7

Unpacking ....7

Camera Views : A Series ....8

: E Series 10

: J Series 12

Charging the battery 14

Inserting the battery 15

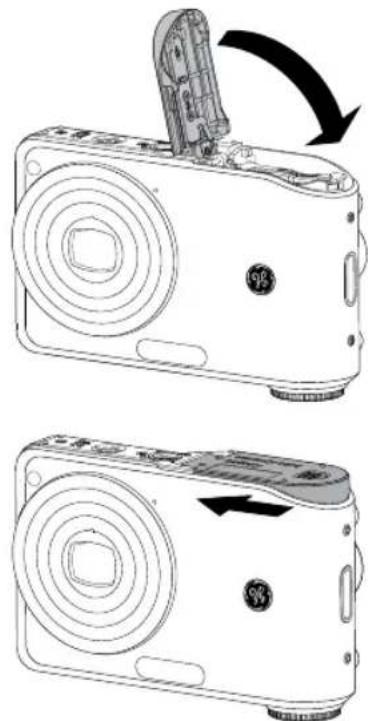

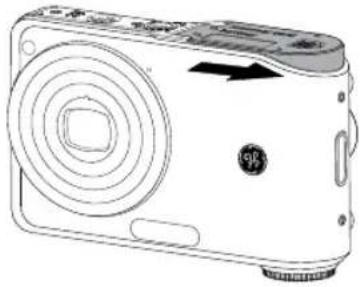

Inserting an optional SD/SDHC card 18

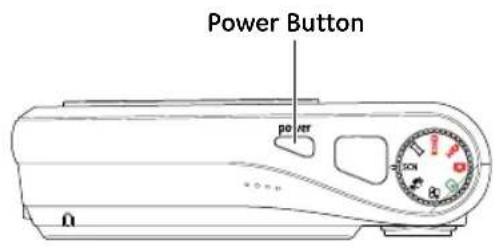

Turning on and off 19

Using the Mode Dial 20

Setting date/time and language 21

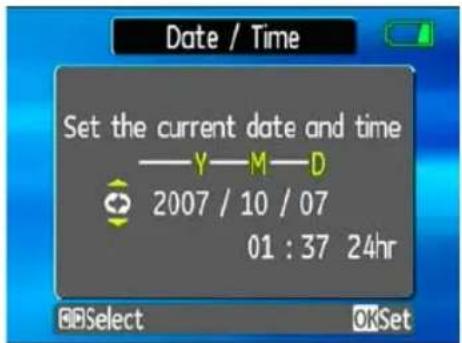

Setting the Date and Time 21

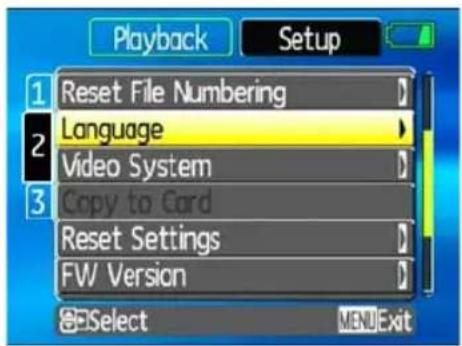

Setting the Language 22

About the LCD screen 23

BASIC OPERATION 24

Shooting in Auto mode 24

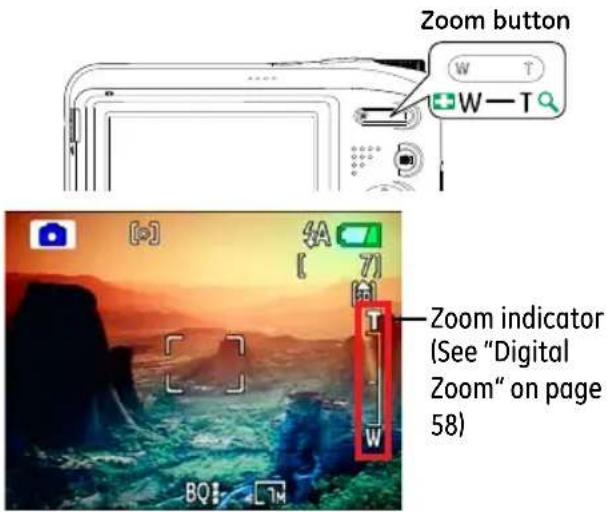

Using the zoom function 24

Using the flash 25

Using the self-timer/Multiple shots 25

Using Macro mode 26

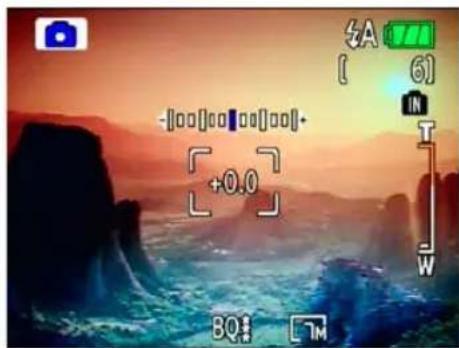

Exposure compensation 26

Advanced function menu (quick menu setup) ..... 27

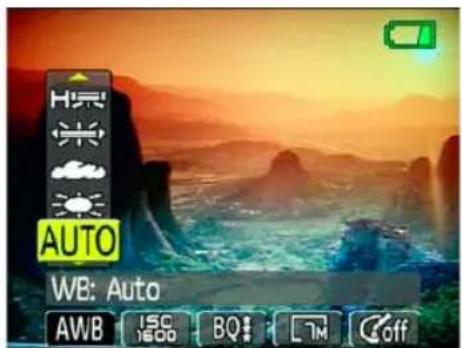

WB (White Balance) 27

ISO 28

Quality 29

Size 30

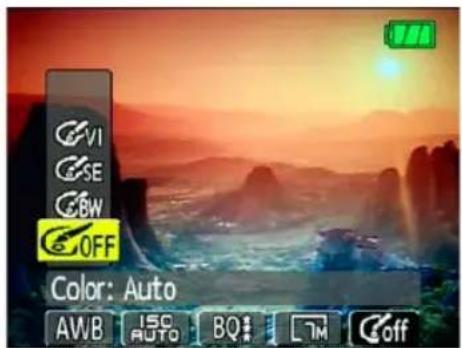

Color 31

USING THE MODES 34

LCD Screen display 34

Still shooting mode display 34

Video shooting mode display 36

Playback mode display 37

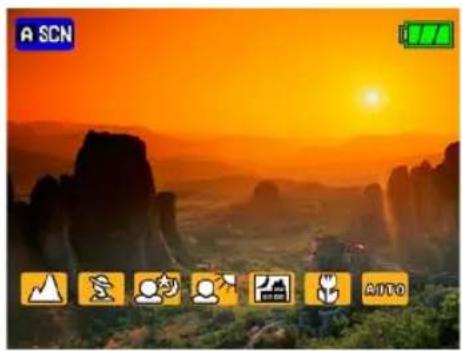

Auto Scene mode (ASCN) 38

Landscape Mode 39

Portrait mode 39

Night Portrait 39

Backlit Portrait 39

Night Landscape Mode 39

Macro Mode 39

Auto Mode 39

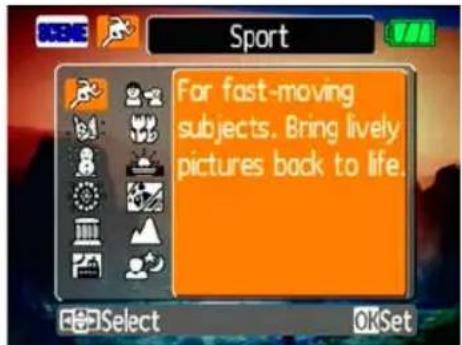

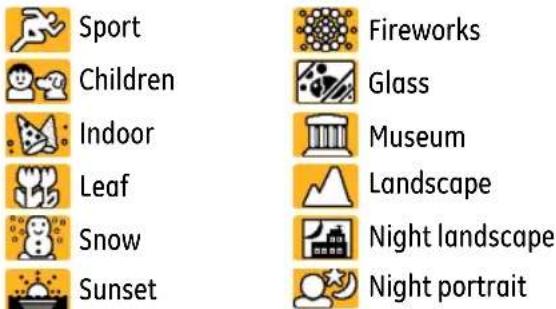

Scene mode (SCN) 40

Sport 40

Children 40

Indoor 40

Leaf 40

Snow 40

Sunset 41

Fireworks 41

Glass 41

Museum 41

Landscape 41

Night landscape 41

Night portrait 41

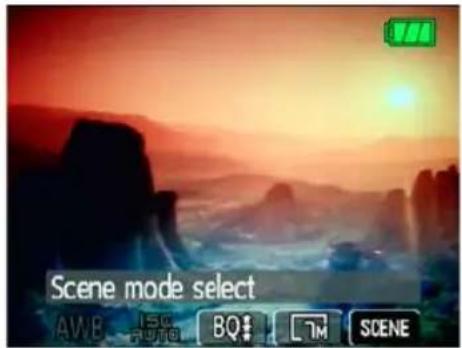

Return to the scene mode palette 42

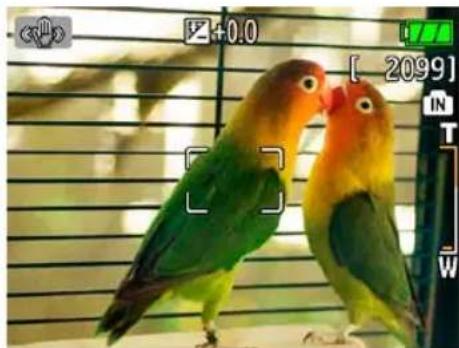

Image Stabilization mode 44

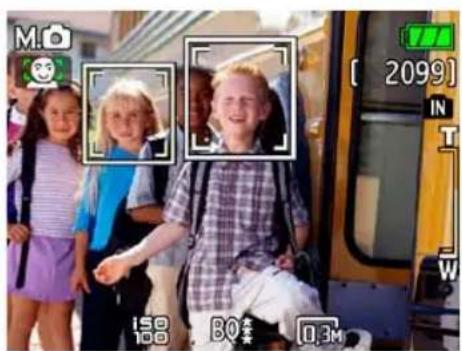

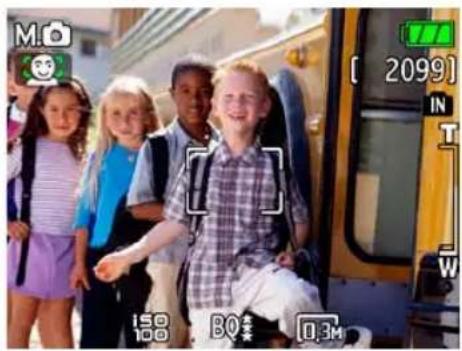

Face Detection 46

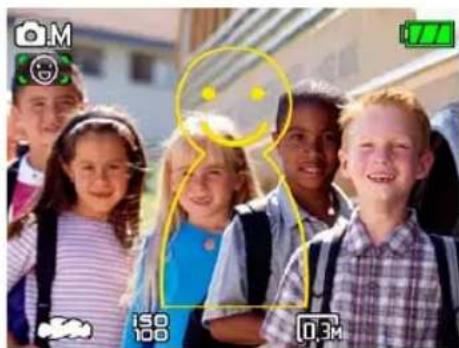

Smile Detection 47

Blink Detection...... 48

PLAYBACK 49

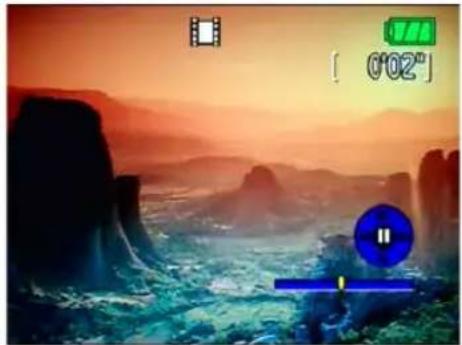

Viewing photos and videos 49

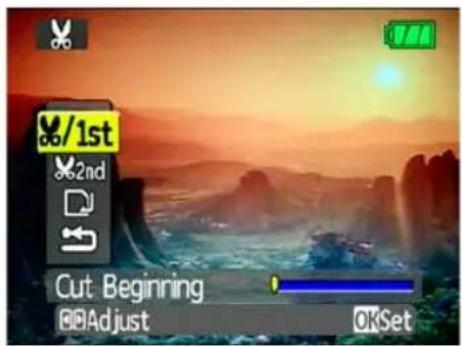

Editing video 51

Thumbnail view 52

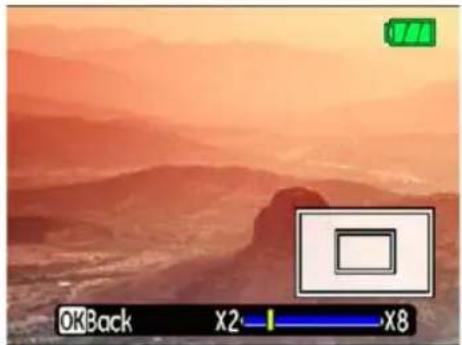

Using zoom playback (for still pictures only) ..... 53

Using the Delete button 54

USING THE MENUS ....55

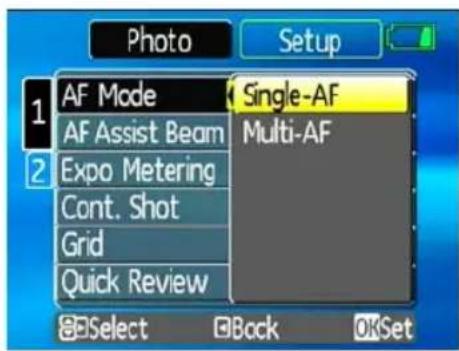

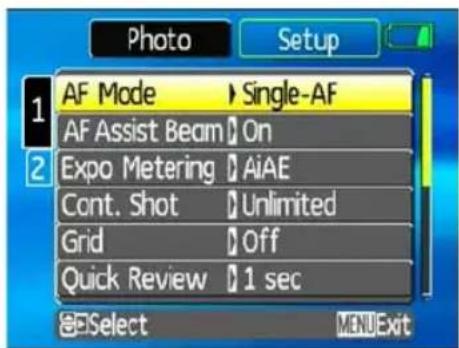

Still menu 55

AF mode (Auto-Focus mode) 56

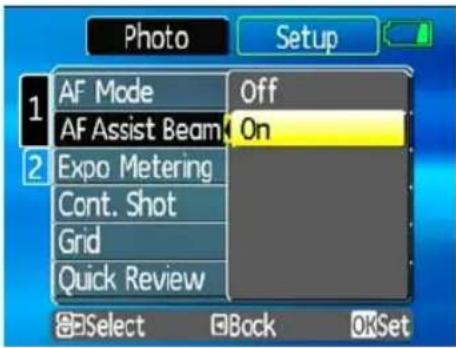

AF-assist beam 56

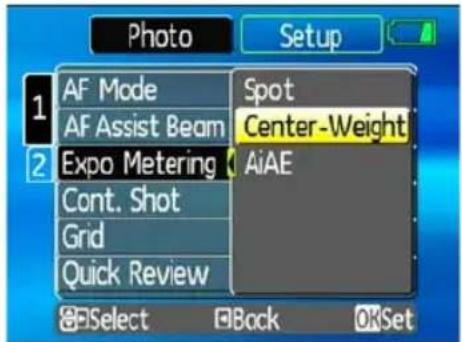

Expo Metering (Exposure Metering)... 57

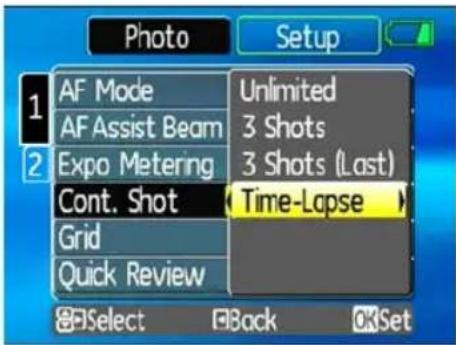

Cont.Shot (Continuous shot) 57

Grid 58

Quick Review 58

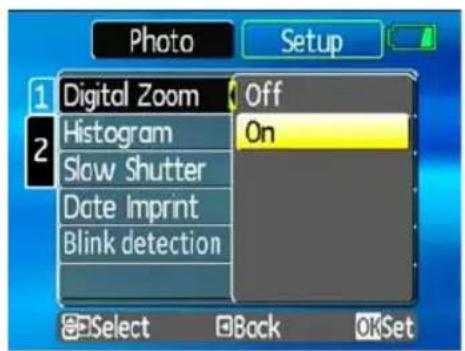

Digital Zoom 59

Histogram 59

Slow Shutter 60

Blink Detection 60

Date Imprint....61

Movie menu 61

Expo Metering (Exposure Metering).. 62

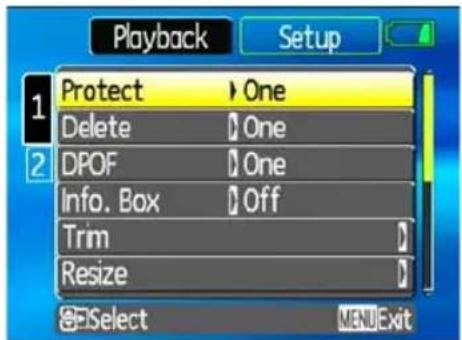

Playback menu....63

Protect 63

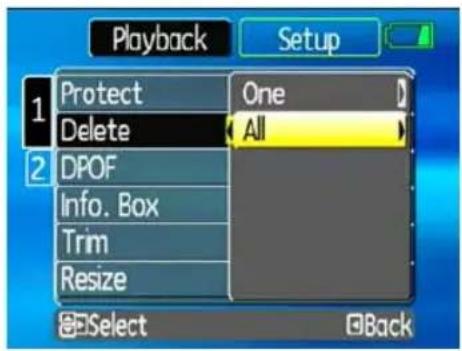

Delete 64

DPOF (Digital Print Order Format) 65

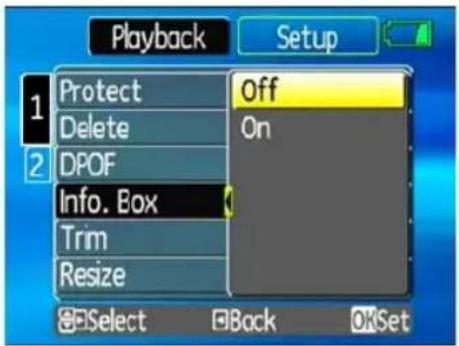

Info. Box (Information Box) 66

Trim 66

Resize....67

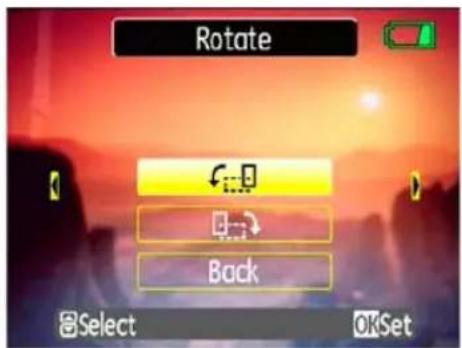

Rotate 67

Slide show 68

Red-eye removal 69

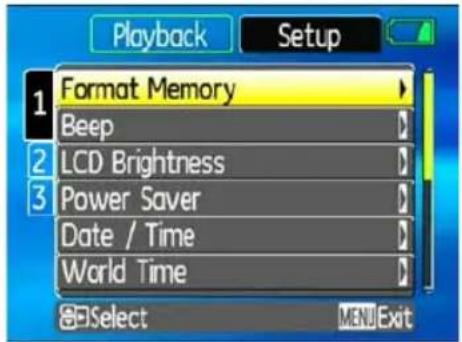

Setup menu 70

Format Memory....71

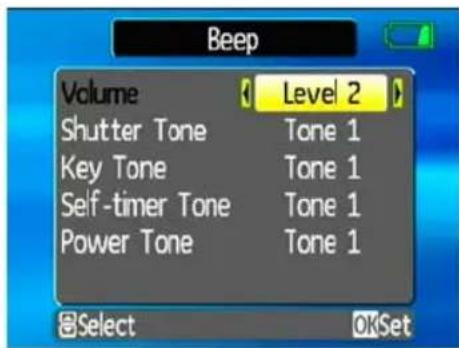

Beep 71

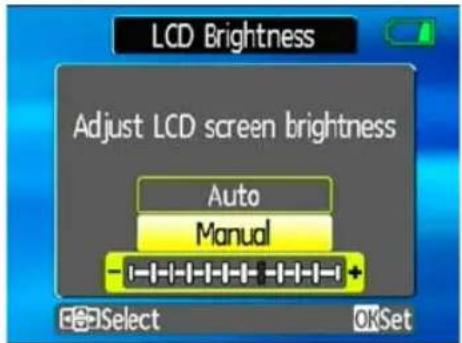

LCD Brightness 72

Power Saver 72

Date/Time 73

World time 73

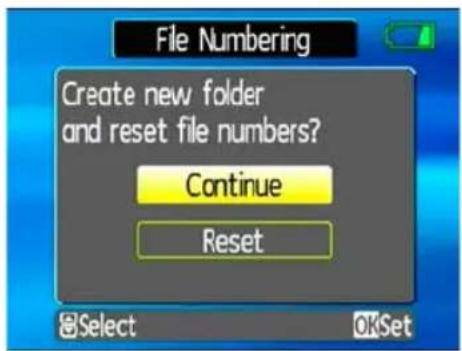

File Numbering 74

Language 74

Video system 74

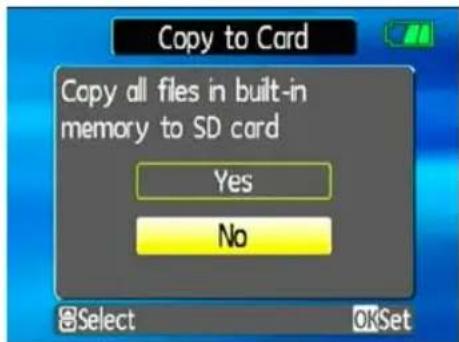

Copy to Card (Copy internal memory to memory card) 75

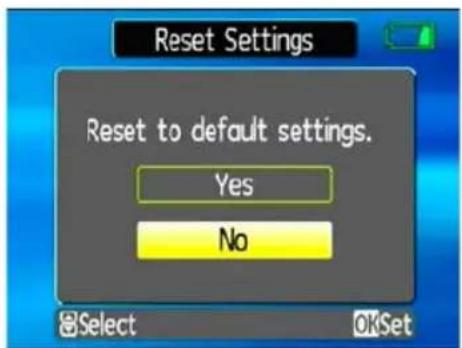

Reset Settings 76

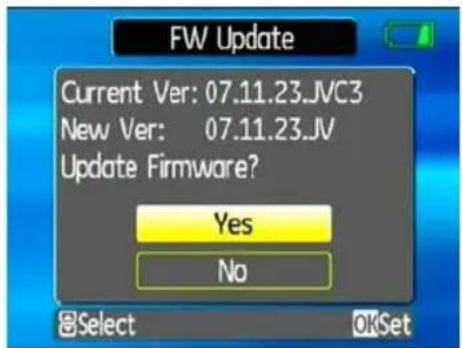

FW Ver. (Firmware version).... 76

CONNECTIONS 77

Connecting to a PC 77

Setting the USB mode 77

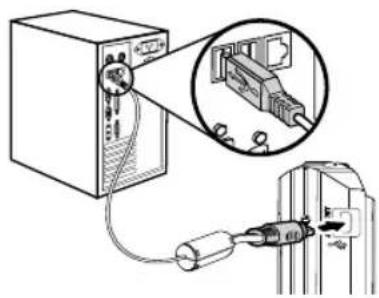

Transferring files to your PC 77

Connecting to a PictBridge compatible printer .... 80

Setting the USB mode 80

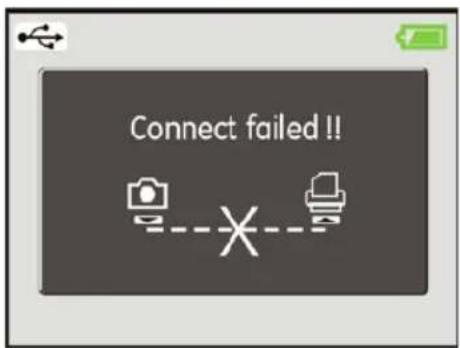

Connecting the camera and priter 81

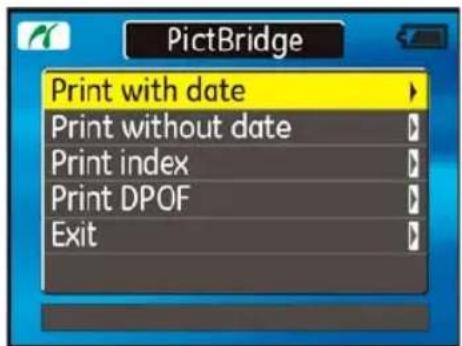

Using the PictBridge menu 82

Print with date 82

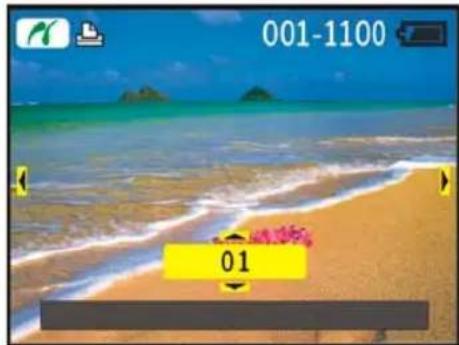

Print without date 83

Print index 84

Print DPOF 85

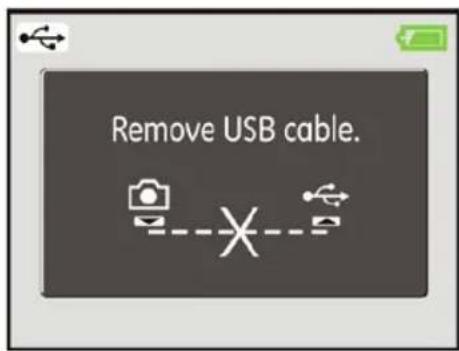

Exit 85

APPENDICES 86

Specifications:

A950/A955Z/A1050/WM1050/A1150/A1250 .....86

A1035/A1235 91

E1255W 95

J1050/J1250 99

Error messages 103

Troubleshooting 105

GETTING READY

Unpacking

Your package should contain the camera model you purchased along with the following items. If anything is missing or appears to be damaged, please contact your vendor. The accessories will vary based on model purchased and are noted below.

Rechargeable Lithium-ion battery (Except A Series)

AA-size alkaline batteries (A Series only)

User Manual

Quick start guide

Wrist strap

Battery charger (Except A Series)

USB cable

CD-ROM

Warranty card

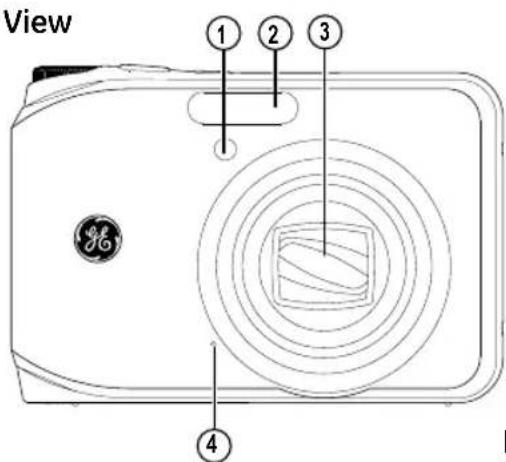

Camera views : A Series

Front View

View 1 2 3 4

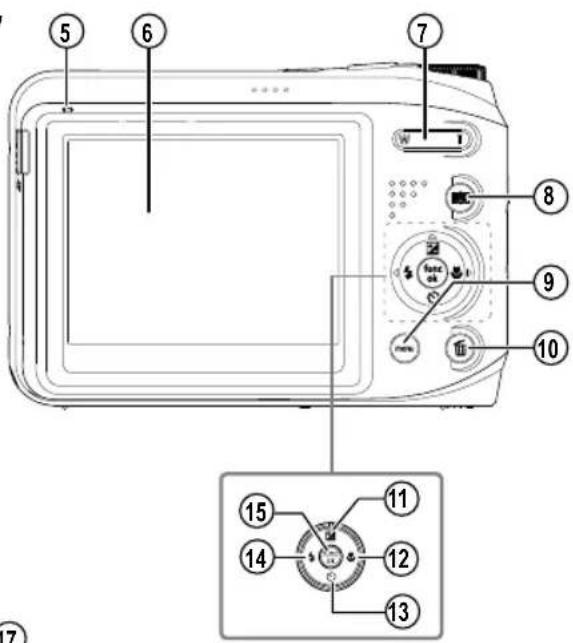

Back View
Right View

17

Diagram of a digital camera with numbered parts and control buttons, including a circular dial indicator.

Top View

power SEM 20 18 19 20 21

Bottom View

memory cord battery 22 23

Left View

A/V/ORE ⑯

1 AF assist beam / Timer indicator 13 Self-timer / Down button
2 Flash 14 Flash mode / Left button
3 Lens 15 Func / ok button
4 Mic 16 USB/ AV port
5 Status LED 17 Wrist strap mount
6 LCD screen 18 Speaker
7 Zoom scroll wheel 19 Power button
8 Face detection AF button 20 Shutter button
9 Menu button 21 Mode dial
10 Erase button 22 Tripod mount point
11 Exposure compensation / Up button 23 Memory card / Battery compartment
12 Macro mode/ Right button

Camera views : E Series

Front View

① ② ③ ④

Back View

Simple line drawing of a cylindrical object with vertical ribs and circular cutouts, labeled 'Right View' (no other text or symbols)

567 8 9 10 menu 11 12 13 14 15

Top View

16 17 18

Bottom View

19 20 21

Left View

22 23

1 Flash 13 Self-timer / Down button
2 Mic 14 Flash mode / Left button
3 AF assist beam / Timer indicator 15 Func / ok button
4 Lens 16 Shutter button
5 LCD screen 17 Zoom scroll wheel
6 Status LED 18 Power button
7 Mode dial 19 Memory card / Battery compartment
8 Face detection AF button 20 Speaker
9 Menu button 21 Tripod mount point
10 Erase button 22 USB / AV port
11 Exposure compensation / Up button 23 Wrist strap mount
12 Macro mode / Right button

Camera views : J Series

Front View

View 1 2 3 ① ④

Back View

Diagram of a digital camera with numbered parts and labeled buttons, showing front and back views.

Right View

Technical diagram of a cylindrical device with labeled components and numbered parts

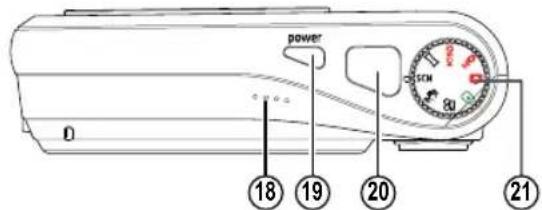

Top View

power 0 18 19 20 21

Bottom View

memory cord battery 22 23

Left View

Technical line drawing of a cylindrical mechanical component with mounting holes (no text or symbols)

1 AF assist beam / Timer indicator 13 Self-timer / Down button
2 Flash 14 Flash mode / Left button
3 Lens 15 Func / ok button
4 Mic 16 USB/ AV port
5 Status LED 17 Wrist strap mount
6 LCD screen 18 Speaker
7 Zoom scroll wheel 19 Power button
8 Face detection AF button 20 Shutter button
9 Menu button 21 Mode dial
10 Erase button 22 Tripod mount point
11 Exposure compensation / Up button 23 Memory card / Battery compartment
12 Macro mode/ Right button

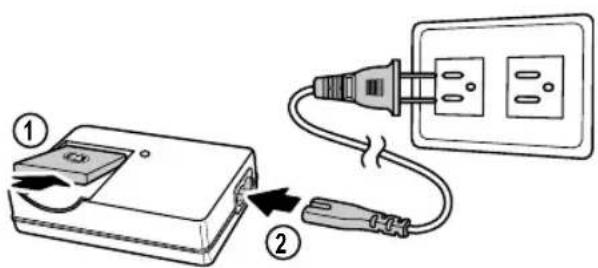

Charging the battery (except A Series)

1. Place the battery into the charger as shown.
2. Plug one end of the connecting cable into the charger base.
3. Plug the other end of the connecting cable into a wall outlet.

Diagram showing two connected devices with labeled parts, illustrating a power connection or installation procedure.

Leave the battery to charge until the charger light goes green. (To maximize battery life, the first charge should be at least 4 hours)

Throughout the rest of the manual, the following illustrations show the A Series model as an example. The E Series, J Series models operate similarly.

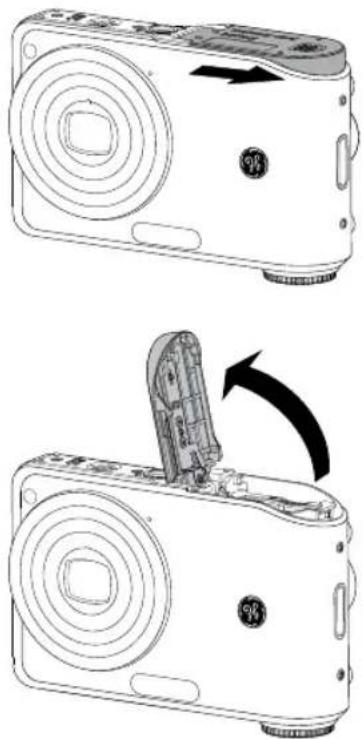

Inserting the battery

1. Open the battery compartment.

Line drawings of a digital camera showing the left and side views of its internal components (no text or symbols present)

1. Insert the battery while observing the correct polarity. Use the side of battery to press down the stopper as shown, allowing the battery to be inserted properly.

Line drawing of a digital camera with a battery and two cylindrical batteries (no text or symbols)

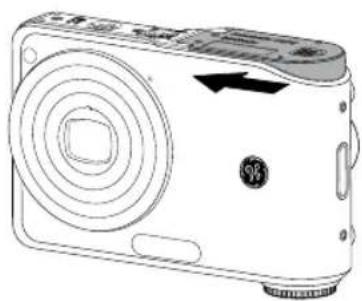

1. Close the battery compartment.

Line drawing of a digital camera with an arrow indicating rotation (no text or symbols)

Line drawing of a white digital camera with circular lens and control buttons (no text or symbols)

Inserting the battery (E Series / J Series)

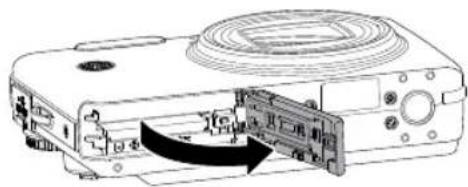

1. Open the battery compartment.

Illustration of a portable electronic device with control panel and indicator lights (no text or symbols)

Diagram of a computer case with an internal component and directional arrow indicating assembly (no text or symbols present)

polarity. Use the side of battery to press down the stopper as shown, allowing the battery to be inserted properly.

Technical line drawing of a digital camera module showing internal components and a close-up inset (no text or symbols)

1. Close the battery compartment.2. Insert the battery while observe

Diagram showing two views of a device with labeled ports and directional arrows indicating movement or assembly.

Battery capacity decreases with usage.

Inserting an optional SD/SDHC card

1. Open the battery compartment. 2. Insert an optional SD/SDHC card into the memory card slot as shown.

Line drawing of a white digital camera with no visible text or symbols

Line drawing of a digital camera with an arrow indicating rotation (no text or symbols)

Line drawing of a digital camera with an attached screen and a switch, showing no text or symbols.

Optional SD/SDHC cards are not included. The use of 64MB to 8GB memory cards from recognized manufacturers such as SanDisk, Panasonic and Toshiba is recommended for reliable data storage.

1. Close the battery compartment.

Line drawing of a digital camera with an open lid and scroll, showing the process of rotation and change (no text or symbols)

To remove the SD/SDHC card, open the battery compartment and gently push the card to release it. Pull the card carefully.

Turning on and off

Press the Power button to turn the camera on. To turn off the camera, press the Power button again.

Power Button p0 p1

When turned on, the camera will enter the mode according to the mode dial setting. You can also turn the mode dial to change the modes after the camera is turned on.

Using the Mode Dial

The GE camera provides a convenient mode dial that allows you to switch between different modes with ease. All the available modes are listed as follows.

Mode Name Icon	Description
Auto		Switch to take still pictures. (The camera uses the default programmed automatic settings.)
Playback Switch to view		pictures/videos stored in the memory card and internal memory.
Movie Switch to record	[3TWV]
Image Stabilization	[0YCY]	Switch to use Image Stabilization when taking still pictures.
Scene	[03AA]	Switch to use a preset scene mode for taking still pictures. There are 12 scenes in total.
Auto Scene	[220T]	In the "ASCN" mode, different conditions are detected intelligently and the most suitable settings will be automatically selected.
Panorama	[03KS]	Switch to capture a sequence of shots and stitch them together into a panoramic photo.
Manual	[XAVZ]	Switch to take still pictures in manual mode, where many camera settings can be configured. (Recommended for advanced users only)

Setting date/time and language

To set the language, date, and time, the following settings need to be configured in the Setup menu.

• Date / Time
• Display language

To access the Setup menu, do the following:

1. Press Power to turn the camera on.
2. Press the 📋 button and use Up/Down/Left/Right to select the Setup menu.

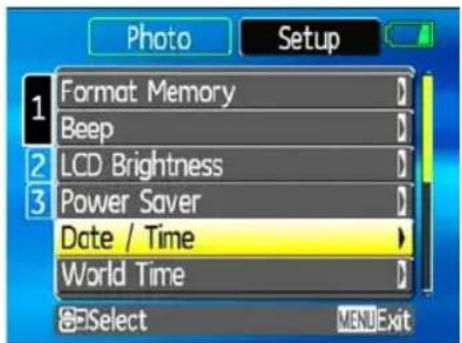

Setting the Date and Time

1. Use the Up/Down to select Date/Time. Then press the Right to enter the setting.

Photo Setup 1 Format Memory 2 Beep 3 LCD Brightness 4 Power Saver 5 Date / Time 6 World Time Select MENUExit

Date / Time Set the current date and time Y —— M —— D 2007 / 10 / 07 01 : 37 24hr Select OKSet

1. Press the Left/Right to highlight each field and use the Up/Down to adjust the value.
2. Press the 📂 button to confirm the setting.

Setting the Language

1. Use the Up/Down to select Language. Then press the Right to enter the setting.

Playback Setup 1 Reset File Numbering 2 Language 3 Video System 3 Copy to Card Reset Settings FW Version Select MEN/Exit

Language/Språk 繁體中文 简体中文 日本語 한국어 English Français Español Portugues Italiano Deutsch Русский Svenska OKStäll in

1. Use the navigation buttons to select the desired language.
2. Press the 🔊 button to confirm the setting.

The Set date/time and language screen will automatically appear when the camera is turned on the first time.

About the LCD screen

When you turn the camera on, various icons are shown on the LCD screen to indicate the current camera settings and status. To learn more about the displayed icons, see "LCD Screen display" on page 34.

LCD Screen notes:

Extremely high-precision technology had been used to manufacture the LCD screen so that most of the pixels are operational for use. However, there may be some minute points (black, white, red, blue or green) that constantly appear on the LCD screen. These points are normal in the manufacturing process and the recording is not affected in any way.

If the LCD monitor is damaged, take particular care with the liquid crystal in the monitor. If any of the following situations arise, take the urgent action indicated.

• If liquid crystal comes in contact with your skin, wipe the area with a cloth and then wash thoroughly with soap and running water.
• If liquid crystal gets into your eye, flush the affected eye with clean water for at least 15 minutes and then seek medical assistance.
• If liquid crystal is swallowed, flush your mouth thoroughly with water. Drink large quantities of water and induce vomiting. Then seek medical assistance.

BASIC OPERATION

Shooting in Auto mode

Auto mode is the easiest mode to take photos. While operating in this mode, the camera automatically optimizes your photos for best results.

To start shooting, do the following:

1. Set the mode dial to Auto mode
2. Press Power to turn the camera on.
3. Compose your picture on the LCD screen and press the shutter button halfway to focus on the subject.
4. When the subject is in focus, the green colored focus frame appears on the center of the LCD screen.
5. Press Shutter fully to capture the image.

Using the zoom function

Your camera is equipped with two types of zoom: optical zoom and digital zoom. Press the Zoom button on either the Wide or Tele position of the camera to zoom in or out on your subject while taking pictures.

Zoom button W T W-T Zoom indicator (See "Digital Zoom" on page 58) BQ

When the optical zoom factor reaches its maximum value, it stops momentarily. Keep pressing down the Tele position (1) and the zoom will switch over to digital zoom automatically.

Using the flash

There are six flash modes. Press the Left/Flash to cycle through the following flash modes.

• Auto flash

Camera flash fires automatically based on existing light conditions.

- Red-eye reduction flash

The camera fires a brief flash before the picture is taken to reduce red-eye effects.

- Forced flash

Flash always fires.

- Flash off

Flash is turned off.

• Slow Synchro

This allows you to take pictures of people at night that clearly show both your subjects and the night time backdrop.

• Red-Eye Reduction+Slow Synchro

Use this mode for slow synchro shots with red-eye reduction.

Using the self-timer/Multiple shots

To enable the self-timer function, press the Down/Self-timer to select 2-second timer delay, 10-second timer delay, or a continuous shot.

• 2-second timer delay

A single picture is shot 2 seconds after the shutter button is pressed.

• 10-second timer delay

A single picture is shot 10 seconds after the shutter button is pressed.

- Continuous shot

Pictures are shot continuously when the shutter button is pressed based on the Continuous Shot settings in the menu. (See "Continuous Shot" on page 57).

Using Macro mode

In Macro mode, you can capture tiny details of the subject at a very close range. Press the Right/Macro to take close-up shots.

Select this to focus on subjects 5cm from the lens.

Exposure compensation

The exposure compensation allows you to adjust the background brightness to produce the best result of photos. To change the exposure values, do the following:

1. When taking a picture, press the Up/Exposure button to activate the set exposure screen.

-100[100]100+0.0 +0.0 BQ: 7M SA 7 [ 6] IN T W

1. Use the Left/Right to adjust the exposure value for the picture. The range is from EV -2.0 to EV+2.0 (steps of 0.3).

Advanced function menu (quick menu setup)

WB (White Balance)

The white balance allows the user to adjust the color temperature under different light source to ensure faithful color reproduction.

(The WB setting is only available when the camera is in the manual mode).

To set the white balance, do the following:

1. Press the function button to enter the Function menu. Make sure the WB function is selected.

AUTO WB: Auto AWB ISO BQ Off

1. Use Up/Down navigation buttons to select the setting you want. The following options are available:

• Auto
• Daylight
- Cloudy

- Fluorescent

- Horescent CWF

- Incandescent

- Manual WB adjustment (press the menu button to set)

1. Use the Left/Right buttons to select other options, or press the button once to confirm your selection and exit the current menu.

ISO

The ISO function allows you to set the camera sensor sensitivity to light. To improve the performance in darker environments, a higher ISO value is required. On the other hand, a lower ISO value is needed when in bright conditions.

(The ISO setting is only available when the camera is in the manual mode).

To set the ISO value, do the following:

1. Press the function button to enter the Function menu.

2. Use the Left/Right navigation buttons to highlight the ISO function.

Higher ISO pictures will naturally have more noise than lower ISO pictures.

400 200 100 80 AUTO ISO: 400 AWB ISO BQ™ Go off

1. Use the Up/Down navigation buttons to select the desired ISO value from Auto, 64, 80, 100, 200, 400, 800, or 1600.

2. Press the 📄 button to confirm your setting.

3. Use the Left/Right buttons to select other options, or press the button once to confirm your selection and exit the current menu.

Quality

The quality setting adjusts the compression ratio of the images. Higher quality settings give better photos, but will take up more memory space.

To set the image quality, do the following:

1. Press the 📋 button to enter the Function menu.
2. Use the Left/Right navigation buttons to highlight the Quality function.

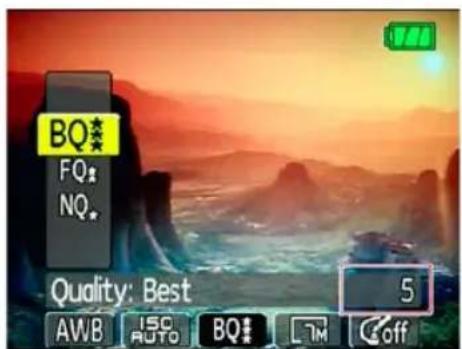

BQ FQ: NQ. Quality: Best 5 AWB 150 AUTO BQ TM Off

1. Use the Up/Down navigation buttons to select a desired setting. Three options are available.

• Best quality (Standard compression)
• Fine quality (High compression)
• Normal quality (Maximum compression)

1. Press the 📄 button to confirm your setting.

2. The number of available shots remaining is displayed on the LCD.

3. Use the Left/Right buttons to select other options, or press the button once to confirm your selection and exit the current menu.

Size

The size setting refers to the image resolution in pixels. A higher image resolution allows you to print that image in larger sizes without degrading the image.

To set the image size, do the following:

1. Press the 📁 button to enter the Function menu.

2. Use the Left/Right navigation buttons to highlight the Size function.

2M 3M 5M(1:9) 6M(2) 7M Size: 7M AWB 150 AUTO BQ# TM Go off

1. Use the Up/Down navigation buttons to select a resolution.

2. Press the 📁 button to confirm your setting.

3. The number of available shots is displayed on the screen.

The bigger the number of recorded pixels is, the better the image quality becomes. As the number of recorded pixels becomes smaller, you will be able to record more frames on a memory card.

Please refer to page 32 for a list of image sizes that are available to the various GE digital camera models.

Color

The color setting allows you to add artistic effects directly when taking shots. You can try different color tones to alter the mood of your pictures.

(The Color setting is only available when the camera is in the manual mode).

To set the image color, do the following:

1. Press the 📋 button to enter the Function menu.

2. Use the Left/Right navigation buttons to highlight the Color function.

GV GSE GBW OFF Color: Auto AWB ISO AUTO BQ: TM Off

1. Use Up/Down to select an option. The following options are available:

1. Press the func button to confirm your setting.

2. Size settings in shooting mode. (●: available)

File size (Pixels)	Model name :
	A950/A955Z	A1050/WM1050	A1150 A1	250 A1035	A1235 E125	5W J1050 J	1250
0.3M:640×480	●●●●	●●●●●
2M:1600×1200							●
3M:2048×1536	●●●●	●●●●●
5M:2560×1920	●●●●	●●●●●
7M(16:9):3456×1944	●●●●
8M:3264×2448	●●●●	●●●●
8M(3:2):3456×2304	●
8M(16:9):3842×2152			●
9M: 3456×2584	...
9M(3:2): 3648×2432		...
9M(16:9): 4000×2248				...
10M: 3648×2736		...
10M(3:2): 3824×2548			...
11M: 3824×2868			•
12M: 4000×3000				...

USING THE MODES

LCD Screen display

Still shooting mode display

Mode: M SCN ASCN 1 2345678 9 10 18 19 20 11 12 W 21 13 14 15 16 17

1. Shooting mode icon

   Auto Manual
   Panorama
   Scene

Auto Scene
Image Stabilization

1. Scene icon (only available for Scene mode)


Sport Children Indoor Leaf Snow Sunset Fireworks Glass Museum Landscape Night landscape Night portrait

1. Light metering method


[•] Spot AE [○] Center-Weight [○○] Ai AE

1. EV indicator

2. Self-timer indicator


Continuous shot

1. Macro mode indicator
2. Flash mode indicator

Auto flash

Red-eye reduction flash

Forced flash

Flash off

Slow Synchro

Red-Eye Reduction+Slow Synchro

1. Battery status
2. Face detection "on" indicator
3. Remaining number of photos that can be taken.
4. Focus frame
5. Zoom indicator
6. White balance (only available for Manual mode)

7. ISO (only available for 📄M Manual mode)

8. Image quality

9. Image size
10. Image color (only available for 📄M Manual mode)
11. Slow shutter warning indicator
12. Memory card/internal memory indicator
13. EV adjustment meter
14. Auto Scene mode icon

Video shooting mode display

Mode :

1 23:456 [+] 0.0 [ 02:46 ] IN T W 9 10 11:12

1. Shooting mode icon
2. Light metering method

Spot AE

Center-Weight

Ai AE

1. EV indicator
2. Self-timer indicator
3. Macro mode indicator
4. Battery status
5. Movie recording "on" indicator
6. Remaining time for videos that can be taken.
7. Focus frame
8. Zoom indicator
9. Video resolution
10. Video quality
11. Memory card/built-in memory indicator

For best movie results, the use of SD cards is recommended. Movie recordings using internal memory are subject to quality degradations.

While movie recording is in progress, optical zoom will stay fixed, but up to 1.5X digital zoom will remain available.

Playback mode display

Mode:

12345678 100-0002 F2.8 1/125 +2.0 AUTC 58 [100/0/1009] 11 12 13 14 15 16 18 19 06/10/29 10:25

1. Playback mode icon
2. DPOF file icon
3. File protection icon
4. Audio file icon
5. Video file icon
6. Memory card/internal memory indicator
7. Picture ID
8. Battery status
9. Photo audio status

(Press the shutter button to record sound)

(Press the shutter button to play sound)

1. Recording date and time
2. Histogram

3. Aperture value

4. Shutter speed

5. Exposure value
6. Memory capacity (current picture/total picture number)
   16.ISO value
7. WB
8. Image size

Auto Scene mode (ASCN)

In the "ASCN" mode, different conditions are detected intelligently and the most suitable settings will be automatically selected. With "ASCN" you can always take good pictures.

Follow these steps to create a "ASCN":

1. Turn the mode dial to "ASCN", LCD display showing the following diagram.

Sunset over a mountainous landscape with silhouetted peaks and trees, no visible text or symbols

1. Hold the camera steady and aim at the subject. At this time, an appropriate mode will be selected to suit the lighting conditions of the scene you are photographing.
2. Press the shutter button halfway down to focus.
3. Press the shutter button all the way down to take the picture.

Icon	Mode name Icon	Mode name
	Landscape Mode		Night Landscape Mode
	Portrait mode Macro Mode
	Night Portrait Auto Mode
	Backlit Portrait

In the "ASCN" mode, different conditions are detected intelligently and the most suitable settings will be automatically selected.

Landscape Mode

For landscapes, ASCN will automatically adjust the exposure to match the background.

Portrait mode

For portraits, ASCN will automatically adjust the exposure and skin tones to give clear pictures.

Night Portrait

When you shoot portraits at night, or in low light conditions, ASCN will automatically adjust the exposure for people and night scenes.

Backlit Portrait

When the sun or any other light source is behind you, ASCN will automatically adjust the foreground exposure to produce good pictures.

Night Landscape Mode

For night scenes, ASCN will automatically increase the ISO value to compensate for low light.

Macro Mode

To capture object detail for close-ups, ASCN will automatically adjust the focus.

Auto Mode

The camera automatically adjusts the exposure and focus to ensure good pictures.

Manual Scene mode (SCN)

In Manual Scene mode, you can select from a total of 12 scene types to match your needs. You just need to select the right scene for the occasion and the camera will automatically adjust to the optimal settings for you.

To enter the scene mode, turn the mode dial to Manual Scene mode. The scene mode palette appears.

Sport For fast-moving subjects. Bring lively pictures back to life.

Use Up/Down/Left/Right to select a scene, and press the button.

Sport

For shooting fast-moving objects. Bring lively pictures to life.

Children

Suitable for photographing children and pets. The flash shuts off automatically in order not to disturb the subject being photographed.

Indoor

For shooting people indoors. Clearly show background and atmosphere.

Leaf

For shooting plants. Vivid reproduction of green.

Snow

Suitable for snowy landscape. Camera automatically adjusts and corrects exposure value (EV).

Sunset

For shooting sunsets. Vivid reproduction of red and yellow.

Fireworks

For shooting at night and fireworks. Shutterspeed is slower than normal.(Use of tripod is recommended)

Glass

Suitable for photographing objects behind glass or window.

Museum

For shooting in museums or places where flash is not allowed.

Landscape

For shooting landscapes. Vivid reproduction of green and blue.

Night landscape

For shooting night scenes. Use of tripod is recommended.

Night portrait

For shooting portraits with night scenes as background.

Returning to the Scene selection menu

Scene mode select AWB 15% BQ$ 7M SCENE

1. In Scene mode, press the button to activate the main function menu.
2. Select the "SCENE" menu option and then press the button to return to the to Scene selection menu.

The main function menu also allows you configure image quality and image size. Please refer to the "Advanced Functions Menu" section on page 27 for detailed instructions.

Panorama mode allows you to create a panoramic picture. The camera will automatically compose a panoramic picture using the individual shots that you take.

Follow these steps to create a panoramic picture:

1. Turn the mode dial to the Panorama Stitching Mode. Then enter the Still menu to Select either Auto Stitching or Manual Stitching (Please refer to Page 55 to enter the Still menu.)

Photo Setup 1 Expo Metering Quick Review Panorama Auto Manual Select Back OKSet

1. Set the mode dial to Panorama mode ( )

2. Use the Left/Right buttons to specify the direction of picture taking, and then in 2 seconds the panoramic sequence will commence automatically.

3. Compose your first view on the LCD screen and press the shutter button.
4. Use "Stitching Mode" selected from the Menu.

When Using Auto Stitching:

After the first shot is taken, the camera will make a calculation and two icons will appear on the LDC screen. Once they appear, move the camera and the circle icon on the screen will move with the scenery until it reaches the square frame icon. When circle icon and square frame become green, the camera will take pictures automatically and finish the stitching.

River scene with buildings and greenery, no visible text or symbols

Cityscape with river, bridge, and green sculpture in background (no visible text or symbols)

When Using Manual Stitching:

After the first shot is taken, the semi-transparent image of the first shot will appear at the edge of the screen. You can use this image to compose your picture before you press the shutter button to finish manual stitching.

Scenic view of a lakeside town with buildings and greenery, no visible text or symbols

Exterior view of a modern building complex beside a calm lake, with no visible text or signage.

1. The camera will then stitch the pictures into a panorama automatically.
2. Turn the mode dial to playback mode to view the panoramic picture.

While in panorama mode, press the button to save images and exit panorama shooting. Press the button to discard images and exit.

Flash mode, self-timer, macro mode, and exposure compensation cannot be adjusted after the first picture is taken.

Pictures cannot be deleted, nor the zoom adjusted until the series is finalized.

Image Stabilization mode

The Image Stabilization mode combats the effect of hand shake and allows you to take pictures that would otherwise be blurred.

Two colorful parrots perched on a bench, viewed through a photo editing interface (no text or symbols on the birds themselves)

1. Switch the mode dial to (
2. Press Shutter halfway to focus on the subject.
3. Press Shutter fully to capture the image.

The stabilizer function is used for less blur picture caused by hand shake under a dark environment, the camera would increase the ISO level under the mode to have a higher shutter speed.

This function may not help to take a clear picture of a fast moving target, such as a car passing by, etc.

This function may not help to stabilize photos if you are in a moving vehicle (car, boat, etc.). It is best used when taking normal shots.

Increasing the ISO level may cause heavier noise on the photo.

Use of a tripod is always best to get the clearest picture.

Face Detection

The Face Detection mode will detect faces of persons in a photo so that the faces will be as clear as possible.

1. While in photography mode, press the Ⓞ button to activate Face Detection. The indicator appears on the LCD.
2. Hold the camera securely, and point the camera towards the subject to start the face detection process. When the camera detects a face, a white rectangular frame will be drawn around the face. (Note: For best results, the face of the subject should be relatively large on the LCD screen, and the subject should be facing the camera as front on as possible.)
3. Press Shutter halfway to focus on the subject.
4. Press Shutter fully to capture the image.
5. Press the ⏻ button again to deactivate face detection.

M. [ 2099] IN T W 158 BQ* 0.3M

M [ 2099] IN T W 158 B0* 0.3M

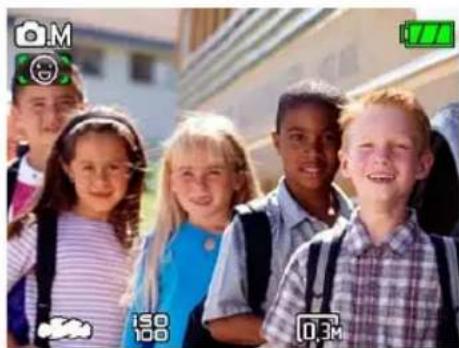

Smile Detection

With the camera's new "smile detection" feature, which automatically detects and captures a person smiling, you'll never miss a smile.

1. While in shooting mode, press the Ⓞ button repeatedly until 📋 appears on the LCD. This icon indicates that the camera is in Smile Detection mode.
2. Point the camera at the subject until the subject's face is detected and bracketed by a square box. Press the shutter button all the way down and release the shutter button. The camera will now 'wait' for the subject to smile.
3. When the subject smiles, the camera will automatically release the shutter and capture the photo.
4. To disable the automatic shutter release, press the shutter again

Note:

• A face must be detected by the camera in order for smile detection to function correctly.
• For optimal detection results, the subject should be framed to occupy most of the screen space.

Group of smiling children outdoors, with a yellow smiley face graphic overlay (no readable text or symbols)

Group photo of smiling children outdoors, no visible text or symbols on the subjects or background

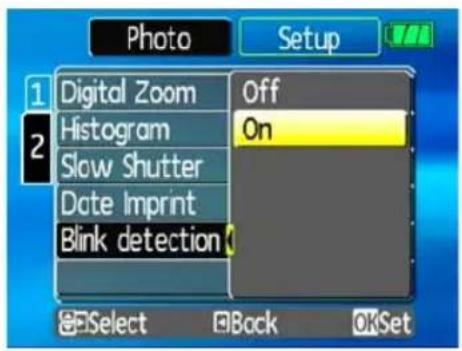

Blink Detection

The Blink Detection feature is on by default, and after taking each photo, a warning message will pop up if a blink had been detected in the photo.

1. In photography modes, press the button the Photo menu.
2. Use the Up/Down navigation buttons to select "Blink detection" setting.
3. Use the Right navigation buttons to enter the submenu, and select "On" option.
4. Press the button 📄 to confirm the setting and exit the menu.
5. The "Blink detection" indicator appears on the LCD.
6. Press the shutter button fully to capture the image, if someone's eyes blink, the camera will automatically show blink detection warning message.

Note:

- For optimal results, the subject should be framed to occupy most of the screen space.

Group photo of five smiling children outdoors, no visible text or symbols

Blink detection

PLAYBACK

Viewing photos and videos

To view the captured photos and video clips on the LCD screen:

1. Turn your camera to Playback mode. The last recorded photo or video clip is displayed.
2. Use the Left/Right navigation buttons to scroll through the photos or video clips stored in the internal memory or memory card.
3. To play a selected video clip, press the 📄 button to enter the movie playback mode.
4. Use the Left/Right navigation buttons to select a program button and press the button to confirm the selection. The function of each button is described in the following.

[ 01'46"] Exit 1284567

1 Exit 5 Previous frame
2 Play 6 Next frame
3 Slow motion 7 Edit Movie
4 First frame

During the video playback, an operation guide appears on the screen. You can use the navigation pad to perform the functions accordingly.

Desert landscape at sunset with mountain peaks and a blue circular overlay showing 20° measurement (no readable text or symbols)

During the video playback, you can use the Up/Down navigation buttons to adjust the volume of playback.

During the slow motion playback, you can use the Left/Right navigation buttons to adjust the speed of playback.

Desert landscape at sunset with mountain silhouettes and a play button overlay (no readable text or symbols)

Volume will be muted when using the slow motion playback.

Editing video

Press the Edit program button to enter the following screen and use the buttons on the left side to edit the playback. Use the Up/Down navigation buttons to select a button.

/1st 2nd Cut Beginning Adjust OKSet

1. Select the button and use the Left/Right navigation buttons to specify the new beginning of the playback.

2. Select the 🎩2nd button and use the Left/Right navigation buttons to specify the new end of the playback.

3. To save the file, select the button and press the button.

4. Use the Up/Down navigation buttons to select an option.

Save current movie file? New File Back

- New file: Save as a new file. - Back: Do not save the file and return to the Edit screen.

1. Press the 🔊 button to confirm your setting.

To exit the Edit screen, select the button and press the button.

Edited video must be at least 1 second long.

With sufficient battery and at least 1GB available memory, up to 30 minutes of footage can be recorded per movie.

Thumbnail view

When in Playback mode, press down the Zoom button at the Wide position ( ) to display the thumbnail of photos and video clips on the screen.

1. Use the Zoom button to switch between the 2x2, 3x3, and 4x4 thumbnail display.
2. Use Up/Down/Left/Right to select a photo or video clip to view.

If the indicator appears on the LCD, then a movie file is currently being displayed.

Press the button to restore a preview icon to its original image size.

Using zoom playback (for still pictures only)

The zoom scroll wheel can also be used during playback. This allows you to magnify photos up to 8X.

1. Turn your camera to Playback mode.
2. Use the Left/Right navigation buttons to select a photo to magnify.

3. Move the zoom scroll wheel to the Tele position ( ) once.

4. Use the zoom scroll wheel to zoom in and out. The zoom indicator and pan box appear on the screen.

Mountain landscape at sunset with a camera icon and playback controls (no readable text or symbols on the landscape itself)

1. Use the navigation buttons to pan across the image.
2. Press the 📋 button to return the image to its original scale.

Movie images cannot be enlarged.

Using the Delete button

The camera is equipped with a quick Delete button for you to delete photos or videoclips without entering the Playback menu.

To delete a photo or video:

1. Turn your camera to Playback mode.
2. Use the navigation buttons to select the photo/video clip you want to delete.
3. Press the ⏻ button. The Delete screen appears.

Delete? Yes No Select OKSet

1. Press the Up/Down navigation buttons to select Yes or No. Then press the button to confirm.

Erased photos/video clips cannot be recovered.

Please refer to page 64 for instructions on the delete menu options.

The indicator appears if the picture has a sound file attached. You can choose to delete the attached sound file alone or to delete both the picture and the sound file.

USING THE MENUS

Still menu

Mode: M SCN ASCN

In still shooting modes, press the button to enter the Still menu.

Photo Setup 1 AF Mode ▶ Single-AF 2 AF Assist Beam On Expo Metering ▶ AiAE Cont. Shot ▶ Unlimited Grid ▶ Off Quick Review ▶ 1 sec Select MENUExit

To configure the settings:

1. In the Still menu, press the Up/Down button to switch between the page numbers of the function menu, and press the Right button to enter the function menu option.

2. Switch between various functions with the Up/Down button.

3. Press the Right button to enter the sub-menu.
4. Select an option with the Up/Down navigational button.
5. Press the function button to confirm the setting and exit the menu.

Refer to the following sections for more detailed information on each setting.

Photo Setup 1 AF Mode Single-AF AF Assist Beam Multi-AF 2 Expo Metering Cont. Shot Grid Quick Review Select Back OKSet

AF mode (Auto-Focus mode)

Use this setting to control the auto-focus mechanism while taking pictures.

Photo Setup 1 AF Mode Single-AF AF Assist Beam Multi-AF 2 Expo Metering Cont. Shot Grid Quick Review Select Back OKSet

Two options are available:

• Single-AF: The focus frame appears on the center of the LCD screen to focus on the subject.
• Multi-AF: The camera automatically focuses the subject in a wide area to find the focus point.

AF-assist beam

Use this setting to aid focus in dark conditions. Select On to turn on the AF assist beam, or Off to disable the function.

Photo Setup 1 AF Mode Off AF Assist Beam On 2 Expo Metering Cont. Shot Grid Quick Review Select Back OKSet

Expo Metering (Exposure Metering)

Use this setting to select an area for the exposure to be obtained.

Photo Setup 1 AF Mode Spot AF Assist Beam Center - Weight 2 Expo Metering AiAE Cont. Shot Grid Quick Review Select Back OKSet

Three options are available:

• Spot
• Center-Weight
  • AiAE (Artificial Intelligence AE)

Cont. Shot (Continuous shot)

Use this setting to perform continuous shooting. Once in this mode, you must continuously hold the shutter button to use this function.

Photo Setup 1 AF Mode AF Assist Beam 2 Expo Metering Cont. Shot Grid Quick Review Unlimited 3 Shots 3 Shots (Last) Time-Lapse Select Back OKSet

Four options are available:

• Off: Capture a single shot only.
  • 3 shot: Capture up to 3 consecutive pictures.
• 3 shots (Last): Capture pictures continuously until the shutter button is released but only the last 3 shots are recorded.
• Time-Lapse: Automatically capture pictures in at predefined intervals.

The flash is designed not to work in this mode in order to enable quick succession of shots.

To activate this mode, the camera must have the self-timer for multiple shots already turned on (as described on page 25)

Grid

Use this setting to turn on or off the framing grids when taking photos. This may help you position the subject in your composition.

Photo Setup 1 AF Mode Off AF Assist Beam On 2 Expo Metering Cont. Shot Grid Quick Review Select Back OKSet

Quick Review

This setting refers to the quick photo review immediately after taking a picture. The picture stays on the LCD screen for an adjustable period of time.

Photo Setup 1 AF Mode Off AF Assist Beam 1 sec 2 Expo Metering 2 sec Cont. Shot 3 sec Grid Quick Review Select Back OKSet

Four options are available:

• Off
• 1 sec
• 2 sec
• 3 sec

Digital Zoom

Use this setting to enable or disable the digital zoom function. When disabled, only the optical zoom is enabled.

Photo Setup 1 Digital Zoom Off 2 Histogram On Slow Shutter Date Imprint Blink detection Select Back OKSet

Digital Zoom indicator

• Off: gray color.
• On: reddish color.

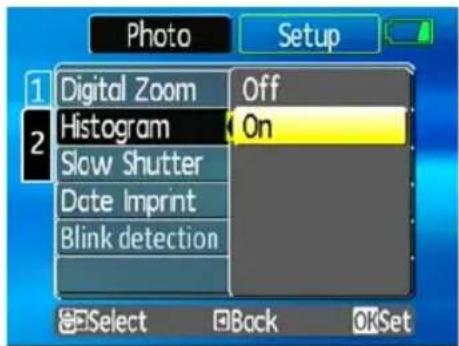

Histogram

The histogram is used for checking the exposure while taking pictures. Use this setting to enable or disable the histogram display on the LCD screen.

Photo Setup 1 Digital Zoom Off 2 Histogram On Slow Shutter Date Imprint Blink detection Select Back OKSet

• Off
  • On

Slow Shutter

In Slow shutter mode, the shutter will remain open as long as the shutter button is pressed. This gives you complete control over the duration of exposure. (The slow shutter mode is available only in 📄ual mode.

Photo Setup 1 Digital Zoom Off Histogram Manual 2 Slow Shutter Date Imprint Blink detection Select Back OKSet

- Manual: To set a long exposure time between 2\~30 sec.

The use of tripod is recommended for prolonged exposure.

Blink Detection

The Blink Detection feature is on by default, and after taking each photo, a warning message will pop up if a blink had been detected in the photo.

Photo Setup 1 Digital Zoom Off 2 Histogram On Slow Shutter Date Imprint Blink detection Select Back OKSet

- Off:

• On

Date Imprint

Include a date/time stamp in the photo image.

2018/10/05-06:47:07

• Off:
• Date
• Date and time

Movie menu

Mode :

In movie shooting mode, press the button to enter the Movie menu.

Movie Setup Expo Metering AiAE Select VENExit

To configure the settings:

1. In the Short Movie Shot menu, press the Up/Down button to switch between the page numbers of the function menu, and press the Right button to enter the function menu option.

2. Switch between various functions with the Up/Down button.

3. Press the Right button to enter the sub-menu.
4. Press the button to confirm the setting and exit the menu.

Refer to the following sections for more detailed information on each setting.

Expo Metering (Exposure Metering)

Set metering mode for various lighting conditions.

Movie Setup Expo Metering Spot AE Center-Weight AiAE Select Back OKSet

Three options are available:

• Spot AE
• Center-Weight
  • AiAE (Artificial Intelligence AE)

Playback menu

Mode :

In playback mode, press the button to enter the Playback menu.

Playback Setup 1 Protect > One Delete ▼ One DPOF ▼ One Info. Box ▼ Off Trim Resize 2 Select MENUExit

Please refer to the following sections for detailed instructions on the various menu options.

Protect

To prevent pictures or videos being erased accidentally, you can use this setting to lock one or all files.

Playback Setup 1 Protect One Delete All 2 DPOF Reset Info. Box Trim Resize Select Back

To protect/unprotect a picture or video:

1. Switch to playback mode using the mode dial. Use the Left/Right buttons to locate and display the photo or movie that you want to protect.

2. Select the Protect setting from the Playback menu as described previously.

3. Use the Up/Down navigation buttons to select One to protect this picture/video, or select All to protect all pictures/videos in the internal memory or memory card. Then press the Right navigation button.

4. Use the 📄 button to select Yes to lock the displayed picture/video or Unlock to unlock it, and use the Up/Down navigation buttons to select Back to return to the Playback menu.
5. A key ( Ⓞ ) icon will appear on the top of the screen to indicate that the picture/video is protected.
6. Select reset to cancel protection for all files that have been placed in the protected mode.

Delete

There are three ways to delete files: (please note that a file cannot be recovered once it is deleted.)

Playback Setup 1 Protect One Delete All 2 DPOF Info. Box Trim Resize Select Back

• Delete One:

• On the Delete menu, select Delete One and then press the Right button.

• Using the Left/Right buttons, locate the photo or movie file to be deleted. Select Yes (to delete file) or No (to return to the previous menu) using the Up/Down buttons, then press the button to confirm.

- Delete All:

1. On the Delete menu, select Delete All and then press the Right button.
2. Using the Left/Right buttons, select Yes (to delete all files) or No (to cancel and return to the previous menu).

The "Indicator means a file is protected. File protection must be removed first before a file can be deleted.

Deleting files will cause DPOF settings to be reset.

DPOF (Digital Print Order Format)

DPOF allows you to record your selection of pictures that you would like to print, and will save your selection in the memory card, so that you can simply hand your memory card to a photo kiosk without having to tell them in person which photos you would like to print.

Playback Setup 1 Protect One Delete All 2 DPOF Reset Info. Box Trim Resize Select Back

Info. Box (Information Box)

Use this setting to enable or disable the text display for taking pictures. The following information will be displayed on the screen: histogram display, aperture value, shutter speed, exposure value, image size, image quality, and ISO value. (Please refer to page 37 for information on the menu options shown.

Playback Setup 1 Protect Delete DPOF Info. Box Trim Resize Off On Select Back OKSet

Trim

The trim setting allows you select an area of the photo you want to keep and then save it as a new photo.

To trim a picture:

1. Select the Trim setting from the Playback menu.
2. Using the Left/Right buttons, locate the photo that you want to crop and have it displayed on the LCD.
3. Use the zoom scroll wheel and navigation buttons to adjust the trimming box to fit the location and size of the new picture.

Sunset landscape with silhouetted mountains and distant hills, captured via camera menu interface (no text or symbols on main image)

1. Press the Shutter button to save what you see on the LCD screen as a new picture, or the button to cancel and return to the Playback menu.

Resize

This setting allows you to resize a picture to a specified resolution, and saves it as a new picture.

1. Select the Resize setting from the Playback menu as described previously.

Resize 1024X768 640X480 Back Select OKSet

1. Use the Left/Right navigation buttons to select a picture to resize.

2. Use the Up/Down navigation buttons to select a resolution (1024X768 or 640X480) to resize the image or back to cancel and return to the Playback menu.

3. Press the 🔊 button to confirm the setting.

Resizing an image creates a new file that contains the image in the size you select. The file with the original image also remains in memory.

If the message "The image cannot be edited." appears, it means that the current image cannot be resized.

Rotate

You can use this setting to change the picture orientation of the picture.

1. Select the Rotate setting from the Playback menu as described previously.

2. Use the Left/Right navigation buttons to select a picture to rotate.

3. Use the Up/Down navigation buttons to select the direction for rotation or Back to cancel and return to the Playback menu.

Rotate Back Select OKSet

1. Press the button to confirm the setting.

The rotated image will be saved as a new file, and the original image will remain intact in memory.

Slide show

This setting allows you to view all the stored pictures as a slideshow.

1. Select the Slide show setting from the Playback menu.

2. Use the Up/Down navigation buttons to select Effect, Interval time, or Repeat and use the Left/Right navigation buttons to adjust the setting.

Slideshow B Start Cancel Effect Off Time Interval 1 sec Repeat Off Select OKSet

1. Use the Up/Down navigation buttons to select Start to run the slideshow or Cancel to return to the Playback menu.

2. Press the 🔊 button to confirm the setting.

Red-eye removal

Use this setting to remove red-eye effect in your photos.

1. Select the Red-eye removal setting from the Playback menu as described previously.
2. Use the Left/Right navigation buttons to select the image for which red-eye will be removed.
3. Use the Up/Down navigation buttons to select Yes to fix the selected image or back to cancel and return to the Playback menu.

Red-eye Removal Yes No Select OKSet

1. Press the button to confirm the setting.

For best results, the face of the subject should be relatively large on the LCD screen, the subject should be facing the camera as front on as possible, and the red eyes should be as large as possible.

Setup menu

Mode: M

The Setup menu is available in all modes. Press the button in any modes, then use the navigation buttons to select the Setup menu.

Playback Setup Format Memory Beep LCD Brightness Power Saver Date / Time World Time Select MENU Exit

To configure the settings:

1. In the Setting menu, press the Up/Down button to switch between the page numbers of the function menu, and press the Right button to enter the Setting menu option.

2. Switch between various functions with the Up/Down button.

3. Press the Right button to enter the sub-menu.

Refer to the following sections for more detailed information on each setting.

Format Memory

Please note: formatting enables you to delete all contents in the memory card and built-in memory, including protected photo and movie files.

To use this setting:

1. Select the Format Memory setting from the Setup menu as described previously.
2. Use the Left/Right navigation buttons to select Yes or No, and press the button to confirm.

Format Memory WARNING: ALL FILES WILL BE DELETED! Yes No Select OKSet

1. The current media is formatted.

Beep

Use this setting to adjust the volume of beep when buttons are pressed and change the tones for shutter, buttons, self-timer, and power-on/power-off.

To change this setting:

1. Select the Beep setting from the Setup menu as described previously.
2. Use the Up/Down navigation buttons to switch between volume, shutter tone, key tone, self-timer tone, and power tone fields.

Beep Volume Level 2 Shutter Tone Tone 1 Key Tone Tone 1 Self-timer Tone Tone 1 Power Tone Tone 1 Select OKSet

1. Use the Left/Right navigation buttons to adjust the volume and change each tone style. Then press the function button to confirm.

LCD Brightness

Use this setting to adjust the brightness of your LCD screen.

1. Select the LCD Brightness setting from the Setup menu as described previously.
2. Use the Up/Down buttons to select to Auto or Manual brightness adjustment, and then press to confirm your election.

LCD Brightness Adjust LCD screen brightness Auto Manual Select OKSet

1. For manual adjustment, use the Left/Right buttons to adjust the brightness.

Power Saver

This setting allows you to save power and get the maximum possible running time for your battery. Follow the steps below to turn off the LCD screen and camera automatically after a period of inactivity.

1. Select the Power Save setting from the Setup menu as described previously.
2. Use the Up/Down navigation buttons to switch between LCD power and Camera power fields.

Power Saver Set idle timer for LCD power-off LCD Off 30 sec Camera Off 3 min Select OKSet

1. Use the Left/Right navigation buttons to specify the idle period before automatic power-off. The level bars correspond to the following idle periods.

2. LCD off:
   30 seconds, 1 minute, 2 minutes, and Always on.

3. Camera off:
   3 minutes, 5 minutes, 10 minutes, and Always on.

4. Press the 📂 button to confirm.

Date/Time

See "Setting the Date and Time" section on page 21.

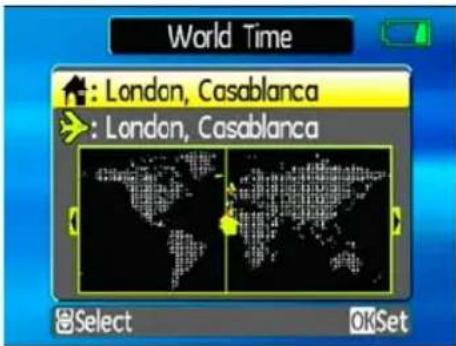

World time

The world time setting is a useful function on your overseas trips. This feature enables you to display the local time on the LCD screen while you are overseas.

1. Select the World time setting from the Setup menu as described previously. The world time screen appears.
2. Use the Up/Down navigation buttons to switch between the hometown ( ) and travel destination ( ) fields.
3. Use the Left/Right navigation buttons to select a city close to the desired time zone. Then press the function button to confirm.

World Time : London, Casablanca : London, Casablanca Select OKSet

File Numbering

After capturing photos or videos, the camera will automatically save the file with a numeric suffix.

File Numbering Create new folder and reset file numbers? Continue Reset Select OKSet

Select this setting:	Serial number is derived and assigned to a new file as follows:
Continue	whether the number should continue on from the last photo you have taken
Reset	reset the counter to 1 and save files in a new folder in the memory card.

Language

See "Setting the Language" section on page 22.

Video system

Use this setting to determine your video system in the current area.

1. Select the Video system setting from the Setup menu as described previously.
2. Use the Up/Down navigation buttons to select NTSC or PAL. Then press the button to confirm.

The video output signal can be switched to NTSC or PAL to accommodate different regional standards. The appropriate setting will vary between regions.

NTSC : USA, Canada, Taiwan, Japan, etc.

PAL : Europe, Asia (excluding Taiwan), Oceania, etc.

Note : The TV output will not display properly if an incorrect video system is selected.

Video System Select video output standard NTSC PAL Select OKSet

Copy to Card (Copy internal memory to memory card)

Use this setting to copy the files stored in the internal memory to the memory card.

1. Select the Copy to memory card setting from the Setup menu as described previously.

2. Use the Up/Down navigation buttons to select Yes or No. Then press the button to confirm.

Copy to Card Copy all files in built-in memory to SD card Yes No Select OKSet

Reset Settings

Use this setting to restore the camera to its default settings.

1. Select the Reset setting from the Setup menu as described previously.
2. Use the Up/Down navigation buttons to select Yes or No. Then press the button to confirm.

Reset Settings Reset to default settings. Yes No Select OKSet

FW Ver. (Firmware version)

Use this setting to view the current camera firmware version.

1. Select the FW Ver. setting from the Setup menu as described previously.
2. If SD card contains a new version of firmware, please upgrade accordingly as necessary.

FW Update Current Ver: 07.11.23.JVC3 New Ver: 07.11.23.JV Update Firmware? Yes No Select OKSet

CONNECTIONS

Connecting to a PC

Use the USB cable and ArcSoft software (CD-ROM) supplied with your camera to copy (transfer) pictures to a computer.

Setting the USB mode

Since the camera's USB port can be set to connect with either a PC or a Printer, the following steps will allow you to ensure that the camera is correctly configured to connect with a PC.

1. Press the 📂 button and use the Up/Down navigation buttons to select USB Connect, and then press the Right navigation button.
2. Use the Up/Down navigation buttons to select PC.
3. Press the 📁 button to confirm the setting.

USB Mode PC PC (PTP) Printer Select OKSet

Transferring files to your PC

The computer will automatically detect the camera as a removable drive. Double-click My Computer icon on the desktop to locate the removable drive and to copy the folders and files in the drive to a directory on your PC as you would copy any typical folder or file.

By using the USB cable, you can transfer the captured photos and videos to a PC. Follow the steps below to connect the camera to a PC.

1. Start a computer to which ArcSoft software has been installed.
2. Make sure both the camera and PC are turned on.
3. Connect one end of the supplied USB cable to the USB/AV OUT port on your camera.
4. Connect the other end of the cable to an available USB port on your PC.

Diagram showing connection between a server unit and an attached device, with a magnified inset highlighting internal components (no text or symbols present)

1. Disconnect the camera once transfer is completed.

If the USB option is set to [PC]:

Turn the camera off and disconnect the USB cable.

If the USB option is set to [PC (PTP)]:

Remove the camera from the system as described below before turning the camera off and disconnecting the USB cable.

Windows XP Home Edition/XP Professional

Click the [Safely Remove Hardware] icon in the taskbar and select [Safely remove USB Mass Storage Device] from the menu displayed.

Safety Remove Hardware 10:00 AM

Windows 2000 Professional

Click the [Unplug or Eject Hardware] icon in the taskbar and select [Stop USB Mass Storage Device] from the menu displayed.

Unplug or Eject Hardware 10:00 AM

Macintosh

Drag the untitled icon to the Trash. ("Untitled")

Untitled

Connecting to a PictBridge compatible printer

PictBridge allows printing images from a memory card in a digital camera directly to a printer, regardless of brand. To find out if a printer is PictBridge compatible, simply

look for the PictBridge logo on the packaging or check the manual for specifications. With the PictBridge function on your camera, you can print the captured photos directly with a PictBridge compatible printer using the supplied USB cable, without the need for a PC.

Setting the USB mode

Since the camera's USB port can be set to connect with either a PC or a Printer, the following steps will allow you to ensure that the camera is correctly configured to connect with a Printer.

1. Press the 📋 button and use Up/Down to select USB Connect, and then press the Right navigation button.

2. Use Up/Down to select Printer.

3. Press the 📄 button to confirm the setting.

USB Mode PC PC (PTP) Printer Select OKSet

Every time the camera is powered off, the USB Mode will automatically revert back to PC mode.

Connecting the camera and printer.

1. Make sure both the camera and printer are turned on.
2. Connect one end of the supplied USB cable to the USB port on your camera.
3. Connect the other end of the cable to the USB port on the printer.

Technical line drawing of a device with attached cable and connector, showing internal components (no text or symbols)

If the camera is not connected to a PictBridge compatible printer, the following error message appears on the LCD screen.

Connect failed !!

The above error message would also appear if the USB mode were set incorrectly, in which case you should disconnect the USB cable, check the USB mode settings, ensure that the Printer is turned on, and then try connecting the USB cable again.

Using the PictBridge menu

After setting the USB mode to Printer, the PictBridge menu appears.

PictBridge Print with date Print without date Print index Print DPOF Exit

Use the Up/Down navigation buttons to select a menu item, and press the Right navigation button to enter. Refer to the following sections for more detailed information on each setting.

Print with date

If you have set the date and time of your camera, the date record would be saved with the photos you take. You can print the photos with date by following the steps below.

1. Select Print with date from the PictBridge menu. The following screen appears.

Beach scene with turquoise water, scattered islands, and a yellow measurement overlay (no readable text or symbols)

1. Use the Left/Right navigation buttons to scroll through the photos.

2. Use the Up/Down navigation buttons to select the number of prints for the current displayed photo.

3. Press the 📋 button and the following screen appears.

Print images with date? Yes No

1. Select Yes to confirm printing, or No to cancel. Then press the button.

Print without date

Use this setting to print the photos without dates on them.

1. Select Print without date from the PictBridge menu. The following screen appears.

Beach scene with turquoise water, waves, and distant islands under a blue sky (no text or symbols)

1. Use the Left/Right navigation buttons to scroll through the images.

2. Use the Up/Down navigation buttons to select the number of prints for the current displayed image.

3. Press the function button and the following screen appears.

Print images without date? Yes No

1. Select Yes to confirm printing, or No to cancel. Then press the button.

Print index

You can use this setting to print all indexes to show all the photos currently in your camera.

1. Select Print index from the PictBridge menu. The following screen appears.

Print index? Yes No

1. Select Yes to confirm the printing, or No to cancel. Then press the button.

Print DPOF (Digital Print Order Format)

To use DPOF printing, you must make the selection of photos for printing using the DPOF settings before hand. See "DPOF" section on page 65.

1. Select Print DPOF from the PictBridge menu. The following screen appears.

Print DPOF images? Yes No

1. Select Yes to confirm the printing, or No to cancel. Then press the button.

Exit

To exit the PictBridge menu, select Exit. The "Remove USB cable" message will be displayed.

Remove USB cable.

Disconnect the USB cable from the camera and printer.

APPENDICES

Specifications : A950/A955Z/A1050/WM1050/A1150/A1250

"Design and specifications are subject to change without notice."

Model name A950/A	955Z A1050/WM1050 A	1150 A1250
Effective Image Sensor Pixels	9.1 Megapixels 10.1 Megapixels 11.1 Megapixels		12.2 Megapixels
Image Sensor	9.4 Megapixels 1/2.33" CCD	10.4 Megapixels 1/2.33" CCD	11.4 Megapixels 1/2.33" CCD	12.4 Megapixels 1/2.3" CCD
Lens Focal Length F =	6.3mm (Wide) ~ 31.5mm (Tele)
35mm film equivalent	35mm (Wide) ~ 175mm (Tele)
Lens F number F3.0	(Wide) ~ F4.7 (Tele)
Lens Construction 9	elements in 7 groups
Optical Zoom 5X
Lens Focusing Range	Normal: (Wide) 60cm ~∞, (Tele) 80cm ~∞;Macro: (Wide) 5cm ~ 80cm, (Tele) 60cm ~∞
Anti-Handshake Electronic Image Stabilization
Digital Zoom 5.7X digital zoom (Combined Zoom: 28.5X)
Number of Recording Pixels : Still Image	9MP, 8MP(3:2), 8MP, 7MP(16:9), 5MP, 3MP, 0.3MP	10MP, 9MP(3:2), 9MP, 8MP, 7MP(16:9), 5MP, 3MP, 0.3MP	11MP, 10MP(3:2), 8MP(16:9), 8MP, 5MP, 3MP, 0.3MP	12MP, 10MP(3:2), 10MP, 9MP(16:9), 8MP, 5MP, 3MP, 0.3MP
Number of Re-cording Pixels : Movie	640x480pixels: 30fps/15fps, 320x240pixels: 30fps/15fps
Image Compression	Best, Fine, Normal
DCF, DPOF (Ver1.1) Support	Yes
File Format : Still Image	Exif 2.2 (JPEG)
File Format : Movie	Quick Time Motion JPEG, Audio: G.711 [Monaural]
File Format : Audio	WAVE [Monaural] (Max 60 seconds)
Model name A950/A	955Z A1050/WM1050 A1	150 A1250
Shooting Modes	Auto, Manual, ASCN, Image Stabilization, Movie, Scene (Sport, Children, Indoor, Leaf, Snow, Sunset, Fireworks, Glass, Museum, Landscape, Night Landscape, Night Portrait, Portrait), Panorama
Smile Detection Yes
Blink Detection Yes
Face-Detection Yes
Red-eye Removal Yes
Pan-Capture Panorama	Yes
LCD Display 2.5 inch	LTPS TFT color LCD (230,400 pixels)
ISO Sensitivity Auto	ISO 80/100/200/400/800/1600
AF Method Single AF, Multi-AF (TTL 9-point), Face-Detection, AF Assist Light (On/Off)
Light Metering Method	Artificial Intelligence AE (Ai AE), Center-weighted Average, Spot (Fixed to center of frame)
Exposure Control Method	ProgramAE (AE-lock available)
Model name A950/A955	Z A1050/WM1050 A1150	A1250
Exposure Compensation	±2 EV in 1/3 steps
Shutter Speed 4 ~ 1/2000	0 second (Manual 30 seconds)
Continuous Shooting Approx. 1.65 fps (Large/Fine mode) Approx. 1.39 fps (Large/Fine mode)
Playback Modes	Single Photo, Index (4/9/16 thumbnails), Slide Show, Movie (Slow-Motion possible), Zoom (Approx. 2X~8X), Audio , Histogram Display
White Balance Control	Auto (AWB), Daylight, Cloudy, Fluorescent, Fluorescent CWF, Incandescent, Manual
Internal Flash (Shooting Range)	Auto/Red-Eye Reduction/Forced Flash/No Flash/Slow Synchro/Red-Eye Reduction+Slow Synchro
	Gno. 5.3 (ISO 100)
	(Shooting Range): (Wide) : Approx. 0.3m~4.9m(Tele) : Approx. 0.3m~3.1m (ISO 800)
Model name A950/A955	Z A1050 A1150 A1250
Jacks USB2.0/AV-OUT (Integrated Proprietary Connector)
Recording Media	Internal Memory: 24MB
	SD Card/SDHC Card (Up to 8GB support)
Other Features PictBridge, Exif Print Support, Multi-language Support
Power 2 x AA Alkaline Battery, AA NiMH Battery [Not Included]
Shooting Capability(Battery Performance)	AA Alkaline Batteries: Approx. 130 shots(based on CIPA standards)		AA Alkaline Batteries: Approx. 120 shots(based on CIPA standards)
	AA NiMH Battery : Approx. 380 shots (CIPAStandards)		AA NiMH Battery : Approx. 360 shots (CIPAStandards)
OperationEnvironment	Temperature: 0~40°C, Humidity: 0~90%
Dimensions (W x H x D)	92.4mm x 61mm x (24.1 ~ 25.9)mm
Mass Approx. 130g (without the battery)

APPENDICES

Specifications : A1035/A1235

"Design and specifications are subject to change without notice."

Model name A1035 A1235
Effective Image Sensor Pixels	10.1 Megapixels 12.2 Megapixels
Image Sensor 10.4 Megapixels	1/2.33" CCD 12.4 Megapixels 1/2.3" CCD
Lens Focal Length F = 6.3mm (Wide) ~ 18.9mm (Tele)
35mm film equivalent 35mm (Wide) ~ 105mm (Tele)
Lens F number F3.0 (Wide) ~	F4.0 (Tele)
Lens Construction 9 elements in 7 groups
Optical Zoom 3X
Lens Focusing Range	Normal: (Wide) 60cm ~∞, (Tele) 80cm ~∞;Macro: (Wide) 5cm ~ 80cm, (Tele) 60cm ~∞
Anti-Handshake Electronic Image Stabilization
Digital Zoom 5.7X digital zoom (Combined Zoom: 17.1X)
Number of Recording Pixels : Still Image	10MP, 9MP(3:2), 9MP, 8MP, 7MP(16:9), 5MP, 3MP, 0.3MP	12MP, 10MP(3:2), 10MP, 9MP(16:9), 8MP, 5MP, 3MP, 0.3MP
Number of Re-cording Pixels :Movie	640x480pixels: 30fps/15fps,320x240pixels: 30fps/15fps
Image Compression Best, Fine, Normal
DCF, DPOF (Ver1.1) Support	Yes
File Format : Still Image Exif	2.2 (JPEG)
File Format : Movie Quick Time	Motion JPEG, Audio: G.711 [Monaural]
File Format : Audio WAVE [Monaural] (Max 60 seconds)
Shooting Modes	Auto, Manual, ASCN, Image Stabilization, Movie, Scene (Sport, Children, Indoor, Leaf, Snow, Sunset, Fireworks, Glass, Museum, Landscape, Night Landscape, Night Portrait, Portrait), Panorama
Smile Detection Yes
Blink Detection Yes
Face-Detection Yes
Red-eye Removal Yes
Pan-Capture Panorama Yes
LCD Display 2.5 inch LTPS TFT color LCD (230,400 pixels)
ISO Sensitivity Auto, ISO 80/100/200/400/800/1600
AF Method Single AF, Multi-AF (TTL 9-point), Face-Detection, AF Assist Light (On/Off)
Light Metering Method	Artificial Intelligence AE (Ai AE), Center-weighted Average, Spot (Fixed to center of frame)
Exposure Control Method ProgramAE (AE-lock available)
Exposure Compensation ±2	EV in 1/3 steps
Shutter Speed 4 ~ 1/2000 second (Manual 30 seconds)
Continuous Shooting Approx. 1.65 fps (Large/Fine mode) Approx. 1.39 fps		(Large/Fine mode)
Playback Modes	Single Photo, Index (4/9/16 thumbnails), Slide Show, Movie (Slow-Motion possible), Zoom( Approx. 2X~8X), Audio , Histogram Display
White Balance Control Auto (AWB), Daylight, Cloudy, Fluorescent, Fluorescent CWF, Incandescent, Manual
Internal Flash (Shooting Range)	Auto/Red-Eye Reduction/Forced Flash/No Flash/Slow Synchro/Red-Eye Reduction+Slow Synchro
	Gno. 5.3 (ISO 100)
	(Shooting Range): (Wide) : Approx. 0.3m~4.9m, (Tele) : Approx. 0.3m~3.1m (ISO 800)
Jacks USB2.0/AV-OUT (Integrated Proprietary Connector)
Recording Media	Internal Memory: 24MB
	SD Card/SDHC Card (Up to 8GB support)
Other Features PictBridge, Exif Print Support, Multi-language Support
Power 2 x AA Alkaline Battery, AA NiMH Battery [Not Included]
Shooting Capability (Battery Performance)	AA Alkaline Batteries: Approx. 130 shots (based on CIPA standards)	AA Alkaline Batteries: Approx. 120 shots (based on CIPA standards)
	AA NiMH Battery : Approx. 380 shots (CIPA Standards)	AA NiMH Battery : Approx. 360 shots (CIPA Standards)
Operation Environment Temperature: 0~40 °C, Humidity: 0~90%
Dimensions (W x H x D) 92.4 mm x 61mm x (24.1 ~ 25.9)mm
Mass Approx. 130g (without the battery)

APPENDICES

Specifications : E1255W

"Design and specifications are subject to change without notice."

Effective Image Sensor Pixels 12.2 Megapixels
Image Sensor 12.4 Megapixels [1/2.3" (CCD)]
Lens	Focal Length F = 5.2mm (Wide) ~ 26mm (Tele)
	35mm film equivalent 28mm (Wide) ~ 140mm (Tele)
	F number F3.3 (Wide) ~ F5.2 (Tele)
	Construction 9 elements in 8 groups
	Optical Zoom 5X
	Focusing Range	Normal: (Wide) 60cm ~∞, (Tele) 120cm ~∞;Macro: (Wide) 5cm ~ 80cm, (Tele) 120cm ~∞
Anti-Handshake Electronic Image Stabilization
Digital Zoom 4.5X digital zoom (Combined Zoom: 22.5X)
Number of Recording Pixels		Still Image 12MP, 10MP(3:2), 9MP(16:9), 8MP, 5MP, 3MP, 2MP, 0.3MP
		Movie 640x480pixels: 30fps/15fps, 320x240pixels: 30fps/15fps
Image Compression Best, Fine, Normal
DCF, DPOF (Ver1.1) Support Yes
File Format		Still Image Exif 2.2 (JPEG)
		Movie AVI (Image Compression: MPEG4, Audio: G.711 [Monaural])
		Audio WAVE [Monaural] (Max 60 seconds)
Shooting Modes
Smile Detection Yes
Blink Detection Yes
Face-Detection Yes
Red-eye Removal Yes
Pan-Capture Panorama Yes
LCD Display		3.0 inch (230,400 pixels) LTPS (low-temperature polycrystalline silicon) TFT color LCD
ISO Sensitivity Auto, ISO 64/100/200/400/800/1600
AF Method Single AF, Multi-AF (TTL 9-point),		AF Assist Light (On/Off)
Light Metering Method		Artificial Intelligence AE (Ai AE), Center-weighted Average, Spot (Fixed to center of frame)
Exposure Control Method ProgramAE (AE-lock available)
Exposure Compensation ±2 EV in 1/3 Step increments
Shutter Speed 4 ~ 1/2000 second (Manual 30 s)
Continuous Shooting Approx. 1.39 fps (Large/Fine mode)
Playback Modes		Single Photo, Index (4/9/16 thumbnails), Slide Show, Movie (Slow-Motion possible), Zoom (Approx. 2X~8X), Audio, Histogram Display
White Balance Control		Auto (AWB), Daylight, Cloudy, Fluorescent , Fluorescent CWF, Incandescent, Manual
Internal Flash (Shooting Range)		Auto/Red-Eye Reduction/Forced Flash/No Flash/Slow Synchro/Red-Eye Reduction+Slow Synchro
		Gno. 5.0 EV (ISO 100)
		Shooting Range Wide: Approx. 0.6m~3.2m / Tele: Approx. 1.2m ~ 2.0m (ISO 400)
Recording Media		Internal Memory: 20MB
		SD Card/SDHC Card (Up to 8GB support)
Other Features PictBridge, ExifPrint Support, Multi-language Support
Jacks USB2.0/AV-OUT (Integrated Proprietary Connector)
Power Rechargeable Lithium-ion Battery GB-10 (DS5370/D016), 3.7V 700mAh
Shooting Capability (Battery Performance)		Approx. 200 shots (based on CIPA standards)
Operation Environment Temperature: 0~40		^ , Humidity: 0~90%
Dimensions (W x H x D) 92mm x 58mm x (19.5 ~ 22.5)mm
Mass Approx. 145g (Body only)

APPENDICES

Specifications : J1050 / J1250

"Design and specifications are subject to change without notice."

Model name J1050 J1250
Effective Image Sensor Pixels 10.1 Megapixels 12.2 Megapixels
Image Sensor 10.4 Megapixels [1/2.33" (CCD)] 12.4 Megapixels [1/2.3" (CCD)]
Lens	Focal Length F = 6.3mm (Wide) ~ 31.5mm (Tele)
	35mm film equivalent 35mm (Wide) ~ 175mm (Tele)
	F number F3.0 (Wide) ~ F4.7 (Tele)
	Construction 9 elements in 7 groups
	Optical Zoom 5X
	Focusing Range	Normal: (Wide) 60cm ~∞, (Tele) 80cm ~∞;Macro: (Wide) 5cm ~ 80cm, (Tele) 60cm ~∞
Anti-Handshake Electronic Image Stabilization
Digital Zoom 5.7X digital zoom (Combined Zoom: 28.5X)
Number of Recording Pixels	Still Image	10MP, 9MP(3:2), 7MP(16:9), 5MP, 3MP, 0.3MP	12MP, 10MP(3:2), 10MP,9MP(16:9), 8MP, 5MP, 3MP, 0.3MP
	Movie 640x480pixels: 30fps/15fps, 320x240pixels: 30fps/15fps
Image Compression Best, Fine, Normal
DCF, DPOF (Ver1.1) Support Yes
File Format	Still Image Exif 2.2 (JPEG)
	Movie AVI (Image Compression: MPEG4, Audio: G.711 [Monaural])
	Audio WAVE [Monaural] (Max 60 seconds)
Shooting Modes		Auto, Manual, ASCN, Image Stabilization, Movie, Scene (Sport, Children, Indoor, Leaf, Snow, Sunset, Fireworks, Glass, Museum, Landscape, Night Landscape, Night Portrait), Panorama
Smile Detection Yes
Blink Detection Yes
Face-Detection Yes
Red-eye Removal Yes
Pan-Capture Panorama Yes
LCD Display		2.7 inch (230,400 pixels) LTPS (low-temperature polycrystalline silicon) TFT color LCD
ISO Sensitivity Auto, ISO 80/100/200/400/800/1600
AF Method Single AF, Multi-AF (TTL 9-point),		AF Assist Light (On/Off)
Light Metering Method		Artificial Intelligence AE (Ai AE), Center-weighted Average, Spot (Fixed to center of frame)
Exposure Control Method ProgramAE (AE-lock available)
Exposure Compensation ±2 EV in 1/3 Step increments
Shutter Speed 4 ~ 1/2000 second (Manual 30 s)
Continuous Shooting Approx. 1.65 fps (Large/Fine mode) Approx. 1.39 fps (Large/Fine mode)
Playback Modes		Single Photo, Index (4/9/16 thumbnails), Slide Show, Movie (Slow-Motion possible), Zoom (Approx. 2X~8X), Audio, Histogram Display
White Balance Control		Auto (AWB), Daylight, Cloudy, Fluorescent , Fluorescent CWF, Incandescent, Manual
Internal Flash (Shooting Range)		Auto/Red-Eye Reduction/Forced Flash/No Flash/Slow Synchro/Red-Eye Reduction+Slow Synchro
		Gno. 5.0 EV (ISO 100)
		Shooting Range Wide: Approx. 0.3m~4.7m / Tele: Approx. 0.3m ~ 3.0m (ISO 800)
Recording Media		Internal Memory: 24MB Internal Memory: 18MB
		SD Card/SDHC Card (Up to 8GB support)
Other Features PictBridge, Exif Print Support, Multi-language Support
Jacks USB2.0/AV-OUT (Integrated Proprietary Connector)
Power Rechargeable Lithium-ion Battery GB-10 (DS5370/D016), 3.7V 700mAh
Shooting Capability (Battery Performance)	Approx. 190 shots (based on CIPA standards)	Approx. 180 shots (based on CIPA standards)
Operation Environment Temperature: 0~40		^ , Humidity: 0~90%
Dimensions (W x H x D) 95.5mm x 60mm x (19.9 ~ 22.6)mm
Mass Approx. 130g (Body only)

Error messages

Messages Explanation
No card • The memory card is not inserted.
Card error • The memory card is not formatted.
Card full • The memory card is full and cannot store any new images.
Write protect • The memory card is write-protected.
Picture error • The picture is not captured correctly.• The picture is damaged.
No picture • There are no images in the memory card or in the internal memory.
Lens error • The lens is probably stuck and the camera will power off automatically.
System error • Unexpected error encountered.
No sound file • There are no audio files in the memory card or in the internal memory.
Image cannot be saved • The write protection switch in the memory card is set to the “LOCK” position.
Card is not formatted, format? • Confirm whether the memory card should be formatted.
This image cannot be deleted • The picture or video you are trying to delete is protected.
Cannot record movie • The write protection switch in the memory card is set to the “LOCK” position.
Sound file cannot be saved	• The write protection switch in the memory card is set to the “LOCK” position.
Warning!! Camera recording, please wait.	• No other actions allowed to perform during video/audio recording.
Warning!! Battery exhausted. • The battery is out of charge.
This file cannot be played back • The picture format cannot be recognized by the camera.
No connection • The camera is not connected to the printer correctly.
Print error • There is a problem with camera or printer.
Cannot print • Check that the printer is out of paper or out of ink.• Check if the printer has a paper jam.

Troubleshooting

Problem Possible causes Solution
Camera does not turn on. • The battery has run out.• The battery is not inserted correctly.	• Charge the battery or replace with a fully charged battery.• Re-insert the battery observing the correct polarity.
Camera turns off suddenly during operation.	• The battery has run out. • Charge the battery or replace with a fully charged battery.
The picture is blurred. • The lens is dirty.• [IMAGE]ears when taking pictures.	• Use a soft cloth to clean the lens on your camera• Use the Image Stabilization mode.
Images, video clips, and audio files cannot be saved.	• The memory card is full. • Replace the memory card with a new one.• Delete unwanted images.• Unlock the memory card.
No picture is taken when pressing the shutter button.	The memory card is full.No available space to store the files.The mode dial is in Playback mode.	Replace the memory card with a new one or clean off current memory card.Delete unwanted images.The memory card is locked.Turn the mode dial to any still shooting mode.
Images cannot print from the connected printer.	The camera is not connected to the printer correctly.The printer is not PictBridge compatible.The printer is out of paper or out of ink.The paper is jammed.	Check the connection between the camera and printer.Use a PictBridge compatible printer.Load some paper in the printer.Replace the ink cartridge in the printer.Remove the jammed paper.

http://www.ge.com/digitalcameras

Stylized black and white logo with a circular design, resembling a stylized 'G' or wave pattern (no text or symbols)
