USER MANUAL Mini 110-1190eo HP

HP Mini 1101 Notebook PC, HP Mini 110, and Compaq Mini 110

Maintenance and Service Guide

© Copyright 2009 Hewlett-Packard Development Company, L.P.

Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel and Atom are trademarks of Intel Corporation in the U.S. and other countries. Microsoft, Windows, and Windows Vista are U.S. registered trademarks of Microsoft Corporation. SD Logo is a trademark of its proprietor.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

First Edition: May 2009

Document Part Number: 537033-001

Safety warning notice

⚠ WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not place the device directly on your lap or obstruct the device air vents. Use the device only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The device and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).

Table of contents

1 Product description

2 External component identification

Top components 5

TouchPad 5

Light 6

Keys 7

Front components 9

Right-side components 11

Left-side components 12

Display components 13

Bottom components 14

Wireless antennas 15

3 Illustrated parts catalog

Service tag 16

Device major components 17

Display assembly components 21

Mass storage devices 23

Miscellaneous parts 24

Sequential part number listing 25

4 Removal and replacement procedures

Preliminary replacement requirements 29

Tools required 29

Service considerations 29

Plastic parts 29

Cables and connectors 29

Drive handling 30

Grounding guidelines 31

Electrostatic discharge damage 31

Packaging and transporting guidelines 32

Workstation guidelines 32

Equipment guidelines 33

Component replacement procedures 34

Service tag 34

Device feet 35

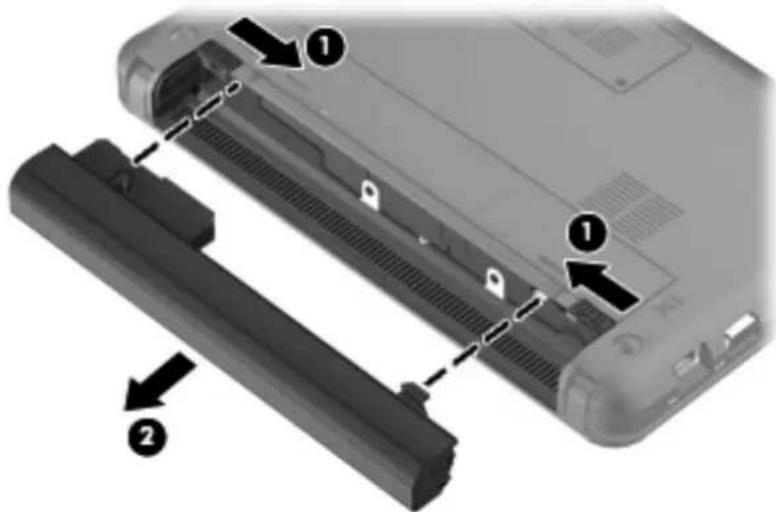

Battery 36

SIM 37

Memory module 38

Keyboard 40

RTC battery 44

Mass storage devices 45

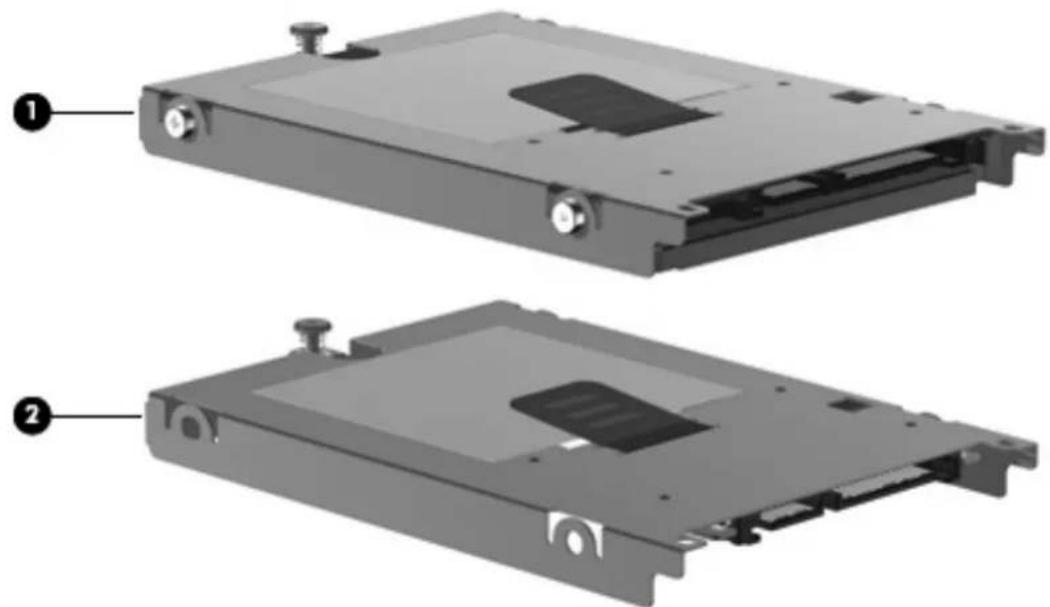

Hard drive 46

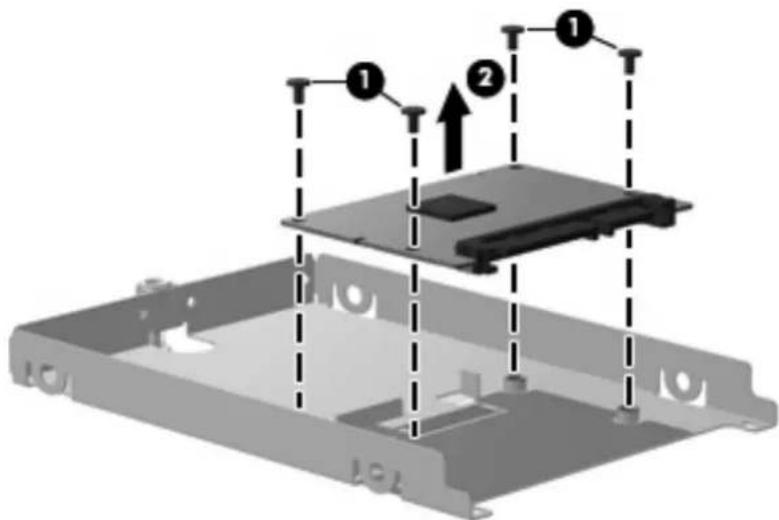

Solid-state drive 46

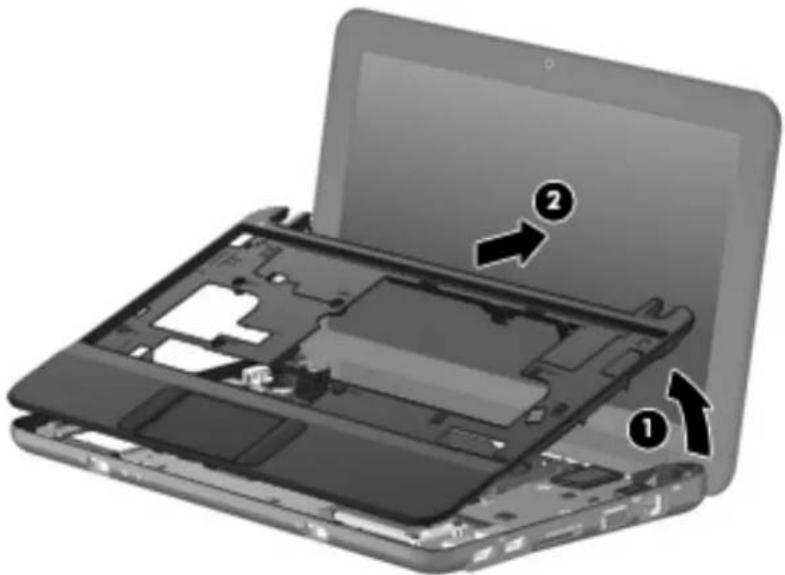

Top cover 48

WLAN module 51

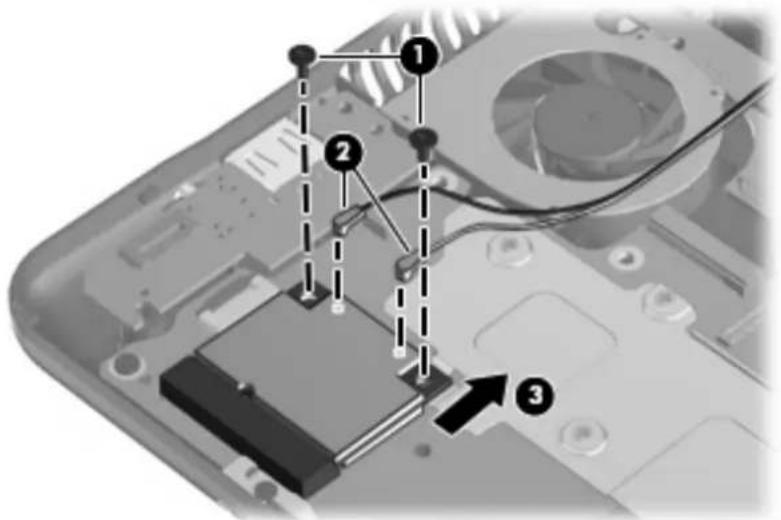

WWAN module 53

USB/audio board 55

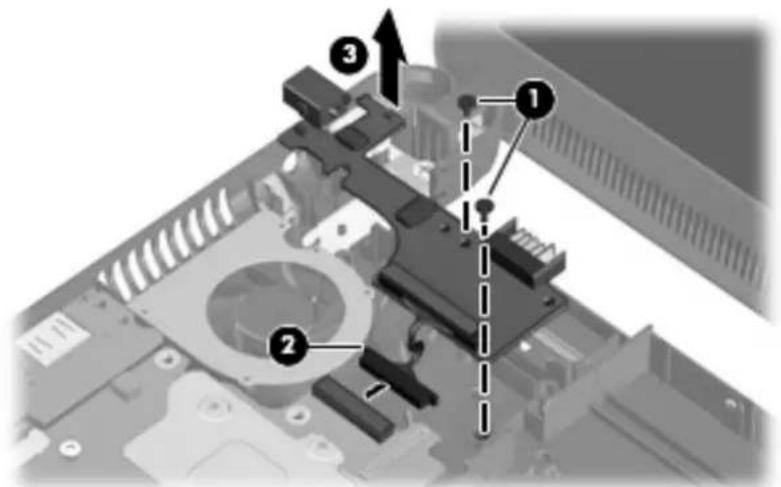

Power/battery pass-through board 56

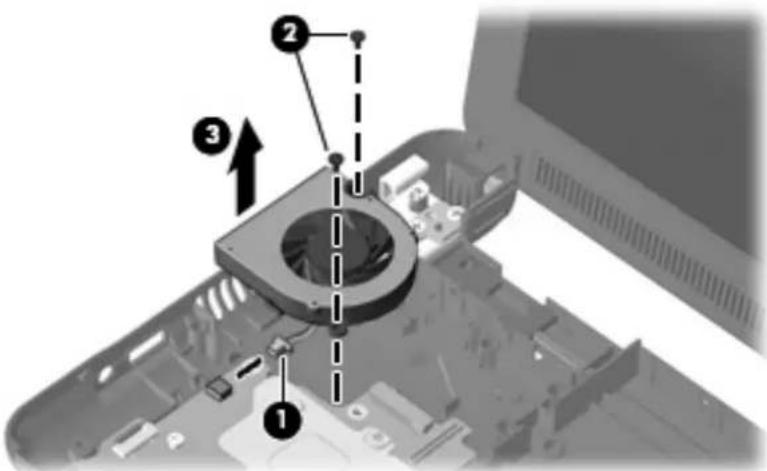

Fan 57

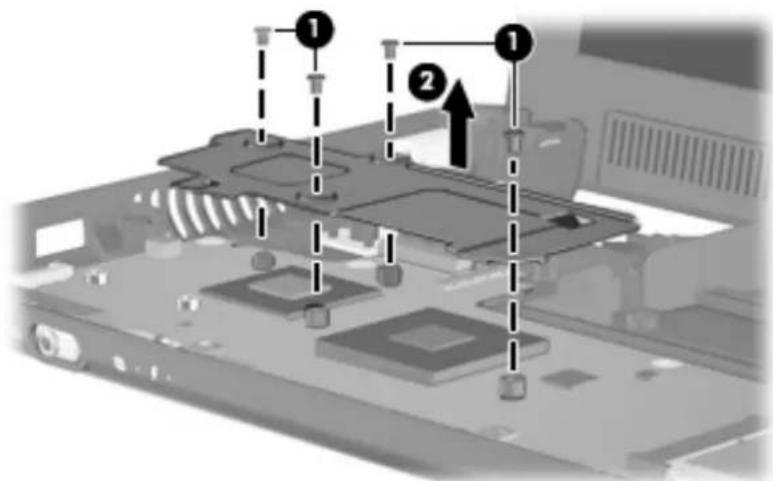

Heat sink assembly 59

System board 61

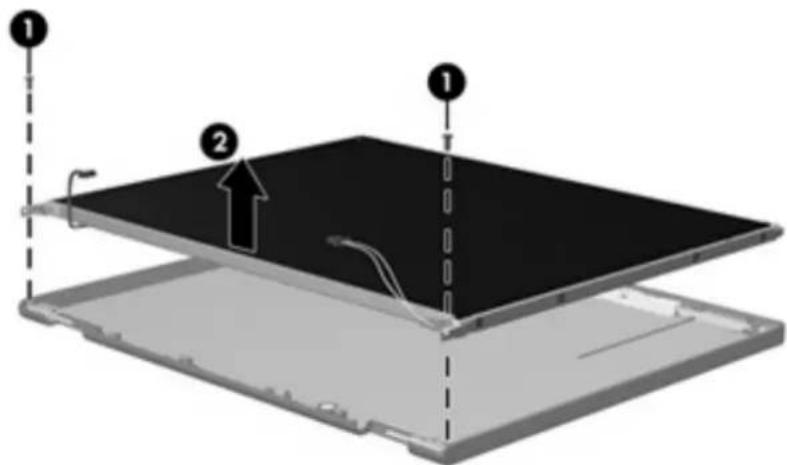

Display assembly 64

5 Setup Utility

Starting the Setup Utility 71

Using the Setup Utility 71

Changing the language of the Setup Utility 71

Navigating and selecting in the Setup Utility 71

Displaying system information 72

Restoring default settings in the Setup Utility 72

Exiting the Setup Utility 72

Setup Utility menus 73

Main menu 73

Security menu 73

System Configuration menu 73

Diagnostics menu 74

6 Specifications

Device specifications 75

10.1-inch, AntiGlare display specifications 76

Hard drive specifications 77

Solid-state drive specifications 78

System DMA specifications 79

System interrupt specifications 80

System I/O address specifications 81

System memory map specifications 83

7 Screw listing

Phillips PM1.5×1.0 screw 84

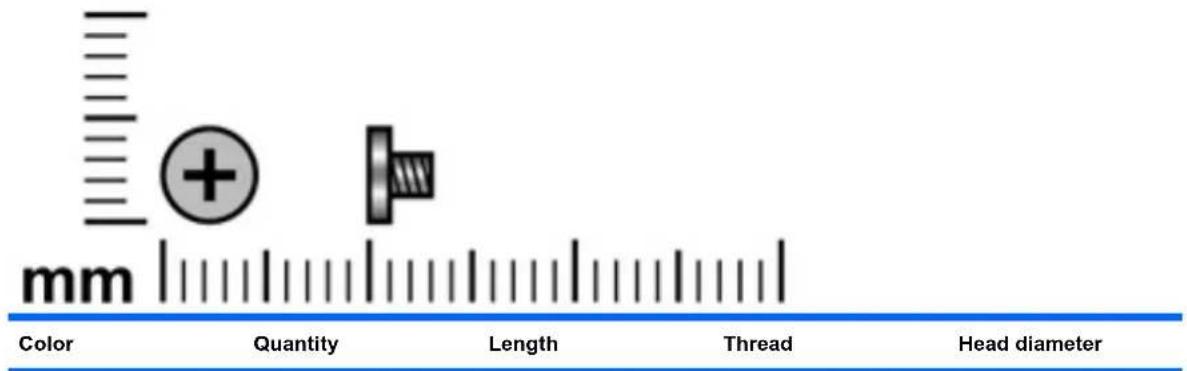

Phillips PM2.0×3.0 screw 86

Phillips PM2.0×3.0 captive screw 88

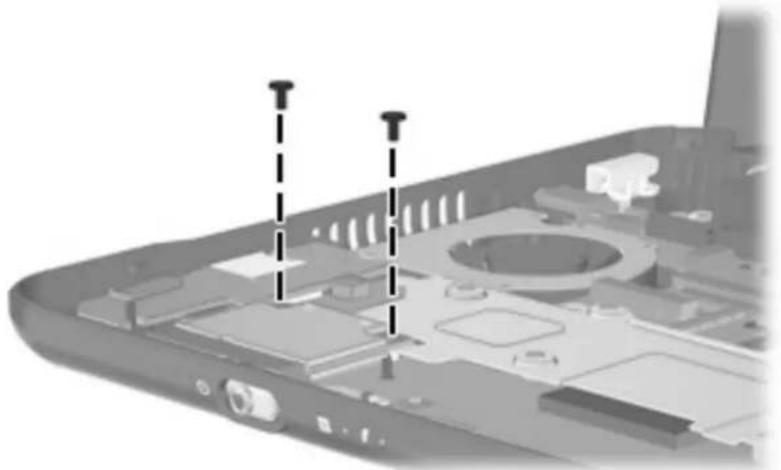

Phillips PM2.0×4.0 screw 89

Phillips PM2.0×5.0 screw 90

Phillips PM2.5×5.0 screw 91

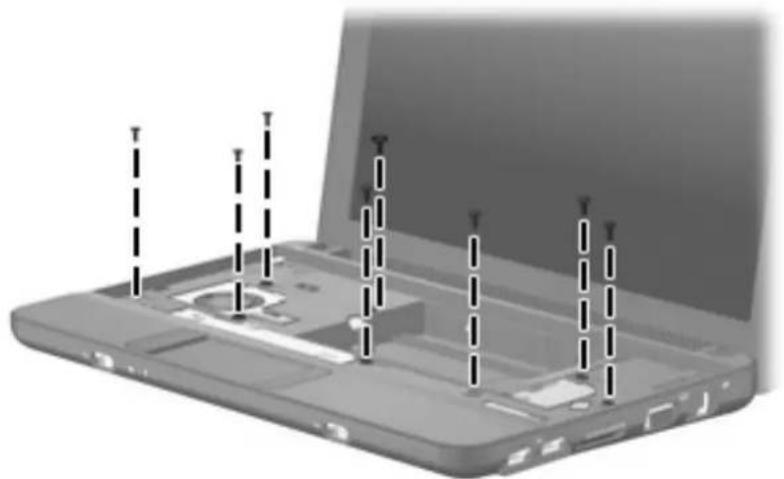

Phillips PM2.5×7.0 screw 93

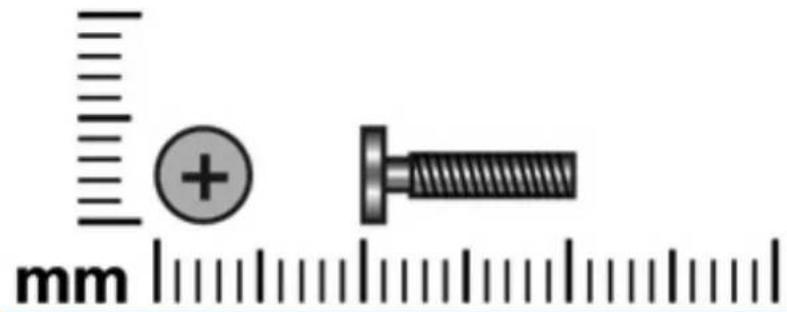

Phillips PM2.5×10.0 captive screw 94

Phillips PM3.0×40.0 screw 95

8 Backup and recovery

Mobile Mi backup and recovery 97

Backing up your information 97

When to back up 97

Restoring your information 97

Using System Restore 98

Using HP Mi Restore Image Creator 98

Restoring using a Windows computer 98

Restoring using a Linux computer 99

Windows Vista backup and recovery 101

Backing up your information 101

Performing a recovery 102

Using the Windows recovery tools 103

Using f11 104

Using a Windows Vista operating system DVD (purchased separately) ..... 104

Windows XP backup and recovery 105

Backing up your information 105

Performing a recovery 106

Recovering your information 106

Recovering the operating system and programs 106

9 Connector pin assignments

Audio-in (microphone) 107

Audio-out (headphone) 108

External monitor 109

RJ-45 (network) 110

Universal Serial Bus 111

10 Power cord set requirements

Requirements for all countries and regions 112

Requirements for specific countries and regions 113

11 Recycling

Battery 114

Display 114

Index 120

1 Product description

Category Description HP Mini 1101		NoteBook PC	HP Mini 110 Compaq Mini 110
Product Name	HP Mini 1101 NoteBook PC	√
HP Mini 110 √
Compaq Mini 110 √
Processor Intel® AtomTM N280 1.66-GHzprocessor, 512-KB Level 2 cache,533-MHz front-side bus (FSB)		√√√
Intel Atom N270 1.6-GHz processor,512-KB Level 2 cache, 533-MHz front-side bus (FSB)		√√√
Chipset Northbridge: 945GSE; 533-MHz bus speed		√√√
Southbridge: ICH7M	√√√
Graphics	Intel® Graphics Media Accelerator 950	√	√
Universal Memory Architecture (UMA)graphics subsystem		√√√
Panels	All display assemblies include1 webcam, 1 microphone, 1 speakerbox, and 2 wireless local-area network(WLAN) antenna transceivers/cables;wireless wide-area network (WWAN) is optional	√√√
Wide aspect 16:9 ratio panels	√√√
10.1-inch standard-definition AntiGlare(1024 × 576) LED		√√√
Memory	One customer-accessible/upgradablememory module slot	√√√
	Supports up to 2 GB of system memory	√	√
PC2-4200, 533-MHz, DDR2	√√√
Supports the following configurations:
	512-MB total system memory (512 × 1)NOTE: Supported by computers with Windows® XP Home Edition Service Pack 3 only.	√ √
	1024-MB total system memory (1024 × 1)	√ √ √
	2048-MB total system memory (2048 × 1)NOTE: Supported by computers with Windows XP Home Professional and HP Mobile Mi only.	√ √
Mass storage devices	Solid-state drive (SSD) based on multi-level cell (MLC) technology	√ √ √
8-GB √ √
16-GB √ √
32-GB √ √ √
64-GB		√ √
	NOTE: Available only for HP 1101 NoteBook PCs, and HP Mini 110 models with Mobile Mi installed.
Hard drive Supports all 9.5-mm, 6.35-cm (2.50-inch) parallel SATA hard drives (optional)		√ √ √
160-GB, 5400-RPM √ √ √
250-GB, 5400-RPM		√ √ √
	NOTE: Available only for HP 1101 NoteBook PCs, and HP Mini 110s with Mobile Mi installed.
Optical drive Supports external USB optical drives only		√ √ √
Diskette drive Supports external USB diskette drives only		√ √ √
Audio/Visual	high-definition (HD) audio	√	√
Integrated speakers (2)	√ √ √
Fixed integrated microphone	√ √ √
Fixed integrated VGA webcam, 640 × 480 resolution, up to 30 frames per second		√ √ √
Modem	Supports external USB modems only	√	√
Ethernet	Integrated 10/100 network interface card (NIC)	√	√

Category Description HP Mini 1101									NoteBook PC	HP Mini 110 Compaq Mini 110
Wireless 2 WLAN antennas built into display assembly									√√√
Integrated WLAN by way of 802.11b/gWLAN module									√√√
Integrated WWAN by way of HP un2400Mobile Broadband Module (optional)NOTE: Not available in HP Mini 110 models with Mobile Mi installed.									√√√
External media cards	Digital Media Slot (consumer models) or Media Card Reader (commercial models) with push-push technology supporting:Memory Stick (MS)Memory Stick Pro (MSP)MultiMediaCard (MMC)Secure Digital (SD) Memory CardxD-Picture Card (XD)	√√√
HP Mini Mobile Drive Bay (on models equipped with a solid-state drive)									√√
Internal media cards	Two Mini Card slots:Full-size Mini Card slotHalf-size Mini Card slot	√√√
Ports Audio-in (stereo microphone) √√√
Audio-in/out (microphone/stereo headphone)									√√√
RJ-45 (Ethernet, includes link and activity lights)									√√√
USB (2–3) √√√
3-pin AC power √√√
Keyboard/ pointing device	92% keyboard √√√
TouchPad, with 2 TouchPad buttons and 2-way scrolling (taps enabled as default)									√√√
Power requirements	30-W UMA AC adapter (non-Smart) with localized cable plug support	√√√
AC adapter connector on cable √√√
3-cell lithium-polymer (Li-Pol) battery(2.55-Ah, 28-Wh), 3-hour target life									√√√
6-cell lithium-polymer (Li-Pol) battery(2.55-Ah, 55-Wh), 6-hour target life									√	√
Security Supports HP Kensington Security Lock √ √ √
Operating system Preinstalled:
Windows® XP Home SP3, ultra low-costpersonal computer (ULCPC) edition									√ √
Windows Vista® Business 32 (with XPPro image)									√
HP Mobile Mi √
Serviceability End-user replaceable parts:
AC adapter	√	√	√
Battery (system)	√	√	√
Hard drive	√	√	√
Keyboard	√	√	√
Memory module	√	√	√
Solid-state drive					√		√		√

2 External component identification

Components included with the device may vary by region and model. The illustrations in this chapter identify the standard features on most device models.

Top components

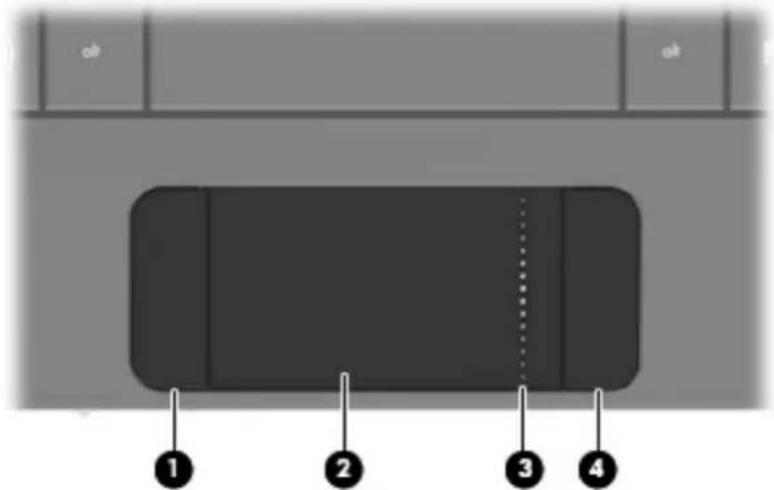

TouchPad

Diagram of a device panel with labeled buttons and a highlighted rectangular area, marked with numbered callouts.

Component Description
(1)	Left TouchPad button	Functions like the left button on an external mouse.
(2)	TouchPad	Moves the pointer and selects or activates items on the screen.
(3)	TouchPad scroll zone	Scrolls up or down.
(4)	Right TouchPad button	Functions like the right button on an external mouse.

Light

A ESC 1 2 # 3 $4 % 5 tab Q W E R T

Component Description

Caps lock light On: Caps lock is on.

NOTE: Refer to the illustration that most closely matches your computer.

Laptop keyboard diagram with labeled function keys and icons for function keys, typing keys, and media controls

Component Description

(1)	Function keys	Execute frequently used system functions when pressed in combination with the fn key.
(2)	fn key	Executes frequently used system functions when pressed in combination with a function key.
(3) Windows® logo key Displays the Windows Start menu.
(4)	Windows applications key	Displays a shortcut menu for items beneath the pointer.

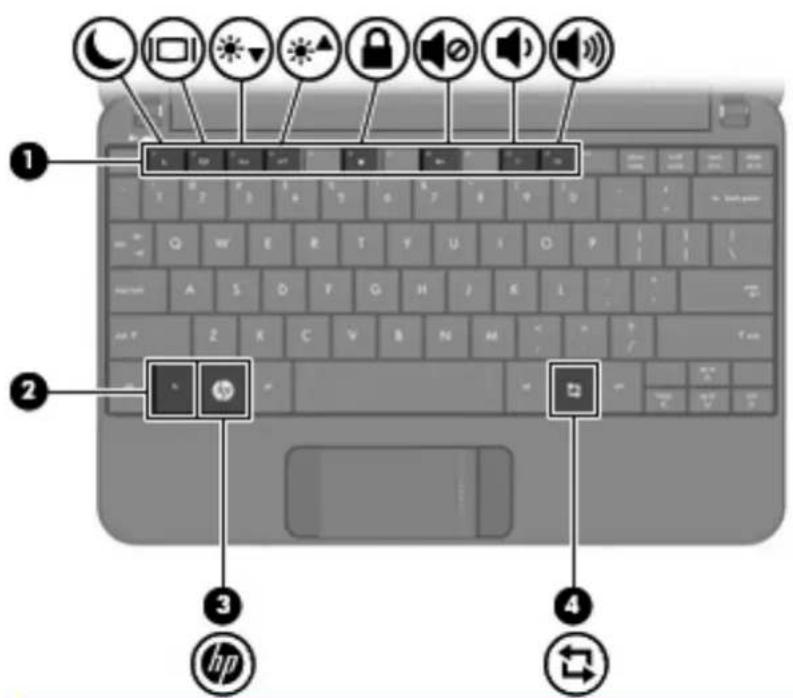

Laptop keyboard diagram with labeled function keys and icons for function keys, typing keys, and navigation controls

Component Description

(1)	Function keys	Execute frequently used system functions when pressed in combination with the fn key.
(2)	fn key	Executes frequently used system functions when pressed in combination with a function key.
(3) Home key Returns to the Home Screen.
(4) Program Switcher key Displays the Start New Program button from anywhere on the device.

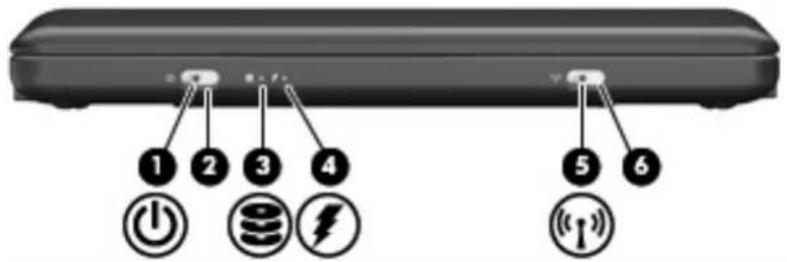

Front components

1 2 3 4 5 6

Component Description
(1) Power light		On: The device is on.Blinking: The device is in the Sleep state (Windows Vista) or Standby (Windows XP or Mobile Mi).Off: The device is off or in Hibernation.
(2) Power switch		When the device is off, slide the switch to turn on the device.When the device is on, briefly slide the switch to initiate Hibernation.When the device is in the Sleep state (Windows Vista) or Standby (Windows XP or Mobile Mi), briefly slide the switch to exit the Sleep state (Windows Vista) or Standby (Windows XP or Mobile Mi).When the device is in Hibernation, briefly slide the switch to exit Hibernation.If the device has stopped responding and operating system shutdown procedures are ineffective, slide and hold the power switch for at least 5 seconds to turn off the device.
(3)	Drive light	Blinking: The hard drive or flash drive is being accessed.
(4) Battery light		On: A battery is charging.Blinking: A battery that is the available only power source has reached a low battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.Off: If the device is plugged into an external power source, the light turns off when all batteries in the device are fully charged. If the device is not plugged into an external power source, the light stays off until the battery reaches a low battery level.
(5) Wireless light		Blue: An integrated wireless device, such as a wireless local area network (WLAN) device, is on.Amber: All wireless devices are off.
(6) Wireless switch Turns the wireless feature on or off, but does not establish a wireless connection.

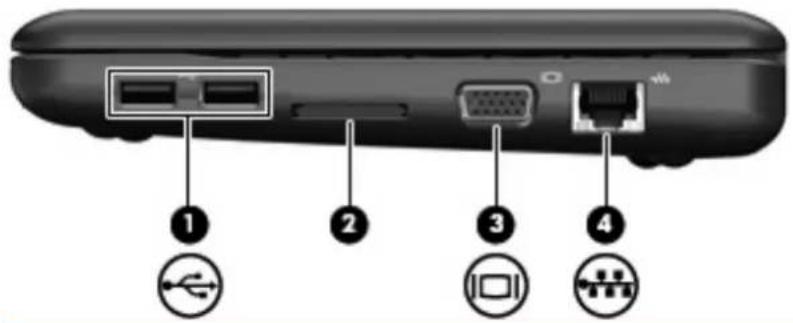

Right-side components

Diagram of a device rear panel with labeled ports and icons, showing port labels 1 to 4.

Component Description

(1) USB ports (2) Connect optional USB devices.

(2) Digital Media Slot (consumer models) or Media Card Reader (commercial models)

Supports the following optional digital card formats:

• Memory Stick (MS)

• Memory Stick Pro (MSP)

• MultiMediaCard (MMC)

• Secure Digital (SD) Memory Card

xD-Picture Card

(3) External monitor port

Connects an optional external display, such as a monitor or projector, to the device.

(4) RJ-45 (network) jack Connects a network cable.

Left-side components

Diagram of a device rear panel with labeled ports and icons, including lock, power plug, USB, and earphone.

Component Description

(1)	Security cable slot	Attaches an optional security cable to the device.
		NOTE: The security cable is designed to act as a deterrent, but it may not prevent the device from being mishandled or stolen.
(2)	Power connector Connects an AC adapter.
(3)	AC adapter light Indicates AC power connection.
(4)	Vent Enables airflow to cool internal components.	NOTE: The device fan starts up automatically to cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
(5)	USB port Connects an optional USB device.
(6)	Audio-out (headphone) jack/Audio-in (microphone) jack	Produces sound when connected to optional powered stereo speakers, headphones, earbuds, a headset, or television audio. Also connects an optional headset microphone.WARNING! To reduce the risk of personal injury, adjust the volume before putting on headphones, earbuds, or a headset. For additional safety information, refer to the Regulatory, Safety and Environmental Notices.NOTE: When an audio component is connected to the jack, the device speakers are disabled.The audio component cable must have a 4-conductor connector.

Display components

Laptop screen diagram with numbered labels pointing to the screen area

Component Description

(1) Speakers (2) Produce sound.
(2) Internal display switch		Turns off the display if the display is closed while the power is on.
		NOTE: The display switch is not visible from the outside of the device.
(3) Webcam Captures still photographs and videos.		NOTE: To capture videos, you need to install additional webcam software.
(4) Webcam light On: The webcam is in use.
(5) Internal microphone Records sound.

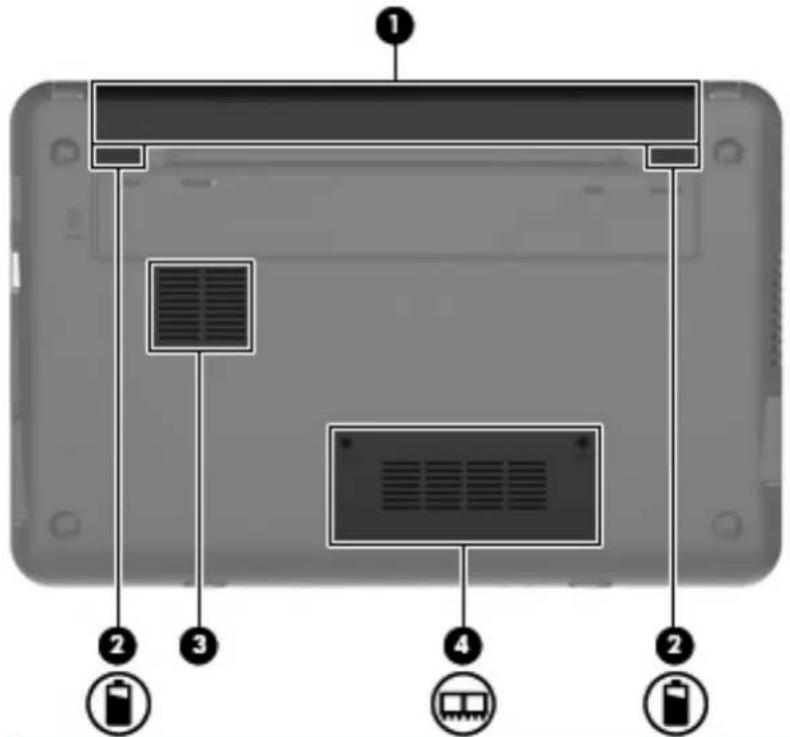

Bottom components

Diagram of a device rear panel with labeled components including battery, memory, and display areas

Component Description

(1) Battery bay Holds the battery.
(2)	Battery release latches (2)	Release the battery from the battery bay.
(3) Vent Enables airflow to cool internal components.
		NOTE: The device fan starts up automatically to cool internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.
(4) Memory module compartment Contains the memory module slot.

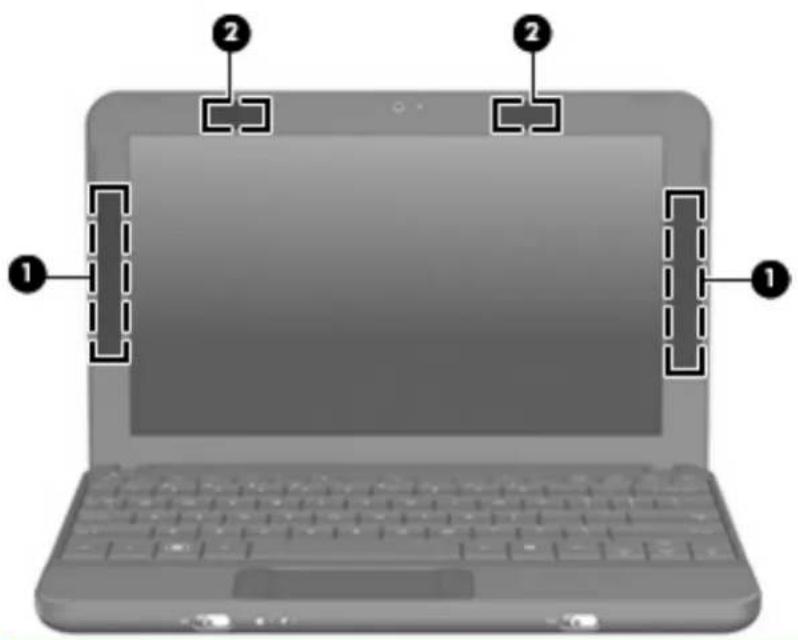

Wireless antennas

Laptop screen diagram with labeled parts showing two highlighted sections labeled 1 and 2

Component Description

(1)	WWAN antennas (2) (select models only)*	Send and receive wireless signals to communicate with wireless wide-area networks (WWANs).NOTE: This option is not available on computers with Mobile Mi installed.
(2)	WLAN antennas (2)*	Send and receive wireless signals to communicate with wireless local area networks (WLANs).

*The antennas are not visible from the outside of the device. For optimal transmission, keep the areas immediately around the antennas free from obstructions.

To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental Notices that applies to your country or region.

3 Illustrated parts catalog

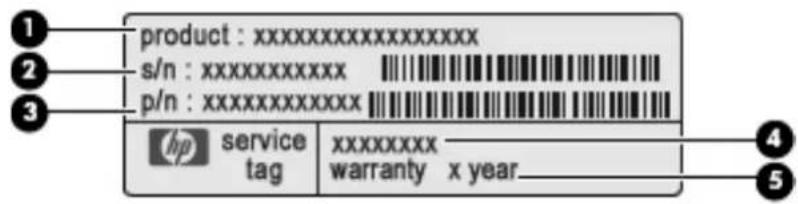

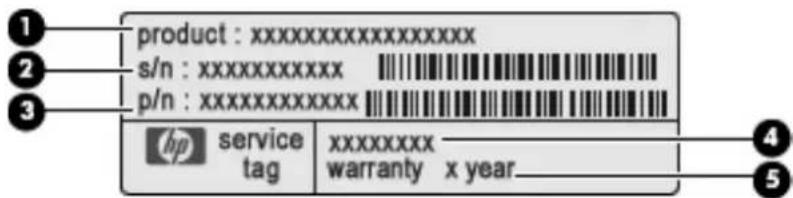

Service tag

When ordering parts or requesting information, provide the computer serial number and model description provided on the service tag:

(1) Product name: This is the product name affixed to the front of the device.
(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.
(3) Part number/Product number (p/n): This number provides specific information about the product's hardware components. The part number helps a service technician to determine what components and parts are needed.
(4) Model description: This is the alphanumeric identifier used to locate documents, drivers, and support for the device.
(5) Warranty period: This number describes the duration of the warranty period for the device.

product : xxxxxxxxxxxxxxxxxxx s/n : xxxxxxxxxxxxxxx p/n : xxxxxxxxxxxxxxx hp service tag xxxxxxxxxxxx warranty x year 4 5

Device major components

Exploded view diagram of a laptop with numbered parts for identification

Item Description Spare part number

(1) Display assembly (includes 1 webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables; WWAN is optional)

See Display assembly components on page 21 for a comprehensive list of display assembly spare parts.

For use with HP models only

10.1-inch, high-definition, AntiGlare Display Assembly (Includes WWAN) 572407-001

10.1-inch, high-definition, AntiGlare Display Assembly 572406-001

Item Description Spare part number

10.1-inch, standard-definition, AntiGlare Display Assembly (includes WWAN)	571414-001
10.1-inch, standard-definition, AntiGlare Display Assembly	537646-001
For use with Compaq models only
10.1-inch, high-definition, AntiGlare Display Assembly	572414-001
10.1-inch, standard-definition, AntiGlare Display Assembly (includes WWAN)	571417-001
10.1-inch, standard-definition, AntiGlare Display Assembly	537643-001

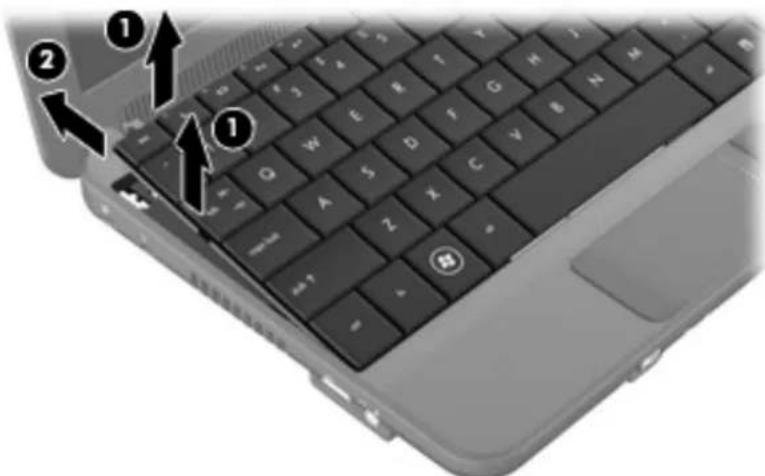

(2) Keyboard

For use only on models with Windows operating system installed
For use only in Brazil	535689-201
For use only in the Czech Republic	535689-221
For use only in Europe	535689-A41
For use only in France	535689-051
For use only in French Canada	535689-121
For use only in Finland, Norway, and Sweden	535689-DH1
For use only in Germany	535689-041
For use only in Greece	535689-151
For use only in Hungary	535689-211
For use on international models	535689-B31
For use only in Israel	535689-BB1
For use only in Italy	535689-061
For use only in Japan	535689-291
For use only in Latin America	535689-161
For use only in Portugal	535689-131
For use only in Russia	535689-251
For use only in Saudi Arabia	535689-171
For use only South Korea	535689-AD1
For use only in Spain	535689-071
For use only in Switzerland	535689-111
For use only in Taiwan	535689-AB1
For use only in Thailand	535689-281
For use only in Turkey	535689-141
For use only in the United Kingdom	535689-031
For use only in the United States	535689-001
For use only on models with Mobile Mi installed
Item Description Spare part number
	For use only in Brazil	535690-201
	For use only in French Canada	535690-121
	For use only in Japan	535690-291
	For use only in Latin America	535690-161
	For use only in South Korea	535690-AD1
	For use only in Taiwan	535690-AB1
	For use only in Thailand	535690-281
	For use only in the United States	535690-001
(3)	Top cover (includes TouchPad)	537622-001

Mass storage devices

NOTE: Each hard drive spare part kit and solid-state drive spare part kit includes a bracket and screws.

(4a) Hard drive (select models only)

See Mass storage devices on page 23 for a comprehensive list of hard drive spare parts.

(4b) Solid-state drive

See Mass storage devices on page 23 for a comprehensive list of solid-state drive spare parts.

(5) Heat sink assembly (includes replacement thermal material) 537619-001

(6) Fan 537613-001

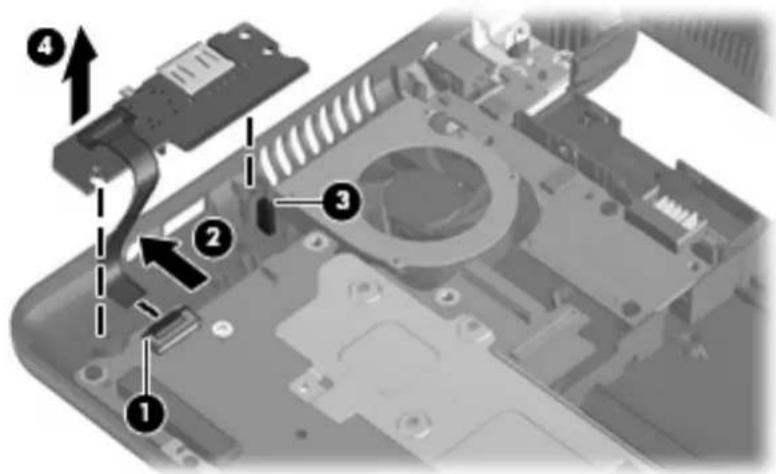

(7) USB/audio board (includes cable) 537614-001

(8) Power/battery pass-through board 537615-001

Plastics/actuator Kit 537612-001

(9a) Power switch and wireless switch actuators

(9b) Memory module compartment cover

(9c) Bezel for Digital Media Slot (consumer models) or Media Card Reader (commercial models)

Wireless modules

(10) WLAN module

Broadcom 4312 802.11/b/g WLAN module

- For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, 504593-003 and the United States

Item Description Spare part number

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

504593-004

(11) WWAN module

NOTE: Not available for computers with Mobile Mi installed.
HP un2400 Mobile Broadband Module (select models only)	483377-002
HP un2400 Mobile Broadband Module for use only with Verizon Wireless (select models only)	483377-003
WWAN module for use only in China 571888-001

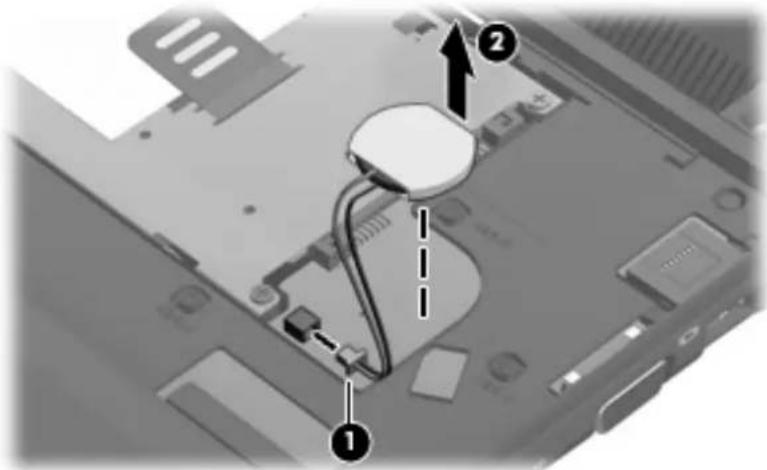

(12) RTC battery 537616-001
(13) System board (includes processor and replacement thermal material)
Includes Intel Atom N280 1.66-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus (FSB)	571370-001
Includes Intel Atom N270 1.6-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus (FSB)	537662-001
(14) Memory module (PC2-5300, 533-MHz, DDR2)
512-MB (for use in HP Mini 110 and Compaq Mini 110 models only)	537663-001
1024-MB 537664-001
2048-MB (for use in HP Mini 1101 Notebook PC, and HP Mini 110 with Mobile Mi installed only)	537665-001
(15) Base enclosure (includes 4 rubber feet)	537611-001
(16) Battery
6-cell lithium-polymer (Li-Pol) battery (2.55-Ah, 55-Wh)	537627-001
3-cell lithium-polymer (Li-Pol) battery (2.55-Ah, 28-Wh)	537626-001

Display assembly components

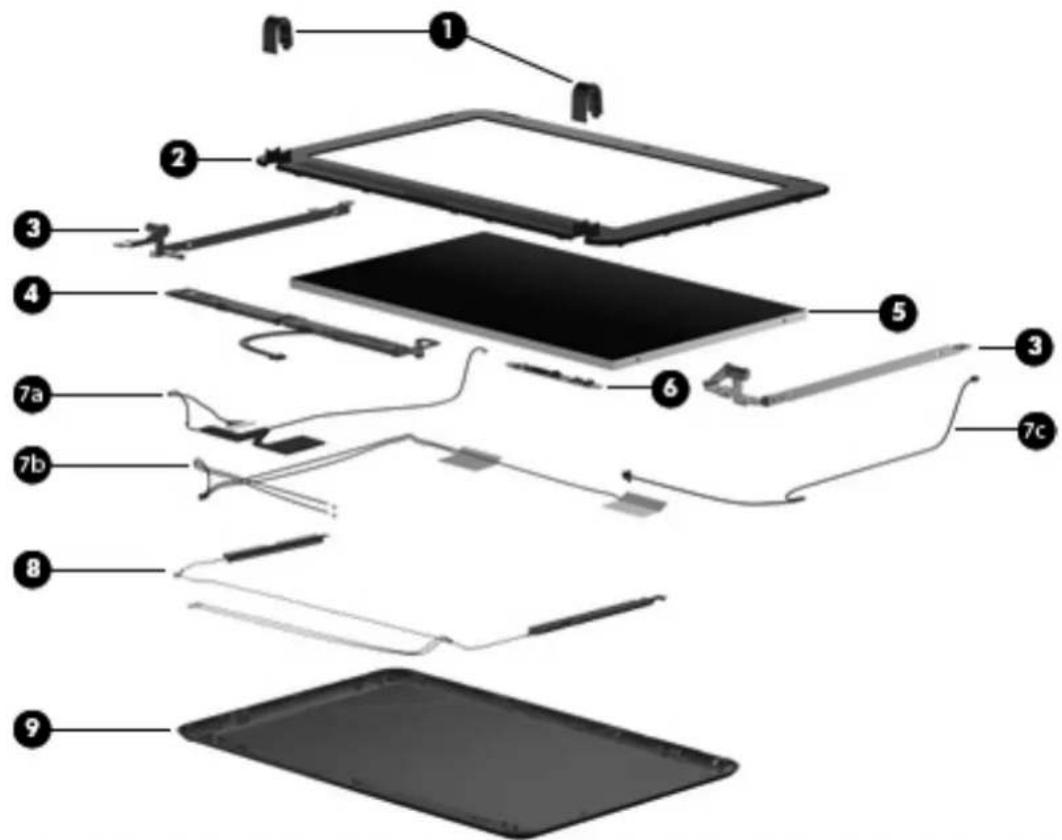

Exploded view diagram of a tablet device with numbered parts for identification

Item Description Spare part number

(1) Hinge covers 537617-001
(2) Display bezel
For use with HP Mini 1101 Notebook PC, and HP Mini 110 only	537650-001
For use with Compaq Mini 110 only 537644-001
(3) Display Hinge Kit(Includes left and right display panel hinges)	537658-001
(4) Speaker assembly (includes left and right cables)	537621-001

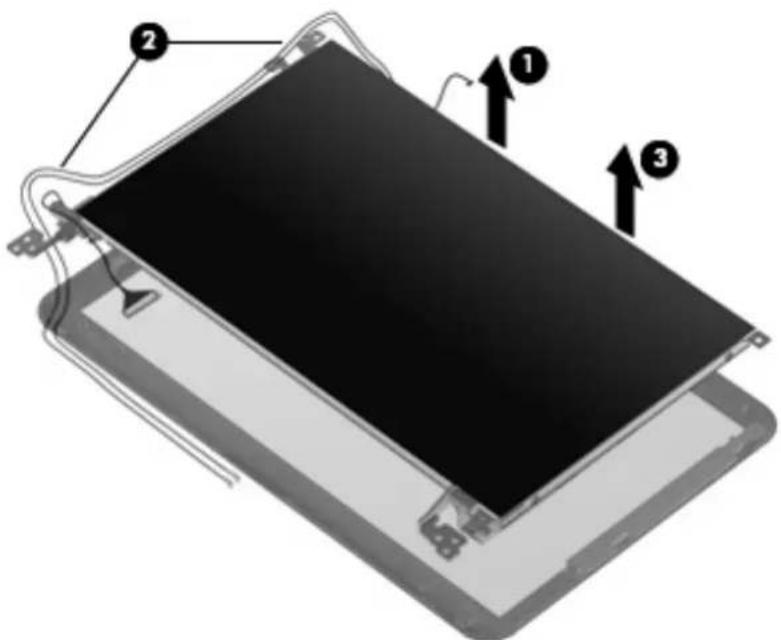

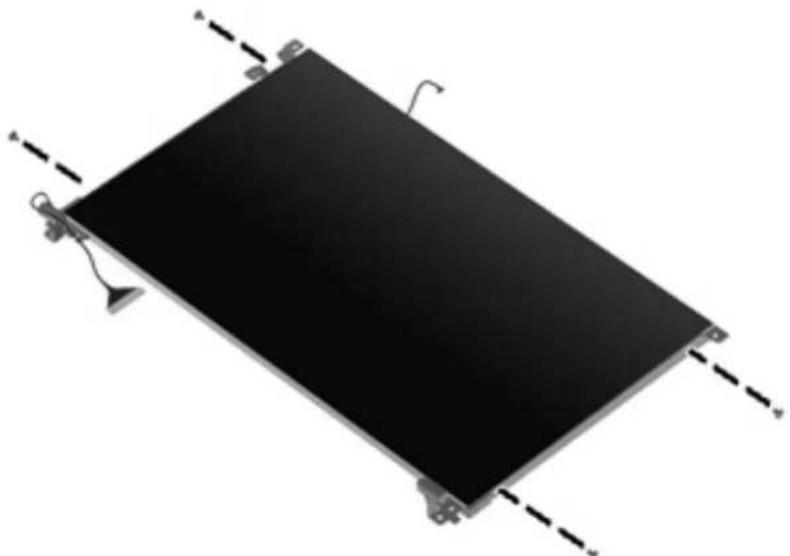

(5) Display panel
10.1-inch high-definition AntiGlare 572405-001
10.1-inch standard-definition AntiGlare 537656-001
(6) Webcam module 537660-001
Display Cable Kit (Not illustrated, includes microphone assembly display cable, webcam cable, and WLAN antennas)	537657-001
(7a) Display panel cable
(7b) WLAN antennas
Item Description Spare part number
(7c) Microphone assembly
(8)	WWAN antennas (not available on computers with Mobile Mi installed.)	537655-001
(9)	Display enclosure (includes logo)
	For use with the HP Mini 1101 Notebook PC, and HP Mini 110	537651-001
For use with the Compaq Mini 110 537645-001
Display Screw Kit (not illustrated) 538510-001

Mass storage devices

Two views of a computer floppy disk chassis showing internal components and mounting holes (no text or symbols)

NOTE: Each hard drive spare part kit and solid-state drive spare part kit includes a cable and bracket.

Item Description Spare part number

(1) Hard drive (select models only)

250-GB, 5400-RPM 537635-001

160-GB, 5400-RPM 537634-001

Hard Drive Hardware Kit (not illustrated) 537641-001

(2) Solid-state drive

64-GB 537640-001

32-GB 537639-001

16-GB 537638-001

8-GB 537637-001

Solid-state Drive Hardware Kit (not illustrated) 537642-001

Miscellaneous parts

Description Spare part number
30-W UMA AC adapter 496813-001
Bluetooth® adapter 574670-001
Power cords
For use in Argentina	490371-D01
For use in Australia 490371-011
For use in Brazil 490371-201
For use in China 490371-AA1
For use in Denmark 490371-081
For use in Europe 490371-021
For use in India 490371-D61
For use in Israel 490371-BB1
For use in Italy 490371-061
For use in Japan 490371-291
For use in North America 490371-001
For use in Singapore and the United Kingdom 490371-031
For use in South Africa 490371-AR1
For use in South Korea	490371-AD1
For use in Switzerland	490371-111
For use in Taiwan 490371-AB1
Rubber Kit (contains 4 device feet)	537618-001
Screw Kit	537620-001

Sequential part number listing

Spare part number	Description
483377-002	HP un2400 Mobile Broadband Module (select models only)
483377-003	HP un2400 Mobile Broadband Module for use with Verizon Wireless only (select models only)
490371-001 Power cord for use in North America
490371-011 Power cord for use in Australia
490371-021 Power cord for use in Europe
490371-031 Power cord for use in Singapore and the United Kingdom
490371-061 Power cord for use in Italy
490371-081 Power cord for use in Denmark
490371-111 Power cord for use in Switzerland
490371-201 Power cord for use in Brazil
490371-291 Power cord for use in Japan
490371-AA1 Power cord for use in China
490371-AB1 Power cord for use in Taiwan
490371-AD1 Power cord for use in South Korea
490371-AR1 Power cord for use in South Africa
490371-BB1 Power cord for use in Israel
490371-D01 Power cord for use in Argentina
490371-D61 Power cord for use in India
496813-001 30-W UMA AC adapter
504593-003	Broadcom 4312 802.11/b/g WLAN module for use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands, and the United States
504593-004	Broadcom 4312 802.11/b/g WLAN module for use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
535689-001	Keyboard for use only in the United States on models with Windows operating system installed
535689-031	Keyboard for use only in the United Kingdom on models with Windows operating system installed
535689-041	Keyboard for use only in Germany on models with Windows operating system installed
535689-051	Keyboard for use only in France on models with Windows operating system installed
535689-061	Keyboard for use only in Italy on models with Windows operating system installed
535689-071	Keyboard for use only in Spain on models with Windows operating system installed
535689-121	Keyboard for use only in French Canada on models with Windows operating system installed
535689-131	Keyboard for use only in Portugal on models with Windows operating system installed
535689-141	Keyboard for use only in Turkey on models with Windows operating system installed
535689-161	Keyboard for use only in Latin America on models with Windows operating system installed
535689-171	Keyboard for use only in Saudi Arabia on models with Windows operating system installed
535689-201	Keyboard for use only in Brazil on models with Windows operating system installed
535689-211	Keyboard for use only in Hungary on models with Windows operating system installed
535689-221	Keyboard for use only in the Czech Republic on models with Windows operating system installed
535689-251	Keyboard for use only in Russia on models with Windows operating system installed
535689-281	Keyboard for use only in Thailand on models with Windows operating system installed
535689-291	Keyboard for use only in Japan on models with Windows operating system installed
535689-A41	Keyboard for use only in Europe on models with Windows operating system installed
535689-AB1	Keyboard for use only in Taiwan on models with Windows operating system installed
535689-AD1	Keyboard for use only in South Korea on models with Windows operating system installed
535689-B31	Keyboard for use only in international models with Windows operating system installed
535689-BB1	Keyboard for use only in Israel on models with Windows operating system installed
535689-DH1	Keyboard for use only in Finland, Norway and Sweden on models with Windows operating system installed
535690-001	Keyboard for use only in the United States on models with Mobile Mi installed
535690-121	Keyboard for use only in French Canada on models with Mobile Mi installed
535690-161	Keyboard for use only in Latin America on models with Mobile Mi installed
535690-201	Keyboard for use only in Brazil on models with Mobile Mi installed
535690-281	Keyboard for use only in Thailand on models with Mobile Mi installed
535690-291	Keyboard for use only in Japan on models with Mobile Mi installed
535690-AB1	Keyboard for use only in Taiwan on models with Mobile Mi installed
535690-AD1	Keyboard for use only in South Korea on models with Mobile Mi installed
537611-001	Base enclosure (includes 4 rubber feet)
537612-001	Plastics/actuator kit (includes power switch and wireless switch actuators, memory module compartment cover, and bezel for Digital Media Slot (consumer models) or Media Card Reader (commercial models)
537613-001 Fan
537614-001 USB/audio board (includes cable)
537615-001 Power/battery pass-through board
537616-001 RTC battery
537617-001 Display assembly hinge covers
537618-001 Rubber Kit (contains 4 device feet)
537619-001 Heat sink assembly (includes replacement thermal material)
537620-001 Screw Kit
537621-001 Speaker assembly (includes left and right cables)
537622-001 Top cover (includes TouchPad)
537626-001 3-cell lithium-polymer (Li-Pol) battery (2.55-Ah, 28-Wh)
537627-001 6-cell lithium-polymer (Li-Pol) battery (2.55-Ah, 55-Wh)
537634-001 160-GB hard drive, 5400-RPM
537635-001 250-GB hard drive, 5400-RPM
537637-001 8-GB solid-state drive
537638-001 16-GB solid-state drive
537639-001 32-GB solid-state drive
537640-001 64-GB solid-state drive
537641-001 Hard Drive Hardware Kit
537642-001 Solid-state Drive Hardware Kit
537643-001 10.1-inch, standard-definition, AntiGlare Display Assembly for use with Compaq standard models only
537644-001 Display bezel for use with Compaq Mini 110 only
537645-001 Display enclosure (includes logo) for use with the Compaq Mini 110
537646-001 10.1-inch, standard-definition, AntiGlare Display Assembly for use with HP models only
537650-001 Display bezel for use with HP Mini 1101 Notebook PC, and HP Mini 110 only
537651-001 Display enclosure (includes logo) for use with the HP Mini 1101 Notebook PC, and HP Mini 110
537655-001 WWAN antennas
537656-001 10.1-inch standard-definition AntiGlare display panel
537657-001 Display Cable Kit (includes microphone assembly display cable, webcam cable, and WLAN antennas)
537658-001 Display Hinge Kit (Includes left and right display panel hinges)
537660-001 Webcam module
537662-001 System board (Includes Intel Atom N270 1.6-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus (FSB), and replacement thermal material)
537663-001	512-MB memory module (PC2-5300, 533-MHz, DDR2 for use in HP Mini 110 and Compaq Mini 110 models only)
537664-001	1024-MB memory module (PC2-5300, 533-MHz, DDR2 for use in HP Mini 110 and Compaq Mini 110 models only)
537665-001	2048-MB memory module (PC2-5300, 533-MHz, DDR2 for use in HP Mini 110 and Compaq Mini 110 models only)
538510-001	Display Screw Kit (not illustrated)
571370-001	System board (Includes Intel Atom N280 1.66-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus (FSB), and replacement thermal material)
571414-001	10.1-inch, standard-definition, AntiGlare Display Assembly (includes WWAN) for use with HP models only
571417-001	10.1-inch, standard-definition, AntiGlare Display Assembly (includes WWAN) for use with Compaq standard models only
571888-001	WWAN module, for use only in China
572405-001	10.1-inch high-definition AntiGlare display panel
572406-001	10.1-inch, high-definition, AntiGlare Display Assembly for use with HP models only
572407-001	10.1-inch, high-definition, AntiGlare Display Assembly (Includes WWAN) for use with HP models only
572414-001	10.1-inch, high-definition, AntiGlare Display Assembly for use with Compaq standard models only
574670-001	Bluetooth adapter

4 Removal and replacement procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

• Flat-bladed screwdriver
• Magnetic screwdriver
• Phillips P0 and P1 screwdrivers

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

NOTE: As you remove each subassembly from the device, place the subassembly (and all accompanying screws) away from the work area to prevent damage.

Plastic parts

△ CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

Cables and connectors

△ CAUTION: When servicing the device, be sure that cables are placed in their proper locations during the reassembly process. Improper cable placement can damage the device.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.

Drive handling

△ CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the device, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package "FRAGILE."

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.

△ CAUTION: To prevent damage to the device when you are removing or installing internal components, observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Use nonmagnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different activities.

△ CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels
Relative humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl floor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 V 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from Styrofoam	14,500 V	5,000 V	3,500 V
Removing bubble pack from PCB	26,500 V	20,000 V	7,000 V
Packing PCBs in foam-lined box	21,000 V 11,000 V 5,000 V

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

• To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
- Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
- Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
- Place items on a grounded surface before removing items from their containers.
• Always be properly grounded when touching a component or assembly.
- Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.
- Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

• Cover the workstation with approved static-shielding material.
- Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and equipment.
• Use conductive field service tools, such as cutters, screwdrivers, and vacuums.
- When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe materials.
- Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and Styrofoam.
- Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these items only at static-free workstations.
- Avoid contact with pins, leads, or circuitry.
• Turn off power and input signals before inserting or removing connectors or test equipment.

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

• When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.
• When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps) can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive strips must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

• Antistatic tape
  • Antistatic smocks, aprons, and sleeve protectors
  • Conductive bins and other assembly or soldering aids
  • Nonconductive foam
  • Conductive tabletop workstations with ground cords of one megohm resistance
  • Static-dissipative tables or floor mats with hard ties to the ground
  Field service kits
  • Static awareness labels
  • Material-handling packages
  • Nonconductive plastic bags, tubes, or boxes
  • Metal tote boxes
  • Electrostatic voltage levels and protective materials

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 65 screws, in 9 different sizes, that must be removed, replaced, or loosened when servicing the device. Make special note of each screw size and location during removal and replacement.

Service tag

When ordering parts or requesting information, provide the computer serial number and model description provided on the service tag:

(1) Product name: This is the product name affixed to the front of the device.
(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.
(3) Part number/Product number (p/n): This number provides specific information about the product's hardware components. The part number helps a service technician to determine what components and parts are needed.
(4) Model description: This is the alphanumeric identifier used to locate documents, drivers, and support for the device.
(5) Warranty period: This number describes the duration of the warranty period for the device.

product : xxxxxxxxxxxxxxxxxxx s/n : xxxxxxxxxxxxxxx p/n : xxxxxxxxxxxxxxx hp service tag xxxxxxxx _ warranty x year 4 5

Device feet

The device feet are adhesive-backed rubber pads, tethered to the base enclosure.

Description Spare part number

Rubber Kit 537618-001

Front view of a gray electronic device with mounting points and ventilation slots (no visible text or symbols)

Battery

Description Spare part number

6-cell lithium-polymer (Li-Pol) battery (2.55-Ah, 55-Wh) 537627-001

3-cell lithium-polymer (Li-Pol) battery (2.55-Ah, 28-Wh) 537626-001

Before disassembling the device, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the device.
3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the device.

Remove the battery:

1. Turn the device upside-down on a flat surface, with the battery bay toward you.
2. Slide the battery release latches (1) to release the battery.
3. Remove the battery (2).

Diagram of a device showing two labeled components (1 and 2) with arrows indicating assembly or connection steps.

Reverse this procedure to install a battery.

NOTE: This section applies only to device models with WWAN capability.

NOTE: If there is a SIM inserted in the SIM slot, it must be removed before disassembling the computer. Be sure that the SIM is reinserted in the SIM slot after reassembling the computer.

Before removing the SIM, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.
4. Remove the battery (see Battery on page 36).

Remove the SIM:

1. Press in on the SIM (1). (The module is partially ejected from the SIM slot.)
2. Remove the SIM (2) from the SIM slot.

Diagram of a device rear panel with labeled components and directional arrows indicating parts of the lid.

Reverse this procedure to insert the SIM.

Memory module

Description Spare part number

Memory module (PC2-5300, 533-MHz, DDR2)
512-MB (for use in HP Mini 110 and Compaq Mini 110 only) 537663-001
1024-MB 537664-001
2048-MB (for use in HP Mini 1101 Notebook PC, and HP Mini 110 with Mobile Mi installed only)	537665-001

Before removing the memory module, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the device.
3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the device.
4. Remove the battery (see Battery on page 36).
5. If your device has WWAN capability, remove the SIM (see SIM on page 37.

Remove the memory module:

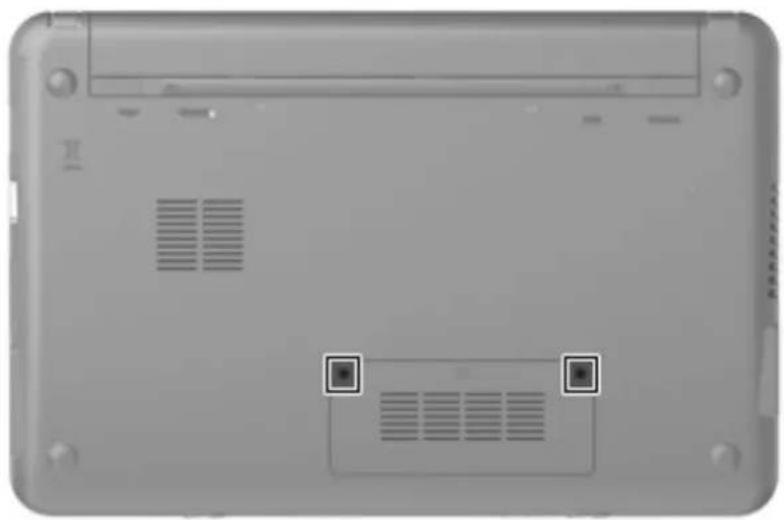

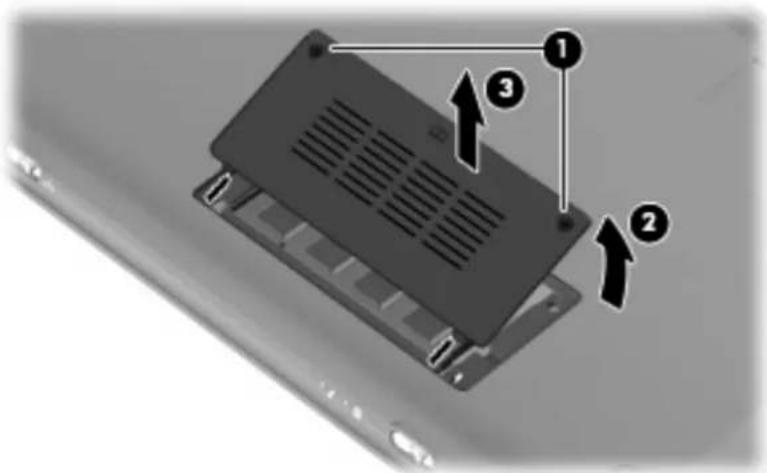

1. Loosen the 2 Phillips 2.0×3.0 captive screws (1) that secure the memory module compartment cover to the computer.
2. Swing the cover up and away from the inside of the computer (2), and then remove the cover (3).

Diagram of a device rear panel with numbered components and directional arrows indicating assembly or movement.

1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module. (The edge of the module opposite the slot rises away from the device.)

2. Remove the memory module (2) by pulling the module away from the slot at an angle.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the memory module slot.

Diagram of a device rear panel with labeled components and directional arrows indicating assembly or movement.

Reverse this procedure to install a memory module.

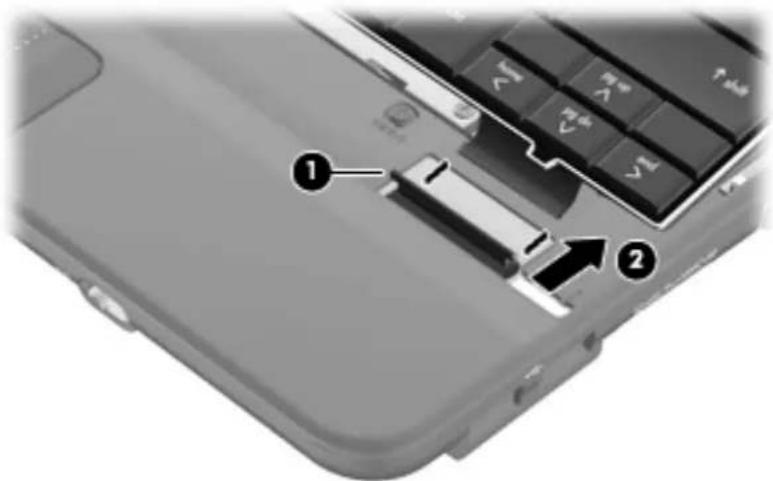

Description Spare part number

For use only on models with Windows operating system installed
For use only in Brazil	535689-201
For use only in the Czech Republic	535689-221
For use only in Europe	535689-021
For use only in Finland, Norway, and Sweden	535689-DH1
For use only in France	535689-051
For use only in French Canada	535689-121
For use only in Germany	535689-041
For use only in Greece	535689-151
For use only in Hungary	535689-211
For use on international models	535689-B31
For use only in Israel	535689-BB1
For use only in Italy	535689-061
For use only in Japan	535689-291
For use only in Latin America	535689-161
For use only in Portugal	535689-131
For use only in Russia	535689-251
For use only in Saudi Arabia	535689-171
For use only South Korea	535689-AD1
For use only in Spain	535689-071
For use only in Switzerland	535689-111
For use only in Taiwan	535689-AB1
For use only in Thailand	535689-281
For use only in Turkey	535689-141
For use only in the United Kingdom	535689-031
For use only in the United States	535689-001
For use only on models with Mobile Mi installed
For use only in Brazil	535690-201
For use only in French Canada	535690-121
For use only in Japan	535690-291
For use only in Latin America	535690-161
For use only in South Korea	535690-AD1
For use only in Taiwan 535690-AB1

Description Spare part number

• For use only in Thailand

535690-281

• For use only in the United States 535690-001

Before removing the keyboard, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the device.
3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the device.
4. Remove the battery (see Battery on page 36).
5. If your device has WWAN capability, remove the SIM (see SIM on page 37.

Remove the keyboard:

1. Remove the 3 Phillips SP2.0×3.0 screws that secure the keyboard to the device.

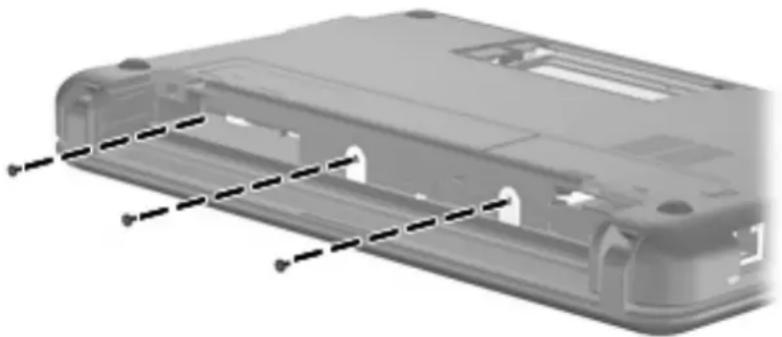

3D diagram of a device casing with internal components and dashed lines indicating alignment (no text or symbols)

1. Turn the device right-side up, and then open the display as far as possible.

2. Turn the device upside down, and locate the keyboard release access on the bottom of the computer, inside the battery bay.

3. Insert a flexible tool into the opening, and then press inward to release the keyboard.

Close-up of a device's cable being inserted into a slot, with a black arrow pointing to the insertion point (no text or symbols visible)

1. Turn the device right-side up, and then lift up on the top and left edges (1) of the keyboard until the keyboard releases completely.

2. Slide the keyboard back until its top edge rests on the display assembly (2).

Laptop keyboard diagram with numbered annotations pointing to specific keys and buttons

1. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached.

2. Disconnect the cable (2), and then remove the keyboard.

Diagram of a smartphone keyboard with labeled parts, showing key keys and a highlighted component.

1. Remove the keyboard.

Reverse this procedure to install the keyboard.

Description Spare part number

RTC battery 537616-001

Before removing the real-time clock (RTC) battery, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the device.
3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the device.
4. Remove the battery (see Battery on page 36).
5. If your device has WWAN capability, remove the SIM (see SIM on page 37.
6. Remove the Keyboard (see Keyboard on page 40)

Remove the RTC battery:

1. Disconnect the RTC battery cable (1) from the system board.

2. Detach the RTC battery (2) from the system board.

NOTE: The RTC battery is attached to the system board with double-sided tape.

Diagram of a computer motherboard with labeled parts and directional arrows indicating connection points

Reverse this procedure to install the RTC battery.

NOTE: Each hard drive spare part kit and solid-state drive spare part kit includes a cable and bracket.

Description Spare part number

Hard drive (select models only)

250-GB, 5400-RPM 537635-001

160-GB, 5400-RPM 537634-001

Hard Drive Hardware Kit 537641-001

Solid-state drive

64-GB 537640-001

32-GB 537639-001

16-GB 537638-001

8-GB 537637-001

Solid-state Drive Hardware Kit 537642-001

Before removing the hard drive or solid-state drive, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the device.
3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the device.

4. Remove the battery (see Battery on page 36).

5. If your device has WWAN capability, remove the SIM (see SIM on page 37.

6. Remove the keyboard (see Keyboard on page 40).

To remove the mass storage assembly:

1. Loosen the Phillips SP2.5×10.0 captive screw (1), and remove the two Phillips PM2.0×5.0 screws (2) that secure the assembly to the device.

2. Use the Mylar tab to slide the assembly to the left (3) to disconnect it, and remove the assembly (4).

Laptop screen with numbered annotations indicating internal components and a highlighted device

Continue with one of the following sections for hard drive or solid-state drive replacement.

Hard drive

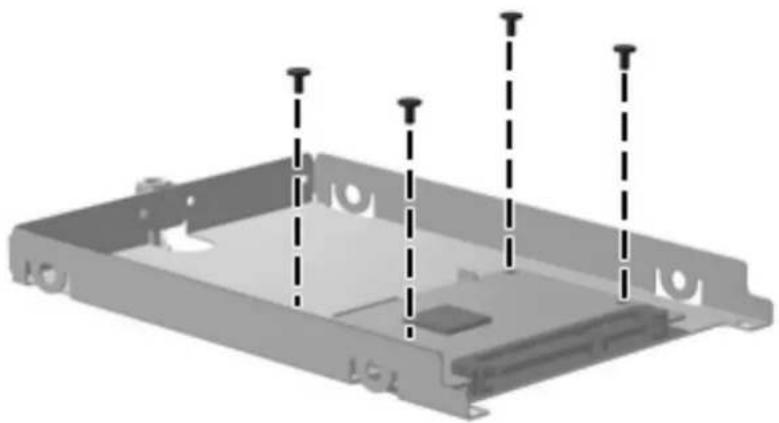

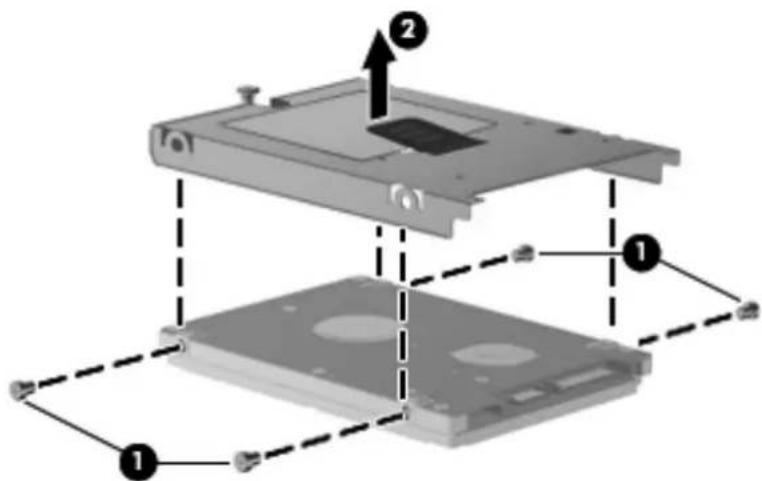

1. Remove the 4 Phillips SP3.0×4.0 screws (1) that secure the hard drive bracket to the hard drive.
2. Using the Mylar tab, lift the bracket (2) away from the hard drive.

Diagram of a floppy disk assembly with numbered components and dashed lines indicating hidden edges.

Reverse this procedure to install a hard drive.

Solid-state drive

To remove the solid-state drive:

1. Remove the 4 Phillips SP2.0×3.0 screws (1) that secure the solid-state drive bracket to the solid-state drive.

2. Lift the solid-state drive (2) to remove it.

Diagram of a device assembly with labeled components and directional arrows indicating movement or assembly.

Reverse this procedure to install a solid-state drive.

Top cover

Description Spare part number

Top cover (includes TouchPad) 537622-001

Before removing the top cover, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the device.

4. Remove the battery (see Battery on page 36).

5. If your device has WWAN capability, remove the SIM (see SIM on page 37.

6. Remove the memory module (see Memory module on page 38)

7. Remove the keyboard (see Keyboard on page 40).

8. Remove the hard drive or solid-state drive assembly (see Mass storage devices on page 45).

Remove the top cover.

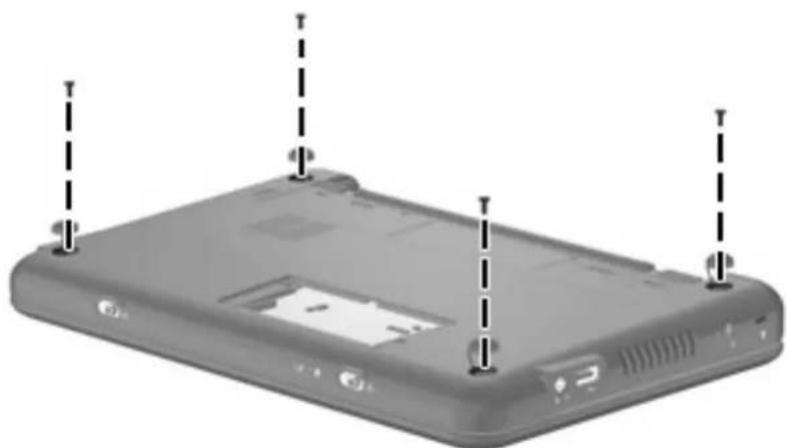

1. Turn the device upside down, with the front toward you.

2. Use a thin, flat tool to release the 4 tethered rubber feet.

3. Remove the four Phillips PM2.5×7.0 screws (1), and the Phillips SP2.0×5.0 screw (2) that secure the top cover to the base enclosure.

Labeled diagram of a laptop chassis showing three main components with numbered annotations

1. Turn the device right-side up, with the front toward you.

2. Open the device as far as possible.

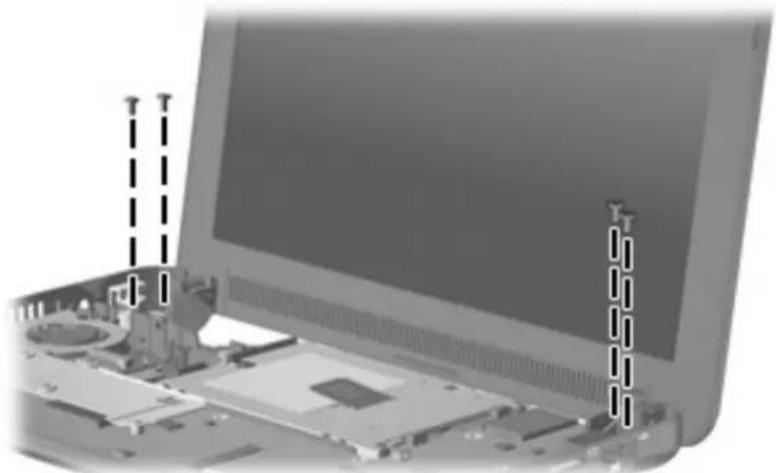

3. Remove the 8 Phillips PM2.5×7.0 screws that secure the top cover to the base enclosure.

Laptop keyboard with visible expansion and vertical dashed lines indicating measurement or port (no text or symbols)

1. Lift the inside edge of the top cover (1) and swing it up. Then slide the top cover back slightly to rest against the display assembly (2) at an angle.

Laptop interior diagram with labeled components and directional arrows indicating assembly or repair steps

1. Release the ZIF connector (1) to which the TouchPad button board cable is connected.

2. Disconnect the TouchPad button board cable (2) from the system board, and then remove the top cover.

Close-up of a computer interface showing a component with numbered annotations (1 and 2), no readable text or symbols beyond labels.

Reverse this procedure to install the top cover.

Description Spare part number

Broadcom 4312 802.11/b/g WLAN module
For use in Canada, the Cayman Islands, Guam, Puerto Rico, the U.S. Virgin Islands,and the United States	504593-003
For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina, Armenia,Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus,Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil,the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde,the Central African Republic, Chad, Chile, the People's Republic of China, Colombia, Comoros,the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica,the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equatorial Guinea, Eritrea, Estonia,Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar,Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras,Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan,Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein,Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta,the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia,Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands,New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama,Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova,Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal,Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia,South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia,St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan,Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda,Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela,Vietnam, Yemen, Zaire, Zambia, and Zimbabwe	504593-004

△ CAUTION: The WWAN module and the WLAN module are not interchangeable.

To prevent an unresponsive system, replace the wireless module only with a wireless module authorized for use in the device by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore device functionality, and then contact technical support through Help and Support.

Before removing the WLAN module, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the device.
3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the device.
4. Remove the battery (see Battery on page 36).
5. If your device has WWAN capability, remove the SIM (see SIM on page 37.
6. Remove the following components:

a. Keyboard (see Keyboard on page 40)

b. Hard drive or solid-state drive (see Mass storage devices on page 45)

c. Top cover (see Top cover on page 48)

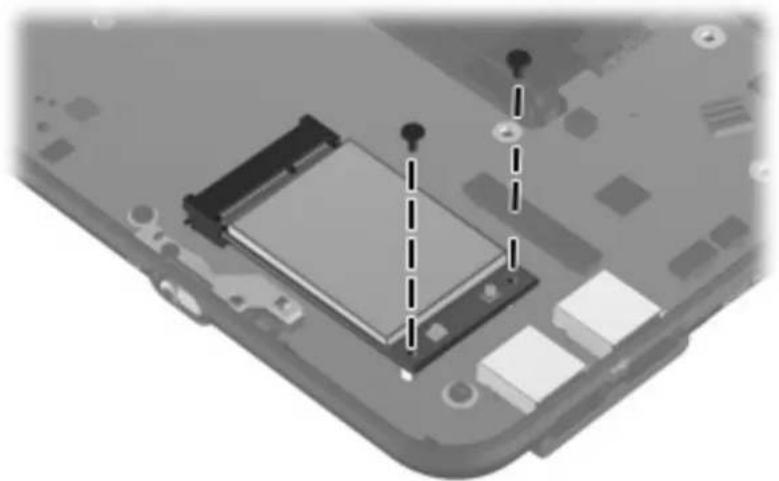

Remove the WLAN module:

1. Remove the 2 Phillips PM2.0×4.0 screws (1) that secure the WLAN module to the system board. (The edge of the module opposite the slot rises away from the device.)

2. Disconnect the wireless antenna cables (2) from the terminals on the WLAN module.

3. Remove the WLAN module (3) by pulling the module away from the slot at an angle.

Diagram of a computer motherboard with numbered components and directional arrows indicating assembly or connection points.

Reverse this procedure to install the WLAN module.

NOTE: Not available for computers with Mobile Mi installed.

Description Spare part number
HP un2400 Mobile Broadband Module (select models only)	483377-002
HP un2400 Mobile Broadband Module for use only with Verizon Wireless (select models only)	483377-003
WWAN module for use only in China 571888-001

CAUTION: The WWAN module and the WLAN module are not interchangeable.

To prevent an unresponsive system, replace the wireless module only with a wireless module authorized for use in the device by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore device functionality, and then contact technical support.

Before removing the WWAN module, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the device.
3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the device.
4. Remove the battery (see Battery on page 36).
5. Remove the SIM (see SIM on page 37.
6. Remove the following components:

a. Keyboard (see Keyboard on page 40)
b. Hard drive or solid-state drive (see Mass storage devices on page 45)
c. Top cover (see Top cover on page 48)

Remove the WWAN module:

1. Remove the 2 Phillips PM2.0×4.0 screws (1) that secure the WWAN connector module (3) to the system board. (The edge of the module opposite the slot rises away from the device.)
2. Disconnect the wireless antenna cables (2) from the terminals on the WWAN module.

NOTE: The red WWAN antenna cable is connected to the WWAN module "Main" terminal. The blue WWAN antenna cable is connected to the WWAN module "Aux" terminal.

1. Remove the WWAN module (3) by pulling the module away from the slot at an angle.

Laptop interior diagram with numbered annotations pointing to components like a circuit board and cable

Reverse this procedure to install the WWAN module.

Description Spare part number

USB/audio board (includes cable) 537614-001

Before removing the USB/audio board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC Adapter from the computer.

4. Remove the battery (see Battery on page 36).

5. If your device has WWAN capability, remove the SIM (see SIM on page 37.

6. Remove the following components:

a. Keyboard (see Keyboard on page 40).

b. Hard drive or solid-state drive (see Mass storage devices on page 45).

c. Top cover (see Top cover on page 48).

Remove the USB board:

1. Release the ZIF connector (1) to which the USB/audio board cable is connected, and disconnect the cable (2).

2. Release the USB/audio board from the clip attached to the base enclosure (3), and remove the USB/audio board (4).

Labeled diagram of a computer motherboard showing numbered components and connectors

Reverse this procedure to install the USB/audio board.

Power/battery pass-through board

Description Spare part number

Power/battery passthrough board 537615-001

Before removing the power/battery pass-through board, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the device.

4. Remove the battery (see Battery on page 36).

5. If your device has WWAN capability, remove the SIM (see SIM on page 37.

6. Remove the following components:

a. Keyboard (see Keyboard on page 40)

b. Hard drive or solid-state drive (see Mass storage devices on page 45)

c. Top cover (see Top cover on page 48)

Remove the power/battery pass-through board:

1. Disconnect the power cable (1).
2. Remove the 2 Phillips BP2.5×5.0 screws (2) that secure the power/battery passthrough board to the base enclosure.
3. Remove the power/battery pass-through board (3).

Diagram of a computer motherboard with numbered components and directional arrows indicating assembly or movement.

Reverse this procedure to install the power/battery pass-through board.

Fan

Description Spare part number

Fan 537613-001

NOTE: To properly ventilate the device, allow at least a 7.6-cm (3-inch) clearance on the left side of the device. The device uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software requirements. Exhaust air is displaced through the ventilation grill located on the left side of the device.

Before removing the fan, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the device.
3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the device.
4. Remove the battery (see Battery on page 36).
5. If your device has WWAN capability, remove the SIM (see SIM on page 37.
6. Remove the following components:

a. Keyboard (see Keyboard on page 40)
b. Hard drive or solid-state drive (see Mass storage devices on page 45)
c. Top cover (see Top cover on page 48)

Remove the fan:

1. Disconnect the fan cable (1).

2. Remove the 2 Phillips PM2.5×5.0 screws (2) that secure the fan to the base enclosure.

3. Remove the fan (3).

Diagram of a device's internal structure with numbered components and directional arrows indicating assembly or repair.

Reverse this procedure to install the fan.

Description Spare part number

Heat sink assembly (includes replacement thermal material) 537619-001

Before removing the heat sink assembly, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the device.

4. Remove the battery (see Battery on page 36).

5. If your device has WWAN capability, remove the SIM (see SIM on page 37.

6. Remove the following components:

a. Keyboard (see Keyboard on page 40)

b. Hard drive or solid-state drive (see Mass storage devices on page 45)

c. Top cover (see Top cover on page 48)

d. WLAN module (see WLAN module on page 51)

e. Fan (see Fan on page 57)

Remove the heat sink assembly:

1. Remove the 4 Phillips SP1.5×1.05 screws (1) that secure the heat sink assembly to the system board.

NOTE: The screws are numbered 1 through 4. Follow this order when removing the screws.

2. Remove the heat sink assembly (2).

NOTE: Due to the adhesive quality of the thermal material located between the heat sink assembly and system board components, it may be necessary to move the heat sink assembly from side to side to detach the assembly.

Diagram of a computer motherboard with numbered components and directional arrows indicating assembly or movement.

NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink assembly and the system board each time the heat sink assembly is removed. Thermal paste is used on the processor (1), and thermal tape is used on the Northbridge chip (2). Replacement thermal material is included with all heat sink assembly and system board spare part kits.

Diagram showing two labeled components (① and ②) on a circuit board with square elements and connectors.

Reverse this procedure to install the heat sink assembly.

Description Spare part number

System board (includes processor and replacement thermal material)
Includes Intel Atom N280 1.66-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus (FSB)	571370-001
Includes Intel Atom N270 1.6-GHz processor, 512-KB Level 2 cache, 533-MHz front-side bus (FSB)	537662-001

Before removing the system board, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the device.

4. Remove the battery (see Battery on page 36).

5. If your device has WWAN capability, remove the SIM (see SIM on page 37.

6. Remove the following components:

a. Keyboard (see Keyboard on page 40)

b. Hard drive or solid-state drive (see Mass storage devices on page 45)

c. Top cover (see Top cover on page 48)

When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board:

• WLAN module (see WLAN module on page 51)
- WWAN module, if included (see WWAN module on page 53)
• RTC battery (see RTC battery on page 44)
• Heat sink assembly (see Heat sink assembly on page 59)

Remove the system board:

1. Release the tape securing the WWAN antennas(1).

2. Disconnect the following cables from the system board:

(2) Display panel cable
(3) Microphone cable
(4) Speaker cable
(5) WLAN cables
(6) WWAN cables (select models only)

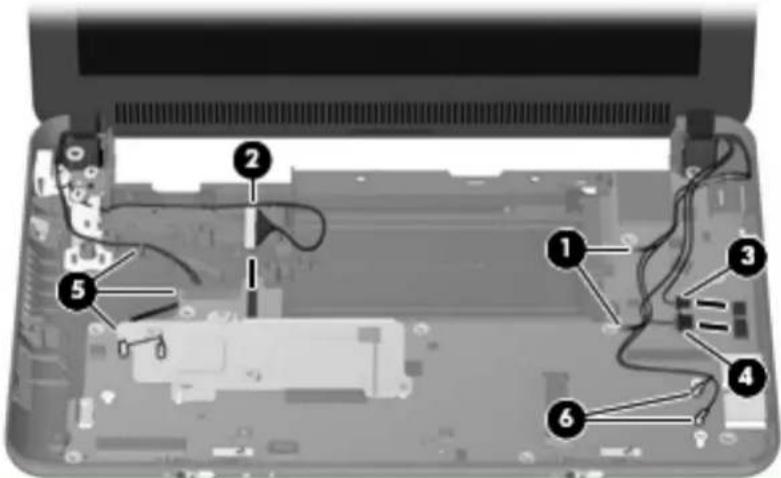

Laptop interior diagram with numbered annotations pointing to internal components

1. Remove the 2 Phillips PM1.5×2.0 screws (1) that secure the actuators for the power switch and wireless on/off switch to the system board.
2. Remove the actuators (2).

Diagram of a computer motherboard with labeled components and directional arrows indicating movement or assembly.

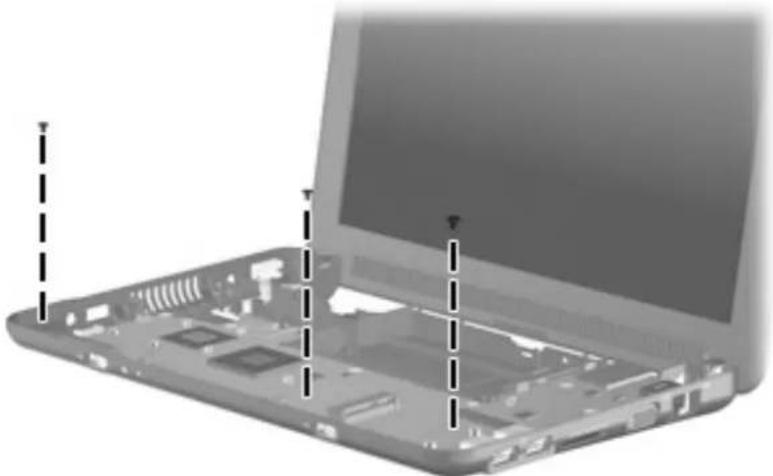

1. Remove the 3 Phillips PM2.5×5.0 screws that secure the system board to the base enclosure.

Laptop keyboard with visible circuit board and ventilation slots (no text or symbols)

1. Grasp the system board at the midpoint of the left side (1), and lift it up.

2. Pull the system board (2) out to the left at an angle to remove it.

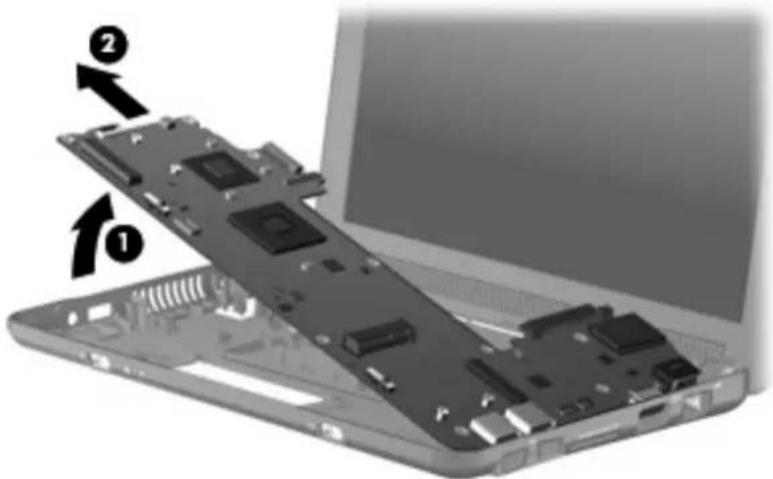

Laptop with open circuit board showing two labeled components (1 and 2), no text or symbols present.

1. Remove the system board.

Reverse the procedure to install the system board.

Description Spare part number
Display assembly (includes 1 webcam, 1 microphone, 1 speaker box, and 2 WLAN antenna transceivers/cables; WWAN is optional)
See Display assembly components on page 21 for a comprehensive list of display assembly spare parts.
For use with HP models only
10.1-inch, high-definition, AntiGlare Display Assembly (Includes WWAN)	572407-001
10.1-inch, high-definition, AntiGlare Display Assembly	572406-001
10.1-inch, standard-definition, AntiGlare Display Assembly (includes WWAN)	571414-001
10.1-inch, standard-definition, AntiGlare Display Assembly	537646-001
For use with Compaq standard models only
10.1-inch, high-definition, AntiGlare Display Assembly	572414-001
10.1-inch, standard-definition, AntiGlare Display Assembly (includes WWAN)	571417-001
10.1-inch, standard-definition, AntiGlare Display Assembly	537643-001
Hinge covers 537617-001
Display bezel
For use with HP Mini 1101 Notebook PC, and HP Mini 110 only	537650-001
For use with Compaq Mini 110 only 537644-001
Display Hinge Kit(Includes left and right display panel hinges)	537658-001
Speaker assembly (includes left and right cables)	537621-001
Display panel
10.1-inch high-definition AntiGlare 572405-001
10.1-inch standard-definition AntiGlare 537656-001
Webcam module 537660-001
Display Cable Kit (Not illustrated, includes microphone assembly display cable, webcam cable, and WLAN antennas)	537657-001
Display panel cable
Microphone assembly
WLAN antennas
WWAN antennas	537655-001
Display enclosure (includes logo)
For use with the HP Mini 1101 Notebook PC, and HP Mini 110	537651-001
For use with the Compaq Mini 110	537645-001
Display Screw Kit (not illustrated)	538510-001

Before removing the display assembly, follow these steps:

1. Shut down the device. If you are unsure whether the device is off or in Hibernation, turn the device on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the device.

3. Disconnect the power from the device by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the device.

4. Remove the battery (see Battery on page 36).

5. If your device has WWAN capability, remove the SIM (see SIM on page 37.

6. Remove the following components:

a. Keyboard (see Keyboard on page 40)

b. Hard drive or solid-state drive (see Mass storage devices on page 45)

c. Top cover (see Top cover on page 48)

Remove the display assembly:

1. Release the tape securing the WWAN antennas(1).

2. Disconnect the following cables from the system board:

(2) Display panel cable

(3) Microphone cable

(4) Speaker cable

(5) WLAN cables

(6) WWAN cables (select models only)

Laptop interior diagram with numbered annotations pointing to internal components

△ CAUTION: Support the display assembly when removing the following screws. Failure to support the display assembly can result in damage to the display assembly and other device components.

1. Remove the 4 Phillips PM2.5×5.0 screws (1) that secure the display assembly to the device.

NOTE: One screw on the left hinge (2) also secures the display panel cable ground strap.

Diagram of a computer monitor with labeled parts and cable connections, showing structural components and wiring.

1. Remove the display assembly.

2. If it is necessary to replace the display bezel, perform the following steps:

a. Remove the display hinge covers (1).
b. Flex the inside edges of the top and bottom (2), and then the left and right sides (3) of the display bezel until the bezel disengages from the display enclosure.
c. Remove the display bezel (4).

1. If it is necessary to replace the display panel, perform the following steps:

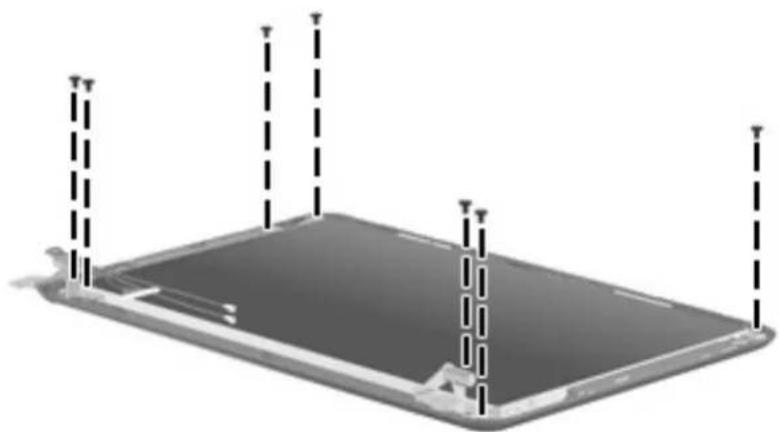

a. Remove the 7 Phillips PM2.0×3.0 screws that secure the display panel to the display enclosure.

3D diagram of a tablet device with vertical dashed lines and labeled 'T' indicators (no text or symbols on the device itself)

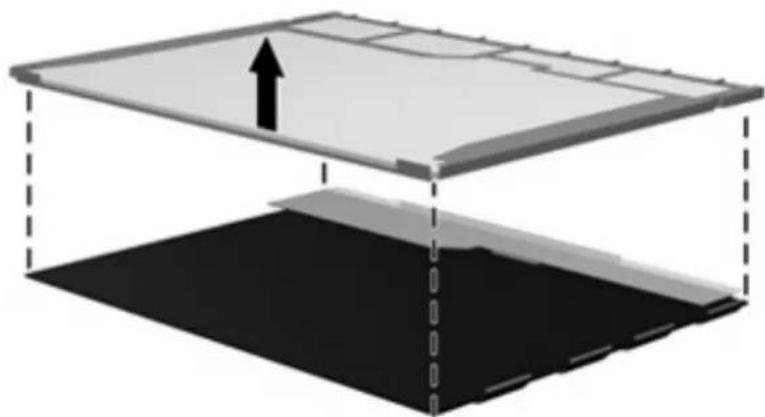

b. Lift the display panel up from the display enclosure (1).

c. Disconnect the webcam cable (2) from the system board (2)

d. Remove the display panel (3) from the display enclosure.

Diagram of a device with labeled components and directional arrows indicating assembly or movement

1. If it is necessary to replace the speaker assembly, perform the following steps:

a. Remove the three Phillips PM2.0×3.0 screws (1) that secure the speaker assembly to the display enclosure.

b. Remove the speaker assembly (2).

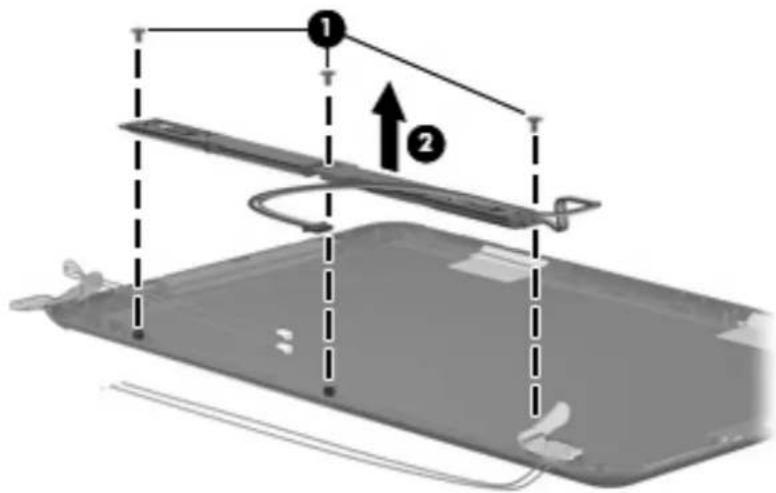

Diagram showing a mechanical assembly with labeled components and directional arrows, likely illustrating a motion or assembly process.

1. If it is necessary to replace the display hinges, perform the following steps:

a. Remove the 2 Phillips PM2.0×3.0 screws (1) that secure each hinge to the display enclosure. b. Remove the hinges (2).

Diagram showing a mechanical or electrical component with labeled parts and directional arrows indicating motion or assembly.

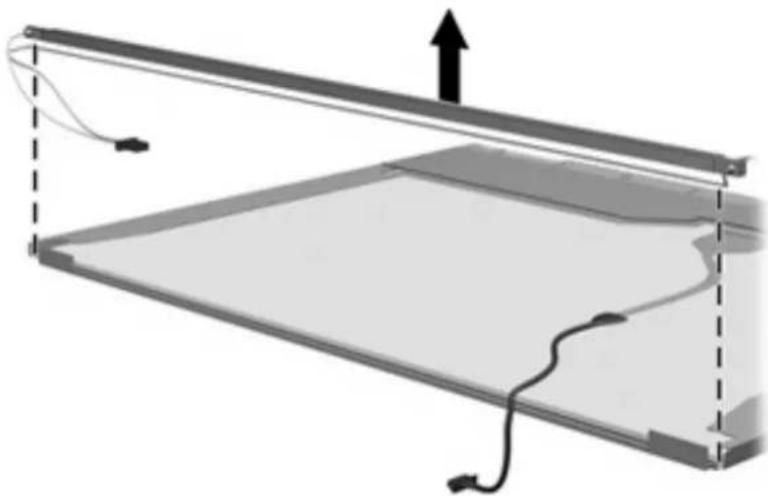

1. If it is necessary to replace the display panel cable, perform the following steps:

a. Peel back the Mylar protection on the back of the display panel (1).

b. Disconnect the display panel cable (2).

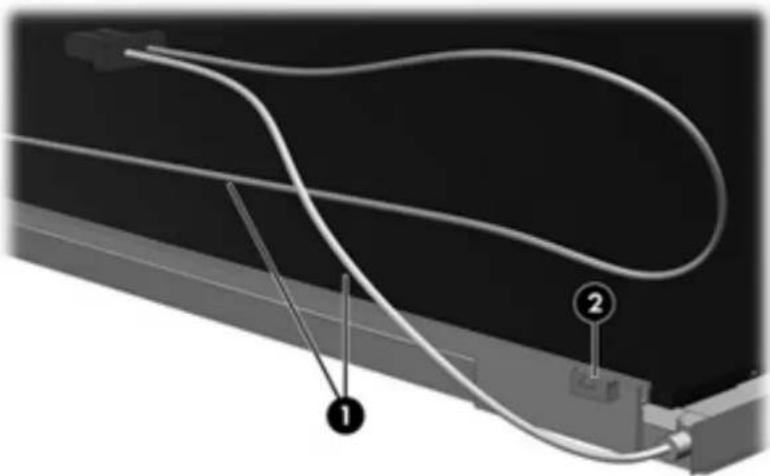

Diagram of a mechanical component with two directional arrows indicating movement (no text or symbols)

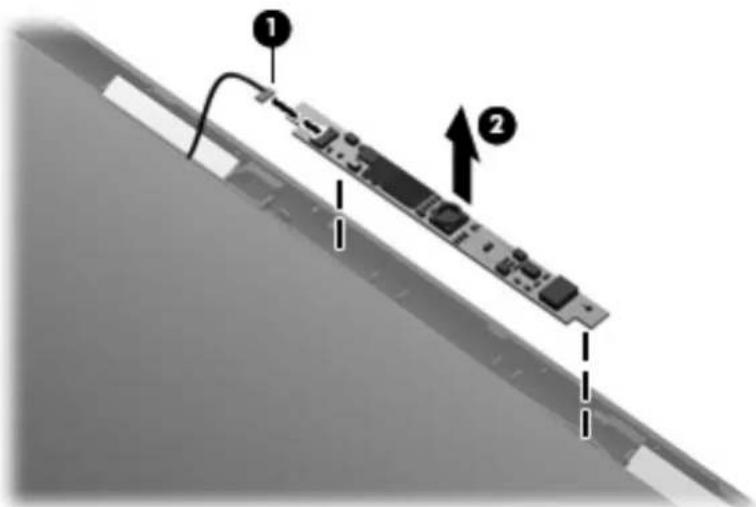

1. If it is necessary to replace the webcam module, perform the following steps:

a. Disconnect the webcam cable (1) from the webcam.
b. Remove the webcam (2).

Diagram showing a cable or connector assembly with labeled parts and directional arrows indicating movement or assembly.

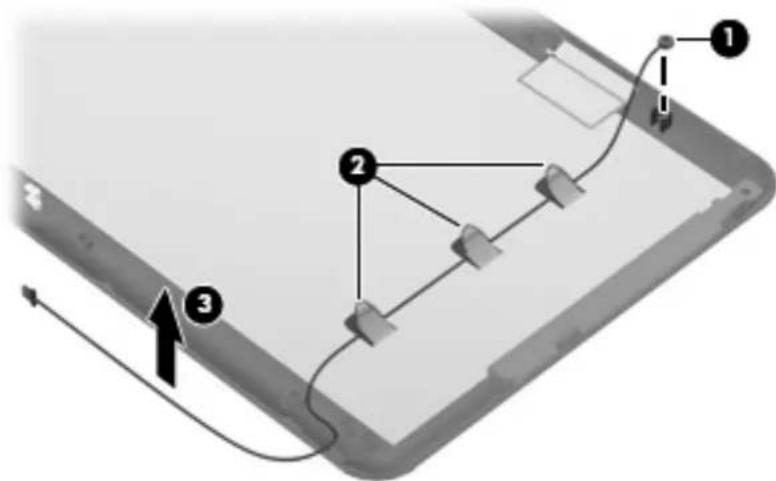

1. If it is necessary to replace the microphone receiver, perform the following steps:

a. Release the microphone receiver from the clip (1) that secures it to the display enclosure.

b. Pull the receiver through the tabs (2), and remove the microphone receiver (3).

Diagram of a tablet device with labeled components and connection arrows, showing connections between pins 1, 2, and 3.

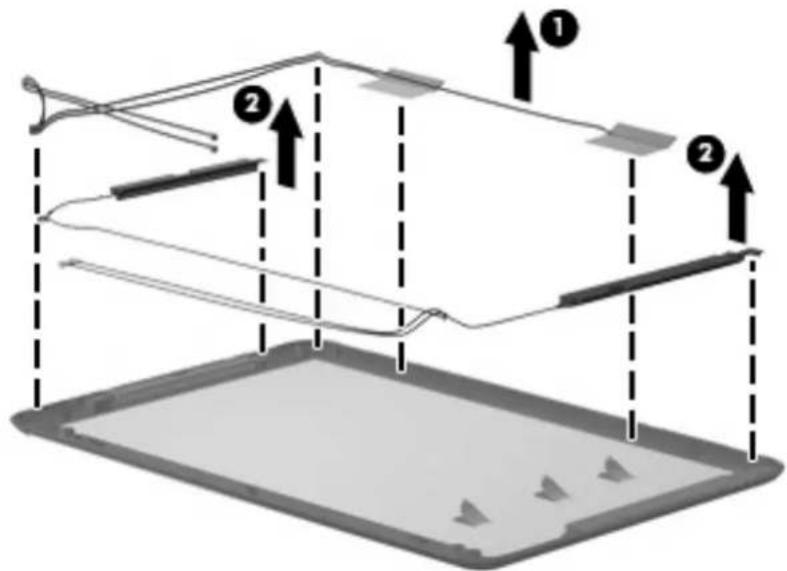

1. If it is necessary to replace the wireless antenna transceivers and cables, detach the cables from the adhesive (1) that secures them to the display enclosure, and then remove the cables (2).

Diagram of a multi-tiered electrical or mechanical device with labeled components and directional arrows indicating flow or assembly.

Reverse this procedure to reassemble and install the display assembly.

5 Setup Utility

Starting the Setup Utility

The Setup Utility is a ROM-based information and customization utility that can be used even when your operating system is not working.

The utility reports information about the device and provides settings for startup, security, and other preferences.

To start the Setup Utility:

Open the Setup Utility by turning on or restarting the device, and then pressing f10 while the "F10 = BIOS Setup Options" message is displayed in the lower-left corner of the screen.

Using the Setup Utility

Changing the language of the Setup Utility

The following procedure explains how to change the language of the Setup Utility. If the Setup Utility is not already running, begin at step 1. If the Setup Utility is already running, begin at step 2.

1. Open the Setup Utility by turning on or restarting the device, and then pressing f10 while the "F10 = BIOS Setup Options" message is displayed in the lower-left corner of the screen.
2. Use the arrow keys to select System Configuration > Language, and then press enter.
3. Use the arrow keys to select a language, and then press enter.
4. When a confirmation prompt with your language selected is displayed, press enter.
5. To save your change and exit the Setup Utility, use the arrow keys to select Exit > Exit Saving Changes, and then press enter.

Your change goes into effect immediately.

Navigating and selecting in the Setup Utility

Because the Setup Utility is not operating system-based, it does not support the TouchPad. Navigation and selection are by keystroke.

• To choose a menu or a menu item, use the arrow keys.
- To choose an item in a list or to toggle a field, for example an Enable/Disable field, use either the arrow keys or f5 or f6.

• To select an item, press enter.
• To close a text box or return to the menu display, press esc.
- To display additional navigation and selection information while the Setup Utility is open, press f1.

Displaying system information

The following procedure explains how to display system information in the Setup Utility. If the Setup Utility is not open, begin at step 1. If the Setup Utility is open, begin at step 2.

1. Open the Setup Utility by turning on or restarting the device, and then pressing f10 while the "F10 = BIOS Setup Options" message is displayed in the lower-left corner of the screen.
2. Select the Main menu. System information such as the system time and date, and identification information about the device is displayed.
3. To exit the Setup Utility without changing any settings, use the arrow keys to select Exit > Exit Discarding Changes, and then press enter.

Restoring default settings in the Setup Utility

The following procedure explains how to restore the Setup Utility default settings. If the Setup Utility is not already running, begin at step 1. If the Setup Utility is already running, begin at step 2.

1. Open the Setup Utility by turning on or restarting the device, and then pressing f10 while the "F10 = BIOS Setup Options" message is displayed in the lower-left corner of the screen.
2. Use the arrow keys to select Exit > Load Setup Defaults, and then press enter.
3. When the Setup Confirmation is displayed, press enter.
4. To save your change and exit the Setup Utility, use the arrow keys to select Exit > Exit Saving Changes, and then press enter.
   The Setup Utility default settings go into effect when the device restarts.

NOTE: Your password, security, and language settings are not changed when you restore the factory default settings.

Exiting the Setup Utility

You can exit the Setup Utility with or without saving changes.

• To exit the Setup Utility and save your changes from the current session:
If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to select Exit > Exit Saving Changes, and then press enter.
• To exit the Setup Utility without saving your changes from the current session:
If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to select Exit > Exit Discarding Changes, and then press enter.

After either choice, the device restarts and loads the operating system.

Setup Utility menus

The menu tables in this section provide an overview of Setup Utility options.

NOTE: Some of the Setup Utility menu items listed in this chapter may not be supported by your device.

Main menu

Select To do this
System information	View and change the system time and date.View identification information about the device.View specification information about the processor, memory size, and system BIOS.

Security menu

Select To do this

Administrator password Enter, change, or delete an administrator password.

Power-On Password Enter, change, or delete a power-on password.

System Configuration menu

Select To do this

Language Support Change the Setup Utility language.

Processor C4 State Enable/disable the processor C4 sleep state.

Boot Options Set the following boot options:f10 and f12 Delay (sec.)—Set the delay for the f10 and f12 functions of the Setup Utility in intervals of 5 seconds each (0, 5, 10, 15, 20).Internal Network Adapter boot—Enable/disable boot from Internal Network Adapter.Boot Order—Set the boot order for:Internal hard drive (select models only)USB FloppyUSB CD/DVD ROM DriveUSB flash driveUSB Hard driveUSB Card ReaderNetwork adapterNOTE: Only the devices attached to the system will appear in the boot order menu.

Diagnostics menu

Select To do this

Hard Disk Self Test (select models only) Run a comprehensive self-test on the hard drive.

Memory Test Run a diagnostic test on the system memory.

6 Specifications

Device specifications

Metric U.S.
Dimensions
Depth	16.67 cm 6.56 in
Width 26.17 cm 10.30 in
Height 2.52 cm 0.99 in
Weight
10.1-in. LCD, equipped with a 3-cell battery, hard drive, 1-GB memory, WLAN module, and 2 wireless antennas	1.11 kg 2.45 lb
10.1-in. LCD, equipped with a 3-cell battery,solid-state drive, 1-GB memory, WLAN module, and 2 wireless antennas	1.09 kg 2.40 lb
Input power
Operating voltage	19 V dc @ 1.58 A – 30 W
Operating current 1.58 A
Temperature
Operating	5°C to 35°C 41°F to 95°F
Nonoperating -20°C to 65°C -4°F to 149°F
Relative humidity (noncondensing)
Operating	10% to 90%
Nonoperating 0% to 95%
Maximum altitude (unpressurized)
Operating	-15 m to 3,048 m -50 ft to 10,000 ft
Nonoperating	-15 m to 12,192 m -50 ft to 40,000 ft
NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The device operates well within this range of temperatures.

10.1-inch, AntiGlare display specifications

Metric U.S.
Dimensions
Height	23.45 cm 9.23 in
Width 14.30 cm 5.62 in
Diagonal 25.55 cm 10.05 in
Number of colors 262,144
Contrast ratio 400:1 (typical)
Brightness 200 nits (typical)
Pixel resolution
Pitch	0.2175 × 0.2175 mm
Format 1024 × 576
Configuration RGB vertical stripe
Backlight Edge lit
Character display 80 × 25
Total power consumption 3.2 W
Viewing angle +/-45° horizontal, +15/-35° vertical (typical)

Hard drive specifications

60-GB *
Dimensions
Height	9.5 mm
Width 70 mm
Weight 101 g
Interface type PATA
Transfer rate 100 MB/sec
Security ATA security
Seek times (typical read, including setting)
Single track	3 ms
Average 13 ms
Maximum 24 ms
Logical blocks 117,210,240
Disc rotational speed 4200 rpm
Operating temperature
* 1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less. Actual drive specifications may differ slightly.
NOTE: Certain restrictions and exclusions apply. Contact technical support for details.

Solid-state drive specifications

Performance
Transfer modes supported	UDMA 0-4, Multiword-DMA 0-2, PIO 0-4
Sustained read 39 MB/sec
Sustained write 17 MB/sec
Characteristics
Interface	Parallel ATA (PATA)
MLC NAND flash capacity 8 GB, 16 GB
Electrical specifications
DC supply voltage	3.3 V +/- 5%
Standby current 300 μA (typical)
Active current Read = 130 mA (typical)
	Write = 120 mA (typical)
Environmental specifications
Operating temperature	0°C to +70°C (32°F to 158°F)
Storage temperature -25°C to +85°C (-13°F to 185°F)
Operating altitude up to 24,384 m (80,000 feet)
Humidity 5% to 90% non-condensing
Shock 1,000 g
Acoustic noise 0 dB
Vibration 15 g (peak to peak)
Physical specifications
Connector	40-pin ZIF connector
Weight (8-GB model) 5.5 g
Weight (16-GB model) 7.0 g
Dimensions (8-GB model) 54 × 32 × 2.6 mm
Dimensions (16-GB model)	54 × 32 × 3.75 mm
Regulations and compliance	RoHS, China RoHS, SGS ROHS, FCC, CE UL – PCB Only

System DMA specifications

Hardware DMA System function

DMA0 Not applicable

DMA1 * Not applicable

DMA2 * Not applicable

DMA3 Not applicable

DMA4 Direct memory access controller

System interrupt specifications

Hardware IRQ System function

IRQ0 System timer

IRQ1 Standard 101-/102-Key or Microsoft® Natural PS/2 Keyboard

IRQ8 System CMOS/real-time clock

IRQ9 * Microsoft ACPI-compliant system

IRQ12 Synaptics PS/2 TouchPad

IRQ13 Numeric data processor

IRQ14 Primary IDE channel

IRQ15 Intel® 82801G (ICH7 Family) SMBus Controller—27DA

IRQ16 Broadcom 802.11b/g WLAN no. 2

Intel 82801G (ICH7 Family) PCI Express Root Port—27D0

Intel 82801G (ICH7 Family) USB Universal Host Controller—27CB

Microsoft UAA Bus Driver for High Definition Audio

Mobile Intel 945 Express Chipset Family

IRQ17 Intel 82801G (ICH7 Family) PCI Express Root Port—27D2

IRQ18 Intel 82801G (ICH7 Family) USB Universal Host Controller—27CA

IRQ19 Intel 82801G (ICH7 Family) USB Universal Host Controller—27C9

IRQ23 Intel 82801G (ICH7 Family) USB Universal Host Controller—27C8

Intel 82801G (ICH7 Family) USB2 Enhanced Host Controller—27CC

* Default configuration

System I/O address specifications

I/O address (hex) System function (shipping configuration)

000 - 00F DMA controller

000 - CF7 PCI bus

010 - 01F Motherboard resources

020 - 021 Programmable interrupt controller

022 - 03F Motherboard resources

040 - 043 System timer

044 - 05F Motherboard resources

060 - 060 Standard 101-/102-Key or Microsoft® Natural PS/2 Keyboard

061 - 061 System speaker

062 - 062 Microsoft ACPI-Compliant Embedded Controller

063- 063 Motherboard resources

064 - 064 Standard 101-/102-Key or Microsoft Natural PS/2 Keyboard

065 - 065 Motherboard resources

066 - 066 Microsoft ACPI-Compliant Embedded Controller

067 - 06F Motherboard resources

070 - 071 System CMOS/real-time clock

072 - 07F Motherboard resources

080 - 080 Motherboard resources

081 - 083 DMA controller

084 - 086 Motherboard resources

087 - 087 DMA controller

088 - 088 Motherboard resources

089 - 08B DMA controller

08C - 08E Motherboard resources

08F - 08F DMA controller

090 - 09F Motherboard resources

0A0 - 0A1 Programmable interrupt controller

0A2 - 0BF Motherboard resources

0C0 - 0DF DMA controller

0E0 - 0EF Motherboard resources

0F0 - 0FF Numeric data processor

1F0 - 1F7 Primary IDE channel

274 - 277 ISAPNP Read Data Port

279 - 279 ISAPNP Read Data Port

3B0 - 3BB Mobile Intel® 945 Express Chipset Family

3C0 - 3DF Mobile Intel 945 Express Chipset Family

3F6 - 3F6 Primary IDE channel

400 - 41F Intel 82801G (ICH7 Family) SMBus Controller—27DA

480 - 4BF Motherboard resources

4D0 - 4D1 Motherboard resources

500 - 501 Motherboard resources

800 - 87F Motherboard resources

A79 - A79 ISAPNP Read Data Port

0D00 - FFFF PCI bus

D480 - D49F Intel 82801G (ICH7 Family) USB Universal Host Controller—27C8

D800 - D81F Intel 82801G (ICH7 Family) USB Universal Host Controller—27CA

D880 - D89F Intel 82801G (ICH7 Family) USB Universal Host Controller—27C9

DC00 - DC1F Intel 82801G (ICH7 Family) USB Universal Host Controller—27C8

DC80 - DC87 Mobile Intel 945 Express Chipset Family

E000 - EFFF Intel 82801G (ICH7 Family) PCI Express Root Port—27D2

FFA0 - FFAF Intel 82801G (ICH7 Family) Ultra ATA Storage Controllers—27DF

System memory map specifications

Memory address System function

00000000 - 0009FFFF System board

000A0000 - 000BFFFF Mobile Intel® 945 Express Chipset Family

000A0000 - 000BFFFF PCI bus

000C0000 - 000CFFFF System board

000D0000 - 000DFFFF PCI bus

000E0000 - 000FFFFFF System board

00100000 - 3F7FFFFFF System board

3F800000 - DFFFFFFF PCI bus

D0000000 - DFFFFFFF Mobile Intel 945 Express Chipset Family

E0000000 - E3FFFFFF Motherboard resources

E4000000 - FED8FFFF PCI bus

FE880000 - FE8FFFFFF Mobile Intel 945 Express Chipset Family

FE937C00 - FE937FFF Intel 82801G (ICH7 Family) USB2 Enhanced Host Controller—27CC

FE938000 - FE93BFFF Microsoft® UAA Bus Driver for High Definition Audio

FE940000 - FE97FFFF Mobile Intel 945 Express Chipset Family

FE980000 - FE9FFFFFF Mobile Intel 945 Express Chipset Family

FEA00000 - FEAFFFF Intel 82801G (ICH7 Family) PCI Express Root Port—27D0

FEAFC000 - FEAFFFF Broadcom 802.11b/g WLAN

FEB00000 - FEBFFFFFF Intel 82801G (ICH7 Family) PCI Express Root Port—27D2

FEC00000 - FEC00FFF Motherboard resources

FED13000 - FED19FFF System board

FED1C000 - FED1FFFF Motherboard resources

FED20000 - FED3FFFF Motherboard resources

FED40000 - FED8FFFF Motherboard resources

FED90000 - FFFFFFFF System board

FEE00000 - FEE00FFF Motherboard resources

7 Screw listing

This section provides specification and reference information for the screws and screw locks used in the device. All screws listed in this section are available in the Screw Kit, spare part number 537620-001; or in the Display Screw Kit, spare part number 538510-001.

Phillips PM1.5×1.0 screw

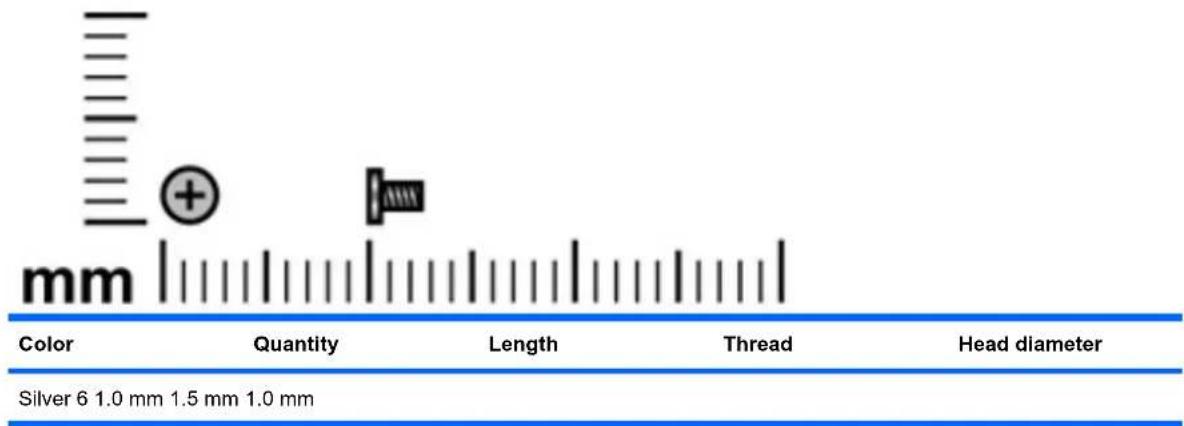

mm Color Quantity Length Thread Head diameter Silver 6 1.0 mm 1.5 mm 1.0 mm

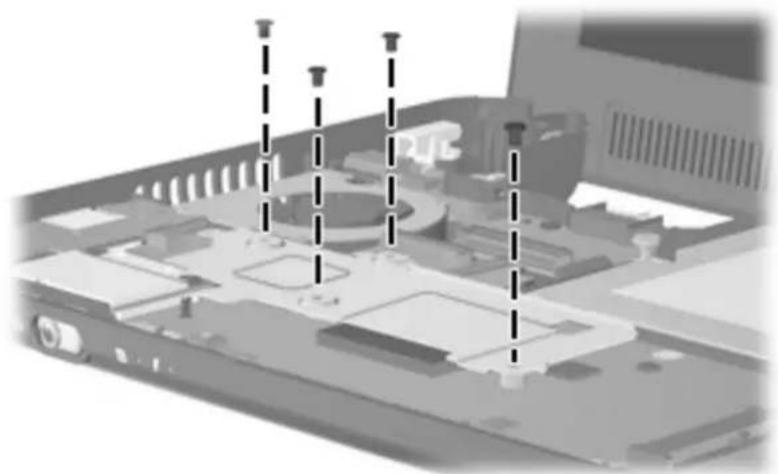

3D rendering of a computer motherboard with visible CPU socket and screw holes (no text or symbols)

Where used: 4 screws that secure the heat sink to the system board

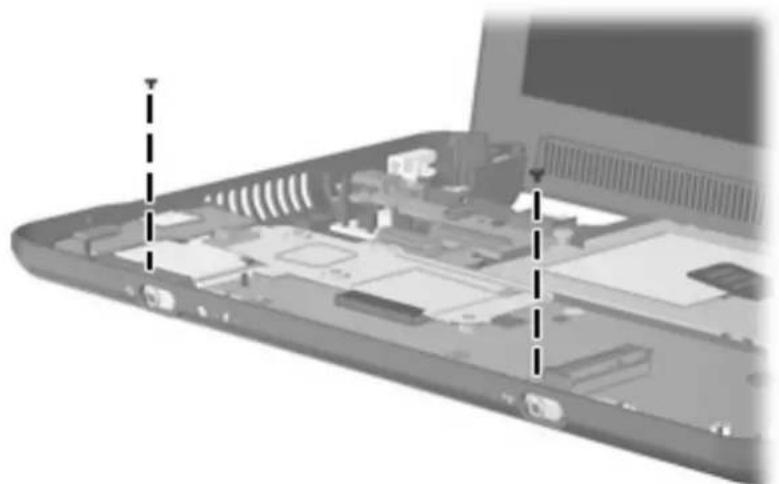

Interior view of a laptop chassis showing internal circuitry and ventilation slots (no text or symbols visible)

Where used: Two screws that secure the power and wireless switch actuators to the base enclosure

Phillips PM2.0×3.0 screw

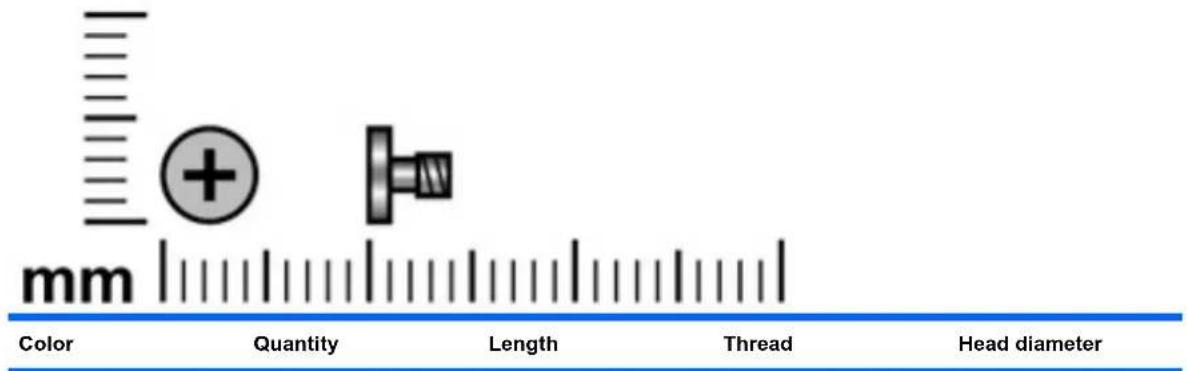

mm Color Quantity Length Thread Head diameter

Black 20 3.0 mm 2.0 mm 4.0 mm

3D diagram of a device casing with internal components and dashed lines indicating alignment (no text or symbols)

Where used: 3 screws that secure the keyboard to the device

3D diagram of a computer chassis with mounting hardware and vertical support posts (no text or symbols)

Where used: Four screws that secure the solid-state drive to the bracket

3D diagram of a tablet device with vertical dashed lines and mounting feet (no text or symbols)

Where used: Seven screws that secure the display panel to the display enclosure

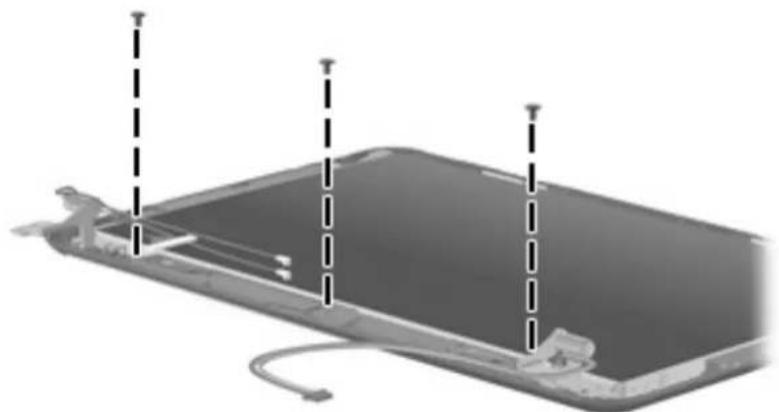

Diagram of an open battery with exposed internal structure and three vertical dashed lines indicating measurement or installation points (no text or symbols present)

Where used: Three screws that secure the speaker assembly to the display enclosure

Diagram of a rectangular electronic component with mounting flanges and wiring (no text or symbols)

Where used: Four screws that secure the hinges to the display panel

Phillips PM2.0×3.0 captive screw

mm Color Quantity Length Thread Head diameter

Black 2 3.0 mm 2.0 mm 4.0 mm

Front view of a laptop computer back panel showing ventilation slots and status buttons (no text or symbols visible)

Phillips PM2.0×4.0 screw

mm Color Quantity Length Thread Head diameter

Silver 4 4.0 mm 2.0 mm 4.0 mm

3D rendering of a device's internal components with dashed lines indicating alignment or measurement points (no text or symbols present)

Where used: Two screws that secure the WLAN module to the system board

3D diagram of a computer motherboard with a central chip and two dashed lines indicating alignment or connection points (no text or symbols present)

Where used: Two screws that secure the WWAN to the system board

Phillips PM2.0×5.0 screw

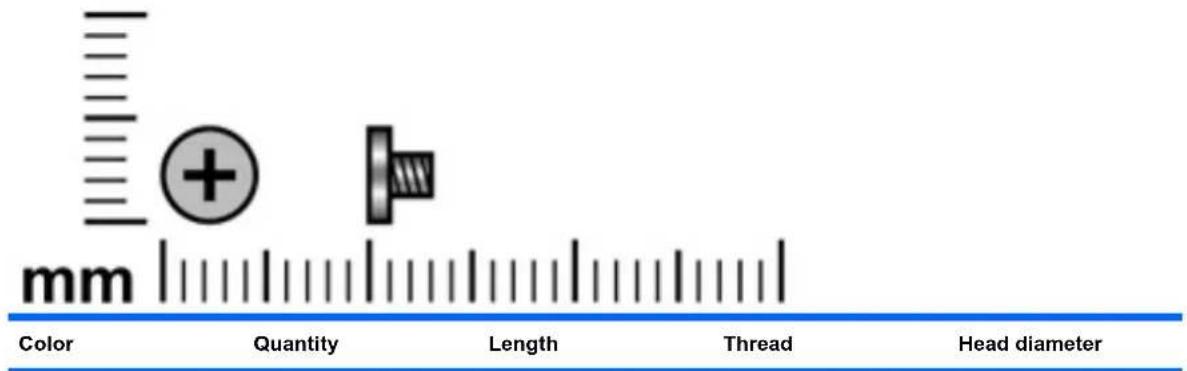

mm Color Quantity Length Thread Head diameter

Silver 3 5.0 mm 2.0 mm 4.5 mm

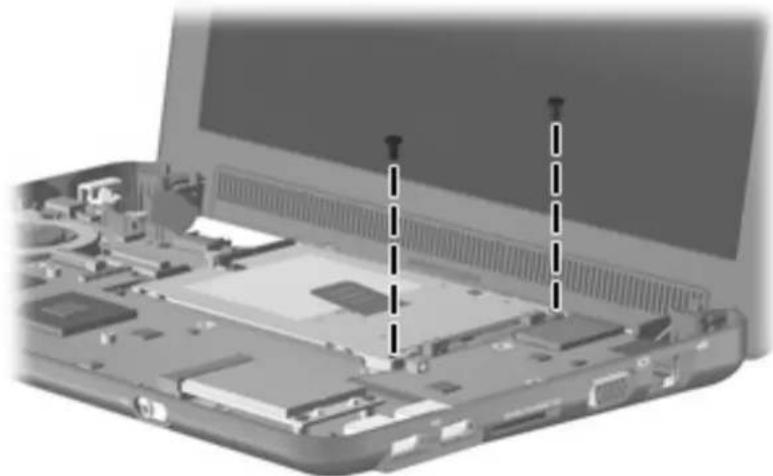

Laptop interior showing internal circuit board and ventilation slots (no text or symbols visible)

Where used: Two screws that secure the hard drive or solid-state drive to the system board

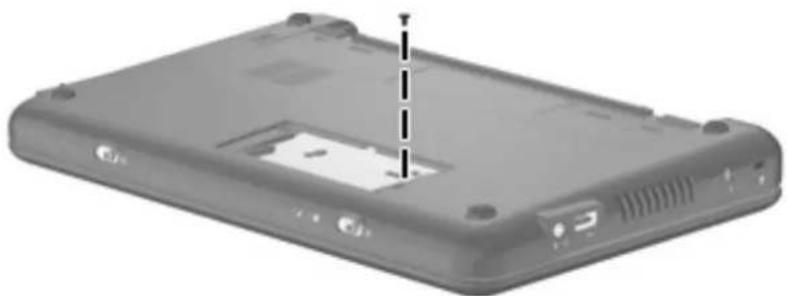

Black laptop cover with visible drive bays and a dashed vertical line indicating a measurement or edge (no text or symbols)

Where used: One screw that secures the top cover to the base enclosure

Phillips PM2.5×5.0 screw

mm Color Quantity Length Thread Head diameter

Silver 15 5.0 mm 2.5 mm 4.5 mm

3D mechanical assembly diagram showing internal components and a close-up of a computer monitor (no text or symbols visible)

Where used: Two screws that secure the power/battery passthrough board to the system board

Laptop interior view showing front panel and rear panel with visible drive bays and ventilation slots (no text or symbols)

Where used: Four screws that secure the display assembly and top cover to the device

3D illustration of a computer motherboard with screwdrivers and a central hub (no text or symbols)

Where used: Two screws that secure the fan to the system board

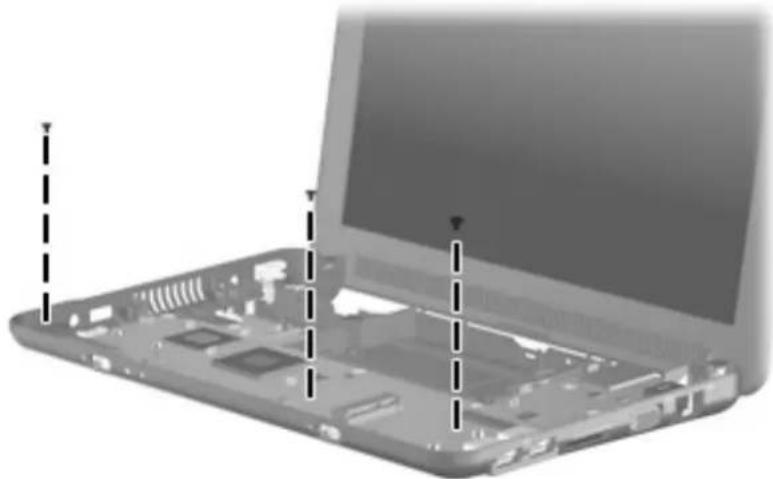

Laptop interior view showing exposed circuit board and ventilation duct (no text or symbols)

Where used: Three screws that secure the system board to the base enclosure

Laptop interior view showing front panel and rear panel with visible circuitry and ventilation slots (no text or symbols)

Where used: Four screws that secure the display assembly to the base enclosure

Phillips PM2.5×7.0 screw

mm Color Quantity Length Thread Head diameter

Black 12 7.0 mm 2.5 mm 4.0 mm

Top-down view of a gray electronic device with three vertical dashed lines labeled 'T' pointing to the front panel (no text or symbols on the device itself)

Where used: Four screws that secure the top cover to the base enclosure

Laptop with visible circuit board and vertical measurement markings (no text or symbols)

Where used: Eight screws that secure the top cover to the base enclosure

Phillips PM2.5×10.0 captive screw

mm

Color

Quantity

Length

Thread

Head diameter

Black 1 10.0 mm 2.5 mm 4.0 mm

Top-down view of a laptop's front open showing internal circuitry and a central display (no text or symbols visible)

Where used: One captive screw, with a C-clip, that secures the hard drive or solid-state drive bracket to the system board

Phillips PM3.0×40.0 screw

mm Color Quantity Length Thread Head diameter

Black 4 4.0 mm 3.0 mm 4.0 mm

3D rendering of a rectangular electronic device with mounting holes and dashed lines indicating alignment (no text or symbols)

Where used: Four screws that secure the hard drive bracket to the hard drive

8 Backup and recovery

Select the section in this chapter that applies to the operating system installed on your computer.

Mobile Mi backup and recovery

Use the instructions in this section if Mobile Mi is installed on your computer.

To protect your information, back up your files and folders. Then if the system fails, you can restore your important files from copies. You can also use the options listed in this section to restore the operating system and programs that were installed at the factory.

Backing up your information

Successful recovery after a system failure depends on whether you have completely backed up your files. You should back up your files on a regular basis to maintain up-to-date files.

You can back up important personal files and folders to the Mini Mobile Drive (select models only), to an external hard drive, or to a USB flash drive (purchased separately).

When to back up

• On a regular basis
  • Before the system is repaired or restored
  • Before you add or modify hardware or software

Restoring your information

In case of system failure or instability, you can restore the operating system and programs installed at the factory.

△ CAUTION: The restore process reformats hard drive, completely erasing all information. All the files you have created and any software installed on the device are permanently removed. The restore process reinstalls the original operating system, software, and drivers. Software, drivers, and updates not installed with the factory image must be reinstalled using Update Manager.

The device provides the following restore options:

• System Restore (installed on the device): You can use the System Restore utility to restore the original operating system and programs.
  HP Mi Restore Image Creator (USB flash drive): If you are unable to boot (start up) the device, and if you are unable to use System Restore, you can use another computer to download the HP Mi Restore Image Creator utility and create a bootable USB flash drive (purchased separately). You can then use the USB flash drive to install the HP Mi recovery image and programs on your device.

Note the following before beginning the restore process:

• The device must be connected to AC power during the restore process.
• The restore process may take several hours to complete.
  • If possible, all personal files should be backed up.

NOTE: System Restore is the recommended option to restore the original operating system.

To restore the original operating system and programs using the System Restore utility that is installed on the device, follow these steps:

1. Turn on or restart the device, and then press the esc key repeatedly while the "F10 = BIOS Setup Options" message is displayed in the lower-left corner of the screen.

The "System Restore" page opens.

1. Use the arrow keys to select System Restore, and then press enter.

2. Follow the on-screen instructions to restore the system.

Using HP Mi Restore Image Creator

NOTE: Use HP Mi Restore Image Creator if you are unable to boot (start up) the device, and if you are unable to use System Restore.

You will need the following before you begin this restore process:

A 2-GB (minimum) USB flash drive (purchased separately)

NOTE: This USB flash drive should have bootable capability. Refer to the USB flash drive manufacturer for additional information.

An additional computer running either a Windows® or Linux operating system

To perform this restore option, you download the HP Mi Restore Image Creator utility and Mini operating system onto another computer and then transfer the necessary files to the USB flash drive. The drive can then be used to reboot your device and restore the system.

Follow the specific operating system instructions in this section to restore your system.

△ CAUTION: The restore process reformats and completely erases the hard drive on the Mini. All the files you have created and any software installed on the device are permanently removed. The restore process reinstalls the original operating system, software, and drivers. Software, drivers, and updates not installed with the factory image must be reinstalled using Update Manager.

Restoring using a Windows computer

To download the files to a computer running a Windows operating system and then restore your device, follow these steps:

1. From your Windows computer, go to http://www.hp.com.

2. Click the Support & Drivers tab.

3. Under "Step 1: Start by selecting a task," select Download drivers and software (and firmware).

4. Under "Step 2: Enter a product name / number," type the part number/product number (p/n) of your Mini, and then click Go.

NOTE: The p/n is located on the service tag affixed to the bottom of your Mini.

1. Under "Which operating system is used with your product?" click HP Mi or click Linux.

2. Click HP Mi Restore Image Creator (for Windows).

3. Click Download only.
4. Save ImageCreator.msi to the Windows computer.
5. Double-click ImageCreator.msi and follow the on-screen instructions to install HP Mi Restore Image Creator.
6. Insert the USB flash drive into a USB port on the Windows computer.

△ CAUTION: The restore process reformats and completely erases the USB flash drive. All the files on the USB flash drive are permanently removed.

1. Launch HP Mi Restore Image Creator from the Start menu.
2. Select Download HP Mini recovery image.
3. Select the target USB flash drive, and then click Start to download the latest Mini recovery image from the HP Web site.

The recovery image will be downloaded and saved to the Windows computer and then written to the USB flash drive.

1. When the download and write processes are complete, remove the USB flash drive.
2. Insert the USB flash drive into a USB port on your Mini.
3. Change the boot order by turning on or restarting the device, and then pressing f9 repeatedly while the "F9 = Change Boot Device Order" message is displayed in the lower-left corner of the screen.
4. Use the arrow keys to select the USB flash drive, and then press enter.
5. Press enter again to begin restoring the device.
6. Follow the on-screen instructions to install the operating system and programs.
7. After the operating system and programs are installed, remove the USB flash drive.

NOTE: After the operating system and programs are installed, the device automatically restarts. You are then prompted to set up your device.

1. Use Update Manager to reinstall any updates not installed with the factory image.
2. Restore your personal files.

NOTE: After this process is complete, you can uninstall the HP Mi Restore Image Creator utility from the Windows computer and delete the downloaded recovery image from the USB flash drive. (The image must be deleted manually.)

Restoring using a Linux computer

To download the files to a computer running a Linux operating system and then restore your device, follow these steps:

1. From your Linux computer, go to http://www.hp.com.

2. Click the Support & Drivers tab.

3. Under "Step 1: Start by selecting a task," select Download drivers and software (and firmware).

4. Under "Step 2: Enter a product name / number," type the part number/product number (p/n) of your Mini, and then click Go.
   NOTE: The p/n is located on the service tag affixed to the bottom of your Mini.
5. Under "Which operating system is used with your product?" click HP Mi or click Linux.
6. Click HP Mi Restore Image Creator (for Linux).
7. Click Download only.
8. Save liveusb-creator-ubuntu_0.3.3netbook0dennis5_all.deb to the Linux computer.
9. Install liveusb-creator-ubuntu_0.3.3netbook0dennis5_all.deb on the Linux computer.
10. Insert the USB flash drive into a USB port on the Linux computer

△ CAUTION: The restore process reformats and completely erases the USB flash drive. All the files on the USB flash drive are permanently removed.

1. Open a terminal window and type the following command at the command prompt: sudo liveusb-creator

2. Select Download restore image/HP Mi Restore Image.

3. Select the target USB flash drive, and then click Start to download the latest Mini recovery image from the HP Web site. The recovery image will be downloaded and saved to the Linux computer, and then written to the USB flash drive.

4. When the download and write processes are complete, remove the USB flash drive.

5. Insert the USB flash drive into a USB port on your Mini.

6. Change the boot order by turning on or restarting the device, and then pressing f9 repeatedly while the "F9 = Change Boot Device Order" message is displayed in the lower-left corner of the screen.

7. Use the arrow keys to select the USB flash drive, and then press enter.

8. Press enter again to begin restoring the device.

9. Follow the on-screen instructions to install the operating system and programs.

10. After the operating system and programs are installed, remove the USB flash drive.

NOTE: After the operating system and programs are installed, the device automatically restarts. You are then prompted to set up your device.

1. Use Update Manager to reinstall any updates not installed with the factory image.

2. Restore your personal files.

NOTE: After this process is complete, you can uninstall the HP Mi Restore Image Creator utility from the Linux computer and delete the downloaded recovery image from the USB flash drive. (The image must be deleted manually.)

Windows Vista backup and recovery

Use the instructions in this section if Windows Vista is installed on your computer.

Backing up your information

Recovery after a system failure is as complete as your most current backup. You should create your initial backup immediately after software setup. As you add new software and data files, you should continue to back up your system on a regular basis to maintain a reasonably current backup.

You can back up your information to an optional external hard drive, a network drive, or discs.

Note the following when backing up:

• Store personal files in the Documents folder, and back it up regularly.
• Back up templates that are stored in their associated programs.
• Save customized settings that appear in a window, toolbar, or menu bar by taking a screen shot of your settings. The screen shot can be a time-saver if you have to reset your preferences.

To create a screen shot:

1. Display the screen you want to save.
2. Copy the screen image:

To copy only the active window, press alt+fn+prt sc.

To copy the entire screen, press fn+prt sc.

1. Open a word-processing document, and then select Edit > Paste.

The screen image is added to the document.

1. Save the document.

- When backing up to discs, use any of the following types of discs (purchased separately): CD-R, CD-RW, DVD+R, DVD+R DL, DVD-R, DVD-R DL, or DVD±RW. The discs you use will depend on the type of optical drive installed in your computer.

NOTE: DVDs and DVDs with double-layer (DL) support store more information than CDs, so using them for backup reduces the number of recovery discs required.

- When backing up to discs, number each disc before inserting it into the optical drive of the computer.

To create a backup using Backup and Restore Center, follow these steps:

NOTE: Be sure that the computer is connected to AC power before you start the backup process.

NOTE: The backup process may take over an hour, depending on file size and the speed of the computer.

1. Select Start > All Programs > Maintenance > Backup and Restore Center.
2. Follow the on-screen instructions to back up your entire computer (select models only) or your files.

NOTE: Windows® includes the User Account Control feature to improve the security of your computer. You may be prompted for your permission or password for tasks such as installing software, running utilities, or changing Windows settings. Refer to Help and Support for more information.

Performing a recovery

In case of system failure or instability, the computer provides the following tools to recover your files:

• Windows recovery tools: You can use the Backup and Restore Center to recover information you have previously backed up. You can also use Windows Startup Repair to fix problems that might prevent Windows from starting correctly.
• f11 recovery tools: You can use the f11 recovery tools to recover your original hard drive image. The image includes the Windows operating system and software programs installed at the factory.

NOTE: If you are unable to boot (start up) your computer, you must purchase a Windows Vista® operating system DVD to reboot the computer and repair the operating system. For additional information, refer to the "Using a Windows Vista operating system DVD (purchased separately)" section in this guide.

Using the Windows recovery tools

To recover information you previously backed up, follow these steps:

1. Click Start > All Programs > Maintenance > Backup and Restore Center.
2. Follow the on-screen instructions to recover your entire computer (select models only) or your files.

NOTE: Windows includes the User Account Control feature to improve the security of your computer. You may be prompted for your permission or password for tasks such as installing software, running utilities, or changing Windows settings. Refer to Help and Support for more information.

To recover your information using Startup Repair, follow these steps:

CAUTION: Using Startup Repair completely erases hard drive contents and reformats the hard drive. All files you have created and any software installed on the computer are permanently removed. When reformatting is complete, the recovery process restores the operating system, as well as the drivers, software, and utilities from the backup used for recovery.

1. If possible, back up all personal files.
2. If possible, check for the presence of the Windows partition and the HP Recovery partition. To find the partitions, select Start > Computer.

NOTE: If the Windows partition and the HP Recovery partition have been deleted, you must recover your operating system and programs using the Windows Vista operating system DVD and the Driver Recovery disc (both purchased separately). For additional information, refer to the “Using a Windows Vista operating system DVD (purchased separately)” section in this guide.

1. Restart the computer, and then press f8 before the Windows operating system loads.
2. Select Repair your computer.
3. Follow the on-screen instructions.

NOTE: For additional information on recovering information using the Windows tools, perform a search for these topics in Help and Support.

Using f11

△ CAUTION: Using f11 completely erases hard drive contents and reformats the hard drive. All files you have created and any software installed on the computer are permanently removed. The f11 recovery tool reinstalls the operating system and HP programs and drivers that were installed at the factory. Software not installed at the factory must be reinstalled.

To recover the original hard drive image using f11, follow these steps:

1. If possible, back up all personal files.
2. If possible, check for the presence of the HP Recovery partition. To find the partition, select Start > Computer.

NOTE: If the HP Recovery partition has been deleted, you must recover your operating system and programs using the Windows Vista operating system DVD and the Driver Recovery disc (both purchased separately). For additional information, refer to the “Using a Windows Vista operating system DVD (purchased separately)” section in this guide.

1. Turn on or restart the computer, and then press esc while the "Press the ESC key for Startup Menu" message is displayed at the bottom of the screen.

2. Press f11 while the "Press for recovery" message is displayed on the screen.

3. Follow the on-screen instructions.

Using a Windows Vista operating system DVD (purchased separately)

If you are unable to boot (start up) your computer, you must purchase a Windows Vista operating system DVD to reboot the computer and repair the operating system. Make sure that your most recent backup (stored on discs or on an external drive) is easily accessible. To order a Windows Vista operating system DVD, go to http://www.hp.com/support, select your country or region, and follow the on-screen instructions. You can also order the DVD by calling technical support. For contact information, refer to the Worldwide Telephone Numbers booklet included with the computer.

△ CAUTION: Using a Windows Vista operating system DVD completely erases hard drive contents and reformats the hard drive. All files you have created and any software installed on the computer are permanently removed. When reformatting is complete, the recovery process helps you restore the operating system, as well as drivers, software, and utilities.

To initiate recovery using a Windows Vista operating system DVD, follow these steps:

NOTE: This process takes several minutes.

1. If possible, back up all personal files.
2. Restart the computer, and then insert the Windows Vista operating system DVD into the optical drive before the Windows operating system loads.
3. When prompted, press any keyboard key.
4. Follow the on-screen instructions.
5. Click Next.
6. Select Repair your computer.
7. Follow the on-screen instructions.

Windows XP backup and recovery

Use the instructions in this section if Windows XP is installed on your computer.

To protect your information, use the Windows® Backup utility (select models only) to back up files and folders or create recovery points. In case of system failure, you can use the backup files to restore your computer.

Windows provides the following options:

• Backing up individual files and folders
• Backing up all files and folders
• Scheduling automatic backups
- Creating recovery points
• Recovering information

NOTE: For detailed instructions, perform a search for these topics in Help and Support.

NOTE: In case of system instability, HP recommends that you print the recovery procedures and save them for later use.

Backing up your information

Recovery after a system failure is as complete as your most current backup. You should create your initial backup immediately after software setup. As you add new software and data files, you should continue to back up your system on a regular basis to maintain a reasonably current backup.

You can back up individual files or folders to an optional external hard drive or to a network drive.

Note the following when backing up:

• Store personal files in the My Documents folder, and back it up periodically.
  • Back up templates stored in their associated programs.
• Save customized settings that appear in a window, toolbar, or menu bar by taking a screen shot of your settings. The screen shot can be a time saver if you have to reset your preferences.

To copy the screen and paste it into a word-processing document:

a. Display the screen you want to save.
b. Copy the screen image:
To copy only the active window, press alt+fn+prt sc.
To copy the entire screen, press fn+prt sc.
c. Open a word-processing document, click Edit > Paste.
The screen image is added to the document.
d. Save the document.

To create a backup using the Windows Backup utility (select models only), follow these steps:

NOTE: Be sure that the computer is connected to AC power before you start the backup process.

NOTE: The backup process may take over an hour, depending on file size and the speed of the computer.

1. Click Start > All Programs > Accessories > System Tools > Backup.
2. Follow the on-screen instructions.

Performing a recovery

In case of system failure or instability, the computer provides the following tools to recover your files:

• Windows recovery tools (select models only): You can use the Windows Backup utility to recover information you have previously backed up.
• Operating System and Driver Recovery discs (included with your computer): You can use the discs to recover your operating system and programs installed at the factory.

Recovering your information

To recover information you previously backed up, follow these steps:

1. If possible, back up all personal files.
2. Click Start > All Programs > Accessories > System Tools > Backup.
   The Backup or Restore Wizard opens.
3. Click Restore files and settings, and then click Next.
4. Follow the on-screen instructions.

NOTE: For additional information on initiating a recovery in Windows, perform a search for this topic in Help and Support.

Recovering the operating system and programs

△ CAUTION: The recovery process reformats and completely erases the hard drive. All files you have created and any software installed on the computer are permanently removed. The recovery process reinstalls the original operating system, software, and drivers. Software, drivers, and updates not installed by HP must be manually reinstalled.

To recover your operating system and programs, follow these steps:

1. If possible, back up all personal files.
2. Insert the Operating System disc into the optical drive.
3. Shut down the computer.
4. Turn on the computer.
5. Follow the on-screen instructions to install the operating system.
6. After the operating system is installed, remove the Operating System disc and insert the Driver Recovery disc.
7. Follow the on-screen instructions to install the drivers and programs.

9 Connector pin assignments

Audio-in (microphone)

1 2 3

Pin Signal
1 Audio signal in
2 Audio signal in
3	G	r	o

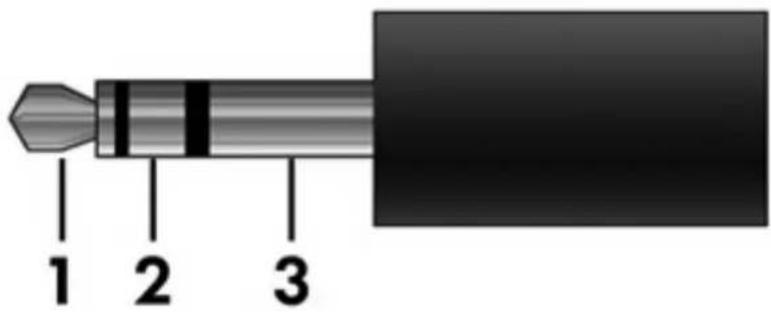

Audio-out (headphone)

1 2 3

Pin Signal

1 Audio out, left channel
2 Audio out, right channel
3 Ground

External monitor

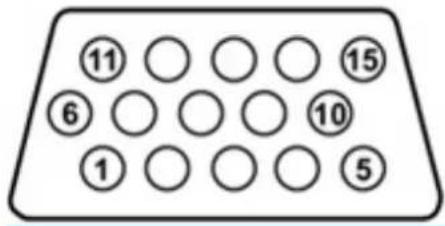

10 Power cord set requirements

The wide range input feature of the device permits it to operate from any line voltage from 100 to 120 volts AC or from 220 to 240 volts AC.

The 3-conductor power cord set included with the device meets the requirements for use in the country or region where the equipment is purchased.

Power cord sets for use in other countries and regions must meet the requirements of the country or region where the device is used.

Requirements for all countries and regions

The requirements listed below are applicable to all countries and regions:

The length of the power cord set must be at least 1.5 m (5.0 ft) and no more than 2.0 m (6.5 ft).
- All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the country or region where the power cord set will be used.
- The power cord sets must have a minimum current capacity of 10 amps and a nominal voltage rating of 125 or 250 V AC, as required by the power system of each country or region.
- The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320 Standard Sheet C13 connector for mating with the appliance inlet on the back of the device.

Requirements for specific countries and regions

Country/region Accredited agency Applicable note number
Australia EANSW 1
Austria OVE 1
Belgium CEBC 1
Canada CSA 2
Denmark DEMKO 1
Finland FIMKO 1
France UTE 1
Germany	VDE 1
Italy	IMQ	1
Japan	METI	3
The Netherlands	KEMA	1
Norway	NEMKO 1
The People's Republic of China	CCC	5
South Korea	EK	4
Sweden SEMKO 1
Switzerland	SEV 1
Taiwan	BSMI	4
The United Kingdom	BSI	1
The United States	UL	2

1. The flexible cord must be Type HO5VV-F, 3-conductor, 1.0-mm ^2 conductor size. Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.

2. The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding type with a NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.

3. The appliance coupler, flexible cord, and wall plug must bear a "T" mark and registration number in accordance with the Japanese Dentori Law. The flexible cord must be Type VCT or VCTF, 3-conductor, 1.00-mm^2 conductor size. The wall plug must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V) configuration.

4. The flexible cord must be Type RVV, 3-conductor, 0.75-mm^2 conductor size. Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.

5. The flexible cord must be Type VCTF, 3-conductor, 0.75-mm ^2 conductor size. Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.

11 Recycling

Battery

When a battery has reached the end of its useful life, do not dispose of the battery in general household waste. Follow the local laws and regulations in your area for computer battery disposal.

Display

⚠ WARNING! The backlight contains mercury. Exercise caution when removing and handling the backlight to avoid damaging this component and causing exposure to the mercury.
△ CAUTION: The procedures in this chapter can result in damage to display components. The only components intended for recycling purposes are the liquid crystal display (LCD) panel and the backlight. When you remove these components, handle them carefully.
NOTE: Materials Disposal. This HP product contains mercury in the backlight in the display assembly that might require special handling at end-of-life. Disposal of mercury may be regulated because of environmental considerations. For disposal or recycling information, contact your local authorities, or see the Electronic Industries Alliance (EIA) Web site at http://www.eiae.org.

This section provides disassembly instructions for the display assembly. The display assembly must be disassembled to gain access to the backlight (1) and the liquid crystal display (LCD) panel (2).

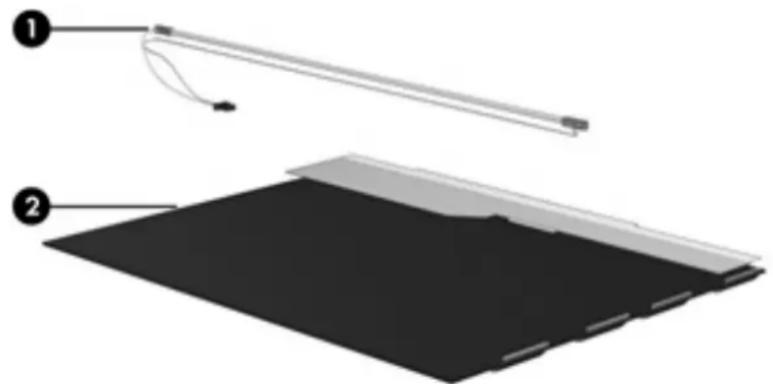

Diagram showing two components of a device or panel assembly, labeled 1 and 2, with no visible text or symbols.

NOTE: The procedures provided in this chapter are general disassembly instructions. Specific details, such as screw sizes, quantities, and locations, and component shapes and sizes, can vary from one computer model to another.

Perform the following steps to disassemble the display assembly:

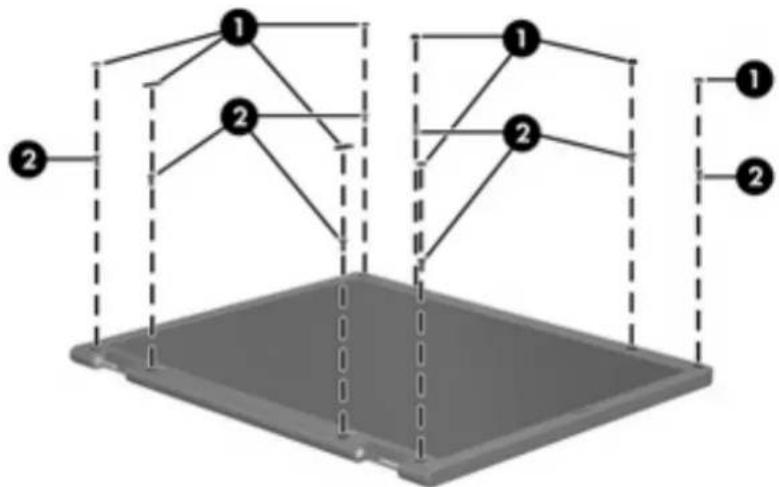

1. Remove all screw covers (1) and screws (2) that secure the display bezel to the display assembly.

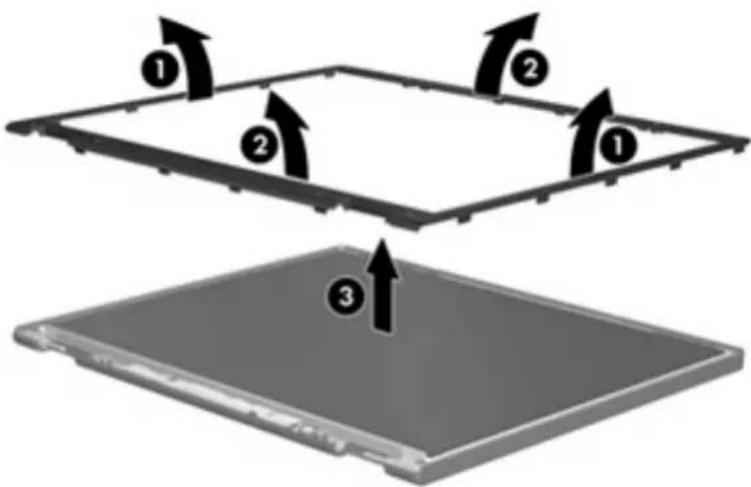

1. Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of the display bezel until the bezel disengages from the display assembly.
2. Remove the display bezel (3).

Diagram showing three labeled components (1, 2, 3) with directional arrows indicating movement or flow between them.

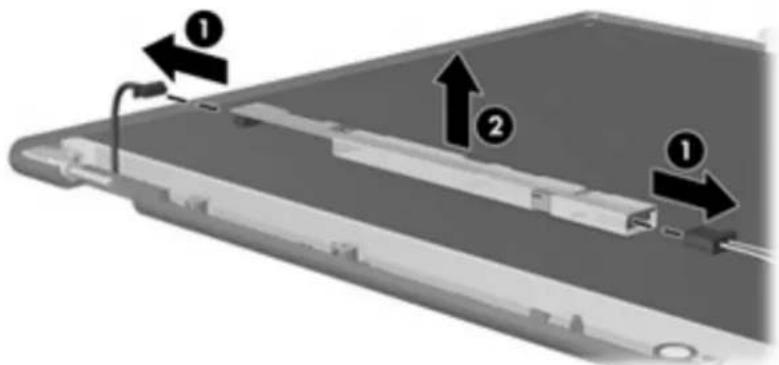

1. Disconnect all display panel cables (1) from the display inverter and remove the inverter (2).

Diagram showing a mechanical or electronic component with numbered directional arrows and labeled parts 1 and 2.

1. Remove all screws (1) that secure the display panel assembly to the display enclosure.

2. Remove the display panel assembly (2) from the display enclosure.

Diagram of a device with labeled components, showing two numbered parts and directional arrows indicating assembly or movement.

1. Turn the display panel assembly upside down.

2. Remove all screws that secure the display panel frame to the display panel.

Diagram of a rectangular electronic device with internal components and wiring (no text or symbols)

1. Use a sharp-edged tool to cut the tape (1) that secures the sides of the display panel to the display panel frame.

2. Remove the display panel frame (2) from the display panel.

Diagram showing a device with labeled components and directional arrows indicating motion or assembly.

1. Remove the screws (1) that secure the backlight cover to the display panel.

2. Lift the top edge of the backlight cover (2) and swing it outward.

Diagram showing a device with labeled parts and directional arrows, likely illustrating a motion or movement process.

1. Remove the backlight cover.

2. Turn the display panel right-side up.

3. Remove the backlight cables (1) from the clip (2) in the display panel.

Diagram of a cable or wire connection setup with labeled components (1 and 2), no readable text or symbols present.

1. Turn the display panel upside down.

⚠ WARNING! The backlight contains mercury. Exercise caution when removing and handling the backlight to avoid damaging this component and causing exposure to the mercury.

1. Remove the backlight frame from the display panel.

Diagram of a mechanical or electrical component with internal structure and upward force arrow (no text or symbols)

1. Remove the backlight from the backlight frame.

Diagram of a mechanical or electrical component with a curved wire and labeled connection point (no text or symbols present)

1. Disconnect the display panel cable (1) from the LCD panel.
2. Remove the screws (2) that secure the LCD panel to the display rear panel.
3. Release the LCD panel (3) from the display rear panel.
4. Release the tape (4) that secures the LCD panel to the display rear panel.

Diagram of a device with numbered components and directional arrows indicating motion or movement

1. Remove the LCD panel.

Diagram of a layered structure with an upward arrow indicating direction, no text or symbols present

1. Recycle the LCD panel and backlight.

Index

A

AC adapter, spare part number 24

administrator password 73

antenna

removal 70

spare part number 21, 64

antennas 15

applications key, Windows 7

audio, product description 2

audio-in (microphone) jack 12

audio-out (headphone) jack 12

audio-in jack

pin assignments 107

audio-out jack

pin assignments 108

B

Backup and Restore Center 101

base enclosure, spare part number 20

battery

removal 36

spare part number 20, 36

battery bay, identifying 14

battery light 9

battery release latches 14

bay, battery 14

boot options 73

boot order 73

buttons

left TouchPad 5

right TouchPad 5

C

cables, service considerations 29

caps lock light, identifying 6

changing the Setup Utility language 71

chipset, product description 1

compartments, memory

module 14

components

bottom 14

display 13

front 9

left-side 12

right-side 11

TouchPad 5

connectors

service considerations 29

D

device feet

locations 35

spare part number 35

device specifications 75

Diagnostics menu 74

Digital Media Slot, identifying 11

discs

Driver Recovery 106

Operating System 106

diskette drive

precautions 30

product description 2

display assembly

removal 64

spare part number 17, 64

display bezel

illustrated 21, 64

removal 66

spare part number 21, 64

Display Cable Kit, spare part number 21, 64

display component recycling 114

display enclosure

illustrated 22, 64

spare part number 22, 64

Display Hinge Kit, spare part number 21, 64

display hinge, removal 68

display panel

illustrated 21, 64

removal 67

spare part number 21, 64

Display Screw Kit, spare part number 22, 64

display specifications 76

display switch, identifying 13

displaying system information 72

drive light, identifying 9

Driver Recovery disc 106

drives

preventing damage 30

drives, boot order 73

E

earbuds 12

electrostatic discharge 31

Ethernet, product description 2

exiting the Setup Utility 72

external media cards, product description 3

external monitor port

pin assignments 109

external monitor port, identifying 11

F

f11 recovery 104

fan

removal 57

spare part number 19, 57

feet

locations 35

spare part number 35

flash storage drive, product description 2

fn key 7, 8

function keys 7, 8

G

graphics, product description 1 grounding equipment and methods 33

H

hard drive

precautions 30

product description 2

spare part number 19

specifications 77

hard drive recovery 104

hard drive self test 74

headphone (audio-out) jack 12

headphone jack pin assignments 108

headphones 12

heat sink assembly removal 59

spare part number 59

hinge covers

illustrated 21, 64

spare part number 21, 64

Home key 8

HP Mi Restore Image Creator identifying 97 using 98

|

I/O address specifications 81

internal display switch, identifying 13

internal media cards, product description 3

internal microphone, identifying 13

interrupt specifications 80

J

jacks

audio-in (microphone) 12

audio-out (headphone) 12

RJ-45 (network) 11

K

keyboard

product description 3

removal 40

spare part number 18, 40

keys

fn 7, 8

function 7, 8

Home 8

Program Switcher 8

Windows applications 7

Windows logo 7

L

language support 73

latches, battery release 14

left TouchPad button, identifying 5

lights

battery 9

caps lock 6

drive 9

power 9

webcam 13

wireless 10

M

Main menu 73

mass storage device

product description 2

spare part number 19

mass storage devices

illustrated 45

spare part numbers 45

memory map specifications 83

memory module

product description 1

removal 38

spare part number 20, 38

memory module compartment cover

removal 38

memory module compartment, identifying 14

memory test 74

microphone (audio-in) jack 12

microphone assembly, spare part number 21, 64

microphone jack pin assignments 107

model name 1

modem, product description 2

monitor port

pin assignments 109

N

navigating in the Setup Utility 71

network jack

pin assignments 110

network jack, identifying 11

0

Operating System disc 106

operating system, product description 4

optical drive, product description 2

P

packing guidelines 32

panels, product description 1

passwords 73

pin assignments

audio-in jack 107

audio-out jack 108

external monitor port 109

headphone jack 108

microphone jack 107

monitor port 109

network jack 110

RJ-45 jack 110

Universal Serial Bus (USB)

port 111

plastic parts 29

pointing device

product description 3

ports

product description 3

USB 11, 12

power connector, identifying 12

power cord

set requirements 112

spare part number 24

power light, identifying 9

power requirements, product description 3

power switch, identifying 9

power-on password 73

Processor C4 State 73

processor, product description 1

product description

audio 2

chipset 1

diskette drive 2

Ethernet 2

external media cards 3

flash storage drive 2

graphics 1

hard drive 2

internal media cards 3

keyboard 3

mass storage device 2

memory module 1

modem 2

operating system 4

optical drive 2

panels 1

pointing device 3

ports 3

power requirements 3

processors 1

product name 1

security 4

serviceability 4

solid-state drive 2

wireless 3

product name 1

Program Switcher key 8

R

recovery partition 104

release latches

battery 14

removal/replacement

preliminaries 29

procedures 34

restoring

HP Mi Restore Image

Creator 98

System Restore 98

restoring default settings 72

restoring the hard drive 104

right TouchPad button, identifying 5

RJ-45 (network) jack, identifying 11

RJ-45 jack

pin assignments 110

RTC battery

removal 44

spare part number 20, 44

Rubber Kit, spare part number 24

S

Screw Kit

contents 84

spare part number 24

screw listing 84

security cable slot, identifying 12

Security menu 73

security, cable slot 12

security, product description 4

selecting in the Setup Utility 71

serial number 16, 34

service considerations 29

service tag 16, 34

serviceability, product description 4

SIM

removal 37

solid-state drive

product description 2

solid-state drives

spare part number 19

speaker assembly

illustrated 21, 64

removal 67

spare part number 21, 64

speakers, identifying 13

specifications

device 75

display 76

hard drive 77

I/O addresses 81

interrupts 80

memory map 83

solid-state drive 78

system DMA 79

static-shielding materials 33

switches

power 9

wireless 10

system board

removal 61

spare part number 20, 61

System Configuration menu 73

system DMA 79

system information 73

system memory map 83

System Restore

identifying 97

using 98

T

tools required 29

top cover

removal 48

spare part number 19, 48

TouchPad

buttons 5

identifying 5

TouchPad scroll zone,

identifying 5

transporting guidelines 32

U

USB board

removal 55

spare part number 55

USB board, spare part number 19, 55

USB port

pin assignments 111

USB ports, identifying 11, 12

V

vents, identifying 12, 14

W

webcam light, identifying 13

webcam module

illustrated 21, 64

removal 69

spare part number 21, 64

webcam, identifying 13

Windows applications key, identifying 7

Windows Backup utility 105, 106

Windows logo key, identifying 7

Windows recovery 106

Windows Vista operating system DVD 104

wireless antenna

removal 70

spare part number 21, 64

wireless antennas 15

wireless light, identifying 10

wireless module, product description 3

wireless switch, identifying 10

WLAN antennas, identifying 15

WLAN module

removal 51

spare part number 19, 51

workstation guidelines 32

WWAN antennas, identifying 15

WWAN module

removal 53

spare part number 53
