Table of Contents

1. Introduction ...... 4

1.1. Features ...... 4
1.2. Minimum System Requirements .... 4

2. Hardware Installation 5

2.1. Board Layout 5
2.2. Hardware Installation 7

3. Software Installation 9

3.1.Driver and Utility Installation....9
3.1.1.Driver Installation 9
3.2. Taskbar Icon 11
3.3. Display Properties Pages 13

4. Troubleshooting Tips 26

5. Appendix 27

5.1. Resolutions and Color Depth Tables 27
5.2. Regulatory Statements 28

1. Introduction

1.1. Features

• Powered by ATI Radeon ^TM HD 5670 Graphics Processing Unit (GPU)
  •Supports PCI Express 2.1
• Integrated with 1 GB GDDR5 memory
  • Supports DirectX 11
  •Supports CrossFireX ^TM
  • Supports 1 Dual-Link DVI-I connector
  • Supports 1 D-Sub connector
  • Supports 1 HDMI connector

1.2. Minimum System Requirements

- Hardware

• Intel ^® Pentium ^® 4/Core ^TM 2 or AMD Athlon ^TM /Phenom ^TM
• 1 GB or more of system memory for best performance
• Optical drive for software installation (CD-ROM or DVD-ROM drive)
• A power supply that provides at least 400-watt is required. The power supply should be with a known brand and certified to conform to safety regulations. (For the list of certified power supplies, go to http://ati.amd.com/certifiedpsu.)

- Operating System

• Windows ® 7
• Windows ® Vista
• Windows ^ XP with Service Pack 2 (SP2)
• Windows ® XP Professional x64 Edition

•CrossFireX™ Configuration

If you are planning on using this graphics card as part of a CrossFireX system, the following is required:
- A CrossFireX certified motherboard with two PCI Express x16 slots and correct chipset driver
- Two GV-R567OC-1GI
- A power supply that provides at least 450-watt is required. The power supply should be with a known brand and certified to conform to safety regulations. (For the list of certified power supplies, go to http://ati.amd.com/certifiedpsu.)
- Two CrossFire bridge interconnect cables

2. Hardware Installation

2.1. Board Layout

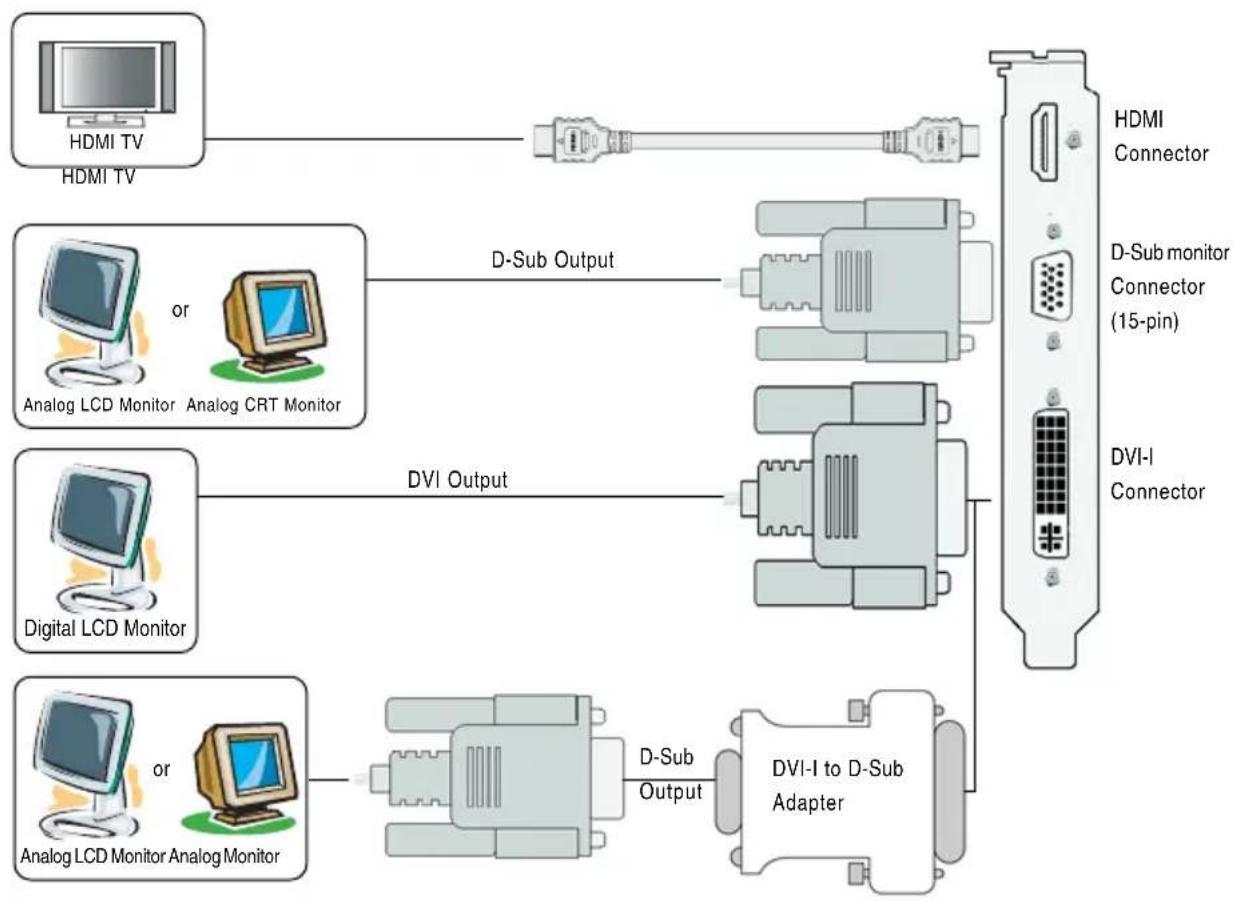

CrossFire Connector HDMI Connector D-Sub monitor Connector (15-pin) DVI-I Connector

The entire Radeon HD 5670 series support HDMI output which can handle both audio and video signals. However, audio output from the onboard audio controller or the external sound card will be disabled when HDMI output is activated.

If no need for HDMI output function, set the onboard audio controller or the external sound card to be the default Sound Playback device to obtain audio output from your system. For more details, refer to page 13.

Expansion cards contain very delicate Integrated Circuit (IC) chips. To protect them against damage from static electricity, you should follow some precautions whenever you work on your computer.

1. Turn off your computer and unplug power supply.
2. Use a grounded wrist strap before handling computer components. If you do not have one, touch both of your hands to a safely grounded object or to a metal object, such as the power supply case.
3. Place components on a grounded antistatic pad or on the bag that came with the components whenever the components are separated from the system.

The card contains sensitive electric components, which can be easily damaged by static electricity, so the card should be left in its original packing until it is installed.

Unpacking and installation should be done on a grounded anti-static mat. The operator should be wearing an anti-static wristband, grounded at the same point as the anti-static mat.

Inspect the card carton for obvious damage. Shipping and handling may cause damage to your card. Be sure there are no shipping and handling damages on the card before proceeding.

DO NOT APPLY POWER TO YOUR SYSTEM IF THE GRAPHICS CARD IS DAMAGED.

In order to ensure that your graphics card can work correctly, please use official GIGABYTE BIOS only. Using non-official GIGABYTE BIOS might cause problem(s) on the graphics card.

2.2. Hardware Installation

Now that you have prepared your computer, you are ready to install your graphics card.

Step 1.

Locate the PCI Express x16 slot. If necessary, remove the metal cover from this slot; then align your graphics card with the PCI Express x16 slot, and press it in firmly until the card is fully seated.

Make sure that the gold edge connector of the graphics card is securely inserted.

Step 2.

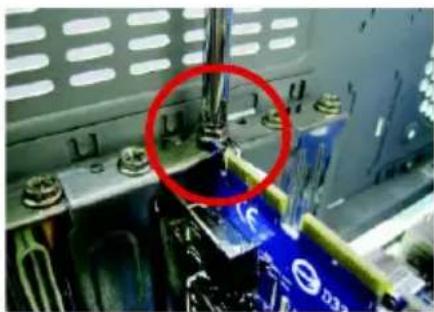

Replace the screw to fasten the card in place, and replace the computer cover.

Close-up of hands assembling a yellow CPU fan on a motherboard (no visible text or symbols)

Close-up of electronic components with a red circle highlighting a component (no visible text or symbols)

Step 3.

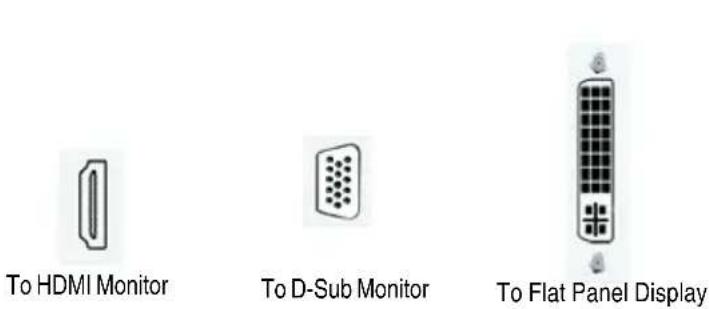

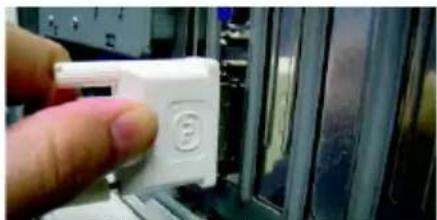

Plug the display cable into your card; then turn on the computer and monitor. To connect a flat panel display to your graphics card, use the DVI-I connector. To connect an HDMI monitor to your graphics card, use the HDMI connector. To connect a DisplayPort monitor to your graphics card, use the DisplayPort connector.

Close-up of a finger pressing a black USB into a device (no visible text or symbols)

Connect an HDMI monitor

Close-up of a hand holding a white plastic component with a small circular mark on its side, next to an electronic device (no visible text or symbols)

Connect a flat panel display

Close-up of a hand inserting a black cable into a glass door panel (no visible text or symbols)

Connect a DisplayPort monitor

You are now ready to proceed with the installation of the graphics card driver. Please refer to next chapter for detailed instructions.

How to enable the ATI CrossFireX™ technology?

Step 1:

Install two CrossFireX graphics cards of the same chipset on a CrossFireX-supported motherboard and connect the graphics cards via two CrossFire bridge interconnect cables (Figure 1). Then users can enable the CrossFireX technology through the graphics card driver.

Two CrossFire bridge interconnect cables. Two CrossFire graphics cards of the same type. (Example: GV-RX195P256D-RH)

Figure 1

Step 2:

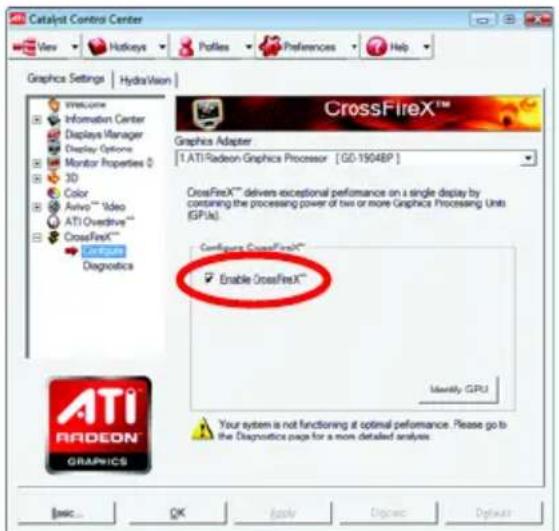

After installing graphics card driver in operating system, when an ATI CrossFireX configuration is detected for the first time by the ATI Catalyst display driver, ATI CrossFireX support is automatically enabled, and the best possible GPU combination is selected based on the hardware configuration. If ATI CrossFireX is not enabled, access the ATI Catalyst Control Center (please refer to Page 15). From the ATI Catalyst Control Center, enter the CrossFireX menu and assure to select the Enable CrossFireX™ check box (Figure 2).

Catalyst Control Center View Hotkeys Polles Preferences Help Graphics Settings HydraVision Vire.com Information Center Displays Manager Display Options Monitor Properties 0 3D Color AutoTM Video ATI Overdrive** CrossFireX™ Diagnostics CrossFireX™ Graphics Adapter 1. ATI Radeon Graphics Processor [GD-1904BP] CrossFireX™ delivers exceptional performance on a single display by containing the processing power of two or more Graphics Processing Units (GPUs). Configur CrossFireX™ Enable CrossFireX™ Identify GPU ATI RADEON GRAPICS Your system is not functioning at optimal performance. Please go to the Diagnosis page for a more detailed analysis. Basic... OK Apply Delete Options

Figure 2

3. Software Installation

Notice the following guidelines before installing the drivers:

1. First make sure your system has installed DirectX 9 or later version.
2. Make sure your system has installed the appropriate motherboard drivers (for the motherboard drivers, please contact the motherboard manufacturer.)

3.1. Driver and Utility Installation

3.1.1. Driver Installation

After installing the operating system, insert the driver disk into your optical drive. The driver Autorun screen is automatically displayed which looks like that shown in the screen shot below. (If the driver Autorun screen does not appear automatically, go to My Computer, double-click the optical drive and execute the setup.exe program.)

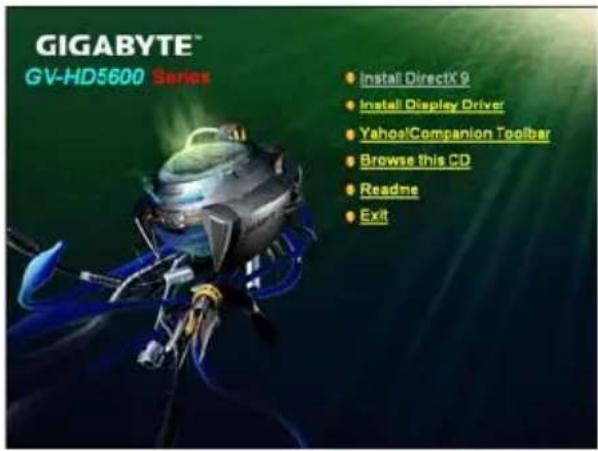

GIGABYTE™ GV-HD5600 Series • Install DirectX 9 • Install Display Driver • Yahoo! Companion Toolbar • Browse this CD • Readme • Exit

Step 1:

Click the Install Display Driver item.

ATL - Catalyst™ Install Manager - Version: 03.00.0745 Welcome Welcome Catalyst™ Install Manager is used to install and update the software for your graphics products. Language Support! Which language would you like Catalyst™ Install Manager to display! English http://aif.amd.com Next > Cancel

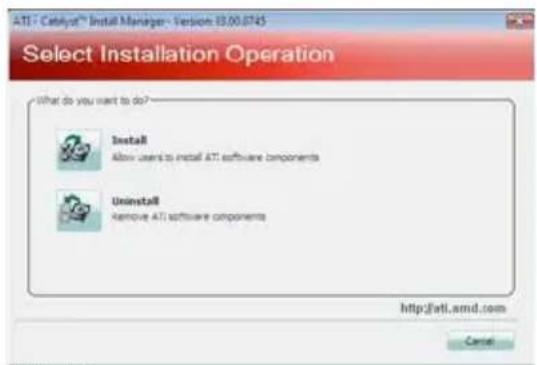

ATI Catalyst Install Manager - Version 13.00.0745 Select Installation Operation What do you want to do? Install Allow users to install ATI software components Uninstall Remove ATI software components http://atl fallsd.com Cancel

Step 3:

Click the Install button.

Step 2:

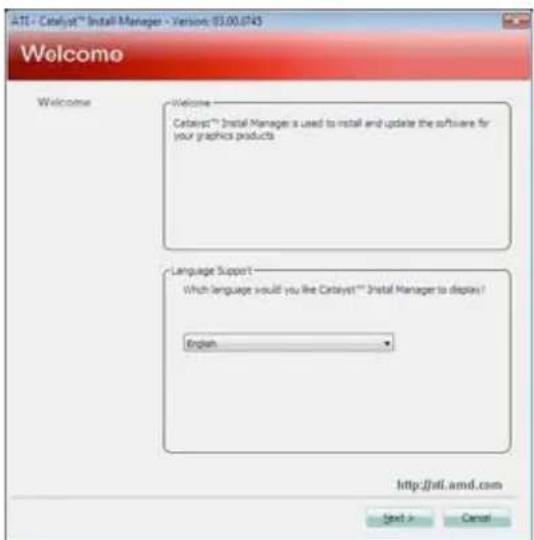

Select the displayed language and then click Next.

For software MPEG support in Windows XP, you must install DirectX first. Users who run Windows XP with Service Pack 2 or above do not need to install DirectX separately.

ATI - Catalyst® Install Manager - Version: 03.00.0745 Installer Welcome Welcome Select Express or Custom Install and their clickText: Browse Custom Default Installation Locations On any point to install a new site Browse Finishset http://dti.amd.com Back Help/Help Cancel

Setp 4:

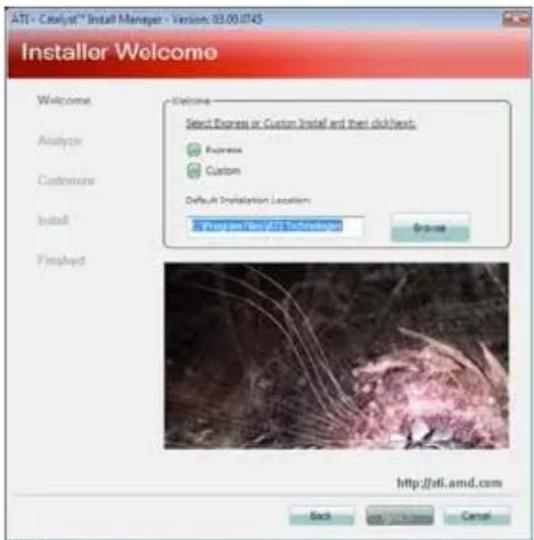

Click the Express or Custom icon and then click Next.

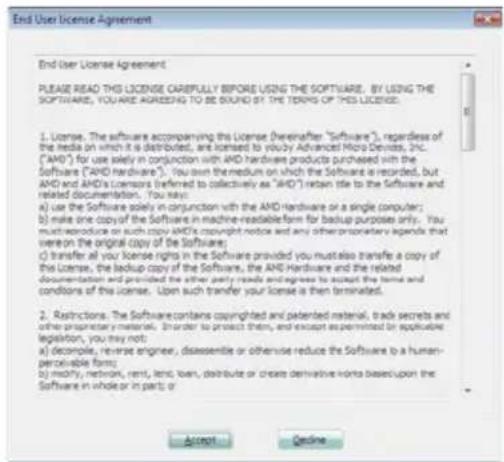

End User License Agreement PLEASE READ THIS LICENSE CAREFULLY BEFORE USING THE SOFTWARE. BY USING THE SOFTWARE, YOU ARE AGREES TO BE SUND BY THE TERMS OF THIS LICENSE. 1. License. The software accompanying the License (hereafter "Software"), regardless of the media on which it is distributed, and licensed to vicky by Advanced Micro Devices, Inc. ("AMD") for use solely in conjunction with AND hardware products purchased with the Software ("AND Hardware"). You want the medium on which the Software is recorded, but AND and AMD's licensees (referred to collectively as "AMD") retain title to the Software and related documentation. You may: a) Use the Software solely in conjunction with the AND Hardware or a single computer; b) make one copy of the Software in machine-readable form for backup purpose only. You must otherwise or such copy AMD's copyright notice and any other proprietary agenda that were on the original copy of the Software; c) transfer all your license rights in the Software provided you must also transfer a copy of this License, the backup copy of the Software, the AND Hardware and the related documentation and provided the other party reads and agree to accept the terms and conditions of the license. Upon such transfer your license is then terminated. 2. Restrictions. The Software contains copyrighted and patented material, trade secrets and other proprietary materials. In order to protect them, and except as permitted by applicable legislation, you may not: a) decompile, Hervare engineer, disassemble or otherwise reduce the Software to a human-permissible form; b) modify, network, rent, lend, loan, distribute or choose derivative works based upon the Software in whole or in part or Accept Delete

Step 5:

Click the Accept button.

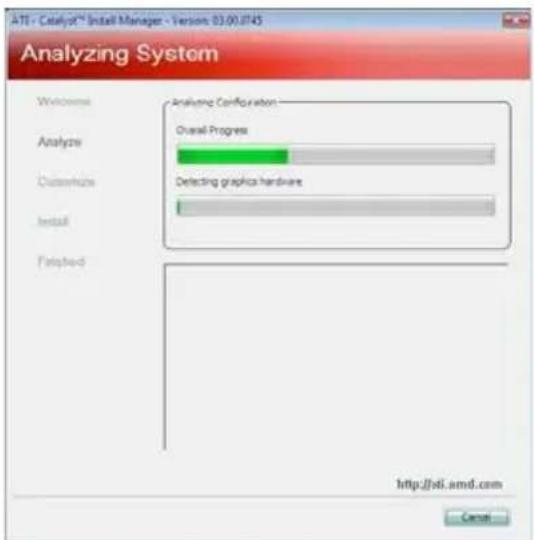

ATI - Catalyst® Install Manager - Version: 03.00.0745 Analyzing System Welcome Analyze Configuration Overall Progress Analyze Customize Defecting graphics hardware Install Finished http://dti.amd.com Cancel

The system is installing the components.

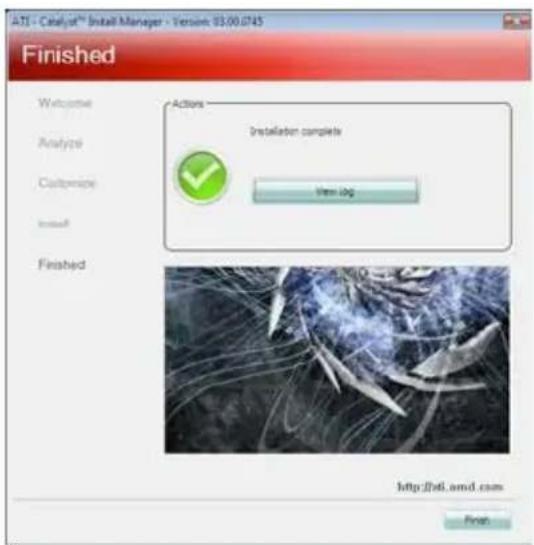

AT&T - Catalyst® Install Manager - Version 03.00.0745 Finished Actions Installation complete View log Analyze Customize Install Finished http://bfi/amd.com Finish

Step 6:

Click the Finish button to restart the computer. Then the driver installation is completed.

3.2. Taskbar Icon

After installation of the display driver, you will find an ATI icon in the notification area. Right-click the icon to enter the ATI Catalyst Control Center. The ATI Catalyst Control Center is used to configure all your graphics card settings.

Catalyst Control Center... Include Profile 1. ATI Redcom 4D/SPXOSeries 2. ATI Redcom 4D/SPXOSeries System Manager (Event Viewer)... Help... About... Edit

Right-click the ATI icon to enter the ATI Catalyst Control Center.

Catalyst/CTM Control Center View Modify Refresh Play Play Refresh Play Pictureless

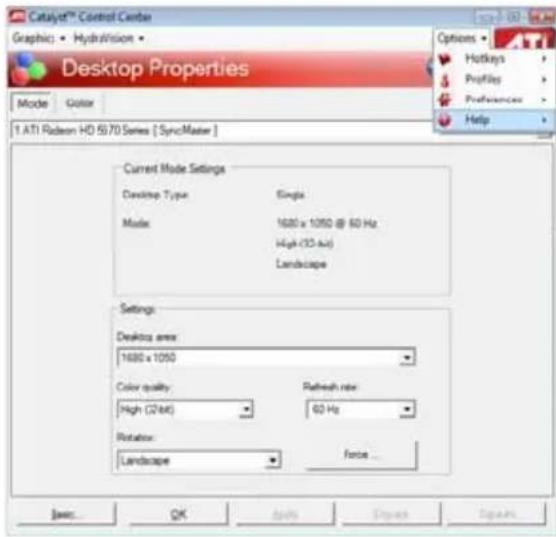

Or you can right-click on the desktop and select Catalyst(TM) Control Center.

Configuring Audio Output

Configure the default audio output device based upon your needs.

Step 1:

Go to Start > Control Panel > Hardware and Sound > Manage audio devices.

Microsoft Start Menu E-mail Microsoft Teams Windows Server Microsoft Teams Center Microsoft Office Server SendTo Options to Web Media Options to Web Media Server Options to Web Media Server (system) Save as a TCP Server Manage All Programs Open Cancel Accessories for all services and services. If you want to access, then use the Internet or any other connection and save, any other connection is available.

Figure 1

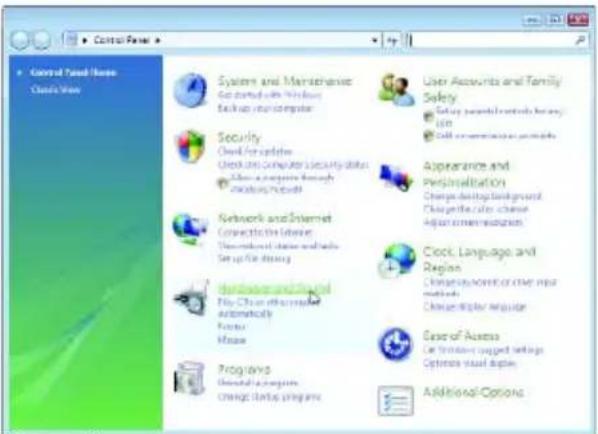

Control Panel Help Cloud View Systems and Maintenance Get started with Windows Backup your computer Security Check for updates Check the Computer Security status Allow a program through monitoring network Network and Internet Connect the Internet Download the server and links Set up the drive Windows and Linux File Clean or installed Automatically Focus Mouse Programs External program Change Start Programs User Accounts and Family Safety Supply parental controls history Edit Call applications prompts Appearance and Personalization Change desktop background Change the other change Adjust recommendations Clock, Language and Regions Characteristics or other new methods Chinese digital language Ease of Access For Windows setup settings Options visual options Additional Options

Figure 2

Control Panel Mode System and Maintenance Security Networks and Settings Hardware and Sound Programs Home Devices and Security Language Appearance and Personalization Class Language and Region Access Features Additional Colors Show Home Printers Look a printer | Change default printer | Focus a printer | Send a log Audio Play Change default settings to mode subscripts | Play CDs or other modulatorically Sound Liquid system volume | Change system output | Manage system output Mouse Change default settings | Change points appearance Power Options Change power setting settings | Change what the power buttons do Purpose is necessary when the computer calls | Change what the computer shapes Personalization Change size of on-screen items | Adjust communication How do such remote file better than size Scansing and Camprop Unclassified and custom | Save download or files KeyBoard Change configuration rate | Check keyboard status

Figure 3

Step 2:

In the Manage audio devices dialog box, click the Playback tab.

Sound Playback Recording Sounds Select a playback device below to modify its settings: Digital Output Device (HCM) 2 - High Definition Audio Device Wasting Speakers High Definition Audio Device Not plugged in Headphones High Definition Audio Device Not plugged in Digital Output Device (SPDF) High Definition Audio Device Wasting Configure Set Default Properties OK Cancel Apply

Using the picture to the left as the example, to set HDMI audio to be the default Sound Playback device, select Digital Output Device (HDMI). Otherwise, select Digital Output Device (SPDIF), which is the onboard audio controller.

3.3. Display Properties Pages

Display Settings (Resolutions and Color Quality for Windows)

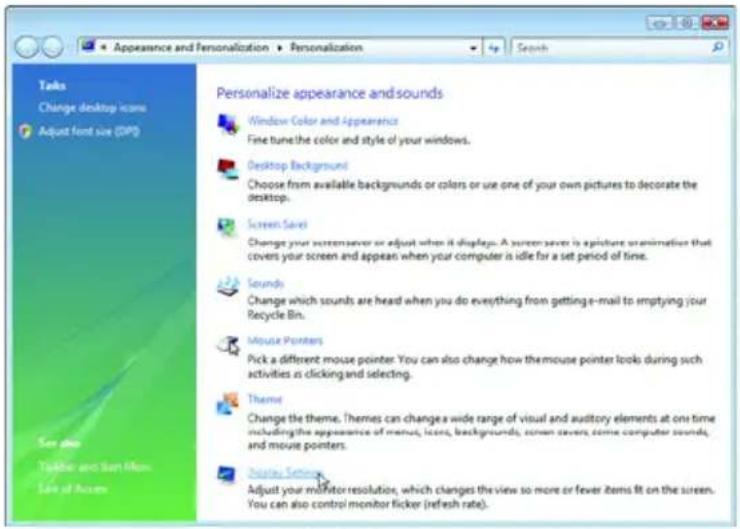

To access Display Settings page, right-click on desktop and select Personalize, then the Personalization windows will show up. Select Display Settings to adjust the screen resolution and color quality settings.

Appearance and Personalization Personalization Search Tasks Change desktop icons Adjust font size (DFP) See also Texter and San Mon. Save at Access Personalize appearance and sounds Window Color and Appearance Fine tune the color and style of your windows. Desktop Background Choose from available backgrounds or colors or use one of your own pictures to decorate the desktop. Screen Save Change your screen save or adjust when it displays. A screen save is a picture examination that covers your screen and appears when your computer is idle for a set period of time. Sounds Change which sounds are heard when you do everything from getting e-mail to emptying your Recycle Bin. Mouse Pointers Pick a different mouse pointer. You can also change how the mouse pointer looks during such activities as clicking and selecting. Theme Change the theme. Themes can change a wide range of visual and auditory elements at one time including the appearance of menus, icons, backgrounds, screen screens, some computer sounds, and mouse pointers. Options Settings Adjust your monitor resolution, which changes the view so more or fewer items fit on the screen. You can also control monitor flicker (refresh rate).

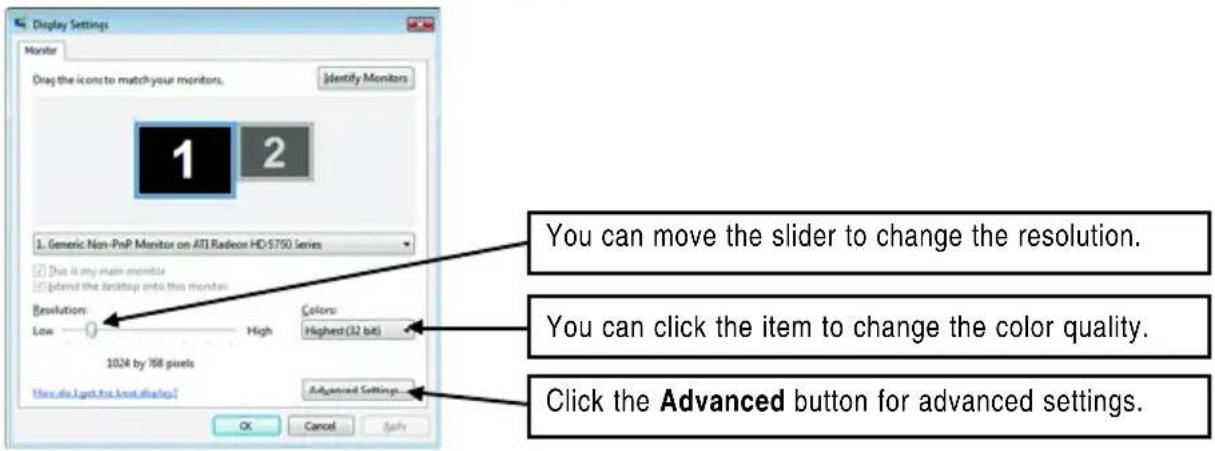

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 2 Generic Non-PnP Monitor on ATI Radeon HD:5750 Series This is my main monitor Ident the desktop onto this monitor Resolution: Low High Colors: Highest (32 bit) 1024 by 168 pixels Advanced Settings OK Cancel Apply You can move the slider to change the resolution. You can click the item to change the color quality. Click the Advanced button for advanced settings.

DisplayMatrix	Model GV-R56700-1GI
	CRT+DVI Yes
	CRT+CRT ^(Note 1)	Yes
	DVI +DVI ^(Note 2)	Yes
	HDMI+DVI Yes
	HDMI+CRT Yes

(Note 1) By a DVI-to-D-Sub adapter.(optional)

(Note 2) By a D-Sub-to-DVI adapter.(optional)

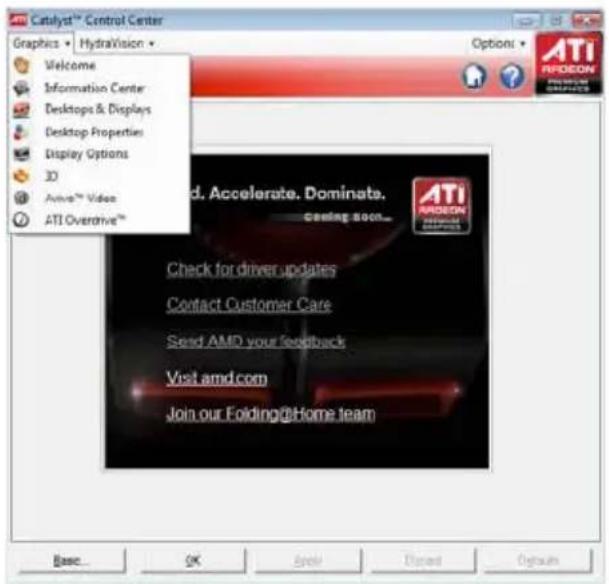

ATI Catalyst® Control Center Basic View :

The Basic View is the default view when ATI Catalyst Control Center is launched for the first time. This interface provides access to the basic settings and advanced features of your ATI graphics products. You can switch between Basic View and Advanced View at any time.

Catalyst Control Center - Basic ATI Catalyst Control Center™ Welcome to the ATI Catalyst® Control Center What would you like to use? Basic [Easy Setup Wizards and Quick Settings] Provides both step-by-step assistance and Quick Settings for changing your display setup, and other common basics. Advanced Above you to configure all of the many available settings of your ATI graphics product. Don't show this page again You can choose between "Basic" [Easy and Quick] or "Advanced" at any time. Click Next to continue Edit Next >

To access more settings in Basic View, click Basic, and then click Next.

Easy Setup Wizards:

Choose a wizard from the central list and click Go for step-by-step assistance.

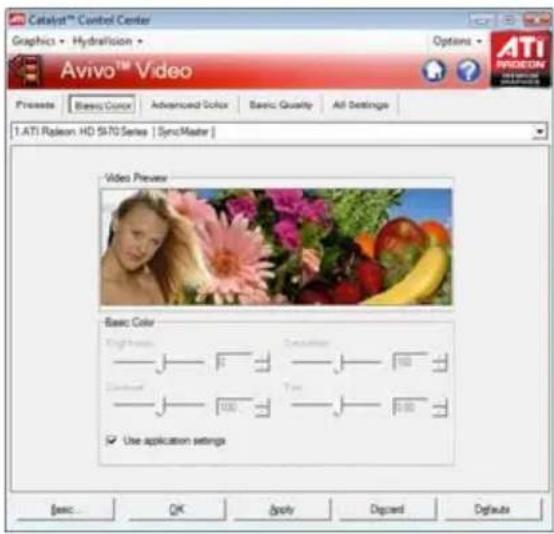

■ Avivo Video Converter

This wizard assists you to convert videos from one file format to another.

Catalyst Control Center - Basic What Would You Like to Do? Select an Easy Setup Wizard or Quick Settings, then click Go. Easy Setup Wizards | Quick Settings | Information Center | For step-by-step assistance, choose a Wizard, then click Go. Java Wizard Converter Setup my display configuration HybridVision Configuration Settings This wizard assists you to convert a video file to a different video format Advances to the first step of the selected Easy Setup Wizard. Go >

Step 1:
Select Avivo Video Converter, then click Go.

Catalyst Control Center - Book Audio Video Converter - Step 1 File List Input File Output F: Data File Edit View Help Map Name: Dietalator: Triga: Suc: 30563493.0003 Sample Video Folder File List: 20080409_0003 Alt New (*) Open Cancel

Step 2:
Select the video file to be converted.

Catalyst Control Center - Basic Auto Video Converter - Step 1 The file to convert will remain unatticed. A new video file will be created at the specified location. Input File: C:\Users\GIGABYTE\Videos\2006D29_0003.msg Show the file name only Clear Select Source ... Property Value File Name C:\Users\GIGABYTE\Videos\2006D29_000 Nitrate 0.27 mbps Frame Rate 2937 frames/sec Aspect Ratio 4 : 3 Resolution 325 x 240 Date 8/1/2008 3:19:55 PM File Size 22727MB Duration 0 : 0 Output Folder: C:\Users\GIGABYTE\Videos Browse... < Back Next >

Step 3:

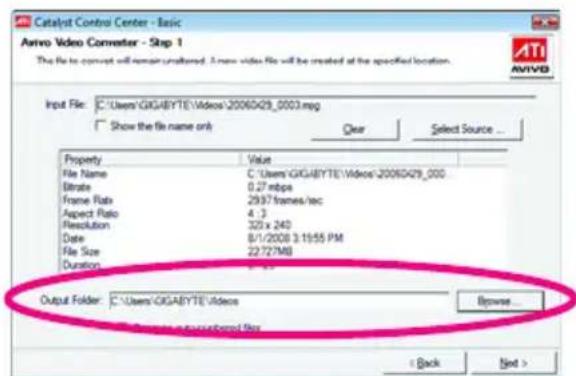

In the Output Folder area, select the destination folder where the new file will be located. Click Next.

Catalyst Control Center - Basic Atrio Video Converter - Step 2 No Associated Player Output Video Format MPEG-1 MPEG-4 (DivX Compatible) Portable Media Center MPEG-1 Sony portable gaming device MPEG-2 DVD Super Video CD File Size: 22.72MB Estimate: 0.27 mbps Encoding Standard: MPEG-1 Use this format to produce generic MPEG-1 video files. Standard MPEG-1 and MPEG-2 format achieves my high compression rates and are portable to most computers. High Output File: 20060429_00031 Start Over < Back Next > ATI AVIVB

Step 4:

In the Output Video Format list, select a file format for the new file. If you wish to change the name of the new file, enter the new name in the Output File area. Finally, click Next to start file conversion.

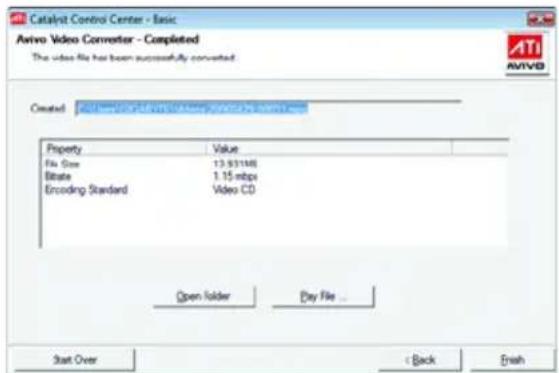

Catalyst Control Center - Basic Avivo Video Converter - Completed The video file has been successfully converted. Created: Property Value File Size 13.931MB Bilib 1.15 mbps Encoding Standard Video CD Open folder Play File... Start Over < Back Finish

The video file has been successfully converted.

Catalyst Control Center - Basic What Would You Like to Do? Select an Easy Setup Wizard or Quick Settings, then click Go. Easy Setup Wizards | Quick Settings | Information Center | For step-by-step assistance, choose a Wizard, then click Go. Aviso Video Converter MyoVision Configuration Settings This Wizard will take you through all the steps to set up your display configuration to your own preferences. Up to 5 steps may be involved. Advanced < Back Set

■ Setup my display configuration

This wizard allows you to configure display setting for desktop viewing.

Catalyst Control Center - Basic What Would You Like to Go? Select an Easy Setup Wizard or Quick Settings, then click Go. Easy Setup Wizards | Quick Settings | Information Center | For step-by-step assistance, choose a Wizard, then click Go. Avio Video Converter Setup my display configuration HydroVision Configuration Settings This Wizard will take you through the steps to set up the HydraVision Configuration based on your own preference. Up to 5 steps could be involved. Advanced... < Back Set

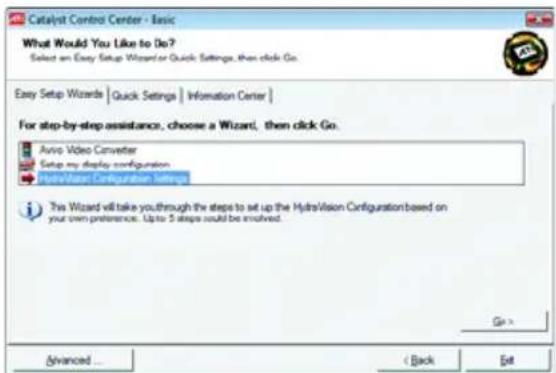

■ HydraVision Configuration Settings

This wizard will take you to set up the HydraVision Configuration based on your own preference.

Quick Settings:

The Quick Settings page provides access to three main settings.

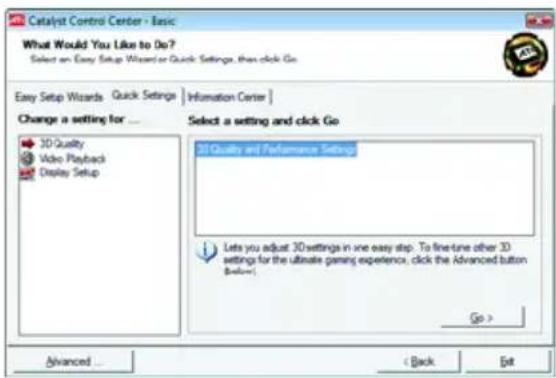

Catalyst Control Center - Basic What Would You Like to Do? Select an Easy Setup Wizard or Quick Settings, then click Go. Easy Setup Wizards Quick Settings Information Center Change a setting for... 3D Quality Video Playback Display Setup Select a setting and click Go 3D Quality and Performance Settings Lets you adjust 3D settings in one easy step. To fine-tune after 3D settings for the ultimate gaming experience, click the Advanced button (see=) Go > Advanced ... < Back Edit

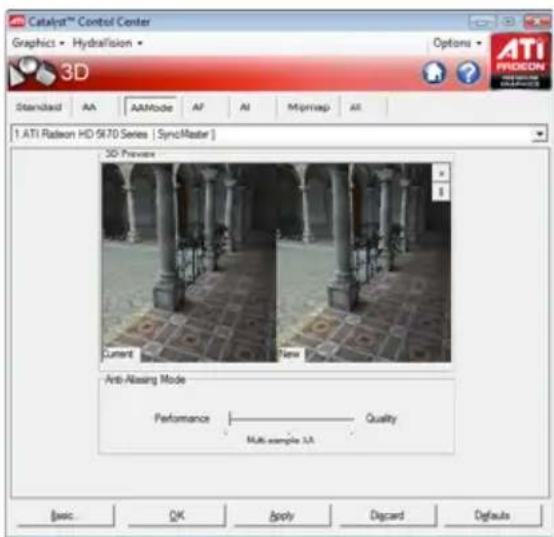

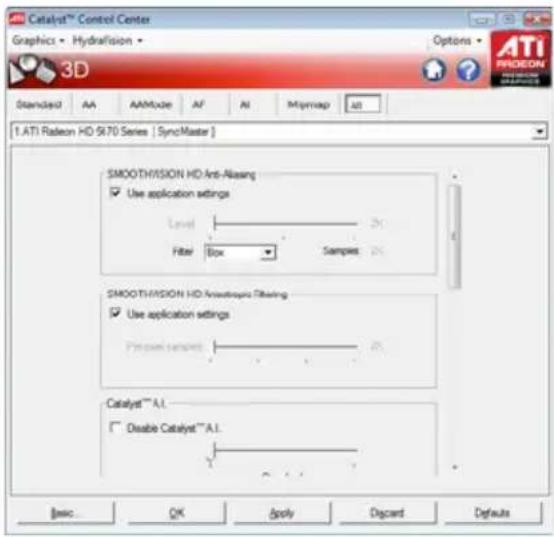

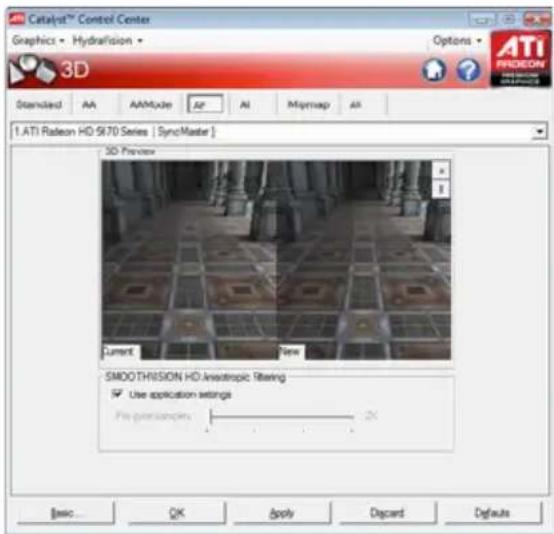

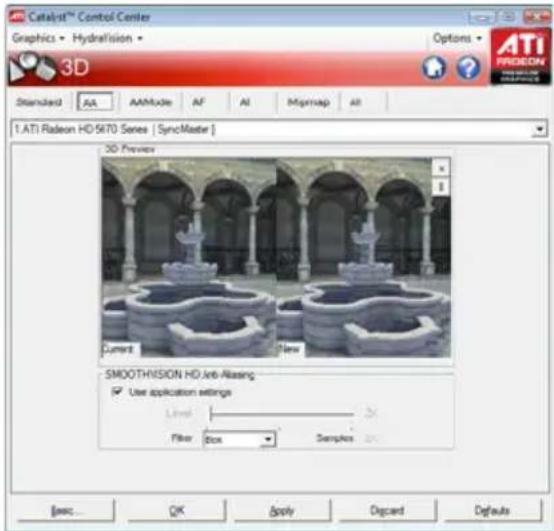

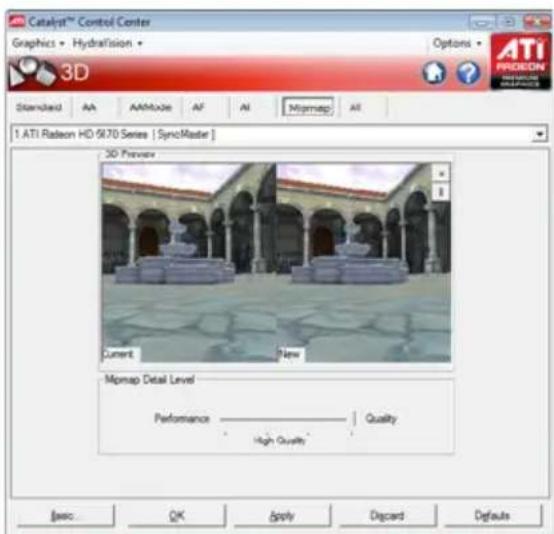

■ 3D Quality

3D Performance and Quality Settings allows your 3D games and applications to get faster performance and better quality with a more balanced setting.

■ Video Playback

Use this option to optimize video playback in different room environment or to select how video playback appears on the second display.

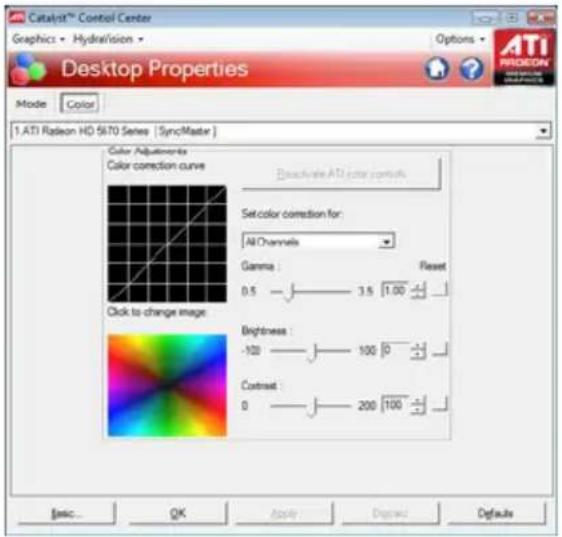

■ Display Setup

This option allows you to configure your desktop, including changing desktop resolution and desktop mode, setting up extended desktop (requires more than one display), and rotating desktop image to match new display orientation.

Information Center:

The Information Center page in Basic and Advanced View provides hardware and software information about the installed graphics card.

Catalyst™ Control Center - Basic What Would You Like to Do? Select an Easy Setup Wizard or Quick Settings, then click Go. Easy Setup Wizards | Quick Settings | Information Center | Graphics Software Graphics Hardware Item Value DriverPackaging Version 8.65-092918a-008809E Provider ATI Technologies Inc. 2D Driver Version 8.01.01.961 2D Driver File Path /PEG3197/MACHINE/SYSTEM/ControlGet001/ControlClass/AD... Direct3D Version 8.14.10.0700 OpenGL Version 8.14.10.5017 Catalyst™ Control Center Version 2009/0918.2132.36326 Advanced Back Edit

■ Graphics Software

Provides software information including driver version, CATALYST version, Direct 3D version and so on.

■ Graphics Hardware

Provides hardware information including graphics chipset, BIOS version, memory size, core clock and so on.

ATI Catalyst Control Center Advanced View

The Advanced page allows you to configure all of the many available settings of your ATI graphics card.

View Properties:

The CATALYST Control Center dashboard supports three types of views.

Catalyst™ Control Center Graphics • HydraVision • Welcome Information Center Desktops & Displays Desktop Properties Display Options 3D Active™ Video ATI Overdrive™ Add. Accelerate. Dominate. Coming soon... Check for driver updates Contact Customer Care Send AMD your feedback Visit amd.com Join our Folding@Home team Basic... OK Open Help Open Apply Options

Hotkeys Properties:

The Hotkeys Manager allows you to create shortcut key combinations to quickly perform tasks such as changing a graphics setting or opening an application. A Hotkey is a combination of a modifier key or keys, such as Ctrl, Alt, or Shift, and any letter from the alphabet.

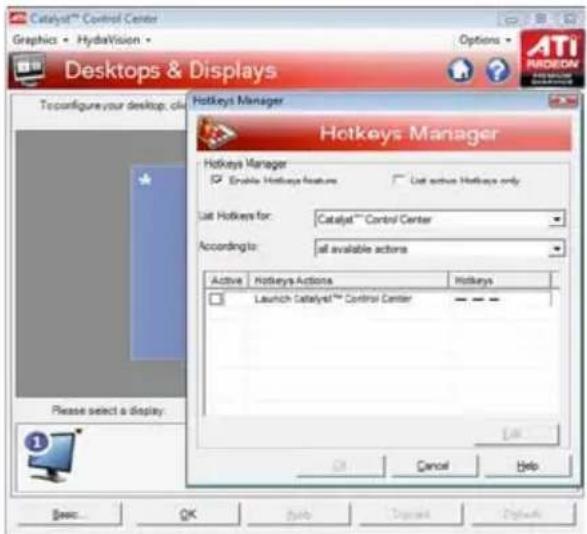

Catalyst™ Control Center Graphics • HydraVision • Desktops & Displays Toconfigure your desktop, cl# Hotkeys Manager Hotkeys Manager Enable Hotkeys feature Last active Hotkeys only Last Hotkeys for: Catalyst™ Control Center According to: all available actions Active Hotkeys Actions Hotkeys Launch Catalyst™ Control Center ... - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - +

Profiles Properties:

You can use profiles to create customized environments for your desktop, video, and 3D applications. Define and save your own personal video settings that can be quickly activated manually, through a Hotkey, or by file association.

Catalyst™ Control Center Graphics • HydraVision Desktop To configure your d Profiles Manager Create or Edit a Profile Enter or select a profile name: Profile description: Save Delete Composition | Activation | Applications | This profile includes ○ all Catalyst™ Control Center settings ● the following settings: □ ATI Radeon HD-5670 Series | SyncMaster | Basic... Activate & Close Activate Close Help

Note:

A profile applies to a specific graphics card. If there is more than one graphics card installed in your computer, you need to select the appropriate card before creating, loading, or activating a Profile.

Preferences Properties:

The Preferences page helps to restore defaults, change skins, and update the Catalyst Control Center. The Catalyst Control Center Preferences page contains the following options:

Catalyst™ Control Center Graphics • HydraVision • Desktops & Displays To configure your desktop, click the triangle (▼) on the desktop below. Options Hotkeys Profiles Preferences Help Always on Top Hide Tooltips Hide Splash Screen Enable System Tray Menu Select a Language ... Restore Factory Defaults... Please select a Display Default Displays Basic... OK Apply Delete Defaults

■ Always on Top
■ Hide Tooltips
■ Hide Splash Screen
■ Enable System Tray Menu
■ Select a Language ...
■ Restore Factory Defaults ...

Help Properties:

The Catalyst Control Center Help feature allows you to access the comprehensive online help, register your product, or generate a problem report should you require technical support.

Catalyst™ Control Center Graphic • HydraVision • Desktop Properties Mode Color 1.ATI Radeon HD 5970 Series [SyncMaster] Current Mode Settings Desktop Type Single Mode 1680 x 1050 @ 60 Hz High (3D Max) Landscape Settings Desktop area 1680 x 1050 Color quality Refresh rate High (2 bit) 60 Hz Rotation: Landscape Force ... Options Hotkeys Profiles Preferences Help OK Apply Assign Assign

The Catalyst Control Center Help feature offers the following options:

■ Help for this Page
■ Help Contents ...
■ Go to ATI.com
■ About Catalyst Control Center ...

Desktop Properties:

Use Desktop Properties to change your desktop setup.

Catalyst™ Control Center Graphics • HydrationVision • Desktop Properties Options • ATi PROXEON Mode Color 1.ATI Radeon HD 5.70 Series [SyncMaster] Current Mode Settings Desktop Type: Single Mode: 1680 x 1050 @ 60 Hz High (32-bit) Landscape Settings Desktop area: 1680 x 1050 Color quality: Refresh rate High (32bit) 60 Hz Rotation: Landscape Face ... Basic OK Apply Edit Options

■ Mode

Use Mode to set up desktop area, color quality, Refresh rate and Rotation.

Catalyst™ Control Center Graphics • Hydraulic Vision • Desktop Properties Options • ATI PROECON Mode Color 1.ATI Radeon HD 5170 Series [SyncMaster] Color Adjustments Color correction curve Set color correction for: All Channels Gamma Reset 0.5 3.5 1.00 Click to change image Brightness -100 100 0 Contrast 0 200 100 Basic OK Apply Seconds Defaults

Color

Adjust the overall richness of color by using the Gamma control. To adjust the overall brightness use the Brightness control, and the overall contrast use the Contrast control.

Display Options:

Choose one of the Display Detection Option to prevent screen flicker when detecting a display.

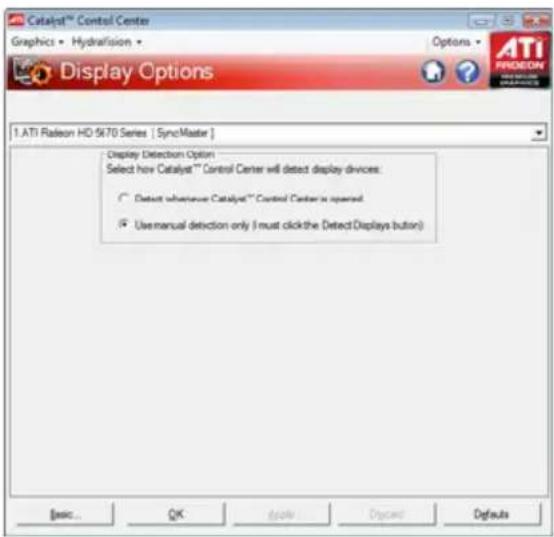

Catalyst™ Control Center Graphics • Hydraulision • Display Options 1.ATI Radeon HD 5K70 Series | SyncMaster | Display Detection Option Select how Catalyst™ Control Center will detect display devices: • Detect whenever Catalyst™ Control Center is upward. • Use manual detection only (I must click the Detect Displays button) Basic... OK Delete... Cancel... Defaults

3D:

Catalyst™ Control Center Graphics • Hydration Options • 3D Standard AA AMMode AF AI Mapmap AF 1. ATI Radeon HD 5070 Series | SyncMaster | 3D Preview Current New Standard Settings Use custom settings Performance Quality Balanced Basic OK Apply Discard Defaults

Catalyst™ Control Center Graphics • HydralVision • 3D Standard AA AAMMode AF All Mapmap Alt 1.ATI Radeon HD-SITO Series [SyncMaster ] 3D Preview SMOOTHVISION HD Anti-Aliasing Use application settings Limit Filter Box Samples Basic OK Apply Omped Defaults

Catalyst™ Control Center Graphics • Hydraulision • 3D Standard AA AAMode AF AI Mmpap All 1. ATI Radeon HD SK70 Series [ SyncMaster ] 3D Preview Current Anti-Aktasing Mode Performance Quality Multi-sample JIA Basic OK Apply Discard Defaults

Standard Settings

The Standard Settings page provides access to a universal slider control where you can simultaneously adjust all of the standard 3D settings for any type of 3D application. The slider enables you to adjust for overall system performance, overall 3D image quality, or a balance between the two. This page is useful when you are not aware of which type of 3D settings your application uses, or when you want to use an overall adjustment control that rapidly configures your application.

Anti-Aliasing

Anti-Aliasing (AA) is a rendering technique designed to remove jagged edges, shimmering, and pixelation problems that are common in rendered 3D images. Rather than determining the color to display for each pixel by sampling a single location at the pixel's center, anti-aliasing samples multiple locations within each pixel and blends the results together to produce the final color.

Anti-Aliasing can be set to favor either system processing performance or image quality, or the application can decide:

• Setting for performance is best used when the 3D image is animated and smooth motion is the most important consideration.
• Setting for quality is best used when highly detailed and realistic 3D objects is the most important consideration.
• If you are unsure of how to configure anti-aliasing, use the Use application settings option. Your display will automatically adjust to the application's requirements.

■ Adaptive Anti-Aliasing

Adaptive anti-aliasing is a technique that applies a combination of multi-sampling (MSAA) and super-sampling (SSAA) on 3D objects to improve edge smoothness and fine detail.

This feature renders 3D objects containing transparencies more realistic, providing exceptional levels of image quality while maintaining performance.

Catalyst™ Control Center Graphics • Hydration Options • 3D Standard AA AAMMode Air Alt Mapmap Alt 1.ATI Radeon HD SK70 Series | SyncMaster | 3D Preview Current New SMOD THVISION HD Inseotropic Filtering ✓ Use application settings Pre-participation: 2x Basic OK Apply Discard Defaults

Catalyst™ Control Center Graphics • Hydraulision • 3D Standard AA AAMMode AF Alt Mmpcap Alt 1. ATI Radeon HD 5170 Series | SyncMaster | 3D Preview Current New Catalyst™ A.I. Desibe Catalyst™ A.I. Standard Basic OK Apply Discard Defaults

Catalyst™ Control Center Graphics • Hydration Options • 3D Standard AA Alt Mode AF Alt Mipmap Alt 1. ATI Radeon HD SK70 Series [SyncMaster ] 3D Preview Current New Mipmap Detail Level Performance Quality High Quality Basic OK Apply Discard Defaults

■ Anisotropic Filtering

Anisotropic Filtering is a technique that preserves detail on surfaces that have three-dimensional perspective and fade away into the background. It works best when used in conjunction with Mipmapping. Anisotropic Filtering can be set to favor either an increase in system processing performance or improved image quality:

• Setting for performance is best used with applications that display objects with smooth, simple surfaces, like those seen in CAD applications.
• Setting for quality is best used with applications that display highly detailed scenes, backgrounds, and textured objects, like those seen in 3D games.
• If you are unsure how to configure anisotropic filtering, use the Use application settings option. Your display will automatically adjust to the application's requirements.

CATALYST® A.I.

Catalyst® A.I. makes use of ATI's new texture analyzer technology to optimize performance in 3D applications while maintaining or even improving image quality. It analyzes individual textures as they are loaded to determine the best and fastest way to display them.

■ Mipmap Detail Level

Mipmapping is a texturing technique that preserves the detail on a 3D object's surface as it moves into the background. A series of low- and high-resolution texture maps are stored in memory and selectively used to create the object's surface, depending on what level of detail is needed.

Mipmap detail level can be set to favor either an increase in system processing performance or improved image quality:

• Setting for performance is best used when the 3D image is animated and smoothness of motion is the most important consideration.
• Setting for quality is best used when high surface detail is required, especially if the animated object rotates or moves into the background.

Catalyst™ Control Center Graphics • Hydrafusion • 3D Standard AA AAMMode AF AI Mapmap Alt 1.ATI Radeon HD SK70 Series | SyncMaster | SMOOTHVISION HD Anti-Alassing ✓ Use application settings Level Filter Box Samples SMOOTHVISION HD Anostrophic Filtering ✓ Use application settings Proven samples Catalyst™ A.I. □ Disable Catalyst™ A.I. Basic OK Apply Discard Defaults

All Settings

The All Settings page combines all of the principal 3D features onto a single page, without any preview window, allowing for quick access and adjustment. This page is useful when it is not necessary to preview the adjusted settings because the effect is already known or understood.

Avivo™ Video:

Catalyst™ Control Center Graphics • Hydraulision • Avivo™ Video Options • ATi PROEIGN 1.ATI Radeon HD 5070 Series | SyncMaster | Prests: Basis Color Advanced Color Basic Quality Alt Settings Video Preview Presets To quickly adjust your video setting, choose one of the video presets. Use Application Settings Video Preset: Custom Basic... OK Apply Discount Defaults

Presets

To quickly adjust your video settings choose one of the video presets.

Note:

These settings will only affect applications with video overlay support.

Catalyst™ Control Center Graphics • Hydration Options • Avivo™ Video Presets Stable Color Advanced Color Basic Quality Alt Settings 1:ATI Radeon HD S/N0 Series | SyncMaster | Video Preview Basic Color High Light Medium Medium High Contour Low Low Low Use application settings Basic... OK Apply Cancel Defaults

Basic Color

Use the Avivo Color: Basic option to manually set Gamma, Brightness, Contrast, Saturation, and Tint for video playback.

Note:

Certain video formats do not support these adjustments. These settings will only affect applications with video overlay support.

Catalyst™ Control Center Graphics • Hydration Avivo™ Video Options Presets Basic Color Advanced Color Basic Quality Alt Settings 1. ATI Radeon HD-5/70 Series [SyncMaster] Video Preview Advanced Color Color Variance Flash tone correction Video Gamma Brighter White Dynamic Range Basic OK Apply Discard Defaults

■ Advanced Color

Use the Advanced Color page to fine tune the color of standard definition video (720x480) to make the color more or less vibrant and to remove excess red from skin tones. You can preview your changes before applying them.

Note:

This page is only for Windows Vista.

Catalyst™ Control Center Graphics • Hydraulision Options Avivo™ Video Presets Basic Color Advanced Color Basic Quality Alt Settings 1.ATI Radeon HD 5KTO Series [SyncMaster] Video Preview Basic Quality Use automatic diterfacing Select the diterfacing mode Pulldown detection Basic OK Apply Descart Defaults

Catalyst™ Control Center Graphics • Hydrafusion • Avivo™ Video Options Presets Basic Color Advanced Color Basic Quality Alt Settings 1.ATI Radeon HD 5/70 Series | SyncMaster | Basic Color Beginness Variation 100 Conting 100 Tick 0.00 Use application settings Advanced Color Color vibrance 0 Resl tone correction 0 Video Gamma 0 Basic... OK Apply Descart Defaults

■ Basic Quality

You can control the deinterlacing settings by checking the Use automatic deinterlacing item. The bar determines how the two interlaced video fields are converted into a non-interlaced form.

Note:

These settings will only affect applications with video overlay support.

All Settings

The All Settings page combines all of the principal Video features onto a single page, without any preview window, allowing quick access and adjustment. This page is useful when it is not necessary to preview the adjusted settings because the effect is already known or understood.

Note:

These settings will only affect applications with video overlay support.

ATI Overdrive:

Use Overdrive to maximize your viewing experience by dynamically and safely overclocking the graphics processor and memory. Use the Automated clock configuration utility to obtain the ATI recommended speeds for the graphics processor clock and video memory clock. Alternatively, manually set these speeds to meet your specific requirements. Finally, Overdrive can be configured to run when the computer is booted or only when running 3D applications. Note:

Catalyst™ Control Center Graphics • HydvalVision • ATI Overdrive™ 1.ATI Radion HD 5670 Series [SyncMaster] Audio Forms Audio/Alt Control Qty Clusters: 800 200MHz Memory/Clusters: 800 100% 100% / 100% / 100% Text Clusters Clusters: Audio/Alt Control Qty Clusters: 800 100% 100% Current Options: APSI Flash HOLD Mode Memory/Clusters: 300MHz Audio Temperature 90 °C Active 100 Temp/Control 200 Basic... OK Apply Expand Defaults

If your computer cannot restart after setting a higher clock speed, press and hold the key during system start-up until you hear three beeps. Once your computer has full booted, disable Preserve ATI Overdrive settings at logon.

4. Troubleshooting Tips

The following troubleshooting tips may help if you experience problems. Contact your dealer or GIGABYTE for more advanced troubleshooting information.

• Check that the card is seated properly in the PCI Express x16 slot.
  ■ Ensure that the display cable is securely fastened to the card's display connector.
  ■ Make sure that the monitor and computer are plugged in and receiving power.
  If necessary, disable any built-in graphics capabilities on your motherboard. For more information, consult your computer's manual or manufacturer.

(NOTE: Some manufacturers do not allow the built-in graphics to be disabled or to become the secondary display.)

■ Make sure you selected the appropriate display device and graphics card when you install the graphics driver.

■ For more troubleshooting information, please right-click the ATI icon in the notification area.

■ Restart your computer.

Press on your keyboard after system starts up. When the Windows Advanced Options Menu appears, select Safe Mode and press .

After getting into Safe Mode, in Device Manager check whether the driver for the graphics card is correct.

For more assistance, use the Troubleshooting Guide located in the Windows Help or contact your computer manufacturer.

■ If you are not able to find the desired monitor color/resolution settings:

The color and screen resolution options available for selection depend on the graphics card being installed.

If necessary, adjust your monitor's setting using monitor's adjust panel to make the screen look focused, crisp, and sharp. (Please refer to the monitor's manual.)

5. Appendix

5.1. Resolutions and Color Depth Tables

Radeon™ HD 5670 Series 2D Single Display Modes

Display Refresh Color Depth (bpp)Screen Rate 8bpp(256 color) 16bpp(65K color) 32bpp(16.7M)
Resolution	(Hz)	Standard mode	High mode	True mode
640 x 480 200 √		√	√
800 x 600 200 √		√	√
1024 x 768 200 √		√	√
1152 x 864 100 √		√	√
1280 x 768 85 √		√	√
1280 x 960 160 √		√	√
1280 x 1024 120 √		√	√
1440 x 900 60 √		√	√
1600 x 1200 100 √		√	√
1680 x 1050 100 √		√	√
1792 x 1344 85 √		√	√
1800 x 1440 70 √		√	√
1856 x 1392 75 √		√	√
1920 x 1080 75 √		√	√
1920 x 1200 85 √		√	√
1920 x 1400 75 √		√	√
2048 x 1536 66 √		√	√

5.2. Regulatory Statements

Regulatory Notices

This document must not be copied without our written permission, and the contents there of must not be imparted to a third party nor be used for any unauthorized purpose. Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GIGABYTE.

Our Commitment to Preserving the Environment

In addition to high-efficiency performance, all GIGABYTE motherboards fulfill European Union regulations for RoHS (Restriction of Certain Hazardous Substances in Electrical and Electronic Equipment) and WEEE (Waste Electrical and Electronic Equipment) environmental directives, as well as most major worldwide safety requirements. To prevent releases of harmful substances into the environment and to maximize the use of our natural resources, GIGABYTE provides the following information on how you can responsibly recycle or reuse most of the materials in your "end of life" product.

Restriction of Hazardous Substances (RoHS) Directive Statement

GIGABYTE products have not intended to add and safe from hazardous substances (Cd, Pb, Hg, Cr+6, PBDE and PBB). The parts and components have been carefully selected to meet RoHS requirement. Moreover, we at GIGABYTE are continuing our efforts to develop products that do not use internationally banned toxic chemicals.

Waste Electrical & Electronic Equipment (WEEE) Directive Statement

GIGABYTE will fulfill the national laws as interpreted from the 2002/96/EC WEEE (Waste Electrical and Electronic Equipment) directive. The WEEE Directive specifies the treatment, collection, recycling and disposal of electric and electronic devices and their components. Under the Directive, used equipment must be marked, collected separately, and disposed of properly.

WEEE Symbol Statement

The symbol shown below is on the product or on its packaging, which indicates that this product must not be disposed of with other waste. Instead, the device should be taken to the waste collection centers for activation of the treatment, collection, recycling and disposal procedure. The separate collection and recycling of your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste equipment for recycling, please contact your local government office, your household waste disposal service or where you purchased the product for details of environmentally safe recycling.

• When your electrical or electronic equipment is no longer useful to you, "take it back" to your local or regional waste collection administration for recycling.
• If you need further assistance in recycling, reusing in your "end of life" product, you may contact us at the Customer Care number listed in your product's user's manual and we will be glad to help you with your effort.

Finally, we suggest that you practice other environmentally friendly actions by understanding and using the energy-saving features of this product (where applicable), recycling the inner and outer packaging (including shipping containers) this product was delivered in, and by disposing of or recycling used batteries properly. With your help, we can reduce the amount of natural resources needed to produce electrical and electronic equipment, minimize the use of landfills for the disposal of "end of life" products, and generally improve our quality of life by ensuring that potentially hazardous substances are not released into the environment and are disposed of properly.

China Restriction of Hazardous Substances Table

The following table is supplied in compliance with China's Restriction of Hazardous Substances (China RoHS) requirements:

10

Management Methods on Control of Pollution from Electronic Information Products

(China RoHS Declaration)
