Read the Instructions carefully and Keep for Future Reference.

SPECIFICATIONS

Power consumption: 230V~50Hz,120W
Output:	800 W
Operating Frequency: 2.450 MHz
Outside Dimensions: 452mm(B) X 370mm(D) X 262mm(H)
Oven Cavity Dimensions: 315mm(B) X 329mm(D) X 210mm(H)
Oven Capacity: 20 liter
Uncrated Weight: ca. 12.0 kg

Before you call for service

1. If the oven will not perform at all, the display does not appear or the display disappeared:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

1. If the microwave power will not function:

a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.

If none of the above rectify the situation, then contact the nearest authorized service agent.

The appliance for household use for heating food and beverages using electromagnetic energy, for indoor use only.

Radio interference

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a) Clean the door and sealing surface of the oven.
b) Place the radio, TV, etc. as far away from your microwave oven as possible.
c) Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

Installation

1. Make sure all the packing materials are removed from the inside of the door.

2. Inspect the oven after unpacking for any visual damage such as:

3. Misaligned Door

4. Damaged Door
5. Dents or Holes in Door Window and Screen

6. Dents in Cavity If any of the above are visible, DO NOT use the oven.

7. This Microwave Oven weighs 12.0 kg and must be placed on a horizontal surface strong enough to support this weight.

8. The oven must be placed away from high temperature and steam.
9. DO NOT place anything on top of the oven.
10. Keep the oven at least 5 cm away from both sidewalls and 10 cm away from rear wall to ensure the correct ventilation.
11. DO NOT remove the turn -table drive shaft.
12. As with any appliance, close supervision is necessary when used by children. WARNING-THIS APPLIANCE MUST BE EARTHED.
13. The plug socket should be within easy reach of the power cord.
14. This oven requires 1.2 KVA for its input consultation with service engineer is suggested when installing the oven. CAUTION: This oven is protected internally by a 250V,10 Amp Fuse.

Important safety instructions

• WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated. (Only for the model with grill function)
• WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
• WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
• WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.
• WARNING: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• The oven must have sufficient air flow. Keep 10 cm space at back; 5 cm at both sides and 20cm from top of the oven. Don't remove oven's feet, do not block air events of the oven.
• Only use utensils that are suitable for use in microwave ovens.
• When heating food in plastic or paper containers, keep an eye on the oven due to the

possibility of ignition.

• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
• The oven should be cleaned regularly and any food deposits removed.
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Safety instructions for general use

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.
6. Do not insert any object into the openings on the outer case.
7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.

IMPORTANT-COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

• Do not use metal pans or dishes with metal handles.
• Do not use anything with metal trim.
• Do not use paper covered wire twist-ties on plastic bags.
• Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.
• Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.
• Do not cook in a container with a restricted opening, such as a pop bottle or salaed oil bottle, as they may explode if heated in a microwave oven.
• Do not use conventional meat or candy thermometers.

• There are the thermometers available specifically for microwave cooking. These may be used.

• Microwave utensils should be used only in accordance with manufacturer's instructions.

• Do not attempt to deep-fry foods in this oven.

• Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

• Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.

• Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.

• When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.

• Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.

• To reduce the risk of fire in the oven cavity:

a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
b) Remove wire twist-ties from bags before placing bag in oven.
c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

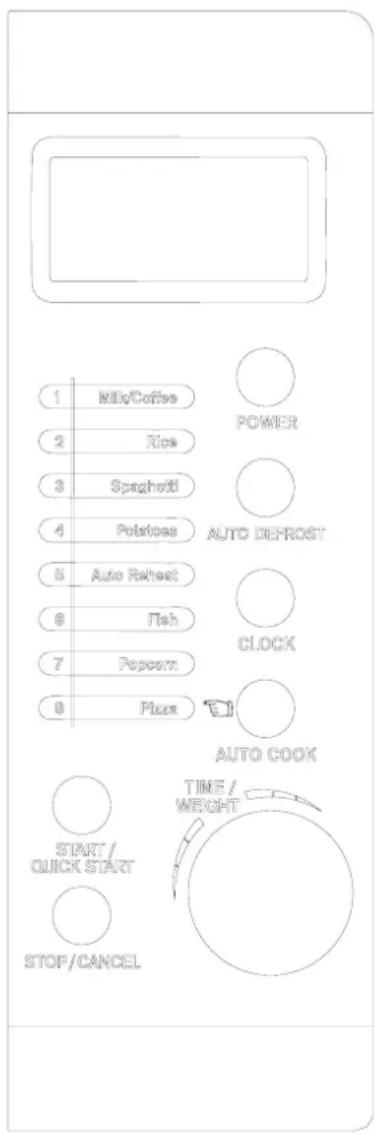

Control panel

- MENU ACTION SCREEN

Cooking time, power, action indicators, and clock time are displayed.

- POWER LEVEL

Touch this button a number of times to set microwave cooking power level.

• AUTO COOK

Press for instant settings to cook popular food.

• AUTO DEFROST

Touch to defrost food by weight.

• CLOCK

Touch this button to enter the correct time of day.

• TIME/WEIGHT

Rotate the dial to input clock time, cooking time or to enter food weight.

- START/QUICK START

Touch to start a cooking program.

Simply touch it a number of times to set cooking time and the oven will cook immediately at full power level.

- STOP/CANCEL

Press to cancel setting or reset the oven before setting a cooking program.

Press once to temporarily stop cooking, or twice to cancel cooking altogether.

It is also used for setting child lock.

1 Milk/Coffee 2 Rice 3 Spaghetti 4 Potatoes 5 Auto Toilet 6 Fish 7 Popcorn 8 Ples POWER AUTO DEFROST CLOCK AUTO COOK START/ QUICK START STOP/CANCEL TIME/ WEIGHT

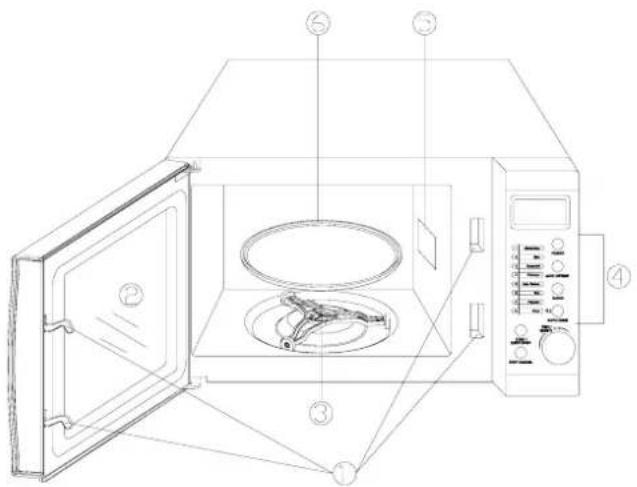

Description

1. Door Safety Lock System
2. Oven Window
3. Roller Ring
4. Control Panel
5. Oven Air Vent
6. Glass Tray

Technical diagram of a microwave oven with numbered components for identification

Operation Instruction

1. SETTING DIGITAL CLOCK

Suppose you want to set the oven clock time to 8:30.

In standby mode, press the CLOCK button repeatedly to set the clock in 12 or 24 hour cycle.

Turn the TIME/WEIGHT dial to indicate the hour digit 8.

Press the CLOCK button.

Turn the TIME/WEIGHT dial to indicate the minute digits until the screen shows 8:30.

Press CLOCK to confirm the setting. Note: You can press the CLOCK button once to check clock time during cooking.

For microwave cooking, the longest cooking time is 95 minutes; you can select power level by pressing POWER LEVEL repeatedly:

Display	Cooking
100	100%
80	80%
60	60%
40	40%
20	20%
00	00%

Power

For example, suppose you want to cook for 1 minute at 60% of microwave power.

1) Press the POWER LEVEL button repeatedly to select power level.

2) Turn the TIME/WEIGHT dial to 1:00.
3) Press the START/QUICK START button.

Note: You can check the cooking power when cooking is in progress by pressing the POWER LEVEL button. After the cooking/defrosting time elapses, the oven will signal and "End" will show up on the screen, press the STOP/CANCEL button or open the oven door to clear the screen.

3. QUICK START

This feature allows you to start the oven quickly. The longest cooking time is 10 minutes. In standby mode, press the START/QUICK START button in quick succession to set the cooking time, the oven starts working at full power level immediately.

You can extend the cooking time during cooking process by pressing START/QUICK START.

4. AUTO DEFROST

The oven allows the defrosting food based on the weight you entered. The time and the defrosting power are adjusted automatically once the weight is programmed. The food weights range from 100g to 1800g. Suppose you want to defrost 600g of shrimp.

1) Place the shrimp to be defrosted into the oven and close the door.
2) Press AUTO DEFROST button once.
3) Turn TIME/WEIGHT to enter weight 600g.
4) Press the START/QUICK START button.

Note: During defrosting process, the system will pause and signal to remind you to turn over the food, after that, press START/QUICK START to resume.

5. CHILD LOCK

Use to prevent unsupervised operation of the oven by little children. The child lock indicator will show up on display screen, and the oven can not be operated while the Child Lock is set. To set: In standby or preset mode, hold down the STOP/CANCEL button for 3 seconds, a beep sounds and lock indicator lights. In the locked mode, all buttons are disabled.

To cancel: Hold down the STOP/CANCEL button for 3 seconds until lock indicator on display goes off.

6. AUTO COOK

For food or the following cooking mode, it is not necessary to program the duration and the cooking power. It is sufficient to indicate the type of food that you wish to cook as well as the weight of this food. You may need to turn food over at the middle of cooking time to obtain uniform cooking.

For example: to cook 400g of fish.

1) In standby mode, press AUTO COOK repeatedly to select corresponding food code.
2) Rotate the TIME/WEIGHT dial to indicate a weight of 400g.
3) Press the START/QUICK START button.

Code	Food/cooking	mode	For milk/coffee, potato, parameters are not food weight but number of servings. For popcorn, there is only one choice. For spaghetti, add boiled water before cooking. The result of auto cook depends on factors such as fluctuation of voltage, the shape and size of food, your personal preference as to the doneness of certain foods and even how well you happen to place food in the oven. If you find the result at any rate not quite satisfactory, please adjust the cooking time a little bit accordingly.
01	Milk/Coffee	(200ml/cup)
02	Rice
03	Spaghetti
04	Potatoes	(230g/ut)
05	Auto	Reheat
06	Fish
07	Popcorn
08	Pizza

Care of your microwave oven

1. Turn the oven off and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters of spilled liquids adhere to oven walls, wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.
3. The outside oven surface should be cleaned with a damp colth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.
5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.
6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or sish washer. Cooking vapours collect during repeated use but in no way affect the bottom surface or roller ring

wheels. When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.

1. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.

2. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

Version: UPO/M320Dw/M320Db/200911
