USER MANUAL IPMI 2.0 Card Supermicro

IPMI View User's Guide

Version 2.6

Index

1. OVERVIEW....2
2. SYSTEM MANAGEMENT....3
3. LOGIN....10
4. IPM DEVICE....12
5. SYSTEM EVENT LOG ....14
6. SENSORS....16
7. BMC SETTING (ADMINISTRATOR ONLY)....18
8. USERS ....20
9. TEXT CONSOLE REDIRECTION (SOL, SERIAL OVER LAN) 23
10. VIDEO CONSOLE REDIRECTION (KVM OVER IP)....25
11. VIRTUAL MEDIA ...... 31
12. GROUP MANAGEMENT....34
13. TRAP RECEIVER....41
    APPENDIX A: UPDATE FIRMWARE FOR SIM IPMI 45

IPMI View (IPMI Over LAN)

1. Overview

IPMI View is management software based on IPMI specification version 1.5 - 2.0. IPMI View sends IPMI messages to and from the BMC (Base Management Card) on a remotely managed system. IPMI messages are encapsulated in RMCP (Remote Management Control Protocol) packets called “datagrams”. This method is also referred to as “IPMI over LAN”.

The Distributed Management Task Force (DMTF) has defined RMCP for supporting pre-OS and OS-absent management. RMCP is a simple request-response protocol that can be delivered using UDP (User Datagram Protocol) datagrams. IPMI-over-LAN uses version 1 of the RMCP protocol and packet format. An RMCP packet is transmitted via IP (Internet Protocol) networking. Thus, system managers may manage their IPMI-enabled system over the Internet. (Of course, in a private LAN this is a basic feature.) IPMI uses the same UDP port number (623 in decimal) with ASF (Alert Standard Forum) protocol. If the managed system is protected by a firewall, UDP port 623 must be opened.

In Supermicro's IPMI solution, a BMC shares the LAN1 NIC on the mainboard. (If there are more than one LAN Ports on the mainboard, LAN1 is the one near Keyboard/Mouse Port.) The NIC will re-route the IPMI packet to the BMC instead of forwarding it to the upper layer network protocol stacks (as other protocol packets do).

IPMI View V2.0 covers Supermicro's BMCs for both IPMI v1.5 and IPMI v2.0. However, according to design changes, some functions added to IPMI v2.0 are not available in IPMI v1.5, and some functions are no longer available in IPMI v2.0 implementation. IPMI View will automatically hide any function that is not available to the BMC version being used.

2. System Management

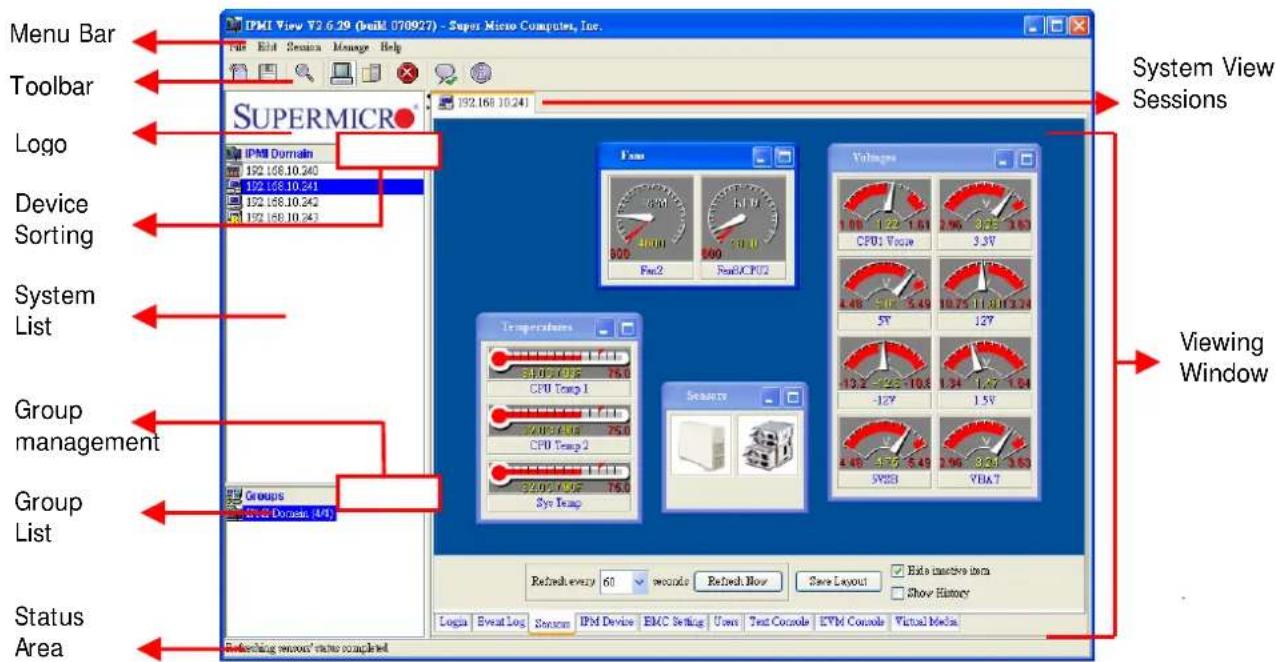

Menu Bar Toolbar Logo Device Sorting System List Group management Group List Status Area IPMI View V2.6.29 (build 070927) - Super Micro Computer, Inc. 192.168 10.241 SUPERMICRO IPMI Domain 192.168.10.240 192.168.10.241 192.168.10.242 192.168.10.243 System View Sessions Viewing Window Temperatures 3.00/5.00 CPU Temp 1 2.00/5.00 CPU Temp 2 3.00/5.00 Sys Temp Seasons 4.00/5.00 5.00/5.00 6.00/5.00 7.00/5.00 8.00/5.00 9.00/5.00 10.00/5.00 11.00/5.00 12.00/5.00 13.00/5.00 14.00/5.00 15.00/5.00 16.00/5.00 Refresh every 60 seconds Refresh Now Save Layout Data inactive items Show History Login Event Log Session IPM Device EMC Settings Usm Text Console EVM Control Virtual Media

Figure 2-1

As shown in Figure 2-1, there are several components in the IPMI View window (Figure 2-2):

1) Menu Bar contains functions allowing you to add/delete systems or groups and save configurations.
2) Tool Bar: contains functions allowing you to quick execution.
3) Logo: Press Logo to visit Supermicro's web site.
4) Device Sorting Sorting device by ascending, descending, on-line and original.
5) System Listlists the computers managed with a BMC card.
6) Group management For new, join, disjoin and refresh group.
7) Group List lists managed computer groups for more convenient management.
8) Viewing Window shows detailed information including Login, IPMI Device, Event Log, Sensors, BMC Setting and Text Console.
9) Status Areashows messages regarding current status.
10) System View Sessions: IPMI View can manage up to 20 systems at the same time. The current managed system is indicated in the System View window.

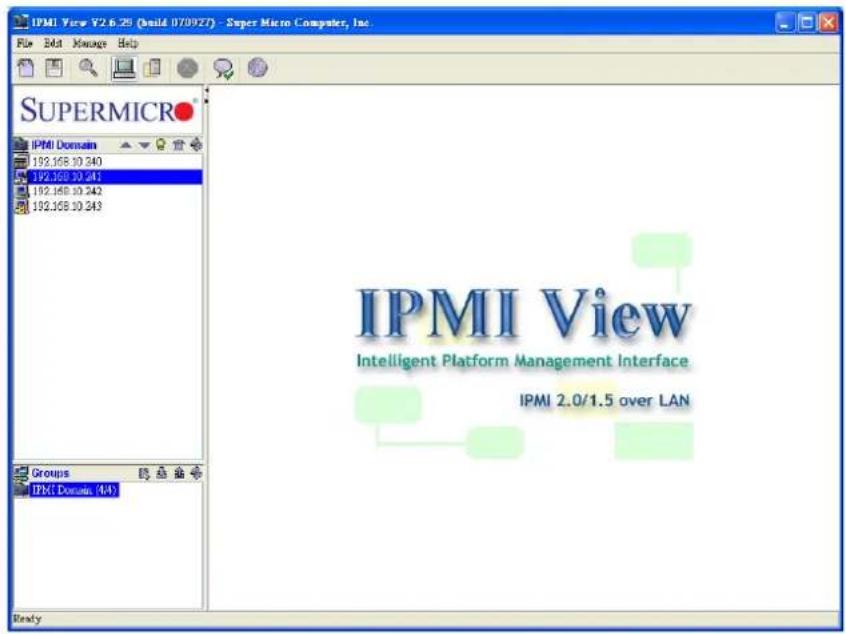

IPMI View Y2.6.29 (Build 070927) - Super Micro Computer, Inc. File Edit Manage Help SUPERMICRO IPMI Domain 192.168.10.340 192.168.10.341 192.168.10.343 192.168.10.343 IPMI View Intelligent Platform Management Interface IPMI 2.0/1.5 over LAN Groups IPMI Domain 4.4 Ready

Figure 2-2

- ToolBar

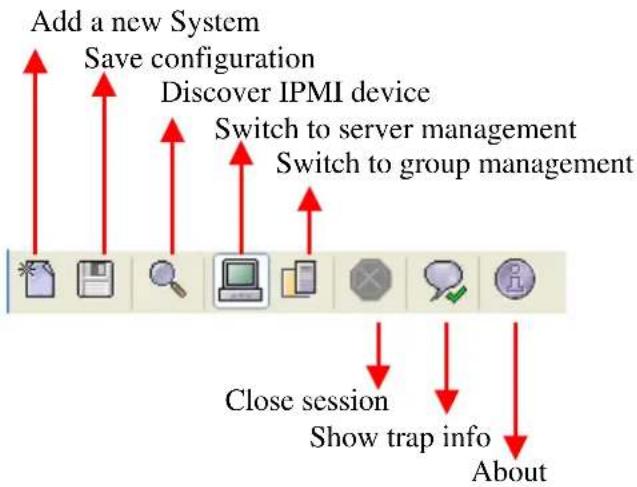

As shown in Figure 2-3, toolbar helps you quickly execute functions which may be used frequently. You can quickly switch server or group management. The received trap info will show in this toolbar once got trap.

Figure 2-3

- Adding a new system to IPMI View

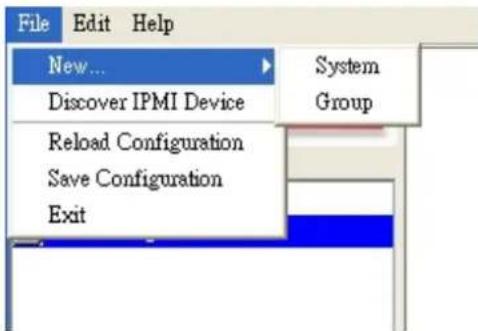

File Edit Help New... Discover IPMI Device System Group Reload Configuration Save Configuration Exit

Figure 2-4

As shown in Figure 2-4, click “File>New...>System” to add a new system to IPMI View. An “Add a new system...” dialog box will pop up as shown in Figure 2-5.

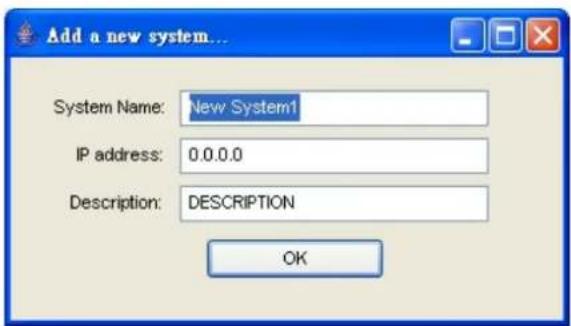

Add a new system... System Name: New System1 IP address: 0.0.0.0 Description: DESCRIPTION OK

Figure 2-5

In the “Add a new system” dialog box, type in the desired System Name for the managed system and the correct IP address, as well as a description. Then click OK.

- Adding a new group to IPMI View

To maintain systems easier, the manager may categorize managed systems into different groups. A system may be included in multiple groups. The default group is “IPMI Domain”. All managed systems belong to IPMI Domain even if they join other groups.

In Figure 2-4, click menu “File>New...>Group” to add a new group to IPMI View. An “Add a new group” dialog will pop up as shown in Figure 2-6.

Add a new group Group Name: New Group1 Description: DESCRIPTION OK

Figure 2-6

In the “Add a new group” dialog box, type in the desired Group Name and description. Then click OK.

• Discover New Systems in a Specified Network

IPMI View includes a function that allows the user to collect candidate system information in order to build their information into a System List (see Figure 2-7). The user may specify the IP range or click “Detect” to search any possible system that has either IPMI 1.5 or IPMI 2.0 capability. After the candidate system information is collected, the user may add systems into a System List by IP addresses or by a given Prefix name. The “IPMI 2.0+” list in version column means this system is IPMI 2.0 RMCP+ protocol supported.

IPMI Device Discovering Network IP From 192.168.10 To 192.168.10.254 Network Mask 255.255.255.0 Search Option ✓ IPMI 2.0 □ IPMI 1.5 Start Exit Save Found 2 P Name Version 192.168.10.241 192.168.10.241 PM 2.0+ 192.168.10.246 192.168.10.246 PM 2.0

Figure 2-7

- Reload Configuration

From the pull-down menu, click "File>Reload Configuration" to load the previous saved configuration.

- Save Configuration

From the pull-down menu, click "File>Save Configuration" to save the current IPMI View configuration.

- Exit IPMI View

From the pull-down menu, click "File>Exit" or press Alt-F4 when the IPMI View is running to exit IPMI View.

File Edit Session Manage Help Modify Delete IPMI Security Join Disjoin Refresh Timeout ... System Group 192.168.10.242 192.168.10.243

Figure 2-8

- Modify System

Select a system in the System Window you want to modify and then click “Edit>Modify...>System” from the pull-down menu shown in Figure 2-8 to modify it.

You can also right click on a system in the System Window and then select “Modify” in the pop-up menu to modify it.

- Delete System

Select a system in the System Window you want to delete and then click "Edit>Delete...>System" from the pull-down menu shown in Figure 2-8 to delete it.

You can also right click on a system in the System Window and then select "Delete" in the pop-up menu to delete it.

- Modify Group

Select a group in the Group Window you want to modify and then click “Edit>Modify...>Group” from the pull-down menu shown in Figure 2-8 to modify it.

You can also right click on a group in the Group Window and then select "Modify" in the pop-up menu to modify it.

- IMPI Security

IPMIView can automatically detect the current IPMI version during the beginning of login phase. If you want to manually specify the protocol, you may check the “For Advanced User” box as shown in Figure 2-9 and select the following protocols for a specific system.

● Hardware: BMCB, Firmware: IPMI 1.5:
● Hardware: BMC2, Firmware:IPMI 2.0 non-RMCP+:
● Hardware: BMC2, Firmware:IPMI 2.0 Standard RMCP+.

You may choose the encryption function in the IPMI 2.0 Standard RMCP+. All the packets transmitted from IPMIView to managed system will then be encrypted.

IPMI Protocol for New System1 : ○ Auto Detection ✓ For Advanced User. Select Following Protocols based on HW' and FW' ○ HW : BMCB, FW : IPMI 1.5 ○ HW : BMC2, FW : IPMI 2.0 non-RMCP+ ● HW : BMC2, FW : IPMI 2.0 Standard RMCP+ ✓ Encryption HW' = Hardware FW' = Firmware OK Cancel

Figure 2-9

- Delete Group

Select a group in the Group Window you want to delete and then click “Edit>Delete...>Group” from the pull-down menu shown in Figure 2-8 to delete it.

You can also right click on a group in the Group Window and then select "Delete" in the pop-up menu to delete it.

- Join a group

Select a group in the Group window and select a system in the System Window, then click "Edit>...Join..." from the pull-down menu shown in Figure 2-8 to have the selected system join the desired group.

- Disjoin a group

Double click the group you want to disjoin a system from. The members of that group will appear in the System Window. Then, select the system you want to disjoin and click “Edit>...Disjoin...” from the pull-down menu shown in Figure 2-8.

You can also right click the selected system and then select "Disjoin" in the pop-up menu to delete it.

- Timeout

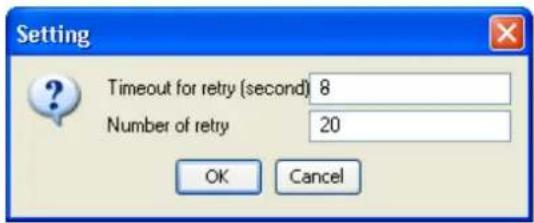

The timeout setting is shown in Figure 2-10. Timeout is the period for IPMI View to wait for a response after sending a command to a managed system. If a response is not received from the managed system in the timeout period, IPMI View will resend the command to managed system. You may specify the timeout value in order to get a quicker notification of no response from the managed system. You also can specify the number of retries to limit the number of times IPMI View will resend the command.

Setting Timeout for retry (second) 8 Number of retry 20 OK Cancel

Figure 2-10

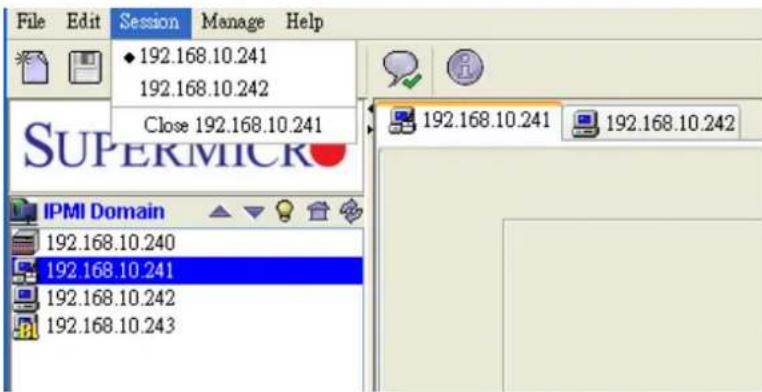

File Edit Session Manage Help ◆ 192.168.10.241 192.168.10.242 Close 192.168.10.241 192.168.10.241 192.168.10.242 SUPERMICK IPMI Domain 192.168.10.240 192.168.10.241 192.168.10.242 192.168.10.243

Figure 2-11

- Selecting an IPMI View management session

When more than one system is managed by IPMI View at the same time, you can select which opened management session you want to control by double clicking on system's name in the System Window or by selecting "Session>">in the pull-down menu, where<> denotes the name of the target system you want to control (as shown in Figure 2-11).

- Closing IPMI View management session

To close the opened IPMI View management session, select the IPMI View management session you want to close as the current IPMI View management session and then click “Session>Close <>” in the pull-down menu, where <> denotes the name of the system you want to close (as shown in Figure 2-11).

Or - right click on the system in the System Window you want to close and select "Close Session" in the pop-up menu to close it.

When closing a session, a session will not be closed until 1) replies have been received for all outstanding packets or 2) all outstanding packets have timed out.

3. Login

- Login

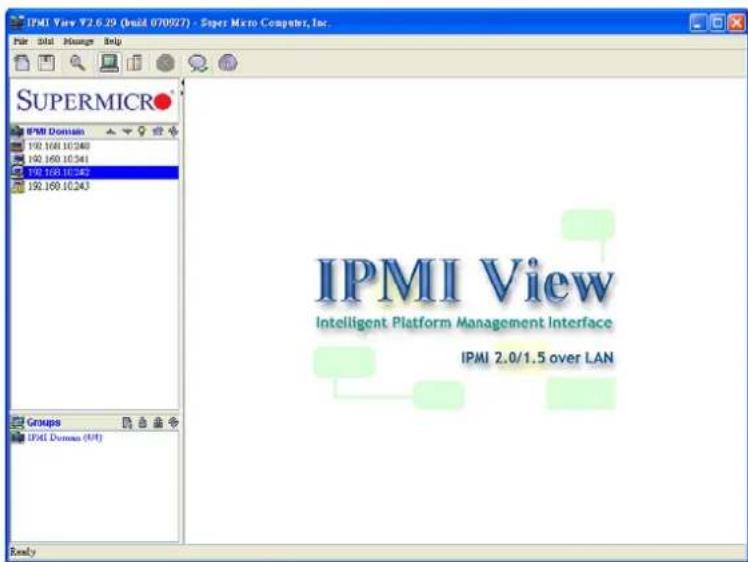

In Figure 3-1, double click the system in the System Window you want to manage. A login screen along with some information about the managed system will appear in the Viewing Window. Type in the login ID and password and click the Login button to log in. When a login is successful, the connection information will be shown at the bottom. The Login button is grayed (i.e. disabled) and the Logout button is enabled as well as the availability of other management functions. as shown in Figure 3-2.

IPMI View V2.6.29 (Build 070927) - Super Micro Computer, Inc. File Edit Messages Help SUPERMICRO IPMI Domain 192.168.10240 192.168.10241 IPMI 103.10242 192.168.10243 IPMI View Intelligent Platform Management Interface IPMI 2.0/1.5 over LAN Groups IPMI Dommen (AUI) Ready

Figure 3-1

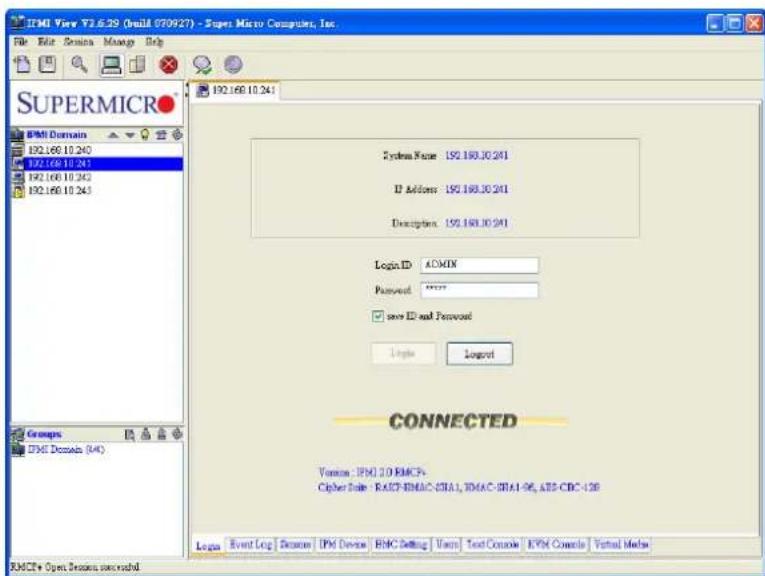

I2M1 View Y3.6.29 (Build 070927) - Super Micro Computer, Inc. File Edit Services Manage Help 192.160.10.241 SuperMICRO BPMI Domain 192.160.10.240 192.160.10.241 192.160.10.242 192.160.10.243 System Name: 192.160.10.241 IP Address: 192.160.10.241 Description: 192.160.10.241 Login ID: ADMI Password: ****** □ new ID and Password Login Lognot CONNECTED Version: IPM1.10 EMC# Cipher Tools: RAUT-EMAC-SHA1, JDAAC-SHA1-96, ARS-CBC-138 Logos Event Log Devices IPM Device BMC Setting Users Text Console EVM Controls Virtual Media RACIT+ Open Devens on record

Figure 3-2

The default Login ID is “ADMIN”, which has the default password of “ADMIN”. Both the Login ID and Password are case-sensitive.

In the IPMI design, an MD5 algorithm will encrypt the password when it's transmitted through the network. (If you are connecting to IPMI 2.0 RMCP+, all the data will be transmitted by an encrypted algorithm.) Once the password is confirmed, IPMI View will show a CONNECTED symbol, and all available function pages will be shown as seen in Figure 3-2. If the password is invalid, it will show a message in the Status Area that reads “Unable to activate a session, please check ID and Password” and a Break symbol will be shown (see Figure 3-3).

IPMI View V2.6.20 (build 070927) - Super Micro Computer, Inc. File Edit Transaction Manager Help 192.168.10.241 SuperMICRO IPMI Domain 192.168.10.240 192.168.10.241 192.168.10.242 192.168.10.243 System Name: 192.168.10.241 IP Address: 192.168.10.241 Description: 192.168.10.241 Login ID: admin Password: ****** save ID and password Login Logist BREAK Groups IPMI Domain (604) Login RAKP Message Terms: Unauthorized name (Status code = 0D5)

Figure 3-3

In order to reduce overhead on the managed system, all pages will not refresh automatically. The user must refresh manually as needed.

4. IPM Device

Device Information Firmware Revision 01.02 IPMI Revision 2.0 ACPI System Power State S0/G0 On Graceful Power Control Graceful Shutdown Graceful Reboot Graceful Power Cycle Chassis Power Control Power Down Power Up Power Cycle Reset BMC Cold Reset Refresh

Figure 4-1

Clicking the IPM Device tab of the IPMI View management session in the Viewing Window (shown in Figure 4-1) will display some information and functions of the system's BMC firmware.

• Device Information

This shows the revision levels of the BMC and IPMI firmware.

• ACPI System Power State

This shows the managed system's power state. If the managed system is in a power-off state, the green light will be off. This status will update automatically every five seconds.

• Graceful Power Control (Administrator and Operator only)

Graceful power control will inform the OS running on the managed system to shutdown/reboot/power-cycle within a specified time (the default is 30 seconds). When the OS running on the managed system receives a graceful power control request, it will generate a pop-up window on the managed system's monitor and start a count down. This pop-up notice window gives the user who is working on the system a chance to save any working files. However, remote login users or service users (for example Web site visitors) will not see this notice.

Graceful Shutdown: same as the shutdown function in Windows. The managed system will enter an S5 state.

Graceful Reboot: same as the reboot function in Windows.

Graceful Power Cycle: this function is a combination of the Graceful Shutdown and Power Up functions.

The Power Cycle function will shut down the managed system for a few seconds and then power up the system. Graceful power control will send an event to the System Event Log (next section). If no more memory space is left for the incoming event, graceful power control will not function.

- Chassis Power Control (Administrator and Operator only)

This function is used to forcibly control the power state of the managed system's chassis. When the BMC receives a chassis power control command, it will have direct control over the power button or reset button of a system.

Reset: this is the same as pressing the Reset button on a managed system's chassis to reset the managed system.

Power Down: this is the same as pressing the Power button on a managed system's chassis to remove power from the managed system.

Power Up: this is the same as pressing the Power button on a managed system's chassis to turn on the power of the managed system.

Power Cycle: this function is a combination of the Power Down and Power Up functions.

The Power Cycle function will shutdown the managed system for a few seconds and then power up the system.

• BMC Cold Reset (Administrator only)

Clicking the Cold Reset button allows you to reset the BMC. After confirming to reset the BMC, the session will break immediately. The user has to close this session manually. This function is rarely used, only in events such as when a malfunction is suspected.

5. System Event Log

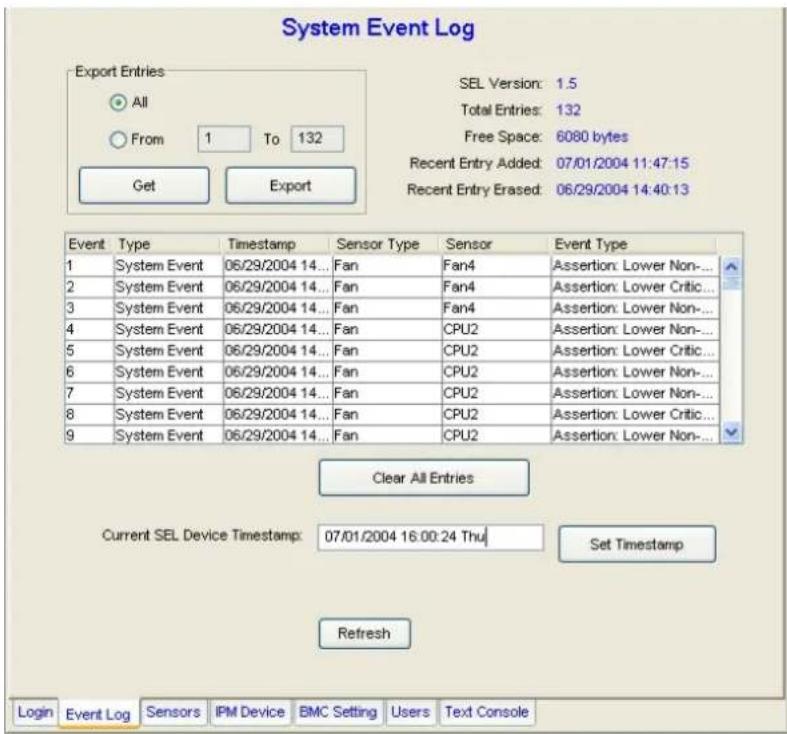

System Event Log Export Entries All From 1 To 132 Get Export SEL Version: 1.5 Total Entries: 132 Free Space: 6080 bytes Recent Entry Added: 07/01/2004 11:47:15 Recent Entry Erased: 06/29/2004 14:40:13 Event Type Timestamp Sensor Type Sensor Event Type 1 System Event 06/29/2004 14... Fan Fan4 Assertion: Lower Non-... 2 System Event 06/29/2004 14... Fan Fan4 Assertion: Lower Critic... 3 System Event 06/29/2004 14... Fan Fan4 Assertion: Lower Non-... 4 System Event 06/29/2004 14... Fan CPU2 Assertion: Lower Non-... 5 System Event 06/29/2004 14... Fan CPU2 Assertion: Lower Critic... 6 System Event 06/29/2004 14... Fan CPU2 Assertion: Lower Non-... 7 System Event 06/29/2004 14... Fan CPU2 Assertion: Lower Non-... 8 System Event 06/29/2004 14... Fan CPU2 Assertion: Lower Critic... 9 System Event 06/29/2004 14... Fan CPU2 Assertion: Lower Non-... Clear All Entries Current SEL Device Timestamp: 07/01/2004 16:00:24 Thu Set Timestamp Refresh Login Event Log Sensors IPM Device BMC Setting Users Text Console

Figure 5-1

Clicking on the Event Log tab of the IPMI View management session in the Viewing Window (shown in Figure 5-1) gives you detailed information on the System Event Log for the BMC. It shows the System Event Log version, number of log entries, free space for the System Event Log and the times of recently added and recently erased System Event Logs.

• Get System Event Log

In the Get Entries group on the upper left side of the Event Log tab in the Viewing Window, you can decide how many logs you want to get from the BMC. Click the From button and type in the first and last numbers of the logs you wish to view, or click the All button to get all the logs from the BMC. The logs retrieved from the BMC will listed as a table in the central part of the Viewing Window. Please refer to the IPMI specifications version 2.0 for detailed descriptions of each field. Some helpful fields:

Timestamp: the time the event happened.

Sensor Type: this could be health sensors or a system event.

Event Type: the event description.

Because the BMC communicates with the NIC on the mainboard via a slow channel, it is recommended that you request only the events you need to see. Choosing "all" to get hundreds of event entries will result in a very long delay.

- Clear System Event Log

Clicking the Clear All Entries button clears the logged system events on the BMC. The total event log space is 16 KB. When all this space is used, any incoming event will be lost. The user has to clear the system event log manually as needed.

• Time stamp of System Event Log and Time Zone

To set the time stamp of the BMC on the managed system, type in the time in the Current SEL Device Timestamp field. Then click the Set Timestamp button to update the BMC.

Timestamp and Time Zone reflect the managed system's local time. (The Time Zone setting is only available for IPMI 1.5)

6. Sensors

Fans RPM 4860 720 FAN 1 RPM 1440 720 FAN 2 RPM 3420 720 FAN 4 RPM 3900 720 FAN 5 RPM 9840 720 FAN 6 RPM 1560 720 FAN 8 Temperatures 58.0 75.0 CPU 1 36.0 75.0 System Voltages 1.34 1.51 1.64 1.5V 2.95 3.26 3.62 3.3V 2.95 3.42 3.62 3.3VSB 4.47 5.04 5.48 5V 10.83 12.03 13.26 12V -12.38 12.56 11.99 Refresh every 45 seconds Refresh Now Save Layout Hide inactive item Login Event Log Sensors IPM Device BMC Setting Users Text Console Show History

Figure 6-1

Clicking on the Sensors tab of the IPMI View management session in the Viewing Window (as shown in Figure 6-1) provides you with detailed information on the sensors monitored by the BMC. It shows the reading of supported voltages and fan speeds and temperatures monitored by the BMC. The current reading is shown in yellow numbers, the high limits/low limits in red numbers and a description for the monitoring sensors in blue text beneath the monitoring sensor figures.

Fan speeds have only a low limit, temperatures have only a high limit, and voltages have both high and low limits.

- Refreshing monitor status

You can configure the IPMI View to automatically refresh the monitoring status periodically by checking the Auto Refresh check box and selecting the refresh period in seconds in the seconds list. Or, click the Manual Refresh button to refresh the monitoring status every time you need an update.

- Hide inactive item

IPMI View gets predefined sensor information from the mainboard. Some items may be not installed for different configurations. For example, there will be no CPU fan if using a passive CPU heatsink, and only one CPU on a dual CPU mainboard that has only a single CPU installed. The first time the sensors page is shown, IPMI View will hide inactive items (the default setting) if any. A manager may change this option later by un-checking the “Hide inactive item” box, as shown in Figure 6-2.

Fans RPM 720 4000 FAN 1 RPM 720 440 FAN 2 RPM 720 N/A FAN 3 RPM 720 3420 FAN 4 RPM 720 1900 FAN 5 RPM 720 3640 FAN 6 RPM 720 N/A FAN 7 RPM 720 1580 FAN 8 Temperatures 53.0 75.0 CPU 1 TVA 75.0 CPU 2 95.0 75.0 System Voltages 1.34 1.51 1.64 2.95 3.26 3.62 2.95 3.62 3.62 4.47 5.04 5.48 10.83 12.08 13.25 -12.38/2.68/11.95 1.5V 3.3V 3.3VSB 5V 12V -12V Refresh every 45 seconds Refresh Now Save Layout Hide inactive item Login Event Log Sensors IPM Device BMC Setting Users Text Console Show History

Figure 6-2

• Show History

IPMI View provides a history chart for fans, temperatures and voltages. The yellow line indicates the reading corresponding to the sensor. A red line indicates a high or low limit. A blue line indicates the base value of 0 (zero). Check the “Show History” box to display these charts, as shown in Figure 6-3.

Fans 4860.0 FAN1 1440.0 FAN2 3420.0 FAN4 3900.0 FAN5 3840.0 FAN6 1560.0 FAN7 Temperatures 53.0 CPU1 36.0 System Voltages 1.51 3.26 3.42 5.04 12.03 -12.56 1.5V 3.3V 3.3VSB 5V 12V -12V Retresh every 45 seconds Refresh Now Save Layout Hide inactive item Show History Logh Event Log Sensors IFM Device BMC Setting Users Text Console

Figure 6-3

7. BMC Setting (Administrator only)

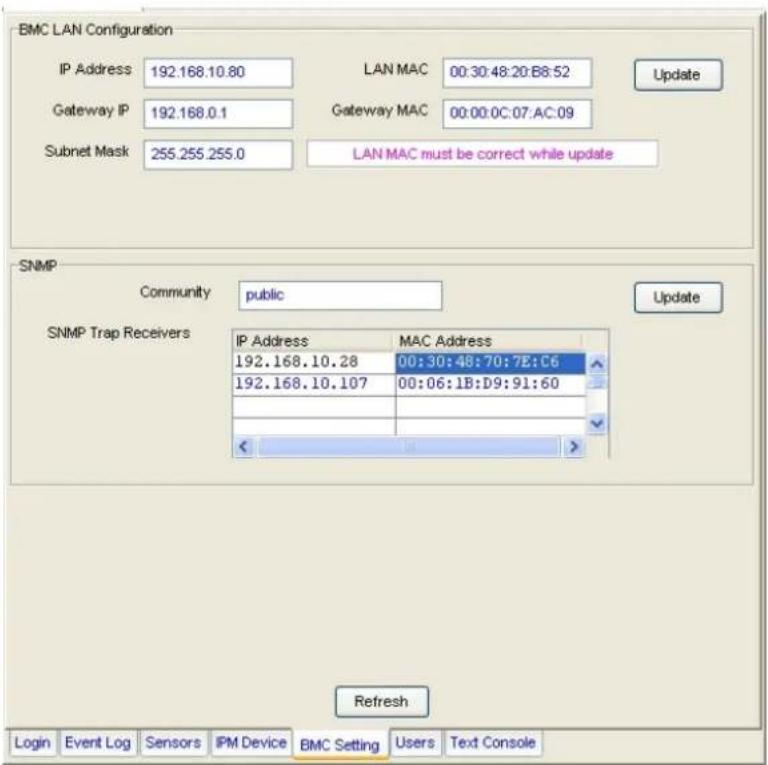

BMC LAN Configuration IP Address 192.168.10.80 LAN MAC 00:30:48:20:B8:52 Update Gateway IP 192.168.0.1 Gateway MAC 00:00:0C:07:AC:09 Subnet Mask 255.255.255.0 LAN MAC must be correct while update SNMP Community public Update SNMP Trap Receivers IP Address MAC Address 192.168.10.28 00:30:48:70:7E:C6 192.168.10.107 00:06:1B:D9:91:60 < Refresh Login Event Log Sensors IPM Device BMC Setting Users Text Console

Figure 7-1

Clicking on the BMC Setting tab of the IPMI View management session in the Viewing Window (as shown in Figure 7-1) gives you detailed information on the BMC LAN Configuration, SNMP trap configuration and serial communication port of the BMC.

In order to support the power-down state management capability under the IPMI specification, the manager has to configure the proper MAC address for each IP address. To deliver an IP packet to a receiver, the sender needs to know the receiver's MAC address or the gateway's MAC address. ARP (Address Resolution Protocol) is used to get the MAC address from the IP address. While the managed system's OS is running, the network protocol stack will take care of this function. However, when the managed system is in a power down state, this function cannot be accomplished. Therefore, each MAC address has to be configured manually.

The BMC and the OS running on a managed system may use different IP addresses for security reasons. For example, the OS may use 66.201.4.73 (which can be reached by public access) while the address for BMC may be set to 192.168.1.55, which can only be reached in a private LAN. But, LAN MAC addresses must be the exact same. If the BMC uses a private IP address, you have to make sure that the manager's system can communicate with the private IP address for the BMC on a managed system.

• BMC LAN Configuration

This shows the IP address, LAN MAC, Gateway IP, Gateway MAC and Subnet Mask of the BMC and allows you to modify them. NOTE: please make sure that the MAC address of the LAN and the gateway for the BMC are correct before updating it by clicking the Update button. Be careful to enter the correct

values, especially for the LAN MAC. If you enter the wrong LAN MAC, IPMI View will not be able to connect to that system any more.

If you accidentally enter a wrong LAN MAC value, you may use the IPnMAC.exe command in the IPMI Solution/Utility subfolder on this CD to update it. To activate IPnMAC.exe,,which is a DOS command, you must first boot your managed system to DOS, and then execute IPnMAC.exe on the managed system.

• SNMP

This shows the SNMP trap configuration of the system needing to receive the SNMP traps generated by the BMC and allows you to modify them. To change the configuration on the BMC, type in the SNMP community name in the Community text field and the IP address and MAC address in the SNMP Trap Receivers table in the SNMP group, and then click the Update button.

The SNMP Trap may have multiple destinations. When any critical error occurs, an SNMP trap packet will be sent to all receivers in the list. To remove an SNMP receiver, you may change both IP and MAC addresses to 0.0.0.0 and 00:00:00:00:00:00 respectively, and then click Update.

On the system receiving the SNMP traps, an SNMP trap receiver software needs to be installed and run. The managed system will send out an SNMP trap packet to receivers at the moment the event occurs. If an SNMP trap receiver is not running, the trap packet is discarded and won't be queued anywhere.

• RS232 / MODEM (Only available for IPMI 1.5)

This shows the configuration of the RS232 interface on the BMC. It is used to initialize the RS232 port and the installed modem, if any. The RS232 port is the box-header (Figure 7-2) on the BMC and is a dedicated serial port.

Baud Rate: the baud rate for serial connections (does not affect paging settings).

Modem Init String: the modem initialization string for serial connections (does not affect paging settings).

Isometric line drawing of an electronic circuit board with various components (no text or symbols)

Figure 7-2

8. Users

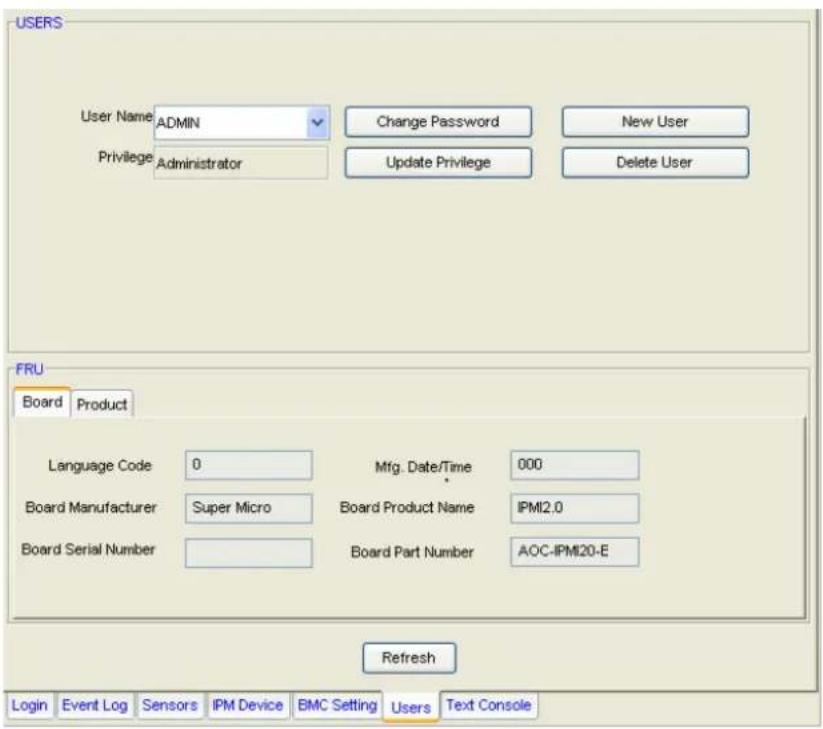

USERS User Name: ADMIN Privilege: Administrator Change Password New User Update Privilege Delete User FRU Board Product Language Code 0 Mfg. Date/Time 000 Board Manufacturer Super Micro Board Product Name IPMI2.0 Board Serial Number Board Part Number AOC-IPMI20-E Refresh Login Event Log Sensors IPM Device BMC Setting Users Text Console

Figure 8-1 (For IPMI 2.0)

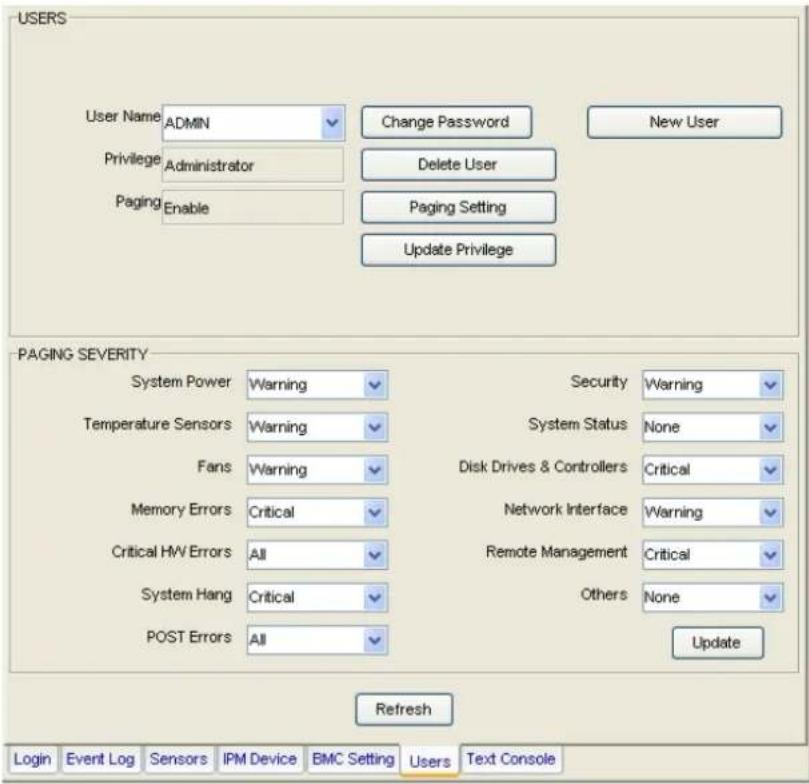

USERS User Name ADMIN Change Password New User Privilege Administrator Delete User Paging Enable Paging Setting Update Privilege PAGING SEVERITY System Power Warning Security Warning Temperature Sensors Warning System Status None Fans Warning Disk Drives & Controllers Critical Memory Errors Critical Network Interface Warning Critical HW Errors All Remote Management Critical System Hang Critical Others None POST Errors All Update Refresh Login Event Log Sensors IPM Device BMC Setting Users Text Console

Figure 8-2 (For IPMI 1.5)

Clicking on the Users tab of the IPMI View management session in the Viewing Window (as shown in Figure 8-1 and 8-2) gives you detailed information on the Users management, and the paging severity thresholds for IPMI 1.5.

We strongly suggest you change passwords immediately to prevent malicious users getting control before you.

- USERS

There are several buttons that allow you to add/delete a user, set user privileges, change passwords and enable/disable paging.

There are six privilege level groups, Callback, User, Operator, Administrator, OEM, and No Access. Only the first four privilege levels are implemented. Privilege Levels determine which IPMI commands a given user can execute over a given channel. Privilege Limits set the maximum privilege level that a user can operate at. A user is configured with a given maximum privilege limit for each channel. Thus, a user can operate at a privilege level that is no higher than his group privilege limit.

Group Privilege Levels

Callback This may be considered the lowest privilege level. Only commands necessary to support initiating a Callback are allowed. (Only available for IPMI 1.5.)

User Only ‘benign’ commands are allowed. These are primarily commands that read data structures and retrieve status. Commands that can be used to alter BMC configuration, write data to the BMC or other management controllers or perform system actions such as resets, power on/off, and watchdog activation are not allowed.

Operator All BMC commands are allowed, except for configuration commands that can change the behavior of the out-of-band interfaces. For example, Operator privilege does not allow the capability to disable individual channels or change user access privileges.

Administrator All BMC commands are allowed, including configuration commands. An Administrator can even execute configuration commands that would disable the channel that the Administrator is communicating over.

Clicking on Paging Setting allows you to set the parameters for an individual user (Figure 8-3). There are two types of paging services: Numeric paging and alphanumeric paging. To use a paging service, a modem must be connected to the RS232 connector on the BMC (Figure 7-2).

Paging Setting User Name ADMIN Pager Mode Numeric Paging Service Number 0912505132 Pager ID Paging Password Numeric Message S00E## Protocol 8N1 Baud Rate 1200 Modem Init String ATL1M1X3S8=2E Dial String ATDT Update Cancel Test Paging

Figure 8-3

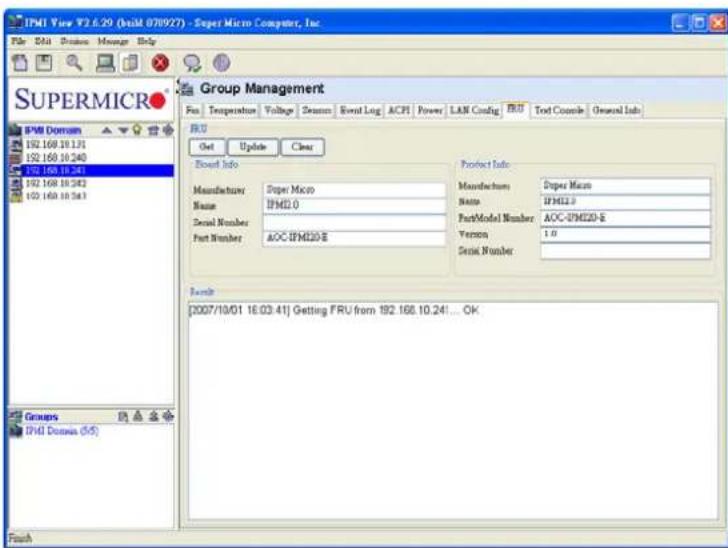

• FRU (Only for IPMI 2.0)

Here useful information may be found about the board and product, for example the serial number, part number and part name of the board and product.

• PAGING / SEVERITY (Only for IPMI 1.5)

The paging severity settings define when users will be notified of entries in the system event log (SEL).
The following settings are available for each group:

None	When this is selected, user notification for this group is inactive.
Warning	When this is selected, the RMC will notify users when SEL entries for the group exceed the warning thresholds.
Critical	When this is selected, the RMC will notify users when SEL entries for the group exceed the critical thresholds.
All	When this is selected, the RMC will notify users of all SEL entries of events for the group.

All warning and critical thresholds are predefined by Supermicro and based on hardware design.

9. Text Console Redirection (SOL, Serial Over LAN)

Microsoft(R) Windows 98 (C)Copyright Microsoft Corp 1981-1999. C:\>

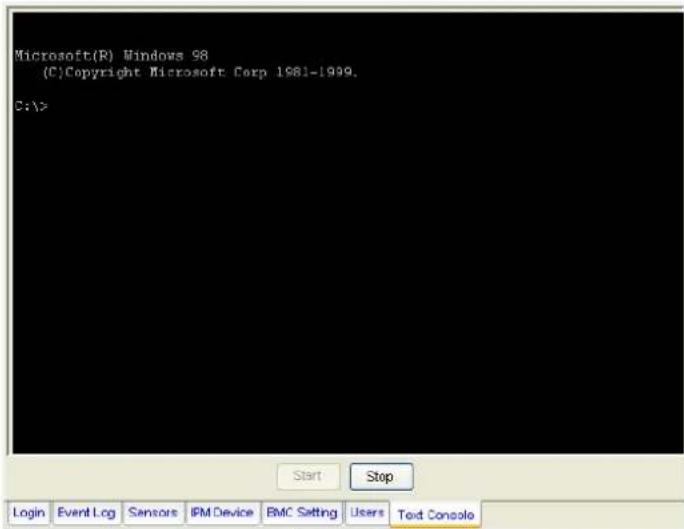

Figure 9-1

On the Text Console tab of the IPMI View management session in the Viewing Window (as shown in Figure 9-1), there is a function that allows you to remotely control the managed system from a text mode console. Click the Start button to start the text console redirection. During control, click the ReSynch button to synchronize the text console with the managed system if you think the screen is not shown properly. Click the Stop button to stop the text console.

- BMC for IPMI 1.5

Console Redirection is not a function in the IPMI specification V1.5. Supermicro provides this useful function for a manager to control the managed system remotely. When a managed system is booting up and in the POST routine and no other software application can give you control to redirect the console, IPMI View offers this valuable function. Console Redirection will dump a managed system's screen to IPMI View and send the key codes you entered in the managed system.

When a managed system switches its video mode from Text Mode to Graphics Mode, a terminate notice will be sent to IPMI View to terminate the console redirection. Text Console Redirection only works for text mode.

Important: Console Redirection puts a very heavy load on a managed system. It will dump the whole screen to the manager's system and slow down the managed system significantly. We suggest you use this function only when you need to get special control and cannot achieve it any other way. For other applications, a proper console redirection software application (pcAnywhere, Symantec Corporation) or a remote login protocol (telnet) is suggested. When you finish your remote operation, click Stop to terminate console redirection to take the load off the managed system.

- BMC for IPMI 2.0

IPMI specification V2.0 defines Serial Over LAN (SOL) to support Text Console Redirection. This implementation performs better than the one we implemented for IPMI 1.5. The Text mode console remains working on Windows 2003, even when the OS is running. To support Text Console

Redirection on Windows 2003, Special Administration Console (SAC) must be enabled. The following instruction is used to enable SAC:

1. Enable Console Redirection in BIOS, and set it to COM 2 (or COM B)
2. Modify boot.ini in C:. Boot.ini is a hidden file. Below is an example of boot.ini

[boot loader]
redirect=com2
redirectbaudrate=19200
timeout=30
default=multi(0)disk(0)rdisk(0)partition(1)\WINDOWS
[operating systems]
multi(0)disk(0)rdisk(0)partition(1)\WINDOWS="Windows Server 2003, Standard" /fastdetect /redirect

For Text Console Redirection on a Linux Platform

1. Host A with IPMI BMC installed (Linux Platform): a) BIOS POST:

(i) Enable "Console Redirection" in BIOS Setup.
For example, COM2 / 19.2Kbps / 8N1
(ii) Disable "Enable Console Redirection after POST" in BIOS setup.

b) BOOT LOADER:

(i) For GRUB, add the following TWO lines into /boot/grub/grub.conf, but comment out "splashimage=(hd0,0)/grub/splash.xpm.gz"
serial --unit=1 --speed=19200 --word=8 --parity=no --stop=1
terminal --timeout=10 serial console

splashimage=(hd0,0)/grub/splash.xpm.gz

(ii) Then add "serial console=ttyS1,19200n8" to the end of kernel /vmlinuz in /boot/grub/grub.conf. For example: kernel /vmlinuz-2.6.5-1.358smp ro root=LABEL=/rhgb quiet serial console=ttyS1,19200n8

This will result in all boot messages being output to console ttyS1, and you will not see all these boot messages on the local console until the login message prompts.

c) LINUX OS:

(i) Add the following line into /etc/inittab.
s0:2345:respawn:/sbin/agetty ttyS1 19200
(ii) Edit /etc/securety and add ttyS1

1. Host B with IPMIView installed:

a) Install and run IPMIView.
b) Log in Host A with IPMI BMC installed as Admin.
c) Start Console Redirection in IPMIView right after the Host A reboots.

You will see the BIOS POST, the boot loader, and the Linux OS messages and prompts.

10. Video Console Redirection (KVM over IP)

Video Console Redirection is a new feature included in Supermicro Intelligent Management (SIM) Module. In the Video Console Redirection tab, the remote screen will be redirected to IPMIView if this function is enabled. BIOS POST, BIOS settings, DOS, Windows or Linux OS screens can all be redirected to IPMIView.

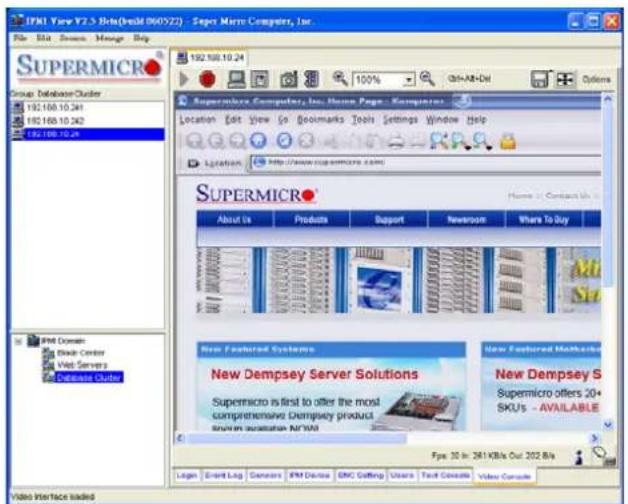

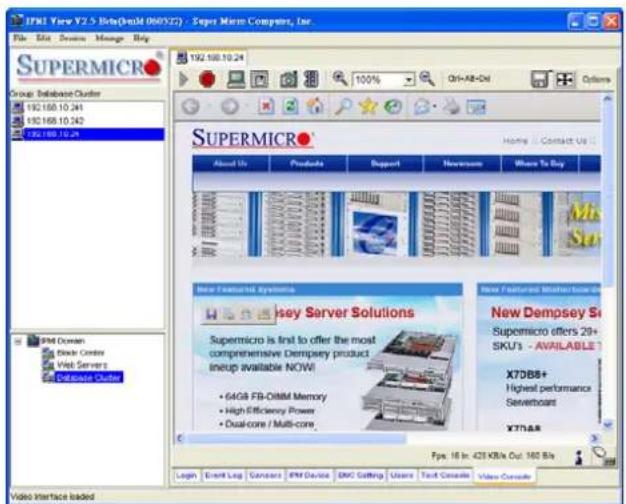

Figure 10-1 shows sample screenshots of Video Console redirection. The screen of a remote managed system will be redirected to IPMIView. It will appear to you just as if you are sitting in front of the remote system.

EPIE View V2.5 Beta(Oracle 000522) - Super Micro Computers, Inc. File Edit Drawn Manage Help 190:168.10:24 Group: Database Cluster 192.168.10.241 193.168.10.242 193.168.10.24 640 x 480, 60 Hz SUPERMICRO www.supermicro.com EPIE Domain Basic Center Video Services Database Cluster Console(Norm): Desktop size is 640 x 480 Fps: 0 in. 0 Bits Out: 0 Bits Login Brand Log Services RPM Service BIRC Setting Users Text Console Video Console Video Interface coded

S y s t e

IPMI View V2.5 Rels(Install 000322) - Super Micro Computer, Inc. File Edit Review History Help 190.168.10:24 190.168.10:24 190.168.10:24 System Files: System Date: BIOS Rate Legacy Diskette #: 03/04/06 Parallel ATO: Serial ATO: Native Mode Operation: SMT6 Controller Mode: IDE Primary/Master IDE Primary/Slave IDE Secondary/Master IDE Secondary/Slave System Memory: 10:11:551 05/24/2006J 03/04/06 11:44/1.25 KB 3*7 Enabled Enabled Theta1 ECompatible1 None1 None1 None1 None1 G4 KB Item Specific , selects Console(N): Desktop size in 640 x 490 Pos 1: 1 KBaOut 10 %b Logan Event Log Services PM Device BMC Setting Users Text Console Video Console

m B o o t

IFNI View Y2.5 Beta(0x81 000XZ) - Super Micro Computers, Inc. File Edit Services Manage Help 192.168.10.24 192.168.10.24 192.168.10.24 192.168.10.24 192.168.10.24 192.168.10.24 192.168.10.24 192.168.10.24 SuperMICRO Group Database Cluster 192.168.10.241 192.168.10.242 192.168.10.24 SuperMICRO About Us Products Support Newsmen Where To Buy New Features Systems Isey Server Solutions Supermicro is first to offer the most comprehensive Dempsey product setup available NOW! • 64GB FB-Off&M Memory • High Efficiency Power • Dual-core / Multi-core New Features Maintenance New Dempsey S Supremicro offers 20+ SKU3 - AVAILABLE? X7DBS+ Highest performance Serverboard XT7A8 Fps: 16 In: 425 KB/s Out: 160 B/s Video Interface loaded

Windows XP

IPKI View V2.5 Beta(0x10 060V22) - Super Micro Computers, Inc. File Edit View Summary Help 192.168.10.24 100% Options Supermicro Computer, Inc. Home Page - Computers Location Edit View Go Bookmarks Tools Settings Window Help Location http://www.supermicro.com/ Supermicro About Us Products Support Newsport Where To Buy New Featured Systems New Dempsey Server Solutions New Dempsey S Supermicro is first to offer the most comprehensive Dempsey product System installation NOW! New Featured Methods Supermicro offers 20+ SKUs - AVAILABLE Fps: 30 In: 261KBk Out: 202 Bk Login Event Log Games RPM Device DMC Getting Users Text Console Video Console Video Interface loaded

Linux X
Window
Figure 10-1

Toolbar

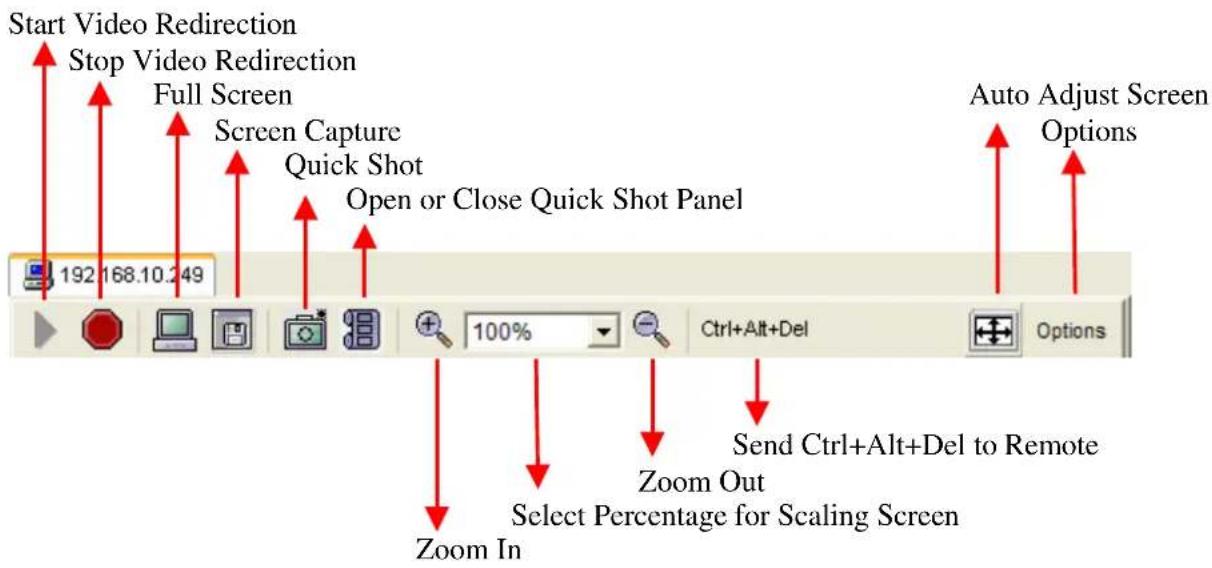

As shown in Figure 10-2, there are several tool buttons used for the video console.

Start Video Redirection Stop Video Redirection Full Screen Screen Capture Quick Shot Open or Close Quick Shot Panel 192.168.10.249 Auto Adjust Screen Options 100% Ctrl+Alt+Del Options Zoom In Select Percentage for Scaling Screen Zoom Out Send Ctrl+Alt+Del to Remote

Figure 10-2 Video Console Toolbar

- Start Video Redirection

This button is for starting video redirection. The IPMIView will automatically start the video redirection when you click the Video console tab.

- Stop Video Redirection

This button is for stopping video redirection. If you don't want to continue the video redirection, press this button to stop it. Please note that the drive redirection will continue working when enabled.

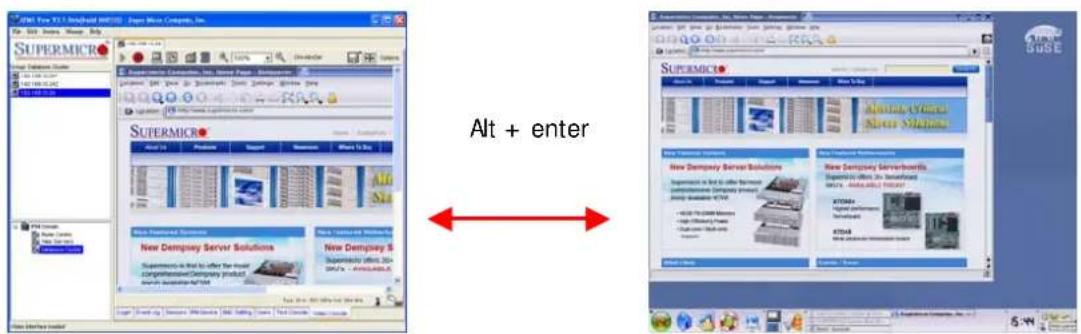

Full Screen

This button is for maximizing the remote video screen in the local computer screen. You may press “alt + enter” to return back to the original mode. Please refer to Figure *-3.

Alt + enter Supermercic SUTERMIC New Dempsey Server Solutions Supermercic is that to offer the most comprehensive Company product. New Dempsey S Supermercic offers 30+ units. - 40000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Alt + 20 Alt + 1 Alt + 5 Alt + 15 Alt + 25 Alt + 35 Alt + 45 Alt + 55 Alt + 65 Alt + 75 Alt + 85 Alt + 95 Alt + 105 Alt + 115 Alt + 125 Alt + 135 Alt + 145 Alt + 155 Alt + 165 Alt + 175 Alt + 185 Alt + 195 Alt + 205 Alt + 215 Alt + 225 Alt + 235 Alt + 245 Alt + 255 Alt + 265 Alt + 275 Alt + 285 Alt + 295 Alt + 305 Alt + 315 Alt + 325 Alt + 335 Alt + 345 Alt + 355 Alt + 365 Alt + 375 Alt + 385 Alt + 395 Alt + 405 Alt + 415 Alt + 425 Alt + 435 Alt + 445 Alt + 455 Alt + 465 Alt + 475 Alt + 485 Alt + 495 Alt + 505 Alt + 515 Alt + 525 Alt + 535 Alt + 545 Alt + 555 Alt + 565 Alt + 575 Alt + 585 Alt + 595 Alt + 605 Alt + 615 Alt + 625 Alt + 635 Alt + 645 Alt + 655 Alt + 665 Alt + 675 Alt + 685 Alt + 695 Alt + 705 Alt + 715 Alt + 725 Alt + 735 Alt + 745 Alt + 755 Alt + 765 Alt + 775 Alt + 785 Alt + 795 Alt + 805 Alt + 815 Alt + 825 Alt + 835 Alt + 845 Alt + 855 Alt + 865 Alt + 875 Alt + 885 Alt + 895 Alt + 905 Alt + 915 Alt + 925 Alt + 935 Alt + 945 Alt + 955 Alt + 965 Alt + 975 Alt + 985 Alt + 995 Alt + 1005

Figure 10-3

- Screen Capture

This button is for capturing screenshots of remote managed systems. You will see a file save dialog box with a preview image. Select the directory and filename to save it. The file format can be PNG or JPG.

Quick Shot

This button is for quick screenshots. You will first need to specify a directory for saved quick shot images. You will see the quick shot images in the quick shot panel. Please refer to Figure 10-4.

IPMI View V2.5 Data(Dmail.060522) - Super Micro Computer, Inc. File Edit Services Manager Help 192.168.10.24 100% Options Quick Shot Images 1.png 2.png 3.png 192.168.10.24 192.168.10.24 192.168.10.24 192.168.10.24 192.168.10.24 192.168.10.24 192.168.10.24 192.168.10.24 Quick Shot to C Documents and... For: 22 In: 48 KBs Out: 222 Bps Login Event Log Sensors FW Device EMC Setting Users Text Console Video Console Video Interface loaded

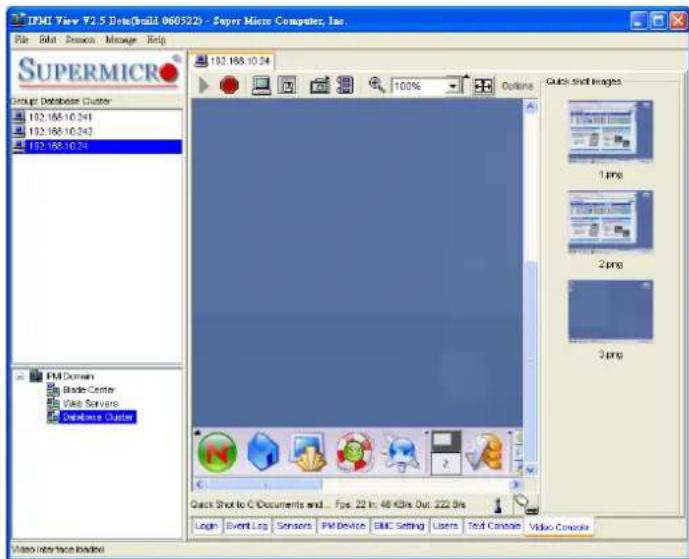

Figure 10-4 Quick Shot

- Open or Close a Quick Shot Panel

This button is a switch for opening or closing quick shot panel. Double clicking the image in this panel will show a full size image window for viewing.

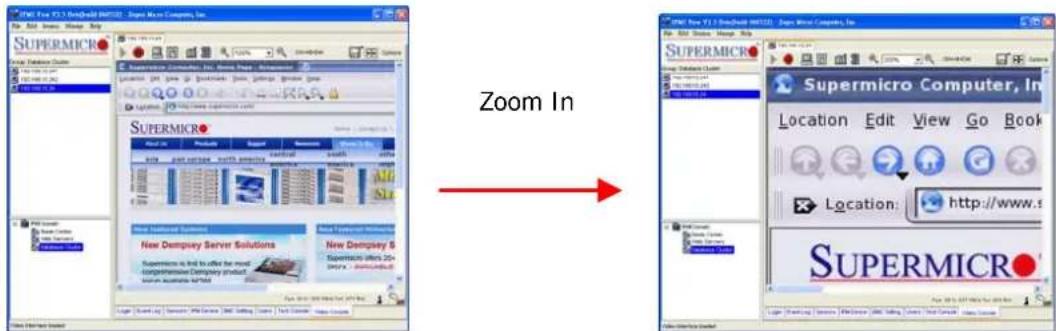

- Zoom In

This button is for zooming in. The maximum zoom out percentage is 300% . Please refer to Figure 10-5.

SuperMicro Computer, Inc. File Edit View Help Help SuperMicro Computer, Inc. New Paper Applications Location: Print & Print Services - Web Services - Window Help SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Activities SuperMicro Computer, Inc. New Paper Activities SuperMicro Computer, Inc. New Paper Activities SuperMicro Computer, Inc. New Paper Activities SuperMicro Computer, Inc. New Paper Activities SuperMicro Computer, Inc. New Paper Activities SuperMicro Computer, Inc. New Paper Activities SuperMicro Computer, Inc. New Paper Activities SuperMicro Computer, Inc. New Paper Activities SuperMicro Computer, Inc. New Paper Activities SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Applications SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Product Products SuperMicro Computer, Inc. New Paper Product Products SuperMicro Computer, Inc. New Paper Product Products SuperMicro Computer, Inc. New Paper Product Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Paper Products SuperMicro Computer, Inc. New Power Products SuperMicro Computer, Inc. New Power Products SuperMicro Computer, Inc. New Power Products SuperMicro Computer, Inc. New Power Products SuperMicro Computer, Inc. New Power Products SuperMicro Computer, Inc. New Power Products SuperMicro Computer, Inc. New Power Products SuperMicro Computer, Inc. New Power Products SuperMicro Computer, Inc. New Power Products SuperMicro Computer, Inc. New Power Products SuperMicro Computer, Inc. New Production Products SuperMicro Computer, Inc. New Production Products SuperMicro Computer, Inc. New Production Products SuperMicro Computer, Inc. New Production Products SuperMicro Computer, Inc. New Production Products SuperMicro Computer, Inc. New Production Products SuperMicro Computer, Inc. New Production Products SuperMicro Computer, Inc. New Production Products SuperMicro Computer, Inc. New Production Products SuperMicro Computer, Inc. New Production Products SuperMicro Computer, Inc. New Product Products SuperMicro Computer, Inc. New Product Products SuperMicro Computer, Inc. New Product Products SuperMicro Computer, Inc. New Product Products SuperMicro Computer, Inc. New Product Products SuperMicro Computer, Inc. New Product Products SuperMicro Computer, Inc. New Product Products SuperMicro Computer, Inc. New Product Products SuperMicro Computer, Inc. New Product Products SuperMicro Computer, Inc. New Product Products SuperMicro Computer, Inc. New Production Products SuperMicro Computer, Inc. New Production Products SuperMicro Computer, Inc. New Production Products SuperMicro Computer, Inc. New Production Products SuperMicro Computer, Inc. New Production Products SuperMicro Computer, Inc. New Production Products

Figure 10-5

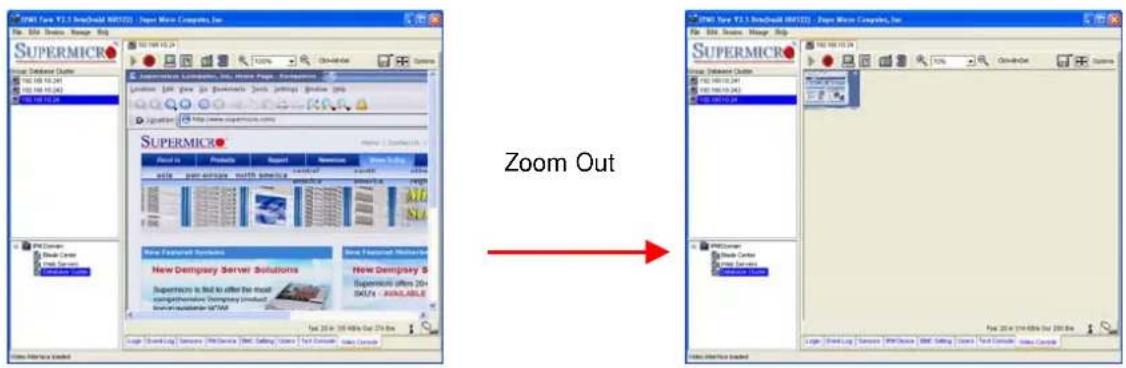

- Zoom Out

This button is for zooming out. The maximum zoom out percentage is 10%. Please refer to Figure 10-6.

SUPERMIX New Delphiary Server Solutions Supermini is not to offer the most comprehensive Delphiary product from the manufacturer SICVM New Delphiary Server Solutions Supermini is not to offer the most comprehensive Delphiary product from the manufacturer SICVM New Delphiary Server Solutions Supermini is not to offer the most comprehensive Delphiary product from the manufacturer SICVM New Delphiary Server Solutions Supermini is not to offer the most comprehensive Delphiary product from the manufacturer SICVM New Delphiary Server Solutions Super mini is not to offer the most comprehensive Delphiary product from the manufacturer SICVM New Delphiary Server Solutions Super mini is not to offer the most comprehensive Delphiary product from the manufacturer SICVM New Delphiary Server Solutions Super mini is not to offer the most comprehensive Delphiary product from the manufacturer SICVM New Delphiary Server Solutions Super mini is not to offer the most comprehensive delphiary product from the manufacturer SICVM New Delphiary Server Solutions Super mini is not to offer the most comprehensive delphiary product from the manufacturer SICVM New Delphiary Server Solutions Super mini is not to offer the most comprehensive delphiary product from the manufacturer SICVM New Delphiary Server Solutions Super mini is not to offer the most comprehensive delphiary product from the manufacturer SICMM New Delphiary Server Solutions Super mini is not to offer the most comprehensive delphiary product from the manufacturer SICMM New Delphiary Server Solutions Super mini is not to offer the most comprehensive delphiary product from the manufacturer SICMM New Delphiary Server Solutions Super mini is not to offer the most comprehensive delphiary product from the manufacturer SICMM New Delphiary Server Solutions Super min 10.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Figure 10-6

100% Select percentage for Scaling Screen

This is a combo box for selecting the percentage of screen scaling, either 10%, 25%, 50%, 75%, 100%, 200%, 250% or 300%. An additional selection allows you to scale to fit with the IPMIView window size.

Ctrl+Alt+Del Send Ctrl + Alt + Del to Remote

This is a button for sending Ctrl + Alt + Del key combination to remote. It is useful when the remote managed system is running BIOS, DOS or Windows login.

Auto Adjust Screen

This is a button for auto adjusting the screen. Press this button if it's difficult to see the whole screen.

Options Options

You can select more options here. Below is the list of options.

○ Monitor Only: Only shows remote screen and disables keyboard and mouse.
- Readability Filter: Applies a smooth algorithm to the screen. This lets you see the content easier when you scale the screen.
- Local Cursor: Change local cursor.
○ Chat Window: Multiple users can chat with this window. Please refer to Figure 10-7.

192.169.10.24 Chat jim@IBM-DDC64107D3D(super) => test root@Linux(super) => 456 jim@IBM-DDC64107D3D(super)

Figure 10-7 Chat Window

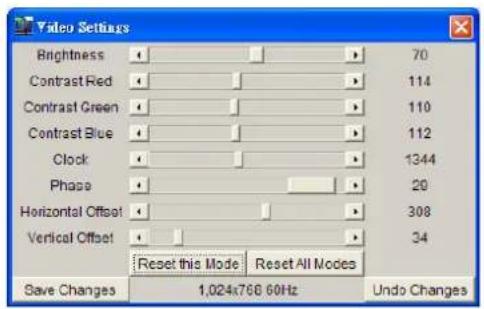

○ Video Settings: Here you can give specified detailed settings for the video. Please refer to Figure 10-8.

Video Settings Brightness 70 Contrast Red 114 Contrast Green 110 Contrast Blue 112 Clock 1344 Phase 20 Horizontal Offset 308 Vertical Offset 34 Reset this Mode Reset All Modes Save Changes 1,024x766 60Hz Undo Changes

Figure 10-8 Video Settings

• Refresh Video: Refreshes the video screen.
• Soft Keyboard: A virtual keyboard for easy input. It also provides localized keyboard mapping. Please refer to Figure 10-9.

English (United States) 104pc Esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 Pm Brk ' 1 2 3 4 5 6 7 8 9 0 - = ← In ↑ / * - ← q w e r t y u>i{o p[ ] Del End ↓ ↑ ↑ + → a s d f g h j k l ; ; ' \ ← 5→ + → \ z x c v b n m , .~/ C ↑ End ↓ ↓ Ctrl St Alt Alt St Me Ctrl ← ↓ → Ins De

Figure 10-9 Soft Keyboard

o Local Keyboard: Sets local keyboard mapping.
○ Encoding: This is encoding for the video screen. Encoding options are “Predefined”, “Compression” or “Color Depth”.

Status Bar

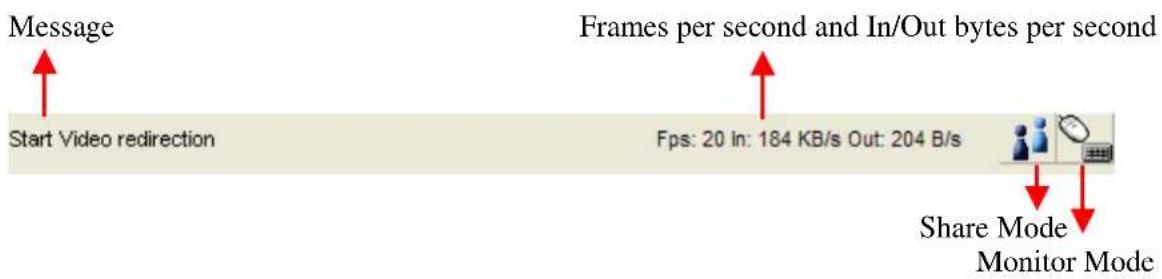

Figure 10-10 shows the video redirection status bar.

Message Start Video redirection Frames per second and In/Out bytes per second Fps: 20 In: 184 KB/s Out: 204 B/s Share Mode Monitor Mode

Figure 10-10

Start Video redirection Message This section shows tool tip info and the video redirection status.

This section shows the frames per second and Input (Kbytes per second) and Output (bytes per second).

Share Mode

This icon indicates the remote screen share status. If there only one user has started the video redirection of a remote managed system, the icon will look like 📄. If two or more users start the video redirection of the same remote managed system, the icon will look like 📄.

- Monitor Mode

This icon indicates monitor mode. When displayed like 📄, it means you can use the local keyboard and mouse to control the current remote screen. When is appears like this 📄, it means you cannot use the local keyboard and mouse to control the remote screen. If you select the “monitor only” option, the keyboard and mouse will be disabled.

11. Virtual Media

The Supermicro Intelligent Management (SIM) Module provides a Virtual Media feature, which includes a Virtual USB Floppy, a CD-ROM image and Drive Redirection.

Figure 11-1 shows the Virtual Media GUI. The Virtual Media Status section displays the current virtual device status. There are two virtual drives available.

Floppy Image Upload allows the user to upload a floppy image as "floppy" located at the remote host. The floppy image uploaded shall be in binary format with a maximum size of 1.44MB. It will be loaded to the Supermicro SIM card and emulated to the host as a USB device.

CD-ROM Image on Windows Share allows the user to configure Windows Share settings. It allows you to decide how you want to share the data stored in your shared folder with the remote host's users.

Drive Redirection makes local drives accessible for other users via console redirection. This function allows you to share your local drives (floppy, CD-ROM and HDDs) with users on remote systems.

192.168.10.241 Virtual Media Status Drive 1 Type : Floppy image Read / Write mode: Writable File name : floppy.img (1474560 bytes) Drive 2 Empty Floppy Image Upload Drive: 2 Open Upload CD-ROM Image on Windows Share Drive: 2 Set Share host: Share name: Path to image: User (optional): Password (optional): Floppy Image file: C:\floppy.img Upload floppy image done Drive Redirection Drive 1: Connect Drive Connect ISO Not connected Drive Redirection disconnected Drive 2: Connect Drive Connect ISO Not connected Drive Redirection disconnected Stop Drive 1 Stop Drive 2 Refresh Login Event Log Sensors IPM Device BMC Setting Users Text Console KVM Console Virtual Media

Figure 11-1

- Floppy Image Upload

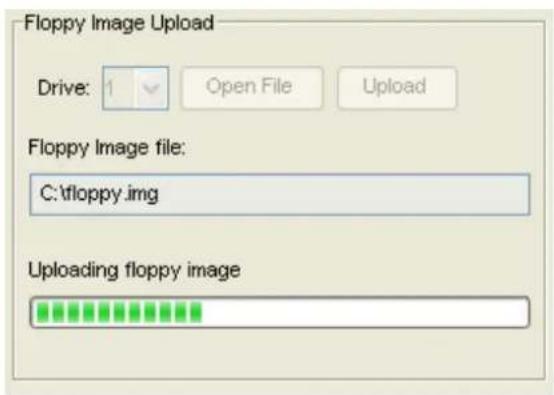

As shown in Figure 11-2, click “Open File” to select the file that you wish to upload to the host drive selected. Click “Upload” to upload the floppy image. Please wait for the upload to complete. The virtual floppy will be activated after the floppy image is uploaded.

Floppy Image Upload Drive: 1 Open File Upload Floppy Image file: C:\floppy.img Uploading floppy image

Figure 11-2

• CD-ROM Image on Windows Share

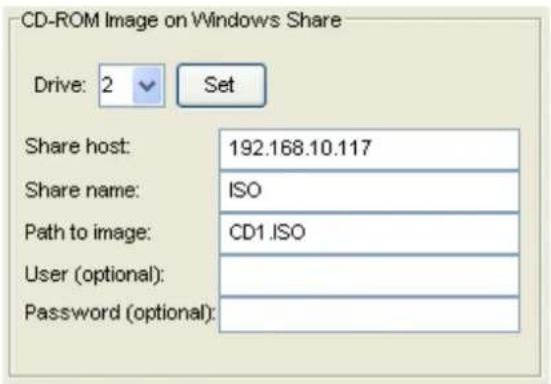

Please refer to Figure 11-3 for the following items.

Drive: Specify the drive that you want to remote host to share.

Share Host: Key in the IP Address or the name of the system you wish to share data with via Windows Share.

Share Name: Key in the name for the shared data in the remote host.

Path to Image: Key in the location of the source file that you wish to share via Windows Share.

User/Password (Optional): Key in the user and password for the person to access the data that you want to share and click the "Set" button shown in Figure 11-3 to enter your selections.

CD-ROM Image on Windows Share Drive: 2 Set Share host: 192.168.10.117 Share name: ISO Path to image: CD1.ISO User (optional): Password (optional):

Figure 11-3

- Drive Redirection

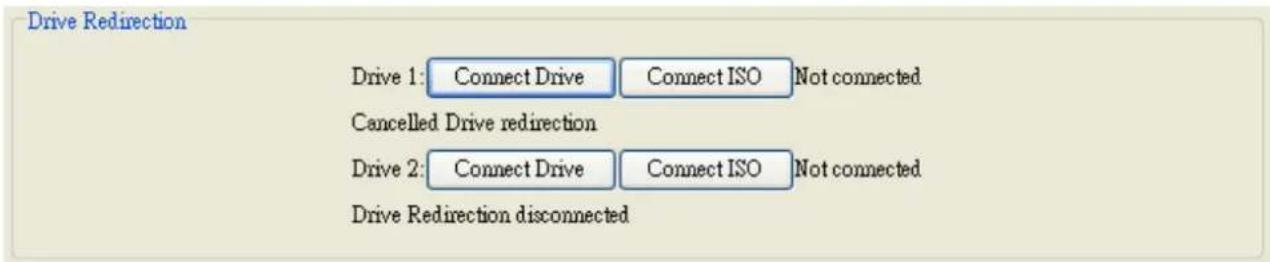

As shown in Figure 11-4, Drive Redirection supports both local drive and ISO file. Clicking on the "Connect Drive", a dialog will show up as figure 11-5.

Local Drive List: This box displays a list of local drives available for remote access. Select from the list a local drive that you want to make accessible for a remote server.

Refresh List: Click this button to refresh the local drive list.

Write Support: Check this button to allow the remote operating system to have write access to the drive that you have selected. This function allows a user to alter, overwrite, erase and destroy data stored in the drive selected. This feature should only be used with non-critical data.

Once select the drive then click "OK" to start direct redirection.

The second type of drive redirection is "Connect ISO". You may redirect ISO file directly from your file system. Clicking on this button, then select an ISO file to start this function.

Drive Redirection Drive 1: Connect Drive Connect ISO Not connected Cancelled Drive redirection Drive 2: Connect Drive Connect ISO Not connected Drive Redirection disconnected

Figure 11-4

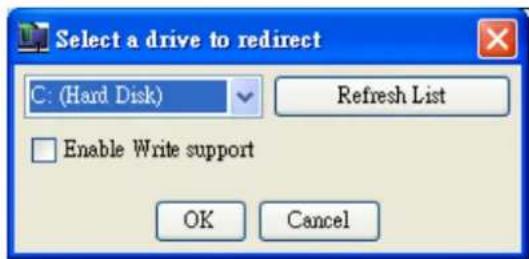

Select a drive to redirect C: (Hard Disk) Refresh List Enable Write support OK Cancel

Figure 11-5

- Stop Active Drives

As shown in Figure 11-6, click “Stop Drive 1” to disable Drive 1 and Click “Stop Drive 2” to disable Drive 2. The Refresh button is used for refreshing the Virtual Media status. If you want to stop or change the type of a virtual drive, you first need to stop it.

Stop Drive 1 Stop Drive 2 Refresh

Figure 11-6

12. Group Management

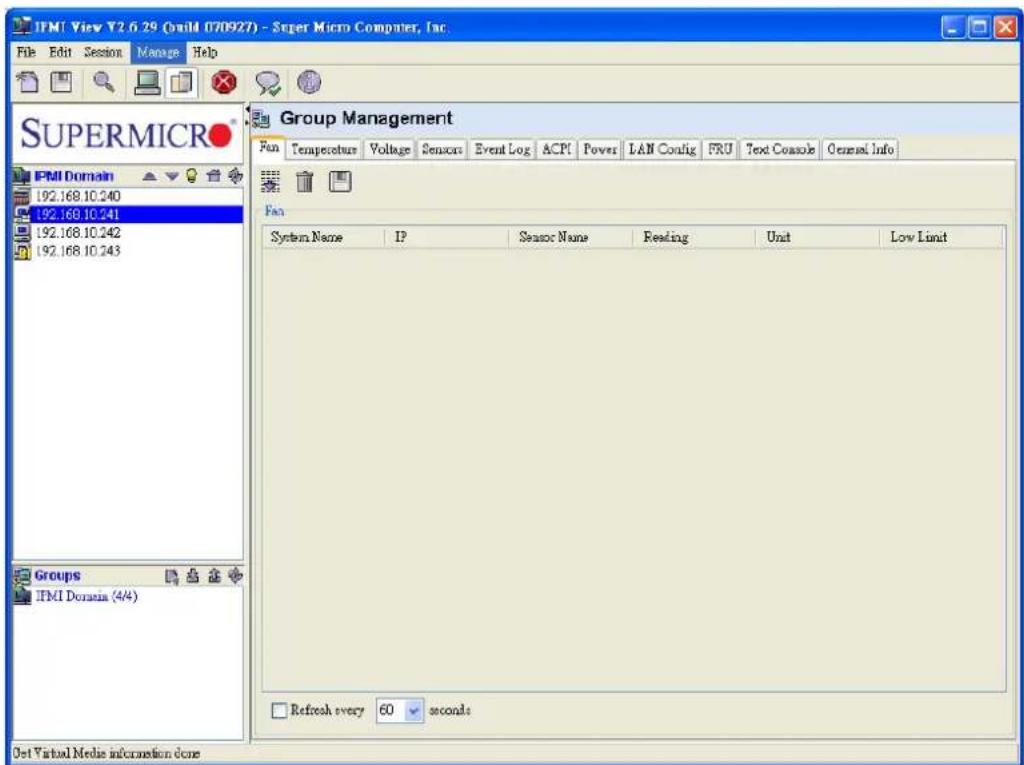

Group management is a way to manage multiple servers at the same time. For example, you can query the fan sensor reading from multiple servers and note their differences. Also, you can simultaneously power on or off multiple servers at the same time. As shown in Figure 12-1, click Manage > Group to show group management. In group management, you can select multiple servers from the host group on the left and manage them with the functions provided. You may make groups of servers in the group list to make server group management easier.

IPMI View Y2.6.29 (build 070927) - Super Micro Computer, Inc. File Edit Session Manage Help SUPERMICRO Group Management IPM Domain 192.168.10.240 192.168.10.241 192.168.10.242 192.168.10.243 IPM Domain (44) Groups IPMI Domain (44) System Name IP Sensor Name Reading Unit Low Limit Refresh every 60 seconds Get Virtual Media information done

Figure 12-1

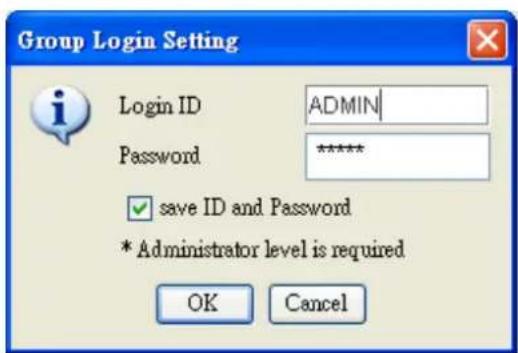

For group management, a Login ID and password are required. Click Manage > Setting to set the login information. Please note that IPMIView will use this account to login to multiple servers. (Figure 12-2)

Group Login Setting Login ID ADMIN Password ****** save ID and Password * Administrator level is required OK Cancel

Figure 12-2

IPMIView provides various tools for group management. As shown in Figure 12-3, group management can be separated to the following categories.

✨ Fan
✨ Temperature
✨ Voltage
Sensors
Event Log
ACPI
Power
✨ LAN Config
FRU
✨ Text Console
General Info

Group Management Fan Temperature Voltage Sensors Event Log ACPI Power LAN Config FRU Text Console General Info

Figure 12-3

- Fan

Figure 12-4 shows the view after selecting multiple servers and clicking on the Fan tab. You can use Ctrl+Click, Shift+Click or mouse drag for selecting servers. Clicking the “Query” button will then have IPMIView collect the fan readings from the selected servers. The information listed in the table shows the fan status of the selected servers. If the fan reading is in red it means the fan may be broken or not installed. If a fan reading is below the lower limit, it will also be in red. Administrators should be concerned about red marked fans to make sure the system is healthy.

You may refresh the fan status by checking the Reflash checkbox. IPMIView will refresh the fan status according to the selected time. Please note that IPMIView won't refresh if you switch to another tab.

IPMI View Y2 6.29 (build 070927) - Super Micro Computer, Inc. File Edit Session Manage Help SUPERMICRO Group Management Fos. Temperature Voltage Scenor Event Log ACFI Power LAN Config FRU Text Console General Info IPMI Domain 192.158.10.241 192.158.10.240 192.158.10.241 192.158.10.242 192.158.10.243 Fos System Name IP Sensor Name Reading Unit Low Load 192.168.10.241 192.168.10.241 Fox1 0 RPM 600 192.168.10.241 192.168.10.241 Fox2 4700 RPM 600 192.168.10.241 192.168.10.241 Fox3 0 RPM 600 192.168.10.241 192.168.10.241 Fox4 0 RPM 600 192.168.10.241 192.168.10.241 Fox5 0 RPM 600 192.168.10.241 192.168.10.241 Fox6 0 RPM 600 192.168.10.241 192.168.10.241 Fox7K_PUT 0 RPM 600 192.168.10.241 192.168.10.241 Fox8K_PUT 300 RPM 600 192.168.10.131 192.168.10.131 Fox1 0 RPM 600 192.168.10.131 192.168.10.131 Fox2 0 RPM 600 192.168.10.131 192.168.10.131 Fox3 4800 RPM 600 192.168.10.131 192.168.10.131 Fox4 0 RPM 600 192.168.10.131 192.168.10.131 Fox5 0 RPM 600 192.168.10.131 192.168.10.131 Fox6 0 RPM 600 192.168.10.131 192.168.10.131 Fox7K_PUT 0 RPM 600 192.168.10.131 192.168.10.131 Fox8K_PUT 0 RPM 600 Groups IPMI Domain (V5) Refresh every 50 seconds Last updated 20/7/0/0/ 15:59:06 (V5)

Figure 12-4

- Temperature

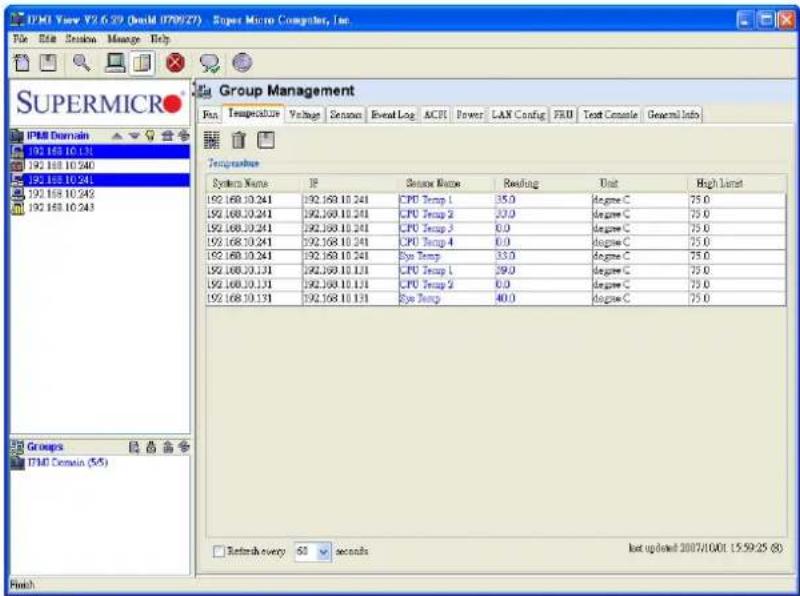

Figure 12-5 shows a screen after selecting multiple servers and clicking the Temperature tab. On clicking the “Query” button, IPMIView will collect the temperature readings from the selected servers. The information listed in the table show the temperature status of the selected servers.

TOP1 View Y2.6.29 (svail 0709/27) - Super Micro Computer, Inc. For Edit Session Manage Help SUPERMICRO IPMI Domain 192.168.10.131 192.168.10.540 192.168.10.241 192.168.10.242 192.168.10.243 Groups TPMI Domain (5/5) Group Management Fan Temperature Voltage Sensor Event Log ACR Power LAN Config FRU Text Console General Info System Name IP Sensor Name Reading Unit High Level 192.168.10.241 CPU Temp 1 35.0 Angle C 75.0 192.168.10.241 CPU Temp 2 33.0 Angle C 75.0 192.168.10.241 CPU Temp 3 0.0 Angle C 75.0 192.168.10.241 CPU Temp 4 0.0 Angle C 75.0 192.168.10.241 Eye Temp 33.0 Angle C 75.0 192.168.10.131 CPU Temp 1 29.0 Angle C 75.0 192.168.10.131 CPU Temp 2 0.0 Angle C 75.0 192.168.10.131 Eye Temp 40.0 Angle C 75.0 Refresh every 50 seconds lost updated: 2007/1/00: 15:59:25 (8) Finish

Figure 12-5

- Voltage

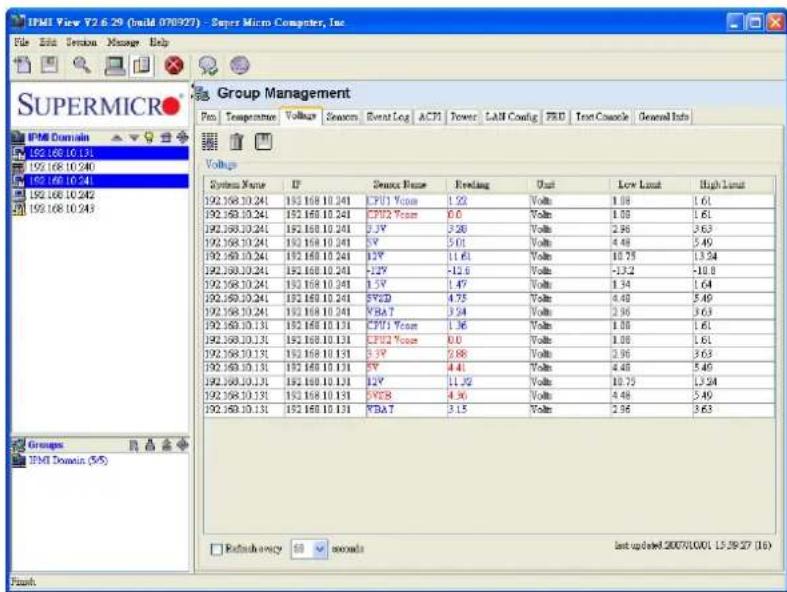

Figure 12-6 shows a screen after selecting multiple servers and clicking the Voltage tab. Clicking the “Query” tab will then collect the voltage readings from the selected servers. The information listed in the table shows the voltage status of the selected servers.

IPMI View Y2.6.29 (Build 070927) - Super Micro Computer, Inc File Edit View Summary Help SUPERMICRO IPMI Domain 192.168 10.131 192.168 10.240 192.168 10.241 192.168 10.242 192.168 10.243 Groups IPMI Domain (5/5) Group Management Pos Temperature Voltage Sources Event Log ACTI Power LAIN Config PBD Test Console General Info Volts System Name IF Source Base Fdding Dist Low Limit High Limit 192.168.10.241 192.168 10.241 CPU1 Vccm 1.33 Volts 1.08 1.61 192.168.10.241 192.168 10.241 CPU2 Vccm 0.6 Volts 1.09 1.61 192.168.10.241 192.168 10.241 3.3V 3.26 Volts 2.96 3.63 192.168.10.241 192.168 10.241 SV 5.01 Volts 4.48 5.49 192.168.10.241 192.168 10.241 12V 11.61 Volts 10.78 13.54 192.168.10.241 192.168 10.241 +2V -12.6 Volts -13.2 -10.8 192.168.10.241 192.168 10.241 3V 1.47 Volts 1.34 1.64 192.168.10.241 192.168 10.241 PPZD 4.73 Volts 4.48 5.49 192.168.10.241 192.168 10.241 YBA7 3.54 Volts 2.96 3.63 192.168.10.131 192.168 10.131 CPU1 Vccm 1.36 Volts 1.08 1.61 192.168.10.131 192.168 10.131 CPU2 Vccm 0.0 Volts 1.08 1.61 192.168.10.131 192.168 10.131 3V 5V 5V 3V 5V 5V 3V 5V 3V 5V 3V 5V 3V 5V 3V 5V 3V 5V 3V 5V 3V 5V 3V 5V 3V 5V 3V 5V 3V 5V 3V 5V 3V 5V 3V 5V 3V 5V 3V 5Y 3V 5Y 3V 5Y 3V 5Y 3V 5Y 3V 5Y 3V 5Y 3V 5Y 3V 5Y 3V 5Y 3V 5Y 3V 5Y 3V 5Y 3V 5Y 3V 5Y 3V 5Y 3V 5Y 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V 3V

Figure 12-6

- Sensors

Figure 12-7 shows the screen when selecting multiple servers and clicking the Sensors tab. Clicking the “Query” button will then have IPMIView collect the sensor readings from the selected servers. The information listed in the table show the sensor status of the selected servers. The sensors here are chassis status and power supply status. If the chassis was opened or a power supply failed, the reading will be in red.

IPMI View V2.6.19 (build 07/0/27) Super Micro Computer, Inc. File Edit Session Manage Help SUPERMICRO Group Management Fos Temperature Voltage Sessions Event Log ACP Power LAN Config PRU Text Console General Info IPMI Domain 192.168.10.241 192.168.10.242 192.168.10.243 Groups IPMI Domain (5:5) Power Supply and Tension System Name If Status Name Status 192.168.10.241 Extension Choice OK 192.168.10.241 Power Supply Power Supply OK 192.168.10.241 Indonesia Change Open 192.168.10.241 Power Supply Power Supply OK Refine every 60 seconds last updated 2007/10/01 15:59:32 (4) Finish

Figure 12-7

• Event log

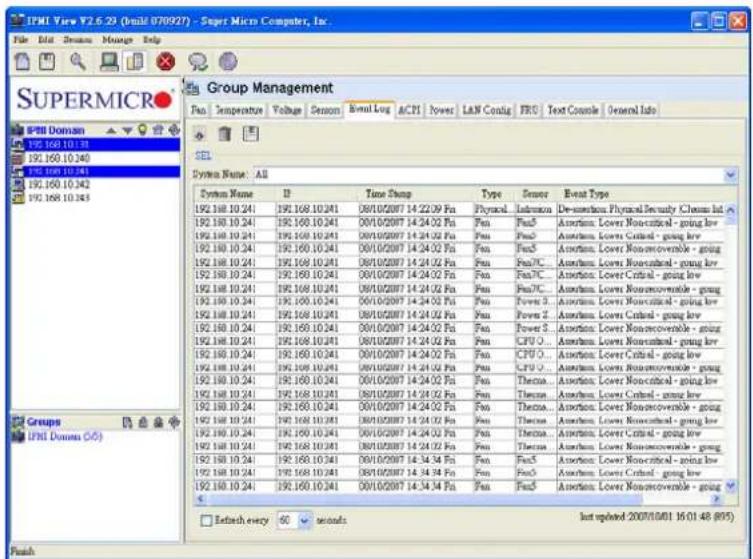

Figure 12-8 shows selecting multiple servers and clicking the Event Log tab. Clicking the “Query” button will have IPMIView collect the event logs from the selected servers. The table displays the event log of the selected servers. Selecting the Host combo box will filter the event log data in the table.

IPMI View V2.6.29 (Build 070927) - Super Micro Computer, Inc. File Edit Drawn Manage Help SUPERMICRO Group Management System Name: All System Name II Times Stamp Type Server Event Type 192.168.10.241 08/0/2007 14:22:09 Pa Physical Industron De-ssuction Physical Security Check int 192.168.10.241 08/0/2007 14:24:02 Pa Pan Pan5 American Lower Monocrited - going lov 192.168.10.241 08/0/2007 14:24:02 Pa Pan Pan5 American Lower Criticil - going lov 192.168.10.241 08/0/2007 14:24:02 Pa Pan Pan5 American Lower Monocrited - going 192.168.10.241 08/0/2007 14:24:02 Pa Pan Pan7C... American Lower Monocrited - going lov 192.168.10.241 08/0/2007 14:24:02 Pa Pan Pan7C... American Lower Criticil - going lov 192.168.10.241 08/0/2007 14:24:02 Pa Pan Pan7C... American Lower Monocrited - going 192.168.10.241 08/0/2007 14:24:02 Pa Pan Power 3 American Lower Monocrited - going lov 192.168.10.241 08/0/2007 14:24:02 Pa Pan Power 3 American Lower Criticil - going lov 192.168.10.241 08/0/2007 14:24:02 Pa Pan Power 3 American Lower Monocrited - going 192.168.10.241 08/0/2007 14:24:02 Pa Pan CFU O... American Lower Monocrited - going lov 192.168.10.241 08/0/2007 14:24:02 Pa Pan CFU O... American Lower Criticil - going lov 192.168.10.241 08/0/2007 14:24:02 Pa Pan CFU O... American Lower Monocrited - going 192.168.10.241 08/0/2007 14:24:02 Pa Pan Theta... American Lower Monocrited - going lov 192.168.10.241 08/0/2007 14:24:02 Pa Pan Theta... American Lower Criticil - going lov 192.168.10.241 08/0/2007 14:24:02 Pa Pan Theta... American Lower Monocrited - going 192.168.10.241 08/0/2007 14:24:02 Pa Pan Theta... American Lower Monocrited - going lov 192.168.10.241 08/0/2007 14:24:02 Pa Pan Theta... American Lower Criticil- going lov 192.168.10.241 08/0/2007 14:24:02 Pa Pan Theta... American Lower Monocrited - going 192.168.10.241 08/0/2007 14:34:34 Pa Pan Fan5 American Lower Monocrited - going lov 192.168.10.241 08/0/2007 14:34:34 Pa Pan Fan5 American Lower Criticil - going lov 192.168.10.241 08/0/2007 14:34:34 Pa Pan Fan5 American Lower Monocrited - going Exchange every 66 seconds last updated 20/0/1/0/3 16:33:48 (695) Finish

Figure 12-8

- ACPI

Figure 12-9 shows the screen after selecting multiple servers and clicking the ACPI tab. Clicking the "Query" button will have IPMIView collect the ACPI state from the selected servers. The table displays the ACPI state of the selected servers.

IPMI View V7.6.20 (msld 870927) - Super Micro Computer, Inc File Edit Devices Message Help SUPERMICRO Group Management Pcs Temperature Voltage Ecosystem Event Log ACPU Power LAN Config PDF Text Console GeneralInfo ACPU System Name IP ACPU Date Description OnOff 192.168.10.241 192.168.10.241 20/30 working 192.168.10.131 192.168.10.131 20/30 working Groups IPMI Domau (5/5) Refresh every 60 seconds last updated 2007/10/01 16:02:05 (2)

Figure 12-9

Power

Figure 12-10 shows selecting multiple servers and clicking the Power tab. Click one of the power control buttons to send that command to the selected server. The text area shows the results of power control.

IFMI View V2.6.20 (build 070921) - Super Micro Computer, Inc. File Edit Settings Manage Help SUPERMICRO FMB Domain 195.168.10.131 195.168.10.248 195.168.10.241 195.168.10.242 195.168.10.243 Groups IFMI Domain (VS) Group Management Pass Transportation Voltage Season Event Log ACPI Power LAN Config RKE Text Console External Info Growth Power Control Soft destinations/vis ACPI Growth Destinations Growth Roboot Growth Power Cycle Change Power Control Power Down Power Up Power Cycle Reset Result [2007/10/01 16:02:42] Sending Power Up to 192.168.10.241... OK [2007/10/01 16:02:42] Sending Power Up to 192.168.10.243... OK

Figure 12-10

• LAN Config

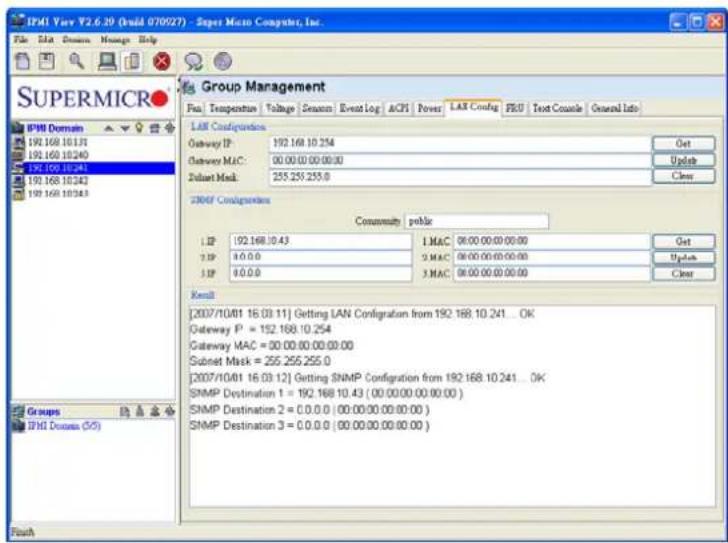

Figure 12-11, shows the LAN and SNMP Configurations after selecting a single server and clicking the LAN Config tab. Clicking "Query" gets the information from a single server. Once you get the data, you may copy it to another server or to multiple servers if you want the data to be the same. The text area

shows the results of a query and update. The clear button is for clearing the text field only; it will not clear the actual LAN configuration from the server.

IPMI Vary V2.6.30 (Build 070927) - Super Micro Computer, Inc. File Edit Settings Manage Help SUPERMICR PWM Domain 192.168.10.131 192.168.10.240 192.168.10.241 192.168.10.242 192.168.10.243 Group IPHI Dputase (55) Finish Group Management Fus Temperature Voltage Season Event Log ACH Power LAN Config PRD Text Countle General Info LAN Configurations Gateway IP: 192.168.10.254 Gateway MAC: 00.00.00.00.00 Subset Mask: 255.255.255.0 Get Update Clear SNMP Configurations Community public ID: 192.168.10.43 MAC 00:00:00:00:00 UG 0.0.0 MAC 00:00:00:00:00 UG 0.0.0 MAC 00:00:00:00:00 Get Update Clear Result [2007/10/01 16:03:11] Getting LAN Configuration from 192.168.10.241... OK Gateway IP = 152.168.10.254 Gateway MAC = 00.00.00.00.00.00 Subset Mask = 255.255.255.0 [2007/10/01 16:03:12] Getting SNMP Configuration from 192.168.10.241... OK SNMP Destination 1 = 192.168.10.43 ( 00.00.00.00.00.00 ) SNMP Destination 2 = 0.0.0.0 ( 00.00.00.00.00.00 ) SNMP Destination 3 = 0.0.0.0 ( 00.00.00.00.00.00 ) Source

Figure 12-11

• FRU

Figure 12-12 shows a screen after selecting a single server and clicking the FRU tab. Clicking the “Query” button has IPMIView get the FRU information from a single server. Once you get the data, you may copy it to another server or to multiple servers if you want the data to be the same. The text area shows the results of a query and update. The clear button is for clearing the text field only; it will not clear the actual FRU data from the server.

PMI View V2.6.29 (Intel 070927) - Super Micro Computer, Inc File Edit Division Manager Help SUPERMICR Group Management Pin Temperature Voltage Source Event Log ACPI Power LAN Config Print Text Guide General Info EPU Get Update Clear Event Info Manufacturer: Super Micro Name: IFM32.0 Serial Number: Part Number: AOC IFM320-B Product Info Manufacturer: Super Macn Name: IFM32.0 PartModel Number: AOC-IFM320-B Vernon: 1.0 Serial Number: Balance [2007/10/01 16:03:41] Getting FRU from 192.168.10.241... OK Groups IPM1 Domain (55) Finish

Figure 12-12

- Text Console

Figure 12-13 shows selecting a single server and clicking the Text Console tab. Clicking the “Open” button has IPMIView create an internal text console window for the selected server. Click Start to start the text console redirection. There are power control buttons in the status bar, which provide power on,

power off and reset commands for an easy way to turn on or off a remote server. The Encode checkbox is for RMCP+ encoding. Check it to enable packet encoding between IPMIView and a server.

IPMI Yirv Y2.6.20 (Intel 070977) - Super Micro Computer, Inc. File Edit Season Manage Help SuperMICRO Group Management Pin: Imagefile Voltage Resume EventLog ACFI Power LAN Config FRCJ Jnd Console General Sub IP2.168.10.21 Pcs Administrator UIF-8 EMCP+ Encryption Start Stop EniM 070001 PhoenixGrid Setup Privacy Main Advanced Security Back Exit System Size [05:02] System Data [10/01/2007] BIOS Date 01/06/07 Legacy Packette As [1.44/1.25 KB] > IDE Channel 0 Marker [None] > IDE Channel 0 Sierra [None] > SATA Port 0 [3702W8 DATAO] > SATA Port 1 [None] > SATA Port 2 [None] > SATA Port 3 [None] Parallel ATAs [Enabled] Serial ATAs [Enabled] Native Mode Operations [Serial ATA] SATA Controller Mode Options [Compatible] F1 Help Select Item Change Values F1 Setup Defaults Set Exit Select Menu Name Select > Sub-Menu LIM Save and Exit Power Control On OK Next Open Groups PMG Domain (S/S) Faint

Figure 12-13

- General Info

Figure 12-14 shows the screen after selecting multiple servers and clicking the General Info tab. Selecting the fields you want to query from the servers and clicking the “Query” button will have IPMIView collect that information from the selected servers.

IPMI View Y2.6.20 (Build 070927) - Super Micro Computer, Inc. File Edit Design Manage Help SUPERMICRO Group Management Pin Temperature Voltage Session Event Log ACP Power LAN Config FRU Text Console General Info IPMI Domain 192.168.10.31 192.168.10.340 192.168.10.341 192.168.10.342 192.168.10.343 Select Items ■ RMCP Version ■ Fanbase Review ■ IPMI Revision ■ SEL Entries ■ SEL Version ■ SEL Free Space ■ Recent Entry Added ■ Recent Entry Received ■ MAC Address ■ Gateway IP ■ Gateway MAC ■ Subset Mock ■ SNMP Currumware ■ SNMP Top Receiver ( ■ SNMP Top Receiver C Selection All Basic General Information System Name IP RMCP Verdi Fanbase Review ITMI Revision 192.168.10.131 192.168.10.131 2.0 RMCP 01.29 2.0 192.168.10.241 192.168.10.241 2.0 RMCP 01.25 2.0 192.168.10.243 192.168.10.243 2.0 RMCP 01.44 2.0

Figure 12-14

13. Trap Receiver

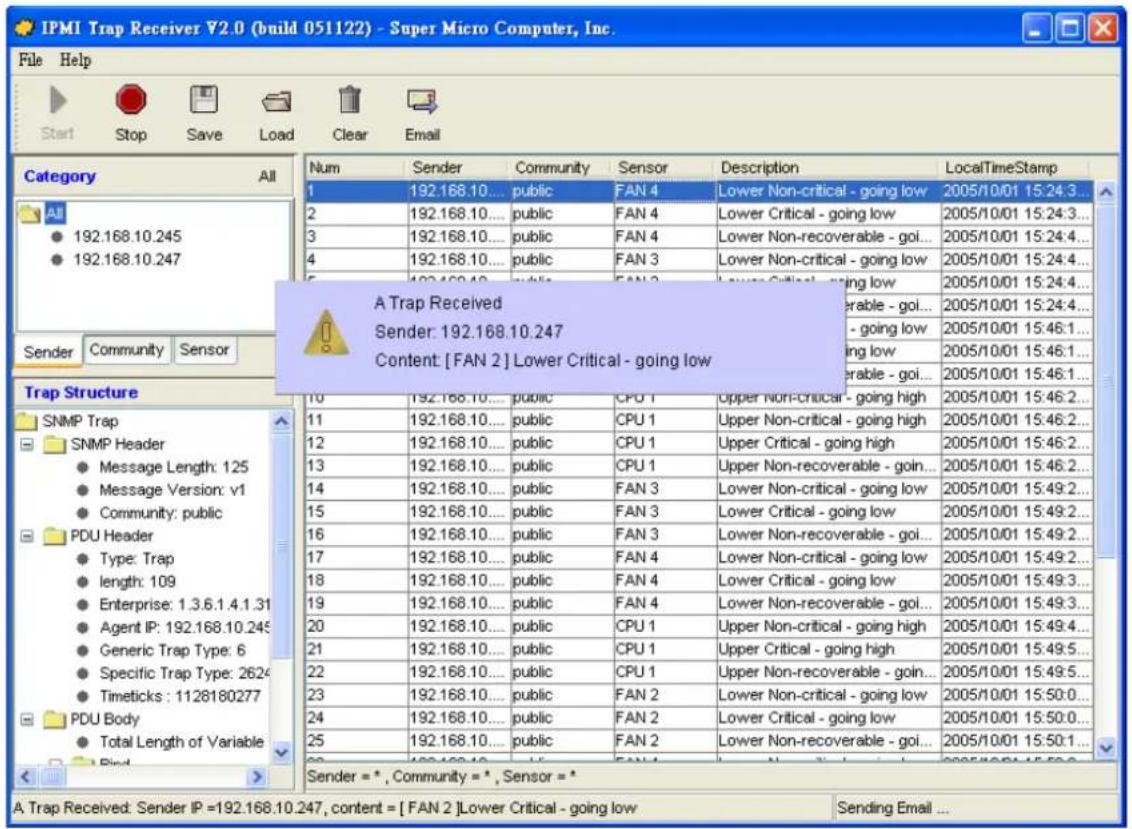

The Trap Receiver is a utility used for receiving traps from the BMC. In the event of a sensor error or a sensor reading that exceeds a threshold, the BMC will send SNMP traps to the destinations set in the BMC. The Trap Receiver is executed on the destination site and receives the SNMP trap from multiple senders (BMCs). If you select a category you can see all the traps in that category. Furthermore, when you click a trap in the trap list, you can see its details in the Trap Structure window. Please refer to the BMC Setting page in IPMIView to set the SNMP destination.

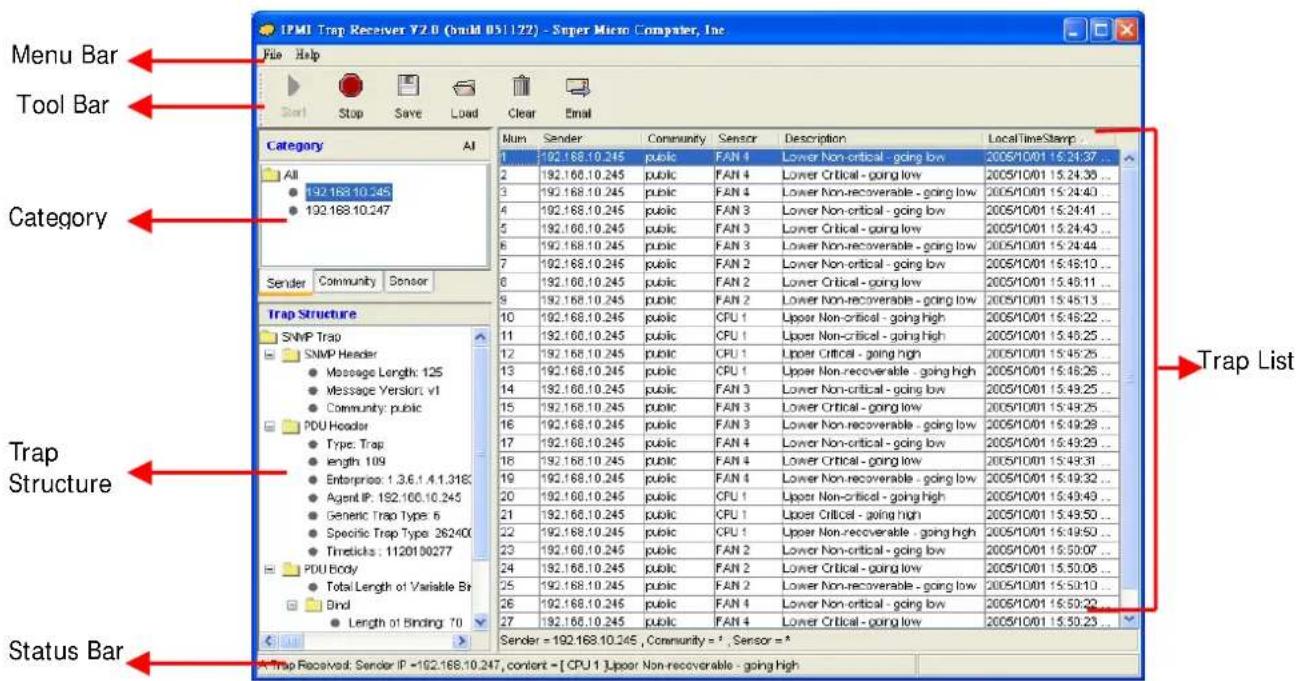

As shown in Figure 12-1, there are several components to the IPMI Trap Receiver.

1) Menu Bar: contains pull-down menus for exiting the program, getting help, etc.
2) Tool Bar: contains all IPMI Trap Receiver functions.
3) Category: categorizes the traps by sender, community and sensor.

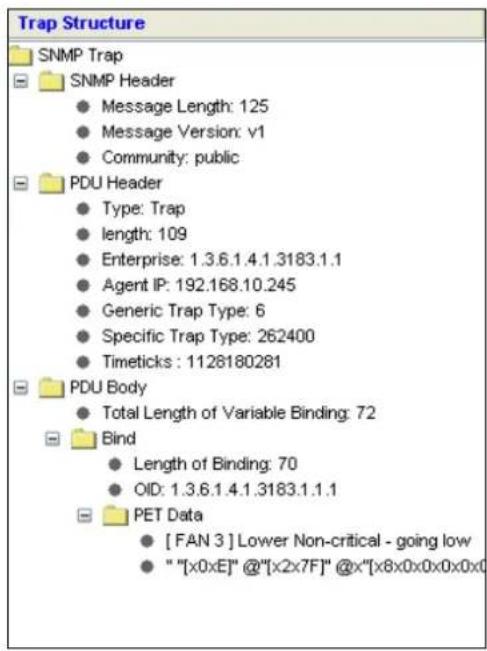

4) Trap Structure: a tree structure for displaying trap details.
5) Status Bar: shows messages regarding the current status.
6) Trap List: shows detailed information for received traps.

IPMI Trap Receiver Y2.0 (build 051122) - Super Micro Computer, Inc File Help Start Stop Save Load Clear Email Menu Bar Tool Bar Category All 192.168.10.245 192.168.10.247 Sender Community Sensor Mun Sender Community Sensor Description LocalTimeStamp 1 192.168.10.245 public FAN 4 Lower Non-critical - going low 2005/10/01 15:24:37 ... 2 192.168.10.245 public FAN 4 Lower Critical - going low 2005/10/01 15:24:38 ... 3 192.168.10.245 public FAN 4 Lower Non-recoverable - going low 2005/10/01 15:24:40 ... 4 192.168.10.245 public FAN 3 Lower Non-critical - going low 2005/10/01 15:24:41 ... 5 192.168.10.245 public FAN 3 Lower Critical - going low 2005/10/01 15:24:43 ... 6 192.168.10.245 public FAN 3 Lower Non-recoverable - going low 2005/10/01 15:24:44 ... 7 192.168.10.245 public FAN 2 Lower Non-critical - going low 2005/10/01 15:48:10 ... 8 192.168.10.245 public FAN 2 Lower Critical - going low 2005/10/01 15:48:11 ... 9 192.168.10.245 public FAN 2 Lower Non-recoverable - going low 2005/10/01 15:48:13 ... 10 192.168.10.245 public CPU 1 Upper Non-critical - going high 2005/10/01 15:48:22 ... 11 192.168.10.245 public CPU 1 Upper Non-critical - going high 2005/10/01 15:48:25 ... 12 192.168.10.245 public CPU 1 Upper Critical - going high 2005/10/01 15:48:26 ... 13 192.168.10.245 public CPU 1 Upper Non-recoverable - going high 2005/10/01 15:48:27 ... 14 192.168.10.245 public FAN 3 Lower Non-critical - going low 2005/10/01 15:49:25 ... 15 192.168.10.245 public FAN 3 Lower Critical - going low 2005/10/01 15:49:26 ... 16 192.168.10.245 public FAN 3 Lower Non-recoverable - going low 2005/10/01 15:49:29 ... 17 192.168.10.245 public FAN 4 Lower Non-critical - going low 2005/10/01 15:49:33 ... 18 192.168.10.245 public FAN 4 Lower Critical - going low 2005/10/01 15:49:34 ... 19 192.168.10.245 public FAN 4 Lower Non-recoverable - going low 2005/10/01 15:49:37 ... 20 192.168.10.245 public CPU 1 Upper Non-critical - going high 2005/10/01 15:49:43 ... 21 192.168.10.245 public CPU 1 Upper Critical - going high 2005/10/01 15:49:53 ... 22 192.168.10.245 public CPU 1 Upper Non-recoverable - going high 2005/10/01 15:49:57 ... 23 192.168.10.245 public FAN 2 Lower Non-critical - going low 2005/10/01 15:50:07 ... 24 192.168.10.245 public FAN 2 Lower Critical - going low 2005/10/01 15:50:08 ... 25 192.168.10.245 public FAN 2 Lower Non-recoverable - going low 2005/10/01 15:50:13 ... 26 192.168.10.245 public FAN 4 Lower Non-critical - going low 2005/10/01 15:50:23 ... 27 192.168.10.245 public FAN 4 Lower Critical - going low 2005/10/01 15:50:23 ... Status Bar *Trap Received: Sender IP = 162.168.10.247, content = [CPU] Upper Non-recoverable - going high Swap List

Figure 12-1

- Tool Bar functions

The tool bar provides the following functions, as shown in Figure 12-2.

Start Stop Save Load Clear Email

Figure 12-2

o Start: starts the Trap Receiver.
- Stop: stops the Trap Receiver.
- Save: saves the received traps into a file.
○ Load: loads a saved trap file into the Trap Receiver.
o Clear: clears all the traps in the trap list.

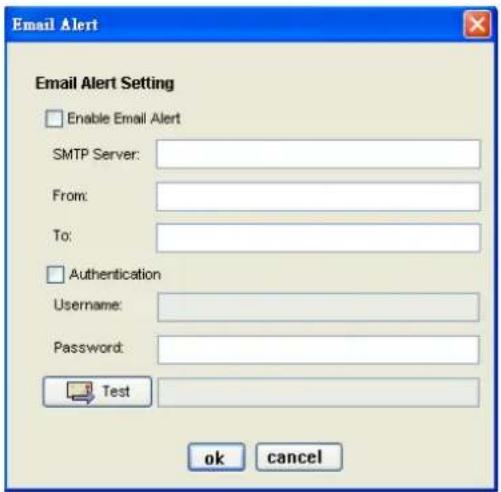

○ Email: displays an Email alert setting dialog box (see Figure 12-3). Fill in the SMTP server, From (email address) and To (email address) fields. Please notice that the From and To email addresses must be valid in the SMTP server. If the SMTP server requires authentication, please fill in the username and password fields. Once the necessary fields have been filled in, click the Test button to verify that the email function works.

Email Alert Email Alert Setting Enable Email Alert SMTP Server: From: To: Authentication Username: Password: Test ok cancel

Figure 12-3

Category

There are three categories (each with a tab used to select it): Sender, Community and Sensor, as shown in Figure 12-4. The Sender page lists all the sender IP addresses. The Community page lists all the SNMP communities. The Sensor page lists all the sensor types from the traps. Clicking on each category type will act as a filter for all traps in the traps list. Click on the “All” button to cancel all filters.

Category All All ● 192.168.10.245 ● 192.168.10.247 Category All All ● public Category All ● FAN 4 ● FAN 3 ● FAN 2 ● CPU 1 ● FAN 1 ● FAN 5 ● FAN 6 ● FAN 7 ● FAN 8 ● Intrusion Sender Community Sensor Sender Community Sensor Sender Community Sensor

Figure 12-4

Once a category has been selected, the filter condition will be shown at the bottom of the trap list. See Figure 12-5 as an example: the filter is “Sender = 192.168.10.245, Community = public, Sensor = CPU 1”. The trap list displays only those traps whose contents are included in each of the three filters.

Num	Sender	Community	Sensor	Description	LocalTimeStamp
10	192.168.10.245	public	CPU 1	Upper Non-critical - going high	2005/10/01 15:46:22...
11	192.168.10.245	public	CPU 1	Upper Non-critical - going high	2005/10/01 15:46:25...
12	192.168.10.245	public	CPU 1	Upper Critical - going high	2005/10/01 15:46:26...
13	192.168.10.245	public	CPU 1	Upper Non-recoverable - goi...	2005/10/01 15:46:26...
20	192.168.10.245	public	CPU 1	Upper Non-critical - going high	2005/10/01 15:49:49...
21	192.168.10.245	public	CPU 1	Upper Critical - going high	2005/10/01 15:49:50...
22	192.168.10.245	public	CPU 1	Upper Non-recoverable - goi...	2005/10/01 15:49:50...

Figure 12-5

- Trap Structure

The Trap Structure displays detailed trap information for the selected item in the trap list. Information includes the SNMP Header, PDU Header, PDU Body, Bind and PET data.

Trap Structure SNMP Trap SNMP Header Message Length: 125 Message Version: v1 Community: public PDU Header Type: Trap length: 109 Enterprise: 1.3.6.1.4.1.3183.1.1 Agent IP: 192.168.10.245 Generic Trap Type: 6 Specific Trap Type: 262400 Timeticks : 1128180281 PDU Body Total Length of Variable Binding: 72 Bind Length of Binding: 70 OID: 1.3.6.1.4.1.3183.1.1.1 PET Data [FAN 3] Lower Non-critical - going low "[x0xE]" @"x2x7F" @x"x8x0x0x0x0x0

Figure 12-6

- Receiving a Trap

When the Trap Receiver receives a trap from the BMC, an alert bar will pop up on the screen and remain for 10 seconds to notify you that a trap has occurred. In addition, an email alert will be sent out according to the information field settings in the Email Alert dialog box. Please refer to Figure 12-7.

The email content will include the following information:

A SNMP trap received

Description: Lower Non-recoverable - going low

Time:2005/11/22 14:27:07 Tue

IPMI Trap Receiver V2.0 (build 051122) - Super Micro Computer, Inc. File Help Start Stop Save Load Clear Email Category All 1 192.168.10.... public FAN 4 Lower Non-critical - going low 2005/10/01 15:24:3... 2 192.168.10.... public FAN 4 Lower Critical - going low 2005/10/01 15:24:3... 3 192.168.10.... public FAN 4 Lower Non-recoverable - goi... 2005/10/01 15:24:4... 4 192.168.10.... public FAN 3 Lower Non-critical - going low 2005/10/01 15:24:4... 5 192.168.10.... public FAN 3 Lower Critical - going low 2005/10/01 15:24:4... 6 192.168.10.... public FAN 3 Lower Critical - going low 2005/10/01 15:24:4... 7 192.168.10.... public FAN 3 Lower Critical - going low 2005/10/01 15:24:4... 8 192.168.10.... public FAN 3 Lower Critical - going low 2005/10/01 15:46:1... 9 192.168.10.... public FAN 3 Lower Critical - going low 2005/10/01 15:46:1... A Trap Received Sender: 192.168.10.247 Content: [FAN 2] Lower Critical - going low 10 192.168.10.... public CPU 1 Upper Non-critical - going high 2005/10/01 15:46:2... 11 192.168.10.... public CPU 1 Upper Non-critical - going high 2005/10/01 15:46:2... 12 192.168.10.... public CPU 1 Upper Critical - going high 2005/10/01 15:46:2... 13 192.168.10.... public CPU 1 Upper Non-recoverable - goin... 2005/10/01 15:46:2... 14 192.168.10.... public FAN 3 Lower Non-critical - going low 2005/10/01 15:49:2... 15 192.168.10.... public FAN 3 Lower Critical - going low 2005/10/01 15:49:2... 16 192.168.10.... public FAN 3 Lower Non-recoverable - goi... 2005/10/01 15:49:2... 17 192.168.10.... public FAN 4 Lower Non-critical - going low 2005/10/01 15:49:2... 18 192.168.10.... public FAN 4 Lower Critical - going low 2005/10/01 15:49:3... 19 192.168.10.... public FAN 4 Lower Non-recoverable - goi... 2005/10/01 15:49:3... 20 192.168.10.... public CPU 1 Upper Non-critical - going high 2005/10/01 15:49:4... 21 192.168.10.... public CPU 1 Upper Critical - going high 2005/10/01 15:49:5... 22 192.168.10.... public CPU 1 Upper Non-recoverable - goin... 2005/10/01 15:49:5... 23 192.168.10.... public FAN 2 Lower Non-critical - going low 2005/10/01 15:50:0... 24 192.168.10.... public FAN 2 Lower Critical - going low 2005/10/01 15:50:0... 25 192.168.10.... public FAN 2 Lower Non-recoverable - goi... 2005/10/01 15:50:1... 33 192.168.10.... public FAN 3 Lower Critical - going low 2005/10/01 15:57:9... Sender = *, Community = *, Sensor = * A Trap Received: Sender IP = 192.168.10.247, content = [FAN 2] Lower Critical - going low Sending Email ...

Figure 12-7

Appendix A: Update Firmware for SIM IPMI

1. Select a remote managed system on the System list and click "File > Update IPMI Firmware" to start the firmware update.

File Edit Session Manage New... Discover IPMI Device Reload Configuration Save Configuration Update IPMI Firmware Language Exit

1. Click the "Open" button to select the firmware then Click "Start" to continue.

Update Firmware IP: 192.168.10.249 Firmware File: Open Start Message:

1. A login dialog will appear. Please input the Login ID and Password. The privilege level for this login user should have Administrator level.

Please input ID and Password Login ID ADMIN Password **** * Administrator level is required OK Cancel

1. A firmware information dialog will appear. It shows detailed information on the current and new firmware. Click "Yes" to continue.

Request Confirmation Cursent firmware: Firmware Version 1.5.0 build 4238 Firmware Tag: Aug-14-06-17-30 hardware ID: 0x22 OEM: peppercon New firmware: Firmware Version 1.5.2 build 4238 Firmware Tag: Aug-16-06-11-10 Firmware Size: 3992376 bytes: Firmware Path: C:\fa-kira-kinsnig4-amidc-peppercon_040200-4238-081505-1-5-2.bin Would you like to continue ? Yes No

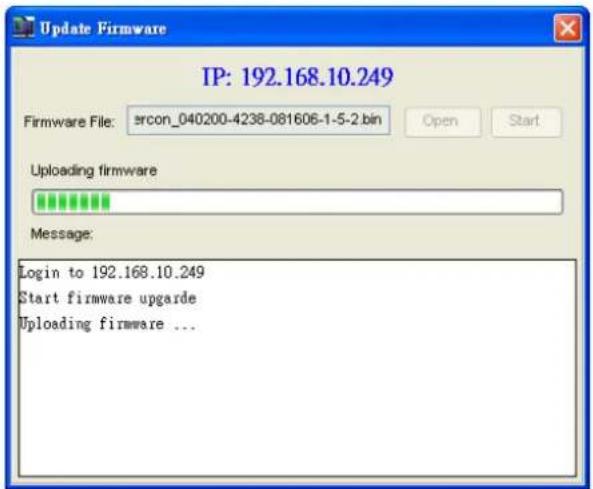

1. The firmware file will start to upload. It may take few minutes.

Update Firmware IP: 192.168.10.249 Firmware File: srcon_040200-4238-081606-1-5-2.bin Open Start Uploading firmware Message: Login to 192.168.10.249 Start firmware upgrade Uploading firmware ...

1. Please wait for the firmware to upload. Once the upload is completed, the BMC will start flashing the firmware internally. It may take a minute for this step. Please try to connect to the system after two minutes.

Update Firmware IP: 192.168.10.249 Firmware File: srcon_040200-4238-081606-1-5-2.bin Open Start Message Update firmware completed. Please close this dialog and try to connect this system after 2 minutes OK BMC is flashing firmware now, please wait for 1 minute ...Done Checking FW update status and reboot device...Done Update firmware completed
