Vigor2760 Series High Speed VDSL2 Router DrayTek DRayTek Vigor2760In

Your reliable networking solutions partner

User's Guide

Vigor2760 Series VDSL2 Security Firewall User's Guide

Version: 1.01

(For future update, please visit DrayTek web site)

Date: May 12, 2014

Copyright Information

Copyright Declarations

Copyright© 2014 All rights reserved. This publication contains information that is protected by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders.

Trademarks

The following trademarks are used in this document:

● Microsoft is a registered trademark of Microsoft Corp.
● Windows, Windows 95, 98, Me, NT, 2000, XP, Vista and Explorer are trademarks of Microsoft Corp.
● Apple and Mac OS are registered trademarks of Apple Inc.
● Other products may be trademarks or registered trademarks of their respective manufacturers.

Safety Instructions and Approval

Safety Instructions

● Read the installation guide thoroughly before you set up the router.
- The router is a complicated electronic unit that may be repaired only be authorized and qualified personnel. Do not try to open or repair the router yourself.
● Do not place the router in a damp or humid place, e.g. a bathroom.
● The router should be used in a sheltered area, within a temperature range of +5 to +40 Celsius.
- Do not expose the router to direct sunlight or other heat sources. The housing and electronic components may be damaged by direct sunlight or heat sources.
- Do not deploy the cable for LAN connection outdoor to prevent electronic shock hazards.
- Keep the package out of reach of children.
- When you want to dispose of the router, please follow local regulations on conservation of the environment.

Warranty

We warrant to the original end user (purchaser) that the router will be free from any defects in workmanship or materials for a period of two (2) years from the date of purchase from the dealer. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, we will, at our discretion, repair or replace the defective products or components, without charge for either parts or labor, to whatever extent we deem necessary tore-store the product to proper operating condition. Any replacement will consist of a new or re-manufactured functionally equivalent product of equal value, and will be offered solely at our discretion. This warranty will not apply if the product is modified, misused, tampered with, damaged by an act of God, or subjected to abnormal working conditions. The warranty does not cover the bundled or licensed software of other vendors. Defects which do not significantly affect the usability of the product will not be covered by the warranty. We reserve the right to revise the manual and online documentation and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

Be a Registered Owner

Web registration is preferred. You can register your Vigor router via http://www.DrayTek.com.

Firmware & Tools Updates

Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.

http://www.DrayTek.com

European Community Declarations

Manufacturer: DrayTek Corp.

Address: No. 26, Fu Shing Road, Hukou Township, Hsinchu Industrial Park, Hsinchu County, Taiwan 303

Product: Vigor2760 Series Router

DrayTek Corp. declares that Vigor2760 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE 1999/5/EC, ErP 2009/125/EC and RoHS 2011/65/EU.

The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.

The product conforms to the requirements of Low Voltage (LVD) Directive 2006/95/EC by complying with the requirements set forth in EN60950-1.

This product is designed for the DSL and 2.4GHz/5GHz WLAN network throughout the EC region. Please see the user manual for the applicable networks on your product.

Regulatory Information

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device may accept any interference received, including interference that may cause undesired operation.

RF Exposure Warning

This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.

Caution

Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.

The antenna/transmitter should be kept at least 20 cm away from human body.

Please visit http://www.draytek.com/user/SupportDLRTTECE.php

CE !FC

DrayTek Corp.

Model:Vigor2760Vn Annex:A Ver:D

http://www.draytek.com

E-mail:[e-mail]

Power Consumption:16.3W(MAX.)

Power Input:12V-15V---1.4A-1.1A

CE!FC

S/N:132002143908

FCC part68 Reg# US:DRADL01BV2760

WLAN FCC ID:VGYV2760VN

MADE IN TAIWAN

DrayTek Corp

Model:Vigor2760Vn Annex A

http://www.draytek.com

E-mail:[e-mail]

Power Consumption:16.3W(MAX.)

Power Input:12V-15V=1.4A-1.1A

CE!FC Delight

S/N:132002143907

FCC part68 Reg# US:DRADL01BV2760

WLAN FCC ID:VGYV2760VN

MADE IN TAIWAN

Table of Contents

1

Introduction....1

1.1 Features....2
1.2 Package and Content......4
1.3 LED Indicators and Connectors 5

1.3.1 For Vigor2760 5
1.3.2 For Vigor2760n 7
1.3.3 For Vigor2760Vn....9

1.4 Hardware Installation .... 11
1.5 Printer Installation 12
1.6 Accessing Web Page 20
1.7 Changing Password 21
1.8 Introducing Dashboard.... 22

1.8.1 Virtual Panel 23
1.8.2 Name with a Link 23
1.8.3 Quick Access for Common Used Menu.... 24
1.8.4 GUI Map 25
1.8.5 Web Console 26
1.8.6 Config Backup 27
1.8.7 Logout....27

1.9 Online Status....27

1.9.1 Physical Connection 27
1.9.2 Virtual WAN 30

1.10 Saving Configuration.... 31

2

Quick Setup....33

2.1 Quick Start Wizard .... 33

2.1.1 For WAN1 (ADSL/VDSL2) 35
2.1.2 For WAN2 (Ethernet) 41
2.1.3 For WAN3 (USB) 50

2.2 Service Activation Wizard....52
2.3 VPN Client Wizard 56
2.4 VPN Server Wizard....62
2.5 Wireless Wizard 67
2.6 VoIP Wizard....70
2.7 Registering Vigor Router.... 72

3

Advanced Configuration....77

3.1 WAN 77

3.1.1 Basics of Internet Protocol (IP) Network....77
3.1.2 General Setup....79
3.1.3 Internet Access 84
3.1.4 Multi-PVC.... 116

3.2 LAN 122

3.2.1 Basics of LAN 122
3.2.2 General Setup.... 124
3.2.3 Static Route 134
3.2.4 VLAN....139
3.2.5 Bind IP to MAC 142
3.2.6 LAN Port Mirror 144
3.2.7 Web Portal Setup.... 145

3.3 Route Policy 146

3.4 NAT 152

3.4.1 Port Redirection 152
3.4.2 DMZ Host....156
3.4.3 Open Ports....159
3.4.4 Port Triggering 161

3.5 Firewall....164

3.5.1 Basics for Firewall.... 164
3.5.2 General Setup.... 166
3.5.3 Filter Setup 171
3.5.4 DoS Defense 179

3.6 Objects Settings.... 183

3.6.1 IP Object 183
3.6.2 IP Group 186
3.6.3 IPv6 Object 188
3.6.4 IPv6 Group....190
3.6.5 Service Type Object 191
3.6.6 Service Type Group....193
3.6.7 Keyword Object 195
3.6.8 Keyword Group....197
3.6.9 File Extension Object.... 198
3.6.10 SMS/Mail Service Object 200
3.6.11 Notification Object.... 205

3.7 CSM Profile 207

3.7.1 APP Enforcement Profile 208
3.7.2 URL Content Filter Profile 211
3.7.3 Web Content Filter Profile 215
3.7.4 DNS Filter 219
3.7.5 APPE Support List 220

3.8 Bandwidth Management 221

3.8.1 Sessions Limit.... 221
3.8.2 Bandwidth Limit 223
3.8.3 Quality of Service 225
3.8.4 APP QoS 234

3.9 Applications 236

3.9.1 Dynamic DNS 236
3.9.2 LAN DNS 239
3.9.3 Schedule 242
3.9.4 RADIUS 245
3.9.5 UPnP 246
3.9.6 IGMP 248
3.9.7 Wake on LAN 249
3.9.8 SMS / Mail Alert Service 250
3.9.9 Bonjour....252

3.10 VPN and Remote Access....255

3.10.1 Remote Access Control 255
3.10.2 PPP General Setup 256
3.10.3 IPsec General Setup.... 257
3.10.4 IPsec Peer Identity 259
3.10.5 Remote Dial-in User 261
3.10.6 LAN to LAN 264
3.10.7 Connection Management 272

3.11 Certificate Management 273

3.11.1 Local Certificate 273
3.11.2 Trusted CA Certificate 275
3.11.3 Certificate Backup....276

3.12 VoIP 277

3.12.1 DialPlan 279
3.12.2 SIP Accounts 288
3.12.3 Phone Settings 292
3.12.4 Status.... 297

3.13 Wireless LAN 299

3.13.1 Basic Concepts....299
3.13.2 General Setup.... 301
3.13.3 Security 303
3.13.4 Access Control.... 306
3.13.5 WPS.... 307
3.13.6 WDS.... 310
3.13.7 Advanced Setting.... 313
3.13.8 WMM Configuration 315
3.13.9 AP Discovery 317
3.13.10 Station List 318

3.14 USB Application 319

3.14.1 USB General Settings.... 319
3.14.2 USB User Management 320
3.14.3 File Explorer 322
3.14.4 USB Device Status 323
3.14.5 Modem Support List.... 324

3.15 System Maintenance.... 325

3.15.1 System Status.... 325
3.15.2 TR-069 327
3.15.3 Administrator Password.... 328
3.15.4 User Password 329
3.15.5 Login Page Greeting.... 331
3.15.6 Configuration Backup 333
3.15.7 Syslog/Mail Alert 335
3.15.8 Time and Date 338

3.15.9 SNMP 339
3.15.10 Management 341
3.15.11 Reboot System 344
3.15.12 Firmware Upgrade 345
3.15.13 DSL Firmware Upgrade 346
3.15.14 Activation 346

3.16 Diagnostics.... 347

3.16.1 Dial-out Triggering 348
3.16.2 Routing Table 349
3.16.3 ARP Cache Table 350
3.16.4 IPv6 Neighbour Table 350
3.16.5 DHCP Table.... 351
3.16.6 NAT Sessions Table 352
3.16.7 Ping Diagnosis.... 353
3.16.8 Data Flow Monitor.... 354
3.16.9 Traffic Graph 356
3.16.10 Trace Route 357
3.16.11 Syslog Explorer 358
3.16.12 IPv6 TSPC Status 360

4

Tutorials and Applications....361

4.1 How to configure settings for IPv6 Service in Vigor2760.... 361
4.2 How can I get the files from USB storage device connecting to Vigor router? 373
4.3 How to Build a LAN-to-LAN VPN Between Remote Office and Headquarter via IPsec Tunnel (Main Mode) 375
4.4 How to Optimize the Bandwidth through QoS Technology 379
4.5 QoS Setting Example 383
4.6 How to Send a Notification to Specified Phone Number via SMS Service in WAN Disconnection.... 388
4.7 How to Create an Account for MyVigor....392

4.7.1 Create an Account via Vigor Router 392
4.7.2 Create an Account via MyVigor Web Site 396

4.8 How to Setup Address Mapping.... 400
4.9 How to Configure Certain Computers Accessing to Internet 402
4.10 How to Block Facebook Service Accessed by the Users via Web Content Filter / URL Content Filter.... 406

5

Trouble Shooting....411

5.1 Checking If the Hardware Status Is OK or Not....411
5.2 Checking If the Network Connection Settings on Your Computer Is OK or Not 412
5.3 Pinging the Router from Your Computer 415
5.4 Checking If the ISP Settings are OK or Not 416
5.5 Problems for 3G Network Connection 416

5.6 Backing to Factory Default Setting If Necessary 417
5.7 Contacting DrayTek....418

1

Introduction

Vigor2760 series is a VDSL2 router. It integrates IP layer QoS, NAT session/bandwidth management to help users control works well with large bandwidth.

With the development of NGN (Next Generation Network), you may recently hear the news about FTTx deployment in your local area or even have already subscribed the unbundling last mile service (e.g. VDSL2) from local ITSP for FTTx. As adopting FTTx, the main question for end users is whether your legacy router could fully utilize its bandwidth or not.

DrayTek launches Vigor 2760 series – High speed router, perfectly complied with VDSL2 environment including Vigor2760, Vigor2760n and Vigor2760Vn for speed-wanted customers. With high throughput performance and secured broadband connectivity provided by Vigor 2760 series, you can simultaneously engage these bandwidth-intensive applications, such as high-definition video streaming, online gaming, and Internet telephony / access.

Note: This manual is written based on the standard firmware version of Vigor2760 series and suitable for all of the countries except for UK area. For product enquiries in the UK, Ireland and Channel Islands, please contact the UK office.

DrayTek UK Office

Sales Tel: [phone]

Email: [e-mail]

1.1 Features

ADSL2/2+ & VDSL2	Compliant with ITU-T G.993.2 & G.997.1Support Band Plan 998 & 997Support Annex A / Annex BVDSL2 Profile 8a/8b/8c/8d/12a/12b/17a/30aCapability Fall-back to ADSL2/2+Multi-VLANMulti-PVC
Internet	Support IPv4 & IPv6Support PPPoE/PPPoASupport DHCP/Static IPInternet connection over 3G/4G USB DongleMulti-VLAN/Multi-PVC for triple play
VPN	2 VPN TunnelsBuilt-in PPTP/L2TP/IPsec VPN serverVPN Passthrough (PPTP/L2TP/IPsec)IPsec Main/Aggressive ModeIKE Authentication (PSK & X.509)PPTP MPPEL2TP over IPsec
Security	Object-based FirewallMAC Address FilterSPI (Stateful Packet Inspection)DoS/DDoS PreventionIM/P2P Applications FilterURL Content FilterGlobal View Web Content FilterBind IP to MAC
NAT/Routing	DMZ HostPort Forwarding & RedirectionRoute PolicyStatic RouteRIPv2
Network Feature	● Two subnets(VLAN)● LAN Port Mirror● Bandwidth/Session Management● QoS by IP, Port, Applications● Dynamic DNS● LAN DNS● UPnP● IGMP proxy & snooping● Wake on LAN● Bonjour● Printer Sharing● FTP Server for File Sharing by a USB Memory Stick/USB HDD with FAT32 Format
System Maintenance	● Web Syslog● HTTP/HTTPS User Interface● CLI over Telnet/SSH/Web UI● Configuration Backup/Restore● Administrator Access Control● Restricted User Mode● Flow Monitor● Built-in Diagnostic Function● E-mail/SMS Alert● SNMP v1/v2c● TR-069 (Compliance with VigorACS SI)
Wireless AP (n model)	● Support 2T2R 2.4GHz, Single Band● IEEE802.11n Compliant● 64/128-bit WEP, WPA/WPA2● WDS (Wireless Distribution System)● MAC Address Access Control● WPS● Wireless Client List● Access Point Discovery● Hidden SSID● Multiple SSID● WMM
VoIP (V model)	● Protocol: SIP, RTP/RTCP● 6 SIP Registrars● G.168 Line Echo-cancellation● VoIP Status● PSTN Loop Through● Codec Features :➢ G.711 A/μ law➢ G.723.1➢ G.726➢ G.729 A/B➢ VAD/CNG● DTMF Relay :➢ In Band➢ Out Band (RFC-2833)➢ SIP Info● FAX/Modem Support :➢ G.711 Pass-through➢ T.38 for fax Sending/Receiving● Supplemental Services :➢ Call Hold/Retrieve➢ Call Waiting➢ CLIR (Calling Line Identification Restriction)➢ Call Forwarding (Always, Busy and No Answer)

➢ Call Barring (Incoming / Outgoing)
Hotline
DND (Do Not Disturb)
▶ Call Transfer
MWI (Message Waiting Indicator) (RFC-3842)

Note: If you are using Linux-platform firmware and plan to upgrade DrayOS-platform, please feel free to contact [e-mail] to assure your expected features can be performed.

1.2 Package and Content

1 Antenna (n models)

4 Quick Start Guide

5 The type of the power adapter depends on the country that the router will be installed. * The maximum power consumption is 17-23 Watt.

Line drawing of a cable and plug assembly (no text or symbols)

UK-type Power Adapter

Line drawing of a power adapter with a cord and plug, no text or symbols present

EU-type Power Adapter

Line drawing of a rectangular device connected to a cable with two connectors (no text or symbols)

USA/Taiwan-type Power Adapter

Line drawing of a portable electrical adapter with cord and plug (no text or symbols)

AU/NZ-type Power Adapter

1.3 LED Indicators and Connectors

Before you use the Vigor router, please get acquainted with the LED indicators and connectors first.

1.3.1 For Vigor2760

DrayTek Vigor2760

LED	Status	Explanation
(ACT)	Blinking The router is powered on and running normally.
	Off The router is powered off.
DSL (Green)	On The DSL port is connected.
	Blinking(Slowly)	The router is ready.
	Blinking(Quickly)	The connection is training.
~ LAN1/2/3/4	On (Green) The port is connected.
	Blinking(Green)	The data is transmitting.
~ USB1/2	On A USB device is connected and active.

PWR Factory Reset VDSL/ADSL USB1 USB2 GigaLAN> 4 3 2 1

Interface Description

PWR Connector for a power adapter.
I/O	Power switch.
Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration.
VDSL/ADSL Connector for accessing the Internet.
USB (1-2) Connector for USB storage device (Pen Driver/Mobile HD) or printer or 3G backup.
LAN (1-4) Connectors for local network devices.

1.3.2 For Vigor2760n

DrayTek Vigor2760n

LED	Status	Explanation
(Activity)	Blinking The router is powered on and running normally.
	Off The router is powered off.
(Wireless LAN On/Off/WPS)	On (Green) The wireless access point is ready.
	Blinking(Green)	The data is transmitting via wireless connection.
	Blinking(Orange)	Blinks with one second cycle for two minutes. The WPS function is active.
	Off The wireless access point is turned off.
DSL (Green) ~ [4]LAN1/2/3/4	On The DSL port is connected.
	Blinking(Slowly)	The router is ready.
	Blinking(Quickly)	The router is trying to connect to Internet.
	On The port is connected.
	Blinking(Green)	The data is transmitting.
~ [2]USB1/2	On A USB device is connected and active.

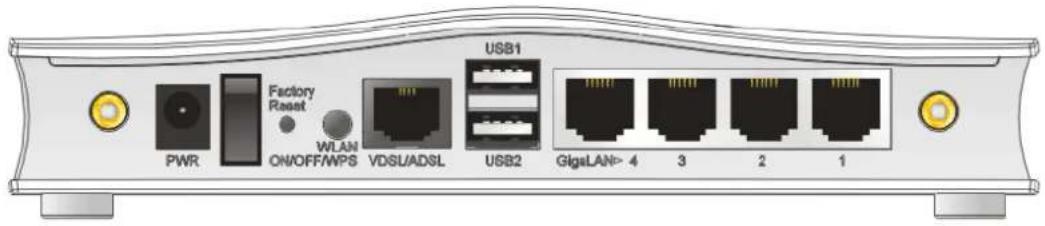

PWR Factory Reset WLAN ON/OFF/WPS VDSL/ADSL USB1 USB2 GigaLAN> 4 3 2 1

Interface Description
PWR Connector for a power adapter.
I / O Power switch.
Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration.
WLAN ON/OFF/WPS	WLAN WPS - Press this button for 2 seconds to wait for client device making network connection through WPS. When the LED lights up, the WPS connection will be on.WLAN ON/OFF - Press the button once to enable (WLAN LED on) or disable (WLAN LED off) wireless connection.
VDSL/ADSL Connector for accessing the Internet.
USB (1-2) Connector for USB storage device (Pen Driver/Mobile HD) or printer or 3G backup.
LAN (1-4) Connectors for local network devices.

1.3.3 For Vigor2760Vn

DragTek Vigor2760Vn

LED	Status	Explanation
(ACT)	Blinking The router is powered on and running normally.
	Off The router is powered off.
(LINE)	On A PSTN phone call comes (in and out). However, when the phone call is disconnected, the LED will be off for awhile.
	Off There is no PSTN phone call.
(Phone1/Phone2)	On The phone connected to this port is off-hook.
	Off The phone connected to this port is on-hook.
	Blinking A phone call comes.
(Wireless LAN On/Off/WPS)	On (Green) The wireless access point is ready.
	Blinking (Green)	The data is transmitting via wireless connection.
	Blinking (Orange)	Blinks with one second cycle for two minutes. The WPS function is active.
	Off The wireless access point is turned off.
DSL (Green)	On The DSL port is connected.
	Blinking (Slowly)	The router is ready.
	Blinking (Quickly)	The router is trying to connect to Internet.
~4LAN1/2/3/4	On The port is connected.
	Blinking (Green)	The data is transmitting.
~2USB1/2	On A USB device is connected and active.

PWR Factory Reset ON/OFF/WPS WLAN VDSU/ADSL USB1 USB2 GigaLAN> 4 3 2 1

Interface Description

PWR Connector for a power adapter.
I/O	Power switch.
Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration.
WLAN ON/OFF/WPS	WLAN WPS - Press this button for 2 seconds to wait for client device making network connection through WPS. When the LED lights up, the WPS connection will be on.WLAN ON/OFF - Press the button once to enable (WLAN LED on) or disable (WLAN LED off) wireless connection.
VDSL/ADSL Connector for accessing the Internet.
USB (1-2) Connector for USB storage device (Pen Driver/Mobile HD) or printer or 3G backup.
LAN (1-4) Connectors for local network devices.

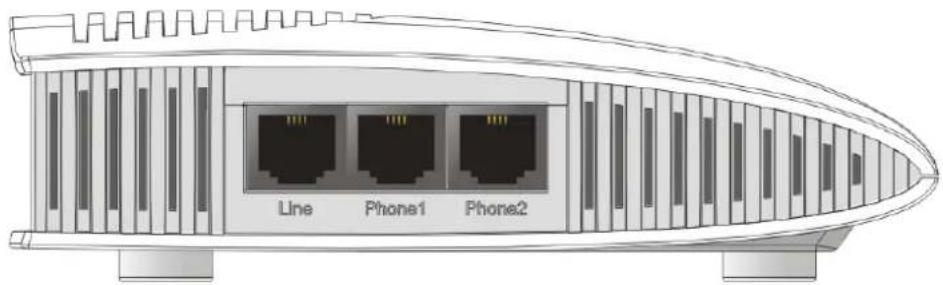

Line Phone1 Phone2

Interface Description

LINE Connector for PSTN life line.

Phone1/Phone2 Connector of analog phone for VoIP communication.

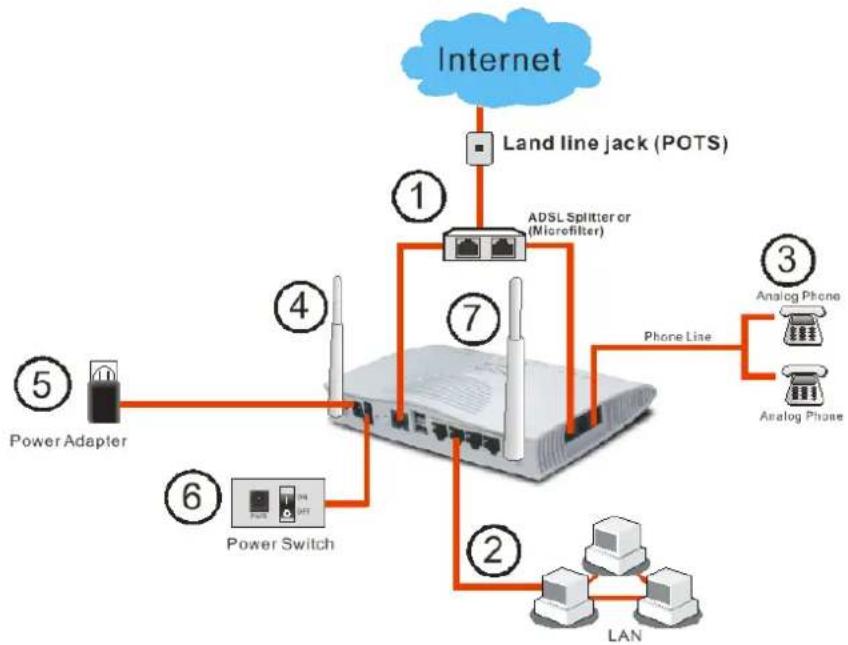

1.4 Hardware Installation

Before starting to configure the router, you have to connect your devices correctly.

1. Connect the xDSL interface to the external XDSL splitter with an XDSL line cable for all models. For Vigor2760Vn, also connect Line interface to external XDSL splitter.

LINE PHONE MODEM Line DSL

1. Connect one port of 4-port switch to your computer with a RJ-45 cable. This device allows you to connect 4 PCs directly.

2. Connect Phone port to a conventional analog telephone (for V model only).

3. Connect detachable antennas to the router for Vigor2760 series (for n model only).

4. Connect one end of the power cord to the power port of this device. Connect the other end to the wall outlet of electricity.

5. Power on the router.

6. Check the ACT and DSL, LAN LEDs to assure network connection.

(For the hardware connection, we take "n" model as an example.)

1.5 Printer Installation

You can install a printer onto the router for sharing printing. All the PCs connected this router can print documents via the router. The example provided here is made based on Windows 7. For installation on other Windows systems, please visit www.DrayTek.com.

Before using it, please follow the steps below to configure settings for connected computers (or wireless clients).

1. Connect the printer with the router through USB/parallel port.

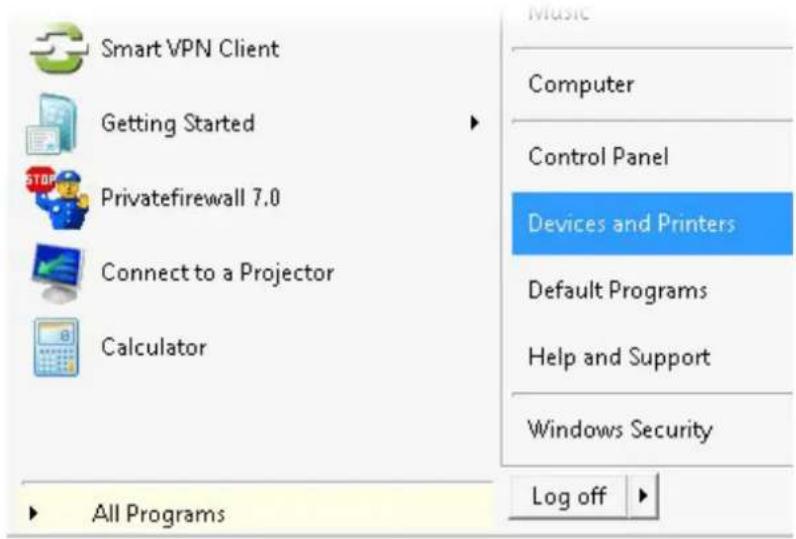

2. Open All Programs>>Getting Started>>Devices and Printers.

Smart VPN Client Getting Started Privatefirewall 7.0 Connect to a Projector Calculator All Programs Music Computer Control Panel Devices and Printers Default Programs Help and Support Windows Security Log off

3. Click Add a printer.

Devices and Printers Control Panel ▼ Hardware and Sound ▼ Devices and Printer Add a device Add a printer ▲ Devices (3)

4. A dialog will appear. Click Add a local printer and click Next.

Add Printer Add Printer What type of printer do you want to install? → Add a local printer Use this option only if you don't have a USB printer. (Windows automatically installs USB printers when you plug them in.) → Add a network, wireless or Bluetooth printer Make sure that your computer is connected to the network, or that your Bluetooth or wireless printer is turned on. Next Cancel

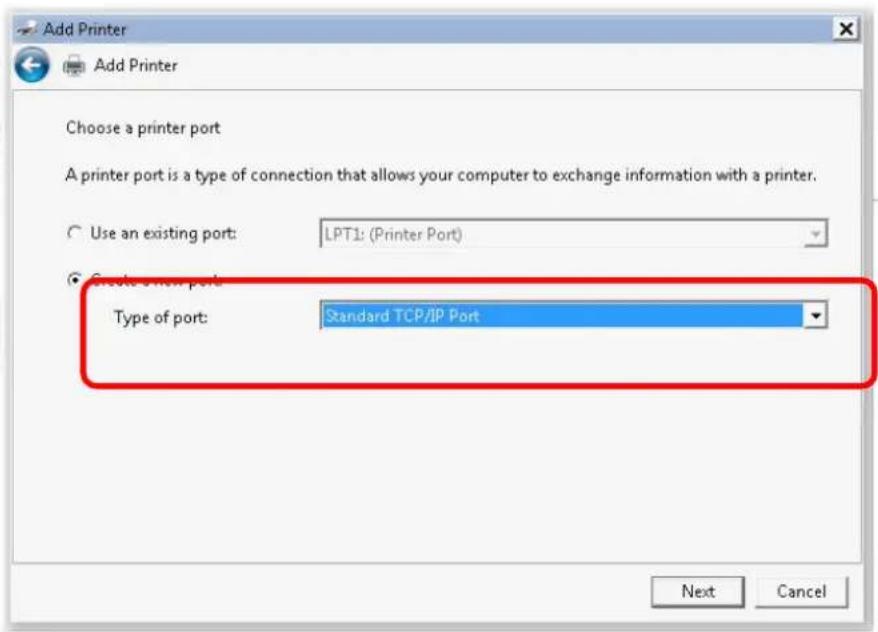

5. In this dialog, choose Create a new port. In the field of Type of port, use the drop down list to select Standard TCP/IP Port. Then, click Next.

Add Printer Add Printer Choose a printer port A printer port is a type of connection that allows your computer to exchange information with a printer. Use an existing port: LPT1: (Printer Port) Create a print port Type of port: Standard TCP/IP Port Next Cancel

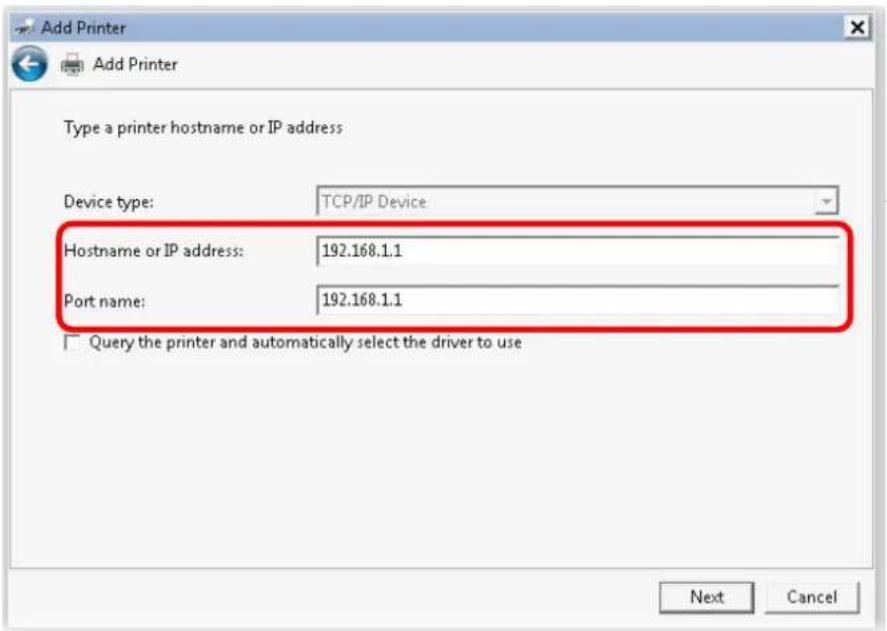

1. In the following dialog, type 192.168.1.1 (router's LAN IP) in the field of Hostname or IP Address and type 192.168.1.1 as the Port name. Then, click Next.

Add Printer Add Printer Type a printer hostname or IP address Device type: TCP/IP Device Hostname or IP address: 192.168.1.1 Port name: 192.168.1.1 □ Query the printer and automatically select the driver to use Next Cancel

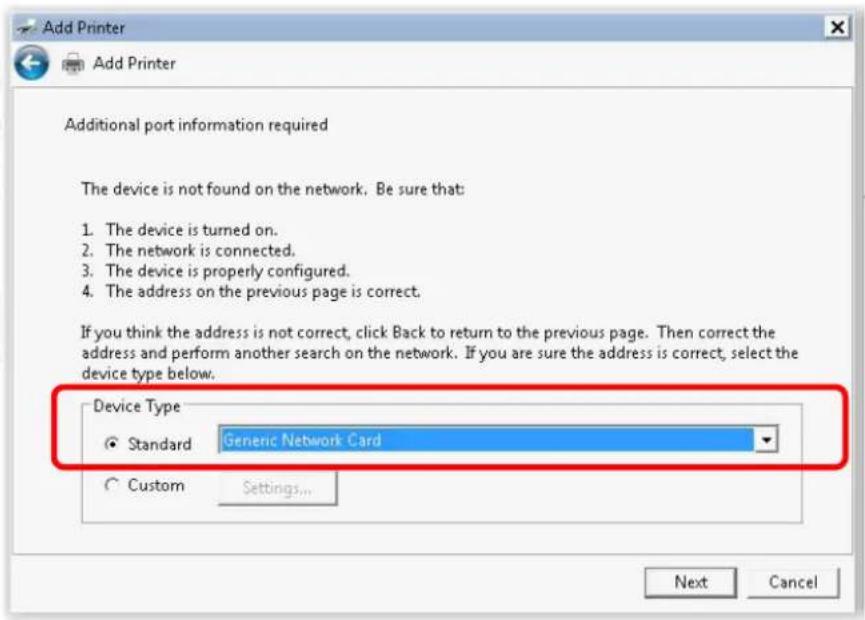

1. Click Standard and choose Generic Network Card.

Add Printer Add Printer Additional port information required The device is not found on the network. Be sure that: 1. The device is turned on. 2. The network is connected. 3. The device is properly configured. 4. The address on the previous page is correct. If you think the address is not correct, click Back to return to the previous page. Then correct the address and perform another search on the network. If you are sure the address is correct, select the device type below. Device Type Standard Generic Network Card Custom Settings... Next Cancel

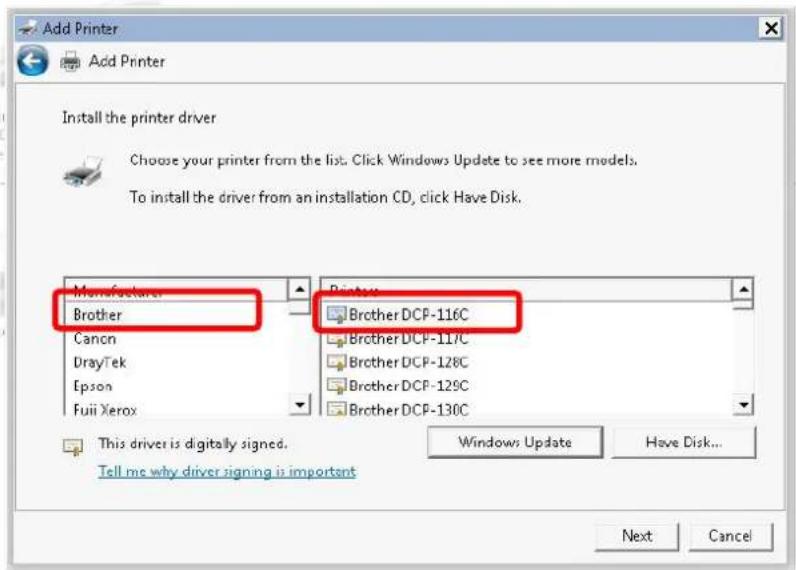

1. Now, your system will ask you to choose right name of the printer that you installed onto the router. Such step can make correct driver loaded onto your PC. When you finish the selection, click Next.

Add Printer Add Printer Install the printer driver Choose your printer from the list. Click Windows Update to see more models. To install the driver from an installation CD, click Have Disk. Manufacturer Brother Canon DrayTek Epson Fuii Xerox Printer Brother DCP-116C Brother DCP-117C Brother DCP-128C Brother DCP-129C Brother DCP-130C This driver is digitally signed. Tell me why driver signing is important Windows Update Have Disk... Next Cancel

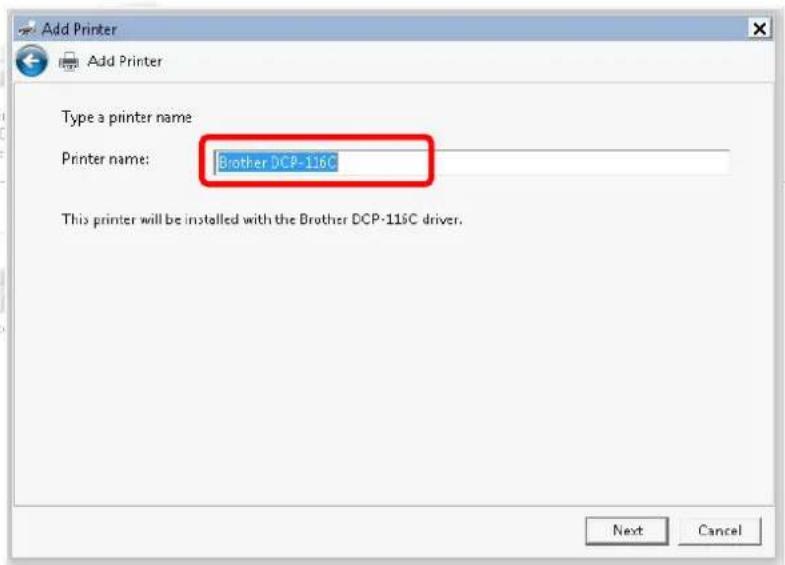

1. Type a name for the chosen printer. Click Next.

Add Printer Type a printer name Printer name: Brother DCP-116C This printer will be installed with the Brother DCP-115C driver. Next Cancel

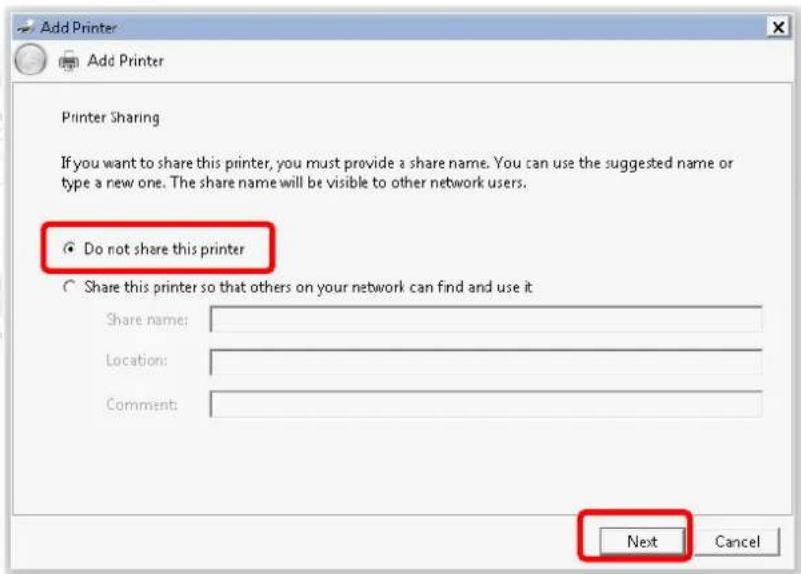

10. Choose Do not share this printer and click Next.

Add Printer Add Printer Printer Sharing If you want to share this printer, you must provide a share name. You can use the suggested name or type a new one. The share name will be visible to other network users. Do not share this printer Share this printer so that others on your network can find and use it Share name: Location: Comment: Next Cancel

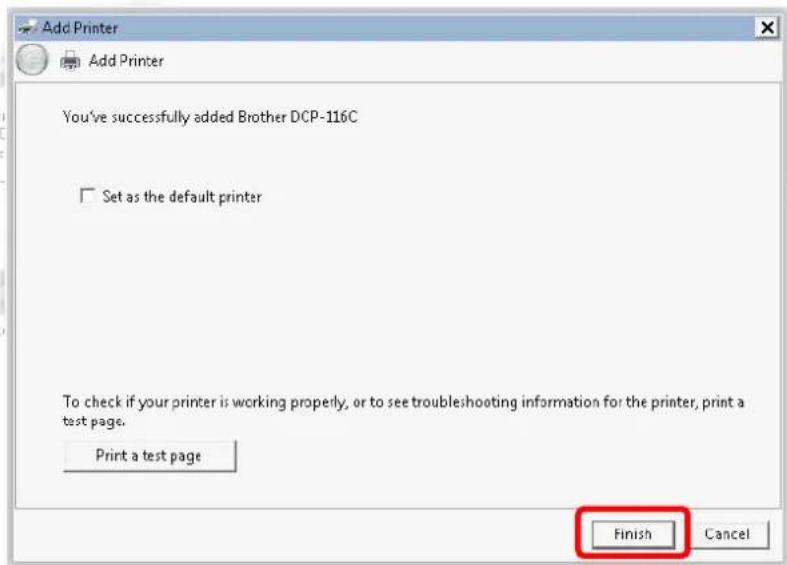

11. Then, in the following dialog, click Finish.

Add Printer Add Printer You've successfully added Brother DCP-116C Set as the default printer To check if your printer is working properly, or to see troubleshooting information for the printer, print a test page. Print a test page Finish Cancel

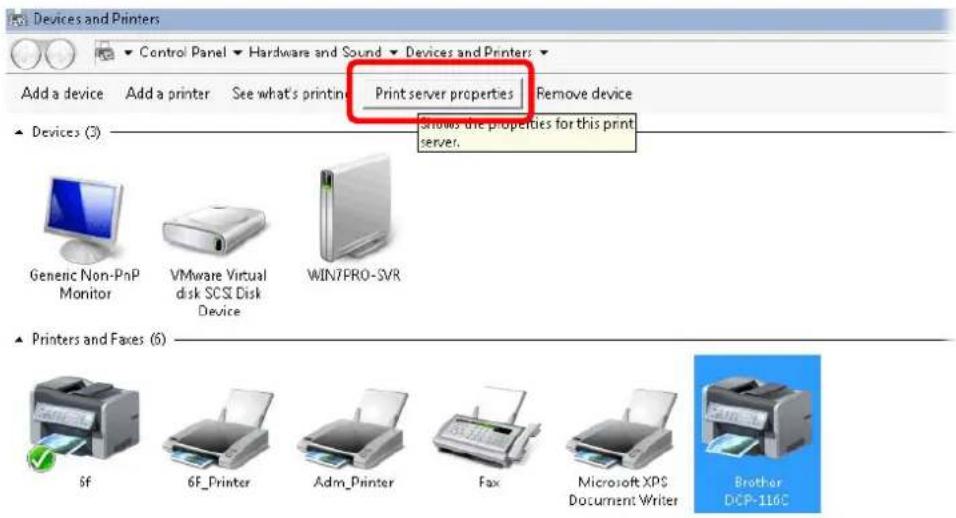

1. The new printer has been added and displayed under Printers and Faxes. Click the new printer icon and click Printer server properties.

Devices and Printers Control Panel Hardware and Sound Devices and Printers Add a device Add a printer See what's printing Print server properties Remove device ▲ Devices (2) GENERIC Non-PnP Monitor VMware Virtual disk SCSI Disk Device WIN7PRO-SVR ▲ Printers and Faxes (6) 6f 6F_Printer Adm_Printer Fax Microsoft XPS Document Writer Brother DCP-116C

1. Edit the property of the new printer you have added by clicking Configure Port.

Win7PRO-SVR Ports on this server Port Description Printer TS002 Inactive TS Port TS001 Inactive TS Port TPVM: ThinPrint Print Port fo... 172.16.2.2... Standard TCP/IP Port 6f LPR_local... Standard TCP/IP Port Adm_Printer LPR_local... Standard TCP/IP Port 6F_Printer 192.168.1.1 Standard TCP/IP Port Brother DCP-116C XPSPort: Local Port Microsoft XPS Document Writer Add Port... Delete Port Configure Port... OK Cancel Apply

1. Select "LPR" on Protocol, type p1 (number 1) as Queue Name. Then click OK. Next please refer to the red rectangle for choosing the correct protocol and LPR name.

Printer properties Remove device Print Server Properties Forms Ports Drivers Security Advanced Configure Standard TCP/IP Port Monitor Port Settings Port Name: 192.168.1.1 Printer Name or IP Address: 192.168.1.1 Protocol Raw LPR Raw Settings Port Number: 9100 LPR Settings Queue Name: p1 LPR Byte Counting Enabled SNMP Status Enabled Community Name: public SNMP Device Index: 1 OK Cancel

The printer can be used for printing now. Most of the printers with different manufacturers are compatible with vigor router.

Note 1: Some printers with the fax/scanning or other additional functions are not supported. If you do not know whether your printer is supported or not, please visit www.draytek.com to find out the printer list. Open Support >FAQ/Application Notes; find out the link of USB>>Printer Server and click it.

DrayTek MyVigor Register E-newsletter DrayTek.HQ Media Center Global ( English ) Log in About DrayTek Products Supports Solutions Multi Media Demo Contact Us Search FAQ / Application You are here: Home > Supports > FAQ / Application Notes > Printer Server USB Printer Server 3G/4G Internet Connection

Then, click the What types of printers are compatible with Vigor router? link.

FAQ / Application Latest FAQ/Application Basic Firmware Upgrade WAN IPv6 Triple-Play Dual WAN You are here: Home > Supports > FAQ / Application Notes > Printer Server Printer Server What types of printers are compatible with Vigor router? 2012/01/12 How do I configure LPR printing on Windows7? 2012/08/20 How do I configure LPR printing on My Windows Vista ? 2009/01/20

Note 2: Vigor router supports printing request from computers via LAN ports but not WAN port.
