USER MANUAL CR-V (1999) Honda

1999 CR-V Online Reference Owner's Manual

Use these links (and links throughout this manual) to navigate through this reference.

For a printed owner's manual, click on authorized manuals or go to www.helminc.com.

Contents

Owner's Identification Form

Introduction ...... i

A Few Words About Safety...... ii

Important Handling Information....iii

Your Vehicle at a Glance....2

Driver and Passenger Safety 5

Proper use and care of your vehicle's seat belts, and Supplemental Restraint System.

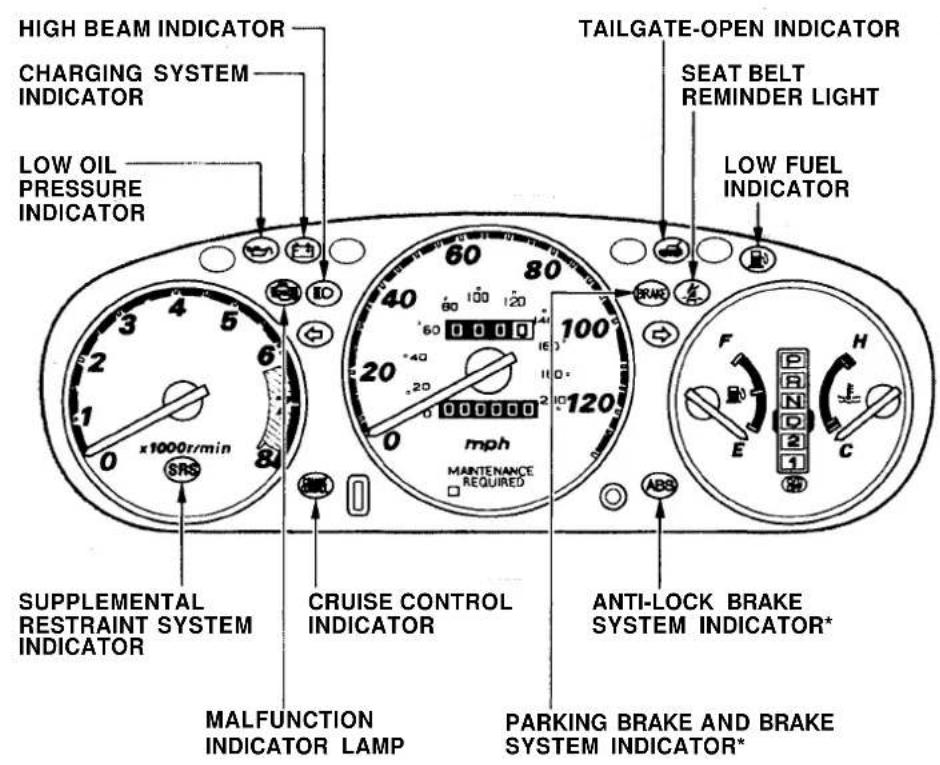

Instruments and Controls....51

Instrument panel indicator and gauge, and how to use dashboard and steering column controls.

Comfort and Convenience Features 97

How to operate the climate control system, the audio system, and other convenience features.

Before Driving....139

What gasoline to use, how to break-in your new vehicle, and how to load luggage and other cargo.

Driving 151

The proper way to start the engine, shift the transmission, and park, plus towing a trailer.

Maintenance 183

The Maintenance Schedule shows you when you need to take your vehicle to the dealer.

Appearance Care....241

Tips on cleaning and protecting your vehicle. Things to look for if your vehicle ever needs body repairs.

Taking Care of the Unexpected 249

This section covers several problems motorists sometimes experience, and how to handle them.

Technical Information....275

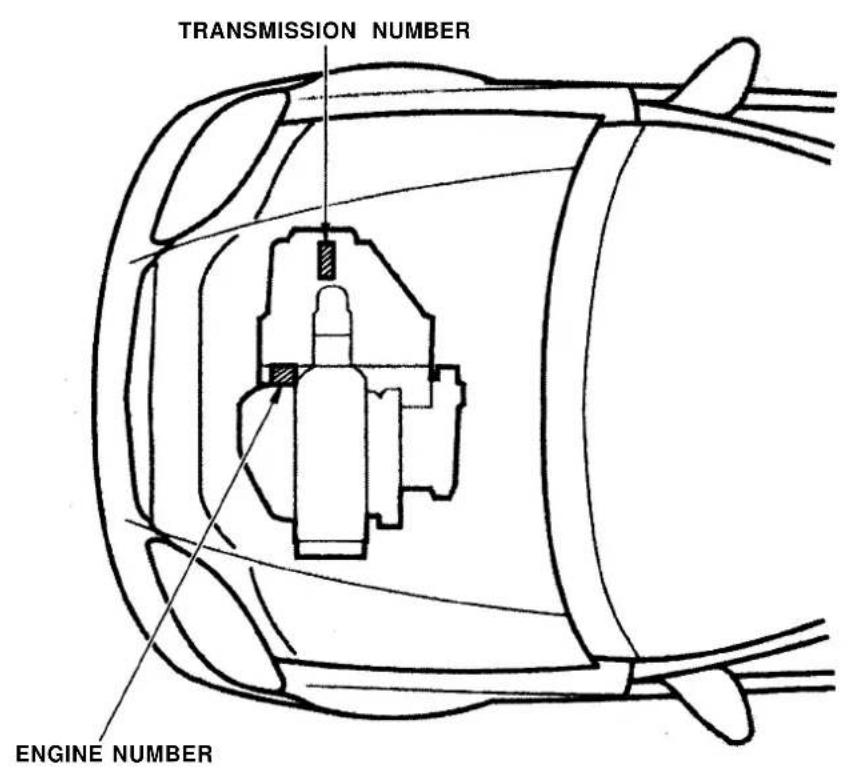

ID numbers, dimensions, capacities, and technical information.

Warranty and Customer Relations (U.S. and Canada) 289

A summary of the warranties covering your new Acura, and how to contact us.

Authorized Manuals (U.S. only)....295

How to order manuals and other technical literature.

Index......I

Service Information Summary

A summary of information you need when you pull up to the fuel pump.

Congratulations! Your selection of a 1999 Honda CR-V was a wise investment. It will give you years of driving pleasure.

One of the best ways to enhance the enjoyment of your new Honda is to read this manual. In it, you will learn how to operate its driving controls and convenience items. Afterwards, keep this owner's manual in your vehicle so you can refer to it at any time.

Several warranties protect your new Honda. Read the warranty booklet thoroughly so you understand the coverages and are aware of your rights and responsibilities.

Maintaining your vehicle according to the schedules given in this manual helps to keep your driving trouble-free while it preserves your investment. When your vehicle needs maintenance, keep in mind that your Honda dealer's staff is specially trained in servicing the many systems unique to your Honda. Your Honda dealer is dedicated to your satisfaction and will be pleased to answer any questions and concerns.

As you read this manual, you will find information that is preceded by a NOTICE symbol. This information is intended to help you avoid damage to your Honda, other property, or the environment.

Your safety, and the safety of others, is very important. And operating this vehicle safely is an important responsibility.

To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.

Of course, it is not practical or possible to warn you about all the hazards associated with operating or maintaining your vehicle. You must use your own good judgement.

You will find this important safety information in a variety of forms, including:

• Safety Labels — on the vehicle.
• Safety Messages — preceded by a safety alert symbol ⚠️ and one of three signal words: DANGER, WARNING, or CAUTION. These signal words mean:

You WILL be KILLED or SERIOUSLY HURT if you don't follow instructions.

You CAN be KILLED or SERIOUSLY HURT if you don't follow instructions.

You CAN be HURT if you don't follow instructions.

• Safety Headings — such as Important Safety Reminders or Important Safety Precautions.
• Safety Section — such as Driver and Passenger Safety.
• Instructions — how to use this vehicle correctly and safely.

This entire book is filled with important safety information — please read it carefully.

Your CR-V has higher ground clearance than a passenger vehicle designed for use only on pavement. Higher ground clearance has many advantages for off-highway driving. It allows you to travel over bumps, obstacles, and rough terrain. It also provides good visibility so you can anticipate problems earlier.

These advantages come at some cost. Because your vehicle is taller and rides higher off the ground, it has a high center of gravity. This means your vehicle can tip or rollover if you make abrupt turns. Utility vehicles have a significantly higher rollover rate than other types of vehicles. In a rollover crash, an unbelted person is significantly more likely to die than a person wearing a seat belt. As a reminder, make sure you and your passengers always wear seat belts.

For information on how to reduce the risk of rollover, read "Driving Guidelines" on page 152 of this manual and the Off-Highway Driving Guidelines section on page 177. Failure to operate this vehicle correctly may result in loss of control or an accident.

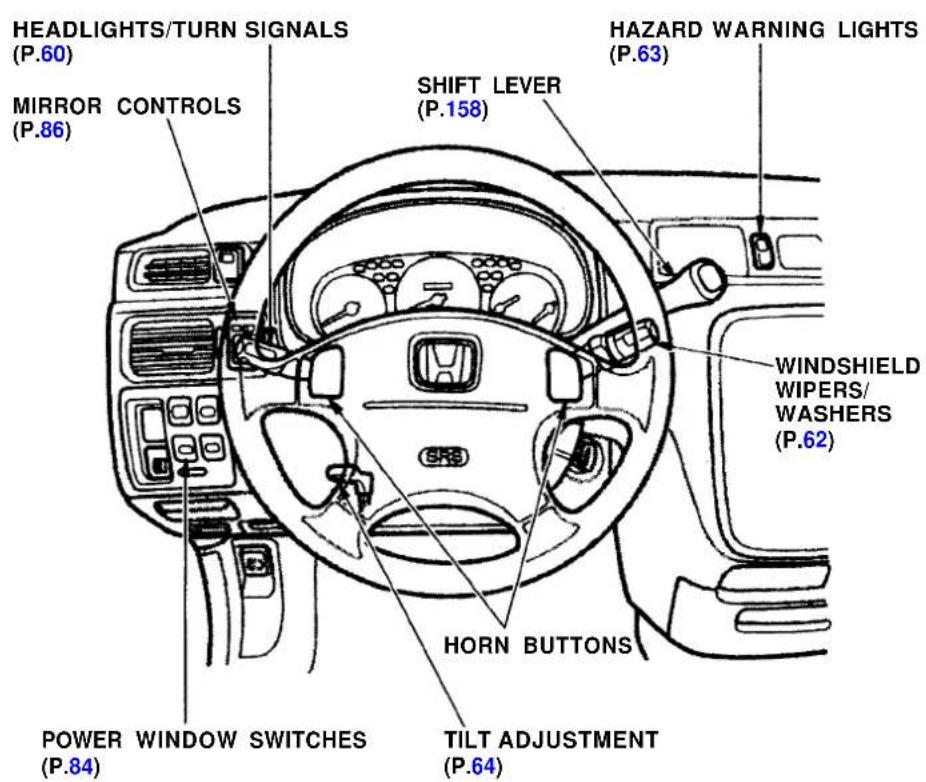

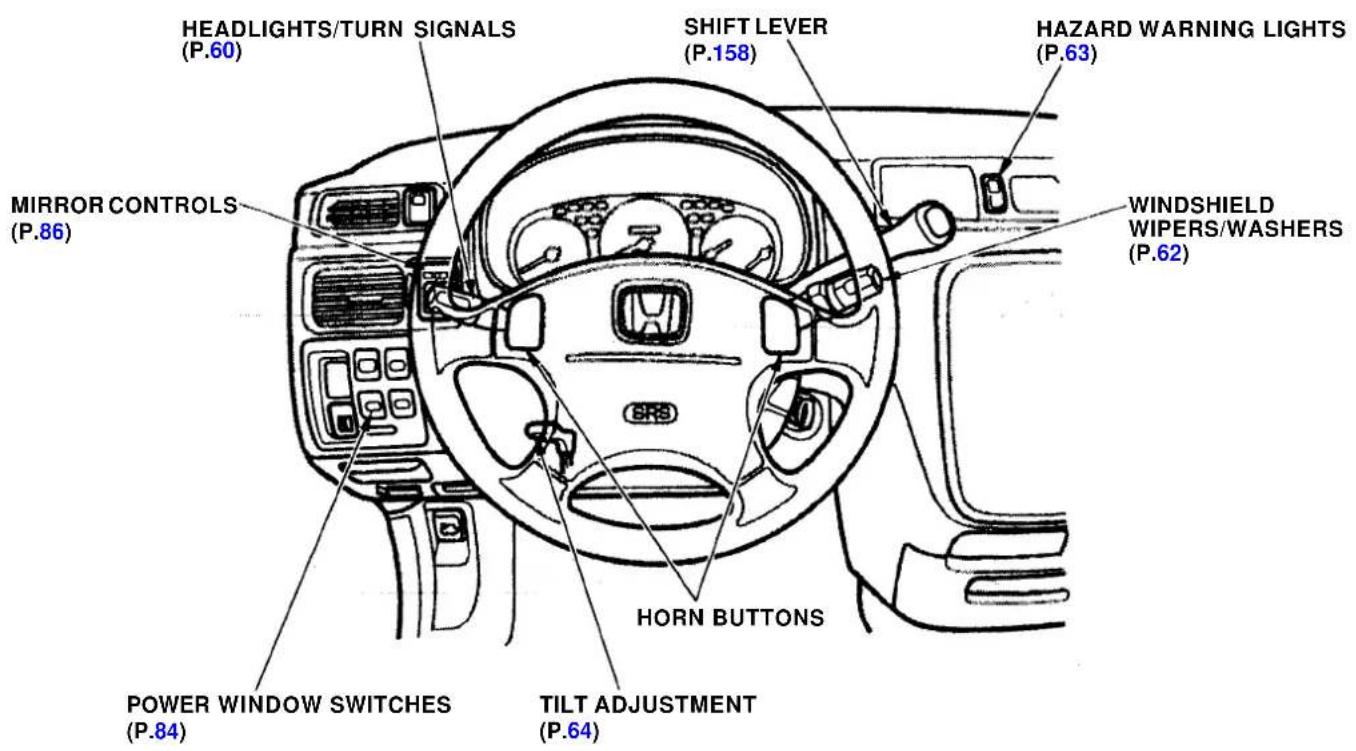

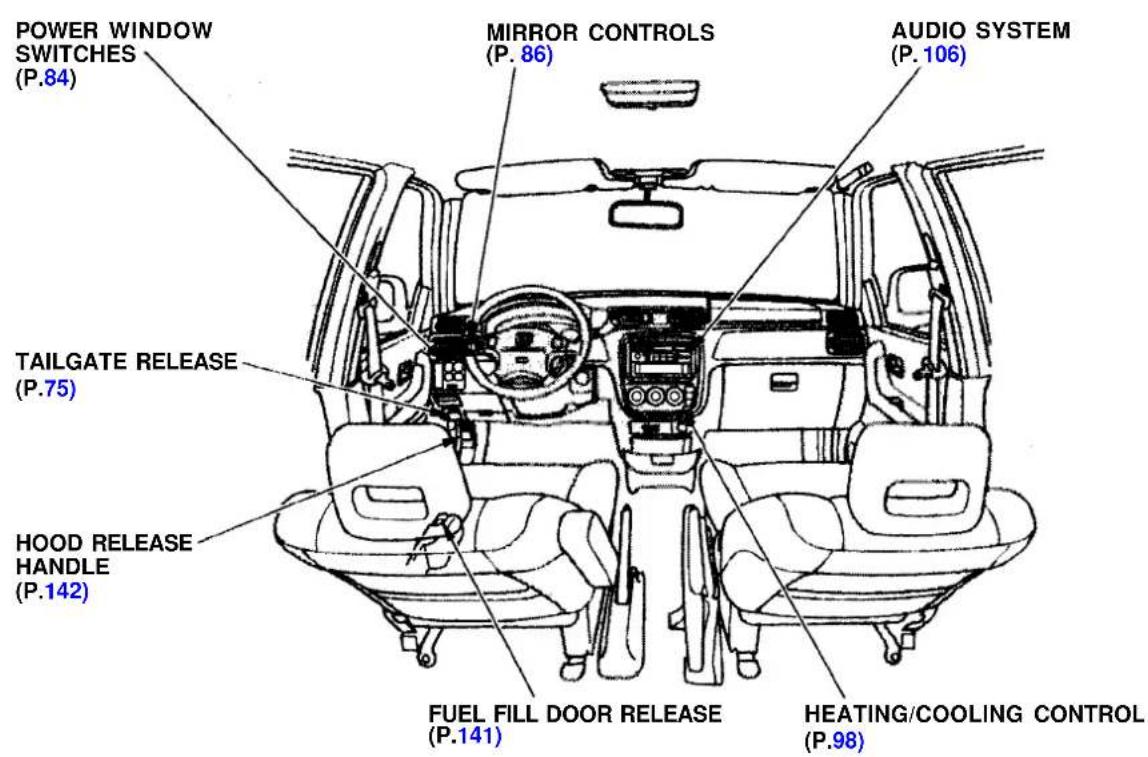

Your Vehicle at a Glance

POWER WINDOW SWITCHES (P.84) MIRROR CONTROLS (P. 86) AUDIO SYSTEM (P. 106) TAILGATE RELEASE (P.75) HOOD RELEASE HANDLE (P.142) FUEL FILL DOOR RELEASE (P.141) HEATING/COOLING CONTROL (P.98)

HEADLIGHTS/TURN SIGNALS (P.60) SHIFT LEVER (P.158) HAZARD WARNING LIGHTS (P.63) MIRROR CONTROLS (P.86) WINDSHIELD WIPERS/WASHERS (P.62) HORN BUTTONS POWER WINDOW SWITCHES (P.84) TILT ADJUSTMENT (P.64)

Driver and Passenger Safety

This section gives you important information about how to protect yourself and your passengers. It shows you how to use seat belts properly. It explains your Supplemental Restraint System. And it tells you how to properly restrain infants and children in your vehicle.

Important Safety Precautions...... 6

Your Vehicle's Safety Features...... 7

Seat Belts....8

Airbags....9

Seats & Seat-Backs...... 10

Head Restraints.... 10

Door Locks.... 10

Pre-Drive Safety Checklist...... 11

Protecting Adults....12....

1 . Close and Lock the Doors.....

1. Adjust the Front Seats...... 12

2. Adjust the Seat-Backs...... 13

3. Adjust the Head Restraints.... 14

4. Fasten and Position the Seat Belts.... 15

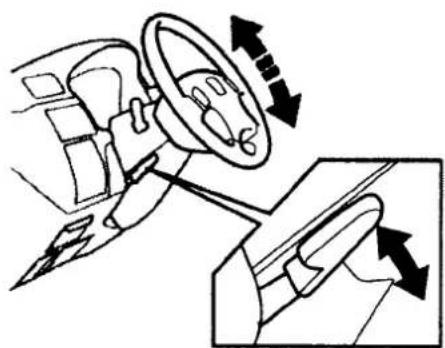

5. Adjust the Steering Wheel..... 18

6. Maintain a Proper Sitting Position.... 18

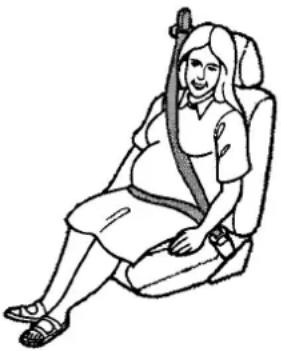

Advice for Pregnant Women..... 19

Additional Safety Precautions.... 19

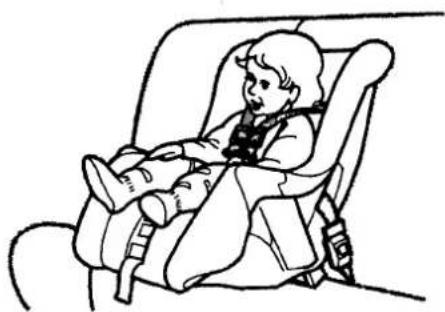

Protecting Children 21

All Children Must Be Restrained....21

Children Should Sit in the Back Seat....22

The Passenger's Airbag Poses Serious Risks to Children..... 22

If You Must Drive with Several Children....24

If a Child Requires Close Attention....24

Additional Safety Precautions.... 24

General Guidelines for Using Child Seats....25

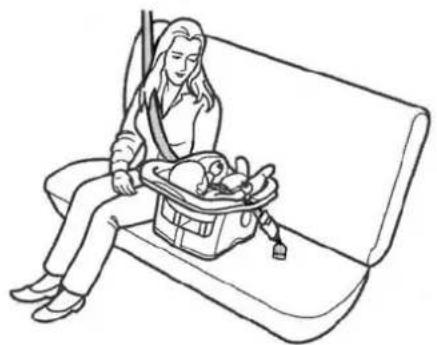

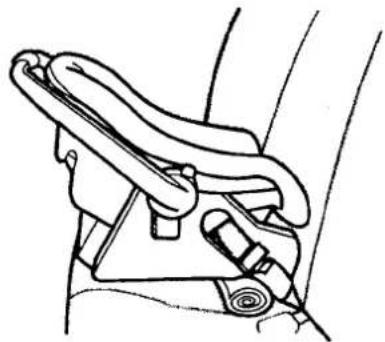

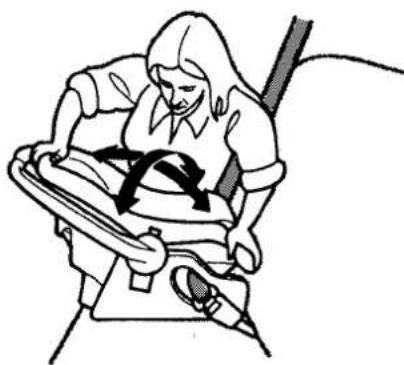

Protecting Infants...... 29

Protecting Small Children...... 33

Protecting Larger Children...... 37

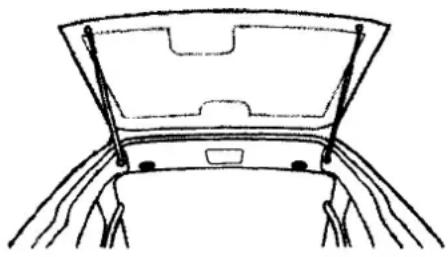

Using Child Seats with Tethers.... 40

Additional Information About Your Seat Belts....42

Seat Belt System Components... 42

Lap/Shoulder Belt 42

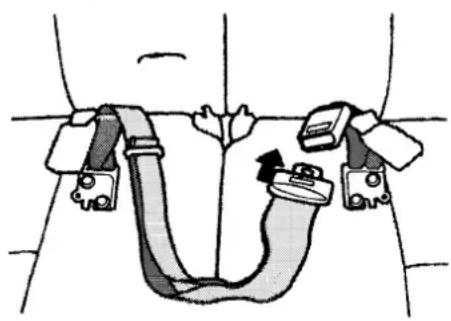

Lap Belt 43

Seat Belt Maintenance...... 43

Additional Information About Your SRS.... 45

SRS Components...... 45

How Your Airbags Work...... 45

How the Automatic Seat Belt Tensioners Work.... 47

How the SRS Indicator Light Works....47

SRS Service......48

Additional Safety Precautions.... 48

Carbon Monoxide Hazard...... 49

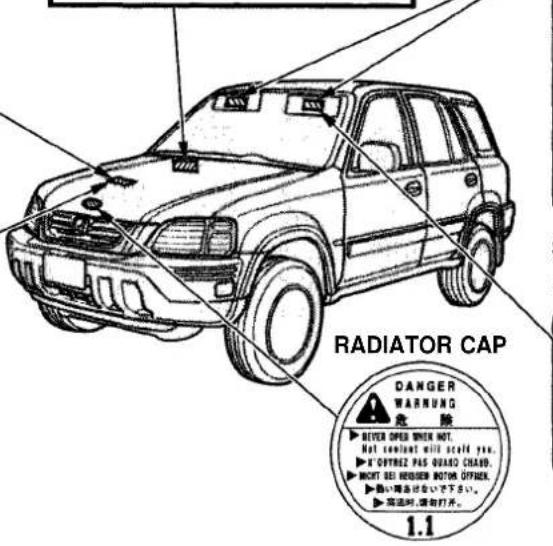

Safety Labels......50

Driver and Passenger Safety

Important Safety Precautions

You'll find many safety recommendations throughout this section, and throughout this manual. The recommendations on this page are the ones we consider to be the most important

Always Wear Your Seat Belt

A seat belt is your best protection in all types of collisions. Airbags supplement seat belts, but airbags are designed to inflate only in a moderate to severe frontal collision. So even though your vehicle is equipped with airbags, make sure you and your passengers always wear your seat belts, and wear them properly. (See page 15.)

Restrain All Children

Children are safest when they are properly restrained in the back seat, not the front seat. A child who is too small for a seat belt must be properly restrained in a child safety seat. (See page 21.)

Be Aware of Airbag Hazards

While airbags can save lives, they can cause serious or fatal injuries to occupants who sit too close to them, or are not properly restrained. Infants, young children, and short adults are at the greatest risk. Be sure to follow all instructions and warnings in this manual. (See page 7.)

Don't Drink and Drive

Alcohol and driving don't mix. Even one drink can reduce your ability to respond to changing conditions, and your reaction time gets worse with every additional drink. So don't drink and drive, and don't let your friends drink and drive, either.

Control Your Speed

Excessive speed is a major factor in crash injuries and deaths. Generally, the higher the speed the greater the risk, but serious accidents can also occur at lower speeds. Never drive faster than is safe for current conditions, regardless of the maximum speed posted.

Keep Your Vehicle in Safe Condition

Having a tire blowout or a mechanical failure can be extremely hazardous. To reduce the possibility of such problems, check your tire pressures and condition frequently, and perform all regularly scheduled maintenance. (See page 188.)

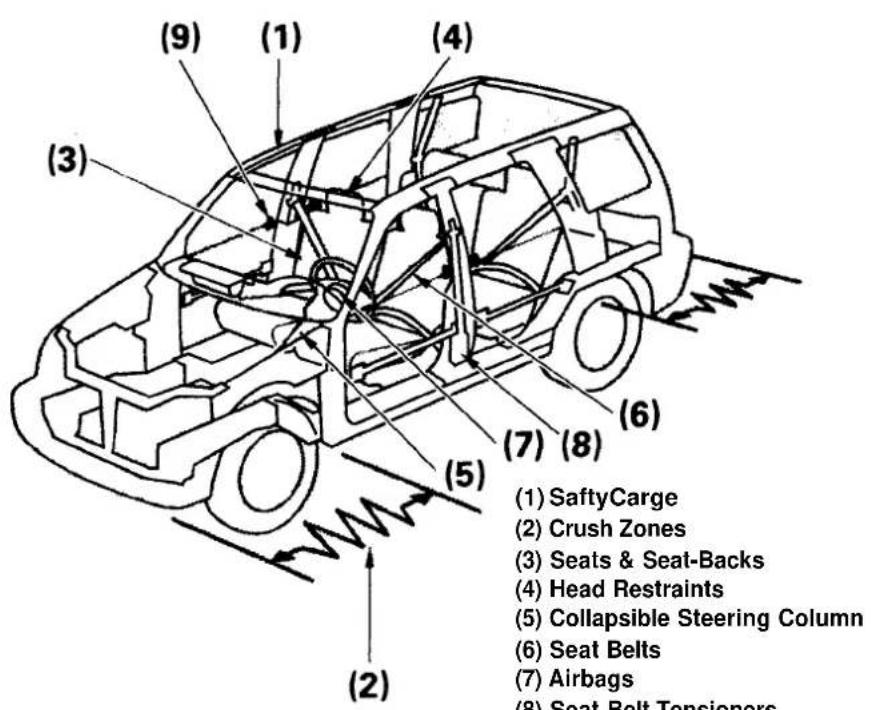

(1) SaftyCarge (2) Crush Zones (3) Seats & Seat-Backs (4) Head Restraints (5) Collapsible Steering Column (6) Seat Belts (7) Airbags (8) Seat Belt Tensioners

Your vehicle is equipped with many features that work together to protect you and your passengers during a crash.

Some safety features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment; front and rear crush zones that are designed to crumple and absorb energy during a crash; a collapsible steering column; and seat belt tensioners that automatically tighten the front seat belts in the event of a crash.

These safety features are designed to reduce the severity of injuries in a crash. However, you and your passengers can't take full advantage of these safety features unless you remain sitting in a proper position and always wear your seat belts properly. In fact, some safety features can contribute to injuries if they are not used properly.

Seat Belts

For your safety, and the safety of your passengers, your vehicle is equipped with seat belts in all seating positions.

Your seat belt system also includes a light on the

instrument panel to remind you and your passengers to fasten your seat belts.

Why Wear Seat Belts

Seat belts are the single most effective safety device for adults and larger children. (Infants and smaller children must be properly restrained in child seats.)

Not wearing a seat belt properly increases the chance of serious injury or death in a crash, even though your vehicle has airbags.

In addition, most states and all Canadian provinces require you to wear seat belts.

Not wearing a seat belt properly increases the chance of serious injury or death in a crash, even if you have airbags.

Be sure you and your passengers always wear seat belts and wear them properly.

• Keep you connected to the vehicle so you can take advantage of the vehicle's built-in safety features.
• Help protect you in almost every type of crash, including side and rear impacts and rollovers. (Your airbag can only be helpful in a

moderate to severe frontal collision.)

- Help keep you from being thrown against the inside of the vehicle and against other occupants.

- Keep you from being thrown out of the vehicle.

- Help keep you in a good position should the airbags ever deploy. A good position reduces the risk of injury from an inflating airbag, and allows you to get the best advantage from the airbag.

Of course, seat belts cannot completely protect you in every crash. But in most cases, seat belts can reduce your risk of serious injury.

What you should do: Always wear your seat belt, and make sure you wear it properly.

Airbags

Technical line drawing of two mechanical components with no visible text or symbols

Your vehicle has a Supplemental Restraint System (SRS) with frontal airbags to help protect the driver and a front seat passenger.

SRS

This system also includes an indicator light on the

instrument panel to alert you to a possible problem with the system.

The most important things you need to know about your airbags are:

- Airbags do not replace seat belts. The seat belts are the occupants' primary protection in all types of collisions. The airbags supplement the seat belts by providing extra protection for the head and chest of each front seat occupant in a moderate to severe frontal collision.

• Airbags offer no protection in side impacts, rear impacts, rollovers, or minor collisions. Airbags are designed to deploy only during a moderate to severe frontal collision.

• Airbags can pose serious hazards. To do their job, airbags must inflate with tremendous force and speed. So while airbags save lives, they can cause serious injuries to adults and larger children who are

not wearing seat belts, are not wearing them properly, are sitting too close to the airbag, or are not sitting in a proper position. Infants and small children are at an even greater risk of injury or death.

What you should do: Always wear your seat belt properly, and sit upright and as far back as possible from the steering wheel or dashboard.

Your Vehicle's Safety Features

Seats & Seat-Backs

Your vehicle's seats are designed to keep you in a comfortable, upright position so you can take full advantage of the protection offered by seat belts and the energy absorbing materials in the seats.

How you adjust your seats and seat-backs can also affect your safety. For example, sitting too close to the steering wheel or dashboard increases the risk of you or your passenger being injured by striking the inside of the vehicle, or by an inflating airbag.

Reclining a seat-back too far reduces the seat belt's effectiveness and increases the chance that the seat's occupant will slide under the seat belt in a crash and be seriously injured.

What you should do: Move the front seats as far back as possible, and keep adjustable seat-backs in an upright position whenever the vehicle is moving.

Head Restraints

Head restraints can help protect you from whiplash and other injuries. For maximum protection, the back of your head should rest against the center of the head restraint.

Door Locks

Keeping your doors locked reduces the chance of being thrown out of the vehicle during a crash. It also helps prevent occupants from accidentally opening a door and falling out, and outsiders from unexpectedly opening your doors.

Pre-Drive Safety Checklist

To make sure you and your passengers get the maximum protection from your vehicle's safety features, check the following each time before you drive away:

• All adults, and children who have outgrown child safety seats, are wearing their seat belts and wearing them properly (see page 15).
• Any infant or small child is properly restrained in a child seat in the back seat (see page 21).
• Front seat occupants are sitting upright and as far back as possible from the steering wheel and dashboard (see page 12).

• Seat-backs are upright (see page 13).

• Head restraints are properly adjusted (see page 14).

• All doors and the tailgate are closed and locked (see page 12).
• All cargo is properly stored or secured (see page 148).

The rest of this section gives more detailed information about how you can maximize your safety.

Remember, however, that no safely system can prevent all injuries or deaths that can occur in severe crashes, even when seat belts are properly worn and the airbags deploy.

Protecting Adults

Introduction

The following pages provide instructions on how to properly protect the driver and other adult occupants.

These instructions also apply to children who have outgrown child seats and are large enough to wear lap/shoulder belts. (See page 37 for important additional guidelines on how to properly protect larger children.)

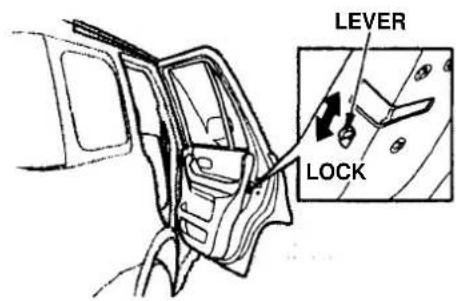

1. Close and Lock the Doors

After everyone has entered the vehicle, be sure the doors and tailgate are closed and locked.

Your vehicle has a tailgate open indicator light on the

instrument panel to indicate when the tailgate is not tightly closed.

For safety, locking the doors reduces the chance that a passenger, especially a child, will open a door while the vehicle is moving and accidentally fall out. It also reduces the chance of someone being thrown out of the vehicle during a crash.

For security, locked doors can prevent an outsider from unexpectedly opening a door when you come to a stop.

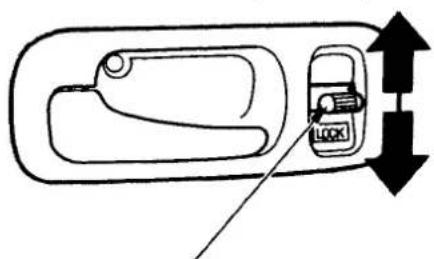

See page 70 for how to lock the doors.

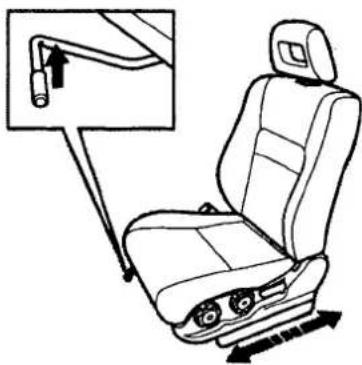

1. Adjust the Front Seats

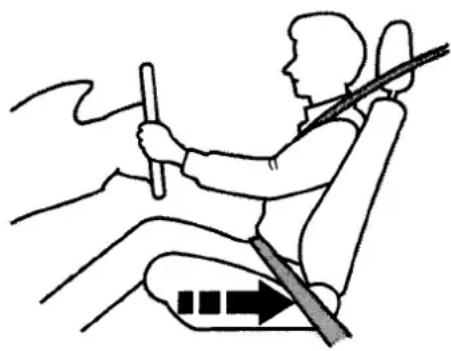

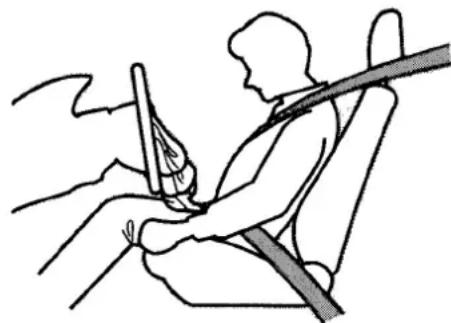

Line drawing of a person seated in a car, holding steering wheel and belt (no text or symbols)

Any driver who sits too close to the steering wheel is at risk of being seriously injured or killed by striking the steering wheel, or from being struck by an inflating airbag during a crash.

To reduce the chance of injury, wear your seat belt properly, sit upright with your back against the seat, and move the seat as far back as possible from the steering wheel while still maintaining full control of the vehicle. Also make sure your front seat passenger moves the seat as far to the rear as possible.

Sitting too close to an airbag can result in serious injury or death if the airbags inflate.

Always sit as far back from the airbags as possible.

Most shorter drivers can get far enough away from the steering wheel and still reach the pedals. However, if you are concerned about sitting too close, we recommend that you investigate whether some type of adaptive equipment may help.

Once your seat is adjusted correctly, rock it back and forth to make sure the seat is locked in position.

See page 77 for how to adjust the front seats.

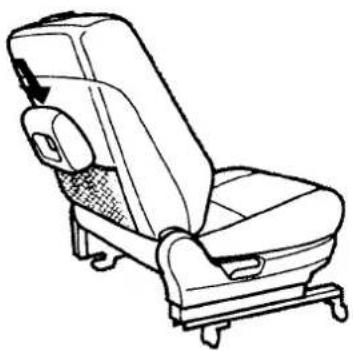

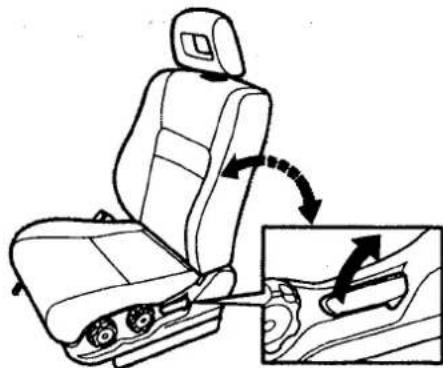

3. Adjust the Seat-Backs

Adjust the driver's seat-back to a comfortable, upright position, leaving ample space between your chest and the airbag cover in the center of the steering wheel. If you sit too close to the steering wheel, you could be injured if the airbag inflates.

Illustration of a person seated in a car seat using a shoulder presser, with motion arrows indicating movement (no text or symbols)

A front passenger should also adjust the seat-back to an upright position, but as far from the dashboard as possible. A passenger who sits too close to the dashboard could be injured if the airbag inflates.

CONTINUED

Reclining a seat-back so that the shoulder part of the belt no longer rests against the occupant's chest reduces the protective capability of the belt. It also increases the chance of sliding under the belt in a crash and being seriously injured. The farther a seat-back is reclined, the greater the risk of injury.

Reclining the seat-back too far can result in serious injury or death in a crash.

Adjust the seat-back to an upright position and sit well back in the seat.

See page 78 for how to adjust seat-backs.

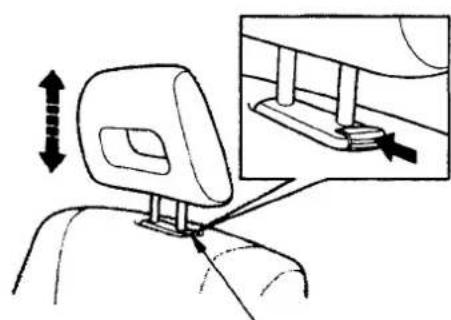

4. Adjust the Head Restraints

Side profile illustration of a person wearing a seatbelt, viewed from the side (no text or symbols)

Before driving, make sure everyone with an adjustable head restraint has properly positioned the head restraint. The restraint should be positioned so the back of the occupant's head rests against the center of the restraint. A taller person should adjust the restraint as high as possible.

Improperly positioning head restraints reduces their effectiveness and you can be seriously injured in a crash.

Make sure head restraints are in place and positioned properly before driving.

Properly adjusted head restraints will help protect occupants from whiplash and other crash injuries.

See page 79 for how to adjust the head restraints.

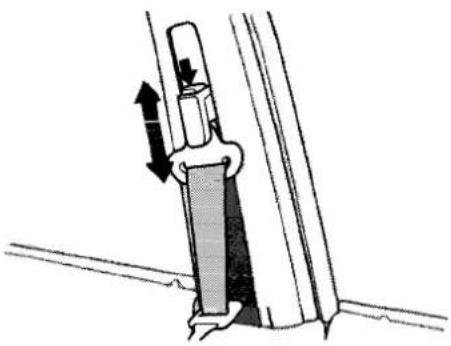

5. Fasten and Position the Seat Belts

Using a Lap/Shoulder Belt

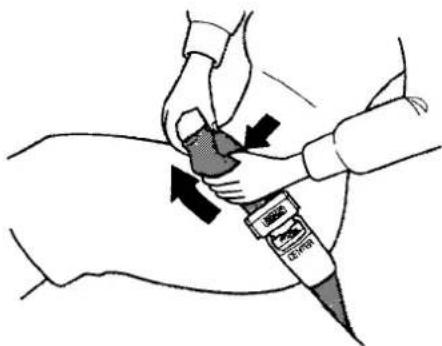

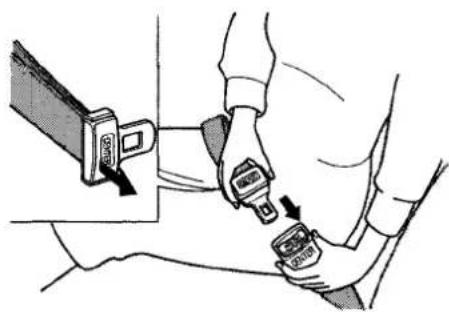

Insert the latch plate into the buckle, then tug on the belt to make sure the belt is securely latched. Also check that the belt is not twisted, because a twisted belt can cause serious injuries in a crash.

Line drawing of a person seated in a car seat, wearing a seatbelt and holding an object (no text or symbols)

Position the lap part of the belt as low as possible across your hips, then pull up on the shoulder part of the belt so the lap part fits snugly. This lets your strong pelvic bones take the force of a crash and reduces the chance of internal injuries.

If necessary, pull up on the belt again to remove any slack from the shoulder part, then check that the belt rests across the center of your chest and over your shoulder. This spreads the forces of a crash over the strongest bones in your upper body.

Improperly positioning the seat belts can cause serious injury or death in a crash.

Make sure all seat belts are properly positioned before driving.

CONTINUED

Protecting Adults

Mechanical assembly diagram showing a lever mechanism with an upward arrow indicating motion (no text or symbols present)

If the seat belt touches or crosses your neck, or if it crosses your arm instead of your shoulder, you need to adjust the seat belt anchor height.

To adjust the height of a front seat belt anchor, press the release button and slide the anchor up or down as needed (it has four positions).

Never place the shoulder portion of a lap/shoulder belt under your arm or behind your back. This could cause very serious injuries in a crash.

Using the Lap Belt

Illustration of a person adjusting a seatbelt with a belt buckle (no text or symbols)

Insert the latch plate into the buckle marked CENTER.

If the belt is too short, hold the latch plate at a right angle and pull on the plate to extend the belt. Then insert the latch plate into the buckle, and tug on the belt to make sure the belt is securely latched.

Protecting Adults

Illustration of a medical procedure showing hand placement and injection step (no text or symbols)

Position the belt as low as possible across your hips. This lets your strong pelvic bones take the force of a crash and reduces the chance of internal injuries.

Pull on the loose end of the belt for a snug but comfortable fit.

If a Seat Belt Doesn't Work Properly If a seat belt does not seem to work as it should, it may not protect the occupant in a crash. No one should sit in a seat with an inoperative seat belt. Anyone using a seat belt that is not working properly can be seriously injured or killed. Have your Honda dealer check the belt as soon as possible.

See page 42 for additional information about your seat belt system and how to take care of your belts.

6. Adjust the Steering Wheel

Line drawing of a person seated in a car seat with a directional arrow indicating motion (no text or symbols)

Adjust the steering wheel, if needed, so that the wheel points toward your chest, not toward your face.

Pointing the steering wheel toward your face decreases the protective capability of the driver's airbag.

See page 64 for how to adjust the steering wheel.

7. Maintain a Proper Sitting Position

After all occupants have adjusted their seats and put on seat belts, it is very important that they continue to sit upright, well back in their seats, with their feet on the floor, until the vehicle is parked and the engine is off.

Sitting improperly can increase the chance of injury during a crash. For example, if an occupant slouches, lies down, turns sideways, sits forward, leans forward or sideways, or puts one or both feet up, the chance of injury during a crash is greatly increased.

In addition, an occupant who is out of position in the front seat can be seriously or fatally injured by striking interior parts of the vehicle, or by being struck by an inflating airbag.

Sitting improperly or out of position can result in serious injury or death in a crash.

Always sit upright, well back in the seat, with your feet on the floor.

Remember, to get the best protection from your vehicle's airbags and other safety features, you must sit properly and wear your seat belt properly.

Advice for Pregnant Women

Illustration of a pregnant woman seated in a car seat, wearing a seatbelt (no text or symbols)

Because protecting the mother is the best way to protect her unborn child, a pregnant woman should always wear a seat belt whenever she drives or rides in a vehicle.

We recommend that pregnant women use a lap/shoulder belt whenever possible. Remember to keep the lap portion of the belt as low as possible across your hips.

Pregnant women should also sit upright and as far back as possible from the steering wheel or dashboard. This will reduce the risk of injuries to both the mother and her unborn child that can be caused by a crash or an inflating airbag.

Each time you have a check-up, ask your doctor if it's okay for you to drive.

Additional Safety Precautions

- Never let passengers ride in the cargo area or on top of a folded-down back seat. All passengers must sit in locked, upright seats and be properly restrained by seat belts.

- Passengers should not stand up or change seats while the vehicle is moving. A passenger who is not wearing a seat belt during a crash or emergency stop can be thrown against the inside of the vehicle,

against other occupants, or out of the vehicle.

- Two people should never use the same seat belt. If they do, they could be very seriously injured in a crash.

- Do not put any accessories on seat belts. Devices intended to improve occupant comfort or reposition the shoulder part of a seat belt, can severely compromise the protective capability of the seat belt and increase the chance of serious injury in a crash.

CONTINUED

Protecting Adults

- Do not place hard or sharp objects between yourself and an airbag.

Carrying hard or sharp objects on your lap, or driving with a pipe or other sharp object in your mouth, can result in injuries if your airbags inflate.

- Keep your hands and arms away from the airbag covers. If your hands or arms are close to the SRS covers in the center of the steering wheel and on top of the dashboard, they could be injured if the airbags inflate.

Line drawing of a child and adult sitting in a car seat, with no text or symbols present.

Children depend on adults to protect them. However, despite their best intentions, many parents and other adults may not know how to properly protect young passengers.

So if you have children, or if you ever need to drive with a grandchild or other children in your vehicle, be sure to read this section.

Children who are unrestrained or improperly restrained can be seriously injured or killed in a crash.

Any child too small for a seat belt should be properly restrained in a child seat. A larger child should be properly restrained with a seat belt.

All Children Must Be Restrained Each year, many children are injured or killed in vehicle crashes because they are either unrestrained or not properly restrained. In fact, vehicle accidents are the number one cause of death of children ages 12 and under.

To reduce the number of child deaths and injuries, every state and Canadian province requires that infants and children be restrained whenever they ride in a vehicle.

Any child who is too small to wear a seat belt should be properly restrained in a child seat. (See page 25.)

A larger child should always be restrained with a seat belt. (See page 37.)

Protecting Children

Children Should Sit in the Back Seat

According to accident statistics, children of all ages and sizes are safer when they are restrained in the back seat, not the front seat. The National Highway Traffic Safety Administration and Transport Canada recommend that all children ages 12 and under be properly restrained in the back seat.

In the back seat, children are less likely to be injured by striking hard interior parts during a collision or hard braking. Also, children cannot be injured by an inflating airbag when they ride in the back.

The Passenger's Airbag Poses Serious Risks to Children

Airbags have been designed to help protect adults in a moderate to severe frontal collision. To do this, the passenger's airbag is quite large, and it inflates with tremendous speed.

Infants

Never put a rear-facing child seat in the front seat of a vehicle equipped with a passenger's airbag. If the airbag inflates, it can hit the back of the child seat with enough force to kill or very seriously injure an infant.

Small Children

Placing a forward-facing child seat in the front seat of a vehicle equipped with a passenger's airbag can be hazardous. If the vehicle seat is too far forward, or the child's head is thrown forward during a collision, an inflating airbag can strike the child with enough force to kill or very seriously injure a small child.

Larger Children

Children who have outgrown child seats are also at risk of being injured or killed by an inflating passenger's airbag. Whenever possible, larger children should sit in the back seat, properly restrained with a seat belt. (See page 37 for important information about protecting larger children.)

U.S. Models

To remind you of the passenger's airbag hazards, and that children must be properly restrained in a back seat, your vehicle has warning labels on the dashboard and on the driver's and front passenger's visors. Please read and follow the instructions on these labels.

WARNING

DEATH or SERIOUS INJURY can occur

• Children 12 and under can be killed by the air bag
• The BACK SEAT is the SAFEST place for children
• NEVER put a rear-facing child seat in the front
- Sit as far back as possible from the air bag
• ALWAYS use SEAT BELTS and CHILD RESTRAINTS

Canadian Models

To remind you of the airbag hazards, your vehicle has warning labels on the driver's and front passenger's visors. Please read and follow the instructions on these labels.

CAUTION

TO AVOID SERIOUS INJURY:

• FOR MAXIMUM SAFETY PROTECTION IN ALL TYPES OF CRASHES, YOU MUST ALWAYS WEAR YOUR SAFETY BELT.
• DO NOT INSTALL REARWARD-FACING CHILD SEATS IN ANY FRONT PASSENGER SEAT POSITION.
  ● DO NOT SIT OR LEAN UNNECESSARILY CLOSE TO THE AIR BAG.
• DO NOT PLACE ANY OBJECTS OVER THE AIR BAG OR BETWEEN THE AIR BAG AND YOURSELF.
• SEE THE OWNER'S MANUAL FOR FURTHER INFORMATION AND EXPLANATIONS.

PRECAUTIONS:

POUR EVITER DES BLESSURES GRAVES:

• POUR PROFITER D'UNE PROTECTION MAXIMALE LORS D'UNE COLLISION BOUCLEZ TOUJOURS VOTRE C EINTURE DE SECURITE.
  • NINSTALLEZ JAMAIS UN SIEGE POUR ENFANTS FAISANT FACE A L'ARRIERE SUR LE SIEGE DU PASSAGER AVANT.
  • NE VOUS APPUYEZ PAS ET NE VOUS ASSOYEZ PAS PRÈS DU COUSSIN GONFLABLE.
• NE DÉPOSEZ AUCUN OBJET SUR LE COUSSIN GONFLABLE OU ENTRE LE COUSSIN GONFLABLE ET VOUS.
  ● LISEZ LE GUIDE UTILISATEUR POUR DE PULS AMPLES RENSEIGNEMENTS.

WARNING

Children Can Be KILLED or INJURED by Passenger Air Bag

The back seat is the safest place for children 12 and under. Make sure all children use seat belts or child seats.

If You Must Drive with Several Children

Your vehicle has three seating positions in the back seat where children can be properly restrained.

If you ever have to carry more than three children in your vehicle:

• Place the largest child in the front seat, provided the child is large enough to wear a seat belt properly (see page 37).
• Move the vehicle seat as far to the rear as possible (see page 12).
• Have the child sit upright and well back in the seat (see page 18).
• Make sure the seat belt is properly positioned and secured (see page 15).

If a Child Requires Close Attention

Many parents say they prefer to put an infant or small child in the front passenger seat so they can watch the child, or because the child requires attention.

Placing a child in the front seat exposes the child to hazards from the airbag, and paying close attention to a child distracts the driver from the important tasks of driving, placing both of you at risk.

If a child requires physical attention or frequent visual contact, we strongly recommend that another adult ride with the child in the back seat. The back seat is far safer for a child than the front.

Additional Safety Precautions

• Use childproof door locks to prevent children from opening the doors. Using this feature will prevent children from opening the doors and accidentally falling out (see page 75).
• Use the mam power window switch to prevent children from opening the rear windows. Using this feature will prevent children from playing with the windows, which could expose them to hazards or distract the driver (see page 84).

- Do not leave children alone in your vehicle. Leaving children without adult supervision is illegal in most states and provinces, and can be very hazardous. For example, infants and small children left in a vehicle on a hot day can the from heatstroke. And children left alone with the key in the ignition can accidentally set the vehicle in motion, possibly injuring themselves or others.

General Guidelines for Using Child Seats

The following pages give general guidelines for selecting and installing child seats for infants and small children.

Selecting a Child Seat

To provide proper protection, a child seat should meet three requirements:

1. The child seat should meet safety standards. The child seat should meet Federal Motor Vehicle Safety Standard 213 (FMVSS 213) or Canadian Motor Vehicle Safety Standard 213 (CMVSS 213). Look for the manufacturer's statement of compliance on the box and seat.

2. The child seat should be of the proper type and size to fit the child.

Line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Infants: Children up to about one year old should be restrained in a rear-facing, reclining child seat. Only a rear-facing seat provides the proper support to protect an infant's head, neck, and back. See page 29 for additional information on protecting infants.

CONTINUED

Protecting Children

Line drawing of a child sitting in a car seat, wearing a seatbelt (no text or symbols)

Small Children: A child who is too large for a rear-facing child seat, and who can sit up without support, should be restrained in a forward-facing child seat. See page 33 for additional information on protecting small children.

1. The child seat should fit the vehicle seating position (or positions) where it will be used.

Due to variations in the design of child seats, vehicle seats, and seat belts, all child seats will not fit all vehicle seating positions.

However, Honda is confident that one or more child seat models can fit and be properly installed in all recommended seating positions in your vehicle.

Before purchasing a child seat, we recommend that parents test the child seat in the specific vehicle seating position (or positions) where they intend to use the seat. If a previously purchased child seat does not fit, you may need to buy a different one that will fit.

Placing a Child Seat

This page briefly summarizes Honda's recommendations on where to place rear-facing and forward-facing child seats in your vehicle.

Airbags Pose Serious Risks to Children

The passenger's airbag inflates with enough force to kill or seriously injure an infant in a rear-facing child seat.

A small child in a forward-facing child seat is also at risk. If the vehicle seat is too far forward, or the child's head is thrown forward during a collision, an inflating airbag can kill or seriously injure the child.

If a small child must ride in the front, follow the instructions provided.

Top-down line drawing of a car interior showing structural components (no text or labels)

Front Passenger's Seat

Infants: Never in the front seat, due to the passenger's airbag hazard.

Small children: Not recommended, due to the passenger's airbag hazard. If a small child must ride in front, move the vehicle seat to the rear-most position and secure a front-facing child seat with the seat belt (see page 34).

Back Seat

Infants: Recommended positions. Secure a rear-facing child seat with the seat belt (see page 30).

Small children: Recommended positions. Secure a front-facing child seat with the seat belt (see page 34).

CONTINUED

Protecting Children

Installing a Child Seat

After selecting a proper child seat, and a good position to install the seat, there are three main steps in installing the seat:

1. Secure the child seat to the vehicle with a seat belt. All child seats must be secured to the vehicle with the lap belt or the lap part of a lap/shoulder belt. A child whose seat is not properly secured to the vehicle can be endangered in a crash. See pages 30 and 32 for instructions on how to secure child seats in this vehicle.

2. Make sure the child seat is firmly secured. After installing a child seat, push and pull the seat forward and from side to side to verify that it is secure.

To provide security during normal driving maneuvers as well as during a collision, we recommend that parents secure a child seat as firmly as possible.

However, a child seat does not need to be "rock solid." In some vehicles or seating positions, it may be difficult to install a child seat so that it does not move at all. Some side-to-side or back-and-forth movement can be expected and should not reduce the child seat's effectiveness.

If the child seat is not secure, try installing it in a different seating position, or use a different style of child seat that can be firmly secured in the desired seating position.

1. Secure the child in the child seat. Make sure the child is properly strapped in the child seat according to the child seat maker's instructions. A child who is not properly secured in a child seat can be thrown out of the seat in a crash and seriously injured.

Storing a Child Seat

When you are not using a child seat, either remove it and store it in a safe place, or make sure it is properly secured. An unsecured child seat can be thrown around the vehicle during a crash or sudden stop and injure someone.

Protecting Infants

Line drawing of a person sitting on a bench holding a tray of food (no text or symbols)

Child Seat Type

Only a rear-facing child seat provides proper support for a baby's head, neck, and back. Infants up to about one year of age must be restrained in a rear-facing child seat.

Two types of seats may be used: a seat designed exclusively for infants, or a convertible seat used in the rear-facing, reclining mode.

Placing a rear-facing child seat in the front seat can result in serious injury or death if the airbags inflate.

Always place a rear-facing child seat in the back seat, not the front.

We recommend that an infant be restrained in a rear-facing child seat until the infant reaches the seat maker's weight or height limit and is able to sit up without support.

Rear-Facing Child Seat Placement In this vehicle, a rear-facing child seat can be placed in any seating position in the back, but not in the front seat.

Never put a rear-facing child seat in the front seat. If the passenger's airbag inflates, it can hit the back of the child seat with enough force to kill or seriously injure an infant. If an infant must be closely watched, we recommend that another adult sit in the back seat with the baby.

Do not put a rear-facing child seat in a forward-facing position. If placed facing forward, an infant could be very seriously injured during a frontal collision.

CONTINUED

Protecting Children

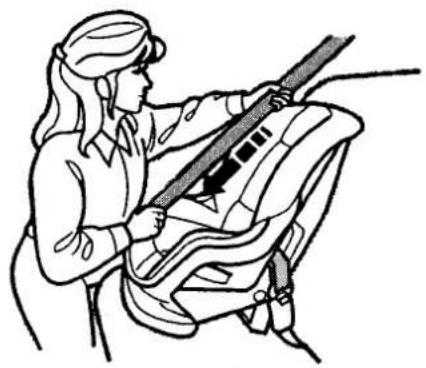

Installing a Rear-Facing Child Seat with a Lap/Shoulder Belt

The lap/shoulder belts in the outer back seats have a locking mechanism that must be activated to secure a child seat.

The following pages provide instructions and tips on how to secure a rear-facing child seat with this type of seat belt.

See page 32 for how to secure a rear-facing child seat in the center back seat with the lap belt.

For tips on installing a rear-facing child seat with either type of seat belt, see page 32.

Line drawing of a person climbing a rope, no text or symbols present

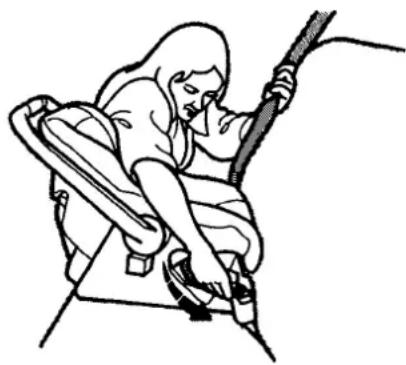

1. With the child seat in the desired back seating position, route the belt through the child seat according to the seat maker's instructions, then insert the latch plate into the buckle.

Line drawing of a person using a cable harness to lift a seat (no text or symbols)

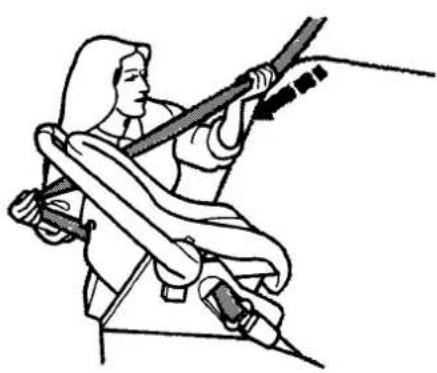

1. To activate the lockable retractor, slowly pull the shoulder part of the belt all the way out until it stops, then let the belt feed back into the retractor (you might hear a clicking noise as the belt retracts).

2. After the belt has retracted, tug on it. If the belt is locked, you will not be able to pull it out. If you can pull the belt out, it is not locked and you will need to repeat these steps.

Illustration of a person using a device to lift a vehicle (no text or symbols present)

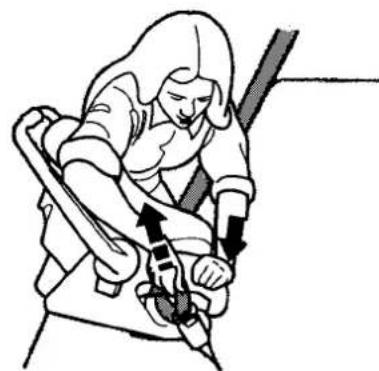

1. After confirming that the belt is locked, grab the shoulder part of the belt near the buckle and pull up to remove any slack from the lap part of the belt. Remember, if the lap part of the belt is not tight, the child seat will not be secure. To remove slack, it may help to put weight on the child seat, or push on the back of the seat, while pulling up on the belt.

Illustration of a person performing a seatbelt exercise with a tool (no text or symbols)

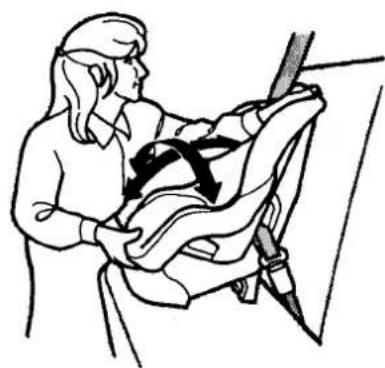

1. Push and pull the child seat forward and from side to side to verify that it is secure enough to stay upright during normal driving maneuvers. If the child seat is not secure, unlatch the belt, allow it to retract fully, then repeat these steps.

To deactivate the locking mechanism and remove a child seat, unlatch the buckle, unroute the seat belt, and let the belt fully retract.

CONTINUED

Protecting Children

Installing a Rear-Facing Child Seat with the Lap Belt

Line drawing of a person using a tool to lift or lift an object, no text or symbols present

To install a rear-facing child seat in the center back seat with the lap belt, follow instruction number 1 on page 30 for routing and latching the seat belt. Then pull hard on the loose end of the belt to remove any slack (it may help to put weight on the child seat while pulling on the belt). Finally, follow instruction number 5 on page 31 to verify that the child seat is secure.

Rear-Facing Child Seat Installation Tips

Line drawing of a car seatbelt mechanism (no text or symbols)

For proper protection, an infant must ride in a reclined, or semi-reclined position. To determine the proper reclining angle, check with the baby's doctor or follow the seat maker's recommendations.

To achieve the desired reclining angle, it may help to put a rolled up towel under the toe of the child seat, as shown.

When properly installed, a rear-facing child seat may prevent the driver or a front-seat passenger from moving the seat as far back as recommended (see page 12). Or it may prevent them from locking the seat-back in the desired upright position (see page 13).

In either case, we recommend that you place the child seat directly behind the front passenger seat, move the front seat as far forward as needed, and leave it unoccupied. Or you may wish to get a smaller child seat that allows you to safely carry a front passenger.

Additional Precautions for Infants

- Never hold an infant on your lap, If you are not wearing a seat belt in a crash, you could be thrown forward into the dashboard and crush the infant.

If you are wearing a seat belt, the infant can be torn from your arms. For example, if your vehicle crashes into a parked vehicle at 30 mph (48 km/h), a 20-lb (9 kg) infant will become a 600-lb (275 kg) force, and you will not be able to hold on.

- Never put a seat belt over yourself and an infant. During a crash, the belt could press deep into the infant and cause very serious injuries.

Protecting Small Children

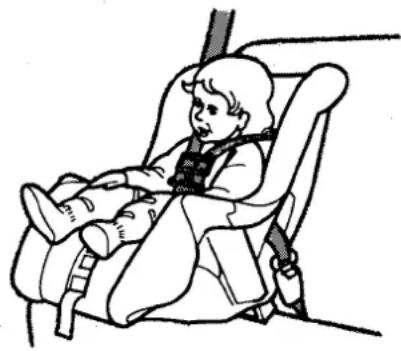

Illustration of a child sitting in a car seat, wearing a seatbelt and holding a device (no text or symbols present)

Child Seat Type

A child who can sit up without support, and who fits within the child seat maker's weight and height limits, should be restrained in a forward-facing, upright child seat.

Of the different seats available, we recommend those that have a five-point harness system as shown.

We also recommend that a small child stay in the child seat as long as possible, until the child reaches the weight or height limit for the seat.

Child Seat Placement

In this vehicle, the best place to install a forward-facing child seat is in one of the seating positions in the back seat.

Placing a forward-facing child seat in the front seat of a vehicle equipped with a passenger's airbag can be hazardous. If the vehicle seat is too far forward, or the child's head is thrown forward during a collision, an inflating passenger's airbag can strike the child with enough force to cause very serious or fatal injuries. If a small child must be closely watched, we recommend that another adult sit in the back seat with the child.

CONTINUED

Protecting Children

Improperly placing a forward-facing child seat in the front seat can result in serious injury or death if the airbags inflate.

If you must place a forward-facing child seat in front, move the vehicle seat as far back as possible and properly restrain the child.

If it is necessary to put a forward-facing child seat in the front, move the vehicle seat as far to the rear as possible, be sure the child seat is firmly secured to the vehicle, and that the child is properly strapped in the seat.

Installing a Child Seat with a Lap/Shoulder Belt

The lap/shoulder belts in the outer back and front passenger seating positions have a locking mechanism that must be activated to secure a child seat.

The following pages provide instructions on how to secure a forward-facing child seat with this type of seat belt.

See page 36 for how to secure a forward-facing child seat in the center back seat with the lap belt.

Illustration of a person using a seatbelt device to lift a vehicle (no text or symbols visible)

1. With the child seat in the desired, back, seating position, route the belt through the child seat according to the seat maker's instructions, then insert the latch plate into the buckle.

Line drawing of a person in uniform holding a rifle, viewed from behind (no text or symbols)

1. To activate the lockable retractor, slowly pull the shoulder part of the belt all the way out until it stops, then let the belt feed back into the retractor (you might hear a clicking noise as the belt retracts).

2. After the belt has retracted, tug on it. If the belt is locked, you will not be able to pull it out. If you can pull the belt out, it is not locked and you will need to repeat these steps.

Illustration of a person using a tool to adjust or install a device, no text or symbols present

1. After confirming that the belt is locked, grab the shoulder part of the belt near the buckle and pull up to remove any slack from the lap part of the belt. Remember, if the lap part of the belt is not tight, the child seat will not be secure. It may help to put weight on the child seat, or push on the back of the seat, while pulling up on the belt.

Illustration of a person using a seatbelt device (no text or symbols visible)

1. Push and pull the child seat forward and from side to side to verify that it is secure enough to stay upright during normal driving maneuvers. If the child seat is not secure, unlatch the belt, allow it to retract fully, then repeat these steps.

CONTINUED

Protecting Children

To deactivate the locking mechanism in order to remove a child seat, unlatch the buckle, unroute the seat belt, and let the belt fully retract.

Installing a Child Seat with the Lap Belt

Illustration of a person adjusting a car seatbelt, no text or symbols present

To install a forward-facing child seat in the center back seat with the lap belt, follow instruction number 1 on page 34 for routing and latching the seat belt. Then pull hard on the loose end of the belt to remove any slack; it may help to put weight on the child seat while pulling on the belt. Finally, follow instruction number 5 on page 35 to verify that the child seat is secure.

Additional Precautions for Small Children

- Never hold a small child on your lap. If you are not wearing a seat belt in a crash, you could be thrown forward into the dashboard and crush the child.

If you are wearing a seat belt, the child can be torn from your arms during a crash. For example, if your vehicle crashes into a parked vehicle at 30 mph (48 km/h), a 30-lb (14 kg) child will become a 900-lb (410 kg) force, and you will not be able to hold on.

- Never put a seat belt over yourself and a child. During a crash, the belt could press deep into the child and cause very serious injuries.

Protecting Larger Children

When a child reaches the recommended weight or height limit for a forward-facing child seat, the child should sit in one of the outer back seats and wear a lap/shoulder belt. A lap/shoulder belt provides better protection than a lap belt.

If a child is too short for the shoulder part of the belt to properly fit, we recommend that the child use a booster seat until they are tall enough to use the seat belt without a booster.

The following pages give instructions on how to check proper seat belt fit, what kind of booster seat to use if one is needed, and important precautions for children who must sit in the front seat.

Allowing a larger child to sit improperly in the front seat can result in injury or death if the airbags inflate.

If a larger child must sit in front, make sure the child moves the seat as far back as possible and wears the seat belt properly.

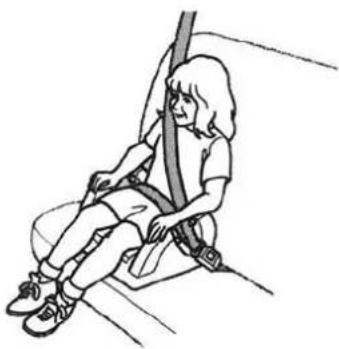

Checking Seat Belt Fit

To determine if a lap/shoulder belt properly fits a child, have the child put on the seat belt. Follow the instructions on page 15. Then check how the belt fits.

CONTINUED

Driver and Passenger Safety

Line drawing of a person sitting on a chair using a seatbelt device (no text or symbols)

If the shoulder part of the belt rests over the child's collarbone and against the center of the chest, as shown, the child is large enough to wear the seat belt.

However, if the belt touches or crosses the child's neck, the child needs to use a booster seat.

Do not let a child wear a seat belt across the neck. This could result in serious neck injuries during a crash.

Do not let a child put the shoulder part of a seat belt behind the back or under the arm. This could cause very serious injuries during a crash. It also increases the chance that the child will slide under the belt in a crash and be injured.

Do not put any accessories on a seat belt. Devices intended to improve occupant comfort or reposition the shoulder part of a seat belt, severely compromise the protective capability of the seat belt and increase the chance of serious injury in a crash.

Two children should never use the same seat belt. If they do, they could be very seriously injured in a crash.

Using a Booster Seat

Line drawing of a person sitting on a chair using a safety harness (no text or symbols)

If a child needs a booster seat, we recommend choosing a style that allows the child to use the lap/shoulder belt directly, without a shield, as shown.

Whichever style you select, follow the booster seat maker's instructions.

A child may continue using a booster seat until the tops of the ears are even with the top of the seat-back. A child of this height should be tall enough to use the lap/shoulder belt without a booster.

When Can a Larger Child Sit in Front The National Highway Traffic Safety Administration and Transport Canada recommend that all children ages 12 and under be properly restrained in a back seat.

The back seat is the safest place for a child of any age or size.

In addition, the passenger's airbag poses serious risks to children. If the seat is too far forward, or the child's head is thrown forward during a collision, or the child is unrestrained or out of position, an inflating airbag can kill or seriously injure the child.

Of course, children vary widely. And while age may be one indicator of when a child can safely ride in the front, there are other important factors you should consider.

Physical Size

Physically, a child must be large enough for the lap/shoulder belt to properly fit over the hips, chest, and shoulder (see pages 15 and 37). If the seat belt does not fit properly, the child should not sit in the front.

Maturity

To safely ride in front, a child must be able to follow the rules, including sitting properly and wearing the seat belt properly throughout a ride.

CONTINUED

If you decide that a child can safely ride up front, be sure to:

• Carefully read the owner's manual and make sure you understand all seat belt instructions and all safety information.
• Move the vehicle seat to the rearmost position.
• Have the child sit up straight, back against the seat, and feet on or near the floor.
• Check that the child's seat belt is properly positioned and secured.
• Supervise the child. Even mature children sometimes need to be reminded to fasten the seat belts or sit properly.

Using Child Seats with Tethers

Line drawing of a car's top-down open hood (no text or symbols)

Your Honda has two attachment points for securing a tether-style child seat to the vehicle.

Since a tether can provide additional security, we recommend using a tether whenever one is required or available. (Tethers are required in Canada. U.S. owners may check with the child seat maker to determine whether a tether is available for a particular child seat.)

Canadian Models

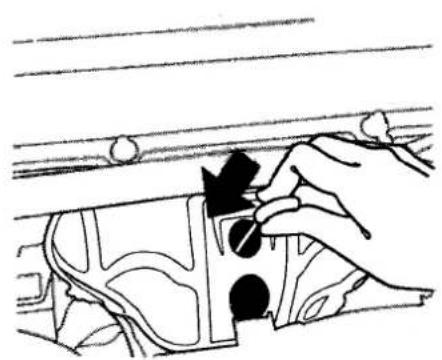

Select the attachment point you want to use and remove the plug with a small flat-tipped screwdriver or metal fingernail file.

U.S. Models

Instructions for accessing the attachment points in your vehicle are available from your Honda dealer.

Install the anchor plate and mounting hardware. The hardware is available for purchase from your Honda dealer (part number 82410-SE3-C01). For Canadian models, the hardware is supplied with the vehicle.

All Models

When installing tether hardware, make sure the toothed washer is on the bottom of the bolt. Tighten the bolt to:

16 lbf.ft (22 N.m, 2.2 kgf.m)

If a torque wrench was not used, see your Honda dealer as soon as possible to verify proper installation.

To attach the tether to the child seat, follow the child seat maker's instructions.

If you are not sure how to install the tether, or you need mounting hardware, contact your Honda dealer.

Seat Belt System Components

Your seat belt system includes lap/shoulder belts in the front seats and the outer back seats, and a lap belt in the center back seat.

The seat belt system also includes a light on the

instrument panel to remind you and your passengers to fasten your belts. If the driver's seat belt is not fastened before the ignition is turned ON (II), the light will come on and a beeper will also sound. The beeper will stop after a few seconds, but the light will stay on until the driver's seat belt is fastened.

Lap/Shoulder Belt

Line drawing of a car seatbelt with adjustable straps and seat (no text or symbols)

This seat belt has a single belt that goes over your shoulder, across your chest and across your hips.

To fasten the belt, insert the latch plate into the buckle, then tug on the belt to make sure the buckle is latched.

To unlock the belt, push the red PRESS button on the buckle. Guide the belt across your body to the door pillar. After exiting the vehicle, be sure the belt is out of the

way and will not get closed in the door.

All lap/shoulder belts have an emergency locking retractor. In normal driving, the retractor lets you move freely in your seat while it keeps some tension on the belt. During a collision or sudden stop, the retractor automatically locks the belt to help restrain your body.

All the lap/shoulder belts except the driver's have an additional locking mechanism that must be activated to secure a child seat. (See pages 30 and 34 for instructions on how to secure child seats with this type of seat belt.)

If the shoulder part of the belt is pulled all the way out, the locking mechanism will activate. The belt will retract, but it will not allow the passenger to move freely.

Additional Information About Your Seat Belts

To deactivate the locking mechanism, unlatch the buckle and let the seat belt fully retract. To refasten the belt, pull it out only as far as needed.

See page 15 for instructions on how to wear the lap/shoulder belt properly.

Lap Belt

The lap belt has one manually-adjusted belt that fits across the hips.

Diagram of a U-shaped cable with attached belt and switch, showing mechanical components (no text or labels)

To fasten the belt, insert the latch plate into the buckle marked CENTER, then tug on the belt to make sure the buckle is latched.

To unlock the belt, push the red PRESS button.

See page 16 for how to lengthen the lap belt, and how to properly position the belt.

Seat Belt Maintenance

For safety, you should check the condition of your seat belts regularly.

Pull each belt out fully and look for frays, cuts, burns, and wear. Check that the latches work smoothly and that the lap/shoulder belts retract easily. Any belt not in good condition or not working properly will not provide good protection and should be replaced as soon as possible.

U.S. Models

Honda provides a lifetime warranty on seat belts. Honda will repair or replace any seat belt component that fails to function properly during normal use. Please see your Honda Warranty Information booklet for details.

CONTINUED

Additional Information About Your Seat Belts

Not checking or maintaining seat belts can result in serious injury or death if the seat belts do not work properly when needed.

Check your seat belts regularly and have any problem corrected as soon as possible.

If a seat belt is worn during a crash, you should have your dealer inspect the belt, and replace it if necessary. A belt that has been worn during a crash may not provide the same level of protection in a subsequent crash. The dealer should also inspect the anchors for damage and replace them if needed.

For information on how to clean your seat belts, see page 246.

SRS Components

Your Supplemental Restraint System (SRS) includes:

• Two front airbags. The driver's airbag is stored in the center of the steering wheel; the front passenger's airbag is stored in the dashboard. Both are marked "SRS AIRBAG."
  • Automatic seat belt tensioners that tighten the front seat belts during a moderate to severe frontal collision.
• Sensors that can detect a moderate to severe frontal collision.

• A sophisticated electronic system that continually monitors the sensors, control unit, the airbag activators, and all related wiring when the ignition is ON (II).

• An indicator light on the instrument panel that alerts you to a possible problem with the system (see page 47).

• Emergency backup power in case your vehicle's electrical system is disconnected in a crash.

How Your Airbags Work

Line drawing of a person seated in a car seat, holding a long object (no text or symbols)

If you ever have a moderate to severe frontal collision, the sensors will detect rapid deceleration and signal the control unit to instantly inflate the airbags and activate the automatic seat belt tensioners.

CONTINUED

During a crash, your seat belt helps restrain your lower body and torso, while the tensioner tightens and locks the seat belt to help keep you in place. Your airbag provides a cushion to help restrain and protect your head and chest.

Since both airbags use the same sensors, both airbags normally inflate at the same time. However, it is possible for only one airbag to inflate.

This can occur when the severity of a collision is at the margin, or threshold, that determines whether or not the airbags will deploy. In such cases, the seat belt will provide sufficient protection, and the supplemental protection offered by the airbag would be minimal.

Line drawing of a person seated in a chair using a seatbelt, no text or symbols present

After inflating, the airbags immediately deflate, so they won't interfere with the driver's visibility, or the ability to steer or operate other controls.

The total time for inflation and deflation is approximately one-tenth of a second, so fast that most occupants are not aware that the airbags deployed until they see them lying in their laps.

After a crash, you may see what looks like smoke. This is actually powder from the airbag's surface. Although the powder is not harmful, people with respiratory problems may experience some temporary discomfort. If this occurs, get out of the car as soon as it is safe to do so.

U.S. Owners

For additional information on how your airbags work, see the booklet titled SRS: What You Need to Know About Airbags that came with your owner's manual.

Canadian Owners

For additional information on how your airbags work, ask your dealer for a copy of the booklet titled SRS: What You Need to Know About Airbags.

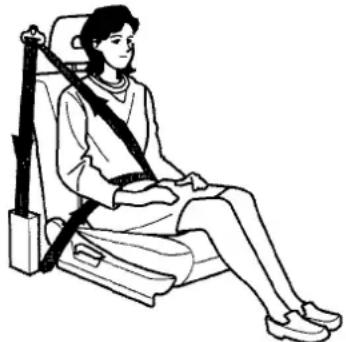

How the Automatic Seat Belt Tensioners Work

Line drawing of a person seated in a seat using a seatbelt device (no text or symbols)

Your Honda has automatic seat belt tensioners for added protection during a moderate to severe frontal collision.

If your airbags inflate, the tensioners immediately tighten the front seat belts to help hold the occupants in place. The belts will remain tight until you unbuckle them in the normal way.

How the SRS Indicator Light Works

SRS The purpose of the SRS light is to alert you to a potential problem with your Supplemental Restraint System.

When you turn the ignition ON (II), this indicator will light up briefly then go out. This tells you that the system is working properly.

However, if the light comes on at any other time, you should have the system checked by your dealer. For example:

• If the SRS indicator light does not come on after you turn the ignition ON (II).
• If the light stays on after the engine starts.

- If the light comes on or flashes on and off while you drive.

If you see any of these indications, your airbags may not deploy or your seat belt tensioners may not work when you need them. See your Honda dealer as soon as possible.

Ignoring the SRS indicator light can result in serious injury or death if the airbags do not inflate when needed.

Have your vehicle checked by a dealer as soon as possible if the SRS light alerts you to a potential problem.

Additional Information About Your SRS

SRS Service

Your Supplemental Restraint System is virtually maintenance-free, and there are no parts you can safely service. However, you must have your vehicle serviced if:

• Your airbags ever inflate. The airbags, seat belt tensioners, and control unit must be replaced. Do not try to remove or replace the airbags yourself. This must be done by a Honda dealer or a knowledgeable body shop.
• The SRS indicator light alerts you to a problem. Take your vehicle to an authorized Honda dealer as soon as possible. If you ignore this indication, the airbags might not inflate when you need them.

Additional Safety Precautions

• Do not attempt to deactivate your airbags. Together, airbags, seat belt tensioners and seat belts provide the best protection in a moderate to severe frontal collision.
• Do not tamper with SRS components or wiring for any reason. Tampering could cause the airbags to deploy, possibly causing very serious injury.

See page 147 for further information and precautions relating to your SRS.

Your vehicle's exhaust contains carbon monoxide gas. You should have no problem with carbon monoxide entering the vehicle in normal driving if you maintain your vehicle properly.

Have the exhaust system inspected for leaks whenever:

• The vehicle is raised for an oil change.
• You notice a change in the sound of the exhaust.
  • The vehicle was in an accident that may have damaged the underside.

Carbon monoxide gas is toxic. Breathing it can cause unconsciousness and even kill you.

Avoid any enclosed areas or activities that expose you to carbon monoxide.

High levels of carbon monoxide can collect rapidly in enclosed areas, such as a garage. Do not run the engine with the garage door closed. Even with the door open, run the engine only long enough to move the vehicle out of the garage.

With the tailgate open, air flow can pull exhaust gas into your vehicle's interior and create a hazardous condition. If you must drive with the tailgate open, open all the windows and set the heating and cooling system as shown below.

If you must sit in your parked vehicle, even in an unconfined area, with the engine running, adjust the heating and cooling system as follows:

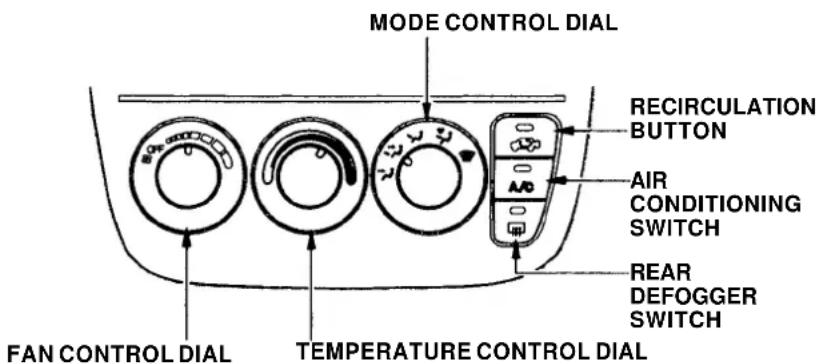

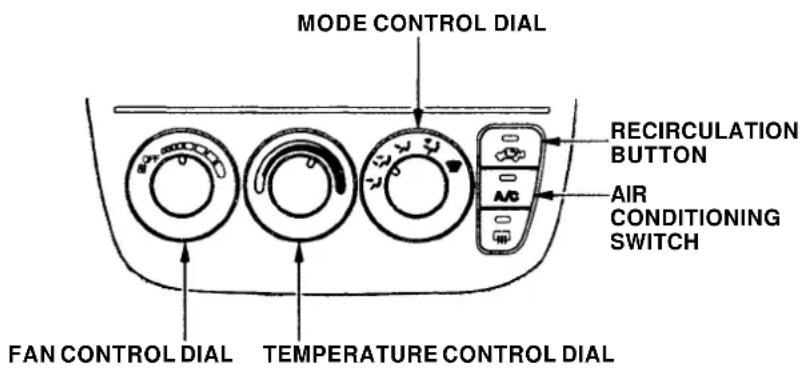

1. Select the Fresh Air mode.
2. Select the → mode.
3. Turn the fan on high speed.
4. Set the temperature control to a comfortable setting.

Safety Labels

These labels are in the locations shown. They warn you of potential hazards that could cause serious injury. Read these labels carefully.

If a label comes off or becomes hard to read, contact your Honda dealer for a replacement.

HOOD

U.S. models

▲WARNING

The airbag inflator is explosive and, if accidentally deployed, can seriously hurt you. Follow Service Manual Instructions carefully.

Canadian models

AWARNING

The airbag inflator is explosive and, if accidentally deployed, can seriously hurt you. Follow Service Manual Instructions carefully.

ATTENTION

Children Can Be KILLED or INJURED by Passenger Air Bag

The back seat is the safest place for children 12 and under. Make sure all children use seat belts or child seats.

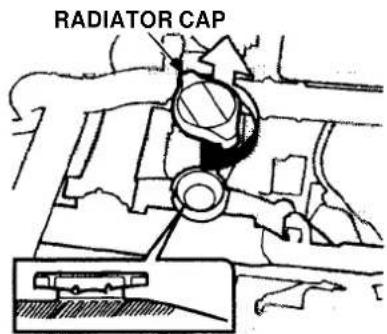

RADIATOR CAP DANGER WARNING 危 除 ▶ NEVER OPEN WHEN NOT. Not comfort will scell you. ▶ N OPTHEZ PAS QUAD CHARD. ▶ MORT DES REQUED MOTOR OFFICE. ▶ 高温时请勿打开。 1.1

SUN VISOR

U.S. models

⚠ WARNING

DEATH or SERIOUS INJURY can occur

• Children 12 and under can be killed by the air bag

• The BACK SEAT is the SAFEST place for children

- NEVER put a rear-facing child seat in the front. - Get up for back on possible from the air box.

- ALWAYS use SEAT BELTS and CHILD RESTRAINTS

Canadian models

CAUTION TO AVOID SERIOUS INJURY • FOR MAXIMAL SAFETY PROTECTION IN ALL TYPES OF CRASHES, YOU MUST ALWAYS VEGET YOUR SAFETY BELT • DO NOT INSTALL REPAWARD-FACING CHILD SEATS ON ANY FRONT PASSENGER SEAT POSITION • DO NOT HIT OR LEAN UNNECESSABLE Y CLOSE TO THE AIR BAG. • DO NOT PLACE ANY OBJECTS OVER THE AIR BAG OR BETWEEN THE AIR BAG. AND YOURSELF • BIGS THE DIMPLES MANUAL FOR FURTHER INFORMATION AND EXPLANATIONS

PRÉCAUTIONS: POUR EVITER DES BLESSURES GRAVES - POUR PROPRIET BUMT PROTECTION MAXIMALL LÔNIS D'UNE COLLISION BOUCLIZE TOUOURS VOTRE GONTLE DE SECURITE - PINSTALLEZ JAMAG UN SIÈGE POUR ENFANTÉ FAAGANT FACE A L'ARPRENE SUR LE SIÈGE DU PASSAGIER AVANT - NE VOUS APPUYEZ PAS ET NE VOUS ASSEY PAS PRÉS DU COURSEIN GONFLABLE - NE DEPOSEZ AUCUN OBET SUR LE COURSEIN GONFLABLE DU ENTRE LE COURSEIN GONFLABLE ET VOUS - LEZZE DE GUARD LITRAISELIE POUR DE PLUS APPLÉS RENSEIGNEMENTS.

SUN VISOR

U.S. models

WARNING: HIGHER ROLLOVER RISK

Avoid Abrupt Maneuvers and Excessive Speed.

Always Buckle Up.

See Owner's Manual For Further Information.

Instruments and Controls

This section gives information about the controls and displays that contribute to the daily operation of your Honda. All the essential controls are within easy reach.

Control Locations....52

Indicator Lights.... 53

Gauges....56

Speedometer....56

Tachometer....56

Odometer 56

Trip Meter 56

Fuel Gauge....57

Temperature Gauge.... 57

Maintenance Required Indicator....58

Controls Near the Steering Wheel....59

Headlights....60

Daytime Running Lights...... 60

Instrument Panel Brightness..... 61

Turn Signals.... 61

Windshield Wipers...... 62

Windshield Washers....62

Rear Window Wiper and Washer....63

Hazard Warning......63

Rear Window Defogger...... 63

Steering Wheel Adjustment...... 64

Steering Wheel Controls...... 66

Cruise Control.... 66

Keys and Locks.... 69

Keys.... 69

Ignition Switch......69

Door Locks.... 70

Power Door Locks.... 71

Remote Transmitter.... 72

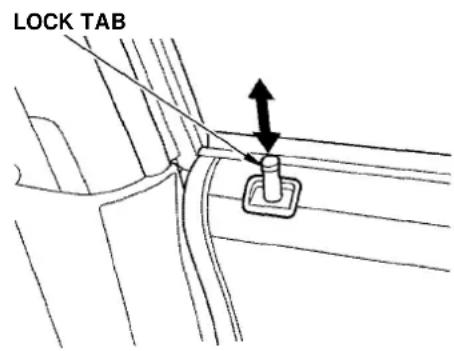

Childproof Door Locks...... 75

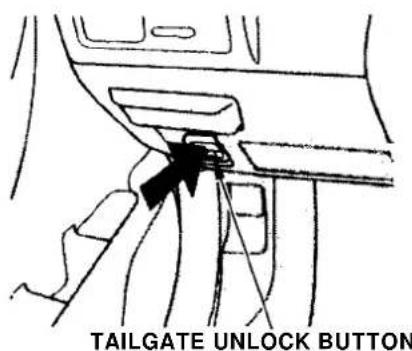

Tailgate.... 75

Glove Box.... 77

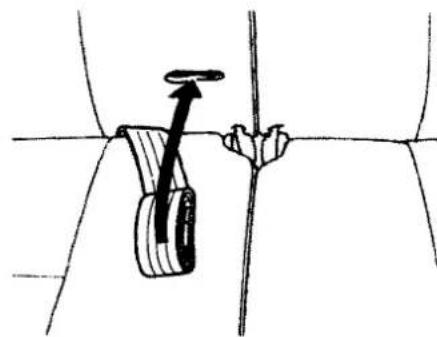

Seats......77

Front Seat Adjustments...... 77

Driver's Seat Height Adjustment....78

Head Restraints....79

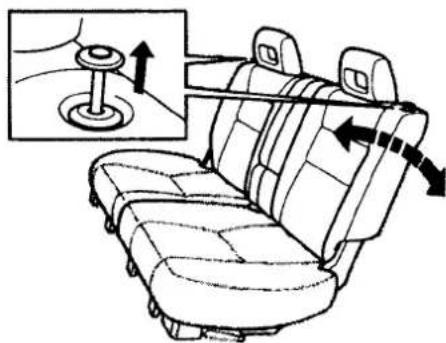

Rear Seat-back Adjustment...... 80

Rear Seat Armrest...... 80

Reclining the Front and Rear Seat-backs.... 81

Folding Rear Seat.... 82

Power Windows....84

Mirrors 85

Adjusting the Power Mirrors..... 86

Parking Brake....86

Digital Clock......87

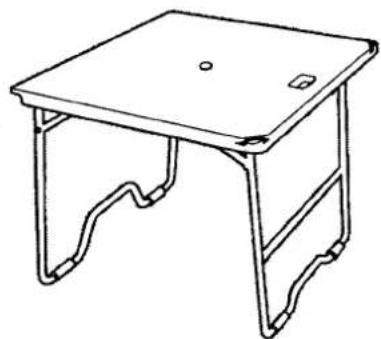

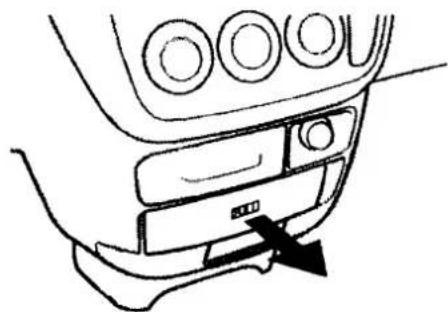

Center Table.... 87

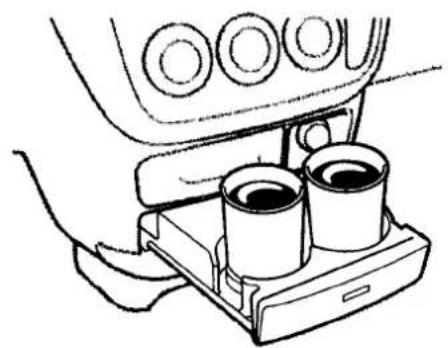

Beverage Holder...... 88

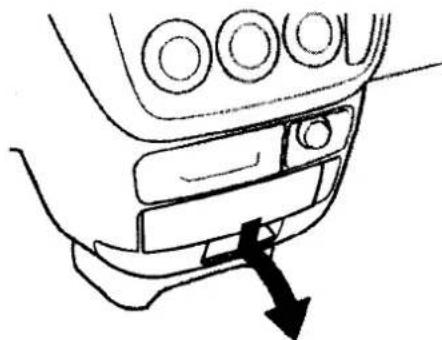

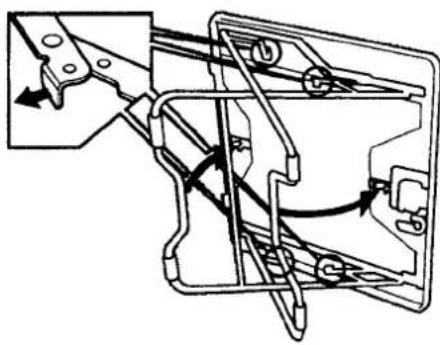

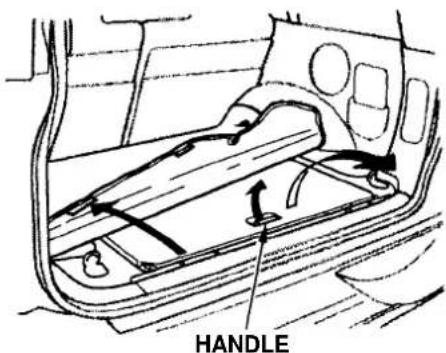

Built-in Table....89

Center Pocket....91

Storage Box....91

Cargo Floor Pockets.... 92

Accessory Power Socket.... 92

Tailgate Pocket....93

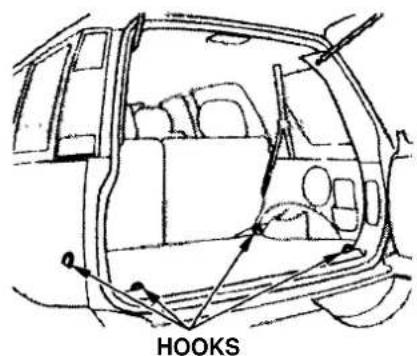

Cargo Hooks.... 93

Ashtrays....94

Interior Lights.... 94

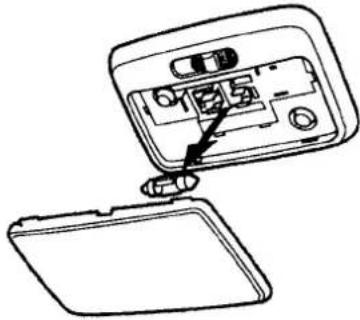

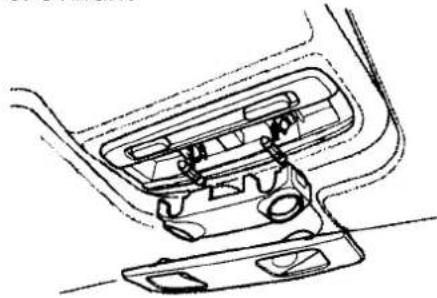

Ceiling Light....94

Spotlights....95

Cargo Area Light....95

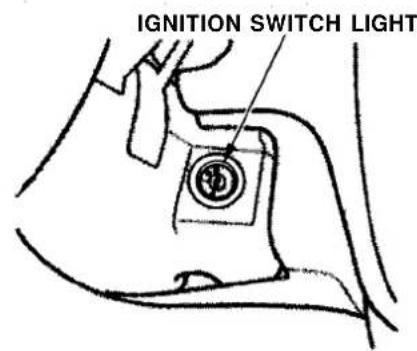

Ignition Switch Light...... 95

Control Locations

POWER WINDOW SWITCHES (P.84) MIRROR CONTROLS (P.86) AUDIO SYSTEM (P.106) TAILGATE RELEASE (P.75) HOOD RELEASE HANDLE (P.142) FUEL FILL DOOR RELEASE (P.141) HEATING/COOLING CONTROL (P.98)

The instrument panel has many indicators to give you important information about your vehicle.

* The U.S. instrument panel is shown. Differences for Canadian models are noted in the text.

HIGH BEAM INDICATOR CHARGING SYSTEM INDICATOR LOW OIL PRESSURE INDICATOR TAILGATE-OPEN INDICATOR SEAT BELT REMINDER LIGHT LOW FUEL INDICATOR SUPPLEMENTAL RESTRAINT SYSTEM INDICATOR CRUISE CONTROL INDICATOR ANTI-LOCK BRAKE SYSTEM INDICATOR* MALFUNCTION INDICATOR LAMP PARKING BRAKE AND BRAKE SYSTEM INDICATOR*

Instruments and Controls

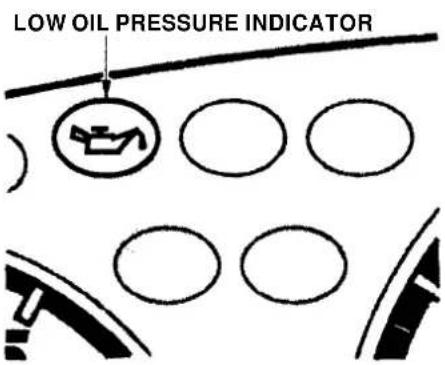

Low Oil Pressure Indicator

The engine can be severely damaged if this light flashes or stays on when the engine is running. For complete information, see page 264.

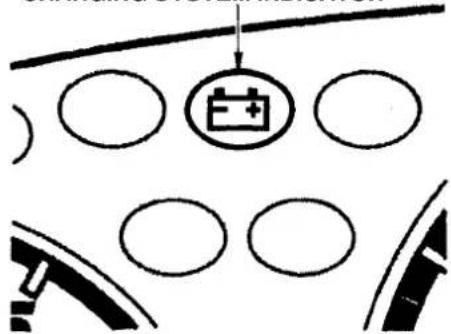

Charging System Indicator

If this light comes on when the engine is running, the battery is not being charged. For complete information, see page 265.

Malfunction Indicator Lamp

See page 266.

U.S. Canada Parkin g Brake and BRAKE ( ^① ) Brake System Indicator

This light has two functions:

1. It lights as a reminder that you have not released the parking brake. Driving with the parking brake applied can damage the brakes and tires, and cause the Anti-lock brake system to turn off (see page 167).

2. If it remains lit after you release the parking brake while the engine is running, or comes on while driving, it can indicate a problem in the brake system. For complete information, see page 267.

SRS Supplemental Restraint System Indicator

This indicator lights when you turn the ignition switch ON (II). If it comes on at any other time, it indicates a problem in the supplemental restraint system. For complete information, see page 47.

Seat Belt Reminder Light

This indicator lights when you turn the ignition switch ON (II). It is a reminder to you and your passengers to protect yourselves by fastening the seat belts. A beeper also sounds if you have not fastened your seat belt.

If you do not fasten your seat belt, the beeper will stop after a few seconds but the light stays on until you do. Both the light and the beeper stay off if you fasten your seat belt before turning on the ignition.

U.S.

Canada

Anti-lock Brake System (ABS) Indicator

Only on models equipped with ABS (see page 165)

This light normally comes on when you turn the ignition switch ON (II) and goes off after the engine starts. If it comes on at any other time, there is a problem in the ABS. If this happens, take the vehicle to your dealer to have it checked. With the light on, your vehicle still has normal braking ability but no anti-lock.

Low Fuel Indicator

This light comes on as a reminder that you must refuel soon.

High Beam Indicator

This light comes on with the high beam headlights. See page 60 for information on the headlight controls.

On Canadian models, this indicator comes on with reduced brightness when the Daytime Running Lights (DRL) are on (see page 60).

Cruise Control Indicator

This lights when you set the cruise control. See page 66 for information on operating the cruise control.

Tailgate-open Indicator

This light comes on if the tailgate is not closed tightly.

Turn Signal and Hazard Warning Indicators

The left or right turn signal light blinks when you signal a lane change or turn. If the light does not blink or blinks rapidly, it usually means one of the turn signal bulbs is burned out (see page 233). Replace the bulb as soon as possible, since other drivers cannot see that you are signalling.

When you turn on the Hazard Warning switch, both turn signal lights blink. All turn signals on the outside of the vehicle should flash.

Gauges

TACHOMETER TRIP METER SPEEDOMETER FUEL GAUGE 100 80 40 100 20 40 150 200 120 mph MAINTENANCE REQUIRED ODOMETER MAINTENANCE REQUIRED INDICATOR TRIP METER RESET BUTTON TEMPERATURE GAUGE

Speedometer

U.S.Models

This shows your speed in miles per hour (mph). The smaller inner numbers are the speed in kilometers per hour (km/h).

Canadian Models

This shows your speed in kilometers per hour (km/h). The smaller inner numbers are the speed in miles per hour (mph).

Tachometer

The tachometer shows the engine speed in revolutions per minute (rpm). To protect the engine from damage, never drive with the tachometer needle in the red zone.

Odometer

The odometer shows the total distance your vehicle has been driven. It measures miles in U.S. models and kilometers in Canadian models. It is illegal under U.S. federal law and Canadian provincial regulations to disconnect, reset, or alter the odometer with the intent to change the number of miles or kilometers indicated.

Trip Meter

This meter shows the number of miles (U.S.) or kilometers (Canada) driven since you last reset it. To reset it, push the trip meter reset button.

TACHOMETER TRIP METER SPEEDOMETER FUEL GAUGE 100° 30 80 40 60 20 150 200 120 mph MAINTENANCE REQUIRED ODOMETER TRIP METER RESET BUTTON TEMPERATURE GAUGE

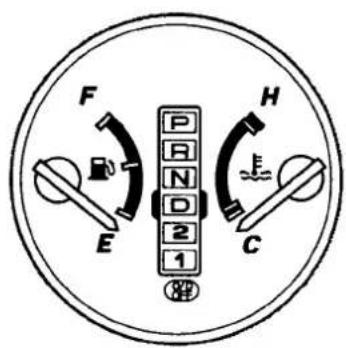

Fuel Gauge

This shows how much fuel you have. It is most accurate when the vehicle is on level ground. It may show slightly more or less than the actual amount when you are driving on curvy or hilly roads.

The gauge stays at the same fuel level reading after you turn off the ignition. When you add fuel, the gauge slowly changes to the new reading after you turn the ignition switch back ON (II).

Temperature Gauge

This shows the temperature of the engine's coolant. During normal operation, the pointer should rise from the bottom white mark to about the middle of the gauge. In severe driving conditions, such as very hot weather or a long period of uphill driving, the pointer may rise to the upper white zone. If it reaches the red (Hot) mark, pull safely to the side of the road. Turn to page 262 for instructions and precautions on checking the engine's cooling system.

Gauges

Maintenance Required Indicator

SLOT INDICATOR

This indicator reminds you that it is nearing 7,500 miles (12,000 km) since the last scheduled maintenance. Refer to the Maintenance Schedules for Normal and Severe Driving Conditions on pages 188—192.

When the distance driven since the last scheduled maintenance nears 7,500 miles (12,000 km), the indicator will turn yellow. If you exceed 7,500 miles (12,000 km), the indicator will turn red.

Your dealer will reset the indicator when he performs the scheduled maintenance. If someone else performs the maintenance, reset the indicator by inserting your key in the slot beside the indicator.

Controls Near the Steering Wheel

The two levers on the steering column contain controls for driving features you use most often. The left lever controls the turn signals, headlights, and high beams. The right lever controls the windshield washers and wipers.

The hazard warning switch is on the dashboard between the center air vents.

The controls near the left air vent are for the power windows and power mirrors.

The tilt adjustment lever on the underside of the steering column allows you to tilt the steering wheel.

HEADLIGHTS/TURN SIGNALS (P.60) MIRROR CONTROLS (P.86) SHIFT LEVER (P.158) HAZARD WARNING LIGHTS (P.63) WINDSHIELD WIPERS/ WASHERS (P.62) HORN BUTTONS POWER WINDOW SWITCHES (P.84) TILT ADJUSTMENT (P.64)

Instruments and Controls

Controls Near the Steering Wheel

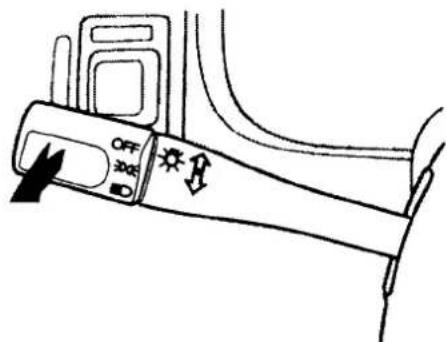

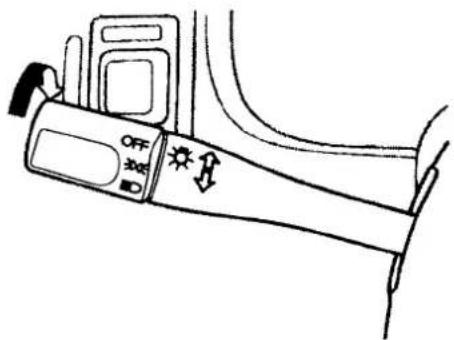

Headlights

OFF OFF

The rotating switch on the left lever controls the lights. Turning this switch to the “ ” position turns on the parking lights, taillights, instrument panel lights, side-marker lights, and rear license plate lights. Turning the switch to the “ ” position turns on the headlights.

If you leave the lights on with the ignition switch in ACCESSORY (I) or LOCK (0), you will hear a reminder beeper when you open the driver's door.

OFF 300s ISO

To change between low beams and high beams, pull the turn signal lever until you hear a click, then let go. The blue high beam indicator will light (see page 55).

To flash the high beams, pull the turn signal lever back lightly, then release it. The high beams will come on and go off.

The high beams will stay on for as long as you hold the lever back, no matter what position the headlight switch is in.

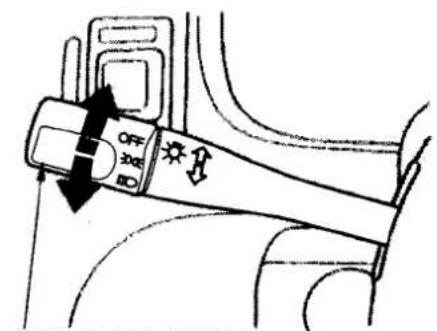

Daytime Running Lights (Canadian Models)

With the headlight switch off, the high beam headlights come on with reduced brightness when you turn the ignition switch to ON (II) and release the parking brake. They remain on until you turn the ignition off, even if you set the parking brake.

The headlights revert to normal operation when you turn them on with the switch.

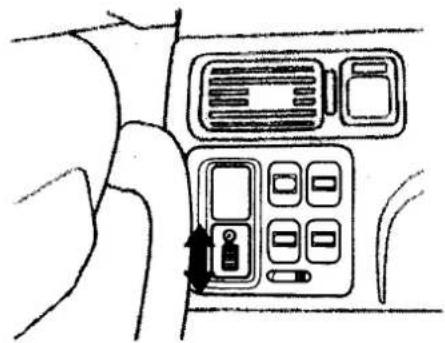

Instrument Panel Brightness

Line drawing of a hand holding a control panel with a directional arrow (no text or symbols)

The dial on the dashboard to the left of the instrument panel controls the brightness of the instrument panel lights. Turn the dial to adjust the brightness.

Turn Signals

OFF 300 BIO

TURN SIGNAL LEVER

Signal a turn or lane change with this lever. Push down on the lever to signal a left turn, and up to signal a right turn. If you push it up or down all the way, the turn signal continues to blink even when you release the lever. It shuts off automatically as you complete the turn.

To signal a lane change, push lightly on the turn signal lever in the proper direction and hold it. The lever will return to the center position as soon as you release it.

Controls Near the Steering Wheel

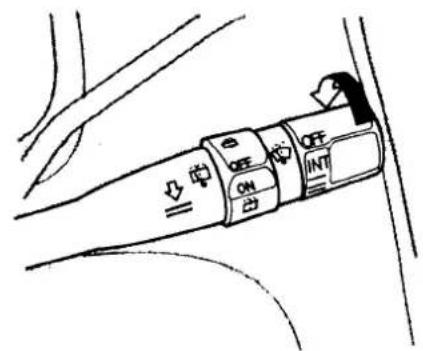

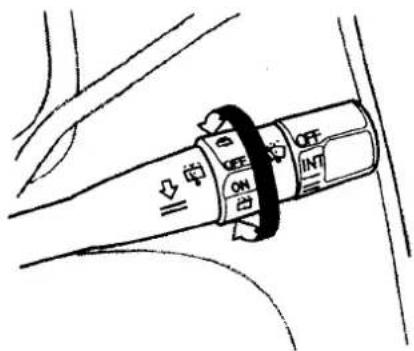

Windshield Wipers

OFF ON OFF INT

The right lever controls the wind-shield wipers and washers. The rotary switch at the end of the lever has three positions:

INT: intermittent
—: low speed
=: high speed

In intermittent, the wipers operate every few seconds. In low speed and high speed, the wipers run continuously.

Diagram of a car's control valve with directional arrows and labels

To operate the wipers in mist mode, push the control lever down. The wipers run at high speed until you release the lever. This gives you a quick way to clear the windshield.

Windshield Washers

Diagram of a car control switch with labeled buttons including ON, OFF, and INT

To clean the windshield, pull back on the wiper control lever. The washers spray until you release the lever.

The wipers run at low speed while you're pulling the lever, then complete one more sweep of the windshield after you release it.

Rear Window Wiper and Washer

Technical diagram of a mechanical component with labeled parts and directional arrows indicating motion or force

The rear window wiper switch is located next to the windshield wiper switch.

To activate the rear windshield wiper, turn the switch "ON". The wiper operates intermittently. If you wish to use the wiper and washer, turn and hold the switch one position up from "ON". To use the washer only, turn and hold the switch one position down from "OFF".

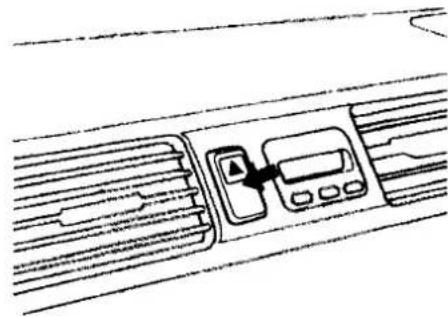

Hazard Warning

Line drawing of a car air intake system with control panel and directional arrow (no text or symbols)

Push the red button between the center air vents to turn on the hazard warning lights (four-way flashers). This causes all four outside turn signals and both indicators in the instrument panel to flash. Use the hazard warning lights if you need to park in a dangerous area near heavy traffic, or if your vehicle is disabled.

Rear Window Defogger

Line drawing of a car dashboard with control panel and directional arrow (no text or symbols)

The rear window defogger will clear fog, frost, and thin ice from the window. Push the defogger button to turn it on and off. The light in the button lights to show the defogger is on. If you do not turn it off, the defogger will shut itself off after about 25 minutes. It also shuts off when you turn off the ignition. You have to turn it on again when you restart the vehicle.

CONTINUED

Controls Near the Steering Wheel

Make sure the rear window is clear and you have good visibility before starting to drive.

The defogger wires on the inside of the rear window can be accidentally damaged. When cleaning the glass, always wipe side to side.

Steering Wheel Adjustment

See page 18 for important safety information about how to properly position the steering wheel. Make any steering wheel adjustment before you start driving.

Adjusting the steering wheel position while driving may cause you to lose control of the vehicle and be seriously injured in a crash.

Adjust the steering wheel only when the vehicle is stopped.

Controls Near the Steering Wheel

Diagram of a car steering wheel and dashboard with directional arrows indicating motion (no text or symbols)

To adjust the steering wheel upward or downward:

1. Push the lever under the steering column all the way down.

2. Move the steering wheel to the desired position, making sure the wheel points toward your chest, not toward your face. Make sure you can see the instrument panel gauges and the indicator lights.

3. Push the lever up to lock the steering wheel in that position.

4. Make sure you have securely locked the steering wheel in place by trying to move it up and down.

Steering Wheel Controls

Cruise Control

Cruise control allows you to maintain a set speed above 25 mph (40 km/h) without keeping your foot on the accelerator pedal. It should be used for cruising on straight, open highways. It is not recommended for conditions such as city driving, winding roads, slippery roads, heavy rain, or bad weather. You should have full control of the vehicle under those conditions.

Improper use of the cruise control can lead to a crash.

Use the cruise control only when traveling on open highways in good weather.

NOTICE

The cruise control, as it operates, moves the accelerator pedal. You can damage your vehicle's accelerator mechanism by resting your foot under the pedal and blocking the movement.

Using the Cruise Control

Diagram of a car interior showing a control panel with an arrow pointing to the next control panel labeled 'Control'.

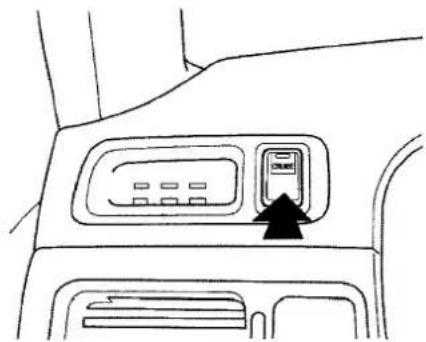

1. Push in the Cruise Control Master Switch to the left of the steering column. The indicator in the switch will light.

2. Accelerate to the desired cruising speed above 25 mph (40 km/h).

RESET accel SET/decel

1. Press the SET/decel button on the steering wheel. The CRUISE CONTROL light on the instrument panel comes on to show the system is now activated.

The cruise control may not hold the set speed when you are going up and down hills. If your speed increases going down a hill, use the brakes to slow down to the desired speed. This will cancel the

cruise control. To resume the set speed, press the RESUME/accel button. The CRUISE CONTROL light on the instrument panel comes on.

When climbing a steep hill, the automatic transmission may downshift to hold the set speed.

Changing the Set Speed

You can increase the set cruising speed in any of these ways:

• Press and hold the RESUME/accel button. The car will accelerate. When you reach the desired cruising speed, release the button.
• Push on the accelerator pedal. Accelerate to the desired cruising speed and press the SET/decel button.
• To increase your speed in very small amounts, tap the RESUME/

accel button repeatedly. Each time you do this, your vehicle will speed up about 1 mph (1.6 km/h).

You can decrease the set cruising speed in any of these ways:

• Press and hold the SET/decel button. The vehicle will decelerate. Release the button when you reach the desired speed.

- To slow down in very small amounts, tap the SET/decel button repeatedly. Each time you do this, your vehicle will slow down about 1 mph (1.6 km/h).

- Tap the brake pedal lightly with your foot. The CRUISE CONTROL light on the instrument panel will go out. When the vehicle slows to the desired speed, press the SET/decel button. The vehicle will then maintain the desired speed. CONTINUED

Even with the cruise control turned on, you can still use the accelerator pedal to speed up for passing. After completing the pass, take your foot off the accelerator pedal. The vehicle will return to the set cruising speed.

Resting your foot on the brake pedal will cause the cruise control to cancel.

Cancelling the Cruise Control You can cancel the cruise control in any of these ways:

• Tap the brake pedal.
• Press the SET/decel and RE-SUME/accel buttons at the same time.
• Press the Cruise Control Master Switch.

When you tap the brake or clutch pedal, or press the SET and RE-SUME buttons at the same time, the CRUISE CONTROL light on the instrument panel will go out and the vehicle will begin to slow down. You can use the accelerator pedal in the normal way.

The system remembers the previously-set cruising speed. To return to that speed, accelerate to above 25 mph (40 km/h) and press

the RESUME/accel button until the CRUISE CONTROL light comes on. The vehicle will accelerate to the same cruising speed as before.

Pressing the Cruise Control Master Switch turns the system completely off and erases the previous cruising speed from memory. To use the system again, refer to Using the Cruise Control

Keys

MASTER KEYS VALET KEY KOEDA KEY NUMBER PLATE

Your vehicle comes with two master keys and a valet key.

The master key fits all the locks on your vehicle:

• Ignition
• Doors
• Glove box
• Tailgate

The valet key works only in the ignition and the door locks. You can keep the glove box locked when you leave your vehicle and valet key at a parking facility.

You should have received a key number plate with your set of keys. You will need this key number if you ever have to get a lost key replaced. Keep the plate stored in a safe place.

When replacing keys, use only Honda-approved key blanks.

Remote Transmitter

Some models also come with two remote transmitters; see page 72 for an explanation of their operation.

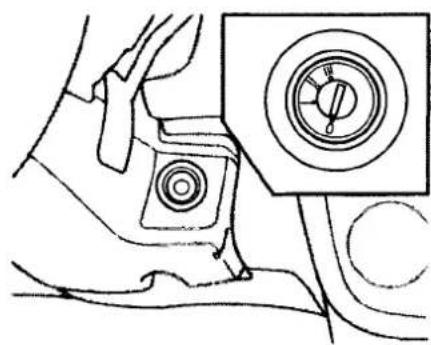

Ignition Switch

Line drawing of a mechanical component with a circular dial and rectangular housing (no text or symbols)

The ignition switch is on the right side of the steering column. It has four positions:

• LOCK (0)
• ACCESSORY (I)
  • ON (II)
• START (III)

CONTINUED

LOCK (0) — You can insert or remove the key only in this position. To switch from ACCESSORY to LOCK, you must push the key in slightly as you turn it. If your vehicle has an automatic transmission, it must also be in Park. The anti-theft lock will lock the steering column when you remove the key. If the front wheels are turned, the anti-theft lock may sometimes make it difficult to turn the key from LOCK to ACCESSORY. Firmly turn the steering wheel to the left or to the right as you turn the key.

Removing the key from the ignition switch while driving locks the steering. This can cause you to lose control.

Remove the key from the ignition switch only when parked.

ACCESSORY (I) — In this position, you can operate the audio system and the accessory power socket.

ON (II) — This is the normal key position when driving. All features and accessories on the vehicle are usable. Several of the lights on the instrument panel come on as a test when you turn the ignition switch from ACCESSORY to ON.

START (III) — Use this position only to start the engine. The switch returns to ON (II) when you let go of the key.

You will hear a reminder beeper if you leave the key in the ignition switch in the LOCK (0) or ACCESSORY (1) position and open the driver's door. Remove the key to turn off the beeper.

Door Locks

LOCK TAB

Each door has a lock tab on the top. Push the tab down to lock the door and pull it up to unlock.

To lock any passenger's door when getting out of the vehicle, push the lock tab down and close the door. To lock the driver's door, pull the outside door handle and push the lock tab down. Release the handle, then close the door.

Simple line drawing of a car door handle with a curved arrow indicating rotation (no text or symbols)

The front doors can be locked and unlocked from the outside with the key.

Power Door Locks

Diagram of a car door handle with a lock and directional arrows indicating movement (no text or symbols)

MASTER DOOR LOCK SWITCH
The master door lock switch allows control of all door locks from the driver's door. Push the switch down to lock all doors, and up to unlock them.

All doors lock when you push down the lock tab on the driver's door, or lock the driver's door from the outside with the key. Only the driver's door unlocks when you use the key or lock tab. To unlock the passengers' doors, use the master door lock switch or the lock tab on each door.

Remote Transmitter

LED LOCK BUTTON TAILGATE RELEASE BUTTON HONDA PANIC UNLOCK BUTTON PANIC BUTTON

On EX model

You can lock and unlock your vehicle with the remote transmitter. When you push the LOCK button, all doors lock.

When you push the UNLOCK button once, only the driver's door unlocks. The remaining doors unlock when you push the button a second time.

The ceiling light (if the ceiling light switch is in the center position) will come on when you press the UNLOCK button. If you do not open any of the doors, the light will go out in about 30 seconds and the doors will automatically relock. If you relock the doors with the remote transmitter before 30 seconds have elapsed, the light will go off immediately.

You cannot lock or unlock the doors with the remote transmitter if any door is not fully closed or the key is in the ignition switch.

To open the tailgate, push and hold the TAILGATE RELEASE button for approximately one second.

Horn Operation

The horn will sound when you push the LOCK button twice within five seconds after first push.

Panic Mode

Panic mode allows you to remotely activate your vehicle's security system to attract attention. When activated, the horn will sound for about 30 seconds. To activate panic mode, press and hold the PANIC button for about one second.

To cancel Panic mode before 30 seconds, press any button on the remote transmitter. You can also turn the ignition switch to ON (II).

Panic mode will not activate if the key is in the ignition switch.

Replacing the Battery

When the remote transmitter's battery begins to get weak, it may take several pushes on the button to lock or unlock the doors, and the LED will get dim. Replace the battery as soon as possible.

Battery type: CR2025

BATTERY Mode Open Close

To replace the battery, remove the round cover on the back of the transmitter by turning it counterclockwise with a coin.

CONTINUED

Keys and Locks

BATTERY ROUND COVER CUSHION RING

Remove the old battery and note the polarity. Make sure the polarity of the new battery is the same (+ side facing up), then insert it in the transmitter.

Reinstall the cushion ring. Align the ▽ mark on the cover with the Ⓞ mark on the transmitter, then set the cover in place and turn it clockwise.

Transmitter Care

Avoid severe shock to the transmitter, such as dropping or throwing it. Also, protect it from extreme hot or cold temperatures.

Clean the transmitter case with a soft cloth. Do not use strong cleaners or solvents that could harm the case. Immersing the transmitter in any liquid will harm the transmitter and cause it to not function properly.

If you lose a transmitter, you will need to have the replacement programmed to your vehicle's system by your Honda dealer. Any other transmitters you have will also need to be reprogrammed.

As required by the FCC:

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This device complies with DOC standards in Canada.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Childproof Door Locks

LEVER LOCK

The childproof door locks are designed to prevent children seated in the rear from accidentally opening the rear doors. Each rear door has a lock lever near the edge. With the lever in the LOCK position, the door cannot be opened from the inside regardless of the position of the lock tab. To open the door, pull the lock tab up and use the outside door handle.

Tailgate

KEY SAR-V

1. You can open the tailgate in two ways:

- Use the ignition key to open the tailgate lock.

TAILGATE UNLOCK BUTTON

- Push the tailgate unlock button on the dashboard under the left air vent

CONTINUED

Keys and Locks

HATCH GLASS

HANDLE

1. The hatch glass will pop up slightly.
2. Lift up the hatch glass fully.

DOOR

1. Pull the handle on the door and pull the door open.

To close the tailgate, always close the lower door first. Then, lower the hatch glass and press on it until it latches.

Make sure the door and the hatch glass are locked securely before driving.

STOP

To keep the tailgate door open on an incline, use the stop in the tool kit. The tool kit is in the right cargo floor pocket. Put the stop on the support strut as shown.

Instruments and Controls

Glove Box

Line drawing of a car interior showing the dashboard and side panel (no text or symbols)

Open the glove box by pulling the bottom of the handle. Close it with a firm push. Lock or unlock the glove box with the master key.

An open glove box can cause serious injury to your passenger in a crash, even if the passenger is wearing the seat belt.

Always keep the glove box closed while driving.

Front Seat Adjustments

See pages 12 — 14 for important safety information and warnings about how to properly position seats and seat-backs,

Make all seat adjustments before you start driving.

CONTINUED

Seats

Diagram showing car seat positioning with directional arrows and a magnified inset of the seat's arm.

To adjust the seat forward and backward, pull up on the lever under the seat cushion's front edge. Move the seat to the desired position and release the lever. Try to move the seat to make sure it is locked in position.

Line drawing of a car seat assembly with a magnified inset showing the side view of the seat (no text or symbols)

To change the angle of the seat-back, pull up on the lever on the outside of the seat bottom. Move the seat-back to the desired position and release the lever. Let the seat-back latch in the new position.

Driver's Seat Height Adjustment

Line drawing of a car seat with wheels and directional arrows indicating movement (no text or symbols)

The height of your driver's seat is adjustable. Turn the front dial on the outside of the seat cushion to raise the front of the seat bottom and turn the rear dial to raise the rear.

Make all seat adjustments before you start driving.

Head Restraints

See page 14 for important safety information and a warning about how to properly position the head restraints. The head restraints help protect you and your passengers from whiplash and other injuries. They are most effective when you adjust them so the back of the occupant's head rests against the center of the restraint. A taller person should adjust the restraint as high as possible.

Diagram of a car seatbelt device with an inset showing a mechanical assembly (no text or symbols)

RELEASE BUTTON

The head restraints adjust for height. You need both hands to adjust the restraint. Do not attempt to adjust it while driving. To raise it, pull upward. To lower the restraint, push the release button sideways and push the restraint down.

To remove a head restraint for cleaning or repair, pull it up as far as it will go. Push the release button and pull the restraint out of the seat-back.

Seats

Rear Seat-back Adjustment

See pages 12 — 14 for important safety information and warnings about how to properly position seats and seat-backs.

Line drawing of a car backseat with seatbelt and seat rack, showing side arm and seat structure (no text or symbols)

The angle of the rear seat-backs can be adjusted separately. To change the angle of the seat-back, pull up on the knob on the top of the seat-back. Move the seat-back to the desired position, then release the knob. Make sure the seat-back latches in the new position.

Rear Seat Armrest

Line drawing of a car backseat with four seats and two rear seats (no text or symbols)

The rear seat armrest is located at the center of the rear seat. Pivot it down to use it.

Reclining the Front and Rear Seat-backs

Line drawing of a compact car seat with wheels and seat cover (no text or symbols)

You can recline the seat-backs on the front and rear seats to make a large cushioned area. To do this:

1. Remove the front seat head restraint and put it in the pocket of the seat-back.

Diagram illustrating car seatbelting instructions with labeled parts and directional arrows

1. Lift the lever and slide the front seat forward as far as it will go. Pull up the seat-back angle adjustment lever, then pivot the seat-back backward. Release the lever when the seat-back is even with the cushion on the rear seat.

EX model

Line drawing of a car seat assembly with a monitor and seatbelt, showing no text or symbols

1. Pull up the lever on the side of the rear seat. Lift the rear edge of the seat bottom until the seat latches.

CONTINUED

Seats

Line drawing of a car seat assembly with a magnified inset showing the wheel shift (no text or symbols)

1. Pull up on the knob on top of the seat-back and pivot the rear seat-back backward. Release the knob when the seat-back is reclined as far as it will go.

Line drawing of a car interior with multiple seats and windows (no text or symbols)

Reverse this procedure to return the seats to their upright positions. Make sure you install the head restraints, and that the seats are locked securely in place before driving.

Folding Rear Seat

Diagram of a mechanical device with a rotating knob and attached belt, showing no text or symbols.

The left and right halves of the rear seat can be folded up separately to create more cargo space.
1. Store the latch plate for the center lap belt by rolling up the belt and pushing it into the seat pocket.

STRAP

1. Pull the strap to release the seat bottom. Pivot the seat bottom forward.

Mechanical assembly diagram showing a pin inserted into a gear mechanism (no text or labels)

1. Remove the head restraint and pull up on the knob on the top of the seat-back. Pivot the seat-back forward.

Technical line drawing of a mechanical assembly with a close-up inset showing a component detail (no text or symbols)

Put the head restraint behind the seat bottom as shown. Pass the fastening strap in through the hole of head restraint and fasten it with the Velcro strap.
Reverse this procedure to return the seat to the upright position. Make sure that the seat is locked securely before driving.

CONTINUED

Seats, Power Windows

Make sure any items stored in the cargo area are secured. Loose items can fly forward and cause injury if you have to brake hard.

Power Windows

Your vehicle's windows are electrically-powered. Turn the ignition switch to ON (II) to raise or lower any window.

Each door has a switch that controls its window. To open the window, push the switch down and hold it. Release the switch when you want the window to stop. Close the window by pushing the switch up and holding it.

DRIVER'S WINDOW SWITCH MAIN SWITCH

There is a master power window control panel on the dashboard. To open any of the passengers' windows, push down on the appropriate switch and hold it down until the window reaches the desired position. To close the window, push up on the window switch. Release the switch when the window gets to the position you want.

Closing a power window on a child's hands or fingers can cause serious injury.

Make sure your children are away from the windows before closing them.

The master control panel also contains these extra features:

AUTO — To open the driver's window fully, push the window switch firmly down and release it. The window automatically goes all the way down. To stop the window from going all the way down, push the window switch up briefly. To open the driver's window only partially, push the window switch down lightly and hold it. The window will stop as soon as you release the switch.

The AUTO function only works to lower the driver's window. To raise the window, you must push the window switch up and hold it until the window reaches the desired position.

The MAIN switch controls power to the passengers' windows. With this switch off, the passengers' windows cannot be raised or lowered. The MAIN switch does not affect the driver's window. Keep the MAIN switch off when you have children in the vehicle so they do not injure themselves by operating the windows unintentionally.

Mirrors

TAB

Keep the inside and outside mirrors clean and adjusted for best visibility. Be sure to adjust the mirrors before you start driving.

The inside mirror has day and night positions. The night position reduces glare from headlights behind you. Flip the tab on the bottom edge of the mirror to select the day or night position.

CONTINUED

Mirrors, Parking Brake

Adjusting the Power Mirrors

SELECTOR SWITCH

Adjust the outside mirrors with the adjustment switch on the left side of the dashboard:

1. Turn the ignition switch ON (II).
2. Move the selector switch to L (driver's side) or R (passenger's side).

ADJUSTMENT SWITCH

1. Push the appropriate edge of the adjustment switch to move the mirror right, left, up or down.
2. When you finish, move the selector switch to the center (off) position. This turns off the adjustment switch so you can't move a mirror out of position by accidentally bumping the switch.

Parking Brake

To apply the parking brake, pull the lever up fully. To release it, pull up slightly, push the button, and lower the lever. The parking brake light on the instrument panel should go out when the parking brake is fully released (see page 54).

NOTICE

Driving the vehicle with the parking brake applied can damage the rear brakes and axles.

Digital Clock

H M R (RESET)

The digital clock displays the time with the ignition switch ON (II). To set the clock:

1. Turn the ignition switch ON (II) to display the time.

2. Press and hold the H button until the hour advances to the desired hour.

3. Press and hold the M button until the numbers advance to the desired minutes.

You can use the RESET button to quickly set the time to the nearest hour. If the displayed time is before the half hour, pressing RESET button sets the clock back to the previous hour. If the displayed time is after the half hour, pressing the RESET button sets the clock forward to the beginning of the next hour.

For example:

• 1:06 would RESET to 1:00.
• 1:52 would RESET to 2:00.

Center Table

Technical line drawing of a mechanical device with an inset showing a cable being inserted (no text or symbols present)

To use the center table, pull up the outside edge of the table until it latches. To store it, pull the lever and lower the table.

CONTINUED

Center Table, Beverage Holder

Line drawing of a car seatbelt mechanism (no text or symbols)

Sitting on or getting under the table, or putting heavy objects on the table, may damage or deform it.

Do not put any items on the table while driving. They may fall down or fly around when you go around corners or brake hard.

Beverage Holder

Line drawing of a car's front and rear dashboard showing air vent, buttons, and a directional arrow (no text or symbols)

Automatic Transmission model only To use the beverage holder, pull on the front. Push the holder all the way in to close it.

Line drawing of a car interior showing two cylindrical objects inside a vehicle's seat (no text or symbols)

The center table also has a beverage holder.

Line drawing of a mechanical component with a handle and internal structure (no text or symbols)

There is another beverage holder on each rear door for the rear seat passengers. Pivot it down to use it.

Line drawing of a car intake manifold with two cylindrical containers (no text or symbols)

Be careful when you are using the beverage holder. A spilled liquid that is very hot can scald you or your passengers. Liquid can also spill from the rear seat beverage holders when you close the rear doors.
Spilled liquids can also damage the upholstery, carpeting, and electrical components in the interior.

Built-in Table

Line drawing of a simple metal table with legs and side supports (no text or symbols)

The cargo area floor can be taken out and used as a table.

CONTINUED

Built-in Table

HANDLE

To remove the table, pull up the carpet. Lift and pull on the handle to slide the table out.

Technical line drawing of a mechanical assembly with directional arrows indicating motion (no text or symbols)

Unfold the legs. Lock them in place by pushing on the middle of the locking arms. Make sure all four are locked.

Mechanical assembly diagram showing internal components and directional arrows (no text or labels)

To fold the legs, pull on the middle of each locking arm.

Diagram of a car interior showing hand positioning and a device component (no text or symbols)

Put the projections on the table into the holes in the cargo area floor.

Using the Built-in Table

• Be sure to lock the legs of the table.
• Do not stand on the table.
• Do not put a weight of over 44 lbs (20 kg) on the table.
• Hot items such as pots, pans, or kettles should not be placed directly on the table.

Center Pocket

Line drawing of a car front bumper with a black arrow pointing to the side panel (no text or symbols)

Automatic Transmission model only Open the center pocket by pushing the handle down. Close it with a firm push.

Storage Box

Line drawing of a car interior seatbelt with an arrow indicating direction (no text or symbols)

A storage box is located under the front passenger's seat. To use it, pull upward slightly on the front center edge of the box to disengage the locking tabs then pull forward to slide the box out.

Cargo Floor Pockets, Accessory Power Socket

Cargo Floor Pockets

Top-down line drawing of a car interior showing structural components (no text or symbols)

You can store small items in the pockets located on both sides of the cargo area.

Accessory Power Socket

Line drawing of a car front bumper with handle and seat (no text or symbols)

There are two accessory power sockets: one in the dashboard by the front ashtray and the other on the left side of the cargo area.

Anatomical line drawing of a human pelvic region with a shaded circular area and a small figure inside (no text or labels)

To use the accessory power socket, pull down the cover. The ignition switch must be in ACCESSORY (I) or ON (II).
These sockets are intended to supply power for 12 volt DC accessories that are rated 120 watts or less (10 amps).
They will not power an automotive type cigarette lighter element.

Tailgate Pocket

Technical line drawing of a mechanical assembly with no visible text or symbols

To use the tailgate pocket, turn the knobs and remove the lid. Items stored in this pocket can be secured by the belts inside the pocket.

Cargo Hooks

HOOKS

The hooks on the floor of the cargo area enable you to tie down items stored in the back. Make sure all stored items are secured before driving.

Two handbags with hooks and handles, connected by a diagonal line (no text or symbols)

The hook on the tailgate door pivots, allowing items to be stored in different ways. Make sure any items put on this hook weigh less than 6.5 lbs (3 kg), or you could damage the hook.

Do not open or close the tailgate door with cargo on this hook.

Ashtray, Interior Lights

Ashtray

ASHTRAY

Open the front ashtray by pulling on the bottom edge. Push it in to close it. To remove the ashtray for emptying, push down on the metal plate inside, then pull the ashtray out completely.

NOTICE

Use the ashtray only for cigarettes, cigars, and other smoking materials. To prevent a possible fire and damage to your vehicle, don't put paper or other things that can burn in the ashtray.

Ceiling Light

NOFF-79 140 OFF ON DOOR ACTIVATED

The ceiling light has a three-position switch. In the OFF position, the light does not come on. In the center position, the ceiling light comes on when you open any door. In the ON position, the ceiling light stays on continuously.

Spotlights

Simple line drawing of a car seatbelt with no text or symbols

Turn on the spotlight by pushing the button next to each light. Push the button again to turn it off. You can use the spotlights at all times.

On Ex model

The ceiling light (with the switch in the center position) also comes on when you unlock the door with the remote transmitter (see page 72).

Cargo Area Light

ON OFF DOOR ACTIVATED

The cargo area light has a three-position switch. In the OFF position, the light does not come on. In the center position, the light comes on when you open the tailgate. In the ON position, the light stays on continuously.

Ignition Switch Light

IGNITION SWITCH LIGHT

The ignition switch light comes on when you open the driver's door, and stays on several seconds after you close the door.

Comfort and Convenience Features

The heating and air conditioning systems in your Honda provide a comfortable driving environment in all weather conditions.

The standard audio system has many features. This section describes those features and how to use them. (If you selected an optional audio system, refer to the operating instructions that came with it.)

Heating and Cooling.... 98

What Each Control Does...... 98

How to Use the System...... 100

To Turn Everything Off...... 105

Audio System.... 106

Audio System

AM/FM/Cassette Stereo Audio System (LX Model).... 107

Operating the Radio...... 108

Adjusting the Sound...... 111

Audio System Lighting...... 112

Operating the Cassette Player.... 112

Operating the Optional CD Player/Changer.... 115

CD Changer Error Indications.... 118

Audio System

AM/FM/CD Audio System (EX Model).... 119

Operating the Radio...... 120

Adjusting the Sound...... 124

Audio System Lighting...... 125

Radio Frequencies...... 125

Radio Reception...... 125

Operating the CD Player...... 127

Operating the CD Changer..... 129

Protecting Compact Discs...... 130

CD Player Error Indications..... 131

CD Changer Error Indications.... 132

Operating the Cassette Player.... 133

Tape Search Functions...... 134

Caring for the Cassette Player.... 136

Theft Protection.... 137

Heating and Cooling

Proper use of the Heating and Cooling system can make the interior dry and comfortable, and keep the windows clear for best visibility.

What Each Control Does

Fan Control Dial

Turning this dial clockwise increases the fan's speed, which increases air flow.

Temperature Control Dial

Turning this dial clockwise increases the temperature of the air flow.

Air Conditioning (A/C) Button

This button turns the air conditioning ON and OFF. The indicator in the button lights when the A/C is on.

MODE CONTROL DIAL RECIRCULATION BUTTON AIR CONDITIONING SWITCH FAN CONTROL DIAL TEMPERATURE CONTROL DIAL

Recirculation Button

This button controls the source of the air going into the system. When the indicator in this button is lit, air from the vehicle's interior is sent through the system again (Recirculation mode). When the indicator is off, air is brought in from outside the vehicle (Fresh Air mode).

Mode Control Dial

Use the MODE control dial to select the vents the air flows from.

Air flows from the center and corner vents in the dashboard.

Air flow is divided between the vents in the dashboard and the floor vents.

Air flows from the floor vents.

Air flow is divided between the floor vents and the defroster vents at the base of the windshield.

Air flows from the defroster vents at the base of the windshield.

When you select 🔊, the system automatically switches to Fresh Air mode and turns on the A/C.

Top-down line drawing of a car interior showing dashboard, steering wheel, and air vent (no text or symbols)

Heating and Cooling

Vent Controls

CENTER VENT

Line drawing of a car air conditioner panel with no text or symbols

You can adjust the direction of the air coming from the dashboard vents by moving the tab in the center of each vent up-and-down and side-to-side.

SIDE VENT

Open Close

The vents in the comers of the dashboard can be opened and closed with the dials next to them.

How to Use the System

This section covers how to set up the system controls for ventilation, heating, cooling, dehumidifying, and defrosting.

The engine must be running for the heater and air conditioning to generate hot and cold air. The heater uses engine coolant to warm the air. If the engine is cold, it will be several minutes before you feel warm air coming from the system.

The air conditioning does not rely on engine temperature.

It is best to leave the system in Fresh Air mode under almost all conditions. Keeping the system in Recirculation mode, particularly with the A/C off, can cause the windows to fog up. Switch to Recirculation mode when you are driving through smoky or dusty conditions, then switch back to Fresh Air mode when the condition clears.

The outside air intakes for the heating and cooling system are at the base of the windshield. Keep these clear of leaves and other debris.

AIR CONDITIONING SWITCH MODE CONTROL DIAL FAN CONTROL DIAL TEMPERATURE CONTROL DIAL

Ventilation

The flow-through ventilation system draws in outside air, circulates it through the interior, then exhausts it through vents near the rear window.

1. Turn the temperature control dial all the way to the left.
   Make sure the A/C is off.
2. Select and Fresh Air mode.
3. Set the fan to the desired speed.

CONTINUED

Heating and Cooling

To Cool with A/C

1. Turn on the A/C by pressing the button. The light in the button should come on when a fan speed is selected.
2. Make sure the temperature control dial is all the way to the left.
3. Select
4. If the outside air is humid, select Recirculation mode. If the outside air is dry, select Fresh Air mode. Set the fan to the desired speed.

If the interior is very warm from being parked in the sun, you can cool it down more rapidly by setting up the controls this way:

1. Start the engine.
2. Turn on the A/C by pressing the button. Make sure the temperature control dial is all the way to the left.
3. Set the fan to maximum speed.
4. Open the windows partially. Select and Recirculation mode.

MODE CONTROL DIAL RECIRCULATION BUTTON AIR CONDITIONING SWITCH REAR DEFOGGER SWITCH FAN CONTROL DIAL TEMPERATURE CONTROL DIAL

When the interior has cooled down to a more comfortable temperature, close the windows and set the controls as described for normal cooling.

Air conditioning places an extra load on the engine. Watch the engine coolant temperature gauge (see page 57) when driving in stop-and-go traffic or climbing a long, steep hill. If it moves near the red zone, turn off the A/C until the gauge reads normally.

To Heat

To warm the interior:

1. Start the engine.
2. Select and Fresh Air mode.
3. Set the fan to the desired speed.
4. Adjust the warmth of the air with the temperature control dial.

To Heat and Dehumidify with Air Conditioning

Air conditioning, as it cools, removes moisture from the air. When used in combination with the heater, it makes the interior warm and dry.

1. Switch the fan on.
2. Turn on the air conditioning.
3. Select and Fresh Air mode.
4. Adjust the temperature control dial so the mixture of heated and cooled air feels comfortable.

This setting is suitable for all driving conditions whenever the outside temperature is above 32^ F ( 0^ C).

To Defog and Defrost

To remove fog from the inside of the windows:

1. Switch the fan on.
2. Select

When you select 📄, the system automatically switches to Fresh Air mode and turns on the A/C.

1. Adjust the temperature control dial so the air flow from the defroster vents feels warm.
2. Turn on the rear window defogger to help clear the rear window. When you switch to another mode from 📄, the A/C stays on. Press the A/C button to turn it off.

CONTINUED

Heating and Cooling

To remove exterior frost or ice from the windshield and side windows after the vehicle has been sitting out in cold weather:

1. Start the engine.

2. Select When you select , the system automatically switches to Fresh Air mode and turns on the A/C.

3. Switch the fan and temperature controls to maximum.

To rapidly remove exterior frost or ice from the windshield (on very cold days), first select the Recirculation mode. Once the windshield is clear, select the Fresh Air mode to avoid fogging the windows.

MODE CONTROL DIAL RECIRCULATION BUTTON AIR CONDITIONING SWITCH A/C REAR DEFOGGER SWITCH FAN CONTROL DIAL TEMPERATURE CONTROL DIAL

These settings direct all the air flow to the defroster vents at the base of the windshield and the side window defroster vents. The air flow will get warmer and clear the windows faster as the engine warms up. You can close the side vents with the dial beside each vent. This will send more warm air to the windshield defroster vents.

For safety, make sure you have a clear view through all the windows before driving away.

To Turn Everything Off

To shut off the system temporarily, turn the fan speed and temperature control dials all the way to the left.

You should shut the system completely off only for the first few minutes of driving in cold weather, until the engine coolant warms up enough to operate the heater. Keep the fan on at all other times so stale air does not build up in the interior.

Audio System

Your vehicle should have one of the audio systems described in this section. Read the appropriate pages in this section for operation of the audio systems installed in your vehicle.

• pages 107 to 118 for LX Model
• pages 119 to 134 for EX Model

Also, read page 114 or 136 for how to take care of your cassette player.

If your vehicle has a different audio system from these two types, read the radio manufacturer's manual that came with your vehicle for its operation.

LX Model

AM FM TAPE CD HONDA SCN RDM RPT ST DISC 8 CD 170009 CH AMII 170009 SCAN/RPT SEEK/SKIP VOL PWR 1 REW 2 PLAY 3 FF TUNE 4 00 5 PROG 6 BAS TRE FAD-FAL-BAL

EX Model

HONDA PWR PWR-VOL DISC AM FM CO BAS FAD TRE BAL CHO-TAPE 18888000000000000000000000000000000000000000000000000000000000000000000000000000000000000 ANTI THEFT ST RPT 123456 FF TUNE SEEK SEP REV SCAN RPT ASEL ROM PLAY PROD RR 1 2 3 4 5 6

AM/FM/Cassette Stereo Audio System

On LX model Your Honda's audio system provides clear reception on both AM and FM bands, while the preset buttons allow you to easily select your favorite stations.

The cassette system features Dolby B* noise reduction, automatic sensing of chromium-dioxide (CrO₂) tape, and autoreverse for continuous play.

* Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "DOLBY" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

AM F M TAPE C D HONDA SCN RDM RPT ST DISC 8 CD AMII 1000 CH SCAN/RPT SEEK/SKIP VOL PWR 1 REW 2 PLAY 3 FF TUNE 4 00 5 PROG 6 BAS TRE FAD-FULL-BAL

Audio System

Operating the Radio

The ignition switch must be in ACCESSORY (I) or ON (II) to operate the audio system. Turn the system on by pushing the PWR/VOL knob.

Adjust the volume by turning the PWR/VOL knob.

The band and frequency that the radio was last tuned to is displayed. To change bands, press the AM/FM button. On the FM band, ST will be displayed if the station is broadcasting in stereo. Stereo reproduction on AM is not available.

You can use any of four methods to find radio stations on the selected band: TUNE, SEEK, SCAN or the Preset buttons.

TUNE — Use the TUNE bar to tune the radio to a desired frequency. Press the upper part (▲) to tune to a higher frequency, or the lower part (▼) to tune to a lower frequency. The frequency numbers will start to change rapidly. Release the bar when the display reaches the desired frequency. To change the frequency in small increments, press and release the TUNE bar quickly.

SEEK — The SEEK function searches the band for a station with a strong signal. To activate it, push the SEEK switch up or down, then release it. Depending on which way you push the switch, the system scans upward or downward from the current frequency. It stops when it finds a station with a strong signal.

SCAN — The SCAN function samples all the stations with strong signals on the selected band. To activate it, press the SCAN button, then release it. The system will scan up the band for a station with a strong signal. When the system is in the SCAN mode, SCN shows in the display. When it finds one, it will stop and play that station for approximately five seconds. If you do nothing, the system will then scan for the next strong station and play that for five seconds. When it plays a station that you want to continue listening to, press the SCAN button again.

AM/FM BUTTON SCAN BUTTON SCN INDICATOR AM/FM TAPE CD HONDA SCN RDW RPT ST DISC 8 CD AMII 1000 CH PWR/VOL KNOB SEEK SWITCH TUNE BAR 1 REW 2 PLAY 3 FF 4 00 5 PROG 6 TUNE BAS FAD TRE BAL

CONTINUED

Audio System

Preset — You can store the frequencies of your favorite radio stations in the six preset buttons. Each button will store one frequency on the AM band, and two on the FM band.

To store a frequency:

1. Select the desired band, AM or FM. FM1 and FM2 let you store two frequencies with each Preset button.
2. Use the TUNE or SEEK function to tune the radio to a desired station.
3. Pick the Preset button you want for that station. Press the button and hold it until you hear a beep.
4. Repeat steps 1 to 3 to store a total of six stations on AM and twelve on FM.

AM/FM BUTTON AM FM TAPE CD BONDA BDN ROM RPT ST DISC CD AMII RD SCAN/RPT SEEK/SNP 1 REW 2 PLAY 3 FF TUNE 4 00 5 PROG 6 BAS FAD ALL TRE BAL SEEK SWITCH PRESET BUTTONS TUNE BAR

Once a station's frequency is stored, simply press and release the proper Preset button to tune to it. The preset frequencies will be lost if your vehicle's battery goes dead, is disconnected, or the radio fuse is removed.

Adjusting the Sound

Balance/Fader — These two controls adjust the strength of the sound coming from each speaker. The Balance control adjusts the side-to-side strength, while the Fader control adjusts the front-to-back strength.

To adjust the fader, push on the BASS/FADER control knob to get it to pop out. Pull it out slightly farther, and adjust the front-to-back sound to your liking. Push the knob back in when you are done so you cannot change the setting by accidentally bumping it

To adjust the balance, push on the TREBLE/BALANCE control knob to get it to pop out. Pull it out slightly farther, and adjust the side-to-side sound to your liking. Push the knob back in when you are done so you cannot change the setting by accidentally bumping it.

BASS/FADER CONTROL TREBLE/BALANCE CONTROL BAS FAD PULL TRE BAL

Treble/Bass — Use these controls to adjust the tone to your liking.

To adjust the Treble level, push on the TREBLE/BALANCE control knob to get it to pop out. Without pulling it out farther, turn the knob to adjust the treble level. Push the knob back in when you are done so you cannot change the setting by accidentally bumping it.

To adjust the Bass level, push on the BASS/FADER control knob to get it to pop out. Without pulling it out farther, turn the knob to adjust the bass level. Push the knob back in when you are done so you cannot change the setting by accidentally bumping it.

Radio Frequencies and Reception For information, See page 125.

AM/FM/CD Audio System

On EX model

Your Honda's audio system provides clear reception on both AM and FM bands, while the preset buttons allow you to easily select your favorite stations.

The anti-theft feature will disable the system if it is disconnected from the vehicle's battery. To get the system working again, you must enter a code number (see page 137).

HONDA PWR-VOL DISC O BAS TRE FAD BAL AM CD CHD-TAPE 18800 DCS 08800 ST CH 08800 RPT ASEL ROM SCAN 000000000000000000000000000000000000000000000000000000000000 FR TUNE SEEK SKIP REV SCAN RPT ASEL ROM

Audio System

Operating the Radio

The ignition switch must be in ACCESSORY (I) or ON (ID to operate the audio system. Turn the system on by pushing the PWR/VOL knob. Adjust the volume by turning the same knob.

The band and frequency that the radio was last tuned to is displayed. To change bands, press the AM/FM button. On the FM band, ST will be displayed if the station is broadcasting in stereo. Stereo reproduction on AM is not available.

You can use any of four methods to find radio stations on the selected band: TUNE, SEEK, SCAN or the Preset buttons.

TUNE — Use the TUNE bar to tune the radio to a desired frequency.

Press the ▶▶ side of the bar to tune to a higher frequency, and the

◀ side to tune to a lower frequency. The frequency numbers will start to change rapidly. Release the bar when the display reaches the desired frequency. To change the frequency in small increments, press and release the TUNE bar quickly.

SEEK — The SEEK function searches the band for a station with a strong signal. To activate it, press the SEEK bar on either the ◀◀ or

▶▶ side, then release it. Depending on which side you press, the system scans upward or down- ward from the current frequency. It stops when it finds a station with a strong signal.

SCAN — The SCAN function samples all the stations with strong signals on the selected band. To activate it, press the SCAN button, then release it. The system will scan up the band for a station with a strong signal. When the system is in the SCAN mode, SCAN shows in the display. When it finds one, it will stop and play that station for approximately five seconds. If you do nothing, the system will then scan for the next strong station and play that for five seconds. When it plays a station that you want to continue listening to, press the SCAN button again.

Preset — You can store the frequencies of your favorite radio stations in the six preset buttons. Each button will store one frequency on the AM band, and two on the FM band.

AM/FM BUTTON STEREO INDICATOR PWR/VOL KNOB TUNE BAR HONDA AM/FM CJ 1 2 3 4 5 6 ASEL ROM SCAN PRESET BUTTONS SCAN BUTTON TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR TAGR

CONTINUED

Audio System

To store a frequency:

1. Select the desired band, AM or FM. FM1 and FM2 let you store two frequencies with each Preset button.
2. Use the TUNE or SEEK function to tune the radio to a desired station.
3. Pick the Preset button you want for that station. Press the button and hold it until you hear a beep.
4. Repeat steps 1 to 3 to store a total of six stations on AM and twelve on FM.

Once a station's frequency is stored, simply press and release the proper Preset button to tune to it.

The preset frequencies will be lost if your vehicle's battery goes dead, is disconnected, or the radio fuse is removed.

AM/FM BUTTON SEEK BAR TUNE BAR HONDA DISC 100 MHz AM FM CC OFF TUNE SEEK SKIP RPI RPI SCAN ROM ASEL ROM PRESET BUTTONS

AUTO SELECT — If you are traveling far from home and can no longer receive the stations you preset, you can use the Auto Select feature to find stations in the local area.

To activate Auto Select, press the A. SEL button. A. SEL will flash in the display, and the system will go into scan mode for several seconds. It automatically scans both bands, looking for stations with strong signals; It stores the frequencies of six AM stations and twelve FM stations in the preset buttons. You can then use the preset buttons to select those stations.

If you are in a remote area, Auto Select may not find six strong AM stations or twelve strong FM stations. If this happens, you will see a "0" displayed when you press any preset button that does not have a station stored.

TUNE BAR SEEK BAR HONDA AUTO SELECT INDICATOR SCAN BUTTON A. SEL BUTTON A. SEL BUTTON

If you do not like the stations Auto Select has stored, you can store other frequencies in the preset buttons. Use the TUNE, SEEK, or SCAN function to find the desired frequencies, then store them in the selected preset buttons as described previously.

Auto Select does not erase the frequencies that you preset previously. When you return home, turn off Auto Select by pressing the A. SEL button. The preset buttons will then select the frequencies you originally set.

Adjusting the Sound

Balance/Fader — These two controls adjust the strength of the sound coming from each speaker. The Balance control adjusts the side-to-side strength, while the Fader control adjusts the front-to-back strength.

To adjust the fader, push on the BASS/FADER control knob to get it to pop put. Pull it out slightly farther, and adjust the front-to-back sound to your liking. Push the knob back in when you are done so you cannot change the setting by accidentally bumping it.

To adjust the balance, push on the TREBLE/BALANCE control knob to get it to pop put. Pull it out slightly farther, and adjust the side-to-side sound to your liking. Push the knob back in when you are done so you cannot change the setting by accidentally bumping it.

BAS FAD PULL TRE BAL BASS/FADER CONTROL TREBLE/BALANCE CONTROL

Treble/Bass — Use these controls to adjust the tone to your liking.

To adjust the Treble level, push on the TREBLE/BALANCE control knob to get it to pop out. Without pulling it out farther, turn the knob to adjust the treble level. Push the knob back in when you are done so you cannot change the setting by accidentally bumping it.

To adjust the Bass level, push on the BASS/FADER control knob to get it to pop out. Without pulling it out farther, turn the knob to adjust the bass level. Push the knob back in when you are done so you cannot change the setting by accidentally bumping it.

Audio System Lighting

You can use the instrument panel brightness control knob to adjust the illumination of the audio system (see page 61). The audio system illuminates when the parking lights are on, even if the radio is turned off.

Radio Frequencies

Your Honda's radio can receive the complete AM and FM bands. Those bands cover these frequencies:

AM band:

530 to 1,710 kilohertz

FM band:

87.7 to 107.9 megahertz

Radio stations on the AM band are assigned frequencies at least ten kilohertz apart (530, 540, 550). Stations on the FM band are assigned frequencies at least 0.2 megahertz apart (87.9, 88.1, 88.3).

Stations must use these exact frequencies. It is fairly common for stations to round-off the frequency in their advertising, so your radio could display a frequency of 100.9 even though the announcer may identify the station as "FM101."

Radio Reception

How well your Honda's radio receives stations is dependent on many factors, such as the distance from the station's transmitter, nearby large objects, and atmospheric conditions.

A radio station's signal gets weaker as you get farther away from its transmitter. If you are listening to an AM station, you will notice the sound volume becoming weaker, and the station drifting in and out. If you are listening to an FM station, you will see the stereo indicator flickering off and on as the signal weakens. Eventually, the stereo indicator will go off and the sound will fade completely as you get out of range of the station's signal.

Cartoon illustration of a car driving on a curved road with a sky and tree in the background (no text or symbols)

Driving very near the transmitter of a station that is broadcasting on a frequency close to the frequency of the station you are listening to can also affect your radio's reception. You may temporarily hear both stations, or hear only the station you are close to.

CONTINUED

Audio System

Illustration of a car driving on a curved road with a radar system and buildings in the background (no text or symbols)

Radio signals, especially on the FM band, are deflected by large objects such as buildings and hills. Your radio then receives both the direct signal from the station's transmitter, and the deflected signal. This causes the sound to distort or flutter. This is a main cause of poor radio reception in city driving.

Diagram showing a motorcycle accident near a car with a sign reading 'Carpenter' and warning text

Radio reception can be affected by atmospheric conditions such as thunderstorms, high humidity, and even sunspots. You may be able to receive a distant radio station one day and not receive it the next day because of a change in conditions.

Electrical interference from passing vehicles and stationary sources can cause temporary reception problems.

As required by the FCC:

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Operating the CD Player

You operate the CD player with the same controls used for the radio.

With the ignition switch in ACCESSORY (I) or ON (II), insert the disc into the CD slot. Push the disc in halfway, the drive will pull it in the rest of the way and begin to play. The number of the track that is playing is shown in the display.

You can also play 3-inch (8-cm) discs without using an adapter ring. In all cases, play only standard round discs. Odd-shaped CDs may jam in the drive or cause other problems.

When the system reaches the end of the disc, it will return to the beginning and play that disc again.

AM/FM BUTTON CD SLOT TUNE BAR EJECT BUTTON HONDA 1 2 3 4 5 6 CD BUTTON RPT BUTTON A.SEL/RDM BUTTON TAG/ATF-7L UJG C TUBE SEEK SUB SCAN. RFT ASEL RLM SEEK/SKIP BAR

CONTINUED

You can switch to the radio while a CD is playing by pressing the A M/FM button. Press the CD button to return to playing the CD. The CD will begin playing where it left off.

If you turn the system off while a CD is playing, either with the PWR/VOL knob or by turning off the ignition, the disc will stay in the drive. When you turn the system back on, the CD will begin playing where it left off.

Press the eject button to remove the disc from the drive.

If you eject the disc, but do not remove it from the slot, the system will automatically reload the disc after 15 seconds and put the CD player in pause mode. To begin playing the disc, press the CD button.

You can use the TUNE and SEEK/SKIP bars while a disc is playing to select passages and change tracks.

To move rapidly within a track, press and hold the TUNE bar. Press the ▶▶ side to move forward. You will see CUE in the display. Press the ◀◀ side to move backward. You will see REW displayed. Release the bar when the system reaches the point you want.

Each time you press the ▶▶ side of the SEEK/SKIP bar, the system skips forward to the beginning of the next track. Press the ◀◀ side to skip backward to the beginning of the current track. Press it again to skip to the beginning of the previous track.

REPEAT — To activate the Repeat feature, press and release the RPT button. You will see RPT in the display. The system continuously replays the current track. Press the RPT button again to turn it off.

RANDOM PLAY — This feature, when activated, plays the tracks on the CD in random order, rather than in the order they are recorded on the CD. To activate Random Play, press and release the A. SEL/RDM button. You will see RDM in the display. The system will then select and play tracks randomly. This continues until you deactivate Random Play by pressing A. SEL/RDM again.

If the system is in Repeat mode, you must turn it off by pressing the RPT button before selecting Random Play.

Operating the CD Changer (Optional)

A Compact Disc changer is available for your vehicle. It holds up to six discs, providing several hours of continuous entertainment. You operate this CD changer with the same controls used for the in-dash CD player.

Load the desired CDs in the magazine and load the magazine in the changer according to the instructions that came with the unit. Play only standard round discs. Odd-shaped CDs may jam in the drive or cause other problems.

To select the CD changer, press the CD button. The disc and track numbers will be displayed.

To select a different disc, press the appropriate preset button (1—6). If you select an empty slot in the magazine, the changer will, after finding that slot empty, try to load the CD in the next slot. This continues until it finds a CD to load and play.

If you load a CD in the in-dash player while the changer is playing a CD, the system will stop the changer and begin playing the in-dash CD. To select the changer again, press the CD button. Play will begin where it left off. Use the CD button to switch between the player and the changer.

If you eject the in-dash CD while it is playing, the system will automatically switch to the CD changer and begin play where it left off. If there are no CDs in the changer, the display will flash. You will have to select another mode (AM or FM) with the button.

When you switch back to CD mode, the system selects the same unit (in-dash or changer) that was playing when you switched out of CD mode.

To use the SKIP, REPEAT, and RANDOM functions, refer to the in-dash player operating instructions.

Protecting Compact Discs

Line drawing of a hand holding a CD or DVD disc (no text or symbols)

Handle a CD by its edges; never touch either surface. Contamination from fingerprints, liquids, felt-tip pens, and labels can cause the CD to not play properly, or possibly jam in the drive.

When a CD is not being played, store it in its case to protect it from dust and other contamination. To prevent warpage, keep CDs out of direct sunlight and extreme heat.

Hand holding a CD or DVD disc with arrows indicating rotation direction (no text or symbols)

To clean a disc, use a clean soft cloth. Wipe across the disc from the center to the outside edge.

Illustration of two hands holding circular objects with a diagonal line crossing through them (no text or symbols)

A new CD may be rough on the inner and outer edges. The small plastic pieces causing this roughness can flake off and fall on the recording surface of the disc, causing skipping or other problems. Remove these pieces by rubbing the inner and outer edges with the side of a pencil or pen.

Never try to insert foreign objects in the CD player or the magazine.

CD Player Error Indications flyou see an error indication in the display while operating the CD player, find the cause in the chart to the right. If you cannot clear the error indication, take the vehicle to your Honda dealer.

Indication	Cause	Solution
cd E-00	System ErrorFOCUS Error	Press the EJECT button and pull out the disc.Check if the disc is inserted correctly in CD player.Make sure the disc is not scratched or damaged.
cd E-01	Mechanical Error	Press the EJECT button and pull out the disc.Check the disc for damage or deformation.If the CD cannot be pulled out or the error indication does not disappear after the disc is ejected, see your Honda dealer.Do not try to force the disc out of the player.
cd E-02	Communication ErrorLSI Error	Consult your Honda dealer.

Audio System

CD Changer Error Indications

If you see an error indication in the display while operating the CD changer, find the cause in the chart to the right. If you cannot clear the error indication, take the vehicle to your Honda dealer.

Indication	Cause	Solution
cd O^excE-00	System ErrorFOCUS Error	Press the magazine eject button and pull out the magazine, check for error indication. Insert the magazine again. If the code does not disappear or the magazine cannot be pulled out, consult your Honda dealer.
cd O^excE-01	Mechanical Error	Press the magazine eject button and pull out the magazine, check for error indication. Insert the magazine again. If the code does not disappear or the magazine cannot be pulled out, consult your Honda dealer.
cd O^excE-02	Communication ErrorLSI Error	See your Honda dealer.
cd O^exc ---H	High temperature.	Will disappear when the temperature returns to normal.
cd O^exc ---	No CD magazine in the CD changer.	Insert CD magazine.
	No CD in the CD magazine.	Insert CD.

Operating the Cassette Player (Optional)

The cassette system features Dolby B* noise reduction, automatic sensing of chromium-dioxide (CrO₂) tape, and autoreverse for continuous play.

Make sure the tape opening on the cassette is facing to the right, then insert the cassette most of the way into the slot. The system will pull it in the rest of the way, and begin to play.

* Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. "DOLBY" and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

PWR/VOL KNOB AM/FM BUTTON CD BUTTON TAPE DIRECTION INDICATOR SEEK/SKIP BAR TUNE BAR HONDA AM/FM CD 1 2 3 4 5 6 TUNE SEEK SKIP SCAN RPT ASEL ROM PLAY BUTTON NR BUTTON PROG BUTTON REPEAT BUTTON

CONTINUED

Audio System

The tape direction indicator will light to show you which side of the cassette is playing. The ▲ indicates the side you inserted facing upward is now playing. If you want to play the other side, press the PROG button.

Dolby B noise reduction turns on when you insert a cassette. If the tape was not recorded with Dolby B noise reduction, turn it off by pressing the NR button. Dolby remains off until you turn it on by pressing the button again.

When the system reaches the end of the tape, it will automatically reverse direction and play the other side. If you want to remove the cassette from the drive, press the EJECT button on the cassette player.

If you turn the system off while a tape is playing, either with the PWR/VOL knob or by turning off the ignition, the cassette will remain in the drive. When you turn the system back on, the cassette player will be in pause mode. To begin playing, press the PLAY button.

To switch to the radio or CD player while a tape is playing, press the AM/FM, or CD button. To change back to the cassette player, push the CD button.

Tape Search Functions

With a cassette playing, you can use the FF, REW, SKIP, or REPEAT function to find a desired program.

FF/REW — Fast Forward and Rewind move the tape rapidly. Press and release the ▶▶ side of the TUNE bar to fast forward the tape, or the ◀◀ side to rewind. You will see FF or REW flashing in the display. To stop fast forward or rewind, press either side of the TUNE bar or the PLAY button. If the system reaches the end of the tape while in fast forward or rewind, it automatically stops that function, reverses direction, and begins to play.

SKIP — The skip function allows you to find the beginning of a song or passage. To activate SKIP, press the SEEK/SKIP bar. Press the ▶▶ side to advance to the beginning of the next song or passage, or the ◀◀ side to return to the beginning of the current song or passage. FF or REW will flash in the display as the tape moves. When the system reaches the beginning of the next song or passage (FF), or the beginning of the current one (REW), it goes back to PLAY mode.

REPEAT — The Repeat function continuously replays the current song or passage. Press the RPT button to activate it; you will see RPT displayed as a reminder. When the system reaches the end of the song or passage currently playing, it will automatically go into rewind. When it senses the beginning of the same song or passage, the system returns to PLAY mode. It will continue to repeat this same program until you deactivate REPEAT by pressing the button again.

The SKIP and REPEAT functions use silent periods on the tape to find the end of a song or passage. These features may not work to your satisfaction if there is almost no gap between selections, a high noise level between selections, or a silent period in the middle of selection.

Caring for the Cassette Player

The cassette player picks up dirt and oxides from the tape. This contamination builds up over time and causes the sound quality to degrade. To prevent this, you should clean the player after every 30 hours of use. Your dealer has a cleaning kit available.

If you do not clean the cassette player regularly, it may eventually become impossible to remove the contamination with a normal cleaning kit.

Use 100-minute or shorter cassettes. Cassettes longer than that use thinner tape that may break or jam the drive.

Look at the cassette before you insert it. If the tape is loose, tighten it by turning a hub with a pencil or your finger.

If the label is peeling off, remove it from the cassette or it could cause the cassette to jam in the player. Never try to insert a warped or damaged cassette in the player.

When they are not in use, store cassettes in their cases to protect them from dust and moisture. Never place cassettes where they will be exposed to direct sunlight, high heat, or high humidity. If a cassette is exposed to extreme heat or cold, let it reach a moderate temperature before inserting it in the player.

Never try to insert foreign objects into the cassette player.

If you see the error indication "TARE" (LX model)/"TRAPE Err" (EX model) on the display, press the EJECT button and remove the cassette from the unit. Make sure the tape is not damaged. If the cassette will not eject or the error indication stays on after the cassette ejects, take the vehicle to your Honda dealer.

On LX model If a problem develops in the connection between the cassette player and the radio, you will see “IEEE” in the display. Take the vehicle to your Honda dealer.

Theft Protection

On EX model

Your vehicle's audio system will disable itself if it is disconnected from electrical power for any reason. To make it work again, the user must enter a specific five-digit code in the Preset buttons. Because there are hundreds of number combinations possible from five digits, making the system work without knowing the exact code is nearly impossible.

You should have received a card that lists your audio system's code number and serial number. It is best to store this card in a safe place at home. In addition, you should write the audio system's serial number in this Owner's Manual. If you should happen to lose the card, you must obtain the code number from your Honda dealer. To do this, you will need the system's serial number.

If your vehicle's battery is disconnected or goes dead, or the radio fuse is removed, the audio system will disable itself. If this happens, you will see "CODE" in the frequency display the next time you turn on the system. Use the Preset buttons to enter the five-digit code. If it is entered correctly, the radio will start playing.

If you make a mistake entering the code, do not start over or try to correct your mistake. Complete the five-digit sequence, then enter the correct code. You have ten tries to enter the correct code. If you are unsuccessful in ten attempts, you must then leave the system on for one hour before trying again.

You will have to store your favorite stations in the Preset buttons after the system begins working. Your original settings were lost when power was disconnected.

Before you begin driving your Honda, you should know what gasoline to use, and how to check the levels of important fluids. You also need to know how to properly store luggage or packages. The information in this section will help you. If you plan to add any accessories to your vehicle, please read the information in this section first.

Break-in Period.... 140

Gasoline.... 140

Service Station Procedures...... 141

Filling the Fuel Tank...... 141

Opening the Hood.... 142

Oil Check.... 143

Engine Coolant Check...... 144

Fuel Economy.... 145

Vehicle Condition.... 145

Driving Habits.... 145

Accessories and Modifications.... 146

Carrying Cargo.... 148

Break-in Period

Help assure your vehicle's future reliability and performance by paying extra attention to how you drive during the first 600 miles (1,000 km). During this period:

• Avoid full-throttle starts and rapid acceleration.
• Avoid hard braking. New brakes need to be broken-in by moderate use for the first 200 miles (300 km).

You should follow these same recommendations with an overhauled or exchanged engine, or when the brakes are relined.

Gasoline

Your Honda is designed to operate on unleaded gasoline with a pump octane number of 86 or higher. Use of a lower octane gasoline can cause a persistent, heavy metallic rapping noise in the engine that can lead to mechanical damage.

We recommend gasolines containing detergent additives that help prevent fuel system and engine deposits.

Using gasoline containing lead will damage your vehicle's emissions controls. This contributes to air pollution.

In Canada, some gasolines contain an octane-enhancing additive called MMT. If you use such gasolines, your emission control system performance may deteriorate and the Malfunction Indicator Lamp on your instrument panel may turn on. If this happens, contact your authorized Honda dealer for service.

Filling the Fuel Tank

Pull

1. Because the fuel fill cap is on the driver's side of the vehicle, park with that side closest to the service station pumps.

2. Open the fuel fill door by pulling on the handle at the outside of the driver's seat.

Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel.

• Stop the engine and keep heat, sparks, and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.

FUEL FILL CAP

1. Remove the fuel fill cap slowly. You may hear a hissing sound as pressure inside the tank escapes.
2. Stop filling the tank after the fuel pump automatically clicks off. Do not try to "top off" the tank, leave some room for the fuel to expand with temperature changes.
3. Screw the fuel fill cap back on, tighten it until it clicks at least three times. If you do not properly tighten the cap, the Malfunction Indicator Lamp may come on (see page 266).
4. Push the fuel fill door closed until it latches.

Opening the Hood

HOOD RELEASE HANDLE

1. Shift to Park or Neutral and set the parking brake. Pull the hood release handle located under the lower left corner of the dashboard. The hood will pop up slightly.

LATCH

1. Standing in front of the vehicle, put your fingers under the front edge of the hood to the right of center. Slide your hand to the left until you feel the hood latch handle. Push this handle up until it releases the hood. Lift the hood.

If you can open the hood without lifting the hood latch handle, or the hood latch handle moves stiffly or does not spring back as before, the mechanism should be cleaned and lubricated (see page 213).

SUPPORT ROD

1. Pull the support rod out of its clip and insert the end into the hole on the front of the hood around the center.

To close the hood, lift it up slightly to remove the support rod from the hole. Put the support rod back into its holding clip. Lower the hood to about a foot (30 cm) above the fender, then let it drop.

After closing the hood, make sure it is securely latched.

Oil Check

DIPSTICK

Check the engine oil level every time you fill the vehicle with fuel. Wait a few minutes after turning the engine off before you check the oil.

1. Remove the dipstick (orange handle).

Line drawing of a person holding a long object, possibly a tool or device (no text or symbols present)

1. Wipe the dipstick with a clean cloth or paper towel.

CONTINUED

Line drawing of a hand pressing down on a mechanical component with arrows indicating motion (no text or symbols)

1. Insert it all the way back in its tube.

UPPER MARK LOWER MARK

1. Remove the dipstick again and check the level. It should be between the upper and lower marks.

If it is near or below the lower mark, see Adding Oil on page 197.

Engine Coolant Check

RESERVE TANK MAX MIN

Look at the coolant level in the radiator reserve tank. Make sure it is between the MAX and MIN lines. If it is below the MIN line, see Adding Engine Coolant on page 201 for information on adding the proper coolant.

Refer to Owner Maintenance Checks on page 195 for information on checking other items in your Honda.

The condition of your vehicle and your driving habits are the two most important things that affect the fuel mileage you get.

Vehicle Condition

Always maintain your vehicle according to the maintenance schedule. This will keep it in top operating condition.

An important part of that maintenance is the Owner Maintenance

Checks (see page 195). For example, an underinflated tire causes more "rolling resistance," which uses fuel. It also wears out faster, so check the tire pressure at least monthly.

In winter, the build-up of snow on your vehicle's underside adds weight and rolling resistance. Frequent cleaning helps your fuel mileage and reduces the chance of corrosion.

Driving Habits

You can improve fuel economy by driving moderately. Rapid acceleration, abrupt cornering, and hard braking use more fuel.

Always drive in the highest gear that allows the engine to run and accelerate smoothly.

Depending on traffic conditions, try to maintain a constant speed. Every time you slow down and speed up, your vehicle uses extra fuel. Use the cruise control, when appropriate, to increase fuel economy.

A cold engine uses more fuel than a warm engine. It is not necessary to "warm-up" a cold engine by letting it idle for a long time. You can drive away in about a minute, no matter how cold it is outside. The engine will warm up faster, and you get better fuel economy. To cut down on the number of "cold starts," try to combine several short trips into one.

The air conditioning puts an extra load on the engine which makes it use more fuel. Turn off the A/C to cut down on air conditioning use. Use the flow-through ventilation when the outside air temperature is moderate.

Modifying your vehicle, or installing some non-Honda accessories, can make your vehicle unsafe. Before you make any modifications or add any accessories, be sure to read the following information.

Accessories

Your dealer has Genuine Honda accessories that allow you to personalize your vehicle. These accessories have been designed and approved for your vehicle, and are covered by warranty.

Non-Honda accessories are usually designed for universal applications. Although aftermarket accessories may fit on your vehicle, they may not meet factory specifications, and could adversely affect your vehicle's handling and stability. (See "Modifications" on the page 147 for additional information.)

Improper accessories or modifications can affect your vehicle's handling, stability and performance, and cause a crash in which you can be hurt or killed.

Follow all instructions in this owner's manual regarding accessories and modifications.

When properly installed, cellular phones, alarms, two-way radios, and low-powered audio systems should not interfere with your vehicle's computer-controlled systems, such as the SRS and anti-lock brake system.

However, if electronic accessories are improperly installed, or exceed your vehicle's electrical system capacity, they can interfere with the

operation of your vehicle, or even cause the airbags to deploy.

Before installing any accessory:

• Make sure the accessory does not obscure any lights, or interfere with proper vehicle operation or performance.
• Be sure electronic accessories do not overload electrical circuits (see page 268).
• Have the installer contact your Honda dealer for assistance before installing any electronic accessory.

If possible, have your dealer inspect the final installation.

Accessories and Modifications

Modifications

Do not remove any original equipment or modify your vehicle in any way that would alter its design or operation. This could make your vehicle unsafe and illegal to drive.

For example, do not make any modifications that would change the ride height of your vehicle, or install wheels and tires with a different overall diameter.

Such modifications can adversely affect handling, and interfere with the operation of the vehicle's anti-lock brakes and other systems.

In addition, any modifications that decrease ground clearance increase the chance of undercarriage parts striking a curb, speed bump, or other raised object, which could cause your airbags to deploy.

Do not modify your steering wheel or any other part of your Supplemental Restraint System. Modifications could make the system ineffective.

Additional Safety Precaution

Do not attach or place objects on the airbag covers. Any object attached to or placed on the covers marked "SRS AIRBAG," in the center of the steering wheel and on top of the dashboard, could interfere with the proper operation of the airbags. Or, if the airbags inflate, the objects could be propelled inside the vehicle and hurt someone.

Carrying Cargo

CARGO FLOOR POCKET TAILGATE POCKET DOOR POCKET SEAT UNDER-BOX CARGO AREA CENTER POCKET GLOVE BOX

Your vehicle has several convenient storage areas so you can stow cargo safely.

The glove box, and the pockets in the front doors and seat-backs, are designed for small, lightweight items. The cargo area is intended for larger, heavier items. In addition, the back seat can be folded down to allow you to carry more cargo or longer items.

However, carrying too much cargo, or improperly storing it, can affect your vehicle's handling, stability and operation and make it unsafe. Before carrying any type of cargo, be sure to read the following pages.

Load Limit

The maximum load for your vehicle is 850 lbs (395 kg).

This figure includes the total weight of all occupants, cargo, accessories, and the tongue weight if you are towing a trailer.

To figure out how much cargo you can carry:

• Add up the weight of all occupants.
• If you are towing a trailer, add the tongue weight to the number above.
• Subtract the total from 850 lbs (395 kg).

The final number is the total weight of cargo you can carry.

Overloading or improper loading can affect handling and stability and cause a crash in which you can be hurt or killed.

Follow all load limits and other loading guidelines in this manual.

Carrying Items in the Passenger Compartment

• Store or secure all items that could be thrown around and hurt someone during a crash.
• Be sure items placed on the floor behind the front seats cannot roll under the seats and interfere with the driver's ability to operate the pedals, or with the proper operation of the seats.

- Keep the glove box closed while driving. If the lid is open, a passenger could injure their knees during a crash or sudden stop.

Carrying Cargo

Carrying Cargo in the Cargo Area or on a Roof Rack

• Distribute cargo evenly on the floor of the cargo area, placing the heaviest items on the bottom and as far forward as possible. Tie down items that could be thrown about the vehicle during a crash or sudden stop.
• If you carry large items that prevent you from closing the tailgate, exhaust gas can enter the passenger area. To avoid the possibility of carbon monoxide poisoning, follow the instructions on page 49.
• If you can carry any items on a roof rack, be sure the total weight of the rack and the items does not exceed the maximum allowable weight. Please contact your Honda dealer for further information.

Driving

This section gives you tips on starting the engine under various conditions, and how to operate the 5-speed manual and automatic transmissions. It also includes important information on parking your vehicle, the braking system, and facts you need if you are planning to tow a trailer or drive off-highway.

Driving Guidelines.... 152

Preparing to Drive.... 153

Starting the Engine.... 154

Starting in Cold Weather at High Altitude.... 155

5-speed Manual Transmission..... 156

Recommended Shift Points..... 157

Maximum Allowable Speeds.... 157

Automatic Transmission.... 158

Shift Lever Position Indicator.. 158

Shift Lever Positions.... 158

Maximum Allowable Speeds.... 161

Shift Lock Release.... 162

Parking.... 163

The Braking System...... 164

Brake Wear Indicators...... 164

Brake System Design.... 165

Anti-lock Brakes.... 165

Important Safety Reminders.... 166

ABS Indicator...... 167

Driving in Bad Weather...... 168

Towing a Trailer.... 170

Towing Your Vehicle Behind a Motorhome.... 176

Off-Highway Guidelines.... 177

General Information...... 177

Important Safety Precautions.... 178

Driving Tips.... 179

Driving Guidelines

Your CR-V has higher ground clearance than a passenger vehicle designed only for use on pavement. Higher ground clearance has many advantages for off-highway driving. It allows you to travel over bumps and unpaved roads. It also provides good visibility so you can anticipate problems earlier.

These advantages come at some cost. Because your vehicle is taller and rides higher off the ground, it has a high center of gravity. This means that your vehicle can tip or roll over if you make abrupt turns.

To prevent rollover or loss of control:

• Take corners at slower speeds than you would with a passenger vehicle.

• Avoid sharp turns and abrupt maneuvers whenever possible.
• Do not modify your vehicle in any way that would raise the center of gravity.
• Do not carry heavy cargo on the roof.

Four-wheel Drive Models Your CR-V is equipped with a unique four-wheel drive (4WD) system. Normally, power is delivered only to the front wheels. When the system senses a loss of front-wheel traction, it automatically transfers some power to the rear wheels. This gives you better traction and mobility.

While this system can provide increased traction on slippery surfaces, you still need to exercise the same care when accelerating, steering, and braking that you would in a two-wheel drive vehicle.

See page 177 for additional guidelines for driving off-highway.

You should do the following checks and adjustments every day before you drive your vehicle.

1. Make sure all windows, mirrors, and outside lights are clean and unobstructed. Remove frost, snow, or ice.
2. Check that the hood and tailgate are fully closed.
3. Visually check the tires. If a tire looks low, use a gauge to check its pressure.

4. Check that any items you may be carrying with you inside are stored properly or fastened down securely.

5. Check the adjustment of the seat (see page 77).

6. Check the adjustment of the inside and outside mirrors (see page 85).
7. Check the adjustment of the steering wheel (see page 64).
8. Make sure the doors are securely closed and locked.

9. Fasten your seat belt. Check that your passengers have fastened their seat belts (see page 15).

10. Turn the ignition switch ON (II). Check the indicator lights in the instrument panel.

11. Start the engine (see page 154).
12. Check the gauges and indicator lights in the instrument panel (see page 53).

Starting the Engine

1. Apply the parking brake.
2. In cold weather, turn off all electrical accessories to reduce the drain on the battery.
3. Manual Transmission: Push the clutch pedal down all the way. START (III) does not function unless the clutch pedal is depressed.

Automatic Transmission: Make sure the shift lever is in Park. Press on the brake pedal.

1. Without touching the accelerator pedal, turn the ignition key to the START (III) position. If the engine does not start right away, do not hold the key in START (III) for more than 15 seconds at a time. Pause for at least 10 seconds before trying again.

2. If the engine does not start within 15 seconds, or starts but stalls right away, repeat step 4 with the accelerator pedal pressed half-way down. If the engine starts, release pressure on the accelerator pedal so the engine does not race.

3. If the engine still does not start, press the accelerator pedal all the way down and hold it there while starting in order to clear flooding. As before, keep the ignition key in the START (III) position for no more than 15 seconds. Return to step 5 if the engine does not start. If it starts, lift your foot off the accelerator pedal so the engine does not race.

Starting in Cold Weather at High Altitude (Above 8,000 feet/2,400 meters)

An engine is harder to start in cold weather. The thinner air found at high altitude above 8,000 feet (2,400 meters) adds to the problem. Use the following procedure:

1. Turn off all electrical accessories to reduce the drain on the battery.

2. Push the accelerator pedal halfway to the floor and hold it there while starting the engine. Do not hold the ignition key in START (III) for more than 15 seconds. When the engine starts, release the accelerator pedal gradually as the engine speeds up and smooths out.

3. If the engine fails to start in step 2, push the accelerator pedal to the floor and hold it there while you try to start the engine for no more than 15 seconds. If the engine does not start, return to step 2.

Line drawing of a mechanical lever assembly (no text or symbols)

The manual transmission is syn- chronized in all forward gears for smooth operation. It has a lockout so you cannot shift directly from Fifth to Reverse. When shifting up or down, make sure you push the clutch pedal down all the way, shift to the next gear, and let the pedal up gradually. When you are not shifting, do not rest your foot on the clutch pedal. This can cause your clutch to wear out faster.

Come to a full stop before you shift into Reverse. You can damage the transmission by trying to shift into Reverse with the vehicle moving. Push down the clutch pedal, and pause for a few seconds before shifting into Reverse, or shift into one of the forward gears for a moment. This stops the gears so they won't "grind."

When slowing down, you can get extra braking from the engine by shifting to a lower gear. This extra braking can help you maintain a safe speed and prevent your brakes from overheating while going down a steep hill. Before downshifting, make sure engine speed will not go into the tachometer's red zone in the lower gear. Refer to the Maximum Allowable Speeds chart.

Rapid slowing or speeding-up can cause loss of control on slippery surfaces. If you crash, you can be injured.

Use extra care when driving on slippery surfaces.

5-speed Manual Transmission

Recommended Shift Points

Drive in the highest gear that lets the engine run and accelerate smoothly. This will give you the best fuel economy and effective emissions control. The following shift points are recommended:

Shift up	Normal acceleration
1st to 2nd	15 mph (24 km/h)
2nd to 3rd	25 mph (40 km/h)
3rd to 4th	40 mph (64 km/h)
4th to 5th	48 mph (77 km/h)

Maximum Allowable Speeds

The speeds in this table are the maximum allowable speeds in each gear. If you exceed these speeds, the engine speed will enter into the tachometer's red zone. If this occurs, you may feel the engine cut in and out. This is caused by a limiter in the engine's computer controls. The engine will run normally when you reduce the RPM below the red zone.

Before downshifting, make sure the vehicle will not exceed the maximum allowable speed in the chart in the lower gear to avoid engine damage.

Gear	Maximum allowable speeds
1st	30 mph (48 km/h)
2nd	54 mph (86 km/h)
3rd	78 mph (126 km/h)
4th	98 mph (158 km/h)

Automatic Transmission

Your Honda's transmission has four forward speeds, and is electronically controlled for smoother shifting. It also has a "lock-up" torque converter for better fuel economy. You may feel what seems like another shift when the converter locks.

Shift Lever Position Indicator

F E P N D 2 1 H C

This indicator on the instrument panel shows which position the shift lever is in. The "D" indicator comes on for a few seconds when you turn the ignition switch ON (II). If it flashes while driving (in any shift position), it indicates a possible problem in the transmission. Avoid rapid acceleration and have the transmission checked by an authorized Honda dealer as soon as possible.

Shift Lever Positions

Line drawing of a car interior showing steering wheel and dashboard (no text or symbols)

The shift lever has six positions. It must be in Park or Neutral to start the engine. When you are stopped in D, 2, 1, N or R, press firmly on the brake pedal, and keep your foot off the accelerator pedal.

To shift from:	Do this:
P to R	Press the brake pedal and pull the shift lever towards you.
R to PN to RD to 22 to 1	Pull the shift lever towards you.
1 to 22 to DD to NN to DR to N	Move the lever.

Line drawing of a person using a car steering wheel, no text or symbols present

Park (P) — This position mechanically locks the transmission. Use Park whenever you are turning off or starting the engine. To shift out of Park, you must press on the brake pedal and have your foot off the accelerator pedal. Pull the shift lever towards you, then move it out of Park.

If you have done all of the above and still cannot move the lever out of Park, see Shift Lock Release on page 162.

You must also pull the shift lever towards you to shift into Park. To avoid transmission damage, come to a complete stop before shifting into Park. The shift lever must be in Park before you can remove the key from the ignition switch.

CONTINUED

Automatic Transmission

Reverse (R) — To shift to Reverse from Park, see the explanation under Park. To shift to Reverse from Neutral, come to a complete stop and then shift. Pull the shift lever towards you before shifting into Reverse from Neutral.

Neutral (N) — Use Neutral if you need to restart a stalled engine, or if it is necessary to stop briefly with the engine idling. Shift to Park position if you need to leave the vehicle for any reason. Press on the brake pedal when you are moving the shift lever from Neutral to another gear.

Drive (D) — Use this position for your normal driving. The transmission automatically selects a suitable gear for your speed and acceleration. You may notice the transmission shifting up at higher speeds when the engine is cold. This helps the engine warm up faster.

For faster acceleration, you can get the transmission to automatically downshift by pushing the accelerator pedal to the floor. The transmission will shift down one or two gears, depending on your speed.

Over-Drive (O/D) Mode

Line drawing of a car interior showing a hand holding a tool with a numbered component (no text or symbols)

The Over-Drive (O/D) is on whenever you turn the ignition ON (II). You can turn it off by pressing the O/D switch on the edge of the shift lever. The O/D OFF indicator on the instrument panel next to the shift lever position indicator will come on.

F E P N D 2 1 H C

When the Over-Drive is off the transmission selects only the first three gears, but not the fourth. Turn the O/D off to provide engine braking when going down a steep hill. You can also avoid the transmission from cycling between third and fourth gears in stop-and-go driving.

Second (2) — To shift to Second, pull the shift lever towards you, then shift to the lower gear. This position locks the transmission in second gear. It does not downshift to first gear when you come to a stop. Second gives you more power when climbing, and increased engine braking when going down steep hills. Use second gear when starting out on a slippery surface or in deep snow. It will help reduce wheelspin.

First (1) — To shift from Second to First, pull the shift lever towards you, then shift to the lower gear. With the lever in this position, the transmission locks in First gear. By upshifting and downshifting through 1,2, D, you can operate this transmission much like a manual transmission without a clutch pedal.

Maximum Allowable Speeds

The speeds in this table are the maximum allowable speeds in each position. If you exceed these speeds, the engine speed will enter into the tachometer's red zone. If this occurs, you will feel the engine cut in and out. This is caused by a limiter in the engine's computer controls. The engine will run normally when you reduce the RPM below the red zone.

Before downshifting, make sure the vehicle will not exceed the maximum allowable speed in the chart in the lower gear to avoid engine damage.

Position	Maximumallowable speeds
1	38 mph (61 km/h)
2	68 mph (110 km/h)
D*	96 mph (155 km/h)

*:When O/D is off.

Automatic Transmission

Shift Lock Release

This allows you to move the shift lever out of Park if the normal method of pushing on the brake pedal and pulling the shift lever does not work.

1. Set the Parking brake.
2. Remove the key from the ignition switch.
3. Place a cloth on the edge of the shift lock release slot cover located on the steering column. Remove the cover by carefully prying on the edge with a small flat-tipped screwdriver (not included in the tool kit).

Technical line drawing of a mechanical assembly with a tool inserted into a component (no text or symbols)

1. Insert the key in the Shift Lock Release slot on the steering column.
2. Push down on the key while you pull the shift lever towards you and move it out of Park to Neutral.

SHIFT LOCK RELEASE SLOT

1. Remove the key from the shift lock release slot, then reinstall the cover. Depress the brake pedal and restart the engine.

If you need to use the Shift Lock Release, it means your vehicle is developing a problem. Have the vehicle checked by your Honda dealer.

Always use the parking brake when you park your vehicle. The indicator on the instrument panel shows that the parking brake is not fully released; it does not indicate that the parking brake is firmly set. Make sure the parking brake is set firmly or your vehicle may roll if it is parked on an incline.

If your vehicle has an automatic transmission, set the parking brake before you put the transmission in Park. This keeps the vehicle from moving and putting pressure on the parking mechanism in the transmission — making it easier to move the shift lever put of Park when you want to drive away.

If the vehicle is facing uphill, turn the front wheels away from the curb. If you have a manual transmission, put it in first gear.

If the vehicle is facing downhill, turn the front wheels toward the curb. If you have a manual transmission, put it in reverse gear.

Make sure the parking brake is fully released before driving away. Driving with the parking brake partially set can overheat or damage the rear brakes.

Parking Tips

• Make sure the windows are closed.
• Turn off the lights.
• Place any packages, valuables, etc., in the cargo area or take them with you.
• Lock the doors.
• Never park over dry leaves, tall grass, or other flammable materials. The three way catalytic converter gets very hot, and could cause these materials to catch on fire.

The Braking System

Your Honda is equipped with front disc brakes. The brakes on the rear wheels are drum. The braking system is power-assisted to reduce the effort needed on the brake pedal.

Put your foot on the brake pedal only when you intend to brake. Resting your foot on the pedal keeps the brakes applied lightly, causing them to build up heat. Heat build-up can reduce how well your brakes work. It also keeps your brake lights on all the time, confusing drivers behind you.

Constant application of the brakes when going down a long hill builds up heat and reduces their effectiveness. Use the engine to assist the brakes by downshifting to a lower gear and taking your foot off the accelerator pedal.

Check your brakes after driving through deep water. Apply the brakes moderately to see if they feel normal. If not, apply them gently and frequently until they do. Since a longer distance is needed to stop with wet brakes, be extra cautious and alert in your driving.

Brake Wear Indicators

The front disc brakes on all vehicles have audible brake wear indicators.

When the brake pads need replacing, you will hear a distinctive metallic "screeching" sound when you apply the brakes. If you do not have the brake pads replaced, they will begin screeching all the time.

Your brakes may sometimes squeal or squeak when you apply them lightly. Do not confuse this with the brake wear indicators. They make a very audible "screeching."

Brake System Design

The hydraulic system that operates the brakes has two separate circuits. Each circuit works diagonally across the vehicle (the left-front brake is connected with the right-rear brake, etc.). If one circuit should develop a problem, you will still have braking at two wheels.

Front

Anti-lock Brakes

U.S. EX, and Canadian LX and EX models

ABS helps to prevent the wheels from locking up and skidding during hard braking, allowing you to retain steering control.

When the front tires skid, you lose steering control; the vehicle continues straight ahead even though you turn the steering wheel. The ABS helps to prevent lock-up and helps you retain steering control by pumping the brakes rapidly; much faster than a person can do it.

CONTINUED

The Braking System

You should never pump the brake pedal, this defeats the purpose of the ABS. Let the ABS work for you by always keeping firm, steady pressure on the brake pedal as you steer away from the hazard. This is sometimes referred to as "stomp and steer."

You will feel a pulsation in the brake pedal when the ABS activates, and you may hear some noise. This is normal, it is the ABS rapidly pumping the brakes.

Activation varies with the amount of traction your tires have. On dry pavement, you will need to press on the brake pedal very hard before you activate the ABS. However, you may feel the ABS activate immediately if you are trying to stop on snow or ice.

Important Safety Reminders ABS does not reduce the time or distance it takes to stop the vehicle, it only helps with steering control during braking. You should always maintain a safe following distance from other vehicles.

ABS will not prevent a skid that results from changing direction abruptly, such as trying to take a corner too fast or making a sudden lane change. Always drive at a safe, prudent speed for the road and weather conditions.

ABS cannot prevent a loss of stability. Always steer moderately when you are braking hard. Severe or sharp steering wheel movement can still cause your vehicle to veer into oncoming traffic or off the road.

A vehicle with ABS may require a longer distance to stop on loose or uneven surfaces, such as gravel or snow, than a vehicle without anti-lock. Slow down and allow a greater distance between vehicles under those conditions.

ABS Indicator

ABS INDICATOR* ABS

*U.S. indicator shown

The ABS is self-checking. It also checks itself whenever you use the brakes.

If anything goes wrong, the ABS indicator on the instrument panel comes on (see page 55). This means the anti-lock function of the braking system has shut down. The brakes still work like a conventional system without anti-lock, providing normal stopping ability. You should have the dealer inspect your vehicle as soon as possible.

Line drawing of a car with motion blur effect (no text or symbols)

Rain, fog, and snow conditions require a different driving technique because of reduced traction and visibility. Keep your vehicle well-maintained and exercise greater caution when you need to drive in bad weather. The cruise control should not be used in these conditions.

Driving Technique — Always drive slower than you would in dry weather. It takes your vehicle longer to react, even in conditions that may seem just barely damp. Apply smooth, even pressure to all the controls. Abrupt steering wheel movements or sudden, hard application of the brakes can cause loss of control in wet weather. Be extra cautious for the first few miles (kilometers) of driving while you adjust to the change in driving conditions. This is especially true in snow. A person can forget some snow-driving techniques during the summer months. Practice is needed to relearn those skills.

Exercise extra caution when driving in rain after a long dry spell. After months of dry weather, the first rains bring oil to the surface of the roadway, making it slippery.

Visibility — Being able to see clearly in all directions and being visible to other drivers are important in all weather conditions. This is more difficult in bad weather. To be seen more clearly during daylight hours, turn on your headlights.

Inspect your windshield wipers and washers frequently. Keep the windshield washer reservoir full of the proper fluid. Have the windshield wiper blades replaced if they start to streak the windshield or leave parts unwiped. Use the defrosters and air conditioning to keep the windows from fogging up on the inside (see page 103).

Traction — Check your tires frequently for wear and proper pressure. Both are important in preventing "hydroplaning" (loss of traction on a wet surface). In the winter, mount snow tires on all four wheels for the best handling.

Watch road conditions carefully, they can change from moment to moment. Wet leaves can be as slippery as ice. "Clear" roads can have patches of ice. Driving conditions can be very hazardous when the outside temperature is near freezing. The road surface can become covered with areas of water puddles mixed with areas of ice, so your traction can change without warning.

Be careful when downshifting. If traction is low, you can lock up the drive wheels for a moment and cause a skid.

Sketch of a truck and car on a road with raindrops falling (no text or symbols)

Be very cautious when passing, or being passed by other vehicles. The spray from large vehicles reduces your visibility, and the wind buffeting can cause you to lose control.

Towing a Trailer

Your Honda is designed primarily to carry passengers and their cargo. You can use it to tow a trailer if you carefully observe some general rules.

• The total weight of the trailer and everything loaded in it must not exceed 1,000 lbs (450 kg).

• The "tongue load" should never exceed 110 lbs (50 kg). This is the amount of weight the trailer puts on the hitch when it is fully-loaded. As a rule of thumb, the tongue load should be 10 percent of the total trailer package. For example, if the trailer and its load weigh 500 lbs (225 kg), the tongue load should be 50 lbs (22.5 kg). Adjust the trailer's cargo to change the tongue load. Start by putting approximately 60 percent of the cargo toward the front and 40 percent toward the rear. Never load the trailer so the back is heavier than the front. This takes weight off your vehicle's rear axle and reduces traction.

• The combined weight of the vehicle, all passengers and their luggage, and tongue load must not exceed the Gross Vehicle Weight Rating. The GVWR is printed on the Certification label attached to the driver's doorjamb (see page 276).

• The combined weight of the vehicle, all passengers and their luggage, and tongue load also must not exceed the Gross Axle Weight Rating. The GAWR is also shown on the Certification label. It tells you the maximum load for the front and rear axles. It is possible that your towing package does not exceed the GVWR but does exceed the GAWR. Improper trailer loading, and/or too much luggage in the cargo area can overload the rear axle. Redistribute the load and check the axle weights again.

Improperly loading your vehicle and trailer can seriously affect its steering and braking performance, causing a crash in which you can be seriously injured.

Check the loading of your vehicle and trailer carefully before starting to drive.

The best way to confirm that your total towing package is within these specifications is to get it weighed. Load the vehicle and trailer as you normally would while towing, and take them to a public scale. Have them check the total weight and the weight at each axle, then compare the weights to the specifications.

Trailer Hitches

The trailer hitch must be the proper size and construction for your vehicle and the trailer you intend to tow. Consult with an expert before you purchase a trailer hitch, and have it installed by a qualified mechanic.

The hitch should bolt to the underbody of the vehicle, and distribute the load over a wide area. Never use a hitch that mounts only to the rear bumper. The bumper is not designed to handle that type of load.

NOTICE

A trailer hitch that is not adequate for the size of the trailer, or a hitch that is improperly installed, can cause damage to the underside of your vehicle.

Towing a Trailer

Mirrors

Many states and provinces have laws requiring special outside mirrors when you are towing a trailer. Check the laws in your area. You may want to install mirrors, even if they are not required. Hook up the trailer and see how much it obscures your ability to see behind you with the standard mirrors. If you cannot see directly behind you, or have a large blind spot next to the trailer or the vehicle, you should install mirrors intended for towing.

Connecting the Trailer

Most trailers that have a gross weight of 1,000 lbs (450 kg) do not have their own braking system. If you are thinking of getting a trailer that does have brakes, make sure they are electrically-operated. There are no provisions in your vehicle to tap into its hydraulic braking system. Any attempt to attach the trailer's brakes to your vehicle's hydraulic system, no matter how successful it may seem, will lower braking effectiveness and create a potential hazard.

Always use a safety chain when towing a trailer. Connect the safety chain securely at both ends. Make sure the chain crosses under the tongue so it will catch the trailer if it becomes unhitched. Leave enough slack in the chain so it can't bind in a sharp turn. Do not let it drag on the ground.

Trailer Light

GROUND (BLACK) BACK-UP LIGHT (GREEN/BLACK) LEFT TURN SIGNAL (GREEN/RED) RIGHT TURN SIGNAL (GREEN/YELLOW) BRAKE LIGHT (GREEN/WHITE) TAILLIGHT (RED/GREEN)

Your vehicle has a trailer lighting connector in the cargo area by the left speaker. Refer to the drawing above for the wiring color code and purpose of each connector pin.

The connector and pins that mate with this connector are available at your Honda dealer.

Since the lighting and wiring can be different for various brands of trailers, have a technician who is familiar with your trailer modify its lighting plug. A converter may be required between the vehicle and trailer for the lights to work correctly.

Before Starting Out

As you are preparing to tow your trailer, do the following:

• Measure the trailer's tongue load. You can do this with a bathroom scale.
• Verify that the hitch and safety chain are securely fastened.
• Check the condition and air pressure of all tires on the trailer and your vehicle. Low tire pressure can seriously affect the handling. Also check the spare tire.
• With everything loaded and the trailer connected, check that the rear of the vehicle is not sagging. If so, redistribute the load in the vehicle.
• Check that all lights on the vehicle and trailer are working properly.

Towing a Trailer

Towing Safety

Your vehicle will not stop as quickly with a trailer in tow. Leave extra distance between your vehicle and other vehicles. Avoid braking or turning suddenly. This could cause the trailer to jackknife or possibly turn over.

Keep in mind that your total vehicle is now much longer. Leave more room when making turns. The trailer tracks a smaller arc than the vehicle and can hit or run over something that the vehicle misses. When passing another vehicle, make sure the trailer is clear before changing lanes.

The vehicle/trailer combination is more affected by crosswinds and buffeting. When being passed by a large vehicle, keep a constant speed and steer straight ahead. If there is too much wind buffeting, slow down to get out of the other vehicle's air turbulence.

Towing a trailer puts an extra load on your vehicle. You should have your vehicle serviced according to the "Maintenance Schedule under severe driving conditions" on page 190.

This extra load is magnified when you are driving in hilly terrain. Watch the temperature gauge closely when climbing hills. If it gets near the hot area, turn off the air conditioning (if it is on). If this does not reduce the heat, it may be necessary to pull to the side of the road and wait for the engine to cool. If the automatic transmission shifts frequently between 3rd and 4th gears, turn off the over drive by pushing the switch (see page 160). This will help prevent the transmission from overheating. Help keep the brakes from overheating by shifting to a lower gear when going downhill.

If you have to stop while going uphill, do not hold the vehicle in place by pressing on the accelerator. This can cause the automatic transmission to overheat. Use the parking brake or footbrake.

When parking your vehicle and trailer, especially on a hill, be sure to follow all the normal precautions. Turn your front wheels into the curb, set the parking brake firmly, and put the transmission in 1st or Reverse (manual transmission) or Park (automatic transmission). In addition, place wheel chocks at each of the trailer's tires.

Backing up with a trailer is difficult and takes practice. Drive slowly, make small movements with the steering wheel, and have someone stand outside to guide you. Grip the steering wheel on the bottom (rather than the usual position near the top). Move your hand to the left to get the trailer to move to the left, and right to move the trailer right.

Towing Your Vehicle Behind a Motorhome

Towing Your Vehicle Behind a Motorhome

Your CR-V can be towed behind a motorhome at legal highway speeds. The vehicle must be "flat towed" with all four wheels on the ground.

When purchasing a tow bar or tow dolly, make sure you select a reputable manufacturer and installer. Follow the manufacturer's attachment instructions carefully.

After attaching the tow bar to your motorhome, do the following to prepare your CR-V for "flat towing":

5-speed Manual Transmission

• Make sure the transmission is full of fluid (see page 208).
• Release the parking brake.
• Shift the transmission to Neutral.

- Leave the key in the ignition switch and the ignition switch in ACCESSORY (I) so the steering wheel does not lock. Make sure the radio and any items plugged into the accessory power sockets are turned off so you do not run down the battery.

Automatic Transmission

• Make sure the transmission is full of fluid (see page 207).
• Release the parking brake.
• Start the engine.
• Press on the brake pedal. Shift to D, then to N.
• Turn off the engine. Leave the key in the ignition switch.

- Leave the ignition switch in ACCESSORY (I) so the steering wheel does not lock. Make sure the radio and any items plugged into the accessory power sockets are turned off so you do not run down the battery.

NOTICE

The steering system can be damaged if the steering wheel is locked. Leave the ignition switch in Accessory (I), and make sure the steering wheel turns freely before you begin towing.

NOTICE

Improper towing preparation will damage the transmission. Follow the above procedure exactly. If you cannot shift the transmission or start the engine, your vehicle must be transported on a flat-bed or trailer.

General Information

Your CR-V has been designed primarily for use on pavement. But its higher ground clearance allows you to occasionally travel on unpaved roads, to campgrounds, picnic sites, and similar locations. It is not designed for trailblazing, mountain climbing, or other challenging off-road activities.

If you decide to drive on unpaved roads, you will find that it requires somewhat different driving skills. Your CR-V will also handle somewhat differently than it does on pavement. So be sure to read this owner's manual, pay special attention to the precautions and tips in this section, and get acquainted with your vehicle before you leave the pavement.

Line drawing of a family camping at a vehicle trunk in a mountainous landscape, with a dog nearby (no text or symbols)

Important Safety Precautions

Remember that your CR-V has higher ground clearance and a higher center of gravity than passenger vehicles designed for use only on pavement. This means your vehicle can more easily tip or roll over if you make abrupt turns or drive on slopes. To avoid loss of control or rollover, be sure to follow all recommendations and precautions on page 152 and in this section.

Seat belts are just as important off-highway as on pavement. Wherever you drive, make sure you and your passengers always wear seat belts. If children or infants are along for the ride, see that they are properly secured.

Improperly operating this vehicle on or off-pavement can cause an accident or rollover in which you and your passengers could be seriously injured or killed.

- Follow all instructions and guidelines in the owner's manual.

- Keep your speed low and don't drive faster than conditions permit.

On many unpaved roads, you won't find lane markers, traffic signals, or signs to warn you of possible trouble ahead. It's up to you to continually assess the situation and drive within limits.

The route presents limits (some roads are too steep and bumpy for example). You have limits (in driving skills and comfort). And your vehicle also has limits (traction, stability, and power, for instance).

Driving off-highway can be hazardous if you fail to recognize limits and take proper precautions. For example, you can have an accident or rollover during maneuvers such as turning, driving on hills, or over large obstacles.

Be sure to store cargo properly, and do not exceed your CR-V's cargo or trailer load limits (see pages 149 and 170).

Driving Tips

The following pages contain practical tips on basic off-highway operation.

Check Out Your Vehicle

Driving off-highway can be hard on a vehicle. Before you leave the pavement, be sure all scheduled maintenance and service has been done, and that you have inspected your vehicle. Pay special attention to the condition of the tires, and use a gauge to check the tire pressures.

After you return to the pavement, carefully inspect your vehicle to make sure there is no damage that could make driving it unsafe. Check the tires for damage and for proper pressure.

Controlling Speed

Off-highway, the general rule is to keep your speed low. Of course, you'll need enough speed to keep moving forward. But at higher speeds, you have less time to assess conditions and make good decisions. There's also a greater chance of sliding if you brake or turn too quickly on wet soil, gravel, or ice. In any situation, never go faster than conditions allow.

Accelerating and Braking

For better traction on all surfaces, accelerate slowly and gradually build up speed. If you try to start too fast on wet soil, mud, snow, or ice, you might not have enough traction to get underway. You may even dig yourself into a hole.

Generally, the best off-pavement braking technique is to gently depress the brake pedal, then increase pressure as more braking is needed. Avoid hard braking. Keep in mind that you will usually need more time and distance to brake to a stop on unpaved surfaces.

Test your brakes from time to time to make sure they are operating properly. This will also give you a feel for how much traction you have on a given surface.

Off-Highway Guidelines

Turning

Off-highway, the basic turning technique is to drive at low speed and gradually adjust the amount of steering to suit the surface.

You should have no problem making sharp turns at low speed on level ground. But never make an abrupt turn at higher speeds, on or off pavement. With a higher center of gravity, your vehicle can more easily tip or roll over.

Driving on Slopes

Before driving up or down a hill, stop and assess the situation. If you can't clearly see all road conditions (good traction, no bumps, holes or other obstacles, a safe way out, etc.) walk the slope before you drive on it. If you have any doubt about whether you can safely drive on the slope, don't do it Find another route.

If you are driving up a hill and find that you cannot continue (because of the steepness, a large obstacle, etc.), do not try to turn around. Your vehicle could roll over. Slowly back down the hill, following the same route you took up the hill.

Avoiding Obstacles

Bumps, holes, rocks, and other obstacles can be hazardous. Debris in the road can damage your suspension or other components. Even small rocks can cut your tires.

More important, because your vehicle has a high center of gravity, driving over a large obstacle, or allowing a wheel to drop into a deep hole, can cause your vehicle to tip or roll over.

Drive slow enough to observe obstacles ahead and maneuver around them. If you can't avoid a serious obstacle, turn around and look for a better route.

Line drawing of a SUV driving on a dirt path surrounded by trees (no text or symbols)

If You Encounter Water

Avoid driving through deep water. If you encounter water in your route (a small stream or large puddle, for example), evaluate it carefully before going ahead. Make sure it is shallow, flowing slowly, and has firm ground underneath. If you are not sure of the depth or the ground, turn around and find another route.

Driving through deep water can also damage your vehicle. The water can get into the transmission and differential, diluting the lubricant and causing an eventual failure. It can also wash the grease out of the wheel bearings.

If You Get Stuck

Avoid driving on soft sand, deep mud, or other surfaces where you could get stuck. If you do happen to get stuck because of inclement weather

or other conditions, choose a safe and appropriate course of action.

You should never use a jack to try getting unstuck. A jack only works on firm, level ground. Also, your vehicle could easily slip off the jack and hurt you or someone else.

4-Wheel Drive Vehicles

If you spin the wheels excessively trying to get unstuck, you may overheat the components of the 4-wheel drive system. If this happens, the 4-wheel drive system shuts off and only the front wheels receive power. If this happens, stop and allow everything to cool down. The 4-wheel drive system will work again after its temperature drops.

If you slip the clutch for a long time while trying to get unstuck, you may overheat and damage it.

This section explains why it is important to keep your vehicle well maintained and to follow basic maintenance safety precautions.

This section also includes Maintenance Schedules for normal driving and severe driving conditions, a Maintenance Record, and instructions for simple maintenance tasks you may want to take care of yourself.

If you have the skills and tools to perform more complex maintenance tasks on your Honda, you may want to purchase the Service Manual. See page 295 for information on how to obtain a copy, or see your Honda dealer.

Maintenance Safety.... 184 Important Safety Precautions.. 185 Maintenance Schedule.... 186

Required Maintenance Record.... 193
Owner Maintenance Checks...... 195
Fluid Locations.... 196
Engine Oil....197
Adding Oil.... 197
Recommended Oil.... 197
Synthetic Oil.... 198
Additives.... 198
Changing the Oil and Filter..... 199
Cooling System....201
Adding Engine Coolant...... 201
Replacing Engine Coolant..... 203
Windshield Washers.... 206
Transmission Fluid....207
Automatic Transmission...... 207
5-speed Manual Transmission....208
Rear Differential Fluid.... 209
Brake and Clutch Fluid.... 210
Brake System......210
Clutch Šystem...... 211
Power Steering....211
Air Cleaner Element.... 212
Hood Latch....213
Spark Plugs...... 213
Replacement.... 213

Specifications.... 214
Battery....215
Wiper Blades 217
Air Conditioning System...... 219
Air Conditioning Filter...... 220
Drive Belts.... 220
Timing Belt 221
Tires.... 221
Inflation.... 221
Recommended Tire Pressures for Normal Driving......
Inspection...... 223
Maintenance.... 223
Tire Rotation.... 224
Replacing Tires and Wheels.... 225
Wheels and Tires.... 226
Winter Driving.... 226
Snow Tires 226
Tire Chains.... 227
Lights.... 228
Headlight Aiming....230
Replacing Bulbs....232
Storing Your Vehicle.... 239

Maintenance Safety

Regularly maintaining your vehicle is the best way to protect your investment. Proper maintenance is essential to your safety and the safety of your passengers. It will also reward you with more economical, trouble-free driving and help reduce air pollution.

Improperly maintaining this vehicle or failing to correct a problem before driving can cause a crash in which you can be seriously hurt or killed.

Always follow the inspection and maintenance recommendations and schedules in this owner's manual.

This section includes instructions for simple maintenance tasks, such as checking and adding oil. Any service items not detailed in this section should be performed by a Honda technician or other qualified mechanic.

Some of the most important safety precautions are given here. However, we cannot warn you of every conceivable hazard that can arise in performing maintenance. Only you can decide whether or not you should perform a given task.

Failure to properly follow maintenance instructions and precautions can cause you to be seriously hurt or killed.

Always follow the procedures and precautions in this owner's manual.

Important Safety Precautions

Before you begin any maintenance, make sure your vehicle is parked on level ground and that the parking brake is set. Also, be sure the engine is off. This will help to eliminate several potential hazards:

• Carbon monoxide poisoning from engine exhaust. Be sure there is adequate ventilation whenever you operate the engine.
• Burns from hot parts. Let the engine and exhaust system cool before touching any parts.
• Injury from moving parts. Do not run the engine unless instructed to do so.

Read the instructions before you begin, and make sure you have the tools and skills required.

To reduce the possibility of fire or explosion, be careful when working around gasoline or batteries. Use a commercially available degreaser or parts cleaner, not gasoline, to clean parts. Keep cigarettes, sparks, and flames away from the battery and all fuel-related parts.

You should wear eye protection and protective clothing when working near the battery or when using compressed air.

The Maintenance Schedule specifies how often you should have your vehicle serviced and what things need attention. It is essential that you have your vehicle serviced as scheduled to retain its high level of safety, dependability, and emissions control performance.

The services and time or distance intervals shown in the maintenance schedule assume you will use your vehicle as normal transportation for passengers and their possessions. You should also follow these recommendations:

• Avoid exceeding your vehicle's load limit. This puts excess stress on the engine, brakes, and many other parts of your vehicle. The load limit is shown on the label on the driver's doorjamb.
• Operate your vehicle on reasonable roads within the legal speed limit.
• Drive your vehicle regularly over a distance of several miles (kilometers).
• Always use unleaded gasoline with the proper octane rating (see page 140).

Which Schedule to Follow:

Service your vehicle according to the time and mileage periods on one of the Maintenance Schedules on the following pages. Select the schedule for "Severe Conditions" if most of your driving is done under one or more of the conditions listed on that page. Otherwise, follow the schedule for "Normal Conditions."

Your authorized Honda dealer knows your vehicle best and can provide competent, efficient service. However, service at a dealer is not mandatory to keep your warranties in effect. Maintenance may be done by any qualified service facility or person who is skilled in this type of automotive service. Keep all the receipts as proof of completion, and have the person who does the work fill out the Maintenance Record. Check your warranty booklet for more information.

We recommend the use of Genuine Honda parts and fluids whenever you have maintenance done. These are manufactured to the same high-quality standards as the original components, so you can be confident of their performance and durability.

U.S. Vehicles: Maintenance, replacement or repair of emissions control devices and systems may be done by any automotive repair establishment or individual using parts that are "certified" to EPA standards.

According to state and federal regulations, failure to perform maintenance on the items marked with # will not void your emissions warranties. However, Honda recommends that all maintenance services be performed at the recommended time or mileage period to ensure long-term reliability.

Maintenance Schedule (Normal Conditions)

Service at the indicated distance or time - whichever comes first.	miles x 1,000	15	30	45	60	75	90	105	120
	km x 1,000	24	48	72	96	120	144	168	192
	months	12	24	36	48	60	72	84	96
Replace engine oil		Every 7,500 miles (12,000 km) or 12 months
Replace engine oil filter		●	●	●	●	●	●	●	●
Check engine oil and coolant		Check oil and coolant at each fuel stop
Replace air cleaner element			●		●		●		●
Inspect valve clearance		Adjust only if noisy						●
Replace spark plugs			●		●		●		●
Replace timing belt2,*1, and inspect water pump								●
Inspect and adjust drive belts			●		●		●		●
Inspect idle speed#								●
Replace engine coolant				●		●		●
Replace transmission fluid							●
Replace rear differential fluid							●
Inspect front and rear brakes		●	●	●	●	●	●	●	●
Replace brake fluid				●			●
Check parking brake adjustment		●	●	●	●	●	●	●	●
Replace air conditioning filter			●		●		●		●
Rotate tires (Check tire inflation and condition at least once per month)		Rotate tires every 7,500 miles (12,000 km)
Visually inspect the following items:
Tie rod ends, steering gear box, and boots Suspension components Driveshaft boots Brake hoses and lines (including ABS) All fluid levels and condition of fluids Cooling system hoses and connections Exhaust system# Fuel lines and connections#		●	●	●	●	●	●	●	●

U.S. Owners

Follow the Normal Conditions Maintenance Schedule if the severe driving conditions specified in the Severe Conditions Maintenance Schedule do not apply.

NOTE: If you only OCCASIONALLY drive under a "severe" condition, you should follow the Normal Conditions Maintenance Schedule.

Canadian Owners

Follow the Maintenance Schedule for Severe Conditions.

# : See information on maintenance and emissions warranty, last column, page 187.

*1 : See Timing Belt on page 221 to determine need for replacement.

Maintenance Schedule for Normal Conditions (listed by distance/time)

Service at the indicated distance or time, whichever comes first. Do the items in A, B, C as required for each distance/time interval Follow this schedule if the severe driving conditions described in the Severe Conditions Schedule on the next page do not apply.

Canadian owners: Follow the schedule for Severe Conditions.

7,500 mi/12,000 km/-	Do items in A.
15,000 mi/24,000 km/1 yr	Do items in A, B.
22,500 mi/36,000 km/-	Do items in A.
30,000 mi/48,000 km/2 yrs	Do items in A, B, C.
37,500 mi/60,000 km/-	Do items in A.
45,000 mi/72,000 km/3 yrs	☐Replace coolant. ☐Replace brake fluid.Do items in A, B.
52,500 mi/84,000 km/-	Do items in A.
60,000 mi/96,000 km/4 yrs	Do items in A, B, C.
67,500 mi/108,000 km/-	Do items in A.
75,000 mi/120,000 km/5 yrs	☐Replace coolant. Do items in A, B.
82,500 mi/132,000 km/-	Do items in A.
90,000 mi/144,000 km/6 yrs	☐Replace transmission fluid. ☐Replace rear differential fluid. ☐Replace brake fluid. Do items in A, B, C.
97,500 mi/156,000 km/-	Do items in A.
105,000 mi/168,000 km/7 yrs	☐Replace timing belt*, **, inspect water pump.☐Replace coolant. ☐Check idle speed*.☐inspect valve clearance. Do items in A, B.
112,500 mi/180,000 km/-	Do items in A.
120,000 mi/192,000 km/8 yrs	Do items in A, B, C.

A	Replace engine oil. Rotate tires (follow pattern on page 224).
B	Replace engine oil filter. Inspect front and rear brakes. Check parking brake adjustment. Inspect tie rod ends, steering gearbox and boots. Inspect suspension components. Inspect driveshaft boots. Inspect brake hoses and lines (including ABS). Check all fluid levels, condition of fluids, and check for leaks. Inspect cooling system hoses and connections. Inspect exhaust system*. Inspect fuel lines and connections#.
C	Replace air cleaner element. Replace spark plugs. Inspect and adjust drive belts. Replace air conditioning filter.

: See information on maintenance and emissions warranty, last column, page 187.

* 1: See Timing Belt on page 221 to determine need for replacement

Maintenance Schedule (Severe Conditions)

Service at the indicated distance or time - whichever comes first.	miles x 1,000	15	30	45	60	75	90	105	120
	km x 1,000	24	48	72	96	120	144	168	192
	months	12	24	36	48	60	72	84	96
Replace engine oil and oil filter		Every 3,750 miles (6,000 km) or 6 months
Check engine oil and coolant		Check oil and coolant at each fuel stop
Replace air cleaner element		●	●	●	●	●	●	●	●
Inspect valve clearance		Adjust only if noisy						●
Replace spark plugs			●		●		●		●
Replace timing belt*1 and inspect water pump								●
Inspect and adjust drive belts			●		●		●		●
Inspect idle speed#								●
Replace engine coolant				●		●		●
Replace transmission fluid			●		●		●		●
Replace rear differential fluid					●				●
Inspect front and rear brakes		Every 7,500 miles (12,000 km) or 6 months
Replace brake fluid				●			●
Check parking brake adjustment		●	●	●	●	●	●	●	●
Replace air conditioning filter*2			●		●		●		●
Clean antenna mast		●	●	●	●	●	●	●	●
Lubricate locks, latches, and hinges		●	●	●	●	●	●	●	●
Rotate tires (Check tire inflation and condition at least once per month)		Rotate tires every 7,500 miles (12,000 km)
Visually inspect the following items:
Tie rod ends, steering gear box, and boots Suspension components, Driveshaft boots		Every 7,500 miles (12,000 km) or 6 months
Brake hoses and lines (including ABS) All fluid levels and condition of fluids Cooling system hoses and connections Exhaust system#/Fuel lines and connections# Lights and controls/Vehicle underbody		●	●	●	●	●	●	●	●

: See information on maintenance and emissions warranty, last column, page 187.

* 1: Refer to page 221 for replacement information under special driving conditions.
* 2: Refer to page 220 for replacement information under special driving conditions.

U.S. Owners

Follow the Severe Conditions Maintenance Schedule if you drive your vehicle MAINLY under one or more of the following conditions:

• Driving less than 5 miles (8 km) per trip or, in freezing temperatures, driving less than 10 miles (16 km) per trip.
• Driving in extremely hot (over 90°F/32°C) conditions.
• Extensive idling or long periods of stop-and-go driving.
• Trailer towing, driving with a roof top carrier, or driving in mountainous conditions.
• Driving on muddy, dusty, or de-iced roads.

Canadian Owners

Follow the Maintenance

Schedule for Severe Conditions.

Maintenance Schedule for Severe Conditions (listed by distance/time)

Use this schedule if your vehicle is MAINLY driven in any of the following Severe Conditions; otherwise use the Normal Schedule. Service at the indicated distance or time, whichever comes first. Do the items in A, B, C, D as required for each distance/time.

Severe Conditions:

• Driving less than 5 miles (8 km) per trip or, in freezing temperatures, driving less than 10 miles (16 km) per trip.
• Driving in extremely hot (over 90°F/32°C) conditions.
• Extensive idling or long periods of stop-and-go driving.
  . Trailer towing, driving with a rooftop carrier, or driving in mountainous conditions.
• Driving on muddy, dusty, or de-iced roads.

3,750 mi/6,000 km/6 mos	Do items in A.
7,500 mi/12,000 km/-	Do items in A, B.
11,250 mi/18,000 km/-	Do items in A.
15,000 mi/24,000 km/1 yrs	Do items in A, B, C.
18,750 mi/30,000 km/-	Do items in A.
22,500 mi/36,000 km/1 12 yrs	Do items in A, B.
26,250 mi/42,000 km/-	Do items in A.
30,000 mi/48,000 km/2 yrs	Do items in A, B, C, D.
33,750 mi/54,000 km/-	Do items in A.
37,500 mi/60,000 km/2 12 yrs	Do items in A, B.
41,250 mi/66,000 km/-	Do items in A.
45,000 mi/72,000 km/3 yrs	Replace coolant. Replace brake fluid.Do items in A, B, C.
48,750 mi/78,000 km/-	Do items in A.
52,500 mi/84,000 km/3 12 yrs	Do items in A, B.

A	Replace engine oil and filter.
B	Inspect front and rear brakes. Rotate tires (follow pattern on page 224). Inspect tie rod ends, steering gearbox and boots. Inspect suspension components. Inspect driveshaft boots.
C	Replace air cleaner element. Check parking brake adjustment. Clean antenna mast. Lubricate all hinges, locks, and latches with multipurpose grease.

CONTINUED

Maintenance

Maintenance Schedule for Severe Conditions (listed by distance/time)

56,250 mi/90,000 km/-	Do items in A.
60,000 mi/96,000 km/4 yrs	Replace timing belt#: *1, inspect water pump.Replace rear differential fluid.Do items in A, B, C, D.
63,750 mi/102,000 km/-	Do items in A.
67,500 mi/108,000 km/4 12 yrs	Do items in A, B.
71,250 mi/114,000 km/-	Do items in A.
75,000 mi/120,000 km/5 yrs	Replace coolant. Do items in A, B, C.
78,750 mi/126,000 km/-	Do items in A.
82,500 mi/132,000 km/5 12 yrs	Do items in A, B.
86,250 mi/138,000 km/-	Do items in A.
90,000 mi/144,000 km/6 yrs	Replace brake fluid. Do items in A, B, C, D.
93,750 mi/150,000 km/-	Do items in A.
97,500 mi/156,000 km/6 12 yrs	Do items in A, B.
101,250 mi/162,000 km/-	Do items in A.
105,000 mi/168,000 km/7 yrs	Replace timing belt#: *1, inspect water pump.Inspect valve clearance. Replace coolant.Check idle speed#. Do items in A, B, C.
108,750 mi/174,000 km/-	Do items in A.
112,500 mi/180,000 km/7 12 yrs	Do items in A, B.
116,250 mi/186,000 km/-	Do items in A.
120,000 mi/192,000 km/8 yrs	Replace timing belt#: *1, inspect water pump.Replace rear differential fluid.Do items in A, B, C.

C □Inspect brake hoses and lines (including ABS).□Check all fluid levels, condition of fluids, and check for leaks.□Inspect cooling system hoses and connections.□#Inspect exhaust system.□#Inspect fuel lines and connections.□Check all lights.□Inspect the underbody.□Replace air conditioning filter if the vehicle is driven in urban areas with a high concentration of soot.

D □Replace spark plugs.□Inspect and adjust drive belts.□Replace transmission fluid.□Replace air conditioning filter.**3

: See information on maintenance and emissions warranty, last column, page 187.

1: See Timing Belt on page 221 to determine need for replacement

* 2 : See Air Conditioning Filter on page 220 for replacement information under special conditions.

Required Maintenance Record (for Normal and Severe Schedules)

You or the servicing dealer can record all completed maintenance here, whether you follow the schedule for normal conditions (page 188) or severe conditions (page 190). Keep the receipts for all work done on your vehicle.

3,750 mi6,000 km(or 6 mo)	Signature or dealer stamp	mi/km
		Date
7,500 ml12,000 km		mi/km
		Date
11,250 mi18,000 km		mi/km
		Date
15,000 mi24,000 km(or 1 year)		mi/km
		Date
18,750 mi30,000 km		mi/km
		Date
22,500 mi36,000 km(or 112 years)		mi/km
		Date
26,250 mi42,000 km		mi/km
		Date
30,000 mi48,000 km(or 2 years)		mi/km
		Date

33,750 mi54,000 km	Signature or dealer stamp	mi/km
		Date
37,500 mi60,000 km(or 21⁄2 years)		mi/km
		Date
41,250 mi66,000 km		mi/km
		Date
45,000 mi72,000 km(or 3 years)		mi/km
		Date
48,750 mi78,000 km		mi/km
		Date
52,500 mi84,000 km(or 31⁄2 years)		mi/km
		Date
56,250 mi90,000 km		mi/km
		Date
60,000 mi96,000 km(or 4 years)		mi/km
		Date

CONTINUED

Maintenance

Required Maintenance Record (for Normal and Severe Schedules)

63,750 mi102,000 km	Signature or dealer stamp	mi/km
		Date
67,500 mi108,000 km(or 4 12 years)		mi/km
		Date
71,250 mi114,000 km		mi/km
		Date
75,000 mi120,000 km(or 5 years)		mi/km
		Date
78,750 mi126,000 km		mi/km
		Date
82,500 mi132,000 km(or 5 12 years)		mi/km
		Date
86,250 mi138,000 km		mi/km
		Date
90,000 mi144,000 km(or 6 years)		mi/km
		Date

93,750 mi150,000 km	Signature or dealer stamp	mi/km
		Date
97,500 mi156,000 km(or 6 12 years)		mi/km
		Date
101,250 mi162,000 km		mi/km
		Date
105,000 mi168,000 km(or 7 years)		mi/km
		Date
108,750 mi174,000 km		mi/km
		Date
112,500 mi180,000 km(or 7 12 years)		mi/km
		Date
116,250 mi186,000 km		mi/km
		Date
120,000 mi192,000 km(or 8 years)		mi/km
		Date

You should check the following items at the specified intervals. If you are unsure of how to perform any check, turn to the page given.

• Engine oil level — Check every time you fill the fuel tank. See page 143.
• Engine coolant level — Check the radiator reserve tank every time you fill the fuel tank. See page 144.
• Windshield washer fluid — Check the level in the reservoir monthly. If weather conditions cause you to use the washers frequently, check the reservoir each time you stop for fuel. See page 206.
  • Automatic transmission — Check the fluid level monthly. See page 207.

• Brakes and clutch — Check the fluid level monthly. See page 210.

• Tires — Check the tire pressure monthly. Examine the tread for wear and foreign objects. See page 221.

• Lights — Check the operation of the headlights, parking lights, taillights, high-mount brake light, turn signals, brake lights, and license plate lights monthly. See page 228.

Fluid Locations

ENGINE OIL FILL CAP AUTOMATIC TRANSMISSION FLUID DIPSTICK (Yellow loop) COOLANT RESERVOIR BRAKE FLUID (Gray cap) CLUTCH FLUID (5-speed Manual Transmission only) (Gray cap) WASHER FLUID (Blue cap) POWER STEERING FLUID (Red cap) ENGINE OIL DIPSTICK (Orange loop)

Adding Oil

ENGINE OIL FILL CAP

Technical line drawing of a mechanical assembly with no visible text or symbols

To add oil, unscrew and remove the engine oil fill cap on top of the valve cover. Pour in the oil, and install the engine oil fill cap. Tighten it securely. Wait a few minutes and recheck the oil level. Do not fill above the upper mark; you could damage the engine.

Recommended Oil

Oil is a major contributor to your engine's performance and longevity. Always use a premium-grade detergent oil.

You can determine an oil's SAE viscosity and Service Classification from the API Service label on the oil container.

A fuel-efficient oil is recommended for your Honda. This is shown on the API Service label by the words "Energy Conserving." This oil is formulated to help your engine use less fuel.

The API Service label also tells you the service classification of the oil. Always use an oil that is labeled "API Service SJ." This service rating may include other classifications, such as CD. These additional classifications are not a problem, as long as the label also carries the SJ classification.

API SERVICE SAE 5W-30 ENERGY CONSERVING

API SERVICE LABEL

CONTINUED

Engine Oil

The oil container may also display the API Certification seal. Make sure it says "For Gasoline Engines."

AMERICAN PETROLEUM INSTITUTE FOR GASOLINE ENGINES CERTIFIED

API CERTIFICATION MARK

The SAE numbers tell you the oil's viscosity or weight. Select the oil for your vehicle according to this chart.

10W = 30 5W = 30 PREFERRED -20 0 20 40 60 80 100 °F -30 -20 -10 0 10 20 30 40 °C

Ambient Temperature

An oil with a viscosity of 5W-30 is preferred for improved fuel economy and year-round protection in your Honda. You may use a 10W-30 oil if the temperature in your area never goes below 20^(-7^) .

Synthetic Oil

You may use a synthetic motor oil if it meets the same requirements given for conventional motor oil: energy conserving, a service classification of SJ, and the proper weight as shown on the chart. When using synthetic oil, you must follow the oil and filter change intervals given in the maintenance schedule.

Additives

Your Honda does not need any oil additives. Purchasing additives for the engine or transmission will not increase your vehicle's performance or longevity. It only increases the cost of operating your vehicle.

Changing the Oil and Filter

Always change the oil and filter according to the time and distance (miles/kilometers) recommendations in the maintenance schedule. The oil and filter collect contaminants that can damage your engine if they are not removed regularly.

Changing the oil and filter requires special tools and access from underneath the vehicle. The vehicle should be raised on a service station-type hydraulic lift for this service. Unless you have the knowledge and proper equipment, you should have this maintenance done by a skilled mechanic.

OIL DRAIN BOLT WASHER

1. Run the engine until it reaches normal operating temperature, then shut it off.
2. Open the hood and remove the engine oil fill cap. Remove the oil drain bolt and washer from the bottom of the engine. Drain the oil into an appropriate container.

OIL FILTER

1. Remove the oil filter and let the remaining oil drain. A special wrench (available from your Honda dealer) is required to remove the filter.

2. Install a new oil filter according to instructions that come with it.

CONTINUED

Engine Oil

1. Put a new washer on the drain bolt, then reinstall the drain bolt. Tighten it to:

2. Refill the engine with the recommended oil. Engine oil change capacity (including filter): 4.0 US qt (3.8 ℓ, 3.3 Imp qt)

3. Install the engine oil fill cap. Start the engine. The oil pressure indicator light should go out within five seconds. If it does not, turn off the engine and reinspect your work.

4. Let the engine run for several minutes and check the drain bolt and oil filter for leaks.
5. Turn off the engine, let it sit for several minutes, then check the oil level. If necessary, add oil to bring the level to the upper mark on the dipstick.

NOTICE

Improper disposal of engine oil can be harmful to the environment. If you change your own oil, please dispose of the used oil properly. Put it in a sealed container and take it to a recycling center. Do not discard it in a trash bin or dump it on the ground.

Adding Engine Coolant

RESERVE TANK

If the coolant level in the reserve tank is at or below the MIN line, add coolant to bring it up to the MAX line. Inspect the cooling system for leaks. This coolant should always be a mixture of 50 percent antifreeze and 50 percent water. Never add straight antifreeze or plain water.

Always use Genuine Honda Antifreeze/Coolant. If it is not available, you may use another major-brand non-silicate coolant as a temporary replacement. Make sure it is a high-quality coolant recommended for aluminum engines. However, continued use of any non-Honda coolant can result in corrosion, causing the cooling system to malfunction or fail. Have the cooling system flushed and refilled with Honda antifreeze/coolant as soon as possible.

If the reserve tank is completely empty, you should also check the coolant level in the radiator.

Removing the radiator cap while the engine is hot can cause the coolant to spray out, seriously scalding you.

Always let the engine and radiator cool down before removing the radiator cap.

1. Make sure the engine and radiator are cool.

CONTINUED

Cooling System

RADIATOR CAP

1. Turn the radiator cap counterclockwise, without pressing down on it, until it stops. This relieves any pressure remaining in the cooling system.
2. Remove the radiator cap by pushing down and turning counterclockwise.

RESERVE TANK

1. The coolant level should be up to the base of the filler neck. Add coolant if it is low.
2. Put the radiator cap back on. Tighten it fully.
3. Pour coolant into the reserve tank. Fill it to halfway between the MAX and MIN marks. Put the cap back on the reserve tank.

Do not add any rust inhibitors or other additives to your vehicle's cooling system. They may not be compatible with the coolant or engine components.

Replacing Engine Coolant

The cooling system should be completely drained and refilled with new coolant according to the time and distance recommendations in the maintenance schedule. Only use Genuine Honda Antifreeze/Coolant.

Draining the coolant requires access to the underside of the vehicle. Unless you have the tools and knowledge, you should have this maintenance done by a skilled mechanic.

Technical line drawing of a mechanical assembly with gears and shafts (no text or symbols)

1. Turn the ignition ON (II). Turn the heater temperature control dial fully clockwise. Turn the ignition off.
2. Open the hood. Make sure the engine and radiator are cool to the touch.
3. Remove the radiator cap.

DRAIN BOLT DRAIN PLUG

1. Loosen the drain plug on the bottom of the radiator. The coolant will drain through the splash guard. Remove the drain bolt and washer from the engine block.

CONTINUED

RESERVE TANK CAP HOLDER RESERVE TANK

1. Remove the reserve tank from its holder by pulling it straight up. Drain the coolant, then put the tank back in its holder.

2. When the coolant stops draining, tighten the drain plug at the bottom of the radiator. Apply non-hardening sealant to the drain bolt threads, put a new washer on the drain bolt, and reinstall the bolt in the engine block. Tighten it securely. Tightening torque: 61 lbf.ft (83 N.m, 8.5 kgf.m)

3. Mix the recommended antifreeze with an equal amount of purified or distilled water in a clean container. The cooling system capacity is: Automatic Transmission: 1.03 US gal (3.9 l, 0.86 Imp gal)

Manual Transmission: 1.06 US gal (4.02, 0.88 Imp gal)

FILLER NECK Fill up to here

1. Pour coolant into the radiator up to the base of the filler neck.

2. Start the engine and let it run for about 30 seconds. Then turn off the engine.

3. Check the level in the radiator, add coolant if needed.

RESERVE TANK

1. Fill the reserve tank to the MAX mark. Install the reserve tank cap.
2. Install the radiator cap, and tighten it to the first stop.

3. Start the engine and let it run until the radiator fan comes on two times. Then stop the engine.

4. Remove the radiator cap.

5. Pour coolant into the radiator up to the base of the filler neck and into the reserve tank up to the MAX mark.
6. Start the engine and hold it at 1,500 rpm until the radiator fan comes on. Turn off the engine. Check the coolant level in the radiator and add coolant if needed.
7. Install the radiator cap, and tighten it fully.
8. If necessary, fill the reserve tank to the MAX mark. Install the reserve tank cap.

Windshield Washers

Check the level in the windshield washer reservoir at least monthly during normal usage. In bad weather, when you use the washers often, check the level every time you stop for fuel.

LEVEL GAUGE 1/20 100000 1/40 100000 1/80

The windshield washer reservoir is located behind the driver's side headlight. Check the reservoir's fluid level by removing the cap and looking at the level gauge attached to the cap.

Fill the reservoir with a good-quality windshield washer fluid. This increases the cleaning capability and prevents freezing in cold weather.

NOTICE

Do not use engine antifreeze or a vinegar/water solution in the windshield washer reservoir.

Antifreeze can damage your vehicle's paint, while a vinegar/water solution can damage the windshield washer pump.

Use only commercially-available windshield washer fluid.

Automatic Transmission

DIPSTICK

Check the fluid level with the engine at normal operating temperature.

1. Park the vehicle on level ground. Shut off the engine.
2. Remove the dipstick (yellow loop) from the transmission and wipe it with a clean cloth.

UPPER MARK LOWER MARK

1. Insert the dipstick all the way into the transmission.

2. Remove the dipstick and check the fluid level. It should be between the upper and lower marks.

3. If the level is below the lower mark, add fluid into the filler hole to bring it to the upper mark. Always use Honda Premium Formula Automatic Transmission Fluid (ATF). If it is not available, you may use a DEXRON ^® III automatic transmission fluid as a temporary replacement. However, continued use can affect shift quality. Have the transmission drained and refilled with Honda ATF as soon as it is convenient.

4. Insert the dipstick all the way back into the transmission securely as shown in the illustration.

The transmission should be drained and refilled with new fluid according to the time and distance recommendations in the maintenance schedule.

5-speed Manual Transmission

Correct level FILLER BOLT

Check the fluid level with the transmission at normal operating temperature and the vehicle sitting on level ground. Remove the transmission filler bolt and carefully feel inside the bolt hole with your finger. The fluid level should be up to the edge of the bolt hole. If it is not, add Genuine Honda Manual Transmission Fluid (MTF) until it starts to run out of the hole. Reinstall the filler bolt and tighten it securely.

If Honda MTF is not available, you may use an API service SG, SH or SJ grade motor oil with a viscosity of SAE 10W-30 or 10W-40 as a temporary replacement. An SG grade is preferred, but an SH or SJ grade may be used if SG is not available. However, motor oil does not contain the proper additives and continued use can cause stiffer shifting. Replace as soon as convenient.

The transmission should be drained and refilled with new fluid according to the time and distance recommendations in the maintenance schedule.

(4WD models only)

FILLER BOLT Correct level

Check the fluid level with the rear differential at normal operating temperature and the vehicle sitting on level ground. Remove the differential fluid filler bolt and washer and carefully feel inside the bolt hole with your finger. The fluid level should be up to the edge of the bolt hole. If it is not, slowly add Genuine Honda CVT Fluid until it starts to run out of the hole. Reinstall the filler bolt and tighten it securely.

If CVT Fluid is not available, you may use Honda Premium Formula Automatic Transmission Fluid (ATF) or a quality DEXRON® III ATF as a temporary replacement. However, continued use can cause noise, vibration and performance problems. Have the differential drained and refilled with Honda CVT Fluid as soon as it is convenient.

The rear differential should be drained and refilled with new fluid according to the time and distance recommendations in the maintenance schedule.

Brake and Clutch Fluid

Check the fluid level in the reservoirs monthly. There are up to two reservoirs, depending on the model. They are:

• Brake fluid reservoir (all models)
• Clutch fluid reservoir (manual transmission only)

The brake fluid should be replaced according to the time and distance recommendations in the maintenance schedule.

Always use Genuine Honda DOT 3 brake fluid. If it is not available, you should use only DOT 3 or DOT 4 fluid, from a sealed container, as a temporary replacement. However, the use of any non-Honda brake fluid can cause corrosion and decrease the life of the system. Have the brake system flushed and refilled with Honda DOT 3 brake fluid as soon as possible.

Brake fluid marked DOT 5 is not compatible with your vehicle's braking system and can cause extensive damage.

Brake System

MAX MIN

The fluid level should be between the MIN and MAX marks on the side of the reservoir. If the level is at or below the MIN mark, your brake system needs attention. Have the brake system inspected for leaks or worn brake pads.

Clutch System

MIN MAX

The fluid should be between the MIN and MAX marks on the side of the reservoir. If it is not, add brake fluid to bring it up to that level. Use the same fluid specified for the brake system.

Low fluid level can indicate a leak in the clutch system. Have this system inspected as soon as possible.

Power Steering

UPPER LEVEL LOWER LEVEL

Check the level when the engine is cold. Look at the side of the reservoir. The fluid should be between the UPPER LEVEL and LOWER LEVEL. If it is below the LOWER LEVEL, add power steering fluid to the UPPER LEVEL.

Always use Genuine Honda Power Steering Fluid. If it is not available, you may use another power steering fluid as an emergency replacement. However, continued use can cause increased wear and poor steering in cold weather. Have the power steering system flushed and refilled with Honda PSF as soon as possible.

A low power steering fluid level can indicate a leak in the system. Check the fluid level frequently and have the system inspected as soon as possible.

NOTICE

Turning the steering wheel to full left or right lock and holding it there can damage the power steering pump.

Air Cleaner Element

The air cleaner element should be replaced according to the time and distance recommendations in the maintenance schedule.

Replacement

CLIPS

The air cleaner element is inside the air cleaner housing on the right side of the engine compartment.

To replace it:

1. Unsnap the two clips and remove the air cleaner housing cover.

AIR CLEANER ELEMENT

1. Remove the old air cleaner element. Carefully clean the inside of the air cleaner housing with a damp rag.

2. Place the new air cleaner element in the air cleaner housing.

3. Align the tabs and reinstall the air cleaner housing cover, snap the two clips back into place.

Hood Latch

Technical line drawing of a mechanical component with internal gears and mounting holes (no text or symbols)

Clean the hood latch assembly with a mild cleaner, then lubricate it with a multipurpose grease. Lubricate all the moving parts, including the pivot. Follow the time and distance recommendations in the Maintenance Schedule. If you are not sure how to clean and grease the latch, contact your Honda dealer.

Spark Plugs

The spark plugs in your car should be replaced according to the time and distance recommendations in the maintenance schedule.

Replacement

SPARK PLUG CAP

1. Clean up any dirt and oil around the spark plug caps.
2. Remove the spark plug cap by pulling it straight out.
3. Remove the spark plug with a five-eighths inch (16 mm) spark plug socket.

CONTINUED

Line drawing of a hand using a tool to adjust or install an engine component (no text or symbols visible)

1. Put the new spark plug into the socket; then screw it into the hole. Screw it in by hand so you do not crossthread it.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Torque the spark plug. (If you do not have a torque wrench, tighten the spark plug two-thirds of a turn after it contacts the cylinder head.) Tightening torque:
   13 lbf.ft (18 N.m, 1.8kgf.m)

NOTICE

Tighten the spark plugs carefully. A sparkplug that is too loose can overheat and damage the engine. Overtightening can cause damage to the threads in the cylinder head.

1. Install the spark plug cap.

2. Repeat this procedure for the other three spark plugs.

Specifications:

NGK: ZFR6F-11

DENSO: KJ20CR-L11

Spark Plug Gap:

$$ 0. 0 4 3 \text { in } _ {- 0. 0 0 4 \text { in }} ^ {+ 0} (1. 1 \text { mm } _ {- 0. 1 \text { mm }} ^ {+ 0}) $$

Check the condition of your vehicle's battery monthly. You should check the color of the test indicator window, and for corrosion on the terminals.

TEST INDICATOR WINDOW

Check the battery condition by looking at the test indicator window on the battery. The label on the battery explains the test indicator's colors.

Check the battery terminals for corrosion (a white or yellowish powder). To remove it, cover the terminals with a solution of baking soda and water. It will bubble up and turn brown. When this stops, wash it off with plain water. Dry off the battery with a cloth or paper towel. Coat the terminals with grease to help prevent future corrosion.

CONTINUED

Battery

Line drawing of a car engine bay with hands operating the valve (no text or symbols)

If the terminals are severely corroded, clean them with baking soda and water. Then use a wrench to loosen and remove the cables from the terminals. Always disconnect the negative (—) cable first and reconnect it last. Clean the battery terminals with a terminal cleaning tool or wire brush. Reconnect and tighten the cables, then coat the terminals with grease.

If you need to connect the battery to a charger, disconnect both cables to prevent damage to the vehicle's electrical system.

The battery gives off explosive hydrogen gas during normal operation.

A spark or flame can cause the battery to explode with enough force to kill or seriously hurt you.

Wear protective clothing and a face shield, or have a skilled mechanic do the battery maintenance.

On EX model If your vehicle's battery is disconnected or goes dead, the audio system will disable itself. The next time you turn on the radio you will see "Code" in the frequency display. Use the Preset buttons to enter the five-digit code (see page 137).

NOTICE

Charging the battery with the cables connected can seriously damage your vehicle's electronic controls. Detach the battery cables before connecting the battery to a charger.

Check the condition of the wiper blades at least every six months. Look for signs of cracking in the rubber, or areas that are getting hard. Replace the blades if you find these signs, or they leave streaks and unwiped areas when used.

WIPER ARMS

To replace the blade:

1. Raise the wiper arm off the windshield.

LOCK TAB

1. Disconnect the blade assembly from the wiper arm by pushing in the lock tab. Hold it in while you push the blade assembly toward the base of the arm.

CONTINUED

Wiper Blades

BLADE BLADE

1. Remove the blade from its holder by grasping the tabbed end of the blade. Pull firmly until the tabs come out of the holder.

REINFORCEMENT

1. Examine the new wiper blades. If they have no plastic or metal reinforcement along the back edge, remove the metal reinforcement strips from the old wiper blade and install them in the slots along the edge of the new blade.

2. Slide the new wiper blade into the holder until the tabs lock.

3. Slide the wiper blade assembly onto the wiper arm. Make sure it locks in place.

4. Lower the wiper arm down against the windshield.

Your vehicle's air conditioning is a sealed system. Any major maintenance, such as recharging, should be done by a qualified mechanic. You can do a couple of things to make sure the air conditioning works efficiently.

Periodically check the engine's radiator and air conditioning condenser for leaves, insects, and dirt stuck to the front surface. These block the air flow and reduce cooling efficiency. Use a light spray from a hose or a soft brush to remove them.

NOTICE

The condenser and radiator fins bend easily. Only use a low-pressure spray or soft-bristle brush to clean them.

Line drawing of a car front view showing engine compartment and exhaust pipe (no text or symbols)

AIR CONDITIONING CONDENSER

Run the air conditioning at least once a week during the cold weather months. Run it for at least ten minutes while you are driving at a steady speed with the engine at normal operating temperature. This circulates the lubricating oil contained in the refrigerant.

If the air conditioning does not get as cold as before, have your dealer check the system. Recharge the system with Refrigerant HFC-134a (R-134a). (See Specifications on page 279.)

NOTICE

Whenever you have the air conditioning system serviced, make sure the service facility uses a refrigerant recycling system. This system captures the refrigerant for reuse. Releasing refrigerant into the atmosphere can damage the environment.

Air Conditioning Filter

The air conditioning filter removes pollen and dust that is brought in from the outside through the heating and cooling system.

This filter should be replaced every 30,000 miles (48,000 km) under normal conditions. It should be replaced every 15,000 miles (24,000 km) if you drive primarily in urban areas that have high concentrations of soot in the air from industry and diesel-powered vehicles. Replace it more often if air flow from the heating and cooling system becomes less than usual. Have the air conditioning filter replaced by your Honda dealer.

Drive Belts

POWER STEERING BELT COMPRESSOR BELT ALTERNATOR BELT

Check the condition of the three drive belts. Examine the edges of each belt for cracks or fraying. Check the tension of each belt by pushing on it with your thumb midway between the pulleys.

The belts should have the following "play" or deflection.

Alternator belt:

If you see signs of wear or looseness, have your dealer adjust or replace the belts.

Timing Belt

The timing belt should normally be replaced at the intervals shown in the maintenance schedule.

Replace the belt at 60,000 miles (U.S.) or 100,000 km (Canada) if you regularly drive your vehicle in one or more of these conditions:

• In very high temperatures (over 110^ F, 43^ C).
• In very low temperatures (under — 20°F, — 29°C).

Tires

To safely operate your vehicle, your tires must be the proper type and size, in good condition with adequate tread, and correctly inflated. The following pages give more detailed information on how and when to check air pressure, how to inspect your tires for damage and wear, and what to do when your tires need to be replaced.

Using tires that are excessively worn or improperly inflated can cause a crash in which you can be seriously hurt or killed.

Follow all instructions in this owner's manual regarding tire inflation and maintenance.

Inflation

Keeping the tires properly inflated provides the best combination of handling, tread Me and riding comfort. Underinflated tires wear unevenly, adversely affect handling and fuel economy, and are more likely to fail from being overheated. Overinflated tires can make your vehicle ride more harshly, are more prone to damage from road hazards, and wear unevenly.

We recommend that you visually check your tires every day. If you think a tire might be low, check it immediately with a tire gauge.

CONTINUED

Tires

Use a gauge to measure the air pressure at least once a month. Even tires that are in good condition may lose one to two psi (10 to 20 kPa, 0.1 to 0.2 kgf/cm ^2 ) per month. Remember to check the spare tire at the same time you check all the other tires.

Check the pressure in the tires when they are cold. This means the vehicle has been parked for at least three hours. If you have to drive the vehicle before checking the tire pressure, the tires can still be considered "cold" if you drive less than 1 mile (1.6 km).

If you check the pressure when the tires are hot (the vehicle has been driven several miles), you will see readings 4 to 6 psi (30 to 40 kPa, 0.3 to 0.4 kgf/cm ^2 ) higher than the cold reading. This is normal. Do not let air out to match the specified cold pressure. The tire will be underinflated.

You should get your own tire pressure gauge and use it whenever you check your tire pressures. This will make it easier for you to tell if a pressure loss is due to a tire problem and not due to a variation between gauges.

Recommended Tire Pressures for Normal Driving

The following chart shows the recommended cold tire pressures for most normal driving conditions and speeds. Tire pressures for high speed driving are the same as for normal driving.

Tire Size	Cold Tire Pressure for Normal Driving
205/70R15 95S	Front/Rear: 26 psi (180 kPa, 1.8 kgf/cm2)

These pressures are also given on the tire information label on the driver's doorjamb.

Tubeless tires have some ability to self-seal if they are punctured. However, because leakage is often very slow, you should look closely for punctures if a tire starts losing pressure.

Inspection

Every time you check inflation, you should also examine the tires for damage, foreign objects, and wear.

You should look for:

• Bumps or bulges in the tread or side of the tire. Replace the tire if you find either of these conditions.
• Cuts, splits, or cracks in the side of the tire. Replace the tire if you can see fabric or cord.
• Excessive tread wear.

INDICATOR LOCATION MARKS

Technical line drawing of a car tire with mounting holes and tire tread pattern (no text or symbols)

TREAD WEAR INDICATORS

Your vehicle's tires have wear indicators molded into the tread. When the tread wears down to that point, you will see a 1/2 inch (12.7 mm) wide band running across the tread. This shows there is less than 1/16 inch (1.6 mm) of tread left on the tire. A tire that is this worn gives very little traction on wet roads. You should replace the tire if you can see the tread wear indicator in three or more places around the tire.

Maintenance

In addition to proper inflation, correct wheel alignment helps to decrease tire wear. If you find a tire is worn unevenly, have your dealer check the wheel alignment.

The tires were properly balanced by the factory. They may need to be rebalanced at some time before they are worn out. Have your dealer check the tires if you feel a consistent vibration while driving. A tire should always be rebalanced if it is removed from the wheel for repair.

CONTINUED

Tires

Make sure the installer balances the wheels when you have new tires installed. This increases riding comfort and tire life. Your vehicle's original tires were dynamic or "spin" balanced at the factory. For best results, have the installer perform a dynamic balance.

NOTICE

(Only on vehicles equipped with aluminum wheels) Improper wheel weights can damage your vehicle's aluminum wheels. Use only Genuine Honda wheel weights for balancing.

Tire Rotation

Front (For Non-directional Tires and Wheels) Front (For Directional Tires and Wheels)

To help increase tire life and distribute wear more evenly, you should have the tires rotated every 7,500 miles (12,000 km). Move the tires to the positions shown in the chart each time they are rotated.

When shopping for replacement tires, you may find that some tires are "directional." This means they are designed to rotate only in one direction. If you use directional tires, they should be rotated only front-to-back.

Replacing Tires and Wheels

The tires that came with your vehicle were selected to match the performance capabilities of the vehicle while providing the best combination of handling, ride comfort, and long life. You should replace them with radial tires of the same size, load range, speed rating, and maximum cold tire pressure rating (as shown on the tire's sidewall). Mixing radial and bias-ply tires on your vehicle can reduce its braking ability, traction, and steering accuracy.

Installing improper tires on your vehicle can affect handling and stability. This can cause a crash in which you can be seriously hurt or killed.

Always use the size and type of tires recommended in this owner's manual.

It is best to replace all four tires at the same time. If that is not possible or necessary, then replace the two front tires or the two rear tires as a pair. Replacing just one tire can seriously affect your vehicle's handling.

The ABS works by comparing the speed of the wheels. When replacing tires, use the same size originally supplied with the vehicle. Tire size and construction can affect wheel speed and may cause the system to work inconsistently.

If you ever need to replace a wheel, make sure the wheel's specifications match those of the original wheel that came on your vehicle. Replacement wheels are available at your Honda dealer.

Tires

Wheels and Tires

Wheels: 15 x 6JJ

Tires: 205/70R1595S

See Tire Information on page 280 for additional information about tire and wheel size designations. See page 281 for information about DOT Tire Quality Grading.

Winter Driving

Tires that are marked "M+S" or "All Season" on the sidewall have an all-weather tread design. They should be suitable for most winter driving conditions. Tires without these markings are designed for optimum traction in dry conditions. They may not provide adequate performance in winter driving. For the best performance in snowy or icy conditions, you should install snow tires or tire chains. They may be required by local laws under certain conditions.

Snow Tires

If you mount snow tires on your Honda, make sure they are radial tires of the same size and load range as the original tires. Mount snow tires on all four wheels to balance your vehicle's handling in all weather conditions. Keep in mind the traction provided by snow tires on dry roads may not be as high as your vehicle's original equipment tires. You should drive cautiously even when the roads are clear. Check with the tire dealer for maximum speed recommendations.

Tire Chains

Mount snow chains on your vehicle when warranted by driving conditions or required by local laws.

Use only SAE class "S" chains. Only certain brands of chains will fit your CR-V without coming in contact with the body or causing mechanical damage. Before buying any types of chains, you should consult with your Honda dealer about the designs and brands that will work on your CR-V. Also, make sure you purchase the correct size for your tires.

Install the chains only on the front tires. Mounting any type of chains on the rear tires will damage the body and suspension. When installing the chains, follow the manufacturer's instructions and mount them as tightly as you can. Drive slowly when they are installed. If you hear them coming in contact with the body, stop and investigate them. Make sure the chains are installed tightly, and that they are not contacting the brake lines or suspension. Remove the chains as soon as you begin driving on cleared roads.

NOTICE

Chains that are the wrong size or design, or are improperly installed, can damage your vehicle's brake lines, suspension, body, and wheels. Stop driving if they are hitting any part of the vehicle.

Lights

Check the operation of your vehicle's exterior lights at least once a month. A burned out bulb can create an unsafe condition by reducing your vehicle's visibility and the ability to signal your intentions to other drivers.

FRONT PARKING LIGHT HEADLIGHT TURN SIGNAL/SIDE MARKER LIGHTS

HIGH-MOUNT BRAKE LIGHT TURN SIGNAL LIGHT STOP/TAILLLIGHTS LICENSE PLATE LIGHT BACK-UP LIGHT SIDE MARKER LIGHT

Check the following:

• Headlights (low and high beam)
- Parking lights
- Tafflights
- Brake lights
• High-mount brake light
- Turn signals
- Back-up lights
- Hazard light function
- License plate light
- Side marker lights
• Daytime running lights (Canadian models)

If you find any bulbs are burned out, replace them as soon as possible. Refer to the chart on page 279 to determine what type of replacement bulb is needed.

Lights

Headlight Aiming

The headlights were properly aimed when your vehicle was new. You should check their aim if you regularly carry heavy items in the trunk. Each headlight assembly has horizontal and vertical adjustment indicators. These are set to their "0" positions after the headlights are aimed at the factory.

To check these settings:

1. Make sure the fuel tank is full. Park the vehicle on level ground.
2. The driver or someone who weighs the same should be sitting in the driver's seat for all checks and adjustments. Load your vehicle with the items you normally carry.

HORIZONTAL ANGLE GAUGE

Diagram of a car's eye with gear mechanism and directional arrows (no text or symbols)

1. Open the hood.
2. Pull the inner fender off (see page 233).
3. Check the horizontal angle gauge. The line on the adjustment screw indicator should line up with the "0" mark on the gauge.

VERTICAL ANGLE GAUGE D-0-U 1 PITCH 018 DEG

1. Check the vertical angle gauge. The bubble should be centered underneath the longest scribe mark on the gauge.

HORIZONTAL ADJUSTMENT

1. If either indicator is not aligned with its "0" mark as described, an adjustment can be made using a Phillips-head screwdriver to realign it with the "0" mark. Please refer to the illustrations.

VERTICAL ADJUSTMENT

1. If you cannot get an indicator to align, have your Honda dealer inspect the vehicle for body damage or suspension problems.

Lights

Replacing a Headlight Bulb

Your vehicle has halogen headlight bulbs, one on each side. When replacing a bulb, handle it by its steel base and protect the glass from contact with your skin or hard objects. If you touch the glass, clean it with denatured alcohol and a clean cloth.

NOTICE

Halogen headlight bulbs get very hot when lit. Oil, perspiration, or a scratch on the glass can cause the bulb to overheat and shatter.

Technical line drawing of automotive components including hoses, springs, and electrical plug (no text or labels)

1. Open the hood.
2. Remove the electrical connector from the bulb by squeezing the connector on both sides to unlock the tab. Pull the connector straight off.

3. Remove the rubber weather seal by pulling on the tab.

4. Unclip the end of the hold-down wire from its slot. Pivot it out of the way and remove the bulb.

5. Insert the new bulb into the hole, making sure the tabs are in their slots. Pivot the hold-down wire back in place and clip the end into the slot.
6. Install the rubber seal over the back of the headlight assembly. Make sure it is right side up; it is marked "TOP."
7. Push the electrical connector onto the new bulb. Turn on the headlights to test the new bulb.

Replacing the Front Side Marker/ Turn Signal and Parking Light Bulb

1. If you are changing the bulb on the driver's side, start the engine, turn the steering wheel all the way to the right, and turn off the engine. If you are changing the bulb on the passenger's side, turn the steering wheel to the left.

FASTENER

1. Use a flat-tip screwdriver to remove the fastener from the inner fender.

CONTINUED

Lights

Technical line drawing of a mechanical device with no visible text or symbols

1. Pull the inner fender cover back.
2. Remove the socket from the headlight assembly by turning it one-quarter turn counterclockwise.

3. To remove the turn signal/side marker bulb, push it in slightly and turn it counterclockwise. To remove the parking light bulb, pull it straight out of its socket.

4. Install the new bulb in the socket.

5. Insert the socket back into the headlight assembly. Turn it clockwise to lock it in place.
6. Test the lights to make sure the new bulb is working.
7. Put the inner fender cover in place. Install the fastener and push on the center until it locks (the center is flush with the head).

Replacing Rear Bulbs

Technical line drawing of a vehicle chassis frame with no visible text or symbols

1. Open the tailgate. Remove the three screws and remove the rear light assembly from the rear pillar.
2. Determine which of the three bulbs is burned out: stop/taillight, turn signal light or back-up light.

Technical line drawing of automotive components including hoses and connectors (no text or labels)

1. Remove the socket by turning it one-quarter turn counterclockwise.
2. Remove the bulb from the socket by pulling it straight out.
3. Install the new bulb in the socket.

4. Reinstall the socket. Turn it clockwise until it locks.

5. Test the lights to make sure the new bulb is working.

6. Reinstall the rear light assembly into the rear pillar. Reinstall the three screws and tighten them securely.

Replacing a Rear License Bulb

Diagram of a mechanical device with internal components and a handle, no visible text or symbols

1. Remove the cover by carefully prying on the edge of the cover in the middle with a small flat-tip screwdriver.
2. Remove the socket from the light assembly by turning it one-quarter turn counterclockwise.

CONTINUED

Lights

1. Pull the bulb straight out of its socket. Push the new bulb in until it bottoms in the socket.
2. Turn on the parking lights and check that the new bulb is working.
3. Reinstall the socket. Snap the cover back in place.

Replacing a Rear Side Marker Light Bulb

Mechanical component diagram showing a bracket with bolts and a black arrow indicating direction (no text or symbols)

1. The rear side marker light assembly is behind the rear wheel. You can reach the light assembly from the rear wheel housing.
2. Remove the outer three screws holding the mudguard and pivot the mudguard out of the way.

Diagram of a mechanical assembly with arrows indicating motion or force direction (no text or symbols)

1. Remove the socket from the rear side marker assembly by turning it one-quarter turn counterclockwise.

2. Pull the bulb straight out of its socket.

3. Install the new bulb in the socket.

4. Insert the socket back into the rear side marker light assembly. Turn it clockwise to lock it in place.
5. Test the lights to make sure the new bulb is working.
6. Put the mudguard back in place and secure it with the three screws.

Replacing a High-mount Brake Light Bulb

Diagram of a car head with directional arrows indicating movement or force (no text or symbols)

1. Remove the light assembly cover by pushing the tabs on both sides and pulling the cover down.
2. Remove the socket from the light assembly by turning it one-quarter turn counterclockwise.
3. Pull the bulb straight out of its socket.
   Push the new bulb straight into the socket until it bottoms.

Diagram of a device with attached components and directional arrows indicating movement or force (no text or symbols)

1. Test the lights to make sure the new bulb is working.
2. Put the socket back into the light assembly and turn it clockwise to lock it in place.
3. Put the cover back onto the light assembly. Push it up until it locks in place.

Lights

Replacing Ceiling/Cargo Area Lights and Spotlight Bulbs

The ceiling light, cargo area light and spotlight come apart the same way. They do not all use the same bulb.

CEILING/CARGO AREA LIGHT

Line drawing of an open electronic device with a close-up view showing internal components (no text or symbols)

1. Remove the lens by carefully prying on the edge of the lens with a fingernail file or a small flat-tip screwdriver. Do not pry on the edge of the housing around the lens.

SPOTLIGHT

Technical line drawing of a car interior component (no text or symbols)

1. Remove the bulb by pulling it straight out of its metal tabs.

2. Push the new bulb into the metal tabs. Snap the lens back in place.

Storing Your Vehicle

If you need to park your vehicle for an extended period (more than one month), there are several things you should do to prepare it for storage. Proper preparation helps prevent deterioration and makes it easier to get your vehicle back on the road. If possible, store your vehicle indoors.

• Fill the fuel tank.
• Change the engine oil and filter (see page 199).
• Wash and dry the exterior completely.
• Clean the interior. Make sure the carpeting, floor mats, etc. are completely dry.

• Leave the parking brake off. Put the transmission in Reverse (5-speed manual) or Park (automatic).

• Block the rear wheels.

• If the vehicle is to be stored for a longer period, it should be supported on jackstands so the tires are off the ground.
• Leave one window open slightly (if the vehicle is being stored indoors).
• Disconnect the battery.
• Support the front and rear wiper blade arms with a folded towel or rag so they do not touch the windshield.
• To minimize sticking, apply a silicone spray lubricant to all door and tailgate seals. Also, apply a vehicle body wax to the painted surfaces that mate with the door and tailgate seals.

- Cover the vehicle with a "breathable" cover, one made from a porous material such as cotton. Nonporous materials, such as plastic sheeting, trap moisture, which can damage the paint.

- If possible, run the engine for a while periodically (preferably once a month).

If you store your vehicle for 12 months or longer, have your Honda dealer perform the inspections called for in the 24 months/30,000 miles (48,000 km) maintenance schedule (Normal Conditions) as soon as you take it out of storage (see page 188). The replacements called for in the maintenance schedule are not needed unless the vehicle has actually reached that time or mileage.

Appearance Care

Regular cleaning and polishing of your Honda helps to keep it "new" looking. This section gives you hints on how to clean your vehicle and preserve its appearance: the paint, brightwork, wheels and interior. Also included are several things you can do to help prevent corrosion.

Exterior Care.... 242
Washing.... 242
Waxing....243
Aluminum Wheels 243
Paint Touch-up.... 244
Interior Care.... 245
Carpeting.... 245
Fabric....245
Vinyl....245
Seat Belts.... 246
Windows.... 246
Air Fresheners 246
Corrosion Protection.... 247
Body Repairs.... 248

Exterior Care

Washing

Frequent washing helps preserve your vehicle's beauty. Dirt and grit can scratch the paint, while tree sap and bird droppings can permanently ruin the finish.

Wash your vehicle in a shady area, not in direct sunlight. If the vehicle is parked in the sun, move it into the shade and let the exterior cool down before you start.

Only use the solvents and cleaners recommended in this Owner's Manual.

NOTICE

Chemical solvents and strong cleaners can damage the paint, metal, and plastic on your vehicle.

• Rinse the vehicle thoroughly with cool water to remove loose dirt.
• Fill a bucket with cool water. Mix in a mild detergent, such as dishwashing liquid or a product made especially for car washing.
• Wash the vehicle using the water and detergent solution and a soft-bristle brush, sponge, or soft cloth. Start at the top and work your way down. Rinse frequently.
• Check the body for road tar, tree sap, etc. Remove these stains with tar remover or turpentine. Rinse it off immediately so it does not harm the finish. Remember to re-wax these areas, even if the rest of the vehicle does not need waxing.

- When you have washed and rinsed the whole exterior, dry it with a chamois or soft towel. Letting it air-dry will cause dulling and water spots.

As you dry the vehicle, inspect it for chips and scratches that could allow corrosion to start. Repair them with touch-up paint (see page 244).

Waxing

Always wash and dry the whole vehicle before waxing it. You should wax your vehicle, including the metal trim, whenever water sits on the surface in large patches. It should form into beads or droplets after waxing.

You should use a quality liquid or paste wax. Apply it according to the instructions on the container. In general, there are two types of products:

Waxes — A wax coats the finish and protects it from damage by exposure to sunlight, air pollution, etc. You should use a wax on your Honda when it is new.

Polishes — Polishes and cleaner/waxes can restore the shine to paint that has oxidized and lost some of its shine. They normally contain mild abrasives and solvents that remove the top layer of the finish. You should use a polish on your Honda if the finish does not have its original shine after using a wax.

Cleaning tar, insects, etc. with removers also takes off the wax. Remember to re-wax those areas, even if the rest of the vehicle does not need waxing.

Aluminum Wheels

On some models Clean your Honda's aluminum alloy wheels as you do the rest of the exterior. Wash them with the same solution, and rinse them thoroughly.

The wheels have a protective clear-coat that keeps the aluminum from corroding and tarnishing. Using harsh chemicals, including some commercial wheel cleaners, or stiff brushes can damage this clear-coat. Only use a mild detergent and soft brush or sponge to clean the wheels.

Exterior Care

Paint Touch-up

Your dealer has touch-up paint to match your vehicle's color. The color code is printed on a sticker on the driver's doorjamb. Take this code to your dealer so you are sure to get the correct color.

Inspect your vehicle frequently for chips or scratches in the paint. Repair them right away to prevent corrosion of the metal underneath. Use the touch-up paint only on small chips and scratches. More extensive paint damage should be repaired by a professional.

Carpeting

Vacuum the carpeting frequently to remove dirt. Ground-in dirt will make the carpet wear out faster. Periodically shampoo the carpet to keep it looking new. Use one of the foam-type carpet cleaners on the market. Follow the instructions that come with the cleaner, applying it with a sponge or soft brush. Keep the carpeting as dry as possible by not adding water to the foam.

Fabric

Vacuum dirt and dust out of the material frequently. For general cleaning, use a solution of mild soap and lukewarm water, letting it air dry. To clean off stubborn spots, use a commercially-available fabric cleaner. Test it on a hidden area of the fabric first, to make sure it does not bleach or stain the fabric. Follow the instructions that come with the cleaner.

Vinyl

Remove dirt and dust with a vacuum cleaner. Wipe the vinyl with a soft cloth dampened in a solution of mild soap and water. Use the same solution with a soft-bristle brush on more difficult spots. You can also use commercially-available spray or foam-type vinyl cleaners.

Seat Belts

LOOP

If your seat belts get dirty, you can use a soft brash with a mixture of mild soap and warm water to clean them. Do not use bleach, dye, or cleaning solvents. They can weaken the belt material. Let the belts air-dry before you use the vehicle.

Dirt build-up in the loops of the seat belt anchors can cause the belts to retract slowly. Wipe the insides of the loops with a clean cloth dampened in mild soap and warm water or isopropyl alcohol.

Windows

Clean the windows, inside and out, with a commercially-available glass cleaner. You can also use a mixture of one part white vinegar to ten parts water. This will remove the haze that builds up on the inside of the windows. Use a soft cloth or paper towels to clean all glass and clear plastic surfaces.

NOTICE

The rear window defogger wires are bonded to the inside of the glass. Wiping vigorously up-and-down can dislodge and break the defogger wires. When cleaning the rear window, use gentle pressure and wipe side-to-side.

Air Fresheners

If you want to use an air freshener/deodorizer in the interior of your vehicle, it is best to use a solid type. Some liquid air fresheners contain chemicals that may cause parts of the interior trim and fabric to crack or discolor.

If you use a liquid air freshener, make sure you fasten it securely so it does not spill as you drive.

Two factors normally contribute to causing corrosion in your vehicle:

1. Moisture trapped in body cavities. Dirt and road salt that collects in hollows on the underside of the vehicle stays damp, promoting corrosion in that area.
2. Removal of paint and protective coatings from the exterior and underside of the vehicle.

Many corrosion-preventive measures are built into your Honda. You can help keep your vehicle from corroding by performing some simple periodic maintenance:

• Repair chips and scratches in the paint as soon as you discover them.
• Inspect and clean out the drain holes in the bottom of the doors and body.

• Check the floor coverings for dampness. Carpeting and floor mats may remain damp for a long time, especially in winter. This dampness can eventually cause the floor panels to corrode.

• Use a high-pressure spray to clean the underside of your vehicle. This is especially important in areas that use road salt in winter. It is also a good idea in humid climates and areas subject to salt air. Vehicles equipped with ABS have a sensor and wiring at each wheel. Be careful not to damage them.

• Have the corrosion-preventive coatings on the underside of your vehicle inspected and repaired periodically.

Body Repairs

Body repairs can affect your vehicle's resistance to corrosion. If your vehicle needs repairs after a collision, pay close attention to the parts used in the repair and the quality of the work.

Make sure the repair facility uses Genuine Honda replacement body parts. Some companies make sheet metal pieces that seem to duplicate the original Honda body parts, but are actually inferior in fit, finish, and corrosion resistance. Once installed, they do not give the same high-quality appearance.

When reporting your collision to the insurance company, tell them you want Genuine Honda parts used in the repair. Although most insurers recognize the quality of original parts, some may try to specify that the repairs be done with other available parts. You should investigate this before any repairs have begun.

Take your vehicle to your authorized Honda dealer for inspection after the repairs are completed. Your dealer can make sure that quality materials were used, and that corrosion-preventive coatings were applied to all repaired and replaced parts.

Taking Care of the Unexpected

This section covers the more-common problems that motorists experience with their vehicles. It gives you information about how to safely evaluate the problem and what to do to correct it. If the problem has stranded you on the side of the road, you may be able to get going again. If not, you will also find instructions on getting your vehicle towed.

Changing a Flat Tire.... 250

If Your Engine Won't Start...... 258

Nothing Happens or the Starter Motor Operates Very Slowly.... 258

The Starter Operates Normally.... 259

Jump Starting 260

If Your Engine Overheats...... 262

Low Oil Pressure Indicator..... 264

Charging System Indicator...... 265

Malfunction Indicator Lamp...... 266

Brake System Indicator...... 267

Fuses....268

Checking and Replacing...... 269

Towing 273

Changing a Flat Tire

If you have a flat tire while driving, stop in a safe place to change it. Stopping in traffic or on the shoulder of a busy road is dangerous. Drive slowly along the shoulder until you get to an exit or an area to stop that is far away from the traffic lanes.

The vehicle can easily roll off the jack, seriously injuring anyone underneath.

Follow the directions for changing a tire exactly, and never get under the vehicle when it is supported only by the jack.

TOOL KIT JACK SPARE TIRE

1. Park the vehicle on firm, level and non-slippery ground away from traffic. Put the transmission in Park (automatic) or Reverse (manual). Apply the parking brake.

2. Turn on the hazard warning lights and turn the ignition switch to LOCK (0). Have all the passengers get out of the vehicle while you change the tire.

HOOK

1. Pull up the cargo area carpet and open the cargo area floor. To keep the cargo area floor out of the way, attach the hook to the tailgate sill as shown.

2. The tool kit is in the right cargo floor pocket. Open the cover and take out the tool kit.

CLIPS STOP

1. The jack is under the cargo storage bin. Remove each of the four clips holding the bin by pulling straight up on the ring. Remove the bin.

To keep the tailgate door open on an incline, use the stop in the tool kit.

The tool kit is in the right cargo floor pocket. Put the stop on the support strut as shown.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. Turn the jack's end bracket counterclockwise to loosen it, then remove the jack by lifting it straight up.

Line drawing of a car's wheel assembly with a Honda logo and directional arrow (no text or symbols)

1. Zip the cover open.

CONTINUED

Changing a Flat Tire

Line drawing of a person adjusting a car seatbelt inside a vehicle (no text or symbols)

1. Pull out the cover's two lower flaps. Don't pull the top of the cover, or you will tear it.

2. Pull the upper flaps out by gradually working your hands up the sides of the cover.

3. Remove the cover.

CENTER SPACER

1. Peel off the spare tire cover from the back of the spare tire and remove the cover. Do not forcibly pull off the cover or you may damage it.

2. Pull off the center spacer. Using the wheel wrench, remove the four wheel nuts. Remove the spare tire from the holder.

WHEEL NUTS

1. Loosen the five wheel nuts 1/2 turn with the wheel wrench.

JACKING POINT

1. Locate the jacking point nearest the tire you need to change. It is pointed to by an arrow molded into the underside of the body. Place the jack under the jacking point. Turn the end bracket clockwise until the top of the jack contacts the jacking point. Make sure the jacking point tab is resting in the jack notch.

EXTENSION WHEEL WRENCH

1. Use the extension and wheel wrench as shown to raise the vehicle until the flat tire is off the ground.

Line drawing of a person inspecting a car tire (no text or symbols)

1. Remove the wheel nuts and flat tire. Temporarily place the flat tire on the ground with the outside surface of the wheel facing up. You could scratch the wheel if you put it face down.

CONTINUED

Changing a Flat Tire

BRAKE HUB

1. Before mounting the spare tire, wipe any dirt off the mounting surface of the wheel and hub with a clean cloth. Wipe the hub carefully, it may be hot from driving.

Line drawing of a mechanic working on a car tire, no text or symbols present

1. Put on the spare tire. Put the wheel nuts back on finger-tight, then tighten them in a crisscross pattern with the wheel wrench until the wheel is firmly against the hub. Do not try to tighten them fully.

Illustration of a person using a tool on a bench, no text or symbols present

1. Lower the vehicle to the ground and remove the jack.

Diagram showing a person adjusting a car tire with an inset star-shaped diagram highlighting the wheel structure.

1. Tighten the wheel nuts securely in the same crisscross pattern. Have the wheel nut torque checked at the nearest automotive service facility. Tighten the wheel nuts to: 80 lbf.ft (108 N.m, 11 kgf.m)

CENTER SPACER

1. Put the flat tire on the spare tire holder. Put the wheel nuts on finger-tight, then tighten them with the wheel wrench. Put the center spacer in the center of the wheel.
2. Store the jack in its holder. Turn the jack's end bracket to lock it in place. Store the tool kit.

Loose items can fly around the interior in a crash and could seriously injure the occupants.

Store the wheel, jack and tools securely before driving.

CONTINUED

Changing a Flat Tire

TOP SLIT

1. Hold the cover at the 10 o'clock and 2 o'clock positions, then place the top of it over the spare tire, making sure the top slit on the back of the cover is vertical.

NOTICE

Make sure the cover is at room temperature before you install it. If it's too cold, it won't fit easily over the tire.

FLORIDA CRV

24.Step back to check the alignment of the logo. If needed, move the cover left or right until the logo is straight.

OUTSIDE SEAM

1. Starting at the top of the tire, position the outside seam of the cover slightly over the outside edge of the tire. Pull the cover on, a little at a time, and alternate side to side along the tire until you reach the bottom.

UPPER FLAP SLIT

SPARE TIRE BRACKET

1. Pull the bottom of the cover over the tire, and make sure the two slits on the lower flaps of the cover are horizontal and the two upper flaps touch the spare tire bracket.

2. If needed, readjust the cover to smooth out any wrinkles.

Line drawing of a Honda car wheel assembly with a circular component and blade (no text or symbols)

28.Zip the cover closed.

Diagram showing three steps of screw fastening: mounting, cutting, and fastening (no text or symbols)

1. Replace the cargo storage bin. Secure it with the four clips. Push each clip down securely, and pivot the ring down flat.

2. Unhook the cargo area floor and lower it. Replace the cargo area carpet.

If Your Engine Won't Start

Diagnosing why your engine won't start falls into two areas, depending on what you hear when you turn the key to START (III):

• You hear nothing, or almost nothing. The engine's starter motor does not operate at all, or operates very slowly.
• You can hear the starter motor operating normally, or the starter motor sounds like it is spinning faster than normal, but the engine does not start up and run.

Nothing Happens or the Starter Motor Operates Very Slowly

When you turn the ignition switch to START (III), you do not hear the normal noise of the engine trying to start. You may hear a clicking sound or series of clicks, or nothing at all. Check these things:

- Check the transmission interlock. If you have a manual transmission, the clutch pedal must be pushed all the way to the floor or the starter will not operate. With an automatic transmission, it must be in Park or Neutral.

• Turn the ignition switch to ON (II). Turn on the headlights and check their brightness. If the headlights are very dim or don't light at all, the battery is discharged. See Jump Starting on page 260.
• Turn the ignition switch to START (III). If the headlights do not dim, check the condition of the fuses. If the fuses are OK, there is probably something wrong with the electrical circuit for the ignition switch or starter motor. You will need a qualified technician to determine the problem. (See Towing on page 273.)

If Your Engine Won't Start

If the headlights dim noticeably or go out when you try to start the engine, either the battery is discharged or the connections are corroded. Check the condition of the battery and terminal connections (see page 215). You can then try jump starting the vehicle from a booster battery (see page 260).

The Starter Operates Normally

In this case, the starter motor's speed sounds normal, or even faster than normal, when you turn the ignition switch to START (III), but the engine does not run.

• Are you using the proper starting procedure? Refer to Starting the Engine on page 154.
• Do you have fuel? Turn the ignition switch to ON (II) for a minute and watch the fuel gauge. The low fuel level warning light may not be working, so you were not reminded to fill the tank.

- There may be an electrical problem, such as no power to the fuel pump. Check all the fuses (see page 269).

If you find nothing wrong, you will need a qualified technician to find the problem. See Towing on page 273.

Jump Starting

If your vehicle's battery has run down, you may be able to start the engine by using a booster battery. Although this seems like a simple procedure, you should take several precautions.

A battery can explode if you do not follow the correct procedure, seriously injuring anyone nearby.

Keep all sparks, open flames, and smoking materials away from the battery.

You cannot start a Honda with an automatic transmission by pushing or pulling it.

To jump start your vehicle, follow these directions closely:

1. Open the hood and check the physical condition of the battery (see page 215). In very cold weather, check the condition of the electrolyte. If it seems slushy or like ice, do not try jump starting until it thaws.

NOTICE

If a battery sits in extreme cold, the electrolyte inside can freeze. Attempting to jump start with a frozen battery can cause it to rupture.

1. Turn off all the electrical accessories: heater, A/C, stereo system, lights, etc.

Put the transmission in Neutral or Park and set the parking brake.

Diagram of an automotive battery pack with a positive terminal indicator (no text or symbols present)

1. Connect one jumper cable to the positive (+) terminal on the booster battery. Connect the other end to the positive (+) terminal on your Honda's battery.

Medical illustration showing a surgical procedure with catheter and tubing (no text or labels)

1. Connect the second jumper cable to the negative (—) terminal on the booster battery. Connect the other end to the ground wire on the right side of the engine as shown. Do not connect this jumper cable to any other part of the engine.
2. If the booster battery is in another vehicle, have an assistant start that vehicle and run it at a fast idle.

BOOSTER BATTERY

1. Start your vehicle. If the starter motor still operates slowly, check the jumper cable connections to make sure they have good metal-to-metal contact.
2. Once your vehicle is running, disconnect the negative cable from your vehicle, then from the booster battery. Disconnect the positive cable from your vehicle, then the booster battery.

The pointer of your vehicle's temperature gauge should stay in the midrange under most conditions. It may go higher if you are driving up a long steep hill on a very hot day. If it climbs to the red mark, you should determine the reason.

NOTICE

Driving with the temperature gauge pointer at the red mark can cause serious damage to your engine.

Your vehicle can overheat for several reasons, such as lack of coolant or a mechanical problem. The only indication may be the temperature gauge climbing to or above the red mark. Or you may see steam or spray coming from under the hood. In either case, you should take immediate action.

Steam and spray from an overheated engine can seriously scald you.

Do not open the hood if steam is coming out.

1. Safely pull to the side of the road. Put the transmission in Neutral or Park and set the parking brake. Turn off the heating and cooling system and all other accessories. Turn on the hazard warning indicators.

2. If you see steam and/or spray coming from under the hood, turn off the engine.

3. If you do not see steam or spray, leave the engine running and watch the temperature gauge. If the high heat is due to overloading (climbing a long, steep hill on a hot day with the A/C running, for example), the engine should start to cool down almost immediately. If it does, wait until the temperature gauge comes down to the midpoint then continue driving.

4. If the temperature gauge stays at the red mark, turn off the engine.

5. Wait until you see no more signs of steam or spray, then open the hood.

6. Look for any obvious coolant leaks, such as a split radiator hose. Everything is still extremely hot, so use caution. If you find a leak, it must be repaired before you continue driving (see Towing on page 273).

7. If you don't find an obvious leak, check the coolant level in the radiator reserve tank (see page 144). If the level is below the MIN mark, add coolant to halfway between the MIN and MAX marks.
8. If there was no coolant in the reserve tank, you may also have to add coolant to the radiator. Let the engine cool down until the pointer reaches the middle of the temperature gauge, or lower, before checking the radiator.

Removing the radiator cap while the engine is hot can cause the coolant to spray out, seriously scalding you.

Always let the engine and radiator cool down before removing the radiator cap.

1. Using gloves or a large heavy cloth, turn the radiator cap counterclockwise, without pushing down, to the first stop. This releases any remaining pressure in the cooling system. After the pressure releases, push down on the cap and turn it until it comes off.

2. Start the engine and set the temperature control dial to maximum. Add coolant to the radiator up to the base of the filler neck. If you do not have the proper coolant mixture available, you can add plain water. Remember to have the cooling system drained and refilled with the proper mixture as soon as you can.

3. Put the radiator cap back on tightly. Run the engine and watch the temperature gauge. If it goes back to the red mark, the engine needs repair. (See Towing on page 273.)
4. If the temperature stays normal, check the coolant level in the radiator reserve tank. If it has gone down, add coolant to the MAX mark. Put the cap back on tightly.

LOW OIL PRESSURE INDICATOR

This indicator should light when the ignition switch is ON (II), and go out after the engine starts. It should never come on when the engine is pinning. If it starts flashing, it indicates that the oil pressure dropped very low for a moment, then recovered. If the indicator stays on with the engine running, it shows that the engine has lost oil pressure and serious engine damage is possible. In either case, you should take immediate action.

NOTICE

Running the engine with low oil pressure can cause serious mechanical damage almost immediately. Turn off the engine as soon as you can safely get the vehicle stopped.

1. Safely pull off the road and shut off the engine. Turn on the hazard warning indicators.

2. Let the vehicle sit for a minute. Open the hood and check the oil level (see page 143). Although oil level and oil pressure are not directly connected, an engine that is very low on oil can lose pressure during cornering and other driving maneuvers.

3. If necessary, add oil to bring the level back to the full mark on the dipstick (see page 197).

4. Start the engine and watch the oil pressure indicator. If the light does not go out within ten seconds, turn off the engine. There is a mechanical problem that needs to be repaired before you can continue driving. (See Towing on page 273.)

Charging System Indicator

CHARGING SYSTEM INDICATOR

Pure diagram of abstract shapes and circles without any text, numbers, or symbols

This indicator should come on when the ignition switch is ON (II), and go out after the engine starts. If it comes on brightly when the engine is running, it indicates that the charging system has stopped charging the battery.

Immediately turn off all electrical accessories: radio, heater, A/C, rear defogger, cruise control, etc. Try not to use other electrically-operated controls such as the power windows. Keep the engine running and take extra care not to stall it. Starting the engine will discharge the battery rapidly.

By eliminating as much of the electrical load as possible, you can drive several miles (kilometers) before the battery is too discharged to keep the engine running. Drive to a service station or garage where you can get technical assistance.

Diagram showing vehicle lane markings and a 'CHECK' button with an arrow pointing to it.

MALFUNCTION INDICATOR LAMP

This indicator comes on for a few seconds when you turn the ignition switch ON (II). If it comes on at any other time, it indicates one of the engine's emissions control systems may have a problem. Even though you may feel no difference in your vehicle's performance, it can reduce your fuel economy and cause your vehicle to put out excessive emissions. Continued operation may cause serious damage.

If you have recently refueled your vehicle, the cause of this indicator coming on could be a loose or missing fuel fill cap. Check the cap and tighten it until it clicks at least three times. Replace the fuel fill cap if it is missing. Tightening the cap will not make the indicator turn off immediately.

If the indicator remains on past three driving trips, or the fuel cap was not loose or missing, have the vehicle checked by the dealer as soon as possible. Drive moderately until the dealer has inspected the problem. Avoid full-throttle acceleration and driving at high speed.

You should also have the dealer inspect your vehicle if this indicator comes on repeatedly, even though it may turn off as you continue driving.

NOTICE

If you keep driving with the malfunction indicator lamp on, you can damage your vehicle's emissions controls and engine. Those repairs may not be covered by your vehicle's warranties.

The Brake System indicator light should normally come on only when the parking brake is not fully released.

If it comes on at any other time, it indicates a problem with the vehicle's brake system. In most cases, the problem is a low fluid level in the brake fluid reservoir. Press lightly on the brake pedal to see if it feels normal. If it does, check the brake fluid level the next time you stop at a service station (see page 210). If the fluid level is low, take the vehicle to your dealer and have the brake system inspected for leaks or worn brake pads.

However, if the brake pedal does not feel normal, you should take immediate action. Because of the brake system's dual-circuit design, a problem in one part of the system will still give you braking at two wheels. You will feel the brake pedal go down much farther before the vehicle begins to slow down, and you will have to press harder on the pedal. The distance needed to stop will be much longer.

Slow down by shifting to a lower gear, and pull to the side of the road when it is safe. Because of the longer distance needed to stop, it is hazardous to drive the vehicle. You should have it towed, and repaired as soon as possible. (See Towing on page 273.)

If you must drive the vehicle a short distance in this condition, drive slowly and cautiously.

Fuses

UNDER-HOOD TAB

All the electrical circuits in your vehicle have fuses to protect them from a short circuit or overload. These fuses are located in two or three fuse boxes.

The under-hood fuse box is located in the engine compartment. To open it, push the tab as shown.

INTERIOR

The interior fuse box is underneath the dashboard on the driver's side. Remove the fuse box lid by swinging the lid down and pulling it straight out of its hinges.

ABS FUSE BOX

Vehicles equipped with ABS have a third fuse box for the ABS. It is in the engine compartment on the passenger's side.

Checking and Replacing Fuses

If something electrical in your vehicle stops working, the first thing you should check for is a blown fuse. Determine from the chart on pages 271 and 272, or the diagram on the fuse box lid, which fuse or fuses control that component. Check those fuses first, but check all the fuses before deciding that a blown fuse is not the cause. Replace any blown fuses and check the component's operation.

1. Turn the ignition switch to LOCK (0). Make sure the headlights and all other accessories are off.
2. Remove the cover from the fuse box.

40A BLOWN

1. Check each of the large fuses in the under-hood fuse box by looking through the top at the wire inside. Removing these fuses requires a Phillips-head screw-driver.

FUSE PULLER

1. Check the smaller fuses in the under-hood fuse box and all the fuses in the interior fuse box by pulling out each fuse with the fuse puller provided in the door of the interior fuse box.

CONTINUED

BLOWN 15

1. Look for a burned wire inside the fuse. If it is burned, replace it with one of the spare fuses of the same rating or lower.

If you cannot drive the vehicle without fixing the problem, and you do not have a spare fuse, take a fuse of the same rating or a lower rating from one of the other circuits. Make sure you can do without that circuit temporarily (such as the accessory power socket or radio). If you replace the blown fuse with a spare fuse that has a lower rating, it might blow out again. This does not indicate anything wrong. Replace the fuse with one of the correct rating as soon as you can.

NOTICE

Replacing a fuse with one that has a higher rating greatly increases the chances of damaging the electrical system. If you do not have a replacement fuse with the proper rating for the circuit, install one with a lower rating.

1. If the replacement fuse of the same rating blows in a short time, there is probably a serious electrical problem in your vehicle. Leave the blown fuse in that circuit and have your vehicle checked by a qualified mechanic.

On EX model If the radio fuse is removed, the audio system will disable itself. The next time you turn on the radio you will see "Code" in the frequency display. Use the Preset buttons to enter the five-digit code (see page 137).

INTERIOR FUSE BOX

38 37 33 22 11 32 21 10 31 20 9 30 19 8 29 18 7 28 17 6 27 16 5 26 15 4 25 14 3 24 13 2 23 12 1 36 35 34

No.	Amps.	Circuits Protected
1	-	Not used
2	-	Not used
3	10 A	Rear Wiper, Washer
4	10 A	Right Headlight High Beam
5	10 A	Left Headlight High Beam
6	10 A	Rear Accessory Power Socket
7	20 A	Power Window Rear Left
8	20 A	Power Window Rear Right
9	15 A	IGN Coil
10	20 A	Power Window Front Assistant
11	20 A	Power Window Front Driver
12	7.5 A	Turn Lights
13	15 A	Fuel Pump (SRS Unit)
14	7.5 A	Cruise Control
15	7.5 A	ACG (IG), SP Sensor
16	7.5 A	ABS
17	7.5 A	Heater A/C Relay
18	7.5 A	Running Light Relay*
19	7.5 A	Back-up Light
20	7.5 A	Running Light*

No.	Amps.	Circuits Protected
21	10 A	Right Headlight Low Beam
22	10 A	Left Headlight Low Beam
23	10 A	SRS
24	7.5 A	Power Window Relay
25	7.5 A	Meter
26	20 A	Front Wiper, Front Washer
27	10 A	Front Accessory Power Socket
28	10 A	Radio
29	-	Not used
30	7.5 A	Meter Light
31	7.5 A	Starter Signal
32	7.5 A	License Light, Taillight
33	7.5 A	Inter Lock Unit
34	7.5 A	Spare Fuse
35	10 A	Spare Fuse
36	15 A	Spare Fuse
37	20 A	Spare Fuse
38	-	Not used

* : Canadian model

CONTINUED

Taking Care of the Unexpected

Fuses

UNDER-HOOD FUSE BOX

1 2 3 4 5 6 7 8 9 10 11 12 13 15

ABS FUSE BOX (For some types)

3 2 1

No.	Amps.	Circuits Protected
1	100 A	Main Fuse Battery
2	40 A	Main Fuse Ignition Starter
3	20 A	Rear Defogger
4	40 A	Power Window
5	40 A	Option
6	30 A	Headlight
7	40 A	Heater Motor
8	10 A	Hazard
9	15 A	Horn, Stop Light
10	20 A	Door Lock Unit
11	20 A	Cooling Fan
12	20 A	Condenser Fan
13	15 A	FI E/M (ECM/PCM)
14	7.5 A	Back-up (Radio)
15	7.5 A	Interior Light

No.	Amps.	Circuits Protected
1	7.5 A	Motor Check
2	20 A	ABS + B
3	40 A	ABS Pump Motor

If your vehicle needs to be towed, call a professional towing service or, if you belong to one, an organization that provides roadside assistance. Never tow your vehicle behind another vehicle with just a rope or chain. It is very dangerous.

Emergency Towing

There are three popular methods of towing a vehicle:

Flat-bed Equipment — The operator loads your vehicle on the back of a truck. This is the only way to transport your vehicle. Any other method of towing will damage the drive system. When you contact the towing agency, inform them that a flat-bed is required.

NOTICE NOTICE

Towing a 4WD CR-V with only two tires on the ground will damage parts of the 4WD system. It should be transported on a flat-bed truck or trailer.

Wheel Lift Equipment—The tow truck uses two pivoting arms that go under the tires (front or rear) and lift them off the ground. The other two tires remain on the ground.

Never tow your vehicle with wheel lift equipment.

Sling-type Equipment — The tow truck uses metal cables with hooks on the ends. These hooks go around parts of the frame or suspension and cables lift that end of the vehicle off the ground. Your vehicle's suspension and body can be seriously damaged. This method of towing your CR-V is unacceptable.

Improper towing preparation will damage the transmission. Follow the above procedure exactly. If you cannot shift the transmission or start the engine (automatic transmission), your vehicle must be transported on a flat-bed.

Refer to Towing Your Vehicle Behind a Motorhome on page 176 for non-emergency towing information.

Technical Information

The diagrams in this section give you the dimensions and capacities of your Honda, and the locations of the identification numbers. The explanations of several electronic and mechanical systems on your Honda are for the more technically-oriented owner.

Identification Numbers...... 276
Specifications.... 278
Tire Information...... 280
Tire Size Designation...... 280
Wheel Size Designation...... 280
Tire Speed Ratings...... 280
DOT Tire Quality Grading..... 281
Treadwear.... 281
Traction....281
Temperature.... 282

Oxygenated Fuels 283
Driving in Foreign Countries...... 284
Emissions Controls.... 285
The Clean Air Act.... 285
Crankcase Emissions Control System.... 285
Evaporative Emissions Control System.... 285
Exhaust Emissions Controls.... 286
PGM-FI System......286
Ignition Timing Control System.... 286
Three Way Catalytic Converter....286
Replacement Parts.... 286
Three Way Catalytic Converter... 287

Identification Numbers

Your vehicle has several identifying numbers located in various places.

The Vehicle Identification Number (VIN) is the 17-digit number your Honda dealer uses to register your vehicle for warranty purposes. It is also necessary for licensing and insuring your vehicle. The easiest place to find the VIN is on a plate fastened to the top of the dashboard. You can see it by looking through the windshield on the driver's side. It is also on the Certification label attached to the driver's doorjamb, and is stamped on the engine compartment bulkhead. The VIN is also provided in bar code on the Certification label.

VEHICLE IDENTIFICATION NUMBER CERTIFICATION LABEL

The Engine Number is stamped into the engine block.

The Transmission Number is on a label on top of the transmission.

TRANSMISSION NUMBER ENGINE NUMBER

Technical Information

Specifications

Dimensions

Length		177.6 in (4,510 mm)
Width		68.9 in (1,750 mm)
Height		63.3 in (1,608 mm)
Wheelbase		103.2 in (2,622 mm)
Track	Front	60.4 in (1,533 mm)
	Rear	60.4 in (1,534 mm)

Weights

Gross vehicle weight rating

See the certification label attached to the driver's doorjamb.

Engine

Type	Water cooled 4-stroke DOHC 4-cylinder gasoline engine
Bore x Stroke	3.31 x 3.50 in (84.0 x 89.0 mm)
Displacement	120 cu-in (1,973 cm3)
Compression ratio	9.6 : 1
Spark plugs	See spark plug maintenance section page 214.

Capacities

Fuel tank		Approx.15.3 US gal (58 , 12.8 Imp gal)
Engine oil	Change*2Including filter	4.0 US qt (3.8 , 3.3 Imp qt)
	Without filter	3.7 US qt (3.5 , 3.1 Imp qt)
	Total	4.9 US qt (4.6 , 4.0 Imp qt)

Engine coolant	Automatic Transmission Change*1	1.03 US gal (3.9 ℓ, 0.86 Imp gal)
	Total	1.56 US gal (5.9 ℓ, 1.30 Imp gal)
	Manual Transmission Change*1	1.06 US gal (4.0 ℓ, 0.88 Imp gal)
	Total	1.59 US gal (6.0 ℓ, 1.32 Imp gal)
Automatic transmission fluid	Change
	4WD	3.1 US qt (2.9 ℓ, 2.6 Imp qt)
	2WD	2.9 US qt (2.7 ℓ, 2.4 Imp qt)
	Total
	4WD	7.2 US qt (6.8 ℓ, 6.0 Imp qt)
	2WD	6.2 US qt (5.9 ℓ, 5.2 Imp qt)
Manual transmission fluid	Change	1.8 US qt (1.7 ℓ, 1.5 Imp qt)
	Total	2.2 US qt (2.1 ℓ, 1.8 Imp qt)
Rear differential fluid	Change	1.1 US qt (1.0 ℓ, 0.9 Imp qt)
	Total	1.3 US qt (1.2 ℓ, 1.1 Imp qt)
Windshield washer reservoir	U.S. Cars	2.6 US qt (2.5 ℓ, 2.2 Imp qt)
	Canada Cars	4.8 US qt (4.5 ℓ, 4.0 Imp qt)

* 1 : Including the coolant in the reserve tank and that remaining in the engine.
Reserve tank capacity:
0.16 US gal (0.6 ♦, 0.13 Imp gal)
* 2 : Excluding the oil remaining in the engine.

Air Conditioning

Refrigerant type	HFC-134a (R-134a)
Charge quantity	22.9-24.7 oz (650-700 g)
Lubricant type	SP-10

Lights

Headlights	12 V - 60/55 W
Front turn signal/side marker lights	12 V - 27/8 W
Parking lights	12 V - 3 CP
Rear turn signal lights	12 V - 21 W
Stop/Taillights	12 V - 21/5 W
Back-up lights	12 V - 18 W
License plate lights	12 V - 8 W
Ceiling light	12 V - 8 W
Spotlights	12 V - 5 W
Tailgate Lights	12 V - 8 W
Rear side marker lights	12 V - 3 CP
High-mount brake light	12 V - 21 W

Battery

Capacity

12 V — 52 AH/5 HR

Fuses

Interior	Seepage 271 or the fuse label attached to the inside of the fuse box door under the dashboard.
Under-hood	Seepage 272 or the fuse box cover.

Alignment

Toe-in	Front	0.0 in (0 mm)
	Rear	0.08 in (2.0 mm)
Camber	Front	0^
	Rear	-1^
Caster	Front	2^10'

Tires

Size	Front/Rear	205/70R15 95S
Pressure	Front	26 psi (180 kPa, 1.8 kgf/cm2)
	Rear	26 psi (180 kPa, 1.8 kgf/cm2)

Tire Information

Tire Size Designation

A tire's sidewall is marked with a tire size designation. You will need this information when selecting replacement tires for your vehicle. The following explains what the letters and numbers in the tire size designation mean.

(Example tire size designation) 205/70R15 95S

205 — Tire width in millimeters.

70 — Aspect ratio. The tire's section height as a percentage of its width.

R — Tire construction code (Radial).

15 — Rim diameter in inches.

95 — Load Index, a numerical code associated with the maximum load the tire can carry.

S — Speed Symbol. See the speed rating chart in this section for additional information.

Wheel Size Designation

Wheels are also marked with important information that you need if you ever have to replace one. The following explains what the letters and numbers in the wheel size designation mean.

(Example wheel size designation) 15 x 6 JJ

15 — Rim diameter in inches.

6 — Rim width in inches.

JJ — Rim contour designation.

Tire Speed Ratings

The chart below shows many of the different speed ratings currently being used for passenger vehicle tires. The speed symbol is part of the tire size designation on the sidewall of the tire. This symbol corresponds to that tire's designed maximum safe operating speed.

Speed Symbol Category	Maximum Speed
Q	99 mph (160 km/h)
S	112 mph (180 km/h)
T	118 mph (190 km/h)
H	130 mph (210 km/h)
V	149 mph (240 km/h)
W	168 mph (270 km/h)
ZR	Over 149 mph (240 km/h)

DOT Tire Quality Grading (U.S. Vehicles)

The tires on your car meet all U.S. Federal Safety Requirements. All tires are also graded for treadwear, traction, and temperature performance according to Department of Transportation (DOT) standards. The following explains these gradings.

Uniform Tire Quality Grading

Quality grades can be found where applicable on the tire sidewall between the tread shoulder and the maximum section width. For example:

Treadwear 200

Traction AA

Temperature A

Treadwear

The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and one half (1-1/2) times as well on the government course as a tire graded 100. The relative performance of tires depends upon the actual conditions of their use, however, and may depart significantly from the norm due to variations in driving habits, service practices, and differences in road characteristics and climate.

Traction

The traction grades, from highest to lowest, are AA, A, B, and C. Those grades represent the tire's ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete. A tire marked C may have poor traction performance.

Warning: The traction grade assigned to this tire is based on straight-ahead braking traction tests, and does not include acceleration, cornering, hydroplaning, or peak traction characteristics.

CONTINUED

Tire Information

Temperature

The temperature grades are A (the highest), B, and C, representing the lire's resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure. The grade C corresponds to a level of performance which all passenger vehicle tires must meet under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent higher levels of performance on the laboratory test wheel than the minimum required by law.

Warning: The temperature grade for this tire is established for a tire that is properly inflated and not overloaded. Excessive speed, underinflation, or excessive loading either separately or in combination, can cause heat build-up and possible tire failure.

Some conventional gasolines are being blended with alcohol or an ether compound. These gasolines are collectively referred to as oxygenated fuels. To meet clean air standards, some areas of the United States and Canada use oxygenated fuels to help reduce emissions.

If you use an oxygenated fuel, be sure it is unleaded and meets the minimum octane rating requirement.

Before using an oxygenated fuel, try to confirm the fuel's contents. Some states/provinces require this information to be posted on the pump.

The following are the U.S. EPA and Canadian CGSB approved percentages of oxygenates:

ETHANOL (ethyl or grain alcohol) You may use gasoline containing up to 10 percent ethanol by volume. Gasoline containing ethanol may be marketed under the name "Gasohol."

MTBE (Methyl Tertiary Butyl Ether) You may use gasoline containing up to 15 percent MTBE by volume.

METHANOL (methyl or wood alcohol) You may use gasoline containing up to 5 percent methanol by volume as long as it also contains cosolvents and corrosion inhibitors to protect the fuel system. Gasoline containing more than 5 percent methanol by volume may cause starting and/or performance problems. It may also damage metal, rubber and plastic

parts of your fuel system.

If you notice any undesirable operating symptoms, try another service station or switch to another brand of gasoline.

Fuel system damage or performance problems resulting from the use of an oxygenated fuel containing more than the percentages of oxygenates given above are not covered under warranty.

Driving in Foreign Countries

If you are planning to take your Honda outside the U.S. or Canada, contact the tourist bureaus in the areas you will be traveling in to find out about the availability of unleaded gasoline with the proper octane rating.

If unleaded gasoline is not available, be aware that using leaded gasoline in your Honda will affect performance and fuel mileage, and damage its emissions controls. It will no longer comply with U.S. and Canadian emissions regulations, and will be illegal to operate in North America. To bring your vehicle back into compliance will require the replacement of several components, such as the oxygen sensors and the three way catalytic converter. These replacements are not covered under warranty.

The burning of gasoline in your vehicle's engine produces several by-products. Some of these are carbon monoxide (CO), oxides of nitrogen (NOx) and hydrocarbons (HC). Gasoline evaporating from the tank also produces hydrocarbons. Controlling the production of NOx, CO, and HC is important to the environment. Under certain conditions of sunlight and climate, NOx and HC react to form photochemical "smog." Carbon monoxide does not contribute to smog creation, but it is a poisonous gas.

The Clean Air Act

The United States Clean Air Act* sets standards for automobile emissions. It also requires that automobile manufacturers explain to owners how their emissions controls work and what to do to maintain them. This section summarizes how the emissions controls work. Scheduled maintenance is on page 188.

* In Canada, Honda vehicles comply with the Canadian Motor Vehicle Safety Standards (CMVSS) for Emissions valid at the time they are manufactured.

Crankcase Emissions Control System

Your vehicle has a Positive Crankcase Ventilation System. This keeps gasses that build up in the engine's crankcase from going into the atmosphere. The Positive Crankcase Ventilation valve routes them from the crankcase back to the intake manifold. They are then drawn into the engine and burned.

Evaporative Emissions Control System

As gasoline evaporates in the fuel tank, an evaporative emissions control canister filled with charcoal adsorbs the vapor. It is stored in this canister while the engine is off. After the engine is started and warmed up, the vapor is drawn into the engine and burned during driving.

Exhaust Emissions Controls

The exhaust emissions controls include three systems: PGM-FI, Ignition Timing Control and Three Way Catalytic Converter. These three systems work together to control the engine's combustion and minimize the amount of HC, CO, and NOx that comes out the tailpipe. The exhaust emissions control systems are separate from the crankcase and evaporative emissions control systems.

PGM-FI System

The PGM-FI System uses sequential multiport fuel injection. It has three subsystems: Air Intake, Engine Control, and Fuel Control. The Engine Control Module (ECM) or the Powertrain Control Module (PCM) uses various sensors to determine how much air is going into the engine. It then controls how much fuel to inject under all operating conditions.

Ignition Timing Control System

This system constantly adjusts the ignition timing, reducing the amount of HC, CO and NOx produced.

Three Way Catalytic Converter

The three way catalytic converter is in the exhaust system. Through chemical reactions, it converts HC, CO, and NOx in the engine's exhaust to carbon dioxide (CO₂), dinitrogen (N₂), and water vapor.

Replacement Parts

The emissions control systems are designed and certified to work together in reducing emissions to levels that comply with the Clean Air Act. To make sure the emissions remain low, you should use only new Genuine Honda replacement parts or their equivalent for repairs. Using lower quality parts may increase the emissions from your vehicle.

The emissions control systems are covered by warranties separate from the rest of your vehicle. Read your warranty manual for more information.

The three way catalytic converter contains precious metals that serve as catalysts, promoting chemical reactions to convert the exhaust gasses without affecting the metals. The catalytic converter is referred to as a three-way catalyst, since it acts on HC, CO, and NOx. A replacement unit must be an original Honda part or its equivalent.

The three way catalytic converter must operate at a high temperature for the chemical reactions to take place. It can set on fire any combustible materials that come near it. Park your vehicle away from high grass, dry leaves, or other flammables.

Technical line drawing of a mechanical assembly with no visible text or symbols

THREE WAY CATALYTIC CONVERTER

A defective three way catalytic converter contributes to air pollution, and can impair your engine's performance. Follow these guidelines to protect your vehicle's three way catalytic converter.

- Always use unleaded gasoline. Even a small amount of leaded gasoline can contaminate the catalyst metals, making the three way catalytic converter ineffective.

• Keep the engine tuned-up.
• Have your vehicle diagnosed and repaired if it is misfiring, back-firing, stalling, or otherwise not running properly.

Warranty and Customer Relations

Customer Relations

Information...... 290

U.S. Zone Office Map.... 291

Canada Zone Office Map...... 292

Warranty Coverages.... 293

Reporting Safety Defects

(U.S. Vehicles)......294

Authorized Manuals.... 295

Warranty and Customer Relations

Customer Relations Information

Honda dealership personnel are trained professionals. They should be able to answer all your questions. If you encounter a problem that your dealership does not solve to your satisfaction, please discuss it with the dealership's management. The Service Manager or General Manager can help. Almost all problems are solved in this way.

If you are dissatisfied with the decision made by the dealership's management, contact your Honda Customer Relations Zone Office. Refer to the U.S. and Canadian Zone Office maps on the following pages.

When you call or write, please give us this information:

• Vehicle Identification Number (see page 276)
- Name and address of the dealer who services your vehicle
- Date of purchase
- Mileage on your vehicle
- Your name, address, and telephone number
• A detailed description of the problem
- Name of the dealer who sold the vehicle to you

ZONE 2 WA OR ID MT SD WY Zone 8 MN WI IL MO NE UT CO KS OR ZONE 9 NY NY MA CT PH Zone 4 MD NV CH KY PA NJ DE ZONE 5 CA Zone 10 AZ NM ZONE 6 WY VA NC SC TH AL GA ZONE 15 ZONE 3 TX ART MS FL FR & US VI ZONE 7

The addresses and telephone numbers are subject to change. If you cannot reach your Zone office, ask your Honda dealer for the current information.

1 Western Zone P.O. Box 2260 700 Van Ness Avenue Torrance, California 90509-2260 [phone]

2 Northwestern Zone P.O. Box 20186 12439 N.E. Airport Way Portland, Oregon 97230 [phone] (also includes Alaska and Hawaii)

3 South Central Zone 4529 Royal Lane Irving, Texas 75063 [phone]

4 Central Zone 101 South Stanfield Road Troy, Ohio 45373 [phone]

5 Northeastern Zone P.O. Box 337 Eastgate Industrial Park 115 Gaither Drive Moorestown, New Jersey [phone] Includes: NYC Metro area Fairfield County, CT area

6 Mid-Atlantic Zone 902 Wind River Ln., Suite 200 Gaithersburg, Maryland 20878 [phone]

7 Southeastern Zone 1500 Morrison Parkway Alpharetta, Georgia 30004 [phone]

8 North Central Zone 601 Campus Drive, Suite A-9 Arlington Heights, Illinois 60004 [phone]

9 New England Zone 555 Old County Road Windsor Locks, Connecticut 06096 [phone] See Zone 5 for: NYC Metro area and Fairfield County, CT area

10 West Central Zone 1600 South Abilene Street, Suite D Aurora, Colorado 80012 [phone]

15 Puerto Rico and U.S. V.I. Bella International P.O. Box 190816 San Juan, PR 00919-0816 [phone]

WESTERN ZONE QUEBEC ZONE CENTRAL ZONE ATLANTIC ZONE

Western Zone

Honda Canada Inc. 13240 Worster Court Richmond, B.C. V6V 2B8 [phone]

Central Zone

Honda Canada Inc. 715 Milner Avenue Scarborough, ON M1B 2K8 [phone]

Quebec Zone

Honda Canada Inc. 1750 rue Eiffel Boucherville, Quebec J4B 7W1 [phone]

Atlantic Zone

Honda Canada Inc. 51 Raddall Avenue Suite 1 Dartmouth, NS B3B 1L4 [phone]

U.S. Owners

Your new Honda is covered by these warranties:

New Vehicle Limited Warranty — covers your new vehicle, except for the battery, emissions control systems and accessories, against defects in materials and workmanship.

Emissions Control Systems Defects Warranty and Emissions

Performance Warranty — these two warranties cover your vehicle's emissions control systems. Time, mileage, and coverage are conditional. Please read the warranty manual for exact information.

Original Equipment Battery Limited

Warranty — this warranty gives up to 100 percent credit toward a replacement battery.

Seat Belt Limited Warranty—a seat belt that fails to function properly is covered for the useful life of the vehicle.

Rust Perforation Limited Warranty — all exterior body panels are covered for rust-through from the inside for the specified time period with no mileage limit.

Accessory Limited Warranty— Genuine Honda Accessories are covered under this warranty. Time and mileage limits depend on the type of accessory and other factors. Please read your warranty manual for details.

Replacement Parts Limited Warranty — covers all Genuine Honda replacement parts against defects in materials and workmanship.

Replacement Battery Limited Warranty — provides prorated coverage for a replacement battery purchased from a Honda dealer.

Replacement Muffler Lifetime Limited Warranty — provides coverage for as long as the purchaser of the muffler owns the vehicle.

Restrictions and exclusions apply to all these warranties. Please read the 1999 Honda Warranty Information booklet that came with your vehicle for precise information on warranty coverages. Your Honda's original tires are covered by their manufacturer. Tire warranty information is in a separate booklet.

Canadian Owners

Please refer to the 1999 Warranty Manual that came with your vehicle.

Reporting Safety Defects (U.S. Vehicles)

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying American Honda Motor Co., Inc.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or American Honda Motor Co., Inc.

To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-800424-9393 (or 366-0123 in Washington D.C. area) or write to: NHTSA, U.S. Department of Transportation, Washington, D.C. 20590. You can also obtain other information about motor vehicle safety from the Hotline.

Purchasing Factory Authorized Manuals (U.S. only)

The following publications covering the operation and servicing of your vehicle can be obtained from Helm Incorporated, either by filling out the attached form or, for credit card holders, calling the toll-free phone number on the form. For manuals prior to the year shown below, contact Helm Incorporated, P.O. Box 07280, Detroit, Michigan 48207, or call 1-800-782-4356.

Publication Form Number	Form Description	Price Each*
61S1002	1997-1999 Honda CR-V Service Manual	58.00
61S1002EL	1997-1999 Honda CR-V Electrical Troubleshooting Manual	35.00
61S1030	1997-1999 Honda CR-V Body Repair Manual	32.00
31S10620	1999 Honda CR-V Owner's Manual	22.00
HON-R	Order Form for Previous Years-Indicate Year and Model Desired	FREE
* Prices are subject to change without notice and without incurring obligation.

Valid only for sales within the U.S. Canadian owners should contact their authorized Honda dealer.

ORDER TOLL FREE: 1-800-782-4356(NOTE: For Credit Card Holder Orders Only)Monday-Friday 8:00 A.M. — 6:00 P.M. EST

MINIMUM CREDIT CARD PURCHASE $10.00

OR

By completing this form you can order the materials desired. You can pay by check or money order, or charge to your credit card. Mail to Helm Incorporated at the address shown on the back of the order form.

1999HON	PUBLICATION NUMBER	VEHICLE MODEL		Qty	Price Each*	Total Price
		Name	Year
* Prices are subject to change without notice and without incurring obligation.Orders are mailed within 10 days. Please allow adequate time for delivery.				TOTAL MATERIAL
				Mich. Purchases Add 8% Sales Tax
				HANDLING CHARGE		$6.00
				GRAND TOTAL

Authorized Manuals

NOTE: Dealers and Companies please provide dealer or company name, and also the name of the person to whose attention the shipment should be sent. For purchases outside U.S.A. please write to the address shown below for a quotation. Customer Name Attention Street Address - No P.O. Box Number Apartment Number City State & Zip Code Daytime Telephone Number ( ) PAYMENT □ Check or money order enclosed payable to Helm Inc - U.S. funds only. Do not send cash □ Master □ VISA □ Check here if your billing address is different from the shipping address shown above. Account Number Expiration: Mo. Yr. CUSTOMER SIGNATURE DATE

These Publications cannot be returned for credit without receiving advance authorization within 14 days of delivery. On returns, a restocking fee may be applied against the original order.

P.O. BOX 07280 DETROIT, MICHIGAN 48207, 1-800-782-4356

Service Manual:

This manual covers maintenance and recommended procedures for repair to engine and chassis components. It is written for the Journeyman mechanic, but is simple enough for most mechanically-inclined owners to understand.

Electrical Troubleshooting Manual:

This manual complements the Service Manual by providing in-depth troubleshooting information for each electrical circuit in your vehicle.

Body Repair Manual:

This manual describes the procedures involved in the replacement of damaged body parts.

A

Accessories and Modifications.... 146

Accessories.... 146

Additional Safety Precautions.. 147

Modifications...... 147

ACCESSORY (Ignition Key Position)....70

Accessory Power Socket.... 92

Adding Automatic Transmission Fluid....207

Brake Fluid....210

Clutch Fluid....211

Engine Coolant.... 201

Engine Oil.... 197

Manual Transmission Fluid.....208

Power Steering Fluid.... 211

Rear Differential Fluid.... 209

Windshield Washer Fluid...... 206

Additional Information About Your Seat Belts.... 42

Lap Belt 43

Lap/Shoulder Belt 42

Seat Belt Maintenance.... 43

Seat Belt System Components... 42

Additional Information About Your SRS.... 45

Additional Safety Precautions.... 48

How the Automatic Seat Belt Tensioners Work.... 47

How the SRS Indicator Light Works.... 47

How Your Airbags Work...... 45

SRS Components...... 45

Additives, Engine Oil.... 198

Adjustments Headlights.... 230

Head Restraints....79

Mirrors......86

Seats......77

Steering Wheel......64

Airbag (SRS)......9

Air Cleaner Element.... 212

Air Conditioning.... 98

Maintenance.... 219

Usage....98

Air Conditioning Filter.... 220

Air Outlets (Vents).... 100

Air Pressure, Tires.... 221

Normal Driving 222

Alcohol in Gasoline 283

Antifreeze.... 201

Anti-lock Brakes (ABS) Indicator Light..... 55, 167

Operation.... 165

Anti-theft Steering Column Lock....70

Appearance Care 241

Ashtrays....94

Audio System.... 106

Automatic Speed Control...... 66

Automatic Transmission.... 158

Capacity, Fluid 278

Checking Fluid Level...... 207

Shifting.... 158

Shift Lever Position Indicator.. 158

Shift Lever Positions.... 158

Shift Lock Release.... 162

CONTINUED

Index

B

Battery

Charging System

Indicator....54, 265

Jump Starting 260

Maintenance....215

Specifications...... 279

Before Driving.... 139

Belts, Seat....8

Beverage Holder 88

Body Repair 248

Brakes

Anti-lock System (ABS)...... 165

Break-in, New Linings...... 140

Fluid 210

Light, Burned-out...... 234

Parking 86

System Indicator...... 54, 267

Wear Indicators...... 164

Brakes, ABS

Operation.... 165

System Indicator...... 55, 167

Braking System...... 164

Break-in, New Car.... 140

Brightness Control, Instruments... 61

Brights, Headlights.... 60

Built-in Table....89

Bulb Replacement

Back-up Lights.... 234

Brake Lights.... 234

Cargo Area Light 238

Ceiling Light 238

Front Parking Lights...... 233

Front Side Marker Lights...... 233

Headlights.... 232

High-mount Brake Light...... 237

Interior Light 238

License Plate Lights.... 235

Rear Side Marker Lights...... 236

Specifications...... 279

Spotlight 238

Turn Signal Lights 233

Bulbs, Halogen...... 232

C

Cables, Jump Starting With..... 260

Capacities Chart.... 278

Carbon Monoxide Hazard...... 49

Cargo Area Light.... 95

Cargo Floor Pockets.... 92

Cargo Hooks....93

Carrying Cargo.... 148

Cassette Player

Care.... 136

Operation.... 112, 133

CAUTION, Explanation of...... ii

CD Changer.... 115, 129

CD Player.... 115, 127

Center Pocket...... 91

Center Table....87

Certification Label...... 276

Chains....227

Change Oil

How to.... 199

When to....188

Changing a Flat Tire.... 250

Changing Engine Coolant...... 203

Charging System Indicator.... 54, 265

Checking

Automatic Transmission Fluid....207

Battery Condition.... 215

Brake Fluid 210

Clutch Fluid.... 211

Drive Belts.... 220

Engine Coolant.... 144

Engine Oil.... 143
Fuses.... 269
Manual Transmission Fluid..... 208
Power Steering Fluid...... 211
Rear Differential Fluid.... 209
Checklist, Before Driving...... 153
Childproof Door Locks.... 75
Child Safety 21
Cleaner, Air 212
Cleaning Aluminum Wheels.... 243
Carpeting.... 245
Exterior 242
Fabric 245
Interior......245
Seat Belts 246
Vinyl 245
Windows.... 246
Clock, Setting the.... 87
Clutch Fluid.... 211
CO in the Exhaust.... 285
Cold Weather, Starting in.... 155
Consumer Information ^* 289
Controls, Instruments and...... 51
Coolant Adding.... 201

Checking.... 144
Proper Solution...... 201
Replacing.... 203
Temperature Gauge.... 57
Corrosion Protection...... 247
Crankcase Emission Control System.... 285
Cruise Control Operation...... 66
Customer Relations Office...... 290

D

DANGER, Explanation of...... ii
Dashboard.... 52
Daytime Running Lights...... 60
Dead Battery, What to Do...... 260
Defects, Reporting Safety...... 294
Defog and Defrost.... 103
Defogger, Rear Window.... 63
Defrosting the Windows.... 103
DEXRON ^® III Automatic Transmission Fluid.... 207
Dimensions.... 278
Dimming the Headlights...... 60
Dipstick Automatic Transmission...... 207

Engine Oil....143
Directional Signals...... 61
Disabled, Towing Your Car If..... 273
Disc Brake Wear Indicators...... 164
Disposal of Used Oil 200
Doors Locking and Unlocking.... 70
Power Door Locks.... 71
DOT Tire Quality Grading...... 281
Downshifting, 5-speed Manual Transmission.... 156
Drive Belts.... 220
Driving.... 151
Economy.... 145 In Bad Weather.... 168
In Foreign Countries...... 284
Driving Guidelines.... 152

CONTINUED

Index

E

Economy, Fuel.... 145

Emergencies on the Road...... 249

Battery, Jump Starting...... 260

Brake System Indicator...... 267

Changing a Flat Tire 250

Charging System Indicator..... 265

Checking the Fuses...... 269

Low Oil Pressure Indicator..... 264

Malfunction Indicator Lamp.... 266

Overheated Engine.... 262

Emergency Brake 86

Emergency Flashers.... 63

Emission Controls.... 285

Engine Coolant Temperature Gauge..... 57

Malfunction Indicator Lamp....54,266

Oil Pressure Indicator...... 54, 264

Oil, What Kind to Use...... 197

Overheating....262

Specifications...... 278

Ethanol in Gasoline.... 283

Evaporative Emission Controls.... 285

Exhaust Fumes 49

Expectant Mothers, Use of Seat Belts by.... 19

Exterior, Cleaning the.... 242

F

Fabric, Cleaning 245

Fan, Interior 98

Features, Comfort and Convenience.... 97

Filling the Fuel Tank...... 141

Filters Air....212 Air Conditioning....219 Oil....199

5-speed Manual Transmission Checking Fluid Level.... 208 Shifting the.... 156

Flashers, Hazard Warning...... 63

Flat Tire, Changing a.... 250

Fluids Automatic Transmission...... 207

Brake...... 210

Clutch 211

Manual Transmission......208

Power Steering.... 211

Rear Differential.... 209

Windshield Washer 206

FM Stereo Radio Reception.... 125

Folding Rear Seat.... 82

Foreign Countries, Driving in..... 284

Four-way Flashers.... 63

Front End, Towing by Emergency Wrecker.... 273

Fuel.... 140

Fill Door and Cap...... 141

Gauge....57

Octane Requirement.... 140

Oxygenated....283

Reserve Indicator.... 55

Tank, Filling the.... 141

Fuses, Checking the.... 269

G

Gas Mileage, Improving...... 145

Gasohol....283

Gasoline....140

Fuel Reserve Indicator...... 55

Gauge....57

Octane Requirement...... 140

Tank, Filling the.... 141
Gas Station Procedures...... 141
Gauges Engine Coolant Temperature.... 57
Fuel....57
Gearshift Lever Positions Automatic Transmission.... 158
5-speed Manual Transmission.... 157
Glass Cleaning 246
Glove Box.... 77

H

Halogen Headlight Bulbs...... 232
Hazard Warning Flashers...... 63
Headlights Aiming.... 230
Daytime Running Lights...... 60
High Beam Indicator...... 55
High Beams, Turning on.... 60
Low Beams, Turning on.... 60
Reminder Beeper.... 60
Replacing Halogen Bulbs...... 232
Turning on....60
Head Restraints....79

Heating and Cooling....98
Hig h Altitude, Starting at.... 155
High-Low Beam Switch.... 60
High-mount Brake Light...... 237
Hood Latch....213
Hood, Opening the.... 142
Horn.... 59
Hot Coolant, Warning about...... 201
Hydraulic Clutch 211
Hydroplaning.... 169

I

Identification Number, Vehicle.... 276
If Your Car Has to be Towed..... 273
Ignition Keys...... 69
Switch.... 69
Timing Control System...... 286
Important Safety Precautions...... 6
Indicator Lights, Instrument Panel.... 53
Infant Restraint.... 29
Inflation, Proper Tire...... 221
High Speed Driving.... 222
Normal Driving....222

Inside Mirror 85
Inspection, Tire 223
Instrument Panel 53
Instrument Panel Brightness...... 61
Interior Cleaning 245
Interior Light....94
Introduction...... i

J

Jacking up the Vehicle.... 253
Jack, Tire 250
Jump Starting 260

K

Keys.... 69

L

Label, Certification...... 276
Lane Change, Signaling...... 61
Lap Belt 43
Lap/Shoulder Belts.... 42
Leaking of Exhaust into Car...... 49

CONTINUED

Index

Lights Bulb Replacement.... 232
Indicator....53
Parking.... 60
Turn Signal.... 61
LOCK (Ignition Key Position)...... 70
Locks Anti-theft Steering Column...... 70
Fuel Fill Door.... 141
Glove Box.... 77
Power Door.... 71
Tailgate.... 75
Low Coolant Level.... 144
Low Fuel Indicator.... 55
Low Oil Pressure Indicator... 54, 264
Lubricant Specifications Chart.... 278

M

Maintenance.... 183
Owner Maintenance Checks.... 195
Record....193-194
Required Indicator...... 58
Safety.... 184
Schedule.... 188-192
Malfunction Indicator Lamp. 54, 266

Manual Transmission.... 156
Manual Transmission Fluid...... 208
Maximum Allowable Shift Speeds.... 157, 161
Meters, Gauges.... 56
Methanol in Gasoline.... 283
Mirrors, Adjusting....86

N

Neutral Gear Position.... 160
New Vehicle Break-in.... 140
Normal Shift Speeds.... 157
NOTICE, Explanation of...... ii
Numbers, Identification...... 276

0

Octane Requirement, Gasoline.... 140
Odometer....56
Odometer, Trip.... 56
Off-Highway Guidelines...... 177
Oil
Change, How to.... 199
Change, When to.... 188
Checking Engine.... 143

Pressure Indicator...... 54, 264
Selecting Proper Viscosity Chart.... 198
ON (Ignition Key Position)...... 70
Opening the Hood.... 142
Opening the Tailgate....75
Operation in Foreign Countries... 284
Outside Mirrors...... 86
Over-Drive.... 160
Overheating, Engine.... 262

P

Paint Touch-up.... 244
Panel Brightness Control.... 61
Park Gear Position.... 159
Parking.... 163
Parking Brake 86
Parking Lights.... 60
Parking Over Things that Burn... 287
PGM-FI System....286
Polishing and Waxing.... 243
Power
Door Locks.... 71
Mirrors......86
Steering....211

Windows....84

Pre-Drive Safety Checklist...... 11

Pregnancy, Using Seat Belts...... 19

Protecting Adults.... 12

Additional Safety Precautions.... 19

Advice for Pregnant Women..... 19

Protecting Children.... 21

Protecting Infants...... 29

Protecting Larger Children...... 37

Protecting Small Children...... 33

Using Child Seats with Tethers.... 40

R

Radiator Overheating...... 262

Radio/Cassette Sound System.... 107

Rear Differential Fluid.... 209

Rear End Towing.... 273

Rear Lights, Bulb Replacement... 234

Rear Seat, Folding....82

Rear View Mirror 85

Rear Window Defogger...... 63

Rear Window Wiper and Washer.. 63

Reclining the Seat Backs...... 81

Recommended Shift Speeds...... 157

Reminder Lights....53

Remote Transmitter....72

Replacement Information

Air Cleaner Element...... 212

Air Conditioning Filter...... 220

Coolant....203

Engine Oil and Filter...... 199

Fuses....269

Light Bulbs.... 232

Schedule.... 186

Spark Plugs...... 213

Timing Belt 221

Tires....225

Wiper Blades 217

Replacing Seat Belts After a Crash......43

Reserve Tank, Engine Coolant.... 144

Restraint, Child.... 21

Reverse Gear Position.... 160

Rotation, Tire.... 224

S

Safety Belts......8

Safety Defects, Reporting*...... 294

Safety Checklist, Pre-Drive...... 11

Safety Features....7

Airbags....8

Door Locks.... 11

Head Restraints.... 10

Seat Belts....8

Seats & Seat-Backs...... 10

Safety Labels, Location of.... 50

Safety Messages...... ii

Seat Belt, Additional Information.. 42

Lap Belt 43

Lap/Shoulder Belt 42

Seat Belt Maintenance.... 43

Seat Belt System Components... 42

Seat Belts....8

Advice for Pregnant Women..... 19

Child Seat Anchor Plate...... 41

Cleaning.... 246

Frayed or Torn...... 43

Maintenance...... 43

Reminder Light and Beeper....42, 54

Replacement.... 43

System Components...... 42

Tether Attachment Points...... 40

CONTINUED

Index

Seat Belts Use During Pregnancy.... 19
Wearing a Lap/Shoulder Belt.... 15
Wearing the Lap Belt...... 16
Seats, Adjusting the.... 77
Serial Number 276
Service Intervals.... 188
Service Manual* 295
Service Station Procedures...... 141
Setting the Clock....87
Shifting The Automatic Transmission.. 158
The 5-speed Manual Transmission.... 156
Shift Lever Position Indicator..... 158
Shift Lock Release.... 162
Side Marker Lights, Bulb Replacement in.... 233
Signaling Turns......61
Snow Tires 226
Solvent-type Cleaners.... 242
Sound System....106
Spark Plugs, Replacing.... 213
Specifications Charts...... 278
Speed Control....66
Speedometer....56

SRS, Additional Information...... 45
Additional Safety Precautions.... 48
How the Automatic Seat Belt Tensioners Work.... 47
How the SRS Indicator Light Works.... 47
How Your Airbags Work...... 45
SRS Components...... 45
SRS Service....48
SRS Indicator 47,54
START (Ignition Key Position)..... 70
Starting the Engine.... 154
In Cold Weather at High Altitude.... 155
With a Dead Battery.... 260
Steam Coming from Engine...... 262
Steering Wheel Adjustment.... 64
Anti-theft Column Lock.... 70
Stereo Sound System...... 106
Storage Box.... 91
Storing Your Vehicle....239
Supplemental Restraint System...... 9
Service Precautions...... 48
Servicing......48
SRS Indicator......47,54

System Components...... 45
Tensioners, Seat Belts...... 47
Synthetic Oil.... 198

T

Tachometer.... 56

Tailgate Opening the....75 Open Indicator....55

Taillights, Changing Bulbs in..... 234

Taking Care of the Unexpected.. 249

Tape Player....112, 133

Technical Descriptions Emission Control Systems..... 285 Three Way Catalytic Converter..... 287

Tire Information...... 280

Temperature Gauge.... 57

Tensioners, Seat Belts.... 47

Tether Attachment Points...... 40

Three Way Catalytic Converter... 285

Time, Setting the....87

Timing Belt 221

Tire Chains....227

Tire, How to Change a Flat..... 250

VIII

Tires.... 221

Air Pressure.... 221

Checking Wear....223

DOT Tire Quality Grading..... 281

Inflation 221

Inspection...... 223

Maintenance.... 223

Replacing.... 225

Rotating.... 224

Snow 226

Specifications.... 279

Technical Information...... 280

Technical Information...... 275

Emission Controls...... 285

Identification Numbers...... 276

Specifications...... 278

Three Way Catalytic Converter.... 287

Tire Information...... 280

Tools,Tire Changing...... 250

Torn Seat Belts.... 43

Towing A Trailer.... 170

Behind a Motorhome...... 176

Emergency Wrecker...... 273

Transmission

Checking Fluid Level, Automatic....207

Checking Fluid Level, Manual....208

Fluid Selection......207, 208

Identification Number...... 276

Shifting the Automatic...... 158

Shifting the Manual...... 156

Treadwear....281

Trip Meter 56

Turn Signals....61

U

Underside, Cleaning...... 247

Unexpected, Taking Care of the.... 249

Uniform Tire Quality Grading..... 281

Unleaded Gasoline.... 140

Upholstery Cleaning...... 245

Used Oil, How to Dispose of..... 200

V

Vehicle Capacity Load.... 149

Vehicle Dimensions.... 278

Vehicle Identification Number..... 276

Vehicle Storage.... 239

Ventilation.... 101

VIN....276

Vinyl Cleaning....245

Viscosity, Oil....198

W

Warning Beepers

Headlights on....60

Key in Ignition.... 70

Seat Belts....54

WARNING, Explanation of...... ii

Warning Labels, Location of..... 50

Warranty Coverages*...... 293

Washer, Windshield

Checking the Fluid Level...... 206

Operation......62

Washing.... 242

Waxing and Polishing...... 243

CONTINUED

Index

Wheels

Adjusting the Steering.... 64

Alignment and Balance...... 223

Wrench 252

Windows

Cleaning.... 246

Operating the Power.... 84

Rear, Defogger.... 63

Windshield

Cleaning.... 62

Defroster.... 103

Wipers, Windshield

Changing Blades...... 217

Operation...... 62

Worn Tires....223

Wrecker, Emergency Towing..... 273

*: U.S. and Canada only

x

Gasoline:

Unleaded gasoline, pump octane number of 86 or higher.

Fuel Tank Capacity:

15.3 US gal (58 l, 12.8 Imp gal)

Recommended Engine Oil:

API Service SJ "Energy Conserving" oil, SAE 5W-30 viscosity (see page 197).

Oil change capacity (including filter):

4.0 US qt (3.8 l, 3.3 Imp qt)

Automatic Transmission Fluid:

Honda Premium Formula Automatic Transmission Fluid preferred, or a DEXRON® III ATF as a temporary replacement (see page 207).

5-speed Manual Transmission Fluid:

Honda Manual Transmission Fluid preferred, or an API service SG, SH or SJ, SAE 10W-30 or 10W-40 motor oil as a temporary replacement (see page 208).

Capacity (including differential): 1.8 US qt (1.7 l, 1.5 Imp qt)

Rear Differential Fluid:

Honda CVT Fluid preferred, or a DEXRON® III ATF as temporary replacement (see page 209).

Capacity:

1.1 US qt (1.0 I, 0.9 Imp qt)

Power Steering Fluid:

Genuine Honda Power Steering Fluid preferred, or another brand of power steering fluid as a temporary replacement. Do not use ATF (see page 211).

Brake Fluid:

Genuine Honda DOT 3 Brake Fluid preferred, or a DOT 3 or DOT 4 brake fluid as a temporary replacement (see page 210).

Tire Pressure (measured cold):

Front/Rear: 26 psi (180 kPa, 1.8 kgf/cm ^4 )
