USER MANUAL DF70A SUZUKI

Please read this manual and follow its instructions carefully. To emphasize special information, the symbol ▲ and the words WARNING, CAUTION, NOTICE and NOTE have special meanings. Pay special attention to the messages highlighted by these signal words.

WARNING

Indicates a potential hazard that could result in death or serious injury.

CAUTION

Indicates a potential hazard that could result in minor or moderate injury.

NOTICE

Indicates a potential hazard that could result in damage to the motor or boat.

NOTE:

Indicates special information to make maintenance easier or instructions clearer.

This symbol appears in various locations on your Suzuki product to refer you to important information in the owner's manual.

IMPORTANT NOTICE TO OWNERS

WARNING

Failure to take the proper precautions may increase the risk of death or severe injury to you and your passengers.

• Prior to first-time use of your outboard motor, familiarize yourself thoroughly with the contents of this owner's manual. Be aware of all outboard motor features and all safety and maintenance requirements.

• Inspect the boat and motor before each trip. See the INSPECTION BEFORE BOATING section for important items.

• Become thoroughly familiar with all operating and handling characteristics of your boat and motor. Practice at low and moderate speeds until you are competent at handling the boat and motor. Do not attempt to operate at maximum performance until you are completely familiar with all of these characteristics.

• Carry boating safety and emergency equipment. This important equipment includes; flotation aids for each person (plus one throwable buoyant cushion in any boat 16 feet or longer), fire extinguisher, sound signaling device, visual distress signals, anchor, bilge pump, bucket, compass, emergency starter rope, extra fuel and oil, first aid kit, flashlight, food and water, mirror, paddles, tool kit, and transistor radio. Be sure you are carrying the equipment appropriate for your trip before launching.
• Never start the engine or let it run indoors or where there is little or no ventilation. Exhaust gas contains carbon monoxide, a gas that is colorless and odorless and can cause death or severe injury.
• Instruct your passengers on how to operate the boat, how to deal with emergencies, and how to operate safety and emergency equipment.
• Do not hold onto the motor cover or any other parts of your outboard motor while getting on or off your boat.
• Ensure that everyone wears a PFD (Personal Flotation Device) on board.
• Never operate the boat while under the influence of alcohol or other drugs.
• Distribute all weight load evenly in the boat.
• Have all scheduled maintenance performed. Consult your authorized Suzuki marine dealer as required.
• Do not modify or remove any outboard motor standard equipment. To do so may make the motor unsafe to use.
• Learn and obey all applicable navigation rules.
• Pay attention to all weather forecasts. Do not set out if weather is unsettled.
• Use extreme caution when purchasing replacement parts or accessories. Suzuki strongly recommends that you use only genuine Suzuki replacement parts/accessories or their equivalent. Inappropriate or poor quality replacement parts or accessories can create unsafe operating conditions.

- Never remove the flywheel cover (except for when emergency starting).

NOTE:

Mounting radio transceiver or navigational equipment antennae too close to the engine cowling can cause electrical noise interference. Suzuki recommends that antennae be mounted at least one meter (40 inches) away from the engine cowling.

This manual should be considered a permanent part of the outboard motor and should remain with the outboard motor when resold or otherwise transferred to a new owner or operator. Please read this manual carefully before operating your new Suzuki and review the manual from time to time. It contains important information on safety, operation, and maintenance.

FOREWORD

Thank you for choosing a Suzuki outboard motor. Please read this manual carefully and review it from time to time. It contains important information on safety, operation, and maintenance. A thorough understanding of the information presented in this manual will help you experience safe, enjoyable boating.

All information in this manual is based on the latest product information available at the time of publication. Due to improvements or other changes, there may be discrepancies between this manual and your outboard motor. Suzuki reserves the right to make changes at any time without notice.

TABLE OF CONTENTS

IDENTIFICATION NUMBER LOCATION.... 5

FUEL AND OIL.... 5

LOCATION OF SAFETY LABELS ..... 8

LOCATION OF PARTS...... 10

MOTOR MOUNTING...... 11

BATTERY INSTALLATION ...... 11

USE OF ELECTRICAL ACCESSORIES 13

SUZUKI KEYLESS START SYSTEM (IF EQUIPPED WITH KEYLESS START SYSTEM) 13

PROPELLER SELECTION AND INSTALLATION.... 20

ADJUSTMENT.... 21

CAUTION SYSTEM 25

KEYLESS START SYSTEM CAUTION SYSTEM (IF EQUIPPED WITH KEYLESS START SYSTEM) ...... 29

DIAGNOSTIC SYSTEM 30

OIL CHANGE REMINDER SYSTEM.... 31

ENGINE STALLING CAUTION SYSTEM.... 33

WATER IN FUEL ALERT SYSTEM (DF100B only) 33

OPERATION OF TILTING SYSTEMS.... 33

INSPECTION BEFORE BOATING ... 35

BREAK-IN 37

OPERATION 38

MOTOR REMOVAL AND TRANSPORTING .... 53

TRAILERING.... 54

INSPECTION AND MAINTENANCE.... 55

FLUSHING THE WATER PASSAGES.... 66

SUBMERGED MOTOR 68

STORAGE PROCEDURE 69

AFTER STORAGE 70

TROUBLESHOOTING 70

SPECIFICATIONS 73

INFORMATION REGARDING EC - DIRECTIVE .... 73

CHART OF TOTAL OPERATING HOURS INDICATION .... 74

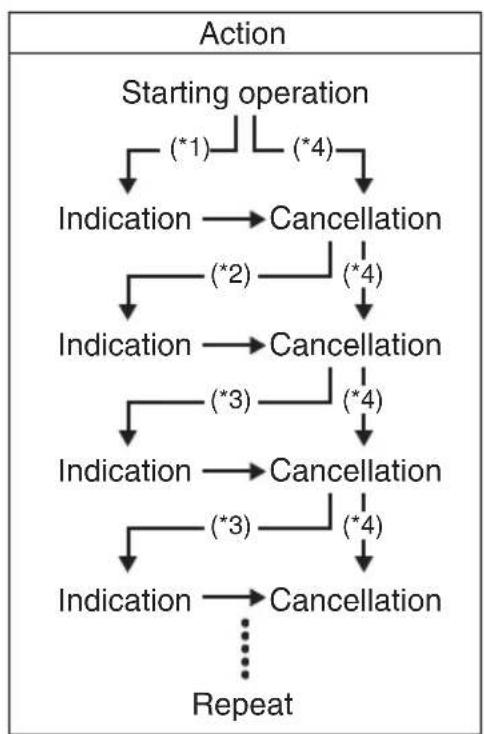

FLOWCHART OF OIL CHANGE REMINDER SYSTEM.... 74

IDENTIFICATION NUMBER LOCATION

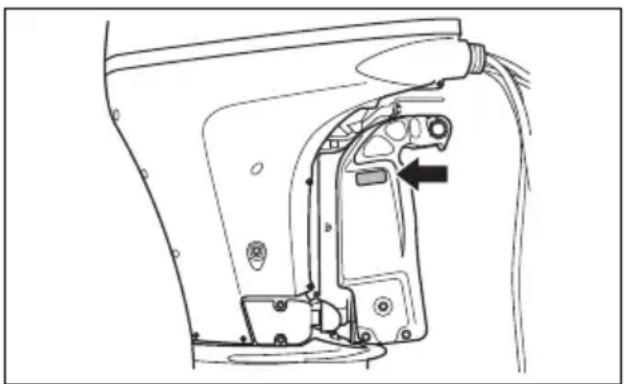

The model and identification numbers of your outboard motor are stamped on a plate attached to the clamp bracket. It is important to know these numbers when you place a parts order or if your motor is stolen.

Technical line drawing of a mechanical component with no visible text or symbols

FUEL AND OIL

GASOLINE

Suzuki highly recommends that you use alcohol-free unleaded gasoline whenever possible, with a minimum octane rating of 91 (Research method). However, blends of unleaded gasoline and alcohol with equivalent octane content may be used, provided the guidelines that follow are met.

NOTICE

Use of leaded gasoline can cause engine damage. Use of improper or poor quality fuel can affect performance and may damage your motor and fuel system.

Use only unleaded gasoline. Do not use fuel having lower than the recommended octane, or fuel that may be stale or contaminated by dirt/water etc.

NOTE:

Oxygenated fuels are fuels which contain oxygen-carrying additives such as alcohol.

Suzuki recommends that you install a water-separating fuel filter assembly between your boat's fuel tank(s) and outboard motor(s). Fuel filtration systems of this type will help prevent water that may be present in your boat's fuel tank(s) from contaminating your motor's electronic fuel injection system. Water contamination can cause poor engine performance and can also cause damage to the electronic fuel injection system components.

Your Authorized Suzuki Marine Dealer can provide you advice about water-separating fuel filter systems and installation.

Gasoline/Ethanol Blends

Blends of unleaded gasoline and ethanol (grain alcohol), also known as “GASOHOL”, are commercially available in some areas. Blends of this type may be used in your outboard motor if they are no more than 10% ethanol. Make sure this gasoline-ethanol blend has octane ratings no lower than those recommended for gasoline.

Use the recommended gasoline which conforms to the following labels.

E5 or E10

78RB0900*

Pump Labeling for Gasoline/Alcohol Blends

In some states, pumps that dispense gasoline/ alcohol blends are required to be labeled for the type and percentage of alcohol content, and whether important additives are present. Such labels may provide enough information for you to determine if a particular blend of fuel meets the requirements listed above. In other states, pumps may not be clearly labeled as to the content or type of alcohol and additives. If you are not sure that the fuel you intend to use meets these requirements, check with the service station operator or the fuel suppliers.

NOTE:

If you are not satisfied with the operation or fuel economy of your outboard motor when you are using gasoline/alcohol blends, you should switch back to unleaded gasoline containing no alcohol.

Be sure that any gasoline/alcohol blend you use has octane ratings of at least 91 octane (Research method).

If engine pinging is experienced, substitute another brand as there are differences between brands.

Unleaded gasoline will extend spark plug life.

WARNING

Gasoline is extremely flammable and toxic. It can cause a fire and can be hazardous to people and pets.

Always take the following precautions when refueling:

• Never permit anyone other than an adult to refill the fuel tank.
• If you use a portable fuel tank, always stop the motor and remove the fuel tank from the boat to refill it.
• Do not fill the fuel tank all the way to the top or fuel may overflow when it expands due to heating by the sun.
• Be careful not to spill fuel. If you do, wipe it up immediately.
• Do not smoke, and keep away from open flames and sparks.

NOTICE

Gasoline kept in the fuel tank for long periods of time will produce varnish and gum, which can damage the engine.

Always use fresh gasoline.

NOTICE

Fuels containing alcohol can cause paint damage, which is not covered under the New Outboard Motor Limited Warranty.

Be careful not to spill fuel containing alcohol while refueling. If fuel is spilled, wipe it up immediately.

ENGINE OIL

NOTICE

Use of poor quality engine oil can adversely affect engine performance and life.

Suzuki recommends that you use Suzuki Marine 4-Cycle Engine Oil or its equivalent.

Oil quality is a major contributor to your engine's performance and life. Always select good quality engine oil.

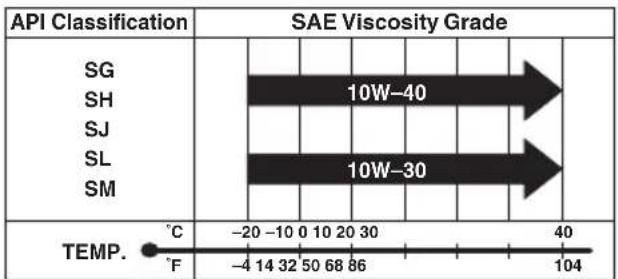

Suzuki recommends the use of SAE 10W-40 or 10W-30 SUZUKI MARINE 4-CYCLE ENGINE OIL. If SUZUKI MARINE 4-CYCLE ENGINE OIL is not available, select a NMMA certified FC-W oil or good quality 4-cycle motor oil from the following chart according to the average temperatures in your area.

NOTE:

In very cold weather (below 5°C (41°F)), use SAE (or NMMA FC-W) 5W-30 for easier starting and smooth operation.

GEAR OIL

$ SUTIM SUSTIN DUSTRICTIONS GREEN TUBE 100% CO2O3 100% CO2O3 100% CO2O3 100% CO2O3 100% CO2O3 100% CO2O3 100% CO2O3 100% CO2O3 100% CO2O3 100% CO2O3 100% CO2O3 100% CO2O3

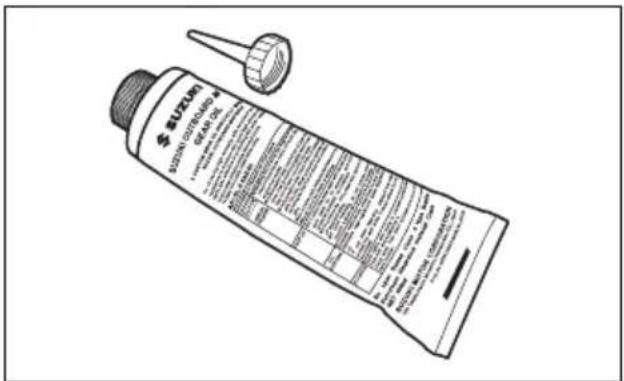

Suzuki recommends the use of SUZUKI OUTBOARD MOTOR GEAR OIL. If it is not available, use SAE 90 hypoid gear oil which is rated GL-5 under the API classification system.

Read and follow all of the labels on your outboard motor or fuel tank. Make sure you understand all of the labels.

Keep the labels on your outboard motor or fuel tank. Do not remove them for any reason.

Diagram of a medical device inside a patient's mouth, showing internal anatomy and a pointer (no text or labels)

WARNING AVERTISSEMENT

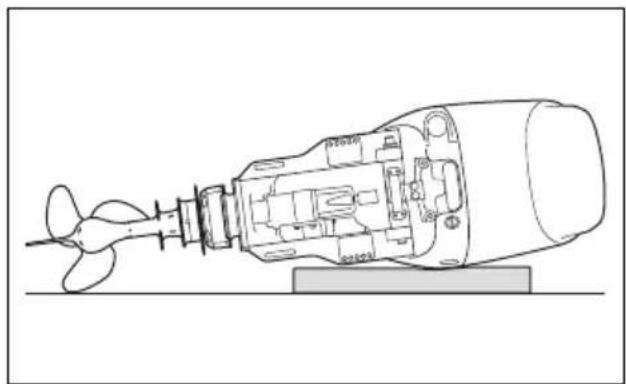

• Fuel can leak creating a fire hazard if you lay motor on its side. Drain fuel completely from vapor separator or carburetor before laying motor on its side
• See owner's manual for details.

Label symbol meanings

These symbols mean as follows;

General warning symbol (Caution or Warning)

Read owner's manual carefully

: Remote control lever/gear shift lever operation-two direction; Forward/Neutral/Reverse

Engine start

: Hazard caused by fire

Hazard caused by laying the motor on its side

Hazard caused by rotating parts

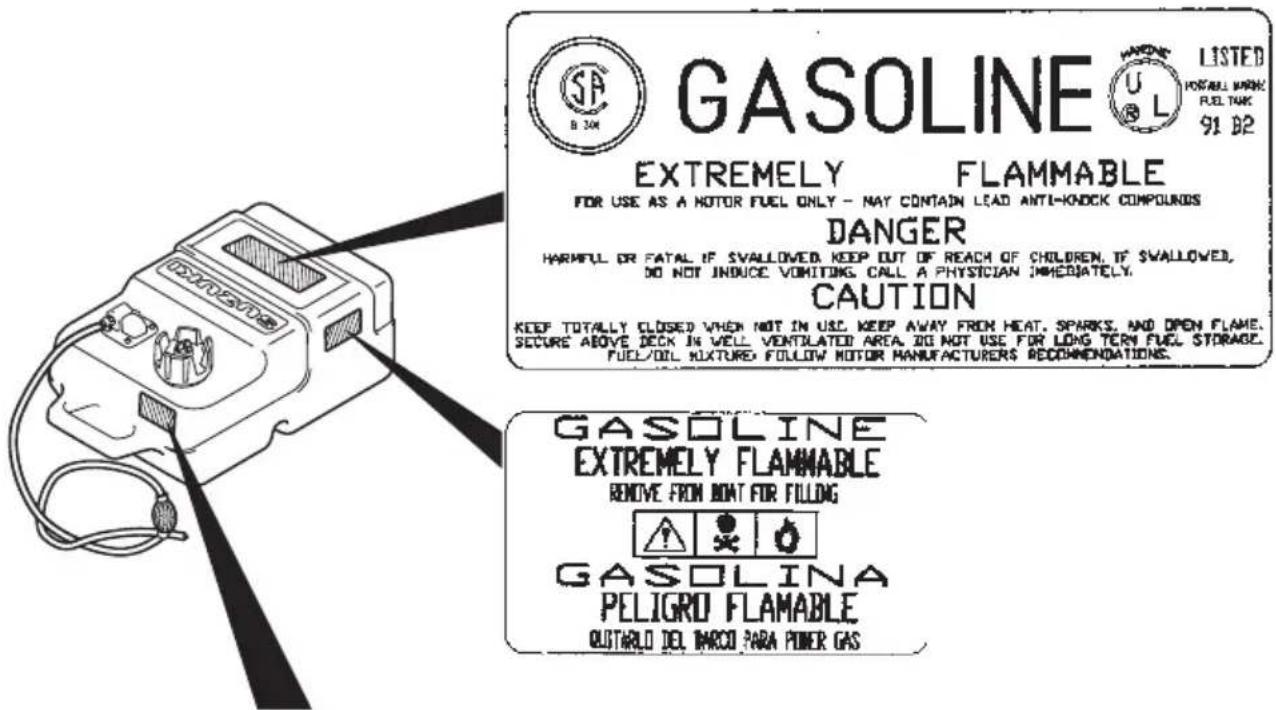

GASOLINE LISTED HOSTALL WMK FUEL TAK 91 B2 B 304 EXTREMELY FLAMMABLE FOR USE AS A MOTOR FUEL ONLY - MAY CONTAIN LEAD ANTI-KNOCK COMPOUNDS DANGER HARMFUL OR FATAL IF VALLOVED. KEEP OUT OF REACH OF CHILDREN. IFVALLOWED, DO NOT INDUCE VEHITING CALL A PHYSICIAN IMMEDIATELY. CAUTION KEEF TOTALLY CLOSED WHEN NOT IN USC. KEEP AWAY FROM HEAT, SPARKS, AND OPEN FLAME. SECURE ABOVE DECK IN WELL VENTILATED AREA. DO NOT USE FOR LONG TERM FUEL STORAGE. FUEL/OIL MIXTURE FOLLOW MOTOR MANUFACTURERS RECOMMENDATIONS. GASOLINE EXTREMELY FLAMMABLE REMOVE FROM BOAT FOR FILLING GASOLINA PELIGRO FLAMABLE QUISTALO DEL MARCO PARA POWER GAS

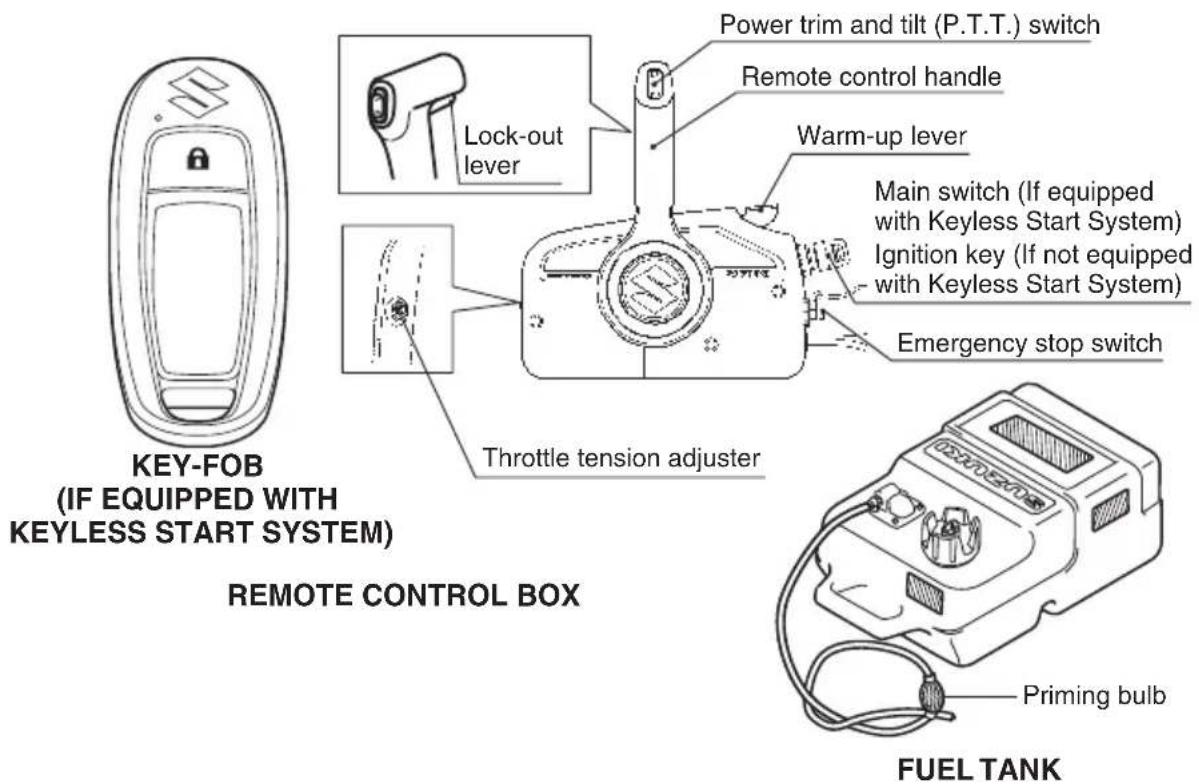

Flush plug Motor cover Power trim and tilt (P.T.T.) switch Pilot water hole (Reverse side) Flush plug Anode Clamp bracket Engine oil drain plug (Reverse side) Anode Anti-cavitation plate Trim tab Gear oil level plug Gear oil drain plug Water intake hole

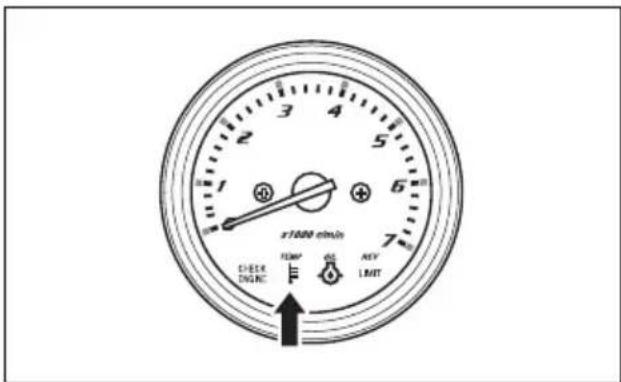

MONITOR-TACHOMETER

KEY-FOB (IF EQUIPPED WITH KEYLESS START SYSTEM) REMOTE CONTROL BOX Lock-out lever Throttle tension adjuster Power trim and tilt (P.T.T.) switch Remote control handle Warm-up lever Main switch (If equipped with Keyless Start System) Ignition key (If not equipped with Keyless Start System) Emergency stop switch FUEL TANK Priming bulb

MOTOR MOUNTING

WARNING

Overpowering your boat can be hazardous. Excessive horsepower will have an adverse effect on hull safety and may cause operating/handling difficulties. The boat may also sustain stress and hull damage.

Never install an outboard motor with horsepower exceeding the manufacturer's recommended maximum horsepower listed on the boat's "Certification Plate". Contact your authorized Suzuki marine dealer if you are unable to locate the hull "Certificate Plate".

Suzuki strongly recommends that you have your outboard motor, controls and gauges installed by an authorized Suzuki Marine Dealer. He has the tools, the facilities and the know-how.

WARNING

Failure to have your outboard motor and associated controls and gauges properly installed can result in personal injury or damage.

Suzuki strongly recommends that you have your outboard motor, controls and gauges installed by your authorized Suzuki marine dealer. He has the tools, the facilities, and the know-how to do the job correctly.

BATTERY INSTALLATION

BATTERY REQUIREMENT

650 Marine Cranking Amps (MCA)/ABYC, or 512 Cold Cranking Amps (CCA)/SAE or 160 Reserve Capacity (RC) Minutes/SAE or 12 Volts 100 AH

NOTE:

• The specifications listed above are the minimum battery rating requirements for starting the engine.
• Additional electrical loads from the boat will require larger capacity batteries. Consult your Suzuki dealer to determine the proper battery sizing for your boat and engine combination.
• Dual-purpose (Cranking/Deep-cycle) batteries can be used if they meet the minimum specifications listed above (MCA, CCA, or RC).
• Do not use a Deep Cycle battery for the main cranking battery.
• When connecting batteries in parallel, they must be of the same type, capacity, manufacturer, and of similar age. When replacement is necessary, they should be replaced as a set. Consult your Suzuki dealer for proper battery installation information.

BATTERY INSTALLATION

Secure the battery in a dry area of the boat, away from vibration.

NOTE:

• It is recommended that the battery be installed in an enclosed battery case.
• When connecting batteries, hexagon-nuts must be used to secure battery leads to battery posts.

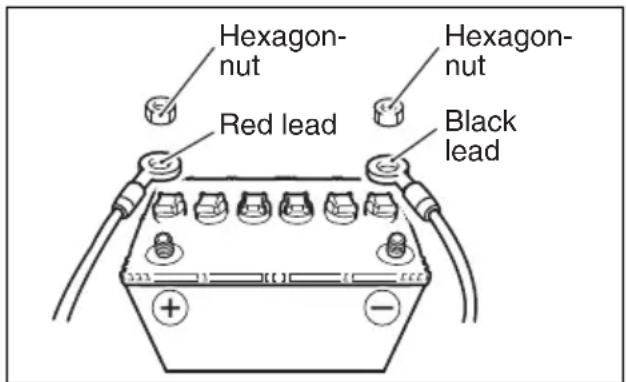

To hook up the battery, first connect the red lead from the motor to the positive battery terminal, then connect the black lead to the negative battery terminal.

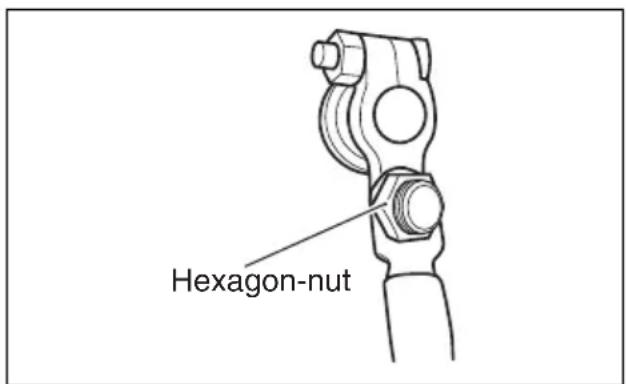

Hexagon- nut Red lead Hexagon- nut Black lead

Hexagon-nut

To remove the battery, first disconnect the black lead from the negative terminal, then disconnect the red lead from the positive terminal.

Suzuki recommends that you install the terminal cap on the positive battery terminal to prevent an accidental short circuit of battery terminals.

If a terminal cap is required, contact your authorized Suzuki marine dealer.

WARNING

If you place the battery near the fuel tank, a spark from the battery may ignite the gasoline, causing a fire and/or an explosion.

Do not place the fuel tank in the same compartment/area as the battery.

WARNING

Batteries produce flammable hydrogen gas and may explode if they are near flames or sparks.

Never smoke or cause sparks when working near the battery. Keep the battery away from open flames. To avoid creating a spark when charging the battery, connect the battery charger cables to the proper terminals before turning the charger on.

WARNING

Battery acid is poisonous and corrosive. It can cause severe injury and can damage painted surfaces.

Avoid contact with eyes, skin, clothing, and painted surfaces. If battery acid comes in contact with any of these, flush immediately with large amounts of water. If acid contacts the eyes or skin, get immediate medical attention.

NOTICE

The electrical system or its components may be damaged if proper battery precautions are not followed.

• Be sure to attach battery leads correctly.
• Do not disconnect battery leads from the battery while the engine is running.

USE OF ELECTRICAL ACCESSORIES

The amount of power (DC12V) available for accessories, however, depends on the operating condition of the motor. For getting a detailed information, please inquire of your authorized Suzuki Marine Dealer.

NOTE:

Use of too much power for electrical accessories under certain operating conditions can cause the battery to discharge.

SUZUKI KEYLESS START SYSTEM (IF EQUIPPED WITH KEYLESS START SYSTEM)

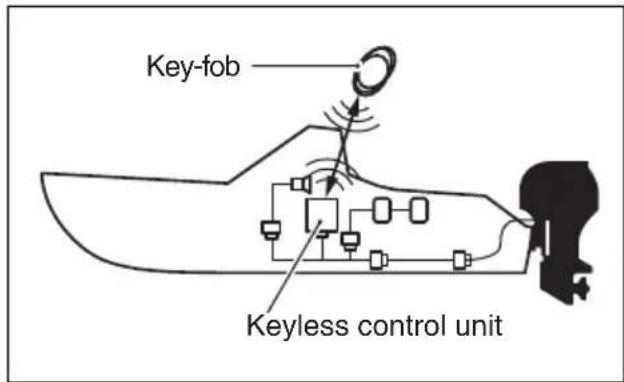

This system allows you to start the engine by means of communication between the key-fob and the keyless control unit when you have the key-fob with you, instead of using the mechanical key.

The engine can be started when the distance between the key-fob and the keyless control unit is within the communication range of 1 m (39.4 in.).

In addition, this system is equipped with immobilizer feature.

Key-fob Keyless control unit

NOTE:

Please consult with a Suzuki Marine Dealer for the installation of the Keyless Start System.

Also refer to the "Keyless Start System Instruction Manual" supplied with the product for detailed operating instructions.

IMMOBILIZER SYSTEM

In this system, the key-fob and the keyless control unit uses radio communication to check if the key-fob ID is registered in the Keyless Start System.

If the key-fob ID is not registered, the system prevents the engine from starting using the key-fob.

WARNING

Radio waves from the keyless control unit may interfere with the operation of electrical medical equipment such as pacemakers. Failure to take the precautions listed below can increase the risk of severe injury or death due to radio wave interference.

Anyone who uses electrical medical equipment such as a pacemaker should consult the medical equipment supplier to inquire if radio waves from the keyless control unit can interfere with the medical equipment.

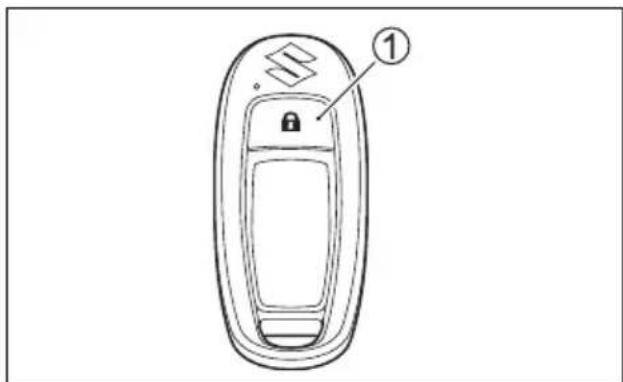

KEY-FOB

Two (2) key-fobs are supplied with the Keyless Start System.

Line drawing of a mobile phone with a closed door and logo (no text or symbols)

Line drawing of a mobile phone key with a lock and app icon (no text or symbols)

WARNING

The key-fob emits radio waves that may interfere with aircraft operations.

Do NOT operate the buttons on the key-fob while you are in flight. When putting the key-fob in a bag, etc., protect the buttons from accidentally being pressed.

NOTE:

The key-fob falls under the category of restricted electronic devices for use in flight.

NOTICE

The radio waves emitted from the key-fob may cause interference with other wireless communication devices such as mobile phones and remoter controllers.

Do not operate the buttons on the key-fob more than necessary.

CAUTION

Attempting to disassemble (except for battery replacement), repair, or modify the key-fob may cause ignition, electric shock, or injury.

Do NOT attempt to disassemble (except for battery replacement), repair, or modify the key-fob.

NOTICE

The key-fob is comprised of sophisticated electronic components that can become damaged and may fail to function properly if you do not take proper precaution.

• Do NOT leave it in places that may reach a high temperature.
• Do NOT apply a strong impact, such as dropping it.
• Do NOT bring it close to any magnetic objects.
• Do NOT place it near any electro-magnetic devices such as a television or audio equipment.
• Do NOT place it near any electric medical equipment (microwave therapy equipment, low frequency therapy equipment, etc.), or receive medical treatment with the key-fob in your pocket, etc.

NOTE:

• Do NOT erase or tamper with the conformance certification mark.
• A maximum of six (6) key-fobs can be registered in one keyless control unit.
• The battery life of the key-fob is about two (2) years, which can vary depending on use.
• The key-fob is always in transmission mode in order to communicate with the keyless control unit. For this reason, the battery may run down quickly if it receives strong radio waves from televisions or personal computers, etc.

NOTE:

• The emergency key should be carried separately from the key-fob to avoid losing both of them at the same time.
• If the key-fob and the emergency key are lost, immediately contact your authorized Suzuki Marine Dealer.

• The key-fob uses a weak radio wave that is susceptible to external influences when it communicates with the keyless control unit. For this reason, it may not operate properly under the following use environment.

• There is a nearby facility that emits strong radio waves such as a television tower, electric power plant, or broadcasting station, etc.

• The key-fob is held close to other wireless communication devices such as mobile phone, radio equipment or a laptop personal computer.
• The key-fob is in contact with or covered with a metallic object.

NOTE:

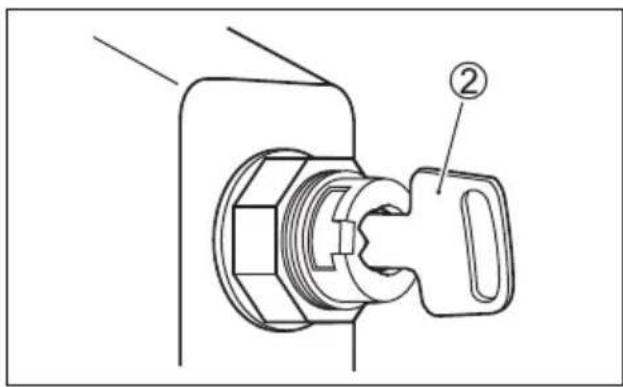

One (1) emergency key is included in the remote control box for the Keyless Start System.

Switching the communication mode of the key-fob

Press and hold the lock button ① on the key-fob for more than one second to switch between ON mode and OFF mode.

NOTE:

If the lock button is pressed briefly while in communication ON mode, the LED ② on the key-fob briefly flashes once.

Diagram of a mobile phone rear panel with labeled parts ① and ②, showing key components like lock and pad.

KEY-FOB BATTERY REPLACEMENT

WARNING

This product contains a coin/button cell battery. If swallowed, the coin/button cell battery can cause severe internal burns in just 2 hours and may lead to death.

• THE BATTERY IS A CHEMICAL BURN HAZ-ARD. DO NOT INGEST THE BATTERY. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
• Keep new and used batteries away from children. If the battery compartment cannot be closed securely, stop using this product and keep it away from children.

CAUTION

There is a danger of explosion if the battery is replaced with an incorrect type.

Only replace the battery with the same or equivalent type.

CAUTION

Do not expose Hand Unit to excessive heat such as from sunlight or fire.

NOTICE

To prevent damage to the key-fob, be careful when replacing the battery.

• Install the lithium disc-type battery with the electrodes facing the proper direction.
- Do NOT touch the internal circuit of the key-fob when replacing the battery.

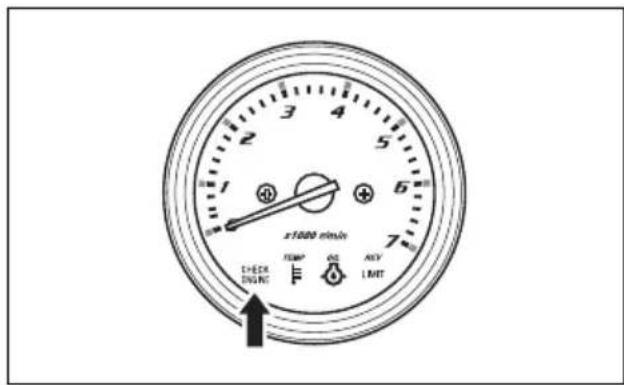

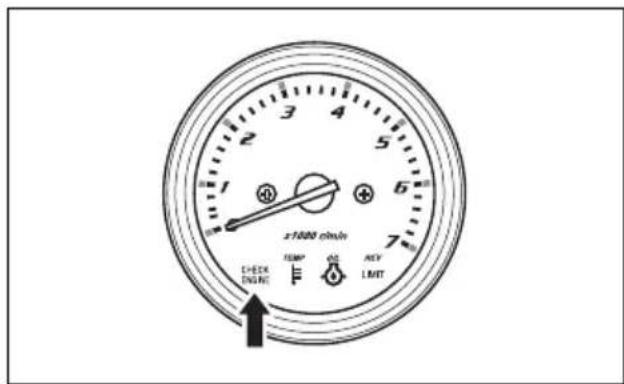

If the key-fob battery runs low, the red CHECK ENGINE lamp will flash.

17000 m/min CHECK EVEE TEMP AIR LMT

To replace the key-fob battery:

1. Insert a flat blade screwdriver in the slot of the key-fob and remove the cover.

Line drawing of a handheld electronic device with a handle and label (no text or symbols on the device itself)

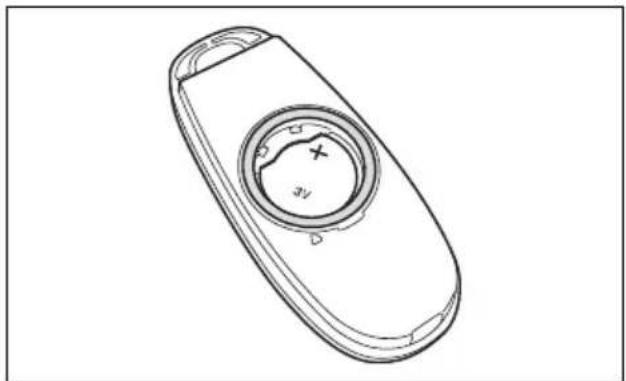

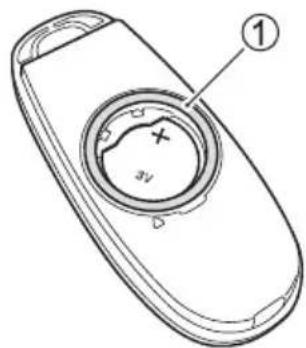

1. Remove the O-ring ①.

① 3v

NOTE:

The O-ring may be fitted on the cover side.

NOTICE

If the O-ring is damaged, the waterproof performance deteriorates, which can cause the key-fob to malfunction.

Be careful not to damage the O-ring when removing it.

1. Insert a flat blade screwdriver into the slot at the △mark on the cover to remove the battery.

Line drawing of a mechanical component with a central shaft and circular base (no text or symbols)

1. Replace the battery so its ⊕ terminal faces the cover side as shown in the illustration.

Lithium disc type battery: CR2025 or equivalent.

Confirm that the O-ring is placed in position on the body side.

Line drawing of a remote control casing with a circular dial and mounting points (no text or symbols)

1. Reinstall the cover.

SETTING AND/OR CHANGING THE PASS-CODE

By setting a 4-digit passcode, the engine can be started by entering the passcode even if the key-fob battery has run down or the key-fob is lost.

The same method is used to set and change the passcode.

NOTE:

Carry the passcode with the emergency key in case the key-fob battery runs down or the key-fob is lost.

NOTE:

When the passcode has been updated or changed, the previous passcode is deleted and updated to the new passcode.

Use the following procedure to set or change the passcode:

1. Confirm the engine is stopped.

2. Make sure the emergency switch lock plate is in place.

3. Confirm the key-fob is within the communication range of the Keyless Start System.

4. Confirm that the key-fob is in communication ON mode. (Refer to "Switching the communication mode of the key-fob" section.)

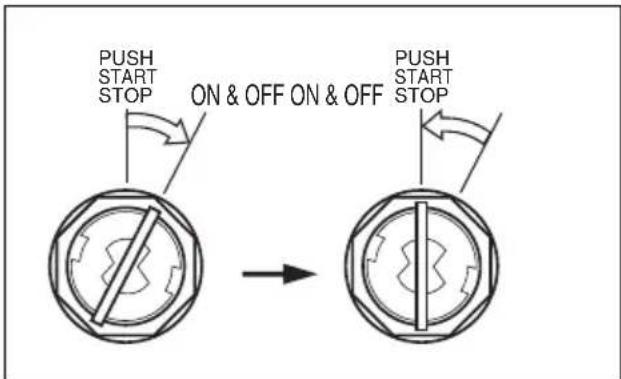

5. Turn the main switch to the "ON & OFF" position and then release it. The main switch automatically returns to the "PUSH START/STOP" position.

The buzzer on the engine control side emits one (1) long sound while the buzzer on the keyless control unit side emits two (2) short sounds simultaneously.

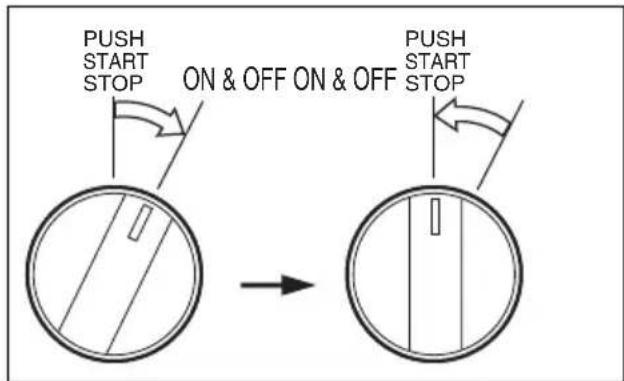

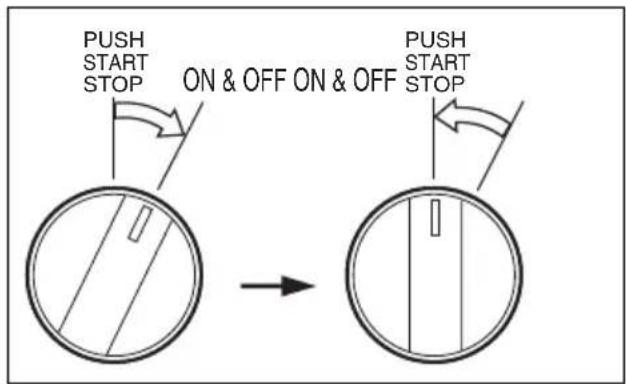

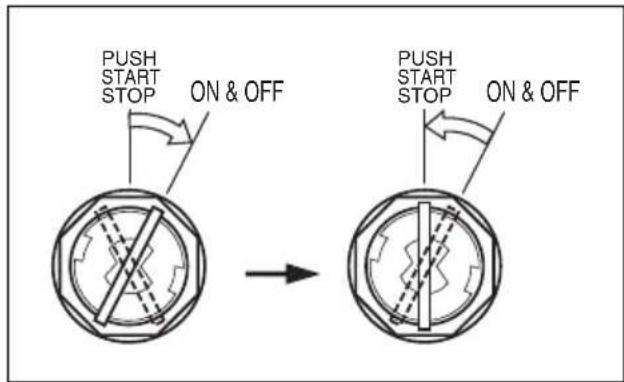

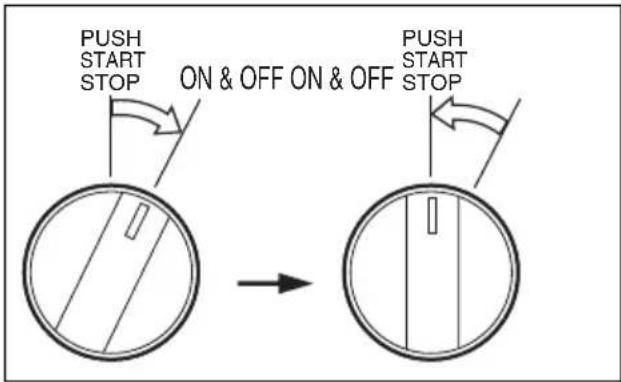

PUSH START STOP ON & OFF ON & OFF PUSH START STOP

1. Pull out the emergency stop switch lock plate.

Diagram showing a mechanical component being lifted by a tool, with no visible text or symbols.

1. Within eight (8) seconds after performing Step 5, start the following operation.

(1)Turn the main switch to the "ON & OFF" position and hold it for about five (5) seconds then release it to the "PUSH START/STOP" position.

Repeat this operation for two more times. The buzzer sounds once and the system enters stand-by mode for passcode input.

NOTE:

The buzzer will not sound if the operation in Step (1) is not performed within eight (8) seconds or the operation fails.

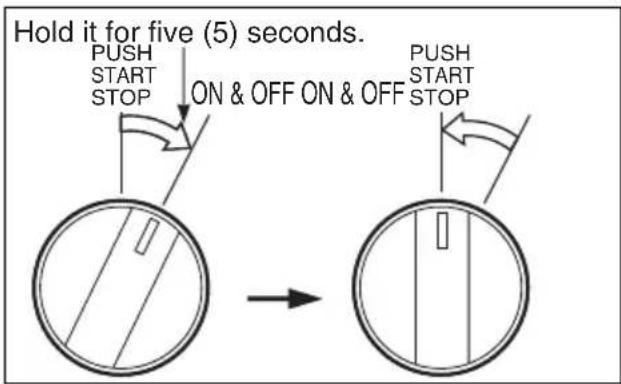

Hold it for five (5) seconds. PUSH START STOP ON & OFF ON & OFF ON & OFF PUSH START ON & OFF

(2)Within 60 seconds after performing Step (1), turn the main switch to the "ON & OFF" position and then release it. The main switch automatically returns to the "PUSH START/STOP" position.

The buzzer starts emitting short sounds. Briefly turn the switch after the number of sounds that is the same as the first passcode digit. For example, if the first passcode digit is seven, turn the switch after the seventh sound.

To set or select zero (0), turn the switch after the 10th sound.

NOTE:

If the operation in Step (2) is not performed within 60 seconds after performing Step (1), the passcode input operation will be cancelled and the buzzer will sound three (3) times.

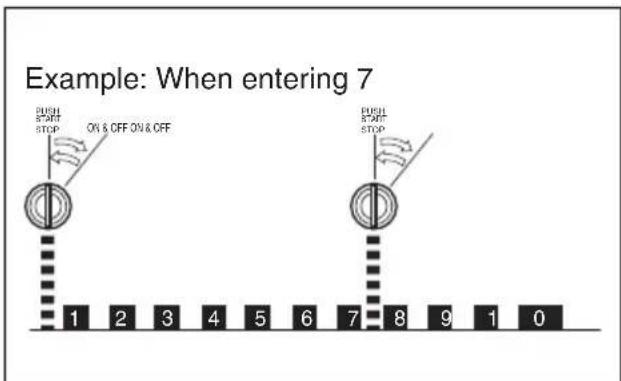

Example: When entering 7 Start On Off On Off Start On Off 1 2 3 4 5 6 7 8 9 1 0

After the buzzer emits 10 sounds, it emits one long sound before to returning to stand-by mode for the second passcode digit.

(3) Repeat Step 2 to enter the second, third and fourth passcode digits.

(4) After entering the fourth pass code digit, the buzzer emits one continuous sound – within 60 seconds, turn the switch ON and hold it for five (5) seconds until the buzzer stops, then release it.

NOTE:

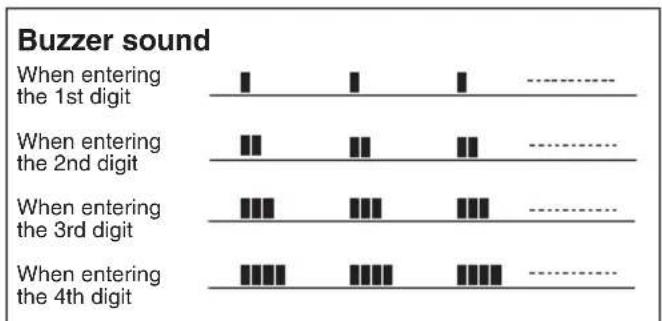

The buzzer emits one (1) short sound for the 1st digit, two (2) short sounds for the 2nd digit, three (3) short sounds for the 3rd digit, and four (4) short sounds for the 4th digit.

NOTE:

• If a passcode is not entered during the 10 sounds, the process will start over again after briefly turning the switch.
• If the main switch is not turned to select a passcode number after repeating the passcode input operation three (3) times, the input operation is cancelled.

In this case, the buzzer emits short beeps for five (5) seconds to notify that the input operation has been cancelled.

• If the passcode input operation has been performed multiple times, the last passcode entered will become effective.
• To interrupt passcode input, install the lock plate on the emergency stop switch.

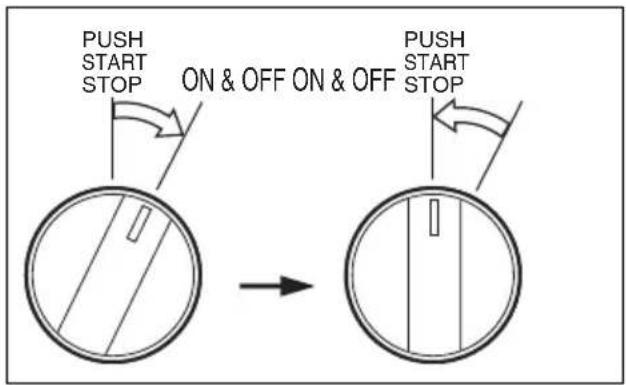

Hold it for five (5) seconds. PUSH START STOP ON & OFF ON & OFF PUSH START STOP

NOTE:

When performing the passcode input operation again after the operation has been cancelled due to passcode input failure or after having interrupted the operation;

1) Install the emergency switch lock plate.
2) Turn the main switch to the "ON & OFF" position and then release it to the "PUSH START/STOP" position.
3) Perform the procedure described above from Step 5.

(5) After the buzzer has sounded once, the key-fob LED will blink the entered passcode.

Example: In the case of passcode 1234 LED Number of key-fob blinks

(6) Install the lock plate on the emergency stop switch.
(7)Turn the main switch to the "ON & OFF" position and then release it to the "PUSH START/STOP" position to turn the Keyless Start System OFF.
After that, do not perform any operation for at least 30 seconds, while the system performs passcode update.

PASSCODE CONFIRMATION

1. Confirm that the engine is stopped.
2. Make sure the emergency switch lock plate is in place.
3. Confirm the key-fob is within the communication range of the Keyless Start System.
4. Confirm the key-fob is in ON mode. (Refer to "Switching the communication mode of the key-fob" section.)
5. Turn the main switch to the "ON & OFF" position and then release it. The main switch automatically returns to the "PUSH START/STOP" position.
   The buzzer on the engine control side emits one (1) long sound while the buzzer on the keyless control unit side emits two (2) short sounds simultaneously.

PUSH START STOP ON & OFF ON & OFF PUSH START STOP

1. Within eight (8) seconds after performing Step 5, start the following operation.

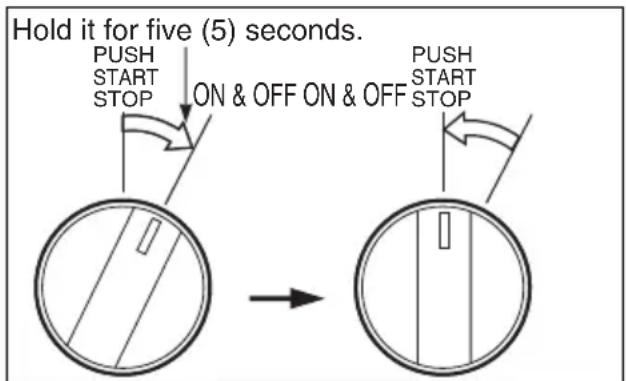

(1)Turn the main switch to the "ON & OFF" position and hold it for five (5) seconds or longer, then release it to the "PUSH START/STOP" position.

Repeat this operation for two more times.

(2)The LED on the key-fob blinks once and the buzzer sounds once.

After that, the LED on the key-fob blinks to indicate the passcode by the number of blinks, as shown in the illustration.

This is indicated repeatedly.

NOTE:

The passcode indication will not start if Step (1) is not performed within eight (8) seconds or the operation fails.

In this case, turn the main switch to the "ON & OFF" position and then release it to the "PUSH START/STOP" position to turn the Keyless Start System OFF. After that, retry the procedure from Step 5.

Example: In the case of passcode 1234 LED

1. After the passcode confirmation is completed, turn the main switch to the "ON & OFF" position and then release it. The main switch automatically returns to the "PUSH START/STOP" position. The Keyless Start System turns OFF and the passcode indication stops.

PROPELLER SELECTION AND INSTALLATION

PROPELLER SELECTION

It is essential to use a propeller on your outboard motor that is properly matched to your boat's operating characteristics. The speed of the engine when you operate your boat at full throttle depends on the propeller you use.

Excessive engine speed can seriously damage the motor, while low engine speed at full throttle will adversely affect performance. Your operating load will also affect propeller selection. Smaller loads generally require larger-pitch propellers; larger loads generally require smaller-pitch propellers. Your authorized Suzuki Marine Dealer will assist you in selecting a suitable propeller for your boat.

NOTICE

Installing a propeller with either too much or too little pitch will cause incorrect maximum engine speed, which may result in severe damage to the motor.

Ask your authorized Suzuki marine dealer to assist you in selecting a suitable propeller for your boat.

You can determine if your propeller is appropriate for use with your boat by using a tachometer to measure engine speed when operating your boat at full throttle, under minimum load conditions. If you are using an appropriate propeller, the engine speed will be within the following range:

Full throttle operating range	DF70A	5000 – 6000 r/min. (min ^-1 )
	DF80A	5000 – 6000 r/min. (min ^-1 )
	DF90A	5300 – 6300 r/min. (min ^-1 )
	DF100B	5700 – 6300 r/min. (min ^-1 )

If the engine speed is not within this range, consult your authorized Suzuki Marine Dealer to determine which propeller size is best for you.

PROPELLER INSTALLATION

WARNING

Failure to take proper precautions when installing or removing the propeller can result in severe personal injury.

When installing or removing the propeller:

• Always shift into "Neutral" and remove the emergency stop switch lock plate so that the motor cannot be started accidentally.
• Wear gloves to protect hands, and "lock" the propeller by placing a block of wood between the blades and the anti-cavitation plate.

To install a propeller on your outboard motor, use the following procedure:

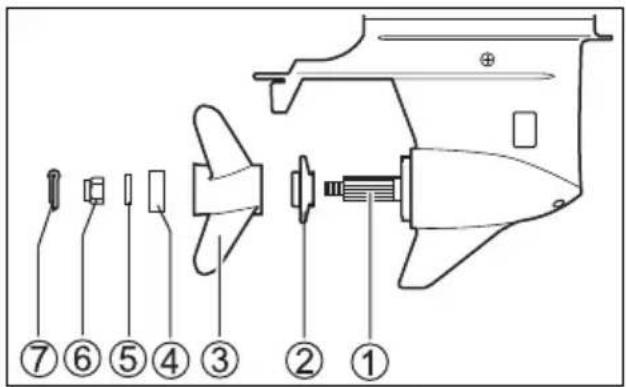

Technical diagram of a device with numbered parts labeled 1 through 7, showing internal components and assembly structure.

1. Coat the propeller shaft splines ① liberally with Suzuki water resistant grease to help prevent corrosion.
2. Place the stopper ② on the shaft.
3. Align the propeller ③ with the propeller shaft splines and slide the propeller onto the shaft.
4. Place the spacer ④ and washer ⑤ on the shaft.
5. Install the propeller nut ⑥ and tighten it with a torque wrench to 50 - 60 N·m (5.0 - 6.0 kg·m/36.0 - 43.5 lb·ft).
6. Insert the cotter pin ⑦ and bend it so that it can't come off.

To remove the propeller, reverse the above procedure.

ADJUSTMENT

TRIM ANGLE ADJUSTMENT

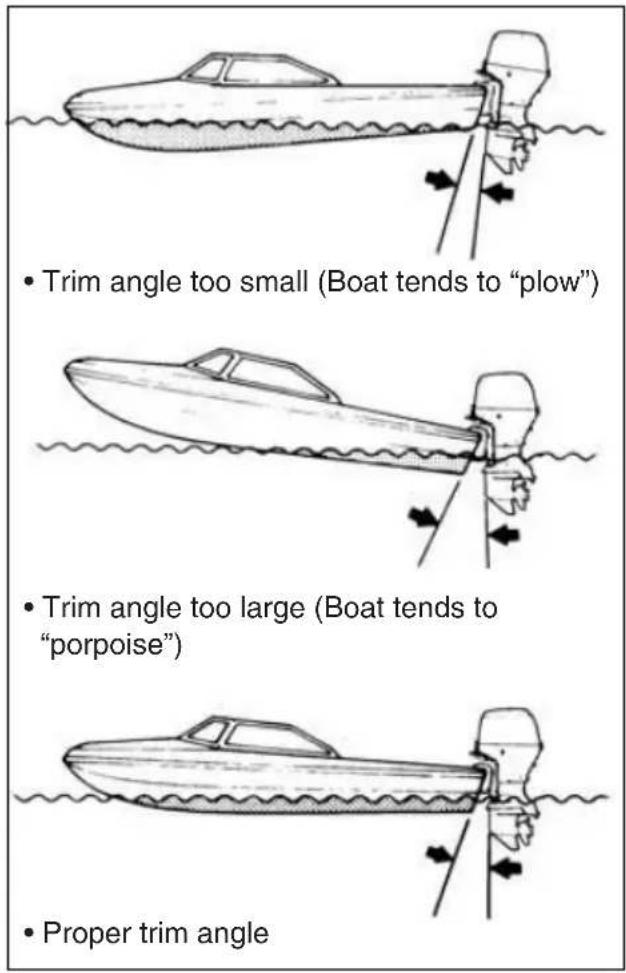

To help maintain steering stability and good performance, always maintain the proper trim angle as shown in the illustration. The appropriate trim angle varies depending on the combination of the boat, engine, and propeller, as well as operating conditions.

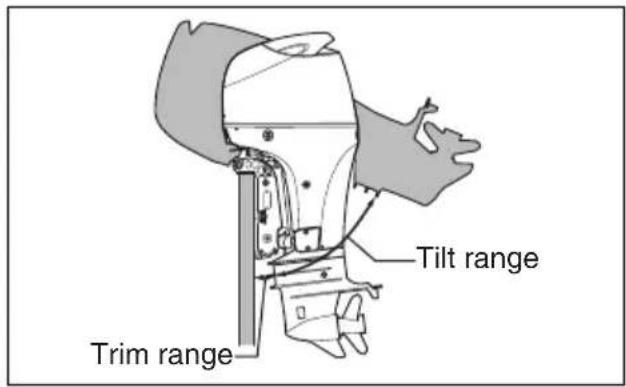

Tilt range Trim range

WARNING

Trim angle greatly affects steering stability. If the trim angle is too small, the boat may "plow" or "bow steer". If the trim angle is too large, the boat may "chine walk" from side to side or "porpoise" up and down. These conditions, which result in loss of steering control, can cause occupants to be thrown overboard.

Always maintain proper trim angle based on the combination of your boat, engine, and propeller, as well as operating conditions.

WARNING

When the motor is tilted beyond the maximum trim position, the swivel bracket will not have side support from the clamp bracket and the tilt system will be unable to cushion the engine if the lower unit strikes an obstruction. This could lead to occupant injury.

Do not operate the engine above 1500 r/min or operate the boat in a planing attitude with the motor tilted beyond the maximum trim position.

NOTICE

If you operate the boat with the motor trimmed beyond the maximum trim position, the water intake holes may be above the water line, causing severe engine damage due to overheating.

Never operate the boat with the motor trimmed beyond the maximum trim position.

Make a test run in the boat to determine if the trim angle needs to be adjusted. Adjust the trim angle using the Power Trim and Tilt system. Refer to the POWER TRIM AND TILT section.

While operating your boat with the motor adjusted to the proper trim angle, observe the position of the needle on the TRIM GAUGE provided as optional part. When making future trim angle adjustment, use the TRIM GAUGE as a guide.

SUSUKI

(Optional part)

TRIM TAB ADJUSTMENT

This adjustment is used to compensate for the possible tendency of your boat to veer slightly to port or starboard. This tendency could be due to such things as propeller torque, motor mounting position, etc.

To adjust the trim tab:

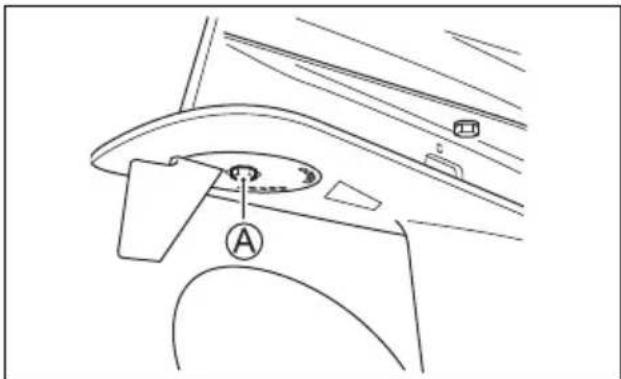

1. Loosen the bolt Ⓐ that holds the trim tab in place.

Technical line drawing of a mechanical component with labeled parts (no text or symbols beyond basic lines)

1. If the boat tends to veer to port, move the rear end of the trim tab toward the port side. If the boat tends to veer to starboard, move the starboard side.

Diagram showing two identical propeller-like structures with directional arrows, separated by a dashed line (no text or symbols)

1. Tighten the bolt that holds the trim tab in place.

After adjusting the trim tab, check to see if the boat still tends to veer to one side. If necessary, readjust the trim tab.

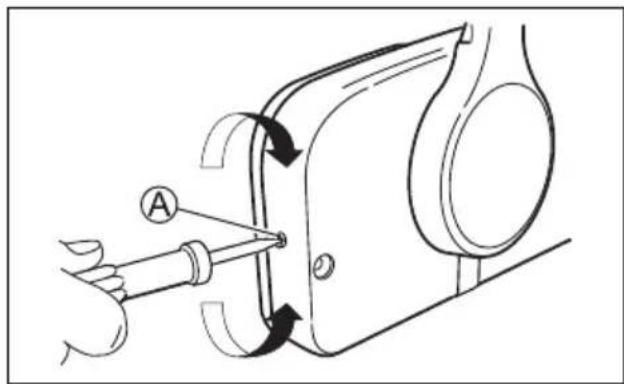

THROTTLE TENSION ADJUSTMENT

The tension of the remote control handle can be adjusted according to your preference. To increase the tension, turn the throttle tension adjuster Ⓐ clockwise. To decrease the tension, turn the adjuster counterclockwise.

Technical line drawing of a mechanical component with a tool and curved arrows indicating motion (no text or symbols)

IDLE SPEED ADJUSTMENT

The idle speed has been factory adjusted between 650 – 750 r/min in neutral.

NOTE:

If idle speed cannot be set within the specified range, contact your authorized Suzuki Marine Dealer.

SETTING OF TILT UPPER LIMIT POSITION

If the outboard motor contacts the motor well of the boat during full tilt up operation, the upper limit setting should be reset.

Perform this set-up after the current position setting has been canceled, as explained in the following procedure.

CANCELING THE TILT UPPER POSITION LIMIT SETTING

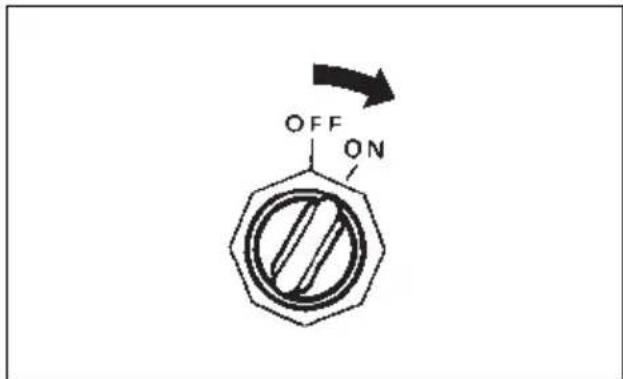

1. If equipped with Keyless Start System: Turn the Keyless Start System ON.

PUSH START STOP ON & OFF ON & OFF PUSH START STOP

If not equipped with Keyless Start System: Turn the ignition key to the "ON" position.

1. Pull out the emergency stop switch lock plate.

Diagram showing a mechanical component being lifted by a hook, with no visible text or symbols.

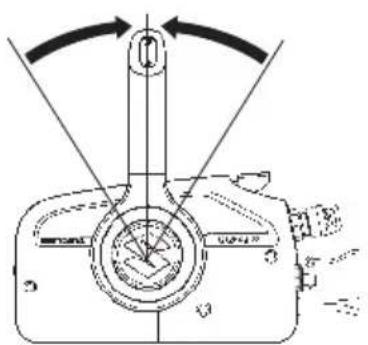

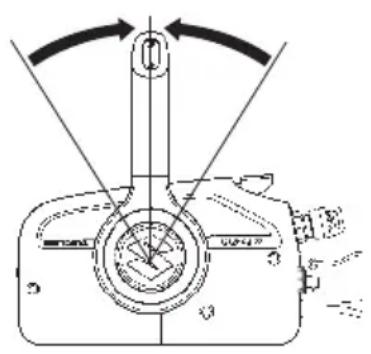

1. Make sure that remote control handle is in "NEUTRAL".

"NEUTRAL"

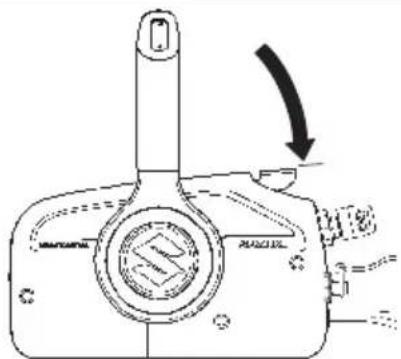

1. Using the throttle only function of the remote control box, move the warm-up lever upward until the caution buzzer sounds one time.

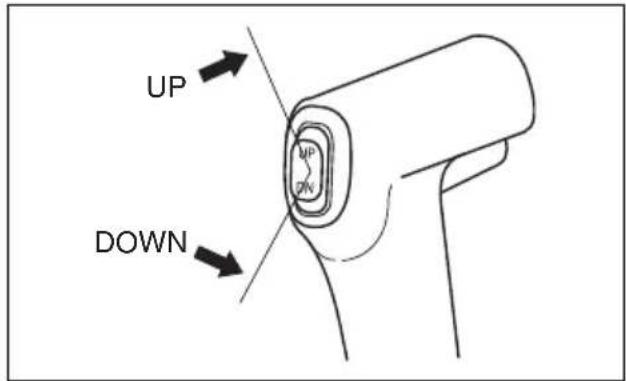

UP PTT switch

1. Press the "UP" side of the PTT switch for three seconds and the buzzer will sound twice briefly indicating the setting has been canceled.

2. Return the throttle to the fully closed position.

SETTING THE TILT UPPER POSITION LIMIT

1. Press the "UP" side of the PTT switch so that the optimum full tilt up position for the boat can be obtained.

2. If equipped with Keyless Start System: Turn the Keyless Start System ON.

If not equipped with Keyless Start System: Turn the ignition key to the "ON" position.

1. Pull out the emergency stop switch lock plate.

2. Make sure that remote control handle is in "NEUTRAL".

3. Using the throttle only function of the remote control box, move the warm-up lever upward until the caution buzzer sounds one time.

4. Press the "UP" side of PTT switch three times within three seconds. The buzzer will sound one time briefly indicating the setting has been accepted.

5. Return the throttle to the fully closed position and install the lock plate on the emergency switch. Operate the full tilt up and full down operations several times by pressing the PTT switch and check that the setting of both the trim lower limit and tilt upper limit are properly set.

WARNING

Setting of the tilt upper limit position will not prevent the outboard motor from tilting fully up and contacting the motor well if the motor's lower unit hits an object at high speed. Such tilting could damage your motor and boat and injure the boat occupants.

Keep all occupants away from the motor when operating at high speed.

MOTOR COVER FASTENING ADJUSTMENT

If you feel motor cover fastening is loose or too tight when locking the levers, adjust as follows:

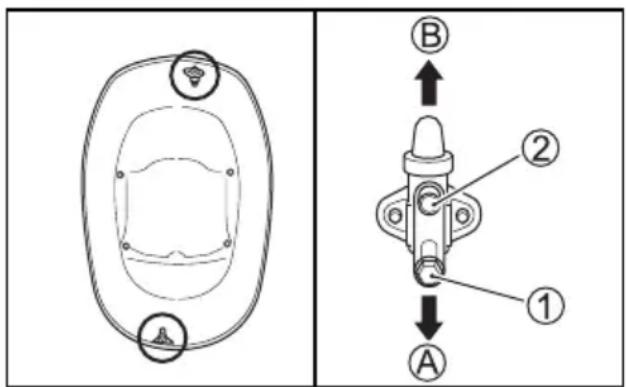

1. Loosen the bolts ①.
2. Adjust the position of brackets ②. To increase the fastening, move the brackets to the direction Ⓐ. To decrease the fastening, move the brackets to the direction Ⓑ.
3. Tighten the bolt.

Technical diagram showing a car interior and its mechanical component with labeled parts A, B, and numbered parts 1, 2.

CAUTION SYSTEM

The caution systems are designed to alert you to certain situations which may cause damage to your outboard motor.

NOTICE

Your outboard motor may become damaged if you rely on the Caution System to alert you to any malfunction that may occur or to give you an indication of the need for maintenance.

To avoid damage to your outboard motor, regularly inspect and maintain it.

NOTICE

Continuing to operate your outboard motor with the Caution System activated can result in severe damage to your outboard motor.

If the Caution System activates while you are operating your outboard motor, stop the motor as soon as possible and correct the problem or consult your authorized Suzuki marine dealer for assistance.

INDICATOR CHECK

If equipped with Keyless Start System:

Each time when the Keyless Start System is turned to ON state by turning the main switch to the "ON & OFF" position and then turning it back to the "PUSH START/STOP" position, four lamps – the REV LIMIT ①, the OIL ②, the TEMP ③ and the CHECK ENGINE ④ in the monitor-tachometer will light and the buzzer will also sound for the first two seconds.

For the next three seconds, the monitor-tachometer will indicate the total motor operating hours by means of the lamp flashing and needle indicating.

After this brief check period, the monitor-tachometer will return to their stand-by mode and four lamps will continue to light until when the Keyless Start System is turned to OFF State or when the engine is started.

NOTE:

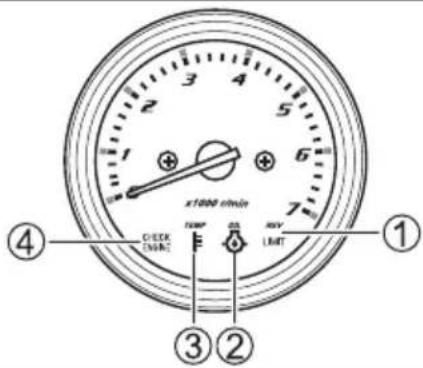

If the caution system is activated, only the corresponding lamp will light.

x1000 ohms ④ ③ ② ①

NOTICE

If the Caution System is not working properly, you may not be alerted to a condition that can cause damage to your outboard motor.

If the buzzer does not sound when the Keyless Start System has been turned to ON state by operating the main switch, the buzzer may be broken or a failure may exist in the system circuit. Consult your authorized Suzuki marine dealer.

NOTE:

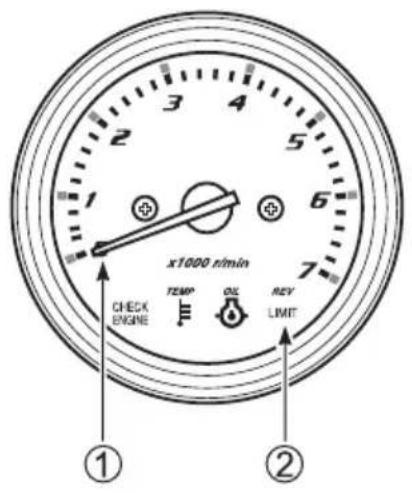

For checking the total motor operating hours, refer to the CHART OF TOTAL OPERATING HOURS INDICATION on the last page.

If not equipped with Keyless Start System:

Each time the ignition key is turned to the "ON" position, four lamps – the REV LIMIT ①, the OIL ②, the TEMP ③ and the CHECK ENGINE ④ in the monitor-tachometer will light briefly and the buzzer will also sound for the first two seconds, regardless of the motor conditions.

For the next three seconds, the monitor-tachometer will indicate the total motor operating hours by means of the lamp flashing and needle indicating.

After this brief check period, the monitor-tachometer will return to their stand-by mode and will only respond to motor conditions requiring a caution alert.

x1000 ohm ④ CHECK TAS/AC TEMP OFF LMT ③ ② ①

NOTICE

If the Caution System is not working properly, you may not be alerted to a condition that can cause damage to your outboard motor.

If any of the four lamps does not come on or the buzzer does not sound when the ignition key is turned to the "ON" position, the lamp or buzzer may be broken or a failure may exist in the system circuit. Consult your authorized Suzuki marine dealer.

NOTE:

For checking the total motor operating hours, refer to the CHART OF TOTAL OPERATING HOURS INDICATION on the last page.

OVER-REVOLUTION CAUTION SYSTEM

This system is activated when engine speed exceeds maximum recommended speed for more than 10 seconds.

If this system activates, engine speed will automatically be reduced to approximately 3000 r/min. with red REV LIMIT lamp lit.

x1000 min CHECK DWING TEMP OFF OFF AMP LMT

This system must be reset by moving the throttle to the idle position for about one second to restore full engine operation.

NOTICE

If the Over-Revolution Caution System activates at recommended maximum throttle and you are sure that the propeller pitch is sufficient and there are no factors like “over-trimming” or “ventilation”, there may be a problem with the Over-Revolution Caution System.

Consult your authorized Suzuki marine dealer if the Over-Revolution Caution System activates for no apparent reason.

OIL PRESSURE CAUTION SYSTEM

This system operates when the engine lubricating oil pressure drops below the correct level.

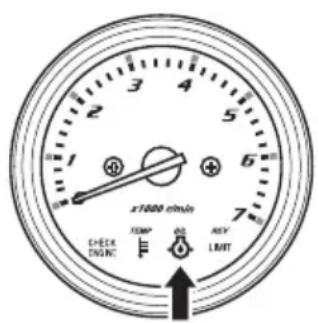

If this system activates, the red OIL lamp will light and a buzzer will begin a series of beep. In addition, when this system is activated at 1000 r/min. or higher, engine speed will automatically be reduced to approximately 1000 r/min. with REV LIMIT lamp lit.

If you continue to run, the engine will automatically stop 3 minutes after beginning of the above CAUTION system activation.

NOTE:

In case that the engine is automatically stopped due to the CAUTION system, the engine can be started again.

However the CAUTION system will repeatedly activate until eliminating the cause.

1 x1000 min CHECK ENGINE TEMP Power REF LMT

If this system activates, stop the engine immediately, if wind and water conditions make it safe to do so.

WARNING

If you attempt to remove or reinstall the motor cover while the engine is running, you may be injured.

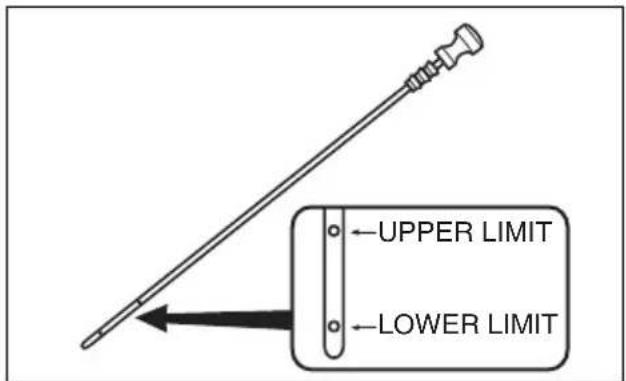

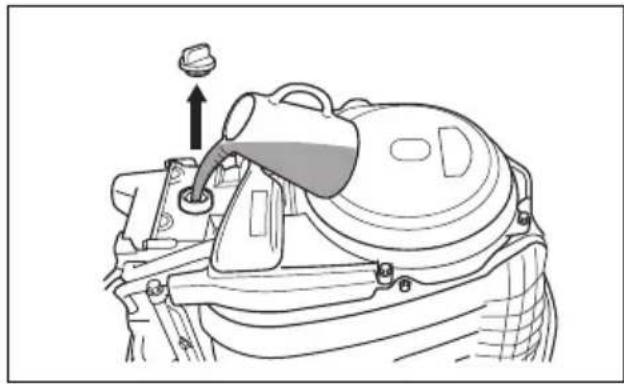

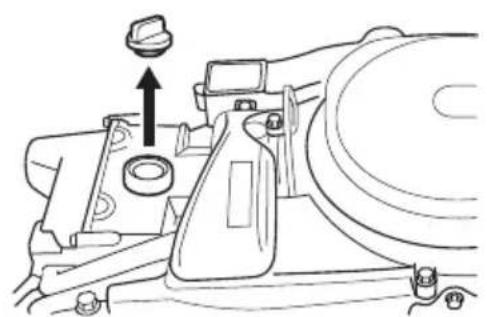

To check the oil level, stop the engine and then remove the motor cover.

Check the oil level and add oil if necessary. If the oil level is correct, consult your authorized Suzuki Marine Dealer.

NOTICE

Your engine may become severely damaged if you rely on the Oil Pressure Caution System to indicate the need to add engine oil.

Check the engine oil level periodically and add oil as necessary.

NOTICE

Operating the engine with the Oil Pressure Caution System activated can result in severe engine damage.

If the Oil Pressure Caution System activates, stop the engine as soon as possible and add engine oil, if necessary, or otherwise correct the problem.

OVERHEAT CAUTION SYSTEM

This system is activated when the cylinder wall temperature is too high due to insufficient water cooling.

If this system activates, the red TEMP lamp will light and a buzzer will begin a series of beep. In addition, when this system is activated at 3000 r/min. or higher, engine speed will automatically be reduced to approximately 3000 r/min. with REV LIMIT lamp lit.

If you continue to run, the engine will automatically stop 3 minutes after beginning of the above CAUTION system activation.

NOTE:

In case that the engine is automatically stopped due to the CAUTION system, the engine can be started again.

However the CAUTION system will repeatedly activate until eliminating the cause.

17000 m/min STICK ENGINEER TEMP 65 REV LIMIT

If the overheat caution system activates when operating, reduce engine speed immediately and check if water is being discharged from the pilot water hole. If no water is seen, follow the procedures outlined below.

Water and wind conditions permitting, stop the engine, tilt it out of the water and remove any debris like seaweed, plastic bags or sand that may have blocked the water intakes.

Lower the motor into the water, being sure that water intakes are immersed, and restart it.

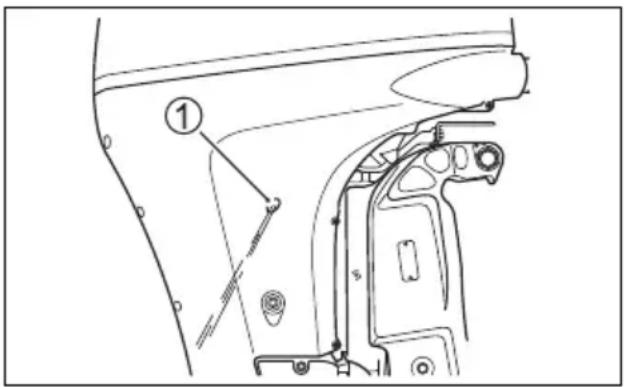

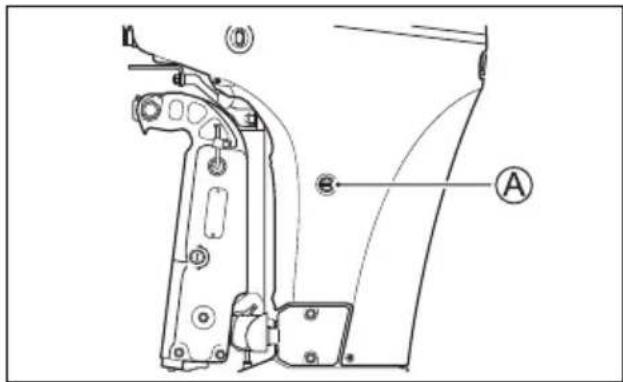

Check (A) that water discharges from the pilot hole and (B) that the red TEMP lamp is no longer lit.

Be aware that the red TEMP lamp may light again if engine temperature rises abnormally. If either of the above situations arises, your authorized Suzuki Marine Dealer must be consulted as soon as possible.

NOTICE

Operating the engine with the overheat caution system activated can result in severe engine damage.

If the overheat caution system activates, stop the engine as soon as possible, wind and water conditions permitting, and inspect the engine according to the above instructions. Consult your authorized Suzuki marine dealer if you cannot correct the problem.

BATTERY VOLTAGE CAUTION SYSTEM

This system is activated when the battery voltage deficiency which could impair your motor's performance occurs.

If this system activates, the red CHECK ENGINE lamp will light and buzzer will begin a series of beep.

x1000 cm/min + - E-ECK INLINE TEMP 0Ω AVV LMT

This system will be canceled automatically when the battery voltage restores to the proper voltage level. Refrain from using any electrical equipment such as P.T.T. system, hydraulic trim tabs, hydraulic jack plate, etc.

WARNING

Failure to take proper precautions when inspecting or servicing the battery can be hazardous.

Do not attempt to inspect or service the battery without first reading the warnings, cautions, and instructions in the "BATTERY INSTALLATION" section of this manual.

NOTE:

• A marginal battery may have enough power to start your engine, yet may still cause this caution system to activate whenever engine or boat accessory use places a high current demand on the battery.
• If this caution system activates continuously, even after you have stopped using engine or boat accessories, contact your authorized Suzuki Marine Dealer.

KEYLESS START SYSTEM CAUTION SYSTEM

(IF EQUIPPED WITH KEYLESS START SYSTEM)

KEY-FOB CAUTION SYSTEM

The caution system is activated when key-fob identification error.

If this system activates, the red CHECK ENGINE lamp will flash.

L-ESTR ENGINE TEMP O2 ACV L-MT x1000 mins

NOTE:

- If this system activates, check the following:

- The key-fob is within the communication range of the keyless control unit.

- The key-fob is in communication mode. (Refer to "Switching the communication mode of the key-fob" section.)

- There is no object interfering with the radio wave between the key-fob and the keyless control unit.

- The key-fob battery has sufficient capacity.

- The correct key-fob has been authenticated by the Keyless Start System.

- If this caution system activates continuously, contact your authorized Suzuki Maine Dealer.

KEY-FOB BATTERY CAUTION SYSTEM

The caution system is activated when key-fob battery voltage drops to a point which could impair key-fob performance.

If this system activates, the red CHECK ENGINE lamp will flash.

x1400 rpm L+EX ENGINE TEMP ON ACV LIMIT

NOTE:

If this system activates, replace the battery of key-fob. (Refer to KEY-FOB BATTERY REPLACEMENT section.)

KEYLESS CONTROL UNIT CAUTION SYSTEM

This system is activated when the 12 volt battery voltage to the keyless control unit drops to a point which could impair the keyless control unit performance.

If this system activates, the red CHECK ENGINE lamp will flash.

11000 m/s E-EER INR TEMP SO KEY LIMIT

NOTE:

• If this system activates, check the following:
• The 12 volt battery is in sound condition.
• Contact failure of the battery terminal.
• If this caution system activates continuously, consult your authorized Suzuki Maine Dealer.

DIAGNOSTIC SYSTEM

If abnormal conditions exist in any sensor signal being input to the control unit, the self-diagnostic system warns of the abnormal condition.

If this system activates, the red CHECK ENGINE lamp will flash and a buzzer will sound.

x1000 min L+25K 1000 TEMP 6Ω 6V 10V 10V 10V 10V 10V 10V 10V 10V 10V 10V 10V 10V 10V 10V 10V 10V 10V 10V 10V 10V 10V 10V 10V 10V 10V 1.5±2.5 1.5±2.5 1.5±2.5 1.5±2.5 1.5±2.5 1.5±2.5 1.5±2.5 1.5±2.5 1.5±2.5 1.5±2.5 1.5±2.5 1.5±2.5 1.5±2.5 1.7±3.5 1.7±3.5 1.7±3.5 1.7±3.5 1.7±3.5 1.7±3.5 1.7±3.5 1.7±3.5 1.7±3.5 1.7±3.5 1.7±3.5 1.7±3.5 1.7±3.5 2 x 2 x 3 x 4 x 5 x 6 x 7 x 8 x 9 x 10 x 11 x 12 x 13 x 14 x 15 x 16 x 17 x 18 x 19 x 20 x 21 x 22 x 23 x 24 x 25 x 26 x 27 x 28 x 29 x 30 x 31 x 32 x 33 x 34 x 35 x 36 x 37 x 38 x 39 x 40 x 41 x 42 x 43 x 44 x 45 x 46 x 47 x 48 x 49 x 50 x 51 x 52 x 53 x 54 x 55 x 56 x 57 x 58 x 59 x 60 x 61 x 62 x 63 x 64 x 65 x 66 x 67 x 68 x 69 x 70 x 71 x 72 x 73 x 74 x 75 x 76 x 77 x 78 x 79 x 80 x

Also incorporated is a fail-safe provision that allows the operation at a restricted speed even under such a failure condition.

The failed system can be identified by the mode of the lamp flashing and buzzer sounding.

NOTE:

If equipped with Keyless Start System:

This diagnostic code is designed to appear while the Keyless Start System is in ON state.

If not equipped with Keyless Start System:

This diagnostic code is designed to appear while the ignition key is turned on.

NOTICE

If the diagnostic system activates while you are operating your outboard motor, there is an abnormal condition in one of the sensor signals of the control system.

Consult your authorized Suzuki marine dealer for repair of the control system.

NOTE:

If equipped with Keyless Start System:

The buzzer sounds for 60 seconds when the Diagnostic System is activated, then it stops automatically.

If not equipped with Keyless Start System:

The buzzer sound with diagnostic system activating will be canceled by pushing the ignition key in.

OIL CHANGE REMINDER SYSTEM

This system informs the operator of the time for replacing engine oil on the basis of the maintenance schedule.

The system is designed to register the total operating hours of the outboard motor and function its operation when the preprogrammed hours have reached.

(Refer to the INSPECTION AND MAINTENANCE section and the last page.)

SYSTEM ACTIVATION

When the total operating hours have reached the preprogrammed hours, the OIL lamp will flash. If the engine is not running, the buzzer will begin a series of double beeps additionally. This indication will repeat until you cancel the system activation.

CANCELLATION

NOTE:

If equipped with Keyless Start System in case of Dual Engine:

Cancellation of system activation may be achieved by operating either one of the main switch.

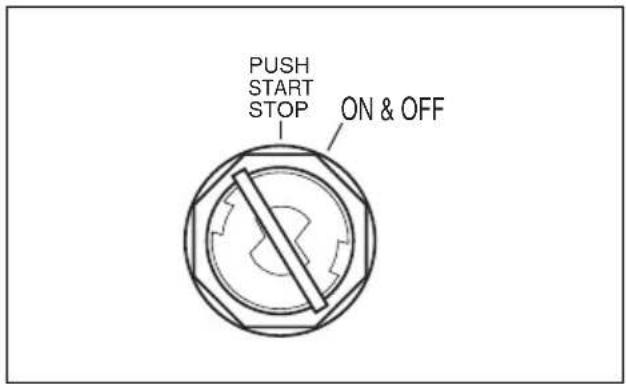

1. If equipped with Keyless Start System:

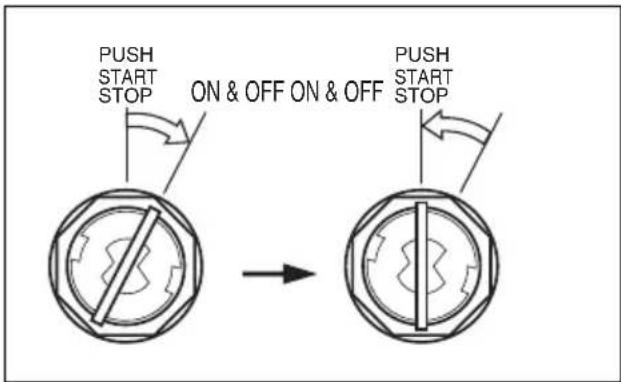

Turn the Keyless Start System to ON state by turn the main switch to the "ON & OFF" position and then release it. The main switch automatically returns to the "PUSH START/STOP" position.

NOTE:

When the Keyless Start System is ON state and the engine inactivated, buzzer continues sounding.

PUSH START STOP ON & OFF ON & OFF PUSH START STOP

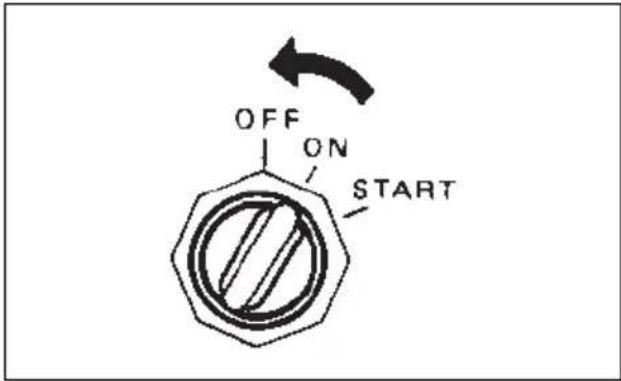

If not equipped with Keyless Start System:

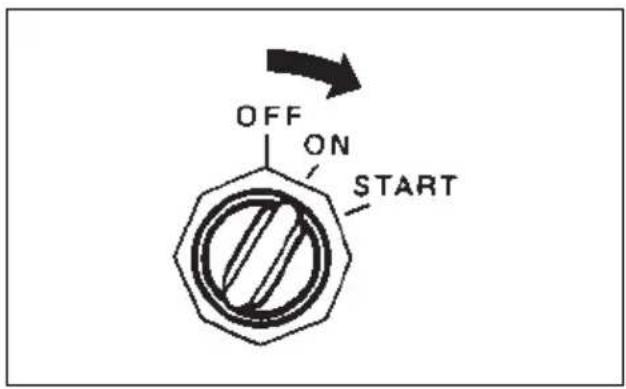

Turn the Ignition key to the "ON" position.

NOTE:

When the ignition key is ON and the engine inactivated, buzzer continues sounding.

OFF ON START

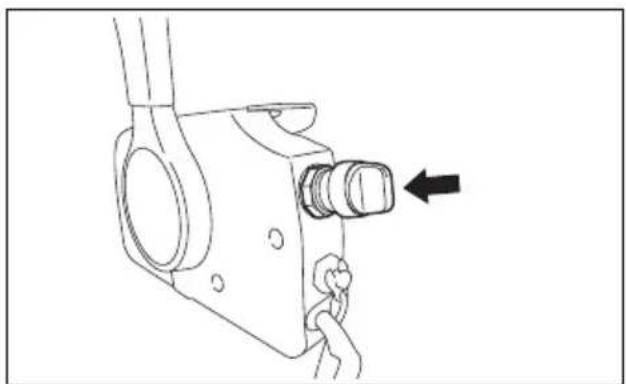

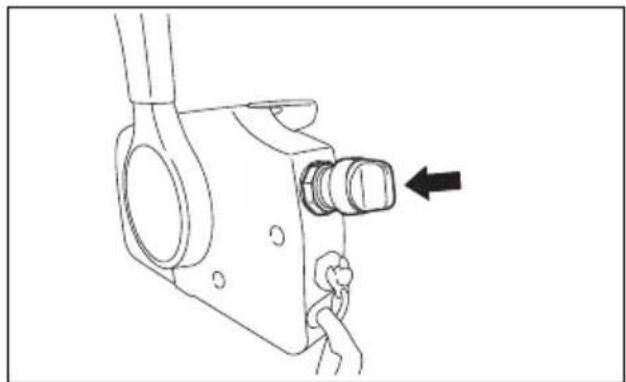

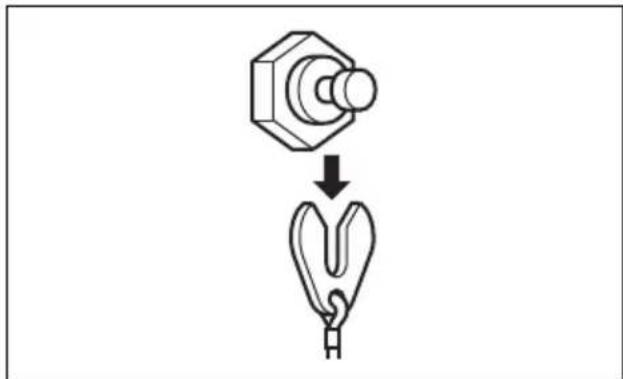

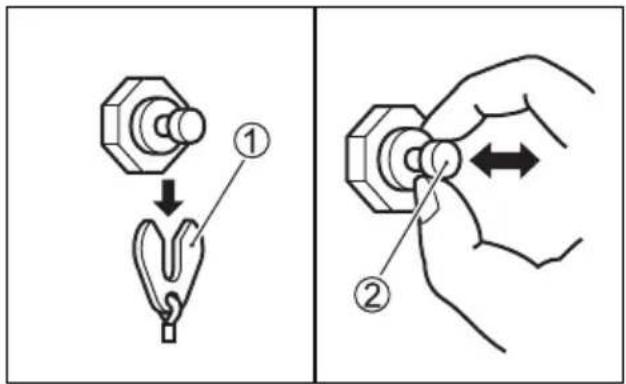

1. Pull out the emergency stop switch lock plate ①.
2. Pull up the emergency stop switch knob ② three times in 10 seconds. A short beep will be heard if the cancellation is successfully finished.

Technical diagram showing two-step assembly steps of a mechanical component, labeled with number ① and ②.

1. If equipped with Keyless Start System:

Turn the main switch to the "position and then release it to the "PUSH START/STOP" position to turn the Keyless Start System to OFF state.

NOTE:

The Keyless Start System can also be turned to OFF state by pressing the lock button on the key-fob.

PUSH START STOP ON & OFF ON & OFF PUSH START STOP

If not equipped with Keyless Start System:

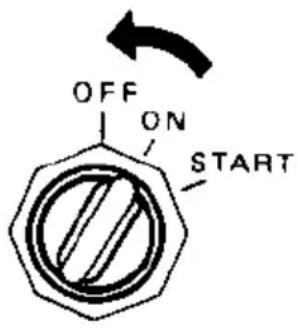

Turn the Ignition key to the "OFF" position.

OFF ON START

1. Set the plate ① in the original position.

NOTE:

• Canceling of the system activation is possible regardless of whether or not the engine oil has been replaced. Once the system has operated, however, Suzuki strongly recommends that the engine oil be replaced before canceling the system activation.
• Even if the engine oil has been replaced with the system not operating, it is still necessary to perform the cancellation.

ON ^to be form & OFF

ENGINE STALLING CAUTION SYSTEM

This system informs the operator when the motor stalls while it is operating.

When the engine stalls for any reason, the caution buzzer sounds three times.

WATER IN FUEL ALERT SYSTEM (DF100B only)

This engine is equipped with an integral fuel filter/water separator and associated alert system.

The alert system will activate if water separated from the fuel exceeds a specific volume.

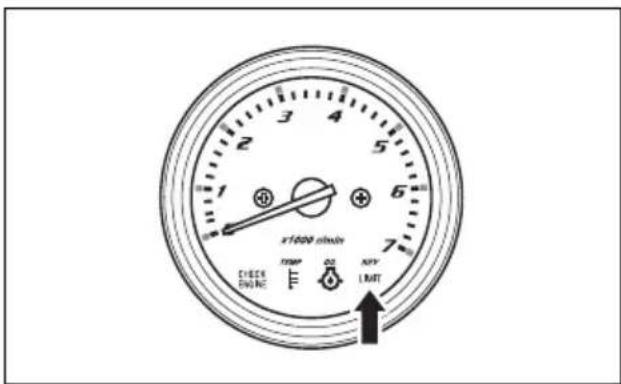

If this system activates, the red REV-LIMIT lamp will flash and a buzzer will begin a series of triple beeps when the engine is in neutral only.

1000 min/min CHECK DWNC TEMP O2 APV LMT

If this system activates, stop the engine immediately, if wind and water conditions are safe to do so, and check the fuel filter/water separator for water. Or consult your authorized Suzuki marine dealer.

For inspection and cleaning of the fuel filter, refer to the LOW PRESSURE FUEL FILTER in the INSPECTION AND MAINTENANCE section.

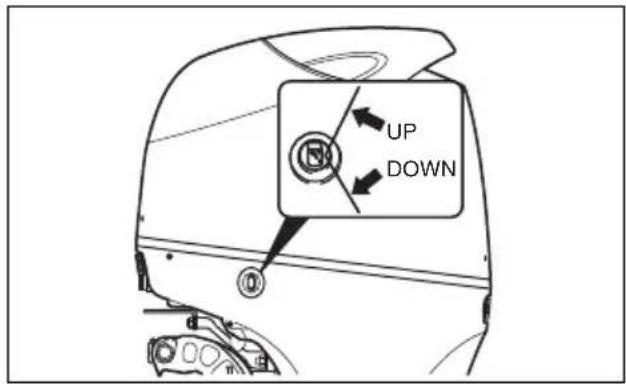

The "Power Trim and Tilt" is operated by pressing the switch. To tilt the motor up, press the upper part of the switch. To tilt the motor down, press the lower part of the switch.

UP DOWN

UP DOWN

If equipped with Keyless Start System:

WARNING

The power trim and tilt (PTT) switch on the side cover can be accidentally activated when the Keyless Start System is in OFF state, resulting in injury.

Keep all persons away from the outboard motor to help prevent accidental activation of the PTT system.

If not equipped with Keyless Start System:

WARNING

The power trim and tilt (PTT) switch can be accidentally activated when the ignition key is off, resulting in injury.

Keep all persons away from the outboard motor to help prevent accidental activation of the PTT system.

MANUAL TILTING

If you are unable to tilt the motor using the "Power Trim and Tilt" because of an electrical problem or some other problem, you can move the motor manually. To tilt the motor up or down, turn the manual release valve Ⓐ two turns counterclockwise, move the motor to the desired position, then retighten the release screw.

A DOWN CLOSE

CAUTION

The motor is very heavy. When you tilt it manually, you could injure your back or slip and fall causing injury.

When you tilt the motor manually, ensure that your grip and footing are secure and that you are able to support the weight of the engine.

TILT BRACKET

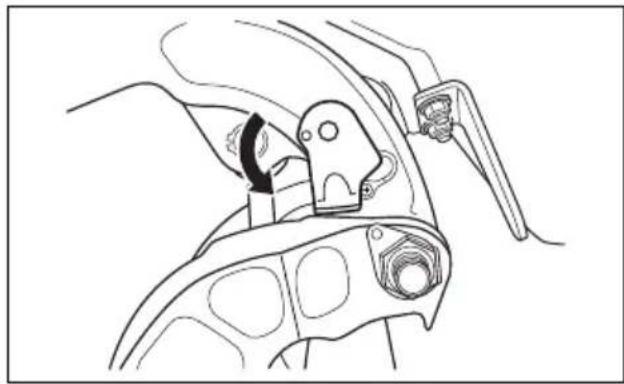

The Tilt Bracket is provided so you can support the motor in a tilted position for non-moving engine support.

To set the Tilt Bracket:

1. Tilt the motor all the way up using the Power Trim and Tilt.
2. Pull down the Tilt Bracket as shown in the illustration.

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

1. Lower the motor using the Power Trim and Tilt, until the motor is supported by the Tilt Bracket.

To release the Tilt Bracket, tilt the motor all the way up using the Power Trim and Tilt "UP" switch, and pull up the Tilt Bracket.

If equipped with Keyless Start System:

CAUTION

The remote Power Trim and Tilt switch will work when the Keyless start system is off. If someone activates the switch while you are moving the tilt bracket, your hand could be injured.

Keep all persons away from the remote Power Trim and Tilt switch while you are moving the tilt bracket.

NOTICE

Damage can occur if you use the tilt bracket other than when the boat is moored or is otherwise stationary.

The tilt bracket relieves pressure from the power trim and tilt and should only be used when the boat is stationary. Do not use the tilt bracket when trailering your boat and motor. Refer to the TRAILERING section of this manual.

If not equipped with Keyless Start System:

CAUTION

The remote Power Trim and Tilt switch will work when the ignition switch is off. If someone activates the switch while you are moving the tilt bracket, your hand could be injured.

Keep all persons away from the remote Power Trim and Tilt switch while you are moving the tilt bracket.

NOTICE

Damage can occur if you use the tilt bracket other than when the boat is moored or is otherwise stationary.

The tilt bracket relieves pressure from the power trim and tilt and should only be used when the boat is stationary. Do not use the tilt bracket when trailering your boat and motor. Refer to the TRAILERING section of this manual.

INSPECTION BEFORE BOATING

WARNING

Failure to inspect your boat and motor before beginning a trip can be hazardous.

Before boating, always perform the inspections described in this section.

It is important to make sure that your boat and motor are in good condition and that you are properly prepared for an emergency.

Always perform the following checks before you begin boating:

• Make sure that you have enough fuel for the intended run.
• Check the level of engine oil in the sump.

NOTICE

Running the engine with an insufficient amount of oil can cause serious engine damage.

Always check the oil level before each trip and add oil if necessary.

To check the oil level:

NOTE:

To avoid an incorrect assessment of engine oil level, check the level only when the engine has cooled.

1. Place the motor in a vertical position, then remove the motor cover by unlocking the lever ① and ②.

Diagram showing two mechanical or electrical component assembly steps with labeled parts and directional arrows indicating motion.

1. Pull out the oil dipstick and wipe oil off with a clean cloth.

Mechanical assembly diagram showing pipe connections and a magnified inset of a component (no text or symbols)

NOTE:

If the engine oil is contaminated or discolored, replace with fresh engine oil (Refer to Inspection and maintenance/engine oil section).

1. Insert the dipstick all the way into the engine, then remove it again.

UPPER LIMIT LOWER LIMIT

The oil on the dipstick should be between the upper and lower limits shown on the dipstick. If the oil level indication is near the lower limit, add enough oil to raise the level to the upper limit.

To fill the engine oil:

1. Remove the oil filler cap.
2. Fill the recommended engine oil to the upper level.

Technical line drawing of a mechanical component with a pouring container and upward arrow (no text or symbols)

NOTICE

Running the engine with an excessive amount of oil can damage the engine.

Do not overfill the engine with oil.

1. Tighten the oil filler cap securely.

2. Check the battery solution level.
   The level should be kept between the MAX and the MIN level lines at all times. If the level drops below the MIN level line, refer to MAINTENANCE section.
   • Make sure that the battery leads are securely connected to the battery terminals.

3. Visually check the propeller to make sure it is not damaged.
   • Make sure that the motor is securely mounted to the transom.
4. Check for proper operation of the Power Trim and Tilt.
5. Check for proper trim angle.
   • Make sure you have the boating safety and emergency equipment on board.
   • Make sure that the emergency stop switch operates properly.
6. Make sure the obstacle is not attached to water intake hole.

BREAK-IN

Proper operation during this break-in period will help ensure maximum life and performance from your engine. The following guidelines will explain proper break-in procedures.

NOTICE

Failure to follow the break-in procedures described below can result in severe engine damage.

Be sure to follow the engine break-in procedures described below.

Break-in period: 10 hours

Break-in procedure

1. For the initial 2 hours:

Allow sufficient idling time (about 5 minutes) for the engine to warm up after cold engine starting.

NOTICE

Running at high speed without sufficient warm-up may cause severe engine damage such as piston seizure.

Always allow sufficient idling time (5 minutes) for the engine to warm-up before running at high speed.

After warming up, run the engine at idling speed or the lowest in-gear speed for about 15 minutes.

During the remaining 1 hour and 45 minutes, if safe boating conditions permit, operate the engine in gear at less than 1/2 (half) throttle (3000 r/min.).

NOTE:

You may throttle up beyond the recommended operating range to plane your boat, then immediately reduce the throttle to the recommended operating range.

1. For the next 1 hour:

Safe boating conditions permitting, operate the engine in gear at 4000 r/min. or at three-quarter throttle. Avoid running the engine at full throttle.

1. Remaining 7 hours:

Safe boating conditions permitting, operate the engine in gear at desired engine speed. You may occasionally use full throttle; however do not operate the engine continuously at full throttle for more than 5 minutes at any time.

NOTICE

Running continuously at full throttle for more than 5 minutes at a time during the last 7 hours of break-in operation may cause severe engine damage such as seizure.

During the last 7 hours of break-in operation, do not operate at wide open throttle for more than 5 minutes at a time.

OPERATION

MAIN SWITCH

If equipped with Keyless Start System:

Turn the Keyless Start System to ON or OFF state by as follows.

(1) Make sure that the key-fob is within the communication range of the keyless control unit.
(2)Turn the main switch to the "ON & OFF" position and then release it. The main switch automatically returns to the "PUSH START/STOP" position.

When the Keyless Start System has been turned to ON state by operating the main switch, all lamps in the monitor-tachometer will continue to light and the buzzer will also sound for the first two seconds.

NOTE:

If equipped with Dual Engine:

When either one of the engines of Keyless Start System is turned ON or OFF, another engine will automatically be turned ON or OFF.

PUSH START STOP ON & OFF

NOTE:

If the operation in the above step (2) is performed continuously, it is regarded as a theft or tampering and the main switch operation will not be accepted until a certain period has elapsed.

BEFORE ATTEMPTING TO START THE ENGINE

1. The motor has been lowered into the water.
2. Make sure that the motor fuel hose and the hose from the boat's fuel tank are securely attached and clamped.

Diagram of a medical or surgical procedure showing a tool interacting with a circular device (no text or symbols present)

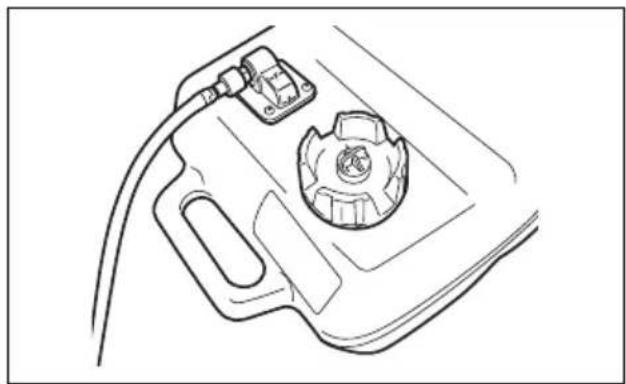

1. Ensure that the boat fuel tank is correctly vented and that any in-line filters are free of dirt etc. If fuel tank filler cap has a manual vent, be sure that it is fully open.

Line drawing of a fuel injector with attached plug and valve (no text or symbols)

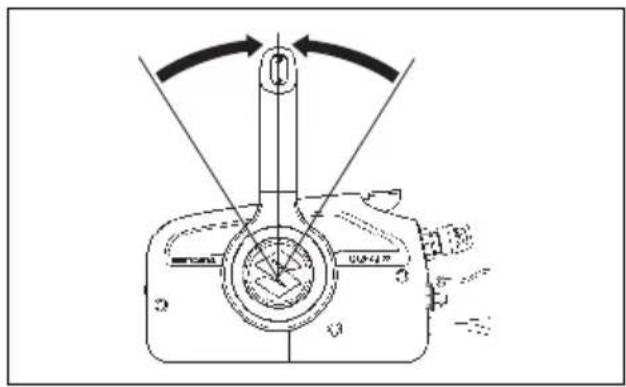

1. Make sure that the motor is in "NEUTRAL".

Technical diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

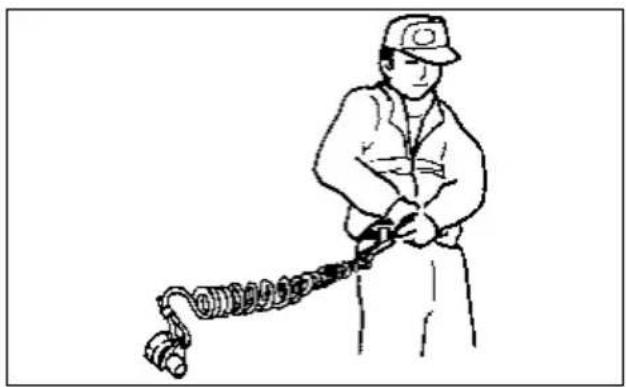

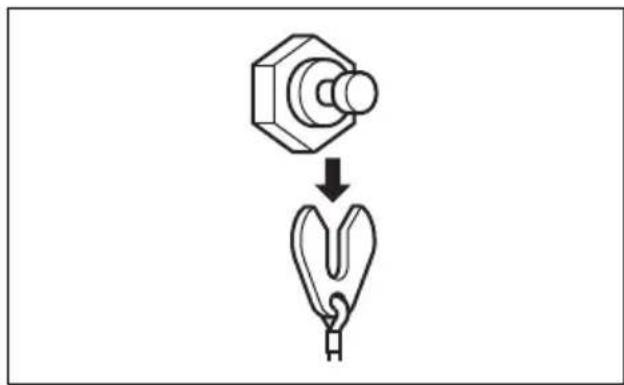

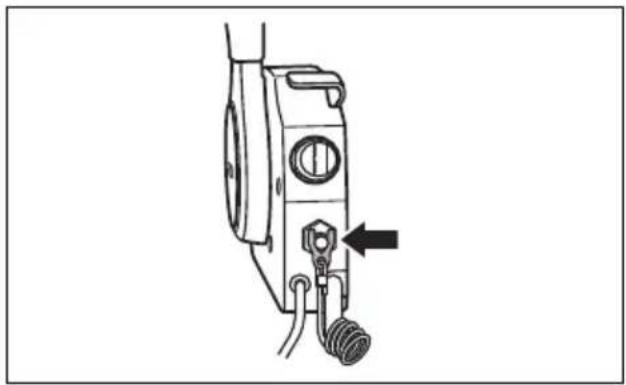

1. Make sure the lock plate is in place and attach the emergency stop switch cord to a part of your body.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a person in work uniform and cap using a coiled spring device (no text or symbols)

WARNING

Failure to properly attach the emergency stop switch cord or to take proper precautions to help ensure that the emergency stop switch works as intended may result in serious injury or death to the operator or passengers.

Always take the following precautions:

• Make sure that the emergency stop switch cord is fastened securely to the operator's wrist or to an appropriate clothing area (belt etc.).
• Ensure that no obstructions impede or restrict emergency stop switch operation.
• Be careful not to pull the stop switch cord or knock out the lock plate during normal operation. The motor will stop abruptly, and the loss of forward motion may unexpectedly throw occupants forward.

NOTE:

A spare plastic lock plate is provided for temporary use only. Remove it from the cord and place it in a safe place on board your boat. If you lose or break the emergency stop switch cord/lock plate assembly, replace it as soon as possible so that you can resume normal use of the emergency stop switch.

STARTING THE ENGINE

WARNING

Exhaust gas contains carbon monoxide, a dangerous gas that is difficult to detect because it is colorless and odorless. Breathing carbon monoxide can cause death or severe injury.

Never start the engine or let it run indoors or where there is little or no ventilation.

NOTE:

If the emergency stop switch lock plate is not in position, the starter motor cannot operate.

If equipped with Keyless Start System:

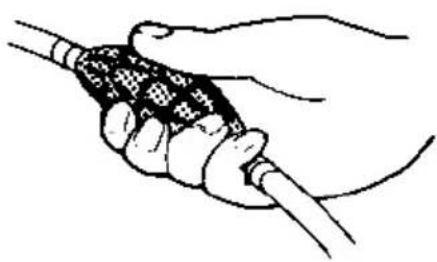

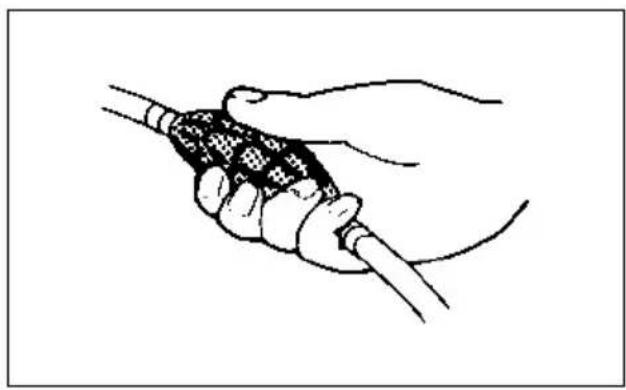

1. Squeeze the fuel line priming bulb several times until you feel resistance.

Illustration of a hand holding a cable with a textured grip (no text or symbols)

1. Make sure that the warm-up lever is in the fully closed position.

Technical line drawing of a mechanical device with a curved arrow indicating motion or force (no text or symbols present)

1. (1) Confirm that the key-fob is in communication ON mode (Refer to the "Switching the Communication mode of the key-fob" section.)

(2) While the key-fob is within the communication range of the keyless control unit, turn the main switch to the "ON & OFF" position and then release it. The main switch automatically returns to the "PUSH START/STOP" position.

The buzzer sounds twice to notify that the Keyless Start System has been turned ON.

NOTE:

If equipped with Dual Engine:

When either one of the engines of Keyless Start System is turned ON, another engine will automatically be turned ON.

PUSH START STOP ON & OFF ON & OFF PUSH START STOP

NOTE:

The communication range is a distance of 1 m (39.4) between the key-fob and the keyless control unit.

If the Keyless Start System fails to turn ON, the buzzer emits one (1) long sound and five (5) short sounds.

In this case, repeat the procedure again.

1. Push the main switch to start the engine.

NOTE:

By pressing the main switch once, the starter motor turns for 4 seconds continuously until the engine starts.

Line drawing of a mechanical device with a hand adjusting its grip and a black arrow pointing to the right side (no text or symbols)

NOTICE

If you hold in the main switch to start the engine, the starter system can be damaged.

Push the main switch and release it to start the engine. The engine will crank continuously for 4 seconds or until the engine starts.

NOTE:

The continuous operating time of the starter motor is set at five seconds.

When this time is exceeded, the starter motor will automatically stop.

If the motor stops, wait about ten seconds for the motor to cool down and try again.

NOTICE

If the OIL lamp remains lit while operating the outboard, the oil level may be low enough to damage the engine.

Stop the engine and check the oil level.

1. Warm up the engine for about 5 minutes.

NOTICE

Operating the engine at high RPM or "wide open throttle" immediately after starting the engine without allowing the engine to warm up may cause engine failure.

Always allow the engine to warm up sufficiently before operating it at high speeds.

If not equipped with Keyless Start System:

1. Squeeze the fuel line priming bulb several times until you feel resistance.

Illustration of a hand holding a cable with a textured grip (no text or symbols)

1. Make sure that the warm-up lever is in the fully closed position.

Technical diagram of a mechanical device with labeled parts and an arrow indicating rotation or movement.

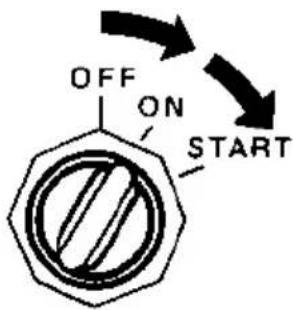

1. Turn the ignition key to the "ON" position.
2. Turn the ignition key to the "START" position.

After returning the ignition key to "ON" position from "START" one, starter motor continue to turn for 4 seconds until engine start.

OFF ON START

NOTICE

If you hold the ignition key at the "START" position to start the engine, the starter system can be damaged.

Turn the ignition key to the "START" position once and release it to start the engine. The engine will crank continuously for 4 seconds or until the engine starts.

NOTE:

The continuous operating time of the starter motor is set at five seconds.

When this time is exceeded, the starter motor will automatically stop.

If the motor stops, wait about ten seconds for the motor to cool down and try again.

NOTICE

If the OIL lamp remains lit while operating the outboard, the oil level may be low enough to damage the engine.

Stop the engine and check the oil level.

1. Warm up the engine for about 5 minutes.

NOTICE

Operating the engine at high RPM or “wide open throttle” immediately after starting the engine without allowing the engine to warm up may cause engine failure.

Always allow the engine to warm up sufficiently before operating it at high speeds.

Cooling water check

As soon as the engine starts, water should spray out of the pilot water hole ①, indicating that the water pump and cooling system are working properly. If you notice that water does not spray out of the pilot water hole, stop the engine as soon as possible and consult your Suzuki Marine Dealer.

Technical diagram of a mechanical component with numbered callouts and labeled parts

NOTICE

Never operate your outboard motor when there is no water coming out of the pilot water hole, or severe damage can result.

After starting the engine, check to make sure that there is water coming out of the pilot water hole.

WARNING

Operating the boat when the emergency stop switch is not operating properly can be hazardous.

Before starting off, check to make sure that the emergency stop switch operates properly.

EMERGENCY STARTING

If you must get the engine running, but are unable to do so because of starter system failure or battery discharge, you can use the emergency starting procedure to start the engine.

WARNING

If you touch electrical components when rope-starting the engine, you can get a severe electrical shock.

When rope-starting the engine, be careful not to touch electrical components such as ignition coils or spark plug leads.

1. Make sure that the motor is in "NEUTRAL" and the emergency stop switch lock plate is removed.

Mechanical assembly diagram showing a lever mechanism with arrows indicating motion direction (no text or labels)

WARNING

When you use the emergency starting procedure, the start-in-gear protection system will not work. If the shift lever is not in the “NEU-TRAL” position, the boat can start off unexpectedly when the engine is started, throwing occupants or causing an accident.

Make sure that the shift lever is in the “NEUTRAL” position before attempting to start the motor using the emergency starting procedure.

1. Remove the motor cover.
2. Loosen the four bolts securing the ring gear cover. Remove the ring gear cover.

Technical diagram of a mechanical device with labeled components and directional arrows indicating motion or assembly.

1. Squeeze the fuel line Priming bulb several times until resistance is felt.
2. Put the emergency stop switch lock plate in place.
3. Turn the ignition key to the "ON" position and listen for the electric fuel pump to cycle.

NOTE:

The initial fuel pump cycle is for a period of 3 seconds after the ignition key is first turned on. If the battery voltage is too low to operate the electric fuel pump, sufficient fuel will not be supplied to start the engine. If you are not sure about fuel pump operation, you may turn the key off, then repeat step #6.

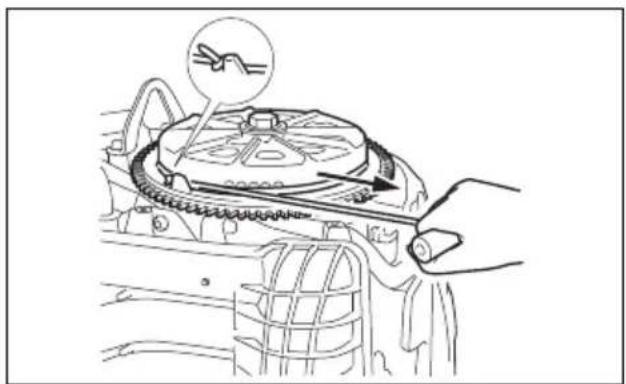

1. Tie a knot in one end of the emergency starter rope located in the tool kit. Tie the other end around the screw-driver handle in the tool kit.
2. Hook the knotted end of the rope in the pulley notch and wind the rope around the pulley in a counterclockwise direction.
3. After following steps of the normal starting procedure, pull the emergency starter rope sharply to start the engine.

Line drawing of a mechanical component with a hand operating it, showing a tool interacting with the lid (no text or symbols present)

WARNING

If you attempt to reinstall the ring gear cover or motor cover after starting the engine you can be injured.

Do not attempt to reinstall the ring gear cover or motor cover after starting the engine.

WARNING

When the engine is running, there are many moving parts that could cause severe personal injury.

When the engine is running, keep your hands, hair, clothing, etc., away from the engine.

NOTE:

Be sure to have the starter system repaired as soon as possible. You should not continue to use the emergency starting procedure for routine engine starting.

If equipped with Keyless Start System:

NOTE:

One (1) emergency key is included in the remote control box for the Keyless Start System.

NOTE:

In case of Dual Engine:

By carrying out the emergency start operation on either one of the engines, another engine may be started by operating the main switch.

If the key-fob is lost or the key-fob battery has run low, the Keyless Start System OFF (locked) state can be released by using the emergency key and entering the 4-digit passcode.

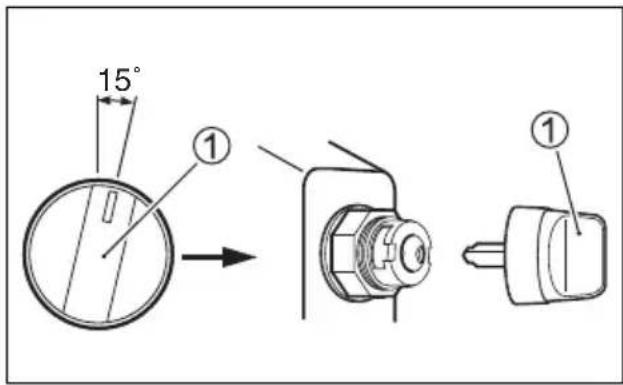

1. Turn the main switch ① to the right about 15^ and pull it out.

15° ① ①

1. Insert the emergency key ② into the key cylinder.

Technical diagram of a mechanical connector with labeled part ②

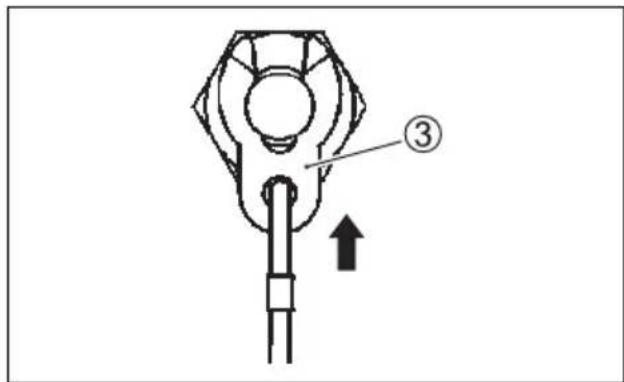

1. Make sure lock plate ③ is in position.

③

1. Turn the emergency key to "ON & OFF" position, and then release it to the "PUSH START/STOP" position. The buzzer emits one (1) long sound and five (5) short sounds.

PUSH START STOP ON & OFF ON & OFF PUSH START STOP

1. Pull out the emergency stop switch lock plate.

Diagram showing a mechanical component being lifted by a tool, with no visible text or symbols.

1. Turn the emergency key to the "ON & OFF" position and hold it until the buzzer sounds. Turn the emergency key back to the "PUSH START/STOP" position. The system turns to stand-by state for passcode input.

PUSH START STOP ON & OFF ON & OFF PUSH START STOP

1. Take the following steps to enter the pass-code.

(1)Turn the main switch to the "ON & OFF" position and then release it. The main switch automatically returns to the "PUSH START/STOP" position.

PUSH START STOP ON & OFF ON & OFF PUSH START STOP

(2)The buzzer starts emitting short sounds. When the buzzer sounds for the same number of times as the 1st digit of the passcode, immediately turn the emergency key to the "ON & OFF" position, and release it to the "PUSH START/STOP" position. To enter "0" in the passcode, turn the switch after the buzzer sounds 10 times.

Example: When entering 7 PUSH START STOP ON & OFF ON & OFF 1 2 3 4 5 6 7 8 9 1 0

(3)After an 11th long sound, repeat steps 1 and 2 to enter the second, third and fourth pass-code digits.

NOTE:

The buzzer emits one (1) short sound for the 1st digit, two (2) short sounds for the 2nd digit, three (3) short sounds for the 3rd digit, and four (4) short sounds for the 4th digit.

NOTE:

If a wrong passcode is entered or the input operation fails, the buzzer emits a long sound after entering the 4th digit followed by three additional beeps, and the operation is cancelled.

NOTE:

• If the passcode input has not been performed, passcode input for the same digit will start again after the main switch is operated.
• The input operation is cancelled if no entry is made after repeating the passcode input operation three (3) times.
  The buzzer then sounds three (3) times to notify that the input operation has been cancelled.
• To enter the passcode again after the input operation has been cancelled; repeat the procedure from Step 2.
• The passcode input can be interrupted by installing the lock plate on the emergency stop switch.

(4)Turn the emergency key to the counterclockwise within 10 seconds after entering the 4th digit of the passcode. The buzzer emits two (2) short sounds when the passcode input is successful, and the engine can then be started.

If the emergency key is not operated within 10 seconds, the buzzer sounds five (5) times followed by another beep, and the input operation is cancelled. In this case, repeat the procedure beginning at Step 2.

PUSH START STOP ON & OFF

To start the engine:

(5)Install the lock plate ③ on the emergency stop switch.

Technical diagram of a mechanical component with numbered callout and directional arrow

(6) Make sure the motor is in "NEUTRAL".

Technical line drawing of a mechanical device with directional arrows indicating motion or force (no text or symbols)

(7)Push the emergency key to start the engine.

PUSH START STOP ON & OFF

NOTE:

Starting of another engine of the Dual Engine: Push the main switch to start the engine.

Line drawing of a mechanical device with a hand adjusting its grip and a black arrow pointing to the handle (no text or symbols)

To stop the engine:

1. Shift into "NEUTRAL".
2. After operating at full throttle, cool off the engine a few minutes by allowing it to idle or troll at low speed.
3. Push the emergency key to stop the engine.

PUSH START STOP ON & OFF

NOTE:

Stopping of another engine of the Dual Engine: Push the main switch to stop the engine.

Line drawing of a mechanical device with a hand adjusting its base (no text or symbols)

1. Turn the emergency key to the "ON & OFF" position and then release it to the "PUSH START/STOP" position to turn the Keyless Start System to OFF state. And then, pull out the emergency key from the key cylinder.

PUSH START STOP ON & OFF PUSH START STOP ON & OFF

NOTE:

The passcode authentication state is maintained for 15 seconds after turning the emergency key to the "PUSH START/STOP" position. In this state, the engine can be started by turning the emergency key to the left and pressing the main switch. To restart the engine when the 15-second period has elapsed after turning the emergency key to the "PUSH START/STOP" position, repeat the emergency key operation from the beginning.

SHIFTING AND SPEED CONTROL

NOTICE

Severe engine damage may occur if (a) engine speed is not allowed to return to idle and boat speed is not reduced when shifting from "FORWARD" to "REVERSE" or from "REVERSE" to "FORWARD", or (b) care is not taken when operating the boat in reverse.

Always allow the engine speed to return to idle before shifting. Exercise caution and use minimal speed when operating the boat in reverse. Be sure the handle/shift lever is in the desired position before accelerating.

NOTICE

If you shift gears when the engine is not running, the shifting mechanism can be damaged.

Avoid shifting gears when the engine is not running.

Shifting

To shift into "FORWARD", squeeze the lock-out lever on the control handle and move the control handle forward to approximately position Ⓐ, as shown in the illustration.

To shift into “REVERSE”, squeeze the lock-out lever on the control handle and move the control handle rearward to approximately position Ⓑ, as shown in the illustration.

A NEUTRAL 32° 32° B FORWARD REVERSE

Speed Control

To increase speed after you have shifted into gear, continue moving the control handle forward or rearward.

WARNING

Since the same handle is used for shifting and speed control it is possible to move the handle past the detent and engage the throttle. This can cause the boat to move suddenly resulting in personal injury or property damage.

You must be careful not to move the control handle too far forward or rearward when shifting.

STOPPING THE ENGINE

NOTE:

When it is necessary to stop the engine in an emergency, pull the emergency stop switch lock plate out of the emergency stop switch by pulling the emergency stop switch cord.

If equipped with Keyless Start System:

To stop the engine:

1. Shift into "NEUTRAL".
2. After operating at full throttle, cool off the engine a few minutes by allowing it to idle or troll at low speed.
3. Push the main switch to stop the engine.

Mechanical assembly diagram showing a rotating shaft and housing with directional arrows (no text or labels)

Mechanical component diagram showing a lever mechanism with a black arrow pointing to the pivot point (no text or symbols present)

1. Turn the Keyless Start System to OFF (locked) status by one of the following methods.

- Make sure that the key-fob is within the communication range of the keyless control unit.

Turn the main switch to the "ON & OFF" position and then release it. The main switch automatically returns to the "PUSH START/STOP" position.

The buzzer sounds once to notify that the Keyless Start System has been turned to OFF (locked) state.

NOTE:

If equipped with Dual Engine:

When either one of the engines of Keyless Start System is turned OFF, another engine will automatically be turned OFF.

PUSH START STOP ON & OFF ON & OFF PUSH START STOP

- While the key-fob is within the communication range of the keyless control unit, press the lock button ① on the key-fob. The buzzer sounds once to notify that the Keyless Start System has been turned OFF (locked).

①

NOTE:

Even when the engine is stopped, all lamps in the monitor-tachometer will continue to light, unless the Keyless Start System is turned to OFF state.

NOTICE

If the Keyless Start System is in ON state while the engine is not running, the battery will be discharged.

Always turn the Keyless Start System to OFF state when the engine is not running.

WARNING

Unauthorized use of your boat could lead to an accident or damage to your boat.

To prevent unauthorized use of your boat, be sure to remove the key and emergency stop switch lock plate when the boat is unattended.

1. After stopping the engine, disconnect the fuel line from the outboard motor if there is a fuel connector.

WARNING

If you leave the motor stopped for a long period of time with the fuel line connected, fuel can leak out.

Disconnect the fuel line from fuel tank, if there is a fuel connector, whenever you leave the motor stopped for a long period of time.

1. Turn the air-vent screw on the fuel tank cap clockwise to shut the vent (if equipped).

NOTE:

To make sure that the emergency stop switch operates properly, stop the engine occasionally by pulling out the lock plate, while operating the engine at idling speed.

If not equipped with Keyless Start System:

To stop the engine:

1. Shift into "NEUTRAL".
2. After operating at full throttle, cool off the engine a few minutes by allowing it to idle or troll at low speed.

Mechanical diagram showing a rotating component with arrows indicating motion direction (no text or symbols)

1. Turn the ignition key to the "OFF" position. Always leave the ignition key in the "OFF" position when the motor is not running, or the battery can discharge.

OFF ON START

NOTICE

If the ignition key is left ON when the engine is not running, the battery will discharge.

Always turn the ignition key OFF when the engine is not running.

WARNING

Unauthorized use of your boat could lead to an accident or damage to your boat.

To prevent unauthorized use of your boat, be sure to remove the key and emergency stop switch lock plate when the boat is unattended.

1. After stopping the engine, disconnect the fuel line from the outboard motor if there is a fuel connector.

WARNING

If you leave the motor stopped for a long period of time with the fuel line connected, fuel can leak out.

Disconnect the fuel line from fuel tank, if there is a fuel connector, whenever you leave the motor stopped for a long period of time.

1. Turn the air-vent screw on the fuel tank cap clockwise to shut the vent (if equipped).

NOTE:

To make sure that the emergency stop switch operates properly, stop the engine occasionally by pulling out the lock plate, while operating the engine at idling speed.

MOORING

The motor should be tilted up out of the water when you moor the boat in shallow water or if the motor will not be used for some time, to protect it from damage by underwater obstacles at low tide or corrosion from salt water.

Refer to the TILT BRACKET section for details on how to tilt up the motor.

NOTICE

Improperly securing your boat may cause damage to your boat or motor, or other property damage.

Do not allow your motor to rub against quay walls, piers or other boats when the boat is tied up.

OPERATING THE TROLL MODE (Optional Item)

Trolling speed can be controlled to install the optional Troll Mode switch.

Please contact your authorized Suzuki Marine Dealer for more information.

NOTE:

To monitor engine speed correctly during the troll mode operation, Suzuki recommends the use of the Suzuki 2-scale Monitor Tachometer.

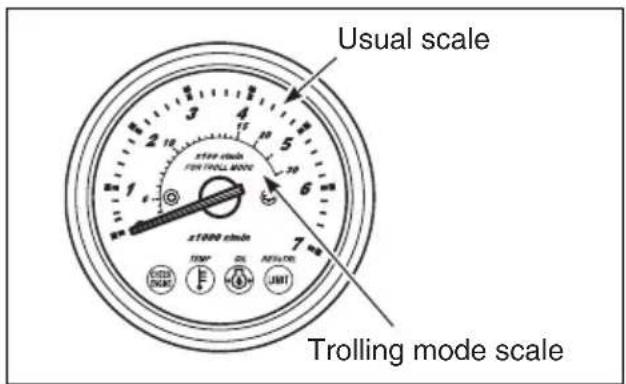

Usual scale Trolling mode scale x1000 x/min 15 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 360 370 380 390 400 410 420 430 440 450 460 470 480 490 500

System Outline

The “Troll Mode System” is activated by pressing the troll mode switch, when the motor is running at in-gear idle speed. By using this system, you can set and maintain a desired engine speed with the control switch in a range from in-gear idle speed (approx. 700 r/min) to 1200 r/min.

How to use the Troll Mode

Setting the troll mode:

1. Shift into forward or reverse gear and make sure that the throttle is fully closed (in-gear idle speed).
2. Press the "UP" or "DN" position of the troll mode switch, until you hear one beep.

The REV/TRL (or REV) lamp on the monitor gauge will flash indicating that the motor has been set to the troll mode. The REV/TRL (or REV) lamp will continue to flash while the motor is in the troll mode.

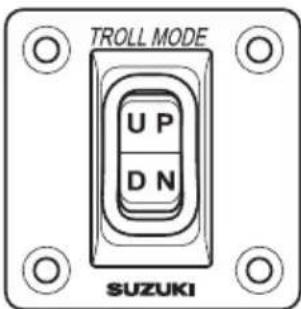

TROLL MODE UP DN SUZUKI

Troll mode switch

NOTE:

The troll mode system will not operate if the switch is depressed when the remote control lever is in the neutral position.

Adjusting trolling speed:

- When pressing the "UP" switch, one short beep sounds and the engine speed increases by 50 r/min. - When pressing the "DN" switch, one short beep sounds and the engine speed decreases by 50 r/min.

NOTE:

• When pressing the "DN" switch at the lower limit of trolling speed, the engine speed will not change and three long beeps will sound.
• When pressing the "UP" switch at the upper limit of trolling speed, the engine speed will not change and three long beeps will sound.
• Shift operation and throttle control remain operational, even in troll mode.

Cancelling the troll mode:

The troll mode can be cancelled by shifting the remote control lever to the neutral position, or by increasing the engine speed to 3000 r/min or more. In both cases, two short beeps sound when cancelling the troll mode.

OPERATION IN SHALLOW WATER

When operating your boat in shallow water, it may be necessary to tilt the motor higher than the normal trim angle. When you tilt the motor beyond the normal trim angle, however, you should only operate the boat at slow speeds. After returning to deep water, be sure to lower the motor to the normal trim angle.

WARNING

When the motor is beyond the maximum trim position, the swivel bracket will not have side support from the clamp bracket and the tilt system will be unable to cushion the engine if the lower unit strikes an obstruction. This could lead to occupant injury. In addition, beyond the maximum trim position, the water intake holes may be above the water line, which can result in severe engine damage from overheating.

Do not operate the engine above 1500 r/min or operate the boat in a planning attitude with the engine beyond the maximum trim position.

NOTICE

If the motor hits bottom, serious damage can occur.

Do not allow the motor to hit bottom. If the motor does strike bottom, inspect it immediately for damage.

OPERATION IN SALT WATER

After operating the motor in salt water, you should flush the water passages with clean, fresh water as outlined in the FLUSHING THE WATER PASSAGES section. If you do not flush the water passages, salt can corrode the motor and shorten its life.

When operating your outboard motor in freezing temperatures, you should keep the lower unit submerged in the water at all times.

When taking motor out of the water, stand it up in a vertical position until the cooling system drains completely.

NOTICE

If you leave your outboard motor out of the water in freezing temperatures with water still in the cooling system, the water can freeze and expand, causing severe damage to the motor.

When your outboard is in the water in freezing temperatures, keep the lower unit submerged in the water at all times. When the motor is stored out of the water in freezing temperatures stand it up in the vertical position so that the cooling system drains completely.

MOTOR REMOVAL AND TRANSPORTING

MOTOR REMOVAL

If it is necessary to remove the outboard motor from your boat, we recommend that you ask your authorized Suzuki Marine Dealer to do the work for you.

MOTOR TRANSPORTING

When transporting the motor, place the motor either vertically or horizontally.

Vertical transport:

Attach the motor to the carrier by securing clamp bracket with two sets of transom bolt and nut.

Never use display stand for transportation of the motor.

Line drawing of a mechanical device with wheels and a central component (no text or symbols)

Horizontal transport:

1. Drain the engine oil. Refer to the ENGINE OIL section.
2. Drain the gasoline from the vapor separator as follows:
   (1)Remove the motor cover.
   (2)Remove the side cover rubber ① from the side cover. Remove the side cover bolts and side cover.

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating motion or flow.

(3) Pull the drain hose end ② out. Loosen the vapor separator drain screw ③, and drain the gasoline into a suitable container.

Technical diagram of a mechanical assembly with numbered components and labeled parts in Chinese

WARNING

Gasoline is extremely flammable and toxic. It can cause a fire and can be hazardous to people and pets.

Use a proper, safe container to store any gasoline drained from the outboard motor. Keep gasoline away from sparks, flames, people, and pets.

NOTICE

If spilled gasoline is just left on painted surface, it may cause a stain or discoloration of the surface coating.

Wipe off any spilled gasoline immediately with a soft cloth etc.

(4)After draining, retighten the screws ③.
(5) Install the side cover and side cover rubber.
(6) Install the motor cover.

1. Rest the motor on a case protector with the port side downwards as shown.

Technical line drawing of a submarine with internal components and propeller (no text or symbols)

WARNING

Spilled fuel or fuel vapor can cause a fire and is hazardous to health.

Always take the following precautions:

• Drain the fuel from the fuel line and fuel vapor separator before transporting the boat/outboard motor and before removing the motor from the boat.
• DO NOT lay motor on its side without draining fuel.
• Keep the motor away from open flames or sparks.
• Wipe up spilled fuel immediately.

NOTICE

If you are not careful when resting the outboard on its side and do not take proper precautions such as first draining the engine oil and cooling water completely, damage can occur. Engine oil may enter the cylinder from the sump, water may enter the cylinder through the exhaust port, or the outer casings may be damaged.

Always drain the engine oil and cooling water completely before laying the motor on its side, and be careful laying the motor down.

NOTICE

If you let the lower unit of your outboard sit higher than the power head during transporting or storing, water may trickle into the power head, causing damage to the engine.

Never let the lower unit sit higher than the power head when transporting or storing your outboard.

TRAILERING

When trailering your boat with the motor attached, keep the motor in the normal operating position unless there is not enough ground clearance. If you need more ground clearance, trailer the motor in a tilted position using a trans-som saver bar or similar device to support the weight of the motor.

Line drawing of a truck's cargo being loaded with a motor, showing structural components and an arrow indicating motion direction (no text or symbols)

NOTICE

If you use the tilt bracket to hold the motor in the fully tilted up position when trailering the boat, towing motion or poor road surfaces may cause unexpected tilt lock release, resulting in damage to the motor and the tilt lock mechanism.

Never use the tilt bracket to hold the motor in the fully tilted up position when trailering the boat. Use a transom saver bar or similar device to support the weight of the motor.

INSPECTION AND MAINTENANCE

MAINTENANCE SCHEDULE

It is important to inspect and maintain your outboard motor regularly. Follow the chart below. At each interval, be sure to perform the indicated service. Maintenance intervals should be judged by number of hours or number of months, whichever comes first.

WARNING

Exhaust gas contains carbon monoxide, a dangerous gas that is difficult to detect because it is colorless and odorless. Breathing carbon monoxide can cause death or severe injury.

Never start the engine or let it run indoors or where there is little or no ventilation.

Item to be serviced\Interval	Initial 20 hrs. or 1 month	Every 100 hrs. or every 12 months	Every 200 hrs. or every 12 months	Every 300 hrs. or every 36 months
Spark plug I
Breather & Fuel line II
Engine oil R R
Gear oil R R
Lubrication II
Anodes (external) II
* Anodes (internal cylinder block/cylinder head)		I
Bonding wire II
Battery II
* Engine oil filter R R
Low pressure fuel filter	I	I
	Replace every 400 hours or every 2 years.
* Idle speed I		I
* Valve clearance (lash)				I
* Water pump			I
* Water pump impeller			I	R
* Propeller nut & pin	II
* Bolts & Nuts	T	T
* Thermostat		I

I: Inspect and clean, adjust, lubricate, or replace, if necessary T: Tighten R: Replace

NOTE:

Water-separating fuel filter

Replace the filter element every 12-months (or more frequently if recommended by the filter manufacturer).

WARNING

Improper maintenance or failure to perform recommended maintenance can be hazardous. Poor maintenance or lack of maintenance increases the chance of an accident or equipment damage.

Be sure to have maintenance performed according to the schedule in the above chart. Suzuki recommends that only your authorized Suzuki marine dealer or a qualified service mechanic perform maintenance on those items in the chart above which are marked with an asterisk (*). You may perform maintenance on the unmarked items by referring to the instructions in this section if you have mechanical experience. If you are not sure whether you can successfully complete any of the unmarked maintenance jobs, ask your authorized Suzuki marine dealer to do the maintenance for you.

WARNING

The safety of you and your passengers depends on how well you maintain your outboard motor.

Follow all inspection and maintenance instructions carefully. If you do not have prior mechanical experience, do not attempt to perform maintenance on your outboard motor. You could be injured or may damage the motor.

NOTICE

The maintenance intervals in the chart are designed for normal usage of your outboard motor. If your outboard motor is used under severe conditions as outlined below, you may need to perform maintenance more often than indicated in the chart.

• Frequent full throttle operation
- Prolonged continuous operation at the maximum speed
- Prolonged continuous operation at idling speed or trolling speed
- Frequent operation in muddy, silty, sandy, acidic or shallow water
• Operation without appropriate warmup

• Frequent abrupt acceleration and deceleration
• Frequent shift operation
  Failure to perform maintenance more frequently could result in damage.

Consult your authorized Suzuki marine dealer regarding appropriate maintenance intervals for your usage conditions. When replacing parts on your outboard motor, Suzuki strongly recommends that you use genuine Suzuki parts or their equivalent.

TOOL KIT

A tool kit is provided with your outboard motor. Keep the kit on board your boat and make sure that all of the items provided remain in the kit.

The tool kit contains the following items:

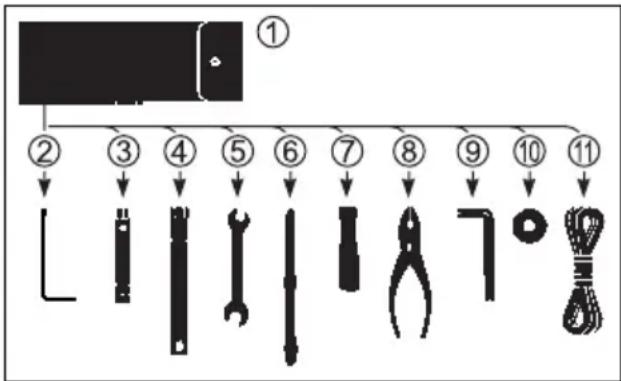

① Tool bag
② 8 mm Box wrench
③ 8 × 10 mm Box wrench
④ 16 mm Box wrench
⑤ 10 × 12 mm Spanner (DF100B only)
⑥ Combination screw driver
⑦ Screwdriver handle
⑧ Pliers
⑨ Hexagon wrench 8 mm
⑩ Engine oil drain plug gasket (spare)
⑪ Emergency starter rope

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪

SPARK PLUG

Remove the spark plugs as follows:

1. Remove the bolt securing the ignition coil.
2. Pull out the ignition coil.
3. Loosen and remove the spark plug using the box wrench in the tool bag.

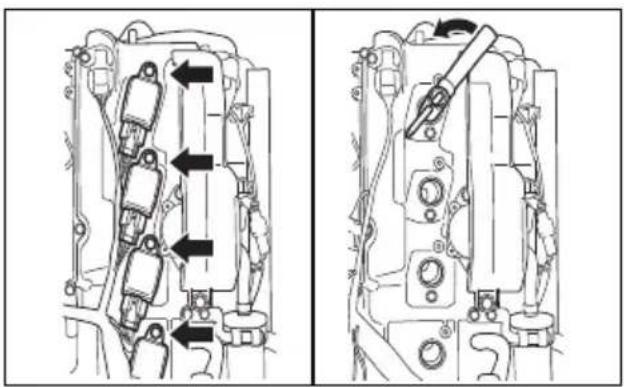

Technical diagram of mechanical components with directional arrows indicating movement or force (no text or labels present)

Your outboard motor comes equipped with the following "standard" spark plug for normal usage.

NGK DCPR6E Standard

NOTICE

Non-resistor types of spark plugs will interfere with the function of the electronic ignition, causing misfiring, or causing problems with other electronic boat equipment and accessories.

Use ONLY resistor type spark plugs in your outboard motor.

A normally operating spark plug is very light-brown in color. If the standard plug is not suitable for your operating, consult your authorized Suzuki Marine Dealer.

Technical illustration of two different engine spark plugs shown from front and side views (no text or symbols)

NOTICE

Use of improper spark plugs or improperly tightening spark plugs can cause severe engine damage.

• Do not experiment with other spark plug brands unless you can determine that they are directly equivalent to the specified brand, or you may experience engine damage which will not be covered under warranty. Note that aftermarket cross-reference charts may not be accurate.
• To install a spark plug; seat it as far as possible by hand, then use a wrench to tighten it to either the recommended torque setting or the specified rotation angle.

Tightening torque
16 – 19 N·m(1.6 – 1.9 kg·m, 11.6 – 13.7 lb·ft)
Rotation angle
New plug 1/2 –	3/4 of a turn
Re-use plug 1/1	12 – 1/8 of a turn

- Do not overtighten or cross-thread a spark plug, as this will damage the aluminum threads of the cylinder head.

To maintain a strong spark, you should clean and adjust the plugs at the intervals shown in the maintenance chart. Remove carbon deposits from the spark plugs using a small wire brush or spark plug cleaner, and adjust the gap according to the following chart:

Spark plug gap

0.8 – 0.9 mm(0.031 – 0.035 in.)

Technical illustration showing a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

1. Excessive wear 2. Breakage 3. Melting
2. Erosion 5. Yellow deposits 6. Oxidation

NOTE:

If the spark plug condition is found as shown in the illustration above, ensure it is replaced with new one. Otherwise, it will cause difficulty in starting the engine, increase fuel consumption, and result in engine troubles.

BREATHER AND FUEL LINE

Inspect the breather and fuel line for leaks, cracks, swelling, or other damage. If the breather and fuel line is damaged in any way, it must be replaced. Consult your authorized Suzuki Marine Dealer if it is necessary to replace them.

DF70A/80A/90A Breather line Breather line

DF100B DF100B Breather line Breather line

DF70A/80A/90A Fuel line Fuel line

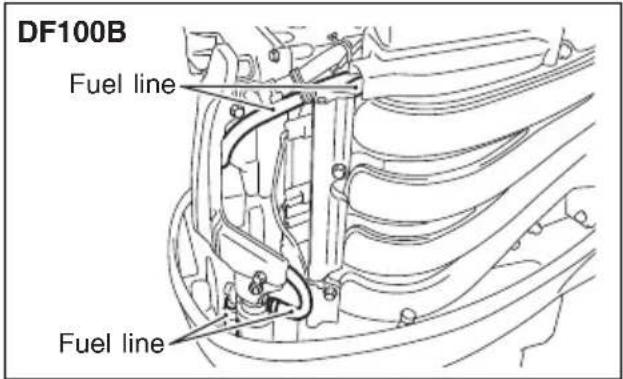

DF100B Fuel line Fuel line

WARNING

Fuel leakage can contribute to an explosion or fire, resulting in serious personal injury.

Have your authorized Suzuki Marine Dealer replace the fuel line if there is any evidence of leaking, cracking or swelling.

ENGINE OIL

WARNING

Never perform any ENGINE OIL procedure with the motor running, as serious injury can occur.

The motor must be shut off before any ENGINE OIL procedures are performed.

NOTICE

Extended trolling can reduce oil life. Your engine may be damaged if you do not change engine oil more frequently under this type of use.

Change your engine oil more frequently if your engine is used for extended trolling.

Engine oil change

The oil should be changed when engine is warm so that the oil will drain thoroughly from the engine.

To change the engine oil:

1. Place the motor in a vertical position and remove the motor cover.
2. Remove the oil filler cap.

Technical line drawing of a mechanical assembly with a knob and lever (no text or symbols)

1. Place a drain pan under the engine oil drain screw.

CAUTION

The engine oil temperature may be high enough to burn your fingers when the drain plug is loosened.

Wait until the drain plug is cool enough to touch with bare hands before removing it.

1. Remove the engine oil drain screw ① and gasket ②, then let the engine oil drain.

Technical diagram showing a mechanical assembly with labeled parts, including a lever and a cup.

1. After draining, secure the engine oil drain screw with a new gasket.

NOTICE

A previously-used gasket may leak, resulting in engine damage.

Do not re-use gaskets. Be sure to always use new gaskets.

NOTE:

There are spare gaskets in the tool bag.

1. Fill with recommended engine oil to the upper level.

Oil capacity: 4.0 L (4.2/3.5 US/Imp qt.)

1. Check the engine oil level.

UPPER LIMIT LOWER LIMIT

NOTE:

To avoid incorrect measurement of engine oil level, check oil level only when the engine has cooled.

1. Reinstall the oil filler cap.

WARNING

Engine oil can cause injury to people or pets. Repeated, prolonged contact with used engine oil may cause skin cancer. Even brief contact with used oil may irritate skin.

• Keep new and used oil away from children and pets.
• Wear a long-sleeve shirt and waterproof gloves when handling oil.
• Wash with soap if oil contacts your skin.
• Launder any clothing or rags that are wet with oil.

NOTE:

Recycle or properly dispose of used engine oil. Do not throw it in the trash, or pour it on the ground, down a drain, or into the water.

GEAR OIL

To check the gear oil level, remove the gear oil level plug ① and look into the hole. The oil level should be at the bottom edge of the hole. If the oil level is low, add the specified gear oil until the level reaches the bottom edge of the hole. Then, reinstall and tighten the plug.

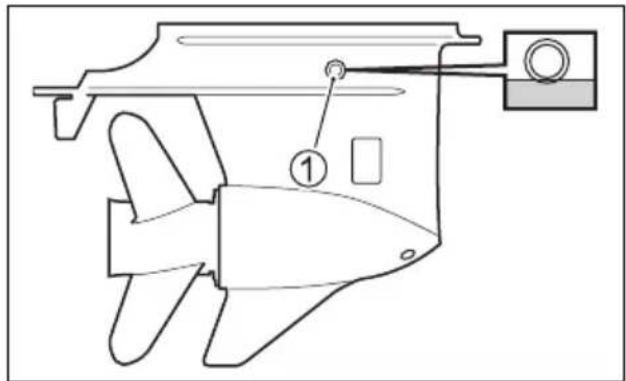

Technical diagram of a mechanical component with labeled parts and numbered callouts

To change the gear oil:

1. Make sure the motor is in an upright position. Place a drain pan under the lower casing.
2. Remove the gear oil drain plug ②, then remove the gear oil level plug ①.

Technical diagram of a mechanical component with labeled parts ① and ②

1. After the oil has drained completely, inject the specified gear oil into the gear oil drain hole ② until it just starts to come out of the gear oil level hole ①. Approximately 0.85 L (0.90/0.75 US/Imp. qt.) of oil will be required.
2. Reinstall and tighten the gear oil level plug ①, then quickly reinstall and tighten the gear oil drain plug ②.

NOTE:

To avoid insufficient injection of gear oil, check the gear oil level 10 minutes after doing the procedure in the step 4. If the oil level is low, slowly inject the gear oil into the gear oil level hole ① up to the correct level.

WARNING

Gear oil can cause injury to people or pets. Repeated, prolonged contact with used gear oil may cause skin cancer. Even brief contact with used oil may irritate skin.

• Keep new and used oil away from children and pets.
• Wear a long-sleeve shirt and waterproof gloves when handling oil.
• Wash with soap if oil contacts your skin.
• Launder any clothing or rags that are wet with oil.

NOTE:

Recycle or properly dispose of used gear oil. Do not throw it in the trash, or pour it on the ground, down a drain, or into the water.

NOTICE

If fishing line wraps around the rotating propeller shaft, the propeller shaft oil seal can become damaged and can allow water to enter the gear case causing severe damage.

If the gear oil has a milky color, it is contaminated with water. Immediately contact your authorized Suzuki marine dealer for advice. Do not operate your outboard until the oil is changed and the cause of the contamination is corrected.

LUBRICATION

Proper lubrication is important for the safe, smooth operation and long life of each working part of your outboard motor. The following chart shows the lubrication points of your motor and the recommended lubricant:

LOCATION LUBRICANT
Throttle/Shift linkage	Marine-grade water resistant grease
Propeller shaft
Swivel bracket	Marine-grade water resistant grease (Grease Gun)
Clutch lever
Steering bracket

Before applying grease through the steering bracket grease nipple, lock the motor in the fully tilted up position.

NOTE:

ANODES AND BONDING WIRES

Anodes

The motor is protected from exterior corrosion by anodes. These pieces of anodes control electrolysis and prevent corrosion. The anodes will corrode in place of the parts they are protecting. You should periodically inspect each of the anodes and replace them when 2/3 of the metal has corroded away.

Technical line drawing of a mechanical component with an arrow indicating a specific feature (no text or symbols present)

Technical line drawing of a mechanical device with a directional arrow indicating motion (no text or symbols)

only transom X

NOTICE

If anodes are not properly maintained, underwater aluminum surfaces (such as the lower unit) will suffer galvanic corrosion damage.

• Periodically inspect anodes to make sure they have not become detached.
• Do not paint anodes, as this will render them ineffective.
• Periodically clean anodes with a wire brush to remove any coating which might decrease their protective ability.

NOTE:

Consult your authorized Suzuki Marine Dealer for inspection and replacement of internal anodes attached to the cylinder block/cylinder head.

Bonding wires

Bonding wires are used to electrically connect the engine components so they exist in a common ground circuit. This allows them to be protected against electrolysis by the anodes. These wires and their terminals should be checked periodically to be sure they have not been damaged.

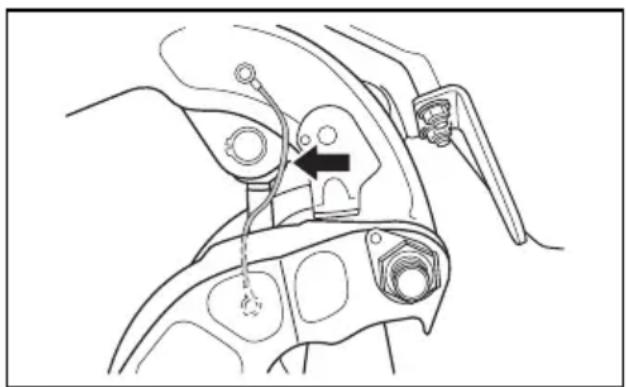

Technical line drawing of a mechanical component with no visible text or symbols

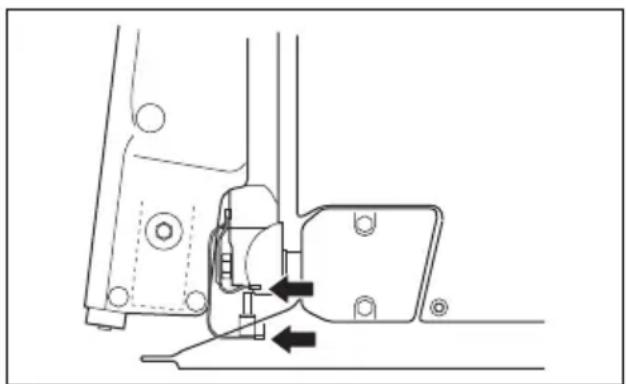

Mechanical assembly diagram showing a bracket and mounting bracket with directional arrows indicating movement (no text or symbols)

BATTERY

The battery solution level must be kept between the MAX and the MIN level lines at all times. If the level drops below the MIN level line, add DISTILLED WATER ONLY until the battery solution level reaches the MAX level line.

WARNING

Battery acid is poisonous and corrosive, and can cause severe injury.

Avoid contact with eyes, skin, clothing, and painted surfaces. If battery acid comes in contact with any of these, flush immediately with large amounts of water. If acid contacts the eyes or skin, get immediate medical attention.

WARNING

If you are not careful when checking or servicing the battery, you can cause a short circuit, which could result in an explosion, fire, or circuit damage.

Disconnect the negative (black) cable when checking or servicing the battery. Be careful not to allow a metal tool or other metal object to touch the battery's positive terminal and the motor at the same time.

WARNING

Battery posts, terminals, and related accessories contain lead and lead compounds that may be hazardous.

Wash hands after handling.

NOTICE

If you add diluted sulphuric acid to the battery after it has been initially serviced, you will damage the battery.

NEVER add diluted sulphuric acid to the battery after it has been initially serviced. Follow the battery manufacturer's instructions for specific maintenance procedures.

ENGINE OIL FILTER

The engine oil filter must be changed by authorized Suzuki Marine Dealer periodically. Replace engine oil filter with a new one at initial 20 hours (1 month).

Replace engine oil filter with a new one at every 200 hours (12 months).

The fuel filter must be inspected by authorized Suzuki Marine Dealer periodically.

Low pressure fuel filter

Inspect low pressure fuel filter at initial 20 hours (1 month).

Inspect low pressure fuel filter at every 100 hours (12 months).

Replace low pressure fuel filter with a new one at every 400 hours (2 years).

LOW PRESSURE FUEL FILTER (DF100B only)

The low pressure fuel filter must be replaced by an authorized Suzuki Marine Dealer periodically.

Replace low pressure fuel filter at every 400 hours (2 years).

WARNING

Gasoline is extremely flammable and toxic. It can cause a fire and can be hazardous to people and pets.

Always take the following precautions when servicing the fuel filter:

• Stop the motor before cleaning the fuel filter.
• Be careful not to spill fuel. If you do, wipe it up immediately.
• Do not smoke, and keep away from open flames and sparks.

WARNING

Cleaning solvent is toxic and an irritant, and can cause injury to people and pets.

Keep solvent away from children and pets. Dispose of solvent properly when you are finished.

Inspect and clean the fuel filter as follows:

1. Turn the engine off and allow it to cool.
2. If equipped with Keyless Start System: Make sure that the keyless start system is in OFF stage.

If not equipped with Keyless Start System: Make sure that the ignition key is in the OFF position.

1. Remove the motor cover.

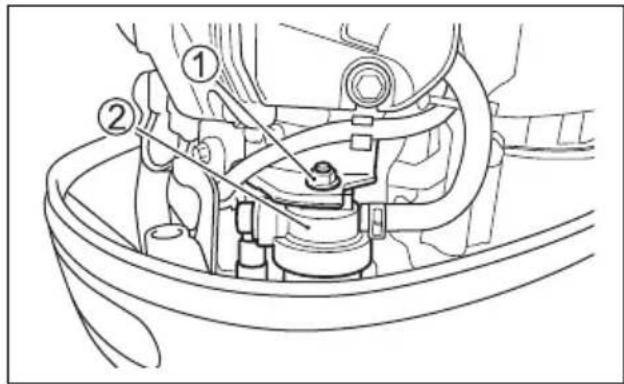

2. Remove the nut ① securing the fuel filter cap ② in place.

Technical diagram of a mechanical assembly with numbered components, likely for vehicle maintenance or assembly instructions.

NOTICE

Improperly loosening the filter cup can cause sensor lead wire damage.

• Be careful not to twist the sensor lead wire when removing the filter cup.

• Disconnect the lead wire connector before removing the filter cup.

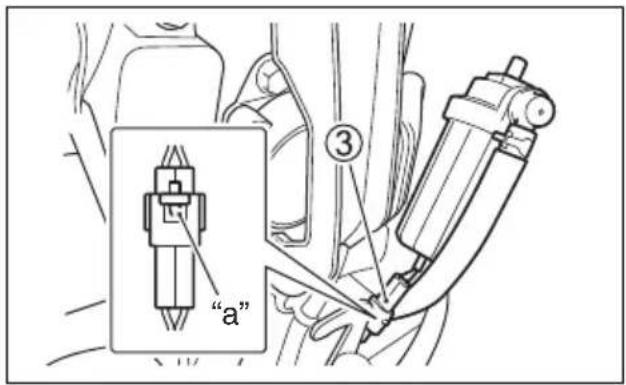

• Push the connector lock tab "a", then disconnect the water sensor lead wire connector ③.

"a" ③

1. Place a rag under the filter before removal to catch any spilled fuel.
2. Separate the filter cup ④ from the cap ② by turning the filter cup counterclockwise.

Technical diagram of a mechanical device with numbered parts labeled ② and ④

1. Drain the fuel and water in the filter cup into a suitable container.

NOTICE

If spilled gasoline is just left on painted surface, it may cause a stain or discoloration of the surface coating.

Wipe off any spilled gasoline immediately with a soft cloth etc.

1. Pull out the filter element ⑤. Inspect the filter element ⑤, O-ring ⑥ and seal ring ⑦ for damage. If they are damaged, replace them.

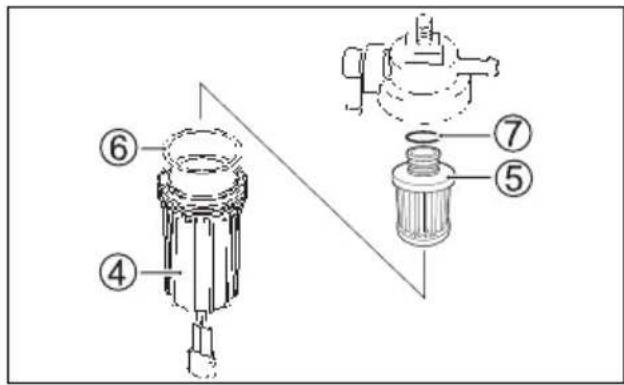

Technical diagram of a mechanical component with numbered parts labeled 4, 5, and 6

1. Wash the filter element with clean solvent and dry it.
2. Reinstall the seal ring and filter element in their original positions.
3. Verify that the O-ring is in place in the top of the filter cup and screw the filter cup back into place.
4. Connect the water sensor lead wire connector ③.
5. Reinstall the fuel filter with the attaching nut.
6. Restart the engine and check that there are no leaks around the fuel filter.

NOTE:

If any water exists in the fuel filter cup, remove the cup and drain the water. Always dispose of excess fuel safely. For questions, consult your authorized Suzuki Marine Dealer.

FLUSHING THE WATER PASSAGES

After operation in muddy, brackish, or salt water, you should flush the water passages and motor surface with clean, fresh water.

If you do not flush the water passages, salt can corrode the motor and shorten its life. Flush the water passages as follows.

ENGINE RUNNING – Vertical position –

Suzuki recommends that you flush the water passages by using this method.

To flush the water passages, you must obtain a commercially available engine flush device.

WARNING

Exhaust gas contains carbon monoxide, a dangerous gas that is difficult to detect because it is colorless and odorless. Breathing carbon monoxide can cause death or severe injury.

Never start the engine or let it run indoors or where there is little or no ventilation.

WARNING

Failure to take proper precautions when flushing the water passages can be hazardous.

When flushing the water passages, always take the following precautions:

• Make sure that the engine remains in NEU-TRAL. If shifted into gear, the propeller shaft will turn and could cause severe personal injury.
• Make sure the motor is properly clamped to a secure stand or boat, and remain in attendance until flushing is completed.
• Keep children and pets away from the area, and stay clear of all moving parts.

NOTICE

Severe engine damage can occur in as little as 15 seconds if the engine is started without supplying water to the cooling system.

Never start the motor without supplying water to the cooling system.

1. Make sure that the motor is stopped.
2. Install the flushing attachment ① so that the water intake holes are covered by the rubber cups on the attachment.
3. Connect a garden hose to the flushing attachment and turn on the water to obtain enough flow so that plenty of excess water is flowing out from around the rubber cups on the attachment.

Technical diagram of a mechanical assembly with labeled parts and a numbered annotation

1. Place the remote control handle in the "NEUTRAL" position with the propeller removed, start the motor and allow it to run at idle.
2. Readjust the water flow, if necessary, so that there is still plenty of excess water flowing out from around the rubber cups.
3. Allow the water to continue circulating for a few minutes.
4. Stop the motor, then turn off the water.
5. Remove the flushing attachment from the water intake hole.
6. Clean the motor surface and apply a coat of automotive wax on the external finish of the motor.

ENGINE NOT RUNNING

- Vertical position -

1. Make sure that the motor is stopped.
2. Remove one of the plug Ⓐ or Ⓒ from the two flushing port.

Technical diagram of a mechanical assembly with labeled parts A and B, showing structural components and alignment indicators.

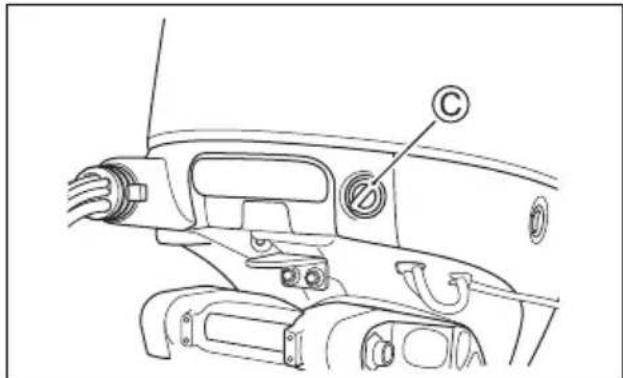

Technical diagram of a vehicle head panel with labeled component 'C'

1. Install garden hose by using a hose connector matched to flushing port thread Ⓑ.

Thread Ⓑ: 0.75 – 11.5 NHR (American standard hose coupling threads for garden hose applications.)

Technical diagram showing a hand holding a tool with an arrow pointing to a component labeled B, likely illustrating a mechanical or electrical process.

1. Turn on the water to obtain a good water flow. Flush the engine for about five minutes.
2. Turn off the water.
3. Remove the hose and connector (if used) then reinstall the plug into the flushing port.
4. Leave the motor in a vertical position until the engine is drained completely.

ENGINE NOT RUNNING

- Full tilt up position -

1. Raise the engine to the full tilt up position.
2. Follow the "ENGINE NOT RUNNING – Vertical position" instructions.

DO NOT RUN ENGINE IN THE FULL TILT UP POSITION.

1. Lower the motor to a vertical position until the engine is drained completely.

SUBMERGED MOTOR

A motor that has been accidentally submerged in water must be overhauled as soon as possible to prevent corrosion. In the event that your motor is accidentally submerged, take the following steps:

1. Get the motor out of the water as soon as possible.
2. Wash it thoroughly with fresh water to completely remove all salt, mud, and seaweed.
3. Remove the spark plugs. Drain the water from the cylinders through the spark plug holes by manually turning the flywheel several times.
4. Check if any water is evident in the engine oil. If water is seen, remove the oil drain plug and drain the oil. After draining, tighten the oil drain plug.
5. Drain the fuel line.

WARNING

Gasoline is extremely flammable and toxic. It can cause a fire and can be hazardous to people and pets.

Keep flames and sparks away from gasoline. Dispose of unwanted fuel properly.

1. Pour engine oil into the engine through the spark plug holes. Coat the engine inner parts with oil by manually turning the flywheel several times.

NOTICE

Severe engine damage may occur if you continue cranking the engine when you encounter friction or resistance.

If you encounter friction or resistance while cranking the engine, stop at once and do not attempt to start the engine until you find and correct the problem.

1. Take the motor to your authorized Suzuki Marine Dealer as soon as possible to be overhauled.

NOTICE

If the fuel supply is contaminated with water, engine damage may occur.

If the boat's fuel tank filler and vent were submerged, inspect the fuel supply to make sure it is not contaminated with water.

STORAGE PROCEDURE

MOTOR STORAGE

When storing your motor for a long period of time (for example, at the end of the boating season), it is recommended that you take your motor to your authorized Suzuki Marine Dealer. However, if you choose to prepare the motor for storage yourself, follow the procedure outlined below:

1. Change the gear oil as outlined in the GEAR OIL section.
2. Change the engine oil as outlined in the ENGINE OIL section.
3. Fill a fuel stabilizer to the fuel tank according to the instructions on the stabilizer can.
4. Flush the water passages in the motor thoroughly. Refer to the FLUSHING THE WATER PASSAGES (Engine running) section.
5. Readjust the water flow, run the engine at about 1500 r/min in neutral for five minutes to distribute the stabilized fuel through the engine.
6. Stop the engine. Then turn off the water and disconnect the flushing attachment.
7. Lubricate all other specified parts. Refer to the LUBRICATION section.
8. Apply a coat of automotive wax on the external finish of the motor. If paint damage is evident, apply touch up paint before waxing.
9. Store the motor in an upright position in a dry, well-ventilated area.

WARNING

When the engine is running, there are many moving parts that could cause severe personal injury.

When the engine is running, keep your hands, hair, clothing, etc., away from the engine.

NOTICE

Severe engine damage can occur in as little as 15 seconds if the engine is started without supplying water to the cooling system.

Never start the motor without supplying water to the cooling system.

BATTERY STORAGE

1. When the outboard motor will not be used for a month or longer, remove the battery and store it in a cool, dark place. Completely recharge the battery before reusing it.
2. If the battery will be stored for a long period of time, check the specific gravity of the battery solution at least once a month and recharge the battery when low.

WARNING

Failure to take proper precautions when charging the battery can be hazardous. Batteries produce explosive vapors that can ignite. Battery acid is poisonous and corrosive, and can cause severe injury.

• Do not smoke and keep battery away from open flames and sparks.
• To avoid creating a spark when charging the battery, connect the battery charger cables to the proper terminals before turning the charger on.
• Handle the battery with extreme care and avoid skin contact with battery acid.
• Wear proper protective clothing (Safety glasses, gloves, etc.)

AFTER STORAGE

When taking your motor out of storage, follow the procedure below to return it to operating condition:

1. Thoroughly clean the spark plugs. Replace them if necessary.
2. Check the gear-case oil level and if necessary, add gear oil according to the procedure outlined in the GEAR OIL section.
3. Lubricate all moving parts according to the LUBRICATION section.
4. Check the engine oil level.
5. Clean the motor and wax the painted surfaces.
6. Recharge the battery before installing it.

TROUBLESHOOTING

This troubleshooting guide is provided to help you find the cause of common complaints.

NOTICE

Failure to troubleshoot a problem correctly can damage your outboard motor. Improper repairs or adjustments may damage the outboard motor instead or fixing it. Such damage may not be covered under warranty.

If you are not sure about the proper action to correct a problem, consult your Suzuki marine dealer.

Starter motor will not operate:

• Shift lever is not in NEUTRAL.
• Fuse is blown out.
• Emergency stop switch lock plate is not in position.

Engine will not start (hard to start):

• Fuel tank is empty.
• Fuel hose is not properly connected to engine.
• Fuel hose is kinked or pinched.
• Spark plug is fouled.

Engine idles unstably or stalls:

• Fuel hose is kinked or pinched.
• Spark plug is fouled.

Engine speed will not increase (Engine power is low):

• Engine is overloaded.
- Caution/Diagnosis system is activated.
- Propeller is damaged.
- Propeller is not properly matched to loads.

Engine vibrates excessively:

• Engine mounting bolts or clamp screws are loose.
• Foreign object (seaweed etc.) is tangled on propeller.
• Propeller is damaged.

Engine overheats:

• Cooling water intake(s) are blocked.
  • Engine is overloaded.
• Propeller is not properly matched to loads.

The Keyless Start System does not turn ON even when the main switch is operated. The error sound (five short buzzer beeps) is NOT heard:

(If equipped with Keyless Start System)

• Emergency stop switch lock plate is not in position.
• The main switch has been operated continuously while the communication with the key-fob is disabled.
• Battery terminal connection is corroded or lost.
• Battery power is lost.
  • Keyless control unit failure.
  • Electric wiring connection is loose.
• Remote control box failure.

The Keyless Start System does not turn ON even when the main switch is operated. The error sound (five short buzzer beeps) IS heard:

(If equipped with Keyless Start System)

• Key-fob is outside the operating range.
• Key-fob battery is dead.
• Key-fob is in OFF mode.
- The key-fob is not authenticated.
- Communication failure due to strong radio wave or noise.
• Electric wiring connection failure between the keyless control unit and outboard motor.
- Authentication error between the keyless control unit and outboard motor.
- Abnormality exists in the electronic control system of the engine.

The Keyless Start System does not turn OFF even when the main switch is operated:

• Electric wiring connection is loose.
- Remote control box failure.

FUSE

1. If equipped with Keyless Start System: Turn the Keyless Start System OFF.
   If not equipped with Keyless Start System: Turn the ignition key to the "off" position.

2. Remove the motor cover.

3. Remove the fuse box cover and pull off the fuse.

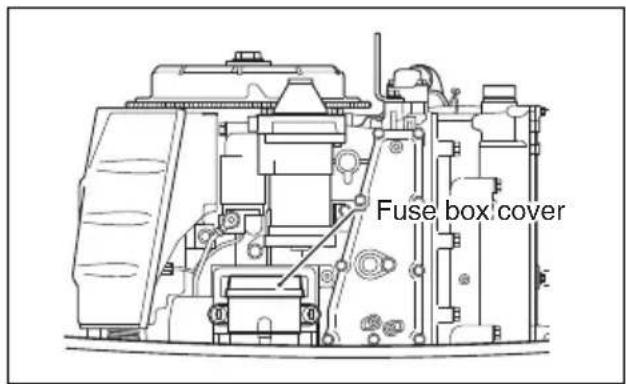

Fuse box cover

Line drawing of a computer case with multiple compartments and a mouse (no text or symbols)

NOTE:

Use the fuse puller at the back of fuse box cover, when the fuse is pulled off and installed.

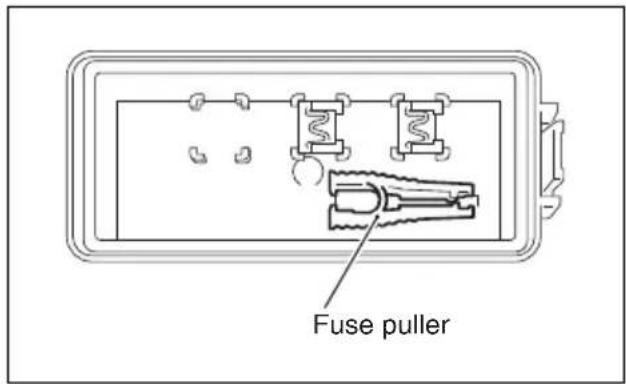

Fuse puller

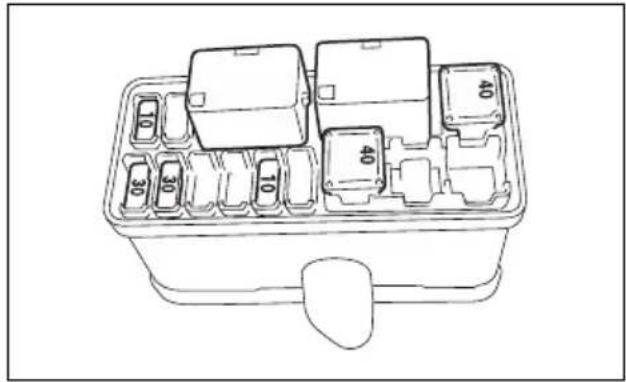

1. Inspect the fuse and replace with new fuse if needed.

Main fuse (40A)

Line drawing of a rectangular electronic component with a central slot and mounting holes (no text or symbols)

Normal fuse

Line drawing of a square electrical outlet with two outlets (no text or symbols)

Blown fuse

Line drawing of a mechanical component with no visible text or symbols

Normal fuse

Line drawing of a mechanical component with no visible text or symbols

Blown fuse

NOTE:

If a fuse is blown, try to determine the root cause and correct it.

If the cause is not corrected, the fuse may be blown again.

WARNING

If you replace a blown fuse with a fuse having a different amperage rating or with a substitute such as aluminum foil or a wire, extensive electrical system damage and a fire may result.

Always replace a blown fuse with a fuse of the same type and rating.

NOTICE

If a new fuse blows in a short time after installation, you may have a major electrical system problem.

Consult your SUZUKI marine dealer.

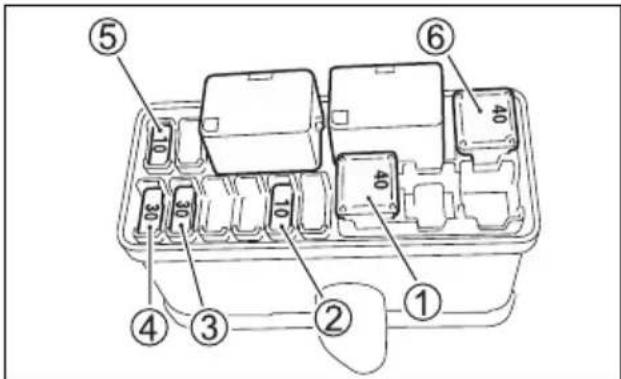

Diagram of a vehicle battery pack with numbered compartments and internal components labeled 1 through 6.

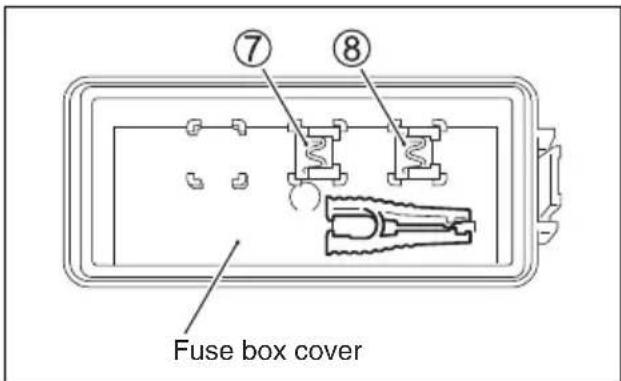

⑦ ⑧ Fuse box cover

① Main fuse: 40A
② PTT switch fuse: 10A
③ Ignition coil/Injector/ECM/Fuel pump fuse: 30A
④ Starter motor relay fuse: 30A
⑤ IAC fuse: 10A
⑥ Spare fuse: 40A
⑦ Spare fuse: 30A
⑧ Spare fuse: 10A

NOTE:

Spare fuses ⑦ and ⑧ are provided for the back of fuse box cover.

SPECIFICATIONS

Item DF70A DF80	A DF90A DF100B
Engine Type 4 Stroke
Number of Cylinders 4
Bore and Stroke 75.0 × 85.0 mm	(2.95 × 3.35 in.)
Piston Displacement 1 502 cm	3(91.6 cu. in.)
Maximum output 51.5 kW	(70PS)	58.8 kW(80PS)	66.2 kW(90PS)	73.6 kW(100PS)
Full Throttle Operating Range 5 000 – 6 000r/min. (min-1)			5 300 – 6 300r/min. (min-1)	5 700 – 6 300r/min. (min-1)
Ignition System Full-transistor
Engine Lubrication Trochoid pump pressure lubrication
Engine Oil Capacity 4.0 L (4.2/3.5 US/Imp. qt.)
Gear Oil Capacity 0.85 L (0.90/0.75 US/Imp. qt.)
Spark Plug NGK DCPR6E
Spark Plug Gap	0.8 – 0.9 mm (0.031 – 0.035 in.)
Valve Clearance (Lash)	IN.: 0.23 – 0.27 mm (0.009 – 0.011 in.)EX.: 0.30 – 0.34 mm (0.012 – 0.013 in.)
Fuel Type	Alcohol-free unleaded gasoline
Minimum Fuel Octane Rating	91 (Research method)

INFORMATION REGARDING EC - DIRECTIVE

(For European countries)

Sound Pressure Level

Regulation	Sound pressure level limit
2013 / 53 / EU	75 dB(A)

Sound pressure level is measured according to ISO 14509-1:2008.

CHART OF TOTAL OPERATING HOURS INDICATION

*: One flashing is corresponded to 500 hours.

x1000 n/min CHECK ENGINE TEMP OIL REV LIMIT ① ②

FLOWCHART OF OIL CHANGE REMINDER SYSTEM

*1 : Lapse of initial 20 hour's operation
*2 : Lapse of 80 hour's operation
*3 : Lapse of 100 hour's operation
*4: When performing cancellation before system activation

WIRING DIAGRAM

Equipped with keyless start system

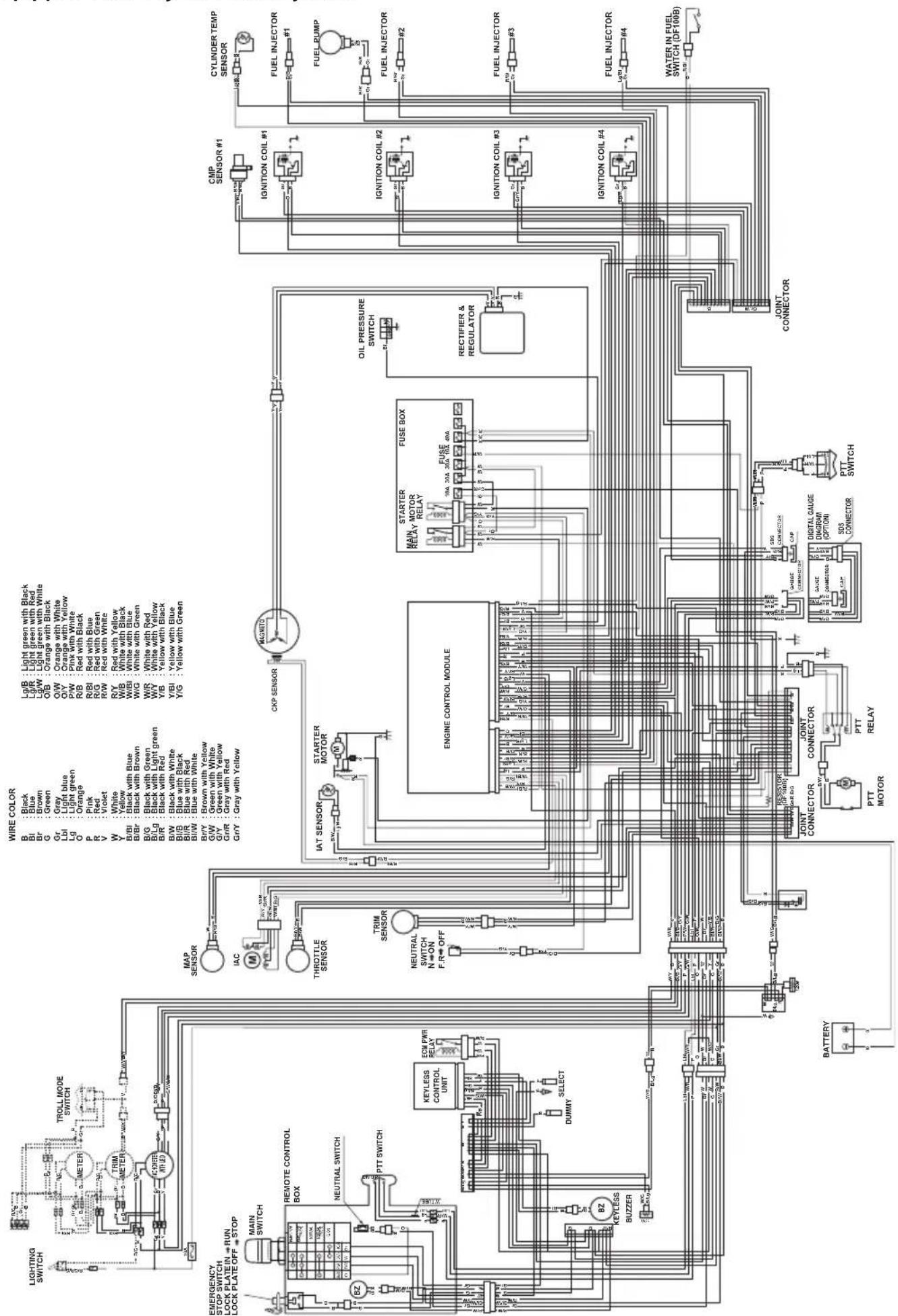

Automotive electrical control circuit diagram showing connections between main switch, relay, motor, and engine modules with color-coded wires and sensors.

Not equipped with keyless start system

    subgraph Powertrain
        B --> M
        D --> N
        F --> P
        H --> Q
        I --> Q
        J --> Q
        K --> Q
        L --> M
        M --> N
        N --> P
        P --> Q
        Q --> R
        R --> S
        S --> T
        T --> U
        U --> V
        V --> W
        W --> X
        X --> Y
        Y --> Z
        Z --> AA

    subgraph Engine Control Module
        M --> N
        N --> P
        P --> Q
        Q --> R
        R --> S
        S --> T
        T --> U
        U --> V
        V --> W
        W --> X
        X --> Y
        Y --> Z

    end

    subgraph Fuel Injection System
        M --> N
        N --> P
        P --> Q
        Q --> R
        R --> S
        S --> T
        T --> U
        U --> V

    subgraph Fuel Pump & Fuel Injector System
        M --> N
        N --> P
        P --> Q
        Q --> R
        R --> S

    end

    subgraph Fuel Injectors & Fuel Connectors
        M --> N
        N --> P
        P --> Q
        Q --> R
        R --> S

    end

    subgraph Fuel Injectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Connectors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductor & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conductors & Fuel Conducts |
    end

    subgraph External Control Systems
        M1["Lighting Switch"] --> M2["TROLL MODE SWITCH"]
        M3["TRIM METER"] --> M4["TROLL MODE SWITCH"]
        M5["TRIM METER"] --> M6["TROLL MODE SWITCH"]
        M7["TRIM METER"] --> M8["TROLL MODE SWITCH"]
        M9["TRIM METER"] --> M10["TROLL MODE SWITCH"]
        M11["TRIM METER"] --> M12["TROLL MODE SWITCH"]
        M13["TRIM METER"] --> M14["TROLL MODE SWITCH"]
        M15["TRIM METER"] --> M16["TROLL MODE SWITCH"]
        M17["TRIM METER"] --> M18["TROLL MODE SWITCH"]
        M19["TRIM METER"] --> M20["TROLL MODE SWITCH"]
        M21["TRIM METER"] --> M22["TROLL MODE SWITCH"]
        M23["TRIM METER"] --> M24["TROLL MODE SWITCH"]
        M25["TRIM METER"] --> M26["TROLL MODE SWITCH"]
        M27["TRIM METER"] --> M28["TROLL MODE SWITCH"]
        M29["TRIM METER"] --> M30["TROLL MODE SWITCH"]
        M31["TRIM METER"] --> M32["TROLL MODE SWITCH"]
        M33["TRIM METER"] --> M34["TROLL MODE SWITCH"]
        M35["TRIM METER"] --> M36["TROLL MODE SWITCH"]
        M37["TRIM METER"] --> M38["TROLL MODE SWITCH"]
        M39["TRIM METER"] --> M40["TROLL MODE SWITCH"]
        M41["TRIM METER"] --> M42["TROLL MODE SWITCH"]
        M43["TRIM METER"] --> M44["TROLL MODE SWITCH"]
        M45["TRIM METER"] --> M46["TROLL MODE SWITCH"]
        M47["TRIM METER"] --> M48["TROLL MODE SWITCH"]
        M49["TRIM METER"] --> M50["TROLL MODE SWITCH"]
        M51["TRIM METER"] --> M52["TROLL MODE SWITCH"]
        M53["TRIM METER"] --> M54["TROLL MODE SWITCH"]
        M55["TRIM METER"] --> M56["TROLL MODE SWITCH"]
        M57["TRIM METER"] --> M58["TROLL MODE SWITCH"]
        M59["TRIM METER"] --> M60["TROLL MODE SWITCH"]
        M61["TRIM METER"] --> M62["TROLL MODE SWITCH"]
        M63["TRIM METER"] --> M64["TROLL MODE SWITCH"]
        M65["TRIM METER"] --> M66["TROLL MODE SWITCH"]
        M67["TRIM METER"] --> M68["TROLL MODE SWITCH"]
        M69["TRIM METER"] --> M70["TROLL MODE SWITCH"]
        M71["TRIM METER"] --> M72["TROLL MODE SWITCH"]
        M73["TRIM METER"] --> M74["TROLL MODE SWITCH"]
        M75["TRIM METER"] --> M76["TROLL MODE SWITCH"]
        M77["TRIM METER"] --> M78["TROLL MODE SWITCH"]
        M79["TRIM METER"] --> M80["TROLL MODE SWITCH"]
        M81["TRIM METER"] --> M82["TROLL MODE SWITCH"]
        M83["TRIM METER"] --> M84["TROLL MODE SWITCH"]
        M84["TRIM METER"] --> M85["TROLL MODE SWITCH"]
        M85["TRIM METER"] --> NUTR["OFF OFF"]
    end

    subgraph External Control Systems
        NUTR["INTERT CONTROLS BOX"]
        NEUTRAL["NEUTRAL SWITCH"]
            NREF["OFF OFF"]
    end

    subgraph Internal Control Systems
        NUTR_1["PPT SWITCH"]
        NEUTRAL_2["NEUTRAL SWITCH"]
            NREF_1 = 0.01, NREF_2 = 0.01, NREF_3 = 0.01, NREF_4 = 0.01, NREF_5 = 0.01, NREF_6 = 0.01, NREF_7 = 0.01, NREF_8 = 0.01, NREF_9 = 0.01, NREF_10 = 0.01, NREF_11 = 0.01, NREF_12 = 0.01, NREF_13 = 0.01, NREF_14 = 0.01, NREF_15 = 0.01, NREF_16 = 0.01, NREF_17 = 0.01, NREF_18 = 0.01, NREF_19 = 0.01, NREF_20 = 0.01, NREF_21 = 0.01, NREF_22 = 0.01, NREF_23 = 0.01, NREF_24 = 0.01, NREF_25 = 0.01, NREF_26 = 0.01, NREF_27 = 0.01, NREF_28 = 0.01, NREF_29 = 0.01, NREF_30 = 0.01, NREF_31 = 0.01, NREF_32 = 0.01, NREF_33 = 0.01, NREF_34 = 0.01, NREF_35 = 0.01, NREF_36 = 0.01, NREF_37 = 0.01, NREF_38 = 0.01, NREF_39 = 0.01, NREF_40 = 0.01, NREF_41 = 0.01, NREF_42 = 0.01, NREF_43 = 0.01, NREF_44 = 0.01, NREF_45 = 0.01, NREF_46 = 0.01, NREF_47 = 0.01, NREF_48 = 0.01, NREF_49 = 0.01, NREF_50 = 0.01, NREF_51 = 0.01, NREF_52 = 0.01, NREF_53 = 0.01, NREF_54 = 0.01, NREF_55 = 0.01, NREF_56 = 0.01, NREF_57 = 0.01, NREF_58 = 0.01, NREF_59 = 0.01, NREF_60 = 0.01, NREF_61 = 0.01, NREF_62 = 0.01, NREF_63 = 0.01, NREF_64 = 0.01, NREF_65 = 0.01, NREF_66 = 0.01, NREF_67 = 0.01, NREF_68 = 0.01, NREF_69 = 0.01, NREF_70 = 0.01, NREF_71 = 0.01, NREF_72 = 0.01, NREF_73 = 0.01, NREF_74 = 0.01, NREF_75 = 0.01, NREF_76 = 0.01, NREF_77 = 0.01, NREF_78 = 0.01, NREF_79 = 0.01, NREF_80 = 0.01, NREF_81 = 0.01, NREF_82 = 0.01, NREF_83 = 0.01, NREF_84 = 0.01, NREF_85 = 0.01, NREF_86 = 0.01, NREF_87 = 0.01, NREF_88 = 0.01, NREF_89 = 0.01, NREF_90 = 0.01, NREF_91 = 0.01, NREF_92 = 0.01, NREF_93 = 0.01, NREF_94 = 0.01, NREF_95 = 0.01, NREF_96 = 0.01, NREF_97 = 0.01, NREF_98 = 0.01, NREF_99 = 0.01

Prepared by

SUZUKI MOTOR CORPORATION

September, 2018

Part No. 99011-87L70-054

Printed in Japan

© COPYRIGHT SUZUKI MOTOR CORPORATION 2018
