Prelude BV5009 - Kettle ROWENTA - Free user manual and instructions

Product type	Electric kettle
Brand	Rowenta
Model	Prelude BV5009
Capacity	1.7 L
Power rating	2000 W
Voltage	220-240 V, 50-60 Hz
Base type	360° swivel base
Body material	Stainless steel
Lid type	Assisted opening / automatic / locking (varies by model)
Auto shut-off	Yes
Boil-dry protection	Yes
Anti-scale filter	Removable mesh filter
Water level window	Yes
Indicator light	Yes (on/off)
Dimensions (approx.)	22 x 17 x 25 cm
Weight (approx.)	1 kg
Cord length	Adjustable (cord wrap under base)
Cleaning	Wipe with damp cloth; descale monthly
Safety	Auto shut-off, boil-dry protection, cool-touch handle
Warranty	1 year (varies by region)

Frequently Asked Questions - Prelude BV5009 ROWENTA

How do I descale my Rowenta Prelude BV5009 kettle?

Use white vinegar (fill with 0.5 L, let stand 1 hour without heating) or citric acid (boil 0.5 L water, add 25 g citric acid, let stand 15 min). Then rinse 5-6 times. For the filter, soak in vinegar or diluted citric acid.

What should I do on first use?

Remove all packaging and stickers. Boil a full kettle of water and discard it. Rinse the kettle and filter separately.

Why does my kettle stop before boiling?

This may be due to scale buildup or the kettle being switched on without water. Let it cool, fill with water, and descale if needed. The overheat cut-out may take up to 15 minutes to reset.

How do I clean the kettle and filter?

Unplug and let cool. Wipe the exterior with a damp sponge. Remove the anti-scale filter (lift after cooling) and rinse under running water or brush gently. For flip lids, remove by pinching notches inside.

Can I immerse the kettle or base in water?

No. Never immerse the kettle, base, cord, or plug in water. Electrical connections must stay dry.

How do I adjust the cord length?

Wind the excess cord under the base and squeeze it into the notch (see fig. 1 in the manual).

What safety features does the kettle have?

It has auto shut-off when water boils, boil-dry protection (overheat cut-out), and a cool-touch handle. Always place on a flat, stable surface and keep out of reach of children.

How do I open the lid?

Depending on the model: press the latch for assisted opening, press the button at the top of the handle for automatic opening, or turn the locking lid anti-clockwise to unlock (fig. 2-4 in the manual).

What type of water can I use?

Only heat drinking water. The anti-scale filter does not soften water. For hard water, descale regularly.

What should I do if the kettle is damaged or leaks?

Do not use it. Return it to a Rowenta approved service centre. Only they are authorised to repair. Do not attempt to dismantle.

USER MANUAL Prelude BV5009 ROWENTA

Black-and-white photo of a glass pouring liquid into a cup, with no visible text or symbols on the main subject.

Diagram showing a mechanical component with a downward arrow indicating motion or force (no text or symbols present)

fig.1

fig.2

fig.3

fig.4

Illustration of two kettle holders with pipe fittings and a lid, showing liquid level changes (no text or symbols)

fig.5

Line drawing of a kettle connected to an electrical outlet (no text or symbols)

fig.6

Diagram of a medical or laboratory procedure with arrows indicating steps, no readable text or symbols present

fig.7

Illustration of a hand pouring liquid into a container with an open lid, no text or symbols present

fig.8fig.9

SICHERHEITSHINWEISE

Thank you for purchasing a ROWENTA kettle. Carefully read these instructions, which apply to all our models, and keep them ready to hand.

EN

This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guaranty will not apply.

SAFETY INSTRUCTIONS

• Read the instructions for use carefully before using your appliance for the first time and retain them: ROWENTA cannot be held liable if the appliance is not used in accordance with the instructions.
• Only use your kettle for heating drinking water.
• Always connect the appliance to an earthed socket. Check that the supply voltage shown on the rating plate of the appliance does, in fact, match that of your electrical system.
• Never place the kettle or its base on a hot sur face such as a hotplate or use it close to a naked flame.
• Place on a flat, stable, heat-resistant surface.
• If anything appears to be wrong with its operation, remove the mains plug from the socket immediately.
• Do not pull on the mains cord to disconnect the plug.
• Do not allow the mains cord to hang over the edge of a table or worktop.
• Do not leave your hand or the mains cable in contact with the hot parts of the appliance.
• Keep the appliance out of the reach of children.
• Always take great care while the appliance is in operation; be particularly careful of steam from the spout, which is very hot.
• Note also that the body of stainless steel kettles becomes very hot during operation. Do not touch the kettle other than by the handle.
• If the supply cord or the plug is damaged, do not use the appliance. To avoid any risk, the supply cord should always be replaced by a ROWENTA approved service centre.
• Always refer to the instructions for de-scaling the appliance.
• Our guarantee does not cover kettles that are working badly or not at all through not being de-scaled.
• Protect the appliance from humidity and frost.
• Do not use the appliance if it is not working correctly or if it has been damaged. In such cases you are advised to have the appliance inspected by a ROWENTA approved service centre (see the list in the ROWENTA Service booklet).
• Except for cleaning and de-scaling, using the

procedures in the instructions for use of the appliance, any work on the appliance must be carried out by a ROWENTA approved service centre.

• Any supply connection error will negate the guarantee.
• Unplug the appliance and empty it if you stop using it for an extended period and when you clean it.
• All appliances undergo strict quality controls.
• Practical use tests are conducted with appliances selected at random, which explains any slight signs of use.
• Avoid using multiple outlet adapters or extension cords. - In any event, take proper account of the power consumption.
• Do not use the kettle when you have wet hands or bare feet.
• Never move the kettle while it is in operation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• It is appropriate to watch over children to make certain that they do not play with the appliance.
  • Always use the filter during heating cycles.
• This appliance is intended to be used only in the household.
• It is not intended to be used in the following applications, and the guarantee will not apply for:
  * staff kitchen areas in shops, offices and other working environments;
  * farm houses;
  * by clients in hotels, motels and other residential type environments;
  * bed and breakfast type environments.
• For your safety, this appliance complies with applicable standards and laws:
  Low Voltage Directive Electromagnetic Compatibility Environment
  Materials in contact with foodstuffs.

BEFORE USE

1. Remove all packaging, self-adhesive labels and any accessories from inside and outside the kettle.

USING THE APPLIANCE

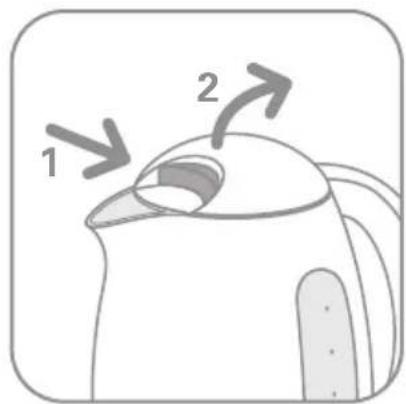

1. To open the lid, depending on model:

2. Lid with assisted opening: press on the latch system and the lid will lift automatically. (fig. 2).

3. Lid with automatic opening: press on the button at the top of the handle (fig. 3).
4. Locking lid: turn the lid anti-clockwise to unlock and lift off (fig. 4).
   To close, press firmly on the lid or, for the locking lid, turn clockwise.

Do not open the lid while the water is boiling.

1. Place the base on a flat, stable, heat-resistant clean and cool surface.

Position the kettle and its supply cord well to the rear of the work surface. Do not place the kettle on or near slippery or hot surfaces or allow the cord to hang above a source of heat (cooking hob, gas cooker). Your kettle must be used only with the base belonging to it.

1. Fill the kettle with the desired quantity of water (fig. 5).

You can fill via the spout, which helps keep the filter clear. Always fill with sufficient water to cover the heating element (or the bottom of the kettle).

Never fill the kettle while it is on its base. The kettle must always be used with its own ant-scale filter.

Do not fill above the maximum level or below the minimum. If the kettle is overfilled, the water may boil over. Do not use without water. Check that the lid is properly closed before use.

1. Adjust the length of the mains cord by winding it under the base. Squeeze the cord into the notch. (fig 1)

2. Place the kettle on its base. Plug into the wall socket (fig. 6).

Connect the kettle only to an earthed socket. If you need to use an extension cord, this must have an earthed socket and be suitably rated. Ensure that the cord and extension do not trail to avoid any falls. Do not lift the lid while the water is boiling.

1. To turn the kettle on, press on the on/off button at the top or bottom of the handle, depending on the model (fig. 7).

2. Depending on the model, an indicator light may come on.

3. The kettle will turn off automatically as soon as the water comes to the boil. You can stop the kettle manually before lifting it off its base to pour. Depending on the model, the indicator light will go out when the kettle switches off or is switched off. Ensure that the kettle is switched off before lifting off its base.

On first use we recommend that you discard the first amount of boiled water as it may contain some dust. Rinse the kettle and filter separately.

Do not leave water in the kettle after use.

CLEANING AND CARE

To clean your kettle:

Unplug the kettle from the mains. Allow it to cool and wipe with a damp sponge.

For kettles with a flip lid (fig 9), it is necessary to remove the lid for cleaning. To do so, pinch the notches inside the lid and lift the lid. Once the cleaning is completed, replace the lid by positioning the lugs in their notches.

Never immerse the kettle, its base, the wire or the electric plug in water: the electrical connections and the switch must not be in contact with water.

Do not use abrasive scouring pads or cream cleaners.

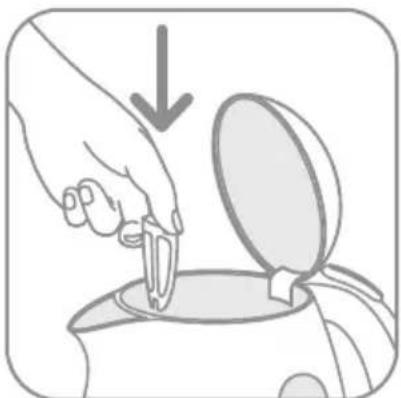

To clean the filter (according to model) (fig 8):

The removable filter consists of a mesh to retain the particles of scale and prevent them falling into your cup when pouring.

This filter neither treats nor removes the hardness of the water. The filter conserves all the qualities of the water. With very hard water, the filter can clog very quickly (10 to 15 uses). It is important to clean it regularly. If it is wet, put it under a running tap, if dry, then brush it gently. Sometimes the scale will not detach itself; it will then need descaling.

To remove the anti-scale filter, lift the kettle off its base and allow to cool. Never remove the filter when the appliance is full of hot water.

DESCALING

De-scale regularly, preferably at least once a month or more frequently if your water is very hard.

To de-scale your kettle:

• Using white vinegar:
- fill the kettle with 1/2 litre of vinegar,
- leave to stand for 1 hour without heating.
- Using citric acid:
- boil 1/2 litre of water,
- add 25 g of citric acid and leave to stand for 15 min.
- Using a de-scaler specifically for plastic kettles: follow the manufacturer's instructions.

Empty your kettle and rinse 5 or 6 times. Repeat if necessary.

To de-scale your filter (according to model):

Soak the filter in white vinegar or diluted citric acid.

Never use a de-scaling method other than that recommended.

IN THE EVENT OF PROBLEMS

THERE IS NO EVIDENT DAMAGE TO YOUR KETTLE:

• The kettle does not work or stops before coming to the boil
• Check that your kettle is properly plugged in.
• The kettle has been switched on without water or an accumulation of scale has caused the overheat cut-out to operate: allow the kettle to cool and fill it with water.

Descale first if scale has accumulated.

Switch it on: the kettle should start working again after about 15 minutes.

IF YOUR KETTLE HAS BEEN DROPPED, IF IT LEAKS OR IF THERE IS VISIBLE DAMAGE TO THE POWER CORD, THE PLUG OR THE BASE OF THE KETTLE:

Return your kettle to your ROWENTA After-Sales Service Centre, only they are authorised to carry out repairs. See the guarantee conditions and list of centres in the booklet supplied with your kettle. The type and serial number are shown on the bottom of your kettle.

This guarantee covers manufacturing defects and domestic use only. Any breakage or damage resulting from failure to comply with the instructions for use is not covered by the guarantee.

ROWENTA reserves the right to modify the characteristics or components of its kettles at any time in the interests of the consumer. Do not use the kettle. No attempt must be made to dismantle the kettle or its safety devices.

If the supply cord is damaged, it must be replaced by the manufacturer, its after-sales service centre or a similarly qualified person, in order to avoid any danger.

PREVENTION OF DOMESTIC ACCIDENTS

For a child, a burn or scald, even if slight, can sometimes be serious.

As they grow up, teach your children to beware of hot liquids to be found in the kitchen. Position the kettle and its supply cord well to the rear of the work surface, out of the reach of children.

If an accident does occur, run cold water over the scald immediately and call a doctor if necessary.

In order to avoid any accident: do not carry your child or baby at the same time as drinking or carrying a hot drink.

ENVIRONMENTAL PROTECTION

Environment protection first!

Your appliance contains many recoverable or recyclable materials.

Take it to a local, civic waste collection point.

HELPLINE: If you have any product problems or queries, please contact our Customer Relations Team First for expert help and advice:

0845 602 1454 - UK

[phone] - Ireland

Or consult our website: www.rowenta.co.uk
