USER MANUAL ADG 6570 SD WHIRLPOOL

How to use the appliance

Further indications are given in the single chapters and in the user instructions.

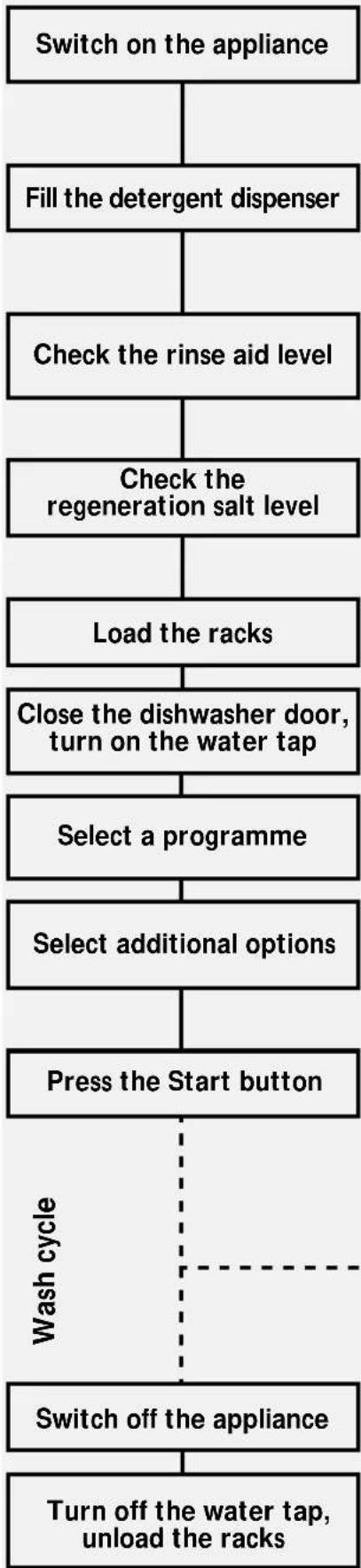


Press the ON / OFF button.

Compartment A:

With each wash cycle.

Compartment B:

For programmes with pre-wash only. If using combined action dishwasher tabs, follow the user instructions!

Close-up of a white plastic housing with labeled sections A, B, and C (no additional text or symbols)

Mechanical indicator C.

Electric indicator on control panel (if provided).

Check the regeneration salt level

Load the racks

Close the dishwasher door, turn on the water tap

Select a programme

Select additional options

Press the Start button

Wash cycle

Switch off the appliance

Turn off the water tap, unload the racks

On models with water softener system only.

Mechanical indicator D. Electric indicator on control panel (if provided).

Refer to the dishwasher loading instructions.

The last programme selected will light up. Select the desired programme (using the specific button or knob). The corresponding indicator lamp lights up.

If necessary (and if provided). The corresponding indicator lamp lights up.

The selected programme is then memorised (even in the event of power failure).

"Change programme in progress"

→ Press the START button for 2 sec. until the Start indicator lamp switches off.
→ Select another programme and press the START button again.

• Only open the dishwasher if necessary (Warning: beware of hot steam).
• If the appliance is switched off during a wash cycle, when switched on again it will resume the cycle from where it was interrupted.

Only after the START button has switched off: Press the ON/OFF button. All the indicator lamps switch off.

Warning: When the door is opened steam comes out!

Unload the appliance, starting from the lower rack.

Dishwasher loading instructions and racks provided

Upper rack:

depending on the model

Multi-purpose support (A): 1)

Depending on the position, for long-handles utensils, cups and glasses. May be used in three different positions.

Crockery holders (B):

Depending on the position, for example plates, cups and long-stemmed glasses.

Revolving glass support (C): 2)

Depending on the position, for example small or long-stemmed glasses.

Long-handled utensils (e.g. carving forks, knives) must be arranged with the sharp end facing in towards the appliance.

3D cutaway diagram of a mechanical assembly with labeled parts A and B (no text or symbols beyond labels)

3D wireframe model of a computer monitor with fan and keyboard (no text or symbols)

Half Load:

Load the upper rack (see description of Options).

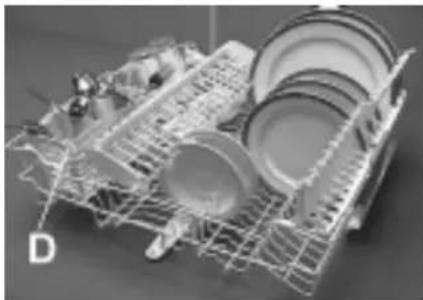

Place the cutlery basket (D) in the upper rack.

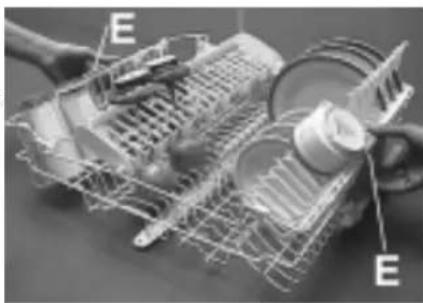

Rack height adjustment (also when loaded):

- Lower adjustment: pull out the two rack handles outwards (E) and lower the rack.

• Upper adjustment: pull the two handles (E) upwards until the rack clicks into place (Factory setting).

The rack must be level on both sides.

Removing the top rack to provide clearance for large items of crockery in the bottom rack:

Open the rack guide retainers (F) on the right and left and remove the top rack.

When the upper rack is in place the retainers must always be closed.

3D rendered image of a washing machine with multiple plates and mesh casing (no text or symbols visible)

3D wireframe model of a kitchen appliance with multiple dish units and a central bowl (no text or symbols visible)

Exploded view of a mechanical device with labeled components (E), no visible text or symbols beyond labels

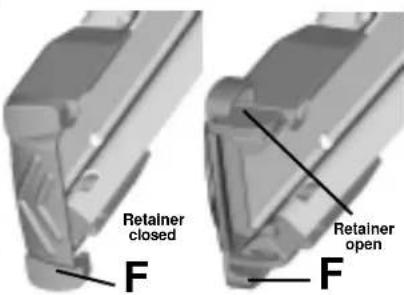

Retainer closed F Retainer open F

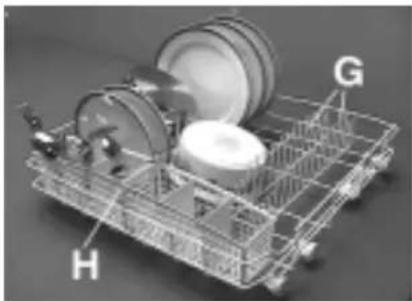

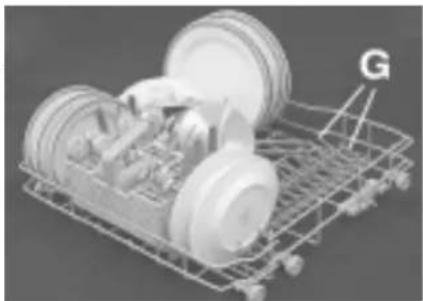

Lower rack:

Depending on the model with fixed or tilting plate holders (G).

Half Load:

Load the lower rack (see description of Options).

Greater washing power, particularly for plates and saucepans.

3D rendered image of a shopping cart with wheels and a labeled 'G' (no text or symbols on the main subject)

3D wireframe model of a shopping cart with labeled parts H and G (no text or symbols beyond labels)

Cutlery basket (J) or (H):

Some models are provided with a grid (I) that can be fitted onto the cutlery basket to keep items separated.

Cutlery basket (D), if provided, for appliances with half load only.

Sharp knives and forks that might cause injury must be placed in the cutlery basket with the sharp end facing downwards.

3D wireframe model of a mechanical housing or enclosure with labeled components I and J (no text or symbols beyond labels)

3D wireframe model of a rectangular basket with three compartments, labeled 'D' on the side (no text or symbols on the basket itself)

3D rendering of a curved, segmented metal structure with internal grid patterns (no text or symbols)

Only use dishwasher-proof crockery and dishes. Do not use the appliance for items not suitable for washing in a dishwasher, for example wooden items, aluminium, plastic utensils, tin, hand-decorated crockery (unglazed), silver cutlery. Spare parts which are sold separately:

^17 Multi-purpose support (A) - N. AMH 369 series.
2) Revolving glass support (C) - N. WGH 1000 series.

What to do if...

If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem (* see also the corresponding chapter in the user instructions).

Problem Cause Remedy

The appliance is not working	No water supply. Open the tap.The appliance does not load sufficient water.There is a power failure. Insert the plug into the mains socket. Press the Start button. Close the door. Check the safety circuit breaker.Starting the selected programme. The programme can be set to "0" to start.
If crockery is not perfectly dry	Insufficient rinse aid. Increase dosage * .Residual water in cavities. Load crockery at an angle.
If crockery is not perfectly clean	The water jet does not reach the crockery.Insufficient detergent. Follow recommended detergent dosage.Unsuitable programme. Select a more intense wash cycle.Spray arms blocked. The spray arms must be able to turn freely.Spray arm nozzles clogged. Remove any impurities obstructing the water flow*.Incorrect detergent/detergent too old. Use a good quality detergent.	Arrange crockery so that items do not touch each other. Load crockery upside down.
Sandy or grainy residues	Clogged filters.Filters incorrectly assembled.	Check filters regularly/if necessary clean*.Insert the filter correctly*.
Colour of plastic parts faded	Tomato/carrot juice, ...	Depending on the material, if necessary use a detergent with a greater whitening power.
Deposits on crockery
RemovableNot removable	Streaks on the crockery/glasses.Streaks on glasses.Layer of salt on crockery/glasses.Insufficient water softening, calcium deposits.	Increase the rinse aid dosage*.Reduce the rinse aid dosage*.Close the salt container lid properly*.Change water hardness setting, if necessary add salt*.
Opaque glasses/ glasses not sparkling	Cannot be washed in the dishwasher.	Use suitable glasses.
Rust on cutlery	Not made of stainless steel.	Use suitable cutlery.
Identifying appliance faults	The START indicator lamp flashes.Indicator F... (if provided).	Ensure the filter assembly is not clogged and that there is no interruption to the water supply (if necessary, clean the filters*). Start the programme again. Press the START button for 2 seconds, until the START indicator lamp switches off. Select a new programme and press the Start button again.
If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the water supply tap, then call our After-Sales Service (see guarantee).Before contacting our After-Sales Service, take note of the following:The nature of the faultThe appliance type and modelThe service code (the number indicated on the adhesive rating plate) inside the door on the right-hand side.

ADG 6570
Quick Reference Guide
GB

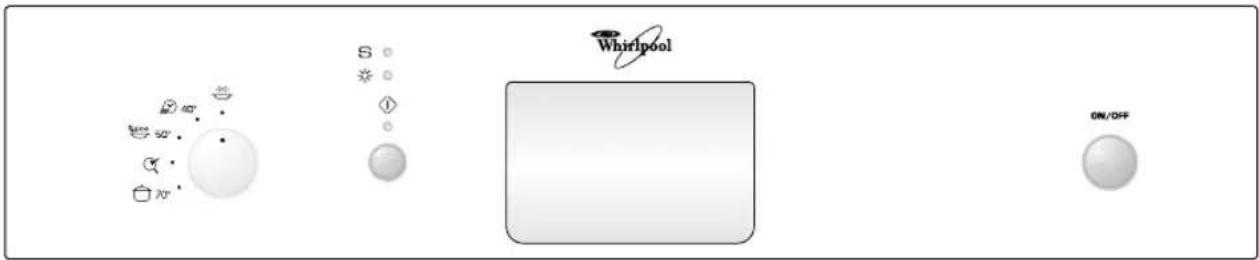

S Whirlpool ON/OFF

Programme selector knob

Indicators

Add regeneration salt

Only add regeneration salt immediately before starting a wash programme.

Add rinse aid

ON/OFF

On / Off button

Start button

Switches "on" when the dishwasher is operating. Flashes when a fault occurs.

Switches off at the end of the programme.

Programme chart			Detergent 2)		Consumption 3)
Programmes Loading instructions A B					Litres	kWh	Minutes
	Pre-Rinse cold	Crockery to be washed later.	-	-	4.0	0.03	14
	Quickwash 40°C	Lightly soiled crockery with no dried-on food.	X -	10.0	0.65 30
	Eco 1) 50°C	Normally soiled crockery. Energy-saving programme.	X	X	12.0	1.05	165
	Antibacterial 4) 5)	Normally or heavily soiled crockery, with additional antibacterial action.	X	X	13.0	1.50	115
	Intensive 70°C	Recommended programme for heavily soiled crockery, especially suitable for pans and saucepans.	X	X	14.0	1.55	155

1) Reference programme for energy label EN 50242.
2) Refer to "User instructions".
3) The data relevant to programmes are values obtained in the laboratory in conformity with Standard EN 50242. In practice there may be time variations or leaps depending on different loads, function options, sensor calibration (only for sensor-controlled programmes) water temperatures or hardness and different power supply voltages.

Important information for Test Laboratories:

For detailed information on the EN comparison test and other tests, contact the following address: "[e-mail]".
