USER MANUAL HP4853 PHILIPS
profile super soft & volume
- Keep pages 3 and 34 open when reading these operating instructions.
Français Page 6
Your new Philips hair dryer has been especially designed to meet your personal needs. With the attachments you can create the style you want. To get the best results, please read the instructions carefully before use.
We hope you will enjoy using your hair dryer!
General description
A Airspeed selector
B Temperature selector
© Cool shot
D Concentrator
E2-in-1 Diffuser
F Ring Diffuser
G Softenizer
H Release button soft pad
Hanging loop
Airspeed settings
II = strong airflow
I = gentle airflow
0 = off
Temperature settings
≈ = Care setting: a caring temperature for drying sensitive hair
●●= high temperature
●= medium temperature
Cool shot = cool air to fix the hairstyle created
Concentrator
Fit the concentrator to the air opening to concentrate the airflow.
Direct the airflow at the brush or comb with which you are styling your hair.
Softenizer
The Softenizer is especially suitable for styling straight and wavy hair. To get soft, flowing hair, comb the hair gently when it is nearly dry by lifting it at the roots and by pulling the Softenizer through the hair. The soft surface of the pad smoothens the hairs so that your hair becomes soft and shiny. You will achieve the best results
when combining the gentle airflow with the Care setting.
The soft surface of the Softenizer can easily be cleaned with tap water. Remove the soft pad by pushing the button at the bottom.

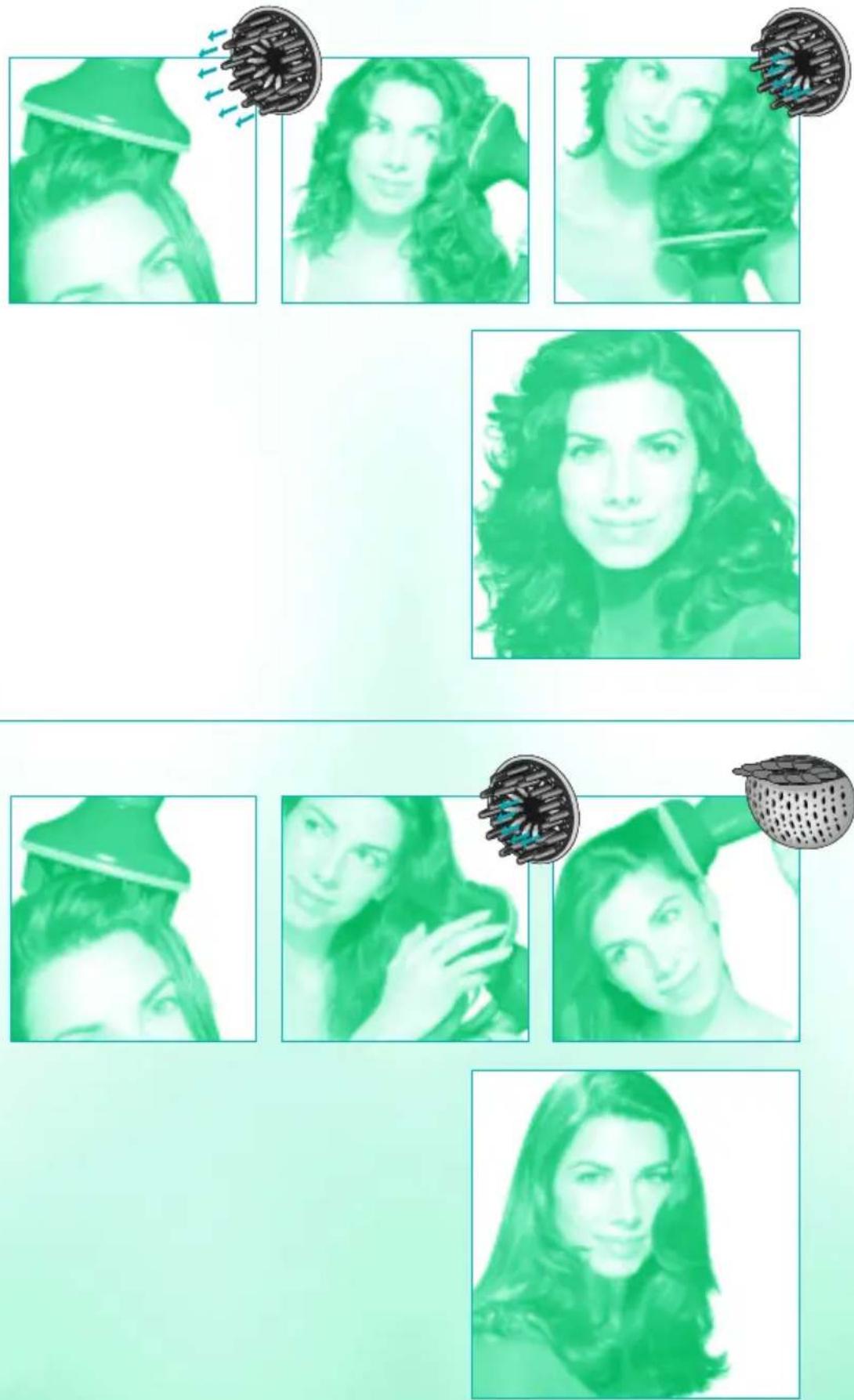

2-in-1 Diffuser
The unique 2-in-1 Diffuser enables you to either create optimal volume or to dry your hair with a gentle airflow. With this Diffuser you can control the airflow: either all air comes out of the air pins (Volume position) or all air comes out of the base of the Diffuser (Care position).
Volume position
Turn the ring (F) anticlockwise and the apertures in the base of the Diffuser will be blocked. All air will now flow through the special air pins. To add volume to the hair close near the roots, insert the pins of the Diffuser into the hair until they touch the scalp and make rotating movements. You will achieve the best results if you start at the lower part of your head and move slowly upwards while making rotating movements. Use the hairdryer in the Care temperature setting, with a gentle airflow.
Care position
Turn the ring (F) clockwise and the air pins will be blocked. All air will now flow through the apertures in the base of the Diffuser.
Hold the Diffuser at approx. 10 cm from the head to allow the hair to dry gradually. Use your free hand to knead your hair into shape. This will prevent the hair from becoming frizzy and from being blown out of style. Use the hairdryer in the Care temperature setting, with a gentle airflow.
Connecting and disconnecting the attachments
The attachments can be fitted to the appliance by simply snapping them on. You can detach the attachments by pulling them off the appliance.
Important
- Before you connect the appliance, check if the voltage indicated on the appliance corresponds to the local mains voltage.
- Keep away from water! Do not use this product near or over water contained in baths, washbasins, sinks, etc. When used in a bathroom, unplug the appliance after use since the proximity of water presents a risk even when the hairdryer is switched off.
• Always switch the appliance off before putting it down, even if it is only for a moment. - Keep the appliance out of the reach of children.
- For additional protection we advise you to install a residual current device (RCD) with a rated residual operating current not exceeding 30 mA in the electrical circuit supplying the bathroom. Ask your installer for advice.
- Never block the air grilles.
- This product is equipped with an automatic overheating protection device. If the appliance overheats, it will switch off. Unplug the appliance. After it has cooled down for a few minutes, the appliance can be used again. Before you switch it on again, check the inlet and outlet grilles for possible blockage by fluff, hair, etc. If in doubt, consult your dealer or a Philips service centre.
- If the mains cord of this appliance is damaged, it must only be replaced by Philips or their service representative, as special tools and/or parts are required.
