Contents

The quickest way to find special topics is to consult the index starting on page 162.

Using this Owner's Manual

4 Notes

7 Reporting safety defects

At a glance

10 Dashboard

Controls

18 Opening and closing
35 Adjustments
45 Transporting children safely
48 Driving
62 Controls overview
70 Technology for driving comfort and safety
81 Lamps
86 Climate
92 Practical interior accessories

Driving tips

104 Things to remember when driving

Mobility

112 Refueling
114 Wheels and tires
122 Under the hood
126 Maintenance
128 Care
132 Replacing components
138 Giving and receiving assistance
143 Indicator and warning lamps

Reference

156 Technical data
162 Everything from A to Z

Notes

Using this Owner's Manual

We have tried to make all the information in this Owner's Manual easy to find. The fastest way to find specific topics is to refer to the detailed index at the back of the manual. If you wish to gain an initial overview of your vehicle, you will find this in the first chapter.

Should you sell your BMW some day, please remember to hand over the Owner's Manual as well; it is an important component of your vehicle.

Additional sources of information

Should you have any other questions, your BMW center will be glad to advise you at any time.

Information on BMW, e.g. on technical aspects, can also be found on the Internet at www.bmwusa.com.

Symbols used

Indicates precautions that must be followed precisely in order to avoid the pos-y of personal injury and serious damage to vehicle.

Indicates information that will assist you in gaining the optimum benefit from your role and enable you to care more effectively your vehicle.

Refers to measures that can be taken to help protect the environment.

Marks the end of a specific item of information.

* Indicates special equipment, country-specific equipment and optional accessories, as well as equipment and functions not yet available at the time of printing.

Symbols on vehicle components

Indicates that you should consult the relevant section of this Owner's Manual formation on a particular part or assembly.

The individual vehicle

When you ordered your BMW, you chose various items of equipment. This Owner's Manual describes the entire array of options and equipment available with a specific BMW model.

Please bear in mind that the manual may contain information on accessories and equipment that you have not specified for your own vehicle. Sections describing options and special equipment are marked by asterisks * to assist you in identifying possible differences between the descriptions in this manual and your own vehicle's equipment.

If equipment in your BMW is not described in this Owner's Manual, please refer to the accompanying Supplementary Owner's Manuals.

Editorial notice

BMW pursues a policy of continuous, ongoing development that is conceived to ensure that our vehicles continue to embody the highest quality and safety standards combined with advanced, state-of-the-art technology. For this reason, it is possible in exceptional cases that features described in this Owner's Manual could differ from those on your vehicle.

For your own safety

Maintenance and repair

Advanced technology, e.g. the use of modern materials and powerful electronics, requires specially adapted maintenance and repair methods. You should therefore have the corresponding work on your vehicle performed only by your BMW center or at a workshop that works according to BMW repair procedures with correspondingly trained personnel. If this work is not carried out properly, there is a danger of subsequent damage and related safety hazards.

Parts and accessories

For your own safety, use genuine parts and accessories approved by BMW.

When you purchase accessories tested and approved by BMW and Original BMW Parts, you simultaneously acquire the assurance that they have been thoroughly tested by BMW to ensure optimum performance when installed on your vehicle.

BMW warrants these parts to be free from defects in material and workmanship.

BMW will not accept any liability for damage resulting from installation of parts and accessories not approved by BMW.

BMW cannot test every product made by other manufacturers to verify if it can be used on a BMW safely and without risk to either the vehicle, its operation, or its occupants.

Original BMW Parts, BMW Accessories and other products approved by BMW, together with professional advice on using these items, are available from all BMW centers.

Installation and operation of accessories not approved by BMW, such as alarms, radios, amplifiers, radar detectors, wheels, suspension components, brake dust shields, telephones, including operation of any mobile phone from within the vehicle without using an externally mounted antenna, or transceiver equipment, for instance, CBs, walkie-talkies, ham radio or similar accessories, may cause extensive damage to the vehicle, compromise its safety, interfere with the vehicle's electrical system or affect the validity of the BMW Limited Warranty. See your BMW center for additional information.

Maintenance, replacement, or repair of the emission control devices and sys-may be performed by any automotive r establishment or individual using any cer-automotive part.

California Proposition 65 warning

California law requires us to issue the following warning:

Engine exhaust and a wide variety of automobile components and parts, including components found in the interior furnishings in a vehicle, contain or emit chemicals known to the State of California to cause cancer and birth defects and reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Battery posts, terminals and related accessories contain lead and lead compounds. Wash your hands after handling.

Used engine oil contains chemicals that have caused cancer in laboratory animals. Always protect your skin by washing thoroughly with soap and water.

Service and warranty

We recommend that you read this publication thoroughly.

Your BMW is covered by the following warranties:

▶ New Vehicle Limited Warranty
Rust Perforation Limited Warranty
▶ Federal Emissions System Defect Warranty
▶ Federal Emissions Performance Warranty
California Emission Control System Limited Warranty

Detailed information about these warranties is listed in the Service and Warranty Information Booklet for US models or in the Warranty and Service Guide Booklet for Canadian models.

Your vehicle has been specifically adapted and designed to meet the particular operating conditions and homologation requirements in your country and continental region in order to deliver the full driving pleasure while the vehicle is operated under those conditions. If you wish to operate your vehicle in another country or region, you may be required to adapt your vehicle to meet different prevailing operating conditions and homologation requirements. You should also be aware of any applicable warranty limitations or exclusions for such country or region. In such case, please contact Customer Relations for further information.

Reporting safety defects

For US customers

The following only applies to vehicles owned and operated in the US.

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration, NHTSA, in addition to notifying BMW of North America, LLC, P.O. Box 1227, Westwood, New Jersey 07675-1227, Telephone [phone].

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your center, or BMW of North America, LLC.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236

(TTY: 1-800-424-9153); go to

http://www.safercar.gov; or write to: Administrator, NHTSA, 400 Seventh Street, SW., Washington, DC 20590. You can also obtain other information about motor vehicle safety from http://www.safercar.gov

For Canadian customers

Canadian customers who wish to report a safety-related defect to Transport Canada, Defect Investigations and Recalls, may call 1-800-333-0510 toll-free from anywhere in Canada or 1-613-993-9851 from the Ottawa region and from other countries, or contact Transport Canada by mail at: Transport Canada, ASFAD, Place de Ville, Tower C, 330 Sparks Street, Ottawa, ON, K1A 0N5.

You can also obtain other information about motor vehicle safety from http://www.tc.gc.ca

Online Edition for Part no. 01 41 2 604 079 - © 02/10 BMW AG

At a glance This overview of buttons, switches and displays is intended to familiarize you with your vehicle's operating environment. The section will also assist you in becoming acquainted with the control concepts and options available for operating the various systems. Online Edition for Part no. 01 41 2 604 079 - © 02/10 BMW AG

At a glance

This overview of buttons, switches and displays is intended to familiarize you with your vehicle's operating environment. The section will also assist you in becoming acquainted with the control concepts and options available for operating the various systems.

Dashboard

Around the steering wheel: controls and displays

1 2 3 4 5 6 7 8 9 10 11 13 14 15 16 17 18 19 BMW

1 Convertible: opening and closing windows jointly 28
2 Convertible: opening and closing rear windows 28

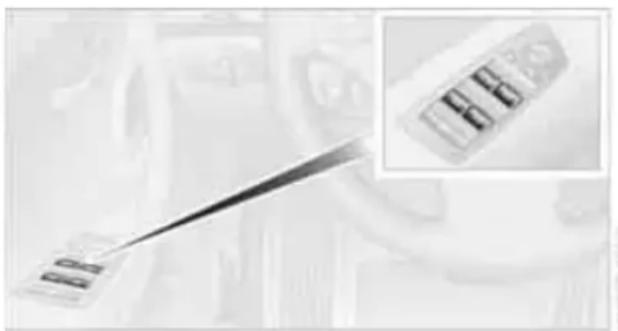

3 Opening and closing front windows 27

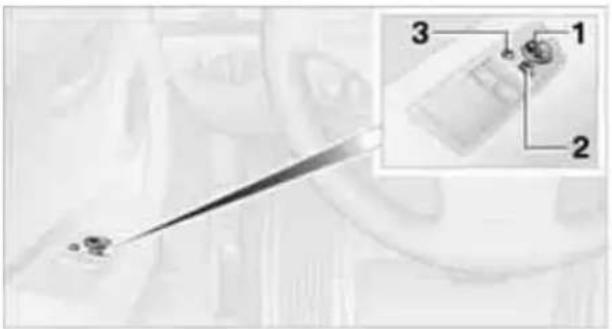

4 Folding exterior mirrors in and out * 42
5 Adjusting exterior mirrors, automatic curb monitor* 42

6 EDOE Parking lamps 81

Low beams 81

Automatic

headlamp control* 81

Adaptive light control* 83

High-beam assistant* 83

7

Fog lamps* 84

8

Turn signals 57

High beams, headlamp flasher 83

High-beam assistant* 83

Roadside parking lamps* 83

Computer 63

Settings and information about the vehicle 65

9 Instrument cluster 12

10

Windshield wipers 58

Rain sensor* 58

11 Switching the ignition on/off and starting/stopping the engine 48

12 Ignition lock 48

13 Buttons on the steering wheel

Telephone*:

Accepting and ending a call; dialing* the selected phone number; redialing if no phone number is selected

Volume

Voice commands for telephone *

Changing the radio station Interrupting a traffic bulletin

Selecting a music track Scrolling through the redial list

Next entertainment source

Recirculated-air mode 90

14

Steering wheel heating* 44

15 Horn, entire surface

16 Adjusting the steering wheel 43

17

Cruise control* 60

18 Releasing the hood 122

19 Opening the trunk lid 23

Instrument cluster

1 2 3 2 4 1/min x 1000 +74.0 °F 11:15am M4 012345mls 6789 8 1/2 mph km/h DTC ABS BRAKE SERVICE ENGINE SOUND 7 6 5 16 250 340 -°F

1 Speedometer

135i: with fuel gauge

2 Indicator lamps for turn signals

3 Indicator and warning lamps 13

4 Tachometer 62

5 Fuel gauge 63

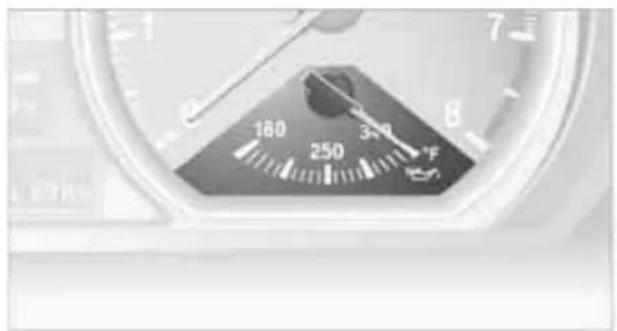

135i: engine oil temperature 63

6 Display for

Clock 62

Outside temperature 62

Indicator and warning lamps 68

7 Display for

Position of automatic transmission* 50
Gear indicator in 7-gear Sports automatic transmission with double clutch* 53
Computer 63

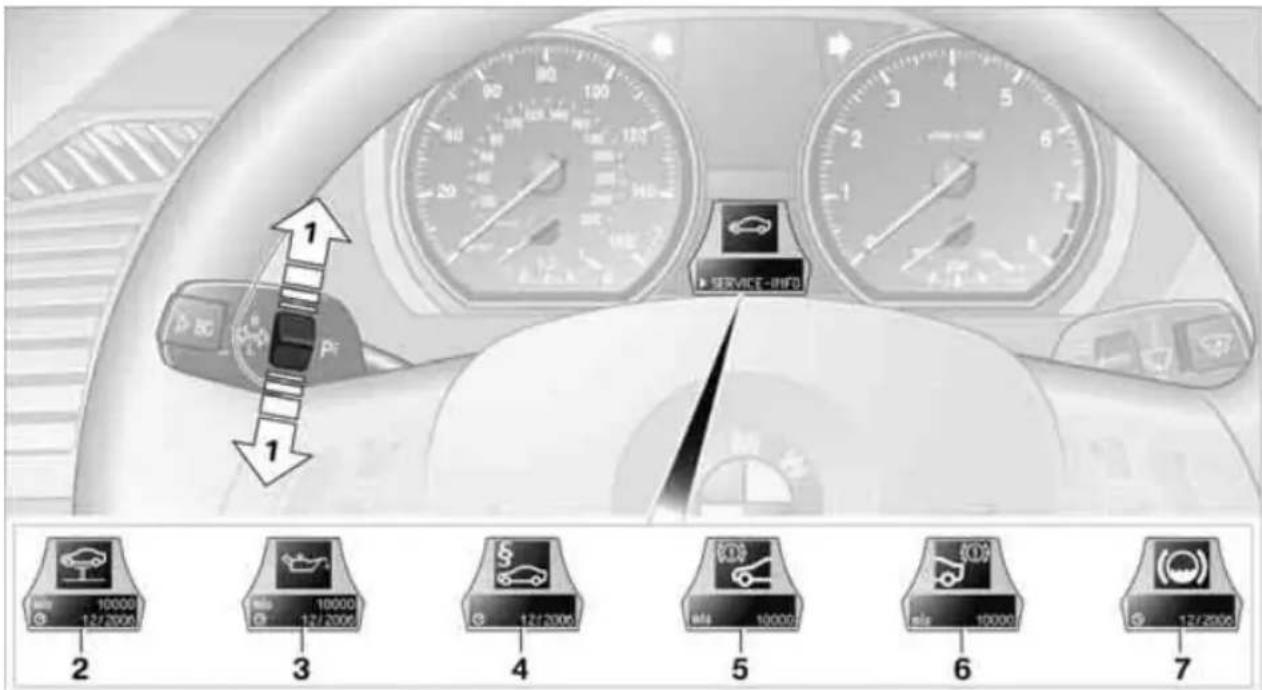

Date of next scheduled service, and remaining distance to be driven 66
▶ Odometer and trip odometer 62
High-beam assistant* 83
▶ Initializing the Flat Tire Monitor* 72

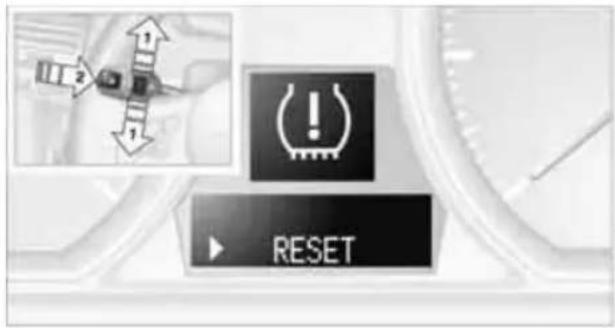

▶ Resetting the Tire Pressure Monitor 74
▶ Checking the oil level 123
▶ Settings and information 65

8 Resetting the trip odometer 62

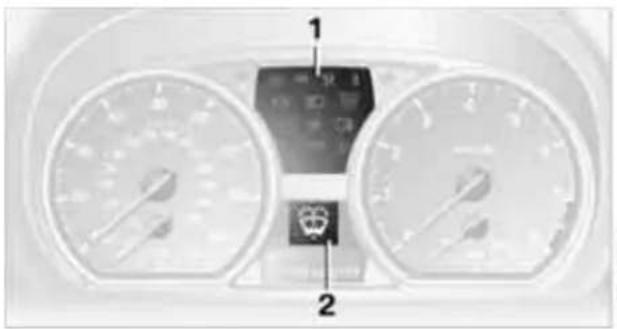

Indicator and warning lamps

The concept

Front view of a car dashboard with dual gauges and a central touchscreen (no visible text or symbols)

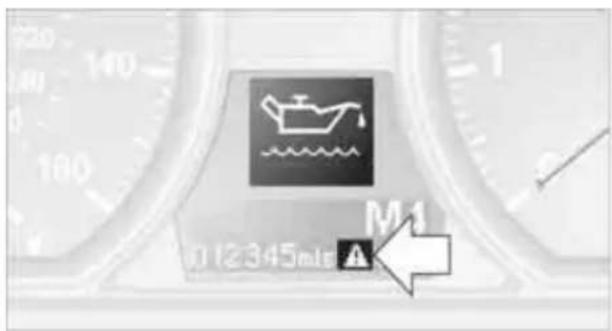

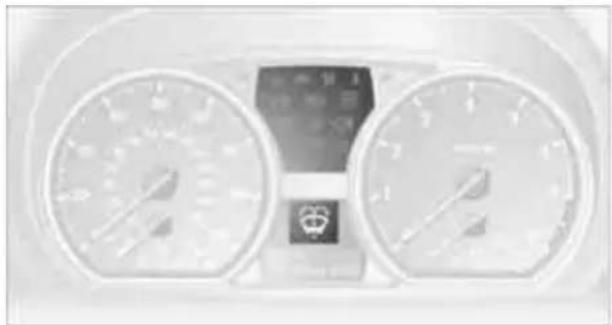

Indicator and warning lamps can light up in a variety of combinations and colors.

Several of the lamps are checked for proper functioning and light up temporarily when the engine is started or the ignition is switched on.

What to do in case of a malfunction

A list of all indicator and warning lamps, as well as notes on possible causes of malfunctions and on how to respond, can be found starting on page 143.

Around the center console: controls and displays

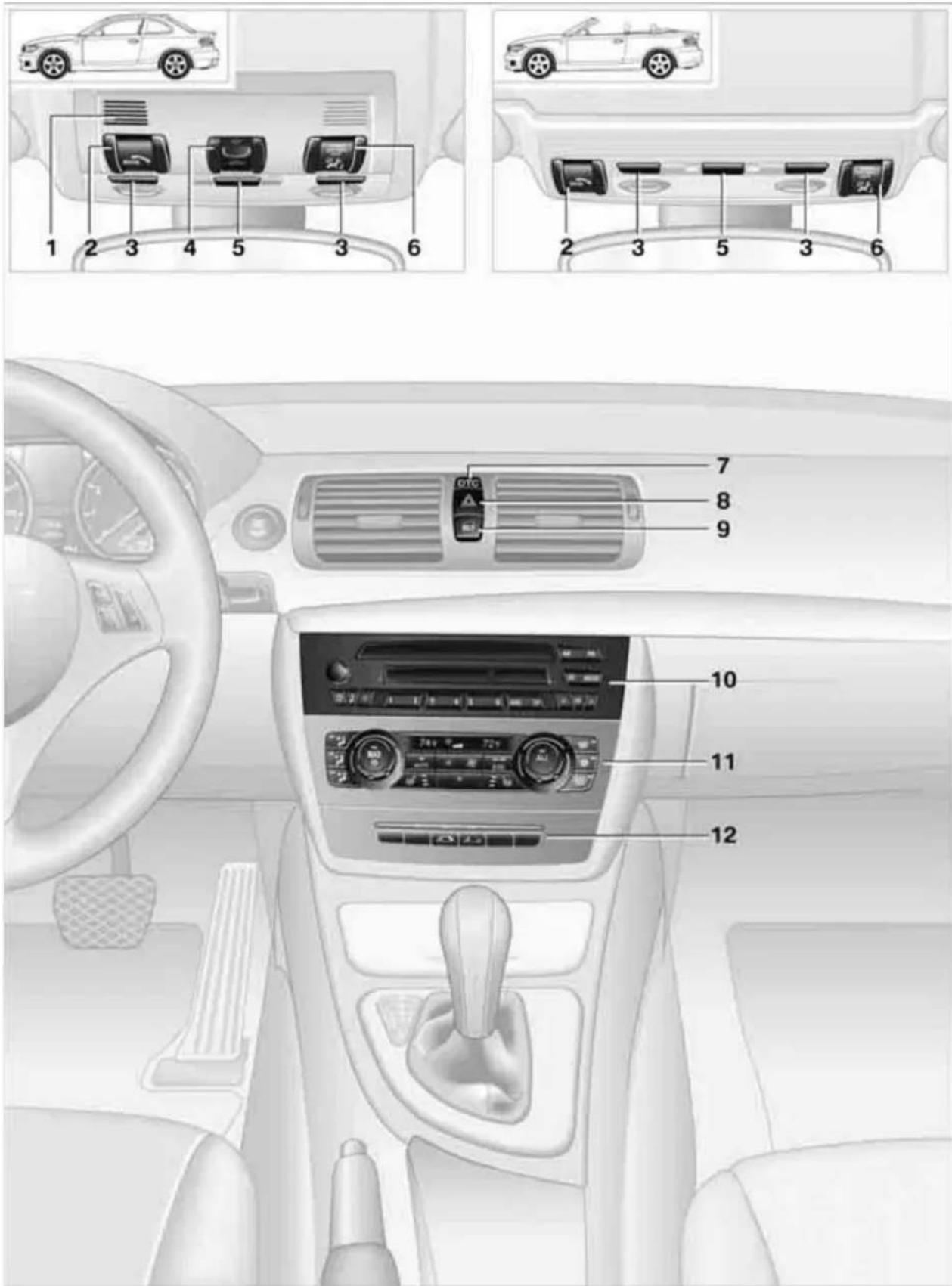

Diagram of car interior with labeled controls and driver, showing dashboard, airbags, and control panels.

1 Coupe: microphone for telephone * in hands-free mode Convertible: microphone on steering column

2 SOS: initiating an Emergency Request call* 138

3 Reading lamps * 85

4 Coupe: glass roof, electric * 29

5 Interior lamps 85

6 Passenger airbag status lamp 78

7 Dynamic Traction Control DTC 71

8 Hazard warning flashers

9 Central locking system 22

10 Radio, refer to separate Owner's Manual

11 Heating and ventilation, air conditioner * or automatic climate control*

Air distribution for heating 87

Air distribution to the windshield* 89

Air distribution to the upper body area* 89

Air distribution to the footwell* 89

AUTO

Automatic air distribution and flow rate* 90

Cooling function* 91

Automatic recirculated-air control AUC* and recirculated-air mode 90

Recirculated-air mode 87

Maximum cooling* 89

ALL

ALL program* 90

Air volume 87, 90

Defrosting windows* 91

Rear window defroster 91

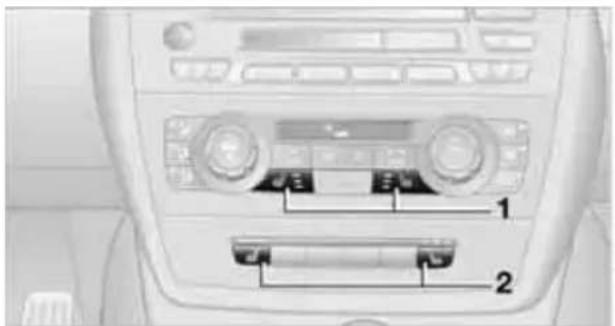

Heated seats* 40

12

Convertible: open convertible top 31

Convertible: close convertible top 31

START STOP ENGINE Online Edition for Part no. 01 41 2 604 079 - © 02/10 BMW AG

Controls This chapter is intended to provide you with information for complete control of your vehicle. All features and accessories that are useful for driving and your safety, comfort and convenience, are described here. Online Edition for Part no. 01 41 2 604 079 - © 02/10 BMW AG

Controls

This chapter is intended to provide you with information for complete control of your vehicle.

All features and accessories that are useful for driving and your safety, comfort and convenience, are described here.

Opening and closing

Remote control

Two black car speakers with circular headsets and front-mounted buttons, no visible text or symbols

Each remote control contains a rechargeable battery that is automatically recharged when it is in the ignition lock while the car is being driven. Use each remote control at least twice a year for longer road trips in order to maintain the batteries' charge status. In cars with Comfort Access*, the remote control contains a replaceable battery, refer to page 27.

The settings called up and implemented when the car is unlocked depend on which remote control is used to unlock the car, refer to Personal Profile, next column.

In addition, information about service requirements is stored in the remote control, refer to Service data in the remote control, page 126.

Integrated key

Diagram of a car plug with labeled component (no text or symbols present)

Press button 1 to release the key.

The integrated key fits the following locks:

Driver's door, refer to page 22
Convertible: glove compartment, refer to page 95

New remote controls

Your BMW center can supply new remote controls with integrated keys as additional units or as replacements in the event of loss.

Personal Profile

The concept

You can set many of your BMW's functions to suit your personal needs and preferences. Without any action on your part, Personal Profile ensures that most of these settings are stored for the remote control currently in use. When you unlock the car, the remote control used for the purpose is recognized and the settings stored for it are called up and implemented.

This means that your personal settings will be activated for you, even if in the meantime your car was used by someone else with another remote control and the corresponding settings. The individual settings are stored for a maximum of four remote controls. They are stored for two remote controls if Comfort Access * is in use.

Personal Profile settings

For more information on specific settings, refer to the specified pages.

Response of the central locking system when the car is unlocked, refer to page 19
▶ Automatic locking of the vehicle, refer to page 22
Automatic call-up* of the driver's seat position, refer to page 40

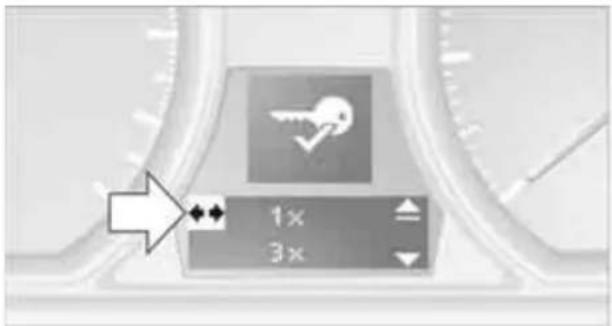

Triple turn signal activation, refer to page 57

▶ Settings for the display in the instrument cluster:

12h/24h format of the clock, refer to page 66
Date format, refer to page 66

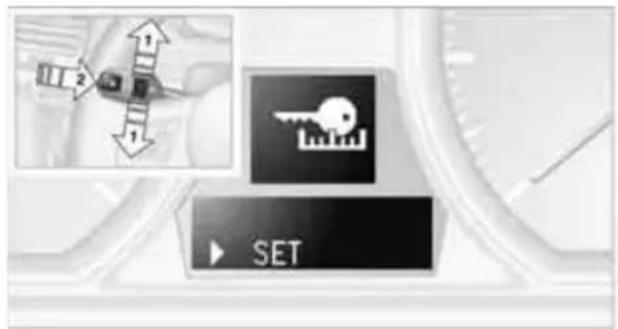

Units of measure for fuel consumption, distance covered/remaining distances, and temperature, refer to page 66

Light settings:

▶ Pathway lighting, refer to page 81
Daytime running lights, refer to page 82
▶ High-beam assistant*, refer to page 83

▶ Automatic climate control*: AUTO program, cooling function and automatic recirculated-air control activation/deactivation, temperature, air volume and distribution, refer to page 89

Entertainment:

▶ Speed-dependent volume control, refer to separate Owner's Manual

Central locking system

The concept

The central locking system functions when the driver's door is closed.

The system simultaneously engages and releases the locks on the following:

Doors
Trunk lid
▶ Fuel filler flap

Operating from outside

▶ Via the remote control
Via the door lock*
In cars with Comfort Access*, via the handles on the driver's and front passenger doors

In addition, if the remote control is used, the welcome lamps*, interior lamps and the door's courtesy lamps* are switched on or off. The alarm system* is also armed or disarmed.

For further details on the alarm system *, refer to page 24.

Operating from inside

By means of the button for central locking, refer to page 22.

In the event of a sufficiently severe accident, the central locking system unlocks automatically. In addition, the hazard warning flashers and interior lamps come on.

Opening and closing: Using the remote control

Persons or animals in a parked vehicle could lock the doors from the inside. You should therefore take the remote control with you when you leave the vehicle so that the latter can be opened from outside.

Convertible: to operate the convertible top with the remote control, the doors and trunk lid must be closed and the cargo area partition must be folded down and engaged on both sides. Refer also to page 32.

Unlocking

Press the button.

The interior lamps, the courtesy lamps* and the welcome lamps come on.

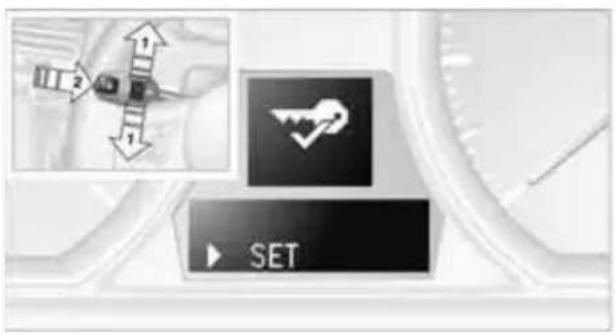

Setting unlocking characteristics

You can set whether only the driver's door or the entire vehicle is to be unlocked when the button is pressed for the first time.

For operating principle refer to page 65.

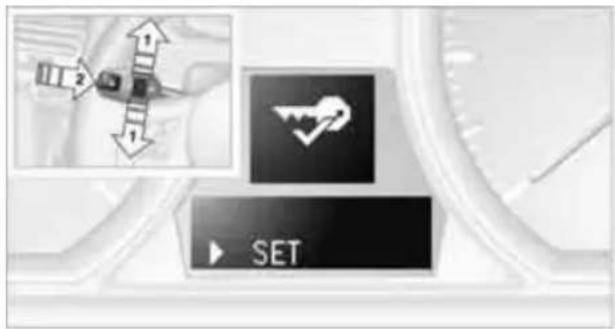

1. Switch on the ignition, refer to page 48.

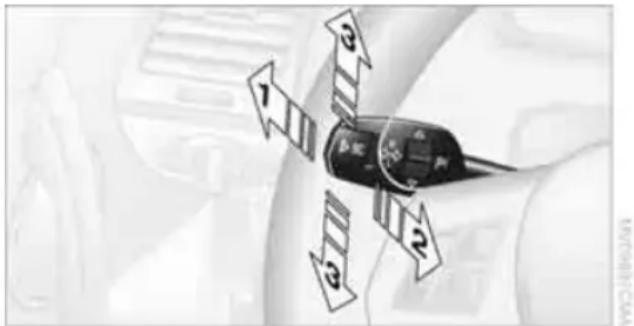

2. Briefly press button 1 in the turn signal/high beam lever up or down repeatedly until the symbol appears in the display, accompanied by the word "SET".

1 2 1 SET

1. Press button 2.
2. Briefly press button 1 in the turn signal/high beam lever down repeatedly until the symbol appears in the display.

Control panel interface with key icon and directional arrow, showing '指向' (rightarrow) button

1. Press button 2.
2. Use button 1 to select:

Press the button once to unlock only the driver's door and the fuel filler flap. Press the button twice to unlock the entire vehicle.
Press the button once to unlock the entire vehicle.

1. Press button 2.

The setting is stored for the remote control currently in use.

Coupe: convenient opening

Hold the button down. The windows and the glass roof* are opened.

Convertible: convenient opening\*

When you are close to the vehicle, the remote control for Comfort Access can be used to open the convertible top and windows.

Hold the button down.

The windows and the convertible topare opened provided that the doors are closed.

If you continue pressing the button, the windows move up.

Watch during the opening process to ensure that no one is injured. Releasing the button interrupts the opening process.

Locking

Press the button.

Convertible: convenient closing\*

When you are close to the vehicle, the remote control for Comfort Access can be used to close the convertible top and windows.

Hold the button down.

The convertible top and the windows are closed.

Watch during the closing process to ensure that no one is injured. Releasing the button interrupts the closing process.

Switching on interior lamps

While the car is locked:

Press the button.

You can also use this function to locate your vehicle in parking garages etc.

Unlocking the trunk lid

Press the button for a longer period.

The trunk lid opens a short distance, regardless of whether it was locked or unlocked.

The trunk lid swings backward and up when opened. Ensure that there is sufficient clearance.

To avoid locking yourself out by accident, do not place the remote control in the cargo area. A previously locked trunk lid is locked again after closing.

Before and after each trip, check that the trunk lid has not been inadvertently unlocked.

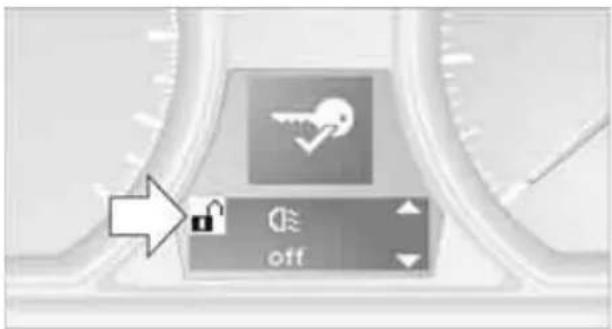

Confirmation signals

You can activate or deactivate the confirmation signals.

For operating principle refer to page 65.

1. Switch on the ignition, refer to page 48.
2. Briefly press button 1 in the turn signal/high beam lever up or down repeatedly until the symbol appears in the display, accompanied by the word "SET".

1 2 1 SET

1. Press button 2.
2. Briefly press button 1 in the turn signal/high beam lever down repeatedly until the desired symbol appears in the display.

OFF

▶ Confirmation signal during unlocking
▶ Confirmation signal during locking

1. Press button 2.

2. Use button 1 to select:

△
The hazard warning flashers light up during unlocking/locking.
▶ off
The function is deactivated.

1. Press button 2.

The setting is stored.

Malfunctions

The remote control may malfunction due to local radio waves. If this occurs, unlock and lock the car at the door lock with the integrated key.

Coupe: in vehicles without an alarm system* or Comfort Access*, only the driver's door can be unlocked and locked using the integrated key in the door lock.

If the car can no longer be locked with a remote control, the battery in the remote control is discharged. Use the remote control on an extended trip to recharge the battery, refer to page 18. The remote control for Comfort Access contains a battery that may have to be changed, refer to page 27.

For US owners only

The transmitter and receiver units comply with part 15 of the FCC/Federal Communications Commission regulations. Operation is governed by the following:

FCC ID:

LX8766S

LX8766E

LX8CAS

Compliance statement:

This device complies with part 15 of the FCC

Rules. Operation is subject to the following two conditions:

This device must not cause harmful interference, and
this device must accept any interference received, including interference that may cause undesired operation.

Any unauthorized modifications or changes to these devices could void the user's authority to operate this equipment.

Opening and closing: Using the door lock

Diagram of a car door handle with directional arrows indicating movement or force (no text or symbols)

You can set the way in which the car is unlocked, refer to page 19.

Coupe

In vehicles without an alarm system* or Comfort Access*, only the driver's door can be locked via the door lock.

To lock both doors, the fuel filler flap and the trunk lid together:

1. With the doors closed, lock the vehicle using the button for the central locking system in the interior, refer to page 22.
2. Unlock and open the driver's or front passenger door, refer to page 23.
3. Lock the vehicle.

Lock the driver's door using the integrated key in the door lock, or
press down the lock button of the front passenger door and close the door from the outside.

Convenient operation\*

Coupe: if the vehicle is equipped with an alarm system* or Comfort Access*, you can also operate the windows and glass roof * via the door lock.

Convertible: you can operate the windows and convertible top via the door lock.

Hold the key in the position for unlocking or locking.

During each closing procedure, and when opening the convertible top, watch the process and ensure that no one becomes

trapped. Releasing the key stops the operation.

Manual operation

In the event of an electrical malfunction, you can lock and unlock the driver's door by turning the integrated key to the corresponding limit positions in the door lock.

Opening and closing: From inside

Interior view of a car air conditioner unit with a close-up of the front panel showing a lock icon (no text or symbols visible)

This button serves to unlock or lock doors and the trunk lid, but does not activate the anti-theft system. The fuel filler flap remains unlocked.

Automatic locking

You can also set the situations in which the car locks:

For operating principle refer to page 65.

1. Switch on the ignition, refer to page 48.
2. Briefly press button 1 in the turn signal/high beam lever up or down repeatedly until the symbol appears in the display, accompanied by the word "SET".

1 2 1 SET

1. Press button 2.

2. Briefly press button 1 in the turn signal/high beam lever down repeatedly until the symbol appears in the display.

User interface screenshot showing a key inserted into an 'on' button with navigation arrows

1. Press button 2.

2. Use button 1 to select:

on

The central locking system automatically locks the vehicle after some time if no door has been opened.

▷ → on

The central locking system automatically locks the vehicle as soon as you drive off.

▷ ⓞ→on

The central locking system automatically locks the vehicle after some time if no door has been opened, or as soon as you drive off.

▶ off

The central locking system remains unlocked.

1. Press button 2.

The setting is stored for the remote control currently in use.

Unlocking and opening doors

Either unlock the doors together using the button for the central locking system and then pull the door handle above the armrest or

pull on the door handle of each door twice: the first time unlocks the door, the second time opens it.

Locking

Use the central locking button to lock all of the doors simultaneously, or
press down the safety lock button of a door. To prevent you from being locked out, the open driver's door cannot be locked using the lock button.

Persons or animals in a parked vehicle could lock the doors from the inside. You should therefore take the remote control with you when you leave the vehicle so that the latter can be opened from outside.

Trunk lid

In order to avoid damage, make sure there is sufficient clearance before opening the trunk lid.

Opening from inside

Close-up of a car interior with a small electric car icon and a magnified view of the car (no text or symbols on the car itself)

Press the button: the trunk lid opens unless it has been locked.

Opening from outside

Exterior view of a car trunk bumper with a black plastic grille (no text or symbols visible)

Press the button, see arrow, or the button on the remote control for a longer period. The trunk lid opens slightly and can be swung upward.

In the event of a malfunction, please contact your BMW center or a workshop that works according to BMW repair procedures with correspondingly trained personnel.

Locking or unlocking separately

Close-up of a mechanical component with a tool inserted, showing a numbered inset view (no readable text or symbols)

The switch is located in the glove compartment.

1 Locking the trunk lid
2 Unlocking the trunk lid

Locking separately

Push the switch in the direction of arrow 1.

The trunk lid is locked and cannot be unlocked using the central locking system.

If you give the remote control without the integrated key to someone else while the glove compartment is locked, the trunk lid cannot be opened. This is an advantage when valet parking, for example. Locking the glove compartment, refer to page 95.

Unlocking separately

Push the switch in the direction of arrow 2.

Emergency release

Simple triangular warning symbol with a downward arrow inside, no text or numbers present.

Pull the lever in the cargo area. The trunk lid is unlocked.

Closing

Top-down view of a transparent plastic car head panel with mounting holes and ventilation slots (no text or symbols visible)

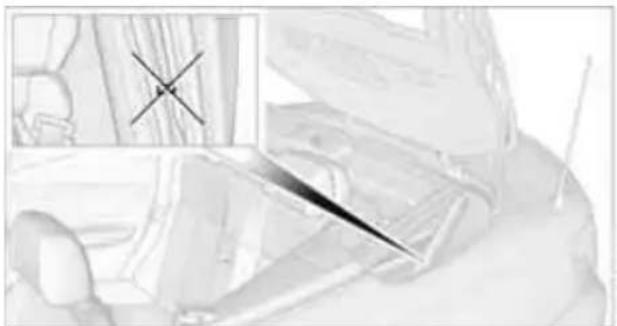

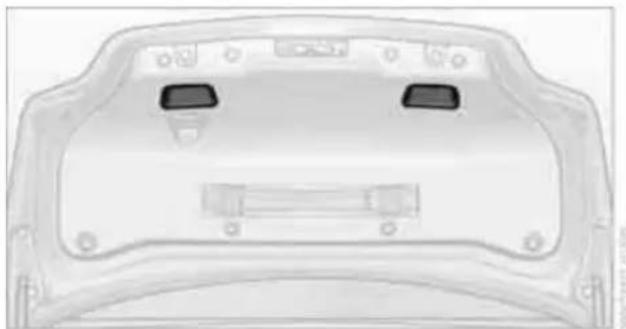

The handle recesses on the interior trim of the trunk lid make it easier to pull down.

Make sure that the closing path of the trunk lid is clear; otherwise, injuries may

result.

Alarm system\*

The concept

The vehicle alarm system responds:

When a door, the hood or the trunk lid is opened
To movements inside the vehicle: interior motion sensor, refer to page 25
When the car's inclination changes, for instance if an attempt is made to jack it up and steal the wheels or to raise it prior to towing away: tilt alarm sensor, refer to page 25
When there has been an interruption of power supply from the battery

Depending on the market-specific version, the alarm system briefly signals unauthorized entry attempts by:

An acoustic alarm

Switching on* the hazard warning flashers

Arming and disarming

When you lock or unlock the vehicle, either with the remote control or at the door lock, the alarm system is armed or disarmed at the same time.

You can open the trunk lid using the button of the remote control even if the alarm system is armed, refer to page 20. The lid is locked and monitored again as soon as it is closed.

Panic mode

You can trigger the alarm system if you find yourself in a dangerous situation.

Press the button for at least three seconds.

To switch off the alarm: press any button.

Switching off an alarm

Unlock the car with the remote control, refer to page 19, or
▶ insert the remote control all the way into the ignition lock.

Indicator lamp displays

Close-up of a ceiling-mounted fixture with a circular vent and screw base (no text or symbols visible)

The indicator lamp under the inside rearview mirror flashes continuously: the system is armed.
The indicator lamp flashes after locking: doors, hood or trunk lid are not properly closed. Even if you do not close the alerted area, the system begins to monitor the remaining areas, and the indicator lamp flashes continuously after approx. 10 seconds. The interior motion sensor and the tilt alarm sensor are not activated.
The indicator lamp goes out after unlocking: your vehicle has not been disturbed while you were away.
If the indicator lamp flashes after unlocking until the remote control is inserted in the ignition, but for no longer than approx. 5 minutes: your vehicle has been disturbed while you were away.

Tilt alarm sensor

The tilt of the vehicle is monitored. The alarm system reacts, e.g. to attempts to steal a wheel or tow the vehicle.

Interior motion sensor

Coupe

In order for the interior motion sensor to function properly, the windows and glass roof must be completely closed *.

Convertible

The interior of the car is monitored up to the height of the seat cushions. Thus the alarm system is activated together with the interior motion sensor even if the convertible top is open. An alarm can be triggered unintentionally by falling objects such as leaves, refer to Avoiding unintentional alarms.

Avoiding unintentional alarms

The tilt alarm sensor and interior motion sensor may be switched off at the same time. This prevents unintentional alarms, e.g. in the following situations:

In duplex garages
During transport on car-carrying trains, boats/ships or on a trailer
When animals are to remain in the vehicle

Switching off tilt alarm sensor and interior motion sensor

Press the button on the remote control again as soon as the vehicle is locked.

The indicator lamp lights up briefly and then flashes continuously. The tilt alarm sensor and the interior motion sensor are switched off until the next time the vehicle is unlocked and subsequently locked again.

Comfort Access\*

Comfort Access enables you to enter your vehicle without needing to hold the remote control in your hand. All you need to do is wear the remote control close to your body, e.g. in your jacket pocket. The vehicle detects the corresponding remote control within the immediate vicinity or in the passenger compartment.

Comfort Access supports the following functions:

▶ Unlocking/locking the vehicle
▶ Unlocking the trunk lid separately
Engine starting
▶ Convenient closing

Functional requirement

The vehicle or the trunk lid can only be locked when the vehicle detects that the remote control currently in use is outside of the vehicle.
The vehicle cannot be locked or unlocked again until after approx. 2 seconds.
The engine can only be started when the vehicle detects that the remote control currently in use is inside the vehicle.

Comparison to the standard remote control

In general, there is no difference between using Comfort Access or pressing the buttons on the remote control to carry out the functions mentioned above. You should therefore first familiarize yourself with the instructions on opening and closing starting on page 18.

Special features regarding the use of Comfort Access are described below.

If you notice a brief delay while opening or closing windows, the glass roof or the convertible top, the system is checking whether a remote control is inside the vehicle. Please repeat the opening or closing procedure, if necessary.

Unlocking

Diagram showing a car interior with directional arrows labeled 1 and 2 pointing to specific areas.

Grasp the handle on the driver's or front passenger door completely, arrow 1. This corresponds to pressing the button.

Locking

Touch the surface, arrow 2, with your finger for approx. 1 second. This corresponds to pressing the ⚙ LOCK button.

To preserve the battery, please make sure that the ignition and all electrical consumers are switched off before locking the vehicle.

Coupe: convenient closing

For Convenient closing, keep your finger on the surface, arrow 2.

Convertible: window and convertible top operation

With the ignition at radio readiness or beyond, you can open and close the windows and the convertible top when a remote control is located inside the vehicle.

Unlocking the trunk lid separately

Press the button on the outside of the trunk lid. This corresponds to pressing the button.

If the vehicle detects that a remote control has been accidentally left inside the locked vehicle after the trunk lid is closed, the lid will reopen. The hazard warning flashers flash and a signal* sounds.

Switching on radio readiness

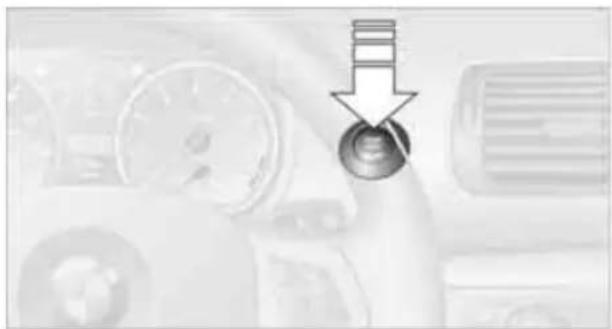

Radio readiness is switched on by pressing the start/stop button, refer to page 48.

Do not depress the brake or the clutch; otherwise, the engine will start immediately.

Starting the engine

You can start the engine or switch on the ignition when a remote control is inside the vehicle. It is not necessary to insert a remote control into the ignition lock, refer to page 48.

Switching off the engine in cars with automatic transmission

The engine can only be switched off when the selector lever is in position P, refer to page 49. To switch the engine off when the selector lever is in position N, the remote control must be in the ignition lock.

Malfunctions

Comfort Access may malfunction due to local radio waves. If this happens, open and close the vehicle via the buttons on the remote control or using the integrated key. To start the engine afterward, insert the remote control into the ignition lock.

Warning lamps

The warning lamp in the instrument cluster lights up when you attempt to start the engine: the engine cannot

be started. The remote control is not inside the vehicle or is malfunctioning. Take the remote control with you inside the vehicle or have it checked. If necessary, insert another remote control into the ignition lock.

The warning lamp in the instrument cluster lights up while the engine is running: the remote control is no

longer inside the vehicle. After the engine is switched off, the engine can only be restarted within approx. 10 seconds.

The indicator lamp in the instrument cluster comes on: replace the battery in the remote control.

Replacing the battery

The remote control for Comfort Access contains a battery that will need to be replaced from time to time.

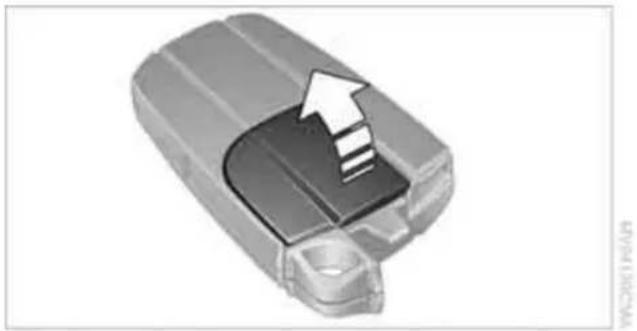

1. Take the integrated key out of the remote control, refer to page 18.

3D illustration of a battery pack with an arrow pointing to the internal structure (no text or symbols)

1. Remove the cover.

2. Insert the new battery with the plus side facing up.

3. Press the cover on to close.

Take the old battery to a battery collection point or to your BMW center.

Windows

To prevent injuries, watch the windows while closing them.

Take the remote control out of the ignition when you leave the car; otherwise, children could operate the electric windows and possibly injure themselves.

Coupe: opening, closing

Close-up of a handheld electronic device with a close-up inset showing its internal components (no visible text or symbols)

Press the switch to the resistance point: The window opens as long as you press the switch.
Press the switch beyond the resistance point: The window opens automatically. Press the switch again to stop the opening movement.

You can close the windows in the same manner by pulling the switch.

Convertible: opening, closing

Window operation with Comfort Access, refer also to page 20.

To close the side windows while driving, either close the rear windows first or all four windows together; otherwise, the windows may not close tightly at high speeds.

Individually

Close-up of a toothbrush and a digital display showing 8.6 seconds (no text or symbols on the brush itself)

Press the switch to the resistance point: The window opens as long as you press the switch.
Press the switch beyond the resistance point: The window opens automatically. Press the switch again to stop the opening movement.

You can close the windows in the same manner by pulling the switch. The rear windows cannot be closed automatically.

Jointly

Close-up of a metallic tool with a magnified inset showing internal components (no visible text or symbols)

Press the switch to the resistance point: All windows open as long as you press the switch.
Press the switch beyond the resistance point: All windows open automatically. Press the switch again to stop the opening movement.
▶ Pull the switch: All windows close as long as you pull the switch.

After switching off the ignition

When the remote control is removed or the ignition is switched off, you can still operate the windows for approx. 1 minute as long as no door has been opened.

Convenient operation

For information on Convenient operation via the remote control or the door lock, refer to page 19 or 22. For information on Convenient closing with Comfort Access, refer to Locking on page 26.

Pinch protection system

If the closing force exceeds a specific value as a power window closes, the closing action is interrupted and the window reopens slightly.

Despite the pinch protection system check and clear the window's travel path to closing it; otherwise, the safety system

might fail to detect certain kinds of obstructions, such as thin objects, and the window would continue closing.

Do not install any accessories that might interfere with window movement. Otherwise, the pinch protection system could be impaired.

Convertible: the rear windows are not equipped with pinch protection. Therefore, watch them closely when closing to avoid personal injury.

Closing without pinch protection

If there is an external danger, or if ice on the windows, etc., prevents you from closing the windows normally, proceed as follows:

1. Pull the switch past the resistance point and hold it there. Pinch protection is limited and the window reopens slightly if the closing force exceeds a certain value.
2. Pull the switch again past the resistance point within approx. 4 seconds and hold it there. The window closes without pinch protection.

Coupe: glass roof\*, electric

To prevent injuries, watch the glass roof while closing it.

Take the remote control with you when you leave the car; otherwise, children could operate the roof and possibly injure themselves.

Interior view of a car showing a camera module with an inset close-up of its screen (no text or symbols visible)

Raising

Press the switch.

The closed glass roof is raised and the sliding visor opens slightly.

Do not close the sliding visor forcibly with the roof in the raised position, as this

would damage the mechanism.

Opening, closing

Press the switch backwards to the resistance point.

The glass roof and the sliding visor open together as long as you hold the switch in this position.

Press the switch backwards past the resistance point.

The glass roof and the sliding visor open automatically. Briefly press the switch again to stop the opening movement.

You can close the glass roof in a similar manner by pressing the switch forwards. The sliding visor remains open and can be closed by hand.

For information on Convenient operation via the remote control or the door lock, refer to page 19 or 22. For information on Convenient closing with Comfort Access, refer to Locking on page 26.

After switching off the ignition

When the remote control is removed or the ignition is switched off, you can still operate the roof for approx. 1 minute as long as no door has been opened.

Pinch protection system

If the glass roof encounters an obstruction during closing from approximately the middle of the opening in the roof, or during closing from the raised position, the closing movement is interrupted and the glass roof is opened again slightly.

Despite the pinch protection system check and clear the roof's travel path prior sing it; otherwise, the safety system might detect certain kinds of obstructions, such try thin objects, and the roof would con-closing.

Closing without pinch protection

If there is an external danger, press the switch forward past the resistance point and hold it there. The roof closes without pinch protection.

Following interruptions in electrical power supply

After a power failure, there is a possibility that the glass roof can only be raised. The system must be initialized. BMW recommends having this work done by your BMW center.

Closing manually\*

In the event of an electrical malfunction, you can move the glass roof manually:

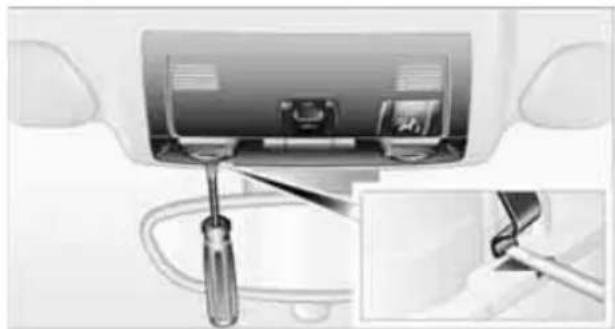

1. Unclip the front of the cover of the interior lamps using the screwdriver from the onboard vehicle tool kit, refer to page 132.

Top-down view of a car's rearview mirror and dashboard (no text or symbols visible)

1. On both sides, use the screwdriver to press on the clip inside the opening.

Interior view of a car showing a screwdriver inserted into a rear panel with a device inside (no visible text or symbols)

1. Remove the control unit.

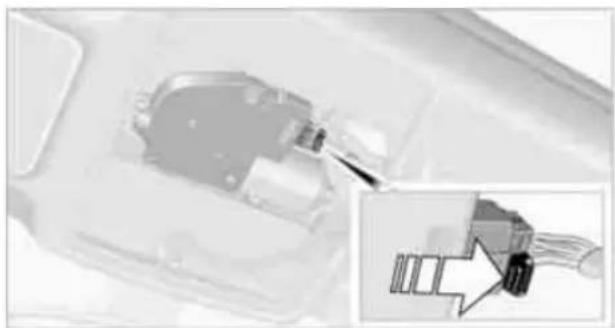

2. Unplug the motor. Considerably less effort will be required for manual operation.

Close-up of a mechanical component with an arrow pointing to a connector detail (no visible text or symbols)

1. Insert the Allen wrench * supplied with the onboard vehicle tool kit, refer to page 132, into the opening provided. Move the glass roof in the desired direction.

Close-up of a black mechanical component with a curved wire, mounted on a white surface (no visible text or symbols)

1. Reattach the lamp cover and reinstall the control unit.

Convertible: top

The fully automatic top combines reliable weather protection with simple and easy-to-use operation.

The following tips will enhance your driving pleasure in your Convertible:

It is advisable that you close the convertible top when you park the vehicle. Not only does the closed top protect the vehicle interior against unanticipated weather damage, it also offers a certain amount of theft protection. However, even when the top is closed, valuables should only be stored in the locked cargo area.

Do not attach roof-mounted luggage systems to the convertible top.

If the top is opened while it is wet, e.g. after driving in the rain, water may drip into the cargo area. If necessary, remove items from the cargo area beforehand to avoid water stains or soiling.

At temperatures below +14 °F / -10 °C, do not move the convertible top as this could it in damage.

Do not keep the convertible top in the convertible top box for longer than one day if it is wet; otherwise, the moisture may cause damage. Do not place objects on the convertible top, as otherwise they may fall off when you operate the convertible top and cause damage or injury. Never move the convertible top when the rollover protection system is in the activated position.

Always fully complete a convertible top movement. Driving with the convertible top incompletely opened or closed can result in damage or injury.

Do not reach into the mechanism during the opening or closing procedure. Keep children away from the opening/closing path of the convertible top.

For safety reasons, only move the convertible top when the vehicle is stationary, if possible.

The convertible top swings upward when opening and closing. When operating the convertible top in a garage, under a bridge, etc., ensure that there are at least 6 ft 7 in/2 m of headroom; otherwise, the vehicle may be damaged.

Before opening and closing

Comply with the safety precautions described above.
▶ Ensure that the cargo area partition is folded down and engaged on both sides, refer to page 98; otherwise, it will not be possible to open the convertible top.
▶ Ensure that the cargo does not press against the cargo area partition from below.
▶ Ensure that the trunk lid is closed.

Opening and closing

Convertible top operation with Comfort Access, refer also to page 20.

As of radio readiness, refer to page 48:

If possible, conserve the battery by only operating the convertible top when the one is running.

Before closing the convertible top, remove all foreign objects from the windshield frame as these could prevent the hardtop from closing properly.

Car infotainment panel with labeled buttons and icons, showing status indicators for car mode and function

1 Push button: close convertible top

2 Push button: open convertible top

3 LEDs

The side windows move down when the convertible top is opened.

Operation while driving

You can open or close the convertible top while driving, as long as the car is not moving faster than approx. 25 mph/40 km/h.

If you accelerate to over 30 mph/50 km/h while the convertible top is moving, the procedure is interrupted.

When operating the convertible top while driving, pay extra attention to the traffic to an accident. If possible, do not move the convertible top while driving in reverse gear, use your view to the rear is severely limited using the procedure. Do not operate the complete top while driving in windy conditions.

Do not drive faster than 30 mph/50 km/h; otherwise, damage to the vehicle can occur.

LEDs

While the convertible top is being operated, the left LED lights up green. It goes out as soon as the top is fully opened or closed.
If the right-hand LED flashes red when you release the button, the opening or closing action has not yet finished.
If the right-hand LED lights up red when the button is pressed, the cargo area partition is raised, the trunk lid is not closed or there is a malfunction. The convertible top cannot be moved.

Interruption

The automatic sequence of movements is interrupted if the button for the convertible top operation is released. The sequence can be continued in the desired direction by pushing or pulling the buttons.

If the opening or closing procedure is interrupted for an extended period, the convertible top remains in the raised position for approx. 10 minutes and then slowly moves to a stable position.

A convertible top that is not fully opened or closed is a safety hazard.

If the convertible top is not fully opened or closed, the trunk lid cannot be opened

and the windows cannot be moved.

Convenient operation with remote control or via door lock

Refer to pages 20 and 22.

Closing manually

Only close the convertible top manually if it is absolutely necessary, and never open it manually. The convertible top box cover cannot be locked if there is an electrical defect and would then open while the vehicle is in motion. Incorrect handling can result in damage.

Closing the convertible top manually should be performed by two people. The rear seats must not be occupied.

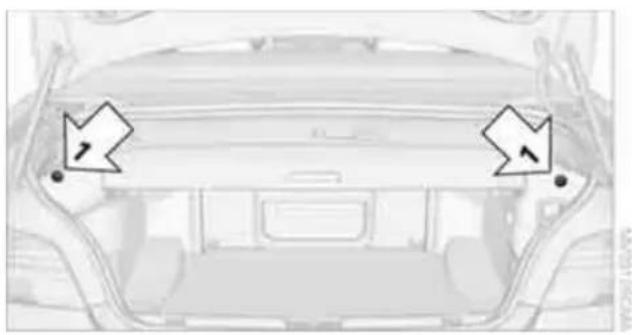

Before closing

1. Open the trunk lid.
2. Take the screwdriver out of the onboard vehicle tool kit, refer to page 132.

Top-down view of a car backrest with two directional arrows pointing to the rear window (no text or symbols)

1. If the convertible top is locked, release the two button in the cargo area, arrows 1, using the screwdriver and pull forcefully all the way out. The convertible top box cover is unlocked.

2. Close the trunk lid. After manually releasing the convertible top box cover, it is no longer possible to open the trunk lid.

Closing

1. Slide the protective cap, arrow 2, forward.
2. Slowly and smoothly open the convertible top box cover all the way, arrow 3.

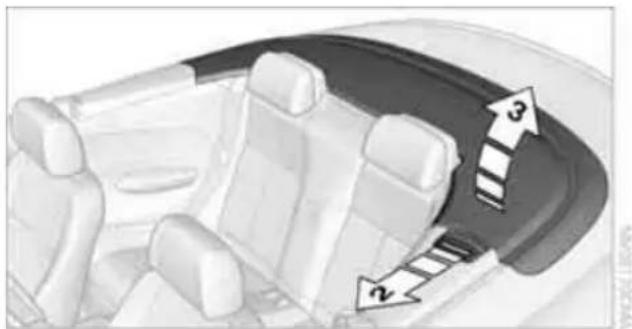

Interior view of a car showing the dashboard and seat area with directional arrows indicating movement (no text or symbols)

1. The locking pins must have engaged completely. If they are still visible: close the convertible top box cover as far as necessary until the locking bolts engage audibly, then slowly open the cover. During this process,

do not close the convertible top box cover completely.

Close-up of a car interior with visible steering wheel and dashboard (no text or symbols)

1. Lift out the front part of the convertible top, arrows 4, on both sides and swing it forward. At the same time keep the convertible top box cover from closing, e.g. using your shoulder.

Close-up of a car interior showing a steering wheel and dashboard with no visible text or symbols

1. Position the rear convertible top frame upright, arrow 5, and close the convertible top box cover, arrow 6. Then lower the rear convertible top frame.

Illustration of a mechanical component with labeled parts (5 and 6), no readable text or symbols present.

1. Together with another person, press down the front convertible top frame from the outside and on both sides as far as possible.

2. Carefully remove the cover in the center of the front convertible top frame using a pointed object.

Take the Allen wrench out of the onboard literature pouch.

1. Attach the handle of the screwdriver to the Allen wrench and insert the wrench into the opening provided.

7

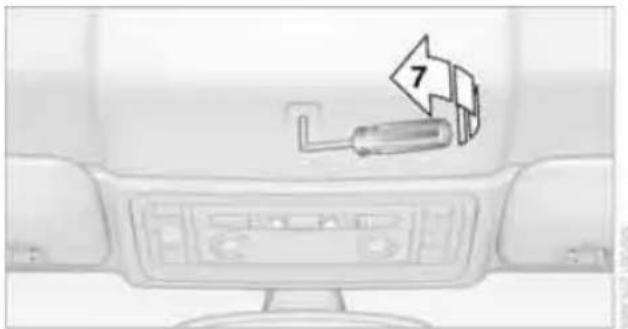

1. Turn the Allen wrench all the way to the left, arrow 7, until the front convertible top frame is locked to the windshield frame. The rear convertible top frame is automatically pressed down onto the convertible top box cover and is sealed tight under tension.

The closing procedure must be fully completed; otherwise, injury or damage may occur.

Please contact your BMW center to have the cause of the malfunction eliminated.

Wind deflector\*

The wind deflector keeps air currents in the passenger compartment at a low level when the convertible top is down and provides for an even more pleasant journey at higher speeds.

Installation

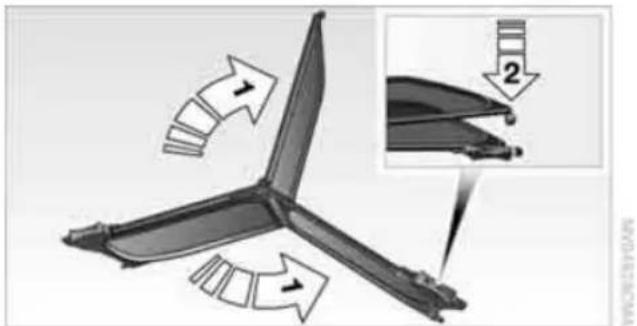

1. Remove the wind deflector from the protective cover and unfold it, arrows 1.

Diagram illustrating the folding process of a propeller blade, with labeled parts and directional arrows indicating folding direction.

1. Press together the top and bottom parts of the wind deflector until the catch engages, arrow 2.
2. Position both locking pins of one side at the openings provided for them.

Interior view of a car showing a vehicle chassis with directional arrows indicating movement or flow (no text or symbols present)

1. Press the wind deflector into the openings, arrows 3, overcoming the tension in the springs, and push the free locking pin in the same direction, arrow 4.
2. Position the free locking pins at the corresponding openings and let the spring tension lock the wind deflector in place, arrow 5.

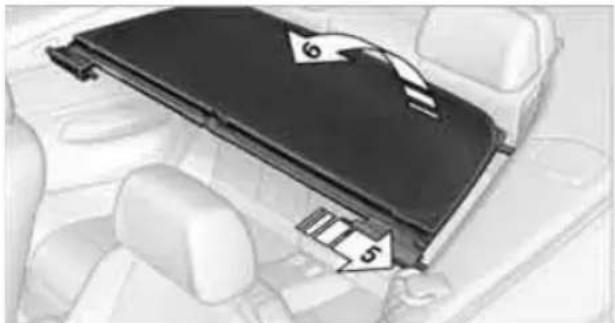

Interior view of a car showing a black plastic cover with numbered arrows indicating parts (no text or symbols present)

1. Fold up the top section of the wind deflector, arrow 6.

With the wind deflector installed: do not recline the front-seat backrests too far if the seat is to be slid all the way back, as this would damage the wind deflector.

Removing the wind deflector

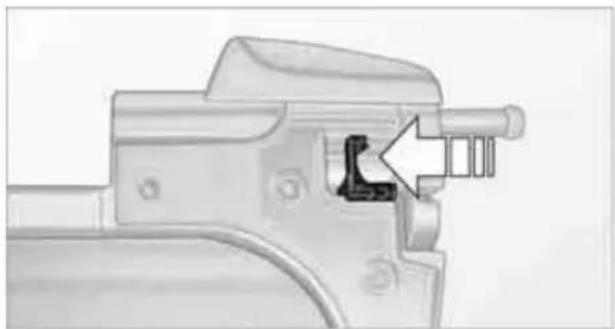

Proceed in the reverse order as used for installation.

Folding

Mechanical component diagram showing a lever mechanism with an arrow indicating direction (no text or symbols present)

Slide the red release lever towards the middle of the wind deflector and push the two halves apart.

Adjustments

Sitting safely

The ideal sitting position can make a vital contribution to relaxed, fatigue-free driving. In conjunction with the safety belts, the head restraints and the airbags, the seated position has a major influence on your safety in the event of an accident. To ensure that the safety systems operate with optimal efficiency, we strongly urge you to observe the instructions contained in the following section.

For additional information on transporting children safely, refer to page 45.

Airbags

Always maintain an adequate distance between yourself and the airbags. Always grip the steering wheel on the rim, with your hands in the 3 o'clock and 9 o'clock positions, to minimize the risk of injury to the hands or arms in the event of the airbag being triggered off.

No one and nothing should come between the airbags and the seat occupant.

Do not use the cover of the front airbag on the front passenger side as a storage area. Make sure that the front passenger is sitting correctly, i.e. not resting feet or legs on the dashboard; otherwise, leg injuries can occur if the front airbag deploys.

Make sure that passengers keep their heads away from the side airbag and do not lean against the cover of the head airbag; otherwise, serious injuries can result if the airbag deploys.

Even if you follow all the instructions, injuries resulting from contact with airbags cannot be fully excluded, depending on the circumstances. The ignition and inflation noise may provoke a mild hearing loss in extremely sensitive individuals. This effect is usually only temporary.

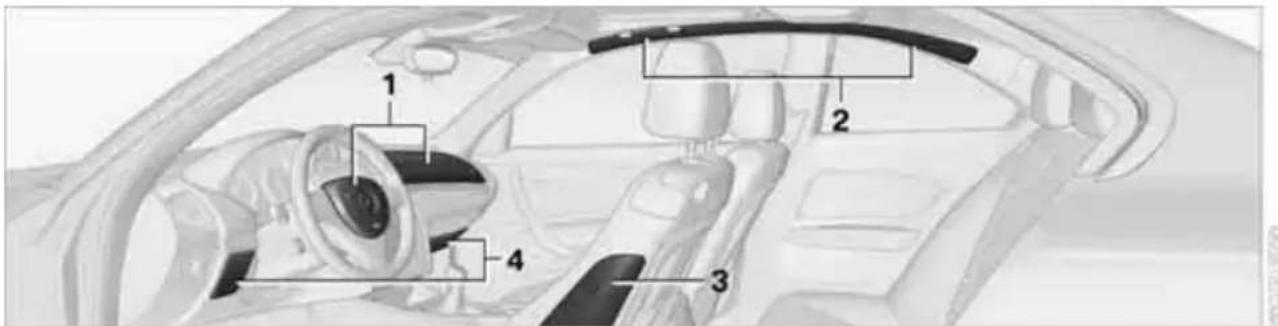

For airbag locations and additional information on airbags, refer to page 77.

Head restraint

A correctly adjusted head restraint reduces the risk of neck injury in the event of an accident.

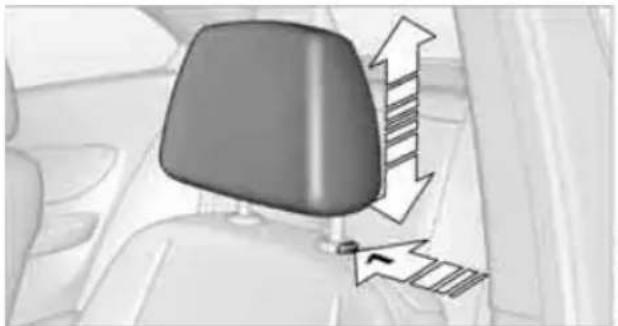

Adjust the head restraint in such a way that its center is at approx. ear level. Othe, there is an increased risk of injury in the t of an accident.

Head restraints, refer to page 38.

Safety belt

Before every drive, make sure that all occupants wear their safety belts. Airbags complement the safety belt as an additional safety device, but they do not represent a substitute.

Your vehicle has four seats, each of which is equipped with a safety belt.

Never allow more than one person to wear a single safety belt. Never allow

infants or small children to ride in a passenger's lap. Make sure that the belt in the lap area sits low across the hips and does not press against the abdomen.

The safety belt must not rest against the throat, run across sharp edges, pass over hard or fragile objects or be pinched. Fasten the safety belt so that it sits as snugly as possible against the lap and shoulder without being twisted. Otherwise, the belt could slide over your hips and injure your abdomen in the event of a frontal collision. Avoid wearing bulky clothing and regularly pull the belt in the upper-body area taut; otherwise, its restraining effect could be impaired.

Safety belts, refer to page 41.

Seats

Note before adjusting

Never attempt to adjust your seat while the vehicle is moving. The seat could respond with unexpected movement, and the ensuing loss of vehicle control could lead to an accident.

On the front passenger seat as well, do not incline the backrest too far to the rear while the vehicle is being driven; otherwise, there is a danger in the event of an accident of sliding under the safety belt, eliminating the protection normally provided by the belt.

Comply with the instructions on head restraint height on page 38, and on damaged safety belts on page 42.

Manual adjustment

Observe the adjustment instructions above to ensure the best possible per-protection.

Diagram showing mechanical components with numbered arrows indicating directional movement or force vectors around a central component.

Longitudinal direction

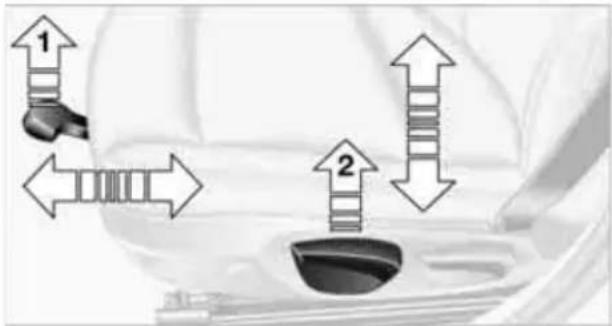

Pull lever 1 and slide the seat to the desired position.

After releasing the lever, move the seat gently forward or back to make sure it engages properly.

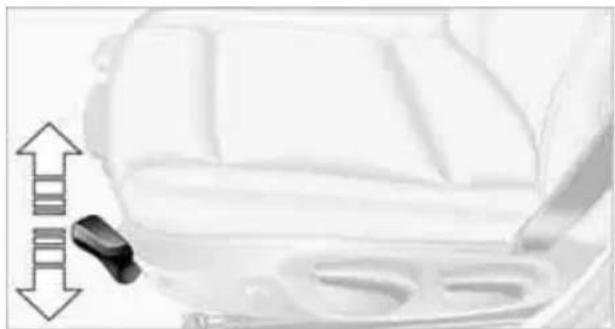

Height

Pull lever 2 and apply your weight to the seat or lift it off, as necessary.

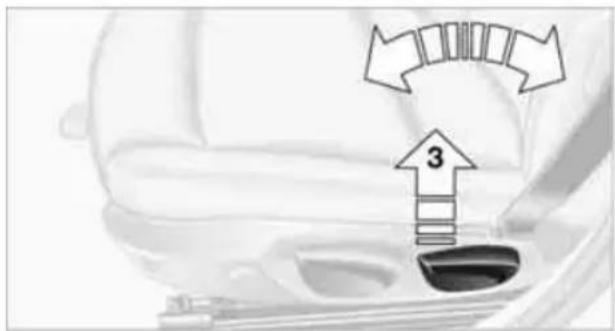

Backrest

Diagram showing a car interior with directional arrows and a numbered arrow labeled '3' (no text or symbols beyond arrows)

Pull lever 3 and apply your weight to the back-rest or lift it off, as necessary.

Tilt*

Top-down view of a car's side panel showing the seat and dashboard (no text or symbols visible)

Pull the lever and apply your weight to the seat or lift it off, as necessary.

Thigh support*

Close-up of a car seatbelt buckle with directional arrows indicating rotation (no text or symbols)

Pull the lever and move the thigh support forward or back.

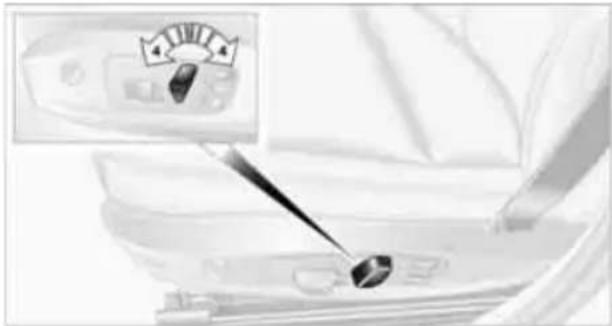

Electrical adjustment\*

Observe the adjustment instructions above to ensure the best possible per-

sonal protection.

Diagram showing a device with labeled parts and directional arrows, likely illustrating a mechanical or electrical component.

1 Longitudinal direction
2 Height
3 Angle

Close-up of a spoon cleaning a car interior with a digital scale showing four rotary gauges (no text or symbols visible)

4 Backrest

The head restraints are adjusted manually, refer to Head restraints on page 38.

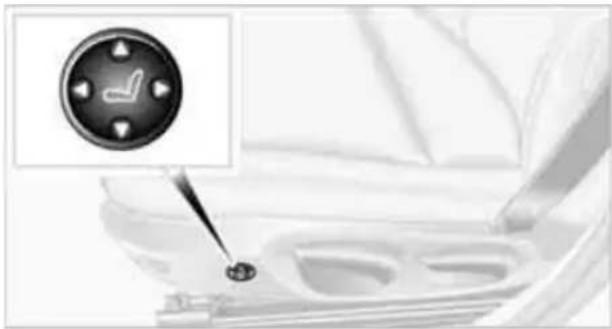

Lumbar support\*

Close-up of a car dashboard with a finger pointing to the wheel (no visible text or symbols)

You can also adjust the contour of the backrest to obtain additional support in the lumbar region.

The upper hips and spinal column receive supplementary support to help you maintain a relaxed, upright sitting position.

Increase or decrease curvature: press the switch at the front or rear, respectively.
Shift curvature up or down: press the switch at the top or bottom, respectively.

Backrest width\*

Close-up of a car interior with a hand cursor pointing to the left side of a circular button (no text or symbols visible)

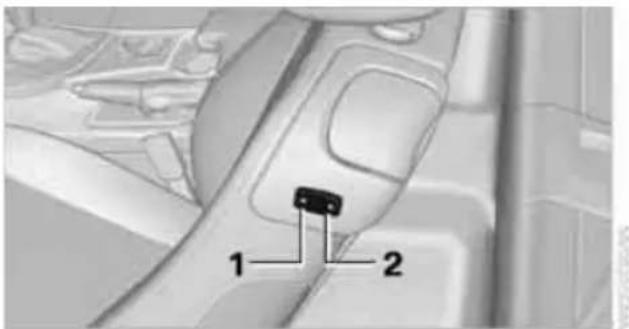

You can change the width of the backrest to suit your individual preferences by adjusting the lateral-support pads.

Press the front or rear end of the switch. Backrest width decreases or increases accordingly.

1 2

To move the front seats forward or backward from outside or from one of the rear seats: with the door open, press the front end 1 or rear end 2 of the switch.

Head restraints

Correctly adjusted head restraint

A correctly adjusted head restraint reduces the risk of neck injury in the event of an accident.

Adjust the head restraint in such a way that its center is at approx. ear level. Otherwise, there is an increased risk of injury in the event of an accident. Only remove a head restraint if no one will be sitting on the seat in question. Reinstall the head restraint before transporting anyone on that seat. Otherwise, the passenger will be without protection from the head restraint.

Height

Adjust the head restraint so that its center is approximately at ear level.

Distance

Adjust the distance so that the head restraint is as close as possible to the back of the head.

Front seats

Height adjustment

To raise: pull up.

Diagram of a car seat with directional arrows indicating movement or force (no text or symbols)

To lower: press the button, arrow 1, and slide the head restraint down.

Removing

1. Pull it up as far as it will go.
2. Press the button, arrow 1, and pull the head restraint all the way out.

Rear seats

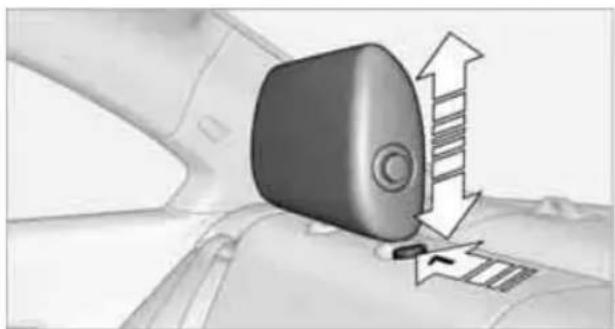

Coupe: height adjustment

Mechanical component diagram showing a belt switch and directional arrow (no text or symbols)

To raise: pull up.
To lower: press the button, arrow 1, and slide the head restraint down.

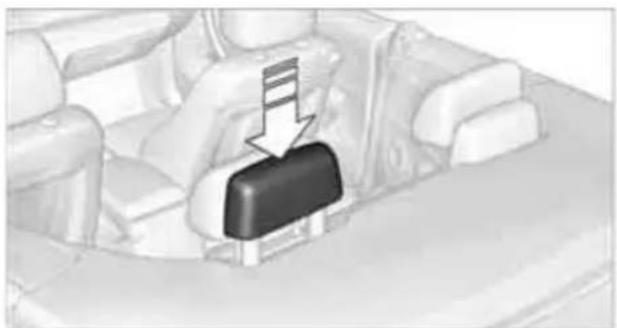

Convertible: raising and lowering

Only lower the head restraints if there are no passengers in the rear. Raise all lowered head restraints before transporting passengers in the rear.

Diagram showing car seatbelt with numbered arrows indicating left and right turn directions

To raise: pull up.
To lower: press the button, arrow 1, and slide the head restraint down, arrow 2.

Removing

1. Pull it up as far as it will go.
2. Press the button, arrow 1, and pull the head restraint all the way out.

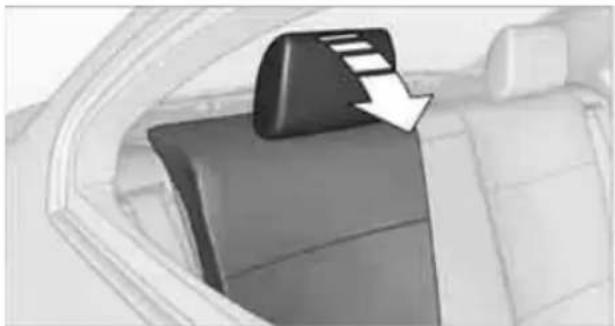

Coupe: folding head restraint down and up*

Mechanical component with directional arrows indicating motion or rotation (no text or symbols)

Depending on your vehicle's equipment, it may contain foldable head restraints.

Folding down:

Press the button, arrow 1.

Folding up:

Pull the head restraint.

Only fold down the head restraints if there

are no passengers in the rear. Fold up the

head restraints again before transporting passengers in the rear.

Seat with manual longitudinal adjustment

Interior view of a car showing the side panel with a highlighted grip and directional arrow (no text or symbols)

Easy entry

The easy entry feature includes a memory function for the longitudinal adjustment and back-rest angle.

1. Pull lever 1 and swing the backrest forward.
2. Push the seat forward.

Previous position

Push the seat backward and swing the backrest back.

When pushing the seat into its rearmost position, make sure that no one is injured and that no objects are damaged.

Before driving off, engage both seats and backrests so that they are locked in place. Otherwise, there is a risk of an accident due to unexpected movement.

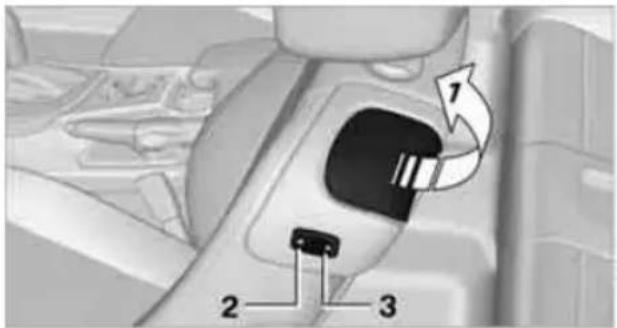

Seat with electrical longitudinal adjustment

Diagram of car seatbelt mechanism with numbered parts and directional arrow indicating rotation

Easy entry

The easy entry feature includes a memory function for the longitudinal adjustment and back-rest angle.

1. Pull lever 1 and swing the backrest forward.
2. Press the front end 2 of the switch until the seat has moved into the desired position.

Previous position

Press the rear end 3 of the switch until the seat automatically stops in its previous position, and fold the backrest back. If you release the switch before the previous seat position is reached, the seat will stop at its current position.

When sliding the seat backward, make sure no one is injured and no objects are damaged.

Before driving off, engage both seats and backrests so that they are locked in place. Otherwise, there is a risk of an accident due to unexpected movement.

Heated seats\*

Diagram of car air conditioning panel with labeled buttons and ports

Depending on the vehicle's equipment, press one of the buttons labeled 1 or 2 here.

Press the button once per temperature level. Three LEDs indicate the highest temperature.

To switch off:

Press button longer.

If you continue driving within approx.

15 minutes, the seat heating is automatically activated at the previously set temperature.

The temperature is lowered or the heating is switched off entirely to save on battery power. The LEDs stay lit.

Seat and mirror memory\*

You can store and call up two different combinations of driver's-seat and exterior-mirror positions.

Settings for the backrest width and lumbar support are not stored in memory.

Storing

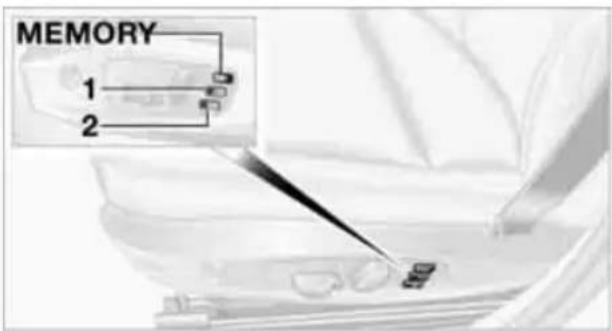

MEMORY 1 2

1. Switch on radio readiness or the ignition, refer to page 48.
2. Adjust the seat and exterior mirrors to the desired positions.
3. Press the button.
   The LED in the button lights up.
4. Press the desired memory button 1 or 2: the LED goes out.

Call-up

Do not call up the memory while you are driving; otherwise, unexpected seat movement could result in an accident.

Comfort function

1. Unlock and open the driver's door or switch on radio readiness, refer to page 48.
2. Briefly press the desired memory button 1 or 2.
   The adjusting procedure is halted when you touch a seat adjustment switch or one of the memory buttons.

Safety feature

1. Close the driver's door and switch the ignition on or off, refer to page 48.
2. Press the desired memory button 1 or 2 and keep it pressed until the adjustment process has been completed.

If the button was pressed accidentally: Press the button again; the LED goes out.

Call-up with the remote control

The driver's seat position last set is stored for the remote control currently in use.

You can select whether or not the seat is reset to that position automatically.

When this Personal Profile function is used, first make sure that the footwell behind the driver's seat is free of obstacles.

Failure to do so could cause injury to persons or damage to objects as a result of a rearward movement of the seat.

The adjusting procedure is halted when you touch a seat adjustment switch or one of the memory buttons.

Activating/deactivating automatic call-up

1. Briefly press button 1 in the turn signal/high beam lever up or down repeatedly until the symbol appears in the display, accompanied by the word "SET".

1 2 1 SET

1. Press button 2.

2. Briefly press button 1 in the turn signal/high beam lever down repeatedly until the symbol appears in the display.

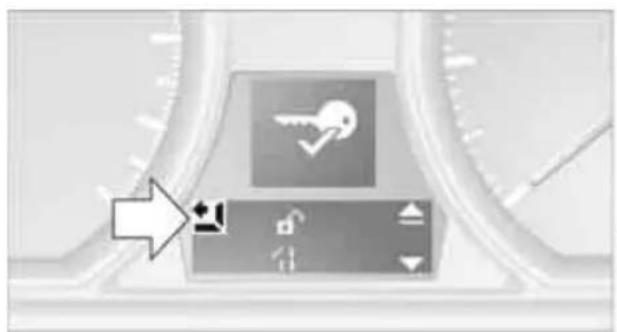

Close-up of a computer keyboard interface with key and function buttons (no readable text or symbols)

1. Press button 2.

2. Use button 1 to select:

Call-up when the vehicle is unlocked.

Call-up when the driver's door is opened.

▶ off Switch off automatic function.

1. Press button 2.

The setting is stored.

Safety belts

Observe the adjustment instructions on page 35 to ensure the best possible personal protection.

Before every drive, make sure that all occupants wear their safety belts. Airbags complement the safety belt as an additional safety device, but they do not represent a substitute.

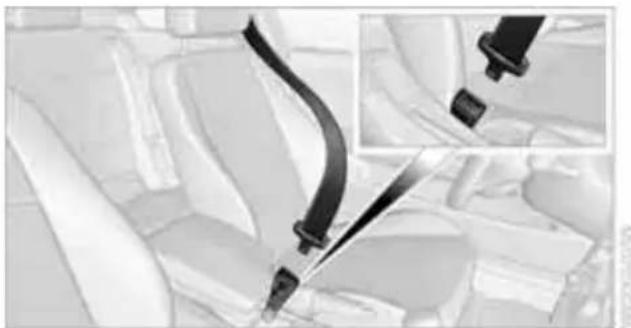

Close-up of a car seatbelt buckle and seatbelt connector (no text or symbols visible)

Closing

Make sure you hear the latch plate engage in the belt buckle.

The upper belt anchor is suitable for adults of any stature as long as the seat is adjusted properly, refer to page 36.

Opening

1. Grasp the belt firmly.
2. Press the red button in the buckle.
3. Guide the belt into its reel.

"Fasten safety belts" reminder for front seats

The indicator lamps light up and an acoustic signal sounds. Check whether the safety belt has been fastened correctly.

The "Fasten safety belts" reminder is issued as long as the driver's safety belt has not been fastened. The "Fasten safety belts" reminder is also issued above approx. 5 mph/8 km/h if the front passenger safety belt has not been fastened, if there are objects on the front passenger seat or if the driver or front passenger unfasten their safety belts.

Damage to safety belts

If the safety belts are damaged or stressed in an accident: have the belt system, including any belt tensioners or child restraint systems, replaced and the belt anchors checked. Have this work done only by your BMW center or at a workshop that works according to BMW repair procedures with correspondingly trained personnel. Otherwise, it is not guaranteed that the safety devices will function properly.

Mirrors

Exterior mirrors

The front passenger's mirror is more convex than the driver's mirror. The objects seen in the mirror are closer than they appear. Do not gauge your distance from traffic behind you on the basis of what you see in the mirror; otherwise, there is an increased risk of an accident.

Diagram showing a medical or laboratory procedure with labeled parts 1, 2, and 3, including an inset magnified view of the main subject.

1 Adjustments
2 Switching to the other mirror or automatic curb monitor*
3 Folding mirrors in and out *

The setting for the exterior mirrors is stored for the remote control currently in use*. The stored position is called up automatically when the vehicle is unlocked.

Manual adjustment

The mirrors can also be adjusted manually: press the edge of the glass.

Folding mirrors in and out\*

At driving speeds up to approx. 12 mph/20 km/h, you can fold the mirrors in and out by pressing button 3. This can be beneficial in narrow streets, for example, or for moving mirrors that were folded in by hand back out into their correct positions. Mirrors that have been folded in fold out automatically at a speed of approx. 25 mph/40 km/h.

Automatic heating

Depending on the outside temperature, both exterior mirrors are heated automatically when the engine is running or the ignition is switched on.

Passenger-side mirror tilt function – automatic curb monitor\*

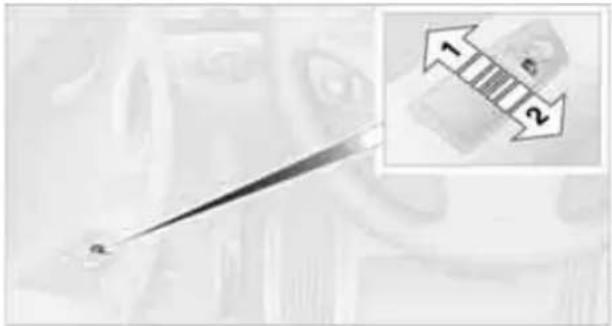

Activating

1. Push the switch to the position for the driver's side mirror, arrow 1.

Image showing a needle inserted into a pencil, with an inset highlighting two directional arrows labeled 1 and 2.

1. Shift into reverse or move the selector lever into the R position.

The glass of the mirror on the passenger side tilts slightly down. This allows the driver to see the area immediately adjacent to the vehicle, e.g. a curb, when backing into a parking space.

Deactivating

Push the switch to the position for the passenger-side mirror, arrow 2.

Interior rearview mirror

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Turn the knob to reduce glare from the head-lamps of cars behind you when driving at night.

Interior and exterior mirrors, automatic dimming feature\*

Simple line drawing of a sink with an arrow pointing downward (no text or symbols)

The automatic dimming feature of the interior and exterior mirrors* is controlled by two photo cells in the interior rearview mirror. One photo cell is in the mirror frame, see arrow; the other is on the back of the mirror.

In order to ensure that the system functions correctly, keep the photo cells clean, do not cover the area between the interior rearview mirror and windshield, and do not affix adhesive labels or stickers of any kind to the windshield directly in front of the mirror.

Steering wheel

Adjustments

Do not adjust the steering wheel position while the car is in motion; otherwise, there is a risk of an accident due to unexpected movement.

Abstract grayscale image with a vertical arrow and horizontal bars, no visible text or symbols

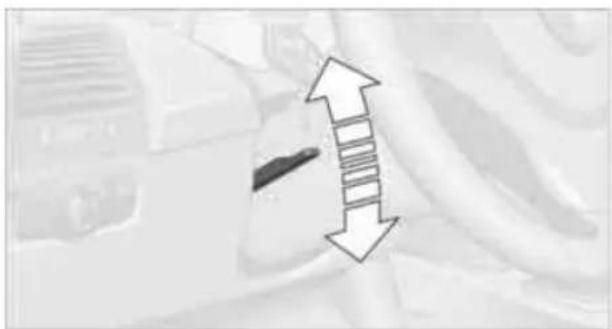

1. Fold the lever down.
2. Move the steering wheel to the preferred height and angle to suit your seated position.
3. Swing the lever back up.

Do not use force to swing the lever back up; otherwise, the mechanism

will be damaged.

Steering wheel heating*

Interior view of a car showing steering wheel and dashboard (no text or symbols visible)

Press the button.

The LED in the button lights up when the steering wheel heating is switched on.

Transporting children safely

The right place for children

Do not leave children unattended in the vehicle; otherwise, they could endanger

themselves and/or other persons by opening the doors, for example.

Children always in the rear

Accident research has shown that the safest place for children is on the rear seat.

Children under the age of 13 or smaller than 5 ft/150 cm may be transported only

in the rear in suitable child restraint systems appropriate for their age, weight and size. Otherwise, there is an increased risk of injury in the event of an accident.

Children 13 years of age or older must be buckled in with a safety belt as soon as there no longer is any child restraint system that is appropriate for their age, size and weight.

Children in the front passenger seat

Should it be necessary to use a child restraint system on the front passenger the front and side airbags for the front passer must be deactivated. Otherwise, a child sitting on that seat will face a significant risk injury if the airbags are triggered off, even in a child restraint system.

For more information on automatic deactivation of the front passenger airbags refer to page 78.

Installing child restraint systems

Observe the child restraint system manufacturer's instructions when selecting,

installing and using child restraint systems.

Otherwise, the protective effect may be diminished.

Standard child restraint systems are designed to be secured with a lap belt or with the lap-belt section of a lap-and-shoulder belt. Incorrectly or improperly installed child restraint systems can increase the risk of injury to children. Always follow the installation instructions for the system with the greatest care.

On the front passenger seat

After installing a child restraint system on the front passenger seat, make sure that

the front and side airbags for the front passenger are deactivated; otherwise, there is an increased risk of injury if the airbags deploy.

Seat position

Before installing a child restraint system, move the front passenger seat as far back and up as possible to obtain the best possible position for the belt. Do not change the seat position after this.

Backrest width\*

The backrest width of the front passenger seat must be at its widest possible set-

ting. Do not change the setting after installing the child seat. Otherwise, the child seat's stability on the front passenger seat is limited.

1. Adjust the backrest width to its widest setting, refer to page 37.

2. Install the child seat.

Child seat security

Interior view of a car showing a car seatbelt and dashboard (no text or symbols visible)

The rear safety belts and the front passenger safety belt can be prevented from being pulled out in order to fasten child restraint systems.

To lock the safety belt

1. Secure the child restraint system with the belt.
2. Pull the belt strap all the way out.
3. Allow the belt strap to retract and pull it taut against the child restraint system.
   The safety belt is locked.

To unlock the safety belt

1. Open the belt buckle.
2. Remove the child restraint system.
3. Allow the safety belt strap to retract all the way.

LATCH child restraint fixing system

LATCH: lower Anchors and Tethers for CHil- dren.

To install and use the LATCH child restraint system, follow the operating and safety instructions provided by the manufacturer of the system; otherwise, the protective function of the seat may be compromised.

Mounts for the lower LATCH anchors

Before installing the child seat, pull the belt out of the area for the child restraint fixing system.

Ensure that both lower LATCH anchors are correctly engaged and that the child restraint system is resting firmly against the backrest; otherwise, the protective function of the seat may be compromised.

Coupe: rear seats

Medical procedure image showing a patient undergoing a laparoscopic procedure on a patient's abdomen (no text or symbols visible)

The anchor points for the lower LATCH anchors are located behind the labeled protective caps.

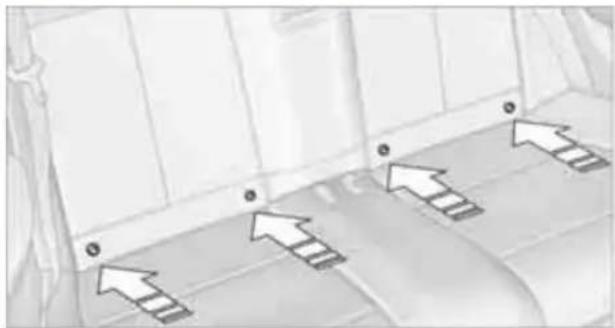

Convertible: rear seats

Diagram showing directional arrows on a grid-like surface with no visible text or symbols

The anchor points for the lower LATCH anchors are located at the positions indicated by arrows, in the gap between the seat and the backrest.

Upper LATCH retaining strap

Convertible

For Canadian Customers Only.

The following statement is required by Transport Canada.

This vehicle is not equipped with user-ready tether anchorages. As such neither a child restraint system, nor a booster cushion, requiring the use of a tether strap can be properly secured in the vehicle.

Coupe

Use the top tether anchors to secure child restraint systems only; otherwise, theors could be damaged.

Top-down view of a car backrest with two black directional arrows pointing to the rear seats (no text or symbols present)

For child restraint systems with tether straps there are two additional anchors, see arrows.

Placement of the tether strap

Coupe

Make sure the upper retaining strap does not run over sharp edges and is not

twisted as it passes to the top anchor. Otherwise, the strap will not properly secure the child restraint system in the event of an accident.

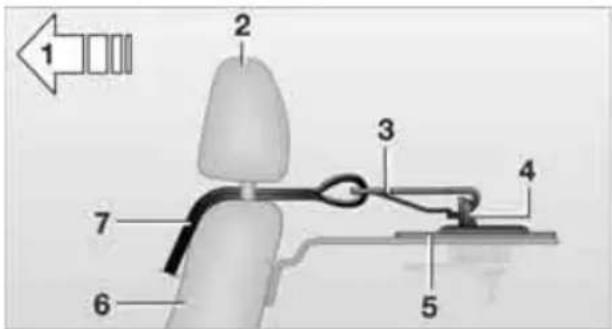

1 2 3 4 5 6 7

1 Direction of travel
2 Head restraint
3 Hook for upper retaining strap
4 Anchor
5 Rear window shelf
6 Seat backrest
7 Upper retaining strap of child restraint system

If necessary, fold the head restraints upward before use.

1. Push the head restraint upward.
2. Guide the upper retaining strap between the head restraint holders.
3. Use the hook to clip the retaining strap to the anchor.
4. Push the head restraint into its lowermost position.
5. Pull the retaining strap taut.
6. Push the head restraint upward.
7. Guide the upper retaining strap between the head restraint holders.
8. Use the hook to clip the retaining strap to the anchor.
9. Push the head restraint into its lowermost position.
10. Pull the retaining strap taut.

Driving

Ignition lock

Insert the remote control into the ignition lock

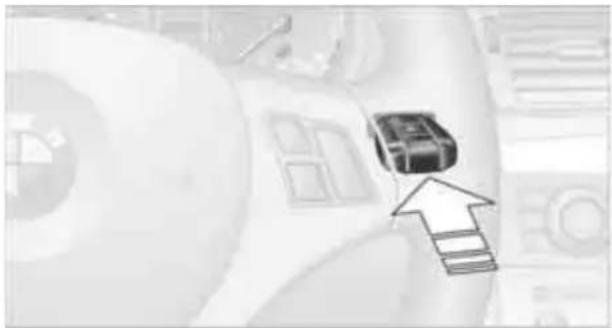

Abstract grayscale illustration with blurred background and a small mechanical component and upward arrow (no text or symbols)

Insert the remote control all the way into the ignition lock.

Radio readiness is switched on. Individual electrical consumers can operate.

Comfort Access\*

If the car is equipped with Comfort Access, only insert the remote control into the ignition lock under special circumstances, refer to page 26.

Removing the remote control from the ignition lock

Do not forcibly pull the remote control out of the ignition lock as this may cause damage.

Before removing the remote control, push it all the way in to release the locking mechanism.

The ignition is switched off if it was on.

Automatic transmission

You cannot take out the remote control unless the selector lever is in the P position: interlock.

Start/stop button

Close-up of a car dashboard with a circular button and downward arrow indicator (no readable text or symbols)

Pressing the start/stop button switches radio readiness or the ignition on or off.

Manual transmission If you press the start/stop button and depress the clutch, engine starts.

Automatic transmission and Sports automatic transmission with double clutch: if you press the start/stop button and depress the brake pedal, the engine starts.

Radio readiness

Individual electrical consumers can operate. The time and the outside temperature are displayed in the instrument cluster.

Radio readiness is switched off automatically:

When the remote control is removed from the ignition lock
In cars with Comfort Access*, by touching the surface above the door lock, refer to Locking on page 26

Ignition on

All electrical consumers can operate. The odometer and trip odometer are displayed in the instrument cluster.

When the engine is off, please switch off the ignition and any unnecessary electrical consumers in order to preserve the battery.

Radio readiness and ignition off

All indicator and warning lamps as well as displays in the instrument cluster go out.

Starting the engine

Do not run the engine in enclosed areas; otherwise, the inhalation of toxic exhaust gases can cause loss of consciousness and death. The exhaust gases contain carbon monoxide, an odorless and colorless, but highly toxic gas. Never leave an unattended vehicle with the engine running; otherwise, such a vehicle represents a potential safety hazard. Before leaving the car with the engine running, place the transmission in neutral or move the selector lever to position P and forcefully apply the parking brake to prevent the car from moving.

Do not wait for the engine to warm up while the vehicle remains stationary. Start driving right away, but at moderate engine speeds.

Avoid frequent starting in quick succession as well as repeated start attempts in which the engine does not start. Otherwise, the fuel is not burned or incompletely burned and there is a danger of overheating and damaging the catalytic converter.

Close-up of mechanical components with a downward arrow pointing to a circular component (no visible text or symbols)

Manual transmission

Remote control in the ignition lock or, with Comfort Access, inside the vehicle, refer to page 26.

1. Depress the brake.
2. Depress the clutch and shift to neutral position.
3. Press the start/stop button.

The starter operates automatically for a certain time, and stops automatically as soon as the engine has started.

Automatic transmission

Remote control in the ignition lock or, with Comfort Access, inside the vehicle, refer to page 26.

1. Depress the brake.
2. Move the selector lever to position P.
3. Press the start/stop button.

The starter operates automatically for a certain time, and stops automatically as soon as the engine has started.

Sports automatic transmission with double clutch

Remote control in the ignition lock or, with Comfort Access, inside the vehicle, refer to page 26.

1. Depress the brake.
2. Press the start/stop button.
   The engine starts independent of the current transmission position.

Switching off the engine

Always take the remote control with you when you leave the vehicle.

When parking, apply the parking brake forcefully; otherwise, the vehicle could begin to roll.

Manual transmission

1. With the car at a standstill, press the start/stop button.
2. Shift into first gear or reverse.
3. Forcefully apply the parking brake.
4. Removing the remote control from the ignition lock, refer to page 48.

Automatic transmission

1. With the car at a standstill, move the selector lever to position P.

2. Press the start/stop button.

3. Forcefully apply the parking brake.

4. Removing the remote control from the ignition lock, refer to page 48.

Sports automatic transmission with double clutch

1. With the car at a standstill, press the start/stop button. If the transmission is shifted into N when the engine is switched off, you will be notified visually and acoustically of this fact.
2. Forcefully apply the parking brake.
3. Remove remote control from the ignition lock, refer to page 48. The transmission is automatically shifted into transmission position P.

Parking brake

The parking brake is primarily intended to prevent the vehicle from rolling while parked; it brakes the rear wheels.

Indicator lamp

The indicator lamp is lit, and when you drive off a signal sounds in addition.

The parking brake is still applied.

Indicator lamp for Canadian models.

Applying

The lever locks in position automatically.

Releasing

Close-up of a hand holding a pen with an arrow pointing to a small object on a textured surface (no text or symbols visible)

Pull slightly upwards, press the button and lower the lever.

In exceptional cases, if the parking brake has to be used to slow or stop the car, do not pull the lever up too hard. In doing so, continuously press the button of the parking brake lever.

Otherwise, excessive force on the parking brake can lock up the rear wheels and cause the rear of the car to swerve.

To prevent corrosion and one-sided braking action, occasionally apply the parking brake lightly when the vehicle is slowly coming to a stop if the traffic conditions are suitable.

The brake lamps do not light up when the parking brake is applied.

Manual transmission

Close-up of a car gear shift lever with a magnified inset showing the number 5 on a scale (no text or symbols on the main component)

When shifting into 5th or 6th gear, press the gearshift lever to the right. Otherwise, the engine could be damaged if you inadvertently shift into 3rd or 4th gear.

Reverse gear

Select this only when the vehicle is stationary. When the gearshift lever is pressed to the left, a slight resistance has to be overcome.

Automatic transmission with Steptronic\*

In addition to fully automatic operation, you can also manually shift with the Steptronic, refer to page 52.

Vehicle parking

To prevent the vehicle from rolling, always select position P and apply the parking brake before leaving the vehicle with the engine running.

Disengaging the remote control

In order to remove the remote control from the ignition lock, you must first move the selector lever to position P and switch off the engine: interlock. Removing the remote control from the ignition lock, refer to page 48.

Selector lever positions

PRNDM/S+-

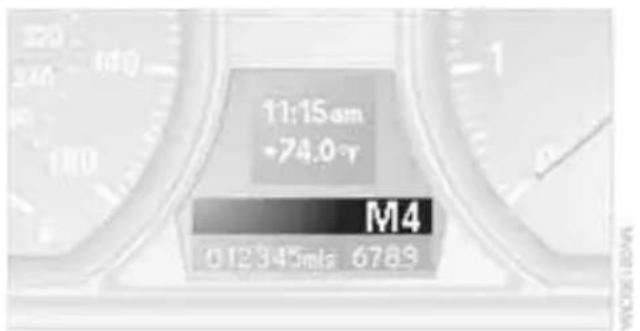

Displays in the instrument cluster

11:15am +74.0°F M4 012345m/s 6789

The selector lever position is displayed and, in manual mode, the engaged gear, e.g. M4.

Changing selector lever positions

With the ignition switched on or the engine running, the selector lever can be moved out of position P.

Before moving the lever away from P or N with the vehicle stationary, first depress the brake; otherwise, the selector lever will be prevented from moving: shiftlock.

To prevent the vehicle from creeping after you select a driving position, depress the brake until you are ready to start.

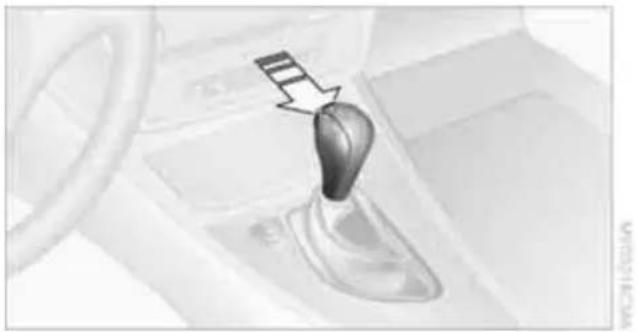

Close-up of a car gear shift lever with a black arrow pointing to the handle (no text or symbols visible)

A lock prevents you from inadvertently engaging selector lever positions R and P. To cancel the lock, press the button on the front of the selector lever, see arrow.

P Park

Select this only when the vehicle is stationary. The drive wheels are locked.

R Reverse

Select this only when the vehicle is stationary.

N Neutral

You can select this in a car wash, for example. The vehicle can roll.

D Drive, automatic position

Position for normal vehicle operation. All forward gears are selected automatically.

Under normal operating conditions, fuel consumption is lowest when you are driving in position D.

Kickdown

Kickdown enables you to achieve maximum performance.

Press the accelerator pedal beyond the full-throttle resistance point.

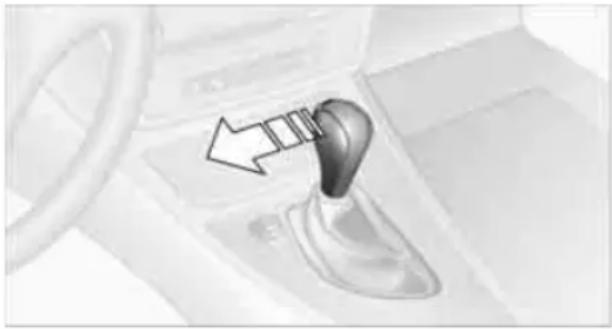

Sport program and manual operation M/S

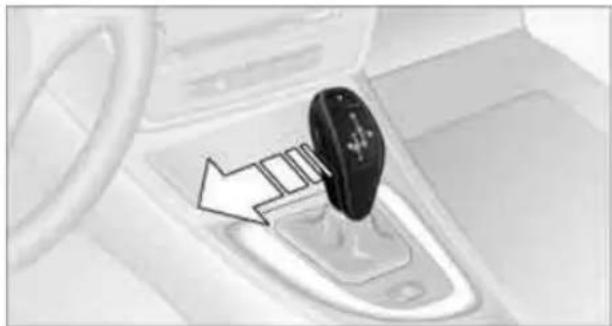

Close-up of a car gear shift lever mechanism with a directional arrow (no text or symbols visible)

Move selector lever from position D toward the left into the M/S shifting slot; the Sport program is activated. This position is recommended for a performance-oriented driving style.

DS is displayed in the instrument cluster.

To deactivate the sport program or manual mode M/S, move the selector lever to the right into position D.

Shifting gears via the selector lever

Move selector lever from position D toward the left into the M/S shifting slot:

When you press the selector lever forwards or backwards, the manual mode is activated and Steptronic changes gear.

The engaged gear, e.g. M1 is displayed in the instrument cluster.

Upshifts and downshifts are executed only when they will result in a plausible combination of engine and vehicle speed; thus, for example, a downshift that would cause the engine to overrev will not be executed by the system.

The gear selected is briefly displayed in the instrument cluster, followed again by the gear actually in use.

Shifting gears via shift paddles\* on the steering wheel

The shift paddles allow you to shift gears quickly since both hands can remain on the steering wheel.

When you use the shift paddles on the steering wheel to shift gears in automatic mode, the transmission switches to manual mode.
If you do not accelerate or shift gears using the shift paddles for a certain amount of time, the transmission switches back to automatic mode.

If the selector lever is in the M/S gear plane, manual mode remains active.

Interior view of a car dashboard with steering wheel and gauges, showing two directional arrows pointing to the dashboard (no text or symbols visible)

To upshift, briefly pull the right shift paddle +.

To downshift, briefly pull the left shift paddle –.

Upshifts and downshifts are executed only when they will result in a plausible combination of engine and vehicle speed; thus, for example, a downshift that would cause the engine to overrev will not be executed by the system.

The gear selected is briefly displayed in the instrument cluster, followed again by the gear actually in use.

Overriding selector lever lock

If the selector lever will not move out of position P even though the ignition is switched on, the brake is depressed, and the button on the selector lever is pressed, the selector lever lock can be overridden:

1. Unclip the sleeve of the selector lever.
2. Pull the sleeve up over the selector lever until the sleeve is inside out.

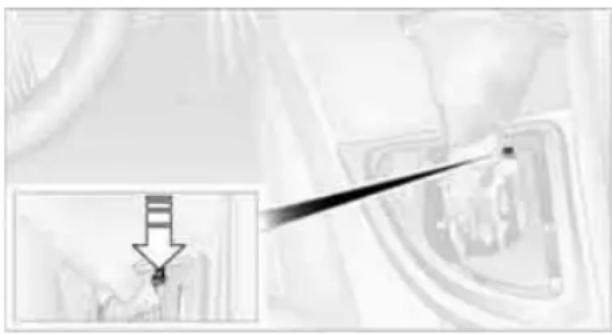

Medical procedure image showing a catheter inserted into a patient's chest with an inset magnified view of the catheter insertion (no text or symbols present)

1. Using the screwdriver from the onboard vehicle tool kit, refer to page 132, press the red lever, see arrow, while moving the selector lever to the desired position.

7-gear Sports automatic transmission with double clutch\*

The concept

The 7-gear Sports automatic transmission with double clutch is an automated manual transmission with two clutches and secondary gear sets in which the clutching and shifting is handled by an electrohydraulic system.

With the 7-gear Sports automatic transmission with double clutch, the gears are shifted without an interruption in driving power.

You operate the 7-gear Sports automatic transmission with double clutch using the selector lever and two shift paddles on the steering wheel.

It offers you the following functions:

▶ either manual or automatic mode: sequential mode or drive mode
▶ automatic downshifting and protection against incorrect gear selection, even in sequential mode
▶ Acceleration assistant, Launch Control, refer to page 57.

System limitations

The 7-gear Sports automatic transmission with double clutch has an overheating protection that protects the clutch from extreme loads.

The indicator lamp lights up in yellow if the transmission becomes to warm.

Avoid high engine loads and frequent accelerations from zero. If the transmission is overheated, the indicator lamp lights up in red and the power flow to the motor is interrupted. It is only possible to continue driving once the transmission has cooled down.

Avoid frequent powerful accelerations from zero and do not ride the clutch by accelerating slightly with a slipping clutch; otherwise, the transmission may overheat.

Selector lever positions

PRNDM/S + -

11:15am +74.0 v M4 012345mls 6789

The selector lever position and the engaged gear are displayed, e.g. M4.

Engaging selector lever positions

The selector lever can be moved out of position P only with the engine running: interlock.
Before moving the lever away from P or N with the vehicle stationary, first depress the brake; otherwise, the desired shift will not be executed: shiftlock.

Shifting into N, D, R

R N P 1 N D

Briefly push the selector lever in the desired direction, overcoming a resistance point if necessary. When shifting out of P or into R, simultaneously press the button 1

The engaged selector lever position is also displayed on the selector lever.

As soon as you release the selector lever, it returns to the center position.

Shifting into P

Close-up of a car gear shift lever with a black key inserted, showing no text or symbols on the component itself.

Press the button P.

P Park

Select this only when the vehicle is stationary. The rear wheels are locked.

The transmission is shifted into P if, with the engine running, you open the driver's door, do not have your safety belt fastened, and subsequently actuate neither the brake pedal nor the accelerator.

The transmission is shifted into P as soon as you switch off the engine, unless the transmission is in N and the remote control is in the ignition lock, refer to page 48. As soon as you remove the remote control from the ignition lock, then the transmission is shifted into P.

R Reverse

Select this only when the vehicle is stationary.

N idle position

You can select this at a car wash, for example. The vehicle can roll.

After the engine is switched off, the transmission remains in N if you leave the remote control in the ignition lock. You can use this function at a car wash, for example, refer to page 129.

D Drive mode

In Drive mode, all forward gears are shifted automatically.

Kickdown

For sudden acceleration maneuvers such as passing, depress the accelerator past the resistance point. You achieve maximum acceleration.

Sport program and manual operation M/S

Close-up of a car gear shift lever with a black key inserted, showing no text or symbols on the lever itself.

Push selector lever toward the left from the selector lever position D, the Sport program is activated. This position is recommended for a performance-oriented driving style.

The engaged gear, e.g. S1, is displayed in the instrument cluster.

When you press the selector lever forwards or backwards, the manual mode is activated and Steptronic changes gear.

The engaged gear, e.g. M1 is displayed in the instrument cluster.

In the following situations, the 7-gear Sports automatic transmission with double clutch does the thinking for you:

Upshifts and downshifts are executed only when they will result in a plausible combination of engine and vehicle speed; thus, for example, a downshift that could cause the engine to overrev will not be executed by the system.
At a stop, the transmission is automatically shifted down to the first gear.
Shortly before the speed falls below a gear-dependent minimum speed, the transmission automatically downshifts without your intervention.

Quick downshifting: even in sequential mode, you can skip over several gears in order to achieve an optimum acceleration. To do so, depress the accelerator past the resistance point.

To return to automatic mode, push the selector lever to the right.

Gear shifting

Upshift or downshift using the selector lever or the shift paddles. You do not have to let off of the gas to do this.

Using the selector lever

To upshift, pull the selector lever toward the rear.
To downshift, push it toward the front.

Using the shift paddles on the steering wheel

You can also shift manually using two shift paddles on the steering wheel. The shift paddles allow you to shift gears quickly since both hands can remain on the steering wheel.

When you use the shift paddles on the steering wheel to shift gears in automatic mode, the transmission switches to manual mode.
If you do not accelerate or shift gears using the shift paddles for a certain amount of time, the transmission switches back to

automatic mode if the selector lever is in position D.

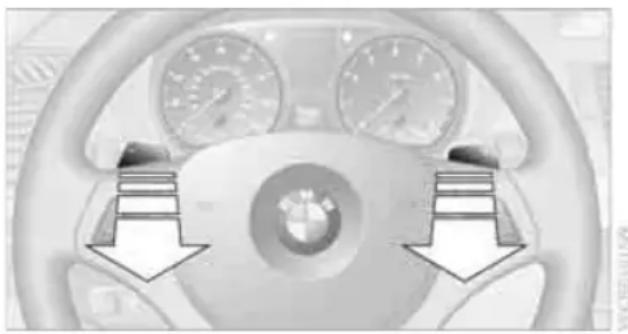

Interior view of a car dashboard with steering wheel and gauges, showing two directional arrows pointing to the dashboard (no text or symbols visible)

To upshift, briefly pull the right shift paddle +.
To downshift, briefly pull the left shift paddle –.

Driving dynamics control

The driving dynamics control permits you, at the push of a button, to have your BMW react in an even more sporty fashion when driving:

▶ Optimal use is made of the engine's speed range.
▶ Gear changes occur more quickly.
The engine reacts more spontaneously to accelerator pedal movements.

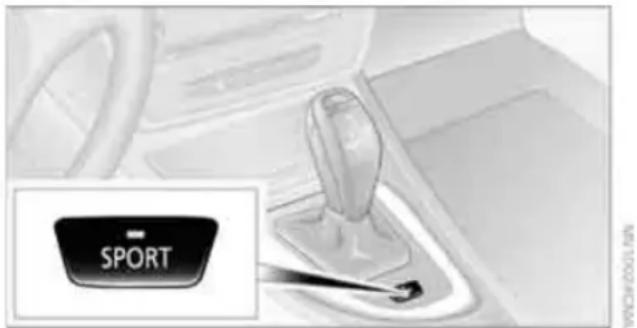

Activating the system

SPORT

Press the SPORT button.

The LED in the button lights up.

Deactivating the system

▶ Press the SPORT button again
▶ Switch off engine
The LED in the button goes out.

Manually unlocking parking lock

In the event of a power supply interruption such as a discharged or disconnected battery or an electrical malfunction, the parking lock must be manually unlocked; otherwise, the rear wheels are immobilized and the vehicle cannot be towed.

Only unlock the parking lock manually for towing and make sure to set the parking brake forcefully beforehand so that the vehicle cannot roll. Lock the parking lock again after the vehicle is parked.

Releasing

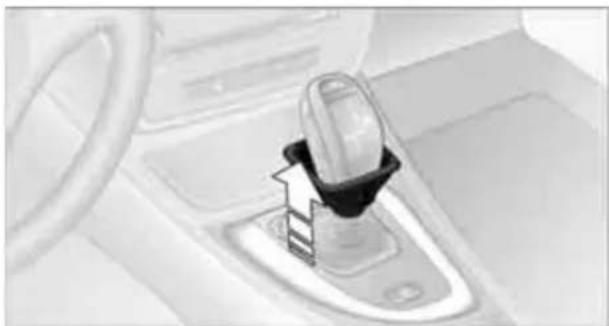

1. Unclip the sleeve of the selector lever.
2. Pull the sleeve up over the selector lever until the sleeve is inside out.

Interior view of a car showing a car shift lever and seat (no text or symbols visible)

1. Using the allen wrench from the toolkit, refer to page 132, rotate the cover until it reaches the stop, arrow 1, and remove, arrow 2.

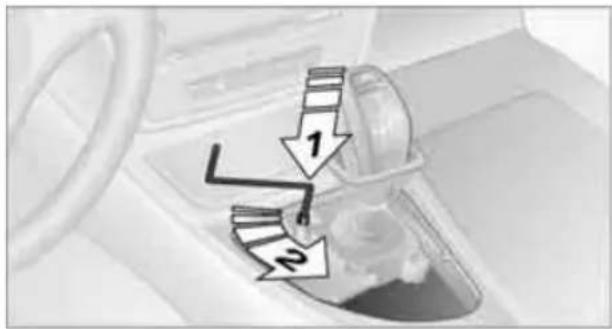

Diagram showing a mechanical component being inserted into a tank, with an inset highlighting a numbered feature (no text or symbols present)

1. Insert allen wrench into the opening, arrow 1.

Diagram showing a car interior with labeled parts and directional arrows indicating flow or movement.

WENCSHST LTD. FIN

1. Rotate allen wrench until it reaches the stop, arrow 2. The parking lock is unlocked.

Do not turn allen wrench in the opposite direction; otherwise, you may damage the mechanism.

1. Remove allen wrench from the opening.

After parking the vehicle, lock the parking lock again. Otherwise, there is a danger that the vehicle will roll.

Locking

1. Press the button, see arrow. The parking lock is locked again.

Interior view of a car gear shift lever with a handle and arrow indicating direction (no text or symbols)

WANCHES (C) N/A

1. Replace cover again.
2. Clip the selector lever sleeve back into place.
3. Forcefully apply the parking brake. Jump-starting and towing, starting on page 139.

Launch Control

Launch Control enables an optimum acceleration when starting off on a road surface with good traction.

Do not use Launch Control too often; otherwise, the powerful stresses on the vehicle will lead to premature component wear.

Launch Control is ready for use when the engine is at operating temperature, i.e. after uninterrupted travel of at least 6.2 miles/10 km.

1. With the engine running, step on the brake with your left foot.
2. Activate Dynamic Traction Control (DTC), refer to page, 72.
3. Activate Driving dynamics control, refer to page 55.
4. With the vehicle stationary, activate the manual mode and select 1 ^st gear.
5. With your right foot, push the accelerator pedal past the resistance point. The acceleration speed is adjusted. A flag symbol appears in the instrument cluster.
6. When you release the brake pedal, the vehicle accelerates. Keep the accelerator pedal floored.
7. The upshifting occurs automatically as long as you keep the accelerator pedal pressed past the resistance point.

Launch Control will be ready for use again after you drive a certain distance.

Launch Control is not available for use during the break-in phase, refer to page 104.

To maintain driving stability, keep DSC activated whenever possible.

Turn signals/headlamp flasher

7 8 9 10 11 12 M3/M4 CMA

1 High beams
2 Headlamp flasher
3 Turn signals

Using turn signals

Press the lever beyond the resistance point.

To turn off manually, press the lever to the resistance point.

Unusually rapid flashing of the indicator lamp and the turn signals indicates that one of the turn signal bulbs has failed.

Indicating a turn briefly

Press the lever as far as the resistance point for as long as you wish to indicate a turn.

Triple turn signal activation

Press the lever as far as the resistance point.

The turn signals flash three times.

You can activate or deactivate this function.

1. Switch on the ignition, refer to page 48.
2. Briefly press button 1 in the turn signal/high beam lever up or down repeatedly until the symbol appears in the display, accompanied by the word "SET".

1 2 1 1 SET

1. Press button 2.
2. Briefly press button 1 in the turn signal/high beam lever down repeatedly until the symbol appears in the display.

1x 3x

1. Press button 2.
2. Use button 1 to select:

1×

Turn signals flash once.

3×

Triple turn signal.

1. Press button 2.

The setting is stored for the remote control currently in use.

Wiper system

1 2 3 4 5

1 Switching on wipers
2 Switching off wipers or brief wipe
3 Activating/deactivating intermittent wipe or rain sensor*
4 Cleaning windshield and headlamps *
5 Setting speed for intermittent wipe, or sensitivity of the rain sensor

Switching on wipers

Press the lever upward, arrow 1.

The lever automatically returns to its initial position when released.

Normal wiper speed

Press once.

The system switches to operation in the intermittent mode when the vehicle is stationary.

Fast wiper speed

Press twice or press beyond the resistance point.

The system switches to normal speed when the vehicle is stationary.

Intermittent wipe or rain sensor\*

If the car is not equipped with a rain sensor, the intermittent-wipe time is a preset.

If the car is equipped with a rain sensor, the time between wipes is controlled automatically and depends on the intensity of the rainfall. The rain sensor is mounted on the windshield, directly in front of the interior rearview mirror.

Activating intermittent wipe or rain sensor

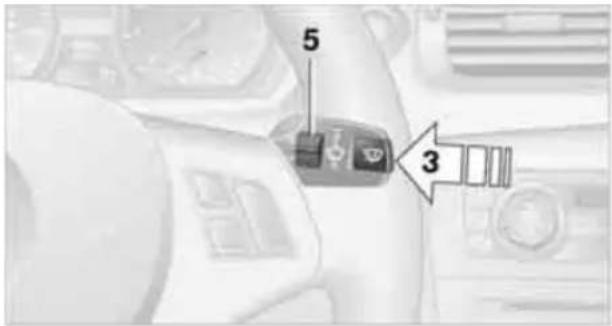

5 3

Press the button, arrow 3. The LED in the button lights up.

Setting speed for intermittent wipe or sensitivity of the rain sensor

Turn the thumb wheel 5.

Deactivating intermittent wipe or rain sensor

Press the button again, arrow 3.

The LED goes out.

Deactivate the rain sensor before entering an automatic car wash. Failure to do so could result in damage caused by undesired wiper activation.

Cleaning windshield and headlamps\*

Pull the lever, arrow 4.

Washer fluid is sprayed onto the windshield and the wipers are operated for a short time.

When the vehicle lighting system is switched on, the headlamps are cleaned at regular and appropriate intervals.

Do not use the washers if there is any danger that the fluid will freeze on the windshield. If you do, your vision could be obscured. Antifreeze should therefore be added to the fluid, refer to Washer fluid.

Do not use the washers when the washer fluid reservoir is empty; otherwise, you will damage the washer pump.

Windshield washer nozzles

The windshield washer nozzles are heated automatically* while the engine is running or the ignition is switched on.

Washer fluid

Washer fluid antifreeze is flammable. Therefore, keep it away from ignition sources and only store it in the closed original container that is kept out of reach of children; otherwise, there is a risk of personal injury.

Comply with the instructions on the container.

Washer fluid filler neck

Only refill washer fluid when the engine is cool to avoid contact with hot engine parts. Otherwise, fluid spills constitute a fire hazard and a risk to personal safety.

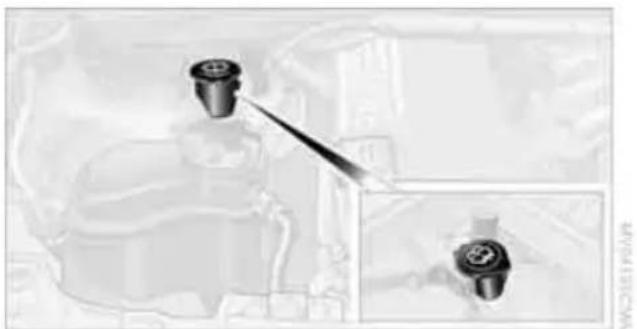

Mechanical component diagram showing a pin inserted into a housing, with two inset views of the component (no text or symbols visible)

All washer nozzles are supplied with washer fluid by the same reservoir.

Fill with water and, if required, with a washer antifreeze, according to manufacturer's recommendations.

Mix the water and antifreeze before filling the washer fluid reservoir to make sure

the correct concentration is maintained.

Capacity

Approx. 6.3 US quarts/6 liters.

Cruise control\*

The concept

You can use the cruise control feature beginning at approx. 20 mph/30 km/h. The car then stores and maintains the speed that you specify using the lever on the steering column.

Do not use cruise control when driving at constant speed is prevented by adverse conditions, e.g. winding roads, dense traffic or poor road conditions due to, e.g. snow, rain, ice or loose surfaces. Otherwise, you could lose control of the vehicle and cause an accident as a result.

One lever for all functions

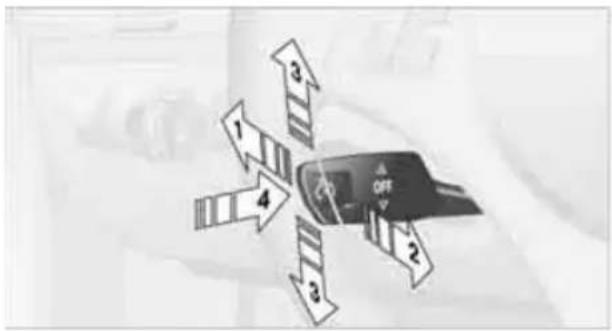

1 2 3 4 OFF

1 Storing and maintaining speed or accelerating
2 Storing and maintaining speed or decelerating
3 Deactivating cruise control
4 Resuming a speed stored beforehand

Maintaining current speed

Tap the lever, arrow 1, or pull it briefly, arrow 2. The car's current speed is stored and maintained. It is briefly displayed in the instrument cluster.

If the engine braking power is insufficient on a downhill slope, the set speed may be exceeded. On uphill gradients, it may prove impossible to maintain the set speed if engine power output is insufficient.

Increasing speed

Repeatedly press the lever, arrow 1, until the desired speed is reached.

Each time the lever is pressed lightly, the speed is increased by approx. 1 mph/1 km/h.

Accelerating using the lever

Press the lever, arrow 1, until the desired speed is reached.

The vehicle accelerates without pressure on the accelerator pedal. The system stores and maintains the speed.

Decreasing speed

Repeatedly pull the lever, arrow 2, until the desired speed is reached.

The functions are the same as when the set speed is increased or the vehicle is accelerated, except that in this case the speed decreases.

Deactivating cruise control

Tap the lever upwards or downwards, arrow 3. In addition, the system is automatically deactivated:

When you brake the vehicle
When you depress the clutch of a manual transmission or shift to neutral
When you select the automatic transmission's neutral position N
When you select the neutral position N with the Sports automatic transmission with double clutch
When the vehicle travels faster or slower than the set speed for an extended period, e.g. when the accelerator is depressed
When you activate DTC or deactivate DSC
When DSC is intervening

Resuming a speed stored beforehand

Press the button, arrow 4.

The last stored speed is resumed and maintained.

The stored speed is briefly displayed in the instrument cluster.

The stored speed is cleared when the ignition is switched off.

Display in the instrument cluster

50 mph 112345m/s 6789

When the speed at which the vehicle is traveling is stored or when a stored speed is called up, the speed is briefly displayed in the instrument cluster.

Controls overview

Odometer, outside temperature display, clock

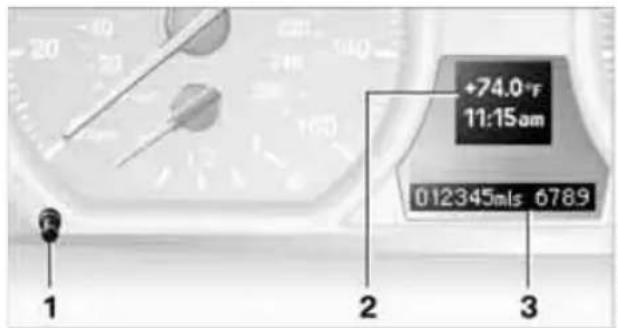

1 2 3 +74.0°F 11:15am 012345m/s 6789

1 Knob in the instrument cluster
2 Outside temperature and clock
3 Odometer and trip odometer

Knob in the instrument cluster

To reset the trip odometer while the ignition is switched on
To display the time, outside temperature and odometer briefly while the ignition is switched off

Units of measure

To select the respective units of measure, miles or km for the odometer as well as ^ F or ^ C for the outside temperature, refer to Formats and units of measure on page 66.

The setting is stored for the remote control currently in use.

Time, outside temperature display

Setting the time, refer to page 68.

Outside temperature warning

When the displayed temperature falls to approx. +37 °F/+3 °C, a signal sounds and a warning lamp lights up. There is an increased risk of black ice.

Black ice can also form at temperatures above +37 °F/+3 °C. You should there-

fore drive carefully on bridges and shaded

roads, for example; otherwise, there is an increased risk of an accident.

Odometer and trip odometer

Resetting the trip odometer:

With the ignition switched on, press button 1 in the instrument cluster.

When the vehicle is parked

If you still want to view the time, outside temperature and odometer reading briefly after the remote control has been taken out of the ignition lock:

Press button 1 in the instrument cluster.

Tachometer

r/min x 1000 0 7 6 250 340 789

Never force the engine speed up into the red warning field, see arrow. In this range, the fuel supply is interrupted to protect the engine.

Coolant temperature

A warning lamp will come on if the coolant, and therefore the engine, becomes too hot.

Check coolant level, refer to page 125.

Engine oil temperature\*

Close-up of a digital gauge or dial with dual scales (180 and 250) and a pointer, no visible text or symbols beyond measurement markings.

When the engine is at normal operating temperature, the engine oil temperature is between approx. 210 °F/100°C and approx. 300 °F/150°C.

If the engine oil temperature is too high, a warning lamp comes on in the instrument cluster.

Fuel gauge

0 1/2 180

Fuel tank capacity: approx. 14 US gallons/53 liters.

You can find information on refueling on page 112.

If the tilt of the vehicle varies for a longer period, when you are driving in mountainous areas, for example, the indicator may fluctuate slightly.

Fuel display 135i: in speedometer.

Reserve

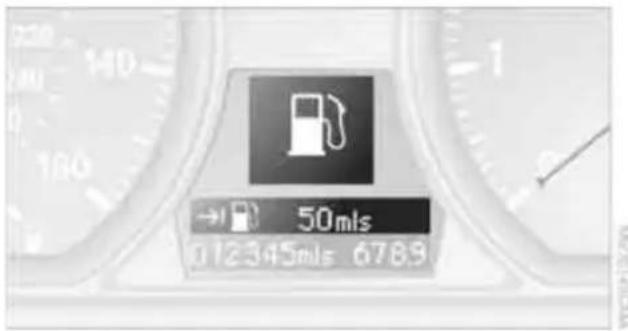

50mls 012345mls 678.9

Once the fuel level has fallen to the reserve zone, the indicator lamp lights up briefly and the cruising range for the remaining amount of fuel is displayed. The indicator lamp remains on continuously when the remaining cruising range is less than approx. 30 miles/50 km.

Refuel as soon as possible once your cruising range falls below 30 miles/

50 km; otherwise, engine functions are not ensured and damage can occur.

Computer

Displays in the instrument cluster

Calling up information

Close-up of a car's seatbelt with a magnified inset showing a small electronic device (no text or symbols visible)

Press the button in the turn signal/high beam lever.

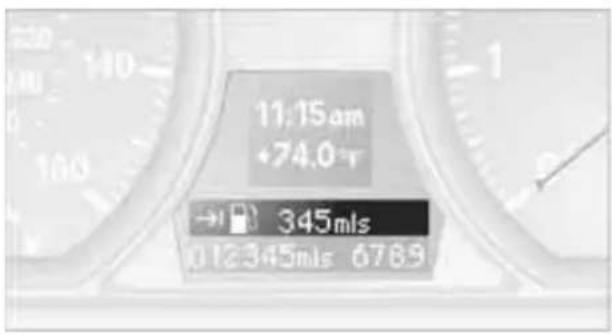

11:15am +74.0T → 345m/s 012345m/s 6789

The following items of information are displayed in the order listed:

Cruising range
Average speed
Average fuel consumption
Current fuel consumption
No information

To set the corresponding units of measure, refer to Formats and units of measure on page 66.

Cruising range

Displays the estimated cruising range available with the remaining fuel. The range is calculated on the basis of the way the car has been driven over the last 18 miles/30 km and the amount of fuel currently in the tank.

It is important that you refuel as soon as possible once your cruising range falls

below 30 miles/50 km; otherwise, engine functions are not ensured and damage can occur.

Average speed

Periods with the vehicle parked and the engine switched off are not included in the calculations of average speed.

To reset average speed: press the button in the turn signal/high beam lever for approx.

2 seconds.

Average fuel consumption

The average fuel consumption is calculated for the time during which the engine is running.

To reset average fuel consumption: press the button in the turn signal/high beam lever for approx. 2 seconds.

Current fuel consumption

Displays the current fuel consumption. This allows you to see whether your current driving style is conducive to fuel economy with minimum exhaust emissions.

Settings and information

Operating principle

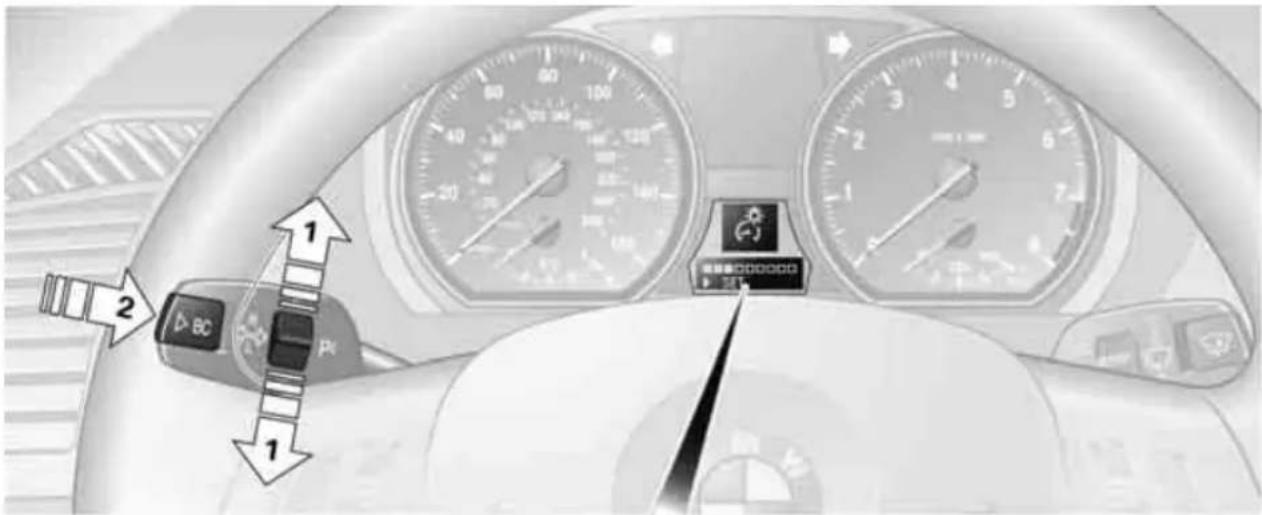

Diagram of a car dashboard with labeled controls and gauges, showing directional arrows and component labels like '1' and '2'.

3 4 5 6 7 8 9 10 11

Certain settings and information can only be made or called up when the ignition is switched on. A number of settings cannot be made while driving.

1 Button for:

Selecting display
Setting values

2 Button for:

▶ Confirming selected display or set values
Calling up computer information 63

3 When the lights are on: instrument lighting brightness 85

4 Calling up Check Control 68
5 Checking oil level 123
6 Initializing the Flat Tire Monitor 72 Resetting the Tire Pressure Monitor 74
7 Setting the time 68
8 Setting the date 68

9 Viewing service requirement display 66
10 Setting formats and units of measure, resetting to factory settings 66
11 Adjusting settings

▶ Confirmation signals when locking and unlocking the vehicle 21
Response during unlocking procedure 19
▶ Automatic locking 22
Pathway lighting 81
Daytime running lights 82
▶ Triple turn signal activation 57
Seat and mirror memory 40

Exiting displays

The outside temperature reading and the time reappear when you press button 2 or if you make no entries within approx. 15 seconds. If required, complete the current setting first.

Formats and units of measure

You can set formats and units of measure.

For operating principle refer to page 65.

1. Switch on the ignition, refer to page 48.
2. Briefly press button 1 in the turn signal/high beam lever up or down repeatedly until the symbol appears in the display, accompanied by the word "SET".

1 2 1 SET

1. Press button 2.
2. Use button 1 to select desired format or desired unit of measure, e.g. for fuel consumption.

1/100km MP3

▶ Fuel consumption: mpg, km/l, l/100km
▷ |→Distance covered: mls, km
Time: 12h, 24h format
Date: day.month dd.mm, month/day mm/dd
Temperature: °F, °C

1. Press button 2.
2. Use button 1 to make the setting.
3. Press button 2.

The setting is stored for the remote control currently in use.

Resetting to factory settings

You can reset the formats and units of measure to the default settings.

1. Briefly press button 1 in the turn signal/high beam lever up or down repeatedly until the symbol appears in the display, accompanied by the word "SET".

1 2 1 SET

1. Press button 2.
2. Use button 1 to select "RESET".

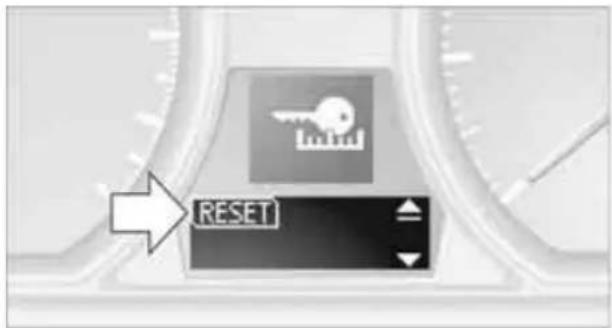

RESET

1. Press button 2 until √ is displayed.

The settings are reset.

The setting is stored for the remote control currently in use.

Service requirements

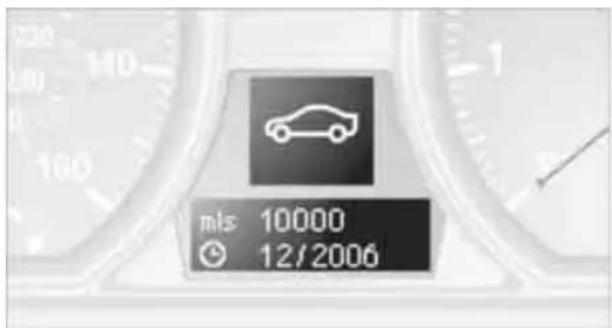

mls 10000 12/2006

The remaining driving distance and the date of the next scheduled service are displayed briefly

immediately after you start the engine or switch on the ignition.

The extent of service work required can be read out from the remote control by your BMW Service Advisor.

For certain maintenance operations, you can view the respective distance remaining or due date individually in the instrument cluster.

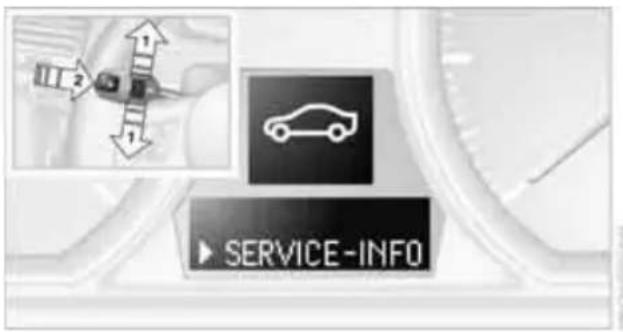

SERVICE-INFO

1. Switch on the ignition, refer to page 48.
2. Push button 1 in the turn signal/high beam lever up or down repeatedly until the appropriate symbol appears in the display, accompanied by the words "SERVICE-INFO".
3. Press button 2.
4. Use button 1 to scroll through the individual service items.

Possible displays

1 2 3 4 5 6 7 SERVICE-INFO

1 Button for selecting functions
2 Service requirements
3 Engine oil
4 Roadworthiness test *
5 Front brake pads

6 Rear brake pads

7 Brake fluid

The sequence of displayed service items may vary. The data for the next service appointment is shown first.

Clock

Setting the time

In the instrument cluster

To set the 12h/24h format, refer to Formats and units of measure on page 66.

1. Push button 1 in the turn signal/high beam lever up or down repeatedly until the appropriate symbol appears in the display, accompanied by the time and the word "SET".
2. Press button 2.
3. Use button 1 to set the hours.
4. Press button 2 to confirm the entry.
5. Use button 1 to set the minutes.
6. Press button 2 to confirm the entry.
7. Press button 2. The system accepts the new time.

Date

Setting the date

In the instrument cluster

To set the dd/mm or mm/dd date format, refer to Formats and units of measure on page 66.

12.12.2008 SET

1. Push button 1 in the turn signal/high beam lever up or down repeatedly until the appropriate symbol appears in the display, accompanied by the date and the word "SET".
2. Press button 2.

3. Use button 1 to set the day of the month.

4. Press button 2 to confirm the entry.

5. Set the month and the year in the same way.
6. Press button 2. The system stores the new date.

Check Control

The concept

The Check Control monitors vehicle functions and alerts you to any malfunctions in the systems monitored. Such a Check Control message includes indicator or warning lamps in the instrument cluster and, in some circumstances, an acoustic signal.

Front view of a car dashboard with dual gauges and a digital display (no visible text or symbols)

Indicator and warning lamps can light up in a variety of combinations and colors.

Several of the lamps are checked for proper functioning and light up temporarily when the engine is started or the ignition is switched on.

12345m/s M1

⚠ indicates that Check Control messages have been stored. These Check Control messages can be viewed again later, refer to page 69.

What to do in case of a malfunction

The meaning of each lamp in the event of a malfunction and tips on how to respond are listed starting on page 143.

Hiding Check Control messages

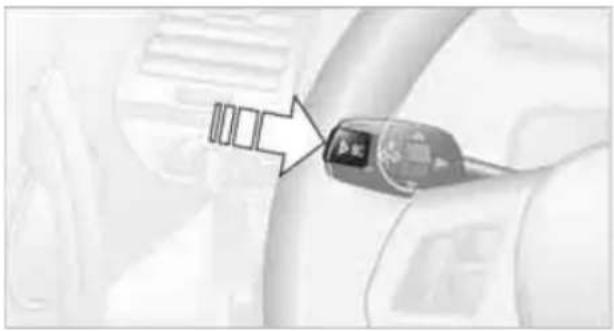

Close-up of a robotic arm with a cable connector and a small screen, no visible text or symbols

Press the button on the turn signal/high beam lever.

Some Check Control messages are displayed continuously and remain visible until the malfunction has been rectified. If several malfunctions occur at once, the messages are displayed consecutively.
These messages can be hidden for approx. 8 seconds. After this, they are displayed again automatically.
Other Check Control messages are hidden automatically after approx. 20 seconds. They are stored and can be displayed again later.

Displaying stored Check Control messages

1 2 1 CHECK

1. Push button 1 in the turn signal/high beam lever up or down repeatedly until the appropriate symbol appears in the display, accompanied by the words "CHECK".
2. Press button 2. "CHECK OK" appears if there are no Check Control messages. If a Check Control message has been stored, the corresponding lamp comes on.
3. Push button 1 to check for other messages.
4. Press button 2. The display again shows the outside temperature and the time.

Technology for driving comfort and safety

Park Distance Control PDC\*

The concept

The PDC assists you with maneuvering in tight parking spaces. Acoustic signals warn you of the presence of an object behind your vehicle. Four ultrasonic sensors in the bumper measure the distance.

An acoustic warning does not sound until an object is closer than approx. 2 ft/60 cm to the corner sensors, or closer than approx. 5 ft/1.50 m to the center sensors.

PDC is a parking aid that can indicate objects when they are approached slowly, as is usually the case when parking.

Avoid approaching an object at high speed; otherwise, physical circumstances may lead to the system warning being issued too late.

Switching on automatically

With the engine running or the ignition switched on, the system is activated after approx. second when you engage reverse gear or move the automatic transmission selector lever to position R. Wait this short period before driving.

Switching off automatically

After approx. 55 yd/50 m of driving or above approx. 20 mph/30 km/h, the system switches off and the LED goes out.

Signal tones

When nearing an object, its position is indicated correspondingly by an interval tone. As the distance between vehicle and object decreases, the intervals between the tones become shorter. If the distance to the nearest object falls to below roughly 1 ft/30 cm, then a continuous tone sounds.

An interval tone is interrupted after approx.

3 seconds:

If you stop in front of an object that has been detected by only one of the corner sensors

▶ If you are driving parallel to a wall

Malfunction

The indicator lamp in the instrument cluster comes on. PDC is malfunctioning. Have the system checked.

To avoid this problem, keep the sensors clean and free of ice or snow in order to ensure that they will continue to operate effectively. When using a high-pressure cleaner, do not spray the sensors for extended periods of time and only from a distance of at least 1 ft/30 cm.

System limitations

Even with PDC, final responsibility for estimating the distance between the vehicle and any obstructions always remains with the driver. Even when sensors are provided, there is a blind spot in which objects can no longer be detected. The system is also subject to the physical limits that apply to all forms of ultrasonic measurement, such as those encountered with trailer towbars and hitches, thin or wedge-shaped objects, etc. Low objects that have already been displayed, e.g. curbs, can disappear again from the detection area of the sensors before or after a continuous tone sounds. Higher, protruding objects, e.g. ledges, cannot be detected. Loud sound sources outside or inside the car can drown out the PDC signal. Therefore, always drive cautiously; otherwise, there is a risk of personal injury or property damage.

Driving stability control systems

Your BMW has a number of systems that help to maintain the vehicle's stability even in adverse driving conditions.

Antilock Brake System ABS

ABS prevents locking of the wheels during braking. Safe steering response is maintained even during full braking. Active safety is thus increased.

The ABS is operational every time you start the engine. Braking safely, refer to page 106.

Electronic brake-force distribution EBV

The system controls the brake pressure in the rear wheels to ensure stable braking behavior.

Dynamic Brake Control DBC

When you apply the brakes rapidly, this system automatically produces the maximum braking force boost and thus helps to achieve the shortest possible braking distance during full braking. This system exploits all of the benefits provided by ABS.

Do not reduce the pressure on the brake for the duration of the full braking application.

Dynamic Stability Control DSC

DSC prevents the driving wheels from losing traction when you pull away from rest or accelerate. The system also recognizes unstable driving conditions, for example if the rear of the car is about to swerve or if momentum is acting at an angle past the front wheels. In these cases, DSC helps the vehicle maintain a safe course within physical limits by reducing engine output and through braking actions at the individual wheels.

The laws of physics cannot be repealed, even with DSC. An appropriate driving style always remains the responsibility of the driver. Therefore, do not reduce the additional safety margin again by taking risks, as this could result in an accident.

Deactivating DSC

DTC

Press the button for at least 3 seconds; the indicator lamps for DSC in the instrument cluster light up. Dynamic Traction Control DTC and DSC have been simultaneously deactivated.

Stabilizing and drive-output promoting actions are no longer executed.

In the same way as with a differential interlock*, even if DSC is deactivated, brake actions are still performed on the rear axle to enhance drive output if the drive wheels experience a significant loss of traction.

To increase vehicle stability, activate DSC again as soon as possible.

Activating DSC

Press the button again; the indicator lamps for DSC in the instrument cluster go out.

For better control

If the indicator lamp flashes:

DSC is regulating the drive and braking forces.

If the indicator lamps are on: DSC is deactivated.

Dynamic Traction Control DTC

DTC is a version of DSC in which the drive output is optimized for particular road conditions, e.g. unplowed snow-covered roads. The system assures the maximal drive output, but with reduced driving stability. It is therefore necessary to drive with appropriate caution.

You may find it useful to briefly activate DTC under the following special circumstances:

When driving uphill on snow-covered roads, in slush or on unplowed, snow-covered roads
When rocking a stuck vehicle free or starting off in deep snow or on loose ground
When driving with snow chains

Activating DTC

DTC

Press the button; the indicator lamps for DTC in the instrument cluster come on.

For better control

If the indicator lamp flashes:

DTC is regulating the drive and braking forces.

DTC

If the indicator lamps are on:

DTC has been activated.

Deactivating DTC

Press the button again; the DTC indicator lamps in the instrument cluster go out.

Drive-off assistant

The drive-off assistant enables you to drive off smoothly on uphill gradients. It is not necessary to use the parking brake for this.

1. Hold the car in place by depressing the brake.
2. Release the brake and drive off without delay.

The drive-off assistant holds the car in place for approx. 2 seconds after the brake is released. Drive off without delay after releasing the brake. Otherwise, the drive-off

assistant will no longer hold the car in place after approx. 2 seconds and the car will start to roll backwards.

Flat Tire Monitor FTM\*

The concept

The system does not measure the actual inflation pressure in the tires.

The system detects a tire pressure loss due to speed comparisons among the individual wheels as you drive.

In the event of pressure loss, the rolling circumference changes and, thus, the rotating speed of the affected wheel. The system detects this and reports it as a flat tire.

Functional requirement

The system has to have been initialized at the correct inflation pressure; otherwise, a reliable reporting of a flat tire is not assured.

Each time a tire inflation pressure has been corrected or a wheel or tire has been changed, reinitialize the system.

System limitations

It is impossible to provide advance warning of sudden, severe tire damage caused outside influences.

The system will not detect a natural, uniform pressure loss in all four tires. Therefore you should check the inflation pressure regularly.

In the following situations, the system could be delayed or malfunction:

System has not been initialized
▶ Driving on snowy or slippery road surface
▶ Performance-oriented style of driving: slip in the drive wheels, high lateral acceleration
Driving with snow chains*

Initialization

In the initialization, the set inflation pressures are adopted as reference values for the detection of a flat tire. The initialization is begun by confirmation of the inflation pressures.

Do not initialize the system while snow chains are attached.

For operating principle refer to page 65.

1. Start the engine immediately before pulling away, but do not drive off yet.

1 2 1 1 RESET

1. Briefly press the button 1 in the turn signal/high beam lever repeatedly until the corresponding symbol and "RESET" appear.
2. Press button 2 to confirm your choice of the Flat Tire Monitor.
3. Press button 2 for approx. 5 seconds, until the reading shown below is displayed:

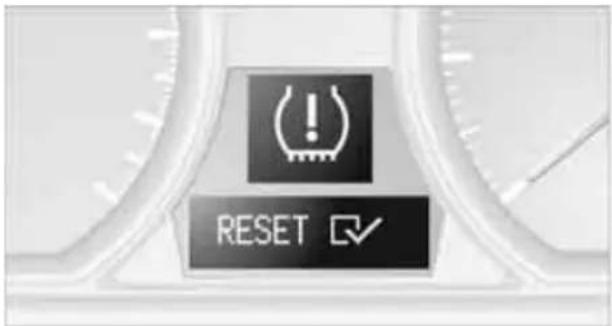

RESET

1. Start driving.

The initialization is completed during driving, which can be interrupted at any time.

When driving resumes, the initialization is continued automatically.

Indication of a flat tire

The warning lamps come on in yellow and red. In addition, a signal sounds. There is a flat tire or substantial loss of tire pressure.

What to do in case of a flat tire

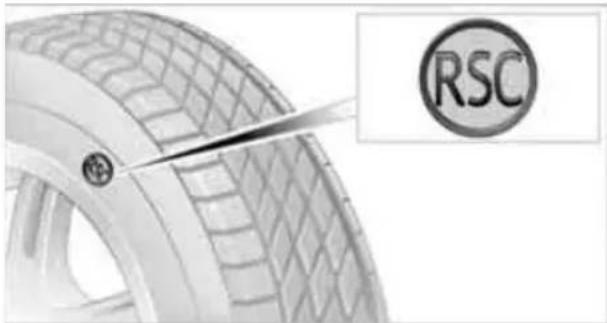

Run-flat tires

With a damaged tire, is possible to continue driving at speeds of up to 50 mph/80 km/h.

Do not continue driving if the vehicle is not equipped with run-flat tires, refer to 120; continued driving could result in a re accident.

When continuing to drive with a damaged tire:

1. Avoid sudden braking and steering maneuvers.
2. Do not exceed a speed of 50 mph/80 km/h.
3. At the next opportunity, check the air pressure in all four tires.

If all four tires are inflated to the correct pressures, the Flat Tire Monitor not have been initialized. The system then be initialized.

Possible travel distance with complete tire pressure loss:

With a light load: 1 to 2 persons without luggage: approx. 155 miles/250 km
With a medium load: 2 persons, cargo area full, or 4 persons without luggage: approx. 90 miles/150 km
With a full load: 4 persons, cargo area full: approx. 30 miles/50 km

Drive cautiously and do not exceed a speed of 50 mph/80 km/h.

When there is a tire pressure loss, the handling characteristics change, e.g. there will be reduced directional stability during braking, braking distances will be longer, and self-steering response will change.

Vibrations or loud noises during driving may indicate the final failure of the tire.

Reduce your speed and bring the vehicle to a stop; otherwise, tire components may become detached, which could result in an accident. Do not continue driving; instead, contact your BMW center.

Tire Pressure Monitor TPM\*

The concept

Check the inflation pressure in the four installed tires. The system notifies you if there is a significant loss of pressure in one or more tires.

Functional requirement

The system has to have been reset at the correct inflation pressure; otherwise, a reliable reporting of a flat tire is not assured.

Always use wheels with TPM electronics to assure a trouble-free function of the system.

Each time a tire inflation pressure has been corrected or a wheel or tire has been ged, reset the system.

System limitations

It is impossible to provide advance warning of sudden, severe tire damage caused tside influences.

The system does not function correctly if it has not been reset. For example, a flat tire may be indicated even though the tire inflation pressures are correct.

The system is inactive and cannot indicate a flat tire:

when a wheel without TPM electronics is installed.
when other systems or devices that use the same radio frequency interfere with TPM.

Resetting the system

Each time a tire inflation pressure has been corrected or a wheel or tire has been changed, reset the system.

For operating principle refer to page 65.

1. Start the engine, but do not start driving.
2. Briefly press the button 1 in the turn signal/high beam lever repeatedly until the corresponding symbol and "RESET" appear.

1 2 1 1 RESET

1. Press button 2 to confirm your choice of the Tire Pressure Monitor. The following display appears:

ACTIVE RESET

1. Press button 2 for approx. 5 seconds, until the reading shown below is displayed:

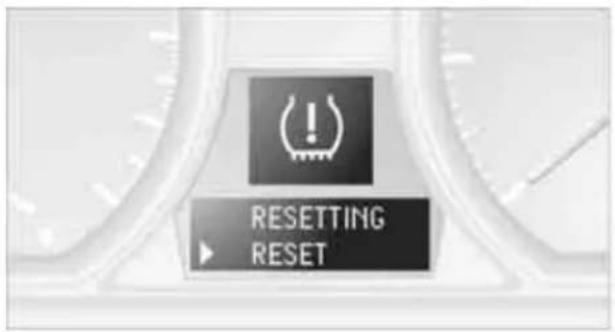

RESETING RESET

1. Start driving.

After several minutes of driving time, the adjusted inflation pressures will be adopted as nominal values. The resetting is completed automatically as you drive. The indicator lamp goes out after the system reset is completed.

You can stop driving at any time. The resetting continues automatically when you resume driving.

Message for low tire inflation pressure

The warning lamps come on in yellow and red. In addition, a signal sounds.

There is a flat tire or substantial loss of tire pressure.
The system was not reset after a wheel change and will thus issue warnings at the last initialized inflation pressures.

Cautiously reduce speed to below 50 mph/80 km/h. Avoid sudden braking and steering maneuvers. Do not exceed a speed of 50 mph/80 km/h.

Do not continue driving if the vehicle is not equipped with run-flat tires, refer to 120; continued driving could result in a e accident.

Continuing to drive with a flat tire

Possible travel distance with complete tire pressure loss:

With a light load:
1 to 2 persons without luggage: approx. 155 miles/250 km
With a medium load:
2 persons, cargo area full, or 4 persons without luggage: approx. 95 miles/150 km
With a full load:
4 persons, cargo area full: approx. 30 miles/50 km

Drive cautiously and do not exceed a speed of 50 mph/80 km/h.

When there is a tire pressure loss, the handling characteristics change, e.g. there will be reduced directional stability during braking, braking distances will be longer, and self-steering response will change.

Vibrations or loud noises during driving may indicate the final failure of the tire.

Reduce your speed and bring the vehicle to a stop; otherwise, tire components may become detached, which could result in an accident. Do not continue driving; instead, contact your BMW center.

Malfunction

The small warning lamp flashes in yellow and then lights up continuously; the large warning lamp comes on in yellow. No punctures can be

detected.

Display in the following situations:

Malfunction:
Have the system checked
A wheel without TPM electronics has been installed: Have it checked by your BMW center.
Interference from systems or devices that use the same radio frequency: The system automatically becomes active again when the vehicle moves out of the interference zone.

Declaration according to NHTSA/FMVSS 138

Tire Pressure Monitoring Systems

Each tire should be checked monthly when cold and inflated to the inflation pressure recommended by the vehicle manufacturer on the vehicle placard or tire inflation pressure label. If your vehicle has tires of a different size than the size indicated on the vehicle placard or tire inflation pressure label, you should determine the proper tire inflation pressure for those tires. As an added safety feature, your vehicle has been equipped with a tire pressure monitoring system, TPMS, that illuminates a low tire pressure telltale when one or more of your tires are significantly under-inflated. Accordingly, when the low tire pressure telltale illuminates, you should stop and check your tires as soon as possible, and inflate them to the proper pressure. Driving on a significantly underinflated tire causes the tire to overheat and can lead to tire failure. Underinflation also reduces fuel efficiency and tire tread life and may affect the vehicle's handling and stopping ability. Please note that the TPMS is not a substitute for proper tire maintenance, and it is the driver's responsibility to maintain correct tire pressure, even if underinflation has not reached the level to trigger illumination of the TPMS low tire pressure indicator.

The TPMS malfunction indicator is combined with the low tire pressure telltale. When the system detects a malfunction, the telltale will flash for approximately one minute and then remain continuously lit. This sequence will continue upon subsequent vehicle startups as long as the malfunction exists. When the malfunction indicator is illuminated, the system may not be able to detect or signal low tire pressure as intended. TPMS malfunctions may occur for a variety of reasons, including the installation of replacement or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly. Always check the TPMS malfunction telltale after replacing one or more tires or wheels on your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to continue to function properly.

Active steering\*

The concept

Active steering varies the turning angle of the front wheels in relation to steering wheel movements. It also varies the steering force required to turn the wheels depending on the speed at which you are driving.

When you are driving in the low road speed range, e.g. in a town or when parking, the steering angle is increased, i.e. steering becomes very direct and less effort is required to turn the wheels. In the higher speed range, on the other hand, the steering angle is reduced as the speed increases. This improves the handling of your BMW over the entire speed range.

In critical situations, the system can make targeted corrections to the steering angle provided by the driver and thus stabilize the vehicle before the driver intervenes. This stabilizing intervention is simultaneously deactivated when DSC is switched off, refer to page 71.

Malfunction

The warning lamps come on. Active steering is malfunctioning or is temporarily deactivated. At low speeds, greater steering wheel movements

are required, whereas at higher speeds the vehicle reacts more sensitively to steering wheel movements. The stability-enhancing feature may also be deactivated. Drive cautiously and think well ahead.

Deactivation

Active steering is deactivated to perform an initialization. A message indicates that the feature is deactivated. Initialization may take several minutes.

If the message does not disappear during the current trip, have the system checked.

Defect

If there is a defect, a corresponding message appears. Have the system checked.

Servotronic\*

The concept

The Servotronic varies the steering force required to turn the wheels relative to the vehicle speed.

At low speeds, the steering force is strongly assisted, i.e. less force is needed for steering. As the vehicle speed increases, the steering assisting power is reduced.

This system functions automatically.

Malfunctions

Malfunctions are displayed via Check Control, refer to page 68.

Brake Force Display\*

Side profile sketches of a car showing front and rear views (no text or symbols)

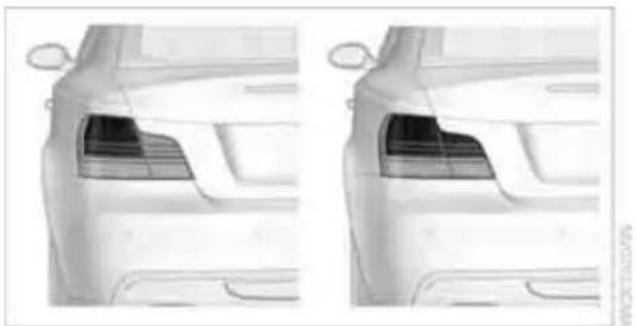

On the left: normal braking. On the right: sharp braking.

Airbags

Diagram of a car interior with numbered components for identification

The following airbags are located under the marked covers:

1 Front airbags
2 Coupe: head airbags
3 Side airbags in the seat backrests
4 Convertible: knee airbags

Protective action

Observe the adjustment instructions on page 35 to ensure the best possible personal protection.

The front airbags help protect the driver and front passenger by responding to frontal impacts in which safety belts alone cannot provide adequate restraint. When needed, the head and side airbags help provide protection in the event of side impact. The relevant side airbag supports the side upper body area. The head air bag supports the head.

The airbags have been designed to not be triggered in every collision situation, e.g. not in minor accidents or rear-end collisions.

Do not apply adhesive materials to the cover panels of the airbags, cover them or fy them in any other way.

Keep the dashboard and window on the front passenger side clear, i.e., do not cover with adhesive labels or coverings, and do not attach holders such as for navigation instruments and mobile phones.

Do not attach seat covers, cushions or other objects not specifically approved for seats with integral side airbags to the front seats. Do not hang items of clothing such as coats or jackets over the backrests. Do not attempt to remove the airbag retention system from the vehicle. Do not modify the individual components of the system or its wiring in any way. This includes the upholstered covers on the steering wheel, instrument panel, seats and roof posts, as well as the sides of the roof lining. Do not attempt to

remove or dismantle the steering wheel. Do not touch the individual components immediately after the system has been triggered, because there is a danger of burns. In the event of malfunctions, deactivation or triggering of the airbag restraint system, have the testing, repair, removal and disposal of airbag generators executed only by a BMW center or a workshop that works according to repair procedures of BMW with correspondingly trained personnel and that has the required explosives licenses. Unprofessional attempts to work on the system could lead to failure in an emergency or to undesired airbag activation, either of which could result in personal injury. Warning notices and information about the airbags can also be found on the sun visors.

Automatic deactivation of the front passenger airbags

An analysis of the impression in the front passenger seat cushion determines whether and how the seat is occupied. The front and side air bags for the front passenger are activated or deactivated by the system accordingly.

The indicator lamp above the interior rearview mirror shows the current status of the front passenger airbags, deactivated or activated, refer to Status of front passenger airbags below.

Before transporting a child on the front passenger seat, read the safety precau- and handling instructions under Trans- ing children safely, refer to page 45. The front and side airbags can also be deactivated by adolescents and adults sitting in certain positions; the indicator lamp for the front passenger airbags comes on. In such cases, the passenger should change his or her sitting position so that the front passenger airbags are activated and the indicator lamp goes out. If the desired airbag status cannot be achieved by changing the sitting position, transport the relevant passenger on a rear seat. Do not attach seat covers, seat cushion padding, ball mats or other items to the front passenger seat unless they are specifically recommended by BMW. Do not place any items under the seat which

could press against the seat from below. Otherwise, a correct analysis of the seat cushion is not ensured.

Status of front passenger airbags

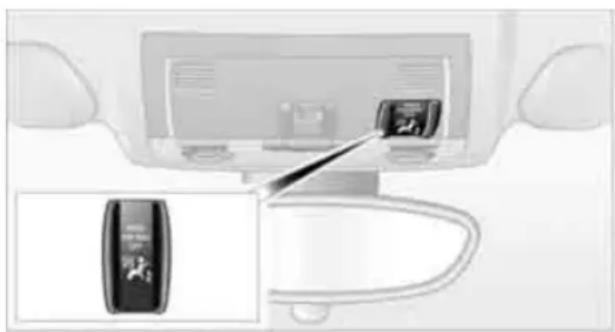

Diagram showing a car interior with a device inserted into a panel, and a close-up of the device's cable (no text or symbols visible)

The indicator lamp for the front passenger airbags shows the functional status of the front passenger front and side airbags in accordance with whether and how the front passenger seat is occupied. The indicator lamp shows whether the front passenger airbags are activated or deactivated.

The indicator lamp lights up when a child in a specially designated child restraint system is detected, as intended, on the seat. The front and side airbags for the front passenger are not activated.

Most child seats are detected by the system, especially child seats required by the NHTSA at the time of vehicle production. After mounting a child seat, ensure that the indicator lamp for the front passenger airbag is lit. It indicates that the child seat has been detected and that the front passenger airbags are deactivated.

The indicator lamp does not come on when, for example, a person of sufficient size and in a correct sitting position is detected on the seat.

The front and side airbags for the front passenger are activated.

The indicator lamp does not come on if the seat is empty.

The front and side airbags for the front passenger are not activated.

Operational readiness of airbag system

Interior view of a car dashboard with steering wheel and speedometer (no visible text or symbols)

As of radio readiness, refer to page 48, the warning lamp comes on briefly to indicate that the entire airbag system and the belt tensioners are operational.

Airbag system malfunction

Warning lamp does not light up at radio readiness or beyond.
Warning lamp remains permanently on.

In the event of a fault in the airbag system, have it checked without delay; otherwise,

there is the risk that the system will not function as intended even if a sufficiently severe accident occurs.

Convertible: rollover protection system

The rollover protection system is activated automatically in the event of an accident, a critical driving situation, an extreme tilt in the car's longitudinal axis or upon loss of ground contact. The protection bars behind the rear head restraints deploy within fractions of a second.

As a supplementary system to the reinforced windshield frame, the rollover protection system ensures that the necessary headroom is maintained for all vehicle occupants.

Always keep the area of movement of the rollover protection system clear.

In minor accidents, you are protected by the fastened safety belt and, depending on accident severity, by the safety belt tensioner and multi-phase airbag retention system.

Resetting

If the rollover protection system was not impacted after being automatically activated, it can be reset by lowering the protection bars to their original positions. This does not require tools.

1. Push the locking lever to one side and hold it there.

Diagram showing a car seatbelt switch mechanism with arrows indicating motion (no text or symbols present)

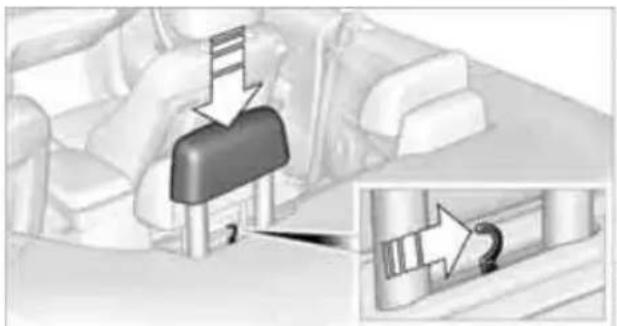

1. Push the protection bar halfway down from above.
2. Release the locking lever.
3. Push the protection bar down until it snaps into place.

Interior view of a car seatbelt with a black seatbelt and arrow indicating a location (no text or symbols)

1. Repeat the procedure for the other protection bar.

Have the rollover protection system checked after an unexpected activation.

Never move the convertible top when the rollover protection system is in the acti- l position.

Do not make any modifications to the individual components of the rollover protection system or its cabling.

Work on the rollover protection system should only be performed by a BMW center.

Incorrectly performed work on the system may lead to system failure or incorrect operation.

To check the system and ensure flawless long-term operation, always observe the service intervals, refer to page 66.

Lamps

Parking lamps/low beams

0 1 3 2

0 Lamps off, daytime running lights

1 Parking lamps and daytime running lights
2 Low beams, welcome lamps*
3 Automatic headlamp control *, daytime running lights, welcome lamps*, high-beam assistant*, adaptive light control*

When you open the driver's door with the ignition switched off, the exterior lighting is automatically switched off if the light switch is in position 0, 2 or 3.

Switch on the parking lamps if necessary, switch position 1.

Parking lamps

In switch position 1, the front, rear and side vehicle lighting is switched on. You can use the parking lamps for parking.

The parking lamps will discharge the battery. Therefore, do not leave them on for unduly long periods of time; otherwise, the battery might not have enough power to start the engine. It is preferable to switch on the left-hand or right-hand roadside parking lamps, refer to page 83.

Low-beam headlamps

The low beams light up when the light switch is in position 2 and the ignition is on.

Automatic headlamp control\*

When the switch is in position 3, the low beams are switched on and off automatically depending on ambient light conditions, e.g. in a tunnel, in twilight, or if there is precipitation. The adaptive light control* is active. The LED next to the symbol is illuminated when the low beams are on. You can also activate the daytime running lights, refer to page 82. In the situations described above, the lamps then automatically switch from daytime running lights to low beams.

The headlamps may also come on when the sun is sitting low on a blue sky.

The low beams remain switched on independent of the ambient lighting conditions when you switch on the fog lamps*.

The automatic headlamp control cannot serve as a substitute for your personal judgment in determining when the lamps should be switched on in response to ambient lighting conditions. For example, the system cannot detect fog or hazy weather. To avoid safety risks, you should always switch on the low-beam headlamps manually under these conditions.

Welcome lamps

If you leave the light switch in position 2 or 3 when you park the car, the parking lamps and the interior lamps light up briefly when you unlock the vehicle.

Pathway lighting

If you activate the headlamp flasher after switching off the ignition with the lamps switched off, the low beams come on and remain on for a certain time.

Setting the duration or deactivating

For operating principle refer to page 65.

1. Switch on the ignition, refer to page 48.
2. Briefly press button 1 in the turn signal/high beam lever up or down repeatedly until the symbol appears in the display, accompanied by the word "SET".

Diagram showing a satellite with directional arrows and a key icon, alongside a SET button labeled 'SET'

1. Press button 2.
2. Briefly press button 1 in the turn signal/high beam lever down repeatedly until the symbol appears in the display.

0 s 10 s

1. Press button 2.
2. Use button 1 to select:

▷ 0s

The function is deactivated.

10s 240s

Select the corresponding duration, e.g. 40 seconds.

1. Press button 2.

The setting is stored for the remote control currently in use.

Daytime running lights

The daytime running lights light up in switch position 0, 1 and 3. They are less powerful than the low beams.

Activating/deactivating daytime running lights

For operating principle refer to page 65.

1. Switch on the ignition, refer to page 48.
2. Briefly press button 1 in the turn signal/high beam lever up or down repeatedly until the symbol appears in the display, accompanied by the word "SET".

1 2 1 SET

1. Press button 2.
2. Briefly press button 1 in the turn signal/high beam lever down repeatedly until the symbol appears in the display.

on off

1. Press button 2.
2. Use button 1 to select:

on
Daytime running lights activated.
▶ off
Daytime running lights deactivated.

1. Press button 2.

The setting is stored for the remote control currently in use.

Adaptive light control\*

The concept

Adaptive light control is a variable headlamp control system that enables better illumination of the road surface. Depending on the steering angle and other parameters, the light from the headlamp follows the course of the road.

In tight curves at speeds up to 40 mph/70 km/h, e.g. on mountainous roads or when turning, an additional, corner-illuminating lamp is switched on that lights up the inside area of the curve.

Activating adaptive light control

With the ignition switched on, turn the light switch to position 3, refer to page 81.

The corner-illuminating lamp is switched on automatically, depending on the steering wheel angle or turn signal indicator.

Standstill function*: to avoid blinding oncoming traffic, the adaptive light control directs light towards the front passenger side when the vehicle is at a standstill.

When you are reversing, only the corner-illuminating lamps are switched on and active on both sides.

Malfunction

The LED next to the symbol for automatic head-lamp control flashes. Adaptive light control is malfunctioning or has failed. Have the system checked as soon as possible.

High beams/roadside parking lamps\*

Diagram showing a car's steering wheel with numbered directional arrows indicating movement or positioning.

1 High beams

2 Headlamp flasher

3 Roadside parking lamps *

Roadside parking lamps, left or right\*

There is an additional option of switching on the lamps on the side of the car facing the road when parked.

Switching on

After parking the vehicle, press the lever up or down beyond the pressure point for approx. 1 second, arrow 3.

The roadside parking lamps drain the battery. Therefore, do not leave them on for unduly long periods of time; otherwise, the battery might not have enough power to start the engine.

Switching off

Press the lever in the opposite direction to the pressure point, arrow 3.

High-beam assistant\*

The concept

This system automatically switches the high beams on and off. The procedure is controlled by a sensor on the front of the interior rearview mirror. The assistant ensures that the high beams are switched on whenever the traffic situation allows. It handles this task for you and gives you the benefit of the best possible view. You can intervene at any time and switch the high beams on and off as usual.

Activating the system

1. Turn the light switch to position 3, refer to page 81.
2. With the low beams switched on, briefly push the turn signal/high beam lever in the direction of the high beam.

The indicator lamp in the instrument cluster lights up when the high beams are activated. The system automatically switches from high beams to low beams and vice versa in response to oncoming traffic, traffic ahead of you, and adequate ambient lighting, e.g. on city streets.

Switching the high beams on and off manually

Whenever you wish, or when the situation requires, you can intervene:

If the high-beam assistant switches on the high beams, but you would like to drive with the low beams, simply switch off the high beams using the turn signal/high beam lever. This deactivates the high-beam assistant.

To reactivate the system, briefly push the turn signal/high beam lever toward the high beams again.

If the high-beam assistant switches on the low beams, but you would like to drive with the high beams, switch on the high beams as usual. This deactivates the system and the high beams need to be switched off manually, if necessary.

To reactivate the system, briefly push the turn signal/high beam lever toward the high beams again.

▶ Use the headlamp flasher as usual with the low beams switched on.

System limitations

The high-beam assistant cannot serve as a substitute for the driver's personal judgment of when to use the high beams. Therefore, manually switch off the high beams in situations where this is required to avoid a safety risk.

The system is not fully functional in situations such as the following, and driver intervention may be necessary:

In very unfavorable weather conditions, such as fog or heavy precipitation

In detecting poorly-lit road users, such as pedestrians, cyclists, horseback riders and

wagons; when driving close to train or ship traffic; and at animal crossings

In tight curves, on hilltops or in depressions, in cross traffic or half-obscured oncoming traffic on highways
In poorly lit towns and cities and in the presence of highly reflective signs
At low speeds
When the windshield in front of the interior rearview mirror is fogged over, dirty or covered with stickers, etc.
If the sensor is dirty. Clean the sensor on the front of the interior rearview mirror using a cloth moistened with a small amount of glass cleaner.

Fog lamps\*

Close-up of a hand holding a small object with tweezers, next to a black key labeled '和' (no other text or symbols visible)

To switch on/off, press the button.

The parking lamps or low beams must be switched on for the fog lamps to operate. The green indicator lamp in the instrument cluster lights up whenever the fog lamps are on.

The fog lamps are switched off while you activate the headlamp flasher or switch on the high beams.

If the automatic headlamp control is activated, the low beams will come on automatically when you switch on the fog lamps.

Instrument lighting

You can adjust the brightness of the instrument lighting only when the parking lamps or the low beams are switched on.

1 2 1 SET

1. Push button 1 in the turn signal/high beam lever up or down repeatedly until the appropriate symbol appears in the display, accompanied by the brightness level and the word "SET".

2. Press button 2.

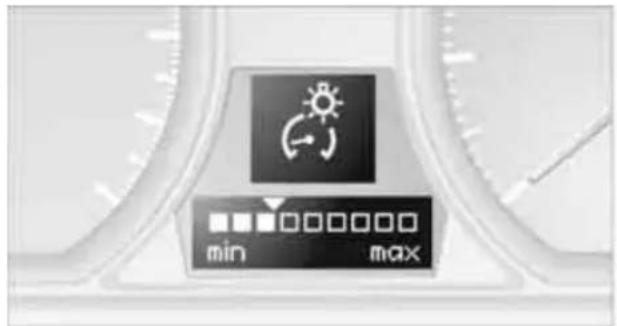

min max

1. Push button 1 up or down to select the desired brightness level.

2. Press button 2. The display again shows the outside temperature and the time.

Interior lamps

The interior lamps, footwell lamps *, entry lamps*, the cargo area lamp and courtesy lamps* are controlled automatically.

The LEDs for the courtesy lamps are set in the door handles and illuminate the ground in front of the doors.

To avoid draining the battery, all lamps inside the car are switched off about 8 minutes after the ignition is switched off, refer to Start/stop button on page 48.

Switching interior lamps on/off manually

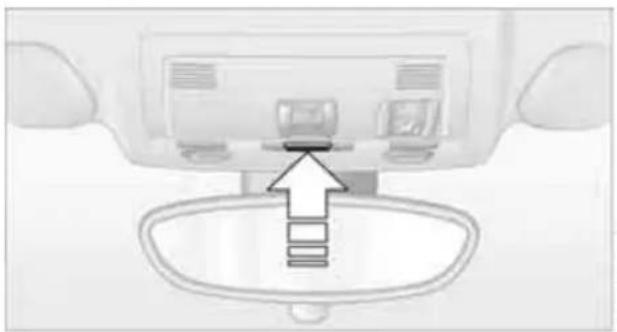

Diagram of a car interior showing a vehicle's rearview mirror and dashboard with an upward arrow pointing to the front panel (no text or symbols present)

Interior lamps, front and rear*: To switch on and off, press the button.

To switch off the interior lamps, footwell lamps*, entry lamps* and courtesy lamps* permanently, press the button for the front interior lamps for about 3 seconds.

Reading lamps

Diagram of a car interior showing two directional arrows pointing to a vehicle's rear panel (no text or symbols present)

There are reading lamps at the front and rear*, next to the interior lamps. To switch on and off, press the button.

Climate

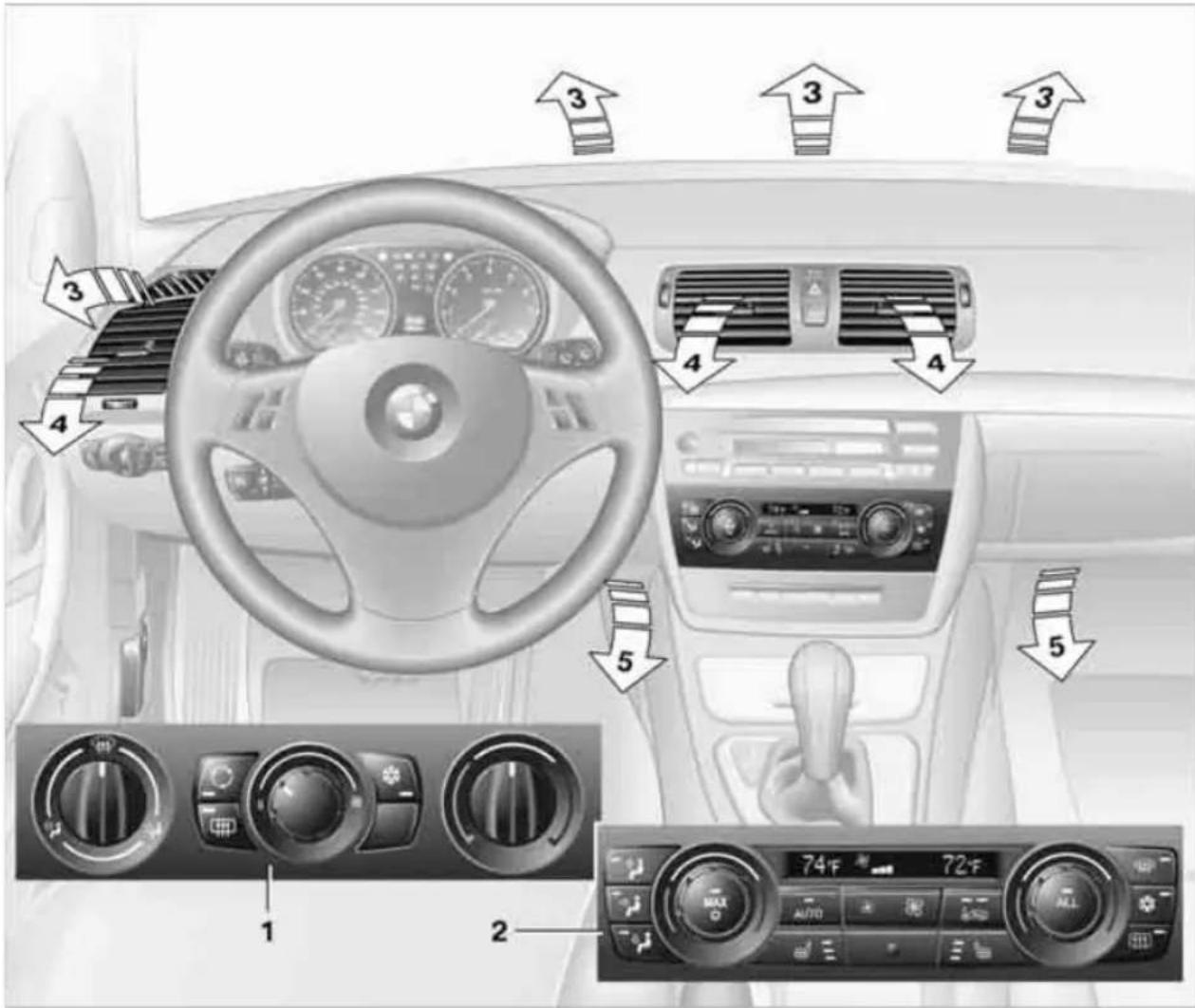

1 2 3 3 3 4 4 5 MAX 74°F 72°F AUTO ALL

Equipment versions

Depending on the equipment version, your vehicle contains either an air conditioner* or an automatic climate control system*.

1 Heating, air conditioner *

2 Automatic climate control *

Air vents

3 Airflow directed toward the windshield and side windows

4 Air to the upper body area. The thumbwheels smoothly open and close the air supply. The levers alter the direction of the airflow. For further details of draft-free ventilation, refer to page 88 or 91.

5 Air to the footwell

Heating and ventilation, air conditioner\*

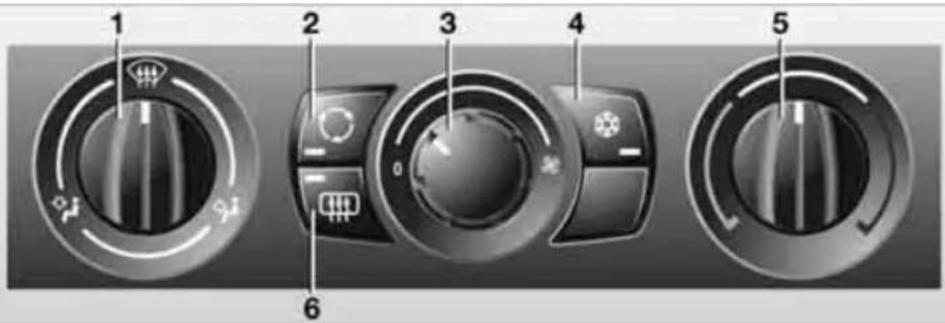

1 2 3 4 5 6

1 Air distribution
2 Recirculated-air mode
3 Air volume
4 Cooling function *

If the vehicle is not equipped with a cooling

function, the rear window defroster is located here.

5 Temperature

6 Rear window defroster If the vehicle is not equipped with a cooling function, this control is located at position 4.

Air distribution

Direct the flow of air to the windows, to the upper body area or to the footwell. Intermediate settings are possible. In the center position between and, the air is also deflected at toward the windows.

Recirculated-air mode

If the air outside the car has an unpleasant odor or contains pollutants, shut off the supply to the interior of the car temporarily. The system then recirculates the air currently within the vehicle.

You can also activate/deactivate the recirculated-air mode by means of a button* on the steering wheel, refer to page 11.

If condensation starts to form on the inside window surfaces during operation in the recirculated-air mode, you should switch it off while also increasing the air volume as required.

The recirculated-air mode should not be used continuously for lengthy periods; otherwise, the quality of the air inside the car will gradually deteriorate.

Air volume

Turn to adjust the air volume. The higher the volume, the more effective the heating or cooling will be.

The air volume may be reduced or the blower may be switched off entirely to save on battery power.

Switching the system on/off

Set any desired air volume to switch on the air conditioner.

Turn the air volume rotary switch to 0. The blower and air conditioner are completely switched off and the air supply is cut off.

The outside air supply is blocked when the air conditioner is switched off. If the air quality deteriorates or the window fogs over, switch the system back on and increase the air volume.

Switching the cooling function\* on/off

The cooling function cools and dehumidifies the incoming air before reheating it according to the temperature setting. This function

is only available while the engine is running.

The cooling function helps prevent condensation on the windows or removes it quickly.

Depending on the weather, the windshield may fog over briefly when the engine is started.

Rear window defroster

The defroster is switched off automatically after a certain time.

Depending on your vehicle's equipment, the upper wires serve

as an antenna and are not part of the rear window defroster.

Temperature

To increase the temperature, turn the rotary switch clockwise towards red.

cool* the interior, turn to the left towards blue.

Defrosting windows and removing condensation

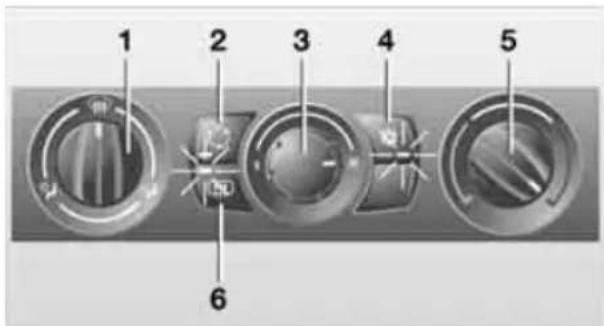

1 2 3 4 5 6

1. Air distribution 1 in position 🎨.
2. Deactivate recirculated-air mode 2.
3. Air volume control 3 all the way to the right.
4. Switch on cooling function 4.
5. Temperature 5 to the right, red.
6. Switch on rear window defroster 6 to defrost the rear window

Ventilation

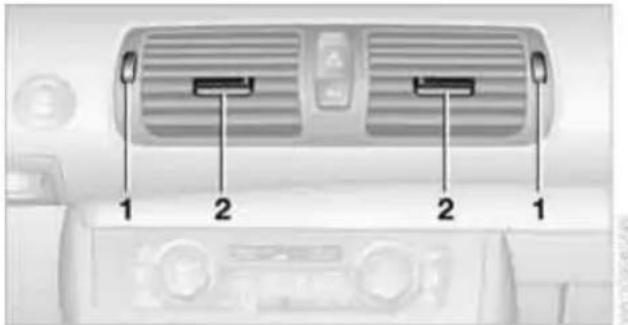

1 2 2 1

1 Use the thumbwheels to smoothly open and close the air vents
2 Use the lever to change the direction of the airflow

Ventilation for cooling

Adjust the vent outlets to direct the flow of cool air in your direction, for instance if it has become too hot in the car.

Draft-free ventilation

Adjust the vents to let the air flow past you.

Microfilter

The microfilter removes dust and pollen from the incoming air. The microfilter is changed by your BMW center during routine maintenance work.

Automatic climate control\*

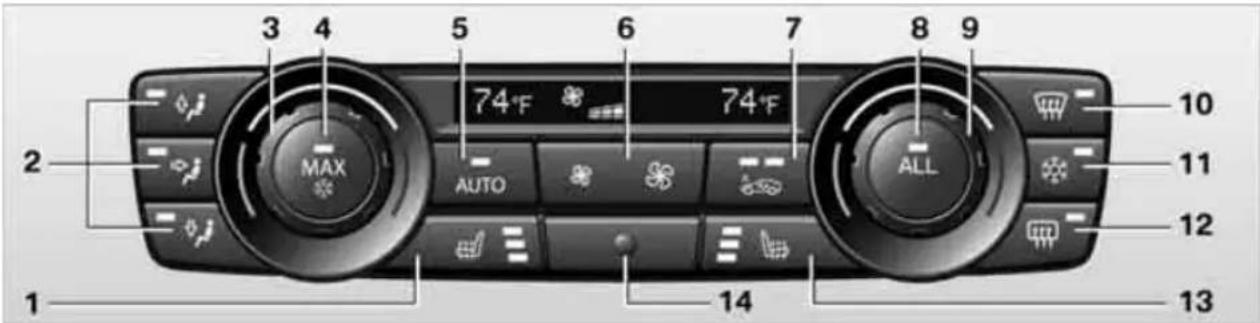

3 4 5 6 7 8 9 MAX 74°F 74°F AUTO ALL 10 11 12 1 14 13

1 Seat heating *, left side 40
2 Air distribution, manual
3 Temperature, left side
4 Maximum cooling
5 AUTO program
6 Air volume, manual adjustment; AUTO intensity
7 Automatic recirculated-air control AUC/Recirculated-air mode

Comfortable interior climate

AUTO program 5 offers the ideal air distribution and air volume for almost all conditions, refer to AUTO program below. All you need to do is select an interior temperature which is comfortable for you.

The following sections inform you in detail about how to adjust the settings.

Most settings are stored for the remote control currently in use, refer also to Personal Profile settings on page 18.

Adjusting air distribution manually

The air distribution can be switched on and off manually. The air is directed to the windshield, to the upper body area and to the

footwell.

The automatic air distribution can be switched back on by pressing the AUTO button. The cooling function is switched on automatically and the manual air distribution setting is cleared.

8 ALL program
9 Temperature, right side
10 Defrosting windows and removing condensation
11 Switching cooling function on/off manually
12 Rear window defroster
13 Seat heating *, right side 40
14 Interior temperature sensor, please keep clear

Temperature

Turn to set the desired temperature.

The automatic climate control achieves this temperature as

quickly as possible regardless of the season, using maximum cooling or heating power if necessary, and then maintains it.

Avoid rapid switching between different temperature settings. The automatic climate control will not have sufficient time to adjust the set temperature.

Maximum heating power can be obtained with the highest setting, regardless of the outside temperature.

The system cools steadily in the lowest setting, regardless of the outside temperature.

Maximum cooling

Press the button.

The system is set to the lowest temperature, maximum air volume and recirculated-air mode.

Air flows out of the vent outlets for the upper body region. Open them for this purpose.

Air is cooled as quickly as possible

▶ Above an outside temperature of approx. 32^ F/0 °C
When the engine is running

AUTO program

Press the button.

Air volume, air distribution and temperature are controlled auto-

matically.

Depending on the selected temperature, AUTO intensity and outside influences, the air is directed toward the windshield, the side windows, the upper body, and the footwell.

Pressing the AUTO button automatically switches on the cooling function.

At the same time, a condensation sensor controls the program so as to prevent window condensation as much as possible.

The program is switched off when the air distribution is set manually or the button is pressed again.

Intensity of the AUTO program

With the AUTO program switched on, automatic control of the air volume and air distribution can be adjusted:

Press the left side of the button to reduce the intensity. Press the right side of the button to increase

it.

The selected intensity is shown on the display of the automatic climate control.

Convertible program

The Convertible program is active when the convertible top is open.

Adjusting air volume manually

To be able to manually adjust the air volume, switch off the AUTO program first.

Press the left side of the button to reduce air volume. Press the right side of the button to increase it.

The air volume may be reduced or the blower may be switched off entirely to save on battery power. The display remains the same.

Automatic recirculated-air control AUC/Recirculated-air mode

You can respond to unpleasant odors or pollutants in the immediate environment by temporarily suspending the supply of outside air. The system then recirculates the air currently within the vehicle.

Press the button repeatedly to select an operating mode:

▶ LED off: outside air flows in continuously.
Left-hand LED on, AUC mode: a sensor detects pollutants in the outside air and controls the shut-off automatically.
Right-hand LED on, recirculated-air mode: the supply of outside air is permanently shut off. If the windows fog over, switch off recirculated-air mode and increase the air volume, if necessary. Make sure that air can flow onto the windshield.

The recirculated-air mode should not be used continuously for lengthy periods; otherwise, the quality of the air inside the car will gradually deteriorate.

Via the button on the steering wheel

You can switch quickly between the recirculated-air mode and the previous mode using a button on the steering wheel, refer to page 11.

ALL program

Press the button.

The current temperature setting on the driver's side is transferred to the front passenger side.

If the temperature setting on the driver's side is changed, the temperature on the front passenger side is changed as well.

The program is switched off when the setting is adjusted on the front passenger side or the button is pressed again.

Defrosting windows and removing condensation

Press the button.

Quickly removes ice and condensation from the windshield and

front side windows.

For this purpose, also switch on the cooling function.

Switching cooling function on/off

The passenger compartment can only be cooled while the engine is running.

Press the button.

The air is cooled and dehumidified and – depending on the tempera-

ture setting – warmed again.

Depending on the weather, the windshield may fog up briefly when the engine is started.

Pressing the AUTO button automatically switches on the cooling function.

Rear window defroster

Press the button.

The defroster is switched off automatically after a certain time.

Depending on your vehicle's equipment, the upper wires serve as an antenna and are not part of the rear window defroster.

Switching the system on/off

Switching off

With the blower at its lowest setting, press the left side of the button to switch off the automatic cli-

mate control.

All displays are cleared except for the rear window defroster if it is switched on.

The outside air supply is blocked when the automatic climate control is switched

off. If the air quality deteriorates or the window

fogs over, switch the system back on and increase the air volume.

Switching on

Press any button except the ALL or the rear window defroster button to reactivate the automatic climate control.

Ventilation

1 2 2 1

1 Use the thumbwheels to smoothly open and close the air vents

2 Use the lever to change the direction of the airflow

Ventilation for cooling

Adjust the vent outlets to direct the flow of cool air in your direction, for instance if it has become too hot in the car.

Draft-free ventilation

Set the vent outlets so that the air flows past you and not straight at you.

Microfilter/activated-charcoal filter

The microfilter traps dust and pollen in the incoming air. The activated-charcoal filter provides additional protection by filtering gaseous pollutants from the outside air. Your BMW center replaces this combined filter during routine maintenance.

Practical interior accessories

Integrated universal remote control\*

The concept

The integrated universal remote control can replace as many as three hand-held transmitters for various remote-controlled devices, such as garage doors and gates or lighting systems. The integrated universal remote control registers and stores signals from the original hand-held transmitters.

The signal of an original hand-held transmitter can be programmed on one of the three memory buttons 1. After this, the programmed memory button 1 will operate the system in question. The LED 2 flashes to confirm transmission of the signal.

Should you sell your vehicle one day, be sure to delete the stored programs beforehand for your safety, refer to page 93.

To prevent possible damage or injury, before programming or using the integrated universal remote control, always inspect the immediate area to make certain that no people, animals or objects are within the pivoting or travel range of the device being operated. Comply also with the safety instructions supplied with the original hand-held transmitter.

Checking compatibility

If this symbol appears on the package or in the instructions supplied with the original hand-held transmitter, you can assume that the radio remote control device will be compatible with the integrated universal remote control.

For additional information, please contact your BMW center or call: 1-800-355-3515.

You can also obtain information on the Internet at:

www.bmwusa.com or

www.homelink.com.

HomeLink is a registered trademark of Johnson Controls, Inc.

Programming

2 1

网址咨询

1 Memory buttons

2 LED

Fixed-code hand-held transmitters

1. Switch on the ignition, refer to page 48.
2. When starting operation for the first time: press the left and right memory buttons 1 for approx. 20 seconds until the LED 2 flashes rapidly. The three memory buttons are cleared.
3. Hold the original hand-held transmitter at a distance of approx. 4 to 12 in/10 to 30 cm from the memory buttons 1.

The required distance between the hand-held transmitter and the mem-uttons 1 depends on the system of the active original hand-held transmitter

1. Simultaneously press the transmit key on the original hand-held transmitter and the desired memory button 1 on the integrated universal remote control. The LED 2 flashes slowly at first. As soon as the LED 2 flashes rapidly, release both buttons. If the LED 2 does not flash rapidly after approx. 15 seconds, alter the distance and repeat this step.

2. To program other original hand-held transmitters, repeat steps 3 and 4.

The corresponding memory button 1 is now programmed with the signal of the original hand-held transmitter.

You can operate the device while the ignition is switched on.

If the device fails to function even after repeated programming, check whether the original hand-held transmitter uses an alternating-code system. To do so, either read the instructions for the original hand-held transmitter or hold down the programmed memory button 1 of the integrated universal remote control. If the LED 2 on the integrated universal remote control flashes rapidly and then remains lit for about two seconds, the original hand-held transmitter uses an alternating-code system. If it uses an alternating-code system, program the memory buttons 1 as described under Alternating-code hand-held transmitters.

Alternating-code hand-held transmitters

To program the integrated universal remote control, consult the operating instructions for the device to be set. You will find information there on the possibilities for synchronization. When programming hand-held transmitters that employ an alternating code, please observe the following supplementary instructions:

Programming will be easier with the aid of a second person.

1. Park your vehicle within the range of the remote-controlled device.
2. Program the integrated universal remote control as described above in the section Fixed-code hand-held transmitters.
3. Locate the button on the receiver of the device to be set, e.g. on the drive unit.
4. Press the button on the receiver of the device to be set. After step 4, you have approx. 30 seconds for step 5.
5. Press the programmed memory button 1 of the integrated universal remote control three times.

The corresponding memory button 1 is now programmed with the signal of the original hand-held transmitter.

If you have any questions, please contact your BMW center.

Deleting all stored programs

Press the left and right memory buttons 1 for approx. 20 seconds until the LED 2 flashes rapidly: all stored programs are deleted.

Reassigning individual programs

1. Hold the original hand-held transmitter at a distance of approx. 4 to 12 in/10 to 30 cm from the memory buttons 1.

The required distance between the hand-held transmitter and the mem- buttons 1 depends on the system of the effective original hand-held transmitter

1. Press the desired memory button 1 of the integrated universal remote control.
2. If the LED 2 flashes slowly after approx. 20 seconds, press the transmit key of the original hand-held transmitter. Release both buttons as soon as the LED 2 flashes rapidly. If the LED 2 does not flash rapidly after approx. 15 seconds, alter the distance and repeat this step.

Digital compass\*

2—SW 1

1 Adjustment button

2 Display

The display shows you the main or secondary compass direction in which you are driving.

Operating principle

You can call up various functions by pressing the adjustment button with a pointed object such as a pen or similar item. The following adjustment options are displayed one after the other, depending on how long you keep the adjustment button pressed:

▶ Press briefly: switch display on/off
3 to 6 seconds: set compass zone
6 to 9 seconds: calibrate compass
9 to 12 seconds: set left-hand/right-hand steering
12 to 15 seconds: set the language

Setting compass zones

Set the compass zone corresponding to your vehicle's geographic location so that the compass can function correctly; refer to the world map with compass zones.

To set the compass zone, press the adjustment button for approx. 3-4 seconds. The number of the compass zone set is shown in the display.

To change the zone setting, briefly press the adjustment button repeatedly until the display shows the number of the compass zone corresponding to your current location.

The compass is operational again after approx. 10 seconds.

Calibrating the digital compass

The digital compass must be calibrated in the following situations:

An incorrect compass direction is shown.
The compass direction shown does not change although the direction of travel does.
Not all compass directions are shown.

Procedure

1. Make sure that no large metal objects or overhead power lines are in the vicinity of your vehicle and that you have enough space to drive in a circle.
2. Set the currently valid compass zone.
3. Convertible: ensure that the convertible top is fully closed.
4. Press the adjustment button for approx. 6-7 seconds to call up C. Then drive in at least one full circle at a speed of no more than 4 mph/7 km/h. If calibration is successful, the display changes from C to a compass direction.
5. Convertible: open the convertible top fully and repeat step 4.

Setting right-hand/left-hand steering

Your digital compass is factory-set to right-hand or left-hand steering, in accordance with your vehicle.

Set the language

You can set the language of the display:

Press the adjustment button for approx.

12-13 seconds. Briefly press the adjustment button again to switch between English, "E", and German, "O".

The setting is automatically saved after approx. 10 seconds.

Glove compartment

Opening

Close-up of a car's front panel with a white arrow pointing to a small object, no visible text or symbols

VPCBA, LLC

Pull the handle.

The light in the glove compartment comes on.

To prevent injury in the event of an accident while the vehicle is being driven, close the glove compartment immediately after use.

Closing

Fold the cover up.

Locking

To lock the glove compartment, use the integrated key of the remote control, refer to page 18.

Center armrest\*

Storage compartment

The center armrest between the front seats contains a credit card holder and, depending on the equipment version, a compartment or a snap-in adapter*.

Close-up of a computer mouse with an arrow pointing to the mouse on a keyboard (no text or symbols visible)

Opening

Press the button, see arrow.

Connection for external audio device

You can connect an external audio device such as a CD or MP3 player and play audio tracks over the car's loudspeaker system. You can set the volume and tone by means of the car radio, refer to the separate Owner's Manual for Radio.

Connecting

Lift up the center armrest.

Interior view of a medical or clinical setting with a surgical instrument inserted into a patient's seat (no visible text or symbols)

AUX-IN port for audio playback:

TRS connector 1/8 in/3.5 mm.

To play audio tracks over the car's loudspeaker system, connect the headset or line-out port of the external device to the connector.

Storage compartments inside the vehicle

Compartments are located next to the steering column*, on the doors and in the center console.

There are nets* on the front-seat backrests.

Compartment on the instrument panel*

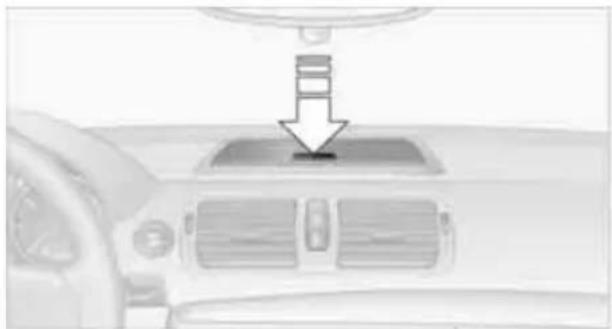

Interior view of a car showing the dashboard and steering wheel (no visible text or symbols)

To open: press the button.

Coupe: clothes hooks

There are clothes hooks in the rear.

Items of clothing hung from the hooks must not obstruct the driver's view. Do not hang heavy objects from the hooks; otherwise, they could endanger the car's occupants, e.g. in case of heavy braking or sudden swerving.

Cupholders

Use lightweight and shatterproof containers and do not transport hot beverages; otherwise, there is an increased risk of injury in the event of the accident. Do not force containers that are too large into the cupholders; otherwise, damage could result.

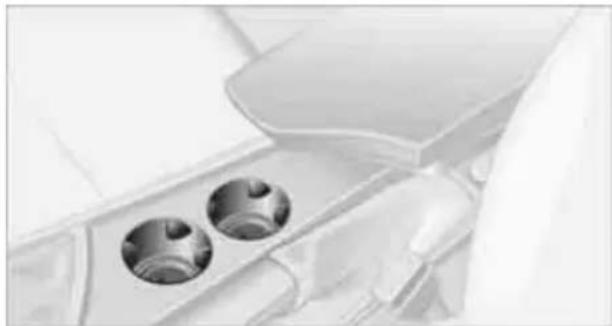

Interior view of a vehicle showing two circular components on a road (no visible text or symbols)

There are two cupholders in the center console.

Interior view of a car showing the steering wheel and dashboard (no text or symbols visible)

You can mount an attachable cupholder* on the side of the center console.

Ashtray\*

Opening

Close-up of a mechanical component with a downward arrow indicator (no text or symbols visible)

Push the ridge on the cover.

Emptying

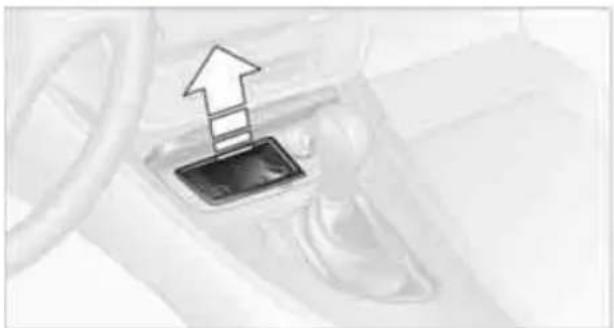

Close-up of a car interior showing a black rectangular button with an upward arrow, no visible text or symbols

Lift out the insert.

Lighter

Close-up of a car interior showing a blue plastic component and a white arrow pointing to a small black object (no text or symbols visible)

With the engine running or the ignition switched on, press in the cigarette lighter.

The lighter can be pulled out as soon as it pops back out.

Hold or touch the hot cigarette lighter by the knob only. Holding or touching it in other areas could result in burns.

When leaving the car, always remove the remote control so that children cannot operate the cigarette lighter and burn themselves.

Connecting electrical appliances

In your BMW, when the engine is running or the ignition is switched on, you can use electrical devices such as a hand lamp, car vacuum cleaner, etc., up to approx. 200 watts at 12 volts, as long as one of the following sockets is available. Avoid damaging the socket by attempting to insert plugs of unsuitable shape or size.

Cigarette lighter socket\*

To access the socket:

Open the ashtray at the front and pull out the lighter to use the socket.

In the cargo area\*

To access the socket:

Fold open the cover.

In the center console

To access the socket, refer to Connection for external audio device on page 96.

Coupe: through-loading system

Opening

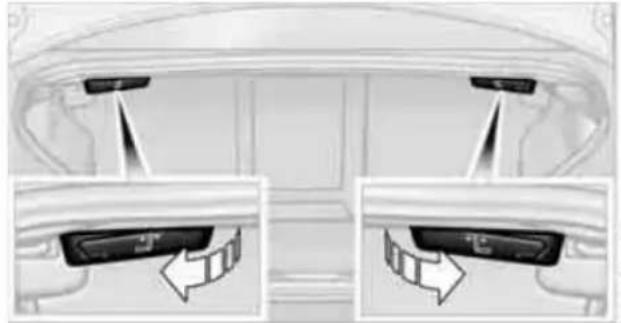

Interior view of a car showing rearview and side-mounted airbags with directional arrows indicating airflow or movement (no text or symbols)

1. To release the rear seat backrest, pull the corresponding lever in the cargo area.
2. The unlocked rear seat backrest moves forward slightly. Fold the backrest forward by the head restraint.

Interior view of a car showing the backrest seat with a white arrow pointing to a specific component (no text or symbols visible)

Closing

Return the rear seat backrest to the upright seating position and engage it.

When returning the backrest into the seating position, make sure that the seat's locking mechanism is properly engaged. Otherwise, cargo could be thrown around and endanger the occupants in the event of sharp braking or swerving.

The lashing eyes in the cargo area provide you with a way to attach cargo area nets* or draw straps for securing suitcases and luggage, refer to page 106.

Convertible: cargo loading

Enlarging the cargo area

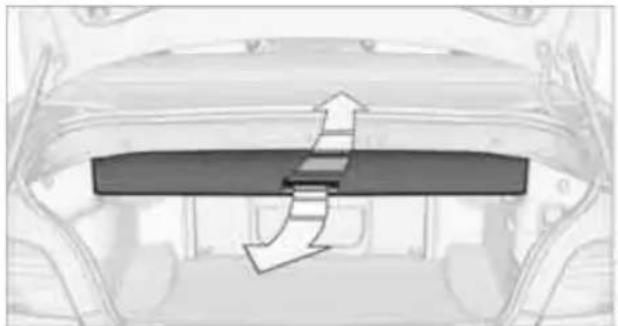

Top-down view of a car's rearview showing airflow direction and structural components (no text or symbols)

When the convertible top is closed you can enlarge the cargo area:

To do so, fold the cargo area partition upward.

Before opening the convertible top, pull the cargo area partition down until it engages.

Ensure that pointed objects do not press against the cargo area partition from below.

The convertible top can only be opened when the cargo area partition is folded

down.

Storage compartments inside the cargo area

Depending on your vehicle's equipment, the following storage spaces can be found in the cargo area:

Rubber strap* on the left trim panel for securing small objects such as a folding umbrella
Net* for small objects on the right trim panel of the cargo area
Retaining straps* on cargo area floor: for securing smaller objects or as an anti-slip surface when you place objects on the straps

The lashing eyes in the cargo area provide you with a way to attach cargo area nets* or draw straps* for securing suitcases and luggage, refer to page 108.

Coupe: ski bag\*

The ski bag is designed for safe, clean transport of up to 4 pairs of standard skis or up to 2 snow boards.

With the ski bag you can stow skis with a length of up to 6.6ft/2.0m. When skis of 6. length are loaded, the overall capacity of the ski bag is reduced due to its tapered design.

Loading

Ensure that the skis are clean when they are loaded into the ski bag. Wrap sharp edges to prevent damage.

1. Fold down the center panel in the rear seat backrest.
2. Press the button, reach into the recess and fold down the cover. To stabilize the cover in the folded-down position, place the center panel underneath it.

Simple diagram of a directional arrow pointing right, no text or symbols present

1. Open the Velcro fastener, spread the ski bag between the front seats and insert the skis or snowboards.
   The zip fastener makes objects in the ski bag easier to reach.

2. Attach the hook of the ski bag retaining strap to the eyelet on the side of the ski bag opening.

Interior view of a vehicle showing a seatbelt buckle and interior compartments (no visible text or symbols)

Securing cargo

After loading, secure the ski bag and its contents. Tighten the retaining strap on the tensioning buckle for this purpose.

Secure the ski bag in the manner described; otherwise, it could endanger the car's occupants, e.g. in case of heavy braking or sudden swerving.

To store the ski bag, perform the steps described for loading in reverse order.

Removing the ski bag

The ski bag can be completely removed, e.g. for faster drying or to allow you to use other inserts.

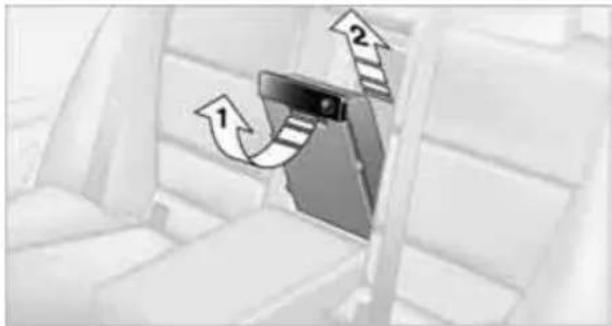

Interior view of a car seatbelt with a device mounted on the side, showing two directional arrows (no text or symbols)

1. Fold down the center panel in the rear seat backrest.
2. Pull the handle, arrow 1.
3. Pull out the insert, arrow 2.

For more information on the various inserts available, contact your BMW center.

Convertible: through-loading opening with integrated transport bag\*

The transport bag is designed for safe, clean transport of up to 4 pairs of standard skis or up to 2 snowboards.

With the transport bag you can stow skis up to a length of 6.6 ft/2.0 m. When skis of 6.6 ft/2.0 m length are loaded, the overall capacity of the ski bag is reduced due to its tapered design.

When using the transport bag, it is not permissible to transport passengers in rear seats.

Loading

1. Pull the grip in the filler piece of the rear backrest up and take out the filler piece.

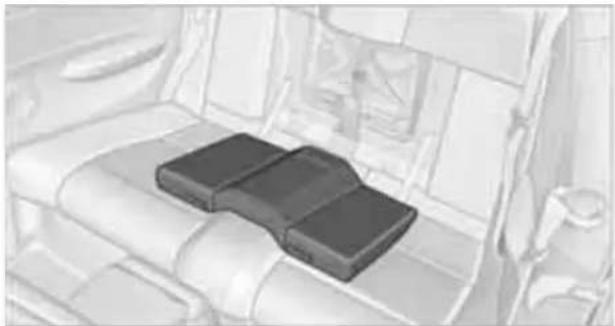

2. Place the filler piece onto the seat cushion with the backrest side facing up.

Interior view of a vehicle showing two black seat compartments mounted on a white leather seat (no text or symbols visible)

1. In the cargo area: press the two recesses together and fold down the cover.

Top-down view of a car trunk with a central connector and directional arrows indicating flow or movement (no text or symbols)

1. Release the strap, lay out the transport bag between the front seats and load it. The zip fastener makes objects in the ski bag easier to reach.

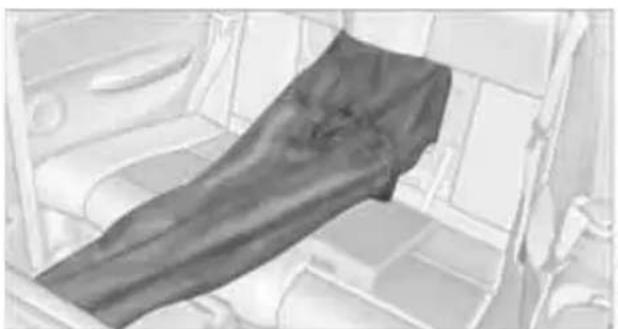

Interior view of a vehicle showing a dark fabric or mesh cover placed inside a vehicle (no visible text or symbols)

Ensure that the skis are clean when you load them into the transport bag. Wrap sharp edges to prevent damage.

Securing cargo

Interior view of a vehicle cabin with a mounted device (no visible text or symbols)

After loading, secure the transport bag and its contents. Tighten the retaining strap on the tensioning buckle for this purpose.

Secure the transport bag in the manner described; otherwise, it could endanger war's occupants, e.g. in case of heavy brak- or sudden swerving.

To store the transport bag, perform the steps described for loading in reverse order.

Online Edition for Part no. 01 41 2 604 079 - © 02/10 BMW AG

Driving tips

This section provides you with information useful in dealing with specific driving and operating conditions.

Things to remember when driving

Break-in period

Moving parts need breaking-in time to adjust to each other. Please follow the instructions below in order to achieve the optimal service life and economy of operation for your vehicle.

Engine and differential

Always obey all official speed limits.

Up to 1,200 miles/2,000 km

Drive at varying engine and road speeds, but do not exceed an engine speed of 4,500 rpm or a road speed of 100 mph/160 km/h.

Avoid full-throttle operation and use of the transmission's kickdown mode.

After driving 1,200 miles/2,000 km

Engine and vehicle speeds can be gradually increased.

Tires

Due to technical factors associated with their manufacture, tires do not achieve their full traction potential until after an initial break-in period. Therefore, drive cautiously during the first 200 miles/300 km.

Brake system

Brakes require an initial break-in period of approx. 300 miles/500 km to achieve optimized contact and wear patterns between brake pads and rotors. Drive cautiously during this break-in period.

Clutch

The function of the clutch reaches its optimal level only after a distance driven of approx. 300 miles/500 km. During this break-in period, engage the clutch gently.

Following part replacement

The same break-in procedures should be observed if any of the components mentioned above have to be renewed in the course of the vehicle's operating life.

Saving fuel

The fuel consumption of your vehicle depends on several factors. You can lower fuel consumption and the environmental impact by taking certain measures, adjusting your driving style and having the vehicle serviced regularly.

Remove any unneeded cargo

Additional weight increases fuel consumption.

Remove any mounted parts after you have finished using them

Remove unneeded additional mirrors, the roof rack and the rear luggage rack after use. Mounted parts affect the vehicle's aerodynamics and increase fuel consumption.

Close the windows and glass roof

An open glass roof or window causes higher air resistance and thus increases fuel consumption.

Check tire inflation pressure regularly

Check the tire inflation pressure at least twice a month and before embarking on a long journey, and correct it if necessary.

Low tire inflation pressure causes higher rolling resistance and thus increases fuel consumption and tire wear.

Set off immediately

Do not let the engine warm up while the car is still standing, but set off immediately at moderate engine speed. This is the fastest way for the cold engine to reach its operating temperature.

Drive defensively

Avoid unnecessary acceleration and braking maneuvers. To do so, keep an adequate distance between you and the vehicle in front of you. A defensive and smooth driving style keeps fuel consumption down.

Avoid high engine speeds

Only use first gear when setting off. In second and higher gears, accelerate without hesitation or pauses. When accelerating, shift up before reaching high engine speeds.

When you reach the desired speed, shift into the highest applicable gear and drive with the engine speed as low as possible and at a constant speed.

As a rule: driving at low engine speeds lowers fuel consumption and reduces wear.

Coasting

When approaching a red light, take your foot off the accelerator and coast to a stop in the highest applicable gear.

On a downhill slope, take your foot off the accelerator and coast in a suitable gear.

The fuel supply is interrupted when coasting.

Switch off the engine during lengthy stops

Switch off the engine when stopping for lengthy periods, e.g. at traffic lights, railroad crossings or in traffic congestions. You achieve fuel savings even if standing time is as short as approx. 4 seconds.

Switch off functions you do not need at the moment

Functions such as the air conditioner, seat heating or rear window defroster draw large amounts of power and consume additional fuel. Especially in city traffic and in stop-and-go driving they have a considerable impact. Therefore, switch these functions off when they are not really needed.

Have the vehicle serviced

Have the vehicle serviced regularly to achieve good economy and a long vehicle life. BMW recommends having the vehicle serviced at a BMW center. Also note the BMW service system, refer to page 126.

General driving notes

Close the trunk lid

Operate the vehicle only when the trunk lid is closed. Otherwise, exhaust fumes enter the interior of the vehicle.

If the vehicle must be driven with the trunk lid open:

1. Close all windows and the glass roof.
2. Greatly increase the air volume of the heating or automatic climate control system, refer to page 87 or 90.

Hot exhaust system

In all vehicles, extremely high temperatures are generated in the exhaust systems. Do not remove the heat shields installed in vicinity, and never apply undercoating to . When driving, standing at idle and while, take care to avoid possible contact between the hot exhaust system and any highly amable materials such as hay, leaves, grass, such contact could lead to a fire, with the lack of serious personal injuries and property damage. Do not touch hot exhaust tail pipes. Otherwise, there is a risk of burns.

Hydroplaning

When driving on wet or slushy roads, reduce road speed. If you do not, a wedge of water can form between tires and road surface. This situation, known as hydroplaning, means that the tire can completely lose contact with the road surface, so that neither the car can be steered nor the brake be properly applied. The risk of hydroplaning increases with declining tread depth on the tires, refer also to Minimum tread depth on page 119.

Driving through water

Drive through water on the road only if it is not deeper than 1 ft/30 cm, and then only at walking speed at the most. Otherwise, the vehicle's engine, the electrical systems and the transmission may be damaged.

Use the parking brake on inclines

On inclines, do not hold the vehicle for a lengthy period using the clutch; use the parking brake instead. Otherwise, greater clutch wear will result.

For more information about the drive-off assistant, refer to page 72.

Braking safely

Your BMW is equipped with ABS as a standard feature. Applying the brakes fully is the most effective way of braking in situations in which this is necessary. Since the vehicle maintains steering responsiveness, you can still avoid possible obstacles with a minimum of steering effort.

Pulsation of the brake pedal, combined with sounds from the hydraulic circuits, indicate that ABS is in its active mode.

Driving in wet conditions

When roads are wet or there is heavy rain, briefly exert gentle pressure on the brake pedal every few miles. Monitor traffic conditions to ensure that this maneuver does not endanger other road users. The heat generated in this process helps dry the pads and rotors to ensure that full braking efficiency will then be available when you need it.

Hills

To prevent overheating and the resulting reduced efficiency of the brake system, drive long or steep downhill gradients in the gear in which the least braking is required. Even light but consistent brake pressure can lead to high temperatures, brake wear and possibly even brake failure.

You can increase the engine's braking effect by shifting down, all the way to first gear if necessary. This strategy helps you avoid placing excessive loads on the brake system. Downshifting in manual mode of the automatic transmission, refer to page 52.

Sports automatic transmission with double clutch Never drive with the transmission in neutral or the engine switched off; otherwise, there is no engine braking action or power assist to the brakes and steering.

Manual transmission: never drive with the clutch depressed, the transmission in neutral, or the engine switched off; otherwise, there is no engine braking action or power assist to the brakes and steering.

Never allow floor mats, carpets or any other objects to protrude into the area around the pedals, otherwise, pedal function could be impaired.

Corrosion on brake rotors

When the vehicle is driven only occasionally, during extended periods when the vehicle is not used at all, and in operating conditions where brake applications are less frequent, there is an increased tendency for corrosion to form on rotors, while contaminants accumulate on the brake pads. This occurs because the minimum pressure which must be exerted by the pads during brake applications to clean the rotors is not reached.

Should corrosion form on the brake rotors, the brakes will tend to respond with a pulsating effect that even extended application will fail to cure.

When the vehicle is parked

Condensation forms while the automatic climate control is in operation, and then exits under the vehicle. Traces of condensed water under the vehicle are therefore normal.

Cargo loading

To avoid loading the tires beyond their approved carrying capacity, never overload the vehicle. Overloading can lead to overheating and increases the rate at which damage

develops inside the tires. In some cases, this can result in sudden tire pressure loss.

Make sure that no liquids are spilled or leak from their containers in the cargo area, as this could result in damage to the vehicle.

Determining loading limit

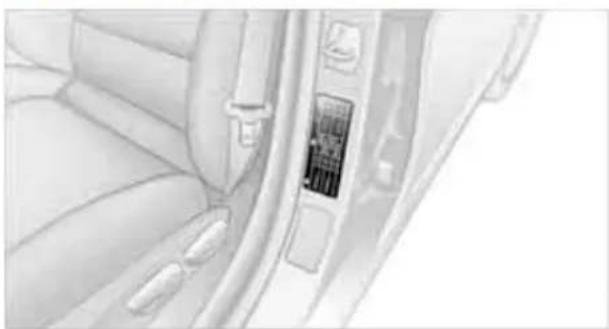

Interior view of a car showing the door, seatbelt, and dashboard panel (no text or symbols visible)

1. Locate the following statement on your vehicle's placard*:

The combined weight of occupants and cargo should never exceed XXX kg or YYY lbs. Otherwise, damage to the vehicle and unstable driving conditions may result.

1. Determine the combined weight of the driver and passengers that will be riding in your vehicle.

2. Subtract the combined weight of the driver and passengers from XXX kilograms or YYY pounds.

3. The resulting figure equals the available amount of cargo and luggage load capacity. For example, if the YYY amount equals 1,400 lbs. and there will be five 150-lb. passengers in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs: 1,400 lbs. minus 750 lbs. = 650 lbs.

4. Determine the combined weight of luggage and cargo being loaded on the vehicle. That weight may not safely exceed the available cargo and luggage load capacity calculated in step 4.

5. If your vehicle will be towing a trailer, part of the load from your trailer will be transferred to your vehicle. Consult the manual for

transporting a trailer to determine how this may reduce the available cargo and luggage load capacity of your vehicle.

Load

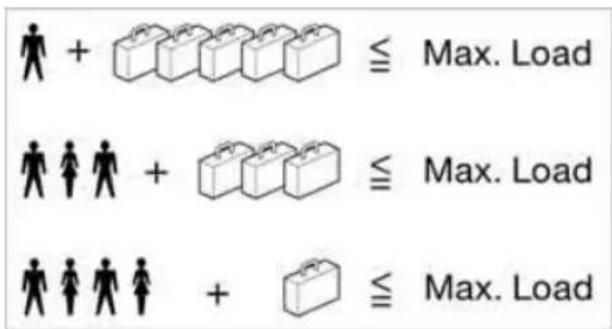

+ ≦ Max. Load + ≦ Max. Load + ≦ Max. Load

The permissible load is the total of the weight of occupants and cargo/luggage. The greater the weight of the occupants, the less cargo/luggage can be transported.

Stowing cargo

Coupe

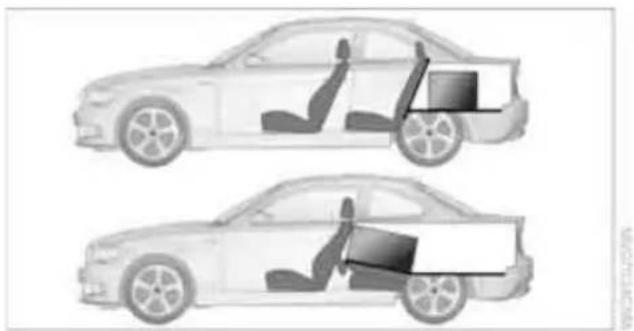

Two grayscale illustrations of a sedan showing front and side views of the seat, including seatbelt insertion (no text or symbols)

Convertible

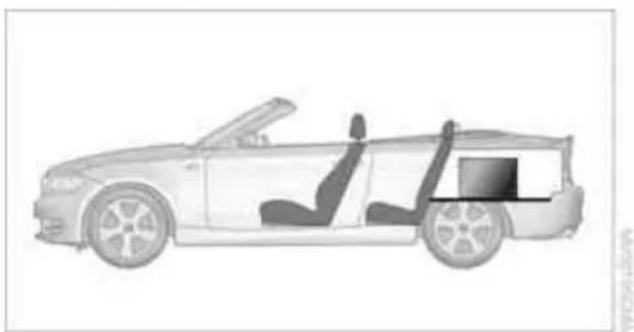

Side-view cutaway illustration of a car showing open lid, seat compartments, and battery compartment (no text or symbols)

Position heavy objects as low and as far forward as possible, ideally directly behind the respective seat backrests.

▶ Cover sharp edges and corners.

For very heavy cargo when the rear seat is not occupied, secure each safety belt in the opposite buckle.

Securing cargo

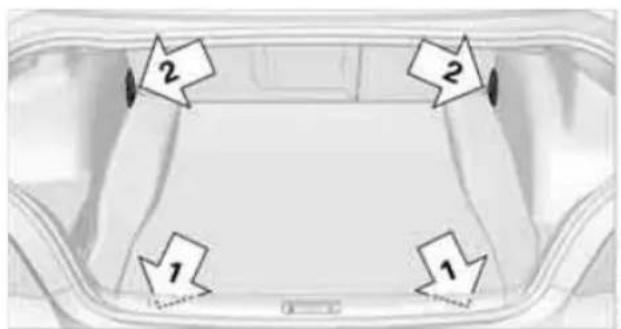

2 2 1 1

Secure smaller and lighter items using retaining straps*, a cargo area net* or draw straps*.
Heavy-duty cargo straps* for securing larger and heavier objects are available at your BMW center. To attach the cargo straps, there are two lashing eyes, arrows 1, on the inside wall of the cargo area. Depending on your vehicle's equipment, there may be two additional lashing eyes, arrows 2, on the cargo area sidewalls. Follow the information included with the cargo straps.

Always position and secure the cargo as described above, so that it cannot endanger the car's occupants, for example if sudden braking or swerving is necessary.

Never exceed either the approved gross vehicle weight or either of the approved axle loads, refer to page 159, as excessive loads can pose a safety hazard, and may also place you in violation of traffic safety laws.

Heavy or hard objects should not be carried loose inside the car, since they could be thrown around, for example as a result of heavy braking, sudden swerves, etc., and endanger the occupants.

Only attach the cargo straps using the lashing eyes shown in the illustration. Do not secure cargo with the anchors for tether straps, refer to page 46, otherwise, these could be damaged.

Coupe: roof-mounted luggage rack\*

A special rack system is available as an option for your BMW. Comply with the directions given in the installation instructions.

Mounting points

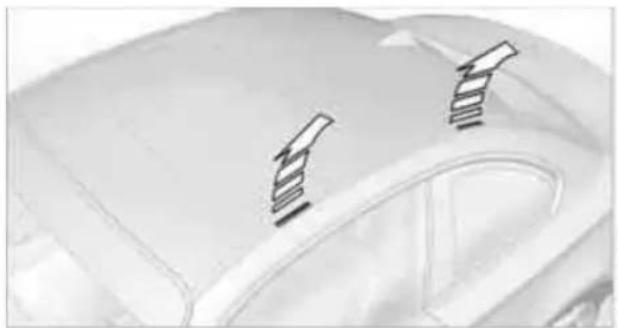

Close-up of a car's roof with two mounted rectangular objects on the side (no visible text or symbols)

Fold open the cover.

Loading roof-mounted luggage rack

Because roof racks raise the vehicle's center of gravity when loaded, they have a major effect on vehicle handling and steering response.

You should therefore always remember not to exceed the approved roof load capacity, the approved gross vehicle weight or the axle loads when loading the rack.

You can find the applicable data under Weights on page 159.

The roof load must be distributed uniformly and should not be too large in area. Heavy items should always be placed at the bottom. Be sure that adequate clearance is maintained for raising the glass roof, and that objects do not project into the opening path of the trunk lid.

Fasten roof-mounted cargo correctly and securely to prevent it from shifting or falling off during the trip.

Drive smoothly. Avoid sudden acceleration and braking maneuvers. Take corners gently.

Close-up of a glass pipette dispensing liquid into a circular container (no visible text or symbols)

Mobility

This section helps you maintain your car's mobility by supplying important information on vital topics including fuels and lubricants, wheels and tires, service, maintenance and roadside assistance.

Refueling

Always switch off the engine before refueling; otherwise, fuel cannot be added to ink and a message will be displayed.

Take all precautionary measures and observe all applicable regulations when ing fuel. Do not carry any spare fuel con- s in your vehicle. They can develop a leak cause an explosion or cause a fire in the of an accident.

Fuel filler flap

Opening

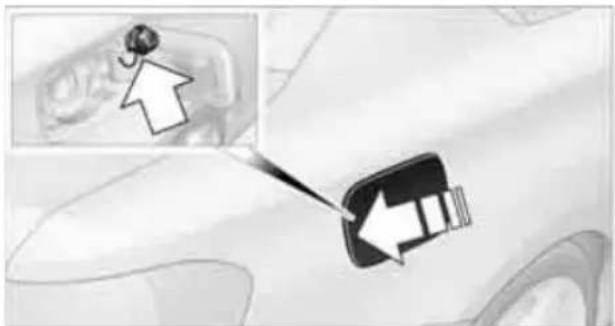

Diagram showing a car's seatbelt with an inset view of the wheel (no text or symbols)

1. Open the fuel filler flap. To do so, lightly press the rear edge.
2. Turn the gas cap counterclockwise.
3. Place the gas cap in the bracket attached to the fuel filler flap.

Closing

Fit the cap and turn it clockwise until you clearly hear a click.

Do not pinch the band attached to the cap; otherwise, the cap cannot be closed by and fuel vapors can escape.

The warning lamp lights up briefly if the gas cap is loose or missing. If this occurs, close the cap correctly.

Manually releasing the fuel filler flap

In the event of a malfunction, you can release the fuel filler flap manually:

1. Remove the cover from the right-hand sidewall of the cargo area.

Diagram showing a car interior with labeled parts and directional arrows indicating movement or flow

1. Pull the button with the fuel pump symbol down.

The fuel filler flap is released.

Observe the following when refueling

When handling fuels, follow the safety instructions provided at filling stations; wise, there is a risk of personal injury orerty damage.

When refueling, insert the filler nozzle completely into the filler pipe. Avoid lifting the filler nozzle while filling the tank, as that would lead to

premature pump shutoff
reduced efficiency of the fuel-vapor recovery system.

The fuel tank is full when the filler nozzle clicks off the first time.

Fuel tank capacity

Approx. 14 US gallons/53 liters, including the reserve capacity of 2.1 US gallons/8 liters.

Refuel as soon as possible once your cruising range falls below 30 miles/

50 km; otherwise, engine functions are not ensured and damage can occur.

Fuel specifications

Do not fill the tank with leaded fuel, as this would cause permanent damage to theitic converter.

Do not fill the tank with E85, i.e. fuel containing 85% ethanol, nor with FlexFuel. Otherwise, the engine and fuel supply system will be damaged.

Required fuel

Super Premium Gasoline/AKI 91

This gasoline is highly recommended.

However, you may also use gasoline with less AKI. The minimum AKI Rating is:

128i: 87

135i:89

If you use gasoline with this minimum AKI Rating, the engine may produce knocking sounds when starting at high outside temperatures. This has no effect on the engine life.

Do not use any gasoline below the specified minimum fuel grade. Otherwise, the e could be damaged.

Use high-quality brands

Field experience has indicated significant differences in fuel quality: volatility, composition, additives, etc., among gasolines offered for sale in the United States and Canada. Fuels containing up to and including 10% ethanol or other oxygenates with up to 2.8% oxygen by weight, that is, 15% MTBE or 3% methanol plus an equivalent amount of cosolvent, will not void the applicable warranties with respect to defects in materials or workmanship.

The use of poor-quality fuels may result in drivability, starting and stalling problems

especially under certain environmental conditions such as high ambient temperature and high altitude.

Should you encounter drivability problems which you suspect could be related to the fuel you are using, we recommend that you respond by switching to a recognized high-quality brand

such as gasoline that is advertised as Top Tier Detergent Gasoline.

Failure to comply with these recommendations may also result in unscheduled maintenance.

BMW recommends BP fuels

Wheels and tires

Tire inflation pressures

Information for your safety

It is not merely the tires' service life, but also driving comfort and, to a great extent, driving safety that depend on the condition of the tires and the maintenance of the specified tire pressure.

Check the tire inflation pressure regularly and correct it, if necessary: at least twice a month and before starting long trips. If you fail to observe this precaution you may be driving on tires with incorrect tire pressures, a condition that can not only compromise your vehicle's driving stability, but also lead to tire damage and the risk of an accident. Do not drive with deflated, i.e. flat tires, except when using run-flat tires. A flat tire will seriously impair your vehicle's handling and braking response.

Attempts to drive on a flat tire can lead to loss of control over the vehicle.

Checking pressure

Only check tire inflation pressure when the tires are cold. This means after a maximum of 1.25 miles/2 km driving or when the vehicle has been parked for at least 2 hours. When tires are warm, the tire inflation pressure is higher.

After correcting the tire inflation pressure, reset the Tire Pressure Monitor, refer to page 74, or reinitialize the Flat Tire Monitor, refer to page 72.

Inflation pressure specifications

The tables below provide all the correct inflation pressures for the specified tire sizes at ambient temperature.

The inflation pressures apply to the tire sizes approved and tire brands recommended by BMW; a list of these is available from your BMW center.

For correct identification of the right tire inflation pressures, observe the following:

▶ Tire sizes for your vehicle
Load conditions
▶ Maximum allowable driving speed

Tire inflation pressures for driving up to 100 mph or 160 km/h

For normal driving up to 100 mph or 160 km/h and to achieve optimum driving comfort, adjust pressures to the respective tire inflation pressures listed on the following pages in the columns for traveling speeds up to a maximum of 100 mph or 160 km/h.

These tire inflation pressures can also be found on the driver's side door post when the driver's door is open.

Interior view of a car showing the door, seatbelt, and dashboard (no text or symbols visible)

The maximum permissible speed for these tire pressures is 100 mph or

160 km/h. Do not exceed this speed; otherwise, tire damage and accidents could occur.

Tire inflation pressures for driving above 100 mph or 160 km/h

In order to drive at maximum speeds in excess of 100 mph or 160 km/h, adjust pressures to the respective tire inflation pressures listed on the following pages in the columns for traveling speeds including those exceeding 100 mph or 160 km/h. Otherwise, tire damage and accidents could occur.

Observe all national and local maximum speed limits; otherwise, violations of the laws could occur.

Coupe: tire inflation pressures for the 128i

Tire size Pressure specifications in psi/kPa

	Traveling speeds up to a max. of 100 mph/160 km/h	Traveling speeds including those exceeding 100 mph/160 km/h
All pressure specifications in the table are indicated in psi/kilopascal with cold tires.
Cold = ambient temperature
195/55 R 16 87 H M+S 32/220 38/260 35/240 42/290
205/55 R 16 91 H M+S205/50 R 17 89 H M+S	32/220 35/240 35/240 42/290
Front: 205/50 R 17 89 V 32/220 - 36/250 -
Rear: 225/45 R 17 91 V	- 35/240	- 44/300
Front: 215/40 R 18 85 Y	32/220	- 35/240
Rear: 245/35 R 18 88 Y	- 39/270	- 42/290
More details on the permissible load and weights can be found on page 159.

Coupe: tire inflation pressures for the 135i

Tire size Pressure specifications in psi/kPa

	Traveling speeds up to a max. of 100 mph/160 km/h		Traveling speeds including those exceeding 100 mph/160 km/h
All pressure specifications in the table are indicated in psi/kilopascal with cold tires.
Cold = ambient temperature
205/50 R 17 89 H M+S 33/230 36/250 38/260 42/290
Front: 215/40 R 18 85 Y	36/250	-	38/260	-
Rear: 245/35 R 18 88 Y	-	39/270	-	42/290
More details on the permissible load and weights can be found on page 159.

Convertible: tire inflation pressures for the 128i

Tire size Pressure specifications in psi/kPa

	Traveling speeds up to a max. of 100 mph/160 km/h		Traveling speeds including those exceeding 100 mph/160 km/h
All pressure specifications in the table are indicated in psi/kilopascal with cold tires. Cold = ambient temperature
without Sport Package
205/55 R 16 91 H M+S	32/220	35/240	32/220	39/270
205/50 R 17 89 H M+S	32/220	38/260	35/240	42/290
Front: 205/50 R 17 89 V 32/220 - 35/240 - Rear: 225/45 R 17 91 V	-	36/250	-	41/280
Front: 215/40 R 18 85 Y 35/240 - 35/240 - Rear: 245/35 R 18 88 Y	-	41/280	-	41/280
with Sport Package
205/55 R 16 91 H M+S	32/220	35/240	32/220	39/270
205/50 R 17 89 H M+S	32/220	38/260	35/240	42/29O
Front: 205/50 R 17 89 V 32/220 - 39/270 - Rear: 225/45 R 17 91 V	-	36/250	-	46/320
Front: 215/40 R 18 85 Y 35/240 - 38/260 - Rear: 245/35 R 18 88 Y	-	41/280	-	45/310
More details on the permissible load and weights can be found on page 159.

Convertible: tire inflation pressures for the 135i

Tire size Pressure specifications in psi/kPa

	Traveling speeds up to a max. of 100 mph/160 km/h	Traveling speeds including those exceeding 100 mph/160 km/h
All pressure specifications in the table are indicated in psi/kilopascal with cold tires. Cold = ambient temperature
without Sport Package
205/50 R 17 89 H M+S 32/220 38/260 36/250 42/290
Front: 215/40 R 18 85 Y 39/270 - 39/270 -
Rear: 245/35 R 18 88 Y	- 41/280	- 41/280
with Sport Package
205/50 R 17 89 H M+S 32/220 38/260 36/250 42/290
Front: 215/40 R 18 85 Y 39/270 - 39/270 -
Rear: 215/40 R 18 85 Y 39/270 - 39/270 -
Rear: 245/35 R 18 88 Y	- 41/280	- 45/310
More details on the permissible load and weights can be found on page 159.

Tire identification marks

Knowledge of the labeling on the side of the tire makes it easier to identify and choose the right tires.

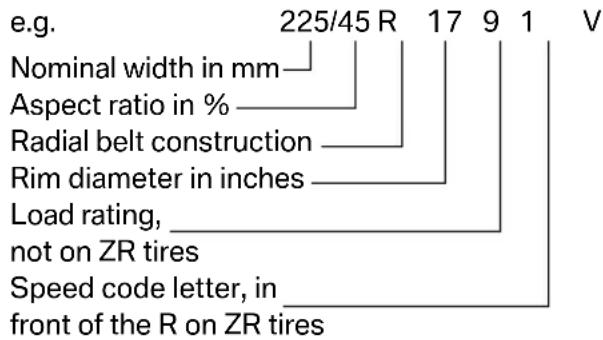

Tire size

e.g. 225/45 R 17 9 1 V Nominal width in mm Aspect ratio in % Radial belt construction Rim diameter in inches Load rating, not on ZR tires Speed code letter, in front of the R on ZR tires

Speed code letter

Q = up to 100 mph or 160 km/h T = up to 118 mph or 190 km/h H = up to 131 mph or 210 km/h V = up to 150 mph or 240 km/h W = up to 167 mph or 270 km/h Y = up to 186 mph or 300 km/h

Tire Identification Number

Tires with DOT codes meet the guidelines of the US Department of Transportation.

DOT code:

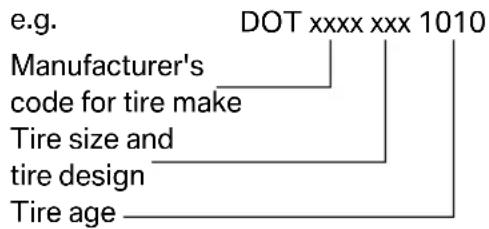

e.g. DOT xxxx xxx 1010 Manufacturer's code for tire make Tire size and tire design Tire age

Tire age

The manufacturing date of tires is contained in the tire coding: DOT ... 1010 means that the tire was manufactured in week 10 of 2010.

BMW recommends that you replace all tires after 6 years at most, even if some tires may last for 10 years.

Uniform Tire Quality Grading

Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example:

Tread wear 200 Traction AA

Temperature A

DOT Quality Grades

Tread wear

Traction AA A B C

Temperature A B C

All passenger car tires must conform to Federal Safety Requirements in addition

to these grades.

Tread wear

The tread wear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and one-half (1½) times as well on the government course as a tire graded 100. The relative performance of tires depends upon the actual conditions of their use, however, and may depart significantly from the norm due to variations in driving habits, service practices and differences in road characteristics and climate.

Traction

The traction grades, from highest to lowest, are AA, A, B, and C.

These grades represent the tire's ability to stop on wet pavement, as measured under controlled conditions on specified government test surfaces of asphalt and concrete. A tire marked C may have poor traction performance.

The traction grade assigned to this tire is based on straight-ahead braking traction

tests, and does not include acceleration, cornering, hydroplaning, or peak traction characteristics.

Temperature

The temperature grades are A, the highest, B, and C, representing the tire's resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure. The grade C corresponds to a level of performance which all passenger car tires must meet under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent higher levels of performance on the laboratory test wheel than the minimum required by law.

The temperature grade for this tire is established for a tire that is properly

inflated and not overloaded. Excessive speed, underinflation, or excessive loading, either separately or in combination, can cause heat buildup and possible tire failure.

RSC - run-flat tires

You will recognize run-flat tires by a circular symbol containing the letters RSC on the side of the tire, refer to page 120.

M+S

Winter and all-season tires.

These have better winter properties than summer tires.

XL

Designation for specially reinforced tires.

Tire condition

Inspect your tires frequently for tread wear, signs of damage and for foreign objects lodged in the tread. Check the tread depth.

Minimum tread depth

The tread depth should not drop below 1/8 in/3 mm, although, for example, European legislation only specifies a minimum tread depth of

1/16 in/1.6 mm. At tread depths below 1/8 in/3 mm there is an increased risk of high-speed hydroplaning, even when only small amounts of water are present on the road surface. When winter tires wear down past a tread depth of 1/6 in/4 mm, they become perceptibly less suitable for winter conditions. In the interest of safety, new tires should be installed.

Close-up of a car tire with visible tread pattern and side profile inset (no text or symbols)

Wear indicators in the base of the tread groove are distributed around the tire's circumference; the letters TWI, for Tread Wear Indicator, on the tire's sidewalls identify tires that incorporate these wear indicators. Once the tire tread has worn down to the wear indicators, the tire has worn to a depth of 1/16 in/1.6 mm.

Wheel/tire damage

Please note that low-profile tires cause wheels, tires and suspension parts to be more susceptible to road hazard and consequential damages.

Unusual vibrations encountered during normal vehicle operation can indicate tire failure or some other vehicle defect. This can, for example, be caused by driving over curbs. The same applies to any other abnormal road behavior, such as pulling severely to the right or left.

In these cases, reduce speed immediately and have wheels and tires thor-

oughly checked. To do so, drive carefully to the nearest BMW center or tire shop that works according to BMW repair procedures with correspondingly trained personnel. If necessary, have the vehicle towed there.

Otherwise, tire damage can pose a lethal hazard to vehicle occupants and other road users.

Run-flat tires

Close-up of a tire with visible tread pattern and a circular logo labeled 'RSC' (no text or symbols on the tire itself)

The symbol identifying run-flat tires is a circle with the letters RSC on the sidewall.

Run-flat tires comprise a conditionally self-supporting tire and a special rim. The reinforcement in the sidewalls ensures that the tire can continue to be used subject to certain restrictions, even if depressurized.

For information on continuing to drive with a flat tire, refer to Indication of a flat tire on page 73.

New wheels and tires

Have new wheels and tires installed only by your BMW center or tire shop that works according to BMW repair procedures with correspondingly trained personnel. If this work is not carried out properly, there is a danger of subsequent damage and related safety hazards. Make sure that the new wheels are balanced.

Retreaded tires

BMW recommends that you do not use retreaded tires, since driving safety may be impaired. The causes for this include potentially different tire casing structures and often wide variations in tire age, which can result in a limited service life.

Correct wheels and tires

When mounting new tires or changing over from summer to winter tires and vice versa, mount run-flat tires for your own safety. In the event of a flat, no spare wheel is available. Your BMW center will be glad to advise you.

BMW recommends that you use only wheel and tire combinations that BMW has tested and approved for your particular vehicle. Variations in factors such as manufacturing tolerances mean that even wheels and tires with identical official size ratings could actually have different dimensions, which could lead to body contact and thus to severe accidents. If non-approved wheels and tires are used, BMW cannot evaluate their suitability, and therefore cannot guarantee their driving safety.

You can inquire about the right wheel/tire combination at your BMW center.

The correct combination of wheels and tires is also necessary to ensure reliable operation of various vehicle systems such as ABS, DSC or FTM.

To maintain good handling and vehicle response, use only tires of a single brand and tread configuration. After a tire has been damaged, mount the previous wheel and tire combination again as soon as possible.

Wheels with Tire Pressure Monitor TPM electronics

When mounting new tires or changing over from summer to winter tires, or vice versa, only use wheels with TPM electronics; otherwise, the Tire Pressure Monitor may not be able to detect a puncture, refer to page 75. Your BMW center will be glad to advise you.

Recommended tire brands

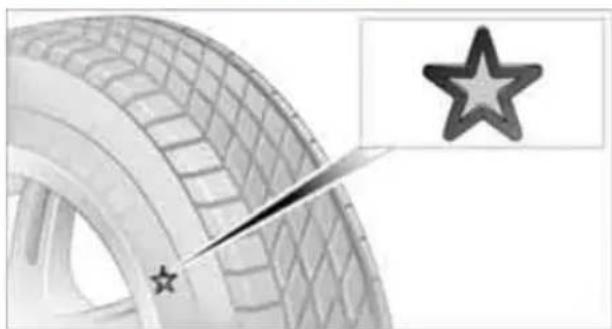

Close-up of a tire with a star and arrow pointing to it, alongside a star symbol (no text or labels)

Certain makes of tire are recommended by BMW for each tire size. They are marked with a clearly visible BMW designation on the sidewall of the tire.

When properly used, these tires meet the highest standards in terms of safety and handling characteristics.

Special characteristics of winter tires

BMW recommends winter tires for winter roads or at temperatures below +45°F/+7°C.

Although all-season M+S tires provide better winter traction than summer tires, they generally fail to provide the same levels of cold-weather performance as winter tires.

Pay attention to speed

Always comply with the speed limit for the winter tires mounted on your car; failure to do so could result in tire damage and accidents.

If the car is capable of speeds higher than that permitted for the winter tires, a label stating the maximum permitted speed for the mounted tires must be displayed in your field of view. Specialist tire dealers and your BMW center can supply these labels.

Storage

Store wheels and tires in a cool, dry place with as little exposure to light as possible. Always protect tires against all contact with oil, grease and fuels.

Do not exceed the maximum tire inflation pressure indicated on the sidewall of the tire.

Swapping wheels between axles

BMW advises against swapping wheels between the front and rear axles, even if all tires have the same size, as this could impair driving characteristics. If the tires are of mixed sizes, swapping wheels between the axles is not permissible.

Snow chains\*

Only certain fine-link snow chains have been tested by BMW, classified as safe for use and recommended. Consult your BMW center for more information. Snow chains must be mounted in pairs and on the rear wheels only. Observe the manufacturer's instructions when mounting snow chains. Do not exceed a speed of 30 mph/50 km/h with chains.

Do not initialize the Flat Tire Monitor if snow chains are mounted; otherwise, the ument might issue an incorrect reading. When driving with snow chains, you may find it helpful to activate DTC temporarily, refer to page 71.

Under the hood

Do not work on the car unless you possess the necessary technical knowledge. If you are unfamiliar with the statutory guidelines, have any work on the vehicle performed only by a BMW center or by a workshop that work according to BMW repair procedures with correspondingly trained personnel. If this work is not carried out properly, there is a danger of subsequent damage and related safety hazards.

Hood

Releasing

Abstract grayscale image with blurred background and a small arrow icon in the bottom-left corner (no text or symbols)

Pull the lever.

Opening

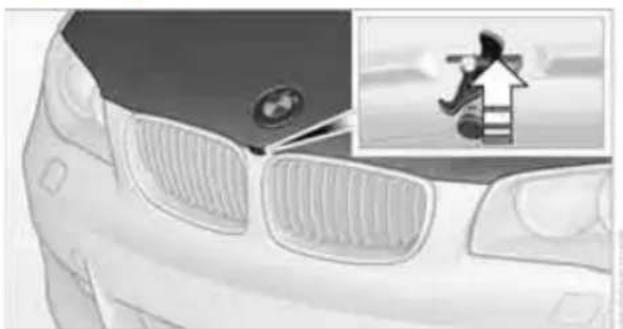

Front view of a car with grille grilles and a logo, alongside an inset showing a person climbing stairs (no text or symbols)

To avoid damage, make sure that the wiper arms are against the windshield before you open the engine compartment. Do not open the engine hood before the engine has cooled down; otherwise, injuries may result. Press the release handle and open the hood.

Closing

Front view of a car with a hood and arrow indicators (no text or symbols)

Close the hood from a height of approx. 16 in/40 cm with momentum. It must be clearly heard to engage.

Make sure that the closing path of the hood is clear; otherwise, injuries may result.

If you see any signs while driving your vehicle that the hood is not completely closed, stop at once and close it securely.

Important parts of the engine compartment

Diagram of a car interior with numbered parts labeled 1 to 4, showing mechanical components and dashboard.

1 Expansion tank for coolant, refer to page 125
2 Washer fluid filler neck for headlamp cleaning system and window washer system, refer to page 59

Engine oil

The engine oil consumption is dependent on driving style and driving conditions.

Checking oil level

Your car is equipped with an electronic oil-level monitor.

For precise measurement and display of the oil level, the engine must be at operating temperature, i.e. following at least 6.2 miles/10 km of uninterrupted driving. You can have the oil level displayed while you are driving, or while the vehicle is at a standstill on a level surface and the engine is running.

You can have the oil level reading displayed in the instrument cluster.

3 Jump-starting connection, refer to page 139
4 Fluid filler neck for engine oil, refer to Adding engine oil, page 124

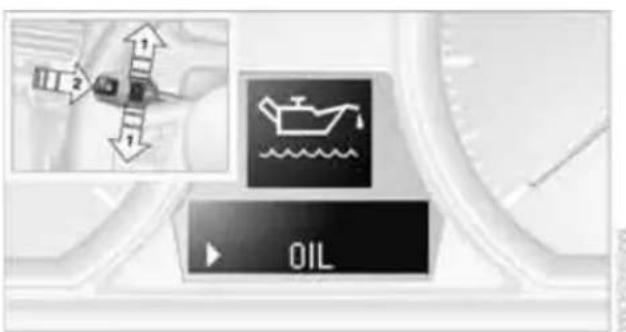

1 2 1 1 OIL

1. Push button 1 in the turn indicator lever up or down repeatedly until the appropriate symbol is shown in the display, accompanied by the word "OIL".
2. Press button 2. The oil level is checked and the reading displayed.

Possible displays

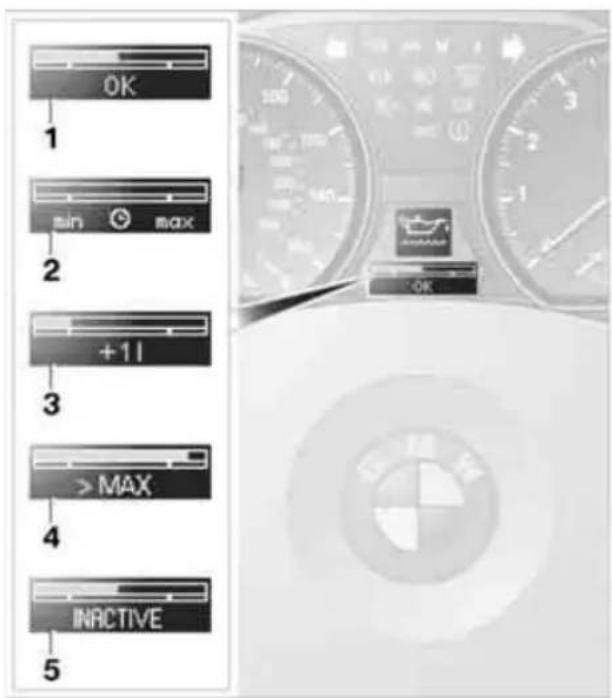

OK 1 sin max 2 +11 3 > MAX 4 INACTIVE 5

1 Oil level OK
2 Oil level is being checked.

This can take about 3 minutes if the car is at a standstill on a level surface, or about 5 minutes while the car is on the move.

3 Oil level down to minimum:

Add engine oil as soon as possible, but no more than 1 US quart/1 liter, refer also to Adding engine oil on page 124.

4 Oil level is too high.

Too much oil will harm the engine.

Have the vehicle checked without

delay.

5 The oil level sensor is defective.

Do not add engine oil. You can continue your journey. Note the newly calculated distance remaining to the next oil service, refer to page 126. Have the system checked as soon as possible.

Adding engine oil

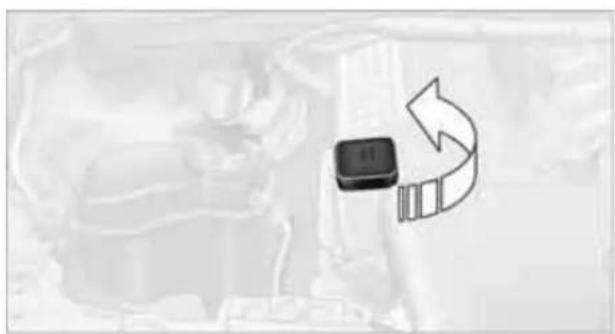

Diagram showing a car interior with a sensor device and directional arrow symbol (no text or labels)

Add a maximum of 1 US quart/1 liter of engine oil only after until the following warning lamp lights up in the instrument cluster or the oil level display reads "+1I".

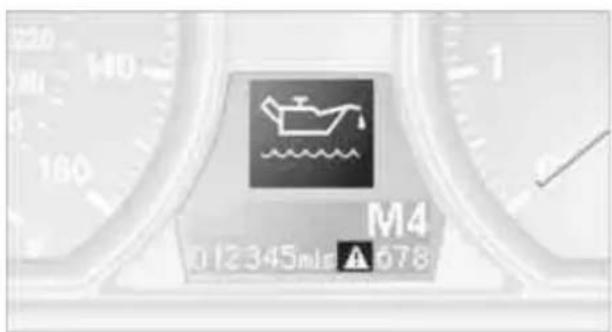

M4 12345m/s 678

Add oil within the next 125 miles/200 km; otherwise, the engine could be dam-

aged.

Keep oils, greases, etc. out of the reach of children and comply with the relevant

warnings on the containers. Otherwise, health hazards may result.

Oil change

Have oil changed only at your BMW center or at a workshop that works according to BMW repair procedures with correspondingly trained personnel.

Oil grades

Do not use any oil additives; otherwise, you may cause engine damage.

Approved engine oils

You BMW center will be happy to advise you about the engine oils approved by the manufacturer of your vehicle.

The engine oil grade is a decisive factor for the service life of the engine.

Approved engine oils can be found in the following specification:

Gasoline engine

Preferred: BMW Longlife-01

BMW Longlife-01 FE

Alternative: BMW Longlife-98

Approved engine oils belong to the viscosity classes SAE 0W-40, SAE 0W-30, SAE 5W-40, and SAE 5W-30.

Alternative oil grades

If approved oils are not available, you can use quantities of up to 1 US quart/1 liter of another oil with the following specifications:

API SM or higher

BMW recommends

Castrol

Coolant

Do not add coolant to the cooling system when the engine is hot. Escaping coolant cause burns.

Coolant consists of half water and half additive. Not all commercially available additives are suitable for your BMW. Ask your BMW center for suitable additives.

Only use suitable additives; otherwise, engine damage may result. Because ves are harmful to your health, it is impor- to follow the instructions on the contain-

Comply with the appropriate environmental protection regulations when dis-g of coolant additives.

Checking coolant level

1. Do not open the engine hood before the engine has cooled down.
2. Turn the cap of the expansion tank a little counterclockwise to allow any accumulated

pressure to escape, then continue turning to open.

1. The coolant level is correct if it is between the maximum and minimum marks in the filler neck, refer also to the diagram next to the filler neck.

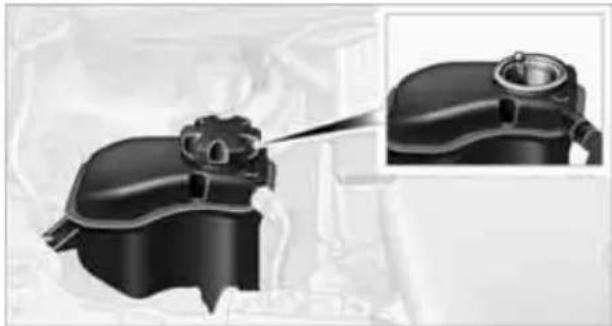

Close-up of a mechanical component with a close-up inset showing a cylindrical feature (no text or symbols visible)

1. If the coolant is low, slowly add coolant up to the specified level; do not overfill.
2. Turn the cap until there is an audible click.
3. Have the reason for the coolant loss eliminated as soon as possible.

Maintenance

BMW Maintenance System

mls 10000 12/2006

The BMW Maintenance System supports the preservation of the traffic and operating safety of your BMW. The objective is to optimize efforts with respect to minimal vehicle maintenance costs.

If and when you come to sell your BMW, a comprehensive record of servicing will prove a significant benefit.

Condition Based Service CBS

Sensors and special algorithms take the different driving conditions of your BMW into account. Condition Based Service uses this to determine the current and future service requirements. By letting you define a service and maintenance regimen that reflects your own individual requirements, the system builds the basis for trouble-free driving.

In the instrument cluster, you can have the remaining times or distances for selected maintenance tasks and any legally prescribed dates displayed, refer to page 66:

Engine oil
▶ Brake pads: separately for front and rear
Brake fluid
▶ Vehicle check
Legally mandated inspections depending on local regulations

Service data in the remote control

Your vehicle continuously stores service-requirement information in the remote control while you are driving. Your BMW Service Advisor can read out this data from the remote control unit, and propose an optimized maintenance approach. Whenever you take your car in for servicing you should therefore hand your BMW Service Advisor the remote control unit that you last used.

Make sure that the date in the instrument cluster is always set correctly, refer to page 68; otherwise, the effectiveness of Condition Based Service CBS is not assured.

Service and Warranty Information Booklet for US models and Warranty and Service Guide Booklet for Canadian models

Please consult your Service and Warranty Information Booklet for US models and Warranty and Service Guide Booklet for Canadian models for additional information on service requirements.

BMW recommends that you have service and repair operations performed at your BMW center.

Take the time to ensure that these service procedures are confirmed by entries in your vehicle's Service and Warranty Information Booklet for US models and Warranty and Service Guide Booklet for Canadian models. These entries verify that your vehicle has received the specified regular maintenance.

Socket for Onboard Diagnosis OBD

Abstract grayscale image with blurred background and a small arrow pointing left (no text or symbols)

On the driver's side is an OBD socket for checking components relevant to the composition of the vehicle's emissions.

Emissions

SERVICE ENGINE SOON

The warning lamp lights up:

The vehicle is producing higher emissions. The trip can be continued. Have

the car checked as soon as possible.

Canadian models display this warning lamp.

The lamp flashes under certain conditions. This indicates excessive misfiring in the engine. If this happens, you should reduce your speed and visit your nearest BMW center as soon as possible. Severe engine misfiring can quickly lead to serious damage of emissions-related components, especially the catalytic converter.

The warning lamp comes on if the gas cap is not properly tightened and the OBD system assumes that fuel vapor

is escaping. Make sure that the gas cap is correctly positioned and close it until it audibly clicks.

Data memory

Your vehicle records data about the operation, faults, and user settings. These data are stored in the vehicle and in extract form, in the remote control, and can be read out using suitable devices at your BMW center. The data that are read out are used to support service proce-

dures and repairs or to optimize and expand vehicle functions. If you have a BMW Assist contract, certain vehicle data can also be transmitted directly from the vehicle in order to enable the desired services.

Care

Care products

Regular cleaning and care contributes significantly to the value retention of your BMW.

BMW recommends cleaning and caring for your vehicle with products that are approved by BMW for this purpose.

Your BMW center will be happy to advise you on the products and services available for cleaning and caring for your BMW.

Original BMW CareProducts have been material tested, laboratory checked and in the field, and offer optimal care and action for your vehicle.

Do not use cleaners that contain alcohol or solvents as these may result in dam-

Cleaning agents can contain substances that are dangerous or hazardous to your own. Therefore, follow the warning and safety actions on the packaging. When cleaning is the vehicle, always open the doors or rows of the vehicle. In enclosed areas, proper sufficient ventilation. Only use products designed for cleaning vehicles.

Exterior care

Washing the vehicle

Especially during the winter months, ensure that the vehicle is washed moreently. Heavy soiling and road salt can lead vehicle damage.

After washing the vehicle, apply the brakes briefly to dry them; otherwise,

water can reduce braking efficiency over the short term and brake discs can corrode.

Automatic car washes

Preference should be given to cloth car washes.

Do not use high-pressure car washes; otherwise, water may drip into the vehicle and the windows.

Before driving into a car wash, ensure that it is suitable for your BMW. Check the following:

Dimensions of your vehicle, refer to page 157.
If necessary, fold in the outside rearview mirrors, refer to page 42.
▶ Maximum permissible tire width.

Avoid car washes with guide rail heights over 4 in/10 cm; otherwise, there is the er of damaging chassis parts.

In Convertibles, do not treat the convertible top with wax. Ensure that a program is available that does not apply wax or is designed specifically for convertibles.

Preparations before driving into an automatic car wash:

▷ Unscrew the rod antenna*.
Deactivate the rain sensor* to prevent unintentional wiping.
Remove additional attachments, e.g. spoilers or telephone antennas, if there is a possibility that they could be damaged.

Automatic transmission

Before driving into an automatic car wash, perform the following steps to ensure that the vehicle can roll:

1. Insert the remote control into the ignition lock, even with Comfort Access.
2. Move the selector lever to position N.
3. Release the parking brake.
4. Switch off the engine.
5. Leave the remote control in the ignition lock so that the vehicle can roll.

Sports automatic transmission with double clutch

Before driving into an automatic car wash, perform the following steps to ensure that the vehicle can roll:

1. Insert the remote control into the ignition lock, even with Comfort Access.
2. Engage transmission position N.
3. Release the parking brake.
4. Switch off the engine.
5. Leave the remote control in the ignition lock so that the vehicle can roll.

The transmission is switched into position P:

▶ automatically after approx. 30 minutes
▶ if you remove the infrared remote control from the ignition lock

Steam jets/high-pressure washers

When using steam jets or high-pressure washers, make sure to maintain sufficient distance from the vehicle and do not exceed a temperature of 140^ F/ 60^ C.

Insufficient clearance or excessive pressure or temperature can lead to component damage or water penetration. Follow the operating instructions for the steam jet or high-pressure washer.

When using high-pressure washers, do not spray against the sensors and cameras, e.g. of the Park Distance Control or Rear View Camera, for an extended period and maintain a distance of at least 1 ft/30 cm.

Manual car wash

When washing the vehicle by hand, use large quantities of water and car shampoo if necessary. Clean the vehicle with a sponge or washing brush, applying light pressure only.

Before cleaning the windshield, deactivate the rain sensor or switch off the ignition to prevent unintentional activation of the wipers.

Observe local regulations pertaining to washing vehicles by hand.

Headlamps

Do not rub them dry and do not use abrasive or corrosive cleaning agents.

Loosen dirt, e.g. insects, with shampoo or insect remover and wash away with copious quantities of water.

Thaw ice with a windshield deicer and do not use an ice scraper.

Windows

Clean the inside and outside surfaces of the windows and the mirrors with window cleaner.

Do not clean the mirrors with cleaners containing quartz.

Convertible top care

The appearance and life of the convertible top depend on proper care and operation.

Follow these instructions:

Do not fold the convertible top into the convertible top box when the top is wet or frozen, as this may cause water spots, mold stains or chafed areas.
If water spots occur on the inside headliner despite precautions, remove them using a microfiber cloth and interior cleaner.
If the vehicle is parked in enclosed areas for extended periods, ensure that there is sufficient ventilation.
Remove bird droppings immediately, as their corrosive ingredients attack the convertible top and damage the rubber seals.

To remove stains from the convertible top, do not use stain removers, paint thinners, solvents, benzine or similar substances. These substances may damage the rubber parts. Improper care and cleaning may cause the convertible top and convertible top seams to become leaky.

To remove heavy soiling, use a special convertible top cleaner.

Follow the manufacturer's instructions for use.

After washing the convertible top three to five times, treat it with an impregnating agent.

Paintwork care

Regular care contributes to value retention and protects the paintwork against the long-term effects of damaging substances.

Region-specific environmental influences can damage the vehicle paintwork. Therefore, it is important to adapt the frequency and scope of car care accordingly.

Immediately remove aggressive materials such as spilled fuel, oil, grease, brake fluid, tree sap or bird droppings to prevent damage to the paint-work.

Repairing paintwork damage

Immediately repair scratches or similar damage, such as that caused by stones hitting the vehicle, where necessary to prevent rusting.

BMW recommends having paintwork damage repaired by a professional paint repair workshop according to BMW specifications using original BMW paint materials.

Preservation

A preservation treatment is necessary when water no longer beads off the clean paintwork surface. Only use products for paintwork preservation that contain carnauba or synthetic waxes.

Rubber seals

Treat only with water or rubber care products.

Do not use silicon-containing care products on rubber seals; otherwise, noise and damage could occur.

Chrome parts

Carefully clean vehicle parts such as the radiator grill, door handles or window frames with copious quantities of water and a shampoo additive, especially when roads are treated with de-icing salt. For additional treatment, use a chrome polish.

Light-alloy wheels

For technical reasons, dust is generated during braking that is deposited on the light-alloy wheels. Remove the dust regularly using acid-free rim cleaner.

Do not use aggressive, acidic, strongly alkaline and abrasive cleaning agents or steam jets over 1407/606; otherwise, damage may occur.

Outside sensors/cameras

Keep the sensors and cameras on the outside of the vehicle, e.g. those for Park Distance Control, clean and free of ice to ensure that they remain fully functional.

Interior care

Upholstery fabrics/cloth trims/Alcantara fabrics

Vacuum regularly with a vacuum cleaner to remove superficial dirt.

To remove severe spots such as stains from beverages, use a soft sponge or lint-free microfiber cloth and suitable interior cleaners. Follow the instructions on the packaging.

Clean the upholstery down to the seams using a sweeping motion. Avoid strong rubbing.

Opened Velcro fasteners on pants or other articles of clothing can damage the seat covers. Ensure that Velcro fasteners are closed.

Leather/leather trim

The leather used by BMW is a high quality natural product. Slight irregularities in the leather are a typical characteristic of natural leather.

Dust and road grit in the pores and folds of the leather have an abrasive effect, leading to increased wear and causing the leather surface to become brittle prematurely. Therefore, frequently clean the leather of dust using a cloth or vacuum cleaner.

Clean light-colored leather more frequently as dust and dirt are more noticeable.

Treat the leather at least once every two months using a leather lotion as dirt and grease will gradually attack the leather's protective layer.

Carpet/floor mats\*

The floor mats can be removed for cleaning. When heavily soiled, clean carpets with a microfiber cloth and water or textile cleaner. Rub back and forth in the direction of travel; otherwise, the carpet may become matted.

Interior plastic parts

▶ Imitation leather surfaces
Lamp glasses
▶ Display pane of instrument cluster
Matte parts

Clean with water and solvent-free plastic cleaner if necessary.

Fine wood parts

Clean fine wood trim and fine wood parts with a damp cloth. Wipe dry with a soft cloth.

Safety belts

Dirty belt straps impede the reeling action and thus have a negative impact on safety.

Do not clean chemically, as this may destroy the webbing.

Interior sensors/cameras

To clean interior sensors and cameras, e.g. of the high-beam assistant, use a lint-free cloth moistened with glass cleaner.

Displays

To clean displays, e.g. of the radio or instrument cluster, use a cleaning cloth for displays or a soft, non-abrasive, lint-free cloth.

Avoid applying excessive pressure when cleaning the displays; otherwise, damage

may occur.

Do not use chemical or abrasive household cleaning agents. Keep all types of fluid away from the device. Otherwise, surfaces or electrical components may be corroded or damaged.

CD/DVD drives

Do not use a cleaning CD, as it may damage parts of the drive.

Vehicle storage

If your vehicle is to be decommissioned for longer than three months, your BMW center or a workshop that operates according to BMW specifications will be glad to advise you.

Replacing components

Onboard vehicle tool kit

The onboard vehicle tool kit is stored below the floor mat in the cargo area.

Wiper blades

Diagram showing a mechanical component with directional arrows and an inset view of a pin (no text or symbols)

1. Fold out the wiper arm and hold it.
2. Press together the locking spring, arrows 1, and fold out the wiper blade, arrow 2.
3. Take the wiper blade out of the catch mechanism, pulling the blade toward the front.

To avoid damage, make sure that the wiper arms are against the windshield

before you open the engine compartment.

Lamps and bulbs

Lamps and bulbs make an essential contribution to vehicle safety. They should, therefore, be handled carefully. BMW recommends having your BMW center perform any work that you do not feel competent to perform yourself or that is not described here.

Never touch the glass of new bulbs with your bare fingers, as even minute

amounts of contamination will burn into the bulb's surface and reduce its service life. Use a clean tissue, cloth or something similar, or hold the bulb by its base.

You can obtain a selection of replacement bulbs at your BMW center.

Only change bulbs when cool; otherwise, you may burn yourself.

When working on electrical systems, always begin by switching off the con-er in question; otherwise, short-circuits and result. To avoid possible injury or equip-damage when replacing bulbs, observe instructions provided by the bulb manufac-

If the routine for changing a particular bulb is not described here, please contact

your BMW center or a workshop that works according to BMW repair procedures with correspondingly trained personnel.

Light-emitting diodes LED

Light-emitting diodes installed behind translucent lenses serve as the light source for many of the controls and displays in your vehicle. These light-emitting diodes, which operate using a concept similar to that applied in conventional lasers, are officially designated as Class 1 light-emitting diodes.

Do not remove the covers or expose the eyes directly to the unfiltered light source

for several hours; otherwise, this could cause irritation of the retina.

Headlight lenses

In cool or humid weather, condensation may form on the interior of outside lamps. When the light is switched on, the condensation will disappear after a short time. The headlight lenses do not need to be replaced.

At high humidities, e.g. water droplets may form in the lights; have these checked by your BMW center.

Xenon lamps\*

These bulbs have a very long service life and are highly unlikely to fail. If a xenon lamp fails nevertheless, switch on the fog lamps and continue the journey with great care, provided that local legislation does not prohibit this.

Have any work on the xenon lamp system, including bulb replacements, performed only by a BMW center or a workshop that works according to BMW repair procedures with correspondingly trained personnel. Otherwise, if such work is carried out improperly, the high voltage in the system presents the danger of fatal injuries.

Removing the headlamp cover

1. Pull the wire brackets over the notches, see arrows, and fold to the side.

Cropped image showing a magnified inset with Chinese characters, likely from a technical or industrial context.

1. Fold away the headlamp cover.

Be careful when attaching the headlamp cover and ensure that both wire brackets are securely in place; otherwise, leaks could occur and cause damage to the headlamp system.

Attach the headlamp cover in reverse order.

Halogen headlamps

Halogen low beams and high beams

H7 bulb, 55 watts

Always wear gloves and eye protection; the atmosphere within the H7 bulb is pressurized. Otherwise, there is a risk of injury if the bulb is damaged.

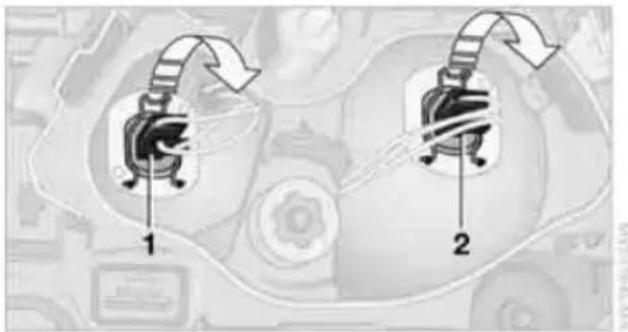

Diagram showing two labeled mechanical components with arrows indicating motion or assembly, numbered 1 and 2.

The figure shows the right-hand headlamp.

1 High beams
2 Low-beam headlamps
1. Remove the headlamp cover.
2. Fold down the holding bracket.
3. Remove and replace the bulb.
4. Reattach the bulb holder with the notch at the top.
5. Fold the holding bracket back up and let it snap into place.
6. Attach the headlamp cover.

Parking lamps, roadside parking lamps

W5W bulb, 5 watts

1. Remove the headlamp cover.

Diagram of a mechanical component with internal parts and an arrow indicating direction (no text or symbols)

The figure shows the right-hand headlamp.

1. Pull out the bulb holder.
2. Remove and replace the bulb.
3. Reinsert the bulb holder.
4. Attach the headlamp cover.

Xenon headlamps

Parking lamps, roadside parking lamps, daytime running lights

H8 bulb, 35 watts

Top-down view of a vehicle engine compartment with visible components and no text or symbols

The figure shows the right-hand headlamp.

1. Remove the headlamp cover.
2. Turn the bulb, see arrow, and remove it.
3. Pull off the connector and replace the bulb.
4. Attach the connector, insert the bulb and turn it all the way in the opposite direction.
5. Attach the headlamp cover.

Corner-illuminating lamps

H3 bulb, 55 watts

The figure shows the right-hand headlamp.

1. Remove the top headlamp cover, using the screwdriver to push the detents to one side.

Close-up of a car interior with a black arrow pointing to a small object on the floor (no text or symbols visible)

1. Turn the bulb holder, see arrow, and remove it.

Aerial view of a road with a vehicle and a traffic cone, showing no visible text or symbols.

1. Slide the bulb out of the holder and pull off the connector.
2. Replace the bulb and attach the connector.
3. Insert the bulb holder and turn it all the way in the opposite direction.
4. Attach the headlamp cover.

Turn signals, front

PY21W bulb, 21 watts

The turn signal bulb can be changed via a cover in the wheel arch.

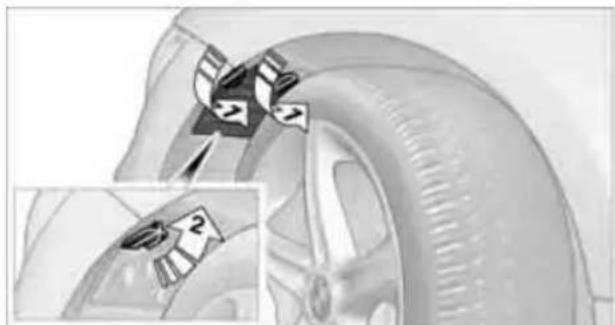

Diagram of a car wheel and tire assembly with directional arrows indicating motion (no text or symbols)

1. Turn the respective wheel inwards.
2. Using a coin, turn both locks of the cover all the way to the left, arrows 1, and remove the cover.
3. Turn the bulb holder to the left and remove it, arrow 2.
4. Apply gentle pressure to the bulb while turning it to the right for removal and replacement.
5. Insert the bulb holder and lock it by turning it to the right.
6. Attach the cover by positioning the bottom edge first and then turning both locks all the way to the right.

Side turn signals

W5W bulb, 5 watts

1. Press the rear edge of the lamp toward the front with your fingertip, arrow 1 and pivot it out, arrow 2.

1 2

1. While simultaneously lifting the retaining tab, rotate bulb holder to the left and remove.
2. Remove lamp and replace it.

To install, insert front end of the lamp and press into place at the back.

Tail lamps

Turn signal: PY21W bulb, 21 watts
Backup lamp: W16W bulb, 16 watts
Brake lamps: P21W bulb, 21 watts
Brake Force Display lamp: H21W bulb, 21 watts

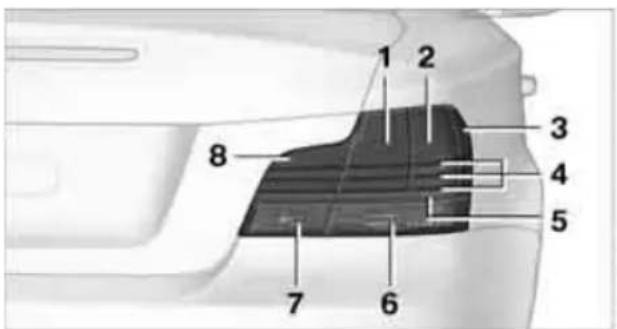

1 2 3 4 5 6 7 8

1 Inner brake lamp
2 Outer brake lamp
3 Lateral reflector
4 Roadside parking lamp and tail lamp LED
5 Reflector

6 Turn signal
7 Backup lamp
8 Brake Force Display lamp

Replacing tail lamps

Outer brake lamp

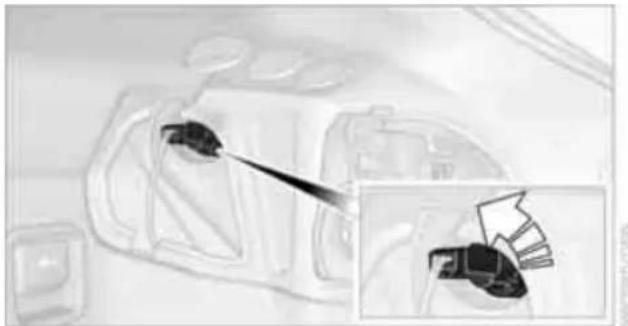

Interior view of a vehicle showing a tool interacting with a car interior, with an inset close-up of the engine compartment (no visible text or symbols)

The outer brake lamp can be accessed through a single socket.

The figure shows the right side of the vehicle.

1. Remove the cover from the panel of the cargo area.
2. Turn the bulb holder to the left, see arrow, and remove it.
3. Apply gentle pressure to the bulb while turning it to the left for removal and replacement.
4. Attach the bulb holder and turn it all the way in the opposite direction.
5. Reattach the cover.

The roadside parking lamp/tail lamp uses LED design. After replacing the bulb,

ensure that the bulb holder is properly seated; otherwise, the roadside parking lamp/tail lamp may not work.

Inner brake lamp, turn signal, backup lamp and Brake Force Display lamp

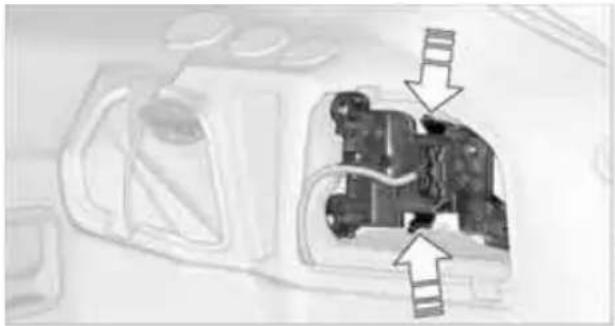

Close-up of a mechanical component with arrows indicating direction (no visible text or symbols)

The bulbs are integrated in a single bulb holder.

1. Remove the cover from the panel of the cargo area.
2. Detach the bulb holder by pressing together the clips, see arrows, and remove it.
3. Brake lamps and turn signal: apply gentle pressure to the bulb while turning it to the left for removal and replacement.
4. Backup lamp: pull the bulb out of the socket and replace it.
5. Attach the bulb holder and let it snap into place.
6. Reattach the cover.

License plate lamps and center brake lamp

These lamps use LED technology for operation. In the event of a malfunction, please contact your BMW center or a workshop that works according to BMW repair procedures with correspondingly trained personnel.

Changing wheels

Your BMW comes with run-flat tires as standard equipment. This eliminates the need to change a wheel immediately in the event of a puncture.

For information on continuing to drive with a damaged tire, refer to Indication of a flat tire on page 73.

The symbol identifying run-flat tires is a circle with the letters RSC on the sidewall, refer to Run-flat tires, page 120.

When mounting new tires or changing over from summer to winter tires and vice versa, mount run-flat tires for your own safety. In the event of a flat, no spare wheel is available. Your BMW center will be glad to advise you. Refer also to New wheels and tires, page 120.

The tools for changing wheels are available as optional accessories from your

BMW center.

Jack mounting points

Side view of a car with two arrows pointing to the front side (no text or symbols present)

The jacking points are at the positions shown in the illustration.

Vehicle battery

Battery care

The battery is 100% maintenance-free, the electrolyte will last for the life of the battery when the vehicle is operated in a temperate climate. Your BMW center will be glad to advise in all matters concerning the battery.

Replacing the battery

Use only vehicle battery types that are approved by the manufacturer of your

vehicle; otherwise, the vehicle may be damaged or some functions may become partly or completely unavailable.

After replacing the battery, have it paired with the vehicle at your BMW center so that all convenience functions are completely available.

Charging the battery

Only charge the battery in the vehicle via the terminals in the engine compartment with the engine off. Connections, refer to Jump-starting on page 139.

Disposal

Have old batteries disposed of by your BMW center or bring them to a recycling center. Maintain the battery in an upright position for transport and storage. Always secure the battery against tipping over during transport.

Power failure

After a temporary power loss, the functioning of some equipment may be limited and require reinitialization. Individual settings may likewise have been lost and will have to be programmed:

Time and date
These values must be updated, refer to page 68.
Radio
Stations must be stored again, refer to the separate Owner's Manual for Radio.
Glass roof
It may happen that the roof can only be raised. The system must be initialized. Please contact your BMW center.
Seat and mirror memory*
The positions must be stored again, refer to page 40.
Inside rearview mirror with digital compass The system must be calibrated, refer to page 95.
Active steering
The system automatically initializes itself briefly during a trip. The system is deactivated during this time, refer to page 76.

Fuses

Never attempt to repair a blown fuse and do not replace a defective fuse with a sub-e of another color or amperage rating; othe, this could lead to a circuit overload, ultimately resulting in a fire in the vehicle.

In the glove compartment

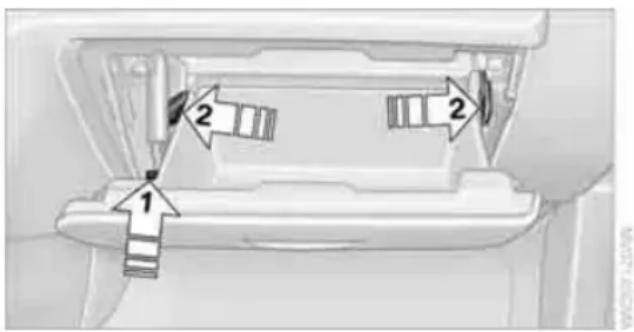

Diagram of a car door handle with numbered parts and directional arrows indicating movement or positioning.

Accessing the fuse box:

1. Open the glove compartment.
2. Remove the damper, arrow 1, from the lower holder by applying forward pressure.
3. Disengage the glove compartment by pressing on both tabs, arrows 2, and fold it down.

Plastic tweezers are located on the distributor box.

Information on fuse assignment can be found next to the distributor box.

Spare fuses are available from your BMW center.

After replacing a fuse, press the glove compartment upward until it engages and reattach the damper.

Giving and receiving assistance

Emergency Request\*

Conditions for an Emergency Request:

Full preparation package mobile phone: this equipment makes it possible to send an Emergency Request even if no mobile phone is paired with the vehicle.
BMW Assist is activated. Activating BMW Assist, refer to separate Owner's Manual.
Radio readiness is on.
The BMW Assist system is logged on to a mobile phone network.
The Emergency Request system is operable.

Once your service contract for BMW Assist expires, the BMW Assist system can be deactivated by a BMW center without you having to visit a workshop. Once the BMW Assist system has been deactivated, Emergency Requests are not possible. The BMW Assist system can be reactivated by a BMW center after a new contract has been signed.

Sending an Emergency Request

1. Briefly press the cover flap to open.

Diagram showing a device inside a vehicle's rear compartment with an inset close-up of its internal structure (no text or symbols visible)

1. Press the SOS button until the LED in the button lights up.

As soon as the voice connection to the BMW Assist Response Center has been established, the LED flashes.

Once the BMW Assist Response Center has received your Emergency Request, the

BMW Assist Response Center contacts you and takes further steps to help you. Even if you are unable to respond, the BMW Assist Response Center will be able to initiate further steps to assist you under certain conditions.

If the circumstances allow this, remain in the vehicle until the connection has been established. You will then be able to provide a detailed description of the situation.

Data for determining the necessary rescue measures are transmitted to the BMW Assist Response Center, e.g. the current position of your vehicle, if it can be determined.

If the LED is flashing but the BMW Assist Response Center cannot be heard over the hands-free system, it is possible that the hands-free system is malfunctioning. You may still be heard by the BMW Assist Response Center, however.

Under certain conditions, an Emergency Request is sent automatically immediately after a severe accident. This Automatic Collision Notification is not affected by the button being pressed.

For technical reasons, the Emergency Request service cannot be guaranteed

for the most unfavorable conditions.

Roadside Assistance

BMW Roadside Assistance is available by phone around the clock in many countries. You can obtain support there in the event of a breakdown.

Phone numbers for BMW Roadside Assistance can be found in the Contact brochure.

First aid pouch\*

Some of the articles contained in the first aid pouch have a limited service life. Therefore, check the expiration dates of the contents reg-

ularly and replace any items in good time, if necessary.

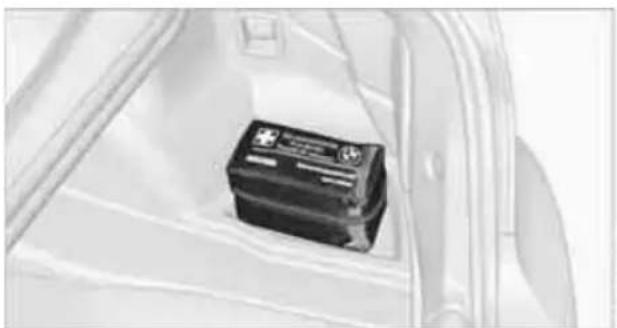

Black first aid kit placed inside a vehicle compartment (no visible text or symbols)

The first aid pouch is located on the right-hand side of the cargo area in a storage area.

Warning triangle\*

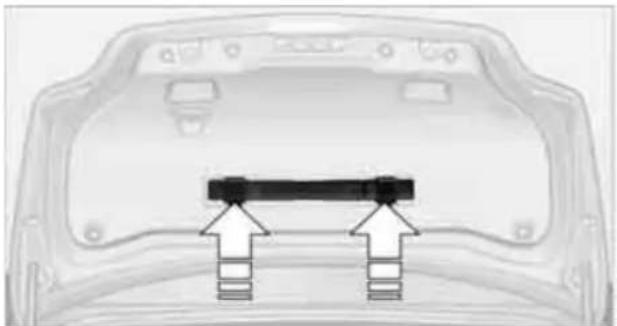

Diagram of a car rear bumper with two black buttons and directional arrows pointing to the front panel (no text or symbols)

The warning triangle is located in a holder in the trunk lid. Press the tabs to take it out.

Jump-starting

If the car's own battery is flat, your BMW's engine can be started by connecting two jumper cables to another vehicle's battery. You can also use the same method to help start another vehicle. Only use jumper cables with fully-insulated clamp handles.

Do not touch any electrically live parts when the engine is running, or a fatal accident may occur. Carefully adhere to the following sequence, both to prevent damage to one or both vehicles, and to guard against possible personal injuries.

Preparation

1. Check whether the battery of the other vehicle has a voltage of 12 volts and approximately the same capacitance in Ah. This information can be found on the battery.
2. Switch off the engine of the assisting vehicle.
3. Switch off any consumers in both vehicles.

There must not be any contact between the bodies of the two vehicles; otherwise, there is a danger of shorting.

Connecting jumper cables

Connect the jumper cables in the correct order to prevent sparking at the battery, which could cause injury.

Your BMW has a jump-starting connection in the engine compartment which acts as the battery's positive terminal, refer also to the Engine compartment overview on page 123. The cap is marked with +.

1. Pull the cap of the BMW jump-starting connection up to remove.

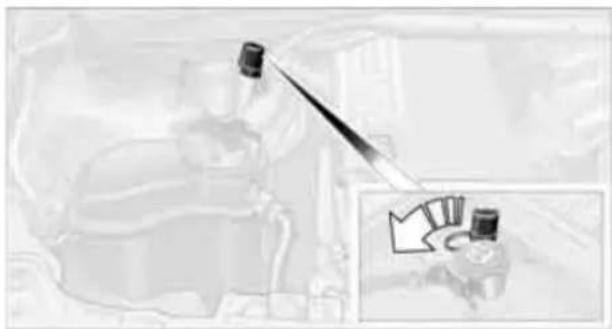

Mechanical assembly diagram showing a lever and component with an inset view of a tool (no text or symbols visible)

1. Attach one terminal clamp of the plus/+ jumper cable to the positive terminal of the battery or a starting-aid terminal of the vehicle providing assistance.
2. Attach the second terminal clamp of the plus/+ jumper cable to the positive terminal of the battery or a starting-aid terminal of the vehicle to be started.
3. Attach one terminal clamp of the minus/- jumper cable to the negative terminal of the battery or to an engine or body ground of the assisting vehicle.

Your BMW has a special nut as body ground or negative pole.

Interior view of a vehicle showing a driver's seatbelt and dashboard (no visible text or symbols)

1. Attach the second terminal clamp of the minus/– jumper cable to the negative terminal of the battery or to the engine or body ground of the vehicle to be started.

Starting the engine

1. Start the engine of the donor vehicle and allow it to run for a few minutes at slightly increased idle speed.
2. Start the engine on the other vehicle in the usual way.
   If the first start attempt is not successful, wait a few minutes before another attempt in order to allow the discharged battery to recharge.
3. Let the engines run for a few minutes.
4. Disconnect the jumper cables by reversing the above connecting sequence.

If necessary, have the battery checked and recharged.

Never use spray fluids to start the engine.

Tow-starting, towing away

Observe the applicable laws and regulations for tow-starting and towing vehi-

cles.

Do not transport any passengers other than the driver in a vehicle that is being

towed.

Using a tow fitting

The screw-in tow fitting must always be carried in the car. It can be screwed in at the front or rear of the BMW.

It is stored with the onboard vehicle tool kit underneath the floor mat in the cargo area, refer to page 132.

Use only the tow fitting provided with the vehicle and screw it all the way in. Use the tow fitting for towing on paved roads only. Avoid lateral loading of the tow fitting, e.g. do not lift the vehicle by the tow fitting. Otherwise, the tow fitting and the vehicle could be damaged.

Access to screw thread

Rectangular cover panel in bumper:

Press the arrow on the cover.

Front

Close-up of a car's side panel with a pointing arrow indicating a detail (no text or symbols visible)

Rear

Close-up of a car's side profile with a white arrow pointing to a specific area (no text or symbols visible)

Being towed

Make sure that the ignition is switched on, refer to page 48; otherwise, the low-beam headlamps, tail lamps, turn signal indicators and windshield wipers may be unavailable. Power steering assistance is not available when the engine is not running. Thus, braking and steer-

ing will require increased effort. Active steering is not active and it will be necessary to turn the steering wheel further.

Manual transmission

Gearshift lever in neutral position.

Automatic transmission

Selector lever in position N.

Changing selector lever position, refer to page 51.

Do not exceed a towing speed of 45 mph/70 km/h and a towing distance of

90 miles/150 km; otherwise, the automatic transmission may be damaged.

Sports automatic transmission with double clutch

Make sure that the parking lock P is not engaged; otherwise, the rear wheels are immobilized.

When using the car wash function, refer to page 129, make sure that after approx.

30 minutes, the parking lock P is automatically engaged and thus immobilizes the rear wheels. In the event of an electrical malfunction or if the vehicle must be towed for more than approx. 20 minutes, unlock the parking lock manually, refer to page 56.

When towing, do not exceed a maximum speed of 30 mph or 50 km/h and a maximum distance traveled of 30 miles/50 km; otherwise, the transmission may be damaged.

BMW recommends transporting the vehicle on a tow truck with a flatbed or towing with the rear axle raised.

Towing methods

Do not lift the vehicle by a tow fitting or body and chassis parts; otherwise, damage may result.

With a tow bar

The towing vehicle must not be lighter than the towed vehicle; otherwise, it may impossible to maintain control.

The tow fittings used should be on the same side on both vehicles. Should it prove impossible to avoid mounting the tow bar at an angle, please observe the following:

Clearance and maneuvering capability will be sharply limited during cornering.
The tow bar will generate lateral forces if it is attached offset.

Attach the tow bar to the tow fittings only, as attaching it to other parts of the vehicle I result in damage.

With a tow rope

When starting off in the towing vehicle, make sure that the tow rope is taut.

To avoid jerking and the associated stresses on vehicle components when towing, always use nylon ropes or nylon straps. Attach the tow rope to the tow fittings only, as attaching it to other parts of the vehicle could result in damage.

With a tow truck

Manual transmission and automatic transmission:

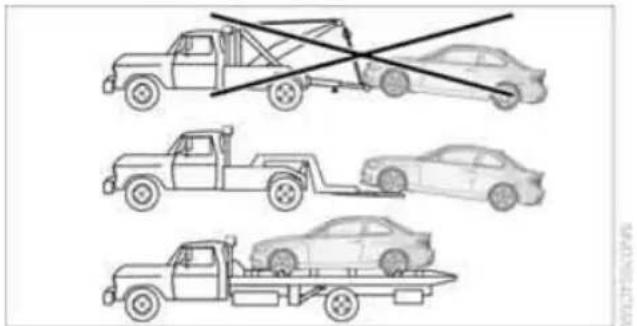

Diagram showing three types of car loading modes: a tow truck, a sedan, and a flatbed truck, with no text labels.

Sports automatic transmission with double clutch:

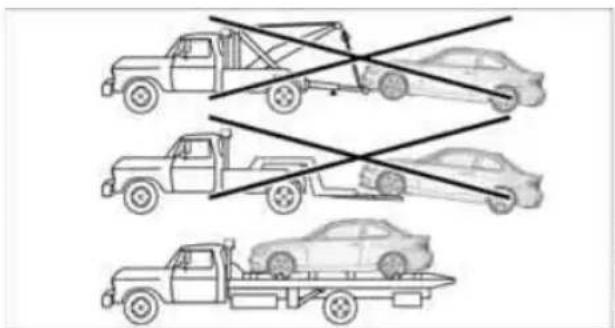

Three line-drawn car loading scenarios with no visible text or symbols

Have the BMW transported with a tow truck with a so-called lift bar, or on a flatbed.

Do not tow the vehicle with just the rear axle raised as this may cause the steering to turn.

Tow-starting

Avoid tow-starting the vehicle whenever possible; instead, jump-start the engine, refer to page 139. Vehicles with a catalytic converter should only be tow-started when the engine is cold, vehicles with an automatic transmission or Sports automatic transmission with double clutch cannot be tow-started at all.

1. Switch on the hazard warning flashers, comply with local regulations.
2. Switch on the ignition, refer to page 48.
3. Shift into 3rd gear.
4. Have the vehicle tow-started with the clutch depressed all the way and slowly release the clutch. After the engine starts, immediately depress the clutch completely again.
5. Stop at a suitable location, remove the tow bar or rope and switch off the hazard warning flashers.
6. Have the vehicle checked.

Indicator and warning lamps

Front view of a car dashboard with two gauges and a central touchscreen display (no visible text or symbols)

Indicator and warning lamps can light up in the display areas 1 or 2 in a variety of combinations and colors. See the table for information on causes and how to react. Note whether a lamp comes on alone or in combination with another. Some lamps can light up in different colors. Corresponding distinctions are made in the text.

12 Cause Special actions to be taken

		Turn signals
≡D		High beams/headlamp flasherswitched on
≠D		Fog lamps switched on
		Fasten safety belts Fasten your safety belt, refer also to page 42.
BRAKE		Indication in US modelsParking brake applied Release the parking brake.
(1)		Indication in Canadian modelsParking brake applied Release the parking brake.
		Outside temperature warning	Drive cautiously, refer also to page 62.
		Lights up briefly:Approx. 2.1 US gallons/8 liters offuel remain in the tankRemains on:Remaining operating range is no more than 30 miles/50 km, refer to page 63
		Engine will not start Depress the brake or clutch in order to start the engine, refer to page 49.
		Ignition switched on and driver's door open	Switch off the ignition, refer to page 48,or close the driver's door.
		Parking lamps still on
		Roadside parking lamps still on Switch off the roadside parking lamps, refer to page 83.

12 Cause Special actions to be taken

	Door open
	Engine compartment lid open
	Trunk lid open
	Lights up in red:Convertible top not locked Automatic lock malfunctioning. Lockthe convertible top manually, refer to page 32. Have it checked by your BMW center.Electronic failure when closing convertible top	Close the convertible top manually, refer to page 32. Have it checked by your BMW center.
	Lights up in yellow:Cargo area partition not in lowermost position. Convertible top cannot be moved	Fold the cargo area partition down.
	Vehicle speed too high for convertible top movement	Reduce speed to below 30 mph/50 km/h and continue convertible top movement.
	Convertible top drive overheated Close the convertible top immediately and let the convertible top drive cool. After cooling, the convertible top can be opened electrically again.
	Rollover protection system malfunctioning	Have the rollover protection system checked by your nearest BMW center.
	Gas cap is open Make sure that the gas cap is correctly positioned and close it until it audibly clicks. Do not jam the strap between the gas cap and the vehicle.
	Windshield washer fluid level too low Add washer fluid as soon as possible, refer to page 59.

1 2 Cause Special actions to be taken

		Lights up in red:Service due Arrange a service appointment.	Check service requirements, refer to page 66.
		Lights up in yellow:The engine will start the next time the start/stop button is touched, possibly without the brake or clutch being depressed
		Remote control malfunctioning or, in cars with Comfort Access, not present	The engine cannot be started. Have the remote control checked, if necessary.
		Battery of remote control discharged Use	the remote control for a longer journey or, in cars with Comfort Access, replace the battery.
		Belt tensioners and/or airbag system failed	Have the system checked immediately.
		Active steering defective You can continue your journey.	Steering characteristics are modified and steering wheel could be off-center. Have the system checked as soon as possible.
		Steering assistance failed Markedly different steering response.	You can continue your journey, but moderate your speed and exercise due caution. Have the system checked as soon as possible.
		Lights up:Emergency Request system has failed or is malfunctioning	Have the system checked as soon as possible.
		Lights up in red:Engine malfunction Stop the car and switch off the engine.	You cannot continue your journey. Contact your BMW center.
		Lights up in yellow:Full engine power is no longer available	You can continue your journey, but moderate your speed and exercise due caution. Have the engine checked as soon as possible.

1 2 Cause Special actions to be taken
SERVICE ENGINE SOON	Indication in US models:Warning lamp flashes:Engine malfunction under high load.High engine load will result in damage to the catalytic converterWarning lamp comes on:Engine malfunction with adverse effect on emissions	You can continue your journey, but moderate your speed and exercise due caution. Have the vehicle checked without delay.Have the car checked as soon as possible.
	Indication in Canadian models:Warning lamp flashes:Engine malfunction under high load.High engine load will result in damage to the catalytic converterWarning lamp comes on:Engine malfunction with adverse effect on emissions	You can continue your journey, but moderate your speed and exercise due caution. Have the vehicle checked without delay.Have the car checked as soon as possible.
	Lights up in red:Engine overheating Carefully bring the car to a stop, switch off the engine and allow it to cool down.Do not open the hood; otherwise, there is a risk of injury from scalding. Contact your BMW center.Lights up in yellow:Engine too hot Continue driving at more moderate speed so that the engine can cool down. Have the engine checked without delay if the situation reoccurs.
	Lights up in red:Battery is no longer being charged.Alternator malfunctionLights up in yellow:Battery charge level very low, battery aged or not securely connected	Switch off all unnecessary electrical consumers. Have the vehicle's power supply system checked immediately.Have the battery checked as soon as possible.
	Engine oil pressure too low Stop immediately and switch off the engine. You cannot continue your journey. Contact your BMW center.
	Engine oil level too low Add engine oil immediately; refer to page 123 for more information.

1 2 Cause Special actions to be taken
BRAKE		Indication in US models:Parking brake applied
(1)		Indication in Canadian models:Parking brake applied
BRAKE		Indication in US modelsLights up in red:Brake fluid level too low Reduced braking effect, stop the car carefully. Contact your BMW center.Lights up in yellow:Drive-off assistant has failed. The car will not be held in place after the brake is released	Have the system checked as soon as possible.
(1)		Indication in Canadian modelsLights up in red:Brake fluid level too low Reduced braking effect, stop the car carefully. Contact your BMW center.Lights up in yellow:Drive-off assistant has failed. The car will not be held in place after the brake is released	Have the system checked as soon as possible.
BRAKE		Indication in US models:Brake pads worn	Have the condition of the brake pads checked without delay.
(1)		Indication in Canadian models:Brake pads worn	Have the condition of the brake pads checked without delay.
		Lights up in red: Have the system in question checked without delay. ▷ Starter failed or The engine cannot be restarted. ▷ Ignition malfunctioning. Engine restart only possible when brake is depressed or ▷ lighting system failed. Low beams/tail lamps and brake lamps still operational. All other lamps failedLights up in yellow: ▷ Control of the brake lamps failed or ▷ fuel supply malfunctioning, or ▷ electrical system of trailer hitch* failed	Depress the brake to restart the engine. You can continue your journey, but moderate your speed and exercise due caution. Have the system in question checked without delay.
		Flashing:Dynamic Stability Control DSC or Dynamic Traction Control DTC is controlling drive and braking forces, refer also to page 71
DTC		Dynamic Traction Control DTC activated, refer also to page 71
		Dynamic Stability Control DSC and Dynamic Traction Control DTC deactivated, refer also to page 71	Driving stability limited during acceleration and cornering.You can continue your journey, but moderate your speed and exercise due caution.
		Suspension control system failed, refer also to page 70	Driving stability limited during acceleration and cornering.You can continue your journey, but moderate your speed and exercise due caution. Have the system checked as soon as possible.
ABS		Indication in US models:The driving stability control systems, including ABS and the Tire Pressure Monitor, have failed, refer also to page 70	Driving stability limited during acceleration and cornering.You can continue your journey, but moderate your speed and exercise due caution. Have the system checked as soon as possible.
BRAKE

1 2 Cause Special actions to be taken

Indication* in Canadian models:

Vehicle electronics failed You cannot continue your journey.

Contact your BMW center.

Indication* in Canadian models:

Vehicle electronics failed You cannot continue your journey.

Contact your BMW center.

Vehicles with Flat Tire Monitor*:

Light up in yellow and red:

Tire is deflated Carefully bring the car to a stop. Com- ply with the additional information starting on page 72.

Flat Tire Monitor not initialized Initialize Flat Tire Monitor, refer to page 72.

Light up in yellow:

Flat Tire Monitor failed. Punctures are not indicated Have the system checked.

Vehicles with Tire Pressure Monitor*:

Light up in yellow and red:

There is a flat tire or substantial loss of tire pressure Carefully bring the car to a stop. Comply with the additional information starting on page 74.

12 Cause Special actions to be taken

Vehicles with Tire Pressure Monitor*:

Light up in yellow:

Tire Pressure Monitor not initialized Check the inflation pressure and reset the system, refer to page 74.

The small lamp flashes in yellow and then lights up continuously; the larger lamp comes on in yellow:

Tire Pressure Monitor has failed. Have the system checked. Punctures are not indicated
A wheel without TPM electronics has been mounted Have the system checked.
Interference from systems or devices that use the same radio frequency. The system automatically reactivates once it is outside of the field of interference

1 2 Cause Special actions to be taken

Lights up in red:

Transmission limp-home program active with restricted range of gears, possibly with reduced acceleration. Gears can be engaged without depressing the brake

You can continue your journey, but moderate your speed and exercise due caution. Have the system checked without delay.

Lights up in yellow:

Transmission emergency-run program with limited gear selection active

Always depress the brake to engage a gear.

Automatic selector lever locked: Selector lever locked in position P with engine running and brake depressed or

You can continue your journey, but moderate your speed and exercise due caution. Have the system checked without delay.

▶ Selector lever position P malfunctioning: Selector lever locked in position P with engine running and brake depressed

Override the selector lever lock, refer to page 52.

Brake signal malfunctioning: gear can be engaged without depressing the brake

Override the parking lock, refer to page 56. Have the system checked as soon as possible.

Always depress the brake to engage a gear. Before leaving the vehicle, move the selector lever to position P and switch off the engine.

Lights up in red:

Transmission overheating Bring the car to a stop and move the

selector lever to position P. Allow the transmission to cool down. You can continue your journey, but moderate your speed and exercise due caution. Have the system checked if the situation reoccurs.

Lights up in yellow:

Transmission too hot Avoid high engine loads. You can continue your journey, but moderate your speed and exercise due caution.

Selector lever position P not engaged.

Vehicle not prevented from rolling

12 Cause Special actions to be taken

	Selector lever position P not engaged. Ignition cannot be switched off	Engage selector lever position P when you wish to switch off the ignition, refer to page 48.
	Selector lever malfunctioning You can continue your journey. Repeat gearshift request if necessary. Have the system checked if the situation reoccurs.
	Brake signal malfunctioning: gear can be engaged without applying the brake	When the vehicle is stationary, always depress the brake to engage a gear. Before leaving the vehicle, switch off the engine. Have the system checked as soon as possible.
	Pinch protection system of the power windows malfunctioning	Have the system checked.
	Pinch protection system of the electric glass roof malfunctioning	Have the system checked.
	Cruise control system failed You can continue your journey. Have the system checked.
	Park Distance Control failed Have the system checked.
	▷ High-beam assistant inactive Clean the sensor field on the front of the interior rearview mirror, refer to page 84.
	▷ High-beam assistant malfunctioning	Have the system checked by your nearest BMW center.
	▷ Sensitivity of the high-beam assistant has been changed	There is a risk that oncoming traffic may be blinded. Have the system checked by your nearest BMW center.
	Bulb of exterior lighting system failed Have the exterior lighting checked as soon as possible.
	Low-beam headlamp or fog lamp failed Have the low beams checked as soon as possible.
	High-beam headlamp failed Have the high-beam headlamps checked.
	Adaptive light control failed
	Coolant level too low Add coolant immediately, refer to page 125.

1 2 Cause Special actions to be taken

Lights up in red:

Service appointment overdue Arrange a service appointment.

Check service requirements, refer to page 66.

Lights up in yellow:

Service due Arrange a service appointment.

Check service requirements, refer to page 66.

No service due

Set speed limit* has been exceeded

Time and date no longer correct

Set the time and date, refer to page 68.

TOMBERY HAGLICK Online Edition for Part no. 01 41 2 604 079 - © 02/10 BMW AG

Reference

This chapter contains technical data and an index that will help you find information most quickly.

Technical data

Engine data

	128i 135i
Displacement cu in/cm ^3 182.8/2,996 181.8/2,979
Number of cylinders 6 6
Maximum power output hp 230 300at engine speed rpm 6,500 5,800
Maximum torque lb ft/Nm 200/270 300/407at engine speed rpm 2,750 1,200-5,000

Dimensions

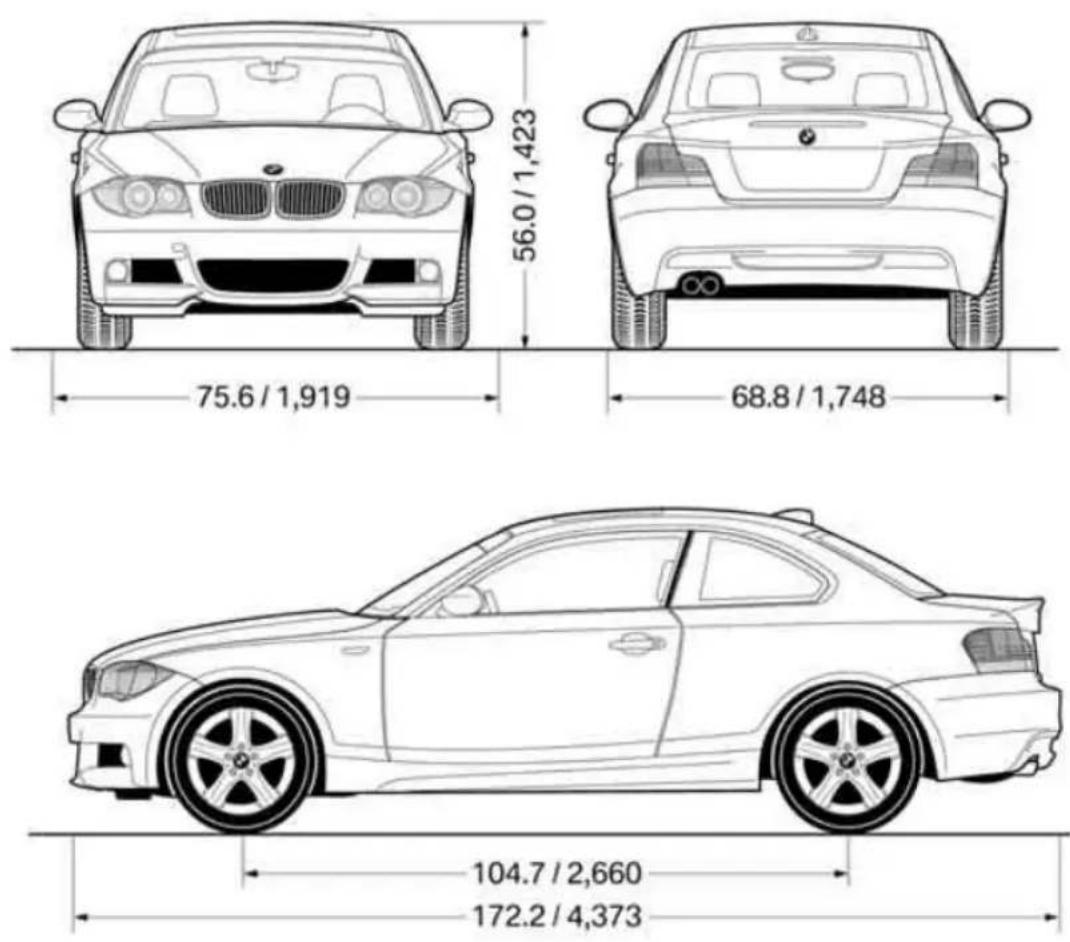

Coupe

All dimensions given in inches/mm.
Smallest turning circle dia.: 35.1 ft/10.7 m
135i: height 55.4 in/1,408 mm

Convertible

104.7 / 2,660 172.2 / 4,373

All dimensions given in inches/mm.
Smallest turning circle dia.: 35.1 ft/10.7 m
135i: height 54.8 in/1,392 mm

Weights

Coupe

	128i 135i
Approved gross weight
▷ with manual transmission lbs/kg 4,134/1,875 4,255/1,930
▷ with automatic transmission lbs/kg 4,211/1,910 –
▷ Sports automatic transmis-sion with double clutch	lbs/kg – 4,321/1,960
Load lbs/kg 794/360 794/360
Approved front axle load lbs/kg 2,028/920 2,116/960
Approved rear axle load	lbs/kg 2,293/1,040 2,293/1,040
Approved roof load capacity	lbs/kg	165/75
Cargo area capacity	cu ft/liters	13.1/370

Convertible

	128i 135i
Approved gross weight
▷ with manual transmission lbs/kg 4,398/1,995 4,541/2,060
▷ with automatic transmission lbs/kg 4,475/2,030 -
▷ Sports automatic transmis-sion with double clutch	lbs/kg - 4,608/2,090
Load lbs/kg 750/340 750/340
Approved front axle load lbs/kg 2,050/930 2,161/980
Approved rear axle load	lbs/kg 2,467/1,119 2,469/1,120
Approved roof load capacity	lbs/kg --
Cargo area capacity	cu ft/liters	9.1-10.7/260-305	9.1-10.7/260-305

Capacities

Notes

Fuel tank: US gal/liters approx. 14.0/53 Fuel grade: page 113

including reserve of US gal/liters approx. 2.1/8.0

Window washer system For more details: page 59

including headlamp washers US qt/liters approx. 6.3/6.0

Everything from A to Z

Index

A

ABS Antilock Brake System 71

Acceleration assistant, refer to Launch Control 57

Accessories, refer to The individual vehicle 5

Accident, reporting, refer to Emergency Request 138

Activated-charcoal filter 91

Active steering 76

Adaptive light control 83

Additives

- coolant 125

- engine oil 124

Adjusting temperature 88

- climate control 89

Airbags 77

- sitting safely 35

– warning lamp 79

Air conditioner 86

Air distribution

- automatic 90

- individual 87

Airing, refer to Ventilation 88, 91

Air outlets, refer to Air vents 86

Air pressure, checking, refer to Tire inflation pressure 114

Air recirculation, refer to Recirculated-air mode 87, 90

Air vents 86

Air volume 87, 90

AKI, refer to Fuel specifications 113

Alarm system 24

- avoiding unintentional alarms 25

- interior motion sensor 25

- switching off an alarm 25

- tilt alarm sensor 25

ALL program 90

All-season tires, refer to Winter tires 121

Ambient air, refer to Recirculated-air mode 87, 90

Antifreeze

- coolant 125

- washer fluid 59

Antilock Brake System ABS 71

Anti-theft alarm system, refer to Alarm system 24

Anti-theft system 19

Approved axle loads, refer to Weights 159

Approved engine oils 124

Approved gross vehicle weight, refer to Weights 159

Armrest, refer to Center armrest 95

Ashtray 97

Assistance systems, refer to Dynamic Stability Control DSC 71

AUC Automatic recirculated-air control 90

Automatic

– air distribution 90

- air volume 90

- cruise control 60

- headlamp control 81

Automatic car washes 128

Automatic climate control 86

Automatic curb monitor 43

Automatic high beams and low beams, refer to High-beam assistant 83

Automatic lamps

– refer to Welcome lamps 81

Automatic recirculated-air control AUC 90

Automatic transmission with Steptronic 50

- selector lever lock 51

- shiftlock 51

- towing 140

-tow-starting 140

AUTO program for automatic climate control 90

Average fuel consumption 64

- setting the units 66

Average speed 64

Avoiding unintentional alarms 25

Axle loads, refer to Weights 159

B

Backrests, refer to Seats 36

Backrest width adjustment 37

Back seats, refer to Rear seats

- adjusting head restraints 38

Backup lamp, replacing bulb 135

Bag for skis, refer to Ski bag 99

Band-aids, refer to First aid pouch 138

Bar, refer to Tow-starting, towing away 141

Battery 136

- charging 137

- disposal 27, 137

-jump-starting 139

– replacing 136

- temporary power failure 137

Battery renewal

- remote control for vehicle 27

Being towed 140

Belts, refer to Safety belts 41

Belt tensioner, refer to Safety belts 41

Beverage holders, refer to Cupholders 96

Blower, refer to Air volume 87, 90

BMW

-car shampoo 129

BMW Maintenance System 126

Bottle holders, refer to Cupholders 96

Brake Assist, refer to Dynamic Brake Control 71

Brake fluid

– service requirements 66

Brake Force Display 77

Brake lamps

- Brake Force Display 77

-replacing bulb 135

Brake pads, breaking in 104

Brake rotors 106

- brakes 104

- breaking in 104

Brakes

- ABS 71

– BMW Maintenance System 126

- braking safely 106

- breaking in 104

- parking brake 50

– service requirements 66

Brake system 104

– BMW Maintenance System 126

- breaking in 104

- disc brakes 106

Breakdown services, refer to Roadside Assistance 138

Breaking in the clutch 104

Break-in period 104

Bulb changing, refer to Lamps and bulbs 132

Bulbs, changing 132

Button for starting the engine 48

Buttons on the steering wheel 11

C

California Proposition 65 warning 6

Calling, refer to Telephone owner's manual

Can holders, refer to Cupholders 96

Capacities 160

Capacity of the cargo area 159

Car battery, refer to Vehicle battery 136

Car care, refer to Care 128

Care 128

- automatic car washes 128

-care products 128

- carpets 131

- CD/DVD drives 131

-chrome parts 130

-convertible top 129

- displays 131

- exterior 128

- fine wood parts 131

- headlamps 129

– high-pressure washer 129

- interior 130

- leather 130

– light-alloy wheels 130

- paintwork 130

- plastic parts 131

- rubber seals 130

- safety belts 131

- sensors and cameras 131

- upholstery and cloth trim 130

- washing the car manually 129

- windows 129

Cargo, securing 108

Cargo area

-capacity 159

- Comfort Access 26

- enlarging, refer to Through-loading system 98

– lamp, refer to Interior lamps 85

- lid, refer to Trunk lid 23

– opening from outside 23

Cargo area lid, refer to Trunk lid 23

Cargo area net, refer to Securing cargo 108

Cargo loading 107

-securing cargo 108

-stowing cargo 107

- vehicle 106

Car jack

-jacking points 136

Car key, refer to Integrated key/remote control18

Car phone

- installation location, refer to Center armrest 95

– refer to separate Owner's Manual

Car shampoo 129

Car wash 128

Catalytic converter, refer to Hot exhaust system 105

Center armrest 95

Center brake lamp, replacing bulb 136

Center console, refer to Around the center console 14

Central key, refer to Integrated key/remote control 18

Central locking

- from inside 22

– from outside 19

Central locking system 19

- Comfort Access 26

Changes, technical, refer to For your own safety 5

Changing wheels 136

Chassis number, refer to Engine compartment 123

Check Control 68

Checking oil level 123

Child restraint fixing system LATCH 46

Child restraint systems 45

Child seats 45

Chrome parts 130

Chrome polish 130

Cigarette lighter 97

Cleaning headlamps 59

- washer fluid 59

Cleaning your BMW, refer to Care 128

Climate control

- automatic air distribution 90

Clock 62

- 12h/24h format 66

- setting time 68

Closing

- from inside 22

- from outside 19

clothes hooks 96

Cold start, refer to Starting the engine 49

Comfort Access 26

- replacing the battery 27

Comfort access, refer to Comfort Access 26

Comfort area, refer to Around the center console 14

Compartment for remote control, refer to Ignition lock 48

Compass 94

Computer 63

Condensation, refer to When the vehicle is parked 106

Condition Based Service CBS 126

Configuring settings, refer to Personal Profile 18

Confirmation signals for locking/unlocking the vehicle 21

Connecting vacuum cleaner, refer to Connecting electrical appliances 97

Consumption, refer to Average fuel consumption 64

Controls and displays 10

Convenient operation

- windows 20

- windows with Comfort Access 26

- with Comfort Access 26

Convenient starting, refer to Starting the engine 49

Convertible

- rollover protection system 79

-top 30

- wind deflector 33

Convertible top

- convenient opening 20

Convertible top care 129

Coolant 125

-checking level 125

- filling 125

Coolant temperature 63

Cooling, maximum 89

Cooling fluid, refer to Coolant 125

Copyright 2

Corner-illuminating lamps 83

Corner-illuminating lamps, refer to Adaptive light control 83

Cornering lamps, refer to Adaptive light control 83

Courtesy lamps 85

Cruise control 60

Cruising range 64

Cupholders 96

Curb weight, refer to Weights 159

Current fuel consumption 64

D

Dashboard, refer to Dashboard 10

Dashboard lighting, refer to Instrument lighting 85

Data, technical 156

-capacities 160

-dimensions 157

- engine 156

- sizes 157

- weights 159

Data memory 127

Date

- setting 68

- setting format 66

Daytime running lights, switch positions 82

DBC Dynamic Brake Control 71

Deactivating front passenger airbags 78

Deadlocking, refer to Locking 20

Defect

- door lock 22

– fuel filler flap 112

- glass roof 30

Defogging windows 88, 91

Defrosting the windows 88, 91

Defrosting windows and removing condensation 88, 91

Defrosting windshield, refer to Defrosting windows 88, 91

Defrost position, refer to Defrosting windows 88, 91

Differential, breaking in 104

Digital clock 62, 68

Digital compass 94

Dimensions 157

Directional indicators, refer to Turn signals 57

Displacement, refer to Engine data 156

Display lighting, refer to Instrument lighting 85

Displays, refer to Instrument cluster 12

Displays and controls 10

Disposal

- of coolant 125

- remote control battery 27

- vehicle battery 137

Distance remaining to service, refer to Service requirements 66

Distance warning, refer to Park Distance Control PDC 70

Door key, refer to Integrated key/remote control 18

Door lock 22

Door lock, confirmation signals 21

Doors, emergency operation 22

DOT Quality Grades 118

Draft-free ventilation 88, 91

Drinks holders, refer to Cupholders 96

Drive mode 54

Drive-off assistance, refer to DSC 71

Drive-off assistant 72

Driving dynamics control 55

Driving lamps, refer to Parking lamps/low beams 81

Driving notes 104

Driving off on hills, refer to Drive-off assistant 72

Driving stability control systems 70

Driving through water 106

Driving tips, refer to Driving notes 104

Dry air, refer to Cooling function 87, 91

DSC Dynamic Stability Control 71

DTC Dynamic Traction Control 71

-indicator lamps 71

Dynamic Brake Control DBC 71

Dynamic Stability Control DSC 71

Dynamic Traction Control DTC

-indicator lamps 72

E

EBV Electronic brake-force distribution 71

Electrical defect

- 7-gear sports automatic transmission with double clutch 56

Electrical malfunction

- door lock 22

- fuel filler flap 112

-glass roof 30

Electronic brake-force distribution EBV 71

Electronic oil level check 123

Electronic Stability Program ESP, refer to Dynamic Stability Control DSC 71

Emergency operation, refer to Manual operation

- door lock 22

- fuel filler flap 112

- glass roof 30

- transmission lock, automatic transmission 52

Emergency release, trunk lid 24

Emergency Request 138

Emergency services, refer to Roadside Assistance 138

Energy, saving

– saving fuel 104

Engine

- breaking in 104

-data 156

- speed 156

- starting 49

- starting, Comfort Access 26

-switching off 49

Engine compartment 123

Engine coolant, refer to Coolant 125

Engine oil

- adding 124

- additives 124

- alternative oil grades 125

- approved engine oils 124

– BMW Maintenance System 126

-checking level 123

- intervals between changes, refer to Service requirements 66

Engine output, refer to Engine data 156

Engine speed, refer to Engine data 156

Engine starting, refer to Starting the engine 49

ESP Electronic Stability Program, refer to Dynamic Stability Control DSC 71

Exhaust system, refer to Hot exhaust system 105

Exterior mirrors 42

-adjusting 42

- automatic dimming feature 43

- automatic heating 42

– folding in and out 42

Eyes

– for tow-starting and towing away 140

-for tying down loads 108

F

Failure messages, refer to Check Control 68

Failure of an electrical consumer 137

False alarm, refer to Avoiding unintentional alarms 25

Fastening safety belts, refer to Safety belts 41

Filter of automatic climate control, refer to Microfilter/activated charcoal filter 91

Filter of heating or air conditioner, refer to Microfilter 88

First aid pouch 138

Fixture for remote control, refer to Ignition lock 48

Flash when locking/unlocking 21

Flat tire

– run-flat tires 120

– Tire Pressure Monitor TPM 74

Flat Tire Monitor FTM 72

-indicating a flat tire 73

- initializing the system 72

- system limits 72

Flat tires, refer to Tire condition 119

Fog lamps 84

-indicator lamp 84,143

Footbrake, refer to Braking safely 106

Footwell lamps 85

For your own safety 5

Front airbags 77

Front seat setting 36

Frost, removing from windows, refer to Defrosting windows 88, 91

FTM, refer to Flat Tire Monitor 72

Fuel 113

-gauge 63

– high-quality brands 113

- quality 113

– specifications 113

- tank contents, refer to Capacities 160

Fuel clock, refer to Fuel gauge 63

Fuel consumption indicator, refer to Average fuel consumption 64

Fuel consumption statistics, refer to Average fuel consumption 64

Fuel display, refer to Fuel gauge 63

Fuel filler flap 112

– releasing in the event of electrical malfunction 112

Fuses 137

G

Garage door opener, refer to Integrated universal remote control 92

Gasoline, refer to Required fuel 113

Gasoline display, refer to Fuel gauge 63

Gear change

– with automatic transmission 51

– with manual transmission 50

Gear display, with automatic transmission 51

Gear shifting 55

Gearshift lever 53

– automatic transmission with Steptronic 51

– manual transmission 50

General driving notes 105

Glass roof, electric 29

– closing after electrical malfunction 30

– convenient operation 22

- opening, closing 29

– operation with Comfort Access 26

-pinch protection system 29

- raising 29

- remote control 20

Glove compartment 95

Grills, refer to Air vents 86

Gross vehicle weight, refer to Weights 159

H

Halogen lamps

-replacing bulbs 133

Handbrake, refer to Parking brake 50

Hands-free system 14

Hazard warning flashers 14

Head airbags 77

Headlamp control, automatic 81

Headlamp cover 133

Headlamp flasher 57

Headlamps

-replacingbulbs133

Head restraints 38

Heated

-seats40

- steering wheel 44

Heated mirrors 42

Heating 86

-mirrors 42

-seats40

- steering wheel 44

Heating, rear window 88, 91

Heating and ventilation 86

Heavy loads, refer to Stowing cargo 107

Height, refer to Dimensions 157

Height adjustment

- steering wheel 43

High-beam assistant 83

High beams 83

-indicator lamp 143

-replacing bulbs 133

High beams and low beams, automatic, refer to High-beam assistant 83

High-pressure washer 128, 129

High water, refer to Driving through water 106

Hills 106

Holders for cups 96

Hood 122

Hot exhaust system 105

Hydraulic brake assist, refer to Dynamic Brake Control 71

Hydroplaning 105

|

Ice warning, refer to Outside temperature warning 62

Identification marks

-tire coding 118

Idle position 54

Ignition 48

– switched off 49

-switched on 48

Ignition key, refer to Integrated key/remote control 18

Ignition key position 1, refer to Radio readiness 48

Ignition key position 2, refer to Ignition on 48

Ignition lock 48

Imprint 2

Indicator and warning lamps 13, 143

– Tire Pressure Monitor TPM 75

Individual air distribution 87

Individual settings, refer to Personal Profile 18

Inflation pressure, tires 114

Inflation pressure monitoring, refer to Tire Pressure Monitor TPM 74

Initializing

- compass, refer to Calibrating 95

Initializing, Flat Tire Monitor FTM 72

Instrument cluster 12

Instrument combination, refer to Instrument cluster 12

Instrument lighting 85

Integrated key 18

Integrated universal remote control 92

Interior lamps 85

- remote control 20

Interior motion sensor 25

Interior rearview mirror 43

- automatic dimming feature 43

- compass 94

Intermittent mode of the wipers 58

J

Jacking points 136

Jumpering, refer to Jump-starting 139

Jump-starting 139

K

Key, refer to Integrated key/remote control 18

Keyless go, refer to Comfort Access 26

Keyless opening and closing, refer to Comfort Access 26

Key Memory, refer to Personal Profile 18

Kickdown 51

Knock control 113

L

Lamps

- adaptive light control 83

- interior lighting 85

Lamps, refer to Parking lamps/low beams 81

Lamps and bulbs, replacing bulbs 132

Lashing eyes, refer to Securing cargo 108

LATCH child restraint fixing system 46

Launch Control 57

Leather care 130

LED Light-emitting diodes 132

Length, refer to Dimensions 157

License plate lamp, replacing bulb 136

Light

- instrument lighting 85

– refer to High-beam assistant 83

Light-alloy wheels 130

Light control

– refer to High-beam assistant 83

Light-emitting diodes LED 132

Lighter 97

- socket 97

Lighting

- lamps and bulbs 132

- of instruments 85

- of vehicle, refer to Lamps 81

Light switch 81

Limit, refer to Speed limit

-indicator lamp 153

Load 107

Load securing equipment, refer to Securing cargo 108

Lock buttons of doors, refer to Locking 23

Locking

- adjusting confirmation signal 21

- from inside 23

- from outside 20

– without remote control, refer to Comfort Access 26

Locking and unlocking doors

– from inside 22

- from outside 19

Low beam control, refer to High-beam assistant 83

Low-beam headlamps 81

- automatic 81

-replacing bulbs 133

Lower back support, refer to Lumbar support 37

Luggage compartment, refer to Cargo area

Luggage rack, refer to Roof-mounted luggage rack 108

Lumbar support 37

M

M+S tires, refer to Winter tires 121

Maintenance, refer to

– BMW Maintenance System 126

- Service booklet

Maintenance system 126

Malfunction warnings, refer to Check Control 68

Manual car wash 129

Manually unlocking parking lock 56

Manual operation

- door lock 22

- fuel filler flap 112

- glass roof 30

- parking lock 56

– transmission lock, automatic transmission 52

Manual operation with automatic transmission 52

Manual transmission 50

Maximum cooling 89

Maximum speed

- for winter tires 121

Microfilter/activated-charcoal filter for automatic climate control 91

Microfilter for heating or air conditioner 88

Microphone for telephone 14

Mirror dimming feature 43

Mirrors 42

- automatic curb monitor 43

- exterior mirrors 42

- heating 42

- interior rearview mirror 43

Mobile phone, installation location, refer to Center armrest 95

Mobile phone, refer to the separate Owner's Manual

Modifications, technical, refer to For your own safety 5

Monitoring system for tire pressures, refer to Flat Tire Monitor 72

Multifunctional steering wheel, refer to Buttons on the steering wheel 11

Multifunction switch

– refer to Turn signals/headlamp flasher 57

– refer to Wiper system 58

N

Neck support, refer to Head restraints 38

Nets, refer to Storage compartments 96

New tires 120

Next Service indicator, refer to Condition Based Service CBS 126

Number of cylinders, refer to Engine data 156

0

OBD socket, refer to Socket for Onboard Diagnosis 127

Octane ratings, refer to Fuel specifications 113

Odometer 62

Oil, refer to Engine oil 123

Oil consumption 123

Oil level 123

Old batteries, refer to Disposal 137

Onboard vehicle tool kit 132

Opening and closing

- Comfort Access 26

– from inside 22

- from outside 19

- using the door lock 22

- using the remote control 19

Outlets, refer to Ventilation 88, 91

Output, refer to Engine data 156

Outside temperature display 62

- changing unit of measure 66

-in computer 66

Outside temperature warning 62

Overriding selector lever lock 52

P

Paintwork care 130

Park assistant, refer to Park Distance Control 70

Park Distance Control PDC 70

Parking

- vehicle 49

Parking aid, refer to Park Distance Control PDC 70

Parking brake 50

-indicator lamp 50

- manual activation 50

Parking lamps/low beams 81

-replacing bulbs 133

Parts and accessories, refer to The individual vehicle 5

Passenger-side mirror tilt function 43

Pathway lighting 81

Personal Profile 18

Pinch protection system

-glass roof,electric 29

- windows 28

Polish 130

Pollen, refer to Microfilter 88

Pollen, refer to Microfilter/activated-charcoal filter 91

Power windows 27

Power windows, refer to Windows 27

Pressure, tires 114

Pressure monitoring of tires, refer to Flat Tire Monitor 72

Pressure monitoring of tires, refer to Tire Pressure Monitor TPM 74

Programmable buttons on the steering wheel 11

Protection function, refer to Pinch protection system

-glass roof,electric 29

- windows 28

Providing medical assistance, refer to First add pouch 138

Puncture

- Flat Tire Monitor 72

R

Radio position, refer to Radio readiness 48

Radio readiness 48

– switched off 49

-switched on 48

Rain sensor 58

Reading lamps 85

Rear lamps, refer to Tail lamps 135

Rear seats

- adjusting head restraints 38

– folding down backrests 98

Rearview mirror, refer to Mirrors 42

Rear window defroster 88, 91

Recirculated-air mode 87, 90

Recirculation of air, refer to Recirculated-air mode 87, 90

Reflectors, refer to Tail lamps 135

Refueling 112

Releasing

- hood 122

Remaining distance, refer to Cruising range 64

Remote control 18

-battery renewal 27

- Comfort Access 26

- garage door opener 92

- malfunctions 21, 27

- removing from the ignition lock 48

– service data 126

- trunk lid 20

Remote control key, refer to Integrated key/remote control 18

Replacement fuses, refer to Fuses 137

Replacement remote control 18

Replacing bulbs, refer to Lamps and bulbs 132

Replacing tires, refer to New wheels and tires 120

Reporting safety defects 7

Reserve warning, refer to Fuel gauge 63

Reservoir for washer systems 59

Restraint systems, refer to Safety belts 41

Restraint systems for children 45

Retreaded tires 120

Reverse gear 54

– automatic transmission with Steptronic 51

– manual transmission 50

Roadside Assistance 138

Roadside parking lamps 83

-replacingbulbs133

Roadworthiness test, refer to Service requirements 66

Rollover protection system, Convertible 79

- resetting 79

Roof load capacity 159

Roof-mounted luggage rack 108

Rope, refer to Tow-starting, towing away 141

RSC Runflat System Component, refer to Run- flat tires 120

Runflat System Component RSC, refer to Run-flat tires 120

Run-flat tires 120, 121

- flat tire 73

– Inflation pressure 114

- new tires 120

– remaining driving distance, refer to Indication of a flat tire 73

– tire replacement 120

Runflat tyres, refer to Run-flat tires 120

S

Safety-belt height adjustment 41

Safety belts 41

- damage 42

-indicator lamp 42

- reminder 42

- sitting safely 35

Safety systems

- airbags 77

- Antilock Brake System ABS 71

– Dynamic Stability Control DSC 71

- rollover protection system, Convertible 79

- safety belts 41

Safety tires, refer to Run-flat tires 120

Saving fuel 104

Screw thread for tow fitting 140

Seat and mirror memory 40

Seat belt reminder, refer to "Fasten safety belts" reminder 42

Seats 36

- heating 40

- sitting safely 35

Securing cargo 99, 100

Selector lever, automatic transmission with Steptronic 51

Selector lever positions 53

Service, refer to Roadside Assistance 138

Service car, refer to Roadside Assistance 138

Service data in remote control 126

Service Interval Display, refer to Condition Based Service CBS 126

Service requirements 66

Settings

– clock, 12h/24h format 66

- date format 66

Shifting 55

- 7-gear sports automatic transmission with double clutch 54

Shifting gears with automatic transmission with Steptronic 52

Shift into a drive position, refer to Selector lever positions 53

Shiftlock, refer to Changing selector lever positions 51

Shift paddles on the steering wheel 55

Side airbags 77

Side windows, refer to Windows 27

Signal horn, refer to Horn 10

Sitting safely 35

-airbags 35

- safety belt 35

Ski bag 99

Sliding/tilt sunroof, refer to Glass roof, electric 29

Slot for remote control 48

Smokers' package, refer to Ashtray 97

Snap-in adapter, refer to Center armrest 95

Snow chains 121

Socket, refer to Connecting electrical appliances 97

Socket for Onboard Diagnosis OBD 127

Spare fuses 137

Special oils, refer to Approved engine oils 124

Specified engine oils, refer to Approved engine oils 124

Speed

– for winter tires 121

Speed display, refer to Speedometer 12

Speedometer 12

Sport program, automatic transmission with Steptronic 52

Sport program with 7-gear Sports automatic transmission with double clutch 54

Sports automatic transmission with double clutch 53

– driving dynamics control 55

– idle position 54

- kick-down 54

- Launch Control 57

– manually unlocking parking lock 56

- reverse gear 54

Spray nozzles, refer to Windshield washer nozzles 59

Stability control, refer to Driving stability control systems 70

Start/stop button 48

- starting the engine 49

– switching off the engine 49

Starting, refer to Starting the engine 49

Starting assistance, refer to Jump-starting 139

Starting the engine

-start/stop button 48

Status of this Owner's Manual at time of printing 5

Steam jet 128, 129

Steering wheel 43

-adjustment 43

- buttons on steering wheel 11

- heating 44

- shift paddles 55

Steering wheel shift paddles, refer to Shift paddles 55

Steering with variable ratio, refer to Active steering 76

Steptronic, refer to Automatic transmission with Steptronic 50

Storage 131

Storage compartment package 96

Storage compartments 96

Storing

- seat position, refer to Seat and mirror memory 40

– telephone numbers, refer to separate Owner's Manual

Storing tires 121

Stowage, refer to Storage compartments 96

Summer tires, refer to Wheels and tires 114

Switches, refer to Dashboard 10

Switching off

- engine 49

Switching off the engine

-start/stop button 48

Switching the cooling function on and off 87, 91

Symbols 4

T

Tachometer 62

Tailgate, refer to Trunk lid 23

Tail lamp, refer to Tail lamps 135

-replacing bulb 135

Tail lamps 135

-replacing bulb 135

Tank contents, refer to Capacities 160

Technical changes 5

Technical data 156

Telephone, installation location, refer to Center armrest 95

Telephone, refer to separate Owner's Manual

Temperature display

- outside temperature 62

- outside temperature warning 62

- setting the units 66

Tempomat, refer to Cruise control 60

Thigh support 36

Third brake lamp, refer to Center brake lamp 136

Three-point safety belt 41

Through-loading system 98

Tilt alarm sensor 25

Tilt function, passenger-side mirror 43

Tire inflation pressure 114

-loss 73

Tire pressure monitoring, refer to Flat Tire Monitor 72

Tire Pressure Monitor TPM 74

- resetting the system 74

– system limitations 74

– warning lamp 75

Tire puncture, refer to Flat Tire Monitor 73

Tire Quality Grading 118

Tires

-age 118

- air loss 75

- breaking in 104

- changing, refer to Changing wheels 136

- condition 119

- damage 119

– inflation pressure 114

- labels 118

– minimum tread depth 119

- new tires 120

– pressure monitoring, refer to Flat Tire Monitor 72

– pressure monitoring, refer to Tire Pressure Monitor TPM 74

- puncture 73

- retreaded 120

-size 118

- wear indicators, refer to Minimum tread depth 119

- winter tires 121

Tools, refer to Onboard vehicle tool kit 132

Torque, refer to Engine data 156

Tow bar 141

Tow fitting 140

Tow fittings for tow-starting and towing away 140

Towing 140

- car with automatic transmission 140

-methods 141

– with 7-gear Sports automatic transmission with double clutch 141

Towing and tow-starting 140

Tow rope 141

Tow-starting 140

TPM, refer to Tire Pressure Monitor 74

Traction control, refer to Dynamic Stability Control DSC 71

Transmission

- 7-gear Sports automatic transmission with double clutch 53

– automatic transmission with Steptronic 50

– idle position 54

- Launch Control 57

– manually unlocking parking lock 56

- manual transmission 50

- reverse gear 54

Transporting children safely 45

Transport securing devices, refer to Securing cargo 108

Tread depth, refer to Minimum tire tread 119

Trip-distance counter, refer to Trip odometer 62

Triple turn signal activation 57

Trip odometer 62

Trunk, refer to Cargo area

Trunk lid 23

- Comfort Access 26

- emergency release 24

- opening from outside 23

- unlocking with remote control 20

Turning circle, refer to Dimensions 157

Turn signals 57

-indicator lamp 12

-replacingbulbs134

– triple turn signal 57

Tying down loads, refer to Cargo loading 108

U

Underbody protection, refer to Caring for your vehicle 128

Uniform Tire Quality Grading/UTQR 118

Units

– average fuel consumption 66

Units of measure

- temperature 66

Universal garage door opener, refer to Integrated universal remote control 92

Unlatching, refer to Unlocking 19

Unlocking

– from inside 23

- from outside 19

- trunk lid 26

– without remote control, refer to Comfort Access 26

Unlocking without a key, refer to Comfort Access 26

V

Vehicle

-battery 136

- breaking in 104

-cargo loading 106

– decommissioning, refer to Vehicle storage 131

-dimensions157

– Identification Number, refer to Engine compartment 123

- parking 49

- weight 159

Vehicle jack 136

Vehicle storage 131

Ventilation 88, 91

-draft-free 88,91

Vents, refer to Air vents 86

Vents, refer to Ventilation 88, 91

Volume

– fuel tank, refer to Capacities 160

W

Warning and indicator lamps 13, 143

Warning messages, refer to Check Control 68

Warning triangle 139

Washer fluid 59

– content of the reservoir 59

Washer fluid filler neck 59

Waste tray, refer to Ashtray 97

Water on roads, refer to Driving through water 106

Water penetration 128, 129

Wear indicators in tires, refer to Minimum tread depth 119

Weights 159

Welcome lamps 81

Wheelbase, refer to Dimensions 157

Wheels, new 120

Wheels and tires 114

Width, refer to Dimensions 157

Windows 27

- convenient operation 20

– convenient operation with Comfort Access 26

- opening, closing 27

- pinch protection system 28

Window washer system 58

Windshield

- cleaning 59

– defrosting and removing condensation 88, 91

Windshield wash

– filling capacity, reservoir 160

Windshield washer reservoir, refer to Washer fluid filler neck 59

Windshield washer system

- spray nozzles 59

- washer fluid 59

Windshield wiper blades, changing 132

Windshield wipers, refer to Wiper system 58

Winter tires 121

- storage 121

Wiper blade replacement 132

Wiper system 58

Wrench/screwdriver, refer to Onboard vehicle tool kit 132

X

Xenon lamps

-replacing bulb 133

More about BMW bmwusa.com The Ultimate Driving Machine

More about BMW

bmwusa.com

The Ultimate Driving Machine
