USER MANUAL Astra Twintop (2010) OPEL

Keys, doors and windows ..... 20

Seats, restraints 47

Storage 65

Instruments and controls 83

Lighting 114

Infotainment system 121

Climate control 124

Driving and operating 132

Vehicle care 157

Service and maintenance ..... 203

Technical data 216

Customer information 262

Index 264

2 Introduction

Introduction

Fuel	Designation
Engine oil	Grade
	Viscosity

Tyre pressure	Tyre size	Front	Rear
Summer tyres
Winter tyres

Weights

Gross vehicle weight rating

- Kerb weight, basic model

= Loading

Vehicle specific data

Please enter your vehicle's data on the previous page to keep it easily accessible. This information is available in the sections "Service and maintenance" and "Technical data" as well as on the identification plate.

Introduction

Your vehicle is a designed combination of advanced technology, safety, environmental friendliness and economy.

This Owner's Manual provides you with all the necessary information to enable you to drive your vehicle safely and efficiently.

Make sure your passengers are aware of the possible risk of accident and injury which may result from improper use of the vehicle.

You must always comply with the specific laws and regulations of the country that you are in. These laws may differ from the information in this Owner's Manual.

When this Owner's Manual refers to a workshop visit, we recommend your Opel Service Partner.

All Opel Service Partners provide first-class service at reasonable prices. Experienced mechanics trained by Opel work according to specific Opel instructions.

The customer literature pack should always be kept ready to hand in the vehicle.

Using this manual

■ This manual describes all options and features available for this model. Certain descriptions, including those for display and menu functions, may not apply to your vehicle due to model variant, country specifications, special equipment or accessories.
■ The "In brief" section will give you an initial overview.
■ The table of contents at the beginning of this manual and within each chapter shows where the information is located.

■ The index will enable you to search for specific information.
■ This Owner's Manual depicts left-hand drive vehicles. Operation is similar for right-hand drive vehicles.
■ The Owner's Manual uses the factory engine designations. The corresponding sales designations can be found in the chapter "Technical data".
■ Directional data, e.g. left or right, or front or back, always relate to the direction of travel.
■ The vehicle display screens may not support your specific language.
■ Display messages and interior labelling are written in bold letters.

Danger, Warnings and Cautions

Danger

Text marked △Danger provides information on risk of fatal injury. Disregarding this information may endanger life.

4 Introduction

⚠ Warning

Text marked △Warning provides information on risk of accident or injury. Disregarding this information may lead to injury.

Caution

Text marked Caution provides information on possible damage to the vehicle. Disregarding this information may lead to vehicle damage.

Symbols

Page references are indicated with ➔. ➔ means "see page".

We wish you many hours of pleasurable driving.

Adam Opel GmbH

Introduction 5

In brief

Initial drive information

Vehicle unlocking

Radio remote control

Illustration of a remote control switch with a downward arrow (no text or symbols)

Press button ≥ to unlock and open door.

To open the tailgate, press the button under the moulding.

To open the boot lid on Saloon 4-door: Press button ≥ on the remote control for at least 2 seconds, the boot lid is unlocked and opens slightly.

Radio remote control 20, Central locking system 25, Load compartment 28.

Electronic key

Illustration of a person standing beside a car with a magnified inset showing a magnified view of the car's side profile (no text or symbols present)

When in possession of the electronic key, simply pulling the door handle will unlock the vehicle and open the door. To open the tailgate, press the button under the moulding.

Open&Start system ↩ 22.

Seat adjustment

Seat positioning

Illustration of a car seatbelt with directional arrows indicating seat movement (no text or symbols)

Pull handle, slide seat, release handle.

Seat adjustment 49, Seat position 49.

Seat backrests

Line drawing of a car seat with directional arrows indicating motion (no text or symbols)

Turn handwheel. Do not lean on seat when adjusting.

Seat adjustment 49, Seat position 49, Folding front passenger seat backrest 51.

Seat height

Car seatbelt diagram showing seat, seatbelt, and seatbelt with directional arrows (no text or symbols)

Lever pumping motion

up = higher

down = lower

Seat adjustment 49, Seat position 49.

8 In brief

Seat inclination

Illustration of a car seatbelt with directional arrows indicating movement or force (no text or symbols)

Pull lever, adjust inclination by shifting body weight. Release lever and audibly engage seat in position. Seat adjustment 49, Seat position 49.

Head restraint adjustment

Illustration of a car head with two directional arrows indicating vertical and horizontal movement (no text or symbols)

Press release button, adjust height, engage.
Head restraints 47.

Seat belt

Illustration of a person sitting in a car, wearing a seatbelt and holding the steering wheel (no text or symbols visible)

Pull out the seat belt and engage in belt buckle. The seat belt must not be twisted and must fit close against the body. The backrest must not be tilted back too far (maximum approx. 25°).
To release belt, press red button on belt buckle.
Seat belts 53, Airbag system 56, Seat position 49.

Mirror adjustment Interior mirror

Diagram showing a car interior panel with a downward arrow pointing to the mirror (no text or symbols present)

Swivel the lever on the underside to reduce dazzle.

Interior mirror ➔ 34, Automatic anti-dazzle interior mirror ➔ 34.

Exterior mirrors

Electric adjustment

Interior view of a car dashboard with a close-up of the control panel (no visible text or symbols)

Select the relevant exterior mirror and adjust.

Electric adjustment 33, Convex exterior mirrors 32, Folding exterior mirrors 33, Heated exterior mirrors 34.

Steering wheel adjustment

Diagram of a car steering wheel with directional arrows indicating rotation (no text or symbols)

Unlock lever, adjust steering wheel, then engage lever and ensure it is fully locked. Do not adjust steering wheel unless vehicle is stationary and steering wheel lock has been released.

Airbag system ↩ 56, Ignition positions ↩ 133

10 In brief

Diagram of a car dashboard with numbered parts for identification

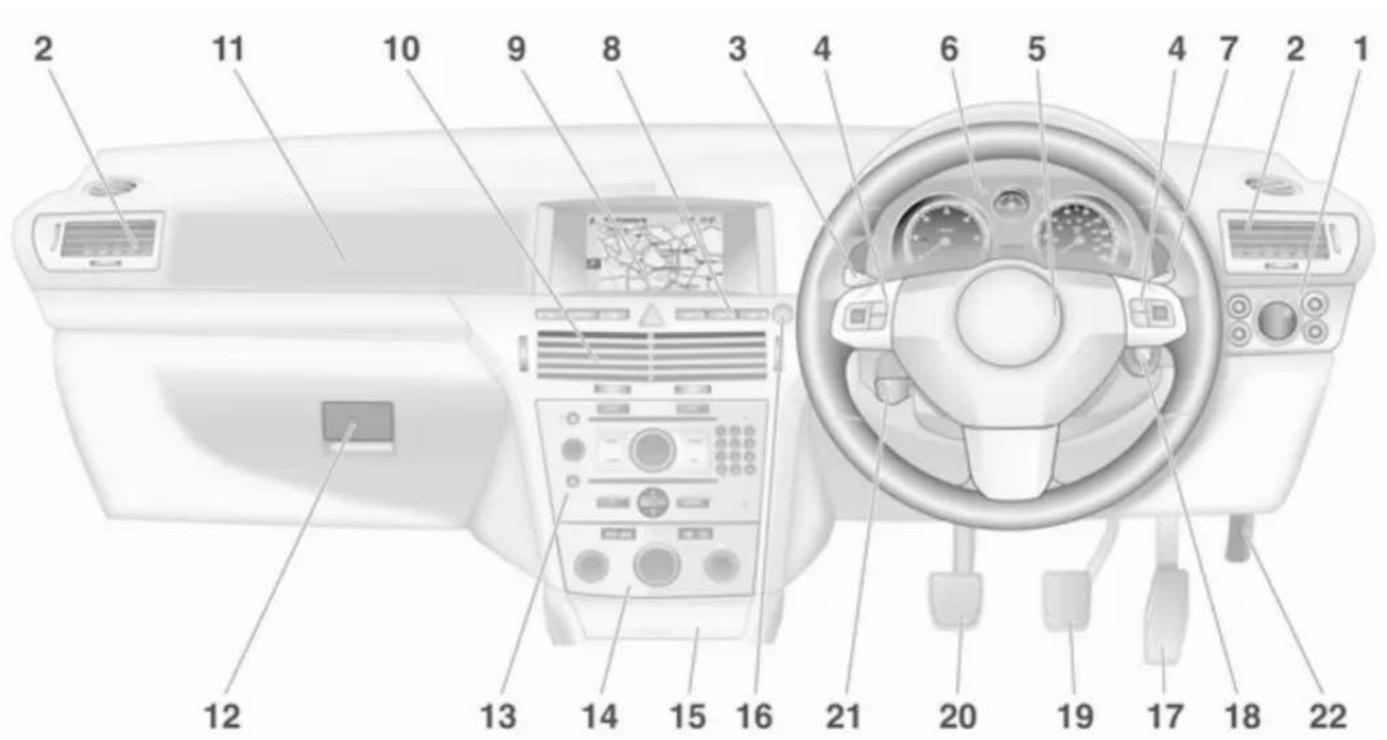

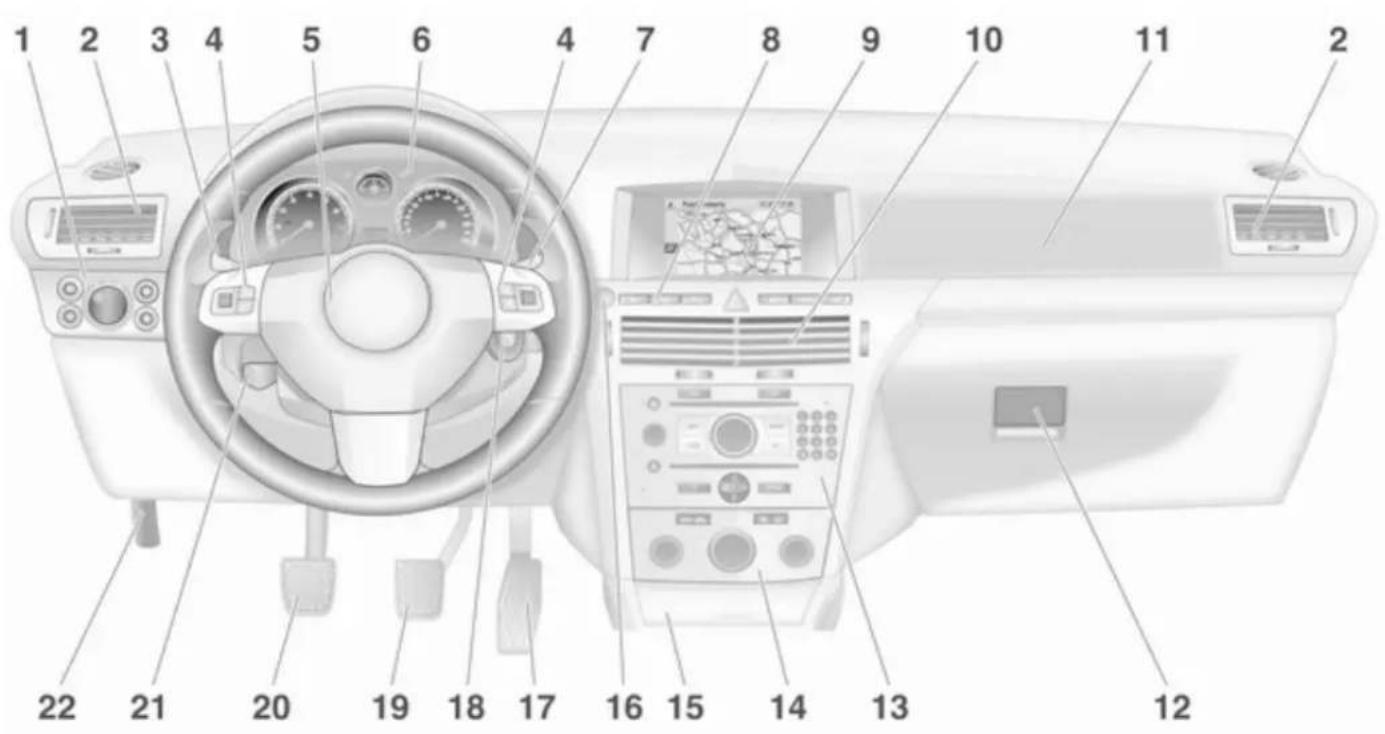

Instrument panel overview

1 Light switch 114
Instrument illumination ..... 118
Rear fog light 117
Front fog lights 117
Headlight range adjustment 115

2 Side air vents 130

3 Turn and lane-change signals, headlight flash, low beam and high beam ... 117 Exit lighting .... 119 Parking lights .... 117 Cruise control .... 99

4 Steering wheel controls ..... 83

5 Horn 84 Driver airbag 56

6 Instruments 89

7 Windscreen wiper, windscreen washer system, headlight washer system 84

8 Left heated seat 52
Deflation detection system .. 188

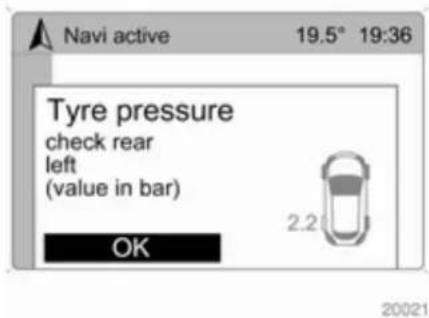

Tyre pressure monitoring system 187
Load compartment unlocking 28
Ultrasonic parking sensors ... 95
Hazard warning flashers ..... 116
Central locking system ...... 25
Sport mode 95
Right heated seat 52

9 Info-Display .... 99 Trip computer .... 109 Electronic climate control system .... 127

10 Centre air vents 130

11 Front passenger airbag ..... 56

12 Glovebox 65

13 Infotainment system ...... 121

14 Climate control system ..... 124

15 Ashtray 88

16 Start/Stop button 22

17 Accelerator pedal 132

18 Ignition switch with steering wheel lock .... 133 Sensor panel for emergency operation of Open&Start system .... 22

19 Brake pedal 145

20 Clutch pedal 132

21 Steering wheel adjustment .... 83

22 Bonnet release lever 158

12 In brief

Diagram of car interior with numbered labels pointing to various components such as dashboard, steering wheel, and air conditioner.

Exterior lighting

Close-up of a camera control panel with buttons and display (no readable text or symbols)

Turn light switch

0 = Off

= Side lights

≡D = Headlights

AUTO = Automatic light control

Press light switch

≠D = Front fog lights

0‡ = Rear fog light

Lighting 114.

Headlight flash, high beam and low beam

Illustration of a 13D printer with bidirectional arrows indicating compression or disassembly (no text or symbols)

Headlight flash = Pull lever

High beam = Push lever

Low beam = Push or pull lever

High beam 115, Headlight flash 115.

Turn and lane-change signals

Close-up of a gray USB flash drive with directional arrows indicating left and right motion (no text or symbols)

To the right = Lever up

To the left = Lever down

Turn and lane-change signals ↔ 117.

14 In brief

Hazard warning flashers

Pure electrical circuit lines without any symbols

Operated with the △ button.

Hazard warning flashers ➔ 116.

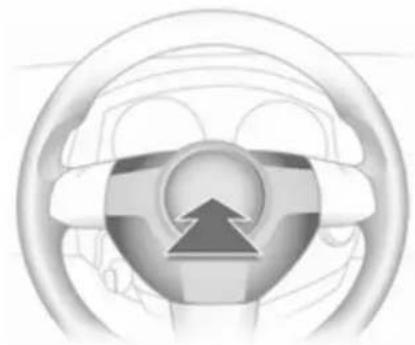

Horn

Interior view of a car steering wheel with an upward arrow indicating speed (no text or symbols)

Press ▶.

Washer and wiper systems
Windscreen wiper

Close-up of a car door handle with directional arrows indicating traffic flow (no text or symbols)

= = fast

— = slow

-- = timed interval wipe or automatic wiping with rain sensor

O = off

For a single wipe when the windscreen wiper is off, press the lever down.

Windscreen wiper 84, Wiper blade replacement 162.

Windscreen and headlight washer systems

Close-up of a computer mouse with a downward arrow indicating compression (no text or symbols visible)

Pull lever.

Windscreen and headlight washer system 84, Washer fluid 161.

Rear window wiper and washer systems

Close-up of a computer mouse with a button labeled '10' and 'P1', showing a right-pointing arrow (no text or symbols on the mouse itself)

Wipers on = push lever

Wipers off = push lever again

Wash = push lever and hold

Rear window wipers and washer system 85, Wiper blade replacement 162, Washer fluid 161.

Climate control

Heated rear window, heated exterior mirrors

Front view of a white appliance control panel with three rotary dials and a digital display (no visible text or symbols)

Heating is operated by pressing the 📄 button.

Heated rear window ➔ 37.

16 In brief

Demisting and defrosting the windows

Close-up of a car air conditioner front panel with three rotary controls (no visible text or symbols)

Air distribution to 📄.

Set temperature control to warmest level.

Set fan speed to highest level or to A.

Cooling ⚙ on.

Press button 📋.

Climate control system ↩ 124.

Transmission
Manual transmission

Mechanical gear shift lever mechanism (no text or symbols visible)

Reverse: with the vehicle stationary, wait 3 seconds after depressing clutch pedal and then pull up the button on the selector lever and engage the gear.

If the gear does not engage, set the lever in neutral, release the clutch pedal and depress again; then repeat gear selection.

Manual transmission 140.

Manual transmission automated

Diagram of a mechanical switch mechanism with labeled components A, N, R and directional arrows indicating rotation or force

N = neutral

● = drive

+ = higher gear

- = lower gear

A = switch between Automatic and Manual mode

R = reverse gear (with selector lever lock)

Manual transmission automated 141.

Automatic transmission

Close-up of a car intake manifold with a hand adjusting the mode (no text or symbols visible)

P = park

R = reverse

N = neutral

D = drive

The selector lever can only be moved out of P or N when the ignition is on and the foot brake is depressed (Selector lever lock). To engage P or R, push button on selector lever.

The automatic transmission is available in two versions 136.

Starting off

Check before starting off

■ Tyre pressure and condition ⇨ 186, ➡ 243.

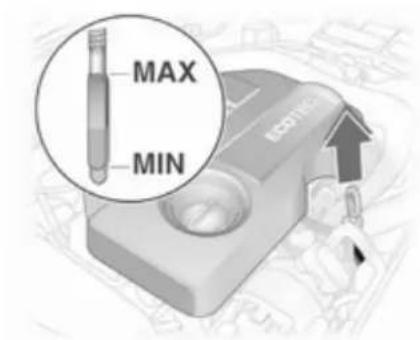

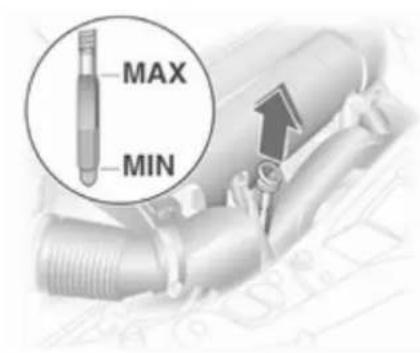

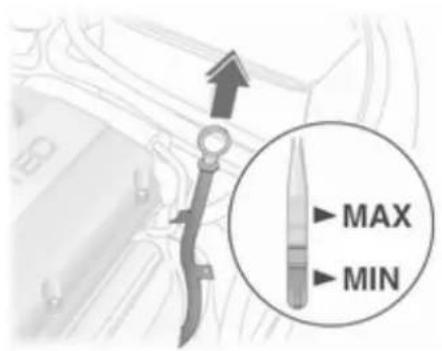

■ Engine oil level and fluid levels 159.
■ All windows, mirrors, exterior lighting and number plates are free from dirt, snow and ice and are operational.
■ Proper position of seats, seat belts and mirrors 49, 54, 33.
■ Brake function at low speed, particularly if the brakes are wet.

Starting engine with ignition switch

1 2 3 0 30047

Turn key to position 1. Move the steering wheel slightly to release the steering wheel lock. Operate clutch and brake, automatic transmission in P or N, do not accelerate; for diesel engines, turn the key to position 2 for preheating and wait until control indicator 00 goes out; turn key to 3 and release key when engine is running.

Starting engine with Start/Stop button

Interior view of a car air conditioner unit with a circular dial indicator (no visible text or symbols)

The electronic key must be inside the vehicle. Operate clutch and brake, automatic transmission in P or N, do not accelerate, for diesel engine, press the button briefly to start preheating, move the steering wheel slightly to release the steering wheel lock, wait until control indicator 700 goes out and then press button for 1 second and release when the engine is running.

Open&Start system ↩ 22.

Parking

■ Always apply the parking brake without pressing the release button. Apply as firmly as possible on a downhill slope or uphill slope. Depress the foot brake at the same time to reduce operating force.

■ Switch off the engine. Turn the ignition key to 0 and remove it or, with the vehicle stationary, press the Start/Stop button and open the driver's door. Turn the steering wheel until the steering wheel lock is felt to engage.

For vehicles with automatic transmission, the key can only be removed when the selector lever is in the P position. If P is not engaged or the parking brake is not applied, "P" flashes for a few seconds in the transmission display.

■ If the vehicle is on a level surface or uphill slope, engage first gear or set the selector lever to P before switching off the ignition. On an uphill slope, turn the front wheels away from the kerb.

If the vehicle is on a downhill slope, engage reverse gear or set the selector lever to P before switching off the ignition. Turn the front wheels towards the kerb.

■ Lock the vehicle with button = on the radio remote control or with the sensor in a front door handle.
To activate the anti-theft locking system and the anti-theft alarm system, press button = twice or touch the sensor in a front door handle twice.
■ Do not park the vehicle on an easily ignitable surface. The high temperature of the exhaust system could ignite the surface.
■ On vehicles with manual transmission automated, control indicator Ⓐ flashes for a few seconds after the ignition is switched off if the parking brake has not been applied ➔ 106.
■ Close windows and sunroof or TwinTop.

In brief 19

■ The engine cooling fans may run after the engine has been switched off 158.
■ After running at high engine speeds or with high engine loads, operate the engine briefly at a low load or run in neutral for approx. 30 seconds, before switching off in order to protect the turbocharger.
Keys, locking 20, Laying the vehicle up for a long period of time 157, TwinTop roof operation 40.

Keys, doors and windows

Keys, locks 20

Doors 28

Vehicle security 30

Exterior mirrors 32

Interior mirrors 34

Windows 35

Roof 38

Keys, locks

Keys

Replacement keys

The key number is specified in the Car Pass or on a detachable tag.

The key number must be quoted when ordering replacement keys as it is a component of the immobiliser system.

Locks 200, Open&Start system, electronic key 22.

Key with foldaway key section

3D illustration of a handheld device with a downward arrow pointing to its top component (no text or symbols)

Press button to extend. To fold the key, first press the button.

Car Pass

The Car Pass contains security related vehicle data and should therefore be kept in a safe place.

When the car is taken to a workshop, this vehicle data is needed in order to perform certain operations.

Radio remote control

Close-up of a transparent plastic electronic component with two downward arrows indicating force or movement (no text or symbols)

Used to operate:

■ Central locking system
■ Anti-theft locking system
■ Anti-theft alarm system
■ Power windows
■ Electric roof on Astra TwinTop

The radio remote control has an approximate range of up to 5 metres. This range can be affected by outside influences. The hazard warning flashers confirm operation.

Handle with care, protect from moisture and high temperatures and avoid unnecessary operation.

Fault

If the central locking system cannot be operated with the radio remote control, it may be due to the following:

■ Range exceeded
■ Battery voltage too low
■ Frequent, repeated operation of the radio remote control while not in range, which will require re-synchronisation

■ Overload of the central locking system by operating at frequent intervals, the power supply is interrupted for a short time
■ Interference from higher-power radio waves from other sources Unlocking 25.

Radio remote control battery replacement

Replace the battery as soon as the range reduces.

Batteries do not belong in household waste. They must be disposed of at an appropriate recycling collection point.

Key with foldaway key section

Illustration of a hand holding a device with an arrow indicating upward motion (no text or symbols)

Extend the key and open the unit. Replace the battery (battery type CR 2032), paying attention to the installation position. Close the unit and synchronise.

Key with fixed key section Have the battery replaced by a workshop.

22 Keys, doors and windows

Radio remote control synchronisation

After replacing the battery, unlock the door with the key in the driver's door lock. The radio remote control will be synchronised when you switch on the ignition.

Memorised settings

Whenever the key is removed from the ignition lock, the following settings are automatically remembered by the key:

■ Electronic climate control
■ Info-Display
■ Infotainment system
■ Instrument panel illumination

The saved settings are automatically used next time that key is used for unlocking.

Open&Start system

Illustration of a person standing beside a car with a measuring tape, showing the side view of the car (no text or symbols present)

Makes operation of the following possible without the use of the mechanical key:

■ Central locking system
■ Anti-theft locking system
■ Anti-theft alarm system
■ Power windows
■ Ignition and starter

The electronic key simply needs to be in the driver's possession.

Close-up of a car air conditioner unit with a circular dial indicator and control panel (no visible text or symbols)

Press the Start/Stop button. The ignition is switched on. The electronic immobiliser and steering wheel lock are deactivated.

To start the engine press and hold the Start/Stop button whilst applying both the brake and clutch pedals.

Automatic transmission: the engine can only be started with the selector lever in P or N.

The engine and the ignition are switched off by pressing the Start/Stop button again. The vehicle must be stationary. The immobiliser is activated at the same time.

If the ignition has been switched off and the vehicle is stationary, the steering wheel lock activates automatically when the driver's door is opened or closed.

Control indicator 📄) 98.

Note

Do not put the electronic key in the load compartment or in front of the Info-Display.

The sensor fields in the door handles must be kept clean to ensure unrestricted functionality.

If the battery is discharged, the vehicle must not be towed, tow-started or jump-started as the steering wheel lock cannot be disengaged.

Radio remote control

Illustration of a remote control box with two downward arrows indicating flow or action (no text or symbols)

The electronic key likewise has a radio remote control feature.

Emergency operation

Two-step illustration of a hand holding a tool, showing step 1 and step 2 of a device (no text or symbols)

If the radio remote control also fails, the driver's door can be locked or unlocked with the emergency key contained in the electronic key: press locking mechanism and remove the cap by applying light pressure. Push the emergency key outwards over the detent and remove.

24 Keys, doors and windows

Illustration of a car door handle with a circular arrow indicating rotation (no text or symbols)

The emergency key can only lock or unlock the driver's door. Unlocking the entire vehicle 25. On vehicles with anti-theft alarm system, the alarm may be triggered when the vehicle is unlocked. Deactivate the alarm by switching on the ignition.

Illustration of a hand pressing a circular button with an arrow, no text or symbols present

Hold the electronic key at the marked position and press the Start/Stop button.

To switch off the engine, press the Start/Stop button for at least 1 second.

Lock the driver's door with the emergency key. Locking the entire vehicle ➔ 25.

This option is intended for emergencies only. Seek the assistance of a workshop.

Replacing battery in electronic key

Replace the battery as soon as the system no longer operates properly or the range is reduced. The need for battery replacement is indicated by InSP3 in the service display or by a check control message in the Info-Display.

Service display ➔ 91, Info-Display ➔ 107.

Batteries do not belong in household waste. They must be disposed of at an appropriate recycling collection point.

Illustration of a handheld device with a circular lens and a separate rectangular clip, no text or symbols present.

To replace the battery, press the locking mechanism and remove the cap by applying light pressure. Press the cap on the other side outwards.

Replace the battery (battery type CR 20 32), noting the installation position. Engage caps.

Radio remote control synchronisation

The radio remote control synchronises itself automatically during every starting procedure.

Fault

If the central locking cannot be operated or the engine cannot be started, the cause may be one of the following:

■ fault in remote control ➔ 20
■ electronic key out of reception range

To rectify the cause of the fault, change the position of the electronic key.

Central locking system

Unlocks and locks doors, load compartment and fuel filler flap.

A pull on an interior door handle unlocks the entire vehicle and opens the door.

Note

In the event of an accident of a certain severity, the vehicle unlocks automatically.

Note

A short time after unlocking with the remote control the doors are locked automatically if no door has been opened.

Unlocking

Radio remote control

Illustration of a remote control switch with a downward arrow (no text or symbols)

Press button ≥ .

26 Keys, doors and windows

Electronic key

Illustration of a hand holding a tool with a curved arrow, no text or symbols present

Pull a door handle or press the button under the tailgate moulding.

The electronic key must be outside the vehicle, within a range of approximately 1 metre.

Locking

Close doors, load compartment and fuel filler flap. If the driver's door is not closed properly, the central locking system will not work.

Radio remote control

3D illustration of a download icon on a computer mouse (no text or symbols)

Press button =.

Electronic key

Illustration of a hand holding a pen or stylus (no text or symbols visible)

Touch the sensor field in the door handle of one of the front doors.

The electronic key must be outside the vehicle, within a range of approximately 1 metre. The other electronic key must not be inside the vehicle.

2 seconds must pass before the vehicle can be unlocked. Within this time, it is possible to check that the vehicle is locked.

Note

The vehicle is not automatically locked.

Central locking button

Pure electrical circuit lines without any symbols

Press the 📄 button: the doors are locked or unlocked.

The LED in the button 📄 illuminates for approx. 2 minutes after locking with the radio remote control.

If the doors are locked from the inside whilst driving, the LED remains lit.

If the key is in the ignition switch, locking is only possible if all doors are closed.

Fault in remote control or Open&Start system

Unlocking

Illustration of a hand holding a device with an arrow indicating rotation (no text or symbols)

Turn key or emergency key ➔ 22 in the driver's door lock as far as it will go. The entire vehicle is unlocked when the driver's door is opened.

For Astra TwinTop with open roof - after opening the driver's door, press the central locking button 📄. The vehicle will then be unlocked, provided the anti-theft locking system is not engaged. Switch on the ignition to deactivate the anti-theft alarm system. Open&Start system ➔ 22.

Locking

Close the driver's door, open the passenger door, press central locking button 📄. The vehicle is locked. Close the passenger door.

Fault in central locking system

Unlocking

Turn key or emergency key ➔ 22 in the driver's door lock as far as it will go. The other doors can be opened by using the interior handle (not possible if the anti-theft locking system is active). The load compartment and

fuel filler flap remain locked. To deactivate the anti-theft locking system, switch on the ignition ➔ 30.

Manual unlocking of boot lid Folding the rear seat backrests 51.

Diagram of a car rearview showing the door handle and gear shift (no text or symbols)

From the interior, turn the rotary knob on the inside of the boot lid anticlockwise, this unlocks the boot lid and opens it slightly.

28 Keys, doors and windows

Locking

Hand inserting a small mechanical component into a white electrical outlet (no text or symbols visible)

Insert key or emergency key 22 into opening above lock on inside of door and operate lock by pressing until it clicks. Then close the door. The procedure must be carried out for each door. The driver's door can also be locked from the outside with the key. The fuel filler flap and tailgate/boot lid cannot be locked.

Child locks

Illustration of a hand inserting a key into a car door panel (no text or symbols visible)

Warning

Use the child locks whenever children are occupying the rear seats.

Using a key or suitable screwdriver, turn button on rear door lock to the horizontal position: door cannot be opened from inside.

Doors

Load compartment Opening

Illustration of a hand pressing down on a car's side panel with an upward arrow (no text or symbols)

Push the button under the tailgate moulding.

⚠ Warning

Do not drive with the tailgate open or ajar, e.g. when transporting bulky objects, since toxic exhaust gases could enter the vehicle.

Note

The installation of certain heavy accessories onto the tailgate may affect its ability to remain open.

Central locking system ➔ 25

Saloon 4-door

Close-up of a white industrial fan grille with indicator lights and a car icon (no readable text or symbols)

To unlock the boot lid, press button or press button ≥ of the remote control for at least 2 seconds, the boot lid is opened slightly.

3D rendered image of a remote control device with a downward arrow pointing to the button (no text or symbols visible)

With the doors centrally locked, the boot lid cannot be unlocked with button 📄.

Closing

Diagram of a vehicle rear bumper with an arrow indicating direction (no text or symbols present)

Use the interior handle.

Do not press the button under the moulding while closing as this will unlock it again.

Close boot lid. The closed boot lid is always locked. To lock the doors, press button = on the remote control.

30 Keys, doors and windows

Vehicle security

Anti-theft locking system

⚠ Warning

Do not use the system if there are people in the vehicle! The doors cannot be unlocked from the inside.

The system deadlocks all doors. All doors must be closed or the system cannot be activated.

If the ignition was on, the driver's door must be opened and closed once so that the vehicle can be secured.

Unlocking the vehicle disables the mechanical anti-theft locking system. This is not possible with the central locking button.

Activating with the radio remote control

3D illustration of a device with a downward arrow and '2x' label, no readable text or symbols beyond the label

Press = twice within 15 seconds.

Activating with the electronic key

Hand holding a flat tool, no visible text or symbols

Touch the sensor field in the front door handle twice within 15 seconds. The electronic key must be outside the vehicle, within a range of approximately one metre.

Anti-theft alarm system

The anti-theft alarm system incorporates and is operated in conjunction with the anti-theft locking system.

It monitors:

■ Doors, load compartment, bonnet,
■ Passenger compartment,
■ Vehicle inclination, e.g. if it is raised,
■ Ignition.

Unlocking the vehicle deactivates both systems simultaneously.

Note

Changes to the vehicle interior, such as the use of seat covers, could impair the function of passenger compartment monitoring.

Activation without monitoring of passenger compartment and vehicle inclination

Close-up of a car interior panel with a black arrow pointing to a button (no text or symbols visible)

Switch off the monitoring of passenger compartment and vehicle inclination, when people or animals are being left in the vehicle, because of high volume ultrasonic signals, movements triggering the alarm and when the vehicle is on a ferry or train.

1. Close load compartment and bonnet
2. Press button ①. The LED in button flashes for maximum 10 seconds

3. Close doors

1. Activate the anti-theft alarm system. The LED illuminates. After approx. 10 seconds, the system is armed. The LED flashes until the system is deactivated

For Astra TwinTop, passenger compartment monitoring is deactivated if the roof is open to prevent false alarms.

Light-emitting diode (LED)

Pure electrical circuit lines without any symbols

32 Keys, doors and windows

During the first 10 seconds of anti-theft alarm system activation:

LED = Test, ignition delay

illuminates

LED = Door, load

flashes compartment or

quickly bonnet open, or

system fault

After the first 10 seconds of anti-theft alarm system activation:

LED flashes = System active slowly

LED comes = Switch off function

on for approx.

1 second

Seek the assistance of a workshop in the event of faults.

Alarm

When triggered, the alarm gives off an acoustic signal (horn) and a visual signal (hazard warning flashers). The number and duration of which are stipulated by legislation.

The alarm siren can be silenced by pressing a button of the radio remote control or by switching on the ignition. The anti-theft alarm system is deactivated at the same time.

Immobiliser

The system checks whether the vehicle is allowed to start with the key being used. If the transponder in the key is recognised, the engine can be started.

The electronic immobiliser activates itself automatically after the key has been removed from the ignition switch or when the engine is switched off by pressing the Start/Stop button.

Control indicator ↗ 94.

Note

The immobiliser does not lock the doors. You should always lock the vehicle after leaving it and switch on the anti-theft alarm system 25, 30.

Exterior mirrors

Convex shape

The convex exterior mirror reduces blind spots. The shape of the mirror makes objects appear smaller, which will affect the ability to estimate distances.

Manual adjustment

Side profile illustration of a car's front and side mirror (no text or symbols)

Adjust mirrors by swivelling lever in required direction.

Electric adjustment

Interior view of a car dashboard with a close-up inset showing a control panel (no text or symbols visible)

First select the relevant exterior mirror then swivel the control to adjust.

Folding

Abstract 3D icon of a curved arrow with circular motion arrows, no text or symbols present

For pedestrian safety, the exterior mirrors will swing out of their normal mounting position if they are struck with sufficient force. Reposition the mirror by applying slight pressure to the mirror housing.

Manual folding

The exterior mirrors can be folded in by pressing gently on the outer edge of the housing.

Electric folding

Interior view of a car showing a camera and touchscreen device with an inset close-up of the lens (no text or symbols visible)

Press the ⏻ button and both exterior mirrors will fold.
Press button 📋 again - both exterior mirrors return to their original position. If an electrically folded mirror is manually extended, pressing the 📋 button will only electrically extend the other mirror.

34 Keys, doors and windows

Heated

Front view of a washing machine control panel with rotary dials and indicator lights (no visible text or symbols)

Operated by pressing the 📄 button. Heating functions with the engine running and is switched off automatically after a short time.

Interior mirrors
Manual anti-dazzle

Diagram showing a car interior panel with a downward arrow indicating left motion (no text or symbols)

To reduce dazzle, adjust the lever on the underside of the mirror housing.

Automatic anti-dazzle

Side view of a car dashboard and front mirror (no text or symbols visible)

Dazzle from following vehicles at night is automatically reduced.

Windows

Power windows

⚠ Warning

Take care when operating the power windows. Risk of injury, particularly to children.

If there are children on the rear seats, switch on the child safety system for the electric windows.

Keep a close watch on the windows when closing them. Ensure that nothing becomes trapped in them as they move.

Power windows can be operated

■ with ignition on
■ within 5 minutes of switching ignition off
■ within 5 minutes of switching ignition key to position 1

After switching off the ignition, the standby feature ceases when the driver's door is opened.

Close-up of a white electronic device with a control panel and buttons (no visible text or symbols)

Operate the control to open or close the window.

For vehicles with automatic feature pull or press the switch again to stop window movement.

Astra TwinTop: when a door is opened the window opens slightly and closes automatically when the door is closed.

Safety function

If the window glass encounters resistance above the middle of the window during automatic closing, it is immediately stopped and opened again.

In the event of closing difficulties due to frost or the like, operate the switch several times to close the window in stages.

Central switch for electric windows, Astra TwinTop

Diagram showing a car interior panel with a zoomed-in view of the dashboard and a small icon labeled '图片' (image) pointing to the control panel.

Press ^4 or ^4 to open or close all windows.

36 Keys, doors and windows

Child safety system for rear windows

Interior view of a car air conditioner unit (no text or symbols visible)

Switch 📄 can be used to activate or deactivate the switches in the rear doors.

Operating windows from outside The windows can be operated remotely from outside the vehicle.

Radio remote control

Three-panel image showing a curved metallic object with a small metallic component inserted into it, alongside two views of the same object (no text or symbols visible)

Press ≥ or = until all windows have opened or closed.

Open&Start system

Hand holding a flat tool, no visible text or symbols

To close, touch the sensor field in the door handle until all windows are completely closed.

The electronic key must be outside the vehicle, within a range of approximately one metre.

Overload

If the windows are repeatedly operated within short intervals, the window operation is disabled for some time.

Fault

If the windows cannot be opened or closed automatically, activate the window electronics as follows:

1. Close doors
2. Switch on ignition
3. Close the window completely and operate the button for a further 5 seconds
4. Open the window completely and operate the button for a further 1 second
5. Repeat for each window

Heated rear window

Front view of a white appliance control panel with dials and a digital display (no visible text or symbols)

Operated by pressing the button. Heating functions with the engine running and is switched off automatically after a short time.

Astra TwinTop: The heated rear window and heated exterior mirrors are deactivated when the roof is open.

Depending on the engine type, the heated rear window comes on automatically when the diesel particle filter is being cleaned.

Sun visors

The sun visors can be folded down or swivelled to the side to prevent dazzling.

If the sun visors have integral mirrors, the mirror covers should be closed when driving.

Panoramic windscreen

Interior view of a car dashboard with directional arrows and a circular dial indicator (no text or symbols)

To open roof lining: Turn handle to the right and move roof lining rearward to a suitable position.

38 Keys, doors and windows

Simple diagram showing a door handle and a downward arrow, no text or symbols present

To close roof lining: Move forward to a suitable position. When moved all the way forward, the roof lining engages in position.

Note

Close the sun visors before sliding the roof lining.

Roof

Sunroof

Warning

Take care when operating the sunroof. Risk of injury, particularly to children.

Keep a close watch on the movable parts when operating them. Ensure that nothing becomes trapped in them as they move.

Sunroof can be operated with ignition on.

Illustration of a laptop with a card attached to its screen, alongside a close-up of two bank cards (no text or symbols visible)

Operated via a rocker switch in the roof console.

Press the button briefly for activation in steps. Hold down the button for longer for automatic opening.

Raise

With the sunroof closed, press 📄. The sunroof is raised at the rear.

Open

Press ☒ again with the sunroof in the raised position. The sunroof opens automatically until it reaches its end position.

Caution

When using a roof rack, check the free movement of the sunroof in order to avoid damage. It is only permitted to raise the sunroof.

Note

If the top of the roof is wet, tilt sunroof, allow water to run off and then open sunroof.

Do not affix any stickers to sunroof.

Close

Hold down □ until the sunroof is completely closed.

For safety reasons, the roof closes from its open position to approx. 20 cm. Hold □ depressed to close completely.

Sunroof on Saloon 4-door

Close-up of a white oval button with icons, no visible text or symbols

Open

Press 📋, sunroof opens to comfort position.

To open beyond comfort position: press 📋 again.

Close

Press ↗. until the sunroof is closed.

Raise

When the roof is closed, press ↗, the roof is tilted at the rear.

Lowering

Press button 📁 until the sunroof is closed.

Operating sunroof from outside

Keep button = of the remote control depressed until the sunroof is fully closed.

Sunblind

Illustration of a laptop with a screen and two connected switches, shown in an inset (no text or symbols)

The sunblind is power operated.

The sunblind opens when the sunroof opens.

Close or open the sunblind by pressing button 📄 or 📋.

Hold ▼ depressed to close completely.

Sunblind on Saloon 4-door The sunblind is manually operated.

Close or open the sunblind by sliding. When the sunroof is open, the sunblind is always open.

Overload

If the system is overloaded, the power supply is automatically cut off for a short time.

Initialising the sunroof

If the sunroof and sunblind cannot be operated (e.g. after disconnecting the vehicle battery), activate the electronics as follows:

1. Switch on ignition
2. Close sunroof and hold button □ depressed at least 10 seconds
3. Close sunblind and hold button □ depressed at least 10 seconds

Retractable hardtop

⚠ Warning

Take care when operating the convertible hardtop. Risk of injury. Monitor the action zone above, to the side and to the rear of the vehicle during roof operation.

Make sure that nothing could become pinched. Make sure no one is in the action zone of the roof or boot lid during roof operation. Risk of injury.

Check the amount height, length and width of available space before operating the roof, e. g. in a garage, parking garage or when a bicycle rack is fitted.

Vehicle passengers should be informed accordingly.

Before leaving the vehicle, remove the ignition key in order to prevent unauthorised operation of the windows and sunroof.

Stand-by with ignition key in lock from position 1, or for Open&Start-System switch on ignition.

Requirements:

■ Vehicle is stationary or driving no more than 30 km/h
■ Load compartment blind is closed and engaged ➔ 71
■ Boot lid is closed

If any of these requirements are not fulfilled, a warning buzzer sounds when the switch is actuated and the roof does not open or close.

Open

Diagram showing car interior control panel with a traffic sign icon pointing to the dashboard area

There must be no objects in front of the rear window or in the pivot area of the roof and boot lid.

Hold button ⬤—☐ in the roof console depressed until the roof is completely open and the boot lid is closed.

An acoustic signal sounds at the end of the opening procedure.

The door windows are opened slightly before the roof is opened. If button 6—2 is pressed again after the acoustic signal sounds, the door windows will close.

Open with remote control

Illustration of a car with a roof and a close-up of its roof detail (no text or symbols)

With vehicle stationary unlock the vehicle. Press button ≥ again and keep pressed until the roof has opened fully and the boot lid has closed.

During operation with the remote control, the door windows are opened completely.

Close

Interior view of a car dashboard with a door panel and a close-up of a device (no text or symbols visible)

Hold button 📄 in the roof console depressed until the roof and boot lid are completely closed.

An acoustic signal sounds at the end of the closing procedure.

The door windows are opened slightly before the roof is closed. If button

is pressed again after the acoustic signal sounds, the door windows will close.

Close with remote control

Illustration of a convertible car with a directional arrow and a magnified inset showing the bottom view (no text or symbols)

With vehicle stationary, lock the vehicle. Press button = again and keep pressed until the roof and boot lid have closed completely.

Note

■ Do not open the load compartment until the acoustic signal indicating the end of the roof opening or closing procedure has sounded.

42 Keys, doors and windows

■ The load compartment blind must always be closed during roof operation.
■ There must be no one and no objects at the covers behind the rear head restraints.
■ The roof can only be operated at temperatures above -20 °C. If the temperature is below this limit, a gong will sound three times when roof operation is requested.
■ Frequent operation of the roof with the engine off discharges the battery.
■ Repeated operation of the roof without breaks can cause overloading and therefore malfunctions.
■ The roof can be held in an intermediate position for 9 minutes to facilitate cleaning of roof spaces. This is done by disengaging the actuation switch. One minute before the end of this period, a continuous buzzer sounds as a warning that the hold period is almost over and the roof could start to move.

■ Activating the roof on uneven ground can lead to malfunctions and damage.
■ To prevent and remedy squeaking noises of the roof seals a special maintenance kit is available at your service partner. It is recommended to apply this product once a year for prevention.

Fault

The automatic drive of the roof is only operational if the roof is in the proper open or closed position.

Check if:

■ Load compartment blind is engaged in closed position
■ Boot lid is completely closed
■ Outside temperature is above -20 °C
■ There is sufficient battery voltage
■ There is a system overload
If the automatic drive is not operational, two persons are required to manually close the roof. See the

accompanying instructions for Astra TwinTop. Professional assistance is recommended.

Rollover protection system

The Astra TwinTop is equipped with rollover protection with reinforced windscreen frame and anti-roll bars behind the rear seat head restraints. Depending on the variant, the anti-roll bars are either fixed or deploy automatically in the event of an impact of a certain severity.

Fixed anti-roll bars

Interior view of a car showing dashboard and steering wheel (no text or symbols visible)

Fixed anti-roll bars are secured to the vehicle bodywork.

Deployable anti-roll bars

Top-down view of a car showing the dashboard and seat area with two downward arrows indicating orientation (no text or symbols present)

Deployable anti-roll bars are located between the rear head restraints and the boot lid. In the event of a rollover, head-on collision or side impact, the anti-roll bars deploy upwards within milliseconds. They also deploy together with the front and side airbag systems.

The system deploys with the roof open or closed.

The convertible roof must not be operated if the anti-roll bars have been deployed. A continuous warning will sound if the switch is actuated.

The airbag control indicator 🌿 illuminates if the anti-roll bars have been deployed.

Note

Do not place any objects on the covers of the anti-roll bars behind the head restraints.

Extended anti-roll bars can be retracted (e.g. in order to close the roof after a collision).

Press the lever between the rods of an anti-roll bar to unlock the system. Push the anti-roll bar all the way down until it engages. Fit the cover.

Repeat the procedure on the other anti-roll bar.

Control indicator ⚡ will remain illuminated and the anti-roll bars will not deploy in the event of another collision. Seek the assistance of a workshop.

⚠ Warning

The roof cannot be closed or opened if the anti-roll bars are extended. The anti-roll bars must first be retracted.

After deployment of the anti-roll bar, have the system repaired by a workshop immediately.

Manually retracted anti-roll bars will not deploy in the event of a collision.

Load compartment

Technical line drawing of a mechanical component with internal parts and a dashed alignment line (no text or symbols)

44 Keys, doors and windows

The roof can only be opened if the load in the load compartment does not exceed the height of the load compartment blind or protrude sideways. The load height must not be exceeded. The load compartment blind must be flat; objects below it must not press it upwards. Otherwise the roof and load may be damaged.

Blockage of boot lid

Diagram of a car interior with a highlighted vehicle component (no text or symbols)

To avoid damage to the open roof, boot lid or load, the boot lid can only be closed if the electric load aid is in the lower end position ➔ 74.

Failure of electric drive Push locking lever forward.

Wind deflector

Illustration of a hand opening a vehicle's side panel, showing mechanical components and dashboard (no text or symbols)

The rear seats cannot be occupied when the wind deflector is in place. Do not place any objects on the wind deflector.

With tyre repair kit, the wind deflector is folded down into a storage compartment in the load compartment below the loading floor cover.

For the version with spare wheel, the wind deflector is folded away in the load compartment.

Fitting

Two-step diagram showing folding or folding process with curved arrows indicating rotation (no text or symbols)

Expand the collapsed wind deflector.

Illustration of a hand turning a mechanical component with an inset showing a close-up of the mechanism (no text or symbols present)

Join together the unfolded ends of the wind deflector: Press in the pin at the slider, guide the hinge over the pin and release the slider so that the pin engages in the hinge.

Diagram of a vehicle's internal components with an arrow indicating direction (no text or symbols)

Insert the guide clips of the wind deflector in the seat belt recesses between the rear head restraints.

Diagram of a door lock mechanism with directional arrows indicating movement (no text or symbols)

Pull the toggle of the right and left locking pin and turn to lock. Straighten out the wind deflector, turn the toggle back and engage the locking pin in the recess in the side trim.

Interior view of a car showing the dashboard and seat area (no text or symbols visible)

The wind deflector can be folded back when not in use.
If the wind deflector is folded and the rear seats are unoccupied, the wind deflector can remain mounted in the vehicle when the roof is closed.

46 Keys, doors and windows

Removing

Interior view of a car gear shift lever (no text or symbols visible)

Remove in reverse order, wind deflector is completely folded down in the load compartment:

■ for tyre repair kit in the compartment below the loading floor cover
■ for version with spare wheel, place in load compartment

The wind deflector must never protrude upwards or sideways above the permissible loading height.

Seats, restraints

Head restraints 47

Front seats 49

Rear seats 52

Seat belts 53

Airbag system 56

Child restraints 60

Head restraints

Position

⚠ Warning

Only drive with the head restraint set to the proper position.

Side profile illustration of a person wearing a seatbelt, showing head and neck alignment (no text or symbols)

The middle of the head restraint should be at eye level. If this is not possible for extremely tall people, set to highest position, and set to lowest position for small people.

Adjustment

Front and rear outboard head restraints

Illustration of a person's head with directional arrows indicating vertical and horizontal movement (no text or symbols)

Press the button, adjust height and engage.

Rear centre head restraint

Diagram of a vehicle seat with two directional arrows indicating upward and downward motion (no text or symbols)

Pull the head restraint upwards or press the catch to release and push the head restraint downwards.

Adjusting the rear head restraints, Astra TwinTop

3D rendered mechanical component with directional arrows, no visible text or symbols

Pull the head restraint up or press both catches to release and then push the head restraint down.
Do not place any objects on the cover behind the head restraints or between the head restraints and the anti-roll bars.

Active head restraints

In the event of a rear-end impact, the active head restraints tilt slightly forwards. The head is more effectively supported so the risk of whiplash injury is reduced.

Active head restraints are identified by the lettering ACTIVE on the head restraint guide sleeves.

Note

Approved accessories may only be attached to the front passenger seat head restraint if the seat is not in use.

Removing

Illustration of a white humanoid robot head with two black arrows pointing to the lower torso (no text or symbols)

Press the catches and pull up the head restraint.

Front seats

Seat position

⚠ Warning

Only drive with the seat correctly adjusted.

Illustration of a person seated in a car, holding a steering wheel (no text or symbols visible)

- Sit with buttocks as far back against the backrest as possible. Adjust the distance between the seat and the pedals so that legs are slightly angled when pressing the pedals. Slide the front passenger seat as far back as possible.

• Sit with shoulders as far back against the backrest as possible. Set the backrest rake so that it is possible to easily reach the steering wheel with arms slightly bent. Maintain contact between shoulders and the backrest when turning the steering wheel. Do not angle the backrest too far back. We recommend a maximum angle of approx. 25°.
  ■ Adjust the steering wheel ➔ 83.
  ■ Set seat height high enough to have a clear field of vision on all sides and of all display instruments. There should be at least one hand of clearance between the head and the roof frame. Thighs should rest lightly on the seat without pressing into it.
  ■ Adjust the head restraint ↩ 47.
  ■ Adjust the height of the seat belt 54.
  ■ Adjust the thigh support so that there is a space approx. two fingers wide between the edge of the seat and the hollow of the knee.

■ Adjust the lumbar support so that it supports the natural shape of the spine.

Seat adjustment

⚠ Warning

Never adjust seats while driving as they could move uncontrollably.

Seat positioning

Illustration of a car seatbelt with directional arrows indicating seat movement (no text or symbols)

Pull handle, slide seat, release handle.

50 Seats, restraints

Seat backrests

Line drawing of a car seat with directional arrows indicating rotation (no text or symbols)

Turn handwheel. Do not lean on backrest when adjusting.

Seat height

Car seatbelt diagram showing seat, seat, and belt (no text or symbols)

Lever pumping motion up = higher down = lower

Seat inclination

Illustration of a car seatbelt with directional arrows indicating movement (no text or symbols)

Pull lever, adjust inclination by shifting body weight. Release lever and audibly engage seat in position.

Lumbar support

Diagram of a car seatbelt with directional arrows indicating rotation or movement (no text or symbols)

Turn handwheel. Do not lean on backrest when adjusting.

Adjustable thigh support

Close-up of a white car seatbelt with two arrows indicating clockwise motion (no text or symbols)

Press the button and slide the thigh support.

Seat folding

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Lift release lever and fold backrest forwards. Slide seat forwards.
To restore, slide the seat backwards. If the seat has a memory function it engages in its original position, otherwise engage seat in desired position. Move the backrest back to upright and engage.
Folding the backrest forwards is only possible when the backrest is in an upright position.
Do not operate handwheel to adjust backrest with backrest tilted forward.

52 Seats, restraints

In vehicles with a panoramic window: to tilt seats forward, push head restraints down and lift up sun visors.

Armrest

Illustration of a hand pressing down on a curved object with directional arrows (no text or symbols)

Push raised armrest backward against resistance and fold down.

The armrest can be moved to different positions in stages by lifting it.

Under the armrest there is a storage compartment.

Heating

Diagram showing two directional arrows pointing to a digital display with Chinese text, likely representing a system or process flow.

Adjust heating to the desired setting by pressing the 📋 button for the respective seat one or more times with the ignition on. The control indicator in the button indicates the setting.

Prolonged use of the highest setting for people with sensitive skin is not recommended.

Seat heating is operational when the engine is running.

Rear seats

Armrest

Armrest, Saloon and Station wagon

Illustration of a car seatbelt in a white vehicle (no text or symbols)

Fold down the armrest, pulling the strap obliquely down (45°).

Armrest, TwinTop

Line drawing of a car seatbelt with a flat seat and seatbelt (no text or symbols)

Pull the armrest by the strap, pivot it down and position on the sit with the flat side up.

The armrest is held in place on the backrest with a retaining strap. To fully remove the armrest, disengage the bracket at the retaining strap.

Seat belts

Illustration of a person sitting in a car, wearing a seatbelt and holding a steering wheel (no text or symbols visible)

The belts are locked during heavy acceleration or deceleration of the vehicle for the safety of the occupants.

⚠ Warning

Fasten seat belt before each trip. In the event of an accident, people not wearing seat belts endanger their fellow occupants and themselves.

Seat belts are only designed for use by one person at a time. They are not suitable for people younger than 12 years of age or smaller than 150 cm (59 inches).

Periodically check all parts of the belt system for damage and proper functionality.

Have damaged components replaced. After an accident, have the belts and triggered belt tensioners replaced by a workshop.

Note

Make sure that the belts are not damaged by shoes or sharp-edged objects or trapped. Prevent dirt from getting into the belt retractors.

Seat belt control indicator ↗ 93.

Belt force limiters

In the front seats, stress on the body is reduced by gradual release of the belt during a collision.

54 Seats, restraints

Belt tensioners

Interior view of a car seatbelt with two silver seats (no text or symbols visible)

In the event of a head-on or rear-end collision of a certain severity, the front seat belt buckles are pulled down to tighten the belts.

⚠ Warning

Incorrect handling (e.g. removal or fitting of belts) can trigger the belt tensioners.

Deployment of the belt tensioners is indicated by illumination of control indicator ➡ 93.

Triggered belt tensioners must be replaced by a workshop. Belt tensioners can only be triggered once.

Note

Do not affix or install accessories or other objects that may interfere with the operation of the belt tensioners. Do not make any modifications to belt tensioner components as this will invalidate the vehicle type approval.

Three-point seat belt

Fitting

Illustration of a person using a sword to grip a bandage, with no visible text or symbols

Withdraw belt from retractor, guide it untwisted across the body and insert the latch plate in the buckle. Tension the lap belt regularly whilst driving by tugging the shoulder belt.

Close-up of a hand using a belt buckle to lift a seatbelt, showing the grip and buttons (no text or symbols visible)

Loose or bulky clothing prevents the belt from fitting snugly. Do not place objects such as handbags or mobile phones between the belt and your body.

⚠ Warning

The belt must not rest against hard or fragile objects in the pockets of your clothing.

Height adjustment

Close-up of a car seatbelt buckle with two directional arrows indicating movement (no text or symbols)

1. Pull belt out slightly.
2. Press button.
3. Adjust height and engage.

Adjust the height so that the belt lies across the shoulder. It must not lie across the throat or upper arm.

Do not adjust while driving.

Removing

Medical illustration showing a hand holding a device with a catheter inserted, no visible text or symbols

To release belt, press red button on belt buckle.

Seat belts on rear seats

Lead seat belts of the outer seats through holders at the side if they are not being used.

The seat belt for the middle seat can only be withdrawn from the retractor if the backrests are upright and are engaged in their retainers.

Seat belts on rear seats, TwinTop To prevent the seat belts from making flapping noise when the sun roof and/or the windows are open, the seat belts of unoccupied rear seats can be secured behind the armrest.

Using the seat belt while pregnant

⚠ Warning

The lap belt must be positioned as low as possible across the pelvis to prevent pressure on the abdomen.

Airbag system

The airbag system consists of a number of individual systems.

When triggered the airbag inflates within milliseconds. They also deflate so quickly that it is often unnoticeable during the collision.

⚠ Warning

If handled improperly the airbag systems can be triggered in an explosive manner.

Note

The control electronics of the airbag systems, belt tensioners and deployable anti-roll bars are located in the centre console area. Do not put any magnetic objects in this area.

Do not place any objects between the airbag systems/anti-roll bar covers and the occupants. Risk of injury.

Do not stick anything on the airbag covers and do not cover them with other materials.

Each airbag/anti-roll bar is triggered only once. Have deployed airbags/anti-roll bars replaced by a workshop.

Do not make any modifications to the airbag system/anti-roll bars as this will invalidate the vehicle type approval.

In the event of airbag deployment have the steering wheel, the instrument panel, all panelling parts, the door seals, the handles and the seats removed by a workshop.

Control indicator ✦ for airbag systems ✦ 93.

Front airbag system

Top-down view of a car steering wheel with three blades (no text or symbols visible)

The front airbag system consists of one airbag in the steering wheel and one in the instrument panel. These can be identified by the word AIRBAG.

AIRBAG

There is also a warning label on the side of the instrument panel, visible when the front passenger door is open.

Top-down diagram of a car with 30-degree angles and an arrow indicating direction (no text or symbols)

The front airbag system is triggered in the event of an accident of a certain severity in the depicted area. The ignition must be on.

Seat occupancy recognition 59. Child restraint system with transponders 64.

Illustration of a mechanical component with a circular housing and a flat plate, shown in perspective (no text or symbols)

The forward movement of the front seat occupants is decelerated, thereby considerably reducing the risk of injury to the upper body and head.

Warning

Optimum protection is only provided when the seat is in the proper position 49.

Keep the area in which the airbag inflates clear of obstructions.

Fit the seat belt correctly and engage securely. Only then the airbag is able to protect.

Side airbag system

Close-up of a car seatbelt with a black arrow pointing to the side panel (no text or symbols visible)

58 Seats, restraints

The side airbag system consists of an airbag in each front seat backrest. This can be identified by the word AIRBAG.

60° 60° 60° 60°

The side airbag system is triggered in the event of an accident of a certain severity in the depicted area. The ignition must be on.

Seat occupancy recognition ➔ 59. Child restraint system with transponders ➔ 64.

Illustration of a car seatbelt with a side panel, no text or symbols present

The risk of injury to the upper body and pelvis in the event of a side-on collision is considerably reduced.

⚠ Warning

Keep the area in which the airbag inflates clear of obstructions.

Note

Only use protective seat covers that have been approved for the vehicle. Be careful not to cover the airbags.

Curtain airbag system

Close-up of a car airbag component (no visible text or symbols)

The curtain airbag system consists of an airbag in the roof frame on each side. This can be identified by the word AIRBAG on the roof pillar.

60° 60° 60° 60° 30035

The curtain airbag system is triggered in the event of an accident of a certain severity in the depicted area. The ignition must be on.

Illustration of a car interior with seats and dashboard (no text or symbols)

The risk of injury to the head in the event of a side impact is considerably reduced.

⚠ Warning

Keep the area in which the airbag inflates clear of obstructions.

The hooks on the handles in the roof frame are only suitable for hanging up light articles of clothing, without coat hangers. Do not keep any items in these clothes.

Seat occupancy recognition

ACHTUNG / WARNING / DANGER Nor Kategorize the government would! Kontrollers in the U.S. (1985) Bible Education, Health, Environment Only child workers are concerned! To be a 30% of the population Please see it as a serious concern? Skills and skills of the world's life You know that you're doing so on.

Identified by a label on the lower panel of the front passenger seat and by control indicator ☐, which illuminates for approx. 4 seconds when the ignition is switched on.

The seat occupancy recognition system deactivates the passenger front and side airbag if the front passenger seat is not occupied or is fitted with an Opel child restraint system with transponders. The curtain airbag system remains activated.

Danger

Only Opel child restraint systems with transponders should be fitted on the front passenger seats. Use of systems without transponders poses a risk of fatal injury.

Control indicator ➔ 93.

Note

Anyone weighing less than 35 kg should only travel on the rear seats.

Do not place any heavy objects on the front passenger seat. Otherwise the seat will register as occupied and the airbag system for the front passenger seat will not be deactivated.

Do not use protective covers or seat cushions on the front passenger seat.

Note

On the Astra TwinTop, there may be interference in radio reception of certain frequencies in the medium waveband when the roof is open and the front passenger seat is unoccupied.

Child restraints

Child restraint systems

When a child restraint system is being used, pay attention to the following usage and installation instructions and also those supplied with the child restraint system.

Always comply with local or national regulations. In some countries, the use of child restraint systems is forbidden on certain seats.

Selecting the right system

Children should travel facing rearwards in the vehicle, until as old as possible. It is appropriate to change the system when the child's head can no longer be properly supported at eye height. The childs cervical vertebrae are still very weak and in an accident they suffer less stress in the semi-prone rearward position than when sitting upright.

Children under 12 years or under 150 cm (59 inches) tall should only travel in an appropriate child restraint system.

When transporting children, use the child restraint systems suitable for the child's weight.

Ensure that the child restraint system to be installed is compatible with the vehicle type.

Ensure that the mounting location of the child restraint system within the vehicle is correct.

Only allow children to enter and exit the vehicle at the side facing away from the traffic.

When the child restraint system is not in use, secure the seat with a seat belt or remove it from the vehicle.

Note

Do not stick anything on the child restraint systems and do not cover them with any other materials.

A child restraint system which has been subjected to stress in an accident must be replaced.

62 Seats, restraints

Child restraint installation locations

Permissible options for fitting a child restraint system

Weight and age class1)	On front passenger seat2)	On outer rear seats	On centre rear seat3)
Group 0: up to 10 kg or approx. 10 months	B1, +	U, + U
Group 0+: up to 13 kg or approx. 2 years
Group I: 9 to 18 kg or approx. 8 months to 4 years	B2, +	U, + U
Group II: 15 to 25 kg or approx. 3 to 7 years	X U U
Group III: 22 to 36 kg or approx. 6 to 12 years

B^1 = Limited, only with seat occupancy recognition and Opel child restraint system with transponders.
If the child restraint system is being secured using a three-point seat belt, move seat height adjustment to uppermost position. Move front passenger seat as far back as possible and move front passenger seat belt anchorage point to lowest position.
B^2 = Limited, only with seat occupancy recognition and Opel child restraint system with transponders.
If the child restraint system is being secured using a three-point seat belt, move seat height adjustment to uppermost position. Move front passenger seat as far back as possible so that vehicle safety belt runs from anchorage point towards the front.
U = Universal suitability in conjunction with three-point seat belt.
+ = Vehicle seat available with ISOFIX attachments. When attaching using ISOFIX, only the ISOFIX child restraint systems permitted for the vehicle may be used.
X = No child restraint system permitted in this weight class.
1) We recommend the use of each system until the child reaches the upper weight limit.
2) Not allowed on Saloon 4-door.
3) Not allowed on Astra TwinTop.

Permissible options for fitting an ISOFIX child restraint system

Weight class	Size class	Fixture	On front passenger seat	On rear outboard seats	On rear centre seat
Group 0: up to 10 kg E ISO/R1 X IL X
Group 0+: up to 13 kg E ISO/R1 X IL X
	D ISO/R2 X IL X
	C ISO/R3 X IL X
Group I: 9 to 18 kg D ISO/R2 X IL X
	C ISO/R3 X IL X
	B ISO/F2 X IL X
	B1 ISO/F2X X IL X
	A ISO/F3 X IL X

IL = Suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories. The ISOFIX restraint system must be approved for the specific vehicle type.
X = No ISOFIX child restraint system approved in this weight class.

ISOFIX size class and seat device

A - ISO/F3 = Forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg.
B - ISO/F2 = Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.
B1 - ISO/F2X = Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.
C - ISO/R3 = Rear-facing child restraint system for children of maximum size in the weight class up to 13 kg.
D - ISO/R2 = Rear-facing child restraint system for smaller children in the weight class up to 13 kg.
E - ISO/R1 = Rear-facing child restraint system for young children in the weight class up to 13 kg.

64 Seats, restraints

Isofix child restraint systems

Interior view of a white car seatbelt with a magnified inset showing the seat (no text or symbols visible)

Fasten vehicle-approved ISOFIX child restraint systems to the mounting brackets.

Child restraints with transponders

AIRSAG OFF AURSAG OFF AURSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AURSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF AIRSAG OFF

A label on the child restraint system indicates that it is fitted with transponders.

Opel child restraint systems with transponders are automatically detected if correctly installed to the front passenger seat with seat occupancy recognition.

Note

There must be no objects (e.g. plastic sheet or heating mats) between the seat and the child restraint system.

Seat occupancy recognition ➔ 59.

Storage

Storage compartments ...... 65

Load compartment 66

Roof rack system 81

Loading information 81

Storage compartments Glovebox

Illustration of a paper filter or printer with an open lid and internal components (no text or symbols visible)

The glovebox features a pen holder and a place to store coins.

The glove compartment shelf can be removed: Disengage the shelf by pulling on the front edge.

Refit the shelf by sliding it into the side guide strips and engage it in the rear panel by pushing.

The glovebox should be closed whilst driving.

Lockable glovebox, Astra TwinTop with Open&Start system In addition to the electronic key of the Open&Start system, there is a standard key without remote control for the glove compartment lock.

Cupholders

Cupholders are located in the centre console and in the door pockets of the rear doors.

Additional cupholders are located in the fold-down tables on the back of the front seat backrests.

66 Storage

Sunglasses storage

Illustration of a hand holding a car seatbelt with an inset showing eyeglasses (no text or symbols)

Fold down and open.
Do not use for storing heavy objects.

Armrest storage
Storage in the front armrest

Close-up of a car seatbelt buckle mechanism (no text or symbols visible)

To open, press button and open upper part of armrest.

Load compartment

Load compartment extension, Saloon 3-door / 5-door

Folding down rear backrests

Interior view of a car seat with a car seatbelt and directional arrow indicating clockwise motion (no text or symbols)

Push head restraints all the way down or remove ➔ 47.

Slide front seat forward slightly.

Disengage the backrest (single or split) using the release button on one or both sides and fold it down onto the seat cushion.

Folding down centre backrests

Diagram of a car seatbelt with directional arrows indicating movement (no text or symbols)

Push head restraint down as far as possible ↩ 47.

Disengage backrest using lever and fold onto seat cushion.

Close-up of a car seatbelt buckle with a black arrow pointing to the side (no text or symbols visible)

Before restoring backrest to an upright position, guide the seat belt through the belt guides to protect against damage.

Move rear seat backrests upright and allow locking mechanisms to engage audibly.

The three-point seat belt for the centre rear seat can only be pulled from the reel if the backrest is properly engaged.

Load compartment extension, Saloon 4-door

Folding down rear backrests

Interior view of a car seat with a curved arrow indicating clockwise motion (no text or symbols)

Push head restraints all the way down or remove ➔ 47.

Slide front seat forward slightly.

68 Storage

Close-up of a car seatbelt buckle with a directional arrow indicating movement (no text or symbols)

To prevent damage, put the seat belts in the guides by the release button. When the backrests are folded, the seat belts are extended with them.

Disengage the backrest (single or split) using the release button on one or both sides and fold it down onto the seat cushion.

If the vehicle is to be loaded from a rear door, remove safety belt from the guide and retract.

To fold up, raise backrests and guide them into upright position until they engage audibly.

Do not trap safety belts when erecting seat backrests.

The three-point seat belt for the centre rear seat can only be pulled from the reel if the backrest is properly engaged.

Load compartment extension, Station wagon

Folding down rear backrests

Diagram of a car interior showing a seat with a curved arrow indicating rotation (no text or symbols present)

Push head restraints all the way down or remove 47.

Unhook hooks of load compartment cover from head restraints 71.

Slide front seat forward slightly.

Disengage the backrest (single or split) using the release button on one or both sides and fold it down onto the seat cushion.

Raise the seat cushion and fold the backrest

Illustration of a hand holding a car with directional arrows and a magnified inset showing a vehicle component (no text or symbols)

Pull the strap on the seat cushion and lift the rear of the cushion forwards (split or one-piece).

Unhook hooks of load compartment cover from head restraints ➔ 71.

Interior view of a car showing the seatbelt and dashboard (no text or symbols visible)

Remove rear outer head restraints and push centre head restraint all the way down ➔ 47. Stow the removed head restraints in the cavity below the raised seat cushions.

Interior view of a vehicle seatbelt mechanism with a directional arrow indicating rotation (no text or symbols)

Disengage backrest (one-piece or split) using release button, fold forward and engage.

Folding down centre backrests

Diagram of a car seatbelt mechanism with directional arrows indicating movement (no text or symbols)

Push head restraint down as far as possible 47. Disengage backrest using lever and fold onto seat cushion. If the seat cushion is raised, fold it forward until it engages.

Close-up of a car seatbelt buckle (no text or symbols visible)

Before restoring backrest to an upright position, guide the seat belt through the belt guides to protect against damage. Press release button and move rear seat backrests upright, ensuring locking mechanisms engage audibly.

70 Storage

Interior view of a car seatbelt with a magnified inset showing a hand holding a small mechanical component (no text or symbols visible)

With the seat cushions raised: insert head restraints in backrests and adjust 47. Fold back seat cushions, making sure the belt buckles are properly positioned.

Attach hooks of load compartment cover to head restraints ➔ 71.

The three-point seat belt for the centre rear seat can only be pulled from the reel if the backrest is properly engaged.

Load compartment extension, TwinTop

Loading area between rear seats

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Pull out the armrest by the strap.

The armrest is held in place on the backrest with a retaining strap. To fully remove the armrest, disengage the bracket at the retaining strap.

Pull the handle and fold down the cover.

Close-up of a mechanical component with a curved arrow indicating rotation or direction (no text or symbols visible)

The cover behind the armrest can be locked from load compartment:

horizontal position = locked vertical position = unlocked

Stowage in the load compartment, Station wagon

There is a stowage compartment at the right side of the load compartment.

The fuse box is on the left side behind the cover in the load compartment side panelling 181

Cargo box ↩ 73.

The tyre repair kit is on the right side behind the cover 190.

Load compartment cover

Saloon 3-door / 5-door

Removing

Interior view of a car showing a back panel with directional arrows indicating flow or movement (no text or symbols)

Unhook retaining straps from tailgate. Pull cover from the side guides.

Fitting

Engage cover in side guides and fold downwards. Attach retaining straps to tailgate.

Station wagon

Do not place any heavy or sharpedged objects on the load compartment cover.

Close-up of a car rear door buckle with a downward arrow indicating a detail (no text or symbols visible)

Opening

Press handle on load compartment cover rearwards; the cover automatically engages in its end position.

Closing

Remove load compartment cover from side brackets. It rolls up automatically.

Pull the cover towards the rear using the handle and engage it in the retainers at the sides.

Diagram of a car interior showing a mechanical component with a magnified inset (no text or symbols)

To cover the gap between the load compartment cover and the rear backrests, there is a cover on the cartridge. Attach the two hooks of the cover to the head restraint guide rods. If the safety net is mounted, run the hooks through the net mesh.

72 Storage

Removing

Illustration of a car interior with upward arrows indicating motion or movement (no text or symbols)

Open the load compartment cover and detach the hooks from the head restraints.

Pull the release lever. Lift right side of cover first, then pull left side out of recess.

Fitting

Insert the left side of the load compartment cover in the recess, pull the release lever, insert the right side of the load compartment cover and engage.

Attach the hooks on the head restraints.

TwinTop

Top-down view of a car front bumper with a plastic cover and two arrows pointing to the lid (no text or symbols visible)

Opening

Release load compartment blind from recesses on left and right, blind rolls up automatically.

Closing

Pull the cover towards the rear using the handle and engage it in the retainers at the sides.

Do not place any objects on the load compartment cover.

There must be no objects outside of or on top of the cover when the roof is open or in the process of opening.

The roof can only be operated with the blind engaged in the recess.

Load rails and hooks

Mechanical component diagram showing a bracket with an inset close-up of a cable (no text or symbols)

On Station wagon, install the hooks in the desired position in the rails: insert the hook in the upper groove on the rail and press in the lower groove.

Lashing eyes

Top-down view of a car backseat with directional arrows indicating movement or positioning (no text or symbols)

The lashing eyes are designed to secure items against slippage, e.g. using lashing straps, luggage net or safety net.

Cargo management system

The FlexOrganizer is a flexible system for dividing the load compartment or securing loads in a Station wagon.

Illustration of a hand inserting a device into a computer (no text or symbols visible)

The system consists of

■ adapters
■ variable partition net
■ mesh pockets
hooks

The components are fitted in two rails in the side panels using adapters and hooks. The partitioning net can also be fitted directly in front of the tailgate.

Variable partition net

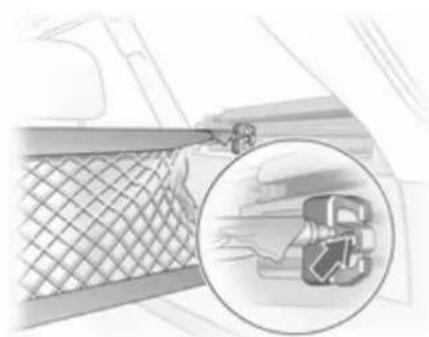

Illustration of a truck on a bridge with a magnified inset showing speed and motion (no text or symbols)

Insert an adapter into each rail: fold open the handle plate, insert adapter into upper and lower groove of rail and move to required position. Turn handle plate upwards to lock the adapter. The rods of the net must be extended before inserting into the adapters: pull out all of the end pieces and lock by rotating clockwise.

To install, push rods together a little and insert into the relevant openings in the adapters. The longer rod must be inserted into the upper adapter.

74 Storage

To remove, press the net rod together and remove from the adapters. Fold open the adapter handle plate, disengage from lower groove and then from upper groove.

Hooks and net pocket

Sketch of a car interior showing a mesh net hanging from the side of a vehicle (no text or symbols)

Net pocket can be suspended from the luggage hooks.

Cargo box

3D rendering of a car front compartment showing internal compartments and structural ribs (no text or symbols)

Foldable box under the floor cover used to divide the load compartment. The cargo box may only be loaded when the backrests are engaged in an upright position.

To remove the cargo box floor cover, remove first the right half then the left half. For models with towing equipment, first release the coupling ball bar fixing strap and thread this through the eye.

Install in reverse order.

Loading assist

Technical line drawing of a car interior showing the lid and frame structure (no text or symbols)

On TwinTop: The loading aid Easy Load makes it possible to comfortably load the load compartment when the roof is open. Pressing the loading aid button will raise the roof folded up in the load compartment 25 cm. This enlarges the load opening of the load compartment.

■ Open the boot lid
■ Unhook load compartment blind and attach to rear window frame with holder

Diagram of a car interior showing the hood and seat area with an inset close-up of the front wheel (no text or symbols)

■ Briefly press loading aid button: The folded roof is raised. The roof remains in this end position for approx. 9 minutes

Diagram of a car interior showing a door handle and internal compartments with a dashed line indicating a measurement or alignment (no text or symbols present)

■ Observe marked maximum load height
■ Suspend the load compartment blind from the rear window frame and engage in the recesses. The load compartment blind must be flat; objects underneath it must not push it upwards.
■ Briefly press loading aid button: The folded roof is lowered.
■ Close the boot lid only after the confirmation signal has sounded. Otherwise the roof could be damaged.

Warning

Take care when operating the loading aid. Risk of injury.

Make sure that nothing can become trapped.

Make sure no one is in the action zone during operation. Risk of injury.

This is especially important for children. Inform passengers accordingly.

Note

■ Do not place objects on or near the load compartment blind
■ The folded roof can only be lowered when the blind is closed. Otherwise, a warning buzzer will sound three times
■ The movement of the tilted roof can be stopped by pressing the loading aid button and another longer press reverses the direction of the movement
■ A confirmation buzzer is heard in the upper and lower roof end positions when the roof is tilted
■ Only close the tailgate once the confirmation signal has sounded to indicate that the loading aid is in its lower end position
■ If the loading aid is not in its lower end position when the boot lid is closed, a warning tone sounds or the tailgate is blocked mechanically 40
■ Do not touch moving parts

76 Storage

■ One minute before the end of the hold time for the raised loading aid, a warning buzzer will sound to remind you to lower the roof
■ The loading aid is only operable when the vehicle is unlocked
■ Frequent operation of the loading aid with the engine off discharges the battery
■ Repeated operation of the loading aid can cause malfunctions

Safety net

The safety net is available on the Station wagon and can be installed behind the rear seats or, if the rear seat backrests are folded and the seat cushions raised, behind the front seats.

Passengers must not be transported behind the safety net.

Installation

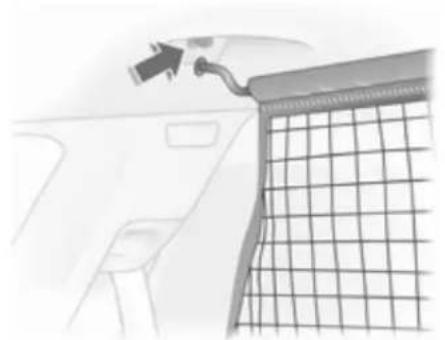

Interior view of a car showing the roof and window with a pipe attached (no text or symbols visible)

There are two installation openings in the roof frame: suspend and engage rod of net at one side, compress rod and suspend and engage at other side.

Behind the rear seats

Close-up of a person's seatbelt buckle being adjusted to a weight (no text or symbols visible)

Adjust strap length on safety net by attaching the upper hook to the eye of the strap and attach to eyes in the right and left of the floor.

Behind front seats

Close-up of a mechanical component with a black arrow pointing to a section (no visible text or symbols)

Adjust strap length on safety net by attaching the upper hook to the eye of the strap and attach to eyes in the right and left of the floor.

Remove rear outer head restraints and fold backrests forward.

Removal

Illustration of a hand holding a tool with a clip attached to a cable (no text or symbols visible)

Tilt length adjuster of the net tensioning belt upwards and detach the belt. Unhook the safety net rods from the brackets in the roof frame. Roll up the net and secure with a strap.

Load compartment grille

Interior view of a refrigerator with heat exchanger and cooling pipes (no text or symbols visible)

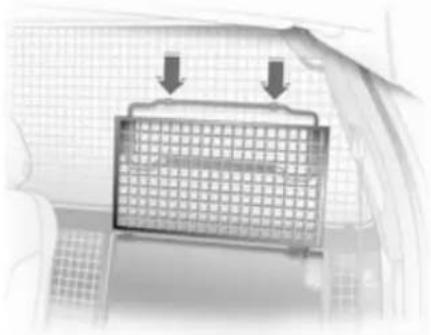

To transport long objects, part of the load compartment grille behind the passenger seat can be opened:

Release passenger seat back and fold forward.

Press bracket down and fold grille section up.

78 Storage

Interior view of a vehicle showing a grid-patterned air vent or vent system with two downward arrows indicating flow or movement (no text or symbols present)

Lock grille in open position.

To close the grille section from the open position, push bracket down, fold down grille and engage.

Check that the closed grille is properly locked.

Folding tray

Located in the front seat backrests.

Open by pulling upward until it engages.

Fold away by pressing down past the resistance point.

Do not place any heavy objects.

Warning triangle

Saloon 3-door / 5-door, TwinTop

Interior view of a car showing the rear compartment with a highlighted battery pack (no text or symbols visible)

Store warning triangle in rear load compartment wall: first fit warning triangle into recess on left and then insert in guide on right.

To remove the warning triangle, lift to the right and pull out to the right.

For vehicles with cargo box: Lift the warning triangle with the right half of the cargo box. Pull out the warning triangle to the right.

Saloon 4-door

Technical illustration of a mechanical component or bracket assembly (no text or symbols visible)

Attach the warning triangle and first aid kit in the load compartment against the panel on the right using two straps.

Station wagon, Van

Line drawing of a car interior showing the window and door (no text or symbols)

Stow the warning triangle in the space in the tailgate and fasten with the right and left straps.

First aid kit

Saloon 3-door / 5-door

Interior view of a vehicle showing a car's seat with a highlighted 'OPT' button (no text or symbols on the main subject)

Secure the first-aid kit to the right load compartment wall using the retaining strap.

Saloon 4-door

Mechanical component inside a vehicle door frame, showing a cylindrical housing and mounting bracket (no text or symbols visible)

Attach the warning triangle and first aid kit in the load compartment against the panel on the right using two straps.

80 Storage

Station wagon

Interior view of a vehicle showing a battery pack inside a car (no text or symbols visible)

Fasten the first-aid kit to the left load compartment wall with a retaining strap.

Van

Interior view of a car showing the backrest door with a mounted device (no visible text or symbols)

Place first aid kit in stowage compartment behind the driver's seat. To open the cover, press the locking tab.

TwinTop

Close-up of a car interior with visible tire tracks and a camera module (no text or symbols)

Store the first-aid kit in the recess behind the strap in the left load compartment wall.

Roof rack system

Roof rack

For safety reasons and to avoid damage to the roof, the vehicle approved roof rack system is recommended.

Roof loads are not permitted on the Astra TwinTop.

Follow the installation instructions and remove the roof rack when not in use.

Version without roof railing

Diagram of a vehicle's front view showing a road ahead with an arrow and a circular inset highlighting the road (no text or symbols present)

Lift the covers from the fitting openings.

Fasten the roof rack at the fastening points.

Version with roof railing

Close-up of a mechanical component with a magnified inset showing a detail (no text or symbols visible)

To fasten the roof rack, insert the mounting bolts in the holes indicated in the figure.

Loading information

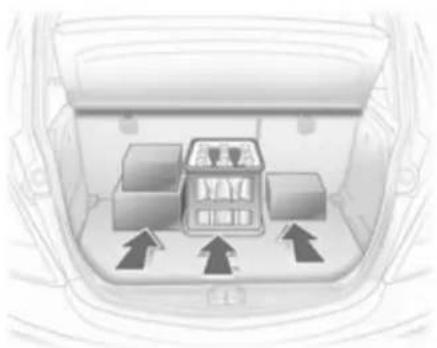

Top-down view of a car trunk with internal compartments and directional arrows indicating movement or flow (no text or symbols)

■ Heavy objects in the load compartment should be placed against the seat backrests. Ensure the backrests are securely engaged. If objects can be stacked, the heavier objects should be placed at the bottom.
■ Secure objects with lashing straps attached to lashing eyes 73.
■ Secure loose objects in load compartment to prevent sliding.

82 Storage

■ When transporting objects in the load compartment, the backrests of the rear seats must not be angled forward.
■ Do not allow the load to protrude above the upper edge of the backrests.
■ Do not place any objects on the load compartment cover or the instrument panel.
■ The load must not obstruct the operation of the pedals, parking brake and gear selector, or hinder the freedom of movement of the driver. Do not place any unsecured objects in the interior.
■ Do not drive with an open load compartment.
■ Station wagon: fit safety net when objects are being transported in the load compartment. Close load compartment cover.

■ Astra TwinTop: pay attention to maximum loading height with roof open. Do not place objects on top of or next to the load compartment blind, on the cover of the deployable anti-roll bars or behind the rear head restraints.
■ The payload is the difference between the permitted gross vehicle weight (see identification plate 217) and the EC kerb weight.
To calculate the EC kerb weight, enter the data for your vehicle in the Weights table on page 3.
The EC kerb weight includes weights for the driver (68 kg), luggage (7 kg) and all fluids (tank 90 % full).
Optional equipment and accessories increase the kerb weight.
- Driving with a roof load increases the sensitivity of the vehicle to cross-winds and has a detrimental effect on vehicle handling due to the vehicle's higher centre of gravity. Distribute the load evenly

and secure it properly with retaining straps. Adjust the tyre pressure and vehicle speed according to the load conditions. Check and retighten the straps frequently.

The permissible roof load is 75 kg and 100 kg for Station wagon with roof railing. The roof load is the combined weight of the roof rack and the load.

Instruments and controls

Controls 83

Warning lights, gauges and indicators 89

Information displays 99

Vehicle messages 106

Trip computer 109

Controls

Steering wheel adjustment

Diagram of a car steering wheel with directional arrows indicating rotation (no text or symbols)

Unlock lever, adjust steering wheel, then engage lever and ensure it is fully locked.

Do not adjust steering wheel unless vehicle is stationary and steering wheel lock has been released.

Steering wheel controls

Interior view of a car steering wheel with a digital display showing a battery icon (no text or symbols)

The Infotainment system and the Info-Display can be operated via the controls on the steering wheel.

Further information is available in the Infotainment system manual.

84 Instruments and controls

Horn

Interior view of a car steering wheel with an upward arrow indicating direction (no text or symbols)

Press ▶.

Windscreen wiper/washer Windscreen wiper

Close-up of a mechanical component with directional arrows indicating motion or force (no text or symbols)

The lever always springs back to its original position.

== = fast

— = slow

-- = adjustable timed interval wipe

O = Off

For a single wipe when the windscreen wiper is off, press the lever down.

Run through the windscreen wiper stages by pushing the lever past the resistance point and holding. An acoustic signal sounds at O.

Do not use if the windscreen is frozen. Switch off in car washes.

Adjustable wiper interval

Close-up of a car throttle valve with bidirectional arrow indicating left-hand side (no text or symbols on valve body)

To set the wiper interval to a value between 2 and 15 seconds: Switch on ignition, move lever down from position O, wait desired time interval and raise lever to --.

After turning on the ignition and setting the lever to --, the interval is set to 6 seconds.

Automatic wiping with rain sensor

Close-up of a car seatbelt with directional arrows and icons, no readable text or symbols

-- = Automatic wiping with rain sensor

The rain sensor detects the amount of water on the windscreen and automatically regulates the frequency of the windscreen wipers.

Close-up of a computer monitor with an open button and an arrow pointing to it (no visible text or symbols)

Keep the sensor free from dust, dirt and ice.

Windscreen washer

Close-up of a gray computer mouse with a downward arrow, no visible text or symbols

Pull lever. Washer fluid is sprayed on the windscreen and the wiper wipes for a few strokes.

If the lights are on, washer fluid is also sprayed on the headlights. The headlight washer system is then inoperable for 2 minutes.

Rear window wiper/washer

Close-up of a computer mouse with a button labeled '100' and an arrow pointing to it (no readable text or symbols beyond the button)

Push lever forwards. The rear window wiper wipes in interval mode. Switch off by pushing lever forwards again. If the lever is held forwards, washer fluid is sprayed on the rear window.

86 Instruments and controls

The rear screen wiper comes on automatically when the windscreen wiper is switched on and reverse gear is engaged.

Outside temperature

8:56 -5.5°C 07.04.2008

20001

A drop in temperature is indicated immediately and a rise in temperature after a time delay.

If outside temperatures drop to 3 °C, the symbol ⚙ illuminates in the Triple-Info-Display or the Board-Info-Display as a warning for

icy road conditions. ✦ remains illuminated until temperatures reach at least 5 °C.

Slippery road -2.5°C OK

In vehicles with Graphic-Info-Display or Color-Info-Display, a warning message appears in the display as a warning for icy road conditions. There is no message below -5 °C.

⚠ Warning

The road surface may already be icy even though the display indicates a few degrees above 0 °C.

Clock

Date and time are shown in the Info-Display.

Set date and time in Triple-Info-Display

8:56 5.5°C 07.04.2008

20003

To set time, hold the setting button in the instrument panel depressed for approx. 2 seconds. A brief press will set the flashing value. Hold the button

depressed for 2 seconds again to switch to the next unit and to exit setting mode.

Automatic time synchronisation The RDS signal of most VHF transmitters automatically sets the time, identified by _n in the display. Some transmitters do not send a correct time signal. In such cases, we recommend to switch off automatic time synchronisation.

Activate setting mode and set it to year setting. Hold the ⏻ button depressed about 3 seconds until ⏻ flashes in the display and "RDS TIME" appears. The function is activated (RDS TIME 1) or deactivated (RDS TIME 0) with the ⏻ button. Exit setting mode using the ⏻ button.

Power outlets

Some vehicles have a power outlet for the connection of electrical accessories instead of a cigarette lighter.

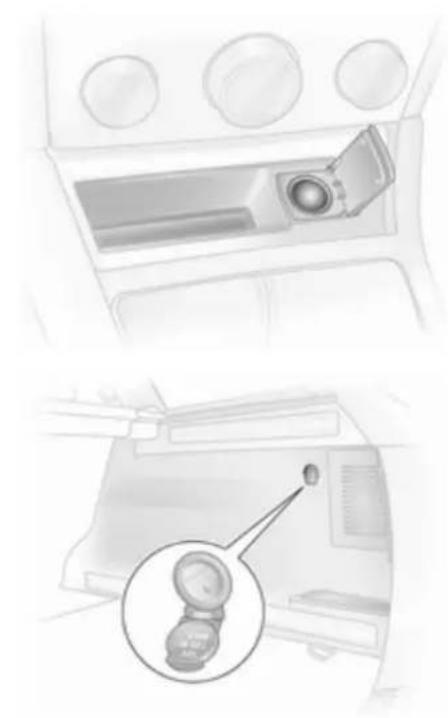

Interior view of a car dashboard and infotainment panel showing the air vent and control panel (no text or symbols visible)

Station wagons have an additional accessory socket in the load compartment.

Connecting electrical accessories while the engine is off will discharge the battery.

Do not exceed the maximum power consumption of 120 Watts.

Electrical accessories connected to the socket must comply with the electromagnetic compatibility requirements laid down in DIN VDE 40 839.

Do not connect any current-delivering accessories, e.g. electrical charging devices or batteries.

Do not damage the power outlets by using unsuitable plugs.

88 Instruments and controls

Cigarette lighter

Pure diagram of a car interior with a downward arrow, no text or symbols present

The cigarette lighter is located behind the ashtray cover. Press ashtray cover to open.

Interior view of a car dashboard with a circular vent and a directional arrow pointing to the interior (no text or symbols)

Press in cigarette lighter. Switches off automatically once the element is glowing. Pull out lighter.

Ashtrays

Caution

To be used only for ash and not for combustible rubbish.

Ashtray, front

Pure diagram of a car interior with a downward arrow, no text or symbols present

Press ashtray cover to open.

Interior view of a car air vent with circular vent holes and directional arrows indicating flow or movement (no text or symbols)

To empty, grip both sides of the ashtray insert and pull upwards.

Ashtray, rear

Illustration of a device with two arrows indicating flow or movement (no text or symbols)

Pull out by pushing on one of the sides.

Illustration of a hand holding a sink with a downward arrow, next to a partial view of a device (no text or symbols)

To empty, press spring and pull the ashtray straight out rearwards.

Warning lights, gauges and indicators

Instrument cluster

In some versions, the needles of the instruments briefly rotate to the end position when the ignition is switched on.

Speedometer

km/h

Indicates vehicle speed.

Odometer

386 3024

The bottom line displays the recorded distance.

Trip odometer

The top line displays the counted kilometres since the last reset.

To reset, hold the reset knob depressed for a few seconds with the ignition on.

Tachometer

Displays the engine speed.

Drive in a low engine speed range for each gear as much as possible.

Caution

If the needle is in the red warning zone, the maximum permitted engine speed is exceeded. Engine at risk.

Fuel gauge

E 1/2 1/1 c

Displays the fuel level in the tank depending on the operation mode.

Control indicator ▪ illuminates if the level in the tank is low. Refuel immediately if it flashes.

Never run the tank dry.

Because of the fuel remaining in the tank, the top-up quantity may be less than the specified tank capacity.

Service display

InSP 18:05

The message InSP appears when it is time for servicing. Further information ➔ 203.

Control indicators

The control indicators described are not present in all vehicles. The description applies to all instrument versions. When the ignition is switched on, most control indicators will illuminate briefly as a functionality test.

The control indicator colours mean:

Red = Danger, important reminder,

Yellow = Warning, information, fault,

Green = Confirmation of activation,

Blue = Confirmation of activation.

92 Instruments and controls

IDS+ 1/2 1/1 10 70 80 20 30 40 50 60 70 80 100 120 140 160 180 200 220 240 260

Turn signal

◇◇ illuminates or flashes green.

Illuminates

The control indicator illuminates briefly when the parking lights are switched on.

Flashes

The control indicator flashes if a turn signal or the hazard warning flashers are activated.

Rapid flashing: failure of a direction indicator lamp or associated fuse, failure of direction indicator lamp on trailer.

Bulb replacement 163. Fuses 177.

Turn signals ↩ 117.

Seat belt reminder

illuminates or flashes red.

Illuminates

After the ignition is switched on until the seat belt is fastened.

Flashes

After starting off until the seat belt is fastened.

Fastening the seat belt ➔ 54.

Airbag, belt tensioners and anti-roll bars

illuminates red.

When the ignition is switched on, the control indicator illuminates for approx. 4 seconds. If it does not illuminate, does not go out after 4 seconds or illuminates whilst driving, there is a fault in the belt tensioner, the airbags, the deployable anti-roll bars or the seat occupancy recognition system. The systems may fail to trigger in the event of an accident.

Deployment of the belt tensioners, airbags or deployable anti-roll bars is indicated by continuous illumination of ⚠.

⚠ Warning

Have the cause of the fault remedied immediately by a workshop.

Airbag system, belt tensioners 56, 53.

Seat occupancy recognition

illuminates or flashes yellow.

Illuminated

If the vehicle is equipped with seat occupancy recognition, 📊 illuminates for approx. 4 seconds after the ignition is switched on.

If a child restraint system with transponders is detected, ☐ remains illuminated. Only then a child restraint system with transponders may be used on the front passenger seat as the front passenger airbag systems are deactivated ✦ 59.

Danger

If a child restraint system is fitted and the control indicator is not illuminated while driving, the front and side airbag for the front passenger seat are not deactivated.

Flashes

Fault in system or child restraint system with transponders defective or improperly fitted 59.

Danger

Flashing of the control indicator while driving indicates a fault. Have the cause of the fault remedied by a workshop immediately.

Child restraint system with transponders 64.

Charging system

- + illuminates red.

Illuminates when the ignition is switched on and goes out shortly after the engine starts.

Illuminates when the engine is running

Stop, switch off engine. Battery is not charging. Engine cooling may be interrupted. In diesel engines, power to the brake servo unit may be cut. Seek the assistance of a workshop.

Malfunction indicator light

illuminates or flashes yellow. Illuminates when the ignition is switched on and goes out shortly after the engine starts.

Illuminates when the engine is running

Fault in the emission control system. The permitted emission limits may be exceeded. Immediately seek the assistance of a workshop.

Flashes when the engine is running

Fault that could lead to catalytic converter damage. Ease up on the accelerator until the flashing stops. Seek the immediate assistance of a workshop.

Service vehicle soon

illuminates or flashes yellow.

Illuminates when the engine is running

Fault in engine or transmission electronics 139, 144. The electronics switch to an emergency running programme. Fuel consumption may be increased and the vehicle handling may be impaired. If the fault persists after restarting the vehicle, consult a workshop.

Illuminates together with InSP4 in the service display

Seek the assistance of a workshop for draining the diesel fuel filter 107.

Flashes with switched on ignition

Fault in the electronic immobiliser system. The engine cannot be started 32.

Switch off the ignition and repeat the start attempt.

If the control indicator continues flashing, attempt to start the engine using the spare key and seek the assistance of a workshop.

Brake and clutch system

(1) illuminates or flashes red.

Illuminated

Illuminates after the ignition is switched on if the parking brake is applied 146.

Illuminates when the parking brake is released if the brake and clutch fluid level is too low 161.

⚠ Warning

Stop. Do not continue your journey. Consult a workshop.

Flashes

On vehicle with automated manual transmission, flashes for a few seconds when the ignition is switched off if the parking brake is not applied.

On vehicles with automated manual transmission, flashes when the driver's door is opened if no gear is engaged and the parking brake is not applied.

Antilock brake system (ABS)

(ABS) illuminates red.

Illuminates for a few seconds after the ignition is turned on. The system is ready for operation when the control indicator goes out.

If the control indicator does not go out after a few seconds, or if it illuminates while driving, there is a fault in the ABS. The brake system remains operational but without ABS regulation.

Anti-lock Braking System ➔ 145.

Sport mode

S illuminates yellow.

The symbol is illuminated when Sport mode is on 138, 143.

Winter mode

※ illuminates yellow.

The symbol is illuminated when

Winter mode is on 138, 143.

Ultrasonic parking assist

P illuminates or flashes yellow.

Illuminates

Fault in system. Have the cause of the fault remedied by a workshop.

Flashes

Fault due to sensors that are dirty or covered by ice or snow.

or

Interference due to external sources of ultrasound. Once the source of interference is removed, the system will operate normally.

Ultrasonic parking sensors ↩ 150.

Electronic Stability Program

flashes or illuminates yellow.

Illuminates for a few seconds when the ignition is switched on.

Flashes whilst driving

The system is actively engaged. Engine output may be reduced and the vehicle may be braked automatically to a small degree 147.

Illuminates whilst driving

The system is switched off or a fault is present. Continued driving is possible. Driving stability, however, may deteriorate depending on road surface conditions.

Have the cause of the fault remedied by a workshop.

ESP®Plus 147.

Engine coolant temperature

illuminates red.

Illuminates when the engine is running

Stop, switch off engine.

Caution

Coolant temperature too high.

Check coolant level immediately 160.

If there is sufficient coolant, consult a workshop.

Preheating and diesel particle filter

∞ illuminates or flashes yellow.

Illuminates

Preheating activated. Only activates when outside temperature is low.

Flashes

in vehicles fitted with a diesel particle filter.

Control indicator 00 flashes if the filter requires cleaning and previous driving conditions did not permit automatic cleaning. Continue driving and if possible do not allow engine speed to drop below 2000 rpm.

The control indicator goes off as soon as the self-cleaning operation is complete.

Diesel particle filter ➔ 134.

Deflation detection system and tyre pressure monitoring system

(1) illuminates or flashes red or yellow.

Control indicator illuminates red Tyre pressure loss. Stop immediately and check tyre pressure. A maximum speed of 80 km/h is permitted for run-flat tyres 185.

Control indicator illuminates yellow

Fault in system or tyre without pressure sensor mounted (e.g. spare wheel). Consult a workshop.

Flashes

Flashes three times to indicate system initialisation.

Deflation detection system ➔ 188, tyre pressure monitoring system ➔ 187.

Interactive driving system, continuous damping control, sport mode

IDS+ illuminates yellow.

Illuminates when the ignition is switched on and goes out shortly after the engine starts. Illumination whilst driving indicates a fault in the system. Have the cause of the fault remedied by a workshop.

IDS ^Plus 147, CDC 148, Sport mode 148.

Engine oil pressure

illuminates red.

Illuminates when the ignition is switched on and goes out shortly after the engine starts.

Illuminates when the engine is running

Caution

Engine lubrication may be interrupted. This may result in damage to the engine and/or locking of the drive wheels.

1. Depress clutch.
2. Select neutral gear, set selector lever to N.
3. Move out of the flow of traffic as quickly as possible without impeding other vehicles.
4. Switch off ignition.

⚠ Warning

When the engine is off, considerably more force is needed to brake and steer.

Do not remove key until vehicle is stationary, otherwise the steering wheel lock could engage unexpectedly.

Seek the assistance of a workshop.

Low engine oil level

illuminates yellow.

Engine oil level is checked automatically.

Illuminates when the engine is running

Low engine oil level. Check engine oil level and top up as necessary ⇨ 159.

Low fuel

illuminates or flashes yellow.

Illuminates

Level in fuel tank too low.

Flashes

Fuel used up. Refuel immediately. Never run the tank dry.

Catalytic converter 135.

Bleeding the diesel fuel system 162.

Open&Start system

E ) illuminates or flashes yellow.

Flashes

The electronic key is no more within the reception range of the vehicle interior. The engine cannot be started. Hold the Start/Stop button depressed a bit longer to switch off the ignition.

or

Failure of the electronic key. Operation is yet only possible via emergency operation.

Illuminates

Fault in system. Try to operate with the spare key, the remote control or through emergency operation. Hold the Start/Stop button depressed a bit longer to switch off the ignition. Seek the assistance of a workshop.

or

The steering wheel lock is still engaged. Move the steering wheel slightly and press the Start/Stop button.

Open&Start System ↩ 22.

Apply footbrake

illuminates yellow.

The engine with manual transmission automated can only be started if the foot brake is depressed. If the foot brake is not depressed, the control indicator illuminates 141.

Exterior light

illuminates green.

Illuminates when the exterior lights are on 114.

High beam

≡D illuminates blue.

Illuminates when high beam is on and during headlamp flash ➔ 115.

Adaptive forward lighting

illuminates or flashes yellow.

Illuminates

Fault in system.

If the swivelling device for curve lighting fails, the corresponding low beam lamp is deactivated and the fog lamp is switched on.

Seek the assistance of a workshop.

Flashes

Fault in system. Consult a workshop immediately.

Control indicator ◇ flashes for approx. 4 seconds after the ignition is switched on as a reminder that the system has been switched ➔ 115.

Adaptive Forward Lighting AFL ⇨ 116.

Fog light

D illuminates green.

Illuminates when the fog lights are on 117.

Rear fog light

Q‡ illuminates yellow.

Illuminates when the rear fog light is on 117.

Cruise control

illuminates green.

Illuminates when the system is on

149.

Door open

illuminates red.

Illuminates when a door or the tailgate is open.

Information displays Triple-Info-Display

12:01 17.0°C

FM 3 90.6MHz

20004

Displays time, outside temperature and date or Infotainment system when it is on.

When the ignition is off, time, date and outside temperature can be displayed by briefly pressing one of the two buttons below the display.

Board-Info-Display

11:25 ^⊕ 21.5 ^ C

Range

257km

Displays time, outside temperature and date or Infotainment system information.

Selecting functions

Functions and settings of the Infotainment system can be accessed via the board information display.

This is done using the menus and buttons of the Infotainment system.

If nothing is operated within 5 seconds, the menus are automatically exited.

Select using the Infotainment system buttons

Pure mechanical assembly diagram without any text, numbers, or symbols

In the Settings menu, use the OK button to call up the required function. Use the arrow buttons to change settings.

In the BC menu, use the OK button to call up the required function. Use the OK button to operate the stop watch or restart measurement and calculation.

Select using the left adjuster wheel on the steering wheel

Interior view of a car steering wheel with dashboard and steering wheel (no visible text or symbols)

Press the adjuster wheel to open the BC menu. In the BC menu press to operate the stop watch or restart measurement and calculation.

Turn the adjuster wheel to call up the required function.

System settings

11:25® 21.5° System 20006

Press the Settings button of the Infotainment system. Menu item Audio then opens.

Call up System with the left arrow button and select with the OK button.

Automatic time synchronisation

11:25℃ 21.5℃

Clock Sync.On

Setting date and time

11:25 21.5℃

▲11▼:25

20007

The RDS signal of most VHF transmitters automatically sets the time. This can be identified by ⏻ in the display.

Some transmitters do not send a correct time signal. In such cases, we recommend to switch off automatic time synchronisation.

Deactivate (Clock Sync.Off) or activate (Clock Sync.on) automatic time synchronisation with the arrow buttons.

The value ready for modification is marked with arrows. Use the arrow buttons to make the required setting.

Ignition logic

See Infotainment system manual.

Language selection

11:25 ^⊕ 21.5°C

Deutsch

The display language for some functions can be selected.

Select the required language with the arrow buttons.

Setting units of measure

11:25® 21.5° Unit Europe-SI 20010

Select the required unit of measurement with the arrow buttons.

Graphic-Info-Display, Colour-Info-Display

Range 257 km Aver. Consump. 7.6 L/100km Inst. consumpt. 7.0 L/100km 19.5° 22° A 19.36

Displays time, outside temperature, date or Infotainment system (when it is on) and electronic climate control system.

The Color-Info-Display displays the information in colour.

The type of information and how it is displayed depend on the equipment of the vehicle and the settings made.

Selecting functions

Functions and settings of the Infotainment system and electronic climate control system are accessed via the display.

Selections are made via the menus and buttons, the multifunction control of the Infotainment system or the left adjuster wheel of the steering wheel.

Selecting with the Infotainment system buttons

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

Select menu items via the menus and using the Infotainment system buttons. The OK button is used to select the highlighted item or confirm a command.

To exit a menu, press the right or left arrow button until Return or Main appear and select.

Selecting with the multifunction control

Abstract diagram with a circular arrow pointing upward, surrounded by circular elements and control panels (no text or symbols)

Turn the multifunction control to highlight menu items or commands and to select function areas.

Press the multifunction control to select the highlighted item or confirm a command.

To exit a menu, turn the multifunction control until Return or Main appear and select.

Selecting with the left adjuster wheel on the steering wheel

Interior view of a car steering wheel with a digital display showing a control panel (no text or symbols visible)

Turn to select a menu item.

Press the adjuster wheel to select the highlighted item or confirm a command.

Function areas

FM CDin ① 90.6 MHz 19.5° 19.36

For each function area there is a main page (Main), which is selected at the top edge of the display (not with Infotainment system CD 30 or the Mobile Phone Portal):

■ Audio,
■ Navigation,
■ Telephone,
- Trip computer.

System settings

Settings	19.5° 19:36
Time, Date	19:36
Language
Units	25.10.2008
Contrast
Day / Night
Ign. logic

20013

Press the Main button of the Infotainment system.

Press the Settings button on the Infotainment system. For Infotainment system CD 30, no menu may be selected.

Setting date and time

Time, Date 19.5° 19:36 Time 19:36 Date 25.10.2008 ☒ Synchron. clock automatical.

20014

Select menu item Time, Date from the Settings menu.

Select the required menu items and make settings.

Automatic time synchronisation The RDS signal of most VHF transmitters automatically sets the time.

Some transmitters do not send a correct time signal. In such cases, we recommend to switch off automatic time synchronisation.

On Infotainment systems with navigation, time and date are also harmonised upon receipt of a GPS satellite signal.

The function is activated by ticking the field in front of Synchron. clock automatical. in the Time, Date menu.

Language selection

Settings 19.5° 19:36 Time, Date Language Deutsch Units English Contrast Español Day / Night ... Ign. logic ...

20015

The display language for some functions can be selected.

Select menu item Language from the Settings menu.

Select the desired language.

13 Languages 19.5° 19:36 ► Deutsch English Español Nederlands Français Italiano

Selection is indicated by a ▶ in front of the menu item.

In systems with voice output, when the language setting of the display is changed the system will ask whether the announcement language should also be changed - see Infotainment system manual.

Setting units of measure

Settings 19.5° 19:36 Time, Date Language Units Contrast Day / Night Ign. logic Europe-SI Japan Great Britain USA 20017

Select menu item Units from the Settings menu.

Select the desired unit.

Selections are indicated by a ● in front of the menu item.

Adjusting contrast (Graphic-Info-Display)

Contrast 19.5° 19:36 12 20018

Select menu item Contrast from the Settings menu.

Confirm the required setting.

Setting display mode

Display brightness is dependent of vehicle lighting. Additional settings can be made as follows:

Select menu item Day/Night from the Settings menu.

Automatic: The colours are adapted to the exterior lights.

Always day design: black or coloured text on light background.

Always night design: white or coloured text on dark background.

Selection is indicated by a ● in front of the menu item.

Ignition logic

See Infotainment system manual.

Vehicle messages

Messages are given via the instrument panel display or as warning and signal buzzers. Check control messages appear on the Info-Display. Some appear in an abbreviated form. Confirm warning messages with the multifunction knob 99, 102.

Warning chimes

When starting the engine or whilst driving

■ If the electronic key is not present or is not recognised.
■ If seat belt is not fastened.
■ If a door or the tailgate is not fully closed when starting off.
■ If a certain speed is exceeded with the parking brake applied.
■ If the speed programmed at the factory is exceeded.

■ If the vehicle has automated manual transmission and the driver's door is opened when the engine is running, a gear is engaged and the foot brake is not depressed.

When the vehicle is parked and the driver's door is opened

■ When the key is in the ignition switch.
■ With exterior lights on.
■ With Open&Start system and automatic transmission, if the selector lever is not in P.
■ For automated manual transmission, if the parking brake is not applied and no gear is engaged when the engine is switched off.

When operating the retractable hardtop

■ Indicator buzzer upon completed opening or closing of the convertible hardtop.
■ Indicator buzzer upon completed raising or lowering of the electric load compartment loading aid.

Instruments and controls 107

■ Gong tone if the tailgate is not closed during roof operation.
■ Gong tone if the tailgate is not fully open during operation of the load compartment loading aid.
■ Gong tone during roof operation if vehicle speed exceeds 30 km/h.
■ Gong tone when vehicle speed exceeds 30 km/h if the roof is not fully open or closed.
■ Three gong tones during roof or loading aid operation if the load compartment blind is not attached.
■ Three gong tones during roof operation if outside temperature is below -20 °C, vehicle battery voltage is too low or the system is overloaded.
■ Continuous warning buzzer during roof operation if the anti-roll bars have been triggered.
■ Continuous warning buzzer starting one minute before the end of the 9-minute standby time with the roof in an intermediate position or the loading aid in a raised position.

■ Persistent warning buzzer when closing the tailgate, if the lowering process of the electric load aid is not complete or has been interrupted.

Battery voltage

Low battery voltage in radio remote control or electronic key. On vehicles without check control, the message InSP3 appears in the instrument panel display. Replace the battery 20, 22.

Brake light switch

Brake light does not come on during braking. Have the cause of the fault remedied immediately by a workshop.

Engine cooling level

Low fluid level in engine cooling system. Check coolant immediately 160.

Drain diesel fuel filter

If there is water in the diesel fuel filter, the message InSP4 appears in the instrument panel. Consult a workshop.

108 Instruments and controls

Lighting

Important exterior lights, including cables and fuses, are monitored. In trailer mode, trailer lighting is also monitored. Trailers with LED lighting must have an adapter that enables light monitoring as with conventional bulbs.

Brakelight check right OK

The failed lighting will be indicated in the information display or the message InSP2 will appear in the instrument panel display.

Anti-theft alarm system

System fault in anti-theft alarm system. Have the cause of the fault remedied by a workshop.

Tyre pressure

Navi active 19.5° 19:36 Tyre pressure check rear left (value in bar) OK 2.2 20021

On vehicles with tyre pressure monitoring system, if there is low tyre pressure, information which tyre to check appears on the display.

Reduce speed and check tyre pressure at the next opportunity. Tyre pressure monitoring system 187. Check tyre pressure 186, 243.

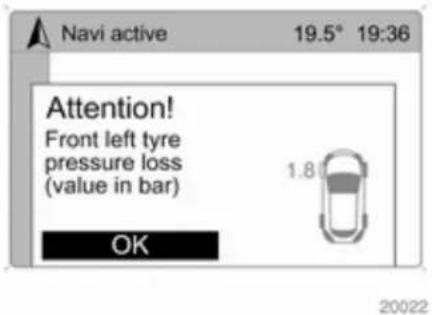

Navi active 19.5° 19:36 Attention! Front left tyre pressure loss (value in bar) 1.8 OK 20022

If there is a considerable loss of pressure, a corresponding message appears indicating the tyre.

Steer out of flow of traffic as quickly as possible without endangering other vehicles. Stop and check the tyres. Mount the spare wheel 193. If run-flat tyres are fitted, maximum speed is 80 km/h. Information 185. Tyre pressure monitoring system 187.

Washer fluid level

Low washer fluid level. Top up washer fluid 161.

Trip computer

Trip computer in Board-Info-Display

Access the data by pressing the BC button on the Infotainment system or the left adjuster wheel on the steering wheel.

Some information appears in the display in an abbreviated form.

Once an audio function has been selected, the lower row of the trip computer function is displayed furthermore.

Instantaneous consumption

11:25℃ 21.5℃

Inst. Consumpt.

7.6l/100km

Displays the instantaneous consumption. At low speeds, consumption per hour is displayed.

Average consumption

Displays average consumption. The measurement can be reset at any time.

Absolute consumption

Displays fuel consumed. The measurement can be reset at any time.

Average speed

Displays average speed. The measurement can be reset at any time.

Stoppages in the journey with the ignition off are not included in the calculations.

Distance

Displays distance travelled. The measurement can be reset at any time.

Range

11:25⊕ 21.5℃

Range 257km

20005

Range is calculated from current fuel tank content and current consumption. The display shows average values.

After refuelling, the range updates automatically after a brief delay.

When the fuel level in the tank is low, the message Range appears in the display.

When the fuel tank is nearly empty, the message Refuel! appears in the display.

Stop watch

11:25

21.5°C

Stop Watch 01:22:32h

20024

Select the function. Press the OK button or the left adjuster wheel on the steering wheel to start or stop the stop watch.

Restart trip computer

The measurement or calculation of the following trip computer information can be restarted:

■ Average consumption,
■ Absolute consumption,
■ Average speed,
■ Distance,
■ Stop watch.

Select the desired trip computer information ➔ 99. To restart, press the OK button or the left adjuster wheel on the steering wheel for approx. 2 seconds.

Trip computer in Graphic-Info-Display or Colour-Info-Display

The main page of the trip computer provides information on range, current consumption and average consumption of BC 1.

To display other trip computer data, press the BC button on the infotainment system, select the trip computer menu from the display or press the left adjuster wheel on the steering wheel.

Select BC 1 or BC 2 from the trip computer menu.

Range

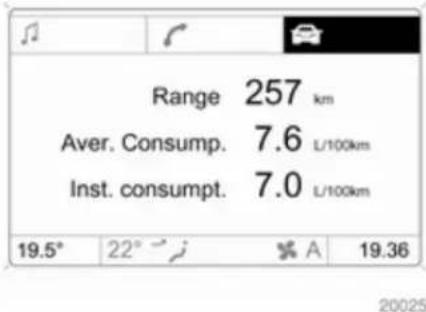

Range 257 km Aver. Consump. 7.6 L/100km Inst. consumpt. 7.0 L/100km 19.5° 22° A 19.36

Range is calculated from current fuel tank content and current consumption. The display shows average values.

After refuelling, the range is updated automatically after a brief delay.

Range 33 km OK

20026

When the fuel level in the tank is low, the message Range appears in the display.

When the fuel tank is nearly empty, the message Please refuel! appears in the display.

The navigation system will support you in finding the nearest gas station. See Infotainment manual for further information.

Instantaneous consumption

Display of the instantaneous consumption. At low speeds, consumption per hour is displayed.

Board Computer 19.5° 19:36 BC 1 All values BC 2 257.0 km Timer Ø 40 km/h 31.0 Ltr. Ø 7.0 L/100km

20027

Distance

Displays distance travelled. The measurement can be reset at any time.

Average speed

Displays average speed. The measurement can be reset at any time.

Stoppages in the journey with the ignition off are not included in the calculations.

Absolute consumption

Displays fuel consumed. The measurement can be reset at any time.

Average consumption

Displays average consumption. The measurement can be reset at any time.

Restart trip computer

The measurement or calculation of the following trip computer information can be restarted:

■ Distance,
■ Average speed,
■ Absolute consumption,
■ Average consumption.

Select BC 1 or BC 2 from the Board computer menu.

112 Instruments and controls

Reset BC 1 19.5° 19:36 All values 257.0 km Ø 40 km/h 31.0 Ltr. Ø 7.0 L/100km 20028

The information of the two trip computers can be reset separately, making it possible to evaluate data from different time periods.

Select the required trip computer information and confirm.

Reset BC 1 19.5° 19:36 All values 257.0 km Ø 40 km/h 31.0 Ltr. Ø 7.0 L/100km 20029

To reset all information of a trip computer, select menu item All values.

Stop watch

19.5° 19:36 Timer 00:00:00 Start Reset Options

Select menu item Timer from the Board Computer menu.

To start, select menu item Start. To stop, select menu item Stop.

To reset, select menu item Reset.

The relevant stop watch display can be selected in the Options menu:

Driving Time excl. Stops

The time the vehicle is in motion is recorded. Stationary time is not included.

Driving Time incl. Stops

The time the vehicle is in motion is recorded. The time the vehicle is stationary with the ignition switched on is included.

Travel Time

Measurement of the time from manual activation via Start to manual deactivation via Reset.

Tyre pressures

Board Computer 19.5° 19:36 BC 1 BC 2 Stop Watch Tyres 2.0 2.0 2.0 2.0 20031

Select menu Tyres from the Board Computer menu.

The current pressure of each tyre is displayed.

Further information ➔ 187.

Lighting

Exterior lighting 114

Interior lighting 118

Lighting features 119

Exterior lighting Light switch

Close-up of a gray industrial control knob with four rotary buttons (no text or symbols visible)

Turn light switch:

0 = Off

= Side lights

D = Headlights

Control indicator 98.

If the ignition is switched off with the headlights on, only the side lights remain illuminated.

Automatic light control

Close-up of a gray industrial control knob with four circular buttons labeled 0, 1, 2, 3 and 'AUTO 0' at center (no readable text beyond labels)

Light switch set to AUTO: When the engine is running, headlights are switched on when external light conditions are poor.

For reasons of safety, the light switch should always remain in the AUTO position.

Move light switch to if visibility is poor because of fog or mist.

High beam

Illustration of a USB flash drive with directional arrows indicating motion (no text or symbols)

To switch from low to high beam, push lever.

To switch to low beam, push lever again or pull.

Headlight flash

To activate the headlight flash, pull lever.

Headlight range adjustment Manual headlight range adjustment

Close-up of a control knob with four buttons labeled (0, 1, 2, 3) and a numeric display showing 3210, no readable text or symbols beyond labels.

To adapt headlight range to the vehicle load to prevent dazzling: Press knob to disengage and turn to required position.

Vehicles without automatic level control system

0 = front seats occupied

1 = all seats occupied

2 = all seats occupied and load compartment laden

3 = driver's seat occupied and load compartment laden

Vehicles with automatic level control system

0 = front seats occupied

1 = all seats occupied

1 = all seats occupied and load compartment laden

2 = driver's seat occupied and load compartment laden

Automatic headlight range adjustment

Headlight range is automatically adjusted based on vehicle load.

Headlights when driving abroad

The asymmetrical headlight beam extends visibility at the edge of the road on the passenger side.

116 Lighting

However, when driving in countries where traffic drives on the opposite side of the road, adjust the headlights to prevent dazzling of oncoming traffic.

Vehicles with halogen headlight system

Have the headlights adjusted by a workshop.

Vehicles with adaptive forward lighting

Adapting the aim of the headlight beam:

1. Pull lever and hold.
2. Switch on ignition.
3. An acoustic signal sounds after approx. 3 seconds.

Control indicator ➕ 98.

Daytime running lights

With the ignition on and the light switch set to O or AUTO, the side lights are switched on. When the engine is running, headlights illuminate.

On vehicle without automatic light control, must be switched on when it gets dark for illumination of the instrument panel.

The daytime running lights switch off when the ignition is switched off.

Adaptive forward lighting

Adaptive forward lighting with Bi-Xenon headlights improves lighting in curves and increases headlight range.

Curve lighting

Abstract grayscale illustration of a curved road with dashed lane markings, no text or symbols present

The light beam pivots based on steering wheel position and speed.

Motorway lighting

At higher speeds and continuous straight ahead travel, the beam automatically raises slightly, thereby increasing headlight range.

Control indicator 📋 98.

Hazard warning flashers

Front view of a vehicle front with a warning sign and triangular hazard symbol (no readable text)

Operated with the △ button.

The hazard warning flashers activate automatically if the airbags deploy.

Turn and lane-change signals

Close-up of a USB flash drive with directional arrows indicating motion (no text or symbols)

Lever up = right turn signal Lever down = left turn signal

The lever always springs back to its original position.

If the lever is moved past the resistance point, the turn signal is switched on constantly. When the steering wheel moves back, the turn signal is automatically deactivated.

For three flashes, e.g. when changing lanes, press the lever until resistance is felt and then release.

Move the lever to the resistance point and hold for longer indication.

Switch the turn signal off manually by moving the lever slightly.

Front fog lights

Close-up of a control panel with four circular buttons labeled '10', '0#, and '10' (no readable text or symbols beyond icons)

The front fog lights can only be switched on when both the ignition and headlights or side lights are on. Operated with the #D button.

Rear fog lights

The rear fog light can only be switched on when both the ignition and headlights or side lights (with front fog lights) are on.

Operated with the Ⓓ button.

The vehicle rear fog light is deactivated when towing.

Parking lights

0 15

When parked, the parking light on one side can be activated:

1. Set light switch to 0 or AUTO.
2. Ignition off.
3. Move turn signal lever all the way up (right parking light) or down (left parking light).

Confirmed by a signal and the corresponding turn signal control indicator.

To switch it off, switch on the ignition or move the turn signal lever in the opposite direction.

Reversing lights

The reversing lights come on when the ignition is on and reverse gear is selected.

Misted light covers

The inside of the light covers may mist up briefly in poor, wet and cold weather conditions, in heavy rain or after washing. The mist disappears quickly by itself; to help, switch on the headlights.

Interior lighting

Instrument panel illumination control

Close-up of a rotary dial with adjustment knob and control buttons (no readable text or symbols)

Brightness can be adjusted when the exterior lights are on: Press knob ⚙ to disengage and then turn it and hold until the desired brightness is obtained.

Interior lights

During entry and exit of the vehicle, the front and centre courtesy lights automatically come on and then switch off after a delay.

Front courtesy light

Diagram showing a cursor clicking a button labeled '系统' (system) on a grid interface, likely from a software interface.

Operated with the ☑ button.

Courtesy lights and rear reading lights

Close-up of a mechanical component with two circular features and directional arrows (no text or symbols)

Operated with switch.

$$ l = o n $$

$$ 0 = \text { off } $$

$$ \text { centre } = \text { automatic } $$

Reading lights

Close-up of a computer monitor with two buttons and a grid-patterned screen (no visible text or symbols)

Operated with ☑ buttons or switch.

$$ l = o n $$

$$ 0 = \text { off } $$

$$ \text { centre } = \text { automatic } $$

Sunvisor lights

The lighting switches on when the cover is opened.

Lighting features

Centre console lighting

Spotlight in interior mirror housing. Daylight-dependent, automatically regulated centre console lighting.

Entry lighting

After unlocking the vehicle, the instrument panel lighting and the number plate lights come on for a few seconds.

Exit lighting

0 1150

120 Lighting

Headlights and reversing lights come on for approx. 30 seconds after the system is activated and the driver's door is closed.

Activating

1. Switch off ignition.
2. Remove ignition key.
3. Open driver's door.
4. Pull turn signal lever.
5. Close driver's door.

If the driver's door is not closed the lights switch off after two minutes.

The lighting is switched off immediately if the turn signal lever is pulled while the driver's door is open.

Battery discharge protection

To prevent the battery from becoming discharged, all the interior lighting is switched off automatically after 10 minutes, when the ignition is switched off.

Infotainment system

Introduction 121

Radio 121

Audio players 122

Rear seat infotainment 122

Phone 122

Introduction

Operation

The Infotainment system is operated as described in the Infotainment system manual.

Radio

Radio reception

Radio reception may be disrupted by static, noise, distortion due to

■ changes in distance from the transmitter,
■ multi-path reception due to reflection,
■ shadowing.

Audio players

Auxiliary devices

Illustration of a hand holding a car seatbelt with a downward arrow pointing to the seat (no text or symbols present)

An external audio source such as a portable CD player can be connected using a 3.5 mm jack plug via the AUX input.

Always keep the AUX input clean and dry.

Rear seat infotainment

Rear seat audio system

TUNER CD CH

Twin Audio allows the choice between the audio source played on the Infotainment system or another audio source. Only an audio source that is not currently active on the Infotainment system can be controlled.

Two headphone connections are available, with separate volume controls.

Phone

Mobile phones and CB radio equipment

Installation instructions and operating guidelines

The vehicle specific installation instructions and the operating guidelines of the mobile phone and handsfree manufacturer must be observed when installing and operating a mobile telephone. Failure to do so could invalidate the vehicle type approval (EU directive 95/54/EC).

Recommendations for fault-free operation:

■ Professionally installed exterior antenna to obtain the maximum range possible,
■ Maximum transmission power 10 Watts,
■ Installation of the phone in a suitable spot, consider relevant Note 56.

Seek advice on predetermined installation points for the external antenna or equipment holder and ways of using devices with a transmission power exceeding 10 Watts.

Use of a handsfree attachment without external antenna with mobile telephone standards GSM 900/1800/1900 and UMTS is only permitted if the maximum transmission power of the mobile telephone is 2 Watts for GSM 900 or 1 Watt for the other types.

For reasons of safety, do not use the phone while driving. Even use of a handsfree set can be a distraction while driving.

⚠ Warning

Operation of radio equipment and mobile telephones which fail to meet above mentioned mobile telephone standards is only permitted using an antenna located outside of the vehicle.

Caution

Mobile telephones and radio equipment may lead to malfunctions in the vehicle electronics when operated inside the vehicle with no exterior antenna, unless the above mentioned regulations are observed.

Climate control

Climate control systems ...... 124

Air vents 130

Maintenance 131

Climate control systems Heating and ventilation system

Front view of a washing machine control panel with three rotary dials and a digital display (no visible text or symbols)

Controls for:

■ Air distribution

■ Temperature

■ Fan speed

Heated rear window ➞ 37.

Air distribution

→ = to head area and foot well

→ = to head area

j = to windscreen and front door windows

= to windscreen, front door windows and foot well

↓ = to foot well

Intermediate settings are possible.

Temperature

red = warm

blue = cold

Heating will not be fully effective until engine has reached normal operating temperature.

Fan speed

Adjust the air flow by switching the fan to the desired speed.

Demisting and defrosting the windows

■ Set air distribution control to 📞.
■ Set temperature control to warmest level.
■ Set fan speed to highest level.
■ Switch on heated rear window 📄.

■ Open side air vents as required and direct them towards door windows.
■ For simultaneous warming of the foot well, set air distribution control to ↓.

Air conditioning system

Front view of a washing machine control panel with rotary dials and indicator lights (no visible text or symbols)

Additional to the heating and ventilation system, the air conditioning system has:

☀ = Cooling

= Air recirculation

Cooling

Operated with the ⚙ button and is functional only when the engine and fan are running.

The air conditioning system cools and dehumidifies (dries) when outside temperature is above a specific level. Therefore condensation may form and drip from under the vehicle.

If no cooling or drying is required, switch the cooling system off to save fuel.

Air recirculation system 📄 Operated with the 📄 button.

⚠ Warning

The exchange of fresh air is reduced in air recirculation mode. In operation without cooling the air humidity increases, so the windows may mist up. The quality of the passenger compartment air deteriorates, which may cause the vehicle occupants to feel drowsy.

Air distribution to 📋: Air recirculation is deactivated.

Maximum cooling

Briefly open the windows so that hot air can disperse quickly.

■ Cooling ⚙ on.
■ Air circulation system 📄 on,
■ Set air distribution control to ↗.
■ Set temperature control to coldest level.
■ Set fan speed to highest level.
■ Open all vents.

Demisting and defrosting the windows

■ Cooling ⚙ on.
■ Set air distribution control to 📄.
■ Set temperature control to warmest level.
■ Set fan speed to highest level.
■ Switch on heated rear window 📄.

■ Open side air vents as required and direct them towards door windows.
■ For simultaneous warming of the foot well, set air distribution control to ↓.

Automatic climate control system

Front view of a washing machine control panel with rotary dials and indicator lights (no visible text or symbols)

Controls for:

■ Air distribution
■ Temperature
■ Fan speed

☀ = Cooling
= Air recirculation
= Demisting and defrosting

Heated rear window ➕ 37.

The preselected temperature is automatically regulated. In the automatic mode the fan speed automatically regulates the air flow.

Automatic mode

Basic setting for maximum comfort:

■ Set fan control to A.
■ Set the air distribution control to the desired setting.
■ Preset temperature to the desired level.
■ Cooling ⚙ on.
■ Open all of the air vents.

Air distribution

j = to head area and foot well
= to head area
i = to windscreen and front door windows
↓j = to windscreen, front door windows and foot well
↓ = to foot well

Intermediate settings are possible.

Temperature preselection

Set the temperature control to the required position. Intermediate settings are possible.

For reasons of comfort, change temperature only in small increments.

At the end positions, there is no temperature regulation. The air conditioning system works with maximum cooling or heating.

Heating will not be fully effective until engine has reached normal operating temperature.

Fan speed

In the automatic mode A the fan speed automatically regulates the air flow. If required the air flow can be manually adjusted.

Cooling

Operated with the ⚙ button and is functional only when the engine and fan are running.

The air conditioning system cools and dehumidifies (dries) when outside temperature is above a specific level. Therefore condensation may form and drip from under the vehicle.

If no cooling or drying is required, switch the cooling system off to save fuel.

Air recirculation system

The air recirculation mode is operated with the 📄 button.

⚠ Warning

The exchange of fresh air is reduced in air recirculation mode. In operation without cooling the air humidity increases, so the windows may mist up. The quality of the passenger compartment air deteriorates, which may cause the vehicle occupants to feel drowsy.

Maximum cooling

Briefly open the windows so that the heated air can disappear quickly.

■ Cooling ⚙ on.
■ Set air distribution control to ↗.
■ Set temperature control to required temperature value.
■ Set fan control to A.
■ Open all vents.

The automatic climate control automatically cools to the specified value with the maximum cooling power.

With the temperature control turned to its minimum setting, the system continually runs at maximum cooling. The system is automatically set to air recirculation when the air conditioning is on.

Demisting and defrosting the windows

■ Cooling ⚙ on.
■ Press button 📌: in position A, fan automatically switches to maximum speed, the air distribution is directed towards the windscreen.
■ Set temperature control to warmest level.
■ Switch on heated rear window 📄.

Electronic climate control system

Front view of a white appliance front panel with three circular control knobs and indicator lights (no readable text or symbols)

Controls for:

■ Temperature
■ Air distribution and menu selection
■ Fan speed

AUTO = Automatic mode

= air recirculation
= demisting and defrosting

Heated rear window 📋 37.

The preselected temperature is automatically regulated. In the automatic mode the fan speed and air distribution automatically regulate the air flow.

The system can be manually adapted by use of air distribution and air flow controls.

FM AS CDin MP3 ① 90.6 MHz 19.5° 22° A 19.36

20032

Data is shown on the Info-Display. Setting modifications are briefly shown in the Info-Display, superimposing over the currently displayed menu.

The electronic climate control system is only fully operational when the engine is running.

Do not cover the sensor on the instrument panel for correct operation.

Automatic mode

Basic setting for maximum comfort:

■ Press AUTO button.
■ Open all air vents.
■ Air conditioning on.
■ Set desired temperature.

Temperature preselection

Temperatures can be set to the desired value.

For reasons of comfort, change temperature only in small increments.

If the minimum temperature is set, Lo appears in the display and the electronic climate control system runs at maximum cooling.

If the maximum temperature is set, Hi appears in the display and the electronic climate control system runs at maximum heating.

Fan speed

The selected fan speed is indicated with ✕ and a number in the display.

If the fan is switched off the air conditioning is also deactivated.

To return to automatic mode: Press AUTO button.

Demisting and defrosting the windows

Press the 🎨 button. 🎨 appears in the display.

Temperature and air distribution are set automatically and the fan runs at a high speed.

To return to automatic mode: press button 📋 or AUTO.

Switch on heated rear window ☐.

Manual settings in climate menu

Climate control system settings can be changed via the centre control, the buttons and the menus shown on the display.

To view the menu, press the centre control. The Climate menu appears in the display.

Individual menu items are marked by turning the centre control and selected by pressing it.

To exit a menu, turn the centre control until Return or Main appear and select.

Air distribution

Turn the centre control. The Air distribut. menu is activated, showing the possible air distribution settings:

Top = to windscreen and front door windows.

Centre = to vehicle occupants. Bottom = to foot well.

The Air distribut. menu can also be called up via the Climate menu.

Return to automatic air distribution: Deactivate corresponding setting or press button AUTO.

Cooling

Climate 19:36 Air distribut. AC Automatic blower Air conditioning on / off

20310

In the Climate menu, select menu item AC and activate or deactivate cooling.

The air conditioning system cools and dehumidifies (dries) when outside temperature is above a specific level. Therefore condensation may form and drip from under the vehicle.

If no cooling or drying is required, switch the cooling system off to save fuel, Eco appears in the display.

Fan regulation in automatic mode Fan regulation in automatic mode can be adapted.

Select menu item Automatic blower from the Climate menu and select the desired fan regulation.

Manual air recirculation mode

The manual air recirculation mode is operated with the 📄 button.

⚠ Warning

The exchange of fresh air is reduced in air recirculation mode. In operation without cooling the air humidity increases, so the windows may mist up. The quality of the passenger compartment air deteriorates, which may cause the vehicle occupants to feel drowsy.

Air conditioning with the engine not running

When ignition is off, the residual heat or cooling in the system can be used for climate control in passenger compartment.

Press the AUTO button with the ignition off. Residual air conditioning on will appear briefly in the display.

Residual climate control can only operate for a limited period of time. To cancel, press the AUTO button.

Auxiliary heater

Air heater

Quickheat is an electric auxiliary air heater which warms up the passenger compartment more quickly.

Coolant heater

Diesel-engined vehicles have a fuel-powered auxiliary heater.

Air vents

Adjustable air vents

At least one air vent must be open while cooling is on in order to prevent the evaporator from icing up due to lack of air movement.

1

To open vent, turn the adjuster wheel to I.

Diagram of a car air conditioner panel with labeled parts 1 and 2, showing internal structure and airflow direction.

Direct the flow of air by tilting and swivelling the slats.

To close the vent, turn the adjuster wheel to 0.

⚠ Warning

Do not attach any objects to the slats of the air vents. Risk of damage and injury in case of an accident.

Fixed air vents

Additional air vents are located beneath the windscreen and door windows and in the foot wells.

Maintenance

Air intake

Technical illustration of a mechanical component with no visible text or symbols

The air intakes in front of the windscreen in the engine compartment must be kept clear to allow air intake. Remove any leaves, dirt or snow.

Pollen filter

The pollen filter cleans dust, soot, pollen and spores from the air entering the vehicle through the air intake.

Air conditioning regular operation

In order to ensure continuously efficient performance, cooling must be operated for a few minutes once a month, irrespective of the weather and time of year. Operation with cooling is not possible when outside temperature is too low.

Service

For optimal cooling performance, it is recommended to annually check the climate control system, starting three years after initial vehicle registration, including:

■ Functionality and pressure test
■ Heating functionality
■ Leakage check
■ Check of drive belts
■ Cleaning of condenser and evaporator drainage
■ Performance check

Driving and operating

Driving hints 132

Starting and operating 132

Engine exhaust 134

Automatic transmission ...... 136

Manual transmission 140

Manual transmission automated 141

Brakes 145

Ride control systems .... 147

Cruise control 149

Object detection systems ..... 150

Fuel 151

Towing 153

Driving hints

Control of the vehicle

Never coast with engine not running

Many systems will not function in this situation (e.g. brake servo unit, power steering). Driving in this manner is a danger to yourself and others.

Pedals

To ensure the pedal travel is uninhibited, there must be no mats in the area of the pedals.

Starting and operating

New vehicle running-in

Do not brake unnecessarily hard for the first few journeys.

During the first drive, smoke may occur because of wax and oil evaporating off the exhaust system.

Park the vehicle in the open for a while after the first drive and avoid inhaling the fumes.

Fuel and engine oil consumption may be higher during the running-in period.

Ignition switch positions

0 1 2 3 30051

0 = Ignition off
1 = Steering wheel lock released, ignition off
2 = Ignition on, for diesel engine: preheating
3 = Starting

Starting the engine

Starting engine with ignition switch

1 2 3 0 30047

Operate clutch and brake, automatic transmission in P or N, do not accelerate; for diesel engines, turn the key to position 2 for preheating until control indicator 00 goes out; turn key briefly to position 3 and release key when engine is running. Before restarting or to switch off the engine, turn key back to 0.

Starting engine with the Start/Stop button

Interior view of a car air conditioner unit with a circular dial indicator (no visible text or symbols)

The electronic key must be inside the vehicle. Operate clutch and brake, automatic transmission in P or N, do not accelerate, for diesel engines, press the button briefly to start preheating, move the steering wheel slightly to release the steering wheel lock, wait until control indicator 00 goes out and then press button for 1 second and release when the engine is running.

To repeat the starting procedure or to switch off the engine, press the button again.

134 Driving and operating

Overrun cut-off

The fuel supply is automatically cut off during overrun, i.e. when the vehicle is driven with a gear engaged but accelerator is released.

Parking

■ Do not park the vehicle on an easily ignitable surface. The high temperature of the exhaust system could ignite the surface.
■ Always apply parking brake without pressing release button. Apply as firmly as possible on downhill or uphill slopes. Depress the foot brake at the same time to reduce operating force.
■ Switch off the engine and ignition. Turn the steering wheel until the steering wheel lock engages.
■ If the vehicle is on a level surface or uphill slope, engage first gear or set the selector lever to P before switching off the ignition. On an uphill slope, turn the front wheels away from the kerb.

If the vehicle is on a downhill slope, engage reverse gear or set the selector lever to P before switching off the ignition. Turn the front wheels towards the kerb.

■ Lock the vehicle and activate the anti-theft locking system and the anti-theft alarm system.

Engine exhaust

⚠ Danger

Engine exhaust gases contain poisonous carbon monoxide, which is colourless and odourless and could be fatal if inhaled.

If exhaust gases enter the interior of the vehicle, open the windows. Have the cause of the fault rectified by a workshop.

Avoid driving with an open load compartment, otherwise exhaust gases could enter the vehicle.

Diesel particle filter

The diesel particle filter system filters harmful soot particles out of the exhaust gases. The system includes a self-cleaning function that runs automatically during driving. The filter is cleaned by burning off the soot particles at high temperature. This process takes place automatically under set driving conditions and may take up to 25 minutes. Fuel

consumption may be higher during this period. The emission of smells and smoke during this process is normal.

Close-up of a circular gauge or speedometer with a pointer and a central numeric display (no readable text or symbols beyond the dial)

Under certain driving conditions, e.g. short distances, the system cannot clean itself automatically.

If the filter requires cleaning and previous driving conditions did not enable automatic cleaning, control indicator 700 flashes. Continue driving, keeping engine speed above 2000 revolutions per minute. Shift down if necessary. Diesel particle filter cleaning is then started.

1 2 3 0 30046

Stopping the journey or switching off the engine during cleaning is not recommended.

Caution

If the cleaning process is interrupted more than once, there is a great risk of provoking severe engine damage.

Cleaning takes place quickest at high engine speeds and loads.

Close-up of a circular gauge or speedometer with a pointer indicating approximately 180, showing no visible text or numerical data.

The control indicator 00 extinguishes as soon as the self-cleaning operation is complete.

Catalytic converter

The catalytic converter reduces the amount of harmful substances in the exhaust gases.

136 Driving and operating

Caution

Fuel grades other than those listed on pages 151, 218 could damage the catalytic converter or electronic components.

Unburnt petrol will overheat and damage the catalytic converter. Therefore avoid excessive use of the starter, running the fuel tank dry and starting the engine by pushing or towing.

In the event of misfiring, uneven engine running, a reduction in engine performance or other unusual problems, have the cause of the fault rectified by a workshop as soon as possible. In an emergency, driving can be continued for a short period, keeping vehicle speed and engine speed low.

Automatic transmission

The automatic transmission makes automatic shifting possible (automatic mode) and the version with ActiveSelect also makes manual shifting possible (manual mode).

Transmission display

03 18888 888888

The mode or selected gear is shown in the transmission display.

Selector lever

Illustration of a hand holding a device with a control panel and keyboard (no text or symbols visible)

P = park position, Front wheels locked, engage only when the vehicle is stationary and the parking brake is applied

R = reverse gear, engage only when vehicle is stationary

N = neutral

D = automatic mode with all gears

Illustration of a hand tool interacting with a device (no text or symbols visible)

The selector lever can only be moved out of P or N when the ignition is on and the foot brake is depressed (selector lever lock).

When the selector lever is in N, the selector lever lock is activated after a delay and only if the vehicle is stationary.

Mechanical gear shift lever interacting with a car (no text or symbols visible)

When the selector lever is in the P or N position, control indicator Ⓑ in the gear indicator strip illuminates red when the selector lever is locked. If the selector lever is not in the P position when the ignition is switched off, control indicator Ⓑ and P in the gear indicator strip flash.

To engage P or R, push button on selector lever.

When position N is selected, press foot brake or engage parking brake before starting.

Do not accelerate while engaging a gear. Never depress the accelerator pedal and brake pedal at the same time.

When a gear is engaged, the vehicle slowly begins to creep when the brake is released.

Gears 3, 2, 1

3, 2, 1 = Transmission does not shift above the selected gear.

Press button on selector lever to engage 3 or 1.

Only select 3, 2 or 1 to prevent automatic upshifting or as an aid in engine braking.

Engine braking

To utilise the engine braking effect, select a lower gear in good time when driving downhill.

138 Driving and operating

Rocking the vehicle

Rocking the vehicle is only permissible if the vehicle is stuck in sand, mud or snow. Move the selector lever between D and R in a repeat pattern. Do not race the engine and avoid sudden acceleration.

Parking

Apply the parking brake and engage P.

The ignition key can only be removed when the selector lever is in position P.

Manual mode

Close-up of a car gear shift lever mechanism with directional arrows indicating motion (no text or symbols)

Move selector lever out of position D towards the left and then forwards or backwards.

+ = Shift to a higher gear.

- = Shift to a lower gear.

If a higher gear is selected when vehicle speed is too low, or a lower gear when vehicle speed is too high, the shift is not executed.

If engine speed is too low, the transmission automatically shifts to a lower gear above a specific vehicle speed.

No automatic shifting to a higher gear takes place at a high engine speed.

For reasons of safety, kickdown is also available in manual mode.

Electronic driving programmes

■ Following a cold start, the operating temperature programme increases engine speed to quickly bring the catalytic converter to the required temperature.

■ The automatic neutral shift function automatically shifts to idling when the vehicle is stopped with a forward gear engaged.
■ The adaptive programme tailors gearshifting to the driving conditions, e.g. greater load or gradients.
■ When Sport mode is engaged, the vehicle shifts at higher engine speeds (unless cruise control is on). Sport mode 148.

Winter programme ✉

Illustration of a car intake manifold with a downward arrow indicating a drop (no text or symbols present)

Activate the Winter programme to assist starting off on a slippery road surface.

Activation on vehicles without manual mode

Press the ✉ button with P, R, N, D or 3 engaged. The vehicle starts off in 3rd gear.

Activation on vehicles with manual mode

In automatic mode, press the ✿ button. Depending on road conditions, the vehicles starts off in 2nd or 3rd gear.

Deactivation

The Winter programme is switched off by:

■ pressing the ✕ button again
■ manually selecting 2 or 1
■ changing to manual mode
■ turning off the ignition
■ or if the transmission oil temperature is too high

Kickdown

Close-up of a hand holding a small electronic device with a black arrow pointing to it, no visible text or symbols.

If the accelerator pedal is pressed past the pressure point, the transmission shifts to a lower gear depending on engine speed.

Fault

In the event of a fault, 📋 illuminates.

The transmission no longer shifts automatically. Continued travel is possible with manual shifting.

Have the cause of the fault remedied by a workshop.

Version without manual mode

2nd gear is not available. Manual shifting:

1 = 1st gear

2 = 3rd gear

3, D = 4th gear

Version with manual mode

Only the highest gear is available. Depending on the fault, 2nd gear may also be available in manual mode.

Interruption of power supply

In the event of an interruption of power supply, the selector lever cannot be moved out of the P or N position.

If the battery is discharged, start the vehicle using jump leads ➔ 196.

Illustration of a mechanical lever mechanism with a curved handle and arrow (no text or symbols)

If the battery is not the cause of the fault, release selector lever:

1. Apply parking brake.
2. Release selector lever trim from centre console at rear, fold upwards and rotate to the left.

Illustration of a light bulb mounted on a device with an arrow indicating rotation (no text or symbols)

1. Push the yellow catch forward with a screwdriver and move the selector lever out of P.
2. Mount selector lever trim on centre console and refit.

Reselecting P causes locking again. Have a workshop eliminate the cause of the power loss.

Manual transmission

Mechanical gear shift lever mechanism (no text or symbols visible)

To engage reverse, with the vehicle stationary wait 3 seconds after declutching and then pull up the button on the selector lever and engage the gear.

If the gear does not engage, set the lever in neutral, release the clutch pedal and depress again; then repeat gear selection.

Do not grind the clutch unnecessarily. When operating, depress the clutch pedal completely. Do not use the pedal as a foot rest.

Caution

It is inadvisable to drive with hand resting on the selector lever.

Manual transmission automated

The Easytronic transmission permits manual (manual mode) or automatic gear shifting (automatic mode), both with automatic clutch control.

Transmission display

A3 S 18899 888888

Shows the mode and current gear. The display flashes for a few seconds when A, M or R is selected with the engine running and the foot brake not activated.

If the Winter programme is activated, ✝ is illuminated.

Starting the engine

Depress the foot brake when starting the engine. If the foot brake is not depressed, Ⓤ illuminates in the instrument, "N" flashes in the transmission display and the engine cannot be started.

Starting is not possible if all brake lights fail.

When the foot brake is depressed, the transmission automatically shifts to N upon start. There may be a slight delay.

142 Driving and operating

Selector lever

Diagram of a mechanical device with labeled components A, N, R and directional arrows indicating motion or force

Always move the selector lever in the appropriate direction as far as it will go. Upon release, it automatically returns to the centre position.

N = Neutral.

A = Switch between automatic and manual mode. The transmission display shows A or M.

R = Reverse gear. Engage only when vehicle is stationary.

+ = Shift to a higher gear.

- = Shift to a lower gear.

Starting off

Depress the foot brake and move the selector lever to A, + or -. The transmission is in automatic mode and first gear is engaged. If R is selected, reverse gear is engaged.

The vehicle starts to move when the brake is released.

To start off without depressing the foot brake, accelerate immediately after engaging a gear.

If neither the accelerator nor the brake pedal are depressed, no gear is engaged and A or R flashes for a brief time in the display.

Stopping the vehicle

In A, first gear is engaged and the clutch is released when the vehicle is stopped. In R, reverse gear remains engaged.

Engine braking

Automatic mode

When driving downhill, the manual transmission automated does not shift into higher gears until a fairly

high engine speed has been reached. It shifts down in good time when braking.

Manual mode

To utilise the engine braking effect, select a lower gear in good time when driving downhill.

Rocking the vehicle

Rocking the vehicle is only permissible if the vehicle is stuck in sand, mud or snow. Move the selector lever between R and A in a repeat pattern. Do not race the engine and avoid sudden acceleration.

Parking

Apply the parking brake. The most recently engaged gear (see transmission display) remains engaged. With N, no gear is engaged.

When the ignition is switched off the transmission no longer responds to movement of the selector lever.

Manual mode

If a higher gear is selected when the engine speed is too low, or a lower gear when the speed is too high, the shift is not executed. This prevents the engine from running at too low or too high an engine speed.

If engine speed is too low, the transmission automatically shifts to a lower gear.

If engine speed is too high, the transmission only switches to a higher gear via kickdown.

When + or - is selected in automatic mode, the transmission switches to manual mode and shifts accordingly.

Electronic driving programmes

■ Following a cold start, the operating temperature programme increases engine speed to quickly bring the catalytic converter to the required temperature.
■ The adaptive programme tailors gearshifting to the driving conditions, e.g. greater load or gradients.
■ When Sport mode is engaged, shift times are reduced and the transmission shifts at higher engine speeds (unless cruise control is on). Sport mode 148.

Winter programme ✉

Illustration of a car gear shift lever with a downward arrow and plus button (no text or symbols)

Activate the Winter programme if you have problems starting off on a slippery road surface.

Activation

Press the ⚙ button. The transmission switches to automatic mode. The vehicle starts off in 2nd gear. Sport mode is deactivated.

Deactivation

The Winter programme is switched off by:

■ pressing the ✕ button again
■ turning off the ignition,

144 Driving and operating

■ switching to manual mode (when switched back to automatic mode, the Winter programme is again active)
■ when clutch temperature is too high

Kickdown

Close-up of a robotic arm with a black arrow pointing to a component (no visible text or symbols)

If the accelerator pedal is pressed past the pressure point, the transmission shifts to a lower gear depending on engine speed.

During kickdown no manual gear shifting is possible.

Fault

To prevent damage to the manual transmission automated, the clutch is engaged automatically at high clutch temperatures.

illuminates in the event of a fault. Continued driving is possible. Manual mode cannot be used for shifting.

If F appears in the transmission display, continued driving is not possible.

Have the cause of the fault remedied by a workshop.

Interruption of power supply

The clutch is not disengaged if there is an interruption of the power supply when a gear is engaged. The vehicle cannot move.

If the battery is discharged, start the vehicle using jump leads 196.

If the cause of the fault is not a discharged battery, seek the assistance of a workshop.

Mechanical assembly diagram showing a rotating component with a magnified inset (no text or symbols)

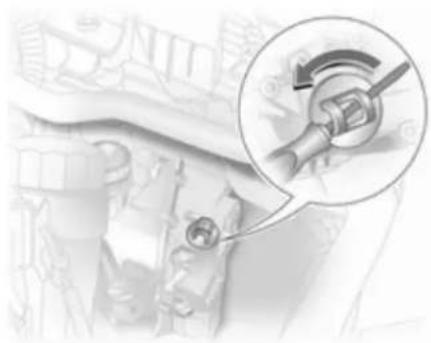

If the vehicle must be moved out of the flow of traffic, disengage the clutch as follows (for vehicles with 5-speed manual transmission automated only):

1. Apply parking brake and switch off ignition.
2. Open the bonnet ➔ 158.
3. Clean the transmission around the cap so that no dirt can get into the opening when the cap is removed.

4. Rotate cap to slacken and remove by lifting upwards.

5. Using a flat-head screwdriver, turn the adjusting screw under the cap clockwise until clear resistance can be felt. The clutch has now been disengaged.

6. Refit cleaned cap. The cap must be in full contact with the housing.

On vehicles with 6-speed manual transmission automated, the clutch cannot be released; if the vehicle must be moved, raise the vehicle at the front to tow.

Caution

Do not turn beyond the resistance since this could damage the transmission.

Caution

Towing the vehicle and starting the engine is not permitted when the clutch has been disengaged in this way, although the vehicle can be moved a short distance.

Seek the immediate assistance of a workshop.

Brakes

The brake system comprises two independent brake circuits.

If a brake circuit fails, the vehicle can still be braked using the other brake circuit. However, braking effect is achieved only when you depress the brake pedal firmly. You need to use considerably more force for this. The braking distance is extended. Seek the assistance of a workshop before continuing your journey.

When the engine is not running, the support of the brake servo unit disappears once the brake pedal has been depressed once or twice. Braking effect is not reduced, but braking requires significantly greater force. It is especially important to bear this in mind when being towed.

Control indicator (①) 95.

Antilock brake system

Antilock brake system (ABS) prevents the wheels from locking.

ABS starts to regulate brake pressure as soon as a wheel shows a tendency to lock. The vehicle remains steerable, even during hard braking.

ABS control is made apparent though a pulse in the brake pedal and the noise of the regulation process.

For optimum braking, keep the brake pedal fully depressed throughout the braking process, despite the fact that the pedal is pulsating. Do not reduce the pressure on the pedal.

Control indicator (ABS) 95.

Adaptive brake lamp

During full braking, all three brake lamps flash for the duration of ABS control.

Fault

⚠ Warning

If there is a fault in the ABS, the wheels may be liable to lock due to braking that is heavier than normal. The advantages of ABS are no longer available. During hard braking, the vehicle can no longer be steered and may swerve.

Have the cause of the fault remedied by a workshop.

Parking brake

Always apply parking brake firmly without operating the release button, and apply as firmly as possible on a downhill or uphill slope.

To release the parking brake, pull the lever up slightly, press the release button and fully lower the lever.

To reduce the operating forces of the parking brake, depress the foot brake at the same time.

Control indicator (①) 95.

Brake assist

If the brake pedal is depressed quickly and forcefully, maximum brake force is automatically applied (full braking).

Maintain steady pressure on the brake pedal for as long as full braking is required. Maximum brake force is automatically reduced when the brake pedal is released.

Hill start assist

The system helps driving away on inclines at a constant speed by holding the vehicle. After the parking brake is disengaged and the foot brake pedal is released, the brakes are released after a 2 second delay.

Ride control systems

Electronic stability program

Electronic stability program (ESP®Plus) improves driving stability when necessary, regardless of the type of road surface or tyre grip. It also prevents the drive wheels from spinning.

As soon as the vehicle starts to swerve (understeer/oversteer), engine output is reduced and the wheels are braked individually. This considerably improves the driving stability of the vehicle on slippery road surfaces.

ESP®Plus is operational as soon as control indicator ≈ extinguishes.

When ESP®Plus comes into action ★ flashes.

⚠ Warning

Do not let this special safety feature tempt you into taking risks when driving.

Adapt speed to the road conditions.

Control indicator ↗ 96.

Deactivation

SPORT

ESP®Plus can be deactivated when Sport mode is engaged for high-performance driving:

Hold the SPORT button depressed for about 4 seconds. Control indicator illuminates. ESPoff also appears in the service display.

⚠ Warning

Do not deactivate ESP®Plus if a run-flat tyre has lost pressure.

ESP®Plus is reactivated by pressing the SPORT button. ESPon appears in the service display. ESP®Plus is also reactivated the next time the ignition is switched on.

Sport mode 148.

Interactive driving system

Interactive driving system (IDS ^Plus ) combines the electronic stability program (ESP ^Plus ) with the antilock brake system (ABS) and continuous damping control (CDC) to improve driving dynamics and vehicle safety.

148 Driving and operating

Sport mode

Suspension and steering become more direct and provide better contact with the road surface. The engine reacts more quickly to accelerator pedal movements.

Automatic gear changing is also more responsive.

Control indicator IDS+ 97.

Activation

SPORT

Press SPORT button.

Control indicator Ⓧ 95.

Winter programme activation not possible.

Deactivation

Briefly press the SPORT button. Sport mode is deactivated the next time the ignition is switched on or if the Winter programme is activated.

Continuous damping control

Continuous damping control (CDC) changes suspension with damping adaptation of each shock absorber to the current driving situation and road conditions.

When Sport mode is engaged, the damping control is adapted to a sportier driving style.

Control indicator IDS+ 97.

Automatic level control

The rear level of the vehicle is automatically adjusted to the load conditions while driving. Suspension and ground clearance are increased, which improves driving conditions.

The automatic level control is activated after the vehicle has been driven for some distance, depending on the vehicle loading and the road conditions.

Do not use full payload in the event of a fault. Have the cause of the fault remedied by a workshop.

Cruise control

The cruise control can store and maintain speeds of approx. 30 to 200 km/h. Deviations from the stored speeds may occur when driving uphill or downhill.

For safety reasons the cruise control cannot be activated until the foot brake has been operated once.

Close-up of a black USB flash drive with three buttons and a connector (no visible text or symbols)

Do not use the cruise control if it is not advisable to maintain a constant speed.

With automatic transmission or manual transmission automated, only activate cruise control in automatic mode.

Control indicator ➡ 99.

Activation

Briefly press the ⚙ button: the current speed is stored and maintained.

Vehicle speed can be increased by depressing the accelerator pedal. When the accelerator pedal is released, the previously stored speed is resumed.

The speed is saved until the ignition is switched off.

To resume the saved speed, briefly press the ⏻ button at a speed above 30 km/h.

Increase speed

With cruise control active, hold down button ⚡ or briefly press it repeatedly: speed is increased continuously or in small increments.

When button 🔒 is released the current speed is stored and maintained.

Reduce speed

With cruise control active, hold down button ⏻ or briefly press it repeatedly: speed is reduced continuously or in small increments.

When button Ⓞ is released the current speed is stored and maintained.

Deactivation

Briefly press the O button: cruise control is deactivated.

Automatic deactivation:

■ Vehicle speed below approx. 30 km/h
■ The brake pedal is depressed
■ The clutch pedal is depressed
- Selector lever in N.

Object detection systems Parking assist

Front view of a white car with visible side grille and wheels (no text or symbols)

The parking assist makes parking easier by measuring the distance between the vehicle and obstacles. It is the driver, however, who bears full responsibility for parking.

The system consists of four ultrasonic parking sensors in each of the front and rear bumpers.

Control indicator P↔95.

Note

Attached parts in the detection area cause system malfunction.

Activation

Pure electrical circuit lines without any symbols

When reverse gear is engaged, the system switches itself on automatically.

The system can also be activated at low speed by pressing the P▲ button.

An obstacle is indicated by buzzers. The interval between the buzzers becomes shorter as the vehicle gets closer to the obstacle. When the distance is less than 30 cm, the buzzer is continuous.

Warning

Under certain circumstances, various reflective surfaces on objects or clothing as well as external noise sources may cause the system to fail to detect obstacles.

Deactivation

Deactivate the system by pressing the P▲ button.

The system deactivates automatically when reverse gear is disengaged.

Towing equipment

The system automatically detects factory-fitted towing equipment.

When towing, plugging the trailer cable into the socket automatically switches the park pilot off.

Fuel

Fuel for petrol engines

Only use unleaded fuel that complies with DIN EN 228.

Equivalent standardised fuels with an ethanol content of max. 10 % by volume may be used. In this case only use fuel that complies with DIN 51625.

Use fuel with the recommended octane rating 218. Use of fuel with too low an octane rating can reduce engine power and torque and slightly increases fuel consumption.

Caution

Use of fuel with too low an octane rating could lead to uncontrolled combustion and engine damage.

Fuel for diesel engines

Only use diesel fuel that complies with DIN EN 590. The fuel must have low sulphur content (max. 50 ppm). Equivalent standardised fuels with

a biodiesel (= FAME according to EN14214) content of max. 7% by volume (like DIN 51628 or equivalent standards) may be used.

Do not use marine diesel oils, heating oils or entirely or partially plant-based diesel fuels, such as rape seed oil or bio diesel, Aquazole and similar diesel-water emulsions. Diesel fuels must not be diluted with fuels for petrol engines.

The flow and filterability of diesel fuel are temperature-dependent. When temperatures are low, refuel with diesel fuel with guaranteed winter properties.

Refuelling

13 188 794

Danger

Before refuelling, switch off engine and any external heaters with combustion chambers (identified by sticker on fuel filler flap). Switch off any mobile phones.

Follow the operating and safety instructions of the filling station when refuelling.

Danger

Fuel is flammable and explosive. No smoking. No naked flames or sparks.

If you can smell fuel in your vehicle, have the cause of this remedied immediately by a workshop.

Fuel filler flap is located at right rear side of vehicle.

The fuel filler flap can only be opened if the vehicle is unlocked.

Illustration of a car seatbelt switch with an inset close-up showing the component (no text or symbols)

The fuel filler cap can be retained in the bracket on the fuel filler flap.

Caution

Wipe off any overflowing fuel immediately.

Fuel filler cap

Only a genuine fuel filler cap provides full functionality. Diesel-engined vehicles have special fuel filler caps.

Fuel consumption - CO _2 -Emissions

The determination of fuel consumption is regulated by European directive 80/1268/EEC (latest edition 2004/3/EC).

The directive is oriented to actual driving practices: Urban driving is rated at approx. 13 and extra urban driving with approx. 23 . Cold starts and acceleration phases are also taken into consideration.

The specification of CO_2 emission is also a constituent of the directive.

The figures given must not be taken as a guarantee for the actual fuel consumption of a particular vehicle. Furthermore, fuel consumption is dependent on personal driving style as well as road and traffic conditions. All values are based on the EU base model with standard equipment.

The calculation of fuel consumption takes into account the vehicle's kerb weight, ascertained in accordance with the regulations. Optional equipment may result in slightly higher fuel consumption and CO_2 emission levels and a lower maximum speed.

Fuel consumption, CO_2 emissions 226.

Towing

General information

Only use towing equipment that has been approved for your vehicle.

Entrust retrofitting of towing equipment to a workshop. It may be necessary to make changes that affect the cooling system, heat shields or other equipment.

Do not mount towing equipment to vehicles with Z 20 LEH engine.

Fitting of towing equipment could cover the opening of the towing eye. If this is the case use the coupling ball bar for towing. Always keep the coupling ball bar in the vehicle.

Installation dimensions of factory-fitted towing equipment 259.

Driving characteristics and towing tips

Before attaching a trailer, lubricate the coupling ball. However, do not do so if a stabiliser, which acts on the coupling ball, is being used to reduce snaking movements.

For trailers with low driving stability and trailers with a permitted gross vehicle weight of more than 1300 kg (Saloon)/1200 kg (Station wagon) a speed of 80 km/h must not be exceeded; the use of a stabiliser is recommended.

If the trailer starts snaking, drive more slowly, do not attempt to correct the steering and brake sharply if necessary.

When driving downhill, drive in the same gear as if driving uphill and drive at a similar speed.

Adjust tyre pressure to the value specified for full load ➔ 243.

Trailer towing

Trailer loads

The permissible trailer loads are vehicle and engine-dependent maximum values which must not be exceeded. The actual trailer load is the difference between the actual gross weight of the trailer and the actual coupling socket load with the trailer coupled.

The permissible trailer loads are specified in the vehicle documents. In general, they are valid for gradients up to max. 12 %

The permitted trailer load applies up to the specified incline and up to an altitude of 1000 metres above sea level. Since engine power decreases as altitude increases due to the air becoming thinner, therefore reducing climbing ability, the permissible gross train weight also decreases by 10 % for every 1000 metres of additional altitude. The gross train weight does not have to be reduced when driving on roads with slight inclines (less than 8 %, e. g. motorways).

The permissible gross train weight must not be exceeded. This weight is specified on the identification plate 217.

Vertical coupling load

The vertical coupling load is the load exerted by the trailer on the coupling ball. It can be varied by changing the weight distribution when loading the trailer.

154 Driving and operating

The maximum permissible vertical coupling load (75 kg) is specified on the towing equipment identification plate and in the vehicle documents. Always aim for the maximum load, especially in the case of heavy trailers. The vertical coupling load should never fall below 25 kg.

Rear axle load

When the trailer is coupled and the towing vehicle fully loaded, the permissible rear axle load (see identification plate or vehicle documents) may be exceeded by 65 kg and the permissible gross vehicle weight by 45 kg for the Saloon. For the Station wagon, the permissible rear axle load may be exceeded by 60 kg and the permissible gross vehicle weight by 30 kg. If the permissible rear axle load is exceeded, a maximum speed of 100 km/h applies.

Towing equipment

Caution

When operating without a trailer, remove the coupling ball bar.

Stowage of coupling ball bar

Architectural sketch of a building facade with pipes and structural elements (no text or symbols)

In Saloons, the coupling ball bar is in a pouch, fastened in the load compartment cargo box with a strap. In Station wagons, the coupling ball bar is fastened with a strap in a compartment in the spare wheel well of the load compartment.

Fitting the coupling ball bar

Illustration of hands operating a mechanical device with directional arrows indicating motion (no text or symbols)

Fold down the socket. Remove the sealing plug from the hole for the coupling ball bar and stow it in the load compartment.

Checking the tensioning of the coupling ball bar

Medical illustration of a mechanical device with labeled parts (1 and 2), showing internal components and a magnified inset view of the central component.

■ Red marking on rotary knob must point towards white marking on coupling ball bar.
■ The gap between the rotary knob and the coupling ball bar must be approx. 4 millimetres.
■ Key must be at position ☑ (1).

Otherwise, the coupling ball bar must be tensioned before being inserted:

■ Unlock coupling ball bar by turning key to position ☐ (1)

Illustration of hands using a tool to adjust or install a mechanical component, with no visible text or symbols.

■ Pull out rotary knob and turn clockwise as far as it will go.

Inserting the coupling ball bar

Illustration of a hand holding a mechanical device with a knob and arrow indicator (no text or symbols)

Insert the tensioned coupling ball bar in the opening and push firmly upwards until it audibly engages.

The rotary handle snaps back into its original position resting against the coupling ball bar without a gap.

⚠ Warning

Do not touch rotary handle during insertion.

Close-up of a white plumbing outlet pipe with a valve and handle, no visible text or symbols

Lock the coupling ball bar by turning the key to position ☐ (2). Remove the key and close the protective flap.

156 Driving and operating

Eye for break-away stopping cable Attach break-away stopping cable to eye.

Check that the coupling ball bar is correctly installed

■ Green marking on rotary knob must point towards white marking on coupling ball bar.
■ There must be no gap between the rotary handle and the coupling ball bar.
■ The coupling ball bar must be firmly engaged in the opening.
■ The coupling ball bar must be locked and the key removed.

Warning

Towing a trailer is permitted only when a coupling ball bar is fitted correctly. If the coupling ball bar does not engage correctly, seek the assistance of a workshop.

Dismounting the coupling ball bar

Illustration of a hand holding a tool with a curved tool inserted, showing a downward arrow (no text or symbols present)

Open the protective flap and turn the key to position ⏻ (1) to unlock the coupling ball bar.

Pull out rotary handle and turn clockwise as far as it will go. Pull out coupling ball bar downwards.

Insert sealing plug in opening. Fold away socket.

Trailer stability assist

If the system detects snaking movements, engine power is reduced and the vehicle/trailer combination is selectively braked until the snaking ceases.

Trailer stability assistant (TSA) is a function of the Electronic Stability Program (ESP®Plus) 147.

Vehicle care

General Information ...... 157

Vehicle checks 158

Bulb replacement 163

Electrical system 177

Vehicle tools 184

Wheels and tyres 185

Jump starting 196

Towing 198

Appearance care 200

General Information

Accessories and vehicle modifications

We recommend using genuine parts and accessories and factory approved parts specific for your vehicle type. We cannot assess or guarantee reliability of other products - even if they have a regulatory or otherwise granted approval.

Do not make any modifications to the electrical system, e.g. changes of electronic control units (chip tuning).

Vehicle storage

Storage for a long period of time The following must be done if the vehicle should be stored for several months:

■ Wash and wax the vehicle.
■ Have the wax in the engine compartment and underbody checked.
■ Clean and preserve rubber seals.
■ Change engine oil.

■ Drain washer fluid reservoir.
■ Check coolant antifreeze.
■ Adjust tyre pressure to the value specified for full load.
■ Park vehicle in dry, well ventilated place. Engage first or reverse gear or set selector lever to P. Prevent the vehicle from rolling.
■ Do not apply parking brake.
■ Open bonnet, close all doors and lock the vehicle.
■ Disconnect the clamp from the negative terminal of the vehicle battery. Be aware that all systems are non-operational, e.g. the anti-theft alarm system.

Putting back into operation

The following must be done if the vehicle is put back into operation:

■ Connect the clamp to the negative terminal of the vehicle battery. Activate the electronics of the power windows.

■ Check tyre pressure.

■ Fill up the washer fluid reservoir.

158 Vehicle care

■ Check the engine oil level.
■ Check the coolant level.
■ Fit the number plate if necessary.

End-of-life vehicle recovery

Information about end-of-life vehicle recovery centres and the recycling of end-of-life vehicles is available on our website. Only entrust this work to an authorised recycling centre.

Vehicle checks

Performing work

Interior view of a car dashboard with a hand operating the steering wheel (no visible text or symbols)

⚠ Warning

Only perform engine compartment checks when the ignition is off.

The cooling fan may start operating even if the ignition is off.

Danger

The ignition system and Xenon headlights use extremely high voltage. Do not touch.

The caps for topping up the engine oil, the coolant, the washing fluid and the oil dipstick handle are yellow for ease of identification.

Bonnet

Opening

Mechanical component diagram showing a downward arrow indicating force or motion (no text or symbols)

Pull the release lever and return it to its original position.

Close-up of a car hood with hand applying adhesive to the windshield (no visible text or symbols)

Lift the safety catch upwards and open the bonnet.

Air intake ↩ 131.

Secure the bonnet support.

Closing

Before closing the bonnet, press the support into the holder.

Lower the bonnet and allow it to drop into the catch. Check that the bonnet is engaged.

Engine oil

The engine oil level is checked automatically, Vehicle messages 97. However, check the engine oil level manually on a regular basis to prevent damage to the engine.

Check with the vehicle on a level surface. The engine must be at operating temperature and switched off for at least 5 minutes.

Pull out the dipstick, wipe it clean, insert it to the stop on the handle, pull it out and read the engine oil level.

Insert the dipstick to the stop on the handle and make half a turn.

MAX MIN

Different dipsticks are used depending on engine variant.

MAX MIN

MAX MIN

160 Vehicle care

When the engine oil level has dropped to the MIN mark, top up engine oil.

Hand pouring liquid into a container labeled 'ECOTEC' (no other text or symbols visible)

We recommend the use of the same grade of engine oil that was used at last change.

The engine oil level must not exceed the MAX mark on the dipstick.

Caution

Overfilled engine oil must be drained or suctioned out.

Capacities ↩ 242.

Fit the cap on straight and tighten it.

Engine coolant

The coolant provides freeze protection down to approx. -28 °C.

Caution

Only use approved antifreeze.

Coolant level

Caution

Too low a coolant level can cause engine damage.

Illustration of a portable water heater with a handle and outlet tube (no text or symbols)

When the cooling system is cold, the coolant level should be just above the KALT/COLD mark. Top up if the level is low.

⚠ Warning

Allow the engine to cool before opening the cap. Carefully open the cap, relieving the pressure slowly.

Top up with antifreeze. If no antifreeze is available, use clean tap water or distilled water. Install the cap tightly. Have the antifreeze

concentration checked and have the cause of the coolant loss remedied by a workshop.

Washer fluid

Close-up of a car interior showing dashboard and steering wheel (no visible text or symbols)

Fill with clean water mixed with a suitable quantity of windscreen washer fluid which contains antifreeze.

Brakes

A squealing noise indicates that the brake lining is at its minimum thickness. Continued driving is possible but have the brake lining replaced as soon as possible.

Once new brake linings are installed, do not brake unnecessarily hard for the first few journeys.

Brake fluid

⚠ Warning

Brake fluid is poisonous and corrosive. Avoid contact with eyes, skin, fabrics and painted surfaces.

Illustration of a person holding a medical device with Chinese labels (no readable text or symbols)

The brake fluid level must be between the MIN and the MAX marks.

When topping up, ensure maximum cleanliness as contamination of the brake fluid can lead to brake system malfunctions. Have the cause of the loss of brake fluid remedied by a workshop.

Only use high-performance brake fluid approved for the vehicle, Brake and clutch fluid 161.

Battery

The vehicle battery is maintenance-free.

Batteries do not belong in household waste. They must be disposed of at an appropriate recycling collection point.

Laying up the vehicle for more than 4 weeks can lead to battery discharge. Disconnect the clamp from the negative terminal of the vehicle battery.

Ensure the ignition is switched off before connecting or disconnecting the vehicle battery.

Battery discharge protection ↩ 120.

Diesel fuel system bleeding

If the tank has been run dry, the diesel fuel system must be bled. Switch on the ignition three times for 15 seconds at a time. Then crank the engine for a maximum of 40 seconds. Repeat this process after no less than 5 seconds. If the engine fails to start, seek the assistance of a workshop.

Wiper blade replacement

Service setting for front windscreen wipers

Close-up of a handheld electronic device with a control panel and indicator lights, showing a curved line extending from it (no text or symbols visible)

Switch off the ignition but do not remove ignition key or open driver's door.

Within 4 seconds, push the wiper lever down and release as soon as the wipers are vertical.

Wiper blades on the windscreen

Mechanical assembly diagram showing a lever mechanism with a close-up inset of the handle (no text or symbols)

Lift the wiper arm, tilt wiper blade at a 90^ to the wiper arm and remove to the side.

Wiper blade on the rear window

Illustration of hands holding a pen with an arrow indicating direction (no text or symbols)

Lift the wiper arm. Disengage the wiper blade and remove.

Bulb replacement

Switch off the ignition and switch off the relevant switch or close the doors.

Only hold a new bulb at the base! Do not touch the bulb glass with bare hands.

Use only the same bulb type for replacement.

Side view of a car with a mounted device and directional arrows indicating motion (no text or symbols)

The bulbs of the front outer lights are replaced through openings in the front wheel housing: turn wheels in a way that allows access, release catch and remove cover.

To replace bulbs on the right side of the engine compartment, detach the air hose from the air filter. On the left side, detach the plug to the fuse box.

Halogen headlights

Technical diagram of a mechanical component with labeled parts 1 and 2

Headlights have separate systems for high beam 1 (inner bulbs) and low beam 2 (outer bulbs).

Low beam

1. Replace bulbs through the opening in the wheel housing.

164 Vehicle care

Illustration of a computer monitor with an arrow pointing to it, surrounded by office equipment (no text or symbols)

1. Remove protective cover 2.

Hand holding a pipette inspecting a mechanical component (no text or symbols visible)

1. Detach bulb from bulb holder and renew the bulb.

Technical illustration of a mechanical device with a circular component and directional arrow (no text or symbols)

1. Rotate the bulb holder anti-clockwise to disengage. Withdraw the bulb holder from the reflector.

Illustration of hands assembling a mechanical component with arrows indicating direction (no text or symbols)

1. Insert the bulb holder, engaging the two lugs into the reflector and rotate clockwise to secure.
2. Rotate bulb carrier to the right as far as it will go.
3. Install protective cover.
4. Close the opening in the wheel housing with the cover.

High beam

1. Access to the bulbs is through the engine compartment.

Diagram of a camera aperture with an arrow indicating direction (no text or symbols present)

1. Remove protective cover 1.
2. Detach wiring plug from bulb.

Abstract diagram with circular arrow and internal line pattern, no readable text or symbols

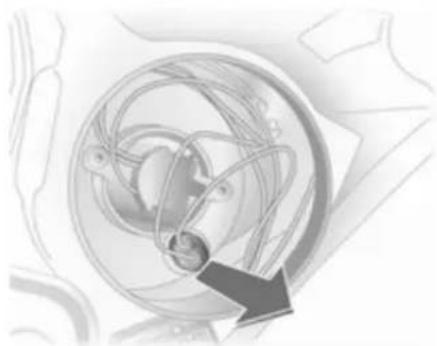

1. Disengage spring clip from retainer by pressing forward and then swinging downwards.
2. Withdraw the bulb from reflector housing.
3. When installing the new bulb, insert lugs in the reflector recesses and engage the spring clip.
4. Install the wiring plug onto bulb.
5. Install protective cover.

Side lights

1. Access to the bulbs is through the engine compartment.

Diagram of a camera aperture with an arrow indicating direction (no text or symbols present)

1. Remove protective cover 1.

Diagram of a camera mechanism showing internal components and directional arrow (no text or labels)

1. Withdraw parking light bulb holder from reflector.

Close-up of a mechanical component inside a circular frame, showing internal components and a handle (no text or symbols visible)

1. Remove bulb from socket and renew the bulb.
2. Insert holder in reflector. Install the headlamp protective cover.

Xenon headlights

Technical diagram of a mechanical component with labeled parts 1 and 2

Headlamps have separate systems for low beam 1 (inner bulbs) and high beam 2 (outer bulbs).

Low beam

⚠ Danger

Low beam works under extremely high electrical voltage. Do not touch. Have bulbs replaced by a workshop.

High beam

1. Replace bulbs through the openings in the wheel arches.

Mechanical component illustration with a circular arrow pointing left (no text or symbols)

1. Remove protective cover.

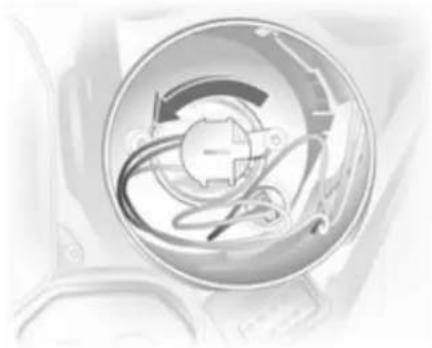

Abstract circular diagram with concentric rings and curved lines, no visible text or symbols

1. Rotate left bulb holder and disengage.

Illustration of hands operating a mechanical device with a central knob (no text or symbols visible)

1. Remove the bulb holder with bulb from the reflector.

Illustration of hands assembling a mechanical component with arrows indicating motion (no text or symbols)

1. Detach bulb from bulb holder.
2. Insert new bulb so that the two lugs on the bulb holder engage in the recesses in the reflector.
3. Rotate bulb holder to the right as far as it will go.
4. Place protective cover in position and close.

Side lights

Abstract mechanical component illustration with a circular arrow pointing left (no text or symbols)

1. Replace bulbs through the openings in the wheel arches.

2. Remove main beam headlight protective cover.

Abstract illustration of a mechanical or electronic component with a circular body and internal wiring, no visible text or symbols.

1. Remove parking light socket from reflector.


Medical device with attached tubing and a central connector (no visible text or symbols)

1. Remove bulb from socket and renew bulb.
2. Insert holder in reflector. Place protective cap in position and close.

Fog lights

Have bulbs replaced by a workshop.

Front turn signal lights

1. Replace the bulbs through the opening in the wheel housing.
2. Rotate bulb holder anti-clockwise and disengage.

Mechanical component diagram showing a rotating dial with a black arrow indicating rotation (no text or symbols)

Illustration of a hand operating a mechanical component with a bulb (no text or symbols visible)

1. Push bulb slightly into the socket, rotate anti-clockwise, remove and renew bulb.
2. Insert bulb holder in the reflector, rotate clockwise and engage.

Tail lights

Saloon 5-door

Close-up of a car door with a circular arrow icon on the left side (no text or symbols)

1. To change the bulbs on the right side, use a coin to open the lock and fold down the cover.
   To change bulbs on the left side, use a coin to turn both locks and fold down the cover 181.
2. Detach plug connector from bulb holder.

Diagram of a device with two wheels and a central component, showing directional arrows (no text or symbols)

1. Loosen fastening nuts with wheel bolt wrench and unscrew by hand. Vehicle tools 184.

Medical illustration of a human shoulder joint (no text or labels visible)

1. Detach bulb housing towards the rear.

Diagram of a mechanical component with directional arrows indicating flow or movement (no text or symbols)

1. Unscrew the three screws using a screwdriver. Press the locking tabs on the outside of the bulb holder inwards and remove the bulb holder.

Technical diagram of an electronic device with numbered components labeled 1 through 5

1. Remove and renew the bulb.

Reverse light (1)

Turn signal light (2)

Reverse light/brake light (3)

Reverse light (4)

Fog light, may be only on one side (5)

1. Engage bulb holder in bulb housing, ensuring that it properly engages.

Pure technical diagram of a mechanical component with no visible text, numbers, or symbols

1. Ensure that the seals are applied to the bulb holder and fixing screws.

2. Insert the bulb housing in the body, engaging the lug and the ball pin in the recesses. Tighten the fastening nuts using a wheel bolt wrench. Attach the plug connector. Close and engage the flap.

170 Vehicle care

Saloon 3-door

Close-up of a car door with a downward arrow icon (no text or symbols)

1. To change the bulbs, fold down the cover.
2. Detach plug connector from bulb holder.

Diagram of a car interior showing hand positioning and directional arrows (no text or symbols)

1. Loosen fastening nuts with wheel bolt wrench and unscrew by hand. Vehicle tools 184.

Close-up of a mechanical component with no visible text or symbols

1. Detach bulb housing towards the rear.

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols present)

1. Remove seal from the fastening bolt. Press the locking tabs on the outside of the bulb holder outward and remove the bulb holder.

Technical diagram of an internal device with numbered components labeled 1 through 5

1. Remove and renew the bulb.

Reverse light (1)

Turn signal light (2)

Reverse light/brake light (3)

Reverse light (4)

Fog light, may be only on one side (5)

1. Engage bulb holder in bulb housing, ensuring that it properly engages.

Close-up of a mechanical component with mounting holes and a central slot (no visible text or symbols)

1. Ensure that the seals are applied to the bulb holder and fixing screws.

2. Insert the bulb housing in the body, engaging the lug and the ball pin in the recesses. Tighten the fastening nuts using a wheel bolt wrench. Attach the plug connector. Close and engage the flap.

Saloon 4-door

Close-up of a computer monitor with a scroll wheel (no visible text or symbols)

1. To replace bulbs, fold up cover in load compartment after twisting the catch.

Close-up of a mechanical component with two arrows pointing to a circular feature (no text or symbols visible)

172 Vehicle care

1. Release the bolts behind the cover using a conventional bolt wrench, and remove.

Technical line drawing of a mechanical component or bracket with no visible text or symbols

1. Unscrew the three screws with a screwdriver and remove the bulb holder. Vehicle tools 184.

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

1. Press tail lights back, holding the bulb housing from the outside. Remove plug from bulb carrier.

Diagram of a vehicle's internal components with directional arrows indicating movement or flow (no text or labels)

1. Press out six locking catches on the bulb housing and remove bulb carrier.

Diagram of a mechanical or electrical component with numbered parts labeled 1 through 5

1. Remove and renew the bulb.

Brake light (1)

Reverse light (2)

Fog light, may be only on one side (3)

Turn signal light (4)

Reverse light (5)

1. Engage bulb holder in bulb housing. Ensure the seal is applied correctly and the carrier has engaged properly.

2. Attach the plug connector. Place bulb housing in body, clipping the round-head bolts into the recesses. Attach bulb housing to the body with four screws. Close cover and lock.

Station wagon, Van

Diagram showing two arrows pointing to a device panel with a button, no text or symbols present

1. Disengage cover by pressing retaining lugs and remove.

1. Detach plug connector from bulb holder.
2. Loosen fastening nuts and remove the bulb housing rearwards.

Diagram of a mechanical component with arrows indicating direction (no text or symbols)

1. Unscrew the three screws with a screwdriver and remove the bulb holder. Vehicle tools 184.

1 2 3 4

174 Vehicle care

1. Remove and renew the bulb.

Reverse light/brake light (1)

Turn signal light (2)

Reverse light (3)

Fog light, may be only on one side (4)

1. Engage bulb holder in bulb housing and screw in place. Insert the bulb housing into the body and tighten the fastening nuts by hand.

Attach the plug connector.

Close and engage the cover.

TwinTop

Close-up of a car's side window with two eye cutouts and directional arrows indicating rotation (no text or symbols)

1. Unscrew retaining nuts.

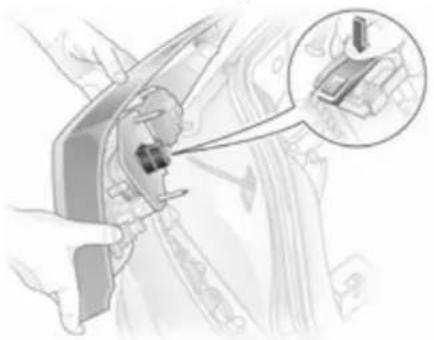

Illustration of a hand holding a car component with a magnified inset showing a device (no text or symbols present)

1. Remove bulb housing from outside. Disengage plug by pressing on flap and remove from bulb holder.

2. Detach seal from bulb holder.

Illustration of a car interior with directional arrows indicating motion (no text or symbols)

1. Disengage sockets by turning and remove. Press locking tabs on the long sides of the bulb holder outwards; lift bulb holder at front end and remove.

Labeled diagram of a mechanical device with numbered components for identification

1. Remove and renew the bulb.

Reverse light/brake light (1)

Reverse light (2)

Fog light, may be only on one side (3)

Reverse light (4)

Turn signal light (5)

1. Insert bulb holder in bulb housing by first inserting the lug at the front of the plug. Fold together bulb holder, ensuring that it engages properly. Insert sockets and engage by turning.

Line drawing of a small boat with a tag and letter marker (no text or symbols)

1. Fit seal on bulb holder. Ensure that the seal is flat in the area of the screws.

2. Engage plug. Insert bulb housing in body, ensuring proper positioning of the ball pins in the recesses. Tighten the retaining nuts.

Side turn signal lights

Have the bulbs replaced by a workshop.

Number plate light

Illustration of a hand using a screwdriver to adjust a component with an arrow indicating rotation (no text or symbols present)

1. Insert a screwdriver in the housing, press to the side and release spring.

Hand holding a mechanical component, possibly a tool or device, with no visible text or symbols.

1. Remove bulb housing downwards, taking care not to pull on the cable.
2. Lift flap and disconnect wiring plug from bulb holder.

Illustration of a hand holding a cylindrical device with a cap and arrow indicating rotation (no text or symbols)

1. Rotate bulb holder anti-clockwise to disengage.
2. Remove bulb from holder and renew bulb.
3. Insert bulb holder in bulb housing and rotate clockwise.
4. Connect wiring plug to bulb holder.
5. Insert and engage bulb housing.

Interior lights

Front courtesy light, reading lights

Diagram of a car interior showing dashboard and rearview mirror with directional arrows indicating flow or movement (no text or symbols)

1. Disengage lens, press it slightly downwards and remove at a downward angle.
2. Remove bulb and renew.
3. Engage lens.

Rear courtesy light and reading lights

Have bulbs replaced by a workshop.

Glovebox light, load compartment light, foot well light

Illustration of a rectangular device with a grid pattern and an arrow pointing to it (no text or symbols)

1. Prise the lamp out with a screwdriver.

3D illustration of a mechanical device with cylindrical components and a rectangular housing (no text or symbols)

1. Press bulb slightly towards spring clip and remove.
2. Insert new bulb.
3. Install lamp.

Instrument panel illumination

Have bulbs replaced by a workshop.

Electrical system

Fuses

Data on the replacement fuse must match data on the defective fuse.

The vehicle has two fuse boxes: one behind a cover on the left side of the load compartment and one in the front left of the engine compartment.

Store spare fuses in the load compartment fuse box version B. Open the cover ➔ 181.

Before replacing a fuse, turn off the respective switch and the ignition.

A blown fuse can be recognised by its melted wire. Do not replace the fuse until the cause of the fault has been remedied.

Some functions are protected by several fuses.

Fuses may also be inserted without existence of a function.

178 Vehicle care

Fuse extractor

A fuse extractor may be located in the fuse box in the load compartment.

Diagram of a mechanical component with a downward arrow indicating assembly or disassembly (no text or symbols present)

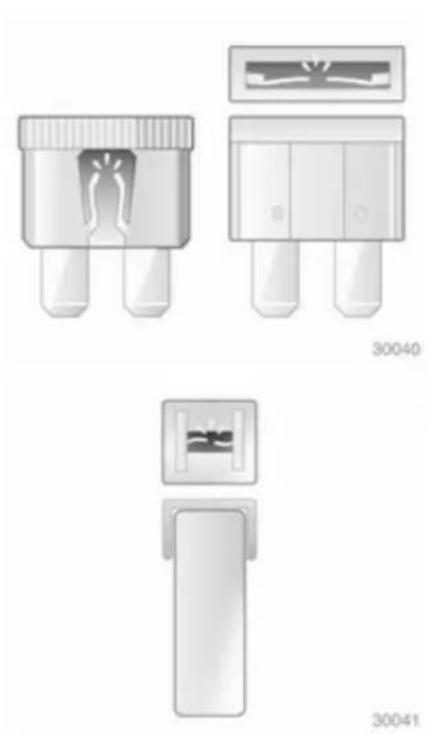

Diagram showing two electronic components with an arrow indicating a process or transformation (no text or symbols present)

Diagram showing a device with a magnified view of its internal components, no text or symbols present.

Place the fuse extractor on the various types of fuse from the top or side, and withdraw fuse.

Engine compartment fuse box

Illustration of a handheld electronic device with a screwdriver inserted, placed on a circuit board background (no text or symbols visible)

Insert a screwdriver into the opening as far as it will go and tilt it sideways. Open the cover upwards and remove.

The fuse box has two different fuse assignments depending on the load compartment fuse box variant, 181.

Floor plan diagram with numbered rooms and directional indicators, likely for a vehicle or furniture layout.

Fuse assignments in conjunction with load compartment fuse box version A

No. Circuit

1 ABS
2 ABS
3 Interior fan climate control system
4 Interior fan, heating, air conditioning system
5 Radiator fan
6 Radiator fan
7 Central locking system
8 Windscreen washer system, tailgate
9 Heated rear window, heated exterior mirror
10 Diagnostics plug
11 Instruments

No. Circuit

12 Mobile telephone, Infotainment system, display
13 Courtesy light
14 Windscreen wiper
15 Windscreen wiper
16 Horn, ABS, brake light switch, air conditioning system
17 Diesel fuel filter or air conditioning system
18 Starter
19 -
20 Horn
21 Engine electronics
22 Engine electronics
23 Headlight range adjustment
24 Fuel pump
25 -
26 Engine electronics

No. Circuit

27 Heating, air conditioning system
28 -
29 Power steering
30 Engine electronics
31 Rear window wiper
32 Brake light switch
33 Headlight range adjustment, light switch, clutch switch, instrument, driver's door module
34 Control unit, steering column module
35 Infotainment system
36 Cigarette lighter, front power outlet

Fuse assignments in conjunction with load compartment fuse box version B

No. Circuit

1 ABS
2 ABS
3 Interior fan electronic climate control
4 Interior fan heating and air conditioning system
5 Radiator fan
6 Radiator fan
7 Windscreen washer system
8 Horn
9 Headlight washer system
10 -
11 -
12 -
13 Fog light

No. Circuit

14 Windscreen wiper
15 Windscreen wiper
16 Control module electronics, Open&Start system, ABS, brake light switch, TwinTop
17 Diesel fuel filter heating
18 Starter
19 Transmission electronics
20 Air conditioning system
21 Engine electronics
22 Engine electronics
23 Adaptive forward lighting, headlight range adjustment
24 Fuel pump
25 Transmission electronics
26 Engine electronics
27 Power steering
28 Transmission electronics

No. Circuit

29 Transmission electronics
30 Engine electronics
31 Adaptive forward fighting, headlight range adjustment
32 Brake system, air conditioning system, clutch switch
33 Adaptive forward lighting, headlight range adjustment, light switch
34 Control unit, steering column module
35 Infotainment system
36 Mobile telephone, Infotainment system, display

Load compartment fuse box

Diagram of a car backrest with a door and side-mounted sensors (no text or symbols)

The fuse box is behind a cover.

Do not store any objects behind the cover.

Depending on the equipment, there are two different fuse boxes.

Saloon 5-door, Caravan, Van

To open, turn both catches with a coin and fold down cover.

Saloon 3-door

To open, fold the cover upwards.

182 Vehicle care

Saloon 4-door

To open, twist catch anti-clockwise and fold down cover.

TwinTop

Illustration of a car interior with a monitor and a magnified inset showing a small object (no text or symbols)

To open, pull the two knobs, remove the clips and fold the cover upwards.

Fuse box version A

To replace a fuse, remove the relevant protective cap.

Isometric view of a multi-pin electrical connector with numbered pins (1–8) on top, no text or symbols present.

No. Circuit

1 Fog light
2-
3 Load compartment power outlet
4 Reversing lights
5 Rear power windows
6 Air conditioning system
7 Front power windows
8 Heated exterior mirrors

Fuse box version B

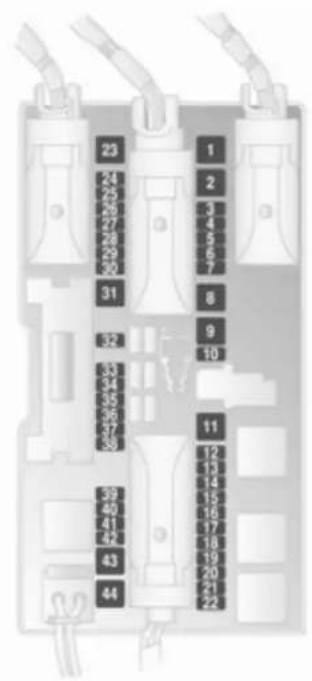

23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

No. Circuit

1 Front power windows
2-
3 Instruments
4 Heating, air conditioning system, electronic climate control
5 Airbags
6 -
7-
8 -
9 -
10 -
11 Heated rear window
12 Rear window wiper
13 Parking assist
14 Heating, air conditioning system
15 -

No. Circuit

16 Seat occupancy recognition, Open&Start system
17 Rain sensor, tyre pressure monitoring system, interior mirror
18 Instruments, switches
19 -
20 CDC
21 Heated exterior mirrors
22 Sun roof
23 Rear power windows
24 Diagnostics plug
25 -
26 Electrical foldable exterior mirrors
27 Ultrasonic sensor, anti-theft alarm system
28 -

No. Circuit

29 Cigarette lighter, front power outlet
30 Rear power outlet
31 -
32 -
33 Open&Start system
34 Sun roof, TwinTop
35 Rear power outlet
36 Socket for towing equipment
37 -
38 Central locking system, terminal 30
39 Left seat heating
40 Right seat heating
41 -
42 -

No. Circuit

43 -

44 -

Vehicle tools

Tools

Vehicles with tyre repair set

The tool kit and tyre repair set are in a storage compartment below the floor cover in the load compartment.

Vehicles with spare wheel

Circular diagram with mechanical tools and components, no visible text or symbols

The jack and tool kit are in a stowage compartment in the boot below the spare wheel. Spare wheel 194

TwinTop

The tools for emergency operation of the convertible hardtop are stowed in the glove compartment.

Wheels and tyres

Tyre condition, wheel condition

Drive over edges slowly and at right angles if possible. Driving over sharp edges can cause tyre and wheel damage. Do not trap tyres on the kerb when parking.

Regularly check the wheels for damage. Seek the assistance of a workshop in the event of damage or unusual wear.

Tyres

Tyres of size 225/45 R 17 are only permitted if the vehicle is equipped with electronic stability program.

Astra OPC "Nürburgring Edition" with tyres 225/40 ZR 18

This model is factory-fitted with high-performance sports tyres, size 225/40 ZR 18. These tyres are approved for use on public roads but have typical racing characteristics and a correspondingly shallow tread. The tyres provide sportily oriented and experienced drivers with better performance at faster speeds on dry road surfaces but can cause the vehicle to break away without warning if this limit is exceeded. Avoid adopting a risky driving style because of this improved performance. In wet conditions adapt your driving style and speed to the shallow tread.

Winter tyres

Winter tyres improve driving safety at temperatures below 7 °C and should therefore be fitted on all wheels.

Tyres of size 215/45 R 17, 225/45 R 17, 225/40 R 18 and 235/35 R 19 must not be used as winter tyres.

Saloon, Station wagon, Van: tyres of size 215/45 R 17 are only approved as winter tyres if the vehicle was equipped with 18-inch wheels in the factory.

Winter tyres may only be used on the Astra OPC on special alloy wheels approved by Opel.

Run-flat winter tyres may only be used on factory approved alloy wheels.

In accordance with country-specific regulations, affix the speed sticker in the driver's field of view.

Run-flat tyres

Run-flat tyres have reinforced, self-supporting sidewalls, which ensure that the tyres always have a certain amount of driveability, even when there is no pressure.

Run-flat tyres are only permitted on vehicles with electronic stability program and tyre pressure monitoring system or deflation detection system.

Caution

Check tyre pressures regularly even if run-flat tyres are fitted.

Depending on tyre manufacturer, run-flat tyres can be identified from a marking on the tyre wall. E.g.

ROF = RunonFlat for Goodyear or

SSR = Self Supporting Runflat Tyre for Continental.

Use of run-flat tyres is only permitted in combination with factory approved alloy wheels.

Do not use a tyre repair kit.

The ECO tyre pressure must not be used.

Run-flat tyres must not be combined with standard tyres.

If converting to standard tyres, note that the vehicle is not equipped with a spare wheel or tyre repair kit.

Driving with a damaged tyre

A loss in tyre pressure is indicated by the tyre pressure monitoring system or the deflation detection system.

If a tyre has no pressure, continued driving is possible

■ at a speed of max. 80 km/h

■ up to a distance of 80 km

⚠ Warning

The vehicle will be more difficult to steer and handle. Braking distance will be longer.

Adapt driving style and speed to the changed conditions.

Tyre designations

E.g. 195/65 R 15 91 H

195 = Tyre width, mm

65 = Cross-section ratio (tyre height to tyre width), %

R = Belt type: Radial

RF = Type: RunFlat

15 = Wheel diameter, inches

91 = Load index e.g. 91 is equivalent to 618 kg

H = Speed code letter

Speed code letter:

Q = up to 160 km/h

S = up to 180 km/h

T = up to 190 km/h

H = up to 210 km/h

V = up to 240 km/h

W = up to 270 km/h

Tyre pressure

Check the pressure of cold tyres at least every 14 days and before any long journey. Do not forget the spare wheel. This also applies to vehicles with tyre pressure monitoring.

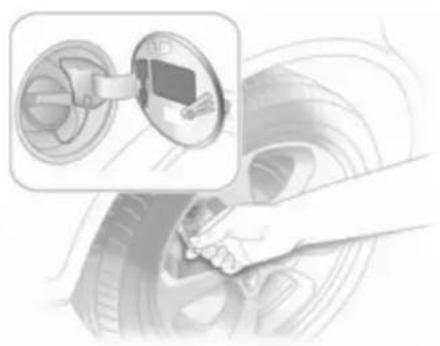

Illustration of a hand cleaning a car tire with a magnified inset showing the wheel assembly (no text or symbols)

Remove the valve cap key from the fuel filler flap and use it to unscrew the valve cap.

Close-up of a car interior showing a circular dial and a mounted tool (no visible text or symbols)

On vehicles with tyre pressure monitoring system, screw the adapter to the valve.

Tyre pressure 243 and on the label on the inside of the fuel filler flap.

The tyre pressure data refer to cold tyres. It applies to summer and winter tyres.

Always inflate the spare wheel to the pressure specified for full load.

The ECO tyre pressure serves to achieve the smallest amount of fuel consumption possible. It must not be used with run-flat tyres.

Incorrect tyre pressures will impair safety, vehicle handling, comfort and fuel economy and will increase tyre wear.

⚠ Warning

If the pressure is too low, this can result in considerable tyre warm-up and internal damage, leading to tread separation and even to tyre blow-out at high speeds.

Tyre pressure monitoring system

The tyre pressure monitoring system continually checks the pressure of all four wheels when vehicle speed exceeds a certain limit.

All wheels must be equipped with pressure sensors and the tyres must have the prescribed pressure.

Otherwise, the tyre pressure will be monitored by the deflation detection system 188.

The current tyre pressures can be shown in the Info-Display ➔ 113.

Vehicle messages, tyre pressure 108.

Control indicator (I) 96.

If a complete set of wheels without sensors is mounted (e.g. four winter tyres), no error message will be displayed. The tyre pressure monitoring system is not operational. Retrofitting of sensors is possible.

The use of commercially available liquid tyre repair kits can impair the function of the system. Factory approved systems can be used.

External high-power radio equipment could disrupt the tyre pressure monitoring system.

Exterior view of a vehicle front panel with traffic warning signs (no readable text or symbols)

After a wheel change, the system must be initialised: inflate the tyres to the prescribed pressure, switch on the ignition, press and hold the DDS button for approx. 4 seconds, control indicator (↓) flashes three times.

Tyre deflation detection system

The tyre deflation detection system continually checks the rotation speed of all four tyres.

If a tyre loses pressure the control indicator ⏻ illuminates red. Stop immediately and check tyre pressure.

Control indicator (!) 96.

Pure electrical circuit lines without any symbols

After tyre pressure correction or wheel change, the system must be initialised: Switch on the ignition,

press and hold the DDS button for approx. 4 seconds, control indicator (!) flashes three times.

Tread depth

Check tread depth at regular intervals.

Tyres should be replaced for safety reasons at a tread depth of 2-3 mm (4 mm for winter tyres).

TW1 30055

The legally permissible minimum tread depth (1.6 mm) has been reached when the tread has worn down as far as one of the tread wear

indicators (TWI). Their position is indicated by markings on the sidewall.

If there is more wear at the front than the rear, swap round front wheels and rear wheels.

Tyres age, even if they are not used. We recommend tyre replacement every 6 years.

Changing tyre and wheel size

If tyres of a different size than those fitted at the factory are used, it may be necessary to reprogram the speedometer and make other vehicle modifications.

After converting to a different tyre size, have the label with tyre pressures replaced.

⚠ Warning

Use of unsuitable tyres or wheels may lead to accidents and will invalidate the vehicle type approval.

Wheel covers

Wheel covers and tyres that are factory approved for the respective vehicle and comply with all of the relevant wheel and tyre combination requirements must be used.

If the wheel covers and tyres used are not factory approved, the tyres must not have a rim protection ridge.

Wheel covers must not impair brake cooling.

Remove the wheel covers if tyre chains are to be installed.

⚠ Warning

Use of unsuitable tyres or wheel covers could lead to sudden pressure loss and thereby accidents.

Tyre chains

Diagram of two circular biological or mechanical structures with internal branching patterns, no visible text or symbols

Tyre chains are only permitted on the front wheels.

Always use fine mesh chains that add no more than 10 mm to the tyre tread and the inboard sides (including chain lock).

⚠ Warning

Damage may lead to tyre blowout.

Tyre chains are not permitted on tyres of size 225/45 R 17, 225/40 R 18 and 235/35 R 19.

190 Vehicle care

Saloon, Station wagon, Van: tyre chains are only approved on tyres of size 215/45 R 17 if the vehicle was equipped with 18-inch wheels in the factory.

The use of tyre chains is not permitted on the temporary spare wheel.

Tyre repair kit

Minor damage to the tyre tread or sidewall can be repaired with the tyre repair kit.

Do not remove foreign bodies from the tyres.

Tyre damage exceeding 4 mm or that is near the rim cannot be repaired with the tyre repair kit.

⚠ Warning

Do not drive faster than 80 km/h. Do not use for a lengthy period. Steering and handling may be affected.

If you have a flat tyre:

Apply parking brake and engage first gear, reverse gear or P.

Top-down view of a medical scanner or scanner device (no visible text or labels)

The tyre repair kit is in the stowage compartment under the floor cover in the load compartment.

1. Take the pouch with the tyre repair kit from the compartment. Carefully remove the components from the pouch.
2. Remove the compressor.

3D rendering of a mechanical component with two upward arrows indicating direction (no text or symbols)

1. Remove the electrical connection cable and air hose from the stowage compartments on the underside of the compressor.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

1. Screw the compressor air hose to the connection on the sealant bottle.
2. Fit the sealant bottle into the retainer on the compressor. Set the compressor near the tyre in such a way that the sealant bottle is upright.

Illustration of a mechanical device with a coiled cable and a cylindrical component connected to a circular component (no text or symbols visible)

1. Unscrew valve cap from defective tyre.
2. Screw tyre inflation hose to valve.

3. The switch on the compressor must be set to O.

4. Connect the compressor plug to the accessory socket or cigarette lighter socket.

To avoid discharging the battery, we recommend running the engine.

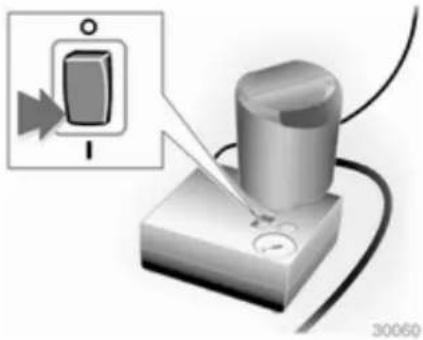

Close-up of a switch with a magnified inset showing a button and cable (no text or symbols visible)

1. Set the rocker switch on the compressor to I. The tyre is filled with sealant.

2. The compressor pressure gauge briefly indicates up to 6 bar whilst the sealant bottle is emptying (approx. 30 seconds). Then the pressure starts to drop.

3. All of the sealant is pumped into the tyre. Then the tyre is inflated.

Illustration of a pressure measurement device with a valve and probe inserted (no text or symbols)

1. The prescribed tyre pressure should be obtained within 10 minutes. Tyre pressure 243.

When the correct pressure is obtained, switch off the compressor.

If the prescribed tyre pressure is not obtained within 10 minutes, remove the tyre repair kit. Move the vehicle one tyre rotation.

Reattach the tyre repair kit and continue the filling procedure for 10 minutes. If the prescribed tyre pressure is still not obtained, the

tyre is too badly damaged. Seek the assistance of a workshop.

Drain excess tyre pressure with the button over the pressure indicator.

Do not run the compressor longer than 10 minutes.

1. Detach the tyre repair kit. Screw the filler hose to the free connection on the sealant bottle.

This prevents sealant leakage. Stow the tyre repair kit in the load compartment.

1. Remove any excess sealant using a cloth.

2. Take the label indicating maximum permitted speed from the sealant bottle and affix in the driver's field of view.

3. Continue driving immediately so that sealant is evenly distributed in the tyre. After driving approx. 10 km (but no more than 10 minutes), stop and check tyre pressure.

Screw compressor air hose directly onto tyre valve and compressor when doing this.

If tyre pressure is more than 1.3 bar, set it to the correct value.

Repeat the procedure until there is no more loss of pressure.

If the tyre pressure has fallen below 1.3 bar, the vehicle must not be used. Seek the assistance of a workshop.

1. Stow away tyre repair kit in load compartment.

Note

The driving characteristics of the repaired tyre is severely affected, therefore have this tyre replaced.

If unusual noise is heard or the compressor becomes hot, turn compressor off for at least 30 minutes.

The built-in safety valve opens at a pressure of 7 bar.

Note the expiry date of the kit. After this date its sealing capability is no longer guaranteed. Pay attention to storage information on sealant bottle.

Replace the used sealant bottle. Dispose of the bottle as prescribed by applicable laws.

The compressor and sealant can be used from approx. -30 °C.

The adapters supplied can be used to pump up other items e.g. footballs, air mattresses, inflatable dinghies etc. They are located on the underside of the compressor. To remove, screw on compressor air hose and withdraw adapter.

Wheel changing

Some vehicles are equipped with a tyre repair kit instead of a spare wheel 190.

Make the following preparations and observe the following information:

■ Park the vehicle on a level, firm and non-skid surface. The front wheels must be in the straight-ahead position.
■ Apply the parking brake and engage first gear, reverse gear or P.
■ Remove the spare wheel ↩ 194.
■ On the Astra TwinTop, the roof must be closed before the vehicle is raised.
■ Never change more than one wheel at once.
■ Use the jack only to change wheels.
■ If the ground on which the vehicle is standing is soft, a solid board (max. 1 cm /0.4 inches thick) should be placed under the jack.
■ No people or animals may be in the vehicle when it is jacked-up.

■ Never crawl under a jacked-up vehicle.
■ Do not start the vehicle when it is raised on the jack.
■ Before screwing in the wheel bolts, clean them and lightly coat the taper of each wheel bolt with commercially available grease.

Illustration of a hand adjusting a car tire with a clip (no text or symbols visible)

1. Pull off the wheel cover with the hook. Vehicle tools 184. For wheel covers with visible wheel bolts: The cover can remain on the wheel. Do not remove the retaining rings on the wheel bolts.

Alloy wheels: Disengage wheel bolt caps with a screwdriver and remove. To protect the wheel, place a soft cloth between the screwdriver and the alloy wheel.

Illustration of a car tire being adjusted for a wheel rim, showing the wheel and tire (no text or symbols)

1. Install the wheel wrench ensuring that it locates securely and slacken each bolt by half a turn.

Diagram showing a car with sensor or measurement setup above and a close-up of a vehicle on a road (no text or symbols)

1. Ensure the jack is positioned correctly with the vehicle jacking points.

Mechanical linkage diagram showing a cart being lifted by a hand, with no visible text or symbols

1. Set the jack to the necessary height before positioning it directly below the jacking point in a manner that prevents it from slipping.

Attach jack handle and with the jack correctly aligned rotate handle until wheel is clear of the ground.

1. Unscrew the wheel bolts.

2. Change the wheel.

3. Screw in the wheel bolts.

4. Lower vehicle.

5. Install the wheel wrench ensuring that it locates securely and tighten each bolt in a crosswise sequence. Tightening torque is 110 Nm.

6. Align the valve hole in the wheel cover with the tyre valve before installing.

Install wheel nut caps.

1. Stow the replaced wheel 190 and the vehicle tools 184.
2. Check the tyre pressure of the installed tyre and also the wheel bolt torque as soon as possible.

Have the defective tyre renewed or repaired.

Spare wheel

Some vehicles are equipped with a tyre repair kit instead of a spare wheel.

The spare wheel can be classified as a temporary spare wheel depending on the size compared to the other mounted wheels and country regulations.

The spare wheel has a steel rim.

Use of a spare wheel that is smaller than the other wheels or together with winter tyres could affect driveability. Have the defective tyre replaced as soon as possible.

Close-up of a mechanical component with a circular dial and a small inset showing a gear (no text or symbols visible)

The spare wheel is in the load compartment beneath the floor covering. It is secured in the recess with a wing nut.

The spare wheel well is not designed for all permitted tyre sizes. If a wheel wider than the spare must be stowed in the spare wheel well after changing wheels, the floor cover can be placed on the projecting wheel.

This must be taken into consideration when the load compartment is being loaded, particularly with the Astra TwinTop 40.

Station wagon

Top-down view of a car front bumper with a circular vent and lid (no text or symbols visible)

Take adapter and hooks from the rails in the load compartment walls. Raise the rear lashing eyes and lift the floor cover to the vertical position so that it rests on the roof lining. When closing, guide the lashing eyes through the slots in the floor cover. Vehicles with cargo box: removal 73.

TwinTop

Accessing the spare wheel when the roof is open: Engage load compartment cover on the rear window frame and activate the loading aid 74. Raise the floor cover in the load compartment.

Temporary spare wheel

Use of the temporary spare wheel could affect driveability. Have the defective tyre renewed or repaired as soon as possible.

Only mount one temporary spare wheel. Do not drive faster than 80 km/h. Take curves slowly. Do not use for a long period of time.

Tyre chains ↩ 189.

Directional tyres

Fit directional tyres such that they roll in the direction of travel. The rolling direction is indicated by a symbol (e.g. an arrow) on the sidewall.

The following applies to tyres fitted opposing the rolling direction:

■ Driveability may be affected. Have the defective tyre renewed or repaired as soon as possible.
■ Do not drive faster than 80 km/h.
■ Drive particularly carefully on wet and snow-covered road surfaces.

Jump starting

Do not start with quick charger.

A vehicle with a discharged battery can be started using jump leads and the battery of another vehicle.

⚠ Warning

Be extremely careful when starting with jump leads. Any deviation from the following instructions can lead to injuries or damage caused by battery explosion or damage to the electrical systems of both vehicles.

⚠ Warning

Avoid contact with eyes, skin, fabrics, and painted surfaces. The fluid contains sulphuric acid which can cause injuries and damage in the event of direct contact.

■ Never expose the battery to naked flames or sparks.

■ A discharged battery can already freeze at temperatures of 0 °C. Defrost the frozen battery before connecting jump leads.
■ Wear eye protection and protective clothing when handling a battery.
■ Use a booster battery with the same voltage (12 Volts). Its capacity (Ah) must not be much less than that of the discharged battery.
■ Use jump leads with insulated terminals and a cross section of at least 16 mm ^2 (25 mm ^2 for diesel engines).
■ Do not disconnect the discharged battery from the vehicle.
■ Switch off all unnecessary electrical consumers.
■ Do not lean over the battery during jump starting.
■ Do not allow the terminals of one lead to touch those of the other lead.

■ The vehicles must not come into contact with each other during the jump starting process.
■ Apply the handbrake, transmission in neutral, automatic transmission in P.

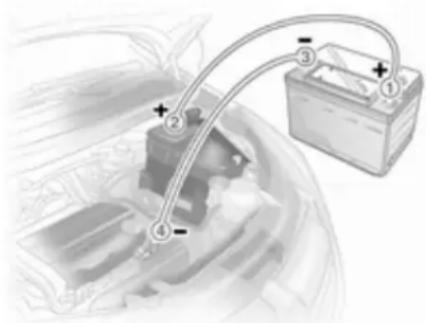

Diagram showing electrical connections with labeled components and polarity indicators

Lead connection order:

1. Connect the red lead to the positive terminal of the booster battery.

2. Connect the other end of the red lead to the positive terminal of the discharged battery.

3. Connect the black lead to the negative terminal of the booster battery.

4. Connect the other end of the black lead to a vehicle grounding point, such as the engine block or an engine mounting bolt. Connect as far away from the discharged battery as possible, however at least 60 cm.

Route the leads so that they cannot catch on rotating parts in the engine compartment.

To start the engine:

1. Start the engine of the vehicle providing the jump.
2. After 5 minutes, start the other engine. Start attempts should be made for no longer than 15 seconds at an interval of 1 minute.

3. Allow both engines to idle for approx. 3 minutes with the leads connected.

4. Switch on electrical consumers (e.g. headlights, heated rear window) of the vehicle receiving the jump start.

5. Reverse above sequence exactly when removing leads.

Towing

Towing the vehicle

Hand inserting a small circular component into a car's side panel (no text or symbols visible)

Disengage the cover at the bottom and remove downwards.

The towing eye is stowed with the vehicle tools 184.

Close-up of a car's front panel showing the door handle and seatbelt (no text or symbols visible)

Screw in the towing eye as far as it will go until it stops in a horizontal position.

Attach a tow rope – or better still a tow rod – to the towing eye.

The towing eye must only be used for towing and not recovering the vehicle.

Switch on ignition to release steering wheel lock and to permit operation of brake lights, horn and windscreen wiper.

Open&Start system ➔ 22.

Transmission in neutral.

Caution

Drive slowly. Do not drive jerkily. Excessive tractive force can damage the vehicle.

When the engine is not running, considerably more force is needed to brake and steer.

To prevent the entry of exhaust gases from the towing vehicle, switch on the air recirculation and close the windows.

Vehicles with automatic transmission must be towed facing forwards, not faster than 80 km/h nor further than 100 km. In all other cases and when the transmission is defective, the front axle must be raised off the ground.

Seek the assistance of a workshop.

Manual transmission automated 141.

After towing, unscrew the towing eye and refit the cover.

Towing another vehicle

Hand holding a tool near a car window (no visible text or symbols)

Disengage cap at bottom and remove downwards.

Diagram of a vehicle air vent with two arrows indicating flow direction (no text or symbols)

For other models unclip locking tabs downward and pull off the cover upwards.

The towing eye is stowed with the vehicle tools 184.

Close-up of a car's side profile with a curved arrow pointing to the wheel (no text or symbols visible)

Screw in the towing eye as far as it will go until it stops in a horizontal position.

The lashing eye at the rear underneath the vehicle must never be used as a towing eye.

Attach a tow rope – or better still a tow rod – to the towing eye.

The towing eye must only be used for towing and not recovering a vehicle.

Caution

Drive slowly. Do not drive jerkily. Excessive tractive force can damage the vehicle.

After towing, unscrew the towing eye and refit the cover.

Version with cover: install by inserting the bottom lugs of the cover in the bumper, folding and then press the lugs at the top into place.

Appearance care

Exterior care

Locks

The locks are lubricated at the factory using a high quality lock cylinder grease. Use de-icing agent only when absolutely necessary, as this has a degreasing effect and impairs lock function. After using de-icing agent, have the locks regreased by a workshop.

Washing

The paintwork of your vehicle is exposed to environmental influences. Wash and wax your vehicle regularly. When using automatic car washes, select a programme that includes waxing.

Bird droppings, dead insects, resin, pollen and the like should be cleaned off immediately, as they contain aggressive constituents which can cause paint damage.

If using a car wash, comply with the car wash manufacturer's instructions. The windscreen wipers and rear

window wiper must be switched off. Remove antenna and external accessories such as roof racks etc.

If you wash your vehicle by hand, make sure that the insides of the wheel housings are also thoroughly rinsed out.

Clean edges and folds on opened doors and the bonnet as well as the areas they cover.

Do not clean the engine compartment with a steam-jet or high-pressure jet cleaner.

Thoroughly rinse and leather-off the vehicle. Rinse leather frequently. Use separate leathers for painted and glass surfaces: remnants of wax on the windows will impair vision.

Do not use hard objects to remove spots of tar. Use tar removal spray on painted surfaces.

Exterior lights

Headlight and other light covers are made of plastic. Do not use any abrasive or caustic agents, do not use an ice scraper, and do not clean them dry.

Polishing and waxing

Wax the vehicle regularly (at the latest when water no longer beads). Otherwise, the paintwork will dry out

Polishing is necessary only if the paint has become dull or if solid deposits have become attached to it.

Paintwork polish with silicone forms a protective film, making waxing unnecessary.

Plastic body parts must not be treated with wax or polishing agents.

Windows and windscreen wiper blades

Use a soft lint-free cloth or chamois leather together with window cleaner and insect remover.

When cleaning the rear window, make sure the heating element inside is not damaged.

For mechanical removal of ice, use a sharp-edged ice scraper. Press the scraper firmly against the glass so that no dirt can get under it and scratch the glass.

Clean smearing wiper blades with a soft cloth and window cleaner.

Sun roof

Never clean with solvents or abrasive agents, fuels, aggressive media (e.g. paint cleaner, acetone-containing solutions etc.), acidic or highly alkaline media or abrasive pads. Do not apply wax or polishing agents to the middle part of the sun roof.

Wheels and tyres

Do not use high-pressure jet cleaners.

Clean rims with a pH-neutral wheel cleaner.

Rims are painted and can be treated with the same agents as the body.

Paintwork damage

Rectify minor paintwork damage with a touch-up pen before rust forms. Have more extensive damage or rust areas repaired by a workshop.

Underbody

Some areas of the vehicle underbody have a PVC undercoating while other critical areas have a durable protective wax coating.

After the underbody is washed, check the underbody and have it waxed if necessary.

Bitumen/rubber materials could damage the PVC coating. Have underbody work carried out by a workshop.

Before and after winter, wash the underbody and have the protective wax coating checked.

Engine compartment

Areas of the engine compartment that are painted in the same colour as the vehicle must be looked after like any other painted surface.

It is advisable to wash the engine compartment before and after winter and preserve it with wax. Protect the alternator and brake fluid reservoir with plastic sheets before washing the engine.

When washing the engine with a steam-jet cleaner, do not direct the steam jet towards components of the antilock brake system, air conditioning system or the belt drive and its components.

After an engine wash, have all engine room components preserved thoroughly by a workshop using protective wax.

Do not use high-pressure jet cleaners.

TwinTop

Clean all seals with a damp soft lint-free cloth. Allow to dry completely. Treat all seals, e. g. on the roof and windscreen frame, with the special maintenance kit (available at your service partner) from time to time. Good contact between the fine rubber lips and the sealing surfaces prevents leaks and reduces clamping forces. Intermediate roof position for cleaning 40.

Do not use high-pressure jet cleaners.

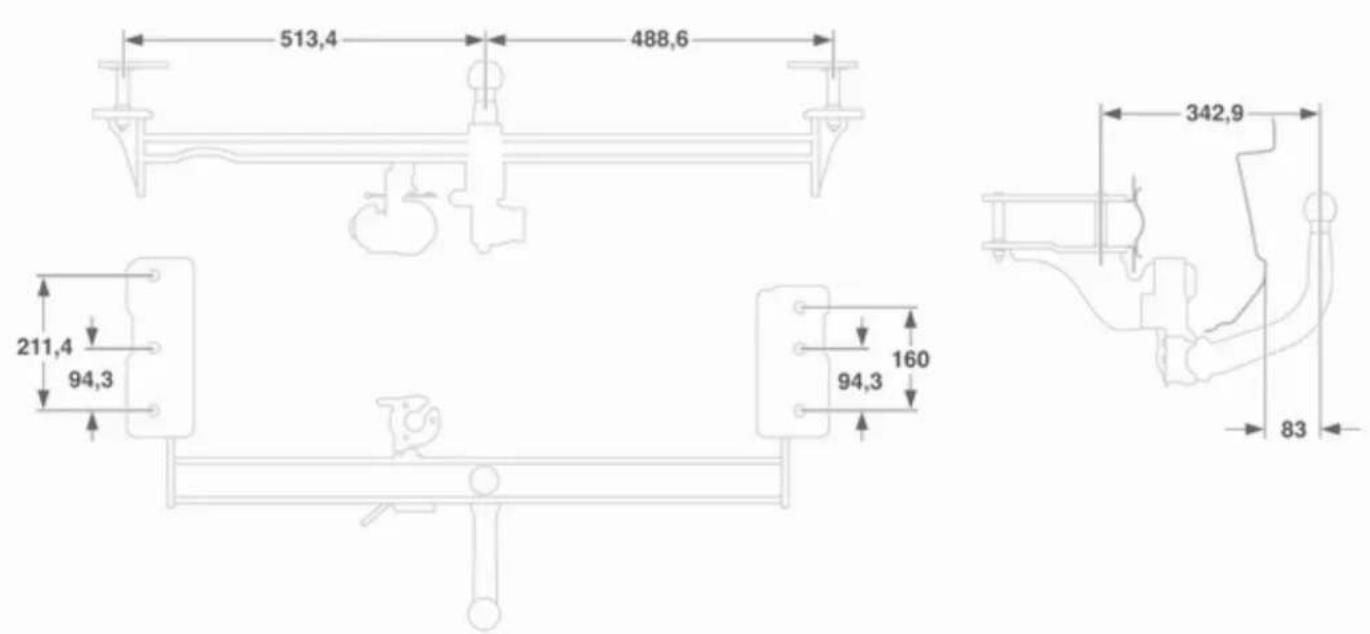

Towing equipment

Do not clean the coupling ball bar with a steam-jet or high-pressure jet cleaner.

Interior care

Interior and upholstery

Only clean the vehicle interior, including the instrument panel fascia and panelling, with a dry cloth or interior cleaner.

The instrument panel should only be cleaned using a soft damp cloth.

Clean fabric upholstery with a vacuum cleaner and brush. Remove stains with an upholstery cleaner.

Clean seat belts with lukewarm water or interior cleaner.

Caution

Close Velcro fasteners as open Velcro fasteners on clothing could damage seat upholstery.

Plastic and rubber parts

Plastic and rubber parts can be cleaned with the same cleaner as used to clean the body. Use interior cleaner if necessary. Do not use any other agent. Avoid solvents and petrol in particular. Do not use high-pressure jet cleaners.

Service and maintenance

General information 203

Scheduled maintenance ..... 205

Recommended fluids, lubricants and parts 213

General information

Service information

In order to ensure economical and safe vehicle operation and to maintain the value of your vehicle, it is of vital importance that all maintenance work is carried out at the proper intervals as specified.

European service intervals

Due every 30.000 km or 1 year, whichever occurs first.

International service intervals

Due every 15.000 km or 1 year, whichever occurs first.

Confirmations

Confirmation of service is recorded in the Service and Warranty Booklet. The date and mileage is completed with the stamp and signature of the servicing workshop.

Make sure that the Service and Warranty Booklet is completed correctly as continuous proof of service is essential if any warranty or

goodwill claims are to be met, and is also a benefit when selling the vehicle.

Fixed service interval

When service is due, InSP appears in the service display for approx. 10 seconds when the ignition is switched on. Have the next service performed by a workshop within one week or 500 km (whichever occurs first).

Flexible service interval

The service interval is based on several parameters depending on usage and is calculated using these parameters.

If the remaining distance is less than 1500 km, InSP is displayed with a remaining distance of 1000 km when the ignition is switched on and off. If less than 1000 km remain, InSP is displayed for several seconds. Have the next service performed by a workshop within one week or 500 km (whichever occurs first).

204 Service and maintenance

Display of remaining distance:

1. Switch off ignition.
2. Briefly press the trip odometer reset button. The odometer reading is shown.
3. Press and hold the reset button for about 2 seconds. InSP and the remaining distance are displayed.

Scheduled maintenance

Service schedules

European service schedule

The European schedule is valid for the following countries:

Andorra, Austria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany, Greece, Greenland, Hungary, Iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland, United Kingdom

For all other countries the international schedule is valid.

Service operations	by year1)km (x 1000)	130	260	390	4120	5150
Check visually control unit, lighting unit and signalling equipment as well as airbag, check steering wheel lock and ignition switch		X X X X X
Replace batteries for radio remote control (Do not forget the second key) Every 2 years
Check windscreen wipers, screen wiper system, and headlight washer system X X X X X
Check coolant level, antifreeze (pale orange)2), correct		X X X X X
Check brake fluid level, correct X X X
Check battery terminals are firmly located X X X X X

1) Whichever occurs first.
2) In case of too high consumption / leakage / wear, perform additional work with customer's agreement.

206 Service and maintenance

	by year1)	1	2	3	4	5
Service operations	km (x 1000)	30	60	90	120	150
Replace pollen filter or activated carbon filter X X
If air is badly polluted, has a high dust or sand content, or pollen, smell of the air conditioning		Agreement with customer
Replace air cleaner insert Every 4 years / 60,000 km
Replace spark plugs Every 4 years / 60,000 km
Visually inspect ribbed V-belt X X
Replace ribbed V-belt, Every 10 years / 150,000 km
Check valve clearance, adjustZ 16 LET, Z 16 XER, Z16XE1, Z 18 XER, Z 17 DTH, Z 17 DTJ, Z 17 DTR, A 17 DTJ, A 17 DTR		Every 150,000 km
Z 19 DT, Z 19 DTL X X
Replace toothed belt and tension rollerZ 20 LEH, Z 20 LER		Every 8 years / 120,000 km
Z 17 DTH Every 10 years / 90,000 km
Z 16 LET, Z 16 XER, Z 16 XE1, Z 18 XER, Z/A 17 DTJ, Z/A 17 DTR, Z 19 DT, Z 19 DTL,		Every 10 years / 150,000 km
Inspect power steering for leaks, check / correct fluid level X X X X X

Service and maintenance 207

	by year ^1)	1	2	3	4	5
Service operations	km (x 1000)	30	60	90	120	150
Check electro-hydraulic power steering (EHPS) oil level (cap with dipstick) X X X X X
Change engine oil and filter X X X X X
⊕● Drain water from fuel filter, diesel (with high humidity and / or lower grade fuel) X X X X X
Replace and drain fuel filter, diesel (grade EN 590) X X
Visually inspect wheel mounting and suspension springs front and rear, brake lines, brake pressure hoses, fuel lines and exhaust system		X		X
Check exterior of body/underbody corrosion protection and note any damage in the Service Booklet		X X X X X
⊕● Visually inspect front and rear wheel brakes, if a tyre pressure monitoring system is fitted, do not swap wheels over		X X X X X
Engine, transmission (AT, MT), inspect air-conditioning compressor for leaks X X X X X
Visually inspect folding covers on steering, tie rods and axle drive X X X X X
Tie rod and supporting joint checking X X X X X
⊕ Change brake and clutch fluid Every 2 years

208 Service and maintenance

Service operations	by year1)km (x 1000)	130	260	390	4120	5150
Undo wheel fastening (take care if tyre pressure monitoring system is present) and tighten to torque: 110 Nm.The wheel bolt taper should be greased or oiled lightly during assembly.Check tyre condition. Check/correct tyre pressure (including spare wheel)With tyre repair kit - check completeness and expiry date of kit. Replace sealant bottle every 4 years.		X X X X X
Visually inspect first-aid kit, (presence in designated stowage compartment, completeness and expiry date), lashing eyes, warning triangle and high visibility vest		Every 2 years
Check/correct headlight adjustment (including auxiliary headlights) X X
Grease door hinges, door stop, lock cylinder, striker plate, bonnet lock, tailgate hinges, wipe door stop check strap clean before greasing		X			X
Test drive, final inspection (check steering wheel lock and ignition switch, instruments and indicator lights, entire brake system, steering, air conditioning, engine, body and running gear), reset service interval display		X X X X X

⊕: Additional operations.
●: Under extreme operating conditions and if required by country-specific conditions, the intervals are reduced.

International service schedule
The international service schedule is valid for the countries which are not listed at the European service schedule.

Service operations	by yearkm (x 1000)	1	2	3	4	5
		15	30	45	60	75
Check visually control unit, lighting unit and signalling equipment as well as airbag, check steering wheel lock and ignition switch		XXXXX
Replace batteries for radio remote control (Do not forget the second key) Every 2 years
Check windscreen wipers, screen wiper system, and headlight washer system XXXXX
Check coolant level, antifreeze (pale orange), correct XXXXX
Check brake fluid level, correct XXX
Check battery terminals are firmly located XXXXX
Replace pollen filter or activated carbon filter XX
If air is badly polluted, has a high dust or sand content, or pollen, smell of the air conditioning		Agreement with customer
Replace air cleaner insert Every 4 years / 60,000 km

210 Service and maintenance

	by year	1	2	3	4	5
Service operations	km (x 1000)	15	30	45	60	75
⊕ Replace spark plugs Every 4 years / 60,000 km
Visually inspect ribbed V-belt X X
Replace ribbed V-belt, Every 10 years / 150,000 km
⊕ Check valve clearance, adjust Z 16 LET, Z 16 XER, Z16XE1, Z 18 XER, Z 17 DTH, Z 17 DTJ, Z 17 DTR, A 17 DTJ, A 17 DTR		Every 10 years / 150,000 km
Z 19 DT, Z 19 DTL X X
⊕ Replace toothed belt and tension roller, Z 20 LEH, Z 20 LER		Every 8 years / 120,000 km
Z 17 DTH Every 10 years / 90,000 km
Z 16 LET, Z 16 XER, Z 16 XE1, Z 18 XER, Z/A 17 DTJ, Z/A 17 DTR, Z 19 DT, Z 19 DTL,		Every 10 years / 150,000 km
Inspect power steering for leaks, check / correct fluid level X X X X X
Check electro-hydraulic power steering (EHPS) oil level (cap with dipstick) X X X X X
Change engine oil and filter X X X X X
⊕● Drain water from fuel filter, diesel (with high humidity and / or lower grade fuel) X X X X X
Replace and drain fuel filter, diesel (grade EN 590) X X

Service and maintenance 211

Service operations	by yearkm (x 1000)	1	2	3	4	5
		15	30	45	60	75
Check exterior of body/underbody corrosion protection and note any damage in the Service Booklet		X X X X X
Check retractable hardtop, clean wind deflector and rubber seals, grease rubber seals (TwinTop only)		X			X
⊕● Visually inspect front and rear wheel brakes, if a tyre pressure monitoring system is fitted, do not swap wheels over		X X X X X
Engine, transmission (AT, MT), inspect air-conditioning compressor for leaks X X X X X
Visually inspect folding covers on steering, tie rods and axle drive X X X X X
Tie rod and supporting joint checking X X X X X
⊕ Change brake and clutch fluid Every 2 years
Undo wheel fastening (take care if tyre pressure monitoring system is present) and tighten to torque: 110 Nm. The wheel bolt taper should be greased or oiled lightly during assembly. Check tyre condition. Check/correct tyre pressure (including spare wheel) With tyre repair kit - check completeness and expiry date of kit. Replace sealant bottle every 4 years.		X X X X X
Visually inspect first-aid kit, (presence in designated stowage compartment, completeness and expiry date), lashing eyes, warning triangle and high visibility vest		Every 2 years

212 Service and maintenance

Service operations	by yearkm (x 1000)	115	230	345	460	575
Check/correct headlight adjustment (including auxiliary headlights) X X
Grease door hinges, door stop, lock cylinder, striker plate, bonnet lock, tailgate hinges,wipe door stop check strap clean before greasing			X		X
Test drive, final inspection (check steering wheel lock and ignition switch, instruments and indicator lights, entire brake system, steering, air conditioning, engine, body and running gear), reset service interval display

⊕: Additional operations.
●: Under extreme operating conditions and if required by country-specific conditions, the intervals are reduced.

Additional servicing

Additional operations ⊕

Additional operations are not required every service but can be performed in conjunction with a regular service. Time allowances for such work are not included in the scope of regular services and will be charged for additionally. It is more economic if these operations are performed as part of a scheduled service than having them performed separately.

Extreme operating conditions ●

Extreme operating conditions are given when at least one of the following occurs frequently:

■ cold starts,
■ stop and go,
■ trailer towing,
■ gradients and/or high altitudes,
■ poor road surfaces,
■ sand and dust,
■ extreme temperature fluctuations.

Police vehicles, taxis and driving school vehicles are also classified as operating under extreme conditions.

Under extreme operating conditions, it may be necessary to have certain scheduled service work done more frequently than the scheduled intervals.

Seek technical advice on the servicing requirements dependent on the specific operating conditions.

Recommended fluids, lubricants and parts

Recommended fluids and lubricants

Only use products that have been tested and approved. Damage resulting from the use of non-approved materials will not be covered by the warranty.

⚠ Warning

Operating materials are hazardous and could be poisonous. Handle with care. Pay attention to information given on the containers.

Engine oil

Engine oil is identified by its quality and also its viscosity. Quality is more important than viscosity when selecting which engine oil to use.

The new engine oil GM-Dexos 2 is of the highest quality available at the moment. If it is unavailable, engine oils of other listed qualities have to be used.

Engine oil quality for European service schedules

GM-Dexos	= Petrol and diesel engines
2
GM-LL-A-025	= Petrol engines
GM-LL-B-025	= Diesel engines

Engine oil quality for international service schedules

GM-Dexos = Petrol and diesel
2	engines
GM-LL-	= Petrol engines
A-025
GM-LL-	= Diesel engines
B-025
ACEA-A3 = Petrol engines
ACEA-B4 = Diesel engines
	without Diesel Particle Filter (DPF)
ACEA-C3 = Diesel engines with DPF

Topping up engine oil

Engine oils of different manufacturers and brands can be mixed as long as they comply with the required engine oil (quality and viscosity).

If engine oil of the required quality is not available, a maximum of 1 litre of ACEA A3/B4 or A3/B3 grade may be used (only once between each oil change). The viscosity should be of the correct rating.

Use of ACEA A1/B1 and A5/B5 engine oil is expressly forbidden, since they can cause long-term engine damage under certain operating conditions.

Engine oil additives

The use of engine oil additives could cause damage and invalidate the warranty.

Engine oil viscosity

Use only engine oil viscosities SAE 0W-30, 0W-40, 5W-30 or 5W-40.

The SAE viscosity rating defines the ability of an oil to flow. When cold, oil is more viscous than when hot.

Multigrade oil is indicated by two figures. The first figure, followed by a W, indicates low temperature viscosity and the second figure the high temperature viscosity.

Coolant and antifreeze

Use only silicate-free long life coolant (LLC) antifreeze.

The system is factory filled with coolant designed for frost protection down to approx. -28 °C. Maintain a sufficient concentration of antifreeze.

Coolant additives intended to give additional corrosion protection or seal against minor leaks can cause function problems. Liability for consequences resulting from the use of coolant additives will be rejected.

Brake and clutch fluid

Only use DOT4 brake fluid.

Over time, brake fluid absorbs moisture which will reduce braking effectiveness. The brake fluid should therefore be replaced at the specified interval.

Service and maintenance 215

Brake fluid should be stored in a sealed container to avoid water absorption.

Ensure brake fluid does not become contaminated.

Technical data

Vehicle identification 216

Vehicle data 218

Vehicle identification

Vehicle Identification Number

Simple icon of a computer monitor with an upward arrow, no text or symbols present

The Vehicle Identification Number is stamped on the identification plate and on the floor pan, under the floor covering, visible under a cover.

Abstract grayscale illustration of a stylized arrow and rectangular shape with diagonal lines, no text or symbols present.

The Vehicle Identification Number may be embossed on the instrument panel visible through the windscreen.

Identification plate

Illustration of a door with a hanging object and arrow pointing to it (no text or symbols)

The identification plate is located on the front right door frame.

1 2 3 4 5 6 7 8 OPEN HITUBA4001E HOTUBA4001E HOTUBA4001E HOTUBA4001E HOTUBA4001E HOTUBA4001E HOTUBA4001E HOTUBA4001E HOTUBA4001E HOTUBA4001E HOTUBA4001E HATUBA4001E HATUBA4001E HATUBA4001E HATUBA4001E HATUBA4001E HATUBA4001E HATUBA4001E HATUBA4001E HATUBA4001E HATUBA4001E HOTUBA4001E HOTUBA4001E HOTUBA4001E HOTUBA4001E HOTUBA4001E HOTUBA4001E HOTUBA4001E HOTUBA4001E HOTUBA4001E HOTA4001E HOTA4001E HOTA4001E HOTA4001E HOTA4001E HOTA4001E HOTA4001E HOTA4001E HOTA4001E HOTA4001E HOTA4001E HOTA4001E HOTA400 1999 30063

Information on identification plate:

1 = Manufacturer

2 = Type approval number

3 = Vehicle Identification Number

4 = Permissible gross vehicle weight rating

5 = Permissible gross train weight

6 = Maximum permissible front axle load

7 = Maximum permissible rear axle load

8 = Vehicle-specific or countryspecific data

The combined total of front and rear axle loads must not exceed the permissible gross vehicle weight. For example, if the front axle is bearing its maximum permissible load, the rear axle can only bear a load that is equal to the gross vehicle weight minus the front axle load.

The technical data is determined in accordance with European Community standards. We reserve the right to make modifications.

Specifications in the vehicle documents always have priority over those given in this manual.

218 Technical data

Vehicle data

Engine data

Sales designation 1.2 1.4 1.6 1.6 1.82.0 Turbo

Engine identifier code	Z 12 XEP	Z 14 XEP	Z 16 XER	Z 16 LET	Z 20 LER	Z 18 XER
Number of cylinders 4 4 4 4 44
Piston displacement [cm3]	1229 1364	1598	1598	1998	1796
Engine power [kW]	59	66	85	132	147	103
at rpm	5600	5600	6000	5500	5400	6300
Torque [Nm]	110	125	155	230	262	175
at rpm	4000	4000	4000	1980-5500	4200	3800
Fuel type	Petrol	Petrol	Petrol	Petrol	Petrol	Petrol
Octane rating RON
recommended	95	95	95	95	95	95
possible	98	98	98	98	98	98
possible	91	91	91	-	91^1)	91
Oil consumption [l/1000 km]	0.6 0.6 0.6 0.6 0.60.6

1) Possible only if high engine load, full load or driving in mountainous terrain with a caravan/trailer or high payload is avoided.

Technical data 219

Sales designation	2.0 Turbo	1.3 CDTI	1.7	1.7 CDTI	1.7
Engine identifier code	Z 20 LEH	Z 13 DTH	A 17 DTJ	Z 17 DTH	A 17 DTR
Number of cylinders 4 4 4 44
Piston displacement [cm3]	1998 1248 1686	1686	1686
Engine power [kW]	177	66	81	74	92
at rpm	5600 4000 3800	4400	4000
Torque [Nm]	320	200	260	240	280
at rpm	2400-5000	1750-2500	2300	2300	2300
Fuel type	Petrol	Diesel	Diesel	Diesel	Diesel
Octane rating RON
recommended	98
possible	95
possible	911)
Oil consumption [l/1000 km]	0.6	0.6	0.6	0.6	0.6

1) Possible only if high engine load, full load or driving in mountainous terrain with a caravan/trailer or high payload is avoided.

220 Technical data

Sales designation 1.7 1.7 1.9 CDTI 1.9 CDTI 1.9 CDTI

Engine identifier code	Z 17 DTJ	Z 17 DTR	Z 19 DTL	Z 19 DT	Z 19 DTH
Number of cylinders 4 4 4 4 4
Piston displacement [cm3]	1686 1686 1910		1910	1910
Engine power [kW]	81	92	74	88	110
at rpm	3800 4000 3500		3500	4000
Torque [Nm]	260	280	260	280	320
at rpm	2300	2300	1700-2500	2000-2750	2000-2750
Fuel type	Diesel	Diesel	Diesel	Diesel	Diesel
Oil consumption [l/1000 km]	0.6	0.6	0.6	0.6	0.6

Performance

Saloon 5-door

Engine Z12XEP Z14XEP Z16XER Z16LET Z18XER

Maximum speed ^2) [km/h]

Manual transmission 171 178 191 221 208

Manual transmission automated - 176 192 --

Automatic transmission - - - - 188

Engine	Z20LER	Z13DTH	Z17DTH	Z17DTJ	Z17DTR
Maximum speed [km/h]
Manual transmission	230	172	180	185 / 188^3)	195
Manual transmission automated	-	171	-	-	-
Automatic transmission	-	-	-	-	-

2) The maximum speed indicated is achievable at kerb weight (without driver) plus 200 kg payload. Optional equipment could reduce the specified maximum speed of the vehicle.

3) For model with pollutant reduction.

222 Technical data

Engine A17DTJ A17DTR Z19DTL Z19DT Z19DTH

Maximum speed [km/h]

Manual transmission 186 195 180 194 208

Manual transmission automated - - - - -

Automatic transmission - - - 188 -

Saloon 3-door

Engine Z14XEP Z16XER Z16LET Z18XER Z20LER

Maximum speed [km/h]
Manual transmission	180	193	223	210	234
Manual transmission automated	178	194	-	-	-
Automatic transmission	-	-	-	190	-

Engine	Z20LEH	Z13DTH	Z17DTH	Z17DTJ	Z17DTR
Maximum speed [km/h]
Manual transmission	244	174	182	187 / 188	197
Manual transmission automated	-	174	-	-	-
Automatic transmission	-	-	-	-	-

Engine A17DTJ A17DTR Z19DTL Z19DT Z19DTH

Maximum speed [km/h]

Manual transmission 188 197 182 196 210

Manual transmission automated - - - - -

Automatic transmission - - - 190 -

Saloon 4-door

Engine Z16XER Z18XER Z13DTH Z17DTH

Maximum speed [km/h]
Manual transmission 191	207	172	180
Manual transmission automated		192	-	-	-
Automatic transmission		-	188	-	-

Station wagon

Engine	Z14XEP	Z16XER	Z16LET	Z18XER	Z20LER
Maximum speed [km/h]
Manual transmission	178	191	221	207	230
Manual transmission automated	-	192	-	-	-
Automatic transmission	-	-	-	188	-

224 Technical data

Engine Z13DTH A17DTJ A17DTR Z17DTH Z17DTJ

Maximum speed [km/h]

Manual transmission 172 186 195 180 185 / 188

Manual transmission automated ----

Automatic transmission ----

Engine		Z17DTR	Z19DTL	Z19DT	Z19DTH
Maximum speed [km/h]
Manual transmission		195	180	193	207
Manual transmission automated -	-	-	-
Automatic transmission		-	-	187	-
Van
Engine		Z14XEP	Z13DTH	Z17DTH	Z17DTJ
Maximum speed [km/h]
Manual transmission		178	172	180	185
Manual transmission automated		-	-	-	-
Automatic transmission		-	-	-	-

Engine Z17DTR Z19DTL Z19DT Z19DTH

Maximum speed [km/h]

Manual transmission 195 180 193 207

Manual transmission automated - - - -

Automatic transmission -- 187 -

TwinTop
Engine	Z16XEP	Z16LET	Z18XER	Z20LER	Z19DTH
Maximum speed [km/h]
Manual transmission	192	228	209	237	213
Manual transmission automated	-	-	-	-	-
Automatic transmission	-	-	189	-	-

Fuel consumption - CO _2 -emissions

Saloon 5-door

Tyre width up to 205 mm with manual transmission / manual transmission automated / automatic transmission ^4)

Engine Z12XEP Z14XEP Z16XER Z18XER Z13DTH

urban [l/100 km]	8.0/-/- 8.0/7.7/- 8.7/8.5/- 9.7/-/10.4 6.3	^5)/6.4^5)/-
extra-urban [l/100 km]	5.0/-/- 5.0/4.9/- 5.2/5.0/- 5.6/-/6.1 4.1	^5)/4.2^5)/-
total [l/100 km]	6.1/-/- 6.1/5.9/- 6.5/6.3/- 7.1/-/7.7 4.9	^5)/5.0^5)/-
CO _2 [g/km]	146/-/- 146/141/- 155/151/- 169/-/184 130	^6)/133^7)/-

Engine Z17DTH A17DTJ Z17DTJ Z17DTR

urban [l/100 km] 6.4/-/- 6.8/-/-			5.6 (6.6)8)/-/-	6.6/-/-
extra-urban [l/100 km] 4.2/-/- 4.6/-/-			3.9 (4.4)8)/-/-	4.4/-/-
total [l/100 km]	5.0/-/- 5.4/-/-		4.5 (5.2)8)/-/-	5.2/-/-
CO2[g/km]	135/-/-	143/-/-	119 (138)8)/-/-	138/-/-

Tyre width up to 225 mm with manual transmission / manual transmission automated / automatic transmission.

4) For engine A17DTJ, Z13DTH, Z17DTH, Z17DTR and Z17DTJ without pollutant reduction tyre width up to 195 mm.
5) In vehicles with diesel particle filter, fuel consumption increased by 0.2 l/100 km.
6) In vehicles with diesel particle filter, CO_2 emissions increased by 7 g/km.
7) In vehicles with diesel particle filter, CO_2 emissions increased by 5 g/km.
8) For model without pollutant reduction.

Technical data 227

Engine	Z12XEP	Z14XEP	Z16XER	Z16LET	Z18XER	Z20LER	Z17DTH
urban [l/100 km]	8.2/-/-	8.1/7.8/-	8.8/8.6/-	10.3/-/-	9.8/-/10.5	13.1/-/-	6.5/-/-
extra-urban [l/100 km]	5.2/-/-	5.1/5.0/-	5.3/5.1/-	6.2/-/-	5.7/-/6.2	7.1/-/-	4.3/-/-
total [l/100 km]	6.3/-/-	6.2/6.0/-	6.6/6.4/-	7.7/-/-	7.2/-/7.8	9.3/-/-	5.1/-/-
CO2[g/km]	151/-/-	148/143/-	158/153/-	185/-/-	172/-/186	223/-/-
Engine	A17DTJ	A17DTR	Z17DTJ	Z17DTR	Z19DTL	Z19DT	Z19DTH
urban [l/100 km]	6.9/-/-	6.9/-/-	6.8/-/-	6.8/-/-	7.25)/-/-	7.25)/-/-	9.6
extra-urban [l/100 km]	4.7/-/-	4.7/-/-	4.6/-/-	4.6/-/-	4.75)/-/-	4.75)/-/-	5.3
total [l/100 km]	5.5/-/-	5.5/-/-	5.4/-/-	5.4/-/-	5.65)/-/-	5.65)/-/-	6.9
CO2[g/km]	146/-/-	146/-/-	143/-/-	143/-/-	1497)/-/-	1497)/-/-	186

5) In vehicles with diesel particle filter, fuel consumption increased by 0.2 l/100 km.
7) In vehicles with diesel particle filter, CO_2 emissions increased by 5 g/km.

Saloon 3-door

Tyre width up to 205 mm with manual transmission / manual transmission automated / automatic transmission ^9)

Engine Z14XEP Z16XER Z18XER Z13DTH Z17DTH

urban [l/100 km]	8.0/7.7/- 8.7/8.5/- 9.7/-/10.4 6.3	^5)/6.4^5)/-	6.4/-/-
extra-urban [l/100 km]	5.0/4.9/- 5.2/5.0/- 5.6/-/6.1 4.1	^5)/4.2^5)/-	4.2/-/-
total [l/100 km]	6.1/5.9/- 6.5/6.3/- 7.1/-/7.7 4.9	^5)/5.0^5)/-	5.0/-/-
CO2[g/km]	146/141/- 155/151/- 169/-/184 130	^6)/133^7)/-	135/-/-

Engine A17DTJ A17DTR Z17DTJ Z17DTR

urban [l/100 km] 6.8/-/- 6.8/-/-	5.6 (6.6) ^8) /-/-	6.6/-/-
extra-urban [l/100 km] 4.6/-/- 4.6/-/-	3.9 (4.4) ^8) /-/-	4.4/-/-
total [l/100 km] 5.4/-/- 5.4/-/-	4.5 (5.2) ^8) /-/-	5.2/-/-
CO _2 [g/km] 143/-/- 143/-/-	119 (138) ^8) /-/-	138/-/-

Tyre width up to 225 mm with manual transmission / manual transmission automated / automatic transmission.
9) For engine A17DTJ, A17DTR, Z17DTR and Z17DTJ without pollutant reduction tyre width up to 195 mm.
5) In vehicles with diesel particle filter, fuel consumption increased by 0.2 l/100 km.
6) In vehicles with diesel particle filter, CO_2 emissions increased by 7 g/km.
7) In vehicles with diesel particle filter, CO_2 emissions increased by 5 g/km.
8) For model without pollutant reduction.

Technical data 229

Engine	Z14XEP	Z16XER	Z16LET	Z18XER	Z20LER	Z20LEH	Z17DTH
urban [l/100 km]	8.1/7.8/-	8.8/8.6/-	10.3/-/-	9.8/-/10.5	13.1/-/-	13.0/-/-	6.5/-/-
extra-urban [l/100 km]	5.1/5.0/-	5.3/5.1/-	6.2/-/-	5.7/-/6.2	7.1/-/-	7.0/-/-	4.3/-/-
total [l/100 km]	6.2/6.0/-	6.6/6.4/-	7.7/-/-	7.2/-/7.8	9.3/-/-	9.2/-/-	5.1/-/-
CO2[g/km]	148/143/-	158/153/-	185/-/-	172/-/186	223/-/-	221/-/-
Engine	A17DTJ	A17DTR	Z17DTJ	Z17DTR	Z19DTL	Z19DT	Z19DTH
urban [l/100 km]	6.9/-/-	6.9/-/-	6.8/-/-	6.8/-/-	7.25)/-/-	7.25)/-/-	9.6
extra-urban [l/100 km]	4.7/-/-	4.7/-/-	4.6/-/-	4.6/-/-	4.75)/-/-	4.75)/-/-	5.3
total [l/100 km]	5.5/-/-	5.5/-/-	5.4/-/-	5.4/-/-	5.65)/-/-	5.65)/-/-	6.9
CO2[g/km]	146/-/-	146/-/-	143/-/-	143/-/-	1497)/-/-	1497)/-/-	186

5) In vehicles with diesel particle filter, fuel consumption increased by 0.2 l/100 km.
7) In vehicles with diesel particle filter, CO_2 emissions increased by 5 g/km.

230 Technical data

Saloon 4-door

Tyre width up to 205 mm with manual transmission / manual transmission automated / automatic transmission ^10)

Engine Z16XER Z18XER Z13DTH Z17DTH Z17DTJ

urban [l/100 km] 8.8/8.6/- 9.7/-/10.5 6.5/-/- 6.4/-/- 5.6/-/-
extra-urban [l/100 km] 5.3/5.1/- 5.6/-/6.2 4.3/-/- 4.2/-/- 3.9/-/-
total [l/100 km] 6.6/6.4/- 7.1/-/7.8 5.1/-/- 5.0/-/- 4.5/-/-
CO2[g/km]	158/153/- 169/-/186 137/-/- 135/-/- 119/-/-

Tyre width up to 225 mm with manual transmission / manual transmission automated / automatic transmission.

Engine Z16XER Z18XER Z17DTH

urban [l/100 km] 8.9/8.7/- 9.8/-/10.6 6.5/-/-
extra-urban [l/100 km]	5.4/5.2/- 5.7/-/6.3 4.3/-/-
total [l/100 km]	6.7/6.5/- 7.2/-/7.9 5.1/-/-
CO2[g/km]	159/154/- 172/-/189 138/-/-

Station wagon

Tyre width up to 205 mm with manual transmission / manual transmission automated / automatic transmission ^11)

Engine Z14XEP Z16XER Z18XER Z13DTH

urban [l/100 km]	8.0/-/- 8.8/8.6/- 9.7/-/10.5 6.3	5)/-/-
extra-urban [l/100 km]	5.0/-/- 5.3/5.1/- 5.6/-/6.2 4.1	5)/-/-
total [l/100 km]	6.1/-/- 6.6/6.4/- 7.1/-/7.8 4.9	5)/-/-
CO2[g/km]	146/-/- 158/153/- 169/-/186 130	6)/-/-

Engine A17DTJ Z17DTH Z17DTJ Z17DTR

urban [l/100 km] 6.9/-/- 6.4/-/-			5.6 (6.7) ^8) /-/-	6.7/-/-
extra-urban [l/100 km] 4.7/-/- 4.2/-/-			3.9 (4.5) ^8) /-/-	4.5/-/-
total [l/100 km] 5.5/-/- 5.0/-/-			4.5 (5.3) ^8) /-/-	5.3/-/-
CO _2 [g/km]	146/-/-	135/-/-	119 (139) ^8) /-/-	139/-/-

Tyre width up to 225 mm with manual transmission / manual transmission automated / automatic transmission.

11) For engines Z17 DTH, A17DTJ, A17DTR, Z17DTR and Z17DTJ without pollutant reduction tyre width up to 195 mm.
5) In vehicles with diesel particle filter, fuel consumption increased by 0.2 l/100 km.
6) In vehicles with diesel particle filter, CO_2 emissions increased by 7 g/km.
8) For model without pollutant reduction.

232 Technical data

Engine	Z14XEP	Z16XER	Z18XER	Z16LET	Z20LER	A17DTJ	A17DTR
urban [l/100 km] 8.1/-/- 8.9/8.7/- 9.8/-/10.6	10.3/-/- 13.2/-/- 7.0/-/- 7.0/-/-
extra-urban [l/100 km] 5.1/-/- 5.4/5.2/- 5.7/-/6.3	6.2/-/- 7.2/-/- 4.8/-/- 4.8/-/-
total [l/100 km] 6.2/-/- 6.7/6.5/- 7.2/-/7.9	7.7/-/- 9.4/-/- 5.6/-/- 5.6/-/-
CO2[g/km]	148/-/- 159/154/- 172/-/189	185/-/- 226/-/-				149/-/-	149/-/-
Engine	Z17DTH	Z17DTJ	Z17DTR	Z19DTL	Z19DT	Z19DTH
urban [l/100 km]	6.5/-/-	6.9/-/-	6.9/-/-	7.25)/-/-	7.25)/-/-9.7	7.25)/-/-
extra-urban [l/100 km]	4.3/-/-	4.7/-/-	4.7/-/-	4.75)/-/-	4.75)/-/-5.4	4.75)/-/-
total [l/100 km]	5.1/-/-	5.5/-/-	5.5/-/-	5.65)/-/-	5.65)/-/-7.0	5.65)/-/-
CO2[g/km]	138/-/-	145/-/- 145/-/-		1497)/-/-	1497)/-/-189	1497)/-/-

5) In vehicles with diesel particle filter, fuel consumption increased by 0.2 l/100 km.

7) In vehicles with diesel particle filter, CO_2 emissions increased by 5 g/km.

Van
Tyre width up to 205 mm with manual transmission / manual transmission automated / automatic transmission ^12)
Engine Z14XEP Z13DTH Z17DTH Z17DTJ Z17DTR

urban [l/100 km] 8.0/-/-	6.35)/-/-	6.4/-/- 6.6/-/- 6.6/-/-
extra-urban [l/100 km] 5.0/-/-	4.15)/-/-	4.2/-/- 4.4/-/- 4.4/-/-
total [l/100 km] 6.1/-/-	4.95)/-/-	5.0/-/- 5.2/-/- 5.2/-/-
CO2[g/km] 146/-/-	1306)/-/-	135/-/- 138/-/- 138/-/-

Tyre width up to 225 mm with manual transmission / manual transmission automated / automatic transmission.

Engine	Z14XEP	Z17DTH	Z17DTJ	Z17DTR	Z19DTL	Z19DT	Z19DTH
urban [l/100 km]	8.1/-/-	6.5/-/-	6.8/-/-	6.8/-/-	7.2^5)/-/-	7.2^5)/-/9.7	7.2^5)/-/-
extra-urban [l/100 km]	5.1/-/-	4.3/-/-	4.6/-/-	4.6/-/-	4.7^5)/-/-	4.7^5)/-/5.4	4.7^5)/-/-
total [l/100 km]	6.2/-/-	5.1/-/-	5.4/-/-	5.4/-/-	5.6^5)/-/-	5.6^5)/-/7.0	5.6^5)/-/-
CO_2 [g/km]	148/-/-	138/-/-	143/-/-	143/-/-	149^7)/-/-	149^7)/-/189	149^7)/-/-

12) For engines Z17 DTH, Z17DTJ and A17DTJ tyre width up to 195 mm.

5) In vehicles with diesel particle filter, fuel consumption increased by 0.2 l/100 km.

6) In vehicles with diesel particle filter, CO_2 emissions increased by 7 g/km.

7) In vehicles with diesel particle filter, CO_2 emissions increased by 5 g/km.

234 Technical data

TwinTop

Tyre width up to 225 mm with manual transmission / manual transmission automated / automatic transmission.

Engine Z16XER Z16LET Z18XER Z20LER Z19DTH

urban [l/100 km] 9.0/-/- 10.5/-/- 10.0/-/10.7 13.3/-/- 7.6/-/-
extra-urban [l/100 km] 5.5/-/- 6.4/-/- 5.9/-/6.4 7.3/-/- 5.1/-/-
total [l/100 km] 6.8/-/- 7.9/-/- 7.4/-/8.0 9.5/-/- 6.0/-/-
CO2[g/km]	163/-/- 190/-/-	177/-/191	228/-/-	159/-/-

Vehicle weight
Kerb weight, basic model, Saloon, 5-door

Astra Engine Manual transmission Manual transmission		automated	Automatic transmission
without/with air conditioning [kg]	Z12XEP 1240/1260 -/- -/-
	Z14XEP 1240/1260 1240/1260 -/-
	Z16XER 1270/1290 1270/1290 -/-
	Z16LET -/1355 -/- -/-
	Z18XER 1278/1298 -/- 1278/1298
	Z20LER -/1385 -/- -/-
	Z13DTH 1340/1355 1340/1355 -/-
	A17DTJ, A17DTR 1385/1400 -/- -/-
	Z17DTH 1365/1380 -/- -/-
	Z17DTJ, Z17DTR 1385/1400 -/- -/-
	Z19DTL 1395/1410 -/- -/-
	Z19DT 1395/1410 -/- 1425/1440 (1393/1408)		13)
	Z19DTH 1393/1408 -/- -/-

13) Reduced-weight, country-specific models.

236 Technical data

Kerb weight, basic model, Saloon, 3-door
Astra Engine Manual transmission Manual transmission		automated Automatic transmission
without/with air conditioning [kg]	Z14XEP 1220/1240 1220/1240 -/-
	Z16XER 1250/1270 1250/1270 -/-
	Z16LET -/1335 -/- -/-
	Z18XER 1265/1285 -/- 1278/1298
	Z20LER -/1365 -/- -/-
	Z20LEH -/1393 -/- -/-
	Z13DTH 1278/1293 1278/1293 -/-
	A17DTJ, A17DTR 1365/1380 -/- -/-
	Z17DTH 1345/1360 -/- -/-
	Z17DTJ, Z17DTR 1365/1380 -/- -/-
	Z19DTL 1375/1390 -/- -/-
	Z19DT -/- -/- 1393/1408
	Z19DTH 1390/1405 -/- -/-

Technical data 237

Kerb weight, basic model, Saloon 4-door
Astra Engine Manual transmission Manual transmission		automated	Automatic transmission
without/with air conditioning [kg]	Z16XER 1278/1296 1278/1296 -/-
	Z18XER 1278/1296 -/- 1349/1367
	Z13DTH 1365/1383 -/- -/-
	Z17DTH, Z17DTJ 1386/1404 -/- -/-

238 Technical data

Kerb weight, basic model, Station wagon
Astra Engine Manual transmission Manual transmission		automated Automatic transmission
without/with air conditioning [kg]	Z14XEP 1278/1298 -/- -/-
	Z16XER 1278/1298 1278/1298 -/-
	Z16LET -/1395 -/- -/-
	Z18XER 1278/1298 -/- 1350/1370
	Z20LER -/1393 -/- -/-
	Z13DTH 1380/1395 -/- -/-
	A17DTJ, A17DTR 1393/1408 -/- -/-
	Z17DTH 1393/1408 -/- -/-
	Z17DTJ, Z17DTR 1393/1408 -/- -/-
	Z19DTL 1393/1408 -/- -/-
	Z19DT 1393/1408 -/- 1465/1480
	Z19DTH 1393/1408 -/- -/-

Kerb weight, basic model, Van

Astra Engine Manual transmission Manual transmission		automated	Automatic transmission
without/with air conditioning [kg]	Z14XEP 1235/1250 -/- -/-
	Z13DTH 1335/1350 -/- -/-
	Z17DTH 1365/1380 -/- -/-
	Z17DTJ, Z17DTR 1385/1400 -/- -/-
	Z19DT 1385/1400 -/- 1420/1435
	Z19DTL 1385/1400 -/- -/-
	Z19DTH 1395/1410 -/- -/-

Kerb weight, basic model, TwinTop

Astra	Engine	Manual transmission	Manual transmission automated	Automatic transmission
without/with air conditioning [kg]	Z16XER	1495/1515 -/- -/-
	Z16LET	-/1575	-/- -/-
	Z18XER	1500/1520 -/- 1503/1523
	Z20LER	-/1605	-/- -/-
	Z19DTH	1613/1628 -/- -/-

240 Technical data

Additional weight, Saloon 3-door / 5-door, Station wagon

Engine	Z14XEP, Z16XER, Z16LET, Z18XER	Z13DTH, A17DTJ, A17DTR, Z17DTH	Z17DTJ, Z17DTR
Edition/Enjoy [kg]	2.9 2.9 2.9
Cosmo [kg]	12 12 12
Sport [kg]	24.5 24.5 24.5

Engine Z20LER Z19DTL, Z19DT Z19DTH

Edition/Enjoy [kg] –	2.9		2.9
Cosmo [kg]	-	12		12
Sport [kg]	12.6	12.6		12.6^14)

Additional weight, Saloon 4-door

Engine	Z16XER, Z18XER, Z13DTH, Z17DTH
Edition/Enjoy [kg]	8.7
Cosmo [kg]	16

Additional weight, Van

Engine

Z14XEP, Z13DTH

A17DTJ, A17DTR, Z17DTH, Z17DTJ, Z17DTR, Z19DTL, Z19DT, Z19DTH

Edition/Enjoy [kg] --

Cosmo [kg] --

Sport [kg]

19.3

10.5

Heavy accessories

Accessories	Sun roof	Towing equipment	Split rear seat backrest	Headlamp washer system
Weight [kg]	23 (not on Saloon 4-door)	21 (not on TwinTop)	20 (Station wagon)	2 (Saloon 4-door / 5-door)
	17 (Saloon 4-door)	26 (TwinTop)	9 (Saloon 3-door / 5-door)

Vehicle dimensions

	Saloon 5-door	Saloon 3-door	Saloon 4-door	Station wagon	Van	TwinTop
Length [mm] 4249 4290 4587 4515	4515 4476
Width without exterior mirrors [mm] 1753	1753 1753 1753		1753 1759
Width with two exterior mirrors [mm]	2032	2032	2033	2032	2032	2021
Height (without antenna) [mm]	1460	1435	1458	1500	1500	1411
Length of load compartment floor [mm]	819	819	905	1085	1825	805
Load compartment width [mm]	944	944	1027	1088	1103	734

242 Technical data

	Saloon 5-door Saloon 3-door Saloon 4-door Station wagon Van TwinTop
Height of load compartment opening [mm] 614 555 – 766 775 –
Wheelbase [mm] 2614 2614 2703 2703 2703 2614
Turning circle diameter [m] 11.20 11.20 11.50 11.50 11.50 11.20
Capacities
Engine oil
Engine	Z12XEP, Z14XEP	Z16XER, Z16LET, Z18XER	Z20LER	Z13DTH	Z20LEH, Z17DTH	A17DTJ, A17DTR	Z17DTJ, Z17DTR	Z19 DTL, Z19DT, Z19DTH
including Filter [l]	3.5	4.5	4.25	3.2	5.0	5.4	5.4	4.3
between MIN and MAX [l]	1.0	1.0	1.0	1.0	1.0	1.0	1.0	1.0
Fuel tank
Petrol/diesel, nominal capacity [l]								52

Tyre pressures
Saloon 3-door / 5-door

Comfort with up to 3 people ECO with up to 3 people With full load
Engine	Tyres	front	rear	front	rear	front	rear
		[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)
Z12XEP	195/65 R 15, 200/2.0 (29)	200/2.0 (29)	250/2.5 (36)	250/2.5 (36)	210/2.1 (30)	250/2.5 (36)
	205/55 R 16
Z14XEP	185/65 R 15, 230/2.3 (33)	210/2.1 (30)	- - 250/2.5 (36)	290/2.9 (42)
	195/60 R 15
	195/65 R 15, 200/2.0 (29)	200/2.0 (29)	250/2.5 (36)	250/2.5 (36)	210/2.1 (30)	250/2.5 (36)
	205/55 R 16

244 Technical data

Engine	Tyres	Comfort with up to 3 people ECO with up to 3 people With full load
		front	rear	front	rear	front	rear
		[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)
Z16XER	185/65 R 15, 230/2.3 (33)	210/2.1 (30) – – 250/2.5 (36)	290/2.9 (42)
	195/60 R 15,
	215/45 R 17,
	225/40 R 18
	195/65 R 15, 200/2.0 (29)	200/2.0 (29)	250/2.5 (36)	250/2.5 (36)	210/2.1 (30)	250/2.5 (36)
	205/55 R 16,
	225/45 R 17
Z16LET	205/55 R 16, 230/2.3 (33)	210/2.1 (30)	270/2.7 (39)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	225/45 R 17
	215/45 R 17, 270/2.7 (39)	250/2.5 (36) – – 280/2.8 (41)	310/3.1 (45)
	225/40 R 18
Z18XER	185/65 R 15, 230/2.3 (33)	210/2.1 (30) – – 250/2.5 (36)	290/2.9 (42)
	195/60 R 15,
	215/45 R 17,
	225/40 R 18
	195/65 R 15, 200/2.0 (29)	200/2.0 (29)	250/2.5 (36)	250/2.5 (36)	210/2.1 (30)	250/2.5 (36)
	205/55 R 16,
	225/45 R 17
Z20LER	205/55 R 16, 230/2.3 (33)	210/2.1 (30)	270/2.7 (39)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	225/45 R 17
	215/45 R 17, 270/2.7 (39)	250/2.5 (36) – – 280/2.8 (41)	310/3.1 (45)
	225/40 R 18

246 Technical data

Engine	Tyres	Comfort with up to 3 people ECO with up to 3 people With full load
		front	rear	front	rear	front	rear
		[kPa/bar](psi)	[ kPa/bar](psi)	[ kPa/bar](psi)	[ kPa/bar](psi)	[ kPa/bar](psi)	[ kPa/bar](psi)
Z20LEH	205/50 R 17^15) ,225/40 ZR 18,235/35 ZR 19,225/45 R 17^15)16)	240/2.4 (35)	240/2.4 (35) – –	250/2.5 (36)	290/2.9 (42)
	225/40 R 18 260/2.6 (38)	240/2.4 (35) – –	280/2.8 (41)	320/3.2 (46)
Z13DTH	185/65 R 15, 230/2.3 (33)	210/2.1 (30) – –	250/2.5 (36)	290/2.9 (42)
	195/60 R 15
	195/65 R 15, 210/2.1 (30)	210/2.1 (30)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	205/55 R 16

15) Only permitted as winter tyres.
16) To guarantee a correct speed display, the electronic speedometer must be reprogrammed.

Technical data 247

Engine	Tyres	Comfort with up to 3 people ECO with up to 3 people With full load
		front	rear	front	rear	front	rear
		[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)
Z17DTH	195/65 R 15, 210/2.1 (30)	210/2.1 (30)	250/2.5 (36)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	205/55 R 16,
	225/45 R 17
	215/45 R 17, 250/2.5 (36)	230/2.3 (33)	- - 260/2.6 (38)	300/3.0 (43)
	225/40 R 18
A17DTJ	195/65 R 15, 230/2.3 (33)	210/2.1 (30)	270/2.7 (39)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	205/55 R 16,
	225/45 R 17
	215/45 R 17, 250/1.5 (36)	230/2.3 (33)	- - 260/2.6 (38)	300/3.0 (43)
	225/40 R 18
A17DTR	205/55 R 16	230/2.3 (33)	210/2.1 (30)	270/2.7 (39)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	225/45 R 17
	215/45 R 17, 250/2.5 (36)	230/2.3 (33)	- - 260/2.6 (38)	300/3.0 (43)
	225/40R 18

248 Technical data

Engine	Tyres	Comfort with up to 3 people ECO with up to 3 people With full load
		front	rear	front	rear	front	rear
		[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)
Z17DTJ	195/65 R 15, 230/2.3 (33)	210/2.1 (30)	290/2.9 (42)	270/2.7 (39)	250/2.5 (36)	290/2.9 (42)
	205/55 R 16, 230/2.3 (33)	210/2.1 (30)	270/2.7 (39)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	225/45 R 17
	215/45 R17, 250/2.5 (36)	230/2.3 (33)	-- 260/2.6 (38)	300/3.0 (43)
	225/40 R 18
Z17DTR	205/55 R 16, 230/2.3 (33)	210/2.1 (30)	270/2.7 (39)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	225/45 R 17
	215/45 R 17, 250/2.5 (36)	230/2.3 (33)	-- 260/2.6 (38)	300/3.0 (43)
	225/40 R 18
Z17DTJ^17	185/65 R 15, 230/2.3 (33)	210/2.1 (30)	290/2.9 (42)	270/2.7 (39)	250/2.5 (36)	290/2.9 (42)
	195/60 R 15,
	195/65 R 15,
	205/55 R 16

17) Model with pollutant reduction.

Technical data 249

Comfort with up to 3 people ECO with up to 3 people With full load
Engine	Tyres	front	rear	front	rear	front	rear
		[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)
Z19DTL, Z19DT, Z19DTH	205/55 R 16, 230/2.3 (33)	210/2.1 (30)	270/2.7 (39)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	225/45 R 17
	215/45 R 17, 270/2.7 (39)	250/2.5 (36)	- - 280/2.8 (41)	310/3.1 (45)
	225/40 R 18
all Temporary spare wheel		420/4.2 (61)	420/4.2 (61)	- - 420/4.2 (61)	420/4.2 (61)
Saloon 4-door
Engine	Tyres	Comfort with up to 3 people ECO with up to 3 people With full load
		front	rear	front	rear	front	rear
		[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)	[kPa/bar](psi)
Z16XER, Z18XER	195/65 R 15, 205/55 R 16	220/2.2 (32)	220/2.2 (32)	-	-	230/2.3 (33)	280/2.8 (41)
	215/45 R 17	240/2.4 (35)	240/2.4 (35)	-	-	250/2.5 (36)	320/3.2 (46)

250 Technical data

Engine	Tyres	Comfort with up to 3 people ECO with up to 3 people With full load
		front [kPa/bar](psi)	rear [kPa/bar] (psi)	front [kPa/bar] (psi)	rear [kPa/bar] (psi)	front [kPa/bar] (psi)	rear [kPa/bar] (psi)
Z13DTH, Z17DTH	195/65 R 15, 220/2.2 (32)	220/2.2 (32)	- - 230/2.3 (33)	280/2.8 (41)
	205/55 R 16
	215/45 R 17	240/2.4 (35)	- - 250/2.5 (36)	320/3.2 (46)
all Temporary spare wheel		420/4.2 (61)	420/4.2 (61)	- - 420/4.2 (61)	420/4.2 (61)
Station wagon
Engine	Tyres	Comfort with up to 3 people ECO with up to 3 people				With full load
		front [kPa/bar](psi)	rear [kPa/bar] (psi)	front [kPa/bar] (psi)	rear [kPa/bar] (psi)	front [kPa/bar] (psi)	rear [kPa/bar] (psi)
Z14XEP	185/65 R 15, 195/60 R 15	230/2.3 (33)	210/2.1 (30)	-	-	250/2.5 (36)	290/2.9 (42)
	195/65 R 15, 205/55 R 16	200/2.0 (29)	200/2.0 (29)	250/2.5 (36)	250/2.5 (36)	210/2.1 (30)	260/2.6 (38)

Technical data 251

Engine	Tyres	Comfort with up to 3 people ECO with up to 3 people With full load
		front [kPa/bar](psi)	rear [kPa/bar] (psi)	front [kPa/bar] (psi)	rear [kPa/bar] (psi)	front [kPa/bar] (psi)	rear [kPa/bar] (psi)
Z16XER	185/65 R 15, 230/2.3	(33) 210/2.1	(30) -- 250/2.5	(36) 290/2.9	(42)
	195/60 R 15,
	215/45 R 17,
	225/40 R 18
	195/65 R 15, 200/2.0	(29) 200/2.0	(29) 250/2.5	(36) 250/2.5	(36) 210/2.1	(30) 260/2.6	(38)
	205/55 R 16,
	225/45 R 17
Z16LET	205/55 R 16, 230/2.3	(33) 210/2.1	(30) 270/2.7	(39) 250/2.5	(36) 250/2.5	(36) 290/2.9	(42)
	225/45 R 17
	215/45 R 17, 270/2.7	(39) 250/2.5	(36) -- 280/2.8	(41) 310/3.1	(45)
	225/40 R 18

252 Technical data

Engine	Tyres	Comfort with up to 3 people ECO with up to 3 people With full load
		front	rear	front	rear	front	rear
		[kPa/bar](psi)	[kPa/bar] (psi)	[kPa/bar] (psi)	[kPa/bar] (psi)	[kPa/bar] (psi)	[kPa/bar] (psi)
Z18XER	185/65 R 15, 230/2.3 (33)	210/2.1 (30)	- - 250/2.5 (36)	290/2.9 (42)
	195/60 R 15,
	215/45 R 17,
	225/40 R 18
	195/65 R 15, 200/2.0 (29)	200/2.0 (29)	250/2.5 (36)	250/2.5 (36)	210/2.1 (30)	260/2.6 (38)
	205/55 R 16,
	225/45 R 17
Z20LER	205/55 R 16, 230/2.3 (33)	210/2.1 (30)	270/2.7 (39)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	225/45 R 17
	215/45 R 17, 270/2.7 (39)	250/2.5 (36)	- - 280/2.8 (41)	310/3.1 (45)
	225/40 R 18

Technical data 253

Engine	Tyres	Comfort with up to 3 people ECO with up to 3 people With full load
		front	rear	front	rear	front	rear
		[kPa/bar](psi)	[kPa/bar] (psi)	[kPa/bar] (psi)	[kPa/bar] (psi)	[kPa/bar] (psi)	[kPa/bar] (psi)
Z13DTH	185/65 R 15, 230/2.3 (33)	210/2.1 (30)	- - 250/2.5 (36)	290/2.9 (42)
	195/60 R 15
	195/65 R 15, 210/2.1 (30)	210/2.1 (30)	250/2.5 (36)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	205/55 R 16
Z17DTH	195/65 R 15, 210/2.1 (30)	210/2.1 (30)	250/2.5 (36)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	205/55 R 17
	225/45 R 17
	215/45 R 17, 250/2.5 (36)	230/2.3 (33)	- - 260/2.6 (38)	300/3.0 (43)
	225/40 R 18
A17DTJ	195/65 R 15, 230/2.3 (33)	210/2.1 (30)	270/2.7 (39)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	205/55 R 16,
	225/45 R 17
	215/45 R 17, 250/2.5 (36)	230/2.3 (33)	- - 260/2.6 (38)	300/3.0 (43)

254 Technical data

Engine	Tyres	Comfort with up to 3 people ECO with up to 3 people With full load
		front [kPa/bar](psi)	rear [kPa/bar] (psi)	front [kPa/bar] (psi)	rear [kPa/bar] (psi)	front [kPa/bar] (psi)	rear [kPa/bar] (psi)
A17DTR	205/55 R 16	230/2.3 (33)	210/2.1 (30)	270/2.7 (39)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	225/45 R 17
	215/45 R 17, 250/2.5 (36)	230/2.3 (33)	-- 260/2.6 (38)	300/3.0 (43)
	225/40 R 18
Z17DTJ, Z17DTR	195/65 R 15, 230/2.3 (33)	210/2.1 (30)	270/2.7 (39)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	205/55 R 16,
	225/45 R 17
	215/45 R 17, 250/2.5 (36)	230/2.3 (33)	-- 260/2.6 (38)	300/3.0 (43)
	225/40 R18
Z17DTJ^17	185/65 R 15, 230/2.3 (33)	210/2.1 (30)	290/2.9 (42)	270/2.7 (39)	250/2.5 (36)	290/2.9 (42)
	195/60 R 15,
	195/65 R 15,
	205/55 R 16

17) Model with pollutant reduction.

Technical data 255

Engine	Tyres	Comfort with up to 3 people ECO with up to 3 people With full load
		front [kPa/bar](psi)	rear [kPa/bar] (psi)	front [kPa/bar] (psi)	rear [kPa/bar] (psi)	front [kPa/bar] (psi)	rear [kPa/bar] (psi)
Z19DTL, Z19DT, Z19DTH	205/55 R 16, 230/2.3 (33)	210/2.1 (30)	270/2.7 (39)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	225/45 R 17
	215/45 R 17, 270/2.7 (39)	250/2.5 (36)	-- 280/2.8 (41)	310/3.1 (45)
	225/40 R 18
all Temporary spare wheel		420/4.2 (61)	420/4.2 (61)	-- 420/4.2 (61)	420/4.2 (61)
Van
Engine	Tyres	Comfort with up to 3 people ECO with up to 3 people				With full load
		front [kPa/bar](psi)	rear [kPa/bar] (psi)	front [kPa/bar] (psi)	rear [kPa/bar] (psi)	front [kPa/bar] (psi)	rear [kPa/bar] (psi)
Z14XEP	185/65 R 15, 195/60 R 15	230/2.3 (33)	210/2.1 (30)	-	-	250/2.5 (36)	290/2.9 (42)
	195/65 R 15, 205/55 R 16	200/2.0 (29)	200/2.0 (29)	250/2.5 (36)	250/2.5 (36)	210/2.1 (30)	260/2.6 (38)

256 Technical data

Engine	Tyres	Comfort with up to 3 people ECO with up to 3 people With full load
		front	rear	front	rear	front	rear
		[kPa/bar](psi)	[kPa/bar] (psi)	[kPa/bar] (psi)	[kPa/bar] (psi)	[kPa/bar] (psi)	[kPa/bar] (psi)
Z13DTH	185/65 R 15, 230/2.3 (33)	210/2.1 (30)	- - 250/2.5 (36)	290/2.9 (42)
	195/60 R 15
	195/65 R 15, 210/2.1 (30)	210/2.1 (30)	250/2.5 (36)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	205/55 R 16
Z17DTH	195/65 R 15, 210/2.1 (30)	210/2.1 (30)	250/2.5 (36)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	205/55 R 16,
	225/45 R 17
	215/45 R 17, 250/2.5 (36)	230/2.3 (33)	- - 260/2.6 (38)	300/3.0 (43)
	225/40 R 18
Z17DTJ, Z17DTR	195/65 R 15, 230/2.3 (33)	210/2.1 (30)	270/2.7 (39)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	205/55 R 16
Z19DTL, Z19DT, Z19DTH	205/55 R 16, 230/2.3 (33)	210/2.1 (30)	270/2.7 (39)	250/2.5 (36)	250/2.5 (36)	290/2.9 (42)
	225/45 R 17
	215/45 R 17, 270/2.7 (39)	250/2.5 (36)	- - 280/2.8 (41)	310/3.1 (45)

Technical data 257

Engine	Tyres	Comfort with up to 3 people ECO with up to 3 people With full load
		front [kPa/bar](psi)	rear [kPa/bar] (psi)	front [kPa/bar] (psi)	rear [kPa/bar] (psi)	front [kPa/bar] (psi)	rear [kPa/bar] (psi)
	225/40 R 18
all Temporary spare wheel		420/4.2 (61)	420/4.2 (61)	- - 420/4.2 (61)	420/4.2 (61)
TwinTop
Engine	Tyres	Comfort with up to 3 people ECO with up to 3 people With full load
		front [kPa/bar](psi)	rear [kPa/bar] (psi)	front [kPa/bar] (psi)	rear [kPa/bar] (psi)	front [kPa/bar] (psi)	rear [kPa/bar] (psi)
Z16XER	225/40 R 18	230/2.3 (33)	210/2.1 (30)	- - 240/2.4 (35)	280/2.8 (41)
	205/55 R 16, 225/45 R 17	210/2.1 (30)	210/2.1 (30)	250/2.5 (36)	250/2.5 (36)	220/2.2 (32)	260/2.6 (38)
Z16LET	205/55 R 16, 225/45 R 17	230/2.3 (33)	210/2.1 (30)	-	-	240/2.4 (35)	280/2.8 (41)
	225/40 R 18	250/2.5 (36)	230/2.3 (33)	- - 260/2.6 (38)	300/3.0 (43)
Z18XER	205/55 R 16, 225/45 R 17	210/2.1 (30)	210/2.1 (30)	250/2.5 (36)	250/2.5 (36)	220/2.2 (32)	260/2.6 (38)

258 Technical data

Engine	Tyres	Comfort with up to 3 people ECO with up to 3 people With full load
		front	rear	front	rear	front	rear
		[kPa/bar](psi)	[kPa/bar] (psi)	[kPa/bar] (psi)	[kPa/bar] (psi)	[kPa/bar] (psi)	[kPa/bar] (psi)	[kPa/bar] (psi)
	225/40 R 18	230/2.3 (33)	210/2.1 (30)	- - 240/2.4 (35)	280/2.8 (41)
Z19DTH	205/55 R 16,	230/2.3 (33)	210/2.1 (30)	- - 240/2.4 (35)	280/2.8 (41)
	225/45 R 17
	225/40 R 18	250/2.5 (36)	230/2.3 (33)	- - 260/2.6 (38)	300/3.0 (43)
Z20LER	205/55 R 16,	250/2.5 (36)	230/2.3 (33)	- - 260/2.6 (38)	300/3.0 (43)
	225/45 R 17
	225/40 R 18	260/2.6 (38)	240/2.4 (35)	- - 270/2.7 (39)	310/3.1 (45)
all Temporary spare wheel		420/4.2 (61)	420/4.2 (61)	- - 420/4.2 (61)	420/4.2 (61)

Towing hitch installation dimensions

Saloon

Station wagon, Van

570 570 515 515 93,5 93,5 173 307,6 158 292,6 84

TwinTop

570,0 570,0 515,0 485,0 93,5 93,5 245,0 245,0 288,0 288,0 68,8

Customer information

Vehicle data recording and privacy 262

Vehicle data recording and privacy

Event data recorders

The vehicle has a number of sophisticated systems that monitor and control several vehicle data. Some data may be stored during regular operation to facilitate repair of detected malfunctions, other data is stored only in a crash or near crash event by systems commonly called event data recorders (EDR).

The systems may record data about the condition of the vehicle and how it was operated (e.g. engine speed, brake application, seat belt usage). To read this data special equipment and access to the vehicle is required. This will take place when the vehicle is serviced in a workshop. Some data is electronically fed into GM global diagnostic systems. The manufacturer will not access information about a crash event or share it with others except

■ with the consent of the vehicle owner or, if the vehicle is leased, with the consent of the lessee,
■ in response to an official request of police or similar government office,
■ as part of the manufacturer's defense in case of legal proceedings,
■ as required by law.
In addition, the manufacturer may use the collected or received data
■ for the manufacturer's research needs,
■ to make it available for research needs where appropriate confidentiality is maintained and need is shown,
■ to share summary data which is not tied to a specific vehicle with other organisations for research purposes.

Customer information 263

Index

A

Accessories and vehicle modifications 157

Adaptive forward lighting ..... 98, 116

Additional servicing 213

Adjustable air vents 130

Airbag, belt tensioners and anti-roll bars.... 93

Airbag system 56

Air conditioning regular operation 131

Air conditioning system 125

Air intake 131

Antilock brake system 145

Antilock brake system (ABS) ..... 95

Anti-theft alarm system ..... 30, 108

Anti-theft locking system .... 30

Apply footbrake 98

Armrest 52

Armrest storage 66

Ashtrays 88

Automatic anti-dazzle 34

Automatic climate control system 126

Automatic level control 148

Automatic light control 114

Automatic transmission 136

Auxiliary devices 122

Auxiliary heater.... 130

B

Battery 161

Battery discharge protection ..... 120

Battery voltage 107

Brake and clutch system 95

Brake assist 146

Brake fluid 161

Brake light switch 107

Brakes 145, 161

Bulb replacement 163

C

Capacities 242

Cargo management system ..... 73

Car Pass 20

Catalytic converter 135

Central locking system 25

Centre console lighting 119

Changing tyre and wheel size ... 189

Charging system 94

Child locks 28

Child restraint installation locations 62

Child restraints with transponders 64

Child restraint systems 60

Cigarette lighter 88

Climate control 15

Clock 86

Continuous damping control ..... 148

Control indicators.... 91

Control of the vehicle 132

Convex shape 32

Cruise control 99, 149

Cupholders 65

Curtain airbag system 58

D

Danger, Warnings and Cautions ...3

Daytime running lights 116

Deflation detection system and tyre pressure monitoring system.... 96

Diesel fuel system bleeding ..... 162

Diesel particle filter 134

Door open 99

Drain diesel fuel filter 107

Driving characteristics and towing tips 153

E

Easytronic.... 141

Electric adjustment 33

Electronic climate control system 127

Electronic driving programmes. .... 138, 143

Electronic Stability Program 96, 147

End-of-life vehicle recovery ..... 158

Engine compartment fuse box ... 179

Engine coolant 160

Engine coolant temperature ..... 96

Engine cooling level 107

Engine data 218

Engine exhaust 134

Engine oil 159

Engine oil pressure 97

Entry lighting 119

Event data recorders.... 262

Exit lighting 119

Exterior care 200

Exterior light 98

Exterior lighting 13

F

Fault 139, 144

First aid kit 79

Fixed air vents 130

Fog light 98

Fog lights 167

Folding 33

Folding tray 78

Front airbag system 56

Front fog lights 117

Front turn signal lights 167

Fuel consumption - CO _2 - Emissions 152, 226

Fuel for diesel engines 151

Fuel for petrol engines 151

Fuel gauge 90

Fuses 177

G

General information 153

Glovebox 65

Graphic-Info-Display, Colour-Info-Display 102

H

Halogen headlights 163

Hand brake.... 146

Hazard warning flashers 116

Headlight flash 115

Headlight range adjustment ..... 115

Headlights when driving abroad 115

Head restraint adjustment 8

Head restraints 47

Heated 34

Heated rear window 37

Heating 52

Heating and ventilation system . 124

High beam 98,115

Hill start assist 146

Horn 14,84

Identification plate 217
Ignition switch positions ..... 133
Immobiliser 32
Instrument cluster 89
Instrument panel illumination ..... 177
Instrument panel illumination control 118
Instrument panel overview ..... 11
Interactive driving system...... 147
Interactive driving system, continuous damping control, sport mode.... 97
Interior care 202
Interior lights 118, 176
Interruption of power supply .... 139, 144
Introduction 3
Isofix child restraint systems ..... 64
J Jump starting .... 196
K Keys 20
L Lashing eyes .... 73 Lighting .... 108 Light switch .... 114

Load compartment 28, 66
Load compartment cover 71
Load compartment fuse box ..... 181
Load compartment grille.... 77
Loading assist 74
Loading information 81
Load rails and hooks 72
Low engine oil level 97
Low fuel 97

M Malfunction indicator light ..... 94 Manual adjustment ..... 32 Manual anti-dazzle ..... 34 Manual mode ..... 138, 143 Manual transmission ..... 140 Manual transmission automated 141 Memorised settings..... 22 Mirror adjustment ..... 9 Misted light covers ..... 118 Mobile phones and CB radio equipment ..... 122

N New vehicle running-in .... 132 Number plate light .... 175

O Odometer .... 90 Open&Start system .... 22, 98

Operation 121
Outside temperature 86
Overrun cut-off 134

P

Parking 18, 134
Parking assist 150
Parking brake 146
Parking lights 117
Particle filter.... 134
Performance 221
Performing work 158
Pollen filter 131
Power outlets 87
Power windows 35
Preheating and diesel particle filter 96

Q

Quickheat.... 130

R

Radio reception 121
Radio remote control 20
Reading lights 119
Rear fog light 98
Rear fog lights 117
Rear seat audio system 122
Rear window wiper/washer 85

Recommended fluids and lubricants 213
Refuelling 151
Retractable hardtop 40
Reversing lights 118
Roof rack 81
Run-flat tyres 185
S Safety net 76
Seat adjustment 7,49
Seat belt 8
Seat belt reminder 93
Seat belts 53
Seat folding 51
Seat occupancy recognition .. 59, 93
Seat position 49
Selector lever 136, 142
Service 131,203
Service display 91
Service information 203
Service schedules.... 205
Service vehicle soon 94
Side airbag system 57
Side lights.... 114
Side turn signal lights 175
Spare wheel 194
Speedometer 89
Sport mode 95, 148
Starting off 17

Starting the engine 133, 141

Steering wheel adjustment ..... 9, 83

Steering wheel controls 83

Stop watch 112

Sunglasses storage 66

Sunroof 38

Sunvisor lights 119

Sun visors 37

Symbols 4

T Tachometer 90

Tail lights 168

Three-point seat belt 54

Tools 184

Towing another vehicle 199

Towing equipment 154

Towing hitch installation dimensions 259

Towing the vehicle 198

Trailer stability assist 156

Trailer towing 153

Transmission 16

Transmission display ..... 136, 141

Tread depth 188

Trip computer in Board-Info-Display 109

Trip computer in Graphic-Info- Display or Colour-Info- Display 110

Turn and lane-change signals ... 117

Turn signal 93

Tyre chains 189

Tyre deflation detection system. 188

Tyre designations 186

Tyre pressure 108, 186

Tyre pressure monitoring system 187

Tyre pressures 113, 243

Tyre repair kit 190

Tyres 185

U Ultrasonic parking assist .... 95
Using this manual 3

V Vehicle dimensions .... 241

Vehicle Identification Number .... 216

Vehicle messages 106

Vehicle specific data 3

Vehicle storage.... 157

Vehicle unlocking 6

Vehicle weight 235

Ventilation.... 124

W

Warning chimes 106

Warning triangle 78

Washer and wiper systems ..... 14

Washer fluid 161

Washer fluid level 108

Wheel changing 193

Wheel covers 189

Wheels and tyres 185

Windscreen wiper/washer 84

Winter mode 95

Winter tyres 185

Wiper blade replacement ..... 162

X

Xenon headlights 166
