USER MANUAL E49H GIGASET
2 Charge status of the batteries
3 Display keys (→ page 15)
4 Message key
Access to calls and message lists;
Flashes: new message or new call
5 End call key, On/Off key
End call, cancel function, go back one menu level (press briefly), back to idle status (press and hold), activate/deactivate handset (press and hold in idle status)
6 Hash key
Keypad lock on/off (press and hold in idle status); Toggle between upper/lower case and digits
7 Call-by-call list key
Open call-by-call list
8 Connection socket for headset (→ page 12)
9 Microphone
10 Recall key
- Consultation call (flash)
- Insert a dialling pause (press and hold)
11 Star key
Ringer on/off (press and hold),
With an open connection: switch between dial pulsing/touch tone dialling (press briefly);
Text input: Open table of special characters
12 Key 1
Dial network mailbox (press and hold)
13 Talk key
Answer a call, open last number redial list (press briefly), start dialling (press and hold)
14 Handsfree key
Switch between handset and handsfree mode;
Lights up: handsfree activated;
Flashes: incoming call
15 Control key (→ page 14)
16 Eco Mode enabled (→ page 25)
17 Eco Mode + enabled (→ page 25)
The handset at a glance 1
Safety precautions 4
First steps 5
Check the pack contents 5
Setting up the charging cradle 6
Connecting the charging cradle 6
Setting up the handset for use 7
Connecting the headset 12
What would you like to do next? 13
Using the phone 14
Control key 14
Display keys 15
Keys on the keypad 15
Correcting incorrect entries 15
Menu guidance 15
Activating/deactivating the handset 16
Activating/deactivating the keypad lock 16
Illustration in the user guide 17
Menu tree 18
Making calls 19
Making an external call 19
Ending a call 19
Accepting a call 19
Handsfree talking 19
Switch to mute 19
Making internal calls 20
Using the directory and lists 21
Directory/call-by-call list 21
Last number redial list 23
Opening lists with the message key 23
Using the network mailbox 24
Configuring fast access for the network mailbox 24
Viewing the network mailbox message 24
ECO DECT 25
Setting the alarm clock 25
Using a handset as a room monitor 25
Handset settings 27
Quick access to functions 27
Changing the display language 27
Setting the display 27
Setting the screen picture 28
Setting the display lighting 28
Activating/deactivating auto answer 28
Changing the handsfree/handset volume 29
Changing the ringer 29
Activating/deactivating advisory tones 30
Restoring the handset default settings 30
Service (Customer Care) 31
Questions and answers 31
Approval 32
Guarantee Certificate
United Kingdom 32
Guarantee Certificate
Ireland 33
Environment 34
Appendix 35
Care 35
Contact with liquid 35
Specifications 35
Writing and editing text 36
Mounting the charging cradle to the wall 37
Index 38
Safety precautions
Warning
Read the safety precautions and the user guide before use.
Explain their content and the potential hazards associated with using the telephone to your children.
Only use the supplied charging cradle with the mains adapter.
Only use the recommended, rechargeable batteries ( page 35), i.e. never use a conventional (non-rechargeable) battery or other battery types as this could result in significant health risks and personal injury.
The operation of medical appliances may be affected. Be aware of the technical conditions in your particular environment, e.g. doctor's surgery.
Do not hold the rear of the handset to your ear when it is ringing or when the handsfree function is activated. Otherwise you risk serious and permanent damage to your hearing.
The handset may cause an unpleasant humming noise in hearing aids.
Do not install the base station or charging cradle in bathrooms or shower rooms. The base station and charging cradle are not splashproof ( page 35).
Do not use your phone in environments with a potential explosion hazard (e.g. paint shops).
If you give your Gigaset to someone else, make sure you also give them the user guide.
Please remove faulty base stations from use or have them repaired by our Service, as they could interfere with other wireless services.
Please note
Not all of the functions described in this user guide are available in all countries.
Check the pack contents
2 one charging cradle
3 one mains adapter for the charging cradle
4 two batteries
5 one battery cover
6 one belt clip
7 one lock ring
8 one rubber cover for the headset socket
9 one user guide
First steps
Setting up the charging cradle
The charging cradle is designed to be operated in enclosed, dry areas at temperatures ranging from +5°C to +45°C.
Place the charging cradle on a level, non-slip surface or mount it on the wall → page 37.
Please note
Pay attention to the range of the base station.
This is up to 300 m in unobstructed outdoor areas and up to 50 m inside buildings. The range is reduced when eco mode is activated ( page 25).
The phone's feet do not usually leave any marks on surfaces. However, due to the multitude of different varnishes and polishes used on today's furnishings, the occurrence of marks on the surfaces cannot be completely ruled out.
Please note:
◆ Never expose the telephone to the influence of heat sources, direct sunlight or other electrical devices.
◆Protect your Gigaset from moisture, dust, corrosive liquids and vapours.

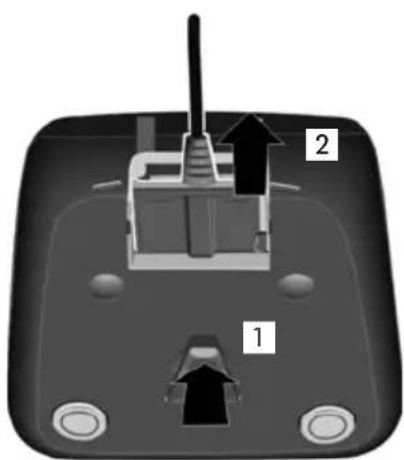

Connecting the charging cradle
▶ Connect the flat plug of the mains adapter 1.
▶ Plug the mains adapter into the plug socket 2.
The display and control key are protected by a plastic film. Please remove the protective film!
Inserting the batteries and closing the battery cover
Warning
Only use the rechargeable batteries ( page 35) recommended by Gigaset Communications GmbH *. Never use conventional (non-rechargeable) batteries, as this could result in significant health risks and damage to property. For example, the outer casing of the batteries could be destroyed or the batteries could explode. The phone could also malfunction or be damaged as a result of using batteries that are not of the recommended type.
* Gigaset Communications GmbH is a trademark licensee of Siemens AG.
▶ Insert the batteries the right way round. The polarity is indicated in/on the battery compartment.


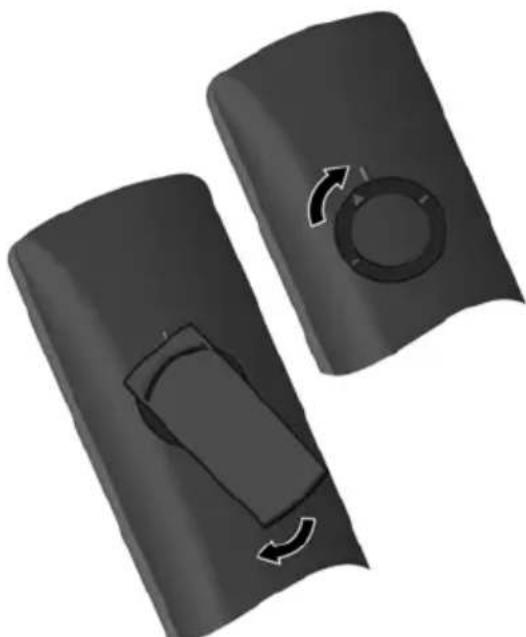

▶ Insert the lock ring or belt clip into the battery cover as illustrated (rotated by approx. 20°). In the case of the lock ring, pay attention to the arrow markings.
▶ Turn the lock ring or belt clip clockwise to the end stop. When the markings on the ring and cover are aligned, the lock ring is closed.
▶ Insert the rubber cover supplied for the headset socket to guarantee the unit is still splashproof.
▶ Turn the lock ring or belt clip anticlockwise to the end stop (approx. 20°) and remove. To remove the lock ring, place your thumb and index finger on the two notches on the lock ring.
▶ Insert a suitable tool (e.g. a small coin) into the cavity at the top of the battery cover and twist until the cover opens.
▶ Insert the mains adapter of the charging cradle into the mains socket.
▶ Place the handset in the charging cradle with its display facing forward. To charge the battery, leave the handset in the charging cradle.
Please note
Only place the handset in the charging cradle that is intended for it.
Registering the handset
You must initiate handset registration on the handset and on the base station.
On the handset
▶ Press the display key OK to open the submenu.
▶ Press the bottom of the control key until Handset is highlighted by the bar.
▶ Press the display key OK to open the submenu.
▶ Press the bottom of the control key until Register H/Set is highlighted by the bar.
▶ Press the display key OK to open the submenu.
▶ Enter the system PIN of the base station (the default is 0000) and press OK.
On the base station
▶ Within 60 seconds, press and hold the registration/paging key on the base station (approx. 3 seconds).
Following successful registration, the internal number of the handset is displayed, e.g. INT 1.
If registration was unsuccessful, repeat the process.
First battery charge and discharge
The correct charge status can only be displayed once the battery is first fully charged and discharged.
▶ Once the battery is fully charged, remove the handset from the charging cradle and do not put it back again until the battery is fully discharged.
Please note
◆ After the first battery charge and discharge, you may place your handset in the charging cradle after every call.
◆Always repeat the charging and discharging procedure if you remove the battery from the handset and reinsert it.
◆The battery may warm up during charging. This is not dangerous.
◆After a time, the charge capacity of the battery will decrease for technical reasons.
Setting the date and time
Set the date and time so that the correct date and time can be assigned to incoming calls, and so that the alarm can be used.
First steps
Display in idle status
Once the phone is registered and the time set, the idle display is shown as in this example.
Displays
Eco Mode + activated ( page 25)
(7) Eco Mode activated ( page 25)
Charge status of the batteries:
(flat to full)
□ flashes: batteries almost flat
INT 1 Internal name of the handset
◆Good to poor: ▶▶▶ ▶▶▶ ▶▶▶ ▶▶▶
◆ No reception: □» flashes
Your phone is now ready for use!
Connecting the headset
A compatibility list of tested headsets can be found on the Internet at: www.plantronics.com/productfinder.
What would you like to do next?
Now you have successfully started your Gigaset, you will probably want to adapt it to your personal requirements. Use the following guide to quickly locate the most important subjects.
If you are unfamiliar with menu-driven devices such as other Gigaset telephones you should first read the section entitled "Using the phone"
→ page 14.
Information on ... ... is located here.
Eco Mode / Eco Mode + → page 25
Setting the ringer and volume
Setting the handset volume
Transferring directory entries from existing Gigaset handsets to the new handset(s)
→ page 29
→ page 29
→ page 22
If you have any questions about using your phone, please read the tips on troubleshooting ("Questions and Answers" → page 31) or contact our customer service department (Customer Care → page 31).
Control key
In the description below, the side of the control key (up, down, right, left) that you have to press in the different operating situations is marked in black, e.g. ▶ for "press right on the control key".
The control key has a number of different functions:
Open the directory.
Open the main menu.
Open the list of handsets.
Call up the menu for setting the handset's call volume ( page 29), ringers ( page 29) and advisory tones ( page 30).
In the main menu, in submenus and lists
Scroll up/down line by line.
Open the submenu or confirm the selection.
Go back one menu level or cancel.
In input fields
You can use the control key to move the cursor up ▲, down ▼, right ▶ or left ◀.
During an external call
Open the directory.
Initiate internal consultation call and mute.
Adjust the loudspeaker volume for handset and handsfree mode.
Display keys
The functions of the display keys change depending on the particular operating situation. Example:
The most important display keys are:
☐ / ☐ + / ☑ \* ☐ etc. Press the matching key on the handset. Enter digits or letters.Correcting incorrect entries
You can correct incorrect characters in the text by navigating to the incorrect entry using the control key. You can then: ◆ PressMain menu (first menu level)
▶ When the handset is in idle status, press ▶ to open the main menu. The main menu functions are shown in the display as a list with colour icons and names.Using the phone
To access a function, i.e. to open the corresponding submenu (next menu level): ▶ Navigate to the function using the control key 🔊. Press the display key OK.Submenus
The functions in the submenus are displayed as lists. To access a function: ▶ Scroll to the function with the control key 🔊 and press OK. Or: ▶ Enter the corresponding digit combination (→ page 18). Briefly press the end call key 📞 once to return to the previous menu level/cancel the operation.Reverting to idle status
You can revert to idle status from anywhere in the menu as follows: ▶ Press and hold the end call key 📞. Or: ▶ Do not press any key: after 2 minutes the display will automatically revert to idle status. Changes that you have not confirmed or saved by pressing OK, Yes, Save, Send or Save Entry OK will be lost. An example of the display in idle status is shown on page 12.Activating/deactivating the handset
 With the phone in idle status, press and hold the end call key (confirmation tone) to switch off the handset. Press and hold the end call key again to switch the handset on.Activating/deactivating the keypad lock
The keypad lock prevents any inadvertent use of the phone.  Press and hold the hash key in idle status to activate or deactivate the keypad lock. You will hear the confirmation tone. When the keypad lock is activated you will see the -o icon in the display and a message when you press a key. The keypad lock deactivates automatically when you receive a call. It is reactivated when the call is finished.Illustration in the user guide
The operating steps are shown in abbreviated form.Example
The illustration:     Date/Time means: text_image
INTtext_image
SMS Sel. Services Alarm Clock Add. Features Settings OKtext_image
OK —text_image
Settings Date/Time Audio Settings Display Handset OKMenu tree
Instead of scrolling to locate a menu function, you can select a function more quickly by opening the menu and keying in a digit combination (or shortcut). Example: ▶ 5 jkl 2 abc 2 abc 1 oo for "Set ringer for external calls". With the telephone in idle status, press ▶ (open main menu): 1 SMS  (Menu dependent on base station) 2 Sel. Services  (Menu dependent on base station) 3 Alarm Clock  → page 25 4 Add. Features  4-3 Room Monitor → page 25 5 Settings | 5-1 Date/Time | → page 11 | |
| 5-2 Audio Settings 5-2-1 | Handset Volume | → page 29 |
| 5-2-2 Ringer Settings | → page 29 | |
| 5-2-3 Advisory Tones | → page 30 | |
| 5-2-4 Silent Alert | → page 30 | |
| 5-3 Display 5-3-1 Screen Picture | → page 28 | |
| 5-3-2 Colour Scheme | → page 27 | |
| 5-3-3 Contrast | → page 27 | |
| 5-3-4 Lighting | → page 28 | |
| 5-4 Handset 5-4-1 Language | → page 27 | |
| 5-4-2 Auto Answer | → page 28 | |
| 5-4-3 Register H/Set | → page 9 | |
| 5-4-4 Reset Handset | → page 30 | |
| 5-5 Base (Submenu dependent on base station) | ||
Making calls
Making an external call
External calls are calls using the public telephone network.   Enter the number and press the talk key. Or:   Press and hold the talk key □ and then enter the number. You can cancel the dialling operation with the end call key 🔒. You are shown the duration of the call while the call is in progress.Please note
Dialling using the directory, the call-by-call list ( page 1/ page 21) or the calls and last number redial list ( page 23/ page 23) saves you from having to re-enter numbers and network provider prefixes ("call-by-call numbers").Ending a call
 Press the end call key.Accepting a call
The handset indicates an incoming call in three ways: by ringing, by a display on the screen and by the flashing handsfree key. You can accept the call by: ▶ Pressing the talk key ↗. ▶ Pressing the handsfree key 📄. If the handset is in the charging cradle and the Auto Answer function is activated ( page 28), the handset will automatically accept a call when you lift it out of the cradle. To deactivate the ringer, press the Silence display key. You can accept the call as long as it is displayed on the screen.Handsfree talking
In handsfree mode, instead of holding the handset to your ear you can put it down, for example on the table in front of you. This allows others to participate in the call.Activating/deactivating handsfree mode
Activating while dialling
  Enter the number and press the handsfree key. ▶ You should inform your caller before you use the handsfree function so that they know someone else is listening.Switching between handset and handsfree mode
 Press the handsfree key. Activate/deactivate handsfree during a call. If you wish to place the handset in the charging cradle during a call: ▶ Press and hold the handsfree key ☐ while placing the handset in the base station. If handsfree key ☐ does not light up, press the key again. For instructions on how to adjust the loudspeaker volume, → page 29.Switch to mute
You can deactivate the microphone in your handset during an external call. The other party then hears hold music (depending on the base station).  Press the control key on the left to mute the handset.  Press the display key to switch the microphone back on. You can turn the hold music on and off.Making internal calls
Internal calls to other handsets registered to the same base station are free of charge.Calling a specific handset
 Initiate internal call.  Enter the number of the handset. Or:  Initiate internal call.  Select handset.  Press the talk key.Calling all handsets ("group call")
 Initiate internal call.  Press the star key. All handsets are called.Ending a call
 Press the end call key.Using the directory and lists
The options are: ◆Directory ◆Call-by-call list ◆Last number redial list ◆SMS list ◆Calls list You create the directory and call-by-call list for your own individual handset. You can also send lists/entries to other handsets ( page 22).Directory/call-by-call list
You can save a total of 150 entries in the directory and call-by-call list.Please note
For quick access to a number from the directory (shortcut), you can assign the number to a key. In the directory you can save numbers and corresponding names. ▶ With the handset in idle status, open the directory by pressing the ▼ key. In the call-by-call list, you can save network provider prefixes ("call-by-call numbers"). ▶ Open the call-by-call list in idle status by pressing the ☐ key.Length of the entries
Number: max. 32 digits Name: max. 16 charactersStoring a number in the directory
→ New Entry ▶ Change multiple line input: Number Enter the number. Name Enter name. Shortcut Select key for shortcut. ▶ Save the changes.Storing a number in the call-by-call list
→ New Entry ▶ Change multiple line input: Number Enter the number. Name Enter name.Order of directory entries
The directory entries are usually sorted in alphabetical order. Spaces and digits take first priority. The sort order is as follows: 1. Space 2. Digits (0–9) 3. Letters (alphabetical) 4. Other characters To work round the alphabetical order of the entries, insert a space or a digit in front of the name. These entries will then move to the beginning of the directory.Selecting entries in the directory and call-by-call list
/ Open the directory or call-by-call list. You have the following options: ◆ Use □ to scroll through the entries until the required name is selected. ◆Enter the first character of the name and scroll to the entry using ▼ if required.Using the directory and lists
Dialling with the directory/call-by-call list
   (select entry)  Press the talk key. The number is dialled.Managing directory/call-by-call entries
   (select entry)Viewing entries
View Press the display key. The entry is displayed. Back with OK.Editing an entry
View Edit Press the display keys one after the other. ▶ Carry out changes and save.Using other functions
Options Press the display key. The following functions can be selected with 🔒: Display Number To edit or add to a saved number, or to save it as a new entry, press → ☐ after the number is displayed. Edit Entry Edit selected entry. Delete Entry Delete selected entry. VIP Entry (directory only) Mark a directory entry as a VIP (Very Important Person) and assign a specific ringer to it. You can then recognise important calls from the ringer. Precondition: Calling Line Identification. Copy Entry Send a single entry to a handset ( page 22). Delete List Delete all entries in the directory/call-by-call list. Copy List Send complete list to a handset ( page 22). Available Memory Display the available entries in the directory and call-by-call list ( page 21).Using shortcut keys
▶ Press and hold the required shortcut key ( page 21).Sending the directory/call-by-call list to another handset
Preconditions:
◆The sending and receiving handsets must both be registered to the same base station. ◆The other handset and the base station can send and receive directory entries. (select entry) Options (open menu) Copy Entry / Copy List Select the internal number of the receiving handset and press OK.       You can transfer several individual entries one after the other by responding Yes to the Copy next entry? prompt. A successful transfer is confirmed by a message and confirmation tone on the receiving handset.Please note:
◆Entries with identical numbers are not overwritten on the receiving handset. ◆The transfer is cancelled if the phone rings or if the memory of the receiving handset is full.Copying a displayed number to the directory
Numbers displayed in a list, e.g. the calls list or the last number redial list, or during a call can be copied to the directory. If you have CNIP, the first 16 characters of the transmitted name are copied to the Name line. A number is displayed: Options → Copy to Directory ▶ Complete the entry (→ page 21).Copying a number from the directory
There are many operating situations in which you can open the directory, e.g. to copy a number. Your handset need not be in idle status. ▶ Depending on the operating situation, open the directory with or or Directory. Select entry ( → page 21).Last number redial list
The last number redial list contains the twenty numbers last dialled with the handset (max. 32 digits). If a number is in the directory or the call-by-call list, then the corresponding name will be displayed.Manual last number redial
Press the key briefly. Select entry. Press the talk key again. The number is dialled. When a name is displayed, you can display the corresponding phone number by pressing the display key View.Managing entries in the last number redial list
Press the key briefly. Select entry. Options Open menu. The following functions can be selected with ▲: Display Number (as in the directory → page 22) Copy to Directory Copy an entry to the directory ( page 21). Delete Entry (as in the directory → page 22) Delete List (as in the directory → page 22)Opening lists with the message key
An advisory tone sounds as soon as a new message arrives in a list. The ☑ key flashes (it goes off when the key is pressed). In idle status, the display shows an icon for the new message. If you press the message key ☐, you access the lists that contain new messages.Using the network mailbox
The network mailbox is your network provider's answering machine within the network. You cannot use the network mailbox unless you have requested it from your network provider.Configuring fast access for the network mailbox
With fast access, you can dial the network mailbox directly. Fast access is set for the network mailbox. You only need to enter the number of the network mailbox.Configuring fast access for the network mailbox and entering the network mailbox number
→ → Voice Mail → Set Key 1 Network Mailb. Select and press OK (√) = o n ) . Enter the number for the net-work mailbox. Save Press the display key. Press and hold (idle status). The setting for fast access applies to all Gigaset E49H handsets.Calling the network mailbox
Press and hold. You are connected directly to the network mailbox. Press handsfree key if required. You will hear the network mailbox announcement.Viewing the network mailbox message
When a message is recorded, you receive a call from the network mailbox. If you have requested Calling Line Identification, the network mailbox number will be displayed. If you accept the call, the new messages are played back. If you do not accept the call, the network mailbox number will be saved in the missed calls list and the message key flashes ( page 23).ECO DECT
You are helping to protect the environment with your Gigaset E49H.Reduced energy consumption
Your telephone has a power-saving adapter plug and uses less power.Reduced transmission power (depending on the base station)
The transmission power can only be reduced if your base station supports this function. The transmission power of your telephone is automatically reduced depending on the distance to the base station. You can reduce the transmission power of the handset and base station even further by using Eco Mode or Eco Mode+. For further information, please see your phone's user guide.Setting the alarm clock
Precondition: The date and time have already been set ( page 11).Activating/deactivating the alarm clock and setting the wake-up time
 ▶ Change multiple line input: Activation Select On or Off. Time Enter the wake-up time in 4-digit format. Melody: Select melody. Volume: Set the volume (1–6). ▶ Save the changes. You will see the 📋 icon. A wake-up call with selected ringer (→ page 29) is signalled on the handset. The wake-up call sounds for 60 seconds. ⏻ is shown in the display. If no key is pressed, the wake-up call is repeated twice at five minute intervals and then switched off. During a call, the wake-up call is only signalled by a short tone.Deactivating the wake-up call/repeating after a pause (snooze mode)
Precondition: A wake-up call is sounding. OFF Press the display key. The wake-up call is deactivated. or Snooze Press the display key or any key. The wake-up call is deactivated and then repeated after 5 minutes. After the second repetition the wake-up call is deactivated completely.Using a handset as a room monitor
If the room monitor is activated, a previously saved destination number is called as soon as a set noise level is reached. You can save an internal or external number in your handset as the destination number. The room monitor call to an external number is terminated after approximately 90 seconds. The room monitor call to an internal number (handset) is terminated after approximately 3 minutes (depending on the base station). When the room monitor is activated, all keys except the end call key are locked. The handset's speaker is muted. When the room monitor is activated, incoming calls to the handset are indicated without a ringer and are only shown on the screen. The display and keypad are not illuminated and advisory tones are also turned off.Using a handset as a room monitor
If you accept an incoming call, the room monitor is suspended for the duration of the call, but the function remains activated. If you deactivate then reactivate the handset, the room monitor remains activated.Warning
◆You should always check the operation of the room monitor before use. For example, test its sensitivity. Check the connection if you are diverting the room monitor to an external number. When the function is switched on, the handset's operating time is considerably reduced. If necessary, place the handset in the charging cradle. This ensures that the batteries do not run down. Ideally the handset should be positioned 1 to 2 metres away from the baby. The microphone must be directed towards the baby. ◆The connection to which the room monitor is diverted must not be blocked by an activated answering machine.Activating the room monitor and entering the destination number
    Room Monitor ▶ Change multiple line input: Room M. Select On to activate. Call to Press the display key Edit and enter destination number. External number: Select number from the directory or enter directly. Only the last 4 digits are displayed. Internal number: INT → (Select handset or Call All if all registered handsets are to be called) → OK. Store number with Save. Level Set noise level sensitivity (Low or High). ▶ Press Save to save the settings.Changing a set external destination number
    Room Monitor  Scroll to the Call to line. Edit Press the display key. < C Delete existing number. ▶ Enter number as described in "Activating the room monitor and entering the destination number" (→ page 26). ▶ Press Save to save the settings.Changing a set internal destination number
    Room Monitor  Scroll to the Call to line. Delete Press the display key. Edit Press the display key. ▶ Enter number as described in "Activating the room monitor and entering the destination number" (→ page 26). ▶ Press Save to save the settings.Deactivating the room monitor remotely
Preconditions: The phone must support touch tone dialling and the room monitor should be set for an external destination number. ▶ Accept the call from the room monitor and press keys 🔒 Ⓥ. The room monitor function will deactivate after the call ends. There will be no further room monitor calls. The other room monitor settings (e.g. no ringer) on the handset will remain activated until you press the display key OFF on the handset. To reactivate the room function with the same phone number: ▶ Turn on the activation again and save with Save (→ page 26).Handset settings
Your handset is preconfigured, but you can change the settings to suit your individual requirements.Quick access to functions
The display keys have a function preset by default. Depending on your base station, you can change the assignment. To start the function, you then simply need to press the button.Changing display key assignments
▶ Press and hold the left or right display key. The list of possible key assignments is opened. The following can be selected (example): INT Internal calls ( page 20). SMS Assign menu for SMS functions to a key. SMS Service Assign key with the menu for ordering info services. SMS Notific. Assign key with the menu for activating SMS notification. Withhold No. Withhold phone number identification for next call. If a function or number has already been assigned to the left display key, the selected function (or its abbreviation) will be displayed in the lowest display line above the display key.Starting a function
With the handset in idle status, press the display key briefly. The function menu is opened.Changing the display language
You can view the display texts in different languages. → Handset → Language The current language is indicated by √ Select a language and press OK. Press and hold (idle status). If you accidentally choose a language you do not understand: 5 jkl 4 ghi 1 oo Press keys in sequence. Select the correct language and press OK.Setting the display
You have a choice of four colour schemes and several different contrasts. → → Display Colour Scheme Select and press OK. Select a colour scheme and press OK (≠current colour). Press briefly. Contrast Select and press OK. Select contrast. Save Press the display key. Press and hold (idle status).Setting the screen picture
You can display a screen picture (picture or digital clock) when the handset is in idle status. This will replace the idle status display. It may conceal the date, time and name. The screen picture is not displayed in certain situations, e.g. during a call or when the handset has been de-registered. If a screen picture has been activated, the menu item Screen Picture is marked with √. → ↗ → Display → Screen Picture The current setting is displayed. ▶ Change multiple line input:Activation
Select On (screen picture is displayed) or Off (no screen picture).Selection:
Change screen picture if necessary (see below). ▶ Save the changes. If the screen picture conceals the display, briefly press 🔒 to show the idle display with time and date.Changing the screen picture
→ ↗ → Display → Screen Picture Scroll to the Selection line. View Press the display key. The active screen picture is displayed. Select screen picture and press Save. ▶ Save the changes.Setting the display lighting
Depending on whether or not the handset is in the charging cradle, you can activate or deactivate the lighting. If it is activated, the display is permanently dimmed. → Display → Lighting The current setting is displayed. ▶ Change multiple line input: In Charger Select On or Off. Outside Charger Select On or Off.Please note
With the On setting, the standby time of the handset can be significantly reduced. Save Press the display key. Press and hold (idle status).Activating/deactivating auto answer
If you activate this function, when you receive a call you can simply lift the handset out of the charging cradle without having to press the talk key ☐. → Handset Auto Answer Select and press OK (√ = o n) Press and hold (idle status).Changing the handsfree/handset volume
You can set the loudspeaker volume for handsfree talking to five different levels and the handset volume to three different levels.  → Handset Volume  Set the handset volume.  Scroll to the Speaker line.  Set the handsfree volume. Save Press display key if necessary to save the setting permanently. Setting the volume during a call:  Press the control key.  Select volume. Save Press display key if necessary to save the setting permanently. The setting will automatically be saved after approximately 3 seconds, if not then press the display key Save. If ▲ is assigned with another function, e.g. toggling: Options Open menu. Volume Select and press OK. Configure setting (see above).Please note
You can also change this setting via the menu ( page 18).Changing the ringer
Volume: You can choose between five volumes (1–5; e.g. volume 2 = □□□/□) and the "crescendo" ring (6; volume increases with each ring = □□□/□). ◆Ringers: You can select various ringers. You can set different ringers for the following functions: ◆Ext. Calls: for external calls ◆Internal Calls: for internal calls ◆All: the same ringer for all functionsSettings for individual functions
Set the volume and melody depending on the type of signalling required.  → Ringer Settings  Select setting, e.g. Ext. Calls and press OK.  Set volume (1–6).  Scroll to the next line.  Select melody.  Press the display key to save the setting.Same ringer for all functions
 → Ringer Settings → All ▶ Set volume and ringer (see "Settings for individual functions"). Save Press the display key and confirm the security prompt with Yes to save the setting.  Press and hold (idle status).Please note
You can also change this setting via the menu ( page 18).Activating/deactivating the ringer
You can deactivate the ringer on your handset before you answer a call or when the handset is in idle status; the ringer can be deactivated permanently or just for the current call. The ringer cannot be re-activated while an external call is in progress.Deactivating the ringer permanently
 Press and hold the star key. The ⚠ icon appears in the display.Handset settings
Reactivating the ringer
 Press and hold the star key.Deactivating the ringer for the current call
Silence Press the display key.Activating/deactivating the alert tone
In place of the ringer you can activate an alert tone. When you receive a call, you will hear a short tone ("Beep") instead of the ringer.  Press and hold the star key and within 3 seconds: Beep Press the display key. A call will now be signalled by one short alert tone. ♀ appears in the display.Silent alert
Incoming calls and other messages are indicated by a vibration. In idle status:  → Silent Alert Press OK to activate or deactivate Please note
You can also change this setting via the menu ( page 18).Activating/deactivating advisory tones
Your handset uses advisory tones to tell you about different activities and statuses. The following advisory tones can be activated/deactivated independently of each other: ◆Key tones: every key press is confirmed. ◆Acknowledge tones: \- Confirmation tone (ascending tone sequence): at the end of an entry/ setting and when a new entry arrives in the calls list - Error tone (descending tone sequence): when you make an incorrect entry - Menu end tone: when scrolling to the end of a menu ◆Battery tone: the batteries need to be charged.  → Advisory Tones ▶ Change multiple line input: Key Tones Select On or Off. Confirm. Select On or Off. Battery Select On, Off or In Call. The battery warning tone is only activated/deactivated and only sounds during a call. ▶ Save the changes. You cannot deactivate the confirmation tone for placing the handset in the charging cradle.Please note
You can also change this setting via the menu ( page 18).Restoring the handset default settings
You can reset individual settings and changes that you have made. This will not affect entries in the directory, call-by-call list or calls list, nor the handset's registration to the base station.  → ↗ → Handset → Reset Handset Yes Press the display key.  Press and hold (idle status).Service (Customer Care)
We offer you support that is fast and tailored to your specific needs! Our Online Support on the Internet can be reached any time from anywhere. www.gigaset.com/customercare It provides you with 24/7 support for all our products. It also provides a list of FAQs and answers plus user guides and current software updates (if available for the product) for you to download. You will also find frequently asked questions and answers in the appendix of this user guide. For personal advice on our range of products and assistance with repairs or guarantee/warranty claims you can contact us on: UK helpdesk: 0 84 53 67 08 12. Ireland 18 50 77 72 77. Please have your proof of purchase ready when calling with regard to guarantee/warranty claims. Replacement or repair services are not offered in countries where our product is not sold by authorised dealers.Questions and answers
If you have any questions about the use of your phone, visit us at any time at www.gigaset.com/customercare. The table below contains a list of common problems and possible solutions.The display is blank.
1. The handset is not switched on. ▶ Press and hold the end call key 📞. 2. The batteries are flat. ▶ Charge or replace the batteries ( page 7)."Base x" flashes on the display.
1. The handset is outside the range of the base station. ▶ Move the handset closer to the base station. The base station's range is reduced because eco mode is activated. ▶ Deactivate eco mode ( page 25) or reduce the distance between the handset and the base station. 2. The base station is not switched on. ▶ Check the base station mains adapter.Please register flashes on the display.
Handset has not been registered with the base station or has been deregistered. ▶ Register the handset (→ page 9).Handset does not ring.
The ringer is deactivated. ▶ Activate the ringer (→ page 29).The other caller cannot hear you.
You have pressed the ⏻ (INT) key. The handset is "muted". ▶ Activate the microphone again ( page 19). You hear an error tone when keying an input (a descending tone sequence). Action has failed/invalid input. ▶ Repeat the operation. Watch the display and refer to the user guide if necessary.Approval
This device is intended for use within the European Economic Area and Switzerland. If used in other countries, it must first be approved nationally in the country in question. Country-specific requirements have been taken into consideration. We, Gigaset Communications GmbH, declare that this device meets the essential requirements and other relevant regulations laid down in Directive 1999/5/EC. A copy of the 1999/5/EC Declaration of Conformity is available at this Internet address: www.gigaset.com/docs. CE 0682Guarantee Certificate United Kingdom
Without prejudice to any claim the user (customer) may have in relation to the dealer or retailer, the customer shall be granted a manufacturer's Guarantee under the conditions set out below: ◆In the case of new devices and their components exhibiting defects resulting from manufacturing and/or material faults within 24 months of purchase, Gigaset Communications shall, at its own option and free of charge, either replace the device with another device reflecting the current state of the art, or repair the said device. In respect of parts subject to wear and tear (including but not limited to, batteries, keypads, casing), this warranty shall be valid for six months from the date of purchase. ◆This Guarantee shall be invalid if the device defect is attributable to improper treatment and/or failure to comply with information contained in the user guides. ◆This Guarantee shall not apply to or extend to services performed by the authorised dealer or the customer themselves (e.g. installation, configuration, software downloads). User guides and any software supplied on a separate data medium shall be excluded from the Guarantee. ◆The purchase receipt, together with the date of purchase, shall be required as evidence for invoking the Guarantee. Claims under the Guarantee must be submitted within two months of the Guarantee default becoming evident. ◆Ownership of devices or components replaced by and returned to Gigaset Communications shall vest in Gigaset Communications. ◆This Guarantee shall apply to new devices purchased in the European Union. For Products sold in the United Kingdom the Guarantee is issued by: Gigaset Communications GmbH, Schlavenhorst 66, D-46395 Bocholt, Germany. ◆Any other claims resulting out of or in connection with the device shall be excluded from this Guarantee. Nothing in this Guarantee shall attempt to limit or exclude a Customers Statutory Rights, nor the manufacturer's liability for death or personal injury resulting from its negligence. ◆The duration of the Guarantee shall not be extended by services rendered under the terms of the Guarantee. ◆Insofar as no Guarantee default exists, Gigaset Communications reserves the right to charge the customer for replacement or repair. ◆The above provisions does not imply a change in the burden of proof to the detriment of the customer. To invoke this Guarantee, please contact the Gigaset Communications telephone service. The relevant number is to be found in the accompanying user guide.Guarantee Certificate Ireland
Without prejudice to any claim the user (customer) may have in relation to the dealer or retailer, the customer shall be granted a manufacturer's Guarantee under the conditions set out below: ◆In the case of new devices and their components exhibiting defects resulting from manufacturing and/or material faults within 24 months of purchase, Gigaset Communications shall, at its own option and free of charge, either replace the device with another device reflecting the current state of the art, or repair the said device. In respect of parts subject to wear and tear (including but not limited to, batteries, keypads, casing), this warranty shall be valid for six months from the date of purchase. ◆This Guarantee shall be invalid if the device defect is attributable to improper care or use and/or failure to comply with information contained in the user manuals. In particular claims under the Guarantee cannot be made if: ◆The device is opened (this is classed as third party intervention) ◆Repairs or other work done by persons not authorised by Gigaset Communications. ◆Components on the printed circuit board are manipulated ◆The software is manipulated ◆Defects or damage caused by dropping, breaking, lightning or ingress of moisture. This also applies if defects or damage was caused by mechanical, chemical, radio interference or thermal factors (e.g.: microwave, sauna etc.) ◆ Devices fitted with accessories not authorised by Gigaset Communications ◆This Guarantee shall not apply to or extend to services performed by the authorised dealer or the customer themselves (e.g. installation, configuration, software downloads). User manuals and any software supplied on a separate data medium shall be excluded from the Guarantee. ◆The purchase receipt, together with the date of purchase, shall be required as evidence for invoking the Guarantee. Claims under the Guarantee must be submitted within two months of the Guarantee default becoming evident. ◆Ownership of devices or components replaced by and returned to Gigaset Communications shall vest in Gigaset Communications.Environment
◆This Guarantee shall apply to new devices purchased in the European Union. For Products sold in the Republic of Ireland the Guarantee is issued by Gigaset Communications GmbH, Schlavenhorst 66, D-46395 Bocholt, Germany. ◆Any other claims resulting out of or in connection with the device shall be excluded from this Guarantee. Nothing in this Guarantee shall attempt to limit or exclude a Customers Statutory Rights, nor the manufacturer's liability for death or personal injury resulting from its negligence. ◆The duration of the Guarantee shall not be extended by services rendered under the terms of the Guarantee. ◆Insofar as no Guarantee default exists, Gigaset Communications reserves the right to charge the customer for replacement or repair. ◆The above provisions does not imply a change in the burden of proof to the detriment of the customer. To invoke this Guarantee, please contact the Gigaset Communications helpdesk on 1850 777 277. This number is also to be found in the accompanying user guide.Environment
Our environmental mission statement
We, Gigaset Communications GmbH, carry social responsibility and are actively committed to a better world. Our ideas, technologies and actions serve people, society and the environment. The aim of our global activity is to secure sustainable life resources for humanity. We are committed to a responsibility for our products that comprises their entire life cycle. The environmental impact of products, including their manufacture, procurement, distribution, use, service and disposal, are already evaluated during product and process design. Further information on environmentally friendly products and processes is available on the Internet under www.gigaset.com.Environmental management system
 Gigaset Communications GmbH is certified pursuant to the international standards EN 14001 and ISO 9001. ISO 14001 (Environment): certified since September 2007 by TüV SÜD Management Service GmbH. ISO 9001 (Quality): certified since 17/02/1994 by TüV Süd Management Service GmbH.Ecological energy consumption
The use of ECO DECT ( page 25) saves energy and is an active contribution towards protecting the environment.Disposal
Batteries should not be disposed of in general household waste. Observe the local waste disposal regulations, details of which can be obtained from your local authority or the dealer you purchased the product from. All electrical and electronic equipment must be disposed of separately from general household waste using the sites designated by local authorities.  If a product displays this symbol of a crossed-out rubbish bin, the product is subject to European Directive 2002/96/EC. The appropriate disposal and separate collection of used equipment serve to prevent potential harm to the environment and to health. They are a precondition for the re-use and recycling of used electrical and electronic equipment. For further information on disposing of your used equipment, please contact your local authority, your refuse collection service or the dealer you purchased the product from.Appendix
Care
▶ Wipe the charging cradle and the handset with a damp cloth (do not use solvent) or an antistatic cloth. Never use a dry cloth as this can cause static.Contact with liquid
 If the handset should come into contact with liquid: 1. Switch the handset off and remove the batteries immediately. 2. Allow the liquid to drain from the handset. 3. Pat all parts dry, then place the handset with the battery compartment open and the keypad facing down in a dry, warm place for at least 72 hours (not in a microwave, oven etc.). 4. Do not switch on the handset again until it is completely dry. When it has fully dried out, you will usually be able to use it again. In rare cases, contact with chemicals may lead to changes in the surface of the phone. Due to the large number of chemicals available on the market, it has not been possible to test all substances.Specifications
Recommended batteries
Technology: Nickel-metal-hydride (NiMH) Size: AAA (Micro, HR03) Voltage: 3,7 V Capacity: 600 - 1200 mAhAppendix
We recommend the following battery types, because these are the only ones that guarantee the specified operating times, full functionality and long service life: ◆GP 700 mAh ◆Yuasa Phone 700 mAh ◆Yuasa AAA 800 mAh ◆Peacebay 650 mAh The device is supplied with two recommended batteries.Handset operating times/charging times
The operating time of your Gigaset depends on the capacity and age of the batteries and the way they are used. (All times are maximum possible times and apply when the display lighting is switched off).| Capacity (mAh) approx. | ||||
| 500 | 700 | 900 | 1100 | |
| Standby time (hours) | 180 | 250 | 320 | 395 |
| Talktime (hours) 9 12 | 16 | 19 | ||
| Operating time for 1.5 hrs of calls per day (hours) | 80 | 1 | 15 | 180 |
| Charging time (hours) | 5 | 7 | 9 | 11 |
Writing and editing text
The following rules apply when writing text: ◆ Control the cursor with □ □ ▲ □. ◆Characters are inserted next to the cursor. ◆Press the star key ☐ to display the table of special characters. Select the required character and press the display key Insert to insert the character at the cursor position. ◆The first letter of the name of directory entries is automatically capitalised, followed by lower case letters.Writing names
Press the relevant key several times to enter letters/characters.Standard characters
| 1x 2x 3x | 4x 5x 6x | 7x 8x 9x | 10x | |||||||
| 1 oo | ^1) | ^2) | 1 | |||||||
| 2 elc | a | b | c | 2 | ä | á | à | ç | ||
| 3 dot | d | e | f | 3 | ë | é | è | |||
| 4 ghi | g | h | i | 4 | ï | í | ì | |||
| 5 ji | j | k | l | 5 | ||||||
| 6 mno | m | n | o | 6 | ö | ó | ò | |||
| 7 pors | p | q | r | s | 7 | |||||
| 8 tuu | t | u | v | 8 | ü | ú | ù | |||
| 9 wxyz | w | x | y | z | 9 | ý | æ | ø | ||
| + | ? | ! | 0 | |||||||
