Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

Warning! Risk of suffocation, injury or permanent disability.

• Do not let persons, children included, with reduced physical sensory, reduced mental functions or lack of experience and knowledge use the appliance. They must have supervision or instruction for the operation of the appliance by a person who is responsible for their safety. Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the appliance door when it is open.

Installation

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not install or use the appliance where the temperature is less than 0 °C.
• Obey the installation instruction supplied with the appliance.
• Make sure that the appliance is installed below and adjacent to safe structures.

Water connection

• Make sure not to cause damage to the water hoses.
• Before you connect the appliance to new pipes or pipes not used for a long time, let the water flow until it is clean.

- The first time you use the appliance, make sure that there is no leakage.

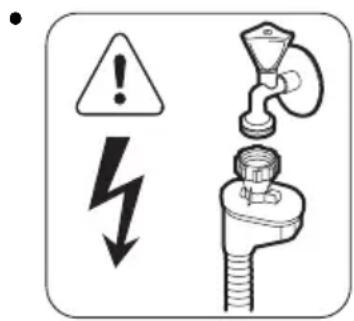

Safety warning icons showing a warning sign, lightning bolt, and pipe fitting with Chinese labels

Warning! Dangerous voltage.

The water inlet hose has a safety valve and a sheath with an inner mains cable.

- If the water inlet hose is damaged, immediately disconnect the mains plug from the mains socket. Contact Service to replace the water inlet hose.

Electrical connection

Warning! Risk of fire and electrical shock.

• The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.

- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

• This appliance is intended to be used in household and similar applications such as:
• Staff kitchen areas in shops, offices and other working environments
  – Farm houses
• By clients in hotels, motels and other residential type environments
• Bed and breakfast type environments.

Warning! Risk of injury.

• Do not change the specification of this appliance.
• Put knives and cutlery with sharp points in the cutlery basket with the points down or in a horizontal position.
• Do not keep the appliance door open without supervision to prevent to fall on it.
• Do not sit or stand on the open door.
• Dishwasher detergents are dangerous. Obey the safety instructions on the detergent packaging.
• Do not drink and play with the water in the appliance.
• Do not remove the dishes from the appliance until the programme is completed. There can be detergent on the dishes.

Product description

9 8 7 6 5 1 2 3 4

Warning! Risk of electrical shock, fire or burns.

• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not use water spray and steam to clean the appliance.
• The appliance can release hot steam if you open the door while a programme operates.

Disposal

Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and dispose of it.
• Remove the door catch to prevent children and pets to get closed in the appliance.

Customer Care and Service

Contact the Service to repair the appliance. We recommend only the use of original spare parts.

When you contact the Service, ensure that you have the following information that is available on the rating plate.

Model :

PNC :

Serial Number :

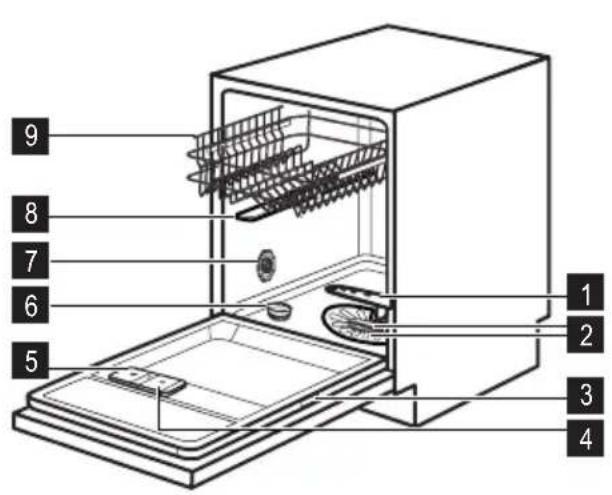

1 Lower spray arm

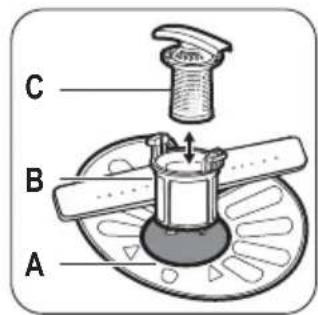

2 Filters
3 Rating plate
4 Rinse aid dispenser
5 Detergent dispenser
6 Salt container
7 Water hardness dial
8 Upper spray arm
9 Upper basket

1 65°-70° 70° 65° A30° 50° 45° AUTO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 45°-70° 70° 65° 50° 45° ✓ AUTO ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ A B C D E 6

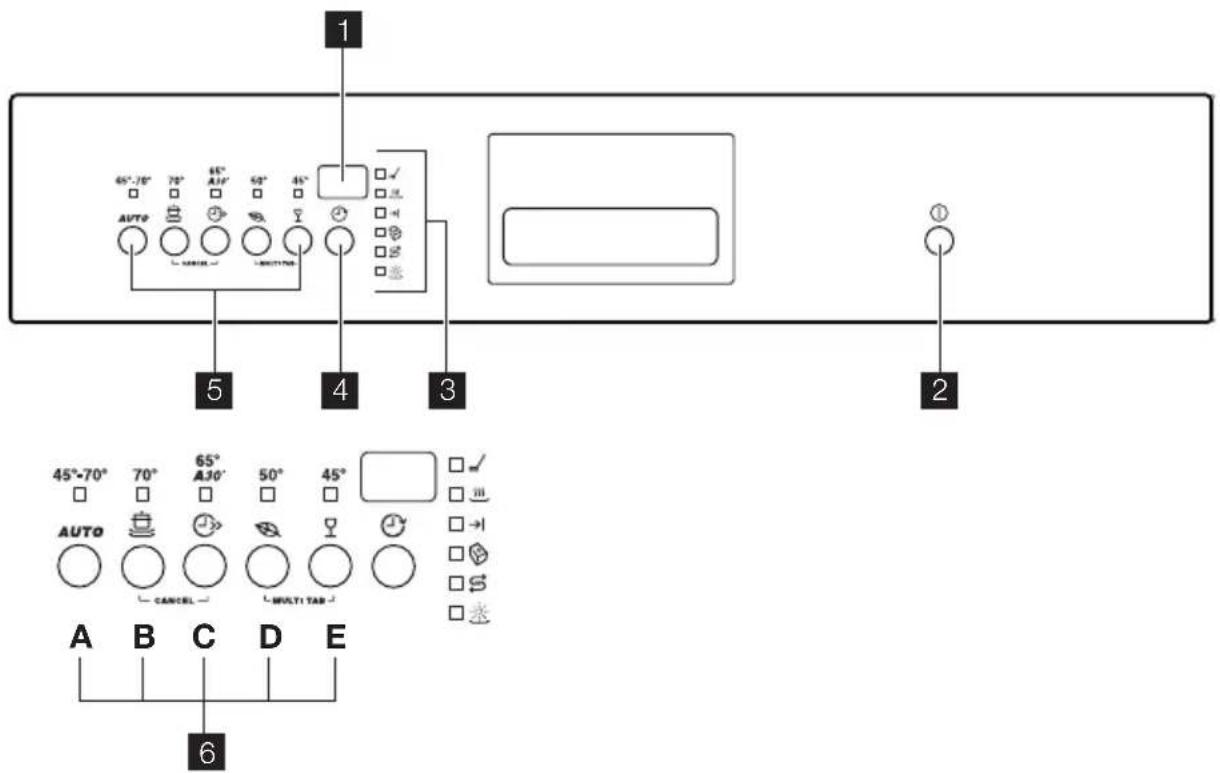

1 Display
2 On/off button
3 Indicators

4 Delay button
5 Programme buttons
6 Function buttons

Indicators Description
[W42T]	Washing phase indicator.
	Drying phase indicator.
[KABC]	End indicator.
	Multitab indicator.
	Salt indicator. This indicator is off while the programme operates.
	Rinse aid indicator. This indicator is off while the programme operates.

Programmes

Programme 1)	Degree of soil Type of load	Programme phases Energy	(kWh)	Water (l)
45°-70° AUTO 2)	All Crockery, cutlery, pots and pans	Prewash Wash 45 °C or 70 °C Rinses Dry	0.9 - 1.7 8 - 17

Programme 1)		Degree of soil Type of load	Programme phases Energy	(kWh)	Water (l)
		Heavy soil Crockery, cutlery, pots and pans	Prewash Wash 70 °C Rinses Dry	1.4 - 1.6 15 - 16
3)		Fresh soil Crockery and cutlery	Wash 65 °C Rinse	0.9 9
4)		Normal soil Crockery and cutlery	Prewash Wash 50 °C Rinses Dry	1.0 - 1.1 10 - 11
		Normal or light soil Delicate crockery and glassware	Wash 45 °C Rinses Dry	0.8 - 0.9 12 - 13

1) The display shows the programme duration.

The water pressure and temperature, the variations of the mains supply, the options and the quantity of dishes can change the programme duration and the consumption values.

2) The appliance senses the degree of soil and the quantity of items in the baskets. It automatically adjusts the temperature and quantity of the water, the energy consumption and the programme duration.

3) With this programme you can wash a load with fresh soil. It gives good washing results in a short time.

4) This is the standard programme for test institutes. With this programme you have the most efficient use of water and energy consumption for crockery and cutlery with normal soil. Refer to the supplied leaflet for test information.

Options

Multitab function

Activate this function only when you use the combi detergent tablets.

This function deactivates the flow of rinse aid and salt.

The related indicators are off.

The programme duration can increase.

Activating the multitab function

Activate or deactivate the multitab function before the start of a programme. You cannot activate or deactivate this function while a programme operates.

1. Press the on/off button to activate the appliance.
2. Make sure that the appliance is in setting mode. Refer to 'SETTING AND STARTING A PROGRAMME'.
3. Press and hold function buttons (D) and (E) at the same time until the multitab indicator comes on.

The function stays on until you deactivate it. Press and hold function buttons (D) and (E) at the same time until the multitab indicator goes off.

If you stop to use the combi detergent tablets, before you start to use separately detergent, rinse aid and dishwasher salt, do these steps:

1. Deactivate the multitab function.
2. Set the water softener to the highest level.
3. Make sure that the salt container and the rinse aid dispenser are full.
4. Start the shortest programme with a rinsing phase, without detergent and without dishes.
5. Adjust the water softener to the water hardness in your area.

6. Adjust the released quantity of rinse aid.

7. Make sure that the set level of the water softener agrees with the water hardness in your area. If not, adjust the water softener. Contact your local water authority to know the water hardness in your area.

8. Fill the salt container.
9. Fill the rinse aid dispenser.
10. Open the water tap.
11. Processing residues can stay in the appliance. Start a programme to remove them. Do not use detergent and do not load the baskets.

If you use the combi detergent tablets, activate the multitab function. These tablets contain detergent, rinse aid and other added agents. Be sure that these tab-

lets are applicable to the water hardness in your area. Refer to the instructions on the packaging of the products.

Adjusting the water softener

Hard water contains a high quantity of minerals that can cause damage to the appliance and bad washing results. The water softener neutralises these minerals. The dishwasher salt keeps the water softener clean and in good conditions. Refer to the table to adjust the water softener to the right level. It makes sure that the water softener uses the correct quantity of dishwasher salt and water.

You must adjust the water softener manually and electronically.

Water hardness				Water softener adjustment
German degrees (°dH)	French degrees (°fH)	mmol/l Clarke	degrees	Manual Electronic
51 - 70 91 - 125	9.1 - 12.5 64 - 88			2^1)	10
43 - 50 76 - 90	7.6 - 9.0 53 - 63			2^1)	9
37 - 42 65 - 75	6.5 - 7.5 46 - 52			2^1)	8
29 - 36 51 - 64	5.1 - 6.4 36 - 45			2^1)	7
23 - 28 40 - 50	4.0 - 5.0 28 - 35			2^1)	6
19 - 22 33 - 39	3.3 - 3.9 23 - 27			2^1)	5^1)
15 - 18 26 - 32	2.6 - 3.2 18 - 22 1 4
11 - 14 19 - 25	1.9 - 2.5 13 - 17 1 3
4 - 10 7 - 18	0.7 - 1.8 5 - 12	1 2
< 4	< 7	< 0.7	< 5	1^2)	1^2)

1) Factory position.
2) Do not use salt at this level.

Manual adjustment

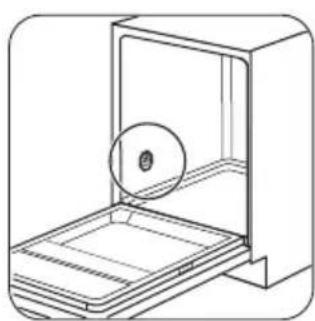

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

1

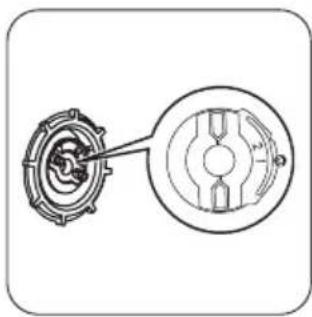

Technical diagram of a mechanical gear assembly with cross-sectional view (no text or labels)

2

Turn the water hardness dial to the position 1 or 2.

Electronic adjustment

1. Press the on/off button to activate the appliance.
2. Make sure that the appliance is in setting mode. Refer to 'SETTING AND STARTING A PROGRAMME'.

3. Press and hold function buttons (B) and (C) at the same time until the indicators above function buttons (A), (B) and (C) flash.

4. Press function button (A).

5. The indicators above function buttons (B) and (C) go off.

6. The indicator above function button (A) continues to flash.

7. The display shows the setting of the water softener. Example: SL = level 5 .

8. Press function button (A) again and again to change the setting.

9. Deactivate the appliance to confirm.

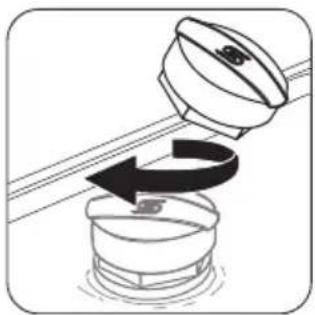

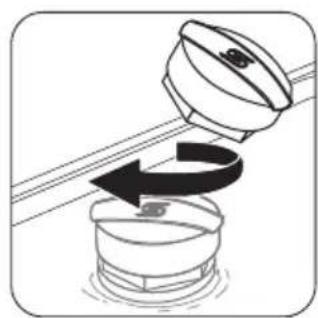

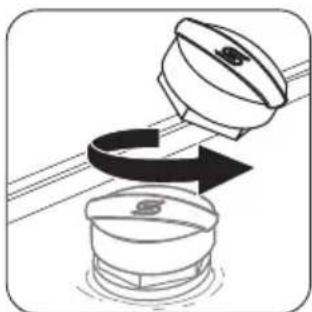

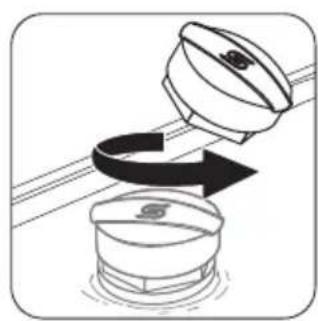

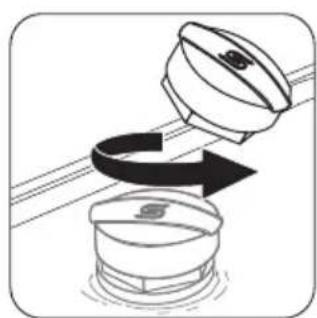

Filling the salt container

Caution! Only use dishwasher salt. Other products can cause damage to the appliance.

Water and salt can come out from the salt container when you fill it. Risk of corrosion. To prevent it, after you fill the salt container, start a programme.

Technical line drawing of a mechanical component with a circular inset showing a small component (no text or symbols)

1

Diagram showing a mechanical component being lifted by a rotating arrow, with no visible text or symbols.

2

1000ml 750ml 500ml 250ml

3

SALE ZOUT SALT SALZ SEL

4

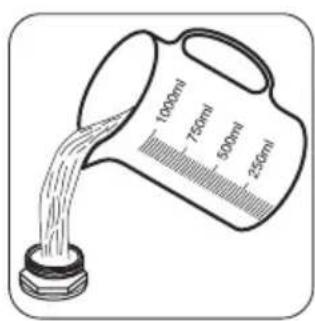

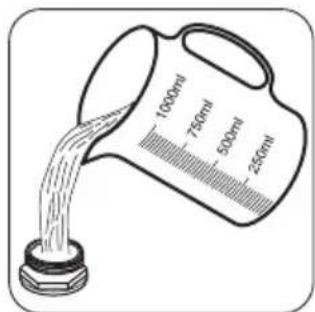

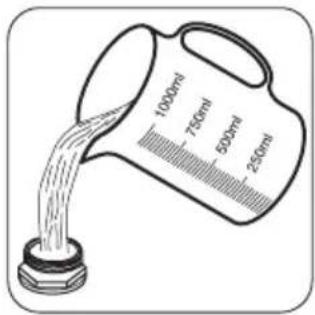

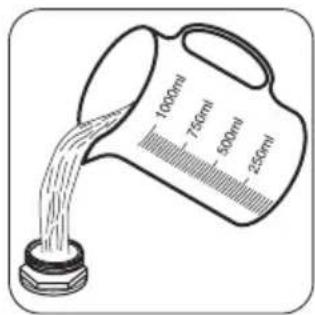

Put 1 litre of water in the salt container (only for the first time).

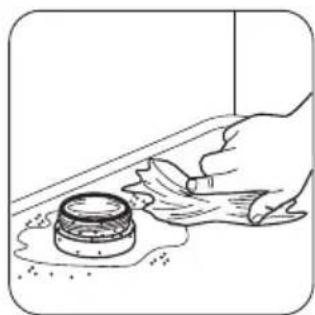

Illustration of a hand cleaning a wall with a jar and cloth (no text or symbols)

5

Diagram showing a mechanical device interacting with a container, no text or symbols present

6

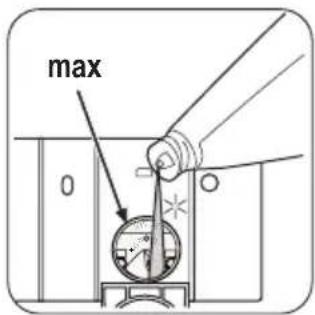

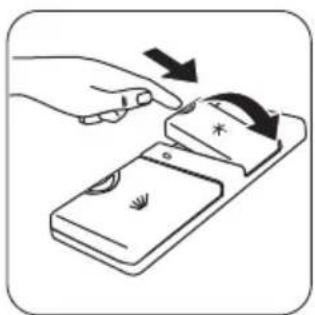

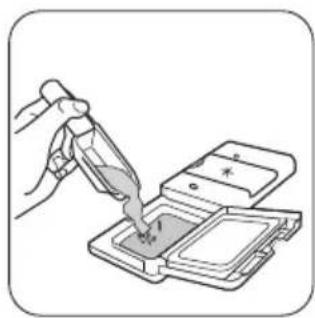

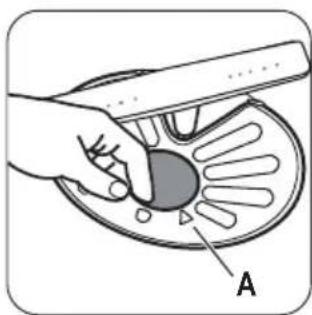

Filling the rinse aid dispenser

Caution! Only use rinse aid for dishwashers. Other products can cause damage to the appliance.

The rinse aid, during the last rinsing phase, helps to dry the dishes without streaks and stains.

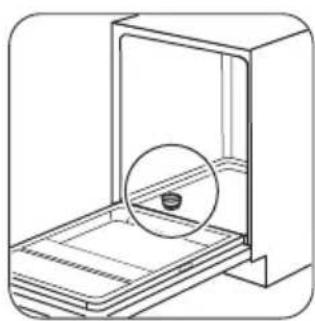

Diagram of a device with an open lid and a magnified inset showing a small electronic component (no text or symbols)

1

Diagram showing a hand pressing down on a smartphone with a scroll, indicating a process step or action.

2

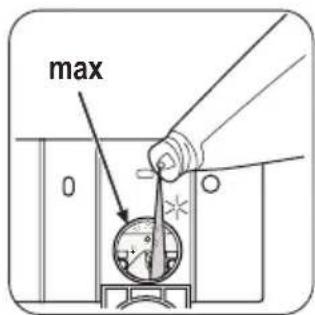

max 0

3

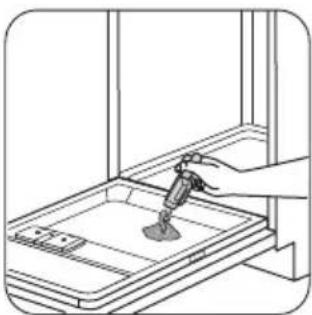

Illustration of a hand using a tool to clean or store items on a device (no text or symbols visible)

4

MAX A

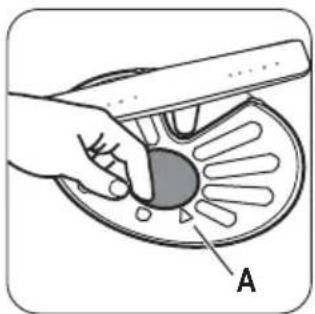

To adjust the released quantity of rinse aid, turn the selector between position 1 (lowest quantity) and position 4 (highest quantity).

Daily use

1. Open the water tap.

2. Press the on/off button to activate the appliance. Make sure that the appliance is in setting mode. Refer to 'SETTING AND STARTING A PROGRAMME'.

3. If the salt indicator is on, fill the salt container.

4. If the rinse aid indicator is on, fill the rinse aid dispenser.

5. Load the baskets.

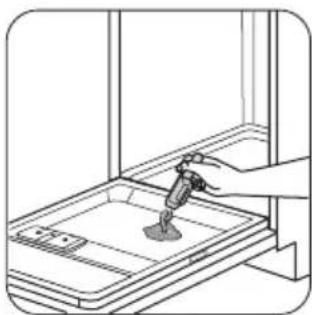

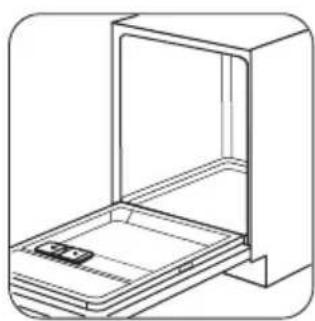

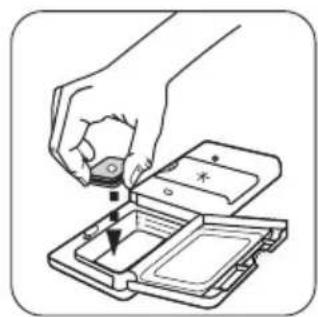

6. Add the detergent.
7. Set and start the correct programme for the type of load and soil.

Loading the baskets

Refer to the supplied leaflet with examples of the load of the baskets.

• Only use the appliance to wash items that are dish-washer-safe.
• Do not put in the appliance items made of wood, horn, aluminium, pewter and copper.
• Do not put in the appliance items that can absorb water (sponges, household cloths).

• Remove remaining food from the items.
  • Make soft the remaining burned food on the items.

• Put hollow items (cups, glasses and pans) with the opening down.

• Make sure that cutlery and dishes do not bond together. Mix spoons with other cutlery.
  • Make sure that glasses do not touch other glasses.
• Put small items in the cutlery basket.
• Put light items in the upper basket. Make sure that the items do not move.
• Make sure that the spray arms can move freely before you start a programme.

Using the detergent

Caution! Use only detergents for dishwashers.

Do not use more than the correct quantity of detergent. Refer to the instructions on the detergent packaging.

Line drawing of a mechanical device with an open lid and internal components (no text or symbols)

1

Illustration of a hand pressing down on a stack of books with arrows indicating motion (no text or symbols)

2

Illustration of a hand using a tool to apply material into a device (no text or symbols visible)

3

Illustration of a hand inserting a device into an open device (no text or symbols visible)

Line drawing of a hand using a tool to press or install a tray (no text or symbols)

Simple line drawing of a mobile phone with a curved arrow indicating direction (no text or symbols)

4

5 If the programme has a prewash phase, put a small quantity of detergent on the inner part of the ap- pliance door.

Detergent tablets do not fully dissolve with short programmes and detergent residues can stay on the dishes.

We recommend that you use detergent tablets with long programmes.

Setting and starting a programme

Setting mode

The appliance must be in setting mode to accept some operations.

The appliance is in setting mode when, after the activation:

- All the programme indicators come on.

• The display shows 2 horizontal status bars.

If the control panel shows other conditions, press and hold function buttons (B) and (C) at the same time until the appliance is in setting mode.

Starting a programme without delay start

1. Open the water tap.
2. To set a programme, keep the appliance door ajar.
3. Press the on/off button to activate the appliance.
4. Make sure that the appliance is in setting mode.

5. Press the button of the programme you want to set:

6. The programme duration flashes in the display.

7. The phase indicators of the set programme come on.

8. Close the appliance door. The programme starts.

9. Only the indicator of the phase in operation stays on.

10. The display shows the programme duration that decreases with steps of 1 minute.

Starting a programme with delay start

1. Set the programme.
2. Press the delay button again and again until the display shows the delay time you want to set (from 1 to 24 hours).

- The delay time flashes in the display.

1. Close the appliance door. The countdown starts.

2. The display shows the countdown of the delay start that decreases with steps of 1 hours.

3. The phase indicators of the set programme go off.

4. When the countdown is completed, the programme starts.
   • The phase indicator in operation comes on.
   • The display shows the programme duration.

You can set a programme and the delay start also with the appliance door closed. In this condition, you have only 3 seconds after each setting before the appliance starts to operate.

Opening the door while the appliance operates

If you open the door, the appliance stops. When you close the door, the appliance continues from the point of interruption.

Cancelling the delay start while the countdown operates

Press the delay button again and again until:

• The display shows the programme duration.
• The phase indicators come on.
- The programme starts.

Cancelling the programme

Press and hold function buttons (B) and (C) at the same time until:

• All the programme indicators come on.
• The display shows 2 horizontal status bars.

Make sure that there is detergent in the detergent dispenser before you start a new programme.

At the end of the programme

When the programme is completed, the end indicator comes on and the display shows 0.

Care and cleaning

Warning! Before maintenance, deactivate the appliance and disconnect the mains plug from the socket.

Dirty filters and clogged spray arms decrease the washing results.

Make a check regularly and, if necessary, clean them.

Cleaning the filters

Line drawing of a refrigerator interior with a magnified inset showing the exterior portion of the lid (no text or symbols)

1

C B A

2

1. Press the on/off button to deactivate the appliance.
2. Close the water tap.

If you do not press the on/off button, the AUTO OFF device automatically deactivates the appliance after minutes. This helps to decrease the energy con- tion.

• Let the dishes become cold before you remove them from the appliance. Hot dishes can be easily damaged.
• First remove the items from the lower basket, then from the upper basket.

There can be water on the sides and on the door of the appliance. Stainless steel becomes cool more ly than the dishes.

油液

3

Illustration of a hand holding a tool interacting with a circular device labeled 'A' (no text or symbols on the device itself)

4

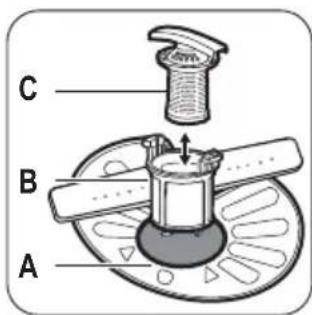

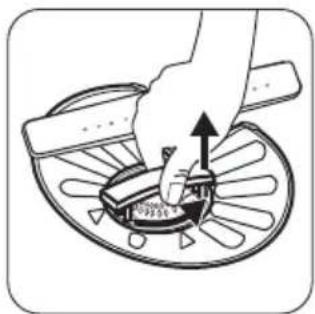

To remove filters (B) and (C), turn the handle counterclockwise and remove. Pull apart filter (B) and (C). Wash the filters with water.

Remove filter (A). Wash the filter with water.

Diagram showing a hand holding a circular object with labeled parts A and D, likely illustrating a mechanical or optical setup.

5

Put filter (A) to its initial position. Make sure that it assembles correctly under the two guides (D).

Diagram showing a hand using a tool to adjust or install a mechanical component, with an inset magnified view highlighting the process.

6

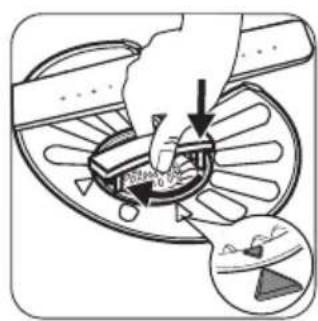

Assemble filters (B) and (C). Put them into position in filter (A). Turn the handle clockwise until it locks.

An incorrect position of the filters can cause bad washing results and damage to the appliance.

Cleaning the spray arms

Do not remove the spray arms.

If the holes in the spray arms are clogged, remove remaining parts of soil with a thin pointed object.

External cleaning

Clean the appliance with a moist soft cloth.

Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads or solvents.

Troubleshooting

The appliance does not start or it stops during operation. First try to find a solution to the problem (refer to the table). If not, contact the Service.

With some problems, the display shows an alarm code:

• ,10 - The appliance does not fill with water.

• ,20 - The appliance does not drain the water.
• ,30 - The anti-flood device is on.

Warning! Deactivate the appliance before you make the checks.

Problem Possible cause Possible solution
The programme does not start.	The mains plug is not connected in the mains socket.	Connect the mains plug.
The appliance door is open. Close the appliance door.
The fuse in the fuse box is damaged. Replace the fuse.
	The delay start is set.	Cancel the delay start or wait for the end of the countdown.
The appliance does not fill with water.	The water tap is closed. Open the water tap.
	The water pressure is too low.	Contact your local water authority.
The water tap is clogged or there is lime-scale on it.		Clean the water tap.
The filter in the water inlet hose is clogged.		Clean the filter.
The water inlet hose has a kink or a bend.		Make sure that the position of the hose is correct.
The anti-flood device is on. There are water leakages in the appliance.		Close the water tap and contact the Service.
The appliance does not drain the water.	The sink spigot is clogged. Clean the sink spigot.
The water drain hose has a kink or a bend.		Make sure that the position of the hose is correct.

After the checks are completed, activate the appliance. The programme continues from the point of interruption. If the problem occurs again, contact the Service.

If the display shows other alarm codes, contact the Service.

The washing results and drying results are not satisfactory

Problem Possible cause Possible solution
The dishes are not clean. The filters are clogged. Clean the filters.
The filters are not correctly assembled and installed.		Make sure that the filters are correctly assembled and installed.
	The spray arms are clogged.	Remove remaining soil with a thin pointed object.
The programme was not applicable for the type of load and soil.		Make sure that the programme is applicable for the type of load and soil.
Incorrect position of the items in the baskets. Water could not wash all items.		Make sure that the position of the items in the baskets is correct and that the water can easily wash all items.
	The spray arms could not turn freely.	Make sure that the position of the items in the baskets is correct and does not cause the blockage of the spray arms.
The quantity of detergent was not sufficient.		Make sure that you add the correct quantity of detergent in the dispenser before you start a programme.
There was no detergent in the detergent dispenser.		Make sure that you add detergent in the dispenser before you start a programme.
Limescale particles on the dishes.	The salt container is empty. Make sure that there is dishwasher salt in the salt container.
The set level of the water softener is incorrect.		Make sure that the set level of the water softener agrees with the water hardness in your area.
The cap of the salt container is loose. Tighten the cap.
Whitish streaks and stains or bluish layers on glasses and dishes.	The released quantity of rinse aid is too much.	Decrease the released quantity of rinse aid .
Problem Possible cause Possible solution
	The quantity of detergent was too much.	Make sure that you add the correct quantity of detergent in the dispenser before you start a programme.
Dry water drop stains on glasses and dishes.	The released quantity of rinse aid was not sufficient .	Increase the released quantity of rinse aid.
The quality of the detergent can be the cause.		Try a different brand of detergent.
The dishes are wet.	The programme had no drying phase.	Set a programme with the drying phase.
The dishes are wet and matt.	The rinse aid dispenser is empty.	Make sure that there is rinse aid in the rinse aid dispenser.
The quality of the rinse aid can be the cause.		Try a different brand of rinse aid.
The quality of the combi detergent tablets can be the cause.		Try a different brand of combi detergent tablets.Activate the rinse aid dispenser and use the rinse aid together with the combi detergent tablets.

Activating the rinse aid dispenser with the multitab function activated

1. Press the on/off button to activate the appliance.
2. Make sure that the appliance is in setting mode. Refer to 'SETTING AND STARTING A PROGRAMME'.
3. Press and hold function buttons (B) and (C) at the same time until the indicators above function buttons (A), (B) and (C) flash.

4. Press function button (B).

5. The indicators above function buttons (A) and (C) go off.

6. The indicator above function button (B) continues to flash.

- The display shows the setting of the rinse aid dispenser.

0d

Off

Id

On

1. Press function button (B) to change the setting.
2. Deactivate the appliance to confirm.
3. Adjust the released quantity of rinse aid.
4. Fill the rinse aid dispenser.

Technical information

Dimensions Width / Height / Depth (mm) 596 / 818 - 898 / 575
Electrical connection Refer to the rating plate.
Voltage	220-240 V
Frequency	50 Hz
Water supply pressure	Min. / max. (bar / MPa)	(0.5 / 0.05) / (8 / 0.8)
Water supply 1)	Cold water or hot water2)	max. 60 °C

Capacity Place settings 12

Power consumption Left-on mode 0.10 W

Off-mode 0.10 W

1) Connect the water inlet hose to a water tap with a 3/4" thread.
2) If the hot water comes from alternative sources of energy, (e.g. solar panels, aeolian energy), use the hot water supply to decrease energy consumption.

Environment concerns

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human

health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

- Discard correctly the packaging material. Recycle the materials with the symbol 📋.

Sommaire

Safety warning symbols and diagram showing a warning triangle with lightning bolt and a funnel above a plug.

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

1

Technical diagram of a mechanical gear assembly with cross-sectional view (no text or labels)

2

Technical line drawing of a mechanical assembly with a circular inset showing a component (no text or symbols)

1

Diagram showing a mechanical component being lifted by a rotating arrow, with no visible text or symbols.

2

1000ml 750ml 500ml 250ml

3

SALE ZOUT SALT SALZ SEL

4

Illustration of a hand cleaning a wall with a small container and clean material (no text or symbols)

5

Diagram showing a mechanical component being lifted by a rotating arrow, with no visible text or symbols.

6

Line drawing of a 3D printer or scanner with an open lid and a magnified inset showing a small object (no text or symbols)

1

Illustration of a hand holding a smartphone with a finger pointing to a screen showing a star (no text or symbols)

2

max

3

Illustration of a hand using a tool to clean or store items on a rectangular object (no text or symbols visible)

4

MAX

Line drawing of a device with an open lid and internal compartments (no text or symbols)

1

Illustration of a hand pressing down on a smartphone screen with arrows indicating action (no text or symbols)

2

Illustration of a hand pouring liquid into a device with a tray (no text or symbols visible)

3

Illustration of a hand inserting a device into an open device (no text or symbols visible)

Line drawing of a hand using a handheld tool to press or install a tray (no text or symbols visible)

Illustration of a mobile phone with a curved arrow indicating direction (no text or symbols)

4

Line drawing of a refrigerator with an open door and a magnified inset showing a tray (no text or symbols)

1

C B A

2

Illustration of a hand pressing down on a circular mechanical component with arrows indicating motion (no text or symbols)

3

Illustration of a hand holding a tool interacting with a circular device (no text or symbols visible)

4

Diagram showing a hand using a tool to adjust or install a mechanical component, with an inset close-up of the component (no text or symbols present)

6

Safety warning symbol and diagram showing warning sign, lightning bolt, and pipe fitting with Chinese labels

Line drawing of a mechanical device with a circular component inserted into a housing (no text or symbols)

1

Technical diagram of a mechanical gear assembly with cross-sectional view (no text or labels)

2

Diagram of a mechanical device with a circular inset showing a small component (no text or symbols)

1

Diagram showing a mechanical component being lifted by a curved arrow, with no visible text or symbols.

2

100ml 750ml 500ml 250ml

3

SALE ZOUT SALT SALZ SEL

4

Illustration of a hand cleaning a wall with a small container (no text or symbols)

5

Diagram showing a mechanical component being lifted by a rotating arrow, with no visible text or symbols.

6

Technical line drawing of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

1

Diagram showing a hand pressing down on a smartphone with a finger, indicating a process or action.

2

Utilização diária

Illustration of a hand using a tool to clean or store items on a conveyor belt (no text or symbols)

4

MAX A

Line drawing of a refrigerator interior showing open lid and tray (no text or symbols)

1

Illustration of a hand inserting a card into a notebook with arrows indicating the process (no text or symbols present)

2

Illustration of a hand using a tool to apply liquid into a device (no text or symbols visible)

3

Illustration of a hand inserting a component into an open device (no text or symbols visible)

Line drawing of a hand using a tool to press or install a tray (no text or symbols)

Simple line drawing of a mobile phone with an arrow indicating speed (no text or symbols)

4
5

Line drawing of a kitchen appliance with a magnified inset showing internal components (no text or symbols)

1

C B A

2

Diagram of a hand using a tool to interact with a circular mechanical component, showing no text or symbols.

3

Illustration of a hand using a tool to adjust a circular component labeled 'A' (no text or symbols on the diagram itself)

4

Diagram illustrating a mechanical assembly with labeled components and directional arrows, including a magnified inset showing detail view.

6

0d	Desligado (Off)
1d	Ligado (On)

www.zanussi.com/shop
