USER MANUAL GVW445ONY Pelgrim

Interior view of a stainless steel kitchen appliance showing dish, sink, and rack (no visible text or labels)

GVW445ONY

Pelgrim

Instructions for use dishwasher

700004203000

Pelgrim

NL

Technical line drawing of a mechanical device with no visible text or symbols

Overstroombeveiliging

Line drawing of a mechanical device with a hand holding a tool, no text or symbols present

Simple circular diagram with a central symbol and directional arrows, no text or labels present.

Line drawing of a vintage typewriter with handle, dial, and control knob (no text or symbols)

Diagram of a spacecraft interacting with a device, showing components like satellite, solar panels, and a device with a dial (no text or labels)

Technical diagram of a refrigerator with labeled parts and control panel

Diagram showing a mechanical or structural assembly with labeled components A and B, and directional arrows indicating movement or force.

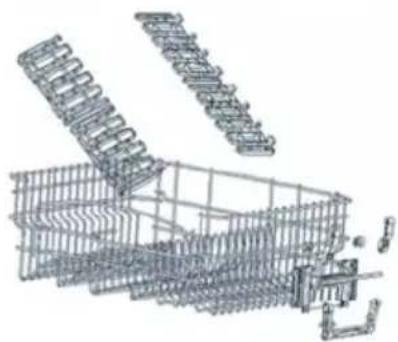

Lage positie

3D wireframe model of a mechanical assembly with internal components and directional arrows (no text or symbols)

Hoge positie

3D wireframe model of a mechanical assembly with no visible text or symbols

Close-up of a wire cage with metal grating and a hand adjusting the panel (no text or symbols visible)

Bordenrekken neerklappen

Two technical diagrams showing a mechanical component and its corresponding schematic view (no text or symbols present)

Waarschuwing!

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or force

Simple line drawing of a container with a handle and circular opening (no text or symbols)

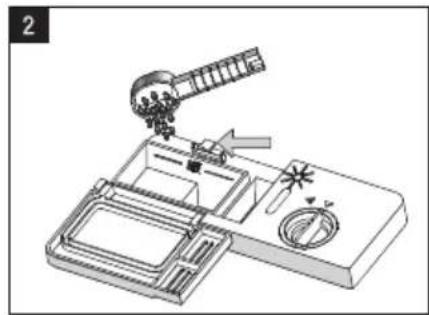

Filtergroep

Symbol of a trash bin with crossed x-marks and no text or numbers present

Technical line drawing of a mechanical frame or enclosure with no visible text or symbols

Line drawing of a mechanical device with a hand holding a tool, no text or symbols present

Simple circular diagram with a central arrow and plus/minus symbols, no text or labels present.

Line drawing of a vintage digital camera with adjustment knobs and a dial (no text or symbols)

Illustration of a hand using a screwdriver to adjust or install a device with a circular button (no text or symbols)

Diagram of a satellite interacting with a device, showing components like a satellite dish and fan (no text or labels)

Technical diagram of a washing machine with labeled parts and control knob

Diagram showing a mechanical or structural assembly with labeled components A and B, and directional arrows indicating movement or force.

Position basse

3D wireframe model of a mechanical assembly with no visible text or symbols

Position haute

3D wireframe model of a mechanical assembly with no visible text or symbols

Close-up of a wire cage with metal grating and attached fixtures (no visible text or symbols)

Two technical diagrams showing a mechanical component and its corresponding electrical connector pin layout (no text or symbols present)

Avertissement !

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or force

Simple line drawing of a container with a handle and circular opening (no text or symbols)

Symbol of a trash bin with crossed x-marks and no text or numbers present

Line drawing of a mechanical device with labeled components and part number 1920 (no text or symbols on the diagram itself)

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Simple circular diagram with a central arrow and plus/minus symbols, no text or labels present.

Line drawing of a vintage digital camera with adjustment knobs and a dial (no text or symbols)

Illustration of a hand using a tool to adjust or install a device with a knob and fan (no text or symbols)

Diagram of a satellite interacting with a device, showing components like a satellite dish and fan (no text or labels)

Technical diagram of a refrigerator with labeled parts and control panel

Technical diagram showing a mechanical assembly with labeled components A and B, and an upward arrow indicating motion or force.

Niedrige Position

3D wireframe model of a mechanical assembly with internal components and directional arrows (no text or symbols)

Hohe Position

3D wireframe model of a mechanical assembly with no visible text or symbols

Close-up of a wire cage with metal grating and a hand adjusting the panel (no visible text or symbols)

Illustration of a fish-like creature with tentacles and a corresponding electrical connector panel (no text or symbols)

Warnung!

Technical line drawing of a mechanical assembly with no visible text or symbols

Simple line drawing of a mechanical component or housing with a central circular feature (no text or symbols)

Filtergruppe

Symbol of a trash bin with crossed x-marks and a blank base (no text or numbers)

Switching	on
Cycle	selection	table
Adding	salt
Rinse	agent	reservoir
Dishwasher	detergents

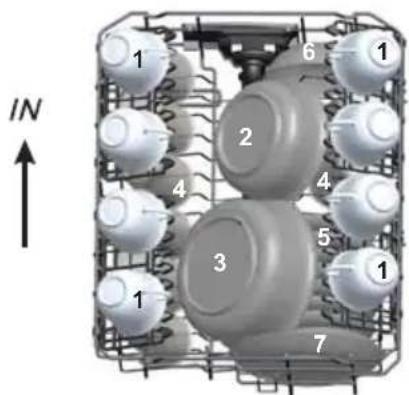

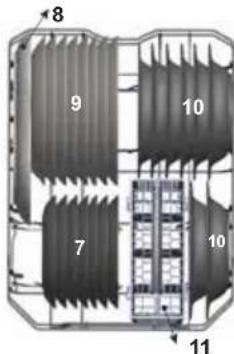

Loading	the	baskets
Damage to glassware and other crockery
Filter	system	19

Maintenance

Cleaning	the	spray	arms
Cleaning	the	filters
Cleaning	the	door

Errors

What should I do, if...		22
Error	table	22
Error	codes	24

Appendix

Disposing of the packaging and appliance

25

Introduction

You have opted to purchase a Pelgrim dishwasher.

Optimum user comfort and easy operation were paramount during the development of this product.

This manual describes how you can get the most out of your dishwasher. It provides you with information on how to operate the appliance, as well as background information about how it works. You will furthermore also find maintenance tips.

The safety instructions that are relevant during the installation are included in the installation guide. This is intended for the installation technician.

Read this manual before using the appliance. Keep this manual somewhere safe so that subsequent users can also benefit from the information contained within.

Declaration of conformity

We hereby declare that our products satisfy the applicable European directives, orders and regulations, as well as the requirements stated in the referenced standards.

Note!

Contact a registered installer to fit your appliance (see "Installation instructions"). Do not connect the appliance to the electrical mains until the installation is complete.

• Connect up the appliance according to local installation regulations.
• The appliance has been manufactured in compliance with the latest safety standards. Nonetheless, we recommend that persons suffering from psychological or physical disabilities, mental impairment or learning difficulties, do not use the appliance except under the supervision of a competent individual. The same applies to children.
• In order to prevent hazardous situations, a damaged connection cable may only be replaced by the manufacturer, the manufacturer's service department, or by similarly qualified persons.
• This appliance must be earthed! Earthing reduces the risk of an electric shock in the event of errors and faults. This appliance is fitted with an earthed power lead and plug. Only insert the plug into an earthed wall socket that has been fitted in compliance with the local electrical code!
• Incorrect connection of the power lead can result in a life-threatening situation. In case of doubt, contact a qualified electrician or service technician. Do not make any changes to the plug. If the plug does not fit into the wall socket, contact a qualified electrician to change it.
• Improper use of the door and basket of the dishwasher is not recommended. Do not sit or stand on the door or basket.
• Do not clean unsuitable plastic dishes in the appliance, unless they bear a mark indicating that they are dishwasher-safe. Where dishes do not bear any such marking, always follow the manufacturer's instructions.
• Only use detergent, rinse agent and salt that is intended for use in a dishwasher. Under no circumstances should professional or catering detergents be used. Under no circumstances should normal washing-up liquid or fabric detergents be used.
• Keep detergents out of the reach of children.

Note!

• Keep detergents and rinse agents out of the reach of children. Keep children out of reach of the dishwasher when open. There may still be some cleaning agent present in the appliance. If swallowed, consult a doctor immediately and take the packaging with you.
• Keep the door closed. You can trip over an open door.
• Do not bend the intake and drainage hoses or connection lead excessively during installation. Take care to ensure they do not become trapped.
• The appliance is not intended for use by young children.
• Dishwasher detergents are highly alkaline and are particularly harmful if swallowed. If swallowed, consult a doctor immediately and take the packaging with you.
• Avoid contact with the skin and eyes. Keep children away from the dishwasher when the door is open.
• Make sure that all loose components in the dishwasher have been fitted correctly. Do not open the door during the cycle.
• Do not place heavy objects on the opened door. Do not stand on the door. The appliance may tip over, which can result in damage to the appliance.
• When loading the baskets, place sharp objects so that they cannot damage the rubber seal on the door.
• Packaging materials should be disposed of in a responsible manner and in accordance with government regulations.
• The dishwasher must only be used for its intended purpose. The appliance should only be used in a frost-free room!
• Remove the door or deactivate the lock when disposing of the appliance.
• Do not allow children to play with the appliance.
• Check whether the detergent reservoir is empty following the end of the wash cycle.
• Fill the salt and rinse agent reservoirs prior to first use and when the indicators light up. Set the salt consumption before use.
• Disconnect the appliance from the power supply when cleaning or performing repairs. Remove the plug from the socket or turn off the switch in the fuse box.

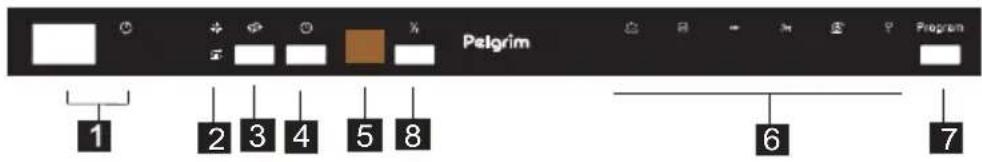

Control panel

Pelgrim 1 2 3 4 5 8 6 7

1. On/Off button
2. Water softener and rinse agent indicators
3. "All-in-1" button
4. Delayed start button
5. Display
6. "Selected cycle" indicators
7. Programming button.
8. "Half load" button

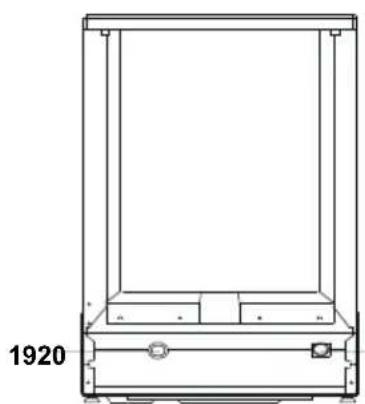

Interior

9 10 11 12 13 14 15 16 17 18

Technical line drawing of a mechanical device with no visible text or symbols

1. upper basket
2. spray arms
3. lower basket
4. water softener
5. coarse filter (flat filter)
6. detergent reservoir
7. cup rack
8. cutlery basket
9. coarse filter (beaker filter)
10. rinse agent reservoir
11. drainage pipe connection
12. water inlet pipe connection

Switching on

Palgrim 1 2 3 4 5 8 6 7

• Open the door to the dishwasher.
• Press the "on/off" button (1) to switch on the appliance.
  The indicator will light up when the appliance is switched on.
• Select the desired cycle (see page 9 and 10 “cycle selection table”). Press the programming button (7) repeatedly to select the required cycle. The indicator (6) corresponding to the selected cycle will light up.
• Close the door to the dishwasher. The dishwasher will automatically start running the selected cycle.

Delayed start

If you want the dishwasher to switch on at a later time, you can used the “delayed start” button (4). Each press on the button delays the start by 1 hour. You can read the delayed start time on the display. You can delay the start time by up to a maximum of 24 hours.

Selecting a half load

Press the “half load” button (8) to activate the half load cycle. The lower spray arm is switched off during the half load cycle. This means that you should only load the upper basket.

Stopping or changing a wash cycle

Open the door. Press and hold the programming button (7) for more than 3 seconds. You can now re-select the desired cycle (see page 9 and 10 “cycle selection table”). Now close the door.

Note! A cycle that has already begun can only be changed in the start-up phase. After this, the detergent will be sprayed all over the dishes or the machine may have already pumped out the water. In that instance, you must refill the detergent compartment (see section on Dishwasher detergent).

Following the end of the wash cycle

Once the wash cycle has completed, an audible signal will sound for eight seconds. Switch the appliance off using the on/off button.

Open the door to the dishwasher. Wait a few minutes before unloading the dishwasher. The dishes and cutlery will still be very hot immediately following the end of the cycle. There is a chance that dishes may break as a result of the heat. Moreover, the dishes dry better when allowed to stand for a few minutes.

Do not open the dishwasher door during use!

Flood protection switch

Your dishwasher is fitted with a safety switch that prevents too much water from running into the appliance. The safety switch closes the inlet valve and instructs the dishwasher to pump out the surplus water. If there is water in machine (due to too much water being fed in previously, or as a result of a leak), this must first be removed before the appliance is switched on again.

Warning!

Opening the door fully during the wash cycle is dangerous. You may be splashed with hot water from the machine.

Cycle selection table

Cycle	Symb.	Cycle information	Cycle duration	Detergent pre/main	Time (min)	Energy (kWh)	Water (l)
Heavily soiled dishes, such as prewash (50°C)Intensive dishes pans casseroles, plates prewash 4/23 g 120 1.2 18.5plates with dried-on main wash (65°C)leftover food.
Normalsoiled pans.		prewash (50°C)ally soiled dishes, such as dishes, plates, glasses, lightly rinse (65°C) dry	main wash (50°C)rinse	4/23 g	150	0.95	13
* Economy energy-saving cycle	Lighly SOiled dishes, such as EN 50242 and lightly soiled pans.		prewash plates, glasses, bowls rinse (65°C)	4/23 g	160	0.81	12
Glassporcelain.		prewash Lightly soiled dishes, such as glasses, crystal and fragile rinse (60°C) dry	main wash (40°C); rinse	15 g	95	0.65	13
1 hour quick lightly soiled or normal plates and pans.		hour. For day-to-day dishes, such as rinse (50°C) dry	main wash (65°C); rinse	27 g	60	0.72	10
Quick porcelain. No drying.		WYDW;shes, such as glasses, crystal and fragile rinse (45°C)	main wash (40°C); rinse	15 g	30	0.4	10

*EN 50242: This is a test cycle. The information for a comparison test in accordance with EN 50242 is as follows:

• capacity: 8 place settings
- position of upper basket: wheels on runners / wash setting: 6

Adding salt

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

This machine is equipped with a water softener. To use the water softener, fill the dishwasher with salt.

1. Remove the bottom basket and then unscrew the cap from the reservoir.
2. Before filling the reservoir for the first time, pour in one litre of water.
3. Insert the funnel into the reservoir opening. Pour in approximately 1 kg of salt. It is normal for a little water to flow out of the opening when doing this. Note! Clear up any spilled salt and always run a full cycle immediately afterwards to prevent damage to the bottom.
4. Screw the cap back on firmly.

Note! Always fill the salt reservoir and adjust the water hardness setting before using the dishwasher. Refill the salt reservoir when the water softener indicator lights up. It is possible that the light will remain lit for a short while after the salt reservoir is filled. It will go out automatically when enough salt has been dissolved in the water.

Simple circular diagram with a central arrow and plus/minus symbols, no readable text or labels

Setting the salt consumption

• Unscrew the cap from the salt reservoir.
- In de opening of the reservoir, you will find a ring bearing an arrow. Turn the ring towards - or +, depending on the hardness of the water.

Adjust the salt consumption according to the table below:

WATER HARDNESS			setting	salt consumption (grams/cycle)	autonomy (cycles/1 kg)
degrees Clark	°dH	mmol/l
0 - 10	0 - 8	0 - 1.4	no salt required	0	/
10 - 28	8 - 22	1.4 - 3.9	- position	20	50
28 - 56	22 - 45	3.9 - 8	central position	40	25
56 - 75	45 - 60	8 - 11	+ position	60	16

Your local water authority can inform you how hard your mains water is. Adjustments can then be made according to the above table.

Rinse agent reservoir

Rinse agent is added during the final rinse. Rinse agent prevents traces of water droplets being left behind on the clean dishes. Moreover, it ensures that the dishes dry quicker, since the water drains off more easily.

The dishwasher is designed for use with liquid rinse agent. The rinse agent reservoir is located on the inside of the door, alongside the detergent compartment.

Note: refill the rinse agent reservoir when the rinse aid indicator lights up. The reservoir has a capacity of approximately 100 ml. Do not overfill the rinse agent reservoir. This will cause the rinse agent reservoir to overflow. Rinse agent spillages must be cleaned up, otherwise they may lead to leakages as a result of extreme foaming.

Line drawing of a kitchen microwave oven with handle and control knob (no text or symbols)

• Unscrew the cap from the rinse agent reservoir (to the left, toward the arrow with “open”).
• Pour the rinse agent into the reservoir, taking care not to overfill it. The reservoir has a capacity of approximately 100 ml.
• Replace the cap. Make sure that the cap is lined up with the “open” arrow and turn in the direction of the “closed” arrow.

Setting the quantity of rinse agent

A fixed amount of rinse agent is added during the final rinse. As is the case with detergent, the amount of rinse agent needed is dependent on the hardness of the water in your area. Too much rinse agent can lead to streaks on the dishes.

5 4 3 2 6 1 ↑MAX

The rinse agent reservoir has 6 settings. To begin with, set the reservoir to setting 2. If this still causes spotting on the dishes and the dishes do not dry well, you can increase the amount of rinse agent added by turning the selector knob on the reservoir to setting 3. If there is still no improvement, turn the selector knob to a higher setting. Repeat this action until the dishes are streak-free when they emerge from the dishwasher.

Dishwasher detergents

The chemical agents in dishwasher detergents remove the dirt, break it down and ensure that it is drained out of the dishwasher. The dishwasher detergents you can buy in most shops are suitable for this purpose.

Warning!

Dishwasher detergent is a corrosive product. It should therefore be kept out of the reach of children. If swallowed, consult a doctor immediately and take the packaging with you.

Concentrated detergent

Based on their chemical composition, 2 different types of concentrated detergent can be distinguished:

• Conventional alkaline detergents with corrosive ingredients.
• Low-alkaline concentrated detergents with natural enzymes.

Using concentrated detergent in combination with “normal” wash cycles produces less pollution and is good for your dishes: these wash cycles are specially tailored to the dirt-dissolving properties of the enzymes contained in concentrated detergent. This means that “normal” wash cycles with concentrated detergent achieve the same results as an intensive wash cycle.

Dishwasher tablets

Dishwasher tablets from different manufacturers dissolve at different rates. This means that, during short wash cycles, certain types of dishwasher tablet do not fully dissolve, as a result of which their cleaning action is reduced. Dishwasher tablets should therefore chiefly be used in combination with long wash cycles, so that the dish washer tablet has time to fully dissolve.

Detergent compartment

Fill the detergent compartment prior to starting a wash cycle. Your dishwasher uses less detergent and rinse agent than conventional dishwashers. Generally speaking, just one measuring spoon of detergent powder is needed for a normal wash cycle. Use more detergent if your dishes are more heavily soiled. Fill the soap compartment immediately prior to starting the cycle. Filling it prior to this may result in the detergent becoming damp and therefore not fully dissolving.

Note! The table on page 10 shows the amount of detergent required for the different cycles. These are averages. A different dosage may be necessary, depending on the hardness of the water and how soiled the dishes are.

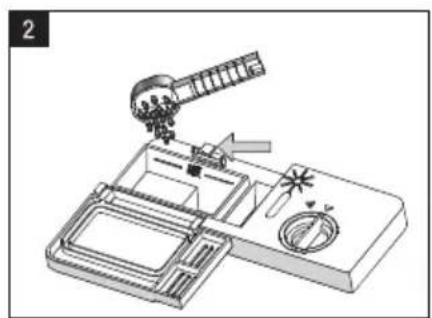

Filling

1

Technical illustration of a mechanical assembly with no visible text or symbols

1. Press the release catch if the lid is closed. The lid will spring open.
2. Fill the detergent compartment immediately prior to starting a wash cycle. Use only branded detergent in the dishwasher.

Technical diagram of a refrigerator with labeled parts and control panel

The markings in the detergent compartment indicate the dosage.

• Compartment for main wash cycle detergent (1), "MIN" is approximately equal to 20 grams of detergent.
• Compartment for prewash detergent (2), holds approximately 5 grams of prewash detergent.

Use only detergents that are specifically designed for dishwashers. Store the detergent in a cool and dry place. Only fill the detergent compartment with detergent when you are running a wash cycle immediately afterwards.

Loading the baskets

Using the upper basket

The upper basket is designed for fragile, light dishes, such as glasses, cups and saucers, plates, small bowls and shallow (not particularly dirty) pans.

Place the dishes in the basket in such a way as to ensure they cannot move when sprayed. The height of the upper basket can be adjusted by removing the basket and replacing it in a different position in the runners.

1. cups
2. small bowl
3. large bowl
4. glasses
5. saucers
6. plates
7. dessert plates

IN 1 2 3 4 5 6 7 1 1

Adjusting the height of the upper basket

You can adjust the height of the upper basket and thus create more space for large objects in the upper or lower basket. You can adjust the height of the upper basket by removing the wheels of the upper basket from the runners and re-inserting them into the runners at a different height. Long objects such as serving spoons and knives must be placed in the rack to ensure they do not obstruct the spray arms. The rack can be folded up or removed when not in use.

Technical diagram showing a mechanical assembly with labeled components and directional arrows

Low position

3D wireframe model of a mechanical assembly with internal components and directional arrows (no text or symbols)

High position

• Lift the basket to the high position.
• Press the clamps simultaneously and pull the basket downwards into the low position.

The upper basket is equipped with 4 side racks (2 on each side). These side racks can be placed in a high or low position. The side racks are fitted with clamps (2 on each side). The side racks can be adjusted by pulling on the clamps of the upper basket. Place the side racks in the desired position.

High position

The “high” position allows you to place tall glasses (place under side racks) and wine glasses in the basket. Hang the wine glasses upside down in the recesses in the side rack.

Low position

In the "low" position, cups, small bowls and glasses can be placed on the side racks. Take note of the height of the dishes!

Wireframe diagram of a mechanical assembly with no visible text or symbols

Using the lower basket

We recommend that you place large objects that are the most difficult to clean in the lower basket: pots, pans, pan lids, casserole dishes and basins.

Casserole dishes and pan lids should preferably be placed at the side of the basket. This will ensure that they do not obstruct the spray arm when it is turning.

• Saucepans, serving dishes etc. must always be placed upside down in the basket.
• Deep bowls should be tilted, with the opening facing downwards to allow water to escape.
• The lower basket can be adjusted to allow for larger, or more, pots and pans.

8 9 10 7 10 11

1. dessert plates
2. oval dish
3. large plates
4. soup plates
5. cutlery basket

Close-up of a wire fence with diagonal hatching and metal grout (no text or symbols visible)

Folding down the plate racks

You can fold down the plate racks to make it easier to fit pots and pans in the dishwasher.

Cutlery basket (loading example)

Cutlery should be placed in the cutlery basket with the handles pointing down. If the cutlery basket is equipped with compartments, the cutlery must be placed in the compartments piece by piece. Long cooking utensils, such as wooden spoons, should be placed lying down (horizontal) in the front of the upper basket.

1. forks
2. soup spoons
3. dessert spoons
4. teaspoons
5. knives
6. serving spoons
7. gravy spoon
8. serving fork

Two technical diagrams showing a mechanical component and its corresponding schematic view (no text or symbols present)

Warning!

Take care to ensure that no objects are sticking through the bottom of the cutlery basket, as this will obstruct the spray arm.

Cutlery/crockery unsuitable for the dishwasher

• Cutlery with a wooden, porcelain or mother of pearl handle
• Plastic objects that are not heat-resistant
• Cutlery with glued elements that are not heat-resistant
• Glued cutlery or crockery
• Pewter or copper objects
• Lead crystal glassware
  • Steel objects that are prone to rust
• Wooden dishes
• Objects manufactured from synthetic fibres

Cutlery/crockery with limited suitability for use in the dishwasher

• Certain types of glass can become dull after undergoing a large number of wash cycles
  • Silver and aluminium may tarnish after use in the dishwasher
• Glazed patters may fade as a result of regular washing

Note! Do not place any objects soiled with cigarette ash, candle wax, varnish or paint in the dishwasher. When buying new kitchen utensils, ensure that they are suitable for the dishwasher.

Do not overload the dishwasher. There is only room for 8 standard settings. Do not place cooking utensils that are unsuitable for dishwashers inside. This is essential to ensure good washing results and a low energy consumption.

Placing cutlery and crockery in the dishwasher

Before placing the dishes in the dishwasher, you must:

• Remove any large bits of leftover food.
• Leave caked and burnt on leftover food to soak for a while.

When inserting the dishes, take care to ensure that:

• The spray arm is not obstructed by the dishes.
• Hollow objects are placed with the opening facing downwards, to ensure that that cannot hold the water.

Plates and cutlery must not cover each other

• Glassware items must not touch, otherwise damage can occur.
• Place large objects that are difficult to clean in the lower basket.
• The upper basket is specially designed for lighter objects, such as glasses and coffee and tea cups.

Warning!

• Long knives standing upright in the cutlery basket can cause injury!
• Long and/or sharp items of cutlery, such as carving knives, should be laid (placed horizontally) in the upper basket.

Damage to glassware and other crockery

Potential causes:

• Type of glass or manufacturing process. Chemical composition of the dishwasher detergent.
  • Water temperature and duration of the wash cycle.

Proposed solution:

• Use glassware and porcelain crockery produced by manufacturers that state that it is suitable for dishwashers.
• Use a milder/less corrosive dishwasher detergent. If needed, ask detergent manufacturers for more information.
• Select a wash cycle with a lower temperature.
• Remove glassware and cutlery from the dishwasher as soon as possible after the cycle has finished, to prevent damage.

Filter system

1 2 3

Depending on usage, the filters may require regular rinsing under a tap. The filter system consists of three components: the large filter, the coarse filter and the fine filter.

1. Large filter: Leftover food and waste that lands on this filter is rinsed through to the coarse filter by a special jet on the lower spray arm.
2. Coarse filter: Larger articles, such as leftover bones or pieces of glass that could block the drain, are trapped in the coarse filter. In order to remove the waste from the filter, you must lightly squeeze the lips on top of the filter together and then pull the filter upwards.
3. Fine filter: This filter prevents waste and leftover food from entering the drainage pump and ensures that said leftovers are not spread over the dishes again during the cycle.

Cleaning the spray arms

Technical line drawing of a mechanical assembly with no visible text or symbols

It is essential that you clean the spray arms on a regular basis. In the longer term, waste can block the nozzles and the bearings in the spray arms. Clean the spray arms as follows:

• Unscrew the nut so that you can remove the washer.
• Next remove the spray arm.
• Clean the spray arms in warm, soapy water, using a soft brush to clean the nozzles.
• Rinse the spray arms thoroughly before fixing back in place.

Cleaning the filters

Line drawing of a mechanical component with a central circular feature and rectangular housing (no text or symbols)

Filter section

In order to ensure the dishwasher operates at maximum efficiency, the whole filter section must be cleaned.

The filter section efficiently removes food remnants from the water and ensures that the water is able to continue circulating throughout the wash cycle. It is therefore a good idea to remove larger food remnants from the filter section after each wash cycle, by cleaning the half-round filter and filter housing under running water.

• Remove the filter section by grasping the handle and pulling upwards. All components in the filter section must be cleaned at least once per month.
• Use a dishwashing brush to clean the coarse and fine filter. Put the filter section back together again according to the illustration opposite and then re-fit the whole filter section back into the tub of the dishwasher.

Never use the dishwasher without the filter section. Incorrect fitting of the filter section will result in the dishwasher no longer delivering maximum performance. Damage to cutlery and dishes is a further possible consequence.

Cleaning the door

Clean the edge of the door, including the sealing rubber, with a soft, damp cloth. Take care to ensure that water does not enter the door locking mechanism or electrical components. Spray-type cleaning products should not be used, nor aggressive cleaning products such as scourers. These cleaning products can damage the finish.

What should I do, if...

If the appliance is not functioning well, this does not always mean that it is faulty. Try to resolve the fault yourself first. If the recommendations below does not solve your problem, telephone our service department.

Note

Disconnect the appliance from the power supply before beginning repairs. It is preferable if you remove the plug from the socket.

Error table

Problem	Potential causes	Solution
The dishwasher is not working.	Fuse is faulty or the earthing switch has been activated.	Replace the fuse or reset the isolating switch.Remove other appliances that are connected to the same group.
	The power supply is not switched on	Make sure that the dishwasher is switched on and the door closed.Make sure that the plug is correctly inserted into the socket.
	The water pressure is too low.	Check whether the dishwasher is correctly connected to the water mains and that the tap is open.
The drainage pump does not shut off.	The water is running over.	The system is designed so that it can automatically detect overflowing water. In that instance, the appliance shuts off the circulation pump and switches on the drainage pump.
Noise.	Some noises are normal.	Noise of rotating pump/washing noises; the detergent compartment opening.
	Cutlery is rattling in cutlery basket or something small has fallen out of the basket.	Ensure that everything is loaded securely in the dishwasher.
	The motor makes an unusual noise.	The pump is blocked. Contact an installer.
Contamination of the tub.	Poor quality detergent.	Only use detergent suitable for dishwashers to prevent contamination.
	Blocked filters	Open the door and clean the filters. Run the pre-wash cycle.
	Rinse agent has been spilled.	Always wipe up spilled rinse agent immediately.
Dishes not dry.	The rinse agent reservoir is empty.	Ensure that the rinse agent reservoir is filled.
Dishes and flat objects are not clean.	Incorrect cycle.	Select a higher cycle.
	Baskets are incorrectly loaded.	Make sure that the detergent compartment and spray arms are not obstructed by large dishes/pans.
Spotting and scaling on glasses and flat dishes.	Extremely hard water. Incoming water temperature is low. The dishwasher is overloaded.Baskets are incorrectly loaded. Old or damp detergent. Rinse agent reservoir is empty.Incorrect detergent dosage.	To remove spotting from glass objects:Remove all metal objects from the dishwasher.Use the prescribed quantity of detergent.Select the longest cycle. Allow the dishwasher to run for approximately 18 to 22 minutes. It should by then have reached the main wash cycle. Open the door carefully and pour 2 cups of white vinegar into the base. Close the door and allow the dishwasher to complete its cycle. If vinegar does not work: Repeat the above steps, but use a quarter cup (60 ml) of citric acid crystals in place of white vinegar.
Cloudy stains on the glassware.	Combination of soft water and too much detergent.	Use less detergent and choose the glass cycle, which you can use to clean glassware.
Yellow or brown scale on the inside of the tub.	Traces of iron in the water may cause spotting to the tub of the dishwasher.	Contact a manufacturer of water softeners for a special filter.
White scale on the inside of the tub.	Hard water.	Increase salt consumption setting
Dishwasher detergent is left in the detergent compartment.	The detergent compartment is blocked by dishes.	Load the baskets so that the dishes no longer block the detergent compartment.Clean the upper spray arm.
Steam.	When opening the door.	This is possible at the end of the cycle.
Black or grey stains on the dishes.	Aluminium cooking utensils have scraped the dishes.	Aluminium can tarnish.
Water remains under the filters.	This is normal.	A small amount of water around the drain on the rear of the tub base keeps the seal flexible.
The dishwasher is leaking.	Rinse agent reservoir too full or rinse agent is leaking.	Take care not to overfill the rinse agent reservoir. Spilled rinse agent can lead to foam/ flooding. Wipe up spilled rinse agent with a damp cloth.
	The dishwasher is not standing level.	Adjust the dishwasher so that it is standing level.

Error codes

Problem	Potential causes	Solution
Code E1 is showing in the display	Water intake time is too long.	Inlet tap not opened.
Code E4 is showing in the display	Appliance overfilled.	Water supply is excessive.

Should the appliance become overfilled or exhibit excessive leaking, shut off the inlet tap and alert the service department.

Disposal

Disposing of the packaging and appliance

Sustainable materials were used in the manufacture of this appliance. At the end of its life cycle, this appliance should be disposed of in a responsible manner. The government can provide you with information in this regard.

The packaging for the appliance is recyclable. The following may be used:

• cardboard;
  • polyethylene film (PE);
  • CFC-free polystyrene (PS hard foam).

The materials should be disposed of in a responsible manner and in accordance with government regulations.

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

The product bears the symbol of a crossed out waste bin to draw attention to the obligation regarding separate processing of electrical household appliances. This means that the appliance cannot be added to your normal household waste at the end of its lifecycle. The appliance must be taken to a special municipal waste collection centre, or to a sales outlet that offers this service.

Separate processing of household appliances prevents the potentially negative consequences for the environment and health that can arise as a result of inadequate processing. It ensures that the materials which the appliance is composed of can be reclaimed, allowing for considerable savings to be made in terms of energy and materials.

Note! The packaging material may be hazardous for children.
