Product Type	Electronic Microwave
Brand	Beko
Model	MWB 2310 EX
Capacity	23 liters
Microwave Power	900 W
Grill Power	1200 W
Power Consumption	230 V~50 Hz, 1400 W
Operating Frequency	2450 MHz
External Dimensions (W x D x H)	510 x 382 x 310 mm
Internal Dimensions (W x D x H)	330 x 330 x 212 mm
Net Weight	Approximately 13.5 kg
Cooking Functions	Microwave, grill, combination (2 modes), auto defrost, auto menu (6 programs)
Controls	Electronic: time setting knob, touch keys
Timer	Yes, up to 60 minutes
Clock	Integrated, adjustable
Child Safety	Yes, key lock
Materials	Glass door, stainless steel interior
Care and Cleaning	Wipe exterior with damp cloth, glass tray dishwasher safe, roller ring washable with soapy water
Spare Parts	Glass tray, roller ring, grill rack, oven bulb (replacement by professional)
Repairability	Repairs to be carried out by qualified professional; do not open the casing

Frequently Asked Questions - MWB 2310 EX BEKO

How to set the clock of the Beko MWB 2310 EX microwave?

Press the L key until the clock symbol flashes. Turn the Time Settings knob to set the time, then press L again to confirm. Repeat for minutes.

How to use the auto defrost function?

Press the ♠♦♦ key until DEF is displayed. Turn the Time Settings knob to select the weight (max 2000 g). Press ◇ to start defrosting.

What to do if the microwave does not heat?

First check that the door is properly closed and the safety locks are engaged. Make sure the timer is set. If the problem persists, check the power supply (fuse, circuit breaker) and contact a professional.

Can I use metal containers in this microwave?

No, never use metal containers, pans, or utensils with metal parts. Only microwave-safe utensils are allowed.

How to clean the oven interior?

Use a damp cloth with a mild non-abrasive detergent. For odors, heat a bowl of water with lemon for 5 minutes. The glass tray and roller ring can be washed in the dishwasher.

How to activate the child safety lock?

Press and hold the ☐ and ∞ keys simultaneously for 2 seconds. To deactivate, repeat the operation.

What is the maximum power of the microwave?

The microwave output power is 900 W. The grill provides 1200 W. Total consumption is 1400 W.

The oven makes a humming noise, is this normal?

Yes, this is normal. The noise comes from the magnetron and the fan. If you hear abnormal noises (squeaking), clean the roller ring and the oven floor.

How to use the grill?

Press the WWW key to select G-1 (grill only). Set the time (max 60 min) with the knob, then press ◇. Halfway through cooking, the oven briefly stops to allow you to turn the food.

What to do if the door does not close properly?

Make sure no obstacle prevents closing. Check that the seals are not damaged. If the door is misaligned or damaged, do not use the oven and contact a qualified professional.

USER MANUAL MWB 2310 EX BEKO

23 Litre Electronic Microwave

MWB 2310 EX

BEKO

Owner's Instruction Manual

WARNING: The appliance and its accessible parts become hot during use.

Care should be taken to avoid touching heating elements.

Children less than 8 years of age shall be kept away unless continuously supervised

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

WARNING: Accessible parts may become hot during use. Young children should be kept away.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

Steam cleaner is not to be used

WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

Microwave oven intended to in a cabinet

If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames;

Appliances situated more than 850 mm above the floor after installation and portable appliances

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was d. They can take this product for environmental safe recycling.

Read the Instructions carefully and Keep for Future Reference

IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated;

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;

- Only use utensils that are suitable for use in microwave ovens - When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;

- If smoke is observed, switch of or unplug the appliance and keep the door closed in order to stifle any flames;

- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;

- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;

- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;

- The oven should be cleaned regularly and any food deposits removed;

- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The temperature of accessible surfaces may be high when the appliance is operating.

1 Specifications ....4
2 Radio Interference ....5
3 Installation....5
4 Important Safety Instructions ....7
5 Safety Instructions For General Use ......8
6 Operation Instruction 11
7 Care Of Your Microwave Oven ....13

1 Specifications

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

Power consumption: 230 V~50 Hz,1400 W
Output: 900 W
Grill Heater: 1200 W
Operating Frequency: 2.450 MHz
Outside Dimensions: 510 mm (W) X 382 mm (D) X 310 mm (H)
Oven Cavity Dimensions: 330 mm (W) X 330 mm (D) X 212 mm (H)
Oven Capacity: 23 litres
Uncrated Weight: Approx. 13.5 kg

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the display does not appear or the display disappears:

a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.

b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.

1. If the microwave power does not function:

a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.

Note:

The appliance is for household use for heating food and beverages using electromagnetic energy and for indoor use only.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT THE AUTHORIZED SERVICE AGENT.

2 Radio Interference

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a. Clean the door and sealing surface of the oven.
b. Place the radio, TV, etc. as far away from your microwave oven as possible.
c. Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

3 Installation

1. Make sure all the packing materials are removed from the inside of the door.
2. Inspect the oven after unpacking for any visual damage such as:

- Misaligned Door

- Damaged Door

- Dents or Holes in Door Window and Screen WAR

- Dents in Cavity

- If any of the above are visible, DO NOT use the oven.

1. This Microwave Oven weighs 13.5 kg and must be placed on a horizontal surface strong enough to support this weight.

2. The oven must be placed away from high temperature and steam.

3. DO NOT place anything on top of the oven.

4. DO NOT remove the turn -table drive shaft.
5. As with any appliance, close supervision is necessary when used by children.

WARNING-THIS APPLIANCE MUST BE EARTHED.

1. The plug socket should be within easy reach of the power cord.
2. This oven requires 1.5 KVA for its input. consultation with service engineer is suggested when installing the oven.

CAUTION: This oven is protected internally by Ac 250V,10 Amp Fuse.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow : Earth

Blue :

Brown : Live

As the colours of the wires in the mains leads of the appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter

Neutralor by the earth symbol coloured ve green of green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

ATTENTION: The following steps are for the Microwave Oven models with the Built-in Trim Kit Frame Only.

1. After taking all the accessories out of the microwave oven, turn the microwave oven over on its back and keep the base of the microwave oven facing towards you.

2. Remove the adjustable feet (Fig. No. 2) from the plastic bag and screw them into the holders (Fig. No. 1), one by one.

3. Once all 4 feet are fitted, turn the microwave oven back over onto its feet to check if the adjustable feet are level. If the microwave oven is unstable, adjust the feet by screwing them up or down accordingly.

4 Important Safety Instructions

WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)

WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;

WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;

WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;

• The oven must have sufficient air flow. Keep 10 cm space at back; 15 cm at both sides and 30cms from top of the oven. Don't remove oven's feet, do not block air events of the oven.
• Only use utensils that are suitable for use in microwave ovens.

• When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;

• If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;

• Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
• The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
• When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
• The oven should be cleaned regularly and any food deposits removed;
• Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

5 Safety Instructions For General Use

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.
4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
5. Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.
6. Do not insert any object into the openings on the outer case.
7. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
8. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.
9. IMPORTANT-COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN
   Do not use metal pans or dishes with metal handles. Do not use anything with metal trim. Do not use paper covered wire twist-ties on plastic bags. Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.

Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.

Do not cook in a container with a restricted opening, such as a pop bottle or salad oil bottle, as they may explode if heated in a microwave oven. Do not use conventional meat or candy thermometers. There are the thermometers available specifically for microwave cooking. These may be used.

1. Microwave utensils should be used only in accordance with manufacturer's instructions.

2. Do not attempt to deep-fry foods in this oven.

3. Please remember that a microwave oven only heats the liquid in a container rather than the container itself.

Therefore, even though the lid of a container is not hot to the touch when removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

1. Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.

2. Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.

3. When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.

4. Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.

5. To reduce the risk of fire in the oven cavity:

(a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

(b) Remove wire twist-ties from bags before placing bag in oven.

(c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

Feature Diagram

(1) Door Safety Lock System

(2) Oven Window

(3) Oven Air Vent

(4) Roller Ring

(5) Glass Tray

(6) Control Panel

(7) Grill rack

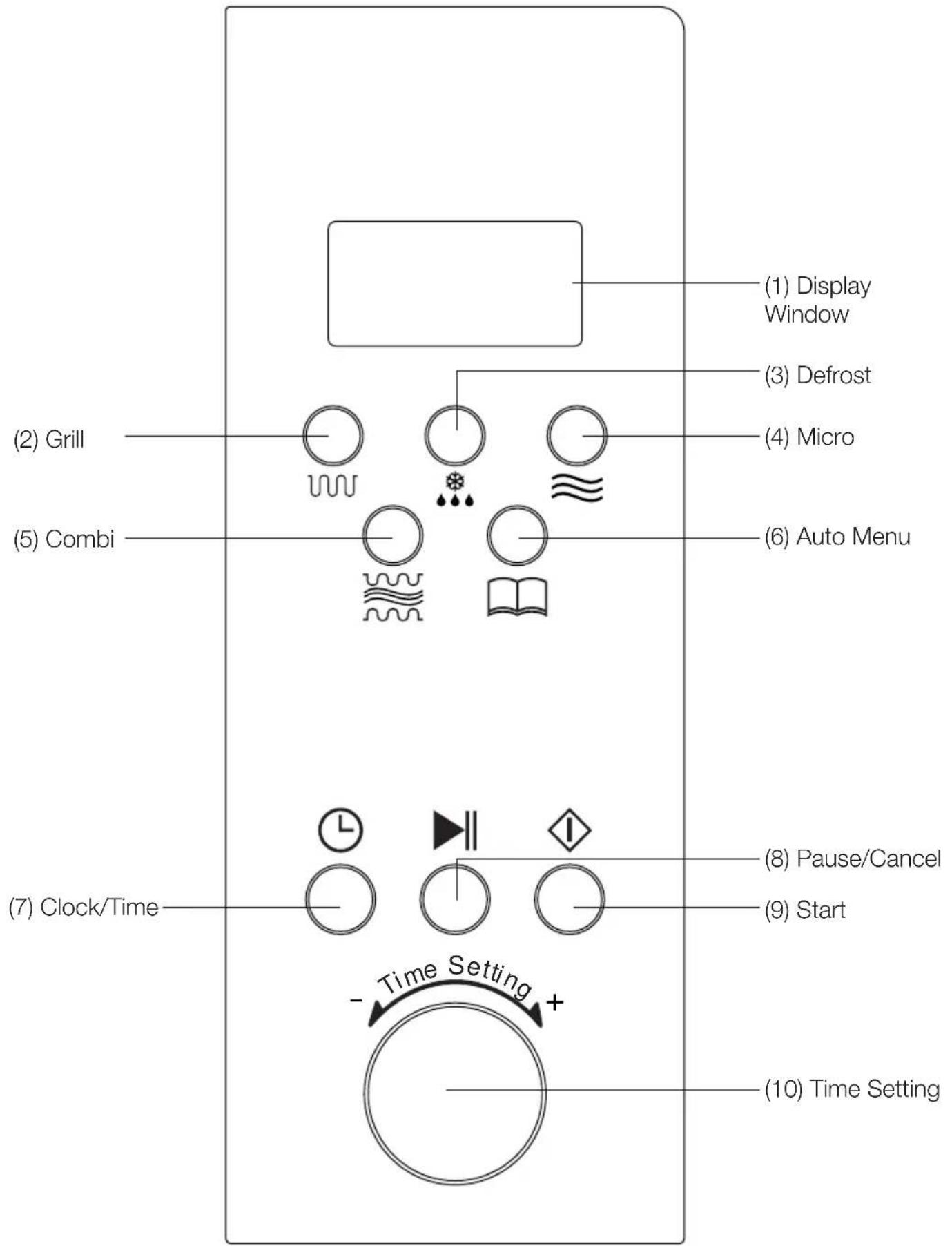

Computer Control Panel

6 Operation Instruction

1. Single Button Heating

Only with a single press of a button, you can start simple cooking, it is very convenient and quick to heat a glass of water etc.

Example: To heat a glass of water

a) Put a glass of water onto the glass turntable, and close the door.
b) Press the button “◇”, the microwave oven will work on 100% power for 1 minutes.
c) You will hear 5 beeps when cooking is complete.

2. Microwave Heating

This function has two options.

1) Quick microwave heating (100% power).

Example: To heat food on 100% power for 5 minutes

a) Rotate the knob "Time setting" to until "5:00" displayed.

b) Press I."

2) Manual-operation microwave heating.

Example: To heat food on 70% power for 10 minutes

a) Press ≈ "button, select "70%" power;

b) Rotate the knob "Time setting" to until "10:00" displayed.

c) Press I".

There are 5 power levels and the longest microwave heating time is 60 minutes.

Touching times	Microwave power Display
1 100% P100
2 70% P70
3 50% P50
4 30% P30
5 10% P10

3. Auto weight defrost

Select the food type and weight, it will automatically help you to adjust the power level and time.

Example: Defrost 500 g frozen meat.

a) Press the button “ ❄️”, “DEF” will be displayed.
b) Rotate the knob "Time setting" to set the weight 500g.

c) Press ◇".

The weight of food must be less than 2000g.

4. Auto-menu

You only need to select the food type and weight, it will help you to automatically adjust the power and time. Example: Auto cooking 400g meat.

a) Press "button to choose A-3.
b) Rotate the knob "Time setting" to set weight 400g.
c) Press “”.

MenuWeight (g)Touching Times	A-1 A-2	A-3 A-4 A-5	A-6
	Rice	Vegetable	Meat	Spaghetti	Fish	Bread
1	100	100	200	1	100	100
2	200	200	300	2	200	200
3	300	300	400		300	300
4	400	400	500		400	400
5	500	500	600		500	500
6		600	800		600	600
7			1000		700
8					800
9					900
10					1000

5. Grill

You may press "U" button to select such functions: (the longest cooking time is 60 minutes).

Pattern 1: 85% grill power, display G-1.

Example: cooking food with grill for 20 minutes

A) Press U/U" until the LED displayed "G-1".

B) Set cooking time "20:00"

C) Press

When grilling, the food isn't heated by microwave, heat is radiated from the metal heater at the top of the oven. When grill is working, the cooking time has 2 stages, After the 1st half of the cooking, the program will automatically pause and sound 2 beeps, indicating you to open the oven and turn food over, after turning over, close the door, press “◇” button, the cooking will continue for the 2nd half. If you do not want to turn the food over, the oven will re-start after 1 min pause.

6. Combination Cooking

This appliance offers you a choice of two methods of combination cooking.

Option 1: (55% Micro + 45% Grill), display "C-1"

Option 2: (30% Micro + 70% Grill), display "C-2"

Example: Cooking food using option 2 for 30 minutes.

a) Press 🔊 "button to select "C-2"

b) Set cooking time for 30 minutes

c) Press I".

7. Clock

The oven can be used as a clock.

Example: to input current time 16:30.

a) Press ☐", the clock symbol will flash in display. Rotate the "Time setting" knob to set "16:00".

b) Press “” again, rotate the “Time setting” knob to set “16:30”.

c) Press “” again, the clock setting is finished, the time start to go on working.

8. Timer

The timer function helps the microwave oven begin automatic cooking at set time, and automatically stop operation after finishing cooking. (You should set the clock before using timer function).

Example: the current time of microwave oven is 16:30, to set cooking at 18:15 on 70% power for 10 minutes.

a) Press " and set time to 18:15 (same procedure as setting clock).

b) Press ≈ to set 70% power.

c) Input cooking time 10 minutes by rotating the knob "Time Setting".

d) Press ◊".

If you don't set power and cooking time (omit B and C steps), and directly press "◇" button, the microwave oven will work only as a clock, there will be 10 beeps at 18:15, but no other function will run.

9. Child-safety lock

To activate the child safety lock, press "button" and "button at the same time for 2 seconds.

Press “☐” and “☐” button, at the same time for 2 seconds again, it will unlock this function.

10. Pause/cancel

a) In the course of operation, pressing “▶” button will stop operation.

b) If any program was set before pressing start, pressing this button will cancel all the set program.

7 Care Of Your Microwave Oven

1. Turn the oven off and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls. wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.
3. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
4. Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.
5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.

6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.

7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dish washer. Cooking vapour, collect during repeated use but in no way affect the bottom surface or roller ring wheels.

When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.

1. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.

2. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

Микроволновая печь

объемом 23 литров

MWB 2310 EX

BEKO

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

Stroomverbruik: 230 V~50 Hz,1400 W
Uitvoer: 900 W
Grillverwarmer: 1200 W
Werkingsfrequentie: 2.450 MHz
Buitenafmetingen: 510 mm(W) X 382 mm(D)	X 310 mm(H)
Ovenafmetingen binnenin: 330 mm(W) X 330 mm(D)	X 212 mm(H)
Ovencapaciteit: 23 liter
Onbeladen gewicht: Circa 13.5 kg

VOORDAT U SERVICE BELT

(1) Veiligheidssysteem deurvergrendeling
(2) Ovenvenster
(3) Luchtopening oven
(4) Rolring
(5) Glazen plaat
(6) Bedieningspaneel
(7) Grillrooster

Computerbedieningspaneel

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

(1) Låge Sikkerhedslåse System
(2) Ovn vindue
(3) Ovnens lufthul
(4) Rullering
(5) Glasbakke
(6) Betjeningspanel
(7) Grillstativ

Computerbetjeningspanel

6 Brugsvejledning

1. Enkelt Knap Opvarmning

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

Potrošnja energije: 230 V~50 Hz,1400 W
Izlazna snaga: 900 W
Grijač roštilja: 1200 W
Radna frekvencija: 2.450 MHz
Vanjske dimenzije: 510 mm(Š) X 382 mm(D) X 310 mm(V)
Dimenzije otvora pećnice: 330 mm(Š) X 330 mm(D) X 212 mm(V)
Kapacitet pećnice: 23 litara
Masa bez palete: cca. 13.5 kg

PRIJE NEGO POZOVETE SERVIS

(1) Sigurnosni sustav za zatvaranje vrata
(2) Prozor pećnice
(3) Zračni ventilacijski otvor pećnice
(4) Prsten za okretanje
(5) Stakleni pladanj
(6) Kontrolna ploča
(7) Rešetka za grill

Računalna Kontrolna Ploča

6 Upute za rad

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

Line drawing of a microwave oven with control panel and buttons (no text or symbols)
