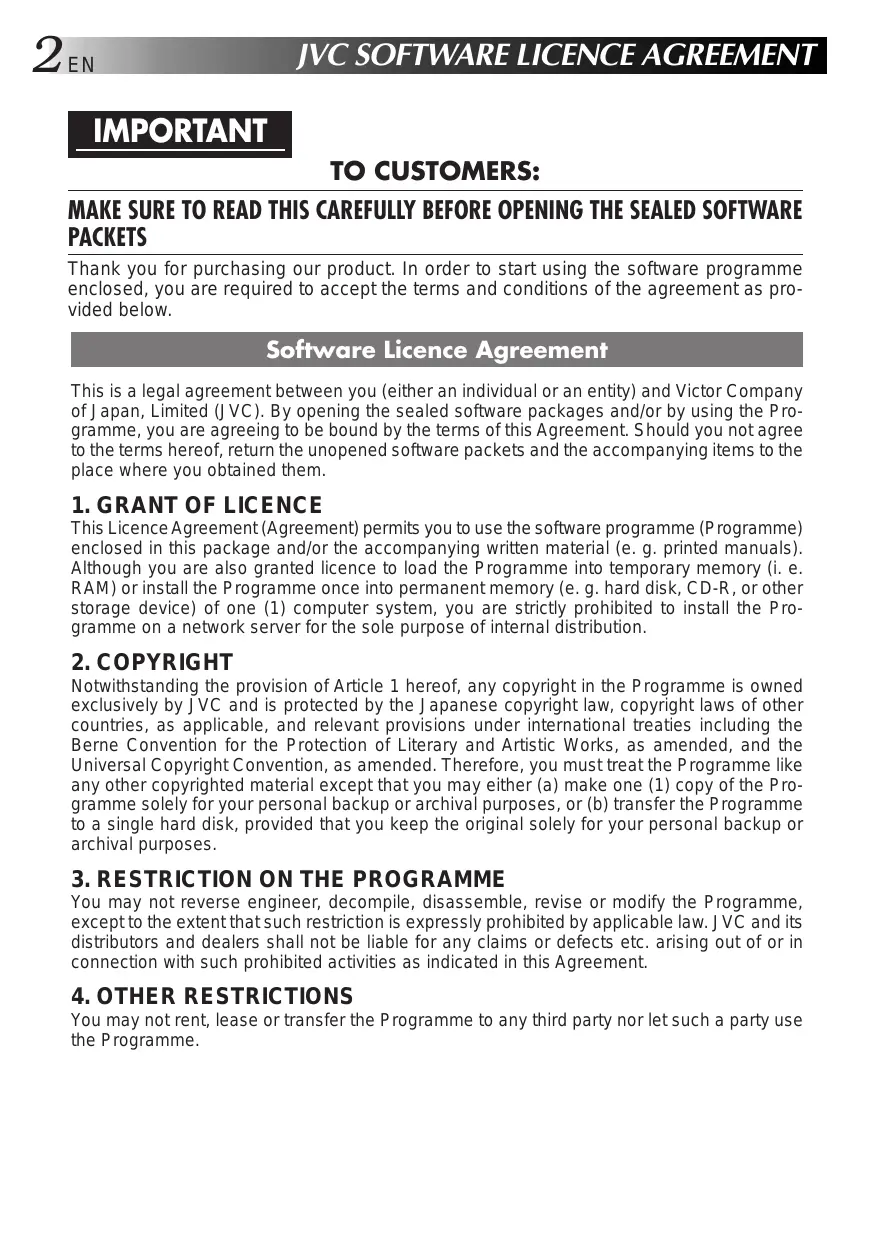

JVC SOFTWARE LICENCE AGREEMENT EN IMPORTANT TO CUSTOMERS: MAKE SURE TO READ THIS CAREFULLY BEFORE OPENING THE SEALED SOFTWARE PACKETS Thank you for purchasing our product. In order to start using the software programme enclosed, you are required to accept the terms and conditions of the agreement as provided below.

Software Licence Agreement This is a legal agreement between you (either an individual or an entity) and Victor Company of Japan, Limited (JVC). By opening the sealed software packages and/or by using the Programme, you are agreeing to be bound by the terms of this Agreement. Should you not agree to the terms hereof, return the unopened software packets and the accompanying items to the place where you obtained them.

1. GRANT OF LICENCE This Licence Agreement (Agreement) permits you to use the software programme (Programme) enclosed in this package and/or the accompanying written material (e. g. printed manuals). Although you are also granted licence to load the Programme into temporary memory (i. e. RAM) or install the Programme once into permanent memory (e. g. hard disk, CD-R, or other storage device) of one (1) computer system, you are strictly prohibited to install the Programme on a network server for the sole purpose of internal distribution.

2. COPYRIGHT Notwithstanding the provision of Article 1 hereof, any copyright in the Programme is owned exclusively by JVC and is protected by the Japanese copyright law, copyright laws of other countries, as applicable, and relevant provisions under international treaties including the Berne Convention for the Protection of Literary and Artistic Works, as amended, and the Universal Copyright Convention, as amended. Therefore, you must treat the Programme like any other copyrighted material except that you may either (a) make one (1) copy of the Programme solely for your personal backup or archival purposes, or (b) transfer the Programme to a single hard disk, provided that you keep the original solely for your personal backup or archival purposes.

3. RESTRICTION ON THE PROGRAMME You may not reverse engineer, decompile, disassemble, revise or modify the Programme, except to the extent that such restriction is expressly prohibited by applicable law. JVC and its distributors and dealers shall not be liable for any claims or defects etc. arising out of or in connection with such prohibited activities as indicated in this Agreement.

4. OTHER RESTRICTIONS You may not rent, lease or transfer the Programme to any third party nor let such a party use the Programme.

5. LIMITED WARRANTY JVC warrants that any media in which the Programme is embodied (e.g. floppy discs, CDROM, etc.) are free from any defects in materials and workmanship for a period of thirty (30) days from the date of your purchase and that any hardware accompanying the Programme is also free from defects to the extent provided in the attached Warranty Form. JVC’s entire liability and your exclusive remedy in connection with the Programme shall be, at JVC’s option, either (a) return of the price paid, or (b) replacement of defective Programme media.

What is MultiMediaNavigator? 5 What is JLIP ? 5 Major features 5 Operating Environment 6

NOTE: The Picture Navigator and JLIP Video Capture/Producer instruction manual is also included on the CD-ROM in PDF format. To open, double-click the file in the desired language. Note that Adobe® Acrobat® Reader must be installed to read PDF files. CAUTION: ● Operate this equipment according to the operating procedures described in this manual. ● Use only the provided CD-ROM. Never use any other CD-ROM to run this software. ● Do not attempt to modify this software. ● Changes or modifications not approved by JVC could void user’s authority to operate the equipment.

How to handle a CD-ROM ● Take care not to soil or scratch the mirror surface (opposite to the printed surface). Do not write anything or put a sticker on either the front or back surface. If the CD-ROM gets dirty, gently wipe it with a soft cloth outward from the centre hole using a circular motion. ● Do not use conventional disc cleaners or cleaning spray. ● Do not bend the CD-ROM or touch its mirror surface. ● Do not store your CD-ROM in a dusty, hot or humid environment. Keep it away from direct sunlight. ● The Readme.TXT file provides additional information for setup and information that is not included in the instruction manual. Please read the file before installing the provided software programme. ● You can find the latest information (in English) on the provided software programme at our world wide web server at http://www.jvc-victor.co.jp.

What is MultiMediaNavigator? MultiMediaNavigator is a set of application software that gives you creative control over recordings made with a video source unit. Using this software, you can transfer still images from the video source unit to a PC for editing, as well as control the video source unit from the PC.

What is JLIP ? JLIP* stands for Joint Level Interface Protocol, a new communication protocol which allows AV units equipped with a JLIP terminal to be controlled by a personal computer. is a registered trademark of JVC. *

Picture Navigator allows you to transfer still images between a video source unit and a PC via the RS-232C serial port. Captured images will be 640 x 480 pixels with 16.7 million colors.

n JLIP Video Capture

JLIP Video Capture allows you to capture still images from a video source unit to a PC via the RS-232C serial port.

n JLIP Video Producer

JLIP Video Producer allows you to control a video source unit from a PC. You can copy scenes from the video source unit to a VCR by setting In/Out points.

Personal Computer with Microsoft® Windows® 95/Windows® 98 CPU : Intel® Pentium® or higher processor Minimum RAM requirement : 32 MB Available Hard Disk space; MultiMediaNavigator : 20 MB or more Mr. Photo Gold : up to 140 MB or more (You can select which applications from Mr. Photo Gold you wish to install.) Color display capable of at least 65,536 colors Recommended 1024 x 768, 16.7 million colors 1 free serial transmission port, compatible with 9600 bps or higher transmission rate, connectable to RS-232C with 9 pin serial connector (Recommended compatible with UART 16550A) Mouse (Windows® compatible) CD-ROM drive

NOTE An optional 9 pin serial conversion adapter is required for computers using a serial communication port other than a standard 9 pin. * Intel® and Pentium® are either registered trademarks or trademarks of Intel Corporation. * Microsoft® and Windows® are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. * Other product and company names included in this instruction manual are trademarks and/or registered trademarks of their respective holders.

INSTALLATION For details on the basic operations of Windows® 95/98, please see your Windows® 95/98 or PC instruction manual.

Starting Windows® 95/98 • Quit any other software you are using. (Check that there are no other application icons on the task bar.) the supplied CD-ROM disc into 1 Insert the CD-ROM drive. • The SETUP window should appear after a few moments. • Perform the following operation if the setup window does not appear. 1 Double click My Computer. 2 Double click the CD-ROM icon. 3 Go to Step 2. Execute on the SETUP window. 2 •Click If the application has already been installed, click on those application items which do not need to be installed to remove the check mark displayed.

3 Follow the on-screen instructions. Quit on the SETUP window when 4 Click installation is complete.

n To assure safety, make sure all units are turned off before making any connections. n We recommend that you use the AC Power Adapter/Charger. n When connecting a cable with a core filter attached, be sure to plug the connector equipped with the core filter into the video camera. n Do not make any connections to the video camera’s DV OUT connector.

WHEN CONNECTED TO A VCR EQUIPPED WITH A JLIP JACK When JLIP Video Capture is used: PC connection cable

To COM port (RS-232C)

To AV jack Connect this if the video source unit has an S-Video input jack. White to

AUDIO L AUDIO/VIDEO cable NOTE: The JLIP cable can only be used with JVC VCRs equipped with a JLIP jack.

AUDIO R To JLIP jack VCR (Recording deck)

If your VCR has a SCART connector, use the cable adapter.

VIDEO NOTE: The JLIP cable is optional. Be sure to use the following: • JLIP cable: PEAC0453 Consult the JVC Service Center described on the sheet included in the package for details on their availability.

WHEN CONNECTED TO A VCR NOT EQUIPPED WITH A JLIP JACK When using a VCR not equipped with a JLIP jack, set your VCR brand using the remote control unit, then perform editing using the remote control.

When JLIP Video Capture is used: PC connection cable

To COM port (RS-232C)

Use the plug which has three yellow rings around the pin. PC To PC jack

To AV jack Connect this if the video source unit has an S-Video input jack.

Use the plug which has one black ring around the pin. To remote pause jack

If your VCR has a SCART connector, use the cable adapter.

VCR (Recording deck)

AUDIO L AUDIO/VIDEO cable

Connect here if the recording deck doesn’t have a remote pause jack.

EN NOTICE FOR USERS Use of this software is authorized according to the terms of the software licence. When contacting the nearest JVC office or agency in your country about this software (refer to the JVC Worldwide Service Network at http://www.jvc-victor.co.jp/english/ worldmap/index-e.html), please fill out the following and have the appropriate information ready. Product Name Model Problem Error Message Manufacturer Model

MB Available Hard Disk Space

MB Please note that it may take some time to respond to your questions, depending on their subject matter.

JVC cannot answer questions regarding specifications or performance of provided NewSoft products, or basic operation of your PC.

Mr. Photo Gold: Presto! Mr. Photo Presto! PhotoAlbum Presto! ImageFolio For Windows

* Please consult your nearest NewSoft service centre for technical support. (see next page)

Copyright © 1997-1999, NewSoft Technology Corp. All Rights Reserved.

EN Mr. Photo stores and catalogues all of your valuable photos. You can sort photos and film “rolls” by date and title, or search by keyword, date, and other image properties. Then drag-and-drop photos to the Application Bar to create photo masterpieces using ready-made templates or design electronic photo albums. Click the Slide Show icon to view selected photos in a “roll” of film, or drag-and-drop a photo to the E-mail icon to send it to family and friends.

● ● ● ● ● ● ● ● ● ● ● ● ● ●

Acquire photos from digital cameras, scanners, floppy disks, PhotoCDs, and the Internet. Catalogue photos in “rolls” of film that you can customize and rearrange. Enhance photos instantly (remove red-eye, adjust brightness/contract, blur/sharpen). Drag-and-drop photos to print, e-mail, create HTML slide shows, or post on the Internet. Drag-and-drop photos to other applications for further editing or creative projects. Save photos as a screen saver or as wallpaper. Print stickers, labels, and photo catalogues. Support for EXIF 1.0, 2.0, 2.1, and 2.1(R98) file formats. Display and play attached audio files. EXIF page photo property Examine information for EXIF files: shooting time, exposure time, etc. Easy access to other applications Communicate with other applications without leaving Mr. Photo. Presto! PhotoComposer Combine photos. Put people and scenery together to create brand new masterpieces. Presto! Panorama Visit a museum, walk through real estate, go sightseeing at a famous landmark — all inside a panorama from photos you personally stitch together. Presto! PrintFun Single or batch printing for stickers, labels, photo catalogs -- on custom sized paper.

● Digital Camera plus digital camera software. ● Scanner, if you intend to scan photos. ● A PC with at least a 486 microprocessor (a Pentium processor is recommended) and 16 MB RAM.

● Recommend at least 30 MB of hard disk space available after installation. Mr. ● ●

Photo will need this space to work in. A CD-ROM drive to load Mr. Photo. Super VGA display card.

NOTE: The Mr. Photo Gold software can only be used with JVC digital video cameras in conjunction with the JLIP Video Capture software

Presto! PhotoAlbum EN Presto! PhotoAlbum helps you create electronic photo albums that keep your memories alive forever. Just drag-and-drop photos, frames, clip art, textures, and special effects. You can also personalize your albums with voice-overs and sound effects, then produce album slide shows to post to the Internet or send completed albums by e-mail. Features

Scan or import your photos from digital cameras and scanners. Auto colour correction for input photos. Drag-and-drop easy-editing operation. Photo Browser with thumbnail views of photos. Share albums with an Internet Browser. Library of over 500 pieces of clip art for decoration. Sound attachment with albums, pages and photos. Independent album playback support. Supports popular file formats: TIF, PCX, BMP, TGA, JPG, PCD, WMF, FPX, PNG, etc.

● An IBM PC 486, Pentium or compatible computer. ● A CD-ROM drive. ● A hard disk drive with at least 50 MB space available to hold and run the programme effectively.

● At least 16 MB of RAM (preferably 32 MB). ● MS Windows 95, 98 or Windows NT 4.0. Recommended System Requirements

● A sound card with a microphone. ● A colour printer. ● A network browser such as Internet Explorer 3.0 or Netscape Navigator 3.0, or later.

EN ImageFolio is a comprehensive multimedia image processing programme running under MS Windows 95, 98 or Windows NT. It enables you to process in detail on your computer screen scanned images such as photographs, graphics and drawings, as well as images captured from video devices such as a VCR, a laser disc, a digital camera, a video capture box, etc. You can create new images by using the powerful tools included in the software. Its sophisticated set of image editing tools enables you to quickly sketch an image canvas in order to create a new image, or to enhance pre-existing ones. With this software, your imagination is your only limit!

Features Image Input ● Captures images from flatbed/hand scanner, digital camera, capture box, etc.

● Auto & Semi-auto image stitching for inputting large-sized images. ● Loading/saving images with various popular file formats such as TIF, PCX, BMP, TGA, JPG, PCD, WMF, PNG, etc.

● New Flash Pix format support. Image Output ● Print colour-adjustment variations for examining the printing effect before actual printing.

● OLE 2.0 support for stand-alone editing mode. ● Easy artwork design for home page production and HTML applications. Image Editing and Processing ● Multiple-layer single document for complicated object organization.

● Drag-and-drop floating images among documents (moving a selected area to new or other canvases).

● Precise colour selection by setting colour channels or choosing from a palette. ● Complete drawing and painting set of tools to work on images such as line, paint-

brush, airbrush, colour gradation, eraser, zoom, text, eyedropper, free-hand rotate, hue/saturation brush, brightness/darkness brush, blur/sharpen brush, image hose, etc.

Definable image hose tool for quick insertion of image set on canvas. Anti-alias feature with all graphic tools to enhance the drawing effect. Full selection tools for easy masking of irregularities in objects. Creating magic 3D effects with definable light source for selected objects with one touch.

Presto! ImageFolio (cont.) EN Generating object shadows in selectable light directions with one touch.

● ● Elegant templates provided for easy applications of daily-life photo usage. ● Image fine-tuning functions to adjust brightness, contrast, hue, saturation, tone distribution (equalization) and so on.

● Multiple filters to produce special effects such as smooth, sharpen, edge detection, emboss and mosaic.

● Effect browser providing previews in actual size of image, processed with all the fine-tuning functions and filters.

● 16- and 32- bit Adobe™ plug-in filter interface support. System Requirements The following hardware devices and software are required to run the software: ● An IBM PC 486, Pentium or compatible computer.

● One CD-ROM drive. ● One hard disk drive with at least 60 MB space available to hold and run the programme effectively.

● At least 8 MB of RAM (preferably 16 MB). ● MS Windows 95, 98 or Windows NT. To make fully efficient use of the programme, the following additional hardware and software elements are highly recommended: ● 50 MB or more of virtual memory.

● A colour printer supported by MS Windows 95.
