USER MANUAL ED-A100 HITACHI

ED-A100/ED-A110/CP-A100W

User's Manual (detailed)

Operating Guide

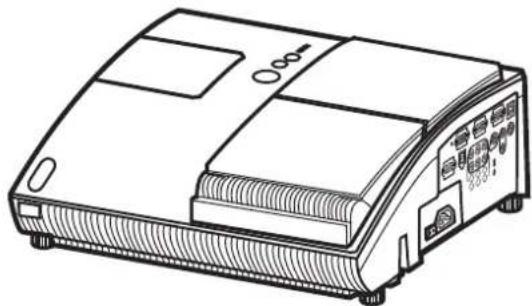

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

Thank you for purchasing this projector.

⚠ WARNING ▶ Before using this product, please read all manuals for this product. Be sure to read “Safety Guide” first. After reading them, store them in a safe place for future reference.

About this manual

Various symbols are used in this manual. The meanings of these symbols are described below.

⚠ WARNING This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

⚠️ CAUTION This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Please refer to the pages written following this symbol.

NOTE • The information in this manual is subject to change without notice.

- The manufacturer assumes no responsibility for any errors that may appear in this manual.

- The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Trademark acknowledgment

• Mac is registered trademarks of Apple Computer, Inc.
• VESA and SVGA are trademarks of the Video Electronics Standard Association.
- Windows is a registered trademark of Microsoft Corporation.
All other trademarks are the properties of their respective owners.

Projector

User's Manual - Safety Guide

Thank you for purchasing this projector.

WARNING • Before using, read these user's manuals of this projector to ensure correct usage through understanding. After reading, store them in a safe place for future reference. Incorrect handling of this product could possibly result in personal injury or physical damage. The manufacturer assumes no responsibility for any damage caused by mishandling that is beyond normal usage defined in these manuals of this projector.

NOTE • The information in this manual is subject to change without notice.

• The manufacturer assumes no responsibility for any errors that may appear in this manual.
• The reproduction, transmission or use of this document or contents is not permitted without express written authority.

About The Symbols

Various symbols are used in this manual, the user's manual and on the product itself to ensure correct usage, to prevent danger to the user and others, and to prevent property damage. The meanings of these symbols are described below. It is important that you read these descriptions thoroughly and fully understand the contents.

	WARNING	This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.
	CAUTION	This symbol indicates information that, if ignored, could result possibly in personal injury or physical damage due to incorrect handling.

Typical Symbols

This symbol indicates an additional warning (including cautions). An illustration is provided to clarify the contents.

This symbol indicates a prohibited action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left indicates that disassembly is prohibited).

This symbol indicates a compulsory action. The contents will be clearly indicated in an illustration or nearby (the symbol to the left indicates that the power plug should be disconnected from the power outlet).

Safety Precautions

WARNING

Never use the projector if a problem should occur.

Abnormal operations such as smoke, strange odor, no image, no sound, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. can cause a fire or electrical shock.

In such case, immediately turn off the power switch and then disconnect the power plug from the power outlet. After making sure that the smoke or odor has stopped, contact your dealer. Never attempt to make repairs yourself because this could be dangerous.

- The power outlet should be close to the projector and easily accessible.

Use special caution for children and pets.

Incorrect handling could result in fire, electrical shock, injury, burn or vision problem.

Use special caution in households where children and pets are present.

Do not insert liquids or foreign object.

Penetration of liquids or foreign objects could result in fire or electrical shock.

Use special caution in households where children are present.

If liquids or foreign object should enter the projector, immediately turn off the power switch, disconnect the power plug from the power outlet and contact your dealer.

• Do not place the projector near water (ex. a bathroom, a beach, etc.).
• Do not expose the projector to rain or moisture. Do not place the projector outdoors.
• Do not place flower vases, pots, cups, cosmetics, liquids such as water, etc on or around the projector.
• Do not place metals, combustibles, etc on or around the projector.
• To avoid penetration of foreign objects, do not put the projector into a case or bag together with any thing except the accessories of the projector, signal cables and connectors.

Never disassemble and modify.

The projector contains high voltage components. Modification and/or disassembly of the projector or accessories could result in fire or electrical shock.

- Never open the cabinet.

- Ask your dealer to repair and clean insider.

Do not give the projector any shock or impact.

If the projector should be shocked and/or broken, it could result in an injury, and continued use could result in fire or electrical shock.

If the projector is shocked, immediately turn off the power switch, disconnect the power plug from the power outlet and contact your dealer.

Do not place the projector on an unstable surface.

If the projector should be dropped and/or broken, it could result in an injury, and continued use could result in fire or electrical shock.

- Do not place the projector on an unstable, slant or vibrant surface such as a wobbly or inclined stand.

- Use the caster brakes placing the projector on a stand with casters.

- Do not place the projector in the side up position, the lens up position or the lens down position.

- In the case of a ceiling installation or the like, contact your dealer before installation.

Disconnect the plug from the power outlet.

Do not disassemble.

Safety Precautions (continued)

WARNING

Be cautious of High temperatures of the projector.

High temperatures are generated when the lamp is lit. It could result in fire or burn. Use special caution in households where children are present.

Do not touch about the lens, air fans and ventilation openings during use or immediately after use, to prevent a burn. Take care of ventilation.

• Keep a space of 30~cm or more between the sides and other objects such as walls.
• Do not place the projector on a metallic table or anything weak in heat.
• Do not place anything about the lens, air fans and ventilation openings of the projector.
• Never block the air fan and ventilation openings.
• Do not cover the projector with a tablecloth, etc.
• Do not place the projector on a carpet or bedding.

Never look through the lens or openings when the lamp is on.

The powerful light could adversely affect vision.

Use special caution in households where children are present.

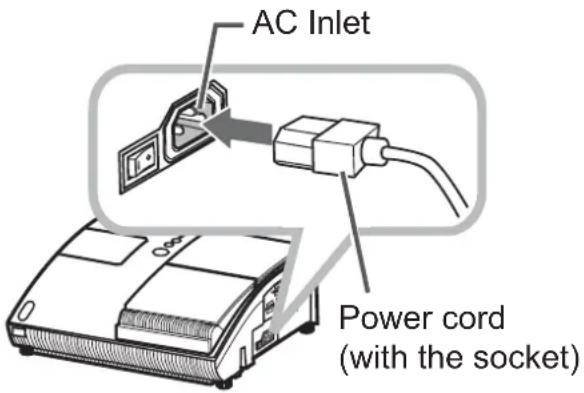

Use only the correct power cord and the correct power outlet.

Incorrect power supply could result in fire or electrical shock.

• Use only the correct power outlet depending on the indication on the projector and the safety standard.
• The enclosed power cord must be used depending on the power outlet to be used.

Be cautious of the power cord connection.

Incorrect connection of the power cord could result in fire or electrical shock.

• Do not touch the power cord with a wet hand.
• Check that the connecting portion of the power cord is clean (with no dust), before using. Use a soft and dry cloth to clean the power plug.
• Insert the power plug into a power outlet firmly. Avoid using a loose, unsound outlet or contact failure.

Be sure to connect with ground wire.

Connect the ground terminal of AC inlet of this unit with the ground terminal provided at the building using the correct power cord; otherwise, fire or electric shock can result.

- Don't take the core of power cord away.

Surely connect the ground wire.

Safety Precautions (continued)

WARNING

Be careful in handling the light source lamp.

The projector uses a high-pressure mercury glass lamp made of glass. The lamp can break with a loud bang, or burn out. When the bulb bursts, it is possible for shards of glass to fly into the lamp housing, and for gas containing mercury to escape from the projector's vent holes.

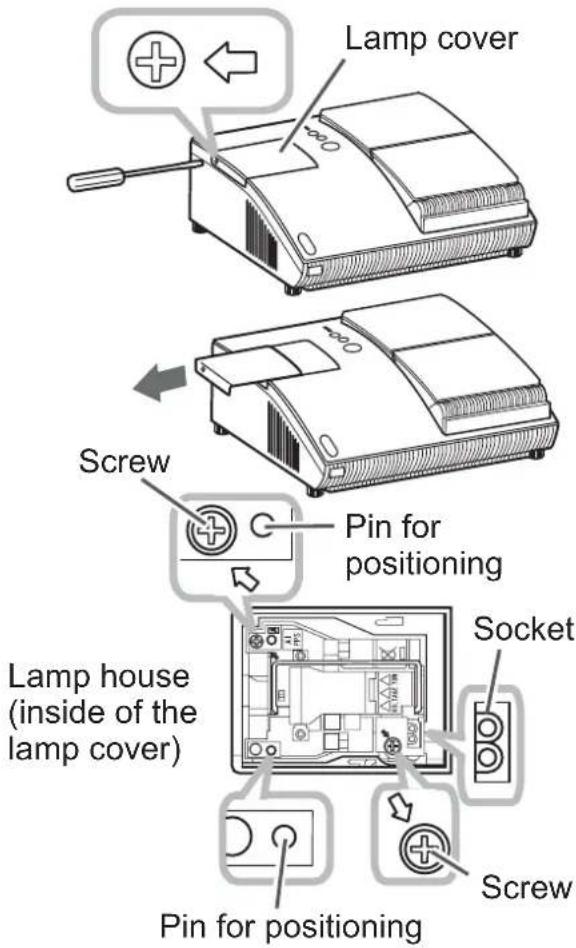

Please carefully read the section "Lamp".

Be careful in handling the power cord and external connection cables.

If you keep using a damaged the power cord or cables, it can cause a fire or electrical shock. Do not apply too much heat, pressure or tension to the power cord and cables.

If the power cord or cables is damaged (exposed or broken core wires, etc.), contact your dealer.

• Do not place the projector or heavy objects on the power cord and cables. Also, do not place a spread, cover, etc, over them because this could result in the inadvertent placing of heavy objects on the concealed power cord or cables.
• Do not pull the power cord and cables. When connecting and disconnecting the power cord or cables, do it with your hand holding the plug or connector.
• Do not place the cord near the heater.
• Avoid bending the power cord sharply.
• Do not attempt to work on the power cord.

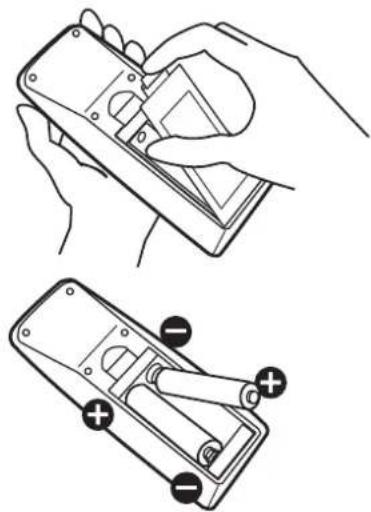

Be careful in handling the battery of the remote control.

Incorrect handling of the battery could result in fire or personal injury. The battery may explode if not handled properly.

• Keep the battery away from children and pets. If swallowed consult a physician immediately for emergency treatment.
• Do not allow the battery in a fire or water.
• Avoid fire or high-temperature environment.
• Do not hold the battery with the metallic tweezers.
• Keep the battery in a dark, cool and dry play.
• Do not short circuit the battery.
• Do not recharge, disassemble or solder the battery.
• Do not give the battery a physical impact.
• Use only the battery specified in the other manual of this projector.
• Make sure the plus and minus terminals are correctly aligned when loading the battery.
• If you observe a leakage of the battery, wipe out the flower and then replace the battery. If the flower adheres your body or clothes, rinse well with water.
• Obey the local laws on disposing the battery.

Safety Precautions (continued)

CAUTION

Be careful in moving the projector.

Neglect could result in an injury or damage.

• Do not move the projector during use. Before moving, disconnect the power cord and all external connections, and close the slide lens door or attach the lens cap.
• Avoid any impact or shock to the projector.
• Do not drag the projector.
• For moving the projector, use the enclosed case or bag if provided.

Do not put anything on top of the projector.

Placing anything on the projector could result in loss of balance or falling, and cause an injury or damage. Use special caution in households where children are present.

Do not attach anything other than specified things to the projector.

Neglect could result in an injury or damage.

- Some projector has a screw thread in a lens part. Do not attach anything other than specified options (such as conversion lens) to the screw thread.

Avoid a smoky, humid or dusty place.

Placing the projector in a smoke, a highly humid, dusty place, oily soot or corrosive gas could result in fire or electrical shock.

• Do not place the projector near a smoky, humid or dusty place (ex. a smoking space, a kitchen, a beach, etc.). Do not place the projector outdoors.
• Do not use a humidifier near the projector.

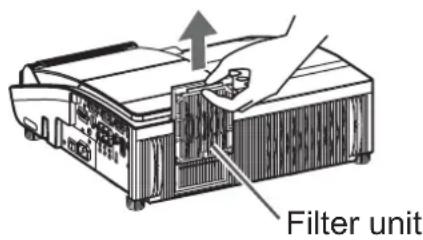

Take care of the air filter to normal ventilate.

The air filter should be cleaned periodically. If the air filter becomes clogged by dust or the like, internal temperature rises and could cause malfunction. The projector may display the message such as “CHECK THE AIR FLOW” or turn off the projector, to prevent the internal heat level rising.

• When the indicators or a message prompts you to clean the air filter, clean the air filter as soon as possible.
• If the soiling will not come off the air filter, or it becomes damaged, replace the air filter.
• Use the air filter of the specified type only. Please order the air filter specified in the other manual of this projector to your dealer.
• When you replace the lamp, replace also the air filter. The air filter may be attached when you buy a replacement lamp for this projector.
• Do not turn on the projector without air filter.

Avoid a high temperature environment.

The heat could have adverse influence on the cabinet of the projector and other parts. Do not place the projector, the remote control and other parts in direct sunlight or near a hot object such as heater, etc.

Avoid Magnetism.

Manufacture strongly recommends to avoid any magnetic contact that is not shielded or protected on or near the projector itself. (ie., Magnetic Security Devices, or other projector accessory that contains magnetic material that has not been provided by the manufacture etc.) Magnetic objects may cause interruption of the projector's internal mechanical performance which may interfere with cooling fans speed or stopping, and may cause the projector to completely shut down.

Safety Precautions (continued)

CAUTION

Remove the power cord for complete separation.

• For safety purposes, disconnect the power cord if the projector is not to be used for prolonged periods of time.
• Before cleaning, turn off and unplug the projector. Neglect could result in fire or electrical shock.

Ask your dealer to cleaning inside of the projector about every year.

Accumulations of dust inside the projector cause result in fire or malfunction. Cleaning inside is more effective if performed before every humid periods such as rainy season.

- Do not clean inside yourself because it is dangerous.

Disconnect the plug from the power outlet.

NOTE

Do not give the remote control any physical impact.

A physical impact could cause damage or malfunction of the remote control.

• Take care not to drop the remote control.
- Do not place the projector or heavy objects on the remote control.

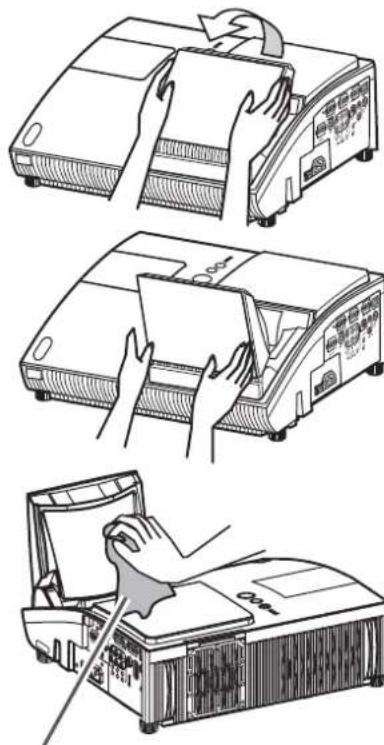

Take care of the lens.

• Close the slide lens door or attach the lens cap to prevent the lens surface being scratched when the projector is not used.
• Do not touch the lens to prevent fog or dirt of the lens that cause deterioration of display quality.
• Use commercially available lens tissue to clean the lens (used to clean cameras, eyeglasses, etc.). Be careful not to scratch the lens with hard objects.

Take care of the cabinet and the remote control.

Incorrect care could have adverse influence such as discoloration, peeling paint, etc.

• Use a soft cloth to clean the cabinet and control panel of the projector and the remote control. When excessively soiled dilute a neutral detergent in water, wet and wring out the soft cloth and afterward wipe with a dry soft cloth. Do not use undiluted detergent directly.
• Do not use an aerosol sprays, solvents, volatile substances or abrasive cleaner.
• Before using chemical wipes, be sure to read and observe the instructions.
• Do not allow long-term close contact with rubber or vinyl.

About bright spots or dark spots.

Although bright spots or dark spots may appear on the screen, this is a unique characteristic of liquid crystal displays, and such do not constitute or imply a machine defect.

Be careful of printing of the LCD panel.

If the projector continues projecting a still image, inactive images or 16:9 aspect images in case of 4:3 panel, etc., for long time, the LCD panel might possibly be printed.

Safety Precautions (continued)

NOTE

About consumables.

Lamp, LCD panels, polarizers and other optical components, and air filter and cooling fans have a different lifetime in each. These parts may need to be replaced after a long usage time.

• This product isn't designed for continuous use of long time. In the case of continuous use for 6 hours or more, or use for 6 hours or more every day (even if it isn't continuous), or repetitious use, the lifetime may be shortened, and these parts may need to be replaced even if one year has not passed since the beginning of using.
• Any inclining use beyond the adjustment range explained in these user's manuals may shorten the lifetimes of the consumables.

Before turning on the power, make the projector cool down adequately.

After turning the projector off, pushing the restart switch or interrupting of the power supply, make the projector cool down adequately. Operation in a high temperature state of the projector causes a damage of the electrode and un-lighting of the lamp.

Avoid strong rays.

Any strong ray (such as direct rays of the sun or room lighting) onto the remote control sensors could invalidate the remote control.

Avoid radio interference.

Any interfering radiation could cause disordered image or noises.

- Avoid radio generator such as a mobile telephone, transceiver, etc. around the projector.

About displaying characteristic.

The display condition of the projector (such as color, contrast, etc.) depends on characteristic of the screen, because the projector uses a liquid crystal display panel. The display condition can differ from the display of CRT.

- Do not use a polarized screen. It can cause red image.

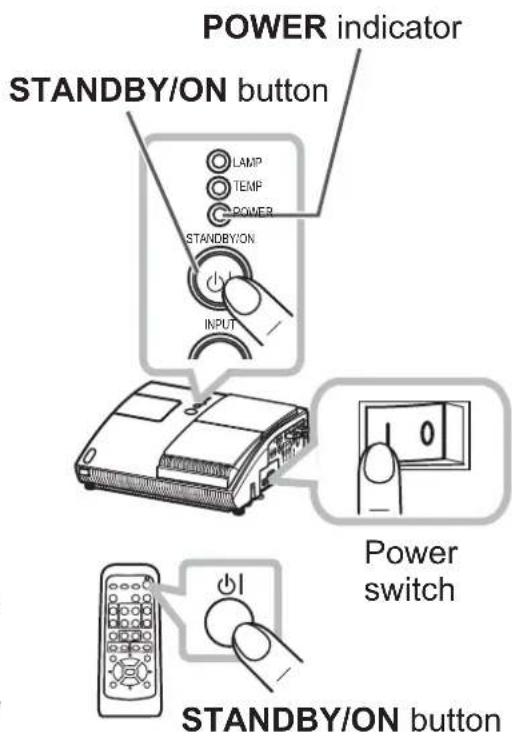

Turn the power on/off in right order.

To prevent any trouble, turn on/off the projector in right order mentioned below unless specifying.

- Power on the projector before the computer or video tape recorder.

- Power off the projector after the computer or video tape recorder.

Take care not to fatigue your eyes.

Rest the eyes periodically.

Set the sound volume at a suitable level to avoid bothering other people.

- It is better to keep the volume level low and close the windows at night to protect the neighborhood environment.

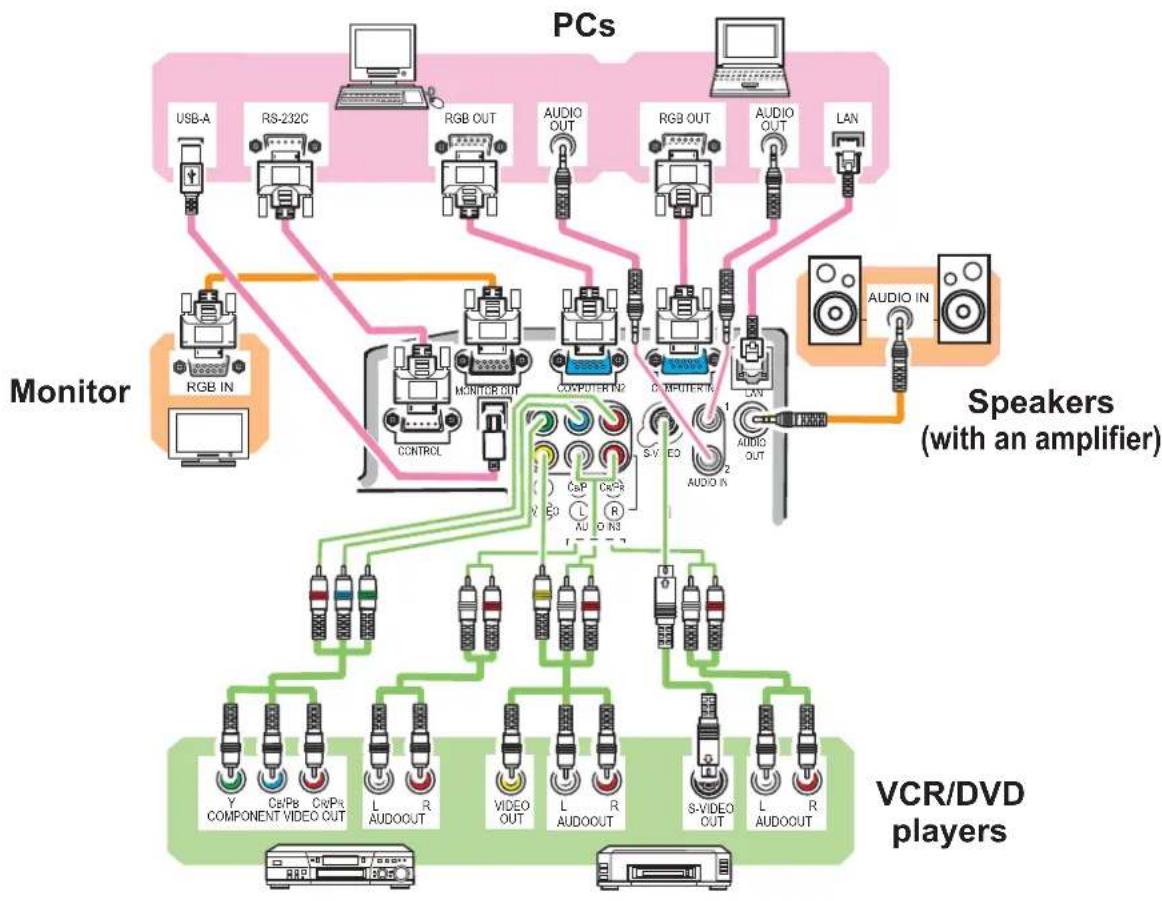

Connecting with notebook computer

When connecting with notebook computer, set to valid the RGB external image output (setting CRT display or simultaneous display of LCD and CRT).

Please read instruction manual of the notebook for more information.

Lamp

WARNING

HIGH VOLTAGE

HIGH TEMPERATURE

HIGH PRESSURE

The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. In addition, when the bulb bursts, it is possible for shards of glass to fly into the lamp housing, and for gas containing mercury to escape from the projector's vent holes.

About disposal of a lamp • This product contains a mercury lamp; do not put in trash. Dispose of in accord with environmental laws. For lamp recycling, go to www.lamprecycle.org. (in USA) For product disposal, contact your local government agency or www.eiae.org (in the US) or www.epsc.ca (in Canada). For more information, call your dealer.

Disconnect the plug from the power outlet

• If the lamp should break (it will make a loud bang when it does), unplug the power cord from the outlet, and make sure to request a replacement lamp from your local dealer. Note that shards of glass could damage the projector's internals, or cause injury during handling, so please do not try to clean the projector or replace the lamp yourself.
• If the lamp should break (it will make a loud bang when it does), ventilate the room well, and make sure not to breathe the gas that comes out of the projector vents, or get it in your eyes or mouth.
• Before replacing the lamp, make sure the power switch is off and the power cable is not plugged in, then wait at least 45 minutes for the lamp to cool sufficiently. Handling the lamp while hot can cause burns, as well as damaging the lamp.

- Do not open the lamp cover while the projector is suspended from above. This is dangerous, since if the lamp's bulb has broken, the shards will fall out when the cover is opened. In addition, working in high places is dangerous, so ask your local dealer to have the lamp replaced even if the bulb is not broken.

- Do not use the projector with the lamp cover removed. At the lamp replacing, make sure that the screws are screwed in firmly. Loose screws could result in damage or injury.

- Use the lamp of the specified type only. - If the lamp breaks soon after the first time it is used, it is possible that there are electrical problems elsewhere besides the lamp. If this happens, contact your local dealer or a service representative.

- Handle with care: jolting or scratching could cause the lamp bulb to burst during use.

- Using the lamp for long periods of time, could cause it dark, not to light up or to burst. When the pictures appear dark, or when the color tone is poor, please replace the lamp as soon as possible. Do not use old (used) lamps; this is a cause of breakage.

Regulatory Notices

FCC Statement Warning

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WARNING: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

INSTRUCTIONS TO USERS: This equipment complies with the requirements of FCC (Federal Communication Commission) equipment provided that the following conditions are met. Some cables have to be used with the core set. Use the accessory cable or a designated-type cable for the connection. For cables that have a core only at one end, connect the core to the projector.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

For the Customers in CANADA

NOTICE: This Class B digital apparatus complies with Canadian ICES-003.

Warranty And After-Service

Unless seen any abnormal operations (mentioned with the first paragraph of WARNING in this manual), when a problem occurs with the equipment, first refer to the “Troubleshooting” section of the “Operating Guide”, and run through the suggested checks. If this does not resolve the problem contact your dealer or service company. They will tell you what warranty condition is applied.

Contents

[Non-Text]

[Non-Text]

About this manual.....1

Contents 2

Projector features.....3

Preparations .... 3

Contents of package .... 3

Part names ..... 4

Projector. 4

Control buttons . . . . . . . . . . . . . . . . 5

Ports. 5

Remote control . 6

Setting up 7

Arrangement 7

Connecting with your devices ..... 10

Connecting with a power supply . . .

Using the security bar and slot . . . .

Using the cable cover ..... 13

Remote control ..... 1

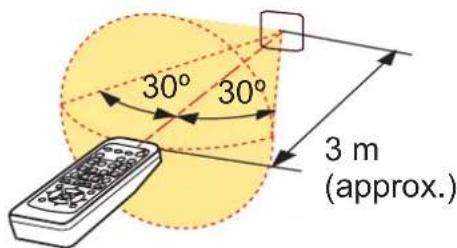

Preparing for the remote control . . . 1

Changing the frequency of remote control signal . 15

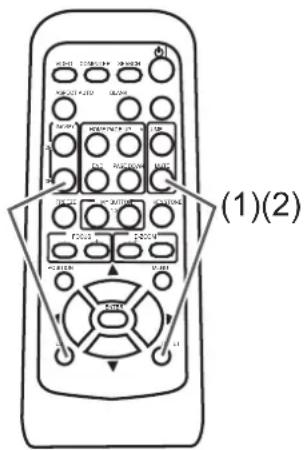

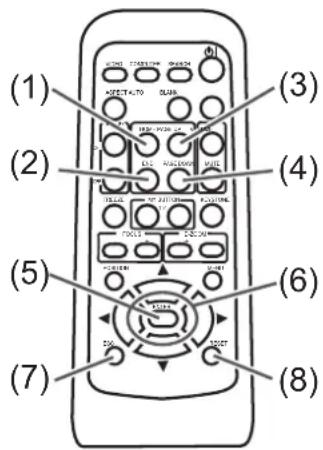

Using as a simple PC mouse & keyboard . 15

Power on/off 16

Turning on the power . . . . . . . . . 16

Turn off the power 17

Operating 18

Adjusting the volume. 18

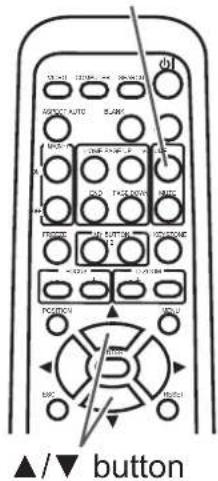

Temporarily muting the sound.....18

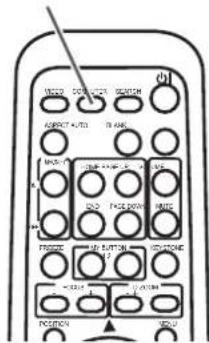

Selecting an input signal ..... 18

Searching an input signal ..... 19

Selecting an aspect ratio.....19

Adjusting the projection position . . . 2

Adjusting the zoom ..... 20

Adjusting the picture position . . . . 20

Adjusting the focus . . . . . . . . . . . 21

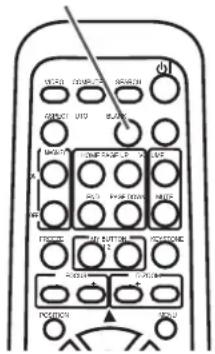

Using the automatic adjustment feature . 21

Correcting the keystone distortions . 22

Using the magnify feature ..... 22

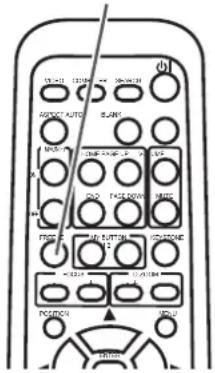

Freezing the screen . . . . . . . . . . 23

Temporarily blanking the screen . . . 2

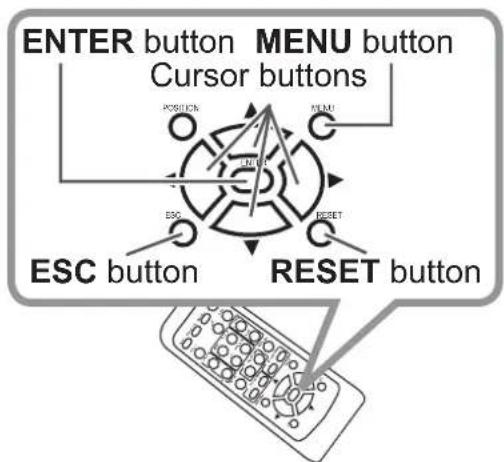

Using the menu function ..... 24

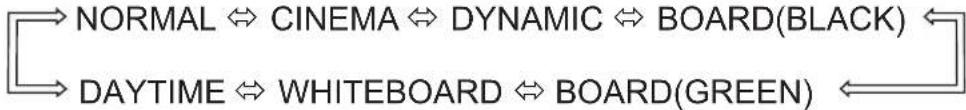

EASY MENU....2

ASPECT, D-ZOOM, KEYSTONE ☐,

PICTURE MODE, BRIGHTNESS, CONTRAST,

COLOR, TINT, SHARPNESS, WHISPER,

MIRROR, RESET, FILTER TIME,

LANGUAGE, Go to Advanced Menu...

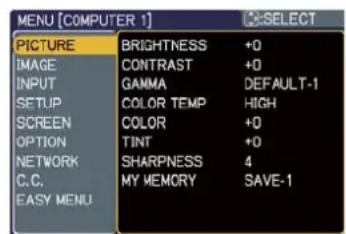

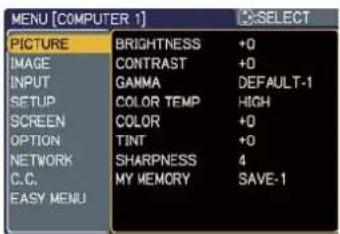

PICTURE Menu 28

BRIGHTNESS, CONTRAST, GAMMA,

COLOR TEMP, COLOR, TINT,

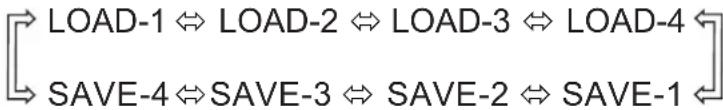

SHARPNESS, MY MEMORY

IMAGE Menu .... 3 1

ASPECT, OVER SCAN, V POSITION,

H POSITION, H PHASE, H SIZE,

AUTO ADJUST EXECUTE

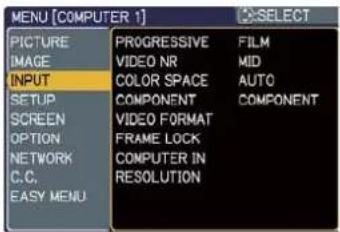

INPUT Menu 33

PROGRESSIVE, VIDEO NR, COLOR SPACE,

COMPONENT, VIDEO FORMAT, FRAME LOCK,

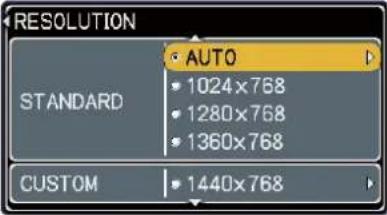

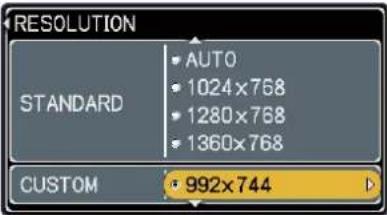

COMPUTER IN, RESOLUTION

SETUP Menu 36

D-zOOM, D-SHIFT V, D-SHIFT H,

KEystone ☐, WHISPER, MIRROR,

VOLUME, SPEAKER, AUDIO

SCREEN Menu....38

LANGUAGE, MENU POSITION, BLANK,

STARTUP, MyScreen, MyScreen Lock,

MESSAGE, SOURCE NAME

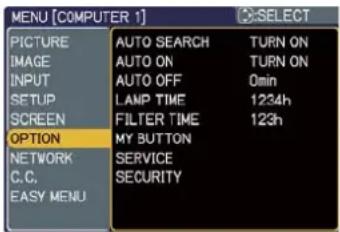

OPTION Menu 42

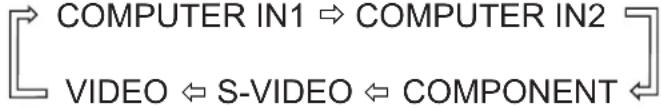

AUTO SEARCH, AUTO ON, AUTO OFF,

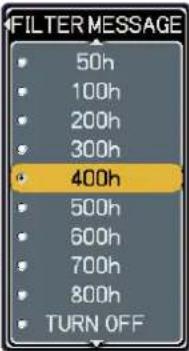

LAMP TIME, FILTER TIME, MY BUTTON,

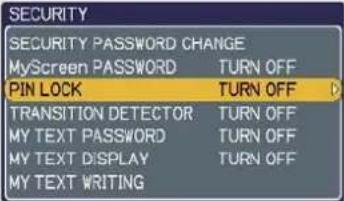

SERVICE, SECURITY

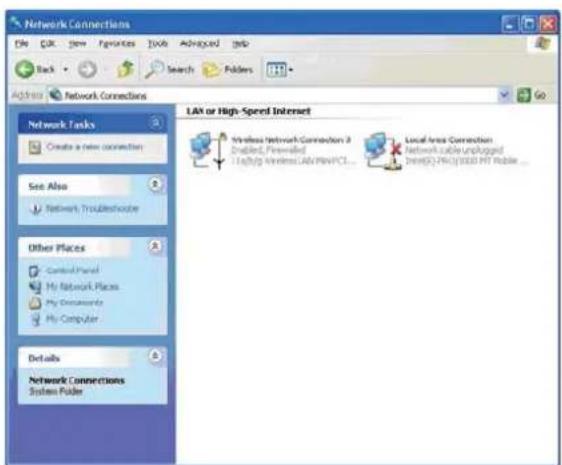

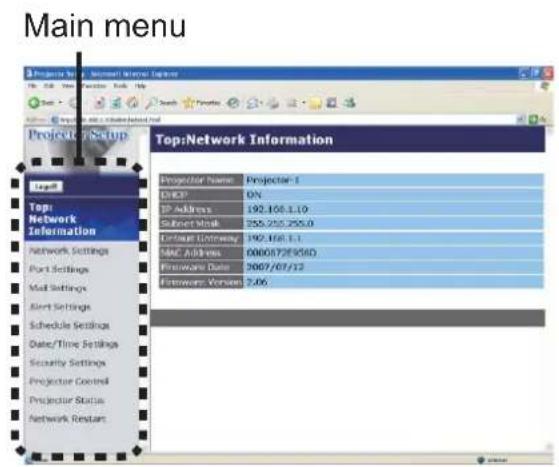

NETWORK Menu .... 5 5

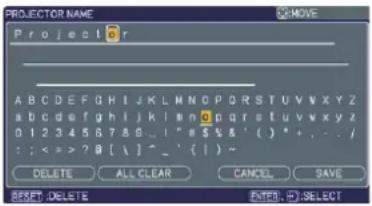

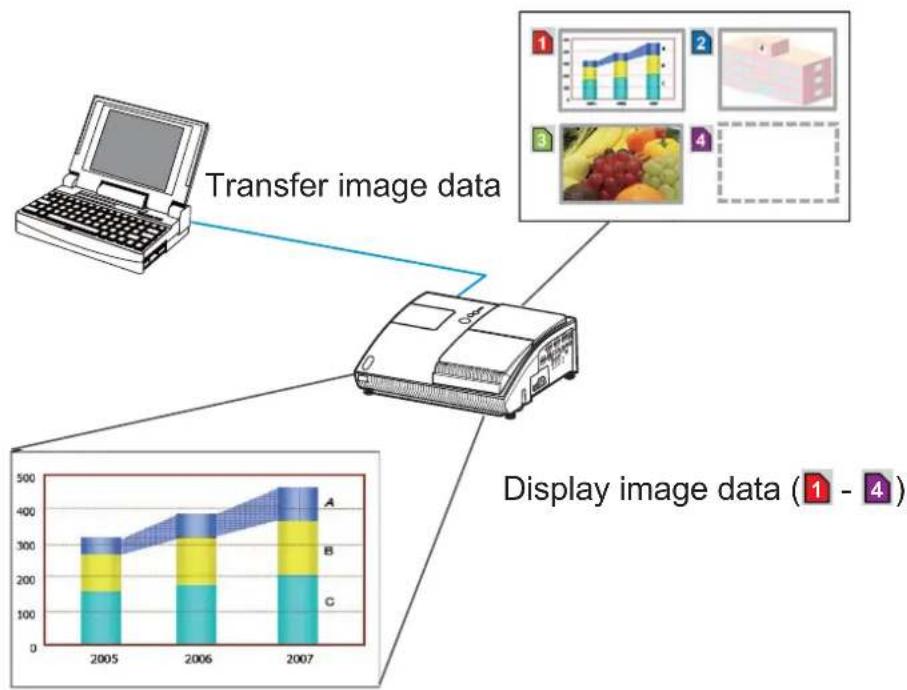

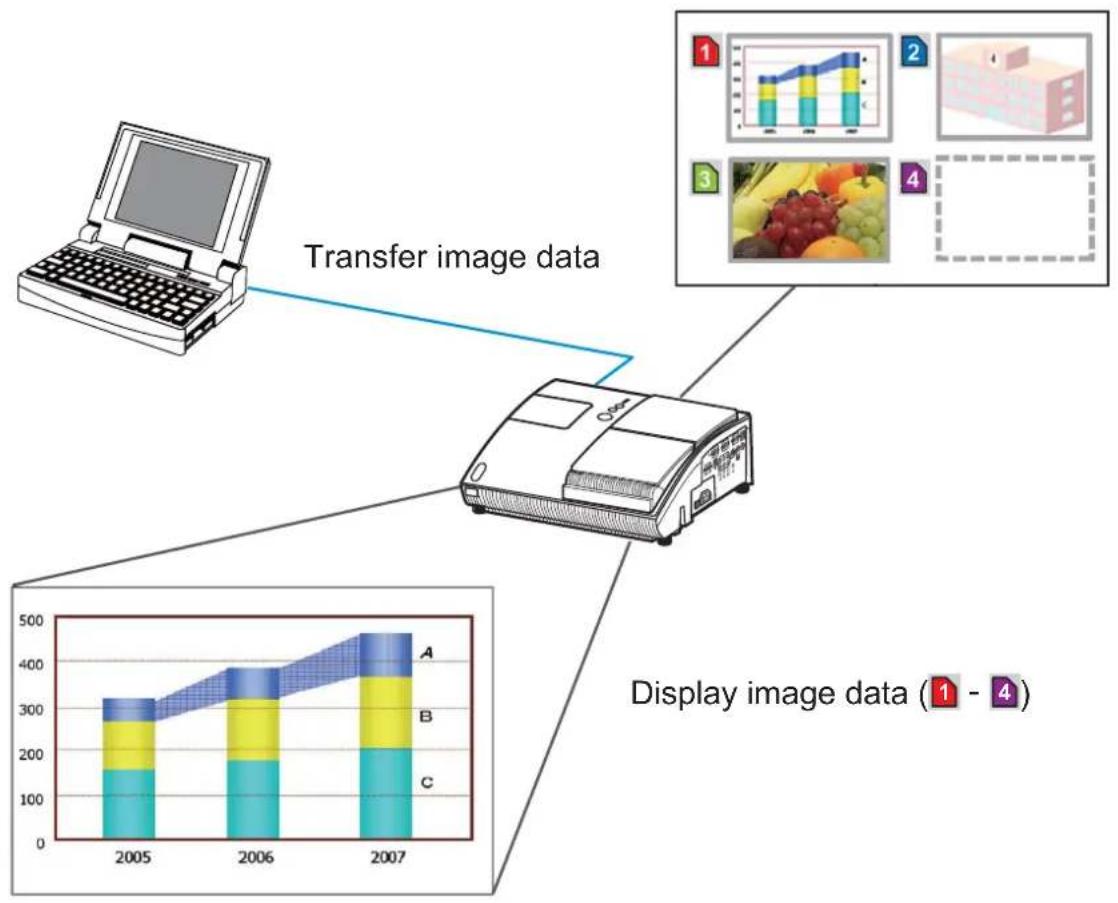

SETUP, PROJECTOR NAME, e-SHOT,

INFORMATION, SERVICE

C.C. (Closed Caption) Menu .. 60

DISPLAY, MODE, CHANNEL

Maintenance 61

Replacing the lamp 61

Maintaining the air-filter....63

Replacing the clock battery.....65

Caring for the mirror and lens ..... 66

Other care 67

Troubleshooting 68

Related messages ..... 68

Regarding the indicator lamps . . . . 69

Shutting the projector down ..... 70

Resetting all settings....70

Phenomena that may be easy

to be mistaken for machine defects. . 71

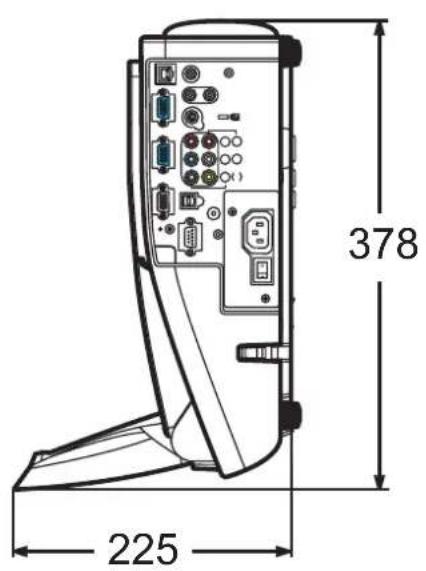

Specifications....74

Projector features

This product realizes the large projection image of various image signals, even if in a small space. This product can offer you convenience and various uses by the following features.

√ The unique lens and mirror system realizes ultra short distance projection, which gives you more various way of use.
√ The motorized lens door offers you very simple use of the projector.
√ This projector can be controlled and monitored via LAN connection.

Preparations

Contents of package

Please see the “Checking the contents” section in the User’s Manual (concise) which is a book. Your projector should come with the items shown there. Contact immediately your dealer if anything is missing.

NOTE • Keep the original packing materials, for future reshipment. Be sure to use the original packing materials when moving the projector. Use special caution for the lens.

Part names

Projector

(1) Control buttons (See the following page.)
(2) Lamp cover (61)
(3) Remote sensors (14)
(4) Speaker (37)
(5) Exhaust vents
(6) Lens door (16, 66)
(7) Ports (5, 10)
(8) AC inlet (12)
(9) Power switch (16)
(10) Security bar (13)
(11) Intake vents
(12) Filter unit (63)
(13) Elevator feet (20)
(14) Battery cover (65)
(15) Internal threads These are threads for optional mounting accessories.
(16) Lens (16, 66)
(17) Mirror (16, 66)

⚠ WARNING ▶ Be careful not to pinch your finger with the lens door, to prevent an injury.

▶ Never look into the projection lens or mirror while the projection lamp lights, since the projection lamp ray may cause a trouble on your eyes.

⚠ CAUTION ▶ Do not touch the lamp cover or approach the exhaust vents while using the projector and for a while after use, to prevent a burn.

▶ Do not cover, block, or plug up the vents to keep normal ventilation. Do not place anything that can stick or be sucked to the vents, around the intake vents.

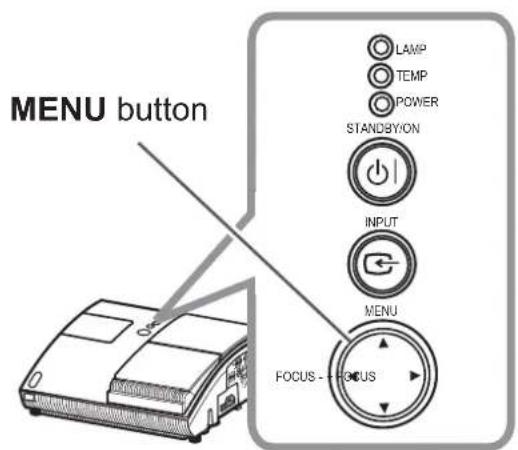

Control buttons

(1) LAMP indicator (69)
(2) TEMP indicator (69)
(3) POWER indicator (16, 17, 69)
(4) STANDBY/ON button (16, 17)
(5) INPUT button (18)
(6) FOCUS +/- buttons when no menu is displayed (21), or Cursor ▶, ▶ buttons when a menu is displayed (24).
(7) MENU buttons when no menu is displayed (24), or Cursor ▲, ▼ buttons when a menu is displayed (24).

(1) LAMP (2) TEMP (3) POWER STANDBY/ON (4) INPUT (5) MENU (6) (7) FOCUS - FOCUS

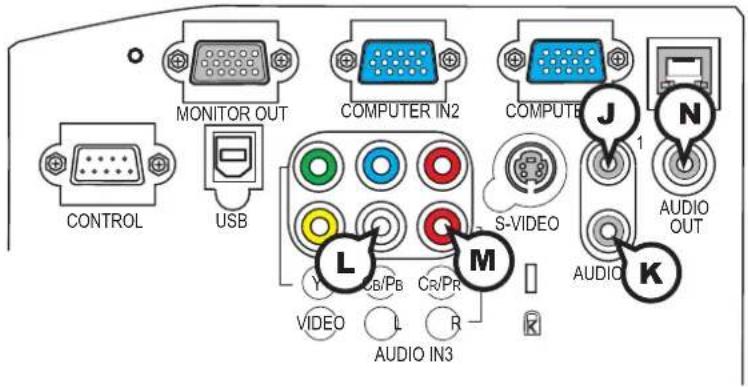

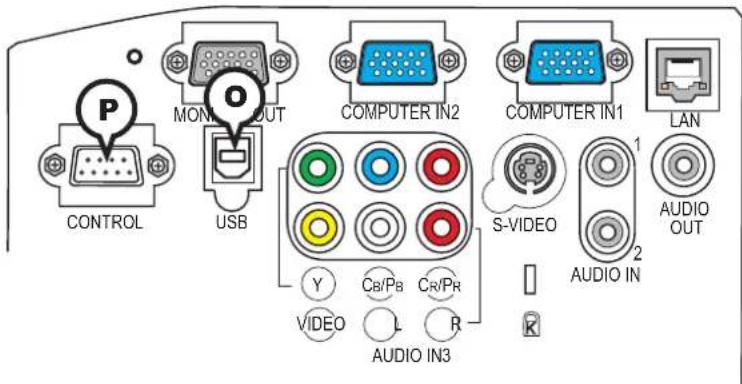

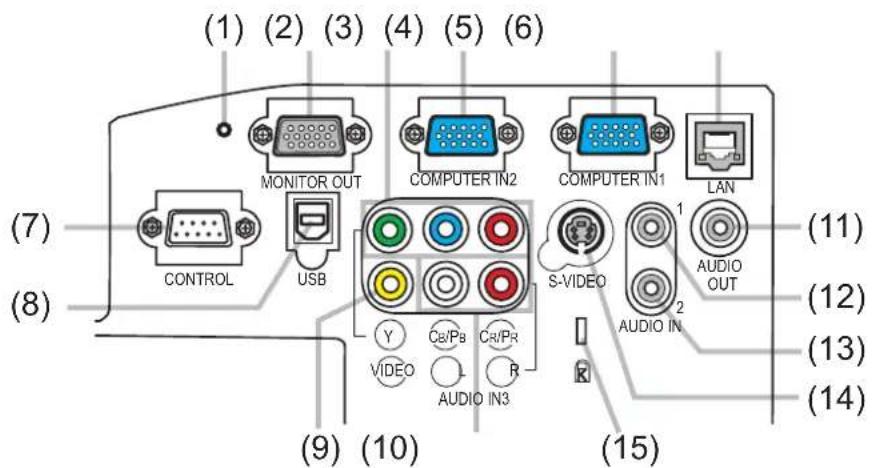

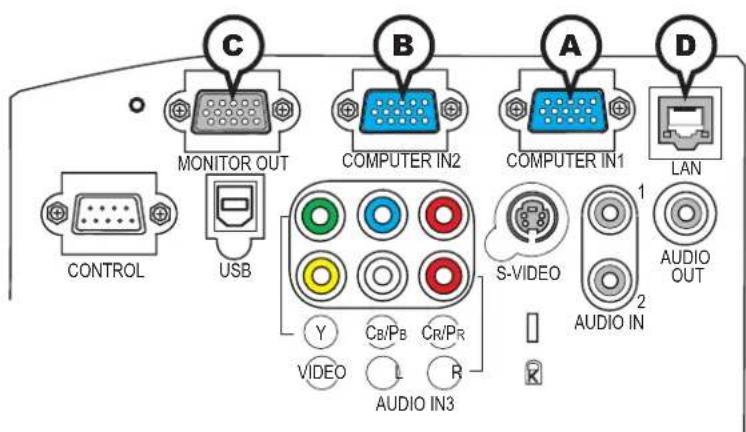

Ports (10, Technical's 3 to 6)

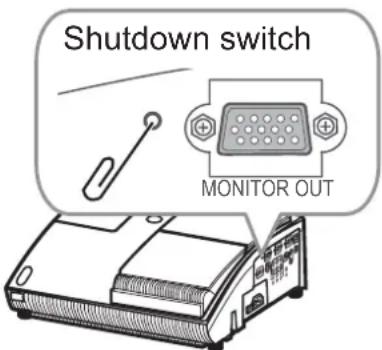

(1) Shutdown switch
(2) MONITOR OUT port
(3) Y, G/P_B , C_R/P_R (Component video) ports
(4) COMPUTER IN2 port
(5) COMPUTER IN1 port
(6) LAN port
(7) CONTROL port

(8) USB port (15)
(9) VIDEO port
(10) AUDIO IN3 (L,R) ports 📄 37
(11) AUDIO OUT port
(12) AUDIO IN1 port (37)
(13) AUDIO IN2 port (37)
(14) S-VIDEO port
(15) Security slot (13)

(1) (2) (3) (4) (5) (6) MONITOR OUT COMPUTER IN2 COMPUTER IN1 LAN CONTROL USB S-VIDEO AUDIO IN AUDIO OUT (7) (8) (9) (10) (11) (12) (13) (14) (15)

Remote control

(1) STANDBY/ON button (16, 17)
(2) VIDEO button (19)
(3) COMPUTER button (18)

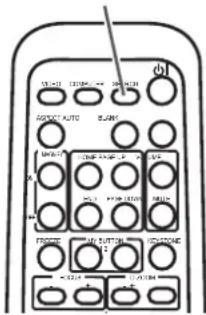

(4) SEARCH button (19)
(5) ASPECT button (19)
(6) AUTO button (21)
(7) BLANK button (23)
(8) MAGNIFY ON button (22)
(9) MAGNIFY OFF button (15, 22)
(10) HOME button (15)
(11) END button (15)
(12) PAGE UP button (15)
(13) PAGE DOWN button (15)
(14) VOLUME button (18)
(15) MUTE button (15, 18)
(16) FREEZE button (23)
(17) MY BUTTON 1 button (44)
(18) MY BUTTON 2 button (44)
(19) KEYSTONE button (22)
(20) FOCUS - button (21)
(21) FOCUS + button (21)
(22) D-ZOOM - button (20)
(23) D-ZOOM + button (☐20)
(24) POSITION button (20, 22, 24)
(25) MENU button (24)
(26) Cursor ▲/▼/◄/► buttons (24, 25)
(27) ENTER button (24, 25)
(28) ESC button (24, 25)
(29) RESET button (24, 25)
(30) Battery cover (14)

Back of the remote control

Setting up

Arrangement

Install the projector in a stable, cool, dry and airy place, keeping a space of 30 cm or more between the sides of the projector and other objects such as walls.

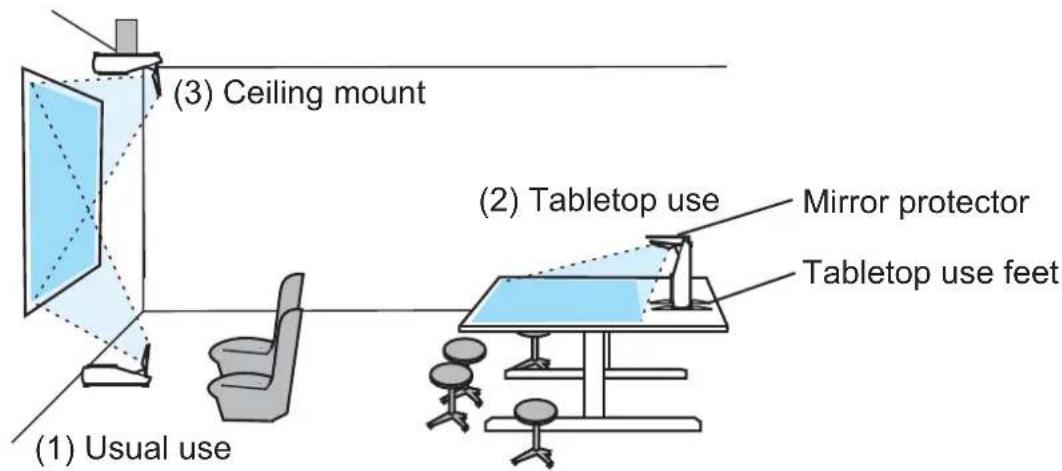

Refer to the following to decide the projection style. Ceiling mount and tabletop use must be setup with the designated optional accessories. Ask your dealer for details.

(1) Usual use (2) Tabletop use Mirror protector Tabletop use feet (3) Ceiling mount

NOTE • When installing the projector, confirm that there is nothing that blocks the projection light between the projector and the screen.

- When installing the projector, check that the remote sensors are not exposed to any strong ray (14).

⚠️ CAUTION ▶ The designated optional accessory for the tabletop use contains the tabletop use feet and mirror protector. Please see the manual enclosed with the accessory.

• The tabletop use feet must be used for the tabletop use, otherwise the projector can't stand or falls down broken.
• The mirror protector must be used to protect the lens door when the projector falls to the table.

Arrangement (continued)

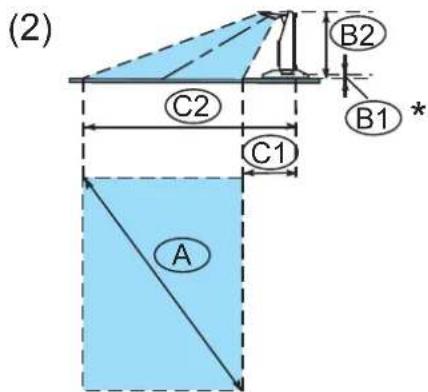

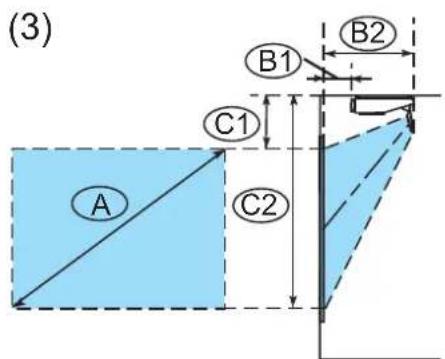

Refer to the following for the projection distance.

The values shown in the table are calculated for a full size screen: 1024x768.

(1) A C2 C1 B1 B2

(2) C2 B2 B1 * C1 A

(3) A C1 B1 B2 C2

Table for 4:3 screen (±8%)

A	B1		B2		C1		C2
inch	cm inch	cm inch	inch cm	inch inch	cm inch
48	* 0.5 *	(0.2) 3	8.3 15	24.4 1	0 98.2	39
50	2.0	1	39.8	16	25.2	10	101.9	40
60	9.6	4	47.4	19	28.9	11	120.4	47
70	17.2	7	55.0	22	32.6	13	139.3	55
80	24.8	10	62.6	25	36.2	14	158.2	62
90	32.4	13	70.2	28	39.9	16	177.1	70
100	39.9	16	77.7	31	43.6	17	196.0	77
120	55.0	22	92.8	37	50.9	20	234.0	92
150	77.7	31	115.5	45	62.0	24	291.0	115
200	115.5	45	153.3	60	80.4	32	385.7	152

Table for 16:9 screen (±8%)

A	B1		B2		C1		C2
inch	cm inch	cm inch	cm inch	inch	cm inch
44	* 0.5	*(0.2)	38.3	15	33.6	13	88.9	35
50	5.4	2	43.2	17	37.3	15	99.9	39
60	13.7	5	51.5	20	43.5	17	118.3	47
70	22.0	9	59.8	24	49.6	20	136.8	54
80	30.2	12	68	0	27	55.7	22	155.3
90	38.5	15	76	3	30	61.8	24	173.9
100	46.6	18	84	4	33	67.9	27	192.3
120	63.1	25	100	0.9	40	80.1	32	229.5
150	87.8	35	125	6	49	98.4	39	285.3
200	129.0	51		166.8		66	129.0	51

NOTE • It is recommended to adjust the screen size from 60 inch to 100 inch diagonal. The screen image adjusted out of this range, either smaller or larger, may be deteriorated.

- The screen position may be shifted after installation if the projector is suspended on a ceiling or somewhere, since the body of this projector is made of plastics. If readjustment is necessary, consult with your dealer or installater.

Arrangement (continued)

⚠ WARNING ▶ Place the projector in a stable horizontal position. If the projector falls or is knocked over it could cause injury and/or damage to the projector. Using a damaged projector could then result in fire and/or electric shock.

• Do not place the projector on an unstable, slanted or vibrational surface such as a wobbly or inclined stand.
• Do not place the projector on its side or front position. To place the projector on its rear position for the table top use, it is required to use the designated optional parts. Consult with your dealer.
• Consult with your dealer before a special installation such as suspending from a ceiling or somewhere else.

▶ Place the projector in a cool place, and ensure that there is sufficient ventilation. The high temperature of the projector could cause fire, burns and/or malfunction of the projector.

• Do not stop-up, block or cover the projector's vents.
• Keep a space of 30 cm or more around the projector from other objects such as walls.
• Do not place the projector on metallic thing or anything weak in heat.
• Do not place the projector on carpet, cushions or bedding.
• Do not place the projector in direct sunlight or near hot objects such as heaters.
• Do not place anything near the lens door, lens, mirror, vents. or on the top of the projector.
• Do not place anything that may be sucked into or stick to the vents on the rear and bottom of the projector. This projector has some intake vents on the rear and bottom.

▶ Do not place the projector anyplace where it may get wet. Getting the projector wet or inserting liquid into the projector could cause fire, electric shock and/or malfunction of the projector.

- Do not place the projector in a bathroom or the outdoors.

- Do not place anything containing liquid near the projector.

⚠️ CAUTION ▶ Avoid placing the projector in smoky, humid or dusty place.

Placing the projector in such places could cause fire, electric shock and/or malfunction of the projector.

- Do not place the projector near humidifiers, smoking spaces or a kitchen.

▶ Position the projector to prevent light from directly hitting the projector's remote sensor.

Connecting with your devices

Before connecting them, make sure that the devices are suitable to connect with this projector, and prepare the required signal cables and adapters. Consult your dealer if the accessory that is not included in this product is required. Refer to the following for connection. If you want to use the cable cover, see the Using the cable cover (13).
        K["VCR/DVD Players"]
    end

    B --> L["Monitor"]
    B --> M["Speaker (with an amplifier)"]
    L --> N["Monitor"]
    L --> O["Speaker (with an amplifier)"]
    M --> P["Monitor"]
    M --> Q[Speaker (with an amplifier)

    style PCs fill:#f9f,stroke:#333
    style VCR/DVD Players fill:#ccf,stroke:#333

⚠ WARNING ▶ Use only the accessories contained in this product or recommended by your dealer. Do not modify the projector or accessories.
For the cable with a ferrite core only at one end, connect the end with the core to the projector. The cables may be required a specific length or a ferrite core by the regulations.
▶ Be careful not to damage the cables. Route the cables so that they are not likely to be walked on or pinched by items placed upon or against them.
⚠ CAUTION ▶ Do not connect or disconnect the projector with devices while they are connected to a power supply, except for the cases directed by the manuals.
▶ Be careful not to set a connector into a wrong port or with a wrong way.

(continued on next page)

Connecting your devices (continued)

NOTE • Be sure to read the manuals for devices before connecting them to the projector, and make sure that all the devices are suitable to be connected with this product. Before connecting to a PC, check the signal level, the signal timing, and the resolution.

• Be sure to consult to the administrator of the network. Do not connect LAN port to any network that might have the excessive voltage.
• Some signal may need an adapter to input this projector.
• Some PCs have multiple screen display modes that may include some signals which are not supported by this projector.
• Although the projector can display signals with resolution up to UXGA (1600X1200), the signal will be converted to the projector's panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and the projector panel are identical.
• While connecting, make sure that the shape of the cable's connector fits the port to connect with. And be sure to tighten the screws on connectors with screws.
• When connecting a laptop PC to the projector, be sure to activate the PC's external RGB output. (Set the laptop PC to CRT display or to simultaneous LCD and CRT display.) For details on how this is done, please refer to the instruction manual of the corresponding laptop PC.
• When the picture resolution is changed on a PC depending on an input, automatic adjustment function may take some time and may not be completed. In this case, you may not be able to see a check box to select "Yes/No" for the new resolution on Windows. Then the resolution will go back to the original. It might be recommended to use other CRT or LCD monitors to change the resolution.
• In some cases, this projector may not display a proper picture or display any picture on screen. For example, automatic adjustment may not function correctly with some input signals. An input signal of composite sync or sync on G may confuse this projector, so the projector may not display a proper picture.

About Plug-and-Play capability

Plug-and-Play is a system composed of a PC, its operating system and peripheral equipment (i.e. display devices). This projector is VESA DDC 2B compatible. Plug-and-Play can be used by connecting this projector to a PC that is VESA DDC (display data channel) compatible.

• Take advantage of this feature by connecting an RGB cable to the COMPUTER IN1 port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.
• Please use the standard drivers in your PC as this projector is a Plug-and-Play monitor.

Connecting with a power supply

Before connection, confirm that the power outlet is suitable for this projector and the power cord.

Then follow the procedure below for connection.

1. Insert the end of the power cord with the socket into the AC inlet of the projector.
2. Plug the other end of the power cord into a power outlet.

AC Inlet Power cord (with the socket)

⚠ WARNING ▶ Be careful of operation for a power supply not to cause an electric shock or a fire.

• Do not handle the power cord with the wet hand.
• Use this product with only the type of power supply indicated on the projector.
• Use a power outlet that is close to the projector and easily accessible.
• Connect firmly the power cord not to result in loose connection. Do not use a loose or unsound power outlet.
• Do not overload the outlet, since overloading can result in a risk of fire or electric shock.
• Use only the power cord contained in this product unless it is damaged. If it is damaged, consult your dealer to get new one. Do not modify the power cord.

Using the security bar and slot

This projector has the security bar for a commercial anti-theft chain or wire up to 10 mm in diameter, and also the security slot for the Kensington lock.

For details, see the manual of the security tool.

NOTE • These are not provided as comprehensive theft preventions but supplemental measures.

Security slot Security bar

⚠ WARNING ▶ Do not place the anti-theft chain or wire near the projector's exhaust vents, since the chain or wire heated by the hot exhaust gas may cause a burn.

▶ Do not use the security bar or slot for the purpose of fall prevention, since these are not designed for it.

Using the cable cover

Utilize the cable cover as the guard and blind for the connecting parts.

1. Connect the signal cables and the power cord to the projector first.

2. Attach the cable cover to the projector, uniting the interlocking parts.

3. Tighten the screw to fix the cable cover.

4. Connect the other ends of the cables to other devices, and plug the power cord to the power outlet.

Cable cover Interlocking parts Screw Screw driver

⚠️ CAUTION ▶ Be careful not to pinch the cables in the cable cover, to prevent damage to the cables.

Remote control

Preparing for the remote control

The accessory remote control needs batteries. Use the batteries included in this product or two new batteries of the specified type: HITACHI MAXELL, part number LR6 or R6P. Follow the following procedure.

1. Remove the battery cover in the back of the remote control.
2. Put the batteries into the battery holder, according to the polarity markings (+) and (-) inside the holder.
3. Put the battery cover back to the former state.

Illustration of two hand-drawn diagrams showing a handheld device being held, with no text or symbols present.

NOTE • Try changing the batteries when the remote control malfunctions.

• This remote control works with the remote sensors on the projector using infrared light (Class 1 LED). The active sensor senses the remote control signal assigned within 60 degrees to right and left, and within 3 meters.
• The remote control signal reflected in the screen or the like may be available.
• Prevent the remote sensors from being hit by a strong ray. It may cause malfunction of the projector and remote control.

Remote sensors

Line drawing of a portable electronic device with ventilation slots and a antenna (no text or symbols)

30° 30° 3 m (approx.)

⚠ WARNING ▶ Be careful of handling a battery, as a battery can cause explosion, cracking or leakage, which could result in a fire, an injury, and environment pollution.

• Use only the specified and new battery. Do not use a battery with damage, such as a scratch, a dent, rust or leakage. Do not mix a new battery with used one.
• When a battery leaked, wipe the leakage out well with a waste cloth. If the leakage adhered to your body, immediately rinse it well with water. When a battery leaked in the battery holder, replace the batteries after wiping the leakage out.
• Make sure the plus and minus terminals are correctly aligned when loading a battery.
• Do not work on a battery; for example recharging or soldering.
• Do not keep the batteries put into the remote control when the remote control is not used for a long while. Keep a battery in a dark, cool and dry place. Never expose a battery to a fire or water.
• Obey the local laws on disposing a battery.

Changing the frequency of remote control signal

The accessory remote control has the two choices on signal frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote control does not function properly, attempt to change the signal frequency. In order to set the Mode, please keep pressing the combination of two buttons listed below simultaneously for about 3 seconds.

(1) Set to Mode 1: NORMAL... MUTE and RESET buttons
(2) Set to Mode 2:HIGH... MAGNIFY OFF and ESC buttons

Please remember that the REMOTE FREQ. in the SERVICE item of the OPTION Menu (46) of the projector to be controlled should be set to the same mode as the remote control.

Using as a simple PC mouse & keyboard

The accessory remote control works as a simple mouse and keyboard of the PC, when the projector's USB port (B type) connects with the PC's USB port (A type) port via a mouse cable.

(1) HOME key: Press HOME button.
(2) END key: Press END button.
(3) PAGE UP key: Press PAGE UP button.
(4) PAGE DOWN key: Press PAGE DOWN button.
(5) Mouse left button: Press ENTER button.
(6) Move pointer: Use the cursor buttons ▲, ▼, ◀ and ▶.
(7) ESC key: Press ESC button.
(8) Mouse right button: Press RESET button.

⚠ WARNING ▶ Improper use of the simple mouse & keyboard function could damage your equipment. While using this function, please connect this product only to a PC. Be sure to check your PC's manuals before connecting this product to the PC.

(1)(2)

USB port USB

NOTE • When the simple mouse & keyboard function of this product does not work correctly, please check the following.

- When a USB cable connects this projector with a PC having a built-in pointing device (e.g. track ball) like a notebook PC, open BIOS setup menu, then select the external mouse and disable the built-in pointing device, because the built-in pointing device may have priority to this function.

- Windows 95 OSR 2.1 or higher is required for this function. And also this function may not work depending on the PC's configurations and mouse drivers.

- You cannot do things like press two buttons at once (for instance, pressing two buttons at the same time to move the mouse pointer diagonally).

- This function is activated only when the projector is working properly. This function is not available while the lamp is warming up (the POWER indicator blinks green), and while adjusting the volume and display, correcting for keystone, magnifying the screen, using the BLANK function, or displaying the menu screen.

Power on/off

Turning on the power

Turn on the projector and the connected devices. Turn on the projector ahead of other connected devices, unless mentioned in the manuals.

For this projector, follow the procedure below.

1. Press the side marked "I" of the power switch, as the power-on position. The POWER indicator lights up in orange.

- For a couple of seconds after the POWER indicator lights up, wait to use the control buttons (on the projector and remote control). The buttons may not work soon.

1. Confirm that there is nothing that the lens door hits while opening. Then, press the STANDBY/ON button (on the projector or remote control). The lens door opens, the projection lamp lights up, and the POWER indicator begins to blink green.

When the projector starts completely, the indicator will turn steady green.

To display the picture, select an input signal according to the section "Selecting an input signal" (18).

POWER indicator STANDBY/ON button LAMP TEMP POWER STANDBY/ON INPUT Power switch STANDBY/ON button

NOTE • When the AUTO ON of the OPTION Menu is set to the TURN ON, and the power was turned off by the power switch last time, turning the power switch on makes the projection lamp light on without pushing the STANDBY/ON button (42).

⚠ WARNING ▶ Never look into the projection lens or mirror while the projection lamp lights, since the projection lamp ray may cause a trouble on your eyes.
▶ Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot.
⚠️ CAUTION ▶ Be careful not to pinch your finger with the lens door, as it may cause an injury.

Turn off the power

Turn the projector off after turning off the other connected devices, unless mentioned in the manuals. For this projector, follow the procedure below.

1. Press the STANDBY/ON button (on the projector or remote control).

The “Power off?” dialog appears on the screen for about 5 seconds.

1. Confirm that there is nothing that the lens door hits while closing.

Then press the STANDBY/ON button again while the message appears.

The projection lamp goes off, the lens door closes, and the POWER indicator begins to blink orange.

- For cooling the projector down, wait for the POWER indicator to stop blinking and turn steady orange.

The projector can be turned off without waiting for cooling down. However, the manufacture recommends cooling the projector down enough.

Do not turn the projector on for about 10 minutes or more after turning it off to prevent shortening its life.

POWER indicator STANDBY/ON button LAMP TEMP POWER STANDBY/ON INPUT Power switch STANDBY/ON button

1. Press the side marked "o" of the power switch, as the power-off position. The POWER indicator goes off.

When you will not use the projector for a long while, unplug and separate the power cord from the power outlet, for safety purposes.

NOTE • Use the shutdown switch (70) only when the projector is not turned off by normal procedure.

- Do not turn the projector on for about 10 minutes or more after turning it off. Turning the projector on again too soon could shorten the lifetime of some consumable parts of the projector.

⚠️ CAUTION ▶ Be careful not to pinch your finger with the lens door, to prevent an injury.

▶ Do not touch the lamp cover or approach the exhaust vents while using the projector and for a while after use, to prevent a burn.

Operating

Adjusting the volume

1. Press VOLUME button on the remote control. A dialog will appear on the screen to aid you in adjusting the volume.
2. Use the ▲/▼ cursor buttons to adjust the volume. To close the dialog and complete the operation, press the VOLUME button again. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

- When ✗ is selected for current picture input port, the volume adjustment is disable. Please see AUDIO item of SETUP Menu (37).

Temporarily muting the sound

1 Press MUTE button on the remote control.
- A dialog will appear on the screen indicating that you have muted the sound. To restore the sound, press the MUTE or VOLUME button. Even if you do not do anything, the dialog will automatically disappear after a few seconds.
- When ✗ is selected for current picture input port, the sound is always muted. Please see AUDIO item of SETUP Menu (37).
- When X is selected to VIDEO, S-VIDEO or COMPONENT port, the C.C. (Closed Caption) is automatically activated if the C.C. is set to AUTO in the DISPLAY of the C.C. Menu and the input signal from the port supports the C.C. feature (60).

VOLUME button

▲/▼ button

MUTE button

MCC20 COLD-1 BELLCH AVERAGE AUTO R. ANG MCC40 COLD-1 BELLCH R. ANG MCC50 COLD-1 BELLCH R. ANG MCC60 COLD-1 BELLCH R. ANG TODUS I PDCOM PDCOM PDCOM

Selecting an input signal

1. Press INPUT button on the projector. Each time you press the button, the projector switches its input port from the current port as below.

- While TURN ON is selected for AUTO SEARCH item in OPTION Menu (42), the projector will keep checking the ports in above order repeatedly till an input signal is detected.

1. Press COMPUTER button on the remote control. Each time you press the button, the projector switches its input port from the current port as below.

COMPUTER IN 1 ← COMPUTER IN 2

- While TURN ON is selected for AUTO SEARCH item in OPTION Menu, the projector will keep checking every port sequentially till an input signal is detected (42). If COMPUTER button is pushed when VIDEO, S-VIDEO or COMPONENT port is selected, the projector will check COMPUTER IN1 port first.

INPUT button

INPUT MENU

COMPUTER button

(continued on next page)

Selecting an input signal (continued)

1 Press VIDEO button on the remote control.

- Each time you press the button, the projector switches its input port from the current port as below.

COMPONENT (Y, C_B/P_B , C_R/P_R ) → S-VIDEO → VIDEO

VIDEO button

A100 200 300 400 500 A100 200 300 400 500 A100 200 300 400 500 A100 200 300 400 500 A100 200 300 400 500 A100 200 300 40 A100 200 300 40 A100 200 300 40 A100 200 300 40 A100 200 300 40 A100 200 300 40 A100 200 300 40 A25 A25 A25 A25 A25 A25 A25 A25 A25 A25 A25 A25 A25 A25 A25 A25 A25 A25 A25 A25 A25 A25 A25 A25 A25 A2

- While TURN ON is selected for AUTO SEARCH item in OPTION Menu, the projector will keep checking every port sequentially till an input signal is detected (42). If VIDEO button is pushed when COMPUTER IN1 or COMPUTER IN2 port is selected, the projector will check COMPONENT port first.

Searching an input signal

1 Press SEARCH button on the remote control.

- The projector will start to check its input ports as below in order to find any input signals.

When an input is found, the projector will stop searching and display the image. If no signal is found, the projector will return to the state selected before the operation.

SEARCH button

AUTO OFF AUTO OFF AUTO OFF AUTO OFF AUTO OFF AUTO OFF AUTO OFF AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO AUTO INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU INTU

- While TURN ON is selected for AUTO SEARCH item in OPTION Menu (42), the projector will keep checking the ports in above order repeatedly till an input signal is detected.

Selecting an aspect ratio

1 Press ASPECT button on the remote control.

- Each time you press the button, the projector switches the mode for aspect ratio in turn.

○ For a computer signal

NORMAL → 4:3 → 16:9

ASPECT button

10V 20V CUTUBA 30V BROWTH ADD AUTO BANK MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI MINI

For a video signal, s-video signal or component video signal

4:3 → 16:9 → 14:9

○ For no signal

4:3 (fixed)

- ASPECT button does not work when no proper signal is inputted.

- NORMAL mode keeps the original aspect ratio setting.

Adjusting the projection position

This projector has four elevator feet in the bottom. Use them to adjust the projection position.

Technical line drawing of a 3D mechanical component or enclosure with internal structure and mounting holes (no text or symbols)

Elevator feet

max. 43 mm

⚠ CAUTION ▶ Do not lengthen the elevator feet to 43 mm or more. The foot lengthened exceeding the limit may come off from the projector, and result in an injury.

▶ Tilt the projector with these elevating feet only.
▶ Do not tilt the projector over 5 degrees, when it is suspended from a ceiling or somewhere.

Adjusting the zoom

Press the D-ZOOM + or D-ZOOM – button on the remote control to display D-ZOOM dialog on screen.

Use the D-ZOOM + and D-ZOOM – buttons to adjust the picture size.

To fi nish the operation, do not touch these buttons for a few seconds until the dialog is disappeared.

- If you want to expand a part of the image, use the magnify function (22).

D-ZOOM + button

DHC PACCOAR ROUTE FLOOR 100 FLOOR 200 FLOOR 300 FLOOR 400 FLOOR 500 FLOOR 600 FLOOR 700 FLOOR 800 FLOOR 900 FLOOR 1000

D-ZOOM – button

Adjusting the picture position

Press the POSITION button on the remote control while no menu is on screen, to display the D-SHIFT dialog on screen.

Use the ▲, ▼, ◀ and ▶ buttons to adjust the picture position.

Press the POSITION button again to finish this operation.

• This is a function to shift the position of the shrunken picture by the zoom function.
• The function is not available, if any menu is displayed on screen.
• The function is not available, if the D-ZOOM is adjusted to 100 (full screen) on its dialog.

1000 1000-2000 1000 1000-2000 1000-3000 1000-4000 1000-5000 1000-6000 1000-7000 1000-8000 1000-9000 1000-1000 1000-1500 1500-2500 2500-3500 3500-4500 4500-5500 5500-6500 6500-7500 7500-8500 8500-9500 9500-10500

POSITION button

Adjusting the focus

Press the FOCUS + or FOCUS – button on the remote control, or FOCUS + or FOCUS – button on the projector while no menu is on screen, to display the FOCUS box on screen. Use the FOCUS + and FOCUS – buttons to adjust the screen focus. After the focus adjustment, wait for a while until the FOCUS box is disappeared, if you want to display any other menu on screen by pushing the MENU button on the projector.

FOCUS + button

F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 F12 F13 F14 F15 F16 F17 F18 F19 F20 F21 F22 F23 F24 F25 F26 F27 F28 F29 F30 F31 F32 F33 F34 F35 F36 F37 F38 F39 F40 F41 F42 F43 F44 F45 F46 F47 F48 F49 F50 F51 F52 F53 F54 F55 F56 F57 F58 F59 F60

FOCUS – button

Using the automatic adjustment feature

1. Press AUTO button on the remote control. Pressing this button performs the following.

○ For a computer signal

The vertical position, the horizontal position and the horizontal phase will be automatically adjusted.

Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.

AUTO button

OK START CHANGE RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET RESET Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re... Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re Re

○ For a video signal and s-video signal

The video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for the VIDEO FORMAT item in the INPUT Menu (34). The vertical position and horizontal position will be automatically set to the default.

○ For a component video signal

The vertical position, horizontal position and horizontal phase will be automatically set to the default.

- The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input. When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.

- The items adjusted by this function may vary when the FINE or DISABLE is selected for the AUTO ADJUST item of the SERVICE item in the OPTION Menu (45).

Correcting the keystone distortions

1. Press KEYSTONE button on the remote control. A dialog will appear on the screen to aid you in correcting the distortion.
2. Use the ▲/▼ cursor buttons to adjust the keystone correction.

KEYSTONE button

Diagram of a remote control panel with labeled buttons and dials for function, navigation, and display functions.

To close the dialog and complete this operation, press KEYSTONE button again. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

• The adjustable range of this correction will vary among inputs. For some input, this function may not work well.
• This function will be unavailable when Transition Detector is on (51).

Using the magnify feature

1. Press the ON button of MAGNIFY on the remote control. The "MAGNIFY" indication will appear on the screen and the projector will go into the MAGNIFY mode. When the ON button of MAGNIFY is pressed first after the projector is started, the picture will be zoomed twice. The indication will disappear in several seconds with no operation.
2. Use the ▲/▼ cursor buttons to adjust the zoom level. The picture of video, s-video or component video signal can be zoomed in up to 2 times, and the one of computer signal can be zoomed in up to 4 times.

To move the zoom area, press the POSITION button in the MAGNIFY mode, then use the ▲/▼/◄/► cursor buttons to move the area. And to finalize the zoom area, press the POSITION button again.

To exit from the MAGNIFY mode and restore the screen to normal, press the OFF button of MAGNIFY on the remote control.

• The projector automatically exits from the MAGNIFY mode when the input signal is changed or when the display condition is changed.
• In the MAGNIFY mode, the keystone distortion condition may vary, it will be restored when the projector exits from the MAGNIFY mode.

NOTE • The zoom level can be finely adjusted. Closely watch the screen to find the level you want.

MAGNIFY ON/OFF button

VOUT OFF INCH OUTPUT KIN BLUPE LAC OUT VOLT V GND FACE DOWN MINTS FRONT UN BUTTON HOTCOME

Freezing the screen

1 Press the FREEZE button on the remote control.

- The “FREEZE” indication will appear on the screen (however, the indication will not appear when the TURN OFF is selected for the MESSAGE item in the SCREEN Menu (41)), and the projector will go into the FREEZE mode, which the picture is frozen.

To exit the FREEZE mode and restore the screen to normal, press the FREEZE button again.

FREEZE button

- The projector automatically exits from the FREEZE mode when one of the projector's buttons or remote control buttons of STANDBY/ON, SEARCH, COMPUTER, VIDEO, BLANK, AUTO, VOLUME, MUTE, KEYSTONE, MENU, MAGNIFY and MY BUTTON1/2 (except MY MEMORY or PICTURE MODE is assigned to) (44) is pressed.

- If the projector continues projecting a still image for a long time, the LCD panel might possibly be burned in. Do not leave the projector in the FREEZE mode for too long.

Temporarily blanking the screen

1 Press BLANK button on the remote control.

- The BLANK screen will be displayed instead of the screen of input signal. Please refer to BLANK item in SCREEN Menu (38).

To exit from the BLANK screen and return to the input signal screen, press BLANK button again.

- The projector automatically returns to the input signal screen when one of the projector's buttons or the remote control buttons (except ASPECT, POSITION, MAGNIFY or FREEZE button, also except MY BUTTON1/2 if MY MEMORY or PICTURE MODE is assigned to (44)) is pressed.

BLANK button

VCCD COMPUTER OFFICE CONTROL AUTO IN CHS MAGO PANEER/OFFICE PANEER RIO PAGE DOWN MINTZ FROSO RIO DOWN WELCOME 10000 5000 PUSION 10000 10000

NOTE • The sound is not connected with the BLANK screen function.

If necessary, set the volume or mute first.

- If you want to make the screen blank and the sound muted at the same time, use AV Mute function that is required to be assigned to one of the MY BUTTON on the remote in advance (44).

Using the menu function

This projector has the following menus:

PICTURE, IMAGE, INPUT, SETUP, SCREEN, OPTION, NETWORK, C.C. and EASY MENU.

EASY MENU consists of functions often used, and the other menus are classified into each purpose and brought together as the Advanced Menu.

Each of these menus is operated using the same methods. The basic operations of these menus are as follows.

MENU button LAMP TEMP POWER STANDBY/ON INPUT MENU FOCUS - FOCUS

ENTER button MENU button Cursor buttons P0500N M00 ESC ESC RESET ESC button RESET button

1 Press the MENU button on the remote control or the projector.

The Advanced Menu or EASY MENU, which has priority just after powered on will appear.

If you want to move the menu position, use the cursor buttons after pressing the POSITION button. While the projector is displaying any menu, the MENU button on the projector works as the cursor buttons.

In the EASY MENU

1. If you want to change it to the Advanced Menu, select the Go to Advanced Menu...
2. Use the ▲/▼ cursor buttons to select an item to operate.
3. Use the ◀/▶ cursor buttons to operate the item.

EASY MENU [COMPUTER 1] ASPECT 4:3 D-ZOOM 100 KEYSTONE(+0) PICTURE MODE NORMAL BRIGHTNESS +0 CONTRAST +0 COLOR +0 TINT +0 SHARPNESS 4 WHISPER NORMAL MIRROR NORMAL RESET EXECUTE FILTER TIME Oh LANGUAGE ENGLISH Go to Advanced Menu...

EASY MENU

(continued on next page)

Using the menu function (continued)

In the Advanced Menu

1. Use the ▲/▼ cursor buttons to select a menu. If you want to change it to the EASY MENU, select EASY MENU.
   Then press the ▶ cursor button, or ENTER button to select an item. The lower layer menu of the selected item will appear.

MENU [COMPUTER 1] PICTURE BRIGHTNESS +0 IMAGE CONTRAST +0 INPUT GANMA DEFAULT-1 SETUP COLOR TEMP HIGH SCREEN COLOR +0 OPTION TINT +0 NETWORK SHARPNESS 4 C.C. MY MEMORY SAVE-1 EASY MENU

Advanced Menu

1. Use the ▲/▼ cursor buttons to select an item to operate. Then press the ▶ cursor button, or ENTER button to progress. The operation menu of the selected item will appear.

2. Use the ▲/▼ cursor buttons to operate the item.

3. Some functions cannot be performed when a certain input port is selected, or when a certain input signal is displayed.

4. When you want to reset the operation, press RESET button on the remote control during the operation. Note that some items (ex. LANGUAGE, H PHASE, VOLUME) cannot be reset.

5. In the Advanced Menu, when you want to return to the previous display, press the ◀ cursor button or ESC button on the remote control.

6. Press MENU button on the remote control again to close the menu and complete this operation. Even if you do not do anything, the dialog will automatically disappear after about 10 seconds.

EASY MENU

From the EASY MENU, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table.

EASY MENU [COMPUTER 1] ASPECT 4:3 D-ZOOM 100 KEystone √ +0 PICTURE MODE NORMAL BRIGHTNESS +0 CONTRAST +0 COLOR +0 TINT +0 SHARPNESS 4 WHISPER NORMAL MIRROR NORMAL RESET EXECUTE FILTER TIME Oh LANGUAGE ENGLISH Go to Advanced Menu...

Item Description
ASPECT	Using the ◀/► buttons switches the mode for aspect ratio. See the ASPECT item in IMAGE Menu (31).
D-ZOOM	Using the ◀/► buttons adjusts the zoom. See the D-ZOOM item in SETUP Menu (36).
KEYSTONE	Using the ◀/► buttons corrects the vertical keystone distortion. See KEYSTONE item in SETUP Menu (36).
PICTURE MODE	Using the ◀/► buttons switches the picture mode. The picture modes are combinations of GAMMA and COLOR TEMP settings. Choose a suitable mode according to the projected source.
		COLOR TEMP GAMMA
	NORMAL #2 MID DEFAULT #1 DEFAULT
	CINEMA #3 LOW DEFAULT #2 DEFAULT
	DYNAMIC #1 HIGH DEFAULT #3 DEFAULT
	BOARD(BLACK) #4 Hi-BRIGHT-1 DEFAULT #4 DEFAULT
	BOARD(GREEN) #5 Hi-BRIGHT-2 DEFAULT #4 DEFAULT
	WHITEBOARD #2 MID DEFAULT #5 DEFAULT
	DAYTIME #6 Hi-BRIGHT-3 DEFAULT #6 DEFAULT
	When the combination of GAMMA and COLOR TEMP differs from pre-assigned modes above, the display on the menu for the PICTURE MODE is “CUSTOM”. Please refer to GAMMA (28) and COLOR TEMP (29) items in PICTURE Menu.When this function is performed, a certain extra such as a line may appear.

	COLOR TEMP GAMMA
NORMAL #2 MID DEFAULT #1 DEFAULT
CINEMA #3 LOW DEFAULT #2 DEFAULT
DYNAMIC #1 HIGH DEFAULT #3 DEFAULT
BOARD(BLACK) #4 Hi-BRIGHT-1 DEFAULT #4 DEFAULT
BOARD(GREEN) #5 Hi-BRIGHT-2 DEFAULT #4 DEFAULT
WHITEBOARD #2 MID DEFAULT #5 DEFAULT
DAYTIME #6 Hi-BRIGHT-3 DEFAULT #6 DEFAULT

• When the combination of GAMMA and COLOR TEMP differs from pre-assigned modes above, the display on the menu for the PICTURE MODE is "CUSTOM". Please refer to GAMMA (28) and COLOR TEMP (29) items in PICTURE Menu.
• When this function is performed, a certain extra such as a line may appear.

(continued on next page)

EASY MENU (continued)

Item Description
BRIGHTNESS	Using the ◀/► buttons adjusts the brightness.See BRIGHTNESS item in PICTURE Menu (28).
CONTRAST	Using the ◀/► buttons adjusts the contrast.See CONTRAST item in PICTURE Menu (28).
COLOR	Using the ◀/► buttons adjusts the strength of whole color.See COLOR item in PICTURE Menu (29).
TINT	Using the ◀/► buttons adjusts the tint.See TINT item in PICTURE Menu (29).
SHARPNESS	Using the ◀/► buttons adjusts the sharpness.See SHARPNESS item in PICTURE Menu (30).
WHISPER	Using the ◀/► buttons turns off/on the whisper mode.See WHISPER item in SETUP Menu (36).
MIRROR	Using the ◀/► buttons switches the mode for mirror status.See MIRROR item in SETUP Menu (36).
RESET	Performing this item resets all of EASY MENU items except FILTER TIME and LANGUAGE.Pressing the RESET button or the ► button displays a dialog. To reset, select RESET using the ▲ button performs resetting.
FILTER TIME	The usage time of the air-filter is shown in the menu.Performing this item resets the filter time which counts usage time of the air-filter.Pressing the RESET button or the ► button displays a dialog. To reset the filter time, select RESET using the ▲ button performs resetting.See FILTER TIME item in OPTION Menu (43).
LANGUAGE	Using the ◀/► buttons changes the display language.See LANGUAGE item in SCREEN Menu (38).
Go to Advanced Menu...	Select Go to Advanced Menu... on the menu, and press the ►or ENTER button to use the menu of PICTURE, IMAGE, INPUT, SETUP, SCREEN, OPTION, NETWORK or C.C..

PICTURE Menu

From the PICTURE Menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or ENTER button to execute the item. Then perform it according to the following table.

MENU [COMPUTER 1] PICTURE BRIGHTNESS +0 IMAGE CONTRAST +0 INPUT GANMA DEFAULT-1 SETUP COLOR TEMP HIGH SCREEN COLOR +0 OPTION TINT +0 NETWORK SHARPNESS 4 C.C. MY MEMORY SAVE-1 EASY MENU

Item Description
BRIGHTNESS	Using the ▲/▼ buttons adjusts the brightness.Light ⇔ Dark
CONTRAST	Using the ▲/▼ buttons adjusts the contrast.Strong ⇔ Weak
GAMMA	Using the ▲/▼ buttons switches the gamma mode.#1 DEFAULT ⇔ #1 CUSTOM ⇔ #2 DEFAULT ⇔ #2 CUSTOM#6 CUSTOM #3 DEFAULT#6 DEFAULT #3 CUSTOM#5 CUSTOM ⇔ #5 DEFAULT ⇔ #4 CUSTOM ⇔ #4 DEFAULTTo adjust CUSTOMSelecting a mode whose name includes CUSTOM and then pressing the ▶ button or the ENTER button displays a dialog to aid you in adjusting the mode.This function is useful when you want to change the brightness of particular tones.Choose an item using the ◀/► buttons, and adjust the level using the ▲/▼ buttons.You can display a test pattern for checking the effect of your adjustment by pressing the ENTER button.Each time you press the ENTER button, the pattern changes as below.No pattern ⇒ Gray scale of 9 steps [IMAGE]The eight equalizing bars correspond to eight tone levels of the test pattern (Gray scale of 9 steps), except the darkest in the left end. If you want to adjust the 2nd tone from left end on the test pattern use the equalizing adjustment bar “1”. The darkest tone at the left end of the test pattern cannot be controlled with any of equalizing adjustment bar.• When this function is performed, lines or other distortion may appear.

(continued on next page)

PICTURE Menu (continued)

Item Description
COLOR TEMP	Using the ▲/▼ buttons switches the color temperature mode.#1 HIGH DEFAULT ⇔ #1 HIGH CUSTOM ⇔ #2 MID DEFAULT#6 Hi-BRIGHT-3 CUSTOM #2 MID CUSTOM#6 Hi-BRIGHT-3 DEFAULT #3 LOW DEFAULT#5 Hi-BRIGHT-2 CUSTOM #3 LOW CUSTOM#5 Hi-BRIGHT-2 DEFAULT ⇔ #4 Hi-BRIGHT-1 CUSTOM ⇔ #4 Hi-BRIGHT-1 DEFAULTTo adjust CUSTOMSelecting a mode whose name includesCUSTOM and then pressing the ▶ button or theENTERbutton displays a dialog to aid you inadjusting the OFFSET and GAIN of the selectedmode.OFFSET adjustments change the color intensityon the whole tones of the test pattern.GAIN adjustments mainly affect color intensityon the brighter tones of the test pattern.Choose an item using the ◀/▶ buttons, and adjust the level usingthe ▲/▼ buttons.You can display a test pattern for checking the effect of youradjustment by pressing the ENTERbutton.Each time you press the ENTERbutton, the pattern changes asbelow.No pattern ⇒ Gray scale of 9 steps →Ramp ⇔ Gray scale of 15 stepsWhen this function is performed, lines or other distortion mayappear.
COLOR	Using the ▲/▼ buttons adjusts the strength of whole color.Strong ⇔ WeakThis item can be selected only for a video signal, s-video, orcomponent video signal.
TINT	Using the ▲/▼ buttons adjusts the tint.Greenish ⇔ ReddishThis item can be selected only for a video signal, s-video, orcomponent video signal.
SHARPNESS	Using the ▲/▼ buttons adjusts the sharpness.Strong ⇔ WeakThere may be some noise and/or the screen may flicker for a moment when an adjustment is made. This is not a malfunction.
MY MEMORY	This projector has 4 memories for adjustment data (for all the items of PICTURE Menu).Selecting a function using the ▲/▼ buttons and pressing the ▶ or ENTER button performs each function.LOAD-1, LOAD-2, LOAD-3, LOAD-4Performing a LOAD function loads the data from the memory linked in the number included in the function's name, and adjusts the picture automatically depending on the data.The LOAD functions whose linked memory has no data are skipped.Remember that the current adjusted condition will be lost by loading data. If you want to keep the current adjustment, please save it before performing a LOAD function.There may be some noise and the screen may flicker for a moment when loading data. This is not malfunction.You can perform the LOAD function using MY BUTTONs. Please see MY BUTTON item in OPTION Menu (44).SAVE-1, SAVE-2, SAVE-3, SAVE-4Performing a SAVE function saves the current adjustment data into the memory linked in the number included in the function's name.Remember that the current data being stored of a memory will be lost by saving a new data into the memory.

IMAGE Menu

From the IMAGE Menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or ENTER button to execute the item. Then perform it according to the following table.

MENU [COMPUTER 1] SELECT PICTURE ASPECT 4:3 IMAGE OVER SCAN 5 INPUT V POSITION 25 SETUP H POSITION 142 SCREEN H PHASE 16 OPTION H SIZE 1344 NETWORK AUTO ADJUST EXECUTE C.C. EASY MENU

Item Description
ASPECT	Using the ▲/▼ buttons switches the mode for aspect ratio.For a computer signalNORMAL ⇔ 4:3 ⇔ 16:9For a Video signal, S-video signal or Component video signal4:3 ⇔ 16:9 ⇔ 14:9For no signal4:3 (fixed)The NORMAL mode keeps the original aspect ratio of the signal.
OVER SCAN	Using the ▲/▼ buttons adjusts the over-scan ratio.Large (It reduces picture) ⇔ Small (It magnifies picture)This item can be selected only for a video, s-video and component video signal.When this adjustment is too large, certain degradation may appear at the frame area of the picture. In such a case, please adjust small.
V POSITION	Using the ▲/▼ buttons adjusts the vertical position.Up ⇔ DownOver-adjusting the vertical position may cause noise to appear on the screen. If this occurs please reset the vertical position to the default setting.Pressing RESET button when V POSITION is selected will reset V POSITION to the default setting.When this function is performed on a video signal, s-video signal, or component video signal, the range of this adjustment depends on OVER SCAN (above) setting. It is not possible to adjust when OVER SCAN is set to 10.
H POSITION	Using the ▲/▼ buttons adjusts the horizontal position.Left ⇔ RightOver-adjusting the horizontal position may cause noise to appear on the screen. If this occurs please reset the horizontal position to the default setting. Pressing RESET button when H POSITION is selected will reset H POSITION to the default setting.When this function is performed on a video signal, s-video signal, or component video signal, the range of this adjustment depends on OVER SCAN (31) setting. It is not possible to adjust when OVER SCAN is set to 10.
H PHASE	Using the ▲/▼ buttons adjusts the horizontal phase to eliminate flicker.Right ⇔ LeftThis item can be selected only for a computer signal or component video signal.
H SIZE	Using the ▲/▼ buttons adjusts the horizontal size.Large ⇔ SmallThis item can be selected only for a computer signal.When this adjustment is excessive, the picture may not be displayed correctly. In such a case, please reset the adjustment by pressing the RESET button during this operation.
AUTO ADJUST EXECUTE	Executing this item performs the automatic adjustment feature.For a computer signalThe vertical position, the horizontal position and the horizontal phase (31, 32) will be automatically adjusted. Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.For a video signal and s-video signalThe video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for the VIDEO FORMAT item in the INPUT Menu (34). The vertical position and horizontal position will be automatically set to the default.For a component video signalThe vertical position, horizontal position and horizontal phase will be automatically set to the default.The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input. When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.The items adjusted by this function may vary when the FINE or DISABLE is selected for the AUTO ADJUST item of the SERVICE item in the OPTION Menu (45).

INPUT Menu

From the INPUT Menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or ENTER button to execute the item. Then perform it according to the following table.

MENU [COMPUTER 1] PROGRESSIVE FILM VIDEO NR MID COLOR SPACE AUTO COMPONENT COMPONENT VIDEO FORMAT FRAME LOCK COMPUTER IN RESOLUTION PICTURE IMAGE INPUT SETUP SCREEN OPTION NETWORK C.C. EASY MENU

Item Description
PROGRESSIVE	Using the ▲/▼ buttons switches the progress mode.TV ⇔ FILM ⇔ TURN OFFThis function is performed only for an interlaced signal at the VIDEO or S-VIDEO input, and for 525i (480i) or 625i(576i) signal at the COMPONENT VIDEO input.When TV or FILM is selected, the screen image will be sharp. FILM adapts to the 2-3 Pull-Down conversion system. But these may cause a certain defect (for example, jagged line) of the picture for a quick moving object. In such a case, please select TURN OFF, even though the screen image may lose the sharpness.
VIDEO NR	Using the ▲/▼ buttons switches the noise reduction mode.HIGH ⇔ MID ⇔ LOWThis function is performed only for the VIDEO or S-VIDEO input, and for 525i (480i) or 625i(576i) signal at the COMPONENT VIDEO input.When this function is excessive, it may cause a certain degradation of the picture.
COLOR SPACE	Using the ▲/▼ buttons switches the mode for color space.AUTO ⇔ RGB ⇔ SMPTE240 ⇔ REC709 ⇔ REC601This item can be selected only for a computer signal or component video signal except SCART RGB signal.The AUTO mode automatically selects the optimum mode.The AUTO operation may not work well at some signals. In such a case, it might be good to select a suitable mode except AUTO.
COMPONENT	Using the ▲/▼ buttons switches the function of the COMPONENT (Y, CB/PB, CR/PR) port.COMPONENT ⇔ SCART RGBWhen the SCART RGB is selected, COMPONENT (Y, eQP_B, CR/PR) and VIDEO ports will function as a SCART RGB port. A SCART cable is required for a SCART RGB input to the projector. For your reference, see the TECHNICAL part.
VIDEO FORMAT	The video format for S-VIDEO port and VIDEO port can be set.(1) Use the ◀/► buttons to select the input port.(2) Using the ▲/▼ buttons switches the mode for video format.AUTO ⇔ NTSC ⇔ PAL ⇔ SECAM N-PAL ⇔ M-PAL ⇔ NTSC4.43This item is performed only for a video signal fromVIDEO port orS-VIDEO port.The AUTO mode automatically selects the optimum mode.The AUTO operation may not work well for some signals. If the picture becomes unstable (e.g. an irregular picture, lack of color), please select the mode according to the input signal.
FRAME LOCK	Set the frame lock function on/off for each port.(1) Using the ▲/▼ buttons to select one of following ports.COMPUTER (IN)1 ⇔ COMPUTER (IN)2 (2) Using the ◀/► buttons to turns the frame lock function on/off.TURN ON ⇔ TURN OFFThis item can be performed only on a signal with a vertical frequency of 50 to 60 Hz.When the TURN ON is selected, a moving pictures are displayed more smoothly.This function may cause a certain degradation of the picture. In such a case, please select TURN OFF.
COMPUTER IN	The computer input signal type forCOMPUTER IN1and IN2ports can be set.(1) Use the ◀/► buttons to select the input port to be set.COMPUTER (IN)1 ⇔ COMPUTER (IN)2 (2) Use the ▲/▼ buttons to select the computer input signal type.SYNC ON G ON ⇔ SYNC ON G OFFSelecting SYNC ON G ON allows reception of sync on G signal.When SYNC ON G ON is selected, the picture may be distorted with certain input signals. In such a case, remove the signal connector first and select SYNC ON G OFF on the menu, and then reconnect the signal.

(continued on next page)

INPUT Menu (continued)

Item Description
RESOLUTION	The resolution for the COMPUTER IN1 and IN2 input signals can be set on this projector.(1) In the INPUT Menu select the RESOLUTION using the ▲/▼ buttons and press the ▶ button.The RESOLUTION menu will be displayed.(2) In the RESOLUTION menu, select the resolution you wish to display using the ▲/▼ buttons.Selecting AUTO will set a resolution appropriate to the input signal.
	(3) STANDARDPressing the ▶ or ENTER button when selecting a STANDARD resolution will automatically adjust the horizontal and vertical positions, clock phase and horizontal size and automatically select an aspect ratio.	STANDARD↓COMPUTER 11280x768 @60Hz
	(3) CUSTOM(3)-1 To set a custom resolution use the ▲/▼ buttons to select the CUSTOM and the CUSTOM RESOLUTION box will be displayed. Set the horizontal (HORZ) and vertical (VERT) resolutions using the ▲/▼ /◄/► buttons. It is not guaranteed to work this function properly on any resolutions.(3)-2 To save the setting place the cursor on the right-most digit and press the ▶ button.The horizontal and vertical positions, clock phase and horizontal size will be automatically adjusted.(3)-3 To revert back to the previous resolution without saving changes place the cursor on the left-most digit and press the ◀ button.The screen will then return to the RESOLUTION menu displaying the previous resolution.• For some pictures, this function may not work well.	CUSTOM↓COMPUTER 1992x744 @60Hz

SETUP Menu

From the SETUP Menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or the ENTER button to execute the item. Then perform it according to the following table.

MENU [COMPUTER 1] PICTURE D-ZOOM 100 IMAGE D-SHIFT V +0 INPUT D-SHIFT H +0 SETUP KEYSTONE(2) +0 SCREEN WHISPER NORMAL OPTION MIRROR NORMAL NETWORK VOLUME 16 C.C. SPEAKER TURN ON EASY MENU AUDIO

Item Description
D-ZOOM	Using the ▲/▼ buttons adjusts the zoom.Large ⇔ Small
D-SHIFT V	Using the ▲/▼ buttons adjusts the vertical picture position.Up ⇔ Down• The function is not available, if the D-ZOOM is adjusted to 100 (full screen) on its dialog.
D-SHIFT H	Using the ▲/▼ buttons adjusts the horizontal picture position.Right ⇔ Left• The function is not available, if the D-ZOOM is adjusted to 100 (full screen) on its dialog.
KEYSTONE ↙	Using the ▲/▼ buttons corrects the vertical keystone distortion.Shrink the top of the image ⇔ Shrink the bottom of the image• The adjustable range of this function will vary with the type of input signal. For some input, this function may not work well.• This function will be unavailable when the Transition Detector is on (51).
WHISPER	Using the ▲/▼ buttons turns off/on the whisper mode.BRIGHT ⇔ NORMAL• When NORMAL is selected, acoustic noise and screen brightness are reduced.
MIRROR	Using the ▲/▼ buttons switches the mode for mirror status. NORMAL ⇔ H:INVERT ⇔ V:INVERT ⇔ H&V:INVERTIf the Transition Detector is TURN ON and MIRROR status is changed, Transition Detector Alarm (51) will be displayed when projector is restarted after the power switch is turned off.
VOLUME	Using the ▲/▼ buttons adjusts the volume.High ⇔ Low
Item Description
SPEAKER	Using the ▲/▼ buttons turns on/off the built-in speaker.TURN ON ⇔ TURN OFFWhen TURN OFF is selected, the built-in speaker does not work.
AUDIO	Allocates the audio ports.(1) Choose a picture input port using the ▲/▼ buttons.QUIT ⇔ COMPUTER (IN)1 ⇔ COMPUTER (IN)2⇨VIDEO ⇔ S-VIDEO ⇔ COMPONENT ↕(2) Select the audio port to be interlocked with the input port using the ◀/►buttons.1 ⇔ 2 ⇔ 3 ⇔ ✗When ✗is selected for an input, the audio will not be output if the input is chosen as a display source.When ✗is selected toVIDEO, S-VIDEO or COMPONENT port, the C.C.(Closed Caption) is automatically activated, if the C.C. is set to AUTO in the DISPLAY menu of the C.C. Menu and the signal from the input port supports the C.C. feature (60).

SCREEN Menu

From the SCREEN Menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or ENTER button to execute the item. Then perform it according to the following table.

MENU [COMPUTER 1] PICTURE IMAGE INPUT SETUP SCREEN OPTION NETWORK C.C. EASY MENU LANGUAGE ENGLISH MENU POSITION BLANK BLACK START UP ORIGINAL MyScreen MyScreen Lock TURN OFF MESSAGE TURN ON SOURCE NAME

Item Description
LANGUAGE	Using the ▲/▼ buttons switches the OSD (On Screen Display) language.ENGLISH ⇔ FRANÇAIS ⇔ DEUTSCH ⇔ ESPAÑOL ⇔ ITALIANO↑↓TÜRKÇENORSK↑↓POLSKI↓↓NEDERLANDS↑↓SUOMI↓↓PORTUGUÊSPYССКИЙ ⇔ SVENSKA ⇔ 한글 ⇔ 繁體中文 ⇔ 简体中文 ⇔ 日本語
MENU POSITION	Using the ▲/▼/◄/► buttons adjusts the menu position.To quit the operation, press MENU button on the remote control or keep no operation for about 10 seconds.
BLANK	Using the ▲/▼ buttons switches the mode for the BLANK screen.The BLANK screen is a screen for the temporarily blanking feature (23). It is displayed by pressing BLANK button.MyScreen ⇔ ORIGINAL ⇔ BLUE ⇔ WHITE ⇔ BLACK↑→
	MyScreen
	ORIGINAL Screen preset as the standard screen.
	BLUE, WHITE,BLACK
	• To avoid remaining as an afterimage, the MyScreen or ORIGINAL screen will change to the plain black screen after several minutes.

(continued on next page)

SCREEN Menu (continued)

Item Description
START UP	Using the ▲/▼ buttons switches the mode for the start-up screen. The start-up screen is a screen displayed when no signal or an unsuitable signal is detected.MyScreen ⇔ ORIGINAL ⇔ TURN OFF↑
		Feature
	MyScreen	Screen can be registered by the MyScreen item (40).
	ORIGINAL Screen preset as the standard screen.
	TURN OFF Plain black screen.
	• To avoid remaining as an afterimage, the MyScreen or ORIGINAL screen will change to the BLANK screen (38) after several minutes. If also the BLANK screen is the MyScreen or ORIGINAL, the plain black screen is instead used.• When the TURN ON is selected to the MyScreen PASSWORD of SECURITY item in OPTION Menu (48), the START UP is fixed to MyScreen.
Item Description	This item allows you to capture an image for use as a MyScreen image which can be used as the BLANK screen and START UP screen. Display the image you want to capture before executing the following procedure.1. Selecting this item displays a dialog titled “MyScreen”. It will ask you if you start capturing an image from the current screen.Please wait for the target image to be displayed, and press the ENTER button when the image is displayed. The image will freeze and the frame for capturing will appear.To stop performing, press the RESET or ESC button.2. Using the ▲/▼/◄/► buttons adjusts the frame position.Please move the frame to the position of the image which you want to use.The frame may not be able to be moved for some input signals.To start registration, press the ENTER button.To restore the screen and return to the previous dialog, press the RESET or ESC button.Registration takes several minutes.When the registration is completed, the registered screen and the following message are displayed for several seconds: “MyScreen registration is finished.”If the registration failed, the following message is displayed: “A capturing error has occurred. Please try again.”• This function cannot be selected when the TURN ON is selected to the MyScreen Lock item (below).• This function cannot be selected when TURN ON is selected to the MyScreen PASSWORD of SECURITY item in OPTION Menu (48).
MyScreen
MyScreen Lock	Using the ▲/▼ buttons turns on/off the MyScreen lock function.TURN ON ⇔ TURN OFFWhen the TURN ON is selected, the MyScreen item is locked. Use this function for protecting the current MyScreen.• This function cannot be selected when TURN ON is selected to the MyScreen PASSWORD of SECURITY item in OPTION Menu (48).
Item Description
MESSAGE	Using the ▲/▼ buttons turns on/off the message function.TURN ON ⇔ TURN OFFWhen the TURN ON is selected, the following message function works.“AUTO IN PROGRESS” while automatically adjusting“NO INPUT IS DETECTED”“SYNC IS OUT OF RANGE”“Searching...” while searching for the input“Detecting...” while an input signal is detectedThe indication of the input signal displayed by changingThe indication of the aspect ratio displayed by changingThe indication of the PICTURE MODE displayed by changingThe indication of the MY MEMORY displayed by changingThe indication of “FREEZE” and “II” while the projector is in the FREEZE mode.• If the projector goes into the FREEZE mode while the TURN OFF is selected, the picture on screen is frozen without any messages, which is not a malfunction (23).
SOURCE NAME	Each input port for this projector can have a name applied to it.(1) Use the ▲/▼ buttons on the SCREEN Menu to select SOURCE NAME and press the ▶ button.The SOURCE NAME menu will be displayed.(2) Use the ▲/▼ buttons on the SOURCE NAME menu to select the port to be named and press the ▶ button. Right side of the menu is blank until a name is specified.The SOURCE NAME dialog will be displayed.(3) The current name will be displayed on the first line. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. The RESET button can be used to erase 1 character at a time. Also if you move the cursor to DELETE or ALL CLEAR on screen and push the ENTER or INPUT button, 1 character or all characters will be erased. The name can be a maximum of 16 characters.(4) To change an already inserted character, press the (▲) button to move the cursor to the first line, and use the ◀/► buttons to move the cursor on the character to be changed.After pressing the ENTER or INPUT button, the character is selected.Then, follow the same procedure as described at the item (3) above.(5) To finish entering text, move the cursor to the SAVE on screen and press the ENTER or INPUT button. To revert to the previous name without saving changes, move the cursor to the CANCEL on screen and press the ENTER or INPUT button.

OPTION Menu

From the OPTION Menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or ENTER button to execute the item, except for the items LAMP TIME and FILTER TIME. Then perform it according to the following table.

MENU [COMPUTER 1] PICTURE IMAGE INPUT SETUP SCREEN OPTION NETWORK C.C. EASY MENU AUTO SEARCH AUTO ON AUTO OFF LAMP TIME FILTER TIME MY BUTTON SERVICE SECURITY SELECT TURN ON 0min 1234h 123h

Item Description
AUTO SEARCH	Using the ▲/▼ buttons turns on/off the automatic signal search function.TURN ON ⇔ TURN OFFWhen the TURN ON is selected, detecting no signal automatically cycles through input ports in the following order. The search is started from the current port. Then when an input is found, the projector will stop searching and display the image.
AUTO ON	Using the ▲/▼ buttons turns on/off the AUTO ON function.TURN ON ⇔ TURN OFFWhen set to the TURN ON, the lamp in projector will be automatically turned on without the usual procedure (16), only when the projector is supplied with the power after the power was cut while the lamp was on.This function does not work as long as the power has been supplied to the projector while the lamp is off.After turning the lamp on by the AUTO ON function, if neither input nor operation is detected for about 30 minutes, the projector is turned off, even though the AUTO OFF function (43) is disabled.
Item Description
AUTO OFF	Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off.Long (max. 99 minutes) ⇔ Short (min. 0 minute = DISABLE) When the time is set to 0, the projector is not turned off automatically.When the time is set to 1 to 99, and when the passed time with no-signal or an unsuitable signal reaches at the set time, the projector lamp will be turned off.If one of the projector's buttons or the remote control buttons is pressed or one of the commands (except get commands) is transmitted to theCONTROLport during the corresponding time, projector will not be turned off.Please refer to the section “Turning off the power” (17).
LAMP TIME	The lamp time is the usage time of the lamp, counted after the last resetting. It is shown in the OPTION Menu.Pressing RESET button or the ► button displays a dialog.To reset the lamp time, select RESET using the ▲ button.RESET ⇔ CANCEL· Please reset the lamp time only when you have replaced the lamp, for a suitable indication about the lamp.· For the lamp replacement, see the section "Replacing the lamp" (61).
FILTER TIME	The filter time is the usage time of the air-filter, counted after the last resetting. It is shown in the OPTION Menu.Pressing the RESET button or the ► button displays a dialog.To reset the filter time, select the RESET using the ▲ button.RESET ⇔ CANCEL· Please reset the filter time only when you have cleaned or replaced the air-filter, for a suitable indication about the air-filter.· For the air-filter cleaning, see the section "Maintaining the air-filter" (63).
Item Description
MY BUTTON	This item is to assign one of the following functions toMY BUTTON 1and 2on the remote control(6).Choose 1 or 2 on the MY BUTTON menu using the ◀/► button first. Then using the ▲/▼ buttons sets one of the following functions to the chosen button.COMPUTER1: Sets port to COMPUTER IN1.COMPUTER2: Sets port to COMPUTER IN2.COMPONENT: Sets port to COMPONENT (Y, GB/PB, CR/PR)S-VIDEO: Sets port to S-VIDEO.VIDEO: Sets port to VIDEO.INFORMATION: Displays the INPUT -INFORMATION-(46)or NETWORK-INFORMATION-(59)or nothing.The displayed dialog is switched as below every time theMY BUTTONis pushed.When an input signal is found:INPUT -INFORMATION- ⇒ NETWORK -INFORMATION- ⇒ OFFWhen an input signal is not found:NETWORK -INFORMATION- ⇔ OFFMY MEMORY: Loads one of adjustment data stored(30).When more than one data are saved, the adjustment changes every time theMY BUTTONis pushed.When no data is saved in memory, the dialogNo saved data"No saved data" appears.When the current adjustment is not saved to memory, the dialog as shown in the rightappears.If you want to keep the current adjustment, please press the◄button to quit. Otherwise loading a data will lose the current adjusted condition.PICTURE MODE: Changes the PICTURE MODE(26).FILTER RESET: Displays the filter time reset confirmation dialogue(43).VOLUME+: Set the volume up.VOLUME-: Set the volume down.AV MUTE: Turns the picture and audio on/off.e-SHOT: Displays the e-SHOT menu(58).
SERVICE	Selecting this item displays the SERVICE menu.Select an item using the ▲/▼ buttons, and press the ►button or theENTERbutton to execute the item.FAN SPEED ⇔ AUTO ADJUST ⇔ GHOST ⇔ FILTER MESSAGE ⇔ KEY LOCK ⇔ FOCUS LOCKFACTORY RESET ⇔ INFORMATION ⇔ REMOTE FREQ. ⇔ REMOTE RECEIV.

(continued on next page)

OPTION Menu (continued)

Item Description
SERVICE(continued)	FAN SPEEDUsing the ▲/▼ buttons the rotation speed of the cooling fans. The HIGH is the mode for use at highlands etc. Note that the projector is noisier when the HIGH is selected.HIGH ⇔ NORMAL
	AUTO ADJUSTUsing the ▲/▼ buttons to select one of the mode.When the DISABLE is selected, the H/V.POSITION, H.SIZE and H.PHASE will be set to the default value if the automatic adjustment function is executed.FINE ⇔ FAST ⇔ DISABLE ↑↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↑FINE: Finer tuning including H.SIZE adjustment.FAST: Faster tuning, setting H.SIZE to prearranged data for the input signal.· Depending on conditions, such as input image, signal cable to the projector, environment around the projector, etc., the automatic adjustment may not work correctly. In such a case, please choose DISABLE to disable the automatic adjustment, and make adjustment manually.
	GHOST1. Select a color element of ghost using the ◀/►buttons.2. Adjust the selected element using the ▲/▼ buttons to disappear ghost.
	FILTER MESSAGEUse the ▲/▼ button to set the timer for the interval to show the message for cleaning up the air-filter.50h ⇔ 100h ⇔ 200h ⇔ 300h ⇔ 400h ⇔ 500h TURN OFF ⇔ 800h ⇔ 700h ⇔ 600h ⇔ After choosing an item except TURN OFF, the message “REMINDER *** HRS PASSED AFTER THE LAST FILTER CHECK” will appear after the timer reaches the interval time set by this feature (68).When the TURN OFF is chosen, the message will not appear. Utilize this feature to keep the air-filter clean, setting the suitable time according to your environment of this projector.· Please check and clean the air-filter periodically, even if there is no message. If the air-filter becomes to be blocked by dust or others, the internal temperature will rise, which could cause malfunction, or reduce the lifetime of the projector.· Please be careful with the operating environment of the projector and the condition of the air-filter.

OPTION Menu (continued)

Item Description
SERVICE(continued)	KEY LOCKUsing the ▲/▼ buttons turns on/off the key lock feature. When TURN ON is selected, the buttons on the projector except the STANDBY/ON button are locked.TURN ON ⇔ TURN OFFPlease use to avoid a mischief and touching accidentally. This function does not have any effect on the remote control.
	FOCUS LOCKUse the ▲/▼ buttons turns on/off the focus lock feature. When TURN ON is selected, the FOCUS +/- buttons on the remote and projector are disabled.TURN ON ⇔ TURN OFFPlease use the function to avoid a mischief and touching accidentally.
	REMOTE RECEIV.(1) Select a remote sensor using ▲/▼ buttons.1:FRONT ⇔ 2:TOP (2) Switch it using the ENTER or INPUT button.□ (off) ⇔ ☑(on)A sensor cannot be turned off when the other one is off. Always at least one sensor is on.
	REMOTE FREQ.Use the ▲/▼ button to change the projector's remote sensor setting.1:NORMAL ⇔ 2:HIGHItems with a checkmark are on. The factory default setting is for both 1:NORMAL and 2:HIGH to be on. If the remote control does not function correctly set this to either only 1 or only 2 (15).Neither can be turned off at the same time.
	INFORMATIONSelecting this item displays a dialog titled “INPUT -INFORMATION-”. It shows the information about the current input. The “FRAME LOCK” message on the dialog means the frame lock function is working (34).This item can't be selected for no signal and sync out.
	FACTORY RESETSelecting RESET using the button ▲ performs this function. By this function, all the items in all of menus will collectively return to the initial setting. Note that the items LAMP TIME, FILTER TIME, LANGUAGE, SECURITY and NETWORK settings are not reset. RESET ⇔ CANCEL

OPTION Menu (continued)

Item Description
SECURITY	This projector is equipped with security functions.User registration is required before using the security functions.Please contact your local dealer.
	1. Using Security Features1.1 Inputting the PASSWORD1.1-1 Use the ▲/▼ buttons on the OPTIONMenu to select SECURITY and press the► button. The ENTER PASSWORD box will be displayed.The factory default PASSWORD is 4910.This PASSWORD can be changed (1.2 Changing the PASSWORD(below)).It is strongly recommended the factory default PASSWORD to be changed as soon as possible.1.1-2 Use the ▲/▼/◄/► buttons to enter the registered PASSWORD. Move the cursor to the right side of the ENTER PASSWORD box and press the ► button to display the SECURITY menu.If an incorrect PASSWORD is input the ENTER PASSWORD box will be displayed again. If incorrect PASSWORD is input 3 times the projector will turn off. Afterwards the projector will turn off every time an incorrect PASSWORD is input.1.2 Changing the PASSWORD1.2-1 Use the ▲/▼ buttons on the SECURITY menu to select SECURITY PASSWORD CHANGE and press the ► button to display the ENTER NEW PASSWORD box.1.2-2 Use the ▲/▼/◄/► buttons to enter the new PASSWORD.1.2-3 Move the cursor to the right side of the ENTER NEW PASSWORD box and press the ► button to display the NEW PASSWORD AGAIN box, enter the same PASSWORD again.1.2-4 Move the cursor to the right side of the NEW PASSWORD AGAIN box and press the ► button and the NOTE NEW PASSWORD box will be displayed for about 20 seconds, please make note of the PASSWORD during this time.Pressing the ENTER button will close the NOTE NEW PASSWORD box.Please do not forget your PASSWORD.

(continued on next page)

OPTION Menu (continued)

Item Description
SECURITY(continued)	1.3 If you have forgotten your PASSWORD1.3-1 Follow the procedure in 1.1-1 to display the ENTER PASSWORD box.1.3-2 While the ENTER PASSWORD box is displayed, press and hold the RESET button for about 3 seconds or press and hold the INPUT and ▶ buttons on the projector for about 3 seconds.The 10-digit Inquiring Code will be displayed.• If there is no key input for about 55 seconds while the Inquiring Code is displayed the menu will close. If necessary repeat the process from 1.3-1.1.3-3 Contact your dealer with the 10-digit Inquiring Code. Your PASSWORD will be sent after your user registration information is confirmed.
	2. Using the MyScreen PASSWORD FunctionThe MyScreen PASSWORD function can be used to prohibit access to the MyScreen function and prevent the currently registered MyScreen image from being overwritten.2.1 Turning on the MyScreen PASSWORD Function2.1-1 Use the ▲/▼ buttons on the SECURITY menu to select MyScreen PASSWORD and press the ▶ button to display the MyScreen PASSWORD on/off menu. 2.2 Setting the PASSWORD2.2-1 Display the MyScreen PASSWORD on/off menu using the procedure in 2.1-1.2.2-2 Use the ▲/▼ buttons on the MyScreen PASSWORD on/off menu to select TURN ON. The ENTER PASSWORD box (small) will be displayed. 2.2-3 Use the ▲/▼/◄/► buttons to enter the PASSWORD.Move the cursor to the right side of the ENTER PASSWORD box (small) and press the ►button to display the PASSWORD AGAIN box, enter the same PASSWORD again.

(continued on next page)

OPTION Menu (continued)

Item Description
SECURITY(continued)	2.2-4 Move the cursor to the right side of the PASSWORD AGAIN box and press the► button to display the PASSWORD for about 20 seconds, please make note of the PASSWORD during this time.Pressing the ENTER button will return to MyScreen PASSWORD on/off menu.When a PASSWORD is set for MyScreen:The MyScreen registration function (and menu) will be unavailable.The MyScreen Lock menu will be unavailable.The START UP setting will be locked on MyScreen (and the menu will be unavailable).Turning the MyScreen PASSWORD off will allow normal operation of these functions.Please do not forget your MyScreen PASSWORD.2.3 Turning the PASSWORD off2.3-1 Follow the procedure in 2.1-1 to display the MyScreen PASSWORD on/off menu.2.3-2 Select TURN OFF to display the ENTER PASSWORD box (large).Enter the registered PASSWORD and the screen will return to the MyScreen on/off menu.If an incorrect PASSWORD is input the menu will close. If necessary repeat the process from 2.3-1.2.4 If you have forgotten your PASSWORD2.4-1 Follow the procedure in 2.1-1 to display the MyScreen PASSWORD on/off menu.2.4-2 Select TURN OFF to display the ENTER PASSWORD box (large). The 10-digit Inquiring Code will be displayed inside the box.2.4-3 Contact your dealer with the 10-digit Inquiring Code. Your PASSWORD will be sent after your user registration information is confirmed.
	3. Using the PIN LOCK FunctionPIN LOCK is a function which prevents the projector from being used unless a registered Code is input.3.1 Registering the PIN Code3.1-1 Use the ▲/▼ buttons on the SECURITY menu to select PIN LOCK and press the ► button or the ENTER button to display the PIN LOCK on/off menu.

(continued on next page)

OPTION Menu (continued)

Item Description

SECURITY(continued)

3.1-2 Use the ▲/▼ buttons on the PIN LOCKon/off menu to select TURN ON and thePIN BOX will be displayed.3.1-3 Input a 4 part PIN Code using the ▲,▼,◀,▶,COMPUTER and INPUT buttons.A PIN Code again box will appear. Reenterthe same PIN Code. This will complete thePIN Code registration.If there is no key input for about 55 seconds while the PIN BOX or thePIN Code again box are displayed the menu will close. If necessaryrepeat the process from 3.1-1.Afterwards, anytime the projector is restarted after AC power is turned offthe PIN BOX will be displayed. Enter the registered PIN Code.The projector can be used after entering the registered PIN Code. If anincorrect PIN Code is input the PIN BOX will be displayed again.If an incorrect PIN Code is input 3 times the projector will turn off.Afterwards the projector will turn off every time an incorrect PIN Code isinput. The projector will also turn off if there is no key input for about 5minutes while the PIN BOX is displayed.This function will activate only when the projector is started after ACpower is turned off.Please do not forget your PIN Code.3.2 Turning Off the PIN LOCK Function3.2-1 Follow the procedure in 3.1-1 to display the PIN LOCK on/off menu.Use the ▲/▼ buttons to select TURN OFF and the PIN BOX will bedisplayed.Enter the registered PIN Code to turn the PIN LOCK function off.If an incorrect PASSWORD is input 3 times, the projector will be shutdown.3.3 If you have forgotten your PIN Code3.3-1 While the PIN BOX is displayed, press andhold the RESET button for 3 seconds orpress and hold the INPUT and ▶ buttonsfor 3 seconds. The 10-digit Inquiring Codewill be displayed.If it passes for about 5 minutes after the PIN BOX is displayed theprojector will turn off.3.3-2 Contact your dealer with the 10-digit Inquiring Code. Your PASSWORDwill be sent after your user registration information is confirmed.

(continued on next page)

OPTION Menu (continued)

Item Description
SECURITY(continued)	4. Using the Transition Detector FunctionWhile the Transition Detector function is ON, when power switch is started to supply to the projector, it might react as below.• Transition Detector alarm shown below might appear on screen, if the projector has been moved or re-installed.• Transition Detector alarm might appear on screen, if the MIRROR setting has been changed.• Keystone adjustment feature has been prohibited as long as the Transition Detector function is ON.4.1 Turning On the Transition Detector Function4.1-1 Use the ▲/▼ buttons on the SECURITY menu to select TRANSITION DETECTOR and press the ► or the ENTER button to display the TRANSITION DETECTOR on/off menu.Select TURN ON and the current angle and mirror setting will be recorded.• This feature may not function properly if the projector is not in a stable position when TURN ON is selected.4.1-2 When the projector is turned on, if this function is set to TURN ON and if the setting condition of the projector (normal use or ceiling mounted or tabletop use) or mirror setting is changed from previous record, the Transition Detector alarm will be displayed and the projector will not display the input image.Set the Transition Detector off in the SECURITY menu to display the input signal.If the Transition Detector alarm is displayed for about 5 minutes the lamp will turn off. This function will activate only when the projector is started after turning off the AC power.4.2 Setting the Transition Detector PASSWORD4.2-1 Use the ▲/▼ buttons on the SECURITY menu to select TRANSITION DETECTOR and press the ► or the ENTER button to display the TRANSITION DETECTOR on/off menu.4.2-2 Use the ▲/▼ buttons on the TRANSITION DETECTOR on/off menu to select TURN ON. The ENTER PASSWORD box (small) will be displayed.4.2-3 Use the ▲/▼/◄/► buttons to enter a PASSWORD. Move the cursor to the right side of the ENTER PASSWORD box (small) and press the ► button to display the PASSWORD AGAIN box, enter the same PASSWORD again.

(continued on next page)

OPTION Menu (continued)

Item Description

SECURITY(continued)

4.2-4 Move the cursor to the right side of the PASSWORD AGAIN box and press the ▶ button to display the PASSWORD for about 20 seconds, please make note of the PASSWORD during this time.Pressing the ENTER button will return to the TRANSITION DETECTOR on/off menu.· Please do not forget your Transition Detector PASSWORD.4.3 Setting the Transition Detector off4.3-1 Follow the procedure in 4.1-1 to display the TRANSITION DETECTOR on/off menu.4.3-2 Select TURN OFF to display the ENTER PASSWORD box (large). Enter the registered PASSWORD and the screen will return to the TRANSITION DETECTOR on/off menu. If an incorrect PASSWORD is input the menu will close. If necessary repeat the process from 4.3-1.4.4 If you have forgotten your PASSWORD4.4-1 Follow the procedure in 4.1-1 to display the TRANSITION DETECTOR on/off menu.4.4-2 Select TURN OFF to display the ENTER PASSWORD box (large). The 10-digit Inquiring Code will be displayed inside the box.4.4-3 Contact your dealer with the 10-digit Inquiring Code. Your PASSWORD will be sent after your user registration information is confirmed.

(continued on next page)

OPTION Menu (continued)

Item Description
SECURITY [FRQWLQXHG]	5. Using the MY TEXT PASSWORD function7KLV□LWHP□DOORZV□RX□WR□GLVSOD□RXU□RZQ□PHVVDJH□0<7(7□RQ83□VFUHHQ□DQG□,1387□,1)2507,21□,W□FDQ□EH□SURWHFWHG□E□D□SDVVZSUHYHQ□LW□IURP□EHLQ□J□RYHUZULWWHQ□5.1 Writing the MY TEXT[□□□□8VH□WKH□Y□□EXWWRQV□RQ□WKH□6(&85,7<□P□WR□VHOHFW□WKH□0<□7(7□:5,7,1*□PHQX□DQG□SUHVV□WKH□Z□EXWWRQ□7KH□0<□7(7□:5,7,1*□GLDORJ□ZLOO□EH□GLVSOD□HG□[□□□7KH□FXUUHQW□0<□7(7□ZLOO□EH□GLVSOD□HG□RQ□WK□Z□Z□LHQ□OLQHV□□,□QRW□HW□ZULWWHQ□WK□OLQHV□ZLOO□EH□EODQN□8VH□WK□H□Z□Z □EXWWRQV□DQG□WKH□ENTER□RU□INPUT□EXWWRQ□WR□FKDUDFWHUV□7KH□RESET□EXWWRQ□FDQ□EH□XVHG□WR□HUDVH□□FKDUD□RX□PRYH□WKH□FXUVRU□WR□/(7(□RU□//&(5□RQ□VFUHHQ□DQG□SXVK□WKHRU□INPUT□EXWWRQ□□FKDUDFWHUV□RU□DOO□FKDUDFWHUV□ZLOO□EH□HUDEH□LQSXW□XS□WR□□FKDUDFWHUV□RQ□HDFK□OLQ□[□□□□7R□FKDQJH□DQ□DOUHDG□LQVHUWHG□FKDUDWKH□Y□□EXWWRQ□WR□PRYH□WKH□FXUVRU□WWKH□UVW□□OLQHV□DQG□XVH□WKH□Z□Z□EXVPRYH□WKH□FXUVRU□RQ□WKH□FKDUDFWHUV□1WHU□SUHVVLQ□WKH□ENTER□RU□INPUT□EXVFKDUDFWHUV□LV□VHOHFWHG□7KHQ□IROORZ□SURFHGXUH□DV□GHVFULEHG□DW□WKH□LWHP□[□□□□7R□;QLVK□HQWHULQ□WH[W□PRYH□WKH□FXU69(□RQ□VFUHHQ□DQG□SUHVV□WKH□ENTER□RU□EXWWRQ□□7R□UHYHUW□WR□WKH□SUHYLRXV□ZLWKRXW□VDYLQ□FKDQJHV□PRYH□WKH□FXU&1&(□RQ□VFUHHQ□DQG□SUHVV□WKH□ENTER□INPUT□EXWWRQ□[□7KH□0<□7(7□:5,7,1*□IXQFWLRQ□LV□DYDLODEOH□RQ○ZKHQ□WKH□0<□7(366:25*□IXQFWLRQ□LV□VHW□WR□7851□2))□5.2 Displaying the MY TEXT[□□□□8VH□WKH□Y□□EXWWRQV□RQ□WKH□6(&85,7<□PWR□VHOHFW□WKH□0<□7(7□',63/<□PHQX□DQG□SUHVV□WKH□Z□EXWWRQ□WR□GLVSOD□WKH□0<□7(7□',63/<□RQ□RI□PHQX□[□□□□8VH□WKH□Y□□EXWWRQV□RQ□WKH□0<□7(7□',63RQ□RI□PHQX□WR□VHOHFW□RQ□RU□RI□7851□21 △⇒□7851□2)):KHQ□LW□LV□VHW□7851□21□WKH□0<□7(7□ZLOO□EHGLVSOD□HG□RQ□WKH□,1387□,1)2507,21□ZKHQ□WKH□,1)2507,21□RQ□WKH□6(59,&(□PHQX□LV□FKRVHQ□7KLV□IXQFWLRQ□LV□DYDLODEOH□RQ○ZKHQ□WKH366:25*□IXQFWLRQ□LV□VHW□WR□WKH□7851□2))□
SECURITY(continued)	5.3 Turning on the MY TEXT PASSWORDThe MY TEXT PASSWORD function can prevent the MY TEXT from being overwritten.5.3-1 Turning on the MY TEXT PASSWORD function(1) Use the ▲/▼ buttons on the SECURITY menu to select the MY TEXT PASSWORD menu and press the ► button to display the MY TEXT PASSWORD on/off menu.5.3-2 Setting the MY TEXT PASSWORD(1) Display the MY TEXT PASSWORD on/off menu using the procedure in 5.3-1(2) Use the ▲/▼ buttons on the MY TEXT PASSWORD menu to select TURN ON. The ENTER PASSWORD BOX (small) will be displayed.(3) Use the ▲/▼/◄/► buttons to enter the PASSWORD. Move the cursor to the right side of the ENTER PASSWORD BOX (small) and press the ► button to display the PASSWORD AGAIN BOX, and then enter the same PASSWORD again.(4) Move the cursor to the right side of the PASSWORD AGAIN BOX and press ► button to display the PASSWORD for about 20 seconds, then please make note of the PASSWORD during this time.Pressing the ENTER button on the remote control or INPUT button on the projector will return to the MY TEXT PASSWORD on/off menu. When the PASSWORD is set for the MY TEXT;• The MY TEXT DISPLAY menu will be unavailable, which can prohibit changing the DISPLAY setting.• The MY TEXT WRITING menu will be unavailable, which can prevent the MY TEXT from being overwritten.5.3-3 Turning the MY TEXT PASSWORD off(1) Follow the procedure in 5.3-1 to display the MY TEXT PASSWORD on/off menu.(2) Select TURN OFF to display the ENTER PASSWORD BOX (large). Enter the registered PASSWORD and the screen will return to the MY TEXT PASSWORD on/off menu.If an incorrect PASSWORD is input, the menu will close. If necessary, repeat the process from 5.3-3(1)5.3.4 If you have forgotten your PASSWORD.(1) Follow the procedure in 5.3-1 to display the MY TEXT PASSWORD on/off menu.(2) Select TURN OFF to display the ENTER PASSWORD BOX (large). The 10 digit inquiring code will be displayed inside the box.(3) Contact your dealer with the 10 digit inquiring code. Your PASSWORD will be sent after your user registration information is confirmed.

NETWORK Menu

Remember that incorrect network settings on this projector may cause trouble on the network. Be sure to consult with your network administrator before connecting to an existing access point on your network.

Select "NETWORK" from the main menu to access the following functions.

MENU [COMPUTER 1] PICTURE IMAGE INPUT SETUP SCREEN OPTION NETWORK C.C. EASY MENU SETUP PROJECTOR NAME e-SHOT INFORMATION SERVICE

Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ▶ cursor button on the projector or remote control, or ENTER button on the remote control to execute the item. Then perform it according to the following table.

See the User's Manual - Network Guide for details of NETWORK operation.

NOTE • The factory default setting for DHCP is OFF. If your network has DHCP enabled, and needs to set IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY automatically, please set DHCP to ON. 📄 Network Settings of the User's Manual - Network Guide)

• If you are not utilizing SNTP (Date/Time Settings of the User's Manual
• Network Guide), then you must set the DATE AND TIME (56) during the initial installation.

Item Description
SETUP	Selecting this item displays the SETUP Menu for the network.Use the ▲/▼ buttons to select an item, and the ▶ or ENTER button on the remote control to perform the item.
	DHCP (Dynamic Host Configuration Protocol)	Use the ▲/▼ buttons to turn DHCP on/off.ON ⇔ OFFSelect OFF when the network does not have DHCP enabled. ·When the “DHCP” setting changes to “ON”, it takes a little time to obtain IP address from DHCP server. ·Auto IP function will be assigned an IP address if the projector could not obtain an IP address from server even if DHCP is “ON”.
SETUP(continued)	IPADDRESS	Use the ▲/▼/◄/► buttons to enter the IP ADDRESS. This function can only be used when DHCP is set to OFF.· The IP ADDRESS is the number that identifies this projector on the network. You cannot have two devices with the same IP ADDRESS on the same network.· The IP ADDRESS "0.0.0.0" is prohibited.
	SUBNETMASK	Use the ▲/▼/◄/► buttons to enter the same SUBNET MASK used by your PC. This function can only be used when DHCP is set to OFF.· The SUBNET MASK "0.0.0.0" is prohibited.
	DEFAULTGATEWAY	Use the ▲/▼/◄/► buttons to enter the DEFAULT GATEWAY (a node on a computer network that serves as an access point to another network) address. This function can only be used when DHCP is set to OFF.
	DNSSERVER	Use the ▲/▼/◄/► buttons to input the DNS SERVER address. The DNS SERVER is a system to control domain names and IP addresses on the Network.
	TIMEDIFFERENCE	Use the ▲/▼ buttons to enter the TIME DIFFERENCE. Set the same TIME DIFFERENCE as the one set on your PC. If unsure, consult your IT manager. Use the◄button to return to the menu after setting the TIME DIFFERENCE.
	DATEANDTIME	Use the ▲/▼/◄/► buttons to enter the Year (last two digits), Month, Date, Hour and Minute.· The projector will override this setting and retrieve DATE AND TIME information from the Time server when SNTP is enabled. (Date/Time Settings of the User's Manual - Network Guide)

(continued on next page)

NETWORK Menu (continued)

Item Description

PROJECTOR NAME

(1) Use the▲/▼buttons on the NETWORK Menu to select the PROJECTOR NAME menu and press the ▶ button. The PROJECTOR NAME dialog will be displayed.(2) The current PROJECTOR NAME will be displayed on the first 3 lines.If not yet written, the lines will be blank.Use the▲/▼/◄/►buttons and theENTERor INPUTbutton to select and enter characters. TheRESETbutton can be used to erase 1 character at a time. Also if you move the cursor to DELETE or ALL CLEAR on screen and push theENTERor INPUTbutton, 1 character or all characters will be erased.The PROJECTOR NAME can be input up to 64 characters.(3) To change an already inserted character, press the▲/▼button to move the cursor to one of the first 3 lines, and use the◄/►buttons to move the cursor on the character to be changed. After pressing theENTERor INPUTbutton, the character is selected. Then, follow the same procedure as described at the item (2) above.(4) To finish entering text, move the cursor to the SAVE on screen and press theENTERor INPUTbutton. To revert to the previous PROJECTOR NAME without saving changes, move the cursor to the CANCEL on screen and press theENTERor INPUTbutton.

(continued on next page)

NETWORK Menu (continued)

Item Description
e-SHOT	Selecting this item displays the e-SHOT menu.The application software “PJTransfer” is required to store image(s) into the projector.Use the ▲/▼ buttons to select an item which is a still image by the e-SHOT (e-SHOT (Still Image Transfer) Display of the User's Manual - Network Guide) and the ▶ or ENTER button to display the image.• The item without image stored cannot be selected.• The image names are each displayed in 16 characters or less.To switch the image displayedUse the ▲/▼ buttons.To return to the menuPress the ◀ or ESC button on the remote control.To erase the image displayed and its source file in the projector.(1) Press the RESET button on the remote control while displaying an image to display the e-SHOT - RESET menu.(2) Press the ENTER button on the remote control or the INPUT button on the projector to perform to erase.To stop erasing, press the ESC button on the remote control or the ◀ button on the projector.
INFORMATION	Selecting this item displays the NETWORK -INFORMATION- dialog for confirming the network settings.The PROJECTOR NAME is displayed.Nothing (blank) is shown in the “PROJECTOR NAME” field until you setup the item (57).When the voltage level of the battery for the built in clock decreases, the set time may become incorrect even though accurate date and time are input. Replace the battery suitably (65).IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY indicate “0.0.0.0” when DHCP is ON and the projector has not gotten address from DHCP server.
SERVICE	Executing this item restarts and initializes the network functions.Choose the RESTART using the button ▶.Then use the button ▲ to execute.Network will be once cut off when choose restart.If DHCP is selected on, IP address may be changed.After selecting RESTART, NETWORK Menu may not be controlled approx. 30 seconds.

C.C. (Closed Caption) Menu

The closed caption setting can be changed through C.C. Menu in the advance menu. Please select the item that you will change using ▲/▼ cursor buttons.

- The C.C. (Closed Caption) is the function that displays a transcript or dialog of the audio portion of a video, files or other presentation or other relevant sounds. It is required to have NTSC format video or 525i(480i) Component video source supporting C.C. feature to utilize this function.

MENU [COMPUTER 1] PICTURE DISPLAY TURN OFF IMAGE MODE CAPTIONS INPUT CHANNEL 1 SETUP SCREEN OPTION NETWORK C.C. EASY MENU

Item Description
DISPLAY	Select Closed Caption DISPLAY setting from following options using ▲/▼buttons.TURN OFF ⇔ TURN ON ⇔ AUTO TURN OFF: Closed Caption is OFFTURN ON: Closed Caption is ONAUTO: Closed Caption automatically displays when the volume is muted.The caption is not displayed when the OSD menu is active.The Closed Caption is the function to display the dialogue, narration, and / or sound effects of a television program or other video sources. The Closed Caption availability is depending upon broadcaster and/or content.The caption is available if the video source is NTSC format and the video format selection is AUTO or NTSC on the INPUT Menu, when either VIDEO or S-VIDEO is selected as input port.The caption is also available if 525i(480i) video signal is input from COMPONENT port, when it is selected as input port.It may not work properly, depending on equipment or signal source. In this case, please turn off the Closed Caption.
MODE	Select Closed Caption MODE setting from following options using ▲/▼buttons.CAPTIONS ⇔ TEXT CAPTIONS: Display Closed CaptionTEXT: Display Text data, which is for additional information such as news reports or a TV program guide. The information covers the entire screen. Not all of the C.C. program has Text information.
CHANNEL	Select Closed Caption CHANNEL from following options using ▲/▼buttons.1 ⇔ 2 ⇔ 3 ⇔ 41: Channel 1, primary channel / language2: Channel 23: Channel 34: Channel 4The channel data may vary, depending on the content. Some channel might be used for secondary language or empty.

Maintenance

Replacing the lamp

The projection lamp has finite product life that is different in each lamp. Please replace the lamp as soon as possible when the pictures appear dark, or when the color tone is poor. Using the lamp for long periods of time may make the lamp burned out or broken.

Preparation of a spare lamp and early replacement are recommended. To prepare the new lamp, call your dealer and tell the type number: DT00891

1 Turn the projector off and unplug the power cord from the power outlet.

I. And cool the projector down by leaving it for about 45 minutes as it is.

When the projector is mounted on a ceiling or somewhere over your head, or when the lamp may have been broken, be sure to refer replacement to your dealer or service person, since it may be dangerous.

Only in case of replacement by yourself, follow the following procedure.

1. Loosen the screw (marked by arrow) of the lamp cover, and then slide the lamp cover to the side to remove it.
2. Loosen the 2 screws (marked by arrows) of the lamp, and slowly pick up the lamp by the handles.
3. Insert the new lamp, with cautions not to touch the inside of the lamp house. When inserting, pay attention to the socket position first, and to the pins for positioning next.
4. Tighten firmly the 2 screws of the lamp that are loosened in the previous process to lock it in place.
5. Slide the lamp cover into place and firmly tighten the screw of the lamp cover.
6. Plug in and restart the projector (12, 16). Then, reset the lamp time (which is the time counter for the lamp use).

(1) Press the ▲ or ▼ button on the projector or the MENU button on the remote control. The "EASY MENU" appears.

(2) Point at the "Go to Advanced Menu ..." in the menu using the ▲ or ▼ button, then press the ▶ button. "MENU" appears.

(3) Pointed at the "OPTION" in the left column using the ▲ or ▼ button, then press the ▶ button. The cursor moves to the right column.

(4) Pointed at the "LAMP TIME" using the ▲ or ▼ button, then press the ▶ button. A dialog appears.

(5) Press the ▲ button to select the "RESET" on the dialog. It performs resetting the lamp time.

Lamp cover Screw Pin for positioning Lamp house (inside of the lamp cover) Socket Screw Pin for positioning

Replacing the lamp (continued)

NOTE • Please reset the lamp time only when you have replaced the lamp, for a suitable indication about the lamp.

HIGH VOLTAGE

HIGH TEMPERATURE

HIGH PRESSURE

⚠ WARNING ▶ The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. In addition, when the bulb bursts, it is possible for shards of glass to fly into the lamp housing, and for gas containing mercury to escape from the projector's vent holes.

About disposal of a lamp: This product contains a mercury lamp; do not put it in a trash. Dispose of it in accordance with environmental laws.

• For lamp recycling, go to www.lamprecycle.org (in the US).
• For product disposal, contact your local government agency or www.eiae.org (in the US) or www.epsc.ca (in Canada).

For more information, call your dealer.

• If the lamp should break (it will male a loud bang when it does), unplug the power cord from the outlet, and make sure to request a replacement lamp from your dealer. Note that shards of glass could damage the projector's internals, or cause injury during handling, so please do not try to clean the projector or replace the lamp yourself.
• If the lamp should break (it will male a loud bang when it does), ventilate the room well, and make sure not to breathe the gas that comes out of the projector vents or get it in your eyes or mouth.
• Before replacing the lamp, turn the projector off and unplug the power cord, then wait for at least 45 minutes for the lamp to cool sufficiently. Handling the lamp while hot can cause burns, as well as damaging the lamp.
• Never unscrew except the appointed (marked by an arrow) screw.
• Do not open the lamp cover while the projector is suspended from a ceiling or somewhere over your head. This is dangerous, since if the lamp's bulb has broken, the shards will fall out when the cover is opened. In addition, working in high places is dangerous, so ask your local dealer to have the lamp replaced even if the bulb is not broken.
• Do not use the projector with the lamp cover removed. At the lamp replacing, make sure that the screws are screwed in firmly. Loose screws could result in damage or injury.
• Use only the lamp of the specified type.
• If the lamp breaks soon after the first time it is used, it is possible that there are electrical problems elsewhere besides the lamp. If this happens, contact your local dealer or service representative.
• Handle with care: jolting or scratching could cause the lamp bulb to burst during use.
• Using the lamp for long periods of time, could cause it dark, not to light up or to burst. When the pictures appear dark, or when the color tone is poor, please replace the lamp as soon as possible. Do not use old (used) lamps; this is a cause of breakage.

Maintaining the air-filter

Please check and clean the air-filter periodically, for keeping normal ventilation. When the indicators or a message prompts you to clean the air-filter, comply with it as soon as possible.

When it is damaged or too soiled, replace the filter unit. To prepare the new filter unit, call your dealer and tell the type number: QD60122

1. Turn the projector off and unplug the power cord from the power outlet. And cool the projector down by leaving it for a while as it is.
2. Use the vacuum cleaner on and around the filter unit.
3. Slide the filter unit upward to take it off from the projector.
4. Use the vacuum cleaner on the intake vents of the projector.
5. Use the vacuum cleaner on the cover side of the filter unit. Do not vacuum the air-filter directly, since the cleaner may inhale the air-filter. When the air-filter is damaged or too soiled, prepare the new filter unit.
6. Make sure that there is the air-filter inside, then slide the filter cover into place.
7. Plug in and restart the projector (12, 16).

Filter unit

Intake vents

Then, reset the filter time (which is the time counter for the air-filter use).

(1) Press the ▲ or ▼ button on the projector or the MENU button on the remote control. The “EASY MENU” appears.
(2) Point at the "FILTER TIME" in the menu using the ▲ or ▼ button, then press the ▶ button. A dialog appears.
(3) Press the ▲ button to select the "RESET" on the dialog. It performs resetting the filter time.

(continued on next page)

Maintaining the air-filter (continued)

NOTE • A filter unit of specified type will come with the replacement lamp for this projector. Replacing the filter unit at the same time with the lamp is recommended.

• Please reset the filter time only when you have cleaned the air-filter, for a suitable indication about the air-filter.
• The projector may display the message such as “CHECK THE AIR FLOW” or turn off the projector, to prevent the internal heat level rising.

⚠ WARNING ▶ Before taking care of the air-filter, make sure the power switch is off and the power cable is not plugged in, then allow the projector to cool sufficiently. Taking care of the air-filter in a high temperature state of the projector could cause an electric shock, a burn or malfunction to the projector.

▶ Use only the air-filter unit of the specified type. Do not use the projector without the air-filter or the filter cover. It could result in a fire or malfunction to the projector.
▶ Clean the air-filter periodically. If the air-filter becomes clogged by dust or the like, internal temperatures rise and could cause a fire, a burn or malfunction to the projector.

Replacing the clock battery

This projector has internal clock that uses a battery. When the clock of the network function does not work correctly, please try solution by replacement of the battery: HITACHI MAXELL, part number CR2032.

1. Turn the projector off and unplug the power cord from the power outlet. And cool the projector down by leaving it for a while as it is.
2. Place gently the projector upside down.
3. Remove the battery cover. Turn the battery cover in the direction indicated as "OPEN" till it unlocks using a coin or something similar. When fi nishing turning the battery cover, pick its knob to remove it.
4. Take the old battery out. Press the metal claw of the battery holder. Then the battery will come up. Remove it.
5. Put the new battery into the battery holder, according to the polarity markings (-) inside the holder, so that the side marked (+) of the battery is facing upward. Push the battery into the battery holder fully to fix.
6. Put the battery cover into place, then turn it in the direction indicated as "CLOSE" until it fixed, using a coin or something similar.

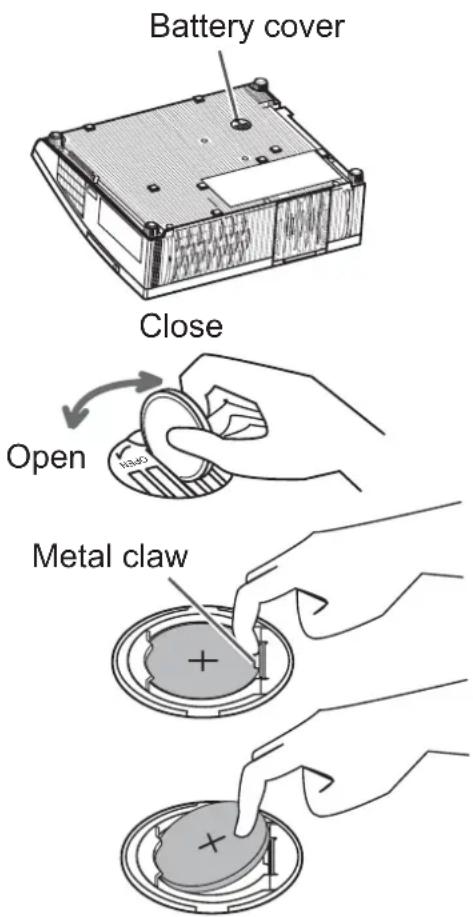

Battery cover Close Open Metal claw

NOTE • The internal clock will be initialized by removing the battery. For setting the clock, see the User's Manual - Network Guide.

⚠ WARNING ▶ Be careful of handling a battery, as a battery can cause explosion, cracking or leakage, which could result in a fire, an injury, and environment pollution.

• Use only the specified and perfect battery. Do not use a battery with damage, such as a scratch, a dent, rust or leakage.
• When a battery leaked, wipe the leakage out well with a waste cloth. If the leakage adhered to your body, immediately rinse it well with water. When a battery leaked in the battery holder, replace the batteries after wiping the leakage out.
• Make sure the plus and minus terminals are correctly aligned when loading a battery.
• Do not work on a battery; for example recharging or soldering.
• Keep a battery in a dark, cool and dry place. Never expose a battery to a fire or water.
• Obey the local laws on disposing a battery.

Caring for the mirror and lens

If the projection mirror or lens is flawed, soiled or fogged, it could cause deterioration of display quality. Please take care of the mirror and lens, being cautious of handling.

1. Turn the projector off and unplug the power cord from the power outlet. And cool the projector down by leaving it for a while as it is.
2. The lens door can be opened manually. Please hold both side of the lens door and slowly open it until it is locked with clicking sound.

3. Wipe softly the mirror and lens with a cleaning cloth for lens on the market, being careful not to give any damage on the mirror and lens.
   For around edge of the mirror and lens where might be difficult to be wiped out, please use an air blower for cameras on the market to clean up.

4. To close the lens door properly, please take the following procedure.

(1) Plug in the projector.
(2) Turn on the power switch.
Even though the lens door starts to close, it might not be closed properly.
(3) Press the STANDBY/ON button, so that the lamp starts to light up.
(4) After the POWER indicator turns to steady green, press the STANDBY/ON button twice to turn off the projector.

The lens door will close properly.

Illustration of three steps of a printer or printer being placed on top, showing hand positioning and folding (no text or symbols present)

Cleaning cloth

Line drawing of a printer with a hand operating the paper (no text or symbols visible)

Blower

- When the lens door is closed manually, it may not shut properly. NOTE

⚠ WARNING ▶ Before caring for the projection mirror and lens, turn the projector off and unplug the power cord, then cool the projector sufficiently.

▶ Do not use a vacuum cleaner to clean the projection mirror or lens, since it might give some damage.

▶ Do not use cleaners or chemicals other than those specified in this manual. Especially the mirror has to be paid special attention, since these materials might give serious damage on the mirror.

⚠️ CAUTION ▶ Be careful not to pinch your finger with the lens door, to prevent an injury.

Other care

Inside of the projector

In order to ensure the safe use of your projector, please have it cleaned and inspected by your dealer about once every year.

Caring for the cabinet and remote control

Incorrect care could have adverse influence such as discoloration, peeling paint, etc.

1. Turn the projector off, and unplug the power cord. Allow the projector to cool sufficiently.
2. After making sure that the projector is cool adequately, lightly wipe with gauze or a soft cloth.
   If the projector is extremely dirty, dip soft cloth in water or a neutral cleaner diluted in water, and wipe lightly after wringing well. Then, wipe lightly with a soft, dry cloth.

⚠ WARNING ▶ Before caring, make sure the power cord is not plugged in, and then allow the projector to cool sufficiently. The care in a high temperature state of the projector could cause a burn and/or malfunction to the projector.
▶ Never try to care for the inside of the projector personally. Doing is so dangerous.
▶ Avoid wetting the projector or inserting liquids in the projector. It could result in a fire, an electric shock, and/or malfunction to the projector.
- Do not put anything containing water, cleaners or chemicals near the projector.
- Do not use aerosols or sprays.
⚠️ CAUTION ▶ Please take right care of the projector according to the following. Incorrect care could cause not only an injury but adverse influence such as discoloration, peeling paint, etc.
▶ Do not use cleaners or chemicals other than those specified in this manual.
▶ Do not polish or wipe with hard objects.

Troubleshooting

If an abnormal operation should occur, stop using the projector immediately.

⚠ WARNING ▶ Never use the projector if abnormal operations such as smoke, strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately turn off the power switch and then disconnect the power plug from the power outlet. After making sure that the smoke or odor has stopped, contact to your dealer or service company.

Otherwise if a problem occurs with the projector, the following checks and measures are recommended before requesting repair.

If this does not resolve the problem, please contact your dealer or service company. They will tell you what warranty condition is applied.

Related messages

When some message appears, check and cope with it according to the following table. Although these messages will be automatically disappeared around several minutes, it will be reappeared every time the power is turned on.

Message Description
	There is no input signal.Please confirm the signal input connection, and the status of the signal source.
	The horizontal or vertical frequency of the input signal is not within the specified range.Please confirm the specs for your projector or the signal source specs.
	The internal temperature is rising.Please turn the power off, and allow the projector to cool down at least 20 minutes. After having confirmed the following items, please turn the power ON again.Is there blockage of the air passage aperture?Is the air-filter dirty?Does the peripheral temperature exceed 35°C?If the same indication is displayed after the remedy, please set FAN SPEED of the SERVICE item in the OPTION Menu to HIGH.
	A note of precaution when cleaning the air-filter.Please immediately turn the power off, and clean or change the air-filter referring to the “Maintaining the air-filter” section of this manual. After you have cleaned or changed the air-filter, please be sure to reset the filter time (43, 63).

Regarding the indicator lamps

When operation of the LAMP, TEMP and POWER indicators differs from usual, check and cope with it according to the following table.

POWER indicator	LAMP indicator	TEMP indicator	Description
Lighting In Orange	Turned off	Turned off	The projector is in a standby state. Please refer to the section “Power on/off”.
Blinking In Green	Turned off	Turned off	The projector is warming up. Please wait.
Lighting In Green	Turned off	Turned off	The projector is in an on state. Ordinary operations may be performed.
Blinking In Orange	Turned off	Turned off	The projector is cooling down. Please wait.
Blinking In Red	(discretionary)	(discretionary)	The projector is cooling down. A certain error has been detected. Please wait until POWER indicator finishes blinking, and then perform the proper measure using the item descriptions below.
Blinking In Red or Lighting In Red	Lighting In Red	Turned off	The lamp does not light, and there is a possibility that interior portion has become heated. Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation of the following items, and then turn the power on again. • Is there blockage of the air passage aperture? • Is the air-filter dirty? • Does the peripheral temperature exceed 35°C? If the same indication is displayed after the remedy, please change the lamp referring to the section “Lamp”.
Blinking In Red or Lighting In Red	Blinking In Red	Turned off	The lamp cover has not been properly fixed. Please turn the power off, and allow the projector to cool down at least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp cover. After performing any needed maintenance, turn the power on again. If the same indication is displayed after the remedy, please contact your dealer or service company.
Blinking In Red or Lighting In Red	Turned off	Blinking In Red	The cooling fan is not operating. Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation that no foreign matter has become caught in the fan, etc., and then turn the power on again. If the same indication is displayed after the remedy, please contact your dealer or service company.
Lighting In Red	Turned off	Turned off	The lens door is not opened or closed properly. One of the followings has been happened. • The lens door is not opened properly, when the projector is turned on. • The lens door is not closed properly, when the projector is turned off. • The lens door position is shifted, while the projector is working. Restart the projector, after confirming that there is nothing that the lens door hits while opening or closing.
Blinking In Red or Lighting In Red	Turned off	Lighting In Red	There is a possibility that the interior portion has become heated.Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation of the following items, and then turn the power on again.Is there blockage of the air passage aperture?Is the air-filter dirty?Does the peripheral temperature exceed 35°C?If the same indication is displayed after the remedy, please set FAN SPEED of SERVICE item in OPTION menu to HIGH (45).
Lighting In Green	Simultaneous blinking in Red		It is time to clean the air-filter.Please immediately turn the power off, and clean or change the air-filter referring to the section “Maintaining the air-filter”. After cleaning or changing the air-filter, please be sure to reset the filter timer.After the remedy, reset the power to ON.
Lighting In Green	Alternative blinking in Red		There is a possibility that the interior portion has become overcooled.Please use the unit within the usage temperature parameters (5°C to 35°C).After the treatment, reset the power to ON.
Blinking in Green for approx. 3 seconds	Turned off	Turned off	At least 1 Power ON schedule is saved to the projector.Please refer to “Schedule Settings” section of User’s Manual-Network Guide.

NOTE • When the interior portion has become overheated, for safety purposes, the projector is automatically shut down, and the indicator lamps may also be turned off. In such a case, disconnect the power cord, and wait at least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp cover, and then turn the power on again.

Shutting the projector down

Only when the projector can not be turned off by usual procedure (17), please push the shutdown switch using a pin or similar, and disconnect the power plug from the power outlet. Before turning it on again, wait at least 10 minutes to make the projector cool down enough.

Shutdown switch MONITOR OUT

Resetting all settings

When it is hard to correct some wrong settings, the FACTORY RESET function of SERVICE item in OPTION Menu (46) can reset all settings(except LANGUAGE, FILTER TIME, LAMP TIME, FILTER MESSAGE, NETWORK settings and etc.) to the factory default.

Phenomena that may be easy to be mistaken for machine defects

About the phenomenon confused with a machine defect, check and cope with it according to the following table.

Phenomenon Cases not involving a machine defect		Reference page
Power does not come on.	The electrical power cord is not plugged in.Correctly connect the power cord.	12
	The main power source has been interrupted during operation such as by a power outage (blackout), etc.Please disconnect the power plug from the power outlet, and allow the projector to cool down at least 10 minutes, then turn the power on again.	12, 16
	Either there is no lamp and/or lamp cover, or either of these has not been properly fixed.Please turn the power off and disconnect the power plug from the power outlet, and allow the projector to cool down at least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp cover, and then turn the power on again.	61
Neither sounds nor pictures are outputted.	The signal cables are not correctly connected.Correctly connect the connection cables.	10
	Signal source does not correctly work.Correctly set up the signal source device by referring to the manual of the source device.	-
	The input changeover settings are mismatched.Select the input signal, and correct the settings.	18, 19
	The BLANK function for pictures and the MUTE function for sounds are working.The BLANK and MUTE, or AV Mute may be active. Refer to the item “Sound does not come out” and “No pictures are displayed” on the next page to turn off the MUTE and BLANK functions.	18, 23
Sound does not come out.	The signal cables are not correctly connected.Correctly connect the audio cables.	10
	The MUTE function is working.Restore the sound pressing MUTE or VOLUME button on the remote control.	18
	The volume is adjusted to an extremely low level.Adjust the volume to a higher level using the menu function or the remote control.	18
	The AUDIO/SPEAKER setting is not correct.Correctly set the AUDIO/SPEAKER in SETUP Menu.	37
No pictures are displayed.	The lens door is not fully opened.Turn the projector off, and then turn it on again to make sure that the door is opened correctly.	16, 66
	The signal cables are not correctly connected.Correctly connect the connection cables.	10
	The brightness is adjusted to an extremely low level.Adjust BRIGHTNESS to a higher level using the menu function.	27, 28
	The computer cannot detect the projector as a plug and play monitor.Make sure that the computer can detect a plug and play monitor using another plug and play monitor.	11
	The BLANK screen is displayed.Press BLANK button on the remote control.	23
Video screen display freezes.	The FREEZE function is working.Press FREEZE button to restore the screen to normal.	23
Colors have a faded-out appearance, or Color tone is poor.	Color settings are not correctly adjusted.Perform picture adjustments by changing the COLOR TEMP, COLOR, TINT and/or COLOR SPACE settings, using the menu functions.	27, 29, 33
	COLOR SPACE setting is not suitable.Change the COLOR SPACE setting to AUTO, RGB, SMPTE240, REC709 or REC601.	33
Pictures appear dark.	The brightness and/or contrast are adjusted to an extremely low level.Adjust BRIGHTNESS and/or CONTRAST settings to a higher level using the menu function.	27, 28
	The whisper function is working.Select BRIGHT for WHISPER item in the SETUP Menu.	27, 36
	The lamp is approaching the end of its product lifetime.Replace the lamp.	61, 62
Pictures appear blurry.	Either the focus and/or horizontal phase settings are not properly adjusted.Adjust the focus using the focus ring, and/or H PHASE using the menu function.	21, 32
	The lens or mirror is dirty or misty.Clean the lens or mirror referring to the section “Caring for the lens”.	66

NOTE • Although bright spots or dark spots may appear on the screen, this is a unique characteristic of liquid crystal displays, and it does not constitute or imply a machine defect.

Specifications

Specifications

Item Specifications
Product name=Liquid crystal projector
Liquid Crystal Panel	Panel size=1.6 cm (0.63 type)
	Drive system=TFT active matrix
	Pixels=786,432 pixels (1024 horizontal x 768 vertical)
Lens=F=2.1 f=5.1 mm
Lamp=220 W UHB
Audio output=7 W
Power supply=AC 100-120V/3.6A, AC 220-240V/1.5A
Power consumption=340W
Temperature range=5~35°C (operating)
Ports		COMPUTER IN1 ....../=D-sub 15 pin mini x 1COMPUTER IN2 ....../=D-sub 15 pin mini x 1Y, CB/PB, CR/PR (Component video)....RCA x 3S-VIDEO....mini DIN 4 pin x 1VIDEO....RCA x 1MONITOR OUT....../=D-sub 15 pin mini x 1AUDIO IN1....Stereo mini x 1AUDIO IN2....Stereo mini x 1AUDIO IN3 (L, R)....RCA x 2AUDIO OUT....Stereo mini x 1CONTROL....D-sub 9 pin x 1USB....../=USB-B x 1LAN....RJ45 x 1
Optional parts		Lamp: DT00891Filter unit: QD60122Tabletop use kit: TT100Soft case: CA100* For more information, contact to your dealer.
Weight (mass)		5.8 kg (approx.)
Size		397 (W) x 131 (H) x 356 (D) mm*Excluding protrusions. Please refer to the following figure.

Specifications (continued)

397 356 366

378 225

113 131 139

[unit: mm]

Projector

ED-A100/ED-A110/CP-A100W

User's Manual (detailed)

Network Guide

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

Thank you for purchasing this projector.

This projector has the network function that brings you the following main features.

√ Web control

The projector can be controlled and monitored by a web browser software on your PC, which can help you to setup and maintain the projector.

√ e-SHOT (Still Image Transfer) Display

The projector can display still images that are transferred via the network.

This manual is only intended to explain Network function only.

For safety, operations or any other issues, refer to the Safety Guide and User's Manual (concise and detailed).

⚠ WARNING ▶ Before using this product, be sure to read all manuals for this product.

After reading them, store them in a safe place for future reference.

NOTE • The information in this manual is subject to change without notice.

- The manufacturer assumes no responsibility for any errors that may appear in this manual.

- The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Trademark acknowledgment

- Windows is a registered trademark of Microsoft Corporation.

All other trademarks are the properties of their respective owners.

Content

About this manual.... 1

Content 2

1. Main functions .... 3

1.1 Configuring and controlling via a web browser .... 3
1.2 e-SHOT (Still image Transfer) Display 3

2. Equipment connection and network setting...... 4

2.1 Required equipment preparation .... 4
2.2 Manual network connection setting....5

2.2.1 Equipments connection 5
2.2.2 Network settings....5
2.2.3 "Internet Option" setting....8
2.2.4 Check connection....9

3. Management with Web browser software 10

3.1 Configuring and controlling the projector via a web browser 11

3.1.1 Logon 13
3.1.2 Network Information ...... 14
3.1.3 Network Settings 15
3.1.4 Port Settings.... 17
3.1.5 Mail Settings.... 18
3.1.6 Alert Settings....19
3.1.7 Schedule Settings ...... 21
3.1.8 Date/Time Settings....23
3.1.9 Security Settings 25
3.1.10 Projector Control 27
3.1.11 Projector Status .... 30
3.1.12 Network Restart.... 31
3.1.13 Logoff 31

3.2 E-mail Alerts.... 32
3.3 Projector Management using SNMP 34
3.4 Event Scheduling 35
3.5 e-SHOT (Still Image Transfer) Display....38
3.6 Command Control via the Network 40

1. Main functions

1.1 Configuring and controlling via a web browser

You can adjust or control the projector via a network from a web browser on a PC that is connected to the same network.

Logon the network from the web browser and it offers the menus to configure the network settings, monitor the projector and so on.

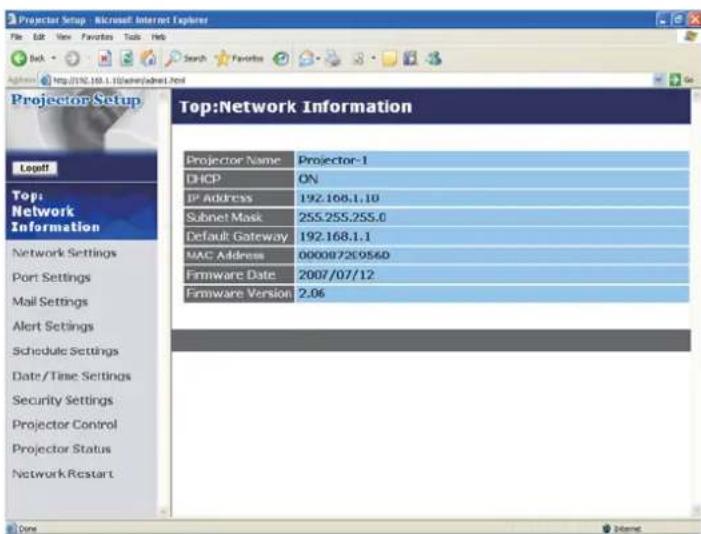

Projector Setup - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites http://19C.10.1.10/week/sdset.html Projector Setup Logoff Top: Network Information Network Settings Port Settings Mail Settings Alert Settings Schedule Settings Date / Time Settings Security Settings Projector Control Projector Status Network Restart Top:Network Information Projector Name Projector-1 DHCP ON IP Address 192.108.1.10 Subnet Mask 255.255.255.0 Default Gateway 192.168.1.1 MAC Address 000087269560 Firmware Date 2007/07/12 Firmware Version 2.06 Done Internet

1.2 e-SHOT (Still image Transfer) Display

Image files can be sent via the network, and up to 4 image data can be stored in the projector and displayed on screen one by one. (38)

2. Equipment connection and network setting

2. Equipment connection and network setting

2.1 Required equipment preparation

The following equipments are required to connect the projector to your PC through the network.

PC : 1) equipped with the network feature 2) installed a web browser software (11)

LAN cable : CAT-5 or greater

2.2 Manual network connection setting

2.2.1 Equipments connection

Connect the projector and PC with a LAN cable.

* Before connecting with an existing network, contact the network administrator.

Next, please check the PC setting as explained below.

2.2.2 Network settings

This is the explanation of network connection settings for Windows XP and Internet Explorer.

1) Log on to Windows XP as administrator authority. (*)
2) Open "Control Panel" from "Start" menu.
3) Open "Network and Internet Connections" in "Control Panel". (Fig. 2.2.2.a)

* Administrator authority is the account, which can access to all functions.

Network and Internet Connections Back View Favorites Tools Help Search Folders Address Network and Internet Connections See Also My Network Places Printers and Other Hardware Remote Desktop Phone and Modem Options Troubleshooters Networking Internet Explorer Network Diagnostics Network and Internet Connections Pick a task... Set up or change your Internet connection Create a connection to the network at your workplace or pick a Control Panel Icon Internet Options Network Connections

Fig. 2.2.2.a "Network and Internet Connections" window

4) Open "Network Connections". (Fig.2.2.2.b)

Network Connections File Edit View Favorites Tools Advanced Help Back Search Folders Address Network Connections Network Tasks Create a new connection See Also Network Troubleshooter Other Places Control Panel My Network Places My Documents My Computer Details Network Connections System Folder LAX or High-Speed Internet Wireless Network Connection 2 Disabled, Pre Nexted 1. Light/4 Wireless LAN PIN/PCI... Local Inset Connection Network Cable Unplugged Drive PC PCI/1000 MT Mobile...

Fig. 2.2.2.b "Network Connections" window

2.2 Manual network connection setting (continued)

5) Open "Local Area Connection Properties" window you use for network device. (Fig. 2.2.2.c)

Local Area Connection Properties General Authentication Advanced Connect using: Intel(R) PRO/1000 MT Mobile Connection Configure... This connection uses the following items: Network Monitor Driver AEGIS Protocol/IEEE 802.1xv2.3.1.9 Internet Protocol [TCP/IP] Install... Uninstall Properties Description Transmission Control Protocol/Internet Protocol. The default wide area network protocol that provides communication across diverse interconnected networks. Show icon in notification area when connected OK Cancel

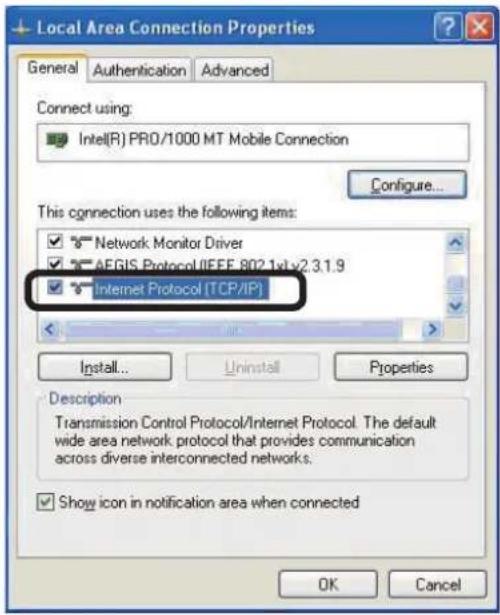

Fig. 2.2.2.c "Local Area Connection Properties" window

6) Set used protocol as "TCP/IP" and open "Internet Protocol (TCP/IP) Properties" window.

Internet Protocol (TCP/IP) Properties General You can get IP settings assigned automatically if your network supports this capability. Otherwise, you need to ask your network administrator for the appropriate IP settings. Obtain an IP address automatically. Use the following IP address: JP address: 192 , 168 , 1 , 50 Subnet mask: 255 , 255 , 255 , 0 Default gateway: . Obtain DNS server address automatically Use the following DNS server addresses: Preferred DNS server: . Alternate DNS server: . Advanced... OK Cancel

Fig. 2.2.2.d "Internet Protocol (TCP/IP) Properties" window

7) Set IP address, subnet mask and default gateway for PC.

2.2 Manual network connection setting (continued)

[About IP address]

■ Setting manually

The Network address portion included in the IP address set into your PC should be common with projector's one. And the entire IP address in the PC should not be overlapped with other equipments in the same network, including the projector.

For example

The projector's initial settings are as follows.

IP address: 192.168.1.10

Subnet mask: 255.255.255.0

(Network address: 192.168.1 in this case)

Therefore, specify PC's IP address as follows.

IP address: 192.168.1.xxx (xxx shows decimal number.)

Subnet mask: 255.255.255.0

(Network address: 192.168.1 in this case)

Select from 1 to 254 for “xxx” not duplicating with any other equipments. In this case, projector has “192.168.1.10” IP address, specify from 1 to 254 except 10 for PC.

NOTE • "0.0.0.0" cannot be set to the IP address.

• The projector's IP address can be changed by using the configuration utility via a web browser. (11)
• If the projector and PC exist in the same network (i.e. network address is common), default gateway can be blank.
• When the projector and PC exist in different networks, default gateway setting is necessary. Contact the network administrator in detail.

■ Setting automatically

When DHCP server exists in network, it is possible to assign IP address to the projector and PC automatically.

* DHCP is abbreviation for “Dynamic Host Configuration Protocol” and has the function to provide necessary setting for network like IP address from server to client. A server that has DHCP function is called DHCP server.

2.2 Manual network connection setting (continued)

2.2.3 "Internet Option" setting

1) Click "Internet Options" in "Network and Internet Connections" window (Fig. 2.2.3.a) to open "Internet Properties" window. (Fig.2.2.3.b)

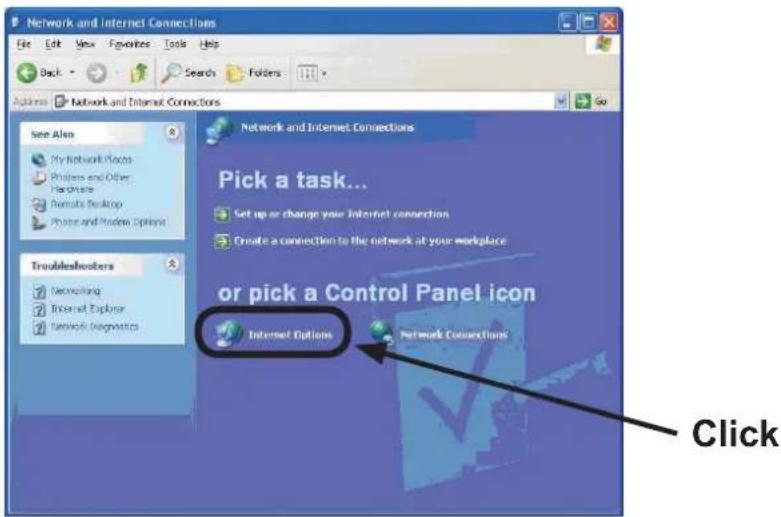

Network and Internet Connections File Edit View Favorites Tools Help Back Search Folders Agilent Network and Internet Connections See Also My Network Places Phinters and Other Hardware Remote Desktop Phone and Media Options Troubleshooters Networking Internet Explorer Service Diagnostics Network and Internet Connections Pick a task... Set up or change your Internet connection Create a connection to the network at your workplace or pick a Control Panel icon Internet Options Network Connections Click

Fig. 2.2.3.a "Network and Internet Connections" window

Internet Properties General Security Privacy Content Connections Programs Advanced To set up an Internet connection, click Setup. Setup... Dial-up and Virtual Private Network settings AT&T Global Network Client IRvpnEntry Add... Remove Choose Settings if you need to configure a proxy server for a connection. Never dial a connection Dial whenever a network connection is not present Always dial my default connection Current None Set Default Local Area Network (LAN) settings LAN Settings do not apply to dial-up connections. Choose Settings above for dial-up settings. LAN Settings... OK Cancel Apply Click

Fig. 2.2.3.b "Internet Properties" window

2) Click "Connections" tab and then click [LAN Settings] button to open "Local Area Network (LAN) settings". (Fig. 2.2.3.c)

2.2 Manual network connection setting (continued)

Local Area Network (LAN) Settings Automatic configuration Automatic configuration may override manual settings. To ensure the use of manual settings, disable automatic configuration. Automatically detect settings Use automatic configuration script Address: Proxy server Use a proxy server for your LAN (These settings will not apply to dial-up or VPN connections). Address: gw.yokohama.hai Port: 6080 Advanced... Bypass proxy server for local addresses OK Cancel

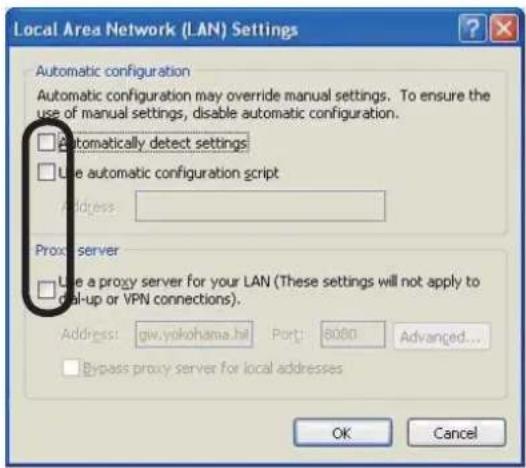

Fig. 2.2.3.c "Local Area Network (LAN) Settings" window

3) Uncheck all boxes in "Local Area Network (LAN) Settings" window. (Fig. 2.2.3.c)

2.2.4 Check connection

Check PC and projector are connected properly here. If it is not connected, check cable connections and settings are properly or not.

1) Start browser in PC and specify following URL, then click "Go" button.

URL: http://(Projector IP address)/

For example, if projector IP address is 192.168.1.10, specify

URL: http://192.168.1.10/

2) If Fig. 2.2.4 appears, it succeeds.

Logon - Microsoft Internet Explorer File Edit View Favorites Tools Help Back Search Favorites http://2190.168.1.10/index.html Projector Setup Projector-1 ID: Password: Logon Clear Done

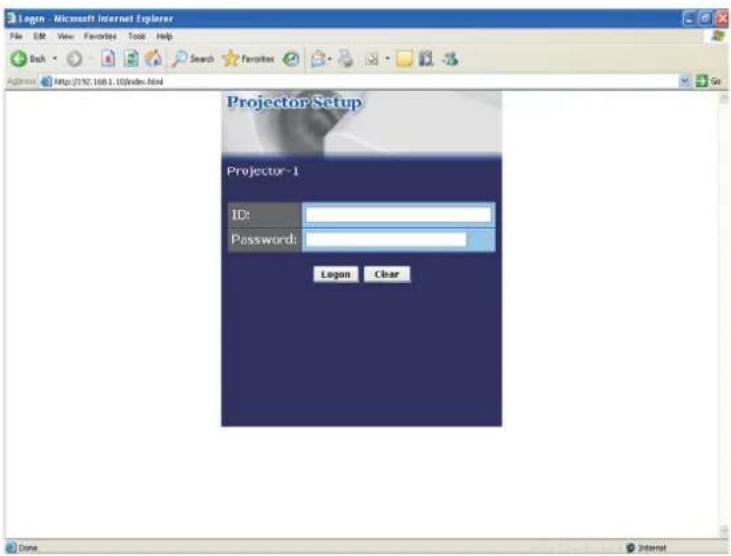

Fig. 2.2.4 "Logon Menu"

1. Management with Web browser software

3. Management with Web browser software

This projector is equipped with the following network functions by using a web browser software.

Configuring and Controlling the Projector via a Web Browser

You can change the settings of or control the projector via a network by using a web browser from a PC that is connected to the same network.

(11)

E-mail Alerts

The projector can automatically send an alert to specified e-mail addresses when the projector requires maintenance or has encountered an error.

(32)

Projector Management using SNMP

This projector is SNMP (Simple Network Management Protocol) compliant, allowing you to monitor it from a remote location using SNMP software. In addition, the projector is able to send failure & warning alerts to a specified PC.

(34)

Event Scheduling

You can schedule the projector to perform various functions according to the date and time.

(35)

e-SHOT (Still Image Transfer) Display

The projector can display still images that are transferred via the network.

(38)

Command Control via the Network

The projector can be controlled using RS-232C commands over a network.

(40)

3.1 Configuring and controlling the projector via a web browser

You can adjust or control the projector via a network from a web browser on a PC that is connected to the same network.

NOTE • Internet Explorer 5.5 or later is required.

• If JavaScript is disabled in your web browser configuration, you must enable JavaScript in order to use the projector web pages properly. See the Help files for your web browser for details on how to enable JavaScript.
• You can communicate using SSL (Secure Socket Layer) if you are using Windows XP Service Pack 2 or earlier versions of Microsoft Windows. Please specify “https://” when you enter the IP address of the projector on the web browser. You can't communicate the projector using SSL on Windows Vista.
• It is recommended that all web browser updates are installed. It is especially recommended that all users running Internet Explorer on a Microsoft Windows version prior to Windows XP Service Pack 2 install security update Q832894 (MS04-004) or the web browser interface may not be displayed correctly. And when using an earlier version of Internet Explorer, during operations the browser will log out after 50 seconds.

3.1 Configuring and controlling the projector via a web browser (continued)

When configuring or controlling the projector via a web browser, an ID and password are required. There are two types of IDs, Administrator ID and User ID. The following chart describes the differences between Administrator and User IDs.

Item Description	Administrator User
Network Information	Displays the projector's current network configuration settings.	√	√
Network Settings	Displays and configures network settings.	√ N/A
Port Settings	Displays and configures communication port settings.	√ N/A
Mail Settings	Displays and configures e-mail addressing settings.	√ N/A
Alert Settings	Displays and configures failure & warning alerts.	√ N/A
Schedule Settings	Displays and configures schedule settings.	√ N/A
Date/Time Settings	Displays and configures the date and time settings.	√ N/A
Security Settings	Displays and configures passwords and other security settings.	√ N/A
Projector Control Controls the projector. √ √
Projector Status	Displays and configures the current projector status.	√	√
Network Restart	Restarts the projector's network connection.	√ N/A

3.1 Configuring and controlling the projector via a web browser (continued)

3.1.1 Logon

Refer to the following for configuring or controlling the projector via a web browser.

Example: If the IP address of the projector is set to 192.168.1.10:

1) Enter "http://192.168.1.10/" into the address bar of the web browser and press "Enter" key or click "Go" button. The screen in Fig. 3.1.1a will be displayed.

2) Enter your ID and password and click [Logon].

Projector Setup Projector-1 ID: Parameters Layer Close

Fig. 3.1.1 a "Logon Menu"

Below are the factory default settings for administrator ID, user ID and passwords.

Item ID Password
Administrator Administrator
User User

If the logon is successful, either the Fig. 3.1.1 b or Fig. 3.1.1 c screen will be displayed.

Main menu Projects Name: Microsoft Internet Explorer Project Setup Project/Network Information Projector Name: Projector 1 DHCP: ON ID Address: 192.106.1.10 Subject Mask: 255.255.255.0 External Software: 192.106.1.1 MAC Address: 0000872E956D Password Date: 2007/07/22 Forward Version: 2.06 Layout Top: Network Information Network Settings Port Settings Mail Settings Alert Settings Schedule Settings Date/Time Settings Security Settings Projector Control Projector Status Network Restart

Fig. 3.1.1 b "Logon with Administrator ID"

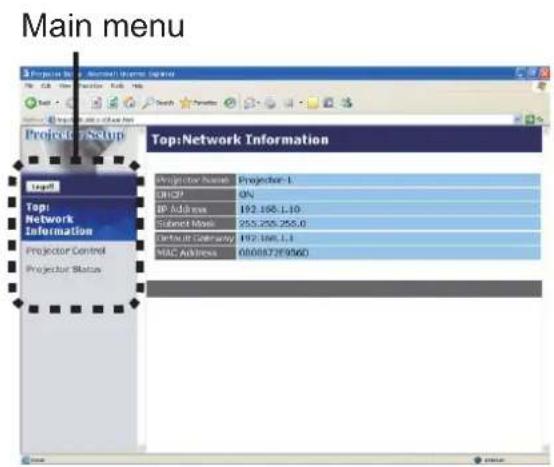

Main menu Projector Setup Top:Network Information Projector Name: Projector 1 DHCP 0% ID Address 192.158.1.10 Subject Mode 255.255.255.0 DB Module Company 192.158.1.1 MAC Address 6808872F9360

Fig. 3.1.1 c "Logon with User ID"

3) Click the desired operation or configuration item on the main menu located on the left-hand side of the screen.

3.1 Configuring and controlling the projector via a web browser (continued)

3.1.2 Network Information

Projector Status Top:Network Information Projector Name Projection 1 DCT OK Sr Address 192.168.1.19 Subject Main 255.255.256.9 Default Gateway 192.168.1.1 MAC Address 000087289550 Email Account 2007/07/12 Portfolio Server 2.05

All screen drawings in this manual are shown when you logon with the Administrator ID. Any functions that are available only for the Administrator will not be shown when you logon with the User ID. Refer to the table. (13)

Displays the projector's current network configuration settings.

Item Description
Projector Name Displays the projector name settings.
DHCP Displays the DHCP configuration settings.
IP Address Displays the current IP address.
Subnet Mask Displays the subnet mask.
Default Gateway Displays the default gateway.
MAC Address Displays the ethernet MAC address.
Firmware Date	Displays the network firmware time stamp. This information is only displayed when logged on using an Administrator ID.
Firmware Version	Displays the network firmware version number. This information is only displayed when logged on using an Administrator ID.

3.1 Configuring and controlling the projector via a web browser (continued)

3.1.3 Network Settings

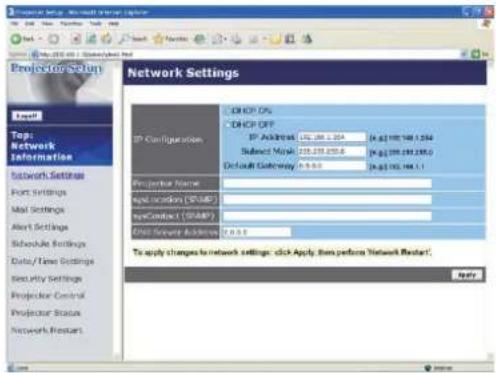

Displays and configures network settings.

Item Description
IP Configuration Configures network settings.
DHCP ON Enables DHCP.
DHCP OFF Disables DHCP.
IP Address Configures the IP address when DHCP is disabled.
Subnet Mask Configures the subnet mask when DHCP is disabled.
Default Gateway Configures the default gateway when DHCP is disabled.
Projector Name		Configures the name of the projector.The length of the Projector Name can be up to 64 alphanumeric characters. Only alphabets, numbers and following symbols can be used. !"#$%&'()*+,-./;;<=>?@[^_^_'{}~ and space
sysLocation (SNMP)		Configures the location to be referred to when using SNMP.The length of the sysLocation can be up to 255 alphanumeric characters. Only numbers '0-9' and alphabet 'a-z', 'A-Z' can be used.
sysContact (SNMP)		Configures the contact information to be referred to when using SNMP.The length of the sysContact can be up to 255 alphanumeric characters. Only numbers '0-9' and alphabet 'a-z', 'A-Z' can be used.
DNS Server Address Configures the DNS server address.

Click [Apply] button to save the settings.

3. Management with Web browser software

3.1 Configuring and controlling the projector via a web browser (continued)

NOTE • The new configuration settings are activated after restarting the network connection. When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking [Network Restart] on the main menu.

- If you connect the projector to an existing network, consult a network administrator before setting server addresses.

3.1 Configuring and controlling the projector via a web browser (continued)

3.1.4 Port Settings

Projector Setup Port Settings Network Control Port1 (Port:23) Port name: Enable Authentication: Enable Network Control Port2 (Port:9719) Port name: Enable Authentication: Enable Image Transfer Port (Port:9715) Port name: Enable Authentication: Enable SNMP Port Port name: Enable SNMP Address: 0.0.0.0 SNMP Port Port name: Enable

Displays and configures communication port settings.

Item Description
Network Control Port1 (Port:23)	Configures command control port 1 (Port:23).
Port open Click [Enable]	check box to use port 23.
Authentication	Click [Enable] check box when authentication is required for this port.
Network Control Port2 (Port:9715)	Configures command control port 2 (Port:9715).
Port open Click [Enable]	check box to use port 9715.
Authentication	Click [Enable] check box when authentication is required for this port.
Image Transfer Port (Port:9716)	Configures the image transfer port (Port:9716).
Port open Click the [Enable]	check box to use port 9716.
Authentication	Click the [Enable] check box when authentication is required for this port.
SNMP Port Configures the SNMP port.
Port open Click [Enable]	check box to use SNMP.
Trap address Configures the destination of the SNMP Trap in IP format.
SMTP Port Configures the SMTP port.
Port open Click [Enable]	check box to use the e-mail function.

Click [Apply] button to save the settings.

NOTE • The new configuration settings are activated after restarting the network connection. When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking [Network Restart] on the main menu.

3.1 Configuring and controlling the projector via a web browser (continued)

3.1.5 Mail Settings

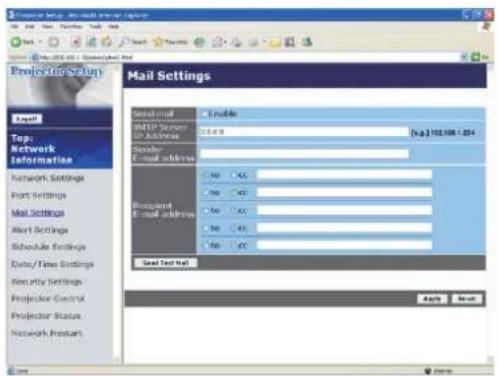

Projector Setup - Microsoft Internet Explorer Projector Setup - Microsoft Internet Explorer Projector Setup - Microsoft Internet Explorer Projector Setup - Microsoft Internet Explorer Projector Setup - Microsoft Internet Explorer Projector Setup - Microsoft Internet Explorer Projector Setup - Microsoft Internet Explorer Projector Setup - Microsoft Internet Explorer Projector Setup - Microsoft Internet Explorer Projector Setup - Microsoft Internet Explorer Projector Setup - Microsoft Internet Explorer Projector Setup - Microsoft Internet Explorer Projector Setup - Microsoft Internet Explorer Projector Setup Mail Settings Send mail Send Email Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text-Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send Text Mail Send TextMail

Displays and configures e-mail addressing settings.

Item Description
Send mail	Click [Enable] check box to use the e-mail function.Configure the conditions for sending e-mail under the Alert Settings.
SMTP Server IP Address	Configures the address of the mail server in IP format.• The address allows not only IP address but also domain name if the valid DNS server is setup in the Network Settings. The maximum length of host or domain name is up to 255 characters.
Sender E-mail address	Configures the sender e-mail address.The length of the sender e-mail address can be up to 255 alphanumeric characters.
Recipient E-mail address	Configures the e-mail address of up to five recipients. You can also specify [TO] or [CC] for each address. The length of the recipient e-mail address can be up to 255 alphanumeric characters.

Click [Apply] button to save the settings.

NOTE • You can confirm whether the mail settings work correctly using [Send Test Mail] button. Please enable Send mail setting before clicking [Send Test Mail].

- If you connect the projector to an existing network, consult a network administrator before setting server addresses.

3.1 Configuring and controlling the projector via a web browser (continued)

3.1.6 Alert Settings

Alert Settings / Cover Error OK/MP Trap Send Mail Mail Subject Mail Text Enable Enable Preceptor Error Group Label1 Apply Close

Displays and configures failure & alert settings.

Alert Item Description
Cover Error The lamp cover has not been properly fixed.
Fan Error The cooling fan is not operating.
Lamp Error	The lamp does not light, and there is a possibility that interior portion has become heated.
Temp Error	There is a possibility that the interior portion has become heated.
Lens Door Error The lens door is not opened or closed properly.
Air Flow Error The internal temperature is rising.
Lamp Time Error Lamp time over.
Cold Error	There is a possibility that the interior portion has become overcooled.
Filter Error Filter time over.
Other Error	Other error.If displaying this error, please contact your dealer.
Schedule Execution Error	Schedule Execution error. (21)
Lamp Time Alarm Lamp time over Alarm Time setting.
Filter Time Alarm Filter time over Alarm Time setting.
Transition Detector Alarm	Transition Detector Alarm. (OPTION Menu in the User's Manual (detailed) - Operating Guide)
"CHANGE THE LAMP" is displayed.	"CHANGE THE LAMP" is displayed.
Cold Start	The Power switch is turned on.(Off → standby mode)
Authentication Failure	The SNMP access is detected from the invalid SNMP community.

Refer to "Troubleshooting" in the User's Manual (detailed) – Operating Guide for further detailed explanation of Error except Other Error and Schedule Execution Error.

3.1 Configuring and controlling the projector via a web browser (continued)

The Alert Items are shown below.

Setting Item Description
Alarm Time	Configures the time to alert.(Only Lamp Time Alarm and Filter Time Alarm.)
SNMP Trap Click [Enable]	check box to enable SNMP Trap alerts.
Send Mail	Click [Enable] check box to enable e-mail alerts.(Except Cold Start and Authentication Failure.)
Mail Subject	Configures the subject line of the e-mail to be sent.The length of the subject line can be up to 255 alphanumeric characters.(Except Cold Start and Authentication Failure.)
Mail Text	Configures the text of the e-mail to be sent.The length of the text can be up to 1024 alphanumeric characters.(Except Cold Start and Authentication Failure.)

Click [Apply] button to save the settings.

NOTE • The trigger of Filter Error e-mail is depending on the FILTER MESSAGE setting in the SERVICE item of the OPTION Menu which defines the period until the filter message is displayed on the projector screen. The e-mail will be sent when the filter timer exceeds 50, 100, 200, 300, 400, 500, 600, 700 or 800 hours based on the configuration. No notification e-mail will be sent if the FILTER MESSAGE is set to TURN OFF. OPTION Menu in the User's Manual (detailed) – Operating Guide

• Lamp Time Alarm is defined as a threshold for e-mail notification (reminder) of the lamp timer. When the lamp hour exceeds this threshold that is configured through the Web page, the e-mail will be sent out.
• Filter Time Alarm is defined as a threshold for e-mail notification (reminder) of the filter timer. When the filter hour exceeds this threshold, the e-mail will be sent out.

3.1 Configuring and controlling the projector via a web browser (continued)

3.1.7 Schedule Settings

Project Setup - Microsoft Internet Explorer Project Settings / Daily Schedule Settings / Daily Schedule Enable Back Topic Network Information Network Settings Port Settings Mail Settings Alert Settings Schedule Settings 1-Week 2-Weekday 3-Weekday 4-Weekday 5-Weekday 6-Weekday 7-Weekday 8-Weekday 9-Weekday 10-Weekday 11-Weekday 12-Weekday 13-Weekday 14-Weekday 15-Weekday 16-Weekday 17-Weekday 18-Weekday 19-Weekday 20-Weekday 21-Weekday 22-Weekday 23-Weekday 24-Weekday 25-Weekday 26-Weekday 27-Weekday 28-Weekday 29-Weekday 30-Weekday 31-Weekday 32-Weekday 33-Weekday 34-Weekday 35-Weekday 36-Weekday 37-Weekday 38-Weekday 39-Weekday 40-Weekday 41-Weekday 42-Weekday 43-Weekday 44-Weekday 45-Weekday 46-Weekday 47-Weekday 48-Weekday 49-Weekday 50-Weekday 51-Weekday 52-Weekday 53-Weekday 54-Weekday 55-Weekday 56-Weekday 57-Weekday 58-Weekday 59-Weekday 60-Weekday 61-Weekday 62-Weekday 63-Weekday 64-Weekday 65-Weekday 66-Weekday 67-Weekday 68-Weekday 69-Weekday 70-Weekday 71-Weekday 72-Weekday 73-Weekday 74-Weekday 75-Weekday 76-Weekday 77-Weekday 78-Weekday 79-Weekday 80-Weekday 81-Weekday 82-Weekday 83-Weekday 84-Weekday 85-Weekday 86-Weekday 87-Weekday 88-Weekday 89-Weekday 90-Weekday 91-Weekday 92-Weekday 93-Weekday 94-Weekday 95-Weekday 96-Weekday 97-Weekday 98-Weekday 99-Weekday

Displays and configures schedule settings.

Item Description

Daily Configures the daily schedule.

Sunday Configures the Sunday schedule.

Monday Configures the Monday schedule.

Tuesday Configures the Tuesday schedule.

Wednesday Configures the Wednesday schedule.

Thursday Configures the Thursday schedule.

Friday Configures the Friday schedule.

Saturday Configures the Saturday schedule.

Specific date No.1 Configures the specific date (No.1) schedule.

Specific date No.2 Configures the specific date (No.2) schedule.

Specific date No.3 Configures the specific date (No.3) schedule.

Specific date No.4 Configures the specific date (No.4) schedule.

Specific date No.5 Configures the specific date (No.5) schedule.

3.1 Configuring and controlling the projector via a web browser (continued)

The daily and weekly event items are shown below.

Item Daily & Weekly Description

Schedule Click [Enable] check box to enable the schedule.

Schedule List Displays the current schedule.

The specific date event items are shown below.

Item Specific date (No.1-5) Description
Schedule	Click [Enable] check box to enable specific date (No.1-5) schedule.
Date (Month/Day) Configures the month and date.
Schedule List Displays the	current specific date (No.1-5) schedule.

Click [Apply] button to save the settings.

To add additional functions and events, click [Add] button and set the following items.

Item Description
Time Configures the time to execute commands.
Command[Parameter]	Configures the commands to be executed.
Power Configures the parameters for power control.
Input Source Configures the parameters for input switching.
Display Image Configures the parameters for display of transfer image data.

Click [Register] button to add new commands to the Schedule List.

Click [Delete] button to delete commands from the Schedule List.

Click [Reset] button to delete all commands from the Schedule List.

NOTE • After the projector is moved, check the date and time set for the projector before configuring the schedules. Strong shock may make the date and time settings (23) get out of tune.

3.1 Configuring and controlling the projector via a web browser (continued)

3.1.8 Date/Time Settings

Projector Settings Projector Settings Date/Time Settings Current Date Current Time Start End Output Start Time Start Time Output Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current Time Current T1: 0.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 Current T2: 19.834567888.1254 Current T3: 19.834567888.1254 Current T4: 19.834567888.1254 Current T5: 19.834567888.1254 Current T6: 19.834567888.1254 Current T7: 19.834567888.1254 Current T8: 19.834567888.1254 Current T9: 19.834567888.1254 Current T10: 19.834567888.1254 Current T11: 19.834567888.1254 Current T12: 19.834567888.1254 Current T13: 19.834567888.1254 Current T14: 19.834567888.1254 Current T15: 19.834567888.1254 Current T16: 19.834567888.1254 Current T17: 19.834567888.1254 Current T18: 19.834567888.1254 Current T19: 19.834567888.1254 Current T20: 19.834567888.1254 Current T21: 19.834567888.1254 Current T22: 19.834567888.1254 Current T23: 19.834567888.1254 Current T24: 19.834567888.1254 Current T25: 19.834567888.1254 Current T26: 19.834567888.1254 Current T27: 19.834567888.1254 Current T28: 19.834567888.1254 Current T29: 19.834567888.1254 Current T30: 19.834567888.1254 Current T31: 19.834567888.1254 Current T32: 19.834567888.1254 Current T33: 19.834567888.1254 Current T34: 19.834567888.1254 Current T35: 19.834567888.1254 Current T36: 19.834567888.1254 Current T37: 19.834567888.1254 Current T38: 19.834567888.1254 Current T39: 19.834567888.1254 Current T40: 19.834567888.1254 Current T41: 19.834567888.1254 Current T42: 19.834567888.1254 Current T43: 19.834567888.1254 Current T44: 19.834567888.1254 Current T45: 19.834567888.1254 Current T46: 19.834567888.1254 Current T47: 19.834567888.1254 Current T48: 19.834567888.1254 Current T49: 19.834567888.1254 Current T50: 19.834567888.1254 Current T51: 19.834567888.1254 Current T52: 19.834567888.1254 Current T53: 19.834567888.1254 Current T54: 19.834567888.1254 Current T55: 19.834567888.1254 Current T56: 19.834567888.1254 Current T57: 19.834567888.1254 Current T5B: 19.000000000000000000000000000000000000000000000000000000000000

Displays and configures the date and time settings.

Item Description
Current Date Configures the current date in year/month/day format.
Current Time			Configures the current time in hour:minute:second format.
Daylight Savings Time			Click [ON] check box to enable daylight savings time and set the following items.
Start Configures the date and time daylight savings time begins.
Month Configures the month daylight savings time begins (1~12).
Week			Configures the week of the month daylight savings time begins (First, 2, 3, 4, Last).
Day			Configures the day of the week daylight savings time begins (Sun, Mon, Tue, Wed, Thu, Fri, Sat).
Time	hour Configures the hour daylight savings time begins (0 ~ 23).
	minute Configures the minute daylight savings time begins (0 ~ 59).
End Configures the date and time daylight savings time ends.
Month Configures the month daylight savings time ends (1 ~ 12).
Week			Configures the week of the month daylight savings time ends (First, 2, 3, 4, Last).
Day			Configures the day of the week daylight savings time ends (Sun, Mon, Tue, Wed, Thu, Fri, Sat).
Time	hour Configures the hour daylight savings time ends (0 ~ 23).
	minute Configures the minute daylight savings time ends (0 ~ 59).

3.1 Configuring and controlling the projector via a web browser (continued)

Item Description
Time difference
SNTP
SNTP Server IP Address	Configures the SNTP server address in IP format.• The address allows not only IP address but also domain name if the valid DNS server is setup in the Network Settings. The maximum length of host or domain name is up to 255 characters.
Cycle	Configures the interval at which to retrieve Date and Time information from the SNTP server (hours:minutes).

Click [Apply] button to save the settings.

NOTE • The new configuration settings are activated after restarting the network connection. When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking [Network Restart] on the main menu.

• If you connect the projector to an existing network, consult a network administrator before setting server addresses.
• To enable the SNTP function, the time difference must be set.
• The projector will retrieve Date and Time information from the time server and override time settings when SNTP is enabled.
• The internal clock's time may not remain accurate. Using SNTP is recommended to maintain accurate time.

3.1 Configuring and controlling the projector via a web browser (continued)

3.1.9 Security Settings

Security Settings / Administrator authority Administrator 3D Administrator Password: Director: Administrator Password: To apply changes to security settings, click Apply, then perform Network Master? Entry.

Displays and configures passwords and other security settings.

Item Description
Administrator authority Configures the Administrator ID and password.
	Administrator ID	Configures the Administrator ID.The length of the text can be up to 32 alphanumeric characters.
	Administrator Password	Configures the Administrator password.The length of the text can be up to 255 alphanumeric characters.
	Re-enter Administrator Password	Reenter the above password for verification.
User authority Configures the User ID and password.
	User ID	Configures the User ID.The length of the text can be up to 32 alphanumeric characters.
	User Password	Configures the User password.The length of the text can be up to 255 alphanumeric characters.
	Re-enter User Password	Reenter the above password for verification.

3.1 Configuring and controlling the projector via a web browser (continued)

Item Description
Network Control	Configures the Authentication password for the command control.
Authentication Password	Configures the Authentication password. The length of the text can be up to 32 alphanumeric characters.
Re-enter Authentication Password	Reenter the above password for verification.
SNMP Configures the community name if SNMP is used.
Community name	Configures the community name. The length of the text can be up to 64 alphanumeric characters.

Click [Apply] button to save the settings.

NOTE • The new configuration settings are activated after restarting the network connection. When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking [Network Restart] on the main menu.

- Only numbers ‘0-9’ and alphabet ‘a-z’, ‘A-Z’ can be used.

3.1 Configuring and controlling the projector via a web browser (continued)

3.1.10 Projector Control

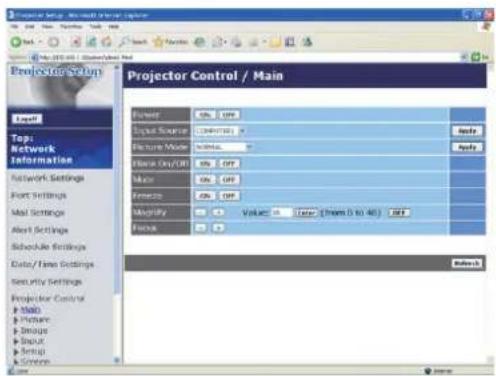

Projector Control / Main Projector Control / Main Power Supply Source Picture Mode File Size/Off Main Properties Mortality Value Lower (from 0 to 40) OK Apply Apply Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Impact Imp10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

The items shown in the table below can be performed using the Projector Control menu. Select an item using the up and down arrow keys on the PC. Most of the items have a submenu. Refer to the table below for details.

NOTE • The setting value may not match with the actual value if the user changes the value manually. In that case, please refresh the page by clicking [Refresh] button.

Controls the projector.

Item Description
Main
		Power Turns the power on/off.
		Input Source Selects the input source.
		Picture Mode Selects the picture mode setting.
		Blank On/Off Turns Blank on/off.
		Mute Turns Mute on/off.
		Freeze Turns Freeze on/off.
		Magnify Controls the magnify setting.In some input signal sources, it might stop “Magnify” even though it does not reach to maximum setting value.The variable range:For a Computer signal 0-48For a video, component or s-video signal 0-16
		Focus Adjusts the focus.
		Brightness Adjusts the brightness setting.
		Contrast Adjusts the contrast setting.
		Gamma Selects the gamma setting.
		Color Temp Selects the color temperature setting.
		Color Adjusts the color setting.
		Tint Adjusts the tint setting.
		Sharpness Adjusts the sharpness setting.
		MyMemory Save Saves the MyMemory data.
		MyMemory Recall Recalls the MyMemory data.

3.1 Configuring and controlling the projector via a web browser (continued)

Item Description
	Aspect Selects the aspect setting.
	Over Scan Adjusts the over scan setting.
	V Position Adjusts the vertical position.
	H Position Adjusts the horizontal position.
	H Phase Adjusts the horizontal phase.
	H Size Adjusts the horizontal size.
	Auto Adjust Execute Performs the automatic adjustment.
Input
	Progressive Selects the progressive setting.
	Video NR Selects the video noise reduction setting.
	Color Space Selects the color space.
	Component Selects the component terminal setting.
	C-Video Format Selects the video format setting.
	S-Video Format Selects the s-video format setting.
	Frame Lock-Computer1	Turns the frame lock-Computer1 function on/off.
	Frame Lock-Computer2	Turns the frame lock-Computer2 function on/off.
	Computer in-1 Selects the Computer1 input signal type.
	Computer in-2 Selects the Computer2 input signal type.
Setup
	D-Zoom	Adjusts the zoom.
	D-Shift V	Adjust the vertical picture position.
	D-Shift H	Adjust the horizontal picture position.
	Keystone V	Adjusts the vertical keystone distortion setting.
	Whisper Selects the whisper mode.
	Mirror	Selects the mirror status.
	Volume	Adjusts the volume setting.
	Speaker	Turns the built-in speaker on/off.
	Audio-Computer1	Assigns the AUDIO-COMPUTER IN1 input port.
	Audio-Computer2	Assigns the AUDIO-COMPUTER IN2 input port.
	Audio-Component	Assigns the AUDIO-COMPONENT input port.
	Audio-S-Video	Assigns the AUDIO-S-VIDEO input port.
	Audio-Video	Assigns the AUDIO-VIDEO input port.

3.1 Configuring and controlling the projector via a web browser (continued)

Item Description
Screen
		Language Selects the language for the OSD.
		Menu Position V Adjusts the vertical Menu position.
		Menu Position H Adjusts the horizontal Menu position.
		Blank Selects the Blank mode.
		Startup Selects the startup screen mode.
		MyScreen Lock Turns MyScreen lock function on/off.
		Message Turns the message function on/off.
Option
		Auto Search Turns the automatic signal search function on/off.
		Auto on Turns the auto on function on/off.
		Auto off Configures the timer to shut off the projector when no signal is detected.
		My Button-1 Assigns the functions for the MY BUTTON1 buttons on the included remote control.
		My Button-2 Assigns the functions for the MY BUTTON2 buttons on the included remote control.
		Focus Lock Turns the focus lock function on/off.
		Remote Receiv. Front Enable/Disable remote receiv. front.
		Remote Receiv. Top Enable/Disable remote receiv. top.
		Remote Freq. Normal Enables/Disables the remote control signal frequency normal.
		Remote Freq. High Enables/Disables the remote control signal frequency high.
Closed Caption
		Display Selects Closed Caption DISPLAY setting.
		Mode Selects Closed Caption MODE setting.
		Channel Selects Closed Caption CHANNEL setting.

3.1 Configuring and controlling the projector via a web browser (continued)

3.1.11 Projector Status

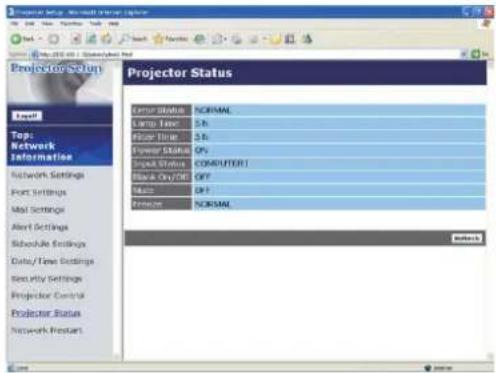

Projector Status Normal Status NORMAL Lamp Type: 3.6 Power Type: 3.6 Power Status: OP Supply Status: COMPUTER1 Black Only/Off OP MCC: OP Projector: NORMAL Projector Status Network Settings Data/Time Settings Security Settings Projector Control Projector Status Network Settings

Displays and configures the current projector status.

Item Description
Error Status Displays the current error status
Lamp Time Displays the usage time for the current lamp.
Filter Time Displays the usage time for the current filter.
Power Status Displays the current power status.
Input Status Displays the current input signal source.
Blank On/Off Displays the current Blank on/off status.
Mute Displays the current Mute on/off status.
Freeze Displays the current Freeze status.

3.1 Configuring and controlling the projector via a web browser (continued)

3.1.12 Network Restart

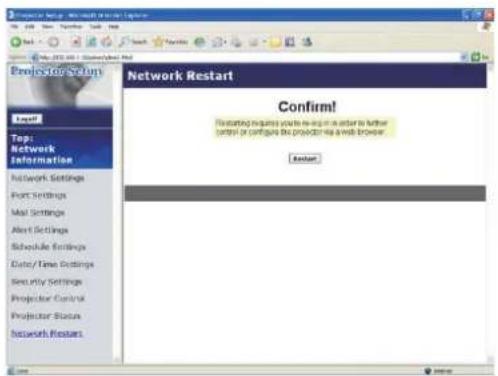

Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start Projector Start

Restarts the projector's network connection.

Item Description
Restart	Restarts the projector's network connection in order to activate new configuration settings.

NOTE • Restarting requires you to re-log on in order to further control or configure the projector via a web browser. Wait 1 minute or more after clicking [Restart] button to log on again.

- The Logon menu (13) is displayed after restarting the projector's network connection if the DHCP is set to ON.

3.1.13 Logoff

When [Logoff] is clicked, the Logon menu is displayed. (13)

3.2 E-mail Alerts

The projector can automatically send an alert message to the specified e-mail addresses when the projector detects a certain condition that is requiring maintenance or detected an error.

NOTE • Up to five e-mail addresses can be specified.

- The projector may be not able to send e-mail if the projector suddenly loses power.

Mail Settings (18)

To use the projector's e-mail alert function, please configure the following items through a web browser.

Example: If the IP address of the projector is set to 192.168.1.10:

1) Enter "http://192.168.1.10/" into the address bar of the web browser.
2) Enter the Administrator ID and password and click [Logon].
3) Click [Port Settings] on the main menu.
4) Click [Enable] check box to open the SMTP Port.
5) Click [Apply] button to save the settings.

NOTE • A Network Restart is required after the SMTP Port configuration settings have changed. Click [Network Restart] and configure the following items.

6) Click [Mail Settings] and configure each item. Refer to the item 3.1.5 Mail Settings (18) for further information.
7) Click [Apply] button to save the settings.

NOTE • Click [Send Test Mail] button in [Mail Settings] to confirm that the e-mail settings are correct. The following mail will be delivered to the specified addresses.

Subject line :Test Mail

Date <Testing date>
Time <Testing time>
IP Address <Projector IP address>
MAC Address <Projector MAC address>

3.2 E-mail Alerts (continued)

8) Click [Alert Settings] on the main menu to configure the E-mail Alerts settings.
9) Select and configure each alert item. Refer to the item 3.1.6 Alert Setting (19) for further information.
10) Click [Apply] button to save the settings.

Failure/Warning e-mails are formatted as follows:

Subject line :

Text :

Date

Time

IP Address

MAC Address

3.3 Projector Management using SNMP

The SNMP (Simple Network Management Protocol) enables to manage the projector information, which is a failure or warning status, from the computer on the network. The SNMP management software will be required on the computer to use this function.

NOTE • It is recommended that SNMP functions be carried out by a network administrator.

- SNMP management software must be installed on the computer to monitor the projector via SNMP.

SNMP Settings (17)

Configure the following items via a web browser to use SNMP.

Example: If the IP address of the projector is set to 192.168.1.10:

1) Enter "http://192.168.1.10/" into the address bar of the web browser.
2) Enter the Administrator ID and Password and click [Logon].
3) Click [Port Settings] on the main menu.
4) Click [Enable] check box to open the SNMP Port. Set the IP address to send the SNMP trap to when a Failure/Warning occurs.

NOTE • A Network Restart is required after the SNMP Port configuration settings have been changed. Click [Network Restart] and configure the following items.

5) Click [Security Settings] on the main menu.
6) Click [SNMP] and set the community name on the screen that is displayed.

NOTE • A Network Restart is required after the Community Name has been changed. Click [Network Restart] and configure the following items.

7) Configure the settings for Trap transmission of Failures/Warnings. Click [Alert Settings] on the main menu and select the Failure/Warning item to be configured.
8) Click [Enable] check box to send out the SNMP trap for Failures/Warnings. Clear [Enable] check box when SNMP trap transmission is not required.
9) Click [Apply] button to save the settings.

3.4 Event Scheduling

The scheduling function enables to setup scheduled events including power on / power off. It enables to be “self-management” projector.

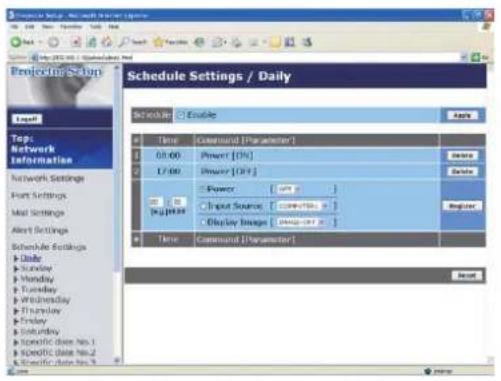

Schedule Settings / Daily Schedule Enable Time Command [Parameter] 00:00 Power [0%] 17:00 Power [OFF] Output Input Source Display Image Command [Parameter] Time Enable

NOTE • You can schedule the following control events: Power ON/OFF, Input Source and Transferred Image Display.

- The power on / off event has the lowest priority among the all events that are defined at the same time.

- There are 3 types of Scheduling, 1) daily 2) weekly 3) specific date. (21)

- The priority for scheduled events is as follows 1) specific date 2) weekly 3) daily.

- Up to five specific dates are available for scheduled events. Priority is given to those with the lower numbers when more than one event has been scheduled for the same date and time (e.g., 'Specific day No. 1' has priority over 'Specific day No. 2' and so on.

- Be sure to set the date and time before enabling scheduled events. (23)

3.4 Event Scheduling (continued)

Schedule Settings (21)

Schedule settings can be configured from a web browser.

Example: If the IP address of the projector is set to 192.168.1.10:

1) Enter "http://192.168.1.10/" into the address bar of the web browser.
2) Enter the Administrator ID and password and click [Logon].
3) Click [Schedule Settings] on the main menu and select the required schedule item. For example, if you want to perform the command every Sunday, please select [Sunday].
4) Click [Enable] check box to enable scheduling.
5) Enter the date (month/day) for specific date scheduling.
6) Click [Apply] button to save the settings.
7) Click [Add] to create new event. After configure the time, command and parameters, click [Register] to add the new event. To return the previous page, click [Cancel] button.
8) Click [Delete] button when you want to delete a schedule.

There are three types of scheduling.

1) Daily: Perform the specified operation at a specified time every day.
2) Sunday \~ Saturday: Perform the specified operation at the specified time on a specified day of the week.
3) Specific Date: Perform the specified operation on the specified date and time.

NOTE • In Standby mode the power indicator will flash green for approx. 3 seconds when at least 1 “Power ON” schedule is saved.

- When the schedule function is used, the power cord must be connected to the projector and the outlet and the power switch must be turned on, [ | ]. The schedule function does not work when the power switch is turned off, [O] or the breaker in a room is tripped. The power indicator will lights orange or green when the projector gets is receiving the power.

3.4 Event Scheduling (continued)

Date/Time Settings (23)

The Date/Time setting can be adjusted via a web browser.

Example: If the IP address of the projector is set to 192.168.1.10:

1) Enter "http://192.168.1.10/" into the address bar of the web browser. Enter the Administrator ID and Password and click [Logon].
2) Click [Date/Time Settings] on the main menu and configure each item. Refer to the item 3.1.8 Data/Time Settings for further information.
3) Click [Apply] button to save the settings.

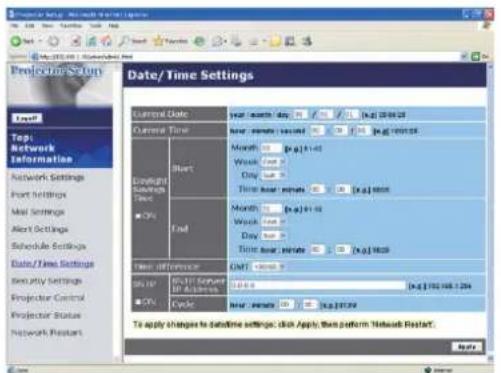

Date/Time Settings Current Date Year: month May Dec 2018.03.29 Current Time Year: months issued Nov 2018.03.29 Daylight Outings Month [m.g] 01-01 Week Month Day Month Time: year: March 2018.03.29 End Time Settings Month [m.g] 01-01 Week Month Day Month Time: year: March 2018.03.29 Last Time Settings CMT On 10 OUTS Server ID: Services 10:00 [ug] 152 168.1234 CVD Year: January Dec 2018.03.29 To apply changes to routine settings; click Apply then perform Network Restart. Next

NOTE • A Network Restart is required after the Daylight Savings Time or SNTP configuration settings have been changed.

- The battery for the built in clock may be dead if the clock loses time even when the date and time have been set correctly. Replace the battery by following the instructions on replacing the battery.

Internal clock battery in the User's Manual (concise)

- The internal clock's time may not remain accurate. Using SNTP is recommended to maintain accurate time.

3.5 e-SHOT (Still Image Transfer) Display

The projector can display still images that are transferred via the network.

Fig. 3.5 Still Image Transfer

e-SHOT transmission requires an exclusive application for your PC. You can download it from the Hitachi web site (http://hitachi.us/digitalmedia or http://www.hitachidigitalmedia.com). Refer to the manual for the application for instructions.

To display the transferred image, select the e-SHOT item in the NETWORK Menu. For more information, please see the description of the e-SHOT item of the NETWORK Menu. (NETWORK Menu in User's Manual (detailed) – Operating Guide)

NOTE • It is possible to allocate the image file up to 4 in the maximum.
- The image file also can be displayed by using schedule function from the web browser. Refer to the item 3.4 Event Scheduling (35) in detail.

3.5 e-SHOT (Still Image Transfer) Display (continued)

Configure the following items from a web browser when e-SHOT is used.

Example: If the IP address of the projector is set to 192.168.1.10:

1) Enter "http://192.168.1.10/" into the address bar of the web browser.

2) Enter the Administrator ID and password and click [Logon].

3) Click [Port Settings] on the main menu.

4) Click the [Enable] check box to open the Image Transfer Port (Port: 9716). Click the [Enable] check box for the [Authentication] setting when authentication is required, otherwise clear the check box.

5) Click the [Apply] button to save the settings.

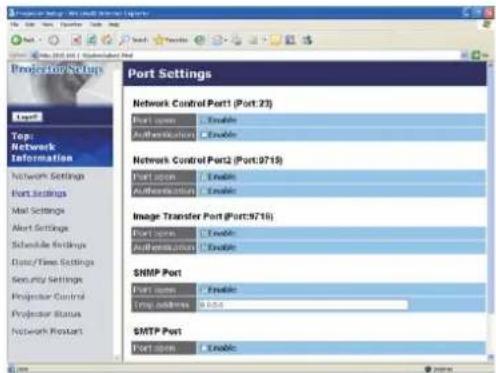

Port Settings Network Control Port1 (Port:23) Port open Authentications Enable Network Control Port2 (Port:9715) Port open Authentications Enable Image Transfer Port (Port:9716) Port open Authentications Enable SNMP Port Port open Trip address Enable SNMP Port Port open Enable

When the authentication setting is enabled, the following settings are required.

6) Click [Security Settings] on the main menu.
7) Select [Network Control] and enter the desired authentication password.
8) Click the [Apply] button to save the settings.

NOTE • The Authentication Password will be the same for Network Control Port1 (Port: 23), Network Control Port2 (Port: 9715), and Image Transfer Port (Port: 9716).

- The new configuration settings are activated after restarting the network connection. When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking [Network Restart] on the main menu.

3.6 Command Control via the Network

You can configure and control the projector via the network using RS-232C commands.

Communication Port

The following two ports are assigned for the command control.

TCP #23

TCP #9715

NOTE • Command control is not available via communication port (TCP #9716) (17) that is used for the e-SHOT transmission function.

Command Control Settings (17)

Configure the following items from a web browser when command control is used.

Example: If the IP address of the projector is set to 192.168.1.10:

1) Enter "http://192.168.1.10/" into the address bar of the web browser.
2) Enter the Administrator ID and password and click [Logon].
3) Click [Port Settings] on the main menu.

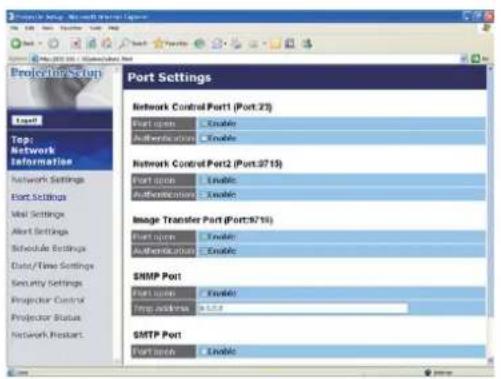

Port Settings Network Control Port1 (Port:23) Port Open Authentication Network Control Port2 (Port:9715) Port Open Authentication Image Transfer Port (Port:9715) Port Open Authentication SNMP Port Port Open SNMP Port Port Open SNMP Port

4) Click [Enable] check box to open Network Control Port1 (Port: 23) to use TCP #23. Click [Enable] check box for [Authentication] setting when authentication is required, otherwise clear the check box.
5) Click [Enable] check box to open Network Control Port2 (Port: 9715) to use TCP #9715. Click [Enable] check box for [Authentication] setting when authentication is required, otherwise clear the check box.
6) Click [Apply] button to save the settings.

3.6 Command Control via the Network (continued)

When the authentication setting is enabled, the following settings are required.

7) Click [Security Settings] on the main menu.
8) Click [Network Control] and enter the desired authentication password.

* See NOTE.

9) Click [Apply] button to save the settings.

NOTE • The Authentication Password will be the same for Network Control Port1 (Port: 23), Network Control Port2 (Port: 9715), and Image Transfer Port (Port: 9716).

- The new configuration settings are activated after restarting the network connection. When the configuration settings are changed, you must restart the network connection. You can restart the network connection by clicking [Network Restart] on the main menu.

3.6 Command Control via the Network (continued)

Command Format

Command formats differ among the different communication ports.

- TCP #23

You can use the RS-232C commands without any changes. The reply data format is the same as the RS-232C commands. However, the following reply will be sent back in the event of authentication failure when authentication is enabled.

Reply Error code
0x1F 0x04 0x00

- TCP #9715

Send Data format

The following formatting is added to the header (0x02), Data length (0x0D), Checksum (1byte) and Connection ID (1 byte) of the RS-232C commands.

Header Data length RS-232C command Check Sum				Connection ID
0x02 0x0D 13 bytes 1 byte 1 byte

Header → 0x02, Fixed

Data length → RS-232C commands byte length (0x0D, Fixed)

RS-232C commands → RS-232C commands that start with 0xBE 0xEF (13 bytes)

Check Sum → This is the value to make zero on the addition of the lower 8 bits from the header to the checksum.

Connection ID → Random value from 0 to 255 (This value is attached to the reply data)

3.6 Command Control via the Network (continued)

Reply Data format

The connection ID (the data is same as the connection ID data on the sending data format) is attached to the RS-232C commands reply data.

Reply	Connection ID
0x06 1 byte

Reply	Connection ID
0x15 1 byte

Reply Error code	Connection ID
0x1C 2 bytes 1 byte

Reply Data		Connection ID
0x1D 2 bytes 1 byte

Reply Status code	Connection ID
0x1F 2 bytes 1 byte

Reply	Authentication Error code		Connection ID
0x1F 0x0	4 0x00 1	byte

3.6 Command Control via the Network (continued)

Automatic Connection Break

The TCP connection will be automatically disconnected after there is no communication for 30 seconds after being established.

Authentication

The projector does not accept commands without authentication success when authentication is enabled. The projector uses a challenge response type authentication with an MD5 (Message Digest 5) algorithm. When the projector is using a LAN, a random 8 bytes will be returned if authentication is enabled. Bind this received 8 bytes and the Authentication Password and digest this data with the MD5 algorithm and add this in front of the commands to send.

Following is a sample if the Authentication Password is set to “password” and the random 8 bytes are “a572f60c”.

1) Select the projector.
2) Receive the random 8 bytes "a572f60c" from the projector.
3) Bind the random 8 bytes "a572f60c" and the Authentication Password "password" and it becomes "a572f60cpassword".
4) Digest this bind "a572f60cpassword" with MD5 algorithm. It will be "e3d97429adffa11bce1f7275813d4bde".
5) Add this "e3d97429adffa11bce1f7275813d4bde" in front of the commands and send the data. Send "e3d97429adffa11bce1f7275813d4bde"+command.
6) When the sending data is correct, the command will be performed and the reply data will be returned. Otherwise, an authentication error will be returned.

NOTE • As for the transmission of the second or subsequent commands, the authentication data can be omitted when the same connection.

Projector

ED-A100/ED-A110/CP-A100W

User's Manual (detailed)

Technical

Example of PC signal

Resolution (H x V)	H. frequency (kHz)	V. frequency (Hz)	Rating Signal mode
720 x 400 37.9	85.0 VESA TEXT
640 x 480 31.5	59.9 VESA VGA (60Hz)
640 x 480 37.9	72.8 VESA VGA (72Hz)
640 x 480 37.5	75.0 VESA VGA (75Hz)
640 x 480 43.3	85.0 VESA VGA (85Hz)
800 x 600 35.2	56.3 VESA SVGA (56Hz)
800 x 600 37.9	60.3 VESA SVGA (60Hz)
800 x 600 48.1	72.2 VESA SVGA (72Hz)
800 x 600 46.9	75.0 VESA SVGA (75Hz)
800 x 600 53.7	85.1 VESA SVGA (85Hz)
832 x 624 49.7	74.5 Mac 16” mode
1024 x 768 48.4	60.0 VESA XGA (60Hz)
1024 x 768 56.5	70.1 VESA XGA (70Hz)
1024 x 768 60.0	75.0 VESA XGA (75Hz)
1024 x 768 68.7	85.0 VESA XGA (85Hz)
1152 x 864 67.5	75.0 VESA
1280 x 960 60.0	60.0 VESA
1280 x 1024	64.0 60.0 VESA SXGA (60Hz)
1280 x 1024	80.0 75.0 VESA SXGA (75Hz)
1280 x 1024	91.1 85.0 VESA SXGA (85Hz)
1600 x 1200	75.0 60.0 VESA UXGA (60Hz)
1280 x 768 47.7	60.0 VESA W-XGA (60Hz)
1400 x 1050	65.2 60.0 VESA SXGA+ (60Hz)

NOTE • Be sure to check jack type, signal level, timing and resolution before connecting this projector to a PC.

• Some PCs may have multiple display screen modes. Use of some of these modes will not be possible with this projector.
• Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above.
• Although the projector can display signals with resolution up to UXGA (1600x1200), the signal will be converted to the projector's panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and projector panel are identical.
  • Automatic adjustment may not function correctly with some input signals.
• The image may not be displayed correctly when the input sync signal is a composite sync or a sync on G.

Initial set signals

The following signals are used for the initial settings. The signal timing of some PC models may be different. In such case, adjust the items V POSITION and H POSITION in IMAGE Menu.

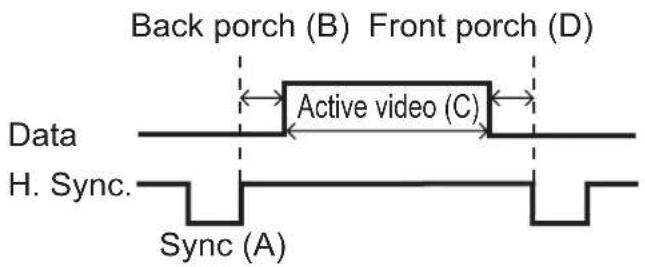

Back porch (B) Front porch (D) Active video (C) Data H. Sync. Sync (A)

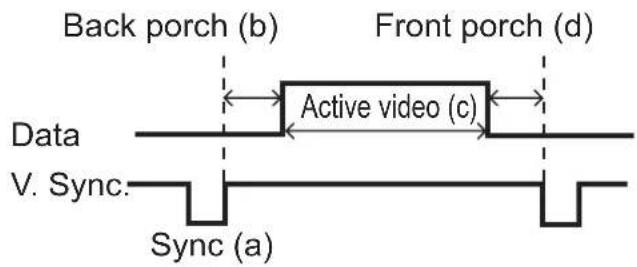

Back porch (b) Front porch (d) Data Active video (c) V. Sync. Sync (a)

computer Signal	Horizontal signal timing (μs)				computer Signal	Vertical signal timing (lines)
	(A) (B) (C) (D) (a) (b) (c) (c)
TEXT 2.0	3.0	20.3	1.0	TEXT 3	42	400	1
VGA (60Hz)	3.8	1.9	25.4	0.6	VGA (60Hz)	2	33	480	10
VGA (72Hz)	1.3	4.1	20.3	0.8	VGA (72Hz)	3	28	480	9
VGA (75Hz)	2.0	3.8	20.3	0.5	VGA (75Hz)	3	16	480	1
VGA (85Hz)	1.6	2.2	17.8	1.6	VGA (85Hz)	3	25	480	1
SVGA (56Hz)	2.0	3.6	22.2	0.7	SVGA (56Hz)	2	22	600	1
SVGA (60Hz)	3.2	2.2	20.0	1.0	SVGA (60Hz)	4	23	600	1
SVGA (72Hz)	2.4	1.3	16.0	1.1	SVGA (72Hz)	6	23	600	37
SVGA (75Hz)	1.6	3.2	16.2	0.3	SVGA (75Hz)	3	21	600	1
SVGA (85Hz)	1.1	2.7	14.2	0.6	SVGA (85Hz)	3	27	600	1
Mac 16" mode	1.1	3.9	14.5	0.6	Mac 16" mode	3	39	624	1
XGA (60Hz)	2.1	2.5	15.8	0.4	XGA (60Hz)	6	29	768	3
XGA (70Hz)	1.8	1.9	13.7	0.3	XGA (70Hz)	6	29	768	3
XGA (75Hz)	1.2	2.2	13.0	0.2	XGA (75Hz)	3	28	768	1
XGA (85Hz)	1.0	2.2	10.8	0.5	XGA (85Hz)	3	36	768	1
1152 x 864 (75Hz)	1.2	2.4	10.7	0.6		1152 x 864 (75Hz)	3	32	864	1
1280 x 960 (60Hz)	1.0	2.9	11.9	0.9		1280 x 960 (60Hz)	3	36	960	1
SXGA (60Hz)	1.0	2.3	11.9	0.4		SXGA(60Hz)	3	38	1024	1
SXGA (75Hz)	1.1	1.8	9.5	0.1		SXGA (75Hz)	3	38	1024	1
SXGA (85Hz)	1.0	1.4	8.1	0.4		SXGA (85Hz)	3	44	1024	1
UXGA (60Hz)	1.2	1.9	9.9	0.4		UXGA (60Hz)	3	46	1200	1
W-XGA (60Hz)	1.7	2.5	16.0	0.8	W-XGA (60Hz)	3	23	768	1
SXGA+ (60Hz)	1.2	2.0	11.4	0.7		SXGA+ (60Hz)	3	33	1050	1

Connection to the ports

C MONITOR OUT B COMPUTER IN2 A COMPUTER IN1 D CONTROL USB S-VIDEO 1 AUDIO OUT 2 AUDIO IN Y C8/P8 CR/PR VIDEO R AUDIO IN3

ⒶCOMPUTER IN1, ⒷCOMPUTER IN2, ⒸMONITOR OUT

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. signal: TTL level (positive/negative)
- Composite sync. signal: TTL level

1 12 13 14 15 6 7 8 9 10 1 2 3 4 5

Pin	Signal Pin Signal
1	Video Red 10 Ground
2	Video Green 11 (No connection)
3	Video Blue	12	A: SDA (DDC data)B, C: (No connection)
4	(No connection)
5	Ground 13 H. sync / Composite sync.
6	Ground Red 14 V. sync.
7	Ground Green	15	A: SCL (DDC clock)B, C: (No connection)
8	Ground Blue
9	(No connection)	-	-

©DLAN

RJ-45 jack

1 2 3 4 5 6 7 8

Pin	Signal	Pin	Signal	Pin	Signal
1 TX +		4 -	7	-
2 TX -		5 -	8	-
3 RX +		6 RX	-	-

CONTROL MONITOR USB E F G H I Y Video Cb/Pb Cr/Pr L R AUDIO IN3 S-VIDEO 1 2 AUDIO OUT LAN

⑤ Y, ④ C_B/P_B , ⑤ C_R/P_R (component video)

RCA jack x3

• System: 525i(480i), 525p(480p), 625i(576i), 750p(720p), 1125i(1080i)

Port Signal
Y Co	mponent video Y, 1.0±0.1Vp-p, 75Ω terminator with composite sync
CB/PB	Component video CB/PB, 0.7±0.1Vp-p, 75Ω terminator
CR/PR	Component video CR/PR, 0.7±0.1Vp-p, 75Ω terminator

HS-VIDEO

Mini DIN 4pin jack

Pin Signal
1	Color signal 0.286Vp-p (NTSC, burst), 75Ω terminatorColor signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator
2 Brightness signal, 1.0Vp-p, 75Ω terminator
3 Ground
4 Ground

①VIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43
• 1.0±0.1Vp-p, 75Ω terminator

MONITOR OUT COMPUTER IN2 COMPUTB CONTROL USB S-VIDEO J N AUDIO OUT L M Y CB/PB CR/PR VIDEO L R AUDIO IN3 AUDIO K

①AUDIO IN1, ②AUDIO IN2

To input SCART RGB signal to the projector, use a SCART to RCA cable. Connect the plugs refer to above ex.. For more reference, please consult your dealer.

CONTROL MOMI OUT USB COMPUTER IN2 COMPUTER IN1 LAN S-VIDEO AUDIO IN AUDIO OUT Y Cp/Pb Cr/Pr VIDEO L R AUDIO IN3

©USB

USB B type jack

Pin	Signal
1	+5V
2	-Data
3	+Data
4	Ground

©CONTROL

D-sub 9pin plug

- About the details of RS-232C communication, please refer to the following page.

⑨⑧⑦⑥ ⑤④③②①

Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD	6 (No connection) 9 (No connection)

RS-232C Communication

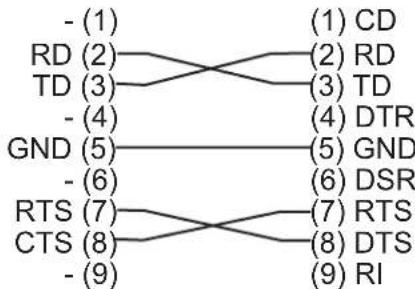

CONTROL port RS-232C cable (cross) RS-232C port of the projector

of the computer

Connecting the cable

1. Turn off the projector and the computer.
2. Connect the CONTROL port of the projector with a RS-232C port of the computer by a RS-232C cable (cross). Use the cable that fulfills the specification shown in the previous page.
3. Turn the computer on, and after the computer has started up turn the projector on.

Communications setting

19200bps, 8N1

1. Protocol

Consist of header (7 bytes) + command data (6 bytes)

2. Header

BE + EF + 03 + 06 + 00 + CRC_low + CRC_high CRC_low: Lower byte of CRC flag for command data CRC_high: Upper byte of CRC flag for command data

3. Command data

Command data chart

byte_0 byte_1 byte_2 byte_3 byte_4 byte_5
Action Type Setting code
low high low high low high

Action (byte_0 - 1)

Action C	Classification Content
1 Set	Change setting to desired value.
2 Get	Read projector internal setup value.
4 Increment	Increment setup value by 1.
5 Decrement	Decrement setup value by 1.
6 Execute Run a command.

Requesting projector status (Get command)

(1) Send the following request code from the PC to the projector.
(2) The projector returns the response code '1DH' + data (2 bytes) to the PC.

$$ \text { Header } + \text { Command data } (^ {\prime} 0 2 H ^ {\prime} + ^ {\prime} 0 0 H ^ {\prime} + t y p e (2 b y t e s) $$

Changing the projector settings (Set command)

(1) Send the following setting code from the PC to the projector.
(2) The projector changes the setting based on the above setting code.
(3) The projector returns the response code '06H' to the PC.

$$ H e a d e r + C o m m a n d d a t a \left(^ {\prime} 0 1 H ^ {\prime} + ^ {\prime} 0 0 H ^ {\prime} + t y p e (2 b y t e s) + s e t t i n g c o d e (2 b y t e s)\right) $$

Using the projector default settings (Reset Command)

(1) The PC sends the following default setting code to the projector.
(2) The projector changes the specified setting to the default value.
(3) The projector returns the response code '06H' to the PC.

$$ \text { Header } + \text { Command data } (^ {\prime} 0 6 H ^ {\prime} + ^ {\prime} 0 0 H ^ {\prime} + \text { type } (2 \text { bytes) } $$

Increasing the projector setting value (Increment command)

(1) The PC sends the following increment code to the projector.
(2) The projector increases the setting value on the above setting code.
(3) The projector returns the response code '06H' to the PC.

$$ \text { Header } + \text { Command data } (^ {\prime} 0 4 H ^ {\prime} + ^ {\prime} 0 0 H ^ {\prime} + \text { type } (2 \text { bytes) } $$

Decreasing the projector setting value (Decrement command)

(1) The PC sends the following decrement code to the projector.
(2) The projector decreases the setting value on the above setting code.
(3) The projector returns the response code '06H' to the PC.

$$ \text { Header } + \text { Command data } (^ {\prime} 0 5 H ^ {\prime} + ^ {\prime} 0 0 H ^ {\prime} + \text { type } (2 \text { bytes) } $$

When the projector cannot understand the received command

When the projector cannot understand the received command, the error code '15H' is sent back to the PC.

Sometimes the projector cannot properly receive the command. In such a case, the command is not executed and the error code '15H' is sent back to the PC. If this error code is returned, send the same command again.

When the projector cannot execute the received command.

When the projector cannot execute the received command, the error code '1CH' + 'xxxxH' is sent back to the PC.

When the data length is greater than indicated by the data length code, the projector ignore the excess data code. Conversely when the data length is shorter than indicated by the data length code, an error code will be returned to the PC.

NOTE • Operation cannot be guaranteed when the projector receives an undefined command or data.

• Provide an interval of at least 40ms between the response code and any other code.
• The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data.
• Commands are not accepted during warm-up.

Command Control via the Network

Communication Port

The following two ports are assigned for the command control.

TCP #23

TCP #9715

Command Control Settings

Configure the following items form a web browser when command control is used.

Port Settings
	Netowrk Control Port1 (Port: 23)	Port open	Click the [Enable] check box to open [Network Control Port1 (Port: 23)] to use TCP #23. Default setting is “Enable”.
		Authentication	Click the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is “Disable”.
	Network Control Port2 (Port: 9715)	Port open	Click the [Enable] check box to open [Network Control Port2 (Port: 9715)] to use TCP #9715. Default setting is “Enable”.
		Authentication	Click the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is “Enable”.

When the authentication setting is enabled, the following settings are required.

Security Settings
Network Control	Authentication Password	Enter the desired authentication password. This setting will be the same for [Network Control Port1 (Port: 23)] and [Network Control Port2 (Port: 9715)]. Default setting is blank.
	Re-enter Authentication Password

Command Format

[TCP #23]

1. Protocol

Consist of header (7 bytes) + command data (6 bytes)

2. Header

BE + EF + 03 + 06 + 00 + CRC_low + CRC_high

CRC_low: Lower byte of CRC flag for command data

CRC_high: Upper byte of CRC flag for command data

3. Command data

Command data chart

byte_0 byte_1 byte_2 byte_3 byte_4 byte_5
Action Type Setting code
low high low high low high

Action (byte_0 - 1)

Action C	Classification Content
1 Set	Change setting to desired value.
2 Get	Read projector internal setup value.
4 Increment	Increment setup value by 1.
5 Decrement	Decrement setup value by 1.
6 Execute	Run a command.

Requesting projector status (Get command)

(1) Send the following request code from the PC to the projector.

Header + Command data ('02H' + '00H' + type (2 bytes) + '00H' + '00H')

(2) The projector returns the response code '1DH' + data (2 bytes) to the PC.

Changing the projector settings (Set command)

(1) Send the following setting code from the PC to the projector.
Header + Command data ('01H' + '00H' + type (2 bytes) + setting code (2 bytes))
(2) The projector changes the setting based on the above setting code.
(3) The projector returns the response code '06H' to the PC.

Using the projector default settings (Reset Command)

(1) The PC sends the following default setting code to the projector.
Header + Command data ('06H' + '00H' + type (2 bytes) + '00H' + '00H')
(2) The projector changes the specified setting to the default value.
(3) The projector returns the response code '06H' to the PC.

Increasing the projector setting value (Increment command)

(1) The PC sends the following increment code to the projector.
Header + Command data ('04H' + '00H' + type (2 bytes) + '00H' + '00H')
(2) The projector increases the setting value on the above setting code.
(3) The projector returns the response code '06H' to the PC.

Decreasing the projector setting value (Decrement command)

(1) The PC sends the following decrement code to the projector.

Header + Command data ('05H' + '00H' + type (2 bytes)

(2) The projector decreases the setting value on the above setting code.
(3) The projector returns the response code '06H' to the PC.

When the projector cannot understand the received command

When the projector cannot understand the received command, the error code '15H' is sent back to the PC.

Sometimes the projector cannot properly receive the command. In such a case, the command is not executed and the error code '15H' is sent back to the PC. If this error code is returned, send the same command again.

When the projector cannot execute the received command.

When the projector cannot execute the received command, the error code '1CH' + 'xxxxH' is sent back to the PC.

When the data length is greater than indicated by the data length code, the projector ignore the excess data code. Conversely when the data length is shorter than indicated by the data length code, an error code will be returned to the PC.

When authentication error occurred.

When authentication error occurred, the error code the '1FH' + '0400H' is sent back to the PC.

NOTE • Operation cannot be guaranteed when the projector receives an undefined command or data.

• Provide an interval of at least 40ms between the response code and any other code.
• Commands are not accepted during warm-up.

[TCP #9715]

1. Protocol

Consist of header (1 byte) + data length (1 byte) + command data (13 bytes) + check sum (1 bytes) + connection ID (1 byte).

2. Header

02, Fixed

3. Data Length

Network control commands byte length (0D, Fixed)

4. Command data

Network control commands that start with BE EF (13bytes).

5. Check Sum

This is the value to make zero on the addition of the lower 8 bits from the header to the check sum.

6. Connection ID

Random value from 0 to 255 (This value is attached to the reply data).

7. Reply Data

The connection ID (the data is same as the connection ID data on the sending data format) is attached to the Network control commands reply data.

ACK reply: '06H' + 'xxH' NAK reply: '15H' + 'xxH' Error reply: '1CH' + 'xxxxH' + 'xxH' Data reply: '1DH' + 'xxxxH' + 'xxH' Projector busy reply: '1FH' + 'xxxxH' + 'xxH' Authentication error reply: '1FH' + '0400H' + 'xxH' ('xxH': connection ID)

Automatic Connection Break

The TCP connection will be automatically disconnected after there is no communication for 30 seconds after being established.

Authentication

The projector does not accept commands without authentication success when authentication is enabled. The projector uses a challenge response type authentication with an MD5 (Message Digest 5) algorithm. When the projector is using a LAN, a random 8 bytes will be returned if authentication is enabled. Bind this received 8 bytes and the authentication password and digest this data with the MD5 algorithm and add this in front of the commands to send.

Following is a sample if the authentication password is set to "password" and the random 8 bytes are "a572f60c".

1) Select the projector.
2) Receive the random 8 bytes "a572f60c" from the projector.
3) Bind the random 8 bytes "a572f60c" and the authentication password "password" and it becomes "a572f60cpassword".
4) Digest this bind "a572f60cpassword" with MD5 algorithm. It will be "e3d97429adffa11bce1f7275813d4bde".
5) Add this "e3d97429adffa11bce1f7275813d4bde" in front of the commands and send the data. Send "e3d97429adffa11bce1f7275813d4bde"+command.
6) When the sending data is correct, the command will be performed and the reply data will be returned. Otherwise, an authentication error will be returned.

NOTE • As for the transmission of the second or subsequent commands, the authentication data can be omitted when the same connection.

RS-232C communication / Network command table

Names Operation Type Header							Command Data
							CRC Action Type Setting Code
Power	Set	Turn off BE EF 03 06 00 2A	D3 01 00 00	60 00 00
		Turn on BE EF 03 06 00 BA D	02 01 00	00 60 01 00
	Get BE EF 03 06 00		19 D3 02 00	00 60 00 00
			[Example return]00 00 [Off]	01 00 [On]	02 00[Cool down]
Input Source	Set	COMPUTER1 BE EF 03 06	00 FE D2 01	00 00 20	00 00
		COMPUTER2 BE EF	03 06 00 3E	D0 01	00 00 20 04 00
		COMPONENT	BE EF	03	06 00	AE D1	01 00	00 20	05 00
		S-VIDEO	BE EF 03	06 00 9E	D3 01 00 00	20 02 00
		VIDEO	BE EF 03	06 00 6E	D3 01 00 00	20 01 00
	Get BE EF 03 06 00		CD D2 02	00 00 20	00 00
Error Status	Get BE EF 03 06 00		D9 D8 02	00 20 60	00 00
			[Example return]00 00 [Normal]	01 00 [Cover error]	02 00 [Fan error]	03 00 [Lamp error]
			04 00 [Temp error]	05 00 [Air flow error]	06 00 [Lamp time error]	07 00 [Cold error]
			08 00 [Filter error]	0C 00 [Lens door error]
BRIGHTNESS	Get BE EF 03 06 00		89 D2	02 00	03 20	00 00
	Increment		BE EF 03	06 00	EF D2 04	00 03 20 00	00
	Decrement		BE EF	03	06 00	3E D3	05 00	03 20	00 00
BRIGHTNESS Reset	Execute		BE EF 03	06 00 58	D3 06	00 00 70 00	00
CONTRAST	Get BE EF 03 06 00		FD D3	02 00	04 20 00	00
	Increment		BE EF 03	06 00 98	D3 04 00 04	20 00 00
	Decrement		BE EF 03	06 00 4A	D2 05 00 04	20 00 00
CONTRAST Reset	Execute		BE EF 03	06 00 A4	D2 06 00 01	70 00 00
PICTURE MODE	Set	NORMAL	BE EF	03	06 00	23 F6	01 00	BA 30	00 00
		CINEMA	BE EF	03	06 00	B3 F7	01 00	BA 30	01 00
		DYNAMIC	BE EF	03	06 00	E3 F4	01 00	BA 30	04 00
		BOARD(BLACK) BE	EF 03 06 00	E3 EF 01	00 BA 30	20 00
		BOARD(GREEN)	BE EF 03	06 00 73	EE 01 00 BA	30	21 00
		WHITEBOARD	BE EF 03	06 00 83	EE 01 00 BA	30	22 00
		DAYTIME	BE EF	03	06 00	E3 C7	01 00	BA 30	40 00
	Get		BE EF	03	06 00	10 F6	02 00	BA 30	00 00
			[Example return]00 00 [NORMAL]	01 00 [CINEMA]	04 00 [DYNAMIC]	10 00 [CUSTOM]
			20 00 [BOARD(BLACK)]	21 00 [BOARD(GREEN)]	22 00 [WHITEBOARD]	40 00 [DAY TIME]
GAMMA	Set	#1 DEFAULT	BE EF	03	06 00	07 E9	01 00	A1 30	20 00
		#1 CUSTOM	BE EF	03	06 00	07 FD	01 00	A1 30	10 00
		#2 DEFAULT	BE EF	03	06 00	97 E8	01 00	A1 30	21 00
		#2 CUSTOM	BE EF	03	06 00	97 FC	01 00	A1 30	11 00
		#3 DEFAULT	BE EF	03	06 00	67 E8	01 00	A1 30	22 00
		#3 CUSTOM	BE EF	03	06 00	67 FC	01 00	A1 30	12 00
		#4 DEFAULT	BE EF	03	06 00	F7 E9	01 00	A1 30	23 00
		#4 CUSTOM	BE EF	03	06 00	F7 FD	01 00	A1 30	13 00
		#5 DEFAULT	BE EF	03	06 00	C7 EB	01 00	A1 30	24 00
		#5 CUSTOM	BE EF	03	06 00	C7 FF	01 00	A1 30	14 00
		#6 DEFAULT	BE EF	03	06 00	57 EA	01 00	A1 30	25 00
		#6 CUSTOM	BE EF	03	06 00	57 FE	01 00	A1 30	15 00
	Get		BE EF	03	06 00	F4 F0	02 00	A1 30	00 00
User Gamma Pattern Set Off	Set Off	BE EF 03 06 00 FB FA 01 00 80 30 00 00
		9 steps gray scale	BE EF	03	06 00	6B FB	01 00	80 30	01 00
		15 steps gray scale	BE EF	03	06 00	9B FB	01 00	80 30	02 00
		Ramp	BE EF 03	06 00	B FA 01 00	80 30 03 00
	Get		BE EF 03	06 00	C8 FA 02 00	80 30 00 00
User Gamma Point 1	Get		BE EF	03	06 00	08 FE	02 00	90 30	00 00
	Increment		BE EF 03	06 00	E FE 04 00	90 30 00 00
	Decrement		BE EF 03	06 00	BF FF 05 00	90 30 00 00
User Gamma Point 2	Get		BE EF	03	06 00	F4 FF	02 00	91 30	00 00
	Increment		BE EF	03	06 00	92 FF	04 00	91 30	00 00
	Decrement		BE EF 03	06 00	43 FE	05 00 91 30 00	00 00
User Gamma Point 3	Get		BE EF	03	06 00	B0 FF	02 00	92 30	00 00
	Increment		BE EF 03	06 00	D6 FF 04 00	92 30 00 00
	Decrement		BE EF 03	06 00	07 FE	05 00 92 30 00	00 00
User Gamma Point 4	Get		BE EF	03	06 00	4C FE	02 00	93 30	00 00
	Increment		BE EF 03	06 00	A FE 04 00	93 30 00 00
	Decrement		BE EF 03	06 00	FB FF 05 00	93 30 00 00
User Gamma Point 5	Get		BE EF	03	06 00	38 FF	02 00	94 30	00 00
	Increment		BE EF 03	06 00	E FF 04 00	94 30 00 00
	Decrement		BE EF 03	06 00	8F FE 05 00	94 30 00 00
User Gamma Point 6	Get		BE EF	03	06 00	C4 FE	02 00	95 30	00 00
	Increment		BE EF 03	06 00	A2 FE 04 00	95 30 00 00
	Decrement		BE EF	03	06 00	73 FF	05 00	95 30	00 00
User Gamma Point 7	Get		BE EF	03	06 00	80 FE	02 00	96 30	00 00
	Increment		BE EF 03	06 00	E6 FE 04 00	96 30 00 00
	Decrement		BE EF	03	06 00	37 FF	05 00	96 30	00 00
User Gamma Point 8	Get		BE EF	03	06 00	7C FF	02 00	97 30	00 00
	Increment		BE EF	03	06 00	1A FF	04 00	97 30	00 00
	Decrement		BE EF	03	06 00	CB FE	05 00	97 30	00 00
COLOR TEMP	Set	HIGH	BE EF	03	06 00	0B F5	01 00	B0 30	03 00
		CUSTOM-1 (HIGH)	BE EF	03	06 00	CB F8	01 00	B0 30	13 00
		MID	BE EF	03	06 00	9B F4	01 00	B0 30	02 00
		CUSTOM-2 (MID)	BE EF	03	06 00	5B F9	01 00	B0 30	12 00
		LOW	BE EF	03	06 00	6B F4	01 00	B0 30	01 00
		CUSTOM-3 (LOW)	BE EF	03	06 00	AB F9	01 00	B0 30	11 00
		Hi-BRIGHT-1	BE EF	03	06 00	3B F2	01 00	B0 30	08 00
		CUSTOM-4 (Hi-BRIGHT-1)	BE EF 03	06 00	FB FF 01 00	B0 30	18 00
		Hi-BRIGHT-2	BE EF	03	06 00	AB F3	01 00	B0 30	09 00
		CUSTOM-5 (Hi-BRIGHT-2)	BE EF 03	06 00	B FE 01 00	B0 30	19 00
		Hi-BRIGHT-3	BE EF	03	06 00	5B F3	01 00	B0 30	0A 00
		CUSTOM-6 (Hi-BRIGHT-3)	BE EF 03	06 00	B FE 01 00	B0 30	1A 00
	Get		BE EF	03	06 00	C8 F5	02 00	B0 30	00 00
COLOR TEMP GAIN R	Get		BE EF	03	06 00	34 F4	02 00	B1 30	00 00
	Increment		BE EF	03	06 00	52 F4	04 00	B1 30	00 00
	Decrement		BE EF	03	06 00	83 F5	05 00	B1 30	00 00
COLOR TEMP GAIN G	Get		BE EF	03	06 00	70 F4	02 00	B2 30	00 00
	Increment		BE EF	03	06 00	16 F4	04 00	B2 30	00 00
	Decrement		BE EF	03	06 00	C7 F5	05 00	B2 30	00 00
COLOR TEMP GAIN B	Get BE EF 03 06 00 8C F5 02 00	00 B3 30 00	00
	Increment BE EF 03	06 00 EA F5	04 00	B3 30 00 00
	Decrement BE EF 03	06 00 3B F4	05 00	B3 30 00 00
COLOR TEMPOFFSET R	Get BE EF 03 06	00 04 F5 02	00 B5	30 00 00
	Increment BE EF 03	06 00 62 F5	04 00	B5 30 00 00
	Decrement BE EF 03	06 00 B3 F4	05 00	B5 30 00 00
COLOR TEMPOFFSET G	Get BE EF 03 06	00 40 F5 02	00 B6	30 00 00
	Increment BE EF 03	06 00 26 F5	04 00	B6 30 00 00
	Decrement BE EF 03	06 00 F7 F4	05 00	B6 30 00 00
COLOR TEMPOFFSET B	Get BE EF 03 06	00 BC F4 02	00 B7	30 00 00
	Increment BE EF 03	06 00 DA F4	04 00	B7 30 00 00
	Decrement BE EF 03	06 00 0B F5	05 00	B7 30 00 00
COLOR	Get BE EF 03 06	00 B5 72 02	00 02	22	00	00
	Increment BE EF 03	06 00 D3 72	04 00	02 22	00 00
	Decrement	BE EF	03	06 00	02 73	05 00	02 22	00 00
COLOR Reset	Execute	BE EF	03	06 00	80 D0	06 00	0A 70	00 00
TINT	Get	BE EF	03	06 00	49 73	02 00	03 22	00 00
	Increment BE EF 03	06 00 2F 73	04 00	03 22	00 00
	Decrement BE EF 03	06 00 FE 72	05 00	03 22	00 00
TINT Reset	Execute	BE EF	03	06 00	7C D1	06 00	0B 70	00 00
SHARPNESS	Get	BE EF	03	06 00	F1 72	02 00	01 22	00 00
	Increment	BE EF	03	06 00	97 72	04 00	01 22	00 00
	Decrement	BE EF	03	06 00	46 73	05 00	01 22	00 00
SHARPNESS Reset	Execute	BE EF	03	06 00	C4 D0	06 00	09 70	00 00
MY MEMORY Load	Set	1	BE EF	03	06 00	OE D7	01 00	14 20	00 00
		2	BE EF	03	06 00	9E D6	01 00	14 20	01 00
		3	BE EF	03	06 00	6E D6	01 00	14 20	02 00
		4	BE EF	03	06 00	FE D7	01 00	14 20	03 00
MY MEMORY Save	Set	1	BE EF	03	06 00	F2 D6	01 00	15 20	00 00
		2	BE EF	03	06 00	62 D7	01 00	15 20	01 00
		3	BE EF	03	06 00	92 D7	01 00	15 20	02 00
		4	BE EF	03	06 00	02 D6	01 00	15 20	03 00
PROGRESSIVE	Set	TURN OFF	BE EF	03	06 00	4A 72	01 00	07 22	00 00
		TV	BE EF	03	06 00	DA 73	01 00	07 22	01 00
		FILM	BE EF	03	06 00	2A 73	01 00	07 22	02 00
	Get		BE EF	03	06 00	79 72	02 00	07 22	00 00
VIDEO NR	Set	LOW	BE EF	03	06 00	26 72	01 00	06 22	01 00
		MID	BE EF	03	06 00	D6 72	01 00	06 22	02 00
		HIGH	BE EF	03	06 00	46 73	01 00	06 22	03 00
	Get		BE EF	03	06 00	85 73	02 00	06 22	00 00
ASPECT	Set	4:3	BE EF	03	06 00	9E D0	01 00	08 20	00 00
		16:9	BE EF	03	06 00	OE D1	01 00	08 20	01 00
		14:9	BE EF	03	06 00	CE D6	01 00	08 20	09 00
		NORMAL	BE EF	03	06 00	5E DD	01 00	08 20	10 00
	Get		BE EF	03	06 00	AD D0	02 00	08 20	00 00
OVER SCAN Get BE EF 03 06 00 91 70 02 00 09			22 00 00
			Increment BE EF 03	06 00 F7 70	04 00 0	09 22 00 00
			Decrement BE EF 03	06 00 26 71	05 00 0	09 22 00 00
OVER SCAN Reset			Execute	BE EF	03	06 00	EC D9	06 00	27 70
V POSITION			Get	BE EF	03	06 00	0D 83	02 00	00 21
			Increment BE EF 03	06 00	6B 83 04	00 00 21 00 00
			Decrement	BE EF	03	06 00	BA 82	05 00	00 21
V POSITION Reset			Execute	BE EF	03	06 00	E0 D2	06 00	02 70
H POSITION			Get	BE EF	03	06 00	F1 82	02 00	01 21
			Increment BE EF 03	06 00 97 82	04 00 0	1 21 00 00
			Decrement BE EF 03	06 00 46 83	05 00 0	01 21 00 00
H POSITION Reset			Execute	BE EF	03	06 00	1C D3	06 00	03 70
H PHASE			Get	BE EF	03	06 00	49 83	02 00	03 21
			Increment BE EF 03	06 00 2F 83	04 00 0	3 21 00 00
			Decrement BE EF 03	06 00	FE 82	05 00 03	21 00 00
H SIZE			Get	BE EF	03	06 00	B5 82	02 00	02 21
			Increment BE EF 03	06 00	D3 82	04 00 02	21 00 00
			Decrement BE EF 03	06 00 02 83	05 00 0	02 21 00 00
H SIZE Reset			Execute	BE EF	03	06 00	68 D2	06 00	04 70
AUTO ADJUST			Execute	BE EF	03	06 00	91 D0	06 00	0A 20
COLOR SPACE		Set	AUTO	BE EF	03	06 00	0E 72	01 00	04 22
			RGB BE EF 03	06 00	9E 73 04	1 00 04 22	01 00
			SMPTE240	BE EF 03	06 00	6E 73 04	1 00 04 22	02 00
			REC709	BE EF	03	06 00	FE 72	01 00	04 22
			REC601	BE EF 03	06 00 0	CE 70 01 00	04 22	04 00
			Get BE EF 03 06	00 3D	72	02 00 04 22	00 00
COMPONENT		Set	COMPONENT	BE EF	03	06 00	4A D7	01 00	17 20
			SCART RGB	BE EF	03	06 00	DA D6	01 00	17 20
			Get	BE EF	03	06 00	79 D7	02 00	17 20
C-VIDEO FORMAT		Set	AUTO	BE EF	03	06 00	A2 70	01 00	11 22
			NTSC	BE EF	03	06 00	C2 74	01 00	11 22
			PAL	BE EF	03	06 00	52 75	01 00	11 22
			SECAM	BE EF 03	06 00 52	70 01 00	11 22	09 00
			NTSC4.43	BE EF 03	06 00 62	77 01 00	11 22	02 00
			M-PAL	BE EF	03	06 00	C2 71	01 00	11 22
			N-PAL	BE EF	03	06 00	32 74	01 00	11 22
			Get BE EF 03 06	00 31 76 02	00 11 22	00 00
S-VIDEO FORMAT		Set	AUTO	BE EF	03	06 00	E6 70	01 00	12 22
			NTSC	BE EF 03	06 00 86	74 01 00	12 22	04 00
			PAL	BE EF	03	06 00	16 75	01 00	12 22
			SECAM	BE EF 03	06 00 16	70 01 00	12 22 09 00
			NTSC4.43	BE EF 03	06 00 26	77 01 00	12 22 02 00
			M-PAL	BE EF 03	06 00 86	71 01 00	12 22 08 00
			N-PAL	BE EF 03	06 00 76	74 01 00	12 22 07 00
			Get BE EF 03 06	00 75 76 02	00 12 22	00 00

(continued on next page)

RS-232C communication / Network command table (continued)

Names Operation Type Header							Command Data
							CRC Action Type Setting Code
FRAME LOCK - COMPUTER1	Set	TURN OFF BE EF 03 06 0	0 3B C2 01	00 50 3	0 00 00
		TURN ON BE EF	03 06 00 AB	C3 01	00 50 30 01	00
	Get BE EF 03 06		00 08 C2 02	00 50	30 00 00
FRAME LOCK - COMPUTER2	Set	TURN OFF BE EF 03 06 0	0 0B C3 01	00 54 3	0 00 00
		TURN ON BE EF	03 06 00 9B	C2 01	00 54 30 01	00
	Get BE EF 03 06		00 38 C3 02	00 54	30 00 00
COMPUTER IN1	Set	SYNC ON G ON	BE EF	03	06 00	CE D6	01 00	10 20	03 00
		SYNC ON G OFF	BE EF	03	06 00	5E D7	01 00	10 20	02 00
	Get BE EF 03 06		00 0D D6 02	00 10	20 00 00
COMPUTER IN2	Set	SYNC ON G ON	BE EF	03	06 00	32 D7	01 00	11 20	03 00
		SYNC ON G OFF	BE EF	03	06 00	A2 D6	01 00	11 20	02 00
	Get BE EF 03 06		00 F1 D7 02	00 11	20 00 00
D-ZOOM	Get BE EF 03 06		00 D0 D0 02	00 0A	30 00 00
	Increment		BE EF 03	06 00	B6 D0 04 00	0A 30 00 00
	Decrement		BE EF 03	06 00	67 D1 05 00	0A 30 00 00
D-ZOOM Reset	Execute		BE EF	03	06 00	98 C9	06 00	70 70	00 00
D-SHIFT V	Get BE EF 03 06		00 2C D1 02	00 0B	30 00 00
	Increment		BE EF	03	06 00	4A D1	04 00	0B 30	00 00
	Decrement		BE EF 03	06 00	9B D0 05 00	0B 30	00 00
D-SHIFT V Reset	Execute		BE EF	03	06 00	A8 C8	06 00	74 70	00 00
D-SHIFT H	Get		BE EF	03	06 00	58 D0	02 00	0C 30	00 00
	Increment		BE EF 03	06 00	3E D0 04 00	0C 30	00 00
	Decrement		BE EF 03	06 00	EF D1 05 00	0C 30	00 00
D-SHIFT H Reset	Execute		BE EF	03	06 00	54 C9	06 00	75 70	00 00
KEYSTONE V	Get BE EF 03 06		00 B9 D3 02	00 07	20 00 00
	Increment		BE EF 03	06 00	DF D3 04 00	07 20	00 00
	Decrement		BE EF 03	06 00	DE D2 05 00	07 20 00 00
KEYSTONE V Reset	Execute		BE EF	03	06 00	08 D0	06 00	0C 70	00 00
WHISPER	Set	BRIGHT	BE EF	03	06 00	3B 23	01 00	00 33	00 00
		NORMAL	BE EF 03	06 00	AB 22 01 00	00 33 01 00
	Get BE EF 03 06		00 08 23 02	00 00	33 00 00
MIRROR	Set	NORMAL	BE EF	03	06 00	C7 D2	01 00	01 30	00 00
		H:INVERT	BE EF 03	06 00	57 D3 01 00	01 30 01 00
		V:INVERT	BE EF	03	06 00	A7 D3	01 00	01 30	02 00
		H&V:INVERT	BE EF	03	06 00	37 D2	01 00	01 30	03 00
	Get BE EF 03 06		00 F4 D2 02	00 01	30 00 00
VOLUME-COMPUTER1	Get BE EF 03 06		00 CD	CC 02	00 60 20 00	0
	Increment		BE EF	03	06 00	AB CC	04 00	60 20	00 00
	Decrement		BE EF 03	06 00	7A CD 05 00	60 20 00 00
VOLUME-COMPUTER2	Get BE EF 03 06		00 FD	CD	02 00 64 20	00 00
	Increment		BE EF 03	06 00	9B CD 04 00	64 20 00 00
	Decrement		BE EF 03	06 00	4A CC 05 00	64 20 00 00
VOLUME-COMPONENT	Get BE EF 03 06		00 01 CC 02	00 65	20 00 00
	Increment		BE EF 03	06 00	67 CC 04 00	65 20 00 00
	Decrement		BE EF 03	06 00	B6 CD 05 00	65 20 00 00
VOLUME-S-VIDEO	Get BE EF 03 06		00 75 CD 02	00 62	20 00 00
	Increment		BE EF 03	06 00	13 CD 04 00	62 20 00 00
	Decrement		BE EF 03	06 00	C2 CC 05 00	65 20 20 00	00 00
VOLUME-VIDEO Get	BE EF 03 06 00 31 CD 02 00		61 20 00 00
	Increment BE EF 03		06 00 57 CD	04 00	61 20 00 00
	Decrement BE EF 03		06 00 86 CC	05 00	61 20 00 00
MUTE	Set	TURN OFF	BE EF	03	06 00	46 D3	01 00	02 20	00 00
		TURN ON	BE EF 03	06 00	D6 D2 01 00	02 20 01 00
	Get BE EF 03 06		00 75 D3	02 00	02 20 00 00
SPEAKER	Set	TURN ON	BE EF	03	06 00	FE D4	01 00	1C 20	01 00
		TURN OFF	BE EF	03	06 00	6E D5	01 00	1C 20	00 00
	Get BE EF 03 06		00 5D D5 02	00	1C 20 00 00
AUDIO-COMPUTER1	Set	AUDIO1	BE EF	03	06 00	6E DC	01 00	30 20	01 00
		AUDIO2	BE EF	03	06 00	9E DC	01 00	30 20	02 00
		AUDIO3	BE EF	03	06 00	0E DD	01 00	30 20	03 00
		Turn off	BE EF	03	06 00	FE DD	01 00	30 20	00 00
	Get BE EF 03 06		00 CD DD 02	00 30	20 00 00
AUDIO-COMPUTER2	Set	AUDIO1	BE EF	03	06 00	5E DD	01 00	34 20	01 00
		AUDIO2	BE EF	03	06 00	AE DD	01 00	34 20	02 00
		AUDIO3	BE EF	03	06 00	3E DC	01 00	34 20	03 00
		Turn off	BE EF	03	06 00	CE DC	01 00	34 20	00 00
	Get BE EF 03 06		00 FD DC		02 00 34 20	00 00
AUDIO-COMPONENT	Set	AUDIO1	BE EF	03	06 00	A2 DC	01 00	35 20	01 00
		AUDIO2	BE EF 03	06 00	52 DC 01 00	35 20 02 00
		AUDIO3	BE EF	03	06 00	C2 DD	01 00	35 20	03 00
		Turn off	BE EF	03	06 00	32 DD	01 00	35 20	00 00
	Get BE EF 03 06		00 01 DD 02	00 35	20 00 00
AUDIO-S-VIDEO	Set	AUDIO1	BE EF	03	06 00	D6 DD	01 00	32 20	01 00
		AUDIO2	BE EF 03	06 00	26 DD 01 00	32 20 02 00
		AUDIO3	BE EF	03	06 00	B6 DC	01 00	32 20	03 00
		Turn off	BE EF	03	06 00	46 DC	01 00	32 20	00 00
	Get BE EF 03 06		00 75 DC 02	00 32	20 00 00
AUDIO-VIDEO	Set	AUDIO1	BE EF	03	06 00	92 DD	01 00	31 20	01 00
		AUDIO2	BE EF 03	06 00	62 DD 01 00	31 20 02 00
		AUDIO3	BE EF 03	06 00	F2 DC 01	00 31 20 03 00
		Turn off	BE EF	03	06 00	02 DC	01 00	31 20	00 00
	Get BE EF 03 06		00 31 DC 02	00 31	20 00 00
REMOTE RECEIVE. FRONT	Set	Off	BE EF	03	06 00	FF 32	01 00	00 26	00 00
		On	BE EF	03	06 00	6F 33	01 00	00 26	01 00
	Get BE EF 03 06		00 CC 32 02	00 00	26 00 00
REMOTE RECEIVE. TOP	Set	Off	BE EF	03	06 00	47 33	01 00	02 26	00 00
		On	BE EF	03	06 00	D7 32	01 00	02 26	01 00
	Get		BE EF	03	06 00	74 33	02 00	02 26	00 00
REMOTE FREQ. NORMAL	Set	Off	BE EF	03	06 00	FF 3D	01 00	30 26	00 00
		On	BE EF 03	06 00	6F 3C 01 00	30 26 01 00
	Get BE EF 03 06		00 CC 3D 02	00	30 26 00 00
REMOTE FREQ. HIGH	Set	Off	BE EF	03	06 00	03 3C	01 00	31 26	00 00
		On	BE EF	03	06 00	93 3D	01 00	31 26	01 00
	Get BE EF 03 06		00 30 3C	02 00	31 26	00 00
LANGUAGE Set ENGLISH BE EF 03 06 00 F7 D3 01 00 05 30 00 00
										FRANÇAIS BE EF 03 06 00 67 D2 01 00 05 30 01 00
										DEUTSCH BE EF 03 06 00 97 D2 01 00 05 30 02 00
										ESPAÑOL BE EF 03 06 00 07 D3 01 00 05 30 03 00
										ITALIANO BE EF 03 06 00 37 D1 01 00 05 30 04 00
										NORSK BE EF 03 06 00 A7 D0 01 00 05 30 06 00
										NEDERLANDS BE EF 03 06 00 57 D0 01 00 05 30 06 00
										PORTUGUÊS BE EF 03 06 00 C7 D1 01 00 05 30 07 00
										日本語 BE EF 03 06 00 37 D4 01 00 05 30 08 00
										简体中文 BE EF 03 06 00 A7 D5 01 00 05 30 09 00
										繁體中文 BE EF 03 06 00 37 DE 01 00 05 30 10 00
										한글 BE EF 03 06 00 57 D5 01 00 05 30 0A 00
										SVENSKA BE EF 03 06 00 C7 D4 01 00 05 30 0B 00
										PYCCKIЙ BE EF 03 06 00 F7 D6 01 00 05 30 0C 00
										SUOMI BE EF 03 06 00 67 D7 01 00 05 30 0D 00
										POLSKI BE EF 03 06 00 97 D7 01 00 05 30 0E 00
										TÜRKÇE BE EF 03 06 00 07 D6 01 00 05 30 0F 00
										Get BE EF 03 06 00 C4 D3 02 00 05 30 00 00
MENU POSITION H	Get		BE EF 03 06 00 04 D7 02 00 15 30 00 00
	Increment		BE EF 03 06 00 62 D7 04 00 15 30 00 00
	Decrement		BE EF 03 06 00 B3 D6 05 00 15 30 00 00
MENU POSITION H Reset	Execute		BE EF 03 06 00 DC C6 06 00 43 70 00 00
MENU POSITION V	Get		BE EF 03 06 00 40 D7 02 00 16 30 00 00
	Increment		BE EF 03 06 00 26 D7 04 00 16 30 00 00
	Decrement		BE EF 03 06 00 F7 D6 05 00 16 30 00 00
MENU POSITION V Reset	Execute		BE EF 03 06 00 A8 C7 06 00 44 70 00 00
BLANK	Set	MyScreen	BE EF 03 06 00 FB CA 01 00 00 30 40 00
		ORIGINAL BE EF 03 06 00 FB E2 01 00 00 30 40 00
		BLUE	BE EF 03 06 00 CB D3 01 00 00 30 03 00
		WHITE	BE EF 03 06 00 6B D0 01 00 00 30 05 00
		BLACK	BE EF 03 06 00 9B D0 01 00 00 30 06 00
	Get		BE EF 03 06 00 08 D3 02 00 00 30 00 00
BLANK On/Off	Set	TURN OFF	BE EF 03 06 00 FB D8 01 00 20 30 00 00
		TURN ON	BE EF 03 06 00 6B D9 01 00 20 30 01 00
	Get		BE EF 03 06 00 C8 D8 02 00 20 30 00 00
START UP	Set	MyScreen	BE EF 03 06 00 CB CB 01 00 04 30 20 00
		ORIGINAL BE EF 03 06 00 0B D2 01 00 04 30 00 00
		TURN OFF BE EF 03 06 00 9B D3 01 00 04 30 01 00
	Get		BE EF 03 06 00 38 D2 02 00 04 30 00 00
MyScreen LOCK Set	TURN	OFF BE EF 03 06 00 38	EF 01 00 0	0 30 00	00
		TURN ON BE EF	03 06 00 AB	EE 01	00 C0 30 01	00
	Get BE EF 03 06		00 08 EF 02	00 C0	$0 00 00
MESSAGE	Set	TURN OFF	BE EF	03	06 00	8F D6	01 00	17 30	00 00
		TURN ON BE EF	03 06 00 1F	D7 01	00 17 30	01 00
	Get BE EF 03 06		00 BC D6 02	00	17 30	00 00
AUTO SEARCH	Set	TURN OFF	BE EF	03	06 00	B6 D6	01 00	16 20	00 00
		TURN ON	BE EF	03	06 00	26 D7	01 00	16 20	01 00
	Get BE EF 03 06		00 85 D6 02	00	16 20	00 00
AUTO ON	Set	TURN OFF	BE EF	03	06 00	3B 89	01 00	20 31	00 00
		TURN ON	BE EF	03	06 00	AB 88	01 00	20 31	01 00
	Get		BE EF	03	06 00	08 89	02 00	20 31	00 00
AUTO OFF	Get		BE EF	03	06 00	08 86	02 00	10 31	00 00
	Increment		BE EF	03	06 00	6E 86	04 00	10 31	00 00
	Decrement		BE EF	03	06 00	BF 87	05 00	10 31	00 00
LAMP TIME	Get		BE EF	03	06 00	C2 FF	02 00	90 10	00 00
LAMP TIME Reset	Execute		BE EF	03	06 00	58 DC	06 00	30 70	00 00
FILTER TIME	Get		BE EF	03	06 00	C2 F0	02 00	A0 10	00 00
FILER TIME Reset	Execute		BE EF	03	06 00	98 C6	06 00	40 70	00 00
MY BUTTON-1	COMPUTER1		BE EF	03	06 00	3A 33	01 00	00 36	00 00
	COMPUTER2		BE EF	03	06 00	FA 31	01 00	00 36	04 00
	COMPONENT		BE EF	03	06 00	6A 30	01 00	00 36	05 00
	S-VIDEO		BE EF	03	06 00	5A 32	01 00	00 36	02 00
	VIDEO		BE EF	03	06 00	AA 32	01 00	00 36	01 00
	INFORMATION		BE EF	03	06 00	FA 3E	01 00	00 36	10 00
	MY MEMORY		BE EF	03	06 00	9A 3F	01 00	00 36	12 00
	PICTURE MODE		BE EF	03	06 00	0A 3E	01 00	00 36	13 00
	FILTER RESET		BE EF	03	06 00	3A 3C	01 00	00 36	14 00
	e-SHOT		BE EF	03	06 00	5A 3D	01 00	00 36	16 00
	VOLUME +		BE EF	03	06 00	CA 3C	01 00	00 36	17 00
	VOLUME -		BE EF	03	06 00	3A 39	01 00	00 36	18 00
	AV MUTE		BE EF	03	06 00	AA 38	01 00	00 36	19 00
	Get		BE EF	03	06 00	09 33	02 00	00 36	00 00
MY BUTTON-2 COMPUTER1 BE EF 03 06 00 C6 32 01 00 01 36 00 00
					66 3E 01 00 01 36 2 00
MAGNIFY	Get			BE EF	03 06 00 F6 3F 01 00 01 36 13 00
	Increment			BE EF	03 06 00 C6 3D 01 00 01 36 14 00
	Decrement			BE EF 03	03 06 00 C6 3D 01 00 01 36 17 00
	VOLUME -			BE EF	03 06 00 C6 38 01 00 01 36 18 00
	AV MUTE			BE EF 03	06 00 56 39 01 00 01 36 19 00
	Get			BE EF 03	06 00 F5 32 02 00 01 36 00 00
FREEZE	Set	NORMAL		BE EF	03 06 00	7C D2	02 00	07 30	00 00
		FREEZE		BE EF 03	03 06 00	1A D2	04 00	07 30	00 00
	Get			BE EF	03 06 00	B D3 05 00	07 30 00 00
e-SHOT	Set	OFF		BE EF	03 06 00	83 D2	01 00	02 30	00 00
		IMAGE1		BE EF	03 06 00	D3 01 00 02 30 01 00
		IMAGE2		BE EF	03 06 00	B D2	02 00	02 30	00 00
		IMAGE3		BE EF	03 06 00	3A C3	01 00	00 35	00 00
		IMAGE4		BE EF	03 06 00	AA C2	01 00	00 35	01 00
		IMAGE4		BE EF	03 06 00	5A C2	01 00	00 35	02 00
		IMAGE4		BE EF	03 06 00	CA C3	01 00	00 35	03 00
		Get		BE EF	03 06 00	FA C1	01 00	00 35	04 00
e-SHOT IMAGE1 Delete	Execute			BE EF	03 06 00	09 C3	02 00	00 35	00 00
e-SHOT IMAGE2 Delete	Execute			BE EF	03 06 00	71 C3	06 00	01 35	00 00
e-SHOT IMAGE3 Delete	Execute			BE EF	03 06 00	35 C3	06 00	02 35	00 00
e-SHOT IMAGE4 Delete	Execute			BE EF	03 06 00	C9 C2	06 00	03 35	00 00
CLOSED CAPTION DISPLAY	Set	TURN OFF		BE EF	03 06 00	BD C3	06 00	04 35	00 00
		TURN ON		BE EF	03 06 00	FA 62	01 00	00 37	00 00
		AUTO		BE EF	03 06 00	6A 63	01 00	00 37	01 00
		Get		BE EF	03 06 00	9A 63	01 00	00 37	02 00
CLOSED CAPTION MODE	Set	CAPTIONS		BE EF	03 06 00	C9 62	02 00	00 37	00 00
		TEXT		BE EF	03 06 00	06 63	01 00	01 37	00 00
	Get			BE EF	03 06 00	96 62	01 00	01 37	01 00
CLOSED CAPTION CHANNEL	Set	1		BE EF	03 06 00	35 63	02 00	01 37	00 00
		2		BE EF	03 06 00	D2 62	01 00	02 37	01 00
		3		BE EF	03 06 00	22 62	01 00	02 37	02 00
		4		BE EF	03 06 00	B2 63	01 00	02 37	03 00
		Get		BE EF	03 06 00	82 61	01 00	02 37	04 00

HITACHI

Inspire the Next

Hitachi,Ltd.

ConsumerBusinessGroup

Shin-OtemachiBldg5f,2-1,Otemachi2-Chome,

Chiyoda-Ku, Tokyo100-0004Japan

HITACHIEUROPELTD.

ConsumerAffairsDepartment

POBox3007

Maidenhead

BerkshireSL68ZE

UNITEDKINGDOM

Tel:[phone]

Email: [e-mail]

HITACHIEUROPES.A.

364,KifissiasAve.&1,DelfonStr.

15233Chalandri

Athens

GREECE

Tel:[phone]

Fax:[phone]

Email: [e-mail]

HITACHIEUROPEGmbH

MunichOffice

DornacherStrasse3

Hotline:[phone](12ct/min.)

Email: [e-mail]

HITACHIEUROPES.A.

GranViaCarlesIII,86Planta5 ^4

Email: [e-mail]

HITACHIEUROPEAB

Box77

S-16494KISTA

SWEDEN

Tel:[phone]

Fax:[phone]

Email: [e-mail]

HITACHIEUROPES.A.S

LyonOffice

B.P.45,69671BronCedex

FRANCE

Tel:[phone]

Fax:[phone]

NorwegianBranchOffice

Strandveien18

1366Dysaker

NORWAY

Tel:[phone]

Fax:[phone]

Email [e-mail]

HITACHIEUROPELTD.

BeneluxBrancheOffice

Bergensesteenweg421

1600Sint-Pieters-Leeuw

BELGIUM

TEL:[phone]

FAX:[phone]

Email:[e-mail]
