USER MANUAL CP-X4015WNEF HITACHI

CP-X2015WN/CP-X2515WN/CP-X3015WN/ CP-X4015WN/CP-WX2515WN/CP-WX3015WN

User's Manual (detailed) Operating Guide

Line drawing of a projector with ventilation grilles and control panel (no text or symbols)

Thank you for purchasing this projector.

⚠ WARNING ▶ Before using this product, please read all manuals for this product. Be sure to read Safety Guide first. After reading them, store them in a safe place for future reference.

About this manual

Various symbols are used in this manual. The meanings of these symbols are described below.

⚠ WARNING This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

⚠️ CAUTION This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

NOTICE This entry notices of fear of causing trouble.

Please refer to the pages written following this symbol.

NOTE • The information in this manual is subject to change without notice.

• The illustrations in this manual are for illustrative purposes. They may differ slightly from your projector.
• The manufacturer assumes no responsibility for any errors that may appear in this manual.
• The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Trademark acknowledgment

• Mac ^ is a registered trademark of Apple Inc.
• Windows ^ , DirectDraw ^ and Direct3D ^ are registered trademarks of Microsoft Corporation in the U.S. and/or other countries.
  • VESA and DDC are trademarks of the Video Electronics Standard Association.
• HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
• Blu-ray Disc ^TM and Blu-ray ^TM are trademarks of Blu-ray Disc Association.

All other trademarks are the properties of their respective owners.

Contents

Introduction 3

Features 3

Checking the contents of package...3

Part names 4

Setting up 7

Arrangement 7

Connecting with your devices ..... 1 0

Connecting to a power supply ..... 1 6

Fastening the adapter cover ..... 17

Using the security bar and slot . . . . 17

Remote control....18

Installing the batteries ..... 18

About the remote control signal ... 19

Changing the frequency of remote control signal 19

Using as a simple PC mouse & keyboard . . 20

Power on/off 2

Turning on the power ..... 2 1

Turning off the power .....2 2

Operating 23

Adjusting the volume ..... 2 3

Temporarily muting the sound ..... 2 3

Selecting an input signal ..... 2 4

Searching an input signal ..... 2 5

Selecting an aspect ratio ..... 2 6

Adjusting the projector's elevator . . 27

Adjusting the zoom and focus ..... 2 7

Using the automatic adjustment feature...28

Adjusting the position ..... 2 8

Correcting the keystone distortions..29

Using the magnify feature ..... 3 0

Temporarily freezing the screen . . . 31

Temporarily blanking the screen .. 31

Using the menu function ..... 3 2

EASY MENU....34

ASPECT, AUTO KEYSTONE, KEystone,

PICTURE MODE, ECO MODE, INSTALLATION,

RESET, FILTER TIME, LANGUAGE,

ADVANCED MENU, EXIT

PICTURE menu ..... 3 6

BRIGHTNESS, CONTRAST, GAMMA, COLOR TEMP,

COLOR, TINT, SHARPNESS, ACTIVE IRIS, MY MEMORY

IMAGE menu .... 3 9

ASPECT, OVER SCAN, V POSITION, H POSITION,

H PHASE, H SIZE, AUTO ADJUST EXECUTE

INPUT menu 42

PROGRESSIVE, VIDEO NR, COLOR SPACE,

VIDEO FORMAT, HDMI FORMAT, HDMI RANGE,

COMPUTER IN, FRAME LOCK, RESOLUTION

SETUP menu....46

AUTO KEYSTONE, KEystone, AUTO ECO MODE,

Eco mode, INSTALLATION, STANDBY MODE,

MONITOR OUT

AUDIO menu 49

VOLUME, SPEAKER, AUDIO SOURCE,

MIC LEVEL, MIC VOLUME

SCREEN menu 50

LANGUAGE, MENU POSITION, BLANK,

START UP, MyScreen, MyScreen Lock,

MESSAGE, SOURCE NAME, TEMPLATE, C.C.

OPTION menu 56

AUTO SEARCH, AUTO KEYSTONE,

DIRECT POWER ON, AUTO POWER OFF,

LAMP TIME, FILTER TIME, MY BUTTON,

MY SOURCE, SERVICE

NETWORK menu....67

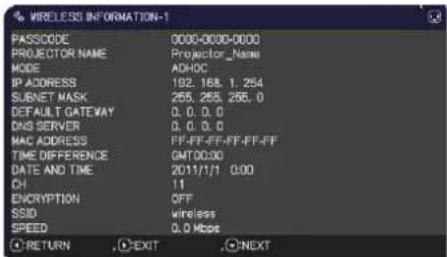

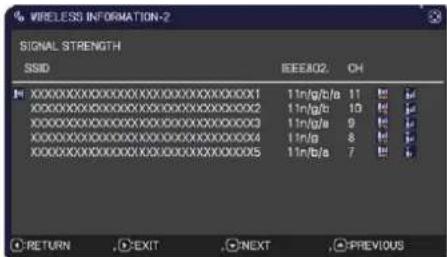

WIRELESS SETUP, WIRELESS INFORMATION,

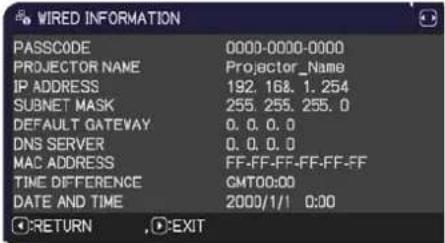

WIRED SETUP, WIRED INFORMATION,

PROJECTOR NAME, MY IMAGE, AMX D.D.,

PRESENTATION, SERVICE

SECURITY menu 78

SECURITY PASSWORD CHANGE,

MyScreen PASSWORD, PIN LOCK,

TRANSITION DETECTOR, MY TEXT PASSWORD,

MY TEXT DISPLAY, MY TEXT WRITING,

CLONING LOCK

Presentation tools 84

PC-LESS Presentation....84

Drawing Function 94

USB Display(Windows computer) ..... 100

USB Display(Mac computer).....104

Maintenance....108

Replacing the lamp 108

Cleaning and replacing the air filter . 110

Other care 112

Troubleshooting .....113

Related messages 11 3

Regarding the indicator lamps ... 115

Resetting all settings ..... 11 8

Phenomena that may be easy

to be mistaken for machine defects . . 11 8

Specifications ..... 12 3

Introduction

Features

The projector provides you with the broad use by the following features.

√ This projector has a variety of I/O ports that supposedly cover for any business scene. The HDMI port can support various image equipment which have digital interface to get clearer pictures on a screen.
√ If you insert a USB storage device, such as a USB memory, into the USB TYPE A port and select the port as the input source, you can view images stored in the device.
√ This projector can be controlled and monitored via LAN connection. Furthermore, you can use the designated USB wireless adapter (optional) to establish wireless LAN connection.
√ The double layer filter system is expected to function longer and offers youless maintenance frequency.
√ The built-in 16W speaker can deliver sufficient sound volume in a large space like a classroom without external speakers.

Checking the contents of package

Please see the Contents of package section in the User's Manual (concise) which is a book. Your projector should come with the items shown there. Require of your dealer immediately if any items are missing.

⚠ WARNING ▶ Keep small parts away from children and pets. Take care not to put in the mouth. If swallowed, consult a physician immediately for emergency treatment.

NOTE • Keep the original packing materials, for future reshipment. Be sure to use the original packing materials when moving the projector. Use special caution for the lens.

- The projector may make a rattling sound when tilted, moved or shaken, since a flap to control the air flow inside of the projector has moved. Be aware that this is not a failure or malfunction.

Part names

(1) Lamp cover (108)

The lamp unit is inside.

(2) Speaker (23, 49)

(3) Filter cover (110)

The air filter and intake vent are inside.

(4) Elevator feet (x2) (27)

(5) Elevator buttons (x2) (27)

(6) Remote sensor (19)

(7) Lens (112)

(8) Lens cover

(9) Intake vents

(10) Control panel (5)

(11) FOCUS ring (27)

(12) ZOOM ring (27)

(13) AC IN (AC inlet) (16)

(14) Exhaust vent

(15) Rear panel (5)

(9)

⚠ WARNING ▶ Do not open or remove any portion of the product, unless the manuals direct it.

▶ Do not subject the projector to unstable conditions.

▶ Do not apply a shock or pressure to this product.

▶ Do not look into the lens and the openings on the projector while the lamp is on.

⚠️ CAUTION ▶ Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot.

▶ Do not attach anything onto the lens except the lens cover of this projector because it could damage the lens, such as melting the lens.

(continued on next page)

Part names (continued)

Control panel

(1) STANDBY/ON button (21)
(2) INPUT button (24)
(3) MENU button (32)
(4) LAMP indicator (115)
(5) TEMP indicator (115)
(6) POWER indicator (115)

STANDBY/ON INPUT MENU (1) (3)(2) (6) (4)(5) LAMP TEMP POWER

Rear panel (10 \~ 15)

(1) LAN port
(2) USB TYPE A port(x2)
(3) USB TYPE B port
(4) HDMI port
(5) MIC port (15)
(6) AUDIO IN1 port
(7) AUDIO IN2 port
(8) AUDIO IN3 (R,L) ports
(9) AUDIO OUT (R,L) ports
(10) COMPUTER IN1 port

(11) COMPUTER IN2 port
(12) MONITOR OUT port
(13) CONTROL port
(14) VIDEO port
(15) S-VIDEO port
(16) Security slot (17)
(17) Security bar (17)

(1) USB TYPE B HDMI (5) (11)(10)(4)(3)(2) USB TYPE A DC5V 0.5A COMPUTER IN1 R AUDIO OUT L COMPUTER IN2 R L 3 AUDIO IN 1 2 S-VIDEO VIDEO CONTROL MONITOROUT (17) (16) (13) (12) (9) (145) (6) (8) (7)

(continued on next page)

Part names (continued)

Remote control

(1) VIDEO button (24)
(2) COMPUTER button (24)
(3) SEARCH button (25)
(4) STANDBY/ON button (21)
(5) ASPECT button (26)
(6) AUTO button (28)
(7) BLANK button (31)
(8) MAGNIFY - ON button (30)
(9) MAGNIFY - OFF button (30)
(10) MY SOURCE/DOC.CAMERA button (25, 59)
(11) VOLUME - button (23)
(12) PAGE UP button (20)
(13) PAGE DOWN button (20)
(14) VOLUME + button (23)
(15) MUTE button (23)
(16) FREEZE button (31)
(17) MY BUTTON - 1 button (58, 59)
(18) MY BUTTON - 2 button (58, 59)
(19) KEYSTONE button (29)
(20) POSITION button (28, 32)
(21) MENU button (32)
(22) ▲/▼/◄/► cursor buttons (32)
(23) ENTER button (32)
(24) ESC button (32)
(25) RESET button (32)
(26) Battery cover (18)

(2) (1) (6) (5) (16) (8) (9) (19) (17) (20) (22) (24) Vikko 1000000000000000000000000000000000000000000000000000000000000000000 Vikko 100000000000000000000000000000000000000000000 Status ALU3 BLANCH LEAVS MAGLEX FREEZE PAGE QUCCE ON UP OFF DOWN KEYBOX INFORMATION MAIN POSITION MENU OKC RESET (12) (14) (11) (13) (15) (18) (21) (23) (25)

Back of the remote control

(26)

Setting up

Install the projector according to the environment and manner the projector will be used in.

For the case of installation in a special state such as ceiling mount, the specified mounting accessories (Specifications in the User's Manual (concise)) and service may be required. Before installing the projector, consult your dealer about your installation.

Diagram of a room layout with a printer, monitor, and chair (no text or symbols)

Arrangement

Refer to tables T-1, T-2 and T-3 at the back of User's Manual (concise) as well as the following to determine the screen size and projection distance. The values shown in the table are calculated for a full size screen.

(a) Screen size (diagonal)
(b) Projection distance (±10%, from the projector's end)
c1, c2 Screen height (±10%)

- If the projector is used at an altitude of about 1600 m (5250 feet) or higher, set ALTITUDE of the SERVICE item in the OPTION menu to HIGH (59). Otherwise, set it to NORMAL. If the projector is used with a wrong setting, it may cause damage to the projector itself or the parts inside.

(continued on next page)

Arrangement (continued)

⚠ WARNING ▶ Install the projector where you can access the power outlet easily. If an abnormality should occur, unplug the projector urgently. Otherwise it could cause a fire or electric shock.

▶ Do not subject the projector to unstable conditions. If the projector falls or topples over, it could result in injury or damage to the projector and the surrounding things. Using a damaged projector could result in a fire and an electric shock.

• Do not place the projector in unstable places, such as an inclined surface, places subject to vibration, on top of a wobbly table or cart, or a surface that is smaller than the projector.
• Do not put the projector on its side, front or rear position.
• Do not attach nor place anything on the projector unless otherwise specified in the manual.
• Do not use any mounting accessories except the accessories specified by the manufacturer. Read and keep the manuals of the accessories used.
• For special installation such as ceiling mounting, be sure to consult your dealer beforehand.

▶ Do not install the projector near thermally conductive or flammable things. Such things when heated by the projector could result in a fire and burns.

- Do not place the projector on a metal stand.

▶ Do not place the projector where any oils, such as cooking or machine oil, are used. Oil may harm the product, resulting in malfunction, or falling from the mounted position.

▶ Do not place the projector in a place where it may get wet. Getting the projector wet or inserting liquid into the projector could cause a fire and an electric shock, and damage the projector.

- Do not place the projector near water, such as in a bathroom, kitchen, or poolside.

- Do not place the projector outdoors or by the window.

- Do not place anything containing liquid near the projector.

(continued on next page)

Arrangement (continued)

⚠️ CAUTION ▶ Place the projector in a cool place with sufficient

ventilation. The projector may shutdown automatically or may malfunction if its internal temperature is too high.

Using a damaged projector could result in a fire and an electric shock.

• Do not place the projector in direct sunlight or near hot objects such as heaters.
• Do not place the projector where the air from an air conditioner or similar unit will blow on it directly.
• Keep a space of 30 cm or more between a side of the projector and other objects such as walls.
• Do not place the projector on carpet, cushions or bedding.
• Do not stop up, block nor cover the projector's vent holes. Do not place anything around the projector that could be sucked in or stuck to the projector's intake vents.
• Do not place the projector at places that are exposed to magnetic fields, doing so can cause the cooling fans inside the projector to malfunction.

▶ Avoid placing the projector in smoky, humid or dusty place. Placing the projector in such places could cause a fire, an electric shock and malfunction of the projector.

- Do not place the projector near humidifiers. Especially for an ultrasonic humidifier, chlorine and minerals contained in tap water are atomized and could be deposited in the projector causing image degradation or other problems.

NOTICE • Do not place the projector in a smoking area, kitchen, passageway or by the window.

• Position the projector to prevent light from directly hitting the projector's remote sensor.
• Do not place the product in a place where radio interference may be caused.
• Check and correct the setting for ALTITUDE of SERVICE in the OPTION menu according to the usage environment (59). If the projector is used with a wrong setting, it may cause damage to the projector itself or the parts inside.
• Keep heat-sensitive things away from the projector. Otherwise, they may be damaged by the heat from the projector.

Connecting with your devices

Before connecting the projector to a device, consult the manual of the device to confirm that the device is suitable for connecting with this projector and prepare the required accessories, such as a cable in accord with the signal of the device.

Consult your dealer when the required accessory did not come with the product or the accessory is damaged.

After making sure that the projector and the devices are turned off, perform the connection, according to the following instructions. Refer to the figures in subsequent pages.

Before connecting the projector to a network system, be sure to read Network Guide too.

⚠ WARNING ▶ Use only the appropriate accessories. Otherwise it could cause a fire or damage the projector and devices.

• Use only the accessories specified or recommended by the projector's manufacturer. It may be regulated under some standard.
• Neither disassemble nor modify the projector and the accessories.
• Do not use the damaged accessory. Be careful not to damage the accessories. Route a cable so that it is neither stepped on nor pinched out.

⚠️ CAUTION ▶ For a cable with a core at only one end, connect the end with the core to the projector. That may be required by EMI regulations.

NOTE • Do not turn on or off the projector while connected to a device in operation, unless that is directed in the manual of the device. Otherwise it may cause malfunction in the device or projector.

- The function of some input ports can be selected according to your usage requirements. Check the reference page indicated beside each port in the following illustration.

- Be careful not to mistakenly connect a connector to a wrong port. Otherwise it may cause malfunction in the device or projector.

- When connecting a connector to a port, make sure that the shape of the connector fits the port.

- Tighten the screws to connect a connector equipped with screws to a port.

- Use the cables with straight plugs, not L-shaped ones, as the input ports of the projector are recessed.

(continued on next page)

Connecting with your devices (continued)

About Plug-and-Play capability

- Plug-and-Play is a system composed of a computer, its operating system and peripheral equipment (i.e. display devices). This projector is VESA DDC 2B compatible. Plug-and-Play can be used by connecting this projector to a computer that is VESA DDC (display data channel) compatible.

- Take advantage of this feature by connecting a computer cable to the COMPUTER IN1 port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.

- Please use the standard drivers in your computer as this projector is a Plug-and-Play monitor.

(continued on next page)

Connecting with your devices (continued)

Computer USB TYPE A HDMI AUDIO OUT RGB OUT USB TYPE B HDMI COMP UTER IN1 R AUDIO OUT COMPUTER IN2 R L 3 L AUDIO IN CONTROL MONITOR OUT S-VIDEO VIDEO

NOTE • Before connecting the projector to a computer, consult the computer's manual and check the compatibility of the signal level, the synchronization methods and the display resolution output to the projector.

- Some signal may need an adapter to input this projector.

- Some computers have multiple screen display modes that may include some signals which are not supported by this projector.

- Although the projector can display signals with resolution up to UXGA (1600x1200), the signal will be converted to the projector's panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and the projector panel are identical.

- If you connect this projector and a notebook computer, you need output the display to an external monitor, or output simultaneously to the internal display and an external monitor. Consult the computer's manual for the setting.

- Depending on the input signal, the automatic adjustment function of this projector may take some time and not function correctly.

- Note that a composite sync signal or sync-on-green signal may confuse the automatic adjustment function of this projector (28).

- If the automatic adjustment function does not work correctly, you may not see the dialog to set the display resolution. In such a case, use an external display device. You may be able to see the dialog and set an appropriate display resolution.

Connecting with your devices (continued)

⚠️ CAUTION ▶ Before connecting the projector to a network system be sure to obtain the consent of the administrator of the network.

▶ Do not connect the LAN port to any network that might have the excessive voltage.
The designated USB wireless adapter that is sold as an option is required to use the wireless network function of this projector.
▶ Before removing the USB storage device from the port of the projector, be sure to use the REMOVE USB function on the thumbnail screen to secure your data (87).
▶ Do not use any extension cable or device when connecting the adapter to the projector. Before you insert or pull out the USB wireless adapter from the projector, turn off the power of the projector and pull out the power cord's plug from the outlet. Do not touch the USB wireless adapter while the projector is receiving AC power.
To connect both the LAN cable and USB device to the projector, use a LAN cable that is flat on the side where the plug's wire is visible. Otherwise, both of them cannot be connected correctly, or the wire may break (malfunction).

NOTE • If an oversized USB storage device blocks the LAN port, use a USB extension cable to connect the USB storage device.

(continued on next page)

Connecting with your devices (continued)

VCR/DVD/Blu-ray Disc™ player COMPONENT HDMI Y Cb/Pb Cr/Pr S-VIDEO VIDEO AUDIO OUT in ani LAN USB TYPE B USB TYPE A DC5V 0.5A HDMI MIC COMPUTER IN1 R AUDIO OUT L S-VIDEO VIDEO 3 AUDIO IN 2 CONTROL MONITOR OUT

NOTE • The HDMI port of this model is compatible with HDCP (High-bandwidth Digital Content Protection) and therefore capable of displaying a video signal from HDCP compatible DVD players or the like.

- The HDMI supports the following signals.

Video signal : 480i@60, 480p@60, 576i@50, 576p@50, 720p@50/60, 1080i@50/60, 1080p@50/60

Audio signal : Format Linear PCM Sampling frequency 48kHz / 44.1kHz / 32kHz

• This projector can be connected with another equipment that has HDMF ^™ connector, but with some equipment the projector may not work properly, something like no video.
• Be sure to use an HDMI™ cable that has the HDMI™ logo.
• Use a Category 2-certifi ed HDMM cable to input 1080p@50/60 signal to the projector.
• When the projector is connected with a device having DVI connector, use a DVI to HDMI™ cable to connect with the HDMI input.

(continued on next page)

Connecting with your devices (continued)

Mic Monitor RGB OUT Speakers (with an amplifier) L R USB TYPE B HDMI COMPUTER IN1 R AUDIO OUT L COMPUTER IN2 R 3 L AUDIO IN CONTROL MONITOR OUT S-VIDEO VIDEO

NOTE • If a loud feedback noise is produced from the speaker, move the microphone away from the speaker.

Microphone function

• You can connect a dynamic microphone to the MIC port with a 3.5 mm mini-plug. In that case, the built-in speaker outputs the sound from the microphone, even while the sound from the projector is output. You can input line level signal to the MIC port from equipment such as wireless microphone. Select HIGH in the MIC LEVEL item of the AUDIO menu when you input line level audio signal to the MIC port. In the normal mode, the volume of the microphone can be adjusted separately from the volume of the projector using the menu (49). In the standby mode, the volume of the microphone is adjustable with the VOLUME +/- buttons on the remote control, in synchronization with the volume of the projector (23). Even when the sound of projector is set to mute mode by the AUDIO SOURCE function (49), the volume of the microphone is adjustable.
  In both modes (standby or normal), the MUTE button on the remote control works on the sounds of the microphone and the projector (23).
• This projector doesn't support plug-in power for the microphone.

Connecting to a power supply

1. Put the connector of the power cord into the AC IN (AC inlet) of the projector.
2. Firmly plug the power cord's plug into the outlet. In a couple of seconds after the power supply connection, the POWER indicator will light up in steady orange.

Please remember that when the DIRECT POWER ON function activated (56), the connection of the power supply make the projector turn on.

AC IN Power cord

⚠ WARNING ▶ Please use extra caution when connecting the power cord, as incorrect or faulty connections may result in fire and/or electrical shock.

• Do not touch the power cord with a wet hand.
• Only use the power cord that came with the projector. If it is damaged, consult your dealer to get a new one. Never modify the power cord.
• Only plug the power cord into an outlet whose voltage is matched to the power cord. The power outlet should be close to the projector and easily accessible. Remove the power cord for complete separation.
• Do not distribute the power supply to multiple devices. Doing so may overload the outlet and connectors, loosen the connection, or result in fire, electric shock or other accidents.
• Connect the ground terminal for the AC inlet of this unit to the ground terminal of the building using an appropriate power cord (bundled).

NOTICE ▶This product is also designed for IT power systems with a phase-to-phase voltage of 220 to 240 V.

Fastening the adapter cover

Use the supplied adapter cover to prevent the USB wireless adapter from coming off easily.

1. Loosen the screw (marked with triangle) on the bottom left of the USB TYPE A port.
2. Insert the tab of the cover into the hole at the upper right of the USB TYPE A port in the direction of the arrow.
3. Align the screw holes on the projector and the cover. Then insert the screw removed from the projector into the hole and tighten the screw.

1 2 3 Tab

⚠ WARNING ▶ Keep small parts away from children and pets. Take care not to put in the mouth.

Using the security bar and slot

A commercially available anti-theft chain or wire can be attached to the security bar on the projector. Refer to the figure to choose an anti-theft chain or wire.

Also this product has the security slot for the Kensington lock.

For details, see the manual of the security tool.

Security slot 11.7mm 17.5mm 20.3mm

Anti-theft chain or wire
security bar

⚠ WARNING ▶ Do not use the security bar and slot to prevent the projector from falling down, since it is not designed for it.
⚠ CAUTION ▶ Do not place anti-theft chain or wire near the exhaust vents. It may become too hot.

NOTE • The security bar and slot is not comprehensive theft prevention measures. It is intended to be used as supplemental theft prevention measure.

Remote control

Installing the batteries

Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

1. Holding the hook part of the battery cover, remove it.
2. Align and insert the two AA batteries (HITACHI MAXELL or HITACHI MAXELL ENERGY, Part No.LR6 or R6P) according

Three-step diagram showing hand tool application steps: opening, pressing, and cutting a component.

to their plus and minus terminals as indicated in the remote control.

1. Replace the battery cover in the direction of the arrow and snap it back into place.

⚠ WARNING ▶ Always handle the batteries with care and use them only as directed. Improper use may result in battery explosion, cracking or leakage, which could result in fire, injury and/or pollution of the surrounding environment.

• Be sure to use only the batteries specified. Do not use batteries of different types at the same time. Do not mix a new battery with used one.
• Make sure the plus and minus terminals are correctly aligned when loading a battery.
• Keep a battery away from children and pets.
• Do not recharge, short circuit, solder or disassemble a battery.
• Do not place a battery in a fire or water. Keep batteries in a dark, cool and dry place.
• If you observe battery leakage, wipe out the leakage and then replace a battery. If the leakage adheres to your body or clothes, rinse well with water immediately.
• Obey the local laws on disposing the battery.

About the remote control signal

The remote control works with the projector's remote sensor. This projector has a remote sensor on the front. The sensor senses the signal within the following range when the sensor is active:

60 degrees (30 degrees to the left and right of the sensor) within 3 meters about.

3m 30° 30° (approx.)

NOTE • The remote control signal reflected in the screen or the like may be available. If it is difficult to send the signal to the sensor directly, attempt to make the signal reflect.
- The remote control uses infrared light to send signals to the projector (Class 1 LED), so be sure to use the remote control in an area free from obstacles that could block the remote control's signal to the projector.
- The remote control may not work correctly if strong light (such as direct sun light) or light from an extremely close range (such as from an inverter fluorescent lamp) shines on the remote sensor of the projector. Adjust the position of projector avoiding those lights.

Changing the frequency of remote control signal

The accessory remote control has the two choices on signal frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote control does not function properly, attempt to change the signal frequency. In order to set the Mode, please keep pressing the combination of two buttons listed below simultaneously for about 3 seconds.

(1) Set to Mode 1: NORMAL... VOLUME - and RESET buttons (2) Set to Mode 2: HIGH... MAGNIFY OFF and ESC buttons

Please remember that the REMOTE FREQ. in the SERVICE item of the OPTION menu (61) of the projector to be controlled should be set to the same mode as the remote control.

(2) (1)

Using as a simple PC mouse & keyboard

The accessory remote control works as a simple mouse and keyboard of the computer, when the projector's USB TYPE B port and the computer's type A USB port are connected.

(1) PAGE UP key: Press PAGE UP button.
(2) PAGE DOWN key: Press PAGE DOWN button.
(3) Mouse left button: Press ENTER button.
(4) Move pointer: Use the cursor buttons ▲, ▼, ◀ and ▶.
(5) ESC key: Press ESC button.
(6) Mouse right button: Press RESET button.

NOTICE ▶Improper use of the simple mouse & keyboard function could damage your equipment. While using this function, please connect this product only to a computer. Be sure to check your computer's manuals before connecting this product to the computer.

USB TYPE B

USB TYPE B port

B (1) (2) (3) (4) (5) (6)

NOTE When the simple mouse & keyboard function of this product does not work correctly, please check the following.

• When a USB cable connects this projector with a computer having a built-in pointing device (e.g. track ball) like a laptop computer, open BIOS setup menu, then select the external mouse and disable the built-in pointing device, because the built-in pointing device may have priority to this function.
• Windows XP SP3 or higher is required for this function. And also this function may not work depending on the computer's configurations and mouse drivers. This function can work with the computer which can operate general USB mouse or keyboard.
• You cannot do things like press two buttons at once (for instance, pressing two buttons at the same time to move the mouse pointer diagonally).
• This function is activated only when the projector is working properly. This function is not available in any of the following cases:
• While the lamp is warming up. (The POWER indicator blinks in green.)
• When either USB TYPE A or USB TYPE B port is selected.
• While displaying BLANK (50), TEMPLATE (54) or MY IMAGE (75) screen.
• When any menu is displayed on the screen.
• While using the cursor buttons to operate the sound or screen functions such as adjusting the sound volume, correcting the keystone, correcting the picture position and magnifying the screen.

Power on/off

Turning on the power

1. Make sure that the power cord is firmly and correctly connected to the projector and the outlet.
2. Make sure that the POWER indicator is steady orange (115). Then remove the lens cover.
3. Press STANDBY/ON button on the projector or the remote control.

The projection lamp will light up and POWER indicator will begin blinking in green. When the

power is completely on, the indicator will stop blinking and light in steady green (115).

STANDBY/ON button POWER indicator STANDBY/ON INPUT MENU LAMP TEMP POWER

To display the picture, select an input signal according to the section Selecting an input signal (24).

The INITIAL SETTING Menu will be displayed by factory default upon startup. Once the INITIAL SETTING Menu is set, it will not appear until FACTORY RESET (66) is executed. If you wish to change the settings, refer to the LANGUAGE (50) and ALTITUDE (59) menu.

(1) LANGUAGE: Use the ▲/▼/◄/► buttons to select the desired language and press the ENTER button of the remote control or the INPUT button of the projector to execute.

INITIAL SETTING LANGUAGE ●ENGLISH ○FRANÇAIS ○DEUTSCH ○ESPAÑOL ○ITALIANO ○NORSK ○NEDERLANDS ○PORTUGUÊS ○日本語 ○首体中文 ○香港中文 ○한국 OSVENSKA OPYCCKИЙ OSUOMI OPOLSKI ÖTÜRKÇE ÖDANSK ÖČESKY OMAGYAR OROMÁNÃ OSLOVENSKI OHRVATSKI ÖEAΛΗΝΙΚΑ OLIETUVIU OEESTI OLATVIEŞU Öİnpu عربية غارسی ○PORTUGUÊS BRA ○BAHASA IND ÖTIÊNG VIÊT RESET +→EXIT ENTER :NEXT

(2) ALTITUDE: Use the ▲/▼ buttons to select NORMAL for altitude below 1600 m (5250 feet), otherwise select HIGH and press the ENTER button of the remote control or the INPUT button of the projector to execute.

INITIAL SETTING 2/2 ALTITUDE If the projector is used at an altitude of about 1,600m (5250feet) or higher. set ALTITUDE to HIGH [1,600m (5250feet) or higher]. Otherwise. set it to NORMAL [below 1,600m (5250feet)]. HIGH : 1,600m (5250feet) or higher NORMAL : below 1,600m (5250feet) RESET + RETURN ENTER END

Turning off the power

1. Press the STANDBY/ON button on the projector or the remote control. The message "Power off?" will appear on the screen for about 5 seconds.
2. Press the STANDBY/ON button again while the message appears. The projector lamp will go off, and the POWER indicator will begin blinking in orange. Then POWER indicator will stop blinking and light in steady orange when the lamp cooling is complete (115).
3. Attach the lens cover, after the POWER indicator turns in steady orange.

Do not turn the projector on for about 10 minutes or more after turning it off. Also, do not turn the projector off shortly after turning it on. Such operations might cause the lamp to malfunction or shorten the lifetime of some parts including the lamp.

⚠ WARNING ▶ A strong light is emitted when the projector’s power is on. Do not look into the lens of the projector or look inside of the projector through any of the projector’s openings.

▶ Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot.

NOTE • Turn the power on/off in right order. Please power on the projector prior to the connected devices.

- This projector has the function that can make the projector automatically turn on/off. Please refer to the DIRECT POWER ON (56) and AUTO POWER OFF (57) items of the OPTION menu.

Operating

Adjusting the volume

VOLUME +/- button

1. Use the VOLUME +/VOLUME - buttons to adjust the volume. A dialog will appear on the screen to aid you in adjusting the volume. If you do not do anything, the dialog will automatically disappear after a few seconds.

VIDEO COMMER MINISSION AVOCATION ASPECT AUTO SEARCH BLANK PACIFIC VOLTAGE ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHIN ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINA ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHINC ON CHCNCN10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

• When is selected for current picture input port, the volume adjustment is disabled. Please see AUDIO SOURCE item of AUDIO menu (49).

• Even if the projector is in the standby mode, the volume is adjustable when both of the following conditions are true:

• An option other than ✗ is selected for STANDBY in the AUDIO SOURCE item of the AUDIO menu (49).

• NORMAL is selected in the STANDBY MODE item of the SETUP menu (48).

- In the standby mode, the volume of the microphone is adjustable with the VOLUME +/- buttons on the remote control, in synchronization with the volume of the projector.

Temporarily muting the sound

MUTE button

1 Press MUTE button on the remote control.

A dialog will appear on the screen indicating that you have muted the sound.

To restore the sound, press the MUTE, VOLUME + or VOLUME - button. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

MODE CONFIG DOWN OFF ASPECT AUTO SEARCH BLANK CHANGE FREEZE PAGE UP X-LINE C1 DOWN KIOSKORE ANY BUTTON DOWN

• When is selected for current picture input port, the sound is always muted. Please see AUDIO SOURCE item of AUDIO menu (49).
• C.C. (Closed Caption) is automatically activated when sound is muted and an input signal containing C.C. is received. This function is available only when the signal is NTSC for VIDEO or S-VIDEO, or 480i@60 for COMPUTER IN1 or COMPUTER IN2, and when AUTO is selected for DISPLAY in the C.C. menu under the SCREEN menu (55).

Selecting an input signal

1 Press INPUT button on the projector.

Each time you press the button, the projector switches its input port from the current port as below.

INPUT button ION INPUT VE

• While ON is selected for AUTO SEARCH item in OPTION menu (56), the projector will keep checking the ports in above order repeatedly till an input signal is detected.
• It may take several seconds to project the images from the USB TYPE B port.

1 Press COMPUTER button on the remote control.

Each time you press the button, the projector switches its input port from the current port as below.

COMPUTER button

MELD COM LIME MELD ASPECT AUTO SEARCH BLANK EXPPLY FREEZE PAGE JOLIVE ON UP ON ON

• While ON is selected for AUTO SEARCH item in OPTION menu, the projector will keep checking every port sequentially till an input signal is detected (56). If COMPUTER button is pressed when VIDEO, S-VIDEO or HDMI port is selected, the projector will check COMPUTER IN1 port first.
• It may take several seconds to project the images from the USB TYPE B port.

1 Press VIDEO button on the remote control.

Each time you press the button, the projector switches its input port from the current port as below.

VIDEO button

SLICID COMPUTER WITH DIRECTOR DO NOT DO ABSTRACT AUTO SEARCH BLANK AVENY FREEZE PAGE UP INSIDE CS CNS ONC POTTER KEY BUTTON

- While ON is selected for AUTO SEARCH item in OPTION menu, the projector will keep checking every port sequentially till an input signal is detected (56). If VIDEO button is pressed when COMPUTER IN1, COMPUTER IN2, LAN, USB TYPE A or USB TYPE B port is selected, the projector will check HDMI port first.

Selecting an input signal(continued)

1. Press the MY SOURCE / DOC. CAMERA button on the remote control. The input signal will be changed into the signal you set as MY SOURCE (59).

- This function also can use for document camera. Select the input port that connected the document camera.

Searching an input signal

1 Press SEARCH button on the remote control.

The projector will start to check its input ports as below in order to find any input signals.

When input signal is detected, the projector will stop searching and display the image. If no signal is found, the projector will return to the state selected before the operation.

MY SOURCE / DOC. CAMERA button

MISSED COMPUTER SWITCH ASPECT AUTO SEARCH BLANK MOEXPY FREEZE PAGE LIVE ON UP C1 20W HY BUTTON

SEARCH button

VIDEO COMPUTER SERVICE ASPECT AUTO SEARCH ON FREE CALL PAGE ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE CALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE All ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALL ON FREE ALUOYIN YIY BUTTON YIY MUTE

• While ON is selected for AUTO SEARCH item in OPTION menu (56), the projector will keep checking the ports in above order repeatedly till an input signal is detected.
• It may take several seconds to project the images from the USB TYPE B port.

Selecting an aspect ratio

1 Press ASPECT button on the remote control.

Each time you press the button, the projector switches the mode for aspect ratio in turn.

○ For a computer signal

CP-X2015WN/CP-X2515WN/CP-X3015WN/CP-X4015WN:

NORMAL → 4:3 → 16:9 → 16:10

CP-WX2515WN/CP-WX3015WN:

NORMAL → 4:3 → 16:9 → 16:10 → NATIVE

○ For an HDMI ^™ signal

CP-X2015WN/CP-X2515WN/CP-X3015WN/CP-X4015WN:

NORMAL → 4:3 → 16:9 → 16:10 → 14:9

CP-WX2515WN/CP-WX3015WN:

NORMAL → 4:3 → 16:9 → 16:10 → 14:9 → NATIVE

For a video signal, s-video signal or component video signal

CP-X2015WN/CP-X2515WN/CP-X3015WN/CP-X4015WN:

4:3 → 16:9 → 14:9

CP-WX2515WN/CP-WX3015WN:

4:3 → 16:9 → 16:10 → 14:9 → NATIVE

☐ For an input signal from the LAN, USB TYPE A or USB TYPE B port, or if there is no signal

CP-X2015WN/CP-X2515WN/CP-X3015WN/CP-X4015WN: 4:3 (fixed)

CP-WX2515WN/CP-WX3015WN: 16:10 (fixed)

• ASPECT button does not work when no proper signal is inputted.
• NORMAL mode keeps the original aspect ratio setting.
• The display will be dark for a split second while switching the Aspect, but this is not a malfunction.

ASPECT button

VIDEO COMPUTER ACCESS ASPECT AUTO SEARCH BLANK MARGIN FREE ZONE PAGE LIME ON DOWN KEYCOME TV BUTTON MUTE

Adjusting the projector's elevator

When the place to put the projector is slightly uneven to the left or right, use the elevator feet to place the projector horizontally.

Using the feet can also tilt the projector in order to project at a suitable angle to the screen, elevating the front side of the projector within 14 degrees.

This projector has 2 elevator feet and 2 elevator buttons. An elevator foot is adjustable while pushing the elevator button on the same side as it.

1. Holding the projector, push the elevator buttons to loose the elevator feet.
2. Position the front side of the projector to the desired height.
3. Release the elevator buttons in order to lock the elevator feet.
4. After making sure that the elevator feet are locked, put the projector down gently.
5. If necessary, the elevator feet can be manually twisted to make more precise adjustments. Hold the projector when twisting the feet.

Diagram of a wall-mounted air conditioner unit with 14-degree angle indicator (no text or symbols)

To loose an elevator foot, push the elevator button on the same side as it.

pose an vator foot, push elevator button

To finely adjust, twist the foot.

⚠ CAUTION ▶ Do not handle the elevator buttons without holding the projector, since the projector may drop down.
▶ Do not tilt the projector other than elevating its front within 14 degrees using the adjuster feet. A tilt of the projector exceeding the restriction could cause malfunction or shortening the lifetime of consumables, or the projector itself.

Adjusting the zoom and focus

1. Use the ZOOM ring to adjust the screen size.
2. Use the FOCUS ring to focus the picture.

e. ZOOM ring FOCUS ring

Using the automatic adjustment feature

1 Press AUTO button on the remote control.

- Pressing this button performs the following.

○ For a computer signal

The vertical position, the horizontal position and the horizontal phase will be automatically adjusted.

Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.

AUTO button

MELLO COMPUTER CONTROL DISCUER ASPECT AUTO SEARCH BLANK IN MIPY FREEZE PAGE VOLUME ON UP COM NO VOLUME MY BUTTON ROUTE

○ For a video signal and s-video signal

The video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for the VIDEO FORMAT item in the INPUT menu (43). The vertical position and horizontal position will be automatically set to the default.

○ For a component video signal

The vertical position and horizontal position will be automatically set to the default. The horizontal phase will be automatically adjusted.

• The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input.
• When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.
• When this function is performed for a computer signal, a black frame may be displayed on the edge of the screen, depending on the computer model.
• The items adjusted by this function may vary when the FINE or DISABLE is selected for the AUTO ADJUST item of the SERVICE item in the OPTION menu (60).

Adjusting the position

1. Press POSITION button on the remote control when no menu is indicated.

The "POSITION" indication will appear on the screen.

2 Use the ▲/▼/◄/► cursor buttons to adjust the picture position.

When you want to reset the operation, press RESET button on the remote control during the operation.

To complete this operation, press POSITION button again. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

XRSI ON TENI ESE RESET

POSITION button

• When this function is performed on a video signal or an s-video signal, some image such as an extra-line may appear at outside of the picture.
• When this function is performed on a video signal or s-video signal, the range of this adjustment depends on OVER SCAN in IMAGE menu (40) setting. It is not possible to adjust when OVER SCAN is set to 10.
• If POSITION button is pressed when a menu is indicated on screen, the displayed picture does not move its position but the menu does.
• This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port.

Correcting the keystone distortions

1. Press KEYSTONE button on the remote control. A dialog will appear on the screen to aid you in correcting the distortion.

2. Use the ▲/▼ cursor buttons to select AUTO or MANUAL operation, and press the ▶ button to perform the following.

(1) AUTO executes automatic vertical keystone correction.
(2) MANUAL displays a dialog for keystone correction.
Use the ◀/▶ buttons for adjustment.

To close the dialog and complete this operation, press KEYSTONE button again. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

KEYSTONE button

VIDEO COMPUTER MY SOURCE COMPUTER DOCUMENTS ASPIRED ALTO SHAKI 100 MHz MINT FREEZE PAGE ON PAGE OFF DOWN KEY TIME MY BUTTON 2 MUTE

• The menu or dialog will automatically disappear after several seconds of inactivity. Pressing the KEYSTONE button again finishes the operation and closes the menu or dialog.
• The adjustable range of this function will vary among inputs. For some input, this function may not work well.
• When REAR / CEILING or FRONT / CEILING is selected for the INSTALLATION item in the SETUP menu, the automatic vertical keystone correction function may not work correctly if the projector screen is slanted or tilted downwards.
• When the zoom adjustment is set to the TELE (telephoto focus), this function may be excessive. This function should be used when the zoom adjustment is set to the full WIDE (wide-angle focus) whenever possible.
• When the projector is placed on the level (about ± 4^ ), the automatic keystone distortion correction may not work.
• When the projector is inclined to near ± 30 degree or over, this function may not work well.
• This function will be unavailable when the TRANSITION DETECTOR is on (81).
• The display will be dark for a split second while switching the KEYSTONE, but this is not a malfunction.

Using the magnify feature

1. Press the MAGNIFY ON button on the remote control. The picture will be magnifi ed, and the MAGNIFY dialog

will appear on the screen. When the MAGNIFY ON button is pressed for the first time after the projector is turned on, the picture will be zoomed by 1.5 times. On the dialog, triangle marks to show each direction will be displayed.

MAGNIFY ON/OFF button

VIDEO COMPUTER MY SOURCE EXCMETER ASPECT AUTO SEARCH BLANK AMOUNT FREE UP CHINE ON UP ON HIGH KEYSTONE MY BUTTON MUTE

1. The display magnification of the projector switches in order with every press of the MAGNIFY ON button.

For computer signals, HDMI™ (RGB) signals, input signals from the LAN, USB TYPE A or USB TYPE B port

1.5 times → 2 times → 3 times → 4 times → 1 time

For video signals, s-video signals, component video signals or HDMI™ (Component) signals

1.5 times 2 times 1 time

1. While the triangles are displayed on the dialog, use the ▲/▼/◄/► cursor buttons to shift the magnifying area.

2. Press the MAGNIFY OFF button on the remote control to exit magnification.

3. The MAGNIFY dialog will automatically disappear in several seconds with no operation. The dialog will appear again if the MAGNIFY ON button is pressed when the dialog has automatically disappeared.

4. The magnifi cation is automatically disabled when the displaying signal or its display condition is changed.
5. While the magnifi cation is active, the keystone distortion condition may vary. It will be restored when the magnifi cation is disabled.
6. Some horizontal stripes might be visible on the image while magnifi cation is active.
7. This function is not available in the following cases:

- A sync signal in the range not supported is input.

- There is no input signal.

Temporarily freezing the screen

1 Press the FREEZE button on the remote control.

The “FREEZE” indication will appear on the screen (however, the indication will not appear when the OFF is selected for the MESSAGE item in the SCREEN menu (52)), and the projector will go into the FREEZE mode, which the picture is frozen.

To exit the FREEZE mode and restore the screen to normal, press the FREEZE button again.

FREEZE button

VIDEO COMPUTER MY SOURCE ASPECT AUTO SEARCH BLACK AVOCUTI FREE UP DOWN KEYSTONE MY BUTTON 2 MUTE

• The projector automatically exits from the FREEZE mode when some control buttons are pressed.
• If the projector continues projecting a still image for a long time, the LCD panel might possibly be burned in. Do not leave the projector in the FREEZE mode for too long.
• Images might appear degraded when this function is operated, but it is not a malfunction.

Temporarily blanking the screen

1 Press BLANK button on the remote control.

The BLANK screen will be displayed instead of the screen of input signal. Please refer to BLANK item in SCREEN menu (50).

To exit from the BLANK screen and return to the input signal screen, press BLANK button again.

- The projector automatically exits from the BLANK mode when some control buttons are pressed.

BLANK button

VIDG DOMINER PRODUCT EXCOM ASPECT AUTO SENSOR3 BLACK MAX Fr FREEZE PAGE VOLUME ON UP OKI KEYSTONE MY BUTTON MUTE 1 2

⚠️CAUTION ▶If you wish to have a blank screen while the projector's lamp is on, use the BLANK function above.

Taking any other action may cause the damage on the projector.

NOTE • The sound is not connected with the BLANK screen function. If necessary, set the volume or mute first. To display the BLANK screen and mute the sound at one time, use AV MUTE function (59).

Using the menu function

This projector has the following menus:

PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK, SECURITY and EASY MENU.

EASY MENU consists of functions often used, and the other menus are classified into each purpose and brought together as the ADVANCED MENU.

Each of these menus is operated using the same methods. While the projector is displaying any menu, the MENU button on the projector works as the cursor buttons. The basic operations of these menus are as follows.

POSITION button ENTER button ESC button RESET button MENU button (Cursor buttons) Cursor buttons STANDBY/ON INPUT MENU

1. To start the MENU, press the MENU button. The MENU you last used (EASY or ADVANCED) will appear. EASY MENU has priority to appear just after powered on.

2. In the EASY MENU

(1) Use the ▲/▼ cursor buttons to select an item to operate. If you want to change it to the ADVANCED MENU, select the ADVANCED MENU.
(2) Use the ◀/▶ cursor buttons to operate the item.

In the ADVANCED MENU

(1) Use the ▲/▼ cursor buttons to select a menu. If you want to change it to the EASY MENU, select the EASY MENU.

The items in the menu appear on the right side.

(2) Press the ▶ cursor button or ENTER button to move the cursor to the right side. Then use the

EASY MENU ASPECT AUTO KEYSTONE KEYSTONE PICTURE MODE ECO MODE INSTALLATION RESET FILTER TIME LANGUAGE ADVANCED MENU EXIT NORMAL EXECUTE +0 NORMAL NORMAL EXECUTE Oh ENGLISH COMPUTER IN 1 1024 x 768 @60Hz

ADANCED MENU PICTURE MACE INPUT SETUP AUDIO SCREEN OPTION NETWORK SECURITY EASY MENU EXIT BRIGHTNESS +0 CONTRAST +0 CAMMA DEFAULT-1 COLOR TEMP MID COLOR +0 TINT +0 SHARPNESS 4 MY MEMORY COMPUTER IN 1 1024 x 768 @50Hz

▲/▼ cursor buttons to select an item to operate and press the ▶ cursor button or ENTER button to progress. The operation menu or dialog of the selected item will appear.

(3) Use the buttons as instructed in the OSD to operate the item.

(continued on next page)

Using the menu function (continued)

1. To close the MENU, press the MENU button again or select EXIT and press the ▶ cursor button or ENTER button. Even if you do not do anything, the dialog will automatically disappear after about 30 seconds.

2. If you want to move the menu position, use the cursor buttons after pressing the POSITION button.

3. Some functions cannot be performed when a certain input port is selected, or when a certain input signal is displayed.
4. When you want to reset the operation, press RESET button on the remote control during the operation. Note that some items (ex. LANGUAGE, VOLUME) cannot be reset.
5. In the ADVANCED MENU, when you want to return to the previous display, press the ◀ cursor button or ESC button on the remote control.

Indication in OSD (On Screen Display)

BRIGHTNESS RETURN +0 EXIT

FILTER TIME RESET 1234h CANCEL OK

4 MY MEMORY_LOAD-4 TEMPORARY CONDITION ARE YOU SURE YOU WISH TO LOAD?

The meanings of the general words on the OSD are as follows.

Indication Meaning
EXIT	Selecting this word finishes the OSD menu. It's the same as pressing the MENU button.
RETURN Selecting this word returns the menu to the previous menu.
CANCEL or NO	Selecting this word cancels the operation in the present menu and returns to the previous menu.
OK or YES	Selecting this word executes the prepared function or shifts the menu to the next menu.

EASY MENU

From the EASY MENU, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table.

EASY MENU ASPECT AUTO KEYSTONE KEYSTONE PICTURE MODE ECO MODE INSTALLATION RESET FILTER TIME LANGUAGE ADVANCED MENU EXIT

012345678901

NORMAL EXECUTE +0 NORMAL NORMAL EXECUTE Oh ENGLISH COMPUTER IN 1 1024 x 768 @60Hz

Item Description
ASPECT	Using the ◀/► buttons switches the mode for aspect ratio. See the ASPECT item in IMAGE menu (39).
AUTO KEYSTONE	Using the ► button executes the auto keystone function. See the AUTO KEYSTONE item in SETUP menu (46).
KEYSTONE	Using the ◀/► buttons corrects the vertical keystone distortion. See the KEYSTONE item in SETUP menu (46).
PICTURE MODE	Using the ◀/► buttons switches the picture mode. The picture modes are combinations of GAMMA and COLOR TEMP settings. Choose a suitable mode according to the projected source. → NORMAL ⇔ CINEMA ⇔ DYNAMIC ⇔ BOARD(BLACK) → PHOTO ⇔ DAYTIME ⇔ WHITEBOARD ⇔ BOARD(GREEN) ←
		GAMMA COLOR TEMP
	NORMAL 1 DEFAULT 2 MID
	CINEMA 2 DEFAULT 3 LOW
	DYNAMIC 3 DEFAULT 1 HIGH
	BOARD(BLACK) 4 DEFAULT 4 Hi-BRIGHT-1
	BOARD(GREEN) 4 DEFAULT 5 Hi-BRIGHT-2
	WHITEBOARD 5 DEFAULT 2 MID
	DAYTIME 6 DEFAULT 6 Hi-BRIGHT-3
	PHOTO 7 DEFAULT 7 Hi-BRIGHT-4
	When the combination of GAMMA and COLOR TEMP differs from pre-assigned modes above, the display on the menu for the PICTURE MODE is “CUSTOM”. Please refer to the GAMMA and COLOR TEMP (36, 37) items in PICTURE menu. Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

(continued on next page)

Item Description
ECO MODE	Using the ◀/► buttons switches the ECO MODE.See the ECO MODE item in SETUP menu (47).
INSTALLATION	Pressing the ► button displays the INSTALLATION dialog.See the INSTALLATION item in SETUP menu (47).
RESET	Performing this item resets all of the EASY MENU items except the FILTER TIME and LANGUAGE.A dialog is displayed for confirmation. Selecting the OK using the ►button performs resetting.
FILTER TIME	The usage time of the air filter is shown in the menu.Performing this item resets the filter time which counts usage time of the air filter.A dialog is displayed for confirmation. Selecting the OK using the ►button performs resetting.See the FILTER TIME item in OPTION menu (57).
LANGUAGE	Using the ◀/► buttons changes the display language.See the LANGUAGE item in SCREEN menu (50).
ADVANCED MENU	Press the ► or ENTER button to use the menu of PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK or SECURITY.
EXIT Press the ◀ or ENTER button to finish the OSD menu.

PICTURE menu

From the PICTURE menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or ENTER button to execute the item. Then perform it according to the following table.

ADANCED MENU PICTURE IMAGE INPUT SETUP AUDIO SCREEN DPTION NETWORK SECURITY EASY MENU EXIT BRIGHTNESS +0 CONTRAST +0 GAMMA DEFAULT-1 COLOR TEMP MID COLOR +0 TINT +0 SHARPNESS 4 ACTIVE IRIS PRESENTATION MY MEMORY COMPUTER IN 1 1024 x 768 @60Hz

Item Description
BRIGHTNESS	Using the ◀/► buttons adjusts the brightness. Dark ⇔ Light
CONTRAST	Using the ◀/► buttons adjusts the contrast. Weak ⇔ Strong
GAMMA	Using the ▲/▼ buttons switches the gamma mode. To adjust CUSTOM Selecting a mode whose name includes CUSTOM and then pressing the ► button or the ENTER button displays a dialog to aid you in adjusting the mode. This function is useful when you want to change the brightness of particular tones. Choose an item using the ◀/► buttons, and adjust the level using the ▲/▼ buttons. You can display a test pattern for checking the effect of your adjustment by pressing the ENTER button. Each time you press the ENTER button, the pattern changes as below. No pattern ⇒ Gray scale of 9 steps → ↑Ramp → Gray scale of 15 steps The eight equalizing bars correspond to eight tone levels of the test pattern (Gray scale of 9 steps) except the darkest in the left end. If you want to adjust the 2nd tone from left end on the test pattern, use the equalizing adjustment bar “1”. The darkest tone at the left end of the test pattern cannot be controlled with any of equalizing adjustment bar. • Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

(continued on next page)

Item Description
COLOR TEMP	Using the ▲/▼ buttons switches the color temperature mode.To adjust CUSTOMSelecting a mode whose name includes CUSTOM and then pressing the ► buttonor the ENTER button displays a dialog to aid you in adjusting the OFFSET and GAIN of the selected mode.OFFSET adjustments change the color intensity on the whole tones of the test pattern.GAIN adjustments mainly affect color intensity on the brighter tones of the test pattern.Choose an item using the ◀/► buttons, and adjust the level using the ▲/▼ buttons.You can display a test pattern for checking the effect of your adjustment by pressing the ENTER button.Each time you press the ENTER button, the pattern changes as below.No pattern ⇒ Gray scale of 9 steps ↑Ramp ⇔ Gray scale of 15 steps • Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.
COLOR	Using the ◀/► buttons adjusts the strength of whole color.Weak ⇔ Strong• This item can be selected only for a video, s-video and component video signal.• For an HDMITM signal, this item can also be selected if either (1) or (2) applies.(1) HDMI FORMAT item in the INPUT menu is set to VIDEO.(2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the projector recognizes that it receives video signals.
TINT	Using the ◀/► buttons adjusts the tint.Reddish ⇔ Greenish• This item can be selected only for a video, s-video and component video signal.• For an HDMITM signal, this item can also be selected if either (1) or (2) applies.(1) HDMI FORMAT item in the INPUT menu is set to VIDEO.(2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the projector recognizes that it receives video signals.

(continued on next page)

Item Description
SHARPNESS	Using the ◀/► buttons adjusts the sharpness.Weak ⇔ StrongThere may be some noise and/or the screen may flicker for a moment when an adjustment is made. This is not a malfunction.
ACTIVE IRIS	Using the ▲/▼ cursor buttons changes the active iris control mode.PRESENTATION ⇔ THEATER ⇔ OFFPRESENTATION: The active iris displays the best presentation image for both bright and dark scenes.THEATER: The active iris displays the best theater image for both bright and dark scenes.OFF: The active iris is always open.The screen may flicker when the PRESENTATION or THEATER modes are selected. If this occurs select OFF.
MY MEMORY	This projector has 4 memories for adjustment data (for all the items of the PICTURE menu).Selecting a function using the ▲/▼ buttons and pressing the ► or ENTER button performs each function.SAVE-1, SAVE-2, SAVE-3, SAVE-4Performing a SAVE function saves the current adjustment data into the memory linked in the number included in the function's name.Remember that the current data being stored of a memory will be lost by saving new data into the memory.LOAD-1, LOAD-2, LOAD-3, LOAD-4Performing a LOAD function loads the data from the memory linked in the number included in the function's name, and adjusts the picture automatically depending on the data.The LOAD functions whose linked memory has no data are skipped.Remember that the current adjusted condition will be lost by loading data. If you want to keep the current adjustment, please save it before performing a LOAD function.There may be some noise and the screen may flicker for a moment when loading data. This is not malfunction.You can perform the LOAD function using MY BUTTON. Please see MY BUTTON item in OPTION menu (58, 59).

IMAGE menu

From the IMAGE menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or ENTER button to execute the item. Then perform it according to the following table.

ADANCED MENU PICTURE IMAGE INPUT SETUP AUDIO SCREEN OPTION NETWORK SECURITY EASY MENU EXIT ASPECT NORMAL OVER SCAN 5 V POSITION 35 H POSITION 294 H PHASE 2 H SIZE 1344 AUTO ADJUST EXECUTE COMPUTER IN 1 1024 x 768 @60Hz

Item Description

ASPECT

Using the ▲/▼ buttons switches the mode for aspect ratio.For a computer signalCP-X2015WN/CP-X2515WN/CP-X3015WN/CP-X4015WN:NORMAL ⇔ 4:3 ⇔ 16:9 ⇔ 16:10↑CP-WX2515WN/CP-WX3015WN:NORMAL ⇔ 4:3 ⇔ 16:9 ⇔ 16:10 ⇔ NATIVE↑For an HDMI ^TM signalCP-X2015WN/CP-X2515WN/CP-X3015WN/CP-X4015WN:NORMAL ⇔ 4:3 ⇔ 16:9 ⇔ 16:10 ⇔ 14:9↑CP-WX2515WN/CP-WX3015WN:NORMAL ⇔ 4:3 ⇔ 16:9 ⇔ 16:10 ⇔ 14:9 ⇔ NATIVE↑For a video signal, s-video signal or component video signalCP-X2015WN/CP-X2515WN/CP-X3015WN/CP-X4015WN:4:3 ⇔ 16:9 ⇔ 14:9↑CP-WX2515WN/CP-WX3015WN:4:3 ⇔ 16:9 ⇔ 16:10 ⇔ 14:9 ⇔ NATIVE↑For an input signal from the LAN, USB TYPE A or USB TYPE B port, or if there is no signalCP-X2015WN/CP-X2515WN/CP-X3015WN/CP-X4015WN: 4:3 (fixed)CP-WX2515WN/CP-WX3015WN: 16:10 (fixed)• The NORMAL mode keeps the original aspect ratio of the signal.

(continued on next page)

Item Description
OVER SCAN	Using the ◀/► buttons adjusts the over-scan ratio. Small (It magnifies picture) ⇔ Large (It reduces picture)This item can be selected only for a video, s-video and component video signal.For an HDMITM signal, this item can also be selected if either (1) or (2) applies.(1) HDMI FORMAT item in the INPUT menu is set to VIDEO.(2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the projector recognizes that it receives video signals.
V POSITION	Using the ◀/► buttons adjusts the vertical position. Down ⇔ UpOver-adjusting the vertical position may cause noise to appear on the screen. If this occurs, please reset the vertical position to the default setting. Pressing the RESET button when the V POSITION is selected will reset the V POSITION to the default setting.When this function is performed on a video signal or an s-video signal, the range of this adjustment depends on OVER SCAN (40) setting. It is not possible to adjust when OVER SCAN is set to 10.This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port.
H POSITION	Using the ◀/► buttons adjusts the horizontal position. Right ⇔ LeftOver-adjusting the horizontal position may cause noise to appear on the screen. If this occurs, please reset the horizontal position to the default setting. Pressing the RESET button when the H POSITION is selected will reset the H POSITION to the default setting.When this function is performed on a video signal or an s-video signal, the range of this adjustment depends on OVER SCAN (40) setting. It is not possible to adjust when OVER SCAN is set to 10.This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port.

(continued on next page)

Item Description
H PHASE	Using the ◀/► buttons adjusts the horizontal phase to eliminate flicker.Right ⇔ LeftThis item can be selected only for a computer signal or a component video signal. This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port.
H SIZE	Using the ◀/► buttons adjusts the horizontal size.Small ⇔ LargeThis item can be selected only for a computer signal. This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port.When this adjustment is excessive, the picture may not be displayed correctly. In such a case, please reset the adjustment by pressing the RESET button on the remote control during this operation.Images might appear degraded when this function is operated, but it is not a malfunction.
AUTO ADJUST EXECUTE	Selecting this item performs the automatic adjustment feature.For a computer signalThe vertical position, the horizontal position and the horizontal phase will be automatically adjusted.Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.For a video signal and s-video signalThe video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for the VIDEO FORMAT item in the INPUT menu (43). The vertical position and horizontal position will be automatically set to the default.For a component video signalThe vertical position and horizontal position will be automatically set to the default. The horizontal phase will be automatically adjusted.The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input.When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.When this function is performed for a computer signal, a black frame may be displayed on the edge of the screen, depending on the computer model.The items adjusted by this function may vary when the FINE or DISABLE is selected for the AUTO ADJUST item of the SERVICE item in the OPTION menu (59).

INPUT menu

From the INPUT menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or ENTER button to execute the item. Then perform it according to the following table.

ADANCED MENU PICTURE IMAGE INPUT SETUP AUDIO SCREEN OPTION NETWORK SECURITY EASY MENU EXIT PROGRESSIVE TV VIDEO NR MID COLOR SPACE AUTO VIDEO FORMAT HDMI FORMAT AUTO HDMI RANGE AUTO COMPUTER IN FRAME LOCK RESOLUTION COMPUTER IN 1 1024 x 768 @60Hz

Item Description
PROGRESSIVE	Using the ▲/▼ buttons switches the progress mode.TV ⇔ FILM ⇔ OFFThis function works only for a video signal, s-video signal, component video signal (of 480i@60 or 576i@50 or 1080i@50/60) and an HDMITMSignal (of 480i@60 or 576i@50 or 1080i@50/60).When TV or FILM is selected, the screen image will be sharp. FILM adapts to the 2-3 Pull-Down conversion system. But these may cause a certain defect (for example, jagged line) of the picture for a quick moving object. In such a case, please select OFF, even though the screen image may lose sharpness.
VIDEO NR	Using the ▲/▼ buttons switches the noise reduction mode.HIGH ⇔ MID ⇔ LOWThis function works only for a video signal, s-video signal, component video signal (of 480i@60 or 576i@50 or 1080i@50/60) and an HDMITMSignal (of 480i@60 or 576i@50 or 1080i@50/60).
COLOR SPACE	Using the ▲/▼ buttons switches the mode for color space.AUTO ⇔ RGB ⇔ SMPTE240 ⇔ REC709 ⇔ REC601This item can be selected only for a computer signal, component video signal(except for signals from the LAN, USB TYPE A and USB TYPE B ports) or an HDMITMSignal.The AUTO mode automatically selects the optimum mode.The AUTO operation may not work well at some signals. In such a case, it might be good to select a suitable mode except AUTO.

(continued on next page)

Item Description
VIDEO FORMAT	The video format for S-VIDEO port and VIDEO port can be set.(1) Use the ▲/▼ buttons to select the input port.(2) Using the ◀/► buttons switches the mode for video format.AUTO ⇔ NTSC ⇔ PAL ⇔ SECAMN-PAL ⇔ M-PAL ⇔ NTSC4.43 ⬆This item is performed only for a video signal from theVIDEO port or theS-VIDEOport.The AUTO mode automatically selects the optimum mode.The AUTO operation may not work well for some signals. If the picture becomes unstable (e.g. an irregular picture, lack of color), please select the mode according to the input signal.
HDMI FORMAT	Using the ▲/▼ cursor buttons switches the video format for an input from theHDMI port.AUTO ⇔ VIDEO ⇔ COMPUTER
	AUTO automatically sets the optimum mode.
	VIDEO sets the suitable mode for DVD signals.
	COMPUTER sets the suitable mode for computer signals.
	When the COMPUTER is selected, the functions COLOR (PICTURE menu), TINT (PICTURE menu) and OVER SCAN (IMAGE menu) are unavailable.
HDMI RANGE	Using the ▲/▼ cursor buttons changes the digital range for input from theHDMI port.AUTO ⇔ NORMAL ⇔ ENHANCED
	Feature
	AUTO automatically sets the optimum mode.
	NORMAL s ets the suitable mode for DVD signals. (16-235)
	ENHANCED sets the suitable mode for computer signals. (0-255)
	If the contrast of the screen image is too strong or too weak, try finding a more suitable mode.

(continued on next page)

Item Description
COMPUTER IN	The computer input signal type for COMPUTER IN1 and IN2 ports can be set.(1) Use the ▲/▼ buttons to select the COMPUTER IN port to be set.(2) Use the ◀/► buttons to select the computer input signal type. AUTO ⇔ SYNC ON G OFF Selecting the AUTO mode allows you to input a sync on G signal or component video signal from the port (12).In the AUTO mode, the picture may be distorted with certain input signals. In such a case, remove the signal connector so that no signal is received and select the SYNC ON G OFF, and then reconnect the signal.
FRAME LOCK	Set the frame lock function on/off for each port.(1) Use the ▲/▼ buttons to select the input ports.(2) Use the ◀/► buttons to turn the frame lock function on/off .ON ⇔ OFFThis item can be performed only on a signal with a vertical frequency of 49 to 51Hz, 59 to 61 Hz.When ON is selected, moving pictures are displayed more smoothly.

(continued on next page)

Item Description

RESOLUTION

The resolution for the COMPUTER IN1 and COMPUTER IN2 input signals can be set on this projector.(1) In the INPUT menu select the RESOLUTION using the ▲/▼ buttons and press the ▶ button.The RESOLUTION menu will be displayed.(2) In the RESOLUTION menu select the resolution you wish to display using the ▲/▼ buttons.Selecting AUTO will set a resolution appropriate to the input signal.(3) Pressing the ▶ or ENTER button when selecting a STANDARD resolution will automatically adjust the horizontal and vertical positions, clock phase and horizontal size.The INPUT_INFORMATION dialog will be displayed.(4) To set a custom resolution use the ▲/▼ buttons to select the CUSTOM and the RESOLUTION_CUSTOM box will be displayed.Set the horizontal (HORZ) and vertical (VERT) resolutions using the ▲/▼/◄/► buttons.This function may not support all resolutions.(5) Move the cursor to OK on screen and press the ▶ or ENTER button. The message "ARE YOU SURE YOU WISH TO CHANGE RESOLUTION?" appears. To save the setting, press the ▶ button.The horizontal and vertical positions, clock phase and horizontal size will be automatically adjusted.The INPUT_INFORMATION dialog will be displayed.(6) To revert back to the previous resolution without saving changes, move the cursor to CANCEL on screen and press the ◀ or ENTER button.The screen will then return to the RESOLUTION menu displaying the previous resolution.• For some pictures, this function may not work well.

SETUP menu

From the SETUP menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or ENTER button to execute the item. Then perform it according to the following table.

ADANCED MENU PICTURE IMAGE INPUT SETUP AUDIO SCREEN OPTION NETWORK SECURITY EASY MENU EXIT AUTO KEYSTONE EXECUTE KEystone +0 AUTO ECO MODE OFF ECO MODE NORMAL INSTALLATION STANDBY MODE NORMAL MONITOR OUT COMPUTER IN 1 1024 x 768 @60Hz

Item Description
AUTO KEYSTONE	Selecting this item performs the Automatic keystone distortion correction. Projector automatically corrects vertical keystone distortion due to the (forward/backward) setup angle by itself. This function will be executed only once when selected in the menu. When the slant of the projector is changed, execute this function again.The adjustable range of this function will vary among inputs. For some input, this function may not work well.When REAR / CEILING or FRONT / CEILING is selected for the INSTALLATION item in the SETUP menu, this function may not work correctly if the projector screen is slanted or tilted downwards.When the zoom adjustment is set to the TELE (telephoto focus), this function may be excessive. This function should be used when the zoom adjustment is set to the full WIDE (wide-angle focus) whenever possible.When the projector is placed on the level (about ±4°), this function may not work.When the projector is inclined to near ±30 degree or over, this function may not work well.This function will be unavailable when the TRANSITION DETECTOR is on (81).
(A2A4) KEYSTONE	Using the ◀/► buttons corrects the vertical keystone distortion.Shrink the bottom of the image ⇔ Shrink the top of the imageThe adjustable range of this function will vary among inputs. For some input, this function may not work well.When the zoom adjustment is set to the TELE (telephoto focus), this function may be excessive. This function should be used when the zoom adjustment is set to the full WIDE (wide-angle focus) whenever possible.This function will be unavailable when the TRANSITION DETECTOR is on (81).

(continued on next page)

Item Description
AUTO ECO MODE	Using the ▲/▼ buttons turns on/off the AUTO ECO MODE.ON ⇔ OFFWhen ON is selected, the projector will always be set to Eco mode at start-up regardless of the ECO MODE (below) setting. An OSD message “AUTO ECO MODE” will be displayed for a while when the projector starts with this function activated.
ECO MODE	Using the ◀/► buttons switches the ECO MODE.NORMAL ⇔ ECO ⇔ INTELLIGENT ECO ⇔ SAVERWhen the ECO is selected, acoustic noise and screen brightness are reduced.When INTELLIGENT ECO is selected, the brightness of the lamp changes according to the level of the input signal. The lamp becomes brighter when the input signal level is high and darker when the level is low. If dark images are projected continuously, the brightness of the lamp may increase to maintain its performance.When SAVER is selected, you can select the time within 1 to 30 min. for SAVER MODE using the ► button. If the image signal level doesn’t change more than the period set, the lamp brightness is reduced and electric power consumption decreased. If the image signal level changes or any buttons are operated, the lamp will brighten again. If dark images are projected continuously, the brightness of the lamp may increase to maintain its performance.When AUTO ECO MODE (above) is set to ON, the projector will always be set to Eco mode at start-up regardless this setting.
INSTALLATION	Pressing the ► button displays the dialog for changing the INSTALLATION setting.Use the ▲/▼ buttons to select the desired setting on the INSTALLATION dialog, and press the ENTER button of the remote control or the INPUT button of the projector to execute.If TRANSITION DETECTOR is ON and the INSTALLATION status is changed, the TRANSITION DETECTOR ON alarm (81) will be displayed when the projector is restarted.
STANDBY MODE	Using ▲/▼ buttons switches the standby mode setting between NORMAL and SAVING.NORMAL ⇔ SAVINGWhen SAVING is selected, the power consumption in the standby mode is lowered with some functional restriction as below:When SAVING is selected, the RS-232C communication control except to turn the projector on and the network function are disabled while the projector is in the standby mode. If the COMMUNICATION TYPE in the COMMUNICATION menu is set to NETWORK BRIDGE, all of the RS-232C commands are disabled (62).When SAVING is selected, STANDBY setting of AUDIO SOURCE (49) is invalid, and no signal is output fromAUDIO OUTport in the standby mode.When SAVING is selected, STANDBY setting of MONITOR OUT is invalid, and no signal is output fromMONITOR OUTport in the standby mode.The USB connection is disabled while the projector is in standby mode if the STANDBY MODE item in the SETUP menu of the projector is set to SAVING.When SAVING is selected, CLONING load function is invalid while in STANDBY MODE.
MONITOR OUT	While the image signal from the input port chosen in step (1) is projected, the image signal from the input port selected in step (2) is output toMONITOR OUTport.(1) Choose a picture input port using ▲/▼ buttons.Choose STANDBY to select the picture output in the standby mode.(2) Select one of theCOMPUTER INportsusing ◀/► buttons.Select OFF to disable theMONITOR OUTport for the input port or standby mode chosen in the step (1).You cannot select COMPUTER IN2 for COMPUTER IN1, and vice versa.If you have changed the setting of STANDBY, it applies only to the current standby mode, NORMAL or SAVING, selected under STANDBY MODE, without changing the setting of the other mode. The factory settings are as follows:- COMPUTER IN1 for the NORMAL mode of STANDBY MODE- OFF for the SAVING mode of STANDBY MODE

AUDIO menu

From the AUDIO menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or the ENTER button to execute the item. Then perform it according to the following table.

ADVANCED MENU PICTURE IMAGE INPUT SETUP AUDIO SCREEN OPTION NETWORK SECURITY EASY MENU EXIT VOLUME 32 SPEAKER ON AUDIO SOURCE MIC LEVEL LOW MIC VOLUME 32 COMPUTER IN 1 1024 x 768 @60Hz

Item Description
VOLUME Using the ◀/► buttons adjusts the volume. Low ⇔ High
SPEAKER	Using the ▲/▼ buttons turns on/off the built-in speaker.ON ⇔ OFFWhen OFF is selected, the built-in speaker does not work.
AUDIO SOURCE	While the image signal from the input port chosen in step (1) is projected, the audio signal from the input port selected in step (2) is output to both theAUDIO OUTport and built-in speaker of this projector. However, the built-in speaker does not work when SPEAKER is set to OFF.(1) Choose a picture input port using the ▲/▼ buttons.Choose STANDBY to select the sound output in the standby mode.(2) Select an audio input port or the mute icon using the ◀/► buttons.The icons indicate the following;No.1: AUDIO IN1 port No.2: AUDIO IN2 portNo.3: AUDIO IN3 port No.4: LAN portNo.5: USB TYPE A port No.6: USB TYPE B portNo.7: HDMI port ✗: mutes the soundAudio input from port nos 4 to 7 can only be selected by each of the picture input ports.Even if the projector is in the standby mode, cooling fans may work and make noises when the built-in speaker is in operation.C.C. (Closed Caption) is automatically activated when Xs selected and an input signal containing C.C. is received. This function is available only when the signal is NTSC forVIDEOor S-VIDEO, or 480i@60 for COMPUTER IN1 or COMPUTER IN2, and when AUTO is selected for DISPLAY in the C.C. menu under the SCREEN menu (55).
MIC LEVEL	Using the ▲/▼ buttons switches the input level to match that of the microphone connected to theMIC port.HIGH: for a microphone with an amplifier. HIGH ⇔ LOWLOW: for a microphone without an amplifier.
MIC VOLUME	Using the ◀/► buttons adjusts the volume of the microphone connected to theMIC port. Low ⇔ High

SCREEN menu

From the SCREEN menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or ENTER button to execute the item. Then perform it according to the following table.

ADVANCED MENU PICTURE IMAGE INPUT SETUP AUDIO SCREEN OPTION NETWORK SECURITY EASY MENU EXIT LANGUAGE ENGLISH MENU POSITION BLANK BLACK START UP ORIGINAL MyScreen EXECUTE MyScreen Lock OFF MESSAGE ON SOURCE NAME TEMPLATE TEST PATTERN C.C. COMPUTER IN 1 1024 x 768 @60Hz

Item Description
LANGUAGE	Using the ▲/▼/◄/► buttons switches the OSD (On Screen Display) language.ENGLISH ⇔ FRANÇAIS ⇔ DEUTSCH ⇔ ESPAÑOL↑ ...... (shown in the LANGUAGE dialog) ...... ↑Press the ENTER or INPUT button to save the language setting.
MENU POSITION	Using the ▲/▼/◄/► buttons adjusts the menu position.To quit the operation, press the MENU button on the remote control or keep no operation for about 10 seconds.
BLANK	Using the ▲/▼ buttons switches the mode for the blank screen.The blank screen is a screen for the temporarily blanking feature (31). It is displayed by pressing the BLANK button on the remote control.MyScreen ⇔ ORIGINAL ⇔ BLUE ⇔ WHITE ⇔ BLACK↑ MyScreen : Screen can be registered by the MyScreen item (51).ORIGINAL : Screen preset as the standard screen.BLUE, WHITE, BLACK : Plain screens in each color.• To avoid remaining as an afterimage, the MyScreen or ORIGINAL screen will change to the plain black screen after several minutes.
START UP	Using the ▲/▼ buttons switches the mode for the start-up screen.The start-up screen is a screen displayed when no signal or an unsuitable signal is detected.MyScreen ⇔ ORIGINAL ⇔ OFF↑ MyScreen : Screen can be registered by the MyScreen item (51).ORIGINAL : Screen preset as the standard screen.OFF : Plain black screen.• To avoid remaining as an afterimage, the MyScreen or ORIGINAL screen will change to the BLANK screen (above) after several minutes. If also the BLANK screen is the MyScreen or ORIGINAL, the plain black screen is instead used.• When the ON is selected to the MyScreen PASSWORD item in the SECURITY menu (79), the START UP is fixed to MyScreen.

(continued on next page)

Item Description

MyScreen

This item allows you to capture an image for use as a MyScreen image which can be used as the BLANK screen and START UP screen. Display the image you want to capture before executing the following procedure.Selecting this item displays a dialog titled “MyScreen”. It will ask you if you start capturing an image from the current screen. Please wait for the target image to be displayed, and press the ENTER or INPUT button to start registration.To restore the screen and return to the previous dialog, press the RESET button on the remote control.Registration may take several minutes.When the registration is completed, the registered screen and the following message is displayed for several seconds:“MyScreen registration is finished.”If the registration failed, the following message is displayed:“A capturing error has occurred. Please try again.”This function cannot be selected when the ON is selected to the MyScreen Lock item (52).This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu (79).This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port.

(continued on next page)

Item Description
MyScreen Lock	Using the ▲/▼ buttons turns on/off the MyScreen lock function.ON ⇔ OFFWhen the ON is selected, the item MyScreen is locked. Use this function for protecting the current MyScreen.• This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu (79).
MESSAGE	Using the ▲/▼ buttons turns on/off the message function.ON ⇔ OFFWhen the ON is selected, the following message function works.“AUTO IN PROGRESS” while automatically adjusting“NO INPUT IS DETECTED”“SYNC IS OUT OF RANGE”“INVALID SCAN FREQ.”“NOT AVAILABLE.”“Searching....” while searching for the input“Detecting....” while an input signal is detected“AUTO ECO MODE” while starting up with AUTO ECO MODEThe indication of the input signal displayed by changingThe indication of the aspect ratio displayed by changingThe indication of the PICTURE MODE displayed by changingThe indication of the MY MEMORY displayed by changingThe indication of “FREEZE” and “II” while freezing the screen by pressing the FREEZE button.The indication of the TEMPLATE displayed by changing.The indication of the ECO MODE displayed by changing.• When the OFF is selected, please remember if the picture is frozen. Do not mistake freezing for a malfunction (31).

(continued on next page)

Item Description

SOURCE NAME

Each input port for this projector can have a name applied to it.(1) Use the ▲/▼ buttons on the SCREEN menu to select SOURCE NAME and press the ▶ or ENTER button.The SOURCE NAME menu will be displayed.(2) Use the ▲/▼ buttons on the SOURCE NAME menu to select the port to be named and press the ▶ button. The SOURCE NAME dialog will be displayed.Right side of the menu is blank until a name is specified.(3) Select an icon you would like to assign to the port in the SOURCE NAME dialog.The name assigned to the port will also be automatically switched according to your icon selection. Press the ENTER or INPUT button to determine your icon selection.(4) Select a number you would like to assign to the port along with the icon. You can select the number either from blank (no number assigned), 1, 2, 3, or 4.Then press the ENTER or INPUT button.(5) If you would like to modify the name assigned to the port, select CUSTOM NAME and press the ENTER or INPUT button.(continued on next page)

(continued on next page)

Item Description
SOURCE NAME(continued)	(6) The current name will be displayed on the first line. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◀ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and press the ENTER or INPUT button, 1 character or all characters will be erased. The name can be a maximum of 16 characters.(7) To change an already inserted character, press the ▲ button to move the cursor to the first line, and use the ◀/► buttons to move the cursor on the character to be changed.After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (6) above.(8) To finish entering text, move the cursor to the OK on screen and press the ►, ENTER or INPUT button. To revert to the previous name without saving changes, move the cursor to the CANCEL on screen and press the ◀, ENTER or INPUT button.
TEMPLATE	Using the ▲/▼ cursor buttons switches the mode for the template screen.Press the ► cursor (or the ENTER) button to display the selected template, and press the ◀ cursor button to close the displayed screen.The last selected template is displayed when the MY BUTTON allocated to the TEMPLATE function is pressed (59).TEST PATTERN ⇔ DOT-LINE1 ⇔ DOT-LINE2 ⇔ DOT-LINE3 ↑↓ MAP2 ⇔ MAP1 ⇔ CIRCLE2 ⇔ CIRCLE1 ⇔ DOT-LINE4 You can turn a map upside down and scroll it horizontally when MAP1 or MAP2 is selected. To invert or scroll the map, display the guidance by pressing the RESET button on the remote three seconds or more when MAP1 or MAP2 appears.

(continued on next page)

Item Description	The C.C. is the function that displays a transcript or dialog of the audio portion of a video, files or other presentation or other relevant sounds. It is required to have NTSC format video or 480i@60 format component video source supporting C.C. feature to utilize this function.It may not work properly, depending on equipment or signal source.In this case, please turn off the Closed Caption.
C.C.(Closed Caption)	DISPLAYSelect Closed Caption DISPLAY setting from following options using ▲/▼ buttons.AUTO ⇔ ON ⇔ OFFAUTO : Closed Caption automatically displays when the volume is muted.ON : Closed Caption is on.OFF : Closed Caption is off.The caption is not displayed when the OSD menu is active.The Closed Caption is the function to display the dialogue, narration, and / or sound effects of a television program or other video sources. The Closed Caption availability is depending upon broadcaster and/or content.
	MODESelect Closed Caption MODE setting from following options using ▲/▼ buttons.CAPTIONS ⇔ TEXTCAPTIONS : Display Closed Caption.TEXT : Display Text data, which is for additional information such as news reports or a TV program guide. The information covers the entire screen. Not all of the C.C. program has Text information.
	CHANNELSelect Closed Caption CHANNEL from following options using ▲/▼ buttons.1 ⇔ 2 ⇔ 3 ⇔ 41: Channel 1, primary channel / language2: Channel 23: Channel 34: Channel 4The channel data may vary, depending on the content. Some channel might be used for secondary language or empty.

OPTION menu

From the OPTION menu, items shown in the table below can be performed.

Select an item using the ▲/▼ cursor buttons, and press the ▶ cursor button or ENTER button to execute the item, except for the items LAMP TIME and FILTER TIME. Then perform it according to the following table.

ADVANCED MENU PICTURE IMAGE INPUT SETUP AUDIO SCREEN OPTION NETWORK SECURITY EASY MENU EXIT AUTO SEARCH ON AUTO KEYSTONE ON DIRECT POWER ON OFF AUTO POWER OFF Dmin LAMP TIME Oh FILTER TIME Oh MY BUTTON MY SOURCE COMPUTER IN 2 SERVICE COMPUTER IN 1 1024 x 768 @60Hz

Item Description
AUTO SEARCH	Using the ▲/▼ buttons turns on/off the automatic signal search function.ON ⇔ OFFWhen the ON is selected, detecting no signal automatically cycles through input ports in the following order. The search is started from the current port. Then when an input is found, the projector will stop searching and display the image.→ COMPUTER IN1 ⇒ COMPUTER IN2 ⇒ LAN ⇒ USB TYPE AVIDEO ⇔ S-VIDEO ⇔ HDMI ⇔ USB TYPE B←• It may take several seconds to project the images from the USB TYPE B port.
AUTO KEYSTONE	Using the ▲/▼ buttons turns on/off the automatic keystone function.ON ⇔ OFFON: Automatic keystone distortion correction will be executed whenever changing the slant of the projector.OFF: This function is disabled. Please execute the AUTO KEYSTONE (EXECUTE) in the SETUP menu for automatic keystone distortion correction.When the projector is suspended from the ceiling this feature will not function properly so select the OFF.This function will be unavailable when the TRANSITION DETECTOR is on (81).
DIRECT POWER ON	Using the ▲/▼ buttons turns on/off the DIRECT POWER ON function.ON ⇔ OFFWhen set to the ON, the lamp in projector will be automatically turned on without the usual procedure (21), only when the projector is supplied with the power after the power was cut while the lamp was on.This function does not work as long as the power has been supplied to the projector while the lamp is off.After turning the lamp on by the DIRECT POWER ON function, if neither input nor operation is detected for about 30 minutes, the projector is turned off, even though the AUTO POWER OFF function (57) is disabled.

(continued on next page)

Item Description
AUTO POWER OFF	Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off.Long (max. 99 minutes) ⇔ Short (min. 0 minute = DISABLE)When the time is set to 0, the projector is not turned off automatically.When the time is set to 1 to 99, and when the passed time with no-signal or an unsuitable signal reaches at the set time, the projector lamp will be turned off.If one of the projector's buttons or the remote control buttons is pressed or one of the commands (except get commands) is transmitted to theCONTROLport during the corresponding time, projector will not be turned off.Please refer to the sectionTurning off the power (22).
LAMP TIME	The lamp time is the usage time of the lamp, counted after the last resetting. It is shown in the OPTION menu.Pressing theRESETbutton on the remote control or the ► button of the projector displays a dialog.To reset the lamp time, select the OK using the ► button.CANCEL⇒ OKPlease reset the lamp time only when you have replaced the lamp, for a suitable indication about the lamp.For the lamp replacement, see the sectionReplacing the lamp (108).
FILTER TIME	The filter time is the usage time of the air filter, counted after the last resetting. It is shown in the OPTION menu.Pressing theRESETbutton on the remote control or the ► button of the projector displays a dialog.To reset the filter time, select the OK using the ► button.CANCEL⇒ OKPlease reset the filter time only when you have cleaned or replaced the air filter, for a suitable indication about the air filter.For the air filter cleaning, see the sectionCleaning and replacing the air filter (110).

(continued on next page)

Item Description

MY BUTTON

This item is to assign one of the following functions to MY BUTTON 1/2 on the remote control (6).(1) Use the ▲/▼ buttons on the MY BUTTON menu to select a MY BUTTON - (1/2) and press the ▶ or ENTER button to display the MY BUTTON setup dialog.(2) Then using the ▲/▼/◄/► buttons sets one of the following functions to the chosen button. Press the ENTER or INPUT button to save the setting.COMPUTER IN1: Selects the input from COMPUTER IN1 port.COMPUTER IN2: Selects the input from COMPUTER IN2 port.LAN: Selects input from LAN port.USB TYPE A: Selects input from USB TYPE A port.USB TYPE B: Selects input from USB TYPE B port.HDMI: Selects input from HDMI port.S-VIDEO: Selects the input from S-VIDEO port.VIDEO: Selects the input from VIDEO port.SLIDESHOW: Selects the input from USB TYPE A, and starts a Slideshow.MY IMAGE: Displays the MY IMAGE menu (75).MESSENGER:Turns the messenger text displayed on the screen on/off (Messenger Function in the Network Guide).When there is no transferred text data to display, the message "NO MESSENGER DATA" appears.INFORMATION: Displays SYSTEM_INFORMATION, INPUT_INFORMATION (66), WIRELESS INFORMATION (71), WIRED INFORMATION (73) or nothing.AUTO KEYSTONE : Performs automatic keystone distortion correction (46).MY MEMORY: Loads one of adjustment data stored (38).When more than one data are saved, the adjustment changes every time the MY BUTTON is pressed.When no data is saved in memory, the dialog "No saved data" appears.When the current adjustment is not saved to memory, the dialog as shown in the right appears.If you want to keep the current adjustment, please press the ► button to exit. Otherwise loading a data will overwrite the current adjusted condition.(continued on next page)

(continued on next page)

Item Description
MY BUTTON(continued)	ACTIVE IRIS: Changes the active iris mode.PICTURE MODE: Changes the PICTURE MODE (34).FILTER RESET: Displays the filter time reset confirmation dialogue (57).TEMPLATE: Makes the template pattern selected to the TEMPLATE item (54) appear or disappear.AV MUTE: Turns the picture and audio on/off.RESOLUTION: Turns on/off the RESOLUTION dialog (45).MIC VOLUME: Turns on/off the MIC VOLUME dialog (49).ECO MODE: Changes the ECO MODE (47).SAVER MODE: Turns on/off the SAVER MODE (47 ECO MODE).
MY SOURCE	Using ▲/▼ buttons selects the picture input port to be selected with pressing the MY SOURCE/DOC.CAMERA button on the remote control.You can use this function not only for document cameras but also computers and other equipment.→VIDEO ⇔ COMPUTER IN1 ⇔ COMPUTER IN2 ⇔ LAN←S-VIDEO ⇔ HDMI ⇔ USB TYPE B ⇔ USB TYPE A ←
SERVICE	Selecting this item displays the SERVICE menu.Select an item using the ▲/▼ buttons, and press the ▶ button or the ENTER button on the remote control to execute the item.
	ALTITUDEUsing the ▲/▼ buttons switches the rotation speed of the cooling fans. The HIGH is the mode for use at highlands etc. If the projector is used at an altitude of about 1600 m (5250 feet) or higher, select HIGH. Otherwise, select NORMAL. Note that the projector is noisier when the HIGH is selected.HIGH ⇔ NORMAL

(continued on next page)

Item Description
SERVICE (continued)	AUTO ADJUSTUsing the ▲/▼ buttons to select one of the mode. When the DISABLE is selected, the automatic adjustment feature is disabled.FINE ⇔ FAST ⇔ DISABLEFINE: Finer tuning including H.SIZE adjustment.FAST: Faster tuning, setting H.SIZE to prearranged data for the input signal.Depending on conditions, such as input image, signal cable to the projector, environment around the projector, etc., the automatic adjustment may not work correctly. In such a case, please choose DISABLE to disable the automatic adjustment, and make adjustment manually.
	GHOSTAdjust the settings using the ▲/▼ buttons to eliminate ghosting.
	FILTER MESSAGEUse the ▲/▼ button to set the timer for notifying by the message when to replace the filter unit100h ⇔ ...... ⇔ 5000h ⇔ OFFAfter choosing an item except OFF, the message “REMINDER *** HRS PASSED ....” will appear after the timer reaches the interval time set by this feature [IMAGE]When the OFF is chosen, the message will not appear. Utilize this feature to keep the air filter clean, setting the suitable time according to your environment of this projector.Please take care of the filter unit periodically, even if there is no message. If the air filter becomes to be blocked by dust or other matter, the internal temperature will rise, which could cause malfunction, or reduce the lifetime of the projector.Please be careful with the operating environment of the projector and the condition of the filter unit.
	KEY LOCK(1) Use the ▲/▼ buttons to choose the operations control.CONTROL PANEL ⇔ REMOTE CONTROL(2) Use the ◀/► buttons to select ON or OFF.ON ⇔ OFFSelecting ON in Step 2 locks the buttons except STANDBY/ON on the operations control selected in Step 1. Selecting OFF releases the locked buttons on the operations control selected in Step 1.Please use this function to prevent tampering or accidental operation.

(continued on next page)

Item Description
SERVICE(continued)	REMOTE FREQ.(1) Use the ▲/▼ button to change the projector's remote sensor frequency setting (19).1:NORMAL ⇔ 2:HIGH(2) Use the ◀/► button to change the projector's remote sensor on or off.ON ⇔ OFFThe factory default setting is for both 1:NORMAL and 2:HIGH to be on. If the remote control does not function correctly, disable either of them. It's not possible to disable both options at the same time.
	COMMUNICATION	Selecting this item displays COMMUNICATION menu.In this menu, you can configure the serial communication settings of the projector using the CONTROL port.· Select an item using the cursor buttons ▲/▼. Then pressing the ► button opens the submenu for the setting item you selected. Or, pressing the ◀ button instead of the ► button makes the menu back to the previous one without changing the setup. Each submenu can be operated as described above.· When COMMUNICATION TYPE (62) is set to OFF, the other items in COMMUNICATION menu are invalid.· For the function of serial communication, refer to the Network Guide.

(continued on next page)

Item Description
SERVICE(continued)	COMMUNICATION(continued)	COMMUNICATION TYPESelect the communication type for transmission via theCONTROL port.NETWORK BRIDGE: Select this type, if it is required to control an external device as a network terminal, via this projector from the computer.TheCONTROL port doesn't accept RS-232C commands (Network Bridge Function in the Network Guide)OFF: Select this mode to receive RS-232C commands using theCONTROL port.OFF is selected as the default setting.When you select the NETWORK BRIDGE, check the item, TRANSMISSION METHOD (below)
		SERIAL SETTINGSSelect the serial communication condition for the CONTROL port.BAUD RATE4800bps ⇔ 9600bps ⇔ 19200bps ⇔ 38400bpsPARITYNONE ⇔ ODD ⇔ EVENThe BAUD RATE is fixed to 19200bps and PARITY is fixed NONE when the COMMUNICATION TYPE is set to OFF (above).
		TRANSMISSION METHODSelect the transmission method for communication by the NETWORK BRIDGE from theCONTROL port.HALF-DUPLEX ⇔ FULL-DUPLEXHALF-DUPLEX: This method lets the projector make two way communication, but only one direction, either transmitting or receiving data, is allowed at a time.FULL-DUPLEX: This method lets the projector make two way communication, transmitting and receiving data at the same time.HALF-DUPLEX is selected as the default setting.If you select HALF-DUPLEX, check the setting of the item RESPONSE LIMIT TIME (63).

(continued on next page)

Item Description
SERVICE(continued)	COMMUNICATION(continued)	RESPONSE LIMIT TIMESelect the time period to wait for receiving response data from other device communicating by the NETWORK BRIDGE and the HALF-DUPLEX through theCONTROL port.OFF ⇔ 1s ⇔ 2s ⇔ 3sOFF: Select this mode if it is not required to check the responses from the device that the projector sends data to. In this mode, the projector can send out data from the computer continuously.1s /2s /3s: Select the time period to keep the projector waiting for response from the device that the projector sends data to. While waiting the response, the projector does not send out any data from theCONTROL port.This menu is available only when the NETWORK BRIDGE is selected for the COMMUNICATION TYPE and the HALF-DUPLEX is selected for the TRANSMISSION METHOD (62).OFF is selected as the default setting.
	CLONING	The settings of the projector can be copied via USB memory.SAVE: Saves each settings of the projector to USB memory.LOAD:Loads each settings of the projector from USB memory. Message will be displayed after loading, and power will turn off after five min. or by pressing ► button. (A message is displayed for a few seconds if loading fails.)

(continued on next page)

Item Description
SERVICE(continued)	CLONING(continued)	The following items are exempted.OPTION: LAMP TIME, FILTER TIME,SERVICE(GHOST)NETWORK: WIRELESS AND WIRED SETUP(IP ADDRESS, SUBNET MASK,DEFAULT GATEWAY, DATE ANDTIME), MY IMAGE, PRESENTATIONSECURITY: MY TEXT DISPLAYOperation is not available if SECURITY_CLONNING LOCK is turned ON.The Screen_MyScreen can only be loaded.CLONING load function on STANDBY MODEWhile the projector is in STANDBY MODE, pushthe INPUT button of control panel together with ▶button, and then press ▲ button to start operatingthe CLONING load function.During loading process, the three indicators ofcontrol panel (POWER (orange), TEMP, LAMP)will remain on.After the loading process, the three indicators(POWER (orange), TEMP, LAMP) will turn off.If the loading fails, the three indicators (POWER(orange), TEMP, LAMP) will blink at the sametime.CLONING is invalid with the following conditions.- CLONING LOCK is turned ON.With this condition, the three indicators (POWER(orange), TEMP, LAMP) will blink at approximatelythree seconds intervals.- If the STANDBY MODE is set to SAVING.- If there is no USB memory inserted into USBTYPE A port.Please operate one of the following after loading.- Press INPUT button and◀ button of the controlpanel at the same time.- Wait at least five min. after loading.- Restart the projector after re-plugging the ACCable.

(continued on next page)

Item Description
SERVICE(continued)	CLONING(continued)	Load MyScreen dataPlease save the image data as "pj_logo.bmp" or "pj_logo.gif" into USB memory.Please note that the only compatible formats are as follows.-File formatWindows BMP bit/pixel: 2/4/8/15/16/24/32bitCompression format :Without compression/RLEGIF-Image size: more than 36x36, less than 1280x800If two kinds of file format are saved, "pj_logo.bmp" will be registered into MyScreen data.If MyScreen LOCK is turned ON, the data of MyScreen cannot be loaded.Setting the dataOperating the SAVE function under CLONING will name the file as "pj_data.bin" into the USB memory. Please do not attempt to change the file name or the folder structure.If a file with the same name already exists, it will be overwritten by operating the SAVE function.Loading functionPlease note that saved data from other model cannot be loaded.Please note that, you cannot load the saved data if the settings of MyScreen PASSWORD, PIN LOCK, TRANSITION DETECTOR and MY TEXT PASSWORD under SECURITY menu is turned ON.

(continued on next page)

Item Description
SERVICE(continued)	INFORMATIONSelecting this item displays a dialog titled “INPUT_INFORMATION”.It shows the information about the current input. The “FRAME LOCK” message on the dialog means the frame lock function is working.This item can't be selected for no signal and sync out.When the MY TEXT DISPLAY is set to ON, the MY TEXT is displayed together with the input information in the INPUT_INFORMATION box (83).
	FACTORY RESETSelecting OK using the ▶ button performs this function. By this function, all the items in all of menus will collectively return to the initial setting. Note that the items LAMP TIME, FILTER TIME, LANGUAGE, FILTER MESSAGE, NETWORK and SECURITY settings are not reset.CANCEL ⇒ OKBe sure to set ALTITUDE after resetting all the settings (59).

NETWORK menu

Remember that incorrect network settings on this projector may cause trouble on the network. Be sure to consult with your network administrator before connecting to an existing access point on your network. Select “NETWORK” from the main menu to access the following functions.

Select an item using the ▲/▼ cursor buttons on the

projector or remote control, and press the ▶ cursor button on the projector or remote control, or ENTER button on the remote control to execute the item. Then perform it according to the following table. See the Network Guide for details of NETWORK operation.

ADVANCED MENU PICTURE IMAGE INPUT SETUP AUDIO SCREEN OPTION NETWORK SECURITY EASY MENU EXIT WIRELESS SETUP WIRELESS INFORMATION WIRED SETUP WIRED INFORMATION PROJECTOR NAME MY IMAGE AMX.D.D. OFF PRESENTATION SERVICE COMPUTER IN 1 1024 x 768 @60Hz

NOTE • To use the wireless network function of this projector, the designated USB wireless adapter that is sold as an option is required. Do not use any extension cable or device when connecting the adapter to the projector.

• The projector does not allow both wireless and wired LAN to be connected to the same network.
• Do not set the same network address for both wireless and wired LAN.
• If you are not utilizing SNTP (Date/Time Settings in the Network Guide), then you must set the DATE AND TIME during the initial installation.
• The network communication control is disabled while the projector is in standby mode if the STANDBY MODE item of SETUP menu is set to SAVING. Please connect the network communication to the projector after setting the STANDBY MODE to NORMAL (48).

Item Description
WIRELESS SETUP	Selecting this item displays the WIRELESS SETUP menu for the wireless LAN.Use the ▲/▼ buttons to select an item,and the ▶ or ENTER button on the remote control to perform the item.
	MODE	Use the ▲/▼ buttons to select the mode of the network communication system. Select according to the settings of your computer.AD HOC⇔ INFRASTRUCTURETo save the setting, press the ▶ button.When ADHOC is selected, IEEE802.11 n cannot be used.If ADHOC is set to MODE while one of WPA-PSK or WPA2-PSK is selected in ENCRYPTION, the ENCRYPTION (69) setting switches to OFF automatically.

(continued on next page)

Item Description
WIRELESS SETUP (continued)	DHCP (Dynamic Host Configuration Protocol)	Use the ▲/▼ buttons to turn DHCP on/off.ON ⇔ OFFSelect OFF when the network does not have DHCP enabled. To save the setting, press the ► button.When the “DHCP” setting changes to “ON”, it takes a little time to obtain IP address from DHCP server.Auto IP function will be assigned an IP address if the projector could not obtain an IP address from server even if DHCP is “ON”
	IP ADDRESS	Use the ▲/▼/◄/► buttons to enter the IP ADDRESS.This function can only be used when DHCP is set to OFF.The IP ADDRESS is the number that identifies this projector on the network. You cannot have two devices with the same IP ADDRESS on the same network.The IP ADDRESS “0.0.0.0” is prohibited.
	SUBNET MASK	Use the ▲/▼/◄/► buttons to enter the same SUBNET MASK used by your computer.This function can only be used when DHCP is set to OFF.The SUBNET MASK “0.0.0.0” is prohibited.
	DEFAULT GATEWAY	Use the ▲/▼/◄/► buttons to enter the DEFAULT GATEWAY (a node on a computer network that serves as an access point to another network) address.This function can only be used when DHCP is set to OFF.
	DNS SERVER	Use the ▲/▼/◄/► buttons to input the DNS server address.The DNS server is a system to control domain names and IP addresses on the Network.
	TIME DIFFERENCE	Use the ▲/▼ buttons to enter the TIME DIFFERENCE.Set the same TIME DIFFERENCE as the one set on your computer. If unsure, consult your IT manager.Use the ► button to return to the menu after setting the TIME DIFFERENCE.When this item is set, the same item in the WIRED SETUP menu is overwritten with the same setting (73).

(continued on next page)

Item Description
WIRELESS SETUP (continued)	DATE AND TIME	Use the ▲/▼/◄/► buttons to enter the Year (last two digits), Month, Date, Hour and Minute.When this item is set, the same item in the WIRED SETUP menu is overwritten with the same setting (73).The projector will override this setting and retrieve DATE AND TIME information from the Time server when SNTP is enabled. (Date/Time Settings in the Network Guide)This setting will be reset if the projector is turned off while STANDBY MODE in the SETUP menu is set to SAVING (48), or when the AC power is turned off.
	CH	Use the ▲/▼ buttons to select the channel of the wireless LAN to be used while MODE (67) is set to ADHOC. Select according to the settings of your computer.The channels 1 to 11 are available. To save the setting, press the ► button.The available channels would be various depending on a country. In addition, wireless network card might be required due to the standard.This item can only be selected when MODE is set to ADHOC. When MODE is set to INFRASTRUCTURE, the channel is automatically selected.
	ENCRYPTION	Use the ▲/▼ buttons to select the encryption method to be used.WPA2-PSK(AES) ⇔ WPA2-PSK(TKIP)OFF WPA-PSK(AES)WEP 64bit ⇔ WEP 128bit ⇔ WPA-PSK(TKIP)To save the setting, press the ► button.When MODE (67) is set to ADHOC, either WPA-PSK and WPA2-PSK cannot be selected.If IEEE802.11 n is used while MODE is set to INFRASTRUCTURE, TKIP and WEP are disabled.If OFF or AES is not selected, communication will switch automatically to IEEE802.11 b/g.

(continued on next page)

Item Description
WIRELESS SETUP(continued)	SSID	Use the ▲/▼buttons to select the SSID to display the SSID menu.#1 DEFAULT ⇔ #2 DEFAULT ⇔ #3 DEFAULT↑→ #5 CUSTOM ⇔ #4 DEFAULT←Select one of the DEFAULT (#1~#4) and press ▶or ENTER button.To adjust CUSTOMPress the ▶ or ENTER button when the # 5 CUSTOM is selected. The SSID #5 CUSTOM menu will be appeared.(1) The current SSID will be displayed on the first line. If not yet written, the line will be blank. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◀ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and press the ENTER or INPUT button, 1 character or all characters will be erased. The SSID can be input up to 32 characters.(2) To change an already inserted character, press the ▲/▼ button to move the cursor to one of the first 2 lines, and use the◄/► buttons to move the cursor on the character to be changed. After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (1) above.(3) To finish entering text, move the cursor to the OK on screen and press the ►, ENTER or INPUT button. To revert to the previous name without saving changes, move the cursor to the CANCEL on screen and press the◄, ENTER or INPUT button.

(continued on next page)

Item Description

WIRELESS INFORMATION

"Selecting this item displays the WIRELESS_INFORMATION dialog for viewing the wireless LAN settings." Use the ▲/▼ buttons to switch the page.The first page shows the wireless LAN settings. The second and subsequent pages display the signal information of wireless LAN connection devices. For details of PASSCODE, refer to the manual for "LiveViewer".Nothing (blank) is shown in the PROJECTOR NAME (74) and SSID (70) field until you setup those items. Only the first 16 characters of the PROJECTOR NAME.IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY indicate "0.0.0.0" in the following condition.(1) The USB wireless adapter is not inserted into the projector.(2) DHCP is ON and the projector does not get address from DHCP server.Nothing (blank) is shown in the CH and SPEED fields if the USB wireless adapter is not inserted.The actual performance and setting will be shown in the CH field, instead of the setting value in the WIRELESS SETUP menu.An icon is displayed to the left of the SSID of the device connected to the projector.

(continued on next page)

Item Description
WIRED SETUP	Selecting this item displays the WIRED SETUP menu for the wired LAN.Use the ▲/▼ buttons to select an item, and the ▶ or ENTER button on the remote control to perform the item.
	DHCP (Dynamic Host Configuration Protocol)	Use the ▲/▼ buttons to turn DHCP on/off.ON ⇔ OFFSelect OFF when the network does not have DHCP enabled. To save the setting, press the ▶ button.When the “DHCP” setting changes to “ON”, it takes a little time to obtain IP address from DHCP server.Auto IP function will be assigned an IP address if the projector could not obtain an IP address from server even if DHCP is “ON”.
	IP ADDRESS	Use the ▲/▼/◄/► buttons to enter the IP ADDRESS.This function can only be used when DHCP is set to OFF.The IP ADDRESS is the number that identifies this projector on the network. You cannot have two devices with the same IP ADDRESS on the same network.The IP ADDRESS “0.0.0.0” is prohibited.
	SUBNET MASK	Use the ▲/▼/◄/► buttons to enter the same SUBNET MASK used by your computer.This function can only be used when DHCP is set to OFF.The SUBNET MASK “0.0.0.0” is prohibited.
	DEFAULT GATEWAY	Use the ▲/▼/◄/► buttons to enter the DEFAULT GATEWAY (a node on a computer network that serves as an access point to another network) address.This function can only be used when DHCP is set to OFF.
	DNS SERVER	Use the ▲/▼/◄/► buttons to input the DNS server address.The DNS server is a system to control domain names and IP addresses on the Network.

(continued on next page)

Item Description
WIRED SETUP (continued)	TIME DIFFERENCE	Use the ▲/▼ buttons to enter the TIME DIFFERENCE.Set the same TIME DIFFERENCE as the one set on your computer. If unsure, consult your IT manager.Use the ▶ button to return to the menu after setting the TIME DIFFERENCE.When this item is set, the same item in the WIRELESS SETUP menu is overwritten with the same setting (68).
	DATE AND TIME	Use the ▲/▼/◄/► buttons to enter the Year (last two digits), Month, Date, Hour and Minute.When this item is set, the same item in the WIRELESS SETUP menu is overwritten with the same setting (69).The projector will override this setting and retrieve DATE AND TIME information from the Time server when SNTP is enabled. (Date/Time Settings in the Network Guide)This setting will be reset if the projector is turned off while STANDBY MODE in the SETUP menu is set to SAVING (48), or when the AC power is turned off.
WIRED INFORMATION	Selecting this item displays the WIRED INFORMATION dialog for viewing the wired LAN settings.For details of PASSCODE, refer to the manual for “LiveViewer”.Only the first 16 characters of the PROJECTOR NAME are displayed.IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY indicate “0.0.0.0” when DHCP is ON and the projector has not gotten address from DHCP server.

(continued on next page)

Item Description
PROJECTOR NAME	(1) Use the ▲/▼ buttons on the NETWORK menu to select the PROJECTOR NAME and press the ▶ button. The PROJECTOR NAME dialog will be displayed.
	(2) The current PROJECTOR NAME will be displayed on the first 3 lines. Particular projector name is pre-assigned by default. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters.To erase 1 character at one time, press the RESET button or press the ◀ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and push the ENTER or INPUT button, 1 character or all characters will be erased.The PROJECTOR NAME can be input up to 64 characters.
	(3) To change an already inserted character, press the ▲/▼ button to move the cursor to one of the first 3 lines, and use the ◀/► buttons to move the cursor on the character to be changed. After pressing the ENTER or INPUT button, the character is selected.Then, follow the same procedure as described at the item (2) above.
	(4) To finish entering text, move the cursor to the OK on screen and press the ►, ENTER or INPUT button. To revert to the previous PROJECTOR NAME without saving changes, move the cursor to the CANCEL on screen and press the ◀, ENTER or INPUT button.

(continued on next page)

Item Description
MY IMAGE	Selecting this item displays the MY IMAGE menu.Use the application to transfer the image data. It can be downloaded from the Hitachi web site.Use the ▲/▼ buttons to select an item which is a still image by the MY IMAGE (My Image Function in the Network Guide) and the ▶ or ENTER button to display the image.The item without image stored cannot be selected.The image names are each displayed in 16 characters or less.To switch the image displayedUse the ▲/▼ buttons.To return to the menuPress the ◀ button on the remote control.To erase the image displayed and its source file in the projector.(1) Press the RESET button on the remote control while displaying an image to display the MY IMAGE DELETE menu.(2) Press the ▶ button to perform to erase.To stop erasing, press the ◀ button.
AMX D.D.(AMX Device Discovery)	Use the ▲/▼ buttons to turn the AMX Device Discovery on/off.ON ⇔ OFFWhen ON is selected, the projector can be detected by controllers of AMX connected to the same network. For the details of AMX Device Discovery, visit the AMX web site.URL: http://www.amx.com/ (as of Dec. 2011)

(continued on next page)

Item Description
PRESENTATION	Selecting this item displays the PRESENTATION menu.Use ▲/▼ buttons to select one of the following items, then press ▶or ENTER button to use the function.To use Network Presentation, an exclusive application, "LiveViewer" is required. It can be installed from the bundled application CD.You can also download the latest version and relevant information from the Hitachi website (http://www.hitachi-america.us/digitalmedia or http://www.hitachidigitalmedia.com).For details of Network Presentation and instructions to install the "LiveViewer", refer to the manual for "LiveViewer".
	QUIT PRESENTER MODE	If you set a computer to the Presenter mode while its image is projected, the projector is occupied by the computer and access from any other computer is blocked.Use this function to quit the Presenter mode and allow other computers to access the projector.Select this item to display a dialog.Press ▶ button to choose OK in the dialog.The Presenter mode is cancelled and a message is displayed indicating the result.To make Presenter mode setting, use "LiveViewer". For details, refer to the manual for "LiveViewer".
	MULTI PC MODE	If you set one or more computers to the Multi PC mode on "LiveViewer" and send their images to the projector, you can select the display mode on the projector from two options below.- Single PC mode: displays the image of the selected computer on full screen.- Multi PC mode: displays the images sent from up to four computers on screen that is divided into quarter sections.Select this item to display a dialog.Use the dialog to change the display mode as explained below.To change from Multi PC mode to Single PC mode, select one of computers in the dialog using the ▲/▼/◄/► buttons and press the ENTER or INPUT button.Press the ► button to choose OK, and then press ENTER or INPUT again. The image for the selected computer is displayed on full screen.(continued on next page)

(continued on next page)

Item Description
PRESENTATION(continued)	MULTI PC MODE(continued)	• To change from Single PC mode to Multi PC mode, press ▶ button to choose OK in the dialog and press the ENTER or INPUT button.The display mode is changed.• For details on how to switch the display mode to Multi PC mode on your computer, refer to the manual for “LiveViewer”.• The Presenter mode setting of the selected computer becomes valid when the display mode is changed to Single PC mode.Also, the Presenter mode setting becomes invalid when the display mode is changed to Multi PC mode, regardless the setting on the computers.For details, refer to the manual for “LiveViewer”.
	DISPLAY USER NAME	Selecting this item displays the user name. This function helps you identify from which computer the current image is sent.• You can set user names for each computer on “LiveViewer”. For details, refer to the manual for “LiveViewer”.
SERVICE	Executing this item restarts and initializes the network functions.Choose the NETWORK RESTART EXECUTE using the button ▶.Then use the button ▶ to execute.Network will be once cut off when choose restart.If DHCP is selected on, IP address may be changed.After selecting NETWORK RESTART EXECUTE, NETWORK menu may not be controlled approx. 30 seconds.

SECURITY menu

This projector is equipped with security functions. From the SECURITY menu, items shown in the table below can be performed.

To use SECURITY menu: User registration is required before using the security functions.

ADVANCED MENU PICTURE IMAGE INPUT SETUP AUDIO SCREEN OPTION NETWORK SECURITY EASY MENU EXIT ENTER PASSWORD COMPUTER IN 1024 x 768 @6GHz

Enter to the SECURITY menu

1. Press the ▶ button. The ENTER PASSWORD box will be displayed.
2. Use the ▲/▼/◄/► buttons to enter the registered password. The factory default password is as follows.

CP-X2015WN, CP-X2515WN, CP-X3015WN, CP-X4015WN: 3892 CP-WX2515WN, CP-WX3015WN: 2292

This password can be changed (below). Move the cursor to the right side of the ENTER PASSWORD box and press the ▶ button to display the SECURITY menu.

• It is strongly recommended the factory default password to be changed as soon as possible.

• If an incorrect password is input, the ENTER PASSWORD box will be displayed again. If incorrect password is input 3 times, the projector will turn off. Afterwards the projector will turn off every time an incorrect password is input.

• Items shown in the table below can be performed.

SECURITY ENTER PASSWORD CANCEL 0 0 0 0 OK SECURITY SECURITY PASSWORD CHANGE MyScreen PASSWORD OFF PIN LOCK OFF TRANSITION DETECTOR OFF MY TEXT PASSWORD OFF MY TEXT DISPLAY OFF MY TEXT WRITING CLONING LOCK OFF RETURN

If you have forgotten your password

SECURITY ENTER PASSWORD CANCEL 1 2 3 4 OK SECURITY Inquiring Code 01 2345 6789 OK

(1) While the ENTER PASSWORD box is displayed, press and hold the RESET button on the remote control for about 3 seconds or press and hold the INPUT button for 3 seconds while pressing the ▶ button on the projector.
(2) The 10 digit Inquiring Code will be displayed. Contact your dealer with the 10 digit Inquiring Code. Your password will be sent after your user registration information is confirmed.
- If there is no key input for about 55 seconds while the Inquiring Code is displayed, the menu will close. If necessary, repeat the process from (1).

Item Description
SECURITY PASSWORD CHANGE	(1) Use the ▲/▼ buttons on the SECURITY menu to select SECURITY PASSWORD CHANGE and press the ▶ button to display the ENTER NEW PASSWORD box.
	(2) Use the ▲/▼/◄/► buttons to enter the new password.
	(3) Move the cursor to the right side of the ENTER NEW PASSWORD box and press the ► button to display the NEW PASSWORD AGAIN box, enter the same password again.
	(4) Move the cursor to the right side of the NEW PASSWORD AGAIN box and press the ► button and the NOTE NEW PASSWORD box will be displayed for about 30 seconds, please make note of the password during this time.
	Pressing the ENTER button on the remote control or ► button on the projector will close the NOTE NEW PASSWORD box.
	• Please do not forget your password.
MyScreen PASSWORD	The MyScreen PASSWORD function can be used to prohibit access to the MyScreen function and prevent the currently registered MyScreen image from being overwritten.1 Turning on the MyScreen PASSWORD1-1 Use the ▲/▼ buttons on the SECURITY menu to select MyScreen PASSWORD and press the ▶ button to display the MyScreen PASSWORD on/off menu. 1-2 Use the ▲/▼ buttons on the MyScreen PASSWORD on/off menu to select ON.The ENTER NEW PASSWORD box (small) will be displayed. 1-3 Use the ▲/▼/◄/► buttons to enter the password. Move the cursor to the right side of the ENTER NEW PASSWORD box (small) and press the ► button to display the NEW PASSWORD AGAIN box, enter the same PASSWORD again. 1-4 Move the cursor to the right side of the NEW PASSWORD AGAIN box and press the ► button to display the NOTE NEW PASSWORD box for about 30 seconds, please make note of the password during this time.Pressing the ENTER button on the remote control or ► button on the projector will return to MyScreen PASSWORD on/off menu.When a password is set for MyScreen:· The MyScreen registration function (and menu) will be unavailable.· The MyScreen Lock menu will be unavailable.· The START UP setting will be locked on MyScreen (and the menu will be unavailable).Turning the MyScreen PASSWORD off will allow normal operation of these functions.· Please do not forget your MyScreen PASSWORD.2 Turning off the MyScreen PASSWORD2-1 Follow the procedure in 1-1 to display the MyScreen PASSWORD on/off menu.2-2 Select OFF to display the ENTER PASSWORD box (large). Enter the registered password and the screen will return to the MyScreen PASSWORD on/off menu.If an incorrect PASSWORD is input, the menu will close. If necessary, repeat the process from 2-1.3 If you have forgotten your password3-1 Follow the procedure in 1-1 to display the MyScreen PASSWORD on/off menu.3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit Inquiring Code will be displayed inside the box.3-3 Contact your dealer with the 10 digit Inquiring Code. Your password will be sent after your user registration information is confirmed.

MyScreen PASSWORD

(continued on next page)

Item Description

PIN LOCK

PIN LOCK is a function which prevents the projector from being used unless a registered Code is input.1 Turning on the PIN LOCK1-1 Use the ▲/▼ buttons on the SECURITY menu to select PIN LOCK and press the ▶ button or the ENTER button to display the PIN LOCK on/off menu.1-2 Use the ▲/▼ buttons on the PIN LOCK on/off menu to select ON and the Enter PIN Code box will be displayed.1-3 Input a 4 part PIN code using the ▲/▼/◄/►, COMPUTER or INPUT button.The PIN Code again box will appear. Reenter the same PIN code. This will complete the PIN code registration.If there is no key input for about 55 seconds while the Enter PIN Code box or the PIN Code again box is displayed, the menu will close. If necessary, repeat the process from 1-1.Afterwards, anytime the projector is restarted after AC power is turned off the Enter PIN Code box will be displayed. Enter the registered PIN code. The projector can be used after entering the registered PIN code. If an incorrect PIN code is input, the Enter PIN code box will be displayed again. If an incorrect PIN code is input 3 times, the projector will turn off. Afterwards the projector will turn off every time an incorrect PIN code is input. The projector will also turn off if there is no key input for about 5 minutes while the Enter PIN code box is displayed.This function will activate only when the projector is started after AC power is turned off.Please do not forget your PIN code.2 Turning off the PIN LOCK2-1 Follow the procedure in 1-1 to display the PIN LOCK on/off menu.2-2 Use the ▲/▼ buttons to select OFF and the Enter PIN Code box will be displayed.Enter the registered PIN code to turn the PIN LOCK function off. If an incorrect PIN code is input 3 times, the projector will turn off.3 If you have forgotten your PIN code3-1 While the Enter PIN code box is displayed, press and hold the RESET button for three seconds or press and hold the INPUT button for 3 seconds while pressing the ▶ button on the projector.The 10 digit Inquiring Code will be displayed.If there is no key input for about 5 minutes while the Inquiring Code is displayed, the projector will turn off.3-2 Contact your dealer with the 10 digit Inquiring Code. Your PIN code will be sent after your user registration information is confirmed.

(continued on next page)

Item Description

TRANSITION DETECTOR

If this function is set to ON and the vertical angle of the projector or the INSTALLATION setting is different from the previous recorded setting, the TRANSITION DETECTOR ON alarm will be displayed and the input signal will not be displayed.

> The projector has been transferred from previously installed position. If you wish to have a square image on screen again. disable Transition Detector on Menu.

• To display the signal again, set this function OFF.
• After about 5 minutes of displaying the TRANSITION DETECTOR ON alarm, the lamp will turn off.
• Keystone adjustment feature has been prohibited as long as the TRANSITION DETECTOR function is on.

1 Turning on the TRANSITION DETECTOR

1-1 Use the ▲/▼ buttons on the SECURITY menu to select TRANSITION DETECTOR and press the ▶ or the ENTER button to display the TRANSITION DETECTOR on/off menu.

1-2 Use the ▲/▼ buttons on the TRANSITION DETECTOR on/off menu to select ON. Selecting ON will save the setting of the current angle and the INSTALLATION setting. The ENTER NEW PASSWORD box (small) will be displayed.

TRANSITION DETECTOR ENTER NEW PASSWORD CANCEL 0 0 0 0 OK ENTER NEW PASSWORD box (small)

1-3 Use the ▲/▼/◄/► buttons to enter a password. Move the cursor to the right side of the ENTER NEW PASSWORD box (small) and press the ► button to display the NEW PASSWORD AGAIN box, enter the same password again.

1-4 Move the cursor to the right side of the NEW PASSWORD AGAIN box and press the ▶ button to display the NOTE NEW PASSWORD box for about 30 seconds, please make note of the password during

Pressing the ENTER button on the remote control or the ▶ button on the projector will return to the TRANSITION DETECTOR on/off menu.

• Please do not forget your TRANSITION DETECTOR password.
• This function will activate only when the projector is started after turning off the AC power.
• This feature may not function properly if the projector is not in a stable position when ON is selected.

2 Turning off the TRANSITION DETECTOR

2-1 Follow the procedure in 1-1 to display the TRANSITION DETECTOR on/off menu.

2-2 Select OFF to display the ENTER PASSWORD box (large). Enter the registered password and the screen will return to the TRANSITION DETECTOR on/off menu.

TRANSITION DETECTOR ENTER PASSWORD Inquiring Code 01 2345 6789 CANCEL 0 0 0 0 OK

If an incorrect password is input, the menu will close. If necessary, repeat the process from 2-1.

ENTER PASSWORD box (large)

3 If you have forgotten your password

3-1 Follow the procedure in 1-1 to display the TRANSITION DETECTOR on/off menu.
3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit Inquiring Code will be displayed inside the box.
3-3 Contact your dealer with the 10 digit Inquiring Code. Your password will be sent after your user registration information is confirmed.

Item Description

MY TEXT PASSWORD

The MY TEXT PASSWORD function can prevent the MY TEXT from being overwritten. When the password is set for the MY TEXT;• The MY TEXT DISPLAY menu will be unavailable, which can prohibit changing the DISPLAY setting.• The MY TEXT WRITING menu will be unavailable, which can prevent the MY TEXT from being overwritten.1 Turning on the MY TEXT PASSWORD1-1 Use the ▲/▼ buttons on the SECURITY menu to select the MY TEXT PASSWORD and press the ► button to display the MY TEXT PASSWORD on/off menu.1-2 Use the ▲/▼ buttons on the MY TEXT PASSWORD on/off menu to select ON. The ENTER NEW PASSWORD box (small) will be displayed.1-3 Use the ▲/▼/◄/► buttons to enter the password. Move the cursor to the right side of the ENTER NEW PASSWORD box (small) and press the ► button to display the NEW PASSWORD AGAIN box, and then enter the same password again.1-4 Move the cursor to the right side of the NEW PASSWORD AGAIN box and press ► button to display the NOTE NEW PASSWORD box for about 30 seconds, then please make note of the password during this time.Pressing the ENTER button on the remote control or ► button on the projector will return to the MY TEXT PASSWORD on/off menu.2 Turning off the MY TEXT PASSWORD2-1 Follow the procedure in 1-1 to display the MY TEXT PASSWORD on/off menu.2-2 Select OFF to display the ENTER PASSWORD box (large). Enter the registered password and the screen will return to the MY TEXT PASSWORD on/off menu.If an incorrect password is input, the menu will close. If necessary, repeat the process from 2-13 If you have forgotten your password3-1 Follow the procedure in 1-1 to display the MY TEXT PASSWORD on/off menu.3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit inquiring code will be displayed inside the box.3-3 Contact your dealer with the 10 digit inquiring code. Your password will be sent after your user registration information is confirmed.

(continued on next page)

Item Description
MY TEXT DISPLAY	(1) Use the ▲/▼ buttons on the SECURITY menu to select the MY TEXT DISPLAY and press the ▶ or ENTER button to display the MY TEXT DISPLAY on/off menu.
	(2) Use the ▲/▼ buttons on the MY TEXT DISPLAY on/off menu to select on or off.ON ⇔ OFFWhen it is set ON, the MY TEXT will be displayed on the START UP screen and the INPUT_INFORMATION when the INFORMATION on the SERVICE menu is chosen.This function is available only when the MY TEXT PASSWORD function is set to the OFF.
MY TEXT WRITING	(1) Use the ▲/▼ buttons on the SECURITY menu to select the MY TEXT WRITING and press the ▶ button. The MY TEXT WRITING dialog will be displayed.(2) The current MY TEXT will be displayed on the first 3 lines. If not yet written, the lines will be blank.Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◀ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and press the ENTER or INPUT button, 1 character or all characters will be erased. The MY TEXT can be input up to 24 characters on each line.(3) To change an already inserted character, press the ▲/▼ button to move the cursor to one of the first 3 lines, and use the ◀/► buttons to move the cursor on the character to be changed.After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (2) above.(4) To finish entering text, move the cursor to the OK on screen and press the ►, ENTER or INPUT button. To revert to the previous MY TEXT without saving changes, move the cursor to the CANCEL on screen and press the ◀, ENTER or INPUT button.The MY TEXT WRITING function is available only when the MY TEXT PASSWORD function is set to OFF.
CLONING LOCK	The CLONING operation under OPTION _SERVICE menu is not available if ON is selected.

Presentation tools

The projector has the following two convenient tools that enable on-screen presentations easily and quickly:

• PC-LESS Presentation (below)
• Drawing function

Drawing function enables you to draw on the projector's screen with USBmouse or tablets connected to the USB TYPE A ports. For details of Drawing function, refer to the Operating Guide - Drawing function.

- USB Display (100)

PC-LESS Presentation

The PC-LESS Presentation reads image and audio data from the storage media inserted into the USB TYPE A port and displays the image in the following modes. The PC-LESS Presentation can be started by selecting the USB TYPE A port as the input source.

This feature allows you to make your presentations without using your computer.

• Thumbnail mode (85)
• Full Screen mode (89)
• Slideshow mode (91)

[Supported storage media]

- USB memory (USB memory type, USB hard disk and USB card reader type)

NOTE • USB readers (adapters) that have more than one USB slot may not work (if the adapter is acknowledged as multiple devices connected).

• USB devices with security software may not work.
• Be careful when inserting or removing a USB device. (13, 87)

[Supported format]

• FAT12, FAT16 and FAT32

- NTFS is not supported. NOTE

PC-LESS Presentation (continued)

[Supported file format and its extension]

• JPEG (.jpeg, .jpg) * Progressive is not supported.
• Bitmap (.bmp) * 16bit mode and compressed bitmap is not supported.
• PNG (.png) * Interlace PNG is not supported.
  • GIF (.gif)
• Movie (.avi, .mov) * Supported video format: Motion-JPEG Supported audio format: WAV (Linear PCM, Stereo 16bit), IMA-ADPCM

NOTE • Files with a resolution larger than the following are not supported.

CP-X2015WN, CP-X2515WN, CP-X3015WN, CP-X4015WN:

1024 x 768 (Still), 768 x 576 (Movie)

CP-WX2515WN, CP-WX3015WN: 1280 x 800 (Still), 768 x 576 (Movie)

(* Some computers may not support 1280 x 800.)

• Files with a resolution smaller than 36 x 36 are not supported.
• Files with a resolution smaller than 100 x 100 may not be displayed.
• Movie images with a frame rate higher than 15 fps cannot be displayed.
• Movie images with a bit rate higher than 20 Mbps cannot be displayed.
• Some supported files may not be displayed.
• Only a frame appears when the content of image data cannot be displayed in the Thumbnail mode.
• Even with the file format and audio format combinations described above, playback of some files may fail.

Thumbnail mode

The Thumbnail mode displays the images stored in a USB storage device on the Thumbnail screen. Maximum 20 images are displayed in a screen.

If you wish, you can jump into the Full Screen mode or Slideshow mode, after you select some images in the Thumbnail mode.

The Thumbnail mode will be started as the primary function of the PC-LESS

Presentation after selecting the USB TYPE A port as the input source.

Selected image

Thumbnail images

USE TYPE A 001 / 003 page SORT SLIDESHOW Folder_1 Folder_2 000.jpg 001.jpg 002.jpg 003.jpg 004.jpg 005.jpg 006.jpg 007.jpg 008.jpg 009.jpg 010.jpg 011.jpg 012.jpg 013.jpg 014.jpg 015.jpg 016.jpg 017.jpg INPUT MENU REMOVE USB ENTER SET

Thumbnail menu

PC-LESS Presentation (continued)

Operating by buttons or keys

You can control the images on the Thumbnail screen with the remote control, control panel or Web Remote Control. The following functions can be supported while the Thumbnail is displayed.

Button operation			Functions
The remote control	Control panel	Web Remote Control
▲/▼/◄/► ▲/▼	/◄/► [▲]/[▼]/[◄]/[►] Move cursor
PAGE UP PAGE DOWN	-	[PAGE UP] [PAGE DOWN]	Switches pages
ENTER INPUT [ENTER]			• Displays the selected image on the Full Screen mode when a cursor is on a thumbnail image.• Displays the SETUP menu (below) for the selected image when a cursor is on a thumbnail image number.

The SETUP menu for the selected image

Item Functions
SETUP	Use the ◀/► cursor buttons to switch each setting or use the ► cursor button to execute the functions as follows.
RETURN P	Press the ► cursor button or ENTER to return to the Thumbnail screen.
START	Switch to ON to set the selected image as the first image in the Slideshow. This setting information will be saved in the “playlist.txt” file (93).
STOP	Switch to ON to set the selected image as the last image in the Slideshow. This setting information will be saved in the “playlist.txt” file (93).
SKIP	Switch to ON to skip the selected image in the Slideshow. This setting information will be saved in the “playlist.txt” file (93).
ROTATE	Press the ► cursor or ENTER button to rotate the selected still image 90 degrees clockwise. This setting information will be saved in the “playlist.txt” file (93).

PC-LESS Presentation (continued)

Operating by the menu on the Thumbnail screen

You can also control the images by using the menu on the Thumbnail screen.

Item Functions
		Moves to an upper folder.
SORT Allows you to		sort files and folders as following.
		RETURNPress the ▶ cursor button or ENTER to return to the Thumbnail screen.
		NAME UP Sortsin ascending order by file name.
		NAME DOWN Sorts in descending order by file name.
		DATE UP Sortsin ascending order by file date.
		DATE DOWN Sorts in descending order.by file date.
▲/▼ Go to previous / next page.
SLIDESHOW Configures and starts the Slideshow (91).
			RETURNPress the ▶ cursor button or ENTER to return to the Thumbnail screen.
			PLAY Press the ▶ cursor button or ENTER to start the Slideshow.
			START Sets the beginning number of the Slideshow.
			STOP Sets the end number of the Slideshow.
			INTERVALSets the interval time for displaying still images during the Slideshow.
			PLAY MODE Selects the Slideshow mode.
INPUT Switches the input port.
MENU		Displays the menu.
REMOVE USB		Be sure to use this function before removing USB storage device from the projector. After that, the projector will not recognize a USB storage device until you insert it again into the USB TYPE A input port.
		Turns the sound on/off for files that contain audio data.

PC-LESS Presentation (continued)

NOTE • These operations are not accessible while the projector OSD is displayed.

• The Thumbnail mode is able to display up to 20 files in one page.
• It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed.
• The image quality may deteriorate when playing back audio data included in a movie. If you want to give priority to the image quality, turn off the sound by setting ♪ to off.
• If one of the AUDIO IN ports is selected or ✗ is selected for USB TYPE A in AUDIO SOURCE of the AUDIO menu (49), ♪ cannot be operated.
• Some error icons will be displayed in the Thumbnail.

This file seems to be broken or not supported format.

A file that cannot be displayed on the thumbnail screen is indicated by a file format icon.

PC-LESS Presentation (continued)

Full Screen Mode

The Full Screen mode shows a full display image. To display in Full Screen mode, select an image in the Thumbnail screen. Then press the ENTER button on the remote control, the INPUT button on the control panel or click [ENTER] on the Web Remote Control.

Full screen display

Operations for still images

The following operations are enabled in the Full Screen mode while a still image is displayed.

Button operation			Functions
The remote control	Control panel	Web Remote Control
▼▶orPAGE DOWN	▼or▶	[▼][▶]or[PAGE DOWN]	Shows the next file.
▲◀orPAGE UP	▲or◀	[▲][◀]or[PAGE UP]	Shows the previous file.
ENTER INPUT [ENTER] Displays		Thumbnail.

PC-LESS Presentation (continued)

Operations for movie

A remote control icon and a progress bar are displayed when one of the cursor buttons, ENTER

button or INPUT button on the remote control, control

/II 00:01:01 / 00:03:00

panel or Web Remote Control is pressed or clicked while a movie is playing in the Full Screen mode. The following operations are enabled while the remote control icon and progress bar are displayed.

Button operation			Functions
The remote control	Control panel	Web Remote Control
▲ ▲ [▲]			(Play) / (Pause) toggle
▶ ▶ [▶]			(FF) Fast-forward
◀ ◀ [◀]			(REW) Fast-rewind
ENTER INPUT [ENTER] (Stop), Displays Thumbnail.
PAGE DOWN –	[	PAGE DOWN]	Shows the next file.
PAGE UP –	[ PAGE UP]		Shows the previous file.

NOTE • These operations are not accessible while the projector OSD is displayed.

- It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed.

PC-LESS Presentation (continued)

Slideshow mode

The Slideshow mode displays images in full screen and switches the images at intervals set in INTERVAL on the Thumbnail screen menu (87).

You can start this function from the Slideshow menu. To display the Slideshow menu, select the SLIDESHOW button in the Thumbnail mode and press the ENTER button on the remote control, INPUT button on the control panel, or click [ENTER] on the Web Remote Control.

While the Slideshow is displayed, the following button operations are enabled when still images are displayed, and the same button operations in the Full Screen mode are enabled when movies are displayed.

Button operation			Functions
The remote control	Control panel	Web Remote Control
ENTER INPUT [ENTER] Displays		thumbnail

NOTE • These operations are not accessible while the projector OSD is displayed.

- It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed.

- When the Slideshow mode is set to ONE TIME and the last file is a still image, the last slide of the presentation will remain displayed until the ENTER button on the remote control or Web Remote Control, or the INPUT button on the control panel is pressed.

PC-LESS Presentation (continued)

You can play the Slideshow at your desired configuration.

Configure the Slideshow items in the Thumbnail.

1) RETURN : Returns to the thumbnail mode.
2) PLAY : Play the Slideshow.
3) START : Set the beginning number of the Slideshow.
4) STOP : Set the end number of the Slideshow.
5) INTERVAL : Sets the interval time for displaying still images during the Slideshow. It is not recommend to set the interval time very short something like several seconds, because it may take more than several seconds to read and display an image file if it is stored in very deep layer directory or if so many files are stored in the same directory.
6) PLAY MODE : Select the Slideshow mode.

ONE TIME : Play the Slideshow one time.

ENDLESS : Play the Slideshow endless.

SLIDESHOW 3: SELECT RETURN EXECUTE PLAY EXECUTE START #1 STOP #10 INTERVAL 5s PLAY MODE ONE TIME

NOTE • The settings of the Slideshow are saved to the “playlist.txt” file that is stored in the storage media. If the file is not existed, it is generated automatically.

• The settings for the START, STOP, INTERVAL, and PLAY MODE are saved to the Playlist.
• If the storage media is under the write protection or the “playlist.txt” is the read only type file, it is impossible to change the settings of the Slideshow.

PC-LESS Presentation (continued)

Playlist

The Playlist is a DOS format text file, which decides the order of displayed still image files in the Thumbnail or Slideshow.

The playlist file name is "playlist.txt" and it can be edited on a computer.

It is created in the folder that contains the selected image files when the PC-LESS Presentation is started or the Slideshow is configured.

[Example of "playlist.txt" files]

START setting : STOP setting : INTERVAL setting : PLAY MODE setting :

img001.jpg: : : :

img002.jpg:600:::

img003.jpg:700:rot1::

img004.jpg: : :SKIP:

img005.jpg:1000:rot2:SKIP:

The "playlist.txt" file contains the following information.

Each piece of information requires to be separated by “:”, and “:” at the end of each line.

1st line: START, STOP, INTERVAL and PLAY MODE settings (☐92).

2nd line and after: file name, interval time, rotation setting and skip setting.

interval time: It can be set from 0 to 999900 (ms) with an increment of 100 (ms).

rotation setting: "rot1" means a rotation at 90 degrees clockwise; "rot2" and "rot3" increase another 90 degrees in order.

skip setting: "SKIP" means that the image will not be displayed in the Slideshow.

NOTE • The maximum length in a line on the "playlist.txt" file is 255 characters including linefeed. If any line exceeds the limit, the "playlist.txt" file becomes invalid.

- Up to 999 files can be registered to the Playlist. However, if some folders exist in the same directory the limit number is decreased by the number of folders.

Any files over the limit will not be shown in the Slideshow.

- If the storage device is protected or does not have sufficient space, the "playlist.txt" file cannot be created.

- For the Slideshow settings, refer to the section Slideshow mode (91).

Drawing Function

Main Functions

This function is an interactive tool for use with Hitachi projectors; it offers effective features for making classroom and business presentations more fun and easier to understand.

Drawing on projected images

You can draw pictures or text on images projected by our projectors.

NOTE • Authorization by the copyright owner(s) is required pursuant to applicable laws for the use of works including visual images, if such works are copyrighted works.

- This drawing function may not work depending on the image signal.

Saving and displaying drawn images

You can save images with pictures or text drawn on them to a USB memory device and then retrieve the saved images and display them again later.

NOTE • A USB memory device is necessary to use this function. In addition, if your projector only has one available USB TYPE A port, you will also need a USB hub.

• Copyright protected images cannot be saved.

Use as a simple mouse

The Hitachi Pen tablet (ex. TB-1)/ USB mouse with the drawing function can be used as a simple mouse of a computer connected to a projector.

NOTE • To use this function, a USB cable is required to connect the computer and the projector.

- Some Hitachi Pen tablets (ex. TB-1) and USB mouse devices may not operate properly.

Drawing Function (continued)

Connecting the Hitachi Pen tablet (ex. TB-1)/USB mouse and USB memory device.

Connect into the USB TYPE A port on your projector.

To save an image that has been drawn, a USB memory device must also be connected to a USB TYPE A port of the projector.

If the projector only has one USB TYPE A port, use a USB hub to connect both devices.

NOTE

- Some USB memory devices and/or USB hubs may not operate properly.

Connecting the Computer and Projector with a USB Cable

In order to use the Hitachi Pen tablet (ex. TB-1)/USB mouse in place of the computer's mouse, connect a USB TYPE B port of the projector with a USB port (Type A) of the computer with a USB cable.

Tablet Wireless adapter USB memory device USB TYPE A USB TYPE A USB TYPE B Projector

Fig.1 Example of connections

Drawing Function (continued)

Fig.2 Example of connections

Fig.3 Example of connections

Using the Drawing Function

Touching/clicking Hitachi Pen tablet (ex. TB-1)/USB mouse function key starts up the drawing mode. A tool bar like the figure below is displayed on the projector screen while in the drawing mode. Touching/clicking an icon on the tool bar enables the following functions. Touching anywhere on the tool bar except an icon and dragging moves the toolbar.

Toolbar with application icons including pencil, brain, pen, document, trash bin, gear, computer, mouse, and cross symbol

NOTE • Images may be copyrighted, in which case, permission from the copyright holder is necessary for use, in accordance with the copyright act and other applicable laws.

- The drawing function does not support drawing on images from the LAN port or the USB TYPE B port of the projector. If you operate the Hitachi Pen tablet (ex. TB-1)/USB mouse while these images are displayed, the input source may automatically switch to USB TYPE A port.

Pen1. Selects the pen function.

The cursor turns into a Pencil: dragging it draws a line of the specified pen color and size.

The cursor turns into a Laser Pointer ☐ Dragging it does not draw a line.

Pen color2.

Selects the Color of the line drawn by the Pencil.

Specifi es Black. Specifi es Red. Specifi es Blue.

Pen size3.

Selects the Thickness of the line drawn by the Pencil.

Specifi es 1-dot. Specifi es 3-dot. Specifi es 5-dot.

Eraser4.

Switches the pen function to that of an eraser and specifies its size. The cursor turns into an Eraser ☐; dragging it erases previously drawn lines.

Specifi es a 12-dot Eraser. Specifi es a 20-dot Eraser. Specifi es a 28-dot Eraser.

Using the Drawing Function (continued)

5. Erase

Projector 6. Operation

Screenshot of a software toolbar with icons for file operations, refresh, and display controls

Erases all the lines drawn with the pen.

Operates the projector.

Calls up and display the previous file in the USB memory device from that currently selected. This function is available when the projector is displaying a file from a USB memory device.

Calls up and display the next file in the USB memory device from that currently displayed. This function is available when the projector is displaying a file from a USB memory device.

Displays thumbnails of fi les recorded on a USB memory device. You can display an image onto the projector screen by touching its thumbnail.

Saves the image on the projector screen, along with any text or pictures drawn, onto a USB memory device connected to the projector.

Files are saved with the file name "Pxxx.bmp" (where xxx is a consecutive number) into a folder named "PJ_Capture". If it does not already exist, a "PJ_Capture" folder is created automatically.

Before removing a USB memory device with fi les saved to it • from the projector, be sure to run the projector's "REMOVE USB" function(87). The time stamp of saved files are as per the date and time settings of the projector. If you do not run the "REMOVE USB" function and remove the USB memory device, the time stamp may not be recorded correctly.

The tool bar is not saved.

Copyright protected images cannot be saved.

Drawing with this function is not saved to the projector's • "MyScreen".

Temporarily blanks out the display.

Touching anywhere in the tablet's operation area recovers the display.

It can be used in the same way as the projector's remote control.

(continued on next page)

Using the Drawing Function (continued)

Projector 6. Operation (Continued)

Screenshot of a software toolbar with icons for file operations, refresh, and navigation controls

Turns off the projector.

Touch/click the icon for three seconds or so.

If you turn the projector off while using the drawing function, • any unsaved drawings will be lost.

Toggles between display/hide the Pattern (grid lines).

Cycles through the display source signals.

It can be used in the same way as the • INPUT button on the projector's control panel. However, images cannot be selected from a LAN port or a USB TYPE B port.

Mouse 7. Operation

Screenshot of a software toolbar with icons for file operations, editing, and navigation controls

When the computer screen is displayed, this function operates the computer like a simple mouse or keyboard.

In order to use this function, connect a • USB TYPE B port of the projector with a USB port (Type A) of the computer via a USB cable.

Works like the Page Down button on a keyboard.

Works like the Page Up button on a keyboard.

Works like the left-click button on a mouse.

Works like the right-click button on a mouse.

Moves the mouse's cursor in the direction of the arrow.

Exit8.

Closes the tool bar and exits the drawing function.

When exiting the drawing mode, all unsaved drawings are lost.

Minimize9.

Minimizes the tool bar.

Touching the minimized tool bar icon displays the tool bar again.

USB Display(Windows computer)

The projector can display images transferred from a computer via an USB cable (12).

Hardware and software requirement for computer

• OS: One of the following. (32 bit version only)
  Windows ^® XP Home Edition /Professional Edition
  Windows Vista ^® Home Basic /Home Premium /Business /Ultimate /Enterprise
  Windows ^® 7 Starter /Home Basic /Home Premium /Professional /Ultimate /Enterprise
  • CPU: Pentium 4 (2.8 GHz or higher)
• Graphic card: 16 bit, XGA or higher
  • Memory: 512 MB or higher
• Hard disk space: 30 MB or higher
• USB Port
• USB cable : 1 piece

Starting USB Display

When you connect your computer to the USB TYPE B port on the projector using a USB cable, the projector will be recognized as a CD-ROM drive on your computer. Then, the software in the projector, "LiveViewerLiteUSB.exe", will run automatically and the application, "LiveViewer Lite for USB", will be ready on your computer for the USB Display. The application, "LiveViewer Lite for USB", will close automatically when the USB cable is unplugged. However, it may remain displayed at times.

NOTE • If the software does not start automatically (this is typically because CD-ROM autorun is disabled on your OS), follow the instructions below.

(1) Click on the [Start] button on the toolbar and select the "Run"
(2) Enter F:\LiveViewerLiteUSB.exe and then press the [OK]

If your CD-ROM drive is not drive F on your computer, you will need to replace F with the correct drive letter assigned to your CD-ROM drive.

• CD-ROM autorun is disabled while the screen saver is running.
• The image transmission from the computer is suspended while the password-protected screen saver is running. To resume the transmission, exit the screen saver.
• If "Waiting for connection." remains displayed while the USB cable is connected, remove the USB cable and reconnect after a while.
• Check our web site for the latest version of the software and its manual.

(User's Manual (concise))

Follow the instructions that can be obtained at the site for updating.

USB Display(Windows computer) (continued)

This application will appear in the Windows notification area once it starts. You can quit the application from your computer by selecting “Quit” on the menu.

3:00 PM

NOTE • The “LiveViewer” (refer to the Network Guide) and this application cannot be used at the same time. If you connect your computer to the projector by using a USB cable while the “LiveViewer” is running, the following

LiveViewer Lite for USB Cannot start LiveViewer Lite for USB while LiveViewer is running. OK

• Depending on the software installed on your computer, images on your computer cannot be transferred using “LiveViewer Lite for USB”.
• If any application software having the firewall function is installed into your computer, make the firwall function invalid with following the user's manual.
• Some security software may block image transmission. Please change the security software setting to allow the use of "LiveViewer Lite for USB".
• When the audio input from USB TYPE B is selected, if the sound level is still low even after raising the volume level in the projector to the maximum, check whether your computer outputs audio and raise the volume level accordingly.
• If the computer in use is equipped with HDMI port, the audio setting will be changed and sound interruption or noise may occur when the HDMI cable is connected or disconnected during USB Display. Restart USB Display for this case.
• Image distortion or sound interruption may occur when “LiveViewer” is connected to LAN (wireless or wired) during USB Display. The above decline in performance is noticeable especially when multiple computers are connected to “LiveViewer”.

Presentation tools

USB Display(Windows computer) (continued)

Right-Click menu

The menu shown in the right will be displayed when you right-click the application icon in the Windows notification area.

Display Quit 3:00 PM

Display : The Floating menu is displayed, and the icon disappears from the Windows notification area.

Quit : The application is closed, and the icon disappears from the Windows notification area.

NOTE • If you wish to restart the application, you need to unplug the USB cable and plug it again.

Floating menu

If you select "Display" on the Right-Click menu, the Floating menu shown in the right will appear on your computer screen.

LiveViewer Lite for USB ① ③④ ⑤ ②

① Start capture button

The transmission to the projector is started and the images will be displayed.

② Stop button

The image transmission is stopped.

③ Hold button

The image on the projector's screen is temporally frozen. The last image before the button is clicked is remained on the screen. You can revise the image data on your computer without showing it on the projector's screen.

④ Option button

The Options window is displayed.

⑤ Minimize button

The Floating menu is closed, and the icon reappears in the Windows notification area.

NOTE • If you click the Start capture button and/or Stop button repeatedly, images may not be displayed on the screen.

USB Display(Windows computer) (continued)

Options window

If you select the Option button on the Floating menu, the Options window is displayed.

Optimize Performance

The “LiveViewer Lite for USB” captures screenshots in JPEG data and sends them to the projector. The “LiveViewer Lite for USB” has two options that have different compression rate of JPEG data.

Options Settings About Optimize Performance Transmission speed Image quality Keep PC resolution Sound Display LiveViewerLite for USB Close

Transmission speed

Speed takes priority over Image quality.

It makes JPEG compression rate higher.

The screen on the projector is rewritten quicker because the transferred data is smaller, but the image quality is worse.

Image quality

Image quality takes priority over Speed.

It makes JPEG compression rate lower.

The screen on the projector is rewritten slower because the transferred data is larger, but the image quality is better.

Keep PC resolution

If you remove the check mark from the [Keep PC resolution] box, the screen resolution of your computer will be switched as follows, and the display speed may be faster.

CP-X2015WN, CP-X2515WN, CP-X3015WN, CP-X4015WN: 1024 x 768 (XGA)

CP-WX2515WN, CP-WX3015WN: 1280 x 800 (WXGA)

If your computer does not support the display resolution specified above, a smaller resolution that is the largest among the resolutions that are supported by the computer will be selected.

Sound

Turns the sound on/off. The image quality may deteriorate when you play back audio data transferred together with the image data. To give priority to the image quality, turn off the sound by selecting the checkbox.

Display LiveViewer Lite for USB

If you want to display the "LiveViewer Lite for USB" application window on the screen, please check the box.

About

The version information of the "LiveViewer Lite for USB".

NOTE • When the resolution is changed, the arrangement of icons on computer desktop screen may be changed.

- If one of the AUDIO IN ports is selected or ✗ is selected for USB TYPE B in AUDIO SOURCE of the AUDIO menu (49), audio sound operation in the Options window will be disabled.

USB Display(Mac computer)

The projector can display images transferred from a computer via an USB cable (12).

Hardware and software requirement for computer

• OS: Mac OSX 10.5(Intel)
Mac OSX 10.6(Intel)
Mac OSX 10.7(Intel)

This application is not compatible with Power PC.

• Graphic card: 16 bit, XGA or higher
• Memory: 512 MB or higher
- Hard disk space: 30 MB or higher

Starting USB Display

When you connect your computer to the USB TYPE B port on the projector using a USB cable, the projector will be recognized as a CD-ROM drive on your

computer. Double click the CD-ROM, then double click

"LiveViewerLiteForUSB_MacOS.app.".

The application, "LiveViewer Lite for USB", will close automatically when the USB cable is unplugged. However, it may remain displayed at times.

Row of five technology and data-related icons on a reflective surface (no text or symbols)

NOTE • The image transmission from the computer is suspended while the password-protected screen saver is running. To resume the transmission, exit the screen saver.

• If "Waiting for connection." remains displayed while the USB cable is connected, remove the USB cable and reconnect after a while.
• Check our web site for the latest version of the software and its manual.

(User's Manual (concise))

Follow the instructions that can be obtained at the site for updating.

(continued on next page)

USB Display(Mac computer) (continued)

NOTE • The "LiveViewer" (refer to the

Network Guide) and this application cannot be used at the same time. If you connect your computer to the projector by using a USB cable while the "LiveViewer" is running, the following message will be displayed.

LiveViewer Lite For USB Cannot start LiveViewer Lite for USB while LiveViewer is running.

• Depending on the software installed on your computer, images on your computer cannot be transferred using “LiveViewer Lite for USB”.
• If any application software having the firewall function is installed into your computer, make the firwall function invalid with following the user's manual.
• Some security software may block image transmission. Please change the security software setting to allow the use of "LiveViewer Lite for USB".
• When the audio input from USB TYPE B is selected, if the sound level is still low even after raising the volume level in the projector to the maximum, check whether your computer outputs audio and raise the volume level accordingly.
• If the computer in use is equipped with HDMI port, the audio setting will be changed and sound interruption or noise may occur when the HDMI cable is connected or disconnected during USB Display. Restart USB Display for this case.
• Image distortion or sound interruption may occur when “LiveViewer” is connected to LAN (wireless or wired) during USB Display. The above decline in performance is noticeable especially when multiple computers are connected to “LiveViewer”.

USB Display(Mac computer) (continued)

Menu

If you select "Display" on the Right-Click menu, the Floating menu shown in the right will appear on your computer screen.

① Start capture button

The transmission to the projector is started and the images will be displayed.

② Stop button

The image transmission is stopped.

③ Hold button

The image on the projector's screen is temporally frozen. The last image before the button is clicked is remained on the screen. You can revise the image data on your computer without showing it on the projector's screen.

④ Option button

The Options window is displayed.

⑤ Minimize button

The Floating menu is closed, and the icon reappears in the Windows notification area.

⑥ Exit button

The Floating menu is closed.

NOTE • If you click the Start capture button and/or Stop button repeatedly, images may not be displayed on the screen.

USB Display(Mac computer) (continued)

Options window

If you select the Option button on the Floating menu, the Options window is displayed.

Optimize Performance

The “LiveViewer Lite for USB” captures screenshots in JPEG data and sends them to the projector. The “LiveViewer Lite for USB” has two options that have different compression rate of JPEG data.

Settings About Optimize Performance Transmission speed Image Quality Keep PC Resolution Sound OK Cancel

Transmission speed

Speed takes priority over Image quality.

It makes JPEG compression rate higher.

The screen on the projector is rewritten quicker because the transferred data is smaller, but the image quality is worse.

Image quality

Image quality takes priority over Speed.

It makes JPEG compression rate lower.

The screen on the projector is rewritten slower because the transferred data is larger, but the image quality is better.

Keep PC resolution

If you remove the check mark from the [Keep PC resolution] box, the screen resolution of your computer will be switched as follows, and the display speed may be faster.

CP-X2015WN, CP-X2515WN, CP-X3015WN, CP-X4015WN: 1024 x 768 (XGA)

CP-WX2515WN, CP-WX3015WN: 1280 x 800 (WXGA)

If your computer does not support the display resolution specified above, a smaller resolution that is the largest among the resolutions that are supported by the computer will be selected.

Sound

Turns the sound on/off. The image quality may deteriorate when you play back audio data transferred together with the image data. To give priority to the image quality, turn off the sound by selecting the checkbox.

About

The version information of the "LiveViewer Lite for USB".

NOTE • When the resolution is changed, the arrangement of icons on computer desktop screen may be changed.

- If one of the AUDIO IN ports is selected or ✗ is selected for USB TYPE B in AUDIO SOURCE of the AUDIO menu (49), audio sound operation in the Options window will be disabled.

Maintenance

Replacing the lamp

A lamp has finite product life. Using the lamp for long periods of time could cause the pictures darker or the color tone poor. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them.

Preparation of a new lamp and early replacement are recommended. To prepare a new lamp, make contact with your dealer and tell the lamp type number.

Type number : DT01371

Replacing the lamp

1. Turn the projector off, and unplug the power cord. Allow the projector to cool for at least 45 minutes.
2. Prepare a new lamp. If the projector is mounted on a ceiling, or if the lamp has broken, also ask the dealer to replace the lamp.

In case of replacement by yourself, follow the following procedure.

1. Loosen the screw (marked by arrow) of the lamp cover and then slide and lift the lamp cover to the side to remove it.

2. Loosen the 3 screws (marked by arrow) of the lamp, and slowly pick up the lamp by the handles. Never loosen any other screws.

3. Insert the new lamp, and retighten firmly the 3 screws of the lamp that are loosened in the previous process to lock it in place.

4. While putting the interlocking parts of the lamp cover and the projector together, slide the lamp cover back in place. Then firmly fasten the screw of the lamp cover.

5. Turn the projector on and reset the lamp time using the LAMP TIME item in the OPTION menu.

(1) Press the MENU button to display a menu.
(2) Point at the ADVANCED MENU in the menu using the ▼/▲ button, then press the ▶ button.
(3) Point at the OPTION in the left column of the menu using the ▼/▲button, then press the ▶ button.

(4) Point at the LAMP TIME using the ▼/▲ button, then press the ▶ button. A dialog will appear.

(5) Press the ▶ button to select "OK" on the dialog. It performs resetting the lamp time.

lamp cover 3

Handles

Diagram of a mechanical device with internal components and directional arrow (no text or symbols)

⚠ CAUTION ▶ Do not touch any inner space of the projector, while the lamp is taken out.

NOTE • Please reset the lamp time only when you have replaced the lamp, for a suitable indication about the lamp.

Replacing the lamp (continued)

Lamp warning

HIGH VOLTAGE

HIGH TEMPERATURE

HIGH PRESSURE

⚠ WARNING ▶ The projector uses a high-pressure mercury glass lamp. The lamp can break with a loud bang, or burn out, if jolted or scratched, handled while hot, or worn over time. Note that each lamp has a different lifetime, and some may burst or burn out soon after you start using them. In addition, if the bulb bursts, it is possible for shards of glass to fly into the lamp housing, and for gas containing mercury and dust containing fine particles of glass to escape from the projector's vent holes.
▶ About disposal of a lamp: This product contains a mercury lamp; do not put it in a trash. Dispose of it in accordance with environmental laws.

- For lamp recycling, go to www.lamprecycle.org (in the US).

- For product disposal, consult your local government agency or www.eiae.org (in the US) or www.epsc.ca (in Canada).

For more information, call your dealer.

Disconnect the plug from the power outlet

• If the lamp should break (it will make a loud bang when it does), unplug the power cord from the outlet, and make sure to request a replacement lamp from your local dealer. Note that shards of glass could damage the projector's internals, or cause injury during handling, so please do not try to clean the projector or replace the lamp yourself.
• If the lamp should break (it will make a loud bang when it does), ventilate the room well, and make sure not to inhale the gas or fine particles that come out from the projector's vent holes, and not to get them into your eyes or mouth.
• Before replacing the lamp, turn the projector off and unplug the power cord, then wait at least 45 minutes for the lamp to cool sufficiently. Handling the lamp while hot can cause burns, as well as damaging the lamp.

- Never unscrew except the appointed (marked by an arrow) screws.

- Do not open the lamp cover while the projector is suspended from a ceiling. This is dangerous, since if the lamp's bulb has broken, the shards will fall out when the cover is opened. In addition, working in high places is dangerous, so ask your local dealer to have the lamp replaced even if the bulb is not broken.

- Do not use the projector with the lamp cover removed. At the lamp replacing, make sure that the screws are screwed in firmly. Loose screws could result in damage or injury.

- Use only the lamp of the specified type. Use of a lamp that does not meet the lamp specifications for this model could cause a fire, damage or shorten the life of this product.

- If the lamp breaks soon after the first time it is used, it is possible that there are electrical problems elsewhere besides the lamp. If this happens, consult your local dealer or a service representative.

- Handle with care: jolting or scratching could cause the lamp bulb to burst during use.

- Using the lamp for long periods of time, could cause it dark, not to light up or to burst. When the pictures appear dark, or when the color tone is poor, please replace the lamp as soon as possible. Do not use old (used) lamps; this is a cause of breakage.

Cleaning and replacing the air filter

The air filter unit of this projector consists of a filter cover, two kinds of filters, and a filter frame. The new double large filters system is expected to function longer. However, please check and clean it periodically to keep ventilation needed for normal operation of the projector.

When the indicators or a message prompts you to clean the air filter, comply with it as soon as possible. Replace the filters when they are damaged or too soiled. To prepare new filters, make contact with your dealer and tell the following type number.

Type number : MU06481 (Filter set)

When you replace the lamp, please replace the air filter. An air filter of specified type will come together with a replacement lamp for this projector.

1. Turn the projector off, and unplug the power cord. Allow the projector to sufficiently cool down.
2. Use a vacuum cleaner on and around the filter cover.
3. While supporting the projector with one hand, use your other hand to pull the filter cover forward in the direction of the arrow.
4. Use a vacuum cleaner for the filter vent of the projector and the outer side of the filter unit.
5. Take the filters out while holding the filter cover.
6. Use a vacuum cleaner on both sides of the filters. When vacuuming up the fine meshed filter, hold it so it will not be sucked in. If the filters are damaged or heavily soiled, replace them with the new ones.
7. Put the filters back into the filter cover. Put the coarse meshed filter into a filter cover first. Then put the fine meshed filter on the coarse meshed one, turning its stitched side up.
8. Put the filter unit back into the projector.

Filter cover 2 3 Filter unit 4 Filter cover 7 Filter (coarse meshed) Filter (fine meshed) Stitched side

Cleaning and replacing the air filter (continued)

9. Turn the projector on and reset the filter time using the FILTER TIME item in the EASY MENU.

(1) Press the MENU button to display a menu.
(2) Point at the FILTER TIME using the ▼/▲ button, then press the ▶ button. A dialog will appear.
(3) Press the ▶ button to select "OK" on the dialog. It performs resetting the filter time.

⚠ WARNING ▶ Before taking care of the air filter, make sure the power cable is not plugged in, then allow the projector to cool sufficiently. Taking care of the air filter in a high temperature state of the projector could cause an electric shock, a burn or malfunction to the projector.

▶ Use only the air filter of the specified type. Do not use the projector without the air filter or the filter cover. It could result in a fire or malfunction to the projector.
▶ Clean the air filter periodically. If the air filter becomes clogged by dust or the like, internal temperatures rise and could cause a fire, a burn or malfunction to the projector.

NOTE • Please replace the air filter when it is damaged or heavily soiled.

• When you replace the projection lamp, please replace the air filter. An air filter of specified type will come together with a replacement lamp for this projector.
• Please reset the filter time only when you have cleaned or replaced the air filter, for a suitable indication about the air filter.
• The projector may display the message such as “CHECK THE AIR FLOW” or turn off the projector, to prevent the internal heat level rising.

Other care

Inside of the projector

In order to ensure the safe use of your projector, please have it cleaned and inspected by your dealer about once every year.

Caring for the lens

If the lens is flawed, soiled or fogged, it could cause deterioration of display quality. Please take care of the lens, being cautious of handling.

1. Turn the projector off, and unplug the power cord. Allow the projector to cool sufficiently.
2. After making sure that the projector is cool adequately, lightly wipe the lens with a commercially available lens-cleaning wipe. Do not touch the lens directly with your hand.

Caring for the cabinet and remote control

Incorrect care could have adverse influence such as discoloration, peeling paint, etc.

1. Turn the projector off, and unplug the power cord. Allow the projector to cool sufficiently.
2. After making sure that the projector is cool adequately, lightly wipe with gauze or a soft cloth.
   If the projector is extremely dirty, dip soft cloth in water or a neutral cleaner diluted in water, and wipe lightly after wringing well. Then, wipe lightly with a soft, dry cloth.

⚠ WARNING ▶ Before caring, make sure the power cord is not plugged in, and then allow the projector to cool sufficiently. The care in a high temperature state of the projector could cause a burn and/or malfunction to the projector.

▶ Never try to care for the inside of the projector personally. Doing is so dangerous.
▶ Avoid wetting the projector or inserting liquids in the projector. It could result in a fire, an electric shock, and/or malfunction to the projector.
- Do not put anything containing water, cleaners or chemicals near the projector.
- Do not use aerosols or sprays.

⚠️ CAUTION ▶ Please take right care of the projector according to the following. Incorrect care could cause not only an injury but adverse influence such as discoloration, peeling paint, etc.

▶ Do not use cleaners or chemicals other than those specified in this manual.
▶ Do not polish or wipe with hard objects.

NOTICE ▶ Do not directly touch the lens surface with hands.

Troubleshooting

If an abnormal operation should occur, stop using the projector immediately.

⚠ WARNING ▶ Never use the projector if abnormal operations such as smoke, strange odor, excessive sound, damaged casing or elements or cables, penetration of liquids or foreign matter, etc. should occur. In such cases, immediately disconnect the power plug from the power outlet. After making sure that the smoke or odor has stopped, contact to your dealer or service company.

Otherwise if a problem occurs with the projector, the following checks and measures are recommended before requesting repair.

If this does not resolve the problem, please contact your dealer or service company. They will tell you what warranty condition is applied.

Related messages

When some message appears, check and cope with it according to the following table. Although these messages will be automatically disappeared around several minutes, it will be reappeared every time the power is turned on.

Message Description
COMPUTER IN 1NO INPUT IS DETECTED	There is no input signal.Please confirm the signal input connection, and the status of the signal source.
Waiting for connection	Projector is waiting for an image file.Check the hardware connection, settings on the projector and network-related settings.The computer-Projector network connection might be disconnected. Please re-connect them.
Waiting for connectionP [BY55] _WIRELESS :0000-0000-0000P _WIRED :0000-0000-0000P [YGSW] NAME :Projector_Name
[kD57] COMPUTER IN 1 SYNC IS OUT OF RANGE 123kHz 123Hz	The horizontal or vertical frequency of the input signal is not within the specified range.Please confirm the specs for your projector or the signal source specs.
[k5Y8] COMPUTER IN 1INVALID SCAN FREO.	An improper signal is input.Please confirm the specs for your projector or the signal source specs.

(continued on next page)

Related messages (continued)

Message Description
	The internal temperature is rising.Please turn the power off, and allow the projector to cool down at least 20 minutes. After having confirmed the following items, please turn the power ON again.Is there blockage of the air passage aperture?Is the air filter dirty?Does the peripheral temperature exceed 35°C?If the projector is used at an altitude of about 1600 m (5250 feet) or higher, set ALTITUDE of the SERVICE item in the OPTION menu to HIGH (59).If the projector is used with a wrong setting, it may cause damage to the projector itself or the parts inside.
	A note of precaution when cleaning the air filter.Please immediately turn the power off, and clean or change the air filter referring to the Cleaning and replacing the air filter section of this manual. After you have cleaned or changed the air filter, please be sure to reset the filter timer (57, 110).
	The button operation is not available.

Regarding the indicator lamps

When operation of the LAMP, TEMP and POWER indicators differs from usual, check and cope with it according to the following table.

POWER indicator	LAMP indicator	TEMP indicator	Description
Lighting In Orange	Turned off	Turned off	The projector is in a standby state. Please refer to the section “Power on/off”.
Blinking In Green	Turned off	Turned off	The projector is warming up. Please wait.
Lighting In Green	Turned off	Turned off	The projector is in an on state. Ordinary operations may be performed.
Blinking In Orange	Turned off	Turned off	The projector is cooling down. Please wait.
Blinking In Red	(discretionary)	(discretionary)	The projector is cooling down. A certain error has been detected. Please wait until POWER indicator finishes blinking, and then perform the proper measure using the item descriptions below.
Blinking In Red or Lighting In Red	Lighting In Red	Turned off	The lamp does not light, and there is a possibility that interior portion has become heated. Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation of the following items, and then turn the power on again. • Is there blockage of the air passage aperture? • Is the air filter dirty? • Does the peripheral temperature exceed 35°C? If the same indication is displayed after the remedy, please change the lamp referring to the section Replacing the lamp.
Blinking In Red or Lighting In Red	Blinking In Red	Turned off	The lamp cover has not been properly fixed. Please turn the power off, and allow the projector to cool down at least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp cover. After performing any needed maintenance, turn the power on again. If the same indication is displayed after the remedy, please contact your dealer or service company.
Blinking In Red or Lighting In Red	Turned off	Blinking In Red	The cooling fan is not operating.Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation that no foreign matter has become caught in the fan, etc., and then turn the power on again.If the same indication is displayed after the remedy, please contact your dealer or service company.
Blinking In Red or Lighting In Red	Turned off	Lighting In Red	There is a possibility that the interior portion has become heated.Please turn the power off, and allow the projector to cool down at least 20 minutes. After the projector has sufficiently cooled down, please make confirmation of the following items, and then turn the power on again.Is there blockage of the air passage aperture?Is the air filter dirty?Does the peripheral temperature exceed 35°C?If the projector is used at an altitude of about 1600 m (5250 feet) or higher, set ALTITUDE of the SERVICE item in the OPTION menu to HIGH (59). If the projector is used with a wrong setting, it may cause damage to the projector itself or the parts inside.
Lighting In Green	Simultaneous blinking in Red		It is time to clean the air filter.Please immediately turn the power off, and clean or change the air filter referring to the section Cleaning and replacing the air filter. After cleaning or changing the air filter, please be sure to reset the filter timer. After the remedy, reset the power to ON.
Lighting In Green	Alternative blinking in Red		There is a possibility that the interior portion has become overcooled.Please use the unit within the usage temperature parameters (5°C to 35°C).After the treatment, reset the power to ON.
Blinking In Green for approx. 3 seconds.	Turned off	Turned off	At least 1 Power ON schedule is saved to the projector.Please refer to Schedule Settings in the Network Guide.
Lighting In Orange	Lighting In Red	Lighting In Red	Loading the saved data of CLONING on STANDBY MODE.
Blinking In Orange	Blinking In Red	Blinking In Red	Loading the saved data of CLONING has failed on STANDBY MODE.Please refer to CLONING (63 ~ 65).
Turned off	Turned off	Turned off	Loading the saved data of CLONING has succeeded on STANDBY MODE.

NOTE • When the interior portion has become overheated, for safety purposes, the projector is automatically shut down, and the indicator lamps may also be turned off. In such a case, disconnect the power cord, and wait at least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp cover, and then turn the power on again. If the projector is used at an altitude of about 1600 m (5250 feet) or higher, set ALTITUDE of the SERVICE item in the OPTION menu to HIGH(59). Otherwise, set it to NORMAL.

Resetting all settings

When it is hard to correct some wrong settings, the FACTORY RESET function of SERVICE item in OPTION menu (66) can reset all settings (except settings such as LANGUAGE, LAMP TIME, FILTER TIME, FILTER MESSAGE, SECURITY and NETWORK) to the factory default. Be sure to set ALTITUDE after resetting all the settings (59).

Phenomena that may be easy to be mistaken for machine defects

About the phenomenon confused with a machine defect, check and cope with it according to the following table.

Phenomenon C	Cases not involving a machine defect	Reference page
Power does not come on.	The electrical power cord is not plugged in.Correctly connect the power cord.	16
	The main power source has been interrupted during operation such as by a power outage (blackout), etc.Please disconnect the power plug from the power outlet, and allow the projector to cool down at least 10 minutes, then turn the power on again.	16
	Either there is no lamp and/or lamp cover, or either of these has not been properly fixed.Please turn the power off and disconnect the power plug from the power outlet, and allow the projector to cool down at least 45 minutes. After the projector has sufficiently cooled down, please make confirmation of the attachment state of the lamp and lamp cover, and then turn the power on again.	108
Neither sounds nor pictures are outputted.	The signal cables are not correctly connected.Correctly connect the connection cables.	12 ~ 15
	Signal source does not correctly work.Correctly set up the signal source device by referring to the manual of the source device.	-
	The input changeover settings are mismatched.Select the input signal, and correct the settings.	24, 25
	The BLANK function for pictures and the MUTE function for sounds are working.AV MUTE may be active.Refer to the item “Sound does not come out” and “No pictures are displayed” on the next page to turn off the MUTE and BLANK functions.	23, 31
Phenomenon Cases not involving a machine defect		Reference page
Sound does not come out.	The signal cables are not correctly connected.Correctly connect the audio cables.	12 ~ 15
	The MUTE function is working.Restore the sound pressing MUTE or VOLUME +/-button on the remote control.	23
	The volume is adjusted to an extremely low level.Adjust the volume to a higher level using the menu function or the remote control.	23, 49
	The AUDIO SOURCE/SPEAKER setting is not correct.Correctly set the AUDIO SOURCE/SPEAKER in AUDIO menu.	49
	The Sound button (J) or checkbox is disabled.If you have selected USB TYPE A, turn the sound on from the Thumbnail menu.If you have selected USB TYPE B, remove the check mark from the Sound checkbox in the Options window of “LiveViewer Lite for USB”.If you have selected LAN, remove the check mark from the Sound checkbox in the Option menu of “LiveViewer”.	87, 103, 107
No pictures are displayed.	The lens cover is attached.Remove the lens cover.	4
	The signal cables are not correctly connected.Correctly connect the connection cables.	12 ~ 15
	The brightness is adjusted to an extremely low level.Adjust BRIGHTNESS to a higher level using the menu function.	36
	The computer cannot detect the projector as a Plug-and-Play monitor.Make sure that the computer can detect a Plug-and-Play monitor using another Plug-and-Play monitor.	11
	The BLANK screen is displayed.Press BLANK button on the remote control.	31
	"Waiting for connection." remains displayed even though the USB TYPE B port is selected.Remove the USB cable and reconnect after a while.	12, 13
No pictures are displayed. (continued)	The projector does not recognize the USB storage device inserted into USB TYPE A port.Before removing the USB storage device, be sure to use the REMOVE USB function on the thumbnail screen, which appears when the USB TYPE A port is selected as the input source.	13, 87
Video screen display freezes.	The FREEZE function is working.Press FREEZE button to restore the screen to normal.	31
Colors have a faded-out appearance, or Color tone is poor.	Color settings are not correctly adjusted.Perform picture adjustments by changing the COLOR TEMP, COLOR, TINT and/or COLOR SPACE settings, using the menu functions.	37, 42
	COLOR SPACE setting is not suitable.Change the COLOR SPACE setting to AUTO, RGB, SMPTE240, REC709 or REC601.	42
Pictures appear dark.	The brightness and/or contrast are adjusted to an extremely low level.Adjust BRIGHTNESS and/or CONTRAST settings to a higher level using the menu function.	36
	The projector is operating in Eco mode.Set ECO MODE to NORMAL, and set AUTO ECO MODE to OFF, in the SETUP menu.	47
	The lamp is approaching the end of its product lifetime.Replace the lamp.	108, 109
Pictures appear blurry.	Either the focus and/or horizontal phase settings are not properly adjusted.Adjust the focus using the focus ring, and/or H PHASE using the menu function.	27, 41
	The lens is dirty or misty.Clean the lens referring to the section Caring for the lens.	112
Some kind of image degradation such as flickering or stripes appear on screen.	When the projector is operating in Eco mode, flickering may appear on screen.Set ECO MODE to NORMAL, and set AUTO ECO MODE to OFF, in the SETUP menu.	47
	The OVER SCAN ratio is too big.Adjust OVER SCAN in the IMAGE menu smaller.	40
	Excessive VIDEO NR.Change the setting of VIDEO NR in the INPUT menu.	42
	The FRAME LOCK function cannot work on the current input signal.Set FRAME LOCK in the INPUT menu to OFF.	44
The sound or image is unstable or is output intermittently.	When LAN, USB TYPE A or USB TYPE B port is selected, some ports of the output may be missing due to signal processing delay.Change the signal or use another port.	24, 49
The computer connected to the USB TYPE B port of the projector does not start up.	The computer cannot start up in the current hardware configuration.Disconnect the USB cable from the computer, then reconnect it after starting up the computer.	13
RS-232C does not work.	The SAVING function is working.Select NORMAL for STANDBY MODE item in the SETUP menu.	48
	The COMMUNICATION TYPE for the CONTROL port is set to NETWORK BRIDGE.Select OFF for COMMUNICATION TYPE item in the OPTION - SERVICE - COMMUNICATION menu.	62
NETWORK BRIDGE function does not work	The NETWORK BRIDGE function is turned off.Select NETWORK BRIDGE for COMMUNICATION TYPE item in the OPTION - SERVICE - COMMUNICATION menu.	62
Network does not work	The SAVING function is working.Select NORMAL for STANDBY MODE item in the SETUP menu.	48
	The same network address is set for both wireless and wired LAN.Change the network address setting for wireless or wired LAN.	67, 72
Schedule function does not work	The SAVING function is working.Select NORMAL for STANDBY MODE item in the SETUP menu.	48
	The internal clock has been reset.Once you turn off the projector in the SAVING mode or the AC power, the current date and time setting is reset.Check the DATE AND TIME setting for WIRELESS SETUP or WIRED SETUP in the NETWORK menu.	69, 73
When the projector is connected to wired LAN, it powers off and on as described below.Powers off←↓POWER indicatorblinks in orange a few times↓Goes intostandby mode	Disconnect the LAN cable and check that the projector is working properly.If this phenomenon occurs after connecting to the network, there may be a loop between two Ethernet switching hubs within the network, as explained below.- There are two or more Ethernet switching hubs in a network.- Two of the hubs are doubly connected by LAN cables.- This double connection forms a loop between the two hubs.Such a loop may have an adverse effect on the projector as well as the other network devices.Check the network connection and remove the loop by disconnecting the LAN cables such that there is only one connecting cable between two hubs.	-
Unable to save the CLONING data.	USB memory is out of memory.Please delete unnecessary files to free up memory.At least 1MB of memory is needed.USB memory is write-protected.Unlock the USB memory.	63 ~ 65
Unable to load the CLONING saved data.	Unable to find the saved data from USB memory.Execute SAVE then LOAD by going through the procedure.File name of USB memory doesn't match.Please assign "pj_data.bin" for setting data, and for MyScreen "pj_logo.bmp" or "pj_logo.gif".STANDBY mode is set to SAVING.Switch the SAVING to NORMAL in STANDBY MODE under SET UP menu beforehand to load the CLONING data using control panel on the projector while the lamp is in standby state.

NOTE • Although bright spots or dark spots may appear on the screen, this is a unique characteristic of liquid crystal displays, and it does not constitute or imply a machine defect.

Specifications

Please see the Specifications in the User's Manual (concise) which is a book.

End User License Agreement for the Projector Software

• Software in the projector consists of the plural number of independent software modules and there exist our copyright or/and third party copyrights for each of such software modules.
• Be sure to read "End User License Agreement for the Projector Software" which is separated document.
